PANASONIC DMC-LZ2PP, DMC-LZ2PL, DMC-LZ2EB, DMC-LZ2EG, DMC-LZ2EGM Service Manual

...

Download

DMC-LZ2PP DMC-LZ2PL DMC-LZ2EB DMC-LZ2EG DMC-LZ2EGM DMC-LZ2GC DMC-LZ2GD

ORDER NO. DSC0502001C0

B26

Digital Camera

DMC-LZ2GK DMC-LZ2GN DMC-LZ2GT DMC-LZ2SG

DMC-LZ1PP DMC-LZ1PL DMC-LZ1EB DMC-LZ1EG DMC-LZ1EGM DMC-LZ1GC DMC-LZ1GD DMC-LZ1GK DMC-LZ1GN DMC-LZ1GT

Vol. 1

Colour

DMC-LZ2

(S)...........Silver Type

(K)...........Black Type (PP,EB,EG,EGM and GC only)

DMC-LZ1

(S)...........Silver Type

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

CONTENTS

Page Page

1 INTRODUCTION 4

1.1. INTRODUCTION

1.2. ABOUT LEAD FREE SOLDER (PbF)

1.3. IMPORTANT NOTICE 1: (Other than U.S.A. and

Canadian Market)

1.4. HOW TO DEFINE THE MODEL SUFFIX (NTSC or PAL

model)

2 SAFETY PRECAUTIONS

2.1. GENERAL GUIDELINE S

2.2. LEAKAGE CURRENT COLD CHECK

2.3. LEAKAGE CURRENT HOT CHECK (See Figure 1.)

3 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD) TO

ELECTROSTATICALLY SENSITIVE (ES) DEVICES

4 HOW TO REPLACE THE LITHIUM BATTERY

4.1. REPLACEMENT PROCEDURE

5 OPERATING GUIDE

6 SERVICE NOTES

6.1. WHEN REPLACING THE MAIN C.B.A.

6.2. SERVICE POSITION

6.3. HOW TO DISCHARGE THE CAPACITOR ON FLASH

TOP C.B.A.

6.4. CLEANING LENS AND LCD PANEL

7 ADJUSTMENT PROCEDURES

7.1. SERVICE FIXTURE AND TOOLS

8 ERROR CODE MEMORY FUNCTION

9 CONFIRMATION OF FIRMWARE VERSION

10 DISASSEMBLY PROCEDURE

10.1. DISASSEMBLY FLOW CHART

10.2. C.B.A. LOCATION

10.3. DIASSEMBLY PROCEDURE

10.4. DISASSEMBLY PROCEDURE FOR THE LENS

10.5. ASSEMBLY PROCEDURE FOR THE LENS

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.6. REMOVAL OF THE CCD 31

10.7. THE APPLYMENT OF GREASE METHOD

11 SCHEMATIC DIAGRAMS

11.1. OVERALL BLOCK DIAGRAM

11.2. WIRING CONNECTION DIAGRAM

11.3. FLASH TOP SCHEMATIC DIAGRAM

11.4. CCD SCHEMATIC DIAGRAM

11.5. LENS FLEX SCHEMATIC DIAGRAM

12 CIRCUIT BOARD ASSEMBLIES

12.1. CCD C.B.A.

12.2. FLASH TOP C.B.A.

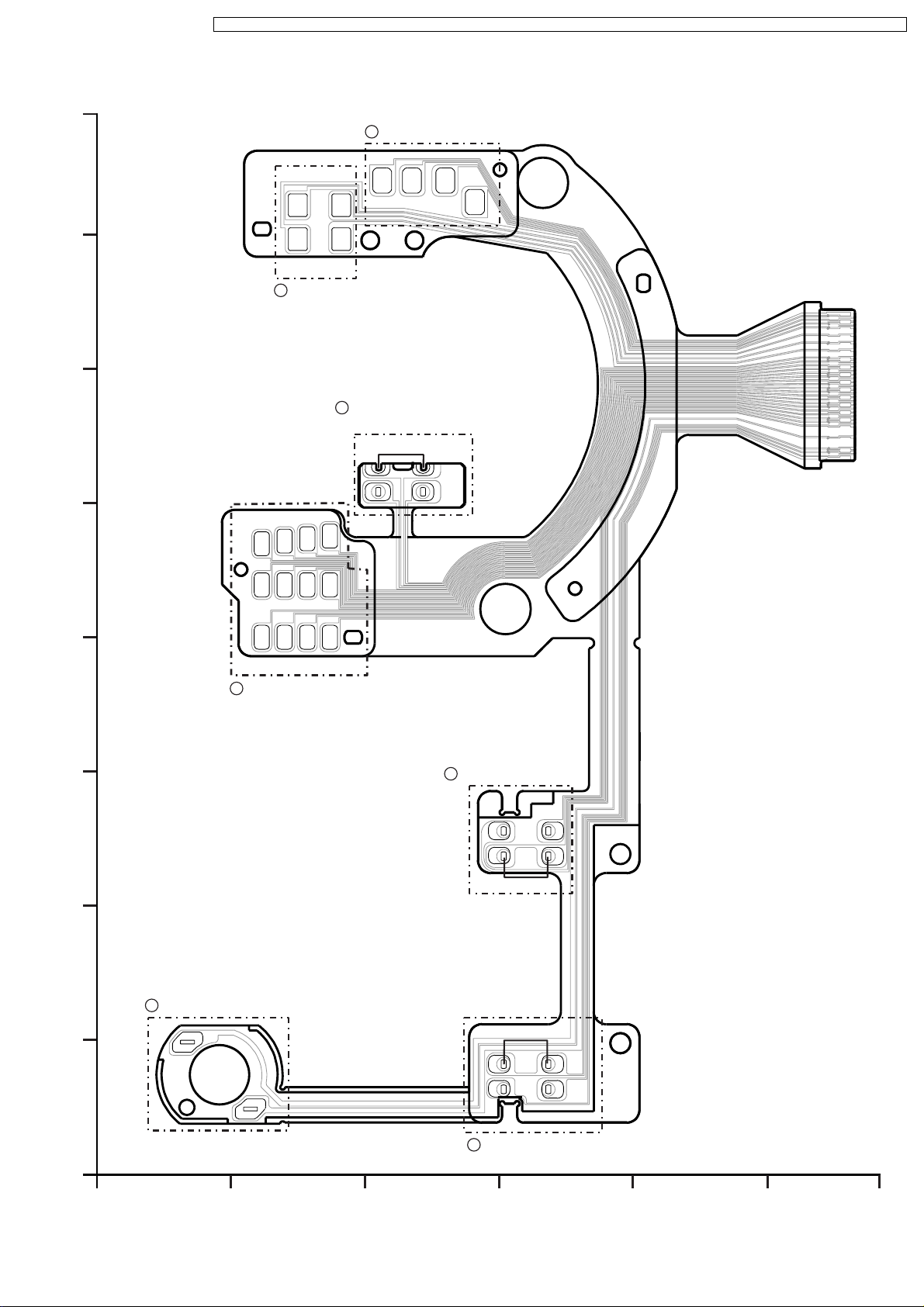

12.3. LENS FLEX C.B.A.

13 EXPLODED VIEWS

13.1. FRAME & CASING SECTION

13.2. PACKING PARTS & ACCESSORIES SECTION

14 REPLACEMENT PARTS LIST

14.1. MECHANICAL REPLACEMENT PARTS LIST

14.2. ELECTRICAL REPLACEMENT PARTS LIST

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

1 INTRODUCTION

1.1. INTRODUCTION

This service manual contains technical information, which allow service personnel’s to understand and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.

1.2. ABOUT LEAD FREE SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufacture d) using lead free solder will have a PbF stamp on the PCB.

Caution:

· Pb free solder has a higher melting point than standard solder, Typically the melting point is 50-70°F (30-40°C) higher.

Please use a high temperature soldering iron. In case of soldering iron with temperature control, please set it to 700±20°F (370±10°C)

· Pb free solder will tend to splash when heated too high (about 1100°F/600°C).

When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat the soldering points with the Pb free solder until it melts enough.

1.3. IMPORTANT NOTICE 1: (Other than U.S.A. and Canadian Market)

1. The service manua l does not contain the following information, because of the impossibility of servicing at component level.

a. Schematic diagram, Block Diagram and C.B.A. layout of Main C.B.A.

b. Parts list for individual parts of Main C.B.A.

When a part replacement is required for repairing Main C.B.A., replace as an assembled parts. (Main C.B.A.)

2. The following category is/are recycle module part. please send it/them to Central Repair Center.

· MAIN C.B.A. (DMC-LZ2: VEP56019B, DMC-LZ1: VEP56019A) : Excluding replacement of Lithium Battery

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

1.4. HOW TO DEFINE THE MODEL SUFFIX (NTSC or PAL model)

There are seven kinds of DMC-LZ2/LZ1, regardless the colours.

· DMC-LZ2S

· DMC-LZ2/LZ1PP

· DMC-LZ2/LZ1EB/EG/EGM/GN

· DMC-LZ2GC/SG, LZ1GC

· DMC-LZ2/LZ1GD

· DMC-LZ2/LZ1GT

· DMC-LZ2/LZ1PL/GK

(DMC-LZ2S is exclusively Japan domestic model.)

What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mount ed on Main C.B.A.

1.4.1. Defining methods:

To define the model suffix to be serviced, refer to the caution label which is putted on the bottom side of the Unit.

NOTE:

After replacing the MAIN C.B.A., be sure to achieve adjustment.

The adjustment instruction is available at “software download” on the “CS-Web from AVC” web-site in “TSN system”.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

1.4.2. INITIAL SETTINGS:

When you replace the Main C.B.A., be sure to perform the initial settings after achieving the Adjustment, by ordering the following procedure in accordance with model suffix.

· Step 1. The temporary cancellation of factory setting:

Set the mode dial to “ Normal Picture

While keep pressing Optical Image Stabilizer

· Step 2. The cancellation of factory setting:

Set the mode dial to “ Playback

While keep pressing Optical Image Stabilizer

· Step 3. Turn the Power on:

Set the mode dial to “ Normal Picture

· Step 4. Display the INITIAL SETTING:

While keep pressing MENU

and “ RIGHT of Cross key” simultaneously, turn the Power off.

(Red camera mark)”.

and “ UP of Cross key” simultaneously, turn the Power on.

”.

and “ UP of Cross key” simultaneously, turn the Power off.

(Red camera mark)”, and then turn the Power on.

· Step 5. Set the INITIAL SETTING:

Select the area with pressing “ UP

/ DOWN of Cross key”, and then press the “ RIGHT of Cross key”.

The only set area is displayed, and then press the " RIGHT of Cross key" after confirmation. (The unit is powered off automatically.)

Confirm the display of “PLEASE SET THE CLOCK” in English when the unit is turned on again. (For China and Taiwan market, the display shows “PLEASE SET THE CLOCK” in Chinese.)

· NOTE:

The display shows “SET THE CLOCK” when turn the Power on again.

Connect the unit to PC with USB cable and is detected as removable media.

1) As for your reference Default setting condition is given in the following table.

· Default setting (After “INITIAL SETTINGS”)

MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS a) DMC-LZ2S NTSC Japanese Year/Month/Date b) DMC-LZ2/1PP/PL NTSC English Month/Date/Year c) DMC-LZ2/1EB/E G/EGM/GC/GN/SG PAL English Date/Month/Year SG=DMC-FZ2 only d) DMC-LZ2/1GK PAL Chinese (simplified) Year/Month/Date e) DMC-LZ2/1GT NTSC Chinese (traditional) Year/Month/Date

f) DMC-LZ2/1GD NTSC English Year/Month/Date

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

2 SAFETY PRECAUTIONS

2.1. GENERAL GUIDELINES

1. IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by

in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

2. An Isolation Transformer should always be used during the servicing of AC Adaptor whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect AC Adaptor from being damaged by accidental shorting that may occur during servicing.

3. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

4. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

5. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

2.3. LEAKAGE CURRENT HOT CHECK (See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

2. Connect a 1.5 kΩ, 10 W resistor, in parallel with a 0.15 µF

capacitor, between each exposed metallic part on the set and a good earth ground, as shown in Figure 1.

3. Use an AC voltmeter, with 1 kΩ/V or more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measuremen ts.

6. The potential at any point should not exceed 0.75 V RMS.

A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 mA. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

2.2. LEAKAGE CURRENT COLD CHECK

1. Unplug the AC cord and connect a jumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between

the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be between 1 MΩ and 5.2 MΩ. When the exposed metal does not have a return path to the chassis, the reading must be infinity.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

3 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD)

TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an antistatic solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION :

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

4 HOW TO REPLACE THE LITHIUM BATTERY

4.1. REPLACEMENT PROCEDURE

1. Remove the MAIN C.B.A. (Refer to Disassembly Procedures.)

2. Remove the Lithium battery (Ref. No. “Z9101” at foil side of MAIN C.B.A.) and then replace it into new one.

NOTE:

This Lithium battery is a critical component. (Type No.: ML-614S/ZT Manufactured by Matsushita Battery Industrial Co.,Ltd.)

It must never be subjected to excessive heat or discharge.

It must therefore only be fitted in requirement designed specifically for its use.

Replacement batteries must be of same type and manufacture.

They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.

Do not attempt to re-charge the old battery or re-use it for any other purpose.

It should be disposed of in waste products destined for burial rather than incineration.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

NOTE:

Above caution are also applicable for below batteries which is for DMC-LZ2 and DMC-LZ1 all series, as well.

1. AA Oxyride batteries

2. AA Alkaline batteries

3. AA Rechargeable Ni-MH (nickel-metal hydride) batteries

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

5 OPERATING GUIDE

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

6 SERVICE NOTES

6.1. WHEN REPLACING THE MAIN C.B.A.

After replacing the MAIN C.B.A., be sure to achieve adjustment.

The adjustment instruction is available at “software download” on the “CS-Web from AVC” web-site in “TSN system”, together with Maintenance software.

6.2. SERVICE POSITION

This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.

No. Parts No. Connection Form

1 VFK1870 PP9002 (MAIN) - PS8001 (FLASH TOP) 30PIN B to B 2 VFK1576DC202 P9002 (MAIN) - LCD BACK LIGHT 2PIN CABLE 3 VFK1582A2125 FP9002 (MAIN) - CCD UNIT 21PIN 0.5 FFC 4 VFK1950 FP9003 (MAIN) - LCD UNIT 33PIN 0.3 FFC 5 VFK1951 FP9001 (MAIN) - LENS UNIT 39PIN 0.3 FFC

NOTE:

· W hen the Main C.B.A. is energized, be sure to connect the LCD back light connector (P9002) to the Main C.B.A..

If the Main C.B.A. is energized that the LCD back light connector (P9002) is opened, it may be caused to the case not only the power does not turn on but also transisitor (Q1070) is broken.

Table S1 Extension Cable List

CAUTION

1. Be sure to discharge the capacitor for flash, which is connected with FLASH TOP C.B.A. (Refer to “HOW TO DISCHARGE THE CHARGING CAPACITOR ON FLASH TOP C.B.A.”.)

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

6.3. HOW TO DISCHARGE THE CAPACITOR ON FLASH TOP C.B.A.

CAUTION:

1. Be sure to discharge the capacitor on FLASH TOP C.B.A..

2. Be careful of the high voltage circuit on FLASH TOP C.B.A. when servicing.

[Discharging Procedure]

1. Refer to the disassemble procedure and Remove the necessary parts/unit.

2. Put the insulation tube onto the lead part of Resistor (ERG5SJ102:1kΩ /5W).

(an equivalent type of resistor may be used.)

3. Put the resistor between both terminals of capacitor on FLASH TOP C.B.A. for approx. 5 seconds.

4. After discharging, confirm that the capacitor voltage is lower than 10V using a voltmeter.

6.4. CLEANING LENS AND LCD PANEL

Do not touch the surface of lens and LCD Panel with your hand.

When cleaning the lens, use air-Blower to blow off the dust.

When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface.

Note:

A lens cleaning paper and lens cleaner are available at local camera shops and market place.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

7 ADJUSTMENT PROCEDURES

Even if the MAIN C.B.A. is replaced as a unit, it must be achieved the adjustment and factory setting. The adjustment in this unit is separated two types as shown below.

The adjustment instruction is available at "Software download" on the CS-Web from AVC" web-site in "TSN System".

1. Main unit adjustment: All adjustments except for LCD adjustment.

This unit mounts the adjustment software for main unit, it wouldn’t need the connection between the PC and this unit with USB cable.

2. LCD adjustment: Adjustment for LCD.

It need the connection between the PC and this unit with USB cable.

The adjustm ent instruction is available at "Software download" on the CS-We b from AVC" web-site in "TSN System", together with maintenance software.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

7.1. SERVICE FIXTURE AND TOOLS

The following Service Fixture and tools are used for checking and servicing this unit.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

8 ERROR CODE MEMORY FUNCTION

1. General description

This unit is equipped with history of error code memory function, and can be memo rized 32 error codes in sequence from the latest. When the error is occurred more than 32, oldest error is overwritten in sequence.

The error code is not memorized when the power supply is shut down forcibly (when the unit is powered on by the battery, the battery is pulled out) because the error code is memorized to FLASH ROM when the unit is powered off.

2. How to display

The error code can be displayed by the following procedure:

Before perform the error code memory function, connect the AC adaptor or insert the battery.

Since this unit has built-in memory, this error code memory function can be performed without inserting SD card.

· 1. The temporary cancellation of factory setting:

Set the mode dial to “ Normal Picture

While keep pressing Optical Image Stabilizer

· 2. The display of error code:

Press Optical Image Stabilizer

The display is changed as shown below when the above buttons is pressed simultaneously.

Normal display → Error code display → Operation history display → Normal display → .....

, MENU and “ LEFT of Cross key” simultaneously with the step 1 condition.

(Red camera mark)”.

and “ UP of Cross key” simultaneously and hold them, turn the Power on.

Example of Error Code Display

· 3. The change of display:

The error code can be memorized 32 error codes in sequence, however it is displayed 5 errors on the LCD.

Display can be changed by the following procedure:

"UP

or DOWN of Cross key": It can be scroll up or down one.

" LEFT

· 4. How to read the error code:

One error code is displayed for 8 bit, the contents of error codes is indicated the table as shown below.

or RIGHT of Cross key": It can be display last 5 error or another 5 error.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

Attribute Main item Sub item Error code Contents (Upper)

High 4 bits Low 4 bits Check point (Lower)

LENS Lens drive OIS 1800 1000 PSD (X) error. Hall element (X axis) position detect error in OIS unit.

OIS Unit

2000 PSD (Y) error. Hall element (Y axis) position detect error in OIS unit.

OIS Unit

3000 GYRO (X) error. Gyro (IC7102: X axis) detect error on Main C.B.A..

IC7102 (Gyro element) or IC6001 (VENUS PLUS)

4000 GYRO (Y) error. Gyro (IC7101: Y axis) detect error on Main C.B.A..

IC7101 (Gyro element) or IC6001 (VENUS PLUS)

5000 MREF error (Reference voltage error).

IC7002 (LENS drive) or IC6001 (VENUS PLUS)

6000 Drive voltage (X) error.

VENUS PLUS AD value error, LENS Unit, LENS flex breaks etc.

7000 Drive voltage (Y) error.

VENUS PLUS AD value error, LENS Unit, LENS flex breaks etc.

C.B./Zoom 0100 HP Low detect error (C.B. encoder <full retract> always Low detect).

FP9001-(27) signal line or IC6001 (VENUS PLUS)

0200 HP High detect error (C.B. encoder <full retract> always High detect).

FP9001-(27) signal line or IC6001 (VENUS PLUS)

0300 ENC1 detect error (C.B. motor encoder detect error).

FP9001-(2) signal line or IC6001 (VENUS PLUS)

0400 ENC2 detect error (C.B. motor encoder detect error).

FP9001-(10) signal line or IC6001 (VENUS PLUS)

Zoom 0010 HP Low detect error (Zoom encoder always Low detect error).

FP9001-(2, 10) signal line or IC6001 (VENUS PLUS)

0020 HP High detect error (Zoom encoder always High detect error).

FP9001-(2, 10) signal line or IC6001 (VENUS PLUS)

0030 ENC1 detect error (Zoom encoder detect error).

FP9001-(2) signal line or IC6001 (VENUS PLUS)

0040 ENC2 detect error (Zoom encoder detect error).

FP9001-(10) signal line or IC6001 (VENUS PLUS)

Focus 0001 HP Low detect error (Focus encoder always Low detect error).

FP9001-(27) signal line or IC6001 (VENUS PLUS)

0002 HP High detect error (Focus encoder always High detect error).

FP9001-(27) signal line or IC6001 (VENUS PLUS)

Lens 1801 0000 Power ON time out error.

Lens drive system

1802 0000 Power OFF time out error.

Lens drive system

Adj.History OIS 1900 2000 OIS adj. Yaw direction amplitude error (small)

3000 OIS adj. Pit direction amplitude error (small) 4000 OIS adj. Yaw direction amplitude error (large) 5000 OIS adj. Pit direction amplitude error (large) 6000 OIS adj. MREF error 7000 OIS adj. time out error 8000 OIS adj. Yaw direction off set error 9000 OIS adj. Pit direction off set error A000 OIS adj. Yaw direction gain error B000 OIS adj. Pit direction gain error C000 OIS adj. Yaw direction position sensor error D000 OIS adj. Pit direction position sensor error E000 OIS adj. other error

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

Attribute Main item Sub item Error code Contents (Upper)

High 4 bits Low 4 bits Check point (Lower)

HARD VENUS A/D Flash 2000 0000 Flash charging error.

IC6001-(13) signal line or Flash charging circuit

FLASH ROM

(EEPROM

Area)

SYSTEM RTC 2C00 0001 SYSTEM IC initialize failure error

SOFT CPU Reset 3000 0001

Card Card 3100 0001 Card logic error

CPU,

ASIC hard

Memory Built-in

FLASH ROM

(EEPROM

Area)

Stop 3800 0001 Camera task finish process time out.

Monitor 1000 AF frame movement check time out.

memory

2B00 0001 EEPROM read error

IC6002 (FLASH ROM)

0002 EEPROM write error

IC6002 (FLASH ROM)

Communication between IC6001 (VENUS PLUS) and IC9101 (SYSTEM)

NMI reset

0007

0002 Card physical error

0003 Read error

0004 Write error

0005 Format error

0002 Camera task invalid code error.

0100 File time out error in recording motion image

0002 File data send error in recording motion image

3900 0005 Built-in memory format error

Non Mask-able Interrupt (30000001-30000007 are caused by factors)

SD card data line or IC6001 (VENUS PLUS)

Communication between Lens system and IC6001 (VENUS PLUS)

IC6001 (VENUS PLUS)

FLASH ROM data line or IC6001 (VENUS PLUS)

· 5. How to returned to Normal Display:

Turn the power off and on, to exit from Error code display mode.

NOTE:

The error code can not be initialized by the unit only.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

9 CONFIRMATION OF FIRMWARE VERSION

The Firmware version can be confirmed by ordering the following steps:.

· Step 1. The temporary cancellation of factory setting:

Set the mode dial to “ Normal Picture

While keep pressing Optical Image Stabilizer SD memory card which has a few photo data.

· Step 2. Confirm the version:

Set the mode dial to “ Playback

Press Optical Image Stabilizer

(The version information is displayed on the LCD with green colour letters.)

CAUTION:

The version information does not display if the LCD has switched to LCD with indication already.

In this case, press DISPLAY

to switch to LCD with indication.

(Red camera mark)”.

and “ UP of Cross key” simultaneously. turn the power on with inserting the

”.

and “ DOWN of Cross key” simultaneously. (No need to keep pressing.)

<Point>

· The firmware version and EEPROM version can be confirmed with the information (1).

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10 DISASSEMBLY PROCEDURE

10.1. DISASSEMBLY FLOW CHART

10.2. C.B.A. LOCATION

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.3. DIASSEMBLY PROCEDURE

No. Item Fig Removal

1 Rear Case Unit Fig. D1 Card

Battery 6 Screws <A> FP9003(Flex) P9002(Connector) 7 Locking tabs Rear Case Unit

Fig. D2 Removal of connector

2 LCD Unit Fig. D3 1 Screw <B>

LCD Holder LCD Unit

3 SD Cover Fig. D4 SD Earth Plate

SD Cover

4 Top Case Unit Fig. D5 2 Screws <C>

PP9002(Connector) Top Case Unit

5 Flash Top C.B.A. Fig. D6 3 Screws <D>

3 Locking tabs Flash Cover Flash Top C.B.A.

Fig. D7 NOTE: (When Installing)

6 Main C.B.A. Fig. D8 1 Screw <E>

FP9001(Flex) FP9002(Flex) Main C.B.A.

Fig. D9 Removal of connector

7 Battery Case Unit Fig. D10 2 Solders

Battery Case Unit

8 Lens Unit Fig. D11 3 Screws <F>

Lens Unit

10.3.1. Removal of the Rear Case Unit

Fig. D1

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.3.2. Removal of the LCD Unit

Fig. D2

Fig. D3

10.3.3. Removal of the SD Cover

Fig. D4

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.3.4. Removal of the Top Case Unit

10.3.5. Removal of the Flash Top C.B.A.

Fig. D5

Fig. D6

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

Fig. D7

10.3.6. Removal of the Main C.B.A.

Fig. D9

10.3.7. Removal of the Battery Case Unit

Fig. D8

Fig. D10

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.3.8. Removal of the Lens Unit

Fig. D11

10.4. DISASSEMBLY PROCEDURE FOR THE LENS

NOTE: When Disassembling and Assembling for the Lens

1. To prevent the lens from catching the dust and dirt, perform the following procedures with the CCD unit is installing.

2. Take care that the dust and dirt are not entered into the lens.

In case of the dust is put on the lens, blow off them by airbrush.

3. Do not touch the surface of lens.

4. Use lens cleaning KIT (BK) (VFK1900BK).

10.4.1. Removal of the Zoom Motor Unit and Master Flange Unit

1. Remove the solder (16 points).

2. Unscrew the 2 screws <A>.

3. Remove the Zoom Motor Unit from the lock <A> (2 points).

4. Unscrew the 3 screws <B>.

5. Remove the lens flex from the lock <B> (4 points).

6. Remove the master flange unit.

NOTE: (When Assembling)

Confirm the contents as shown below.

· Condition of the screw is tightened.

· Assembling condition of mechanism parts (distortion,

space etc.).

· Dust and dirt of the lens, display condition of the LCD

(gradient etc.).

· Dust and dirt of the LCD

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.4.2. Removal of the Cam Frame/3 rd Lens Frame Unit

1. Remove the rotary frame in the indicated by arrow.

2. Remove the 3 cam caps.

3. Move the pin of drive frame to the indicated by arrow 1, and

then turn the cam frame to the indicated by arrow 2.

10.4.3. Removal of the Direct Frame

1. Turn the drive frame to the indicated by arrow.

2. Remove the direct frame/1st lens frame/2nd lens frame unit from the drive frame to the indicated by arrow.

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

3. Push the 1st lens frame/2nd lens frame unit from lens front side, and then remove the 1st lens frame/2nd lens frame unit from direct frame.

10.5. ASSEMBLY PROCEDURE FOR THE LENS

10.5.1. Phase alignment of the Direct

Frame and Drive Frame Unit

10.5.2. Phase alignment of the

Direct/Drive Frame Unit and 1st Lens Frame/2nd Lens Frame Unit

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.5.3. Phase alignment of the 3 rd Lens Frame Unit and Cam Frame

10.5.4. Phase alignment of 1st Lens Frame/2nd Lens Frame, Direct/Drive Frame Unit and Cam Frame/3 rd Lens Frame Unit

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.5.5. Phase alignment of Rotary Frame and Lens Unit

10.5.6. Assembly for the Zoom Motor Unit and Master Flange Unit

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.6. REMOVAL OF THE CCD

To prevent unnecessary dust being entered, do not remove the CCD Unit except for servicing.

- Trox driver (T3): VFK1755

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

10.7. THE APPLYMENT OF GREASE METHOD

The grease apply point of lens unit are as follows.

Apply grease additionally in the specified position if necessary.

· lead screw, Nut

−

− Grease: VFK1850 (Furoyl type)

− −

−

− Amount of apply: 2 - 4 mg

− −

· Guide pole S and Guide pole L

−

− Grease: VFK1829

− −

−

− Amount of apply: 2 - 4 mg

− −

11 SCHEMATIC DIAGRAMS

IC3101 CCD

5 MEGA PIX [DMC-LZ2] 4 MEGA PIX [DMC-LZ1]

IC3004 PRE PROCESS

IC3002 V-DRIVE

FOCUSZOOM

CDS,AGC,A/D, TG

IC6003 SDRAM/128MB

SD CARD

IC5001 AUDIO ANALOG

MICROPHONE AMP

MICROPHONE

COLOR LCD PANEL

2.0" PANEL

(POWER SUPPLY)

DC IN/EXT. TERMINAL

BATTERY

REAR OPERATIONUNIT

IC2001 VIDEO OUT

SHUTTER

IC7002 MOTOR DRIVE, OIS DRIVE& PRE PROCESS

IC6001 VENUS PLUS

CAMERA PROCESS J-PEG COMP/EXPANDS MEDIA I/F USB I/F MAIN MICROPROCESSOR

FLASH

TOP OPERATION UNIT

X9101

IC1001 POWER

IRIS

(ND)

IC9101 SYSTEM IC

IC6002 FLASH ROM/ 128MB

OIS UNIT

OIS CONTROL LENS DRIVE LCD DRIVE

OVERALL BLOCK DIAGRAM

DMC-LZ2/DMC-LZ1 SERIES OVERALL BLOCK DIAGRAM

DMC-LZ2 only

DIGITAL/AV OUT [DMC-LZ2] DIGITAL/V. OUT [DMC-LZ1]

11.1. OVERALL BLOCK DIAGRAM

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

11.2. WIRING CONNECTION DIAGRAM

FLASH TOP C.B.A.

(COMPONENT SIDE)

295V

30ST TRG

1 UNREG

2 UNREG

27STB PWM OUT

28STB CHGLV

3 UNREG

4 UNREG

26SELF LED K

5 UNREG GND

PS8001

24A GND

25MIC IN

6 UNREG GND

7 UNREG GND

23STB SAFE

8 UNREG GND

21KEY IN3

22D2R8V

9 TELE

10 WIDE

20KEY IN2

11 D GND

19FRAME GND

12 OIS SW

18FRAME GND

13 SHUTTER 0

17FRAME GND

14 SHUTTER 1

15 POWER ON 16FRAME GND

CCD GND

SUB

BSUB

1817161514

FP9003

] OV6

[ V6

FP9002

]

OV7

OV8

[

V5A

V5B

121110

] OV4

[ V4

]

OV5

OV3

[

V6/V3B

V3/V3A 9

] OV2

[ V2

] OV1

[ V1

GUARD1

CCDOUT

5H17VL8

CCD GND

PP9002

MIC IN

A GND

SELF LED K

STB PWM OUT

UNREG

UNREG GND

UNREG GND 6

UNREG GND 7

STB SAFE

UNREG GND 8

D2R8V

KEY IN3

TELE

WIDE

KEY IN2

D GND

FRAME GND

OIS SW

FRAME GND

SHUTTER 12SHUTTER 0 14

FRAME GND 161718192021222324252627282930

POWER ON 15

ST TRG

STB CHG LV

UNREG

MAIN C.B.A. (FOIL SIDE)

: (COMPONENTSIDE)

CCD UNIT

LENS UNIT

33 VCOM

32 VSS

ZM1

Z1ABS

ZM1

Z1 LEDCNT

Z1 ENC VCC

123

567

31 TEST

30 POCB

ZM1

ZM2

29 BLON

28 CS

ZM2

25 VSYNC

27 DI

26 SCK

Z2ABS

Z2 LEDCNT

101314

Z2 ENC VCC 11

D04

CLK

D05

HSYNC

XDRV-

YDRV-

XDRV+

D02

D01

D03

FP9001

Y VH-

YDRV+

Y VO-

D00

171819

Y VH+

Y VO+

VSH

131415

VBC

16312

X VH-

X VO-

X VO+

2122232425

VDD

VGH

COMDC

X VH+

FENC VCC

FABS

F LEDCNT

C2-

VDC1

C2+

VGL

IRIS226IRIS1

IRIS2

C1-

COMOUT

C1+

45678

SHUT1

IRIS1

SHUT1

VSS

VVCOM

FAN

SHUT2

FAP

SHUT2

FBP

FBN

P9002

BL L

BL H

LCD UNIT

DMC-LZ2/DMC-LZ1 SERIES WIRING CONNECTION DIAGRAM

54321

87654321

18 16 15

VPT

[VSUB]

BSUB

[SUB C1]

VSUB

[VPT]

12PW11

Q3101 2SC4627J0L

(CCD AMP)

CCD GUARD

CCD OUT

CCD GND

IC3101

(CCD IMAGE SENSOR)

R3102

2200

R3101

H2 H1

V6 [OV6]

V3A [OV3]

V4 [OV4]

V3B [OV5]

V2 [OV2] V1 [OV1]

VDD

V5B

V5A

V3B

V3A

CCD GND

BSUB

V5B [OV8] V5A [OV7]

C3101

C3103

2.2

SUB

CCD GUARD

CCD SCHEMATIC DIAGRAM

POSITIVE VOL TAGE LINE

NEGA TIVE V OLTAGE LINE

TO MAIN (SENSOR) CIRCUIT (FP9002)

DMC-LZ2/DMC-LZ1 SERIES CCD SCHEMATIC DIAGRAM

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

11.3. FLASH TOP SCHEMATIC DIAGRAM

FLASH TOP SCHEMATIC DIAGRAM

TL8003

]

LAMP[+]

R8006

4 3 2 1

5 6 7

IC8001 C0ZBZ0001011

(ST TRG AMP)

CL8025

Q8001 B1JBLP000008

(LAMP DRIVE)

TL8001

CL8026

L8001

G5FYA0000004

TL8002 LAMP[

CL8017

CL8018

C8006

0.033

D8002

B0HCMP000006

C8003

300V100

CL8005

Q8002 B1DFGC000003

(STROBE DRIVE)

R8003

B0HCGR000004

C8004 1000P

B0HCGR000004

Q8009 B1DFCG000010

(STROBE DRIVE)

R8032

R8033

CL8009

R8013

15K

OUT Y

GND

IN A

IN B

POSITIVE VOL TAGE LINE

OIS SW

S8004

K0F111A00472

C8002

D8003

D8004

8 7 6 5

1 2 3 4

0.033

CL8004

T8001

G5DYA0000100

4 2

2 13

4 5 6

CL8027

CL8010

CL8008

CL8019

CL8021

C8009

C8005

R8004

R8021

100K

D8001

B3AAB0000197

CL8011

CL8003

S8003

ESE23F101

CL8001

C8010

11.4. CCD SCHEMATIC DIAGRAM

CL8022

CL8020

CL8023

CL8013

CL8014

CL8024

DMC-LZ2 only

L0FZBA000004

PS8001

K1KB30AA0116

1 UNREG 2 UNREG 3 UNREG 4 UNREG 5 UNREG GND 6 UNREG GND 7 UNREG GND 8 UNREG GND

9 TELE 10 WIDE 11 D GND 12 OIS SW 13 SHUTTER 0 14 SHUTTER 1 15 POWER ON 16 FRAMEGND 17 FRAMEGND 18 FRAMEGND 19

FRAME GND

KEY IN2 21 KEYIN3 22 D2R8V 23

STB SAFE

A GND 25 MIC IN 26 SELF LED K 27 STB PWM OUT 28 STB CHG LV 29 5V 30 ST TRG

M8001

MIC

TO MAIN (DIGITAL/ SYSTEM CONTROL) CIRCUIT (PP9002)

R8001

2400

CL8006 CL8002

R8008

4300

R8009

8200

S8001

K0F212A00001

CL8016 CL8015

MODE SW

S8005

K0G188A00002

R8010

8200

R8011

4300

7 841 2 3

CL8007

R8012

2400

C8001

POWER SW

K0D112B00071

OFF ON

S8002

CL8012

DMC-LZ2/DMC-LZ1 SERIES FLASH TOP SCHEMATIC DIAGRAM

654321 654321

NOTE: (When Replacing)

The following component are not mounted on the Flash Top C.B.A. which is supplied as a replacement. Be sure to put the following component when replacing the Flash Top C.B.A. as a unit. Ref No. M8001 (Microphone), Ref No. L8001 (Transformer), Ref No. C8003 (E. capacitor)

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

11.5. LENS FLEX SCHEMATIC DIAGRAM

LENS FLEX SCHEMATIC DIAGRAM

POSITIVE VOL TAGE LINE

HP LEDCNT

Z1ABS

TENC VCC

TO MAIN

(LENS DRIVE) CIRCUIT (FP9001)

ZM1(+) ZM1(+) ZM1(+) ZM2(

ZM2(

Z2ABS

TENC VCC

HP LEDCNT

XDRV+ XDRV YDRV YDRV+

YVO

YVH

Y VO+ Y VH+ XVO

XVH

X VO+ X VH+

HP LEDCNT

TENC VCC

TABS

IRIS2(

IRIS1(+)

IRIS1(+) SHUT1(+) SHUT1(+) SHUT2( SHUT2(

FAN FAP FBP

FBN

) ) )

) )

)

2 3 4 5 6 7 8 9

D10

D11

D12

27 28 29 30 31 32 33 34 35

B1A3

COIL

PHOTO SENSOR

DC MOTOR

PHOTO SENSOR

DRIVE COIL(X

DRIVE COIL(Y

HALL SENSOR(Y

HALL SENSOR(X

PHOTO SENSOR

DC SOLENOID (IRIS)

DC SOLENOID (SHUTTER)

STEPPING MOTOR

ZOOM ENCODER 1

ZOOM MOTOR UNIT

ZOOM ENCODER 2

)

OIS UNIT

)

CO. BARREL ENCODER

(FULL RETRACT)

SHUTTER UNIT

FOCUS MOTOR UNIT

DMC-LZ2/DMC-LZ1 SERIES LENS FLEX SCHEMATIC DIAGRAM

654321

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

12 CIRCUIT BOARD ASSEMBLIES

12.1. CCD C.B.A.

(FOIL SIDE) (COMPONENT SIDE)

ADDRESS INFORMATION

CCD C.B.A.

Integrated Circuit

IC3101

Q3101 C-1

C3101 C3103

R3101 R3102

Transistor

Capacitor

Resistor

B-2

A-1 A-2

C-2 C-1

DMC-LZ2/DMC-LZ1 SERIES CCD C.B.A.

123456

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

12.2. FLASH TOP C.B.A.

NOTE: (When Replacing)

The following component are not mounted on the Flash Top C.B.A. which is supplied as a replacement.

Be sure to put the following component when replacing the Flash Top C.B.A. as a unit. Ref No. M8001 (Microphone), Ref No. L8001 (Transformer), Ref No. C8003 (E. capacitor)

ADDRESS INFORMATION

FLASH TOP C.B.A.

Integrated Circuit

IC8001

E-4 C

Transistor

Q8001 Q8002 Q8009

C-2 C-2 E-5

F F C

Test Point

CL8001 CL8002 CL8003 CL8004 CL8005 CL8006 CL8007 CL8008 CL8009 CL8010 CL8011 CL8012 CL8013 CL8014 CL8015 CL8016 CL8017 CL8018 CL8019 CL8020 CL8021 CL8022 CL8023 CL8024 CL8025 CL8026 CL8027 TL8001 TL8002 TL8003

E-4 C-5 E-4 E-5 G-4 C-5 D-4 E-5 E-5 E-4 D-4 D-4 D-4 D-4 D-4 D-4 G-4 F-3 D-4 E-4 D-3 C-5 E-3 E-3 C-2 B-1 C-2 B-1 C-1 B-2

C C C C C C C C C C C C C C C C C C C C C C C F F F F F F

Connector

PS8001 D-5 C

Diode

D8001 D8002 D8003 D8004

E-1 F-4 F-4 G-5

C C C

Transformer

T8001 F-4 C

Coil

L8001 B-1 F

Switch

S8001 S8002 S8003 S8004 S8005

F-1 G-2 E-1 G-1 D-2

F F F F

Mic

M8001

D-1

Capacitor

C8001 C8002 C8003 C8004 C8005 C8006 C8007 C8008 C8009 C8010

E-4 F-5 G-4 F-4 E-4 F-3 C-2 E-4 E-4 E-4

C C C C C F C C C

Resistor

R8001 R8002 R8003 R8004 R8006 R8008 R8009 R8010 R8011 R8012 R8013 R8021 R8032 R8033

D-2 E-4 E-4 E-5 F-4 D-2 D-2 E-3 E-2 E-2 C-2 E-5 B-2 C-2

C C C C F F F F F F C F F

(FOIL SIDE) (COMPONENT SIDE)

DMC-LZ2/DMC-LZ1 SERIES FLASH TOP C.B.A.

123456

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

12.3. LENS FLEX C.B.A.

FOCUS MOTOR UNIT

SHUTTER UNIT

G3 G2

CO. BARREL ENCODER (FULL RETRACT)

D12

OIS UNIT

ZOOM ENCODER2

ZOOM MOTOR UNIT

ZOOM ENCODER1

DMC-LZ2/DMC-LZ1 SERIES LENS FLEX C.B.A.

123456

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

13 EXPLODED VIEWS

13.1. FRAME & CASING SECTION

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

13.2. PACKING PARTS & ACCESSORIES SECTION

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

14 REPLACEMENT PARTS LIST

14.1. MECHANICAL REPLACEMENT PARTS LIST

14.1.1. FRAME & CASING SECTION

PARTS LIST

Ref.

No.

1 VEP56019B MAIN C.B.A. (RTL)

1 VEP56019A MAIN C.B.A. (RTL)

2 L0DCDD000006 BUZZER 3 VGQ8359 JACK BASE DMC-LZ2

3 VGQ8441 JACK BASE DMC-LZ2

3 VGQ8358 JACK BASE DMC-LZ1 5 VKF3981 JACK COVER DMC-LZ2

5 VKF4011 JACK COVER DMC-LZ2

6 VMD5240 STRAP HOLDER 7 VYK1M03 BATTERY CASE UNIT DMC-LZ2

7 VYK1N75 BATTERY CASE UNIT DMC-LZ2

8 VYK1L99 FRONT CASE UNIT DMC-LZ2

8 VYK1N73 FRONT CASE UNIT DMC-LZ2

9 VGQ8355KIT GRIP PIECE DMC-LZ2

9 VGQ8440KIT GRIP PIECE DMC-LZ2

10 VGU9756 REAR KNOB DMC-LZ2

10 VGU9807 REAR KNOB DMC-LZ2

12 VKF3977 SD COVER DMC-LZ2

12 VKF4009 SD COVER DMC-LZ2

13 VYK1P94 REAR CASE UNIT DMC-LZ2

13 VYK1P95 REAR CASE UNIT DMC-LZ2

15 VMA0T06 SD COVER SPRING 16 VMA0T07 LCD HOLDER 17 VMD5272 STAND HOLDER DMC-LZ2

17 VMD5309 STAND HOLDER DMC-LZ2

18 VMS7577 SD SHAFT 20 K1PB02000056 LCD BL CONNECTOR 21 L5EDDXG00001 LCD 23 EFN-FST35KIT FLASH UNIT 24 VEP58011B FLASH TOP C.B.A. (RTL)

Part No. Part Name & Description Remarks

DMC-LZ2

DMC-LZ1

Silver series

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

DMC-LZ2

Ref.

No.

24 VEP58011A FLASH TOP C.B.A. (RTL)

25 VYQ3500 TOP CASE UNIT DMC-LZ2

25 VYQ3494 TOP CASE UNIT DMC-LZ2

25 VYQ3493 TOP CASE UNIT DMC-LZ1 26 VGQ8362 FLASH COVER 27 VGU9760 POWER KNOB DMC-LZ2

27 VGU9809 POWER KNOB DMC-LZ2

28 VGU9762 OIS BUTTON DMC-LZ2

28 VGU9811 OIS BUTTON DMC-LZ2

29 VKW3268 LED PANEL (F) 30 VMT1647 MIC DUMPER DMC-LZ2 31 VZT0696 FPC TAPE 41 VDL1688 IR CUT GLASS 42 VEK0H41 CCD UNIT DMC-LZ2 42 VEK0H39 CCD UNIT DMC-LZ1 43 VMB3683 CCD SPRING 44 VMB3683 CCD SPRING 45 VMX3437 CCD CUSHION RUBBER 46 L6DA8BAB0001 ZOOM MOTOR UNIT 47 VXQ1353 MASTER FLANGE UNIT 48 B3NAA0000074 PHOTO SENSOR 49 B3NAA0000074 PHOTO SENSOR 51 VMX3467 CAM CAP 52 VMX3467 CAM CAP 53 VMX3467 CAM CAP 54 VDW1138 DRIVE FRAME 55 VDW1139 DIRECT FRAME 56 VXP2437 1ST LENS FRAME UNIT 57 VXP2441 2ND LENS FRAME UNIT 58 VDW1140 CAM FRAME 59 VDW1141 ROTARY FRAME 60 VXP2443 3RD LENS FRAME UNIT 61 VXW0705 LENS UNIT

B1 XQN17+BJ5FN SCREW B2 XQN17+BJ5FN SCREW B3 XQN17+BJ5FN SCREW B4 XQN17+BJ5FN SCREW B5 VHD1759 SCREW B7 XQN17+BJ5FN SCREW DMC-LZ2

B7 XQN17+BJ5FJK SCREW DMC-LZ2

B8 VHD1759 SCREW B9 VHD1759 SCREW B10 VHD1759 SCREW B11 XQN17+BJ5FN SCREW DMC-LZ2

B11 XQN17+BJ5FJK SCREW DMC-LZ2

B12 XQN17+BJ5FN SCREW DMC-LZ2

B12 XQN17+BJ5FJK SCREW DMC-LZ2

B13 XQN17+BJ5FN SCREW DMC-LZ2

B13 XQN17+BJ5FJK SCREW DMC-LZ2

B14 XQN17+BJ5FN SCREW DMC-LZ2

Part No. Part Name & Description Remarks

DMC-LZ1

Silver series

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

Ref.

No.

B14 XQN17+BJ5FJK SCREW DMC-LZ2

B15 XQN17+BJ5FN SCREW DMC-LZ2

B15 XQN17+BJ5FJK SCREW DMC-LZ2

B16 XQN17+BJ5FN SCREW DMC-LZ2

B16 XQN17+BJ5FJK SCREW DMC-LZ2

B17 XQN17+BJ5FN SCREW B18 XQN17+BJ5FN SCREW B19 XQN17+BJ5FN SCREW B20 XQN17+BJ5FN SCREW B21 XQN17+BJ5FN SCREW B41 VHD1726 SCREW B42 VHD1726 SCREW B43 VHD1726 SCREW B44 VHD1744 SCREW B45 VHD1744 SCREW B46 VHD1744 SCREW B47 VHD1744 SCREW B48 VHD1744 SCREW B49 VHD1744 SCREW B50 VHD1744 SCREW

Part No. Part Name & Description Remarks

Black series

Silver series, DMC-LZ1

Black series

Silver series, DMC-LZ1

Black series

14.1.2. PACKING PARTS & ACCESSORIES SECTION PARTS LIST

Ref.

No. 102 K1HA08CD0001 USB CABLE 103 K1HA08CD0002 AV CABLE DMC-LZ2 103 K1HA08CD0003 V CABLE DMC-LZ1 104 VFC4090 HAND STRAP 105 VFF0278-S CD-ROM (SEE NOTES)

105 VFF0279-S CD-ROM (SEE NOTES)

106 VPK3008 PACKING CASE DMC-LZ2PP-K 106 VPK3010 PACKING CASE DMC-LZ2PP-S 106 VPK2968 PACKING CASE DMC-LZ2PL-S/

106 VPK2996 PACKING CASE DMC-LZ2EB-K/

106 VPK2984 PACKING CASE DMC-LZ2GK-S 106 VPK3011 PACKING CASE DMC-LZ1PP 106 VPK2965 PACKING CASE DMC-LZ1PL/

106 VPK2983 PACKING CASE DMC-LZ1GK 107 VPN6315 PAD 109 VPF1100 POLY BAG DMC-LZ2PP/

109 VPF1132 POLY BAG DMC-LZ2PL/

110 VQT0Q82 INSTRUCTION BOOK (APPL.)

Part No. Part Name & Description Remarks

DMC-LZ2PP, DMC-LZ1PP

DMC-LZ2PL/ EB/EG/EGM/ GC/GD/GK/GN/ GT/SG, DMC-LZ1PL/ EB/EG/EGM/ GC/GD/GK/GN/ GT

EB-S/EG-S/ EGM-S/GC-S/ GD-S/GN-S/ GT-S/SG-S

EG-K/EGM-K/ GC-K

EB/EG/EGM/ GC/GD/GN/GT

EB/GD/GK/GN/ GT, DMC-LZ1PP/ EB/GD/GK/GN/ GT

EG/EGM/GC/ SG, DMC-LZ1PL/ EG/EGM/GC

(ENGLISH/CANADIAN FRENCH)

DMC-LZ2PP, DMC-LZ1PP

Ref.

No.

110 VQT0Q83 INSTRUCTION BOOK (APPL.)

110 VQT0Q88 INSTRUCTION BOOK (APPL.)

110 VQT0Q84 INSTRUCTION BOOK (APPL.)

110 VQT0Q85 INSTRUCTION BOOK (APPL.)

110 VQT0Q86 INSTRUCTION BOOK (APPL.)

110 VQT0Q87 INSTRUCTION BOOK (APPL.)

110 VQT0Q89 INSTRUCTION BOOK (APPL.)

110 VQT0Q90 INSTRUCTION BOOK (APPL.)

110 VQT0Q93 INSTRUCTION BOOK (APPL.)

110 VQT0Q94 INSTRUCTION BOOK (APPL.)

110 VQT0Q92 INSTRUCTION BOOK (APPL.)

110 VQT0P63 INSTRUCTION BOOK (APPL.)

111 VQT0P65 INSTRUCTION BOOK

111 VQT0P66 INSTRUCTION BOOK

111 VQT0P67 INSTRUCTION BOOK

111 VQT0P68 INSTRUCTION BOOK

111 VQT0P69 INSTRUCTION BOOK

111 VQT0P78 INSTRUCTION BOOK

111 VQT0P70 INSTRUCTION BOOK

111 VQT0P71 INSTRUCTION BOOK

111 VQT0P72 INSTRUCTION BOOK

111 VQT0P73 INSTRUCTION BOOK

111 VQT0P74 INSTRUCTION BOOK

111 VQT0P75 INSTRUCTION BOOK

111 VQT0P76 INSTRUCTION BOOK

111 VQT0P77 INSTRUCTION BOOK

111 VQT0P79 INSTRUCTION BOOK

111 VQT0P80 INSTRUCTION BOOK

111 VQT0P81 INSTRUCTION BOOK

Part No. Part Name & Description Remarks

(ENGLISH/SPANISH/ PORTUGUESE)

(ENGLISH)

(GERMAN/FRENCH)

(ITALIAN/DUTCH)

(SPANISH/PORTUGUESE)

(SWEDISH/DANISH)

(ENGLISH/ CHINESE(TRADITIONAL))

(ARABIC/RUSSIAN)

(KOREAN)

(CHINESE(SIMPLIFIED))

(ENGLISH)

(CHINESE(TRADITIONAL))

(ENGLISH)

(CANADIAN FRENCH)

(ENGLISH)

(SPANISH)

(PORTUGUESE)

(ENGLISH)

(GERMAN)

(FRENCH)

(ITALIAN)

(DUTCH)

(SPANISH)

(PORTUGUESE)

(DANISH)

(SWEDISH)

(ENGLISH)

(CHINESE(TRADITIONAL))

(RUSSIAN)

DMC-LZ2PL, DMC-LZ1PL

DMC-LZ2EB, DMC-LZ1EB

DMC-LZ2EG, DMC-LZ1EG

DMC-LZ2EGM, DMC-LZ1EGM

DMC-LZ2 GC/SG, DMC-LZ1GC

DMC-LZ2GD, DMC-LZ1GD

DMC-LZ2GK, DMC-LZ1GK

DMC-LZ2GN, DMC-LZ1GN

DMC-LZ2GT, DMC-LZ1GT

DMC-LZ2PP, DMC-LZ1PP

DMC-LZ2PL, DMC-LZ1PL

DMC-LZ2EB, DMC-LZ1EB

DMC-LZ2EG, DMC-LZ1EG

DMC-LZ2EGM, DMC-LZ1EGM

DMCLZ2GC/SG, DMC-LZ1GC

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

Ref.

No.

111 VQT0P82 INSTRUCTION BOOK

111 VQT0P84 INSTRUCTION BOOK

111 VQT0P86 INSTRUCTION BOOK

111 VQT0P83 INSTRUCTION BOOK

111 VQT0P85 INSTRUCTION BOOK

116 VPF1221 CAMERA BAG

Part No. Part Name & Description Remarks

(ARABIC)

(KOREAN)

(CHINESE(SIMPLIFIED))

(ENGLISH)

(CHINESE(TRADITIONAL))

DMCLZ2GC/SG, DMC-LZ1GC

DMC-LZ2GD, DMC-LZ1GD

DMC-LZ2GK, DMC-LZ1GK

DMC-LZ2GN, DMC-LZ1GN

DMC-LZ2GT, DMC-LZ1GT

14.1.3. SERVICE FIXTURE & TOOLS

Ref.

Part No. Part Name & Description Remarks

No.

VFK1870 EXTENSION CABLE

VFK1576DC202 EXTENSION CABLE

VFK1582A2125 EXTENSION CABLE

VFK1950 EXTENSION CABLE

VFK1951 EXTENSION CABLE

ERG5SJ102 RESISTOR FOR DISCHARGING VFK1164TCM02 INFINITY LENS

VFK1164TDVLB LIGHT BOX VFK1949 TR CHART VFK1900BK LENS CLEANING KIT (BK) VFK1755 T3 TROX DRIVER VFK1829 GREASE(FOR LENS) VFK1850 GREASE(FOR FOCUS MOTOR)

(30PIN-B TO B)

(2PIN-CABLE)

(21PIN-FFC)

(33PIN-FFC)

(39PIN-FFC)

(WITH FOCUS CHART)

[PP9002 (MAIN) PS8001 (FLASH TOP)]

[P9002 (MAIN) - LCD BACK LIGHT]

[FP9002 (MAIN) CCD UNIT]

[FP9003 (MAIN) LCD UNIT]

[FP9001 (MAIN) LENS UNIT]

14.2. ELECTRICAL REPLACEMENT PARTS LIST

E.S.D. standards for Electrostatically Sensitive Devices, refer to “PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES” section.

Definition of Parts supplier:

1. Parts marked with [MBI] in the remarks column are supplied from “Matsushita Battery Industrial co., ltd.” .

Ref.

No.

n VEP56019B MAIN C.B.A. (RTL)

n VEP56019A MAIN C.B.A. (RTL)

n VEP58011B FLASH TOP C.B.A. (RTL)

n VEP58011A FLASH TOP C.B.A. (RTL)

n VEK0H41 CCD UNIT DMC-LZ2

n VEK0H39 CCD UNIT DMC-LZ1

Part No. Part Name & Description Remarks

------ P.C.B. LIST ------

DMC-LZ2

DMC-LZ1

DMC-LZ2

DMC-LZ1

C8003 F2A2F1010003 E.CAPACITOR 300V 100U

--- INDIVIDUAL PARTS ---

L8001 G5FYA0000004 TRANSFORMER M8001 L0FZBA000004 MICROPHONE DMC-LZ2

--- ELEC. COMPONENTS ---

n VEP56019B MAIN C.B.A. (RTL)

n VEP56019A MAIN C.B.A. (RTL)

MISCELLANEOUS

Z9101 ML-614S/ZT BATTERY [MBI]

n VEP58011B FLASH TOP C.B.A. (RTL)

n VEP58011A FLASH TOP C.B.A. (RTL)

C8001 ECJ1VB0J105K C.CAPACITOR CH 6.3V 1U C8002 F1K2J333A013 C.CAPACITOR 630V 0.033U C8004 F1K2J102A010 C.CAPACITOR 630V 1000P C8005 F1J0J1060010 C.CAPACITOR CH 6.3V 10U C8006 F1K2E3330006 C.CAPACITOR 250V 0.033U C8009 F1J0J1060010 C.CAPACITOR CH 6.3V 10U C8010 F1J0J1060010 C.CAPACITOR CH 6.3V 10U

DMC-LZ2

DMC-LZ1

DMC-LZ2

DMC-LZ1

DMC-LZ2PP / DMC- LZ2PL / DMC-LZ2EB / DMC-LZ2EG / DMC-LZ2EG M / DMC-LZ2GC / DMC-LZ2GD / DMC-LZ2GK / DMC- LZ2GN / DMC-LZ2G T / DMC-LZ2SG

Ref.

No. D8001 B3AAB0000197 DIODE D8002 B0HCMP000006 DIODE D8003 B0HCGR000004 DIODE D8004 B0HCGR000004 DIODE

PS8001 K1KB30AA0116 CONNECTOR 30P

Q8001 B1JBLP000008 TRANSISTOR Q8002 B1DFGC000003 TRANSISTOR Q8009 B1DFCG000010 TRANSISTOR

R8001 ERJ2GEJ242 M.RESISTOR CH 1/16W 2.4K R8003 ERJ6GEY0R00V M.RESISTOR CH 1/10W 0 D0GBR00JA017 R8004 ERJ2GEJ680 M.RESISTOR CH 1/16W 68 ERJ2RMJ680X R8006 ERJ8GEYJ105V M.RESISTOR CH 1/8W 1M R8008 ERJ2GEJ432 M.RESISTOR CH 1/16W 4.3K R8009 ERJ2GEJ822 M.RESISTOR CH 1/16W 8.2K R8010 ERJ2GEJ822 M.RESISTOR CH 1/16W 8.2K R8011 ERJ2GEJ432 M.RESISTOR CH 1/16W 4.3K R8012 ERJ2GEJ242 M.RESISTOR CH 1/16W 2.4K R8013 ERJ2RHD153X M.RESISTOR CH 1/16W 15K R8021 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K R8032 ERJ6RED105 M.RESISTOR CH 1/16W 1M R8033 ERJ6RED105 M.RESISTOR CH 1/16W 1M

S8001 K0F212A00001 SWITCH S8002 VSS0534 SWITCH K0D112B00071 S8003 ESE23F101 SWITCH S8004 K0F111A00472 SWITCH S8005 K0G188A00002 SWITCH

Part No. Part Name & Description Remarks

T8001 G5DYA0000100 TRANSFORMER

n VEK0H41 CCD UNIT DMC-LZ2 n VEK0H39 CCD UNIT DMC-LZ1

C3101 ECJGVB1C105M C.CAPACITOR CH 16V 1U C3103 ECJHVB1A225M C.CAPACITOR CH 10V 2.2U

Q3101 2SC4627JCL TRANSISTOR

R3101 ERJ2RKD330 M.RESISTOR CH 1/16W 33 R3102 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K

PANASONIC DMC-LZ2PP, DMC-LZ2PL, DMC-LZ2EB, DMC-LZ2EG, DMC-LZ2EGM Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
