Panasonic DMC-LX10 User Manual

Basic Owner’s Manual

Digital Camera

Model No.

Please read these instructions carefully before using this product, and save this manual for future use.

More detailed owner’s manual is available in “Owner’s Manual for advanced features (PDF format)”. To read it, download it from the website. (→53)

If you have any questions, visit: USA : http://shop.panasonic.com/support Canada : www.panasonic.ca/english/support

DMC-LX10

SQT1380

M0916KZ0

Dear Customer,

Date of Purchase Dealer Phone No.

Dealer Purchased From Model No.

Dealer Address Serial No.

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information below. The serial number is on the tag located on the underside of your camera. Be sure to retain this manual as your convenient camera information source.

Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in this Owner’s Manual.

Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

For the U.S.A. and Canada only

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

SQT1380 (ENG)

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.

• Use only the recommended accessories.

• Do not remove covers.

• Do not repair this unit by yourself. Refer servicing to qualified service

personnel.

The socket outlet shall be installed near the equipment and shall be easily accessible.

■

Product identification marking

Product Location

Digital camera Bottom

SQT1380 (ENG)

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

Certification and Compliance

See Camera for the certification and compliance mark specific to that device.

1 Select [Wi-Fi] in the [Setup] menu

2 Select [Wi-Fi Setup] in the [Wi-Fi]

Press

to select [Approved Regulations], and press [MENU/SET]

Contains FCC ID : VPYLBXN604

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

SQT1380 (ENG)

DMC-LX10

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity Trade Name: Panasonic Model No.: DMC-LX10

Responsible Party: Panasonic Corporation of North America

Support Contact: http://shop.panasonic.com/support

Two Riverfront Plaza, Newark, NJ 07102-5490

SQT1380 (ENG)

THE FOLLOWING APPLIES ONLY IN CANADA.

Certification and Compliance

See Camera for the certification and compliance mark specific to that device.

1 Select [Wi-Fi] in the [Setup] menu

2 Select [Wi-Fi Setup] in the [Wi-Fi]

Press

to select [Approved Regulations], and press [MENU/SET]

CAN ICES-3(B)/NMB-3(B)

Contains IC : 772C-LBXN604

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

SQT1380 (ENG)

■

About the AC adaptor (supplied)

CAUTION!

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in

another confined space. Ensure this unit is well ventilated.

AC adaptor

This AC adaptor operates on AC between 110V and 240V. But

• In the U.S.A. and Canada, the AC adaptor must be connected to a 120V AC

power supply only.

• When connecting to an AC supply outside of the U.S.A. or Canada, use a plug

adaptor to suit the AC outlet configuration.

SQT1380 (ENG)

■

About the battery pack

CAUTION

Battery pack (Lithium ion battery pack)

• Use the specified unit to recharge the battery pack.

• Do not use the battery pack with equipment other than the specified unit.

• Do not get dirt, sand, liquids, or other foreign matter on the terminals.

• Do not touch the plug terminals (+ and −) with metal objects.

• Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 °C (140 °F) or incinerate.

SQT1380 (ENG)

■

Cautions for Use

• Do not use any other USB connection cables except the supplied one.

• Use a “High Speed HDMI micro cable” with the HDMI logo. Cables that do not comply with the HDMI standards will not work. “High Speed HDMI micro cable” (Type D-Type A plug, up to 2 m (6.6 feet) long)

Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

• If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise adversely affecting the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation may adversely affect this unit, disturbing the pictures and/or sound.

• If this unit is adversely affected by electromagnetic equipment and stops functioning properly, turn this unit off and remove the battery or disconnect AC adaptor (supplied)/AC adaptor (DMW-AC10PP: optional). Then reinsert the battery or reconnect AC adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound may be adversely affected.

SQT1380 (ENG)

Contents

■

Information for Your Safety ...................... 3

Preparations

■

Before use.................................................11

■

Standard accessories ............................. 12

■

Names and Functions of Main Parts ..... 13

■

Inserting and removing the battery

or SD memory card (optional) ................ 15

■

Charging the battery ............................... 16

■

Setting the clock ..................................... 18

Basics

■

Basic operations ..................................... 19

■

Setting the menu ..................................... 26

Recording

■

Taking pictures with automatic settings

(Intelligent Auto Mode) ........................... 27

■

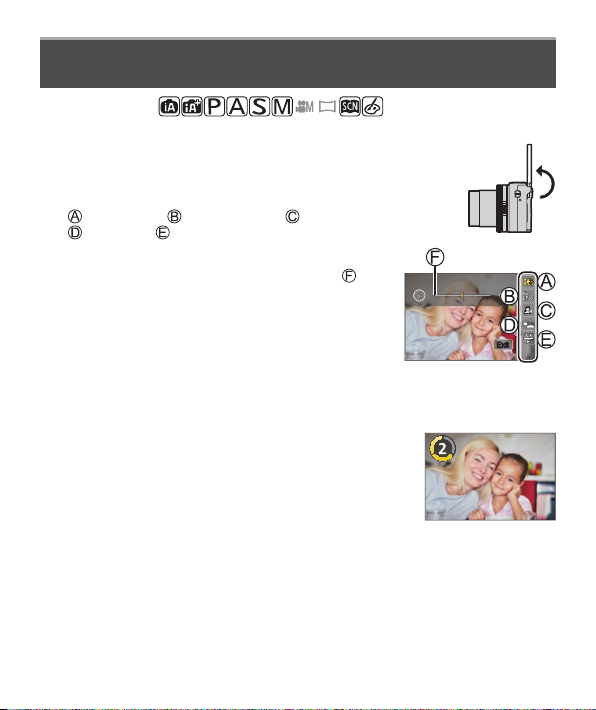

[Self Shot] ................................................ 28

■

Recording 4K photos .............................. 29

■

[Post Focus] / [Focus Stacking] ............ 33

■

Taking Pictures While Adjusting a Setting Automatically

(Bracket Recording) ................................ 36

■

Recording Motion Picture/

4K Motion Picture .................................... 37

■

[4K Live Cropping] .................................. 39

■

About the symbols in the text

Indicates that the menu can be set by pressing [MENU/SET] button.

In this Owner’s Manual, steps for setting a menu item are described as follows:

→ [Rec] → [Quality] → [ ]

Playback

■

Viewing your pictures ............................. 41

■

[Light Composition] ................................ 42

■

Menu list ................................................... 44

Wi-Fi

■

What you can do with the

function ........................................ 47

Wi-Fi

■

Operating the camera by connecting

it to a smartphone ................................... 48

Others

■

Downloading software ............................ 51

■

Reading the Owner ’s Manual

(PDF format) ............................................ 53

■

List of monitor displays .......................... 54

■

Q&A Troubleshooting ............................ 57

■

Specifications .......................................... 59

■

Digital Camera Accessory System ........ 63

■

Limited Warranty (ONLY FOR U.S.A.) .... 64

■

Limited Warranty

(ONLY FOR CANADA) ............................. 68

SQT1380 (ENG)

Preparations

Before use

■

Camera handling

Keep the camera away from excessive vibration, force, or pressure.

●

The camera is not dust resistant, splash resistant, or waterproof.

●

Avoid using the camera in places with excessive dust or sand, or where water can come into contact with the camera. Do not allow camera to come into contact with pesticides or volatile substances (can cause

●

surface damage or coating to peel).

■

Condensation (When the lens or the monitor is fogged up)

Condensation may occur when the camera is exposed to sudden changes of temperature or

●

humidity. Avoid these conditions, which may make the lens or monitor dirty, cause mold, or damage the camera. If condensation does occur, turn off the camera and wait about two hours before using it. Once

●

the camera adjusts to the surrounding temperature, the fogging will clear naturally.

■

Caring for your camera

To clean your camera, remove the battery, the DC coupler (DMW-DCC15A: optional) or a

●

card, or disconnect the power plug from the outlet, and wipe with a soft, dry cloth. Do not press the monitor with excessive force.

●

Do not press the lens with excessive force.

●

Do not keep rubber or plastic products in contact with the camera for a long period of time.

●

Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the

●

camera, since it may deteriorate the external case or the coating may peel off. Do not leave the camera with the lens facing the sun, as rays of light from the sun may cause

●

it to malfunction. Do not extend the supplied cord or cable.

●

While the camera is accessing the card (for an operation such as picture writing, reading,

●

deletion, or formatting), do not turn off the camera or remove the battery, card, AC adaptor (DMW-AC10PP: optional) or DC coupler (DMW-DCC15A: optional). The data on the card may be damaged or lost due to electromagnetic waves, static electricity

●

or breakdown of the camera or the card. We recommend storing important data on a PC etc. Do not format the card on your PC or other equipment. Format it on the camera only to ensure

●

proper operation.

SQT1380 (ENG)

Preparations

Standard accessories

Check that all the accessories are supplied before using the camera. Part numbers are as of October 2016. These may be subject to change.

Battery pack

DMW-BLH7PP

• Charge the battery before use.

• Battery pack is indicated as battery pack or battery in the text.

AC adaptor

SAE0012A

• Cards are optional. (SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as card in the text.)

– This unit is compatible with UHS-

memory cards.

– The following SD standard-based cards can be used.

SD Memory Card (512 MB to 2 GB)/SDHC Memory Card (4 GB to 32 GB)/ SDXC Memory Card (48 GB to 128 GB)

– Depending on recording conditions, the required card differs.

(For U.S.A. only)

If accessories are lost, customers can visit us at http://shop.panasonic.com/support

• for further information about obtaining replacement parts.

(For Canada only)

If any accessories are lost, customers in Canada should visit our support page at

• www.panasonic.ca/english/support for further information about obtaining replacement parts.

• Please dispose of all packaging appropriately.

• The illustrations and screens in this manual may differ from the actual product.

SQT1380 (ENG)

Hand strap

VFC4297

USB connection cable

K1HY04YY0106

 UHS Speed Class 3 standard SDHC/SDXC

Names and Functions of Main Parts

1 2 3

Preparations

SQT1380 (ENG)

12 13 14

20 21

22 23

4 5 6 7 8

26 27 28 29 30 31

Preparations

1 Shutter button (→20)

Zoom lever (→19)

Motion picture button (→37)

Rear dial (→24)

Camera [ON/OFF] switch

Mode dial (→21)

Stereo microphone

Flash open lever

Flash

Strap eyelet

• To prevent dropping, be sure to attach the supplied strap and fit it to your wrist.

Aperture ring (→24)

Control ring (→24)

Lens barrel

Lens

Self-timer indicator/AF Assist Lamp

Charging lamp (→16)/

Wi-Fi

connection lamp

[ ] ([Post Focus]) button (→33)/ [Fn2] button

[Q.MENU/ [ [Fn3] button

[ [Fn1] button

[ ] (Playback) button (→41) Cursor button (→22)

[MENU/SET] button

[DISP.] button

[HDMI] socket

[USB/CHARGE] socket (→16)

] (Cancel) button/

] (Delete) button (→41)/

• You can easily call some of the menu items and set them during recording.

] (4K photo mode) button (→29)/

• Use this to change display.

SQT1380 (ENG)

Release lever (→15)

DC coupler cover (→63)

Card/Battery door (→15)

Tripod mount

• Do not attach this unit to tripods that have screws with a length of 5.5 mm (0.22 inch) or more. Doing so may damage this unit or the unit may not be secured properly on the tripod.

Touch screen (→25)/monitor (→54)

Speaker

Always use a genuine Panasonic AC

●

adaptor (DMW-AC10PP: optional). (→63) When using an AC adaptor (DMWAC10PP: optional), ensure that the Panasonic DC coupler (DMWDCC15A: optional) and AC adaptor (DMW-AC10PP: optional) are used. The optional DC coupler (DMWDCC15) cannot be used. [Fn4] to [Fn8] (→22) are touch icons.

●

They are displayed by touching the

] tab on the recording screen.

[

Preparations

Inserting and removing the battery or SD memory card (optional)

Make sure that the camera is turned off.

Slide the release lever ( ) to the [OPEN]

position and open the card/battery door Insert the battery and card, making sure

that their orientation is correct

• Battery: Insert the battery all the way firmly and check that it is locked by lever (

• Card: Insert the card all the way firmly until it

clicks. Do not touch the terminals on the back of the card.

Close the door

Slide the release lever to the [LOCK] position.

■

To remove

• To remove battery:

Move lever ( arrow.

) in direction of

• To remove card:

Push the card until it clicks, then pull the card out.

Always use genuine Panasonic batteries (DMW-BLH7PP).

●

If you use other batteries, we cannot guarantee the quality of this product.

●

Keep the Memory Card out of reach of children to prevent swallowing.

●

Press

Pull out

SQT1380 (ENG)

Preparations

Charging the battery

• The battery that can be used with this unit is DMW-BLH7PP.

• The battery is not charged when the camera is shipped. Charge the battery

before use.

• We recommend charging in a location where the ambient temperature is

between 10 °C and 30 °C (50 °F to 86 °F).

Insert the battery into the camera. Make sure that the camera is turned off.

Charging lamp USB connection cable

(supplied) AC adaptor (supplied)

To the electrical outlet Computer

Getting ready: Turn on the computer.

[USB/CHARGE] socket

• This terminal is located at the bottom when the camera is in an upright position.

• Always check the direction of the pins and hold the plug straight to insert or remove it. (If the cable is inserted in the wrong direction, the pins could become deformed and cause faulty operation.) Also, do not insert into the wrong socket. Doing so may cause damage to this unit.

SQT1380 (ENG)

Preparations

■

Charging lamp

On: Charging in progress Off: Charging stops (After charging stops, disconnect the camera from the

electrical outlet or your computer.)

Flashing: Charging error (→57)

■

Charging time (When using the AC adaptor (supplied))

Approx. 130 min.

The battery is a rechargeable lithium ion battery. If the temperature is too high or

●

too low, the operating time of the battery will become shorter. The battery becomes warm after using and during and after charging. The

●

camera also becomes warm during use. This is not a malfunction.

Do not leave any metal items (such as clips) near the contact areas of the

●

power plug or near the batteries.

Do not use any other USB connection cables except the supplied one.

●

Do not use any other AC adaptors except the supplied one.

●

Do not use the AC adaptor (supplied) or the USB connection cable (supplied)

●

with other devices.

SQT1380 (ENG)

Preparations

Setting the clock

The clock is not set when the camera is shipped.

Turn the camera on

Press [MENU/SET]

Press to select the language and press [MENU/SET]

• The [Please set the clock] message appears.

Press [MENU/SET]

Press to select the items (year, month,

day, hour, minute), and press to set Press [MENU/SET]

When [The clock setting has been completed.]

is displayed, press [MENU/SET] When [Please set the home area] is displayed, press

[MENU/SET] Press to set your home area and press

[MENU/SET]

SQT1380 (ENG)

Basic operations

Zoom lever (Use zoom)

Basics

Capture a wider area

(wide-angle)

■

Zoom types and use

Optical Zoom:

You can zoom in without degrading the picture quality.

Maximum magnification: 3x

Extended optical zoom:

This function works when picture sizes with [ Size]. Extended optical zoom allows you to zoom in using a higher zoom ratio than optical zoom, without degrading the picture quality.

Maximum magnification: 6x

 Including the optical zoom ratio. The maximum zoom ratio varies depending on the picture

size.

[i.Zoom]:

You can use the camera’s intelligent resolution technology to increase the zoom ratio up to 2x higher than the original zoom ratio with limited deterioration of picture quality. (Up to 1.5x the original zoom ratio when [Picture Size] is set to [S]) Set the [i.Zoom] in the [Rec] menu to [ON].

[Digital Zoom]:

Zoom 4x further than Optical/Extended optical zoom. When [Digital Zoom] is used simultaneously with [i.Zoom], you can only increase the zoom ratio up to 2x. Note that, with Digital Zoom, enlarging will decrease picture quality. Set the [Digital Zoom] in the [Rec] menu to [ON].

• When [Live View Mode] is set to [ECO 30fps], Digital Zoom is not

available (default setting).



Enlarge the subject (telephoto)

] have been selected in [Picture

SQT1380 (ENG)

Basics

Shutter button (Taking pictures)

Press the shutter button halfway (press lightly) to

focus on the subject

• The aperture value and shutter speed are displayed. (If the aperture value and shutter speed are shown in red and flashing, you do not have the appropriate exposure, unless you are using the flash.)

Press the shutter button fully (push the button all

the way), and take the picture

Pictures can be taken only when the image is correctly focused as long as

●

the [Focus/Release Priority] is set to [FOCUS].

■

Estimated number of recordable pictures



1450

 (When [Aspect Ratio] is set to [3:2], [Quality] is set to [ ], [Picture Size] is set to [L] (20M),

and using a card of 16 GB)

■

Check the picture you have taken

• [Auto Review] displays the pictures you have taken after taking still pictures.

• Press the [

SQT1380 (ENG)

] (Playback) button to display the picture. (→41)

Focus display ( When focus is aligned: illuminated

When focus is not aligned: flashing)

Aperture value Shutter speed

Mode dial (Select the recording mode)

Set to the desired recording mode

• Rotate the mode dial slowly to select the desired mode.

Intelligent Auto Mode (→27)

Intelligent Auto Plus Mode (→27)

Program AE Mode

Take pictures with automatic shutter speed and aperture value settings.

Aperture-Priority AE Mode

Determine aperture, then take pictures.

Shutter-Priority AE Mode

Determine shutter speed, then take pictures.

Manual Exposure Mode

Determine aperture and shutter speed, then take pictures.

Creative Video Mode

Determine aperture and shutter speed, then record motion pictures.

• You cannot take still pictures.

Custom Mode

Take pictures using pre-registered settings.

Panorama Shot Mode

Take panorama pictures.

Scene Guide Mode

Take pictures that match the scene being recorded.

Creative Control Mode

Take pictures by selecting your preferred picture effect.

Basics

SQT1380 (ENG)

Basics

Function buttons

• [Fn1] to [Fn3] are buttons on the camera.

• [Fn4] to [Fn8] are touch icons. They are displayed by touching the [ recording screen.

• You can assign frequently-used functions to particular buttons with [Fn Button Set] in [Custom] menu.

Cursor button

• This button is used to move the cursor on the menu screens and for other functions.

• In this manual, the button that is to be used is indicated by

You can perform the following operations while recording. (Some items or settings cannot be selected depending on the mode or display style the camera is in.)

] (Exposure compensation) ( )

[

• Corrects the exposure when there is a backlight or when the subject is too dark or too bright.

[ ] (White balance) ( )

• Adjusts the color depending on the light source to ensure natural color.

[ ] (Drive mode) ( )



• [Burst]

– Records a burst of still pictures while you press the shutter button fully.

• [4K PHOTO]

• [Post Focus]

• [Self Timer]



To cancel drive mode, select [ ] ([Single]) or [ ] .

 



(→29) (→33)

] tab on the

SQT1380 (ENG)

] (Focus mode) ( )

[

• [AF]

– Focus is set automatically when the shutter button is pressed halfway.

] ([AF Macro])

• [

– You can take pictures of a subject as close as 3 cm (0.098 feet) from the lens

by rotating the zoom lever upmost to Wide.

] ([Macro Zoom])

• [

– Use this setting to get close to the subject and then further enlarge when

taking the picture. You can take a picture with the digital zoom up to 3x while maintaining the distance to the subject for the extreme Wide position (3 cm (0.098 feet)).

• [MF]

– Manual focus is convenient when you want to lock the focus to take pictures or

when it is difficult to adjust focus using auto focus.

Adjusting the angle of the monitor

You can adjust the angle of the monitor.

• Be careful not to catch your finger, etc. in the monitor.

• When rotating the angle of the monitor, be careful not to apply too much force. Doing so may cause damage or malfunction. (Open and close with your finger on point

• When not using this camera, close the monitor completely back to the original position.

Basics

SQT1380 (ENG)

Basics

Control ring/Aperture ring/Rear dial

You can perform frequently used operations and settings directly.

• You can adjust the aperture using the aperture ring. Gently turn the aperture ring until it snaps into place with an audible click. (The aperture can be set between [1.4] and [11].)

• Items that can be set by the control ring/rear dial vary depending on recording modes. Following are the pre-assigned settings.

Mode dial

Step Zoom —

Step Zoom Shutter speed adjustment



When Manual Focus is set, the control ring is assigned to focus adjustment.



The operation is possible only when [Exposure Mode] is set to [S] or [M].



The operation is possible only when the Scene Guide Mode is set to [Artistic Nightscape].

You can change the assigned operation of the control ring and rear dial from

●

[Ring/Dial Set] in the [Custom] menu. For details, refer to “Owner’s Manual for

Control ring

Picture effects change —



Step Zoom — Step Zoom Program Shift

Step Zoom Shutter speed adjustment

Step Zoom

Rear dial

Shutter speed adjustment



advanced features (PDF format)”.

SQT1380 (ENG)

Touch screen (Touch operations)

Touch screen of this unit is capacitive. Touch the panel directly with your bare finger.

Touch

To touch and release the touch screen. Be sure to touch the center of the desired icon.

Drag

To touch and slide your finger across the touch screen. This can also be used to forward or rewind a picture during playback, etc.

Pinch (spread/pinch)

On the touch screen, spread (pinch out) your 2 fingers to zoom in, and pinch (pinch in) your 2 fingers to zoom out.

Basics

SQT1380 (ENG)

Basics

Setting the menu

Press [MENU/SET] to bring up the menu

Press to select the menu item and press

[MENU/SET] Press to select the setting and

press [MENU/SET]

• The setting methods vary depending on the menu item.

Press [Q.MENU/ ] button repeatedly until the recording

or playback screen reappears

• During recording, the menu screen can also be exited by pressing the shutter button halfway.

■

Switching menu type

Press after performing step 1 above Press to select a tab such as [ ]

Press [MENU/SET]

■

Menu types (→44)

• [Rec]

• [Setup]

• [Motion Picture]

• [Playback]

• [Custom]

SQT1380 (ENG)

Recording

Taking pictures with automatic settings

(Intelligent Auto Mode)

Recording mode:

This mode is recommended for those who want to point and shoot as the camera optimizes settings to match the subject and recording environment.

Set mode dial to [ ]

• The camera will switch to either the most recently used of Intelligent Auto Mode or Intelligent Auto Plus Mode.

Point the camera at the subject

• When the camera identifies the optimal scene, the icon for each scene turns blue for 2 seconds and then changes to the normal red indication.

■

Switching between Intelligent Auto Plus Mode and Intelligent Auto Mode

Select the [ ] or [ ] tab on the menu screen, press to select [

] or [ ], and press [MENU/SET].

• If [DISP.] button is pressed, the description of the selected mode will be displayed.

SQT1380 (ENG)

Recording

[Self Shot]

Recording mode:

You can easily take pictures of yourself while looking at the screen.

Rotate the monitor as shown in the figure

Touch the item

Settings:

[Soft Skin] / [Filter Select] / [Slimming Mode] / [Shutter] / [Countdown] / [Shots]

Touch the slide bar

• If you select the left edge of the slide bar ( ), it will be set to “Off”.

• In the case of [Filter Select], [Shutter], or [Shots], select from the icons.

Touch [Exit]

Decide on your poses while looking at the monitor

Press the shutter button halfway to

focus and then press it fully to take the picture

• Look at the lens when recording.

• Be careful not to look at the light from the flash and the AF Assist Lamp directly.

ExitExit

SQT1380 (ENG)

Recording

Recording 4K photos

Recording mode:

You can select the desired moment from a burst of 4K photos taken at 30 frames/ second and save that moment as a picture of approx. 8 million pixels.

• To record pictures, use a UHS Speed Class 3 card.

• When recording, the angle of view becomes narrower.

Press [ ] button

Press to select the recording method and press

[MENU/SET]

[4K Burst]

[4K Burst(S/S)]

“S/S” is an abbreviation of “Start/Stop”.

[4K Pre-Burst]

For capturing the best shot of a fast-moving subject

(e.g., sports, aeroplanes, trains) Burst recording is performed while the shutter button is pressed and held.

Press and hold Recording is performed

For capturing unpredictable photo opportunities

(e.g., plants, animals, children) Burst recording starts when the shutter button is pressed and stops when pressed again.

Start (First) Stop (Second) Recording is performed

For recording as needed whenever a photo opportunity arises

(e.g. the moment when a ball is thrown) Burst recording is performed for approximately 1 second before and after the moment that the shutter button is pressed.

Approximately 1 second Recording is performed

SQT1380 (ENG)

Recording

Record a 4K photo

• When you perform 4K burst photo recording, a 4K burst file will be saved in the MP4 format.

• When [Auto Review] is enabled, the picture selection screen will be displayed automatically.

• You can compare multiple frames captured in a 4K burst file, overlay the bright areas, and combine them into one picture. ([Light Composition]) (→42)

■

To cancel the 4K Photo functions

In step 2, select [ ] .

If the surrounding temperature is high or 4K photos are recorded continuously,

●

] may be displayed and recording may be stopped halfway through. Wait

[ until the camera cools down.

When [ ] ([4K Pre-Burst]) is set, the battery drains faster and the camera

●

temperature rises. (to protect itself, the camera may switch to [ Burst])) Select [

The continuous recording time is the same as when [Rec Format] is set to [MP4],

●

and [Rec Quality] is set to [4K/100M/30p] or [4K/100M/24p]. (→38)

] ([4K Pre-Burst]) only when recording.

] ([4K

SQT1380 (ENG)

Recording

Saving a picture from a 4K burst file

• To select and save a picture, perform the following operations.

• To bulk save the pictures (→32).

Select a picture with the [ ] on the

playback screen, and press

• In the case of recording with [ ] ([4K Pre-Burst]), proceed to the step

Drag the slide bar to perform rough scene

selection

Drag to select the frame you want to save as

a picture

• Touch [ ]/[ ] to display the previous or next set of frames (45) in slide view.

Touch [ ] to save the picture

• The picture will be saved in JPEG format.

• For details, refer to “Owner’s Manual for advanced features (PDF format)” or “Quick Guide for 4K Photo (supplied)”.

SQT1380 (ENG)

Recording

■

[4K PHOTO Bulk Saving]

You can bulk save 5 seconds’ worth of 4K recording from a 4K burst file.

• If [Auto Review] is set, the slide view screen appears automatically. Press the shutter button halfway to display the recording screen, and then perform the following operations.

→ [Playback] → [4K PHOTO Bulk Saving]

Use to select the 4K burst files and press [MENU/SET]

• If the burst time is 5 seconds or less, all the frames can be saved as a picture.

Select the first frame to be bulk saved as a picture

• The selection method is the same as the operation to choose the frame you want to save as a picture from a 4K burst file.

• The picture will be saved in JPEG format as a single burst picture group.

SQT1380 (ENG)

Recording

[Post Focus] / [Focus Stacking]

Recording mode:

You can record bursts of photos with the same quality as a 4K photo while automatically changing the focus point. After recording, you can select a point on the screen to save a picture with that point as the focus point. You can combine multiple pictures, each with a different focus, to increase the focus range. ([Focus Stacking])

• We recommend using a tripod to perform [Focus Stacking].

• To record pictures, use a UHS Speed Class 3 card.

• During recording, the angle of view will be narrower.

Press [ ] button

Press to select [ON] and press [MENU/SET]

Determine the composition and press

the shutter button halfway

• Auto Focus activates and automatically detects the focus point on the screen.

• If there is no focus point on the screen, the Focus indicator ( ) blinks and you cannot record.

From halfway pressing the shutter button to completion of recording

• Do not change the distance to subject or the composition.

Press the shutter button fully to start

recording

• The focus point changes automatically while recording. When the recording progress bar (

• A motion picture will be recorded in MP4 format. (No audio is recorded.)

• If Auto Review is set, a screen will automatically appear that lets you select the focus point. (→34)

) disappears, recording automatically ends.

SQT1380 (ENG)

Recording

If the surrounding temperature is high or [Post Focus] recording is performed

●

continuously, [ through. Wait until the camera cools down.

] may be displayed and recording may be stopped halfway

Select the focus point and save the picture ([Post Focus])

On the playback screen, select the image with

the [ ] icon and press

Touch the focus point

• If there are no pictures with the focus on the selected point, a red frame will be displayed, and pictures cannot be saved.

• The edge of the screen cannot be selected.

• Press [Fn1] to switch to the [Focus Stacking] operations screen. (→35)

• To highlight in-focus portion with color, touch [

• To enlarge the display, touch [

• You can make fine adjustments to the focus by dragging the slide bar during enlarged display.

Touch [ ] to save the picture

• The picture will be saved in JPEG format.

You cannot choose and save the picture from a TV screen even if the camera is

●

connected to a TV through an HDMI micro cable.

] .

SQT1380 (ENG)

Recording

Combine multiple pictures to increase the focus range ([Focus Stacking])

You can combine multiple pictures from pictures recorded using [Post Focus] to create a single picture with an expanded focus range.

Touch [ ] on screen in step 2 of “Select the focus point and save the picture ([Post Focus])” (→34)

Choose a stacking method and touch it

Automatically select photos suitable for stacking and combine them

[Auto Merging]

[Range Merging] Combine the pictures with the selected focus position into one picture.

(When selecting [Range Merging])

Touch the focus point

• Select positions at two or more points.

• Focus positions between the two points are selected

and the range of the in-focus portion is displayed in green.

• The ranges that are greyed out are positions that

cannot be selected, or that would produce an unnatural result if selected for focus stacking.

• Touch a position again to deselect it.

• If you drag the screen you can then continue to select positions.

Touch [ ] to combine and save the picture

• The picture will be saved in JPEG format.

Only pictures taken using [Post Focus] are eligible for [Focus Stacking].

●

into one picture.

• Choose by giving preference to near-focus pictures.

• Perform the focus stacking and save the picture.

ResetReset

Set/CancelSet/Cancel

SQT1380 (ENG)

Recording

Taking Pictures While Adjusting a Setting Automatically

Recording mode:

You can take multiple pictures while automatically adjusting a setting by pressing the shutter button.

Set the menu (→26)

→ [Rec] → [Bracket] → [Bracket Type]

(Exposure Bracket)

(Aperture Bracket)

(Focus Bracket)

(White Balance Bracket)

Press to select [More settings] and then press

[MENU/SET]

• If [ ] is set, rotate the rear dial to set the adjustment range.

• Press the shutter button halfway to exit the menu.

Focus on the subject and take a picture

■

To cancel [Bracket]

Select [OFF] in step 1.

(Bracket Recording)

Press the shutter button to perform recording while adjusting the exposure.

Press the shutter button to perform recording while adjusting the aperture.

Press the shutter button to perform recording while adjusting the focus position.

Press the shutter button once to take three pictures with different white balance settings automatically.

SQT1380 (ENG)

Recording

Recording Motion Picture/4K Motion Picture

Recording mode:

You can record full high-definition quality images that comply with the AVCHD standard, as well as motion pictures or 4K motion pictures recorded in MP4.

Press the motion picture button to start

recording

Recording (red) Elapsed recording time Remaining recording time

• Recording of motion picture appropriate for each

motion picture mode is possible.

• Immediately release the motion picture button after pressing it.

• If you press the shutter button down fully, you can take still pictures while

recording motion pictures.

Press the motion picture button again to end recording

If the surrounding temperature is high, or a motion picture is recorded

●

continuously, [ Wait until the camera cools down.

With recording in a quiet environment, the sound of aperture, focus

●

and other actions may be recorded in motion pictures. This is not a malfunction.

To record 4K motion pictures, use a UHS Speed Class 3 card.

●

When you record 4K motion pictures, the angle of view will be narrower than

●

motion pictures of other sizes. To ensure highly accurate focus, 4K motion pictures are recorded at reduced

●

Auto Focus speeds. It may be difficult to focus on the subject with Auto Focus, but this is not a malfunction.

] is displayed and recording may be stopped halfway through.

SQT1380 (ENG)

Recording

■

Setting the format, picture size and recording frame rate

→ [Motion Picture] → [Rec Format]

Settings: [AVCHD] / [MP4]

→ [Motion Picture] → [Rec Quality]

When [AVCHD] is selected: [FHD/28M/60p]

[AVCHD] motion pictures:

●

Files are split into smaller motion picture files for recording when the file size exceeds 4 GB. Motion pictures with [Rec Quality] setting of [FHD/28M/60p]/[FHD/17M/60i] in

●

[AVCHD]: Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds.

When [MP4] is selected: [4K/100M/30p] [HD/10M/30p]

Motion pictures with their file size set to [FHD] or [HD] in [MP4]:

●

Files are split into smaller motion picture files for recording and playback when the file size exceeds 4 GB. (You can continue to record motion pictures without interruption.) Motion pictures with [Rec Quality] setting of [FHD/28M/60p] in [MP4]:

●

Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds. Motion pictures with their file size set to [4K] in [MP4]:

●

Recording stops when the continuous recording time exceeds 15 minutes. When using an SDHC memory card, files are split into smaller motion picture files for recording and playback if the file size exceeds 4 GB. (You can continue to record motion pictures without interruption.) If using an SDXC Memory Card, you can record a motion picture in a single file even if the size is greater than 4 GB.



AVCHD Progressive



4K motion pictures



/ [FHD/17M/60i] / [FHD/24M/30p] / [FHD/24M/24p]



/ [4K/100M/24p]



/ [FHD/28M/60p] / [FHD/20M/30p] /

SQT1380 (ENG)

Recording

[4K Live Cropping]

Recording mode:

By cropping your motion picture down from the 4K angle of view to Full High Definition, you can record a motion picture that pans and zooms in/out while leaving the camera in a fixed position.

• Hold the camera firmly in place while recording.

• A motion picture will be recorded at [FHD/20M/30p] under [MP4].

Pan Zoom in

• When you want to zoom in/out, set different angles of view for the cropping start and end frames. For example, to zoom in, set a larger angle of view for the start frame and a smaller angle of view for the end frame.

Set mode dial to [ ]

Set the menu (→26)

→ [Motion Picture] → [4K Live Cropping]

Settings: [40SEC] / [20SEC] / [OFF]

• The angle of view narrows.

SQT1380 (ENG)

Recording

Set the crop start frame

StartStart

SizeSize

ResetReset

Repeat step 3, and then set the crop

end frame

Press the motion picture button (or the

shutter button) to start recording

Elapsed recording time Set operating time

• Immediately release the motion picture button (or the shutter button) after pressing it.

• When the set operating time has elapsed, recording automatically ends. To end recording midway, press the motion picture button (or the shutter button) again.

■

Changing the position and size of a crop frame

Press [Fn1] button while the recording screen is displayed, and perform steps 3

and

Focus is adjusted and fixed in the crop start frame.

●

[Continuous AF] is set to [OFF].

●

SQT1380 (ENG)

EndEnd

SizeSize

ResetReset

SetSet

Playback

Viewing your pictures

Press [ ] (Playback) button

• When [Lens Retraction] is set to [ON], the lens barrel is retracted after approx. 15 seconds as the camera is switched to the playback screen from the recording screen.

Press to select a picture to be displayed

■

Viewing motion pictures

This unit was designed to play motion pictures using the AVCHD and MP4 formats.

• Motion pictures are displayed with the motion picture icon ([ Press to start playback

• If you press [MENU/SET] during a pause, you can create a picture from a motion picture.

■

Sending pictures to the WEB services

If you press while a single picture is being displayed, you can send the picture to the WEB service quickly.

■

Deleting pictures

Deleted pictures cannot be recovered.

Press [ ] button to delete displayed picture Use to select [Delete Single] and press [MENU/SET]

■

Ending Playback

Press [ ] (Playback) button again or press the motion picture button. The playback can also be ended by pressing the shutter button halfway.

]).

SQT1380 (ENG)

Playback

[Light Composition]

Select multiple frames from 4K burst files that you wish to combine. Parts of the image that are brighter than the preceding frame will be superimposed on the preceding frame to combine the frames into one picture.

• When using [Light Composition], it is recommended to use a tripod or use a smartphone instead of the shutter and do remote recording (→50) to control camera shaking.

→ [Playback] → [Light Composition]

Use to select the 4K burst files and press

[MENU/SET] Choose the combining method and press [MENU/SET]

■

When [Composite Merging] is selected

Select the frames you wish to combine, and then camera superimposes brighter parts of the image.

Select the frames

• Images displayed cannot be enlarged or shrunk or shown as in slide view.

• [

SQT1380 (ENG)

] in touch operation becomes [ ] .

Press [MENU/SET] The selected frames are remembered, and the display goes to the preview screen.

to select items and press [MENU/SET] to perform the following

Use operations.

– [Next]: Lets you select more frames for combining. Goes back to step – [Reselect]: Discards the frame selected immediately before and lets you

– [Save]: Ends frame selection.

Repeat steps - to select more frames to combine

• You can select up to 40 frames.

Press to select [Save] and press [MENU/SET]

■

When [Range Merging] is selected

Select the first and last frames, and the brighter parts of frames within that range will be superimposed.

Select the frame of the first picture and then press [MENU/SET] The selection method is the same as in step Merging]. Select the frame of the last picture and then press [MENU/SET]

Select [Yes] at the confirmation screen and press

[MENU/SET]

The combined picture is displayed.

• The picture will be saved in JPEG format.

select a different image.

when selecting [Composite

Playback

SQT1380 (ENG)

Menu list

• The [Photo Style], [Filter Settings], [Sensitivity], [AF Mode], [AFS/AFF/AFC], [Metering Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution], [Diffraction Compensation], [i.Zoom], [Digital Zoom], and [Stabilizer] menu items are common for both [Rec] and [Motion Picture] menus. If a setting in one menu is changed, the setting with the same name in other menu will also be changed automatically.

[Rec]

[Photo Style]

[Filter Settings]

[Aspect Ratio]

[Picture Size]

[Quality]

[Sensitivity]

[AF Mode]

[AFS/AFF/AFC]

[Metering Mode]

[Burst Rate]

[4K PHOTO]

[Bracket]

[Self Timer]

[Highlight Shadow]

[i.Dynamic]

[i.Resolution]

[iHandheld Night Shot]

[iHDR]

[HDR]

[Multi Exp.]

[Time Lapse Shot]

[Stop Motion Animation]

[Panorama Settings]

[Shutter Type]

[Flash]

[Red-Eye Removal]

[ISO Limit Set]

[ISO Increments]

[Extended ISO]

[Long Shtr NR]

[Diffraction Compensation]

[i.Zoom]

[Digital Zoom]

[Color Space]

[Stabilizer]

[Face Recog.]

[Profile Setup]

SQT1380 (ENG)

[Motion Picture]

[4K Live Cropping]

[Snap Movie]

[Rec Format]

[Rec Quality]

[Custom]

[Cust.Set Mem.]

[Silent Mode]

[AF/AE Lock]

[AF/AE Lock Hold]

[Shutter AF]

[Half Press Release]

[Quick AF]

[Pinpoint AF Time]

[Pinpoint AF Display]

[AF Assist Lamp]

[Focus/Release Priority]

[AF+MF]

[MF Assist]

[Exposure Mode]

[High Speed Video]

[Continuous AF]

[Level Shot]

[MF Assist Display]

[MF Guide]

[Peaking]

[Histogram]

[Guide Line]

[Center Marker]

[Highlight]

[Zebra Pattern]

[Monochrome Live View]

[Constant Preview]

[Expo.Meter]

[Dial Guide]

[Rec Area]

[Flkr Decrease]

[Silent Operation]

[Wind Noise Canceller]

[Remaining Disp.]

[Auto Review]

[Fn Button Set]

[Zoom lever]

[Lens Position Resume]

[Lens Retraction]

[Q.MENU]

[Ring/Dial Set]

[Self Shot]

[Touch Settings]

[Touch Scroll]

[Menu Guide]

SQT1380 (ENG)

[Setup]

[Online Manual]

[Clock Set]

[World Time]

[Travel Date]

[Wi-Fi]

[Beep]

[Live View Mode]

[Monitor Display]

[Monitor Luminance]

[Playback]

[Slide Show]

[Playback Mode]

[Location Logging]

[RAW Processing]

[4K PHOTO Bulk Saving]

[Light Composition]

[Clear Retouch]

[Economy]

[USB Mode]

[TV Connection]

[m/ft]

[Menu Resume]

[Menu Background]

[Menu Information]

[Language]

[Version Disp.]

[Title Edit]

[Text Stamp]

[Video Divide]

[Time Lapse Video]

[Stop Motion Video]

[Resize]

[Cropping]

[Exposure Comp. Reset]

[Self Timer Auto Off]

[No.Reset]

[Reset]

[Reset Wi-Fi Settings]

[Level Gauge Adjust.]

[Demo Mode]

[Format]

[Rotate]

[Rotate Disp.]

[Favorite]

[Print Set]

[Protect]

[Face Rec Edit]

[Picture Sort]

SQT1380 (ENG)

What you can do with the Wi-Fi® function

Operating the camera by connecting it to a smartphone

●

• Taking pictures via a smartphone (→50)

• Playing back pictures in the camera on a smartphone (→50)

• Saving pictures in the camera to a smartphone

• Sending pictures in the camera to social networking services

• Adding location information to pictures in the camera from a smartphone

• Combining motion pictures recorded with Snap Movie according to your preference on a smartphone

Displaying still pictures on a TV

●

Wireless printing

●

Sending pictures to AV device

●

Sending pictures to a PC

●

Using WEB services

●

• This manual uses the term “smartphone” for both smartphones and tablets unless it is necessary to distinguish between them.

• The camera cannot be used to connect to a public wireless LAN connection.

Wi-Fi

SQT1380 (ENG)

Wi-Fi

Operating the camera by connecting it to a smartphone

Installing the smartphone app “Panasonic Image App”

The “Image App” is an application provided by Panasonic.

Supported OS Android™: Android 4.0 or later

Installation procedure

• Use the latest version.

• Supported OS versions as of October 2016. Supported OS versions may be changed without prior notice.

• The service may not be able to be used properly depending on the type of smartphone being used. For the latest information on the “Image App”, refer to the support site below. http://panasonic.jp/support/global/cs/dsc/ (This site is available in English only.)

• When downloading the app on a mobile network, high packet communication fees may be incurred depending on the details of your contract.

• For details about the operating procedure, etc., refer to [Help] in the “Image App” menu.

• If you connect the camera and smartphone over a Wi-Fi connection and run “Image App”, [Help] may not be displayed in the “Image App” menu for some smartphones. In such a case, disconnect the Wi-Fi connection with the camera, connect the camera to a cellular data line such as 3G and LTE, or the Internet to display [Help] in the “Image App” menu.

• Some of the screens and information provided in this document may be different depending on the supported operating system and “Image App” version.

iOS: iOS 7.0 or later

Connect your device to a network (Android) Select “Google Play™ Store”

(iOS) Select “App Store” Enter “Panasonic Image App” or “LUMIX” to search for the app Select “Panasonic Image App” and install it

SQT1380 (ENG)

Wi-Fi

Connecting to a smartphone

You can easily establish a Wi-Fi connection on this unit without entering a password on your smartphone.

(On the camera)

→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [New Connection] → [Remote Shooting & View]

• The information required for directly connecting your smartphone to this unit (SSID (

• You can also display the information by pressing the function button that [Wi-Fi] function is assigned. (At the time of purchase, [Wi-Fi] is assigned to [Fn4] button in recording mode, and [Fn1] in playback mode.)

(On your smartphone)

Turn on the Wi-Fi function in the setting menu

Select the SSID displayed on the screen of

)) is displayed.

the camera Start “Image App” (→48)

• When the connection confirmation screen appears on the camera, select [Yes] and press [MENU/SET]. (Only when making a connection for the first time.)

[Wi-Fi Password] is set to [OFF] at the time of purchase. When you start a Wi-Fi connection, be sure to verify that the device displayed on the camera’s connection confirmation screen is really the device you want to connect to. Even if the wrong device is displayed, you will still be connected to it if you select “Yes”. If there seem to be other Wi-Fi enabled devices in the vicinity, we recommend that you set [Wi-Fi Password] to [ON]. For details, refer to “Owner’s Manual for advanced features (PDF format)”.

SQT1380 (ENG)

Wi-Fi

Closing the connection

Set the camera to Recording Mode

• Press the shutter button halfway to return to recording mode.

Select the camera’s menu items to terminate

the Wi-Fi connection

→ [Setup] → [Wi-Fi] → [Wi-Fi Function] → [Yes]

On the smartphone, close “Image App”

• For details on how to close the application, refer to the operating instructions of your device.

Taking pictures via a smartphone (remote recording)

Connect to a smartphone (→49)

Operate the smartphone

Select [ ] Take pictures

• The recorded images are saved in the camera.

• Some settings are not available.

Playing back pictures in the camera on a smartphone

Connect to a smartphone (→49)

Operate the smartphone

Select [ ]

• When the picture is touched, it is played back at a larger size.

SQT1380 (ENG)

Others

Downloading software

Still/motion pictures can be copied from the camera to your computer by connecting the two together. If you wish to play back or edit pictures on a PC, download software from the supplier’s website and install it on your PC.

To download the software, your PC must be connected to the Internet.

●

It may take time to download the software in some communication environments.

●

PHOTOfunSTUDIO 9.9 PE

You can capture still pictures or motion pictures to your PC, or organize captured pictures by categorizing by recording date, model name of the digital camera used to record, etc. You can also correct still pictures, edit motion pictures, or write to DVD.

• Check the website below to download/install the software. The software is available for download until the end of October 2021. http://panasonic.jp/support/global/cs/soft/download/d_pfs99pe.html

• Operating environment

Supported OS

CPU

Display

RAM

Free hard disk space 450 MB or more for installing software

• To edit 4K motion pictures, you need the 64-bit versions of Windows 10, Windows 8.1, Windows 8, or Windows 7.

• “PHOTOfunSTUDIO” is not compatible with Mac.

• Refer to the operating instructions of “PHOTOfunSTUDIO” (PDF) for further information about the operating environment.

Windows® 10 (32-bit/64-bit)

8.1 (32-bit/64-bit)

Windows

8 (32-bit/64-bit)

Windows

7 (32-bit/64-bit) SP1

Windows

8.1

Windows Windows® 8

Windows 1024×768 pixels or more (1920×1080 pixels or more recommended)

Windows

8.1

Windows

Pentium

4 2.8 GHz or higher

1 GB or more (32-bit) / 2 GB or more (64-bit)

SQT1380 (ENG)

Others

SILKYPIX Developer Studio SE

This software develops and edits RAW file pictures. Edited pictures can be saved in a file format such as JPEG or TIFF that can be displayed on a PC, etc.

• Check the website below to download/install the software. http://www.isl.co.jp/SILKYPIX/english/p/

• Supported OS: Windows

• For details on the operating environment and how to use the SILKYPIX Developer Studio SE, refer to the “Help” or the Ichikawa Soft Laboratory’s support website.

10 / 8.1 / 8 / 7

OS X v10.6 - v10.11

Mac

LoiLoScope 30 day full trial version

Motion pictures can be edited easily.

• Check the website below to download/install the software. http://loilo.tv/product/20

• Supported OS: Windows

• For more information on how to use LoiLoScope and its operating environment, read the LoiLoScope manual available for download at the website.

• “LoiLoScope” is not compatible with Mac.

10 / 8.1 / 8 / 7

SQT1380 (ENG)

Others

Reading the Owner’s Manual

More detailed operating instructions are available in “Owner’s Manual for advanced features (PDF format)”. To read it, download it from the website.

http://panasonic.jp/support/dsc/oi/index.html?model=DMC-LX10&dest=P

• Click the desired language.

■

Confirming URLs and QR codes with the camera

→ [Setup] → [Online Manual]

Settings: [URL display] / [QR Code display]

• The URL or QR code will be displayed on the camera monitor.

You will need Adobe Reader to browse or print the Owner’s Manual (PDF

●

format). You can download and install a version of Adobe Reader that you can use with your OS from the following website. (As of October 2016)

http://www.adobe.com/products/acrobat/readstep2.html

(PDF format)

SQT1380 (ENG)

Others

List of monitor displays

In recording

60p

EXPS

SQT1380 (ENG)

Recording mode (→21) Custom Set [Photo Style] [Flash] [Rec Format]/

[Rec Quality]

[Snap Movie]

[Aspect Ratio]/ [Picture Size]

Image size (Panorama Shot Mode)

Picture effect (Filter) adjustment display

Types of picture effects (Filter)

Card (displayed only during recording)

XXhXXmXXs

Elapsed recording



time Simultaneous recording

indicator [Peaking] [Highlight Shadow] [HDR]/[iHDR] [Multi Exp.] Electronic shutter Overheat indicator

(→30, 34, 37)

[Quality]

120fps [High Speed Video]

AFS [AFS/AFF/AFC]/MF

Focus Bracket

AF Mode [Pull Focus] [Face Recog.]

AFL AF Lock

Burst

[4K PHOTO] (→29)

[Post Focus] (→33) [Self Timer] Remaining battery

Macro recording (→23)

[Level Shot] [Stabilizer]

Jitter alert Recording state

(Flashes red.) (→37)/ Focus (Lights green.) (→20)

Focus (Under low illumination)

Focus (Starlight AF) Wi-Fi connection status

Histogram



Name Travel elapsed days Age in years/months Location



Current date/time



Travel destination setting Exposure meter Zoom (→19)

AF area Spot metering target [Center Marker] [Self Timer] [Silent Mode]

AEL AE Lock

[Metering Mode] Program Shift

1.4 Aperture value Aperture Bracket

60 Shutter speed

Exposure compensation value

Exposure Bracket Brightness (exposure) Manual Exposure Assist

ISO sensitivity

Others



SQT1380 (ENG)

Others

[Dial Guide]

White Balance Bracket

RXXmXXs

White Balance Fine Adjustment

White Balance Coloring Number of recordable

pictures Available recording

time



Touch tab

Touch zoom

Touch Shutter

[Touch AE]

[Peaking]

[Self Shot] (→28)



[h], [m] and [s] indicate “hour”, “minute” and “second”.



This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup]

setting is set.



This is displayed for about 5 seconds when the camera is turned on, after setting the clock

and after switching from Playback Mode to Recording mode.

Function buttons (→22)

Coloring

Defocus control function

Brightness (exposure)

Type of defocus ([Miniature Effect])

[One Point Color]

[Sunshine]

Picture effect (Filter) adjustment display

Picture effects ON or OFF

Picture effects (Filter)

Shutter speed

ISO sensitivity

• The information displayed, such as histograms, magnifications, and numeric values, are only for the purpose of reference.

SQT1380 (ENG)

Troubleshooting

Q&A

• Performing [Reset] in the [Setup] menu may resolve the issue.

• Further information is provided in the “Owner’s Manual for advanced features (PDF format)”. Check it together with the information in this section.

The charging lamp blinks.

• Charging is being performed in a place with extremely high or low temperature. → Reconnect the USB connection cable (supplied) and retry charging in a place where

ambient temperature is 10 °C to 30 °C (50 °F to 86 °F) (temperature conditions also apply to the battery itself).

• Charging is not possible if the power supply capacity of the computer is low.

Sometimes focus adjustment with auto focus mode is difficult while recording 4K motion pictures.

• This may occur when taking a picture by reducing the auto focus speed in order to adjust the

focus at high precision. This is not a malfunction.

Others

SQT1380 (ENG)

Others

It cannot connect to the wireless LAN. Radio waves get disconnected. Wireless access point is not displayed.

General tips for using a Wi-Fi connection

• Use within the communication range of the wireless LAN network.

• If any device, such as microwave oven, cordless phone, etc., that uses 2.4 GHz frequency

are used nearby this unit simultaneously, radio waves may get interrupted.

→ Use them sufficiently away from the device.

• When the battery indicator is flashing red, the connection with other equipment may not

start or the connection may be disrupted. (A message such as [Communication error] is displayed.)

• When this unit is placed on a metal table or shelf, the connection may not be established

easily because the camera is affected by radio waves. Use the camera away from metal surfaces.

About a wireless access point

• Check if the wireless access point to connect is in operating state.

• Check the radio wave condition of the wireless access point. → Perform the connection closer to the wireless access point. → Move the location or change the angle of the wireless access point.

• It may not display even if the radio waves exist depending on the setting of the wireless

access point.

→ Turn off the wireless access point and then turn it back on.

• If the network SSID of the wireless access point is set not to broadcast, it may not be

detected.

→ Enter and set the network SSID. Alternatively, set the network SSID of the wireless access

point to broadcast.

SQT1380 (ENG)

Specifications

Digital Camera: Information for your safety

Power Source DC 8.4 V ( 8.4 V)

Power Consumption

1.9 W (When recording)

1.6 W (When playing back)

Others

Camera effective pixels

Image sensor 1″ MOS sensor,

Lens Optical 3x zoom

Image Stabilizer Optical method Focus range AF:

Shutter system Electronic shutter + Mechanical shutter

Minimum Illumination

20,100,000 pixels

total pixel number 20,900,000 pixels Primary color filter

f=8.8 mm to 26.4 mm (35 mm film camera equivalent: 24 mm to 72 mm) Max. Wide: F1.4 to F11 Max. Tele: F2.8 to F11

30 cm (0.98 feet) (Max. Wide)/ 30 cm (0.98 feet) (Max. Tele) to AF Macro/MF/Intelligent Auto/Motion picture: 3 cm (0.098 feet) (Max. Wide)/ 30 cm (0.98 feet) (Max. Tele) to

Approx. 3 lx (when i-Low light is used, the shutter speed is 1/30th of a second)

SQT1380 (ENG)

Others

Shutter speed Still picture:

Exposure (AE) Program AE (P)/Aperture-priority AE (A)/

[Metering Mode] Multiple/Center weighted/Spot Monitor 3.0″ TFT LCD (3:2) (Approx. 1,040,000 dots)

Flash Built-in pop up flash

Microphones Stereo Speaker Monaural

T (Time) (Max. approx. 120 seconds), 60 seconds to 1/4000th of a second (When the mechanical shutter is used), 1 second to 1/16000th of a second (When the electronic shutter is used) Motion picture: 1/25th of a second to 1/16000th of a second (When [FHD/24M/24p] is set in [AVCHD], or [4K/100M/24p] is set in [MP4]), 1/2 second to 1/16000th of a second (When [M] is selected in Creative Video Mode, MF), 1/30th of a second to 1/16000th of a second (Other than the above)

Shutter-priority AE (S)/Manual exposure (M)/AUTO Exposure Compensation (1/3 EV steps, -5 EV to +5 EV)

(field of view ratio about 100%) Touch screen

AUTO, AUTO/Red-Eye Reduction, Forced ON, Forced ON/Red-Eye Reduction, Slow Sync., Slow Sync./Red-Eye Reduction, Forced OFF

SQT1380 (ENG)

Recording media

Recording file format

Still picture RAW/JPEG (based on Design rule for Camera File

Motion picture AVCHD Progressive/AVCHD/MP4

Audio compression format

Interface Digital USB 2.0 (High Speed) Terminal [HDMI] Micro HDMI Type D [USB/CHARGE] USB 2.0 micro-B Dimensions Approx. 105.5 mm (W) x 60 mm (H) x 42 mm (D)

Mass (weight) With card and battery: Approx. 310

Operating temperature

Operating humidity 10%RH to 80%RH Language select [ENGLISH] / [DEUTSCH] / [FRANÇAIS] / [ESPAÑOL] /

SD Memory Card/SDHC Memory Card SDXC Memory Card

 UHS- UHS Speed Class 3

system, based on Exif 2.3 standard/DPOF corresponding)

AVCHD: Dolby MP4: AAC (2 ch)

[4.15″ (W) x 2.36″ (H) x 1.65″ (D)] (excluding the projection part)

Excluding card and battery: Approx. 280

0 °C to 40 °C (32 °F to 104 °F)

[PORTUGUÊS] / [ITALIANO] / [繁體中文] / [日本語]



Digital (2 ch)



(0.68 lb)

(0.62 lb)

Others

SQT1380 (ENG)

Others

■

Wi-Fi

Compliance standard

Frequency range used (central frequency)

Encryption method Wi-Fi compliant WPA™/WPA2™ Access method Infrastructure mode

■

AC adaptor

(Panasonic SAE0012A): Information for your safety

Input: 110 V – 240 V 50/60 Hz 0.2 A Output: 5 V

■

Battery pack (lithium-ion)

(Panasonic DMW-BLH7PP): Information for your safety

Voltage/capacity: 7.2 V/680 mAh

The symbols on this product (including the accessories) represent the following:

DC Class II equipment (The construction of the product is double-insulated.)

Specifications are subject to change without notice.

IEEE 802.11b/g/n (standard wireless LAN protocol)

2412 MHz to 2462 MHz (1 to 11 ch)

1.0 A

SQT1380 (ENG)

Digital Camera Accessory System

Others

Battery pack

DMW-BLH7

AC adaptor

DMW-AC10

DC coupler

DMW-DCC15A

Part numbers are as of October 2016. These may be subject to change.

●

Some optional accessories may not be available in some countries.

●

(For U.S.A. only)

●

To order optional accessories please visit http://shop.panasonic.com or your local Photo Specialty Dealer.

The battery pack can be charged from the camera using the AC adaptor (supplied).

By using the AC adaptor (DMW-AC10: optional) and DC coupler (DMW-DCC15A: optional), you can record and play back without worrying about the remaining battery charge.

• The optional DC coupler (DMW-DCC15) cannot be used. The AC adaptor (optional) can only be used with the designated Panasonic DC coupler (optional). The AC adaptor (optional) cannot be used by itself.

• When using an AC adaptor (optional), use the AC cable supplied with the AC adaptor.

SQT1380 (ENG)

Others

Limited Warranty (ONLY FOR U.S.A.)

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name Parts Labor

Digital Camera 1 Year 1 Year All included Accessories

(Except Non-Rechargeable Batteries) Only Non-Rechargeable Batteries 10 Days Not Applicable

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

90 Days Not Applicable

SQT1380 (ENG)

Mail-In Service--Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support.

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

Others

SQT1380 (ENG)

Others

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

SQT1380 (ENG)

for all your Panasonic gear

Go to

Get everything you need to get the most out of your Panasonic products

Computers & Networking, Personal Care, Home Appliances, Headphones,

http://shop.panasonic.com/support

Accessories & Parts for your Camera, Phone, A/V products, TV,

Batteries, Backup Chargers & more…

Customer Services Directory

For Product Information, Operating Assistance, Parts, Owner’s Manuals,

Dealer and Service info go to http://shop.panasonic.com/support

For the hearing or speech impaired TTY: 1- 877-833-8855

As of July 2015

Others

SQT1380 (ENG)

Others

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Digital Camera One (1) year, parts and labour Digital Camera Peripherals One (1) year, parts and labour Digital Camera Accessories Ninety (90) days, parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc.

SQT1380 (ENG)

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

Dry cell batteries, printer ink cartridge and paper are also excluded from coverage under this warranty. Rechargeable batteries are warranted for ninety (90) days from date of original purchase.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information assistance, please visit our Support page : www.panasonic.ca/english/support

SQT1380 (ENG)

Others

SDXC Logo is a trademark of SD-3C, LLC.

●

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

●

Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. HDAVI Control™ is a trademark of Panasonic Corporation.

●

“AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive” logo are

●

trademarks of Panasonic Corporation and Sony Corporation. Manufactured under license from Dolby Laboratories. Dolby and the double-D

●

symbol are trademarks of Dolby Laboratories. Pentium is a trademark of Intel Corporation in the U.S. and/or other countries.

●

Windows is either registered trademark or trademark of Microsoft Corporation

●

in the United States and/or other countries. iMovie, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S.

●

and other countries. iPad, iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in

●

the U.S. and other countries. App Store is a service mark of Apple Inc.

●

Android and Google Play are trademarks or registered trademarks of Google

●

Inc. The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.

●

The Wi-Fi Protected Setup™ Identifier mark is a certification mark of Wi-Fi

●

Alliance “Wi-Fi®” and “Wi-Fi Direct®” are registered trademarks of Wi-Fi Alliance®.

●

“Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™” are trademarks of Wi-Fi

●

Alliance DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks,

●

or certification marks of the Digital Living Network Alliance. QR Code is a registered trademark of DENSO WAVE INCORPORATED.

●

This product uses “DynaFont” from DynaComware Corporation. DynaFont is a

●

registered trademark of DynaComware Taiwan Inc. Other names, company names, and product names mentioned in these

●

instructions are trademarks or registered trademarks of the companies concerned.

SQT1380 (ENG)

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

www.panasonic.com

Printed in China

Panasonic DMC-LX10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
