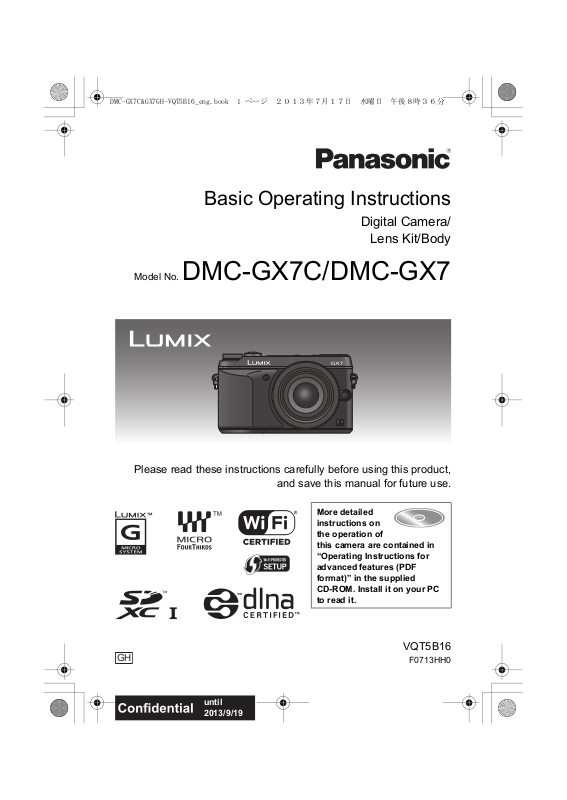

Basic Operating Instructions

Digital Camera/

Lens Kit/Body

Model No. DMC-GX7C/DMC-GX7

Please read these instructions carefully before using this product,

and save this manual for future use.

More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it.

VQT5B16

F0713HH0

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.

Carefully observe copyright laws.

Recording of pre-recorded tapes or discs or other published or broadcast material for purposes

•

other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

•

Do not expose this unit to rain, moisture, dripping or splashing.

• Use only the recommended accessories.

• Do not remove covers.

• Do not repair this unit by yourself. Refer servicing to qualified service personnel.

The socket outlet shall be installed near the equipment and shall be easily accessible.

∫ Product identification marking

Product Location

Digital Camera Bottom

Battery charger Bottom

∫ About the battery pack

CAUTION

•

Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

• When disposing the batteries, please contact your local authorities or dealer and ask for the

correct method of disposal.

Do not heat or expose to flame.

•

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with

doors and windows closed.

VQT5B16 (ENG)

Warning

Figure A Figure B

Fuse (5 ampere)

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or incinerate.

∫ About the battery charger

CAUTION! To reduce the risk of fire, electric shock or product damage,

•

Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

The battery charger is in the standby condition when the AC power supply cord is connected.

•

The primary circuit is always “live” as long as the power cord is connected to an electrical outlet.

∫ How to replace the Fuse

The location of the fuse differ according to the type of AC cable (figures A and B). Confirm the AC cable fitted and follow the instructions below. Illustrations may differ from actual AC cable.

1 Open the fuse cover with a

screwdriver.

Figure A Figure B

Fuse cover

2 Replace the fuse and close or attach

the fuse cover.

(ENG) VQT5B16

∫ Cautions for Use

•

Do not use any other USB connection cables except the supplied one or a genuine Panasonic USB connection cable (DMW-USBC1: optional).

• Use a “High Speed HDMI mini cable” with the HDMI logo.

Cables that do not comply with the HDMI standards will not work. “High Speed HDMI mini cable” (Type C– Type A plug, up to 3 m long)

• Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

• Always use a genuine Panasonic shutter remote control (DMW-RSL1: optional).

Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be

•

disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise adversely affecting

the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields

created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,

disturbing the pictures and/or sound.

• If this unit is adversely affected by electromagnetic equipment and stops functioning properly,

turn this unit off and remove the battery or disconnect AC adaptor (DMW-AC8G: optional). Then reinsert the battery or reconnect AC adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

•

If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound may be adversely affected.

-If you see this symbol-

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

VQT5B16 (ENG)

Contents

Recording

Information for Your Safety................. 2

Preparation

Reading the Operating Instructions

(PDF format) ......................................... 7

Care of the camera............................... 8

Standard Accessories ......................... 9

Names and Functions of Components

Preparation......................................... 14

• Changing the Lens ........................ 14

• Attaching the Shoulder Strap ........ 14

• Charging the Battery ..................... 15

• Inserting/Removing the Battery ..... 16

• Inserting/Removing the Card

(Optional) ...................................... 16

Formatting the card (initialisation)

•

• Setting Date/Time (Clock Set)....... 17

• Adjust the angle of the monitor/

viewfinder...................................... 18

• Using the Viewfinder ..................... 18

Setting the Menu................................ 19

• Setting menu items ....................... 19

Calling frequently-used menus

instantly (Quick Menu) ...................... 21

....11

.... 17

Basic

Assigning frequently used functions

to the buttons (function buttons) ..... 22

Taking a Still picture.......................... 23

Recording Motion Picture ................. 24

Selecting the Recording Mode ......... 25

Switching the Information Displayed

on the recording screen.................... 26

Playing Back Pictures/Motion Pictures

• Playing Back Pictures ................... 27

• Playing Back Motion Pictures........ 28

• Changing the information displayed

on the playback screen................. 29

Deleting Pictures................................ 30

... 27

Taking Pictures using the Automatic

Function (Intelligent Auto Mode) ...... 31

• Taking a picture with a blurred

background (Defocus Control) ...... 32

• Recording images by changing the

brightness or colour tone ............... 32

Taking Pictures with Your Favourite

Settings (Programme AE Mode) ....... 33

Taking Pictures by Specifying the

Aperture/Shutter Speed .....................34

• Aperture-Priority AE Mode.............34

• Shutter-Priority AE Mode...............34

• Manual Exposure Mode.................35

• Confirm the Effects of Aperture and

Shutter Speed (Preview Mode) .....36

Taking Pictures that match the Scene being recorded (Scene Guide Mode) Taking Pictures with different image

effects (Creative Control Mode) ........ 37

Registering your preferred settings

(Custom Mode) ...................................38

• Registering Personal Menu Settings

(Registering custom settings)........ 38

• Recording using registered custom

set.................................................. 38

Adjusting the Picture Quality by

Adding an Effect [Photo Style].......... 39

Adjusting Bright/Dark Portions

[Highlight Shadow]............................. 41

Adjusting the White Balance.............42

Setting the Picture Quality and Size

Setting the aspect ratio of pictures

•

• Setting the number of pixels.......... 43

• Setting the compression rate of

pictures [Quality]............................ 43

Taking Pictures with Auto Focus...... 44

• About the focus mode (AFS/AFF/

AFC) ..............................................45

Taking Pictures with Manual Focus Fixing the Focus and the Exposure

(AF/AE Lock).......................................47

Compensating the Exposure.............48

Setting the Light Sensitivity.............. 48

(ENG) VQT5B16

... 36

....... 42

......42

........46

Select a Drive Mode........................... 49

Taking Pictures using Burst Mode... 50 Taking Pictures using Auto Bracket Taking Pictures with the Self-timer

Optical Image Stabiliser.................... 54

• Using the Optical Image Stabiliser

function of a lens........................... 55

• Using the Optical Image Stabiliser

function of this unit........................ 56

Taking Pictures with the Zoom......... 58

Taking pictures by using the flash... 59

• Changing Flash Mode................... 59

...... 52

........ 53

Playback/Editing

Switching the Playback Method ....... 60

• Displaying multiple screens

(Multi Playback)............................ 60

• Displaying Pictures by Recording

Date (Calendar Playback)............. 60

Using Playback Functions................ 61

• Creating Still Pictures from a

Motion Picture............................... 61

• Removing unnecessary parts

[Clear Retouch]............................. 61

Wi-Fi/NFC

About the supplied software

About the supplied software............. 72

Others

Monitor Display/Viewfinder Display

Menu list..............................................80

• [Rec] .............................................. 80

• [Motion Picture].............................. 82

• [Custom] ........................................82

• [Setup] ...........................................85

• [Playback]...................................... 87

Specifications.....................................88

Digital Camera Accessory System ... 94

.... 74

What you can do with the Wi-FiR

function............................................... 62

Controlling with a Smartphone/Tablet

• Installing the smartphone/tablet app

“Panasonic Image App” ................ 63

Connecting to a smartphone/tablet

•

• Taking pictures via a smartphone/

tablet (remote recording) .............. 66

• Saving images stored in the camera/Sending images in the

camera to an SNS ........................ 66

Changing the connection method

•

VQT5B16 (ENG)

.... 63

..... 64

.... 68

Preparation

Reading the Operating Instructions (PDF format)

More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it.

∫ For Windows

Turn the PC on and insert the CD-ROM containing the Operating

Instructions (supplied).

Select the desired language and then click

[Operating Instructions] to install.

Double click the “Operating Instructions”

shortcut icon on the desktop.

∫ When the Operating Instructions (PDF format) will not open

You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse or print the Operating Instructions (PDF format).

You can download and install a version of Adobe Reader that you can use with your OS from

•

the following Web Site.

http://get.adobe.com/reader/otherversions

∫ To uninstall the Operating Instructions (PDF format)

Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder.

∫ For Mac

Turn the PC on and insert the CD-ROM containing the Operating

Instructions (supplied).

Open the “Manual” folder in the CD-ROM and then copy the PDF file

with the desired language inside the folder.

Double click the PDF file to open it.

(ENG) VQT5B16

Preparation

Care of the camera

Do not subject to strong vibration, shock, or pressure.

•

The lens, monitor, or external case may be damaged if used in the following conditions. It may also malfunction or image may not be recorded if you:

– Drop or hit the camera. – Press hard on the lens or the monitor.

This camera is not dust/drip/water proof. Avoid using the camera in places with a lot of dust, water, sand, etc.

Liquid, sand and other foreign material may get into the space around the lens, buttons, etc. Be

•

particularly careful since it may not just cause malfunctions, but it may also become irreparable.

– Places with a lot of sand or dust. – Places where water can come into contact with this unit, such as when using it on a rainy day

or at the beach.

Do not place your hands inside the mount of the digital camera body. Since the sensor unit is a precision apparatus, it may cause a malfunction or damage.

∫ About Condensation (When the lens, the viewfinder or monitor is fogged up)

•

Condensation occurs when the ambient temperature or humidity changes. Be careful of condensation since it causes lens, viewfinder and monitor stains, fungus and camera malfunction.

• If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will

disappear naturally when the temperature of the camera becomes close to the ambient temperature.

VQT5B16 (ENG)

Preparation

Standard Accessories

Check that all the accessories are supplied before using the camera. Product numbers correct as of August 2013. These may be subject to change.

Digital Camera Body (This is referred to as camera body in these operating instructions.)

(±: Included, —: Not included)

DMC-GX7C DMC-GX7

1 Interchangeable

Lens

¢1

2 Lens Cap

3 Lens Rear Cap

4 Body Cap ±

5Battery Pack

(Indicated as battery pack or battery in the text) Charge the battery before use.

6 Battery Charger

(Indicated as battery charger or charger in the text) 7 AC Cable 8 USB Connection Cable 9 CD-ROM

Software:

•

Use it to install the software to your PC.

10 CD-ROM

•

Operating Instructions for advanced features: Use it to install to your PC.

11 Shoulder Strap 12 Hot shoe cover

¢4

A:Black

B: Silver

¢1 This is referred to as lens in these operating instructions. ¢2 This is attached to the interchangeable lens at the time of purchase. ¢3 These parts are supplied fitted together at the time of purchase. ¢4 This is attached to the camera body at the time of purchase.

•

SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as

• The card is optional.

• Description in these operating instructions is based on the interchangeable lens (H-H020A).

• Consult the dealer or Panasonic if you lose the supplied accessories. (You can purchase the

accessories separately.)

¢4

¢2

¢3

—

¢4

card

in the text.

(ENG) VQT5B16

Preparation

DMC-GX7

DMC-GX7C

H-H020A

VKF4971

VFC4605

VKF4971

VYF3371

VFF1227 VFC5059

DE-A98B

K1HY08YY0034

56 7 8

91011

DMW-BLG10E

K2CT3YY00034



VKF5259/



VKF5260

VQT5B16 (ENG)

Names and Functions of Components

2 3

45678

∫ Camera body

1 Self-timer indicator/

AF Assist Lamp 2Flash 3 Sensor 4 NFC antenna [ ] (P65) 5 Lens fitting mark (P14) 6 Mount 7 Lens lock pin 8 Lens release button (P14)

Preparation

9 Eye sensor (P18) 10 Eye Cup 11 Viewfinder (P18) 12 [LVF] button (P18)/[Fn4] button (P22) 13 Flash open lever (P59) 14 Focus mode lever (P44, 46) 15 [AF/AE LOCK] button (P47) 16 Rear dial 17 Touch screen/monitor (P13) 18 [Q.MENU] button (P21)/[Fn1] button (P22) 19 [(] (Playback) button (P27) 20 [ ] (Delete/Cancel) button (P30)/[Fn2]

button (P22) 21 [MENU/SET] button (P19) 22 [Wi-Fi] button (P64)/[Fn3] button (P22) 23 Wi-Fi 24 Cursor buttons

25 [DISP.] button (P26, 29) 26 Diopter adjustment lever (P18)

connection lamp

3/ISO button (P48)

1/WB (White Balance) (P42)

2/AF Mode button (P44)

4/[Drive Mode] button (P49)

The following settings can be made with the [Drive Mode] button.

Single/Burst/Auto bracket/Self-timer

1011

13 161415

2518 19 20 2122 2423

(ENG) VQT5B16

Preparation

3029 31 32

33 34

36 393738

27 Stereo microphone

•

Be careful not to cover the microphone with your finger. Doing so may make sound difficult to record.

28 Hot shoe (Hot shoe cover)

•

Keep the Hot Shoe Cover out of reach of children to prevent swallowing.

29 Focus distance reference mark 30 Shutter button (P23) 31 Front dial 32 Mode dial (P25) 33 Motion picture button (P24) 34 Status indicator (P17) 35 Camera ON/OFF switch (P17)

36 Tripod mount

•

A tripod with a screw length of 5.5 mm or more may damage this unit if attached.

37 DC coupler cover

•

When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC11: optional) and AC adaptor (DMW-AC8G: optional) are used.

• Always use a genuine Panasonic AC

adaptor (DMW-AC8G: optional).

• When using an AC adaptor, use the AC cable supplied with the AC adaptor.

•

It is recommended to use a fully charged battery or AC adaptor when recording motion pictures.

•

If while recording motion pictures using the AC adaptor and the power supply is cut off due to a power outage or if the AC adaptor is disconnected etc., the motion picture will not be recorded.

38 Release lever 39 Card/Battery door (P16)

40 Shoulder strap eyelet (P14)

•

Be sure to attach the shoulder strap when using the camera to ensure that you will not drop it.

41 [AV OUT/DIGITAL] socket 42 [HDMI] socket 43 [REMOTE] socket 44 Speaker

Be careful not to cover the speaker with your

•

finger. Doing so may make sound difficult to hear.

45 Terminal cover

•

Open the monitor before opening the terminal cover.

VQT5B16 (ENG)

42 43

Preparation

12 34

Fn6

DISP.

6ZLWFK

2.0X2.0X2.0X2.0X

∫ Lens

H-H020A

1 Lens surface 2 Focus ring (P46) 3 Contact point 4 Lens fitting mark

Touch screen

Touch panel of this unit is capacitive. Touch the panel directly with your bare finger.

∫ Touch

To touch and release the touch screen. Use for selecting items or icons.

When selecting features using the touch screen, be sure to

•

touch the centre of the desired icon.

Fn5

Fn6

Fn7

Fn8

Fn9

∫ Drag

A movement without releasing the touch screen. This is used to move the AF area, operate the slide bar, etc. This can also be used to move to the next image during playback, etc.

∫ Pinch (enlarge/reduce)

Pinch the touch panel apart (enlarge) or together (reduce) with two fingers. Use to enlarge/reduce the played back images or AF area.

(ENG) VQT5B16

Preparation

123

Preparation

• Check that the camera is turned off.

Changing the Lens

• Change lenses where there is not a lot of dirt or dust.

• Do not press the lens release button A when you attach a lens.

∫ Detaching the lens

1 Attach the lens cap. 2 While pressing on the lens release button A, rotate

the lens toward the arrow until it stops and then remove.

Attaching the Shoulder Strap

We recommend attaching the shoulder strap when using the camera to prevent it from

•

dropping.

• Perform steps 1 to 4 and then attach the other side of the shoulder strap.

• Use the shoulder strap around your shoulder. – Do not wrap the strap around your neck. – It may result in injury or accident.

• Do not leave the shoulder strap where an infant can reach it. – It may result in an accident by mistakenly wrapping around the neck.

VQT5B16 (ENG)

Preparation

Charging the Battery

The battery that can be used with this unit is DMW-BLG10E.

1 Attach the battery paying attention to the direction of the battery. 2 Connect the AC cable.

•

The [CHARGE] indicator A lights up and charging begins.

∫ About the [CHARGE] indicator The [CHARGE] indicator turns on:

The [CHARGE] indicator is turned on during charging.

The [CHARGE] indicator turns off:

The [CHARGE] indicator will turn off once the charging has completed without any problem. (Disconnect the charger from the electrical socket and detach the battery after charging is completed.)

∫ Charging time

Charging time Approx. 190 min

The indicated charging time is for when the battery has been discharged completely.

•

The charging time may vary depending on how the battery has been used. The charging time for the battery in hot/cold environments or a battery that has not been used for a long time may be longer than normal.

(ENG) VQT5B16

Preparation

Inserting/Removing the Battery

• Always use genuine Panasonic batteries (DMW-BLG10E).

• If you use other batteries, we cannot guarantee the quality of this product.

• Being careful about the battery orientation, insert all the way until you hear a locking sound and

then check that it is locked by lever A. Pull the lever A in the direction of the arrow to remove the battery.

Inserting/Removing the Card (Optional)

• Push it securely all the way until you hear a “click” while being careful about the direction in

which you insert it. To remove the card, push the card until it clicks, then pull the card out upright.

∫ About cards that can be used with this unit

SD Memory Card (8 MB to 2 GB) SDHC Memory Card (4 GB to 32 GB) SDXC Memory Card (48 GB, 64 GB)

∫ About the motion picture recording and SD speed class

Confirm the SD Speed Class (the speed standard regarding continuous writing) on a card label etc. when you record a motion picture. Use a card with SD Speed Class with “Class 4” or more for [AVCHD]/[MP4] motion picture recording.

e.g.:

Please confirm the latest information on the following website.

•

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

• Keep the Memory Card out of reach of children to prevent swallowing.

VQT5B16 (ENG)

Preparation

ONOFF

Formatting the card (initialisation)

Format the card before recording a picture with this unit.

Since data cannot be recovered after formatting, make sure to back up necessary data in advance.

Select [Format] in the [Setup] menu. (P19)

Confirmation screen is displayed. It is executed when [Yes] is selected.

•

Setting Date/Time (Clock Set)

• The clock is not set when the camera is shipped.

Turn the camera on.

• The status indicator 1 lights when you turn this unit on.

Press [MENU/SET].

Press 3/4 to select the language, and press

[MENU/SET].

Press [MENU/SET].

Press 2/1 to select the items (year, month,

day, hour, minute), and press 3/4 to set.

Press [MENU/SET] to set.

Press [MENU/SET] in the confirmation screen.

(ENG) VQT5B16

Preparation

Adjust the angle of the monitor/viewfinder

Adjust the angle of the monitor/viewfinder.

• Be careful not to catch your finger, etc. in the monitor/viewfinder.

• When adjusting the angle of the monitor/viewfinder, be careful not to apply too much

force, as this may cause damage or malfunction.

• When not using this unit, close the monitor/viewfinder completely back to the original position.

Using the Viewfinder

∫ Using the eye sensor to switch between the Monitor and Viewfinder

When [LVF/Monitor Auto] of [Eye Sensor] in the [Custom] menu is set to [ON] and your eye or an object is brought close to the viewfinder, the display automatically switches to the viewfinder display.

A Eye sensor B [LVF]/[Fn4] button

ロヷョバョㄏフ

∫ Switching the Monitor/Viewfinder manually

Press [LVF].

The Viewfinder lights only when your eye or an object is moved closer to it.

[LVF]/[Fn4] button can be used in two ways, as [LVF] or as [Fn4] (function 4). At the time of purchase, it is initially set to [LVF/Monitor Switch].

Refer to P22 for details about the function button.

•

∫ Diopter adjustment

Slide the diopter adjustment lever so that the characters displayed in the viewfinder can be seen clearly.

VQT5B16 (ENG)

Setting the Menu

Setting menu items

Press [MENU/SET].

Menu Description of settings

[Rec] This menu lets you set the aspect ratio, number of pixels

[Motion Picture] This menu lets you set the [Rec Format], [Rec Quality],

[Custom] Operation of the unit, such as displaying of the screen

[Setup] This menu lets you perform the clock settings, select the

[Playback] This menu lets you set the Protection, Cropping or Print

Preparation

and other aspects of the pictures you are recording.

and other aspects for motion picture recording.

and button operations, can be set up according to your preferences. Also, it is possible to register the modified settings.

operating beep tone settings and set other settings which make it easier for you to operate the camera. You can also configure the settings of Wi-Fi related functions.

Settings, etc. of recorded pictures.

(ENG) VQT5B16

Preparation

Press 3/4 of the cursor button to select the menu item and press

[MENU/SET].

Press 3/4 of the cursor button to select the

setting and press [MENU/SET].

• Depending on the menu item, its setting may not appear

or it may be displayed in a different way.

∫ Close the menu Press [ ] or press the shutter button halfway.

∫ Switching to other menus

e.g.: Switching to the [Setup] menu from [Rec] menu.

1 Press 2. 2 Press 3/4 to select [ ] or another of the menu

toggle icons A.

3 Press [MENU/SET].

•

You can also select the menu toggle icons by rotating the front dial.

VQT5B16 (ENG)

Preparation

ヲハヮユワヶ

ョㄏヒ

4:3

AFSAFS

601.7

AWB

Calling frequently-used menus instantly (Quick Menu)

By using the Quick Menu, some of the menu settings can be easily found.

•

The features that can be adjusted using Quick Menu are determined by the mode or a display style the camera is in.

[Q.MENU]/[Fn1] button can be used in two ways, as [Q.MENU] or as [Fn1] (function 1). At the time of purchase, it is initially set to [Q.MENU].

Refer to P22 for details about the function button.

•

Press [Q.MENU] to display the Quick Menu.

Rotate the rear dial to select the menu item,

then press the rear dial.

Rotate the rear dial to select the setting.

Press [Q.MENU] to exit the menu once the

setting is complete.

• You can close the menu by pressing the shutter button halfway.

(ENG) VQT5B16

Basic

Fn6

Fn7

Fn8

Fn9

Fn5

Fn6

Assigning frequently used functions to the buttons (function buttons)

You can assign frequently-used functions to particular buttons or icons.

ロヷョバョㄏフ

ョㄏヒ

ヲハヮユワヶ

Fn5

Fn6

Fn7

Fn8

Fn9

ョㄏビ

ョㄏピ

Fn5

Fn6

Fn7

Fn8

Fn9

1 Select the menu.

[MENU] > [Custom]>[Fn Button Set]

2 Press 3/4 to select [Setting in REC mode] or [Setting in PLAY mode] and then

press [MENU/SET].

3 Press 3/4 to select the function button you want to assign a function to and

then press [MENU/SET].

4 Press 3/4 to select the function you want to assign and then press

[MENU/SET].

Some functions cannot be assigned depending on the function button.

•

VQT5B16 (ENG)

Taking a Still picture

1.7

• Set the drive mode to [ ] (single) by pressing 4().

Select the Recording Mode. (P25)

Press the shutter button halfway to focus.

A Aperture value B Shutter speed

• Aperture value and shutter speed are displayed.

(It will flash in red if the correct exposure is not achieved, except when set to flash.)

• When the image is correctly focused, the

picture will be taken, since the [Focus/ Release Priority] is set initially to [FOCUS].

Press the shutter button fully (push it in

further), and take the picture.

1.7

Basic

6060601.7

(ENG) VQT5B16

Basic

R1m

3737sR1m37

3s3s3

Recording Motion Picture

This camera can record full high definition motion pictures compatible with the AVCHD format or motion pictures recorded in MP4. Audio will be recorded in stereo.

Item Format

[AVCHD]

[MP4]

Start recording by pressing the motion

picture button.

A Elapsed recording time B Available recording time

• The recording state indicator (red) C will flash while

recording motion pictures.

• If approximately 1 minute elapses without an operation

being performed, part of the display will disappear. Press [DISP.] or touch the monitor to make the display reappear.

• Release the motion picture button right after you press it.

Stop the recording by pressing the motion

picture button again.

• Maximum time to record motion pictures continuously with [MP4] is 29 minutes

59 seconds or up to 4 GB. (For [FHD/50p], [FHD/25p] in [MP4] format, the file size is large and so the recordable time will drop below 29 minutes 59 seconds.)

• Still picture recording is also possible during the motion picture recording by fully

pressing the shutter button.

This data format is suitable for when playing back on a high-definition TV, etc.

This data format is suitable for when playing back on a PC, etc.

VQT5B16 (ENG)

Basic

Selecting the Recording Mode

Select the mode by rotating the mode dial.

• Rotate the mode dial slowly to select the desired mode A.

Intelligent Auto Mode (P31)

The subjects are recorded using settings automatically selected by the camera.

Intelligent Auto Plus Mode (P31)

Allows you to adjust the brightness and colour hue when in Intelligent Auto Mode.

Programme AE Mode (P33)

Records at the aperture value and shutter speed set by the camera.

Aperture-Priority AE Mode (P34)

The shutter speed is automatically determined by the aperture value you set.

Shutter-Priority AE Mode (P34)

The aperture value is automatically determined by the shutter speed you set.

Manual Exposure Mode (P35)

The exposure is adjusted by the aperture value and the shutter speed which are manually adjusted.

Creative Video Mode

Records motion pictures with a manually set aperture value and shutter speed.

¢ You cannot take still pictures.

Custom Mode (P38)

Use this mode to take pictures with previously registered settings.

Scene Guide Mode (P36)

This mode allows you to take pictures that match the scene being recorded.

Creative Control Mode (P37)

Record while checking the image effect.

(ENG) VQT5B16

Basic

ュリヴヱハ



989898

AFSAFS

4:3





989898

AFSAFS

4:3







AFSAFS

AWB

0 0

ISO

AUTO

Wi-Fi

4:3

Switching the Information Displayed on the recording screen

Press [DISP.] to change.

• Screen will switch as follows:

(Example of monitor display)

A With information B Without information

C With information (tilt sensor display) D Without information (tilt sensor display) E On-monitor recording information

F Turned off

¢ It is displayed when the [Monitor Info. Disp.] of the [Custom] menu is set to [ON].

Settings can be adjusted directly by touching each of the items displayed on the screen.

• If approximately 1 minute elapses without an operation being performed, part of the display will

disappear. Press [DISP.] or touch the monitor to make the display reappear.

VQT5B16 (ENG)

Playing Back Pictures/Motion Pictures

1/98

2.0X2.0X2.0X2.0X

Playing Back Pictures

Press [(].

Press 2/1.

2: Play back the previous picture

1: Play back the next picture

Using the Playback Zoom

Rotate the rear dial right.

1k 2k 4k 8k 16k

•

When you change the magnification, the zoom position indication A appears for about 1 second.

• You can move the enlarged part by pressing 3/4/2/1 of the

cursor button or dragging the screen. (P13)

• You can also enlarge (2k) the image by double-touching the

part you want to enlarge. If you double-touch the enlarged image, the magnification is reset to 1k.

Basic

1/981/98

1/98

(ENG) VQT5B16

Basic

12s12s12s12s

Playing Back Motion Pictures

This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime Motion JPEG formats.

In Playback Mode, select a picture with the motion picture icon ([ ]), and then press 3 to play back.

A Motion picture recording time

• After playback starts, the elapsed playback time is displayed on

the screen.

∫ Operations during Motion Picture Playback

3 Play/Pause 4 Stop

Rear dial

(left)

Fast rewind

Frame-by-frame rewind (while pausing)

Reduce volume level Rear dial

(right)

Fast forward

Frame-by-frame forward (while pausing)

Increase volume level

VQT5B16 (ENG)

Changing the information displayed on the playback screen

  



60F1.7

AWBAWB

1/98981/98

100-0001

F1.7

RGB

AFS

200

WBWB

ISOISO

AWB

STD.STD.STD.

1/98

100-0001

F1.7

ISO

200

4:3

'(&

Press [DISP.] to switch the monitor screen.

• Screen will switch as follows:

Basic

ュリヴヱハ

A With information

¢1

B Detailed information display

C Histogram display

D Without information (Highlight display)

¢1, 2

E Without information

¢1 If approximately 1 minute elapses without an operation being performed, part of the display

will disappear. Press [DISP.] or touch the monitor to make the display reappear.

¢2 This is displayed if [Highlight] in the [Custom] menu is set to [ON].

(ENG) VQT5B16

Basic

ョㄏビ

'HOHWH6LQJOH

'HOHWH0XOWL

'HOHWH$OO

Deleting Pictures

Once deleted, pictures cannot be recovered.

To delete a single picture

In Playback Mode, select the picture to delete

and then press [ ].

• The same operation can be performed by touching [ ].

Press 3 to select [Delete Single] and then

press [MENU/SET].

• Confirmation screen is displayed.

Picture is deleted by selecting [Yes].

To delete multiple pictures (up to 100

¢ Picture groups are treated as a single picture. (All the pictures in the selected picture group

will be deleted.)

In Playback Mode, press [ ].

Press 3/4 to select [Delete Multi] or [Delete All] and then press

) or all the pictures

[MENU/SET].

• [Delete All] > Confirmation screen is displayed.

Pictures are deleted by selecting [Yes].

• It is possible to delete all pictures except the ones set as favourite when [All Delete

Except Favorite] is selected with the [Delete All] set.

(When [Delete Multi] is selected) Press 3/4/

2/1 to select the picture, and then press [MENU/SET] to set. (Repeat this step.)

• [‚] appears on the selected pictures. If [MENU/SET] is

pressed again, the setting is cancelled.

(When [Delete Multi] is selected) Press 2 to select [OK], and then

press [MENU/SET] to execute.

• Confirmation screen is displayed.

Pictures are deleted by selecting [Yes].

VQT5B16 (ENG)

Recording

Taking Pictures using the Automatic Function

(Intelligent Auto Mode)

Recording Mode:

When you wish to leave settings to the camera and record without thinking about them, use Intelligent Auto Plus Mode or Intelligent Auto Mode, which makes optimal settings for the subject and scene.

About Intelligent Auto Plus Mode and Intelligent Auto Mode

Functions that can be set differ between Intelligent Auto Plus Mode and Intelligent Auto Mode.

•

(±: possible, —: not possible)

Intelligent Auto Plus Mode Intelligent Auto Mode

Setting the brightness ± —

Setting the colour tone ± —

Defocus Control ±±

Set the mode dial to [¦].

• The camera will switch to either the most recently used of Intelligent Auto Mode or

Intelligent Auto Plus Mode. At the time of purchase, the mode is set to Intelligent Auto Plus Mode.

Align the screen with the subject.

• When the camera identifies the optimum scene, the icon

of the scene concerned is displayed in blue for 2 seconds, after which its colour changes to the usual red.

• When the subject is touched, AF Tracking function works.

It is also possible by pressing the cursor button towards

2, and then pressing the shutter button halfway.

∫ Switching between Intelligent Auto Plus Mode and Intelligent Auto Mode

1 Press [MENU/SET].

•

Press 2, and press 3/4 to select [ ] or [ ].

2 Press 2/1 to select [ ] or [ ] and then press

[MENU/SET].

(ENG) VQT5B16

Recording

Taking a picture with a blurred background (Defocus Control)

Recording Mode:

You can easily set the blurriness of the background while checking the screen.

1 Press the rear dial to display the setting screen.

•

Each time the rear dial is pressed in Intelligent Auto Plus Mode, the camera switches between brightness setting operation, Defocus Control operation, and normal operation.

• Each time the rear dial is pressed in Intelligent Auto Mode, the camera switches between

Defocus Control operation and normal operation.

2 Set the blurriness by rotating the rear dial. 3 Record pictures or motion pictures.

250500

SSSSSS

4.02.82.0 5.6 8.0

Recording images by changing the brightness or colour tone

Recording Mode:

This mode enables you to change the brightness and colour tone to your preferred settings from the ones set by the camera.

Setting brightness

1 Press the rear dial to display the setting screen.

•

Each press of the rear dial switches among brightness setting, Defocus Control and end operation.

2 Rotate the rear dial to adjust brightness.

Setting colour

1 Press 1 to display the setting screen. 2 Rotate the rear dial to adjust colour.

•

This will adjust the colour of the image from a reddish colour to a bluish colour.

• Press [MENU/SET] to return to the recording screen.

3060125

VQT5B16 (ENG)

Recording

6060604.04.04.0

SSSSSS

989898

250 15

4.0 5.6 8.0

3060125

2.82.0

Taking Pictures with Your Favourite Settings

(Programme AE Mode)

Recording Mode:

The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject. You can take pictures with greater freedom by changing various settings in the [Rec] menu.

Set the mode dial to [ ].

Press the shutter button halfway and display

the aperture value and shutter speed value on the screen.

While the values are displayed (about 10 seconds), perform

Programme Shift by rotating the rear dial or front dial.

• The Programme Shift indication A appears on the screen.

• To cancel Programme Shift, turn off this unit or rotate the front/rear dial until the

Programme Shift indication disappears.

Programme Shift

In Programme AE Mode, you can change the preset aperture value and shutter speed without changing the exposure. This is called Programme Shift. You can make the background more blurred by decreasing the aperture value or record a moving subject more dynamically by slowing the shutter speed when taking a picture in Programme AE Mode.

(ENG) VQT5B16

Recording

SSSS

8.08.08.0

60 4

4.0 5.6 8.0 11 16

81530

SSSSSS

250250250

11 8.0 5.6 4.0 2.8

250 500125

000

Taking Pictures by Specifying the Aperture/ Shutter Speed

Recording Mode:

Aperture-Priority AE Mode

Set the aperture value to a higher number when you want a sharp focus background. Set the aperture value to a lower number when you want a soft focus background.

Set the mode dial to [ ].

Set the aperture value by rotating the rear

dial or the front dial.

A Aperture value B Exposure meter

• The effects of the set aperture value will not be visible on

the recording screen. To check on the recording screen, please use [Preview]. (P36)

Shutter-Priority AE Mode

When you want to take a sharp picture of a fast moving subject, set with a faster shutter speed. When you want to create a trail effect, set to a slower shutter speed.

Set the mode dial to [ ].

Set the shutter speed by rotating the rear dial

or the front dial.

A Shutter speed B Exposure meter

• The effects of the set shutter speed will not be visible on

the recording screen. To check on the recording screen, please use [Preview]. (P36)

VQT5B16 (ENG)

Recording

CDB

000

++30+

000

−3−

Manual Exposure Mode

Determine the exposure by manually setting the aperture value and the shutter speed. The Manual Exposure Assistance appears on the lower portion of the screen to indicate the exposure.

Set the mode dial to [ ].

Rotate the rear dial to set the shutter speed,

and rotate the front dial to set the aperture value.

A Exposure meter B Aperture value C Shutter speed D Manual Exposure Assistance

∫ Manual Exposure Assistance

The exposure is adequate.

Set to faster shutter speed or larger aperture value.

Set to slower shutter speed or smaller aperture value.

SSSSSS

3030305.6

603015

5.64.02.8 8.0 11

1258

∫ About [B] (Bulb)

If you set the shutter speed to [B], the shutter stays open while the shutter button is pressed fully (up to about 120 seconds). The shutter closes if you release the shutter button. Use this when you want to keep the shutter open for a long time to take pictures of fireworks, a night scene etc.

When you take pictures with the shutter speed set to [B], noise may become visible. To avoid

•

picture noise, we recommend setting [Long Shtr NR] in the [Rec] menu to [ON] before taking pictures.

• The Manual Exposure Assistance does not appear.

• This cannot be used when [Electronic Shutter] is set to [ON].

• It can only be used with Manual Exposure Mode.

∫ Constant preview

In Manual Exposure Mode, when [Constant Preview] in the [Custom] menu is [ON], you will be able to confirm the effects of aperture and shutter speed on the screen.

Close the flash.

•

• It can only be used with Manual Exposure Mode.

(ENG) VQT5B16

Recording

DISP.

6ZLWFK

DISP.

6ZLWFK

DISP.

6ZLWFK

DISP.

6ZLWFK

Confirm the Effects of Aperture and Shutter Speed (Preview Mode)

Applicable modes:

1 Set a function button to [Preview]. (P22)

•

The following step is an example in which [Preview] is assigned to [Fn5].

2 Touch [ ]. 3 Switch the confirmation screen by touching [Fn5].

•

The screen switches each time [Fn5] is touched.

Normal recording screen Effects of Aperture Effects of Shutter Speed

Taking Pictures that match the Scene being recorded

Recording Mode:

If you select a scene to suit the subject and recording conditions with reference to the example images, the camera will set optimal exposure, colour, and focus, allowing you to record in a manner appropriate to the scene.

Set the mode dial to [ ].

(Scene Guide Mode)

Press 2/1 to select the scene.

• The scene can also be selected by dragging an example

image or the slide bar.

Press [MENU/SET] to set.

∫ Switching the scene selection screen display

Press [DISP.] to switch the monitor screen.

VQT5B16 (ENG)

Recording

DISP.

6ZLWFK

DISP.

6ZLWFK

DISP.

6ZLWFK

Taking Pictures with different image effects

(Creative Control Mode)

Recording Mode:

This mode records with additional image effects. You can set the effects to add by selecting example images and checking them on the screen.

Set the mode dial to [ ].

Press 3/4 to select the image effects

(filters).

• The image effect of the selected example image will be

applied in a preview display

• You can also select the image effects (filters) by touching

the example images.

Press [MENU/SET] to set.

∫ Switching the image effect (filter) selection screen display

Press [DISP.] to switch the monitor screen.

DISP.

6ZLWFK

(ENG) VQT5B16

Recording

Registering your preferred settings (Custom Mode)

Recording Mode:

You can register the current camera settings as custom settings. If you then record in Custom Mode, you can use the registered settings.

Initial setting of the Programme AE Mode is registered as the custom settings initially.

•

Registering Personal Menu Settings (Registering custom settings)

To allow recording using the same settings, up to 5 sets of current camera settings can be registered using [Cust.Set Mem.]. (

Preparations: Set in advance the Recording Mode you wish to save and select the

desired menu settings on the camera.

Select the menu.

[MENU] > [Custom]>[Cust.Set Mem.]

Press 3/4 to select the custom set to register and then press

[MENU/SET].

• Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

, , , , )

Recording using registered custom set

You can easily call up the settings you have registered using [Cust.Set Mem.].

Set the mode dial to [ ] or [ ].

• The custom set registered for [ ] or [ ] is called up.

Set the mode dial to [ ].

• The custom set registered for [ ], [ ] or [ ] is called up. The most recently

used custom set is called up.

• To change a custom set

2 and 3.

VQT5B16 (ENG)

> To steps

Recording

Press [MENU/SET] to display the menu.

Press 2/1 to select the custom setting you want to use, and then

press [MENU/SET].

∫ Changing the settings

Registered contents do not change when the menu setting is changed temporarily with the mode dial set to , or . To change the registered settings, overwrite the registered content using [Cust.Set Mem.] on the custom settings menu.

Adjusting the Picture Quality by Adding an Effect

[Photo Style]

Applicable modes:

6 effects can be selected to match the image you wish to record. It is possible to adjust the items such as colour or picture quality of the effect to your desire.

[MENU] > [Rec]>[Photo Style]

Settings Description of settings

[Standard]

[Vivid]

[Natural]

[Monochrome]

[Scenery]

[Portrait]

[Custom]

¢ This is disabled when Intelligent Auto Plus ( ) Mode is selected.

This is the standard setting.

Brilliant effect with high saturation and contrast.

Soft effect with low saturation.

Monochrome effect with no colour shades.

An effect appropriate for sceneries with vivid blue skies and greens.

An effect appropriate for portraits with a healthy and beautiful skin tone.

Use the setting registered in advance.

(ENG) VQT5B16

Recording

±0

-5 0 +5

6WDQGDUG

',63

&XVWRPVHWWLQJ

∫ Adjusting the picture quality

•

Picture quality cannot be adjusted in the Intelligent Auto Plus Mode.

1 Press 2/1 to select the type of Photo Style.

•

In Scene Guide Mode, you cannot select the photo style.

2 Press 3/4 to select the items, and then press 2/1

to adjust.

Item Effect

Increases the difference between the brightness and the

[r]

[Contrast]

[Sharpness]

[Saturation]

[Noise Reduction]

[Filter Effect]

[Yellow]

[Orange]

darkness in the picture.

Decreases the difference between the brightness and

[s]

the darkness in the picture.

[r] The picture is sharply defined.

[s] The picture is softly focused.

[r] The colours in the picture become vivid.

[s] The colours in the picture become natural.

The noise reduction effect is enhanced. Picture

[r]

resolution may deteriorate slightly.

The noise reduction effect is reduced. You can obtain

[s]

pictures with higher resolution.

Enhances the contrast of an subject. (Effect: Weak) The blue sky can be recorded clearly.

Enhances the contrast of an subject. (Effect: Medium) The blue sky can be recorded in darker blue.

Enhances the contrast of an subject. (Effect: Stron g)

[Red]

The blue sky can be recorded in much darker blue.

The skin and lips of people and green leaves appear

[Green]

in natural tones. Green leaves appear brighter and more enhanced.

[Off] -

¢ Displayed only when [Monochrome] is selected.

Registered settings are memorised even if the camera is turned off.

•

• If you adjust the picture quality, [_] is displayed beside the Photo Style icon on the screen.

• Colour can be changed by [Saturation] when [Monochrome] is selected.

3 Press [MENU/SET].

∫ Registering settings to [Custom]

then press

• Confirmation screen is displayed. It is executed when [Yes] is selected.

VQT5B16 (ENG)

[DISP.].

Adjust the picture quality following step

2 of “Adjusting the picture quality”, and

Recording

ヤヤヒヤヤビヤ

6HW

6DYH

HIGH LIGHT

SHADOW

ヤヤ

ヒ

ヤ

ヤヤ

ピ

ヤヤヒヤヤビヤヤ

ピ

Adjusting Bright/Dark Portions [Highlight Shadow]

Applicable modes:

You can adjust the brightness of bright and dark portions on an image while checking the brightness on the screen.

Select the menu.

[MENU] > [Rec]>[Highlight Shadow]

Press 2/1 to select the item.

Item Description of settings

(Standard)

(Raise the contrast)

(Lower the contrast)

(Brighten dark areas)

ヤ

// (Custom)

ピ

Rotate the front/rear dial to adjust the

brightness of bright/dark portions.

A Bright portion B Dark portion C Preview display

• The rear dial is for adjusting dark areas, and the front dial

is for adjusting bright areas.

• To register a preferred setting, press 3, and select the

destination where the custom setting will be registered to ([Custom1] (

• Adjustments can also be made by dragging the graph.

)/[Custom2] ()/[Custom3] ()).

A state with no adjustments is set.

Bright areas are brightened, and dark areas are darkened.

Bright areas are darkened, and dark areas are brightened.

Dark areas are brightened.

Registered custom settings can be applied.

ヤ

ビ

Press [MENU/SET].

• The screen display can be switched by pressing [DISP.] on the brightness adjustment screen.

• Settings registered to / / will be stored even after this unit is turned off.

• Turning off this unit will return the setting adjusted with / / back to the default

setting.

(ENG) VQT5B16

Recording

WBWBWBWBWBWBWBWBWBWBWB

AWB

Adjusting the White Balance

Applicable modes:

In sunlight, under incandescent lights or in other such conditions where the colour of white takes on a reddish or bluish tinge, this item adjusts to the colour of white which is closest to what is seen by the eye in accordance with the light source.

Press 1 ().

Select the White Balance by rotating the rear

dial.

AWB

Press the rear dial to set.

Setting the Picture Quality and Size

Setting the aspect ratio of pictures

Applicable modes:

This allows you to select the aspect ratio of the pictures to suit printing or the playback method.

[MENU] > [Rec]>[Aspect Ratio]

Settings Description of settings

[4:3] [Aspect Ratio] of a 4:3 TV

[3:2] [Aspect Ratio] of a 35 mm film camera

[16:9] [Aspect Ratio] of a high-definition TV, etc.

[1:1] Square aspect ratio

The ends of the recorded pictures may be cut at printing so check before printing.

•

VQT5B16 (ENG)

Recording

Setting the number of pixels

Applicable modes:

Set the number of pixels. The higher the numbers of pixels, the finer the detail of the pictures will appear even when they are printed onto large sheets.

[MENU] > [Rec]>[Picture Size]

When the aspect ratio is [4:3]. When the aspect ratio is [3:2].

Settings Image size Settings Image size

[L] (16M) 4592k3448 [L] (14M) 4592k3064

[ M] (8M) 3232k2424 [ M] (7M) 3232k2160

[ S] (4M) 2272k1704 [ S] (3.5M) 2272k1520

When the aspect ratio is [16:9]. When the aspect ratio is [1:1].

Settings Image size Settings Image size

[L] (12M) 4592k2584 [L] (11.5M) 3424k3424

[ M] (6M) 3232k1824 [ M] (6M) 2416k2416

[ S] (2M) 1920k1080 [ S] (3M) 1712k1712

Setting the compression rate of pictures [Quality]

Applicable modes:

Set the compression rate at which the pictures are to be stored.

[MENU] > [Rec]>[Quality]

Settings File format Description of settings

[A]

[›]

[]

[] RAW

¢1 If you delete a RAW file from the camera, the corresponding JPEG image will also be

deleted.

¢2 It is fixed to maximum recordable pixels ([L]) for each image aspect ratio.

JPEG

RAWiJPEG

A JPEG image in which image quality was given priority.

A standard image quality JPEG image. This is useful for increasing the number of shots without changing the number of pixels.

You can record a RAW image and a JPEG image ([A] or [›]) simultaneously.

You can only record RAW images.

¢1

¢2

• Develop and edit RAW files using the software “SILKYPIX Developer Studio” by Ichikawa Soft

Laboratory on the CD-ROM (supplied).

(ENG) VQT5B16

Recording

Taking Pictures with Auto Focus

Applicable modes:

This allows the focusing method that suits the positions and number of the subjects to be selected.

Set the focus mode lever to [AF].

Set [AFS/AFF/AFC] in the [Custom] menu to [AFS], [AFF] or [AFC].

(P45)

Press 2 ().

Press 2/1 to select AF Mode and then press

[MENU/SET].

VQT5B16 (ENG)

About the focus mode (AFS/AFF/AFC)

Applicable modes:

Select the menu.

[MENU] > [Custom]>[AFS/AFF/AFC]

Press 3/4 to select item, and press [MENU/

SET].

• Select focus mode according to the movement of the

subject and the scene you are recording.

• The set focus mode will be assigned to [AF] of the focus

mode lever.

Recording

Item

Subject is still

AFS

(Scenery, anniversary photograph, etc.)

Movement cannot be predicted

AFF

(Children, pets, etc.)

Subject is moving

AFC

(Sport, trains, etc.)

• When the interchangeable lens (H-H020A) is used, [AFF] and [AFC] cannot be set.

The movement of the subject and the scene

(recommended)

(ENG) VQT5B16

Recording

A C

Taking Pictures with Manual Focus

Applicable modes:

Use this function when you want to fix the focus or when the distance between the lens and the subject is determined and you do not want to activate Auto Focus.

Set the focus mode lever to [MF].

Use the focus lever or focus ring on the lens to achieve focus.

A Indicator for ¶ (infinity)

• When you focus manually, display is switched to the

assist screen and the image is enlarged (MF Assist B).

• When [Peaking] in the [Custom] menu is set to [ON],

in-focus portions are highlighted (C).

• When [MF Guide] on the [Custom] menu is set to [ON]

and you focus manually, the MF guide D is displayed on the screen. You can check whether the point of focus is to the near side or the far side.

MF ASSIST

∫ Displaying the MF Assist

•

It can be displayed by rotating the focus ring, moving the focus lever, pinching out (P13) the screen, or touching the screen twice. (In the Creative Control Mode [Miniature Effect], MF Assistance cannot be displayed by touching the screen)

• It can also be displayed by pressing 2 to display the setup screen for the enlarged area,

deciding the area to enlarge using the cursor button, and then pressing [MENU/SET].

• It will switch to the setting screen for the enlarged area by pressing the cursor button when the

[Direct Focus Area] in the [Custom] menu is set to [ON].

∫ Changing the display of the MF Assist

Each time the rear dial is pressed, an enlarged display switches between a windowed screen display and a full screen display.

VQT5B16 (ENG)

Recording

1.7

AEL

• If the front dial or rear dial is rotated, the display can be enlarged/reduced up to approximately

3 to 6 times when the enlarged display is in a windowed display or up to approximately 3 to 10 times when the enlarged display is in a full screen display. The rear dial enlarges/reduces the size at a rate of 1 time, and the front dial enlarges/reduces it at a rate of 0.1 times.

• The display can also be enlarged/reduced by pinching out/pinching in.

∫ Moving the enlarged area

•

The enlarged area can be moved by dragging the screen (P13), or pressing the cursor button.

• The following will return the MF assistance to the original position. – Pressing [DISP.] when the setting screen for determining the area to be enlarged is displayed.

∫ Closing the MF Assist

•

It will close when the shutter button is pressed halfway.

• You can also close MF Assist by pressing [MENU/SET] or touching [Exit].

• When displayed by moving the focus lever or rotating the focus ring, it is closed approximately

10 seconds after operations are stopped.

Fixing the Focus and the Exposure (AF/AE Lock)

Applicable modes:

This is useful when you want to take a picture of a subject outside the AF area or the contrast is too strong and you cannot achieve appropriate exposure.

Align the screen with the subject.

Press and hold [AF/AE LOCK] to fix the focus or exposure.

• If you release [AF/AE LOCK], AF/AE Lock is cancelled.

• Only the exposure is locked in the default setting.

While pressing [AF/AE LOCK], move the

camera as you compose the picture and then

AEL

press shutter button fully.

A AE Lock indication

• When [AE LOCK] is set, after pressing the shutter button halfway to focus, press the

shutter button fully.

606060

1.7

(ENG) VQT5B16

Recording

+1+1

+1+1 +2+2 +3+3 +4+4 +5+5

-5-5-4-4-3-3-2-2-1-

100

Compensating the Exposure

Applicable modes:

Use this function when you cannot achieve appropriate exposure due to the difference in brightness between the subject and the background.

Press the rear dial to switch to Exposure

Compensation operation.

Rotate the rear dial to compensate the

exposure.

A Exposure Compensation value

Underexposed

Compensate the exposure towards positive.

• Select [n0] to return to the original exposure.

Properly exposed

Overexposed

Compensate the exposure

towards negative.

Setting the Light Sensitivity

Applicable modes:

This allows the sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure enables pictures to be taken even in dark places without the resulting pictures coming out dark.

Press 3 ().

Select the ISO sensitivity by rotating the rear

dial.

Press the rear dial to set.

VQT5B16 (ENG)

Recording

1 2 3 4

Select a Drive Mode

Applicable modes:

Selecting the drive mode allows you to switch the operation, such as burst recording or the self-timer, for when you press the shutter button.

Press 4 ().

Press 2

1 to select the drive mode, and then

press [MENU/SET].

Drive mode Description of settings

[Single] (P23)

2 [Burst] (P50)

[Auto Bracket] (P52)

4 [Self Timer] (P53)

• To cancel the drive mode, select [ ]. The setting will switch to [Single].

• Settings for each drive mode can be changed by pressing 3.

When the shutter button is pressed, only one picture is recorded.

Recordings are made in succession while the shutter button is pressed.

Each time the shutter button is pressed, recordings are made with different exposure settings according to the Exposure Compensation range.

When the shutter button is pressed, recording takes place after the set time has elapsed.

31/3

0RUHVHWWLQJV

(ENG) VQT5B16

Recording

31/3

0RUHVHWWLQJV

H MLVL

Taking Pictures using Burst Mode

Applicable modes:

Pictures are taken continuously while the shutter button is pressed.

•

Pictures taken with a burst speed of [SH] will be recorded as a single burst group.

Press 4 ().

1 2

Press 2

1 to select the burst icon ([ ],

etc.), and then press 3.

Select the burst speed with 2/1, and then

press [MENU/SET].

VQT5B16 (ENG)

Recording

AFSAFS

[SH]¢2

(Super high

speed)

Burst

speed

(pictures/

second)

Live View during Burst

¢1

¢1 Number of recordable pictures ¢2 The electronic shutter will operate. ¢3 Depending on the recording conditions, the number of frames in a burst may be

reduced. (For example, when you set [i.Resolution] of the recording menu, the number of frames in a burst may be reduced)

¢4 Pictures can be taken until the capacity of the card becomes full. However the burst

speed will become slower halfway. The exact timing of this depends on the aspect ratio, the picture size, the setting for the quality and the type of card used.

Focus on the subject and take a picture.

Electronic

shutter [ON]

Electronic

shutter [OFF]

Mode

With RAW files —

Without RAW

files

Max. 80

None None Available Available

[H]

(High

speed)

10 4 2

542

[M]

(Middle

speed)

¢3, 4

[L]

(Low speed)

Depends on the capacity of the card

¢4

• Hold down the shutter button fully to activate the Burst Mode.

∫ Focusing in Burst Mode

Focus Mode

AFS

AFF/AFC

¢5

Focus/Release

Priority

[FOCUS]

[RELEASE]

[FOCUS]

[RELEASE]

Focus

At the first picture

Normal focusing

Predicted focusing

¢6

¢7

MF — Focus set with Manual Focus

¢5 When the subject is dark or the burst speed is set to [SH], the focus is fixed on the first

picture.

¢6 The burst speed may become slower because the camera is continuously focusing on the

subject.

¢7 Burst speed takes priority, and focus is estimated within possible range.

(ENG) VQT5B16

Recording

31/3

0RUHVHWWLQJV

31/3

-3-2-

1 0 +1+1 +2+2 +3+3

-3-2-

1 0 +1 +2 +3

2 1 3

31/3 32/3 31 51/3 52/3 51

71/3 72/3 71

AFSAFS

4:3

Taking Pictures using Auto Bracket

Applicable modes:

Maximum of 7 pictures will be recorded with different exposure settings following the Exposure Compensation range every time the shutter button is pressed.

Press 4 ().

Press to 2/1 to select the Auto Bracket icon

(

[ ], etc.), and then press 3.

Press 2

1 to select the compensation

range, and then press [MENU/SET].

Focus on the subject and take a picture.

A Auto Bracket indication

• If you press and hold the shutter button, the number of

pictures that you set is taken.

• The Auto Bracket indication blinks until the number of pictures that you set is taken.

• The picture count is reset to [0] if you change the Auto Bracket setting or turn the

camera off before all the pictures that you set are taken.

∫ Changing the settings for [Single/Burst Settings], [Step] and [Sequence] in Auto

Bracket

1 Select the menu.

[MENU] > [Rec]>[Auto Bracket]

2 Press 3/4 to select [Single/Burst Settings], [Step] or [Sequence] and then

press [MENU/SET].

3 Press 3/4 to select the setting and then press [MENU/SET].

•

Exit the menu after it is set.

VQT5B16 (ENG)

Taking Pictures with the Self-timer

31/3

0RUHVHWWLQJV

Applicable modes:

Press 4 ().

Recording

Press 2

([ ], etc.), and then press 3.

Press 2

1 to select the self-timer icon

1 to select the time setting for the

self-timer, and then press [MENU/SET]

Item Description of settings

Picture is taken 10 seconds after shutter is pressed.

After 10 seconds the camera takes 3 pictures at about 2 seconds intervals.

Picture is taken 2 seconds after shutter is pressed.

•

When using a tripod, etc., this setting is a convenient way to avoid the jitter caused by pressing the shutter button.

Press the shutter button halfway to focus and

then press it fully to take the picture.

10 2

(ENG) VQT5B16

Recording

Optical Image Stabiliser

The camera detects jitter during recording and automatically corrects it, so you can record images with reduced jitter.

There are two types of Optical Image Stabilisers, the one built into a lens and the one built into this unit. The Optical Image Stabiliser of either a lens or this unit will be enabled.

∫ Compatible Optical Image Stabilisers

The Optical Image Stabiliser of either a lens or this unit works depending on the lens in use.

Lens in use

Supporting the Optical Image

Micro Four Thirds mount specification lens

Four Thirds mount specification lens

• Use a mount

adaptor (DMW-MA1: optional).

Stabiliser function

Not supporting the Optical Image Stabiliser function

• The interchangeable lens

(H-H020A) does not support the Optical Image Stabiliser function.

Supporting the Optical Image Stabiliser function

Not supporting the Optical Image Stabiliser function

Leica mount specification lens

•

Use a Leica lens mount adaptor (DMW-MA2M, DMW-MA3R: optional).

Lenses other than those listed above that can be attached to this unit

Optical Image Stabiliser

function

Only the Optical Image Stabiliser function of the lens will be enabled.

Only the Optical Image Stabiliser function of this unit will be enabled.

Only the Optical Image Stabiliser function of the lens will be enabled.

Only the Optical Image Stabiliser function of this unit will be enabled.

P55

P56

P55

P56

VQT5B16 (ENG)

Using the Optical Image Stabiliser function of a lens

Applicable modes:

Recording

A lens based on the Micro Four Thirds System standard/Four Thirds System standard equipped with the Optical Image Stabiliser function is required.

Select the menu.

[MENU] > [Rec]>[Stabilizer]>[Operation Mode]

Press 3/4 to select the item and then press [MENU/SET].

Item Description of settings

[] ([Normal])

[] ([Panning])

[OFF]

• Exit the menu after it is set.

• When using an optional interchangeable lens with an O.I.S. switch, it is possible to set to

enable the Optical Image Stabiliser by switching the O.I.S. switch on the lens to [ON]. (At the time of purchase, it is initially set to [ ].)

Vertical and horizontal shake are compensated for.

Camera shake is corrected for up/down movements. This mode is ideal for panning (a method of taking pictures which involves turning the camera to track the movements of a subject which continues to move in a fixed direction).

[Stabilizer] does not work. (This can be selected only when using a lens without the [O.I.S.] switch.)

(P54)

(ENG) VQT5B16

Recording

Using the Optical Image Stabiliser function of this unit

Applicable modes:

If your lens does not support the Optical Image Stabiliser function or is not based on the Micro Four Thirds System standard/Four Thirds System standard, the Optical Image Stabiliser of this unit can be used. (P54)

The Optical Image Stabiliser of this unit works only when taking pictures.

•

If your lens is not based on the Micro Four Thirds System standard/Four Thirds System standard, make the following settings:

Set the [Shoot w/o Lens] to [ON]. (P84)

•

• Set the focal length of your lens in [Focal Length Set]. (P57) – If a lens not based on the Micro Four Thirds System standard/Four Thirds System standard

is in use when the Optical Image Stabiliser of this unit is available, a confirmation message for the focal length setting is displayed after this unit is turned on. Selecting [Yes] enables you to set [Focal Length Set] in [Stabilizer].

Select the menu.

[MENU] > [Rec]>[Stabilizer]

Press 3/4 to select the item and then press [MENU/SET].

Item Description of settings

[] ([Normal])

[Operation Mode]

[Focal Length Set]

¢ This item can be set only when your lens is not based on the Micro Four Thirds System

standard/Four Thirds System standard.

• Exit the menu after it is set.

[] ([Panning])

[OFF]

The focal length of your lens can be set or registered.

Vertical and horizontal shake are compensated for.

[Stabilizer] does not work.

VQT5B16 (ENG)

Recording

Setting the focal length of a lens

• When a lens based on

use, a focal length is set automatically.

• If your lens is based on the Micro Four Thirds System standard/Four Thirds System standard

but does not have a communication function with the camera, set the focal length of the lens.

Preparations: Set the [Shoot w/o Lens] to [ON]. (P84)

the Micro Four Thirds System standard/Four Thirds System standard is in

1 Select the menu.

[MENU] > [Rec]>[Stabilizer]

2 Press 3/4 to select [Focal Length Set] and then press [MENU/SET]. 3 Select the focal length of your lens with 2

•

A focal length ranging from 8 mm to 1000 mm can be set.

• Set a focal length written on the body of your lens, etc.

• If the focal length setting for your lens is not found, select a

value close to the focal length of your lens.

• If your lens is a zoom lens, select a value according to the

focal length at the time of recording.

4 Press [MENU/SET].

∫ Registering a focal length

1 Perform step 3 in “Setting the focal length of a lens”. 2

Press 4.

3 Press 2

overwritten and then press [DISP.].

•

• Up to 3 focal length settings can be registered.

• Exit the menu after it is set.

1 to select the focal length to be

Confirmation screen is displayed. It is executed when [Yes] is selected.

∫ Setting a registered focal length

1 On the screen in step 3 of “Setting the focal length of a lens”, press 4. 2 Press 2

1 to select the registered focal lengthand then press [MENU/SET].

(ENG) VQT5B16

Recording

Taking Pictures with the Zoom

Applicable modes:

∫ Types of zooms and recording magnification

Feature Optical Zoom

Recording magnification

Picture quality No deterioration No deterioration

¢1 When a picture size of [S] (4 M), aspect ratio of [4:3] is selected.

The magnification level differs depending on [Picture Size] and [Aspect Ratio] setting.

2 When recording quality setting [FHD/50p], [FHD/50i], [FHD/25p] or [FHD/24p] is selected.

Different depending on the lens used.

Extra Tele Conversion

(EX) (P81)

When taking still pictures: Max. 2k When recording motion pictures: 2.4k

¢1

¢2

Digital Zoom (P81)

When selecting [2k] When selecting [4k]

The higher the magnification level, the greater the deterioration.

VQT5B16 (ENG)

Taking pictures by using the flash

Applicable modes:

∫ Open/Close the built-in flash

Taking a picture using the flash becomes possible by opening the built-in flash.

A To open the flash

Slide the flash open lever.

B To close the flash

Press the flash until it clicks.

•

Make sure to close the built-in flash when it is not in use.

• The flash setting is fixed to [Œ] while the flash

is closed.

Changing Flash Mode

Applicable modes:

Set the built-in flash to match the recording.

•

Open the flash.

1 Select the menu.

[MENU] > [Rec]>[Flash]

2 Press 3/4 to select [Flash Mode] and then press [MENU/SET]. 3 Press 3/4 to select the item and then press [MENU/SET].

Recording

(ENG) VQT5B16

Playback/Editing

1/98

CAL

Switching the Playback Method

Displaying multiple screens (Multi Playback)

Rotate the rear dial left.

1 screen 12 screens 30 screens Calendar screen display

It is possible to switch the playback screen by touching the

•

following icons.

– [ ]: 1 screen

– [ ]: 12 screens

– [ ]: 30 screens

– [ ]: Calendar screen display

• The screen can be switched gradually by dragging the screen up or down.

Displaying Pictures by Recording Date (Calendar Playback)

1 Rotate the rear dial left to display the Calendar screen. 2 Press 3/4/2/1 to select the date to be played back.

•

If there were no pictures recorded during a month, that month is not displayed.

3 Press [MENU/SET] to display the images that are

recorded in selected date.

4 Press 3/4/2/1 to select a picture and then press [MENU/SET].

2013

SUN MON TUE WED THU FRI SAT

45362 71

11 12

25 26 27 28

20 21

6HW

VQT5B16 (ENG)

Playback/Editing

6HW

5(029(

6&$/,1*

8QGR

Using Playback Functions

With this menu, you can use various playback functions such as cropping and other editing of recorded images, protect settings, etc.

Creating Still Pictures from a Motion Picture

You can create a single still picture from a recorded motion picture.

Press 3 to pause motion picture playback.

Press [MENU/SET].

•

The same operation can be performed by touching [ ].

• Confirmation screen is displayed. It is executed when

[Yes] is selected.

Removing unnecessary parts [Clear Retouch]

You can erase unnecessary parts recorded on the pictures taken.

•

The erasure operation can only be performed by touching. [Clear Retouch] automatically enables the touch operation.

1 Select the menu.

[MENU] > [Playback]>[Clear Retouch]

2 Press 2 3 Drag your finger over the part you want to delete.

•

• Touching [Undo] will return the coloured part back to its

4 Touch [Set].

•

5 Touch [Save] or press [MENU/SET].

•

1 to select a picture, and then press [MENU/SET].

The parts to be erased are coloured.

previous state.

Preview screen is displayed.

Confirmation screen is displayed. It is executed when [Yes] is selected. Exit the menu after it is executed.

(ENG) VQT5B16

Wi-Fi/NFC

ョㄏピ

What you can do with the Wi-FiR function

What you can do

Controlling with a Smartphone/Tablet

Recording with a smartphone.

Saving images stored in the camera.

Sending images to an SNS.

Easy connection, easy transfer

You can use easily by pressing and holding [Wi-Fi] or by using the NFC function.

Displaying pictures on a TV

When sending images to Printer

When sending images to AV device

You can send pictures and motion pictures to AV devices in your house (home AV devices). You can also send them to the devices (external AV devices) of your family or friends living away from you via “LUMIX CLUB”.

When sending images to PC

Using Web services

You can send pictures and motion pictures to an SNS, etc. via “LUMIX CLUB”. By setting up automatic transfers of pictures and motion pictures to the [Cloud Sync. Service], you can receive the transferred pictures or motion pictures on a PC or smartphone.

• Please refer to “Operating Instructions for advanced features (PDF format)” for details.

VQT5B16 (ENG)

Wi-Fi/NFC

Controlling with a Smartphone/Tablet

You can remotely operate the camera using a smartphone/tablet. You need to install “Panasonic Image App” (referred to as “Image App” from this point on) on your smartphone/tablet.

Installing the smartphone/tablet app “Panasonic Image App”

The “Image App” is an application provided by Panasonic.

For AndroidTM apps For iOS apps

OS Android 2.2~Android 4.2

1 Connect your Android device

to a network.

2 Select “Google Play

Installation procedure

Use the latest version.

•

• The service may not be able to be used properly depending on the type of smartphone/tablet

being used. For information on the Image App, refer to the support site below.

http://panasonic.jp/support/global/cs/dsc/

• When downloading the app on a mobile network, high packet communication fees may be

incurred depending on the details of your contract.

¢ Connecting to this unit with [Wi-Fi Direct] requires Android OS 4.0 or higher and Wi-Fi

Direct

3 Enter “Panasonic Image App”

into the search box.

4 Select “Panasonic Image

App” and install it.

The icon will be added to the

•

menu.

support.

iOS 5.0~ iOS 6.1

1 Connect the iOS device to the

Store”.

2 Select “App Store 3 Enter “Panasonic Image App”

4 Select “Panasonic Image

The icon will be added to the

•

menu.

(This Site is English only.)

network.

into the search box.

App” and install it.

”.

(ENG) VQT5B16

Wi-Fi/NFC

ョㄏピ

Connecting to a smartphone/tablet

A connection can be easily established by pressing and holding [Wi-Fi] or by using the NFC function.

Preparations:

Install the “Image App” in advance. (P63)

•

1 Press and hold [Wi-Fi].

•

The information (SSID and password) required for directly connecting your smartphone/tablet to this unit is displayed.

• Except for when connecting for the first time, the screen

from the previous connection is displayed.

• The same screen can be displayed by selecting the

following menu items.

[Wi-Fi] > [New Connection]>[Remote Shooting

& View]

• To change the connection method, press [DISP.], and then

select the connection method.

2 Operate the smartphone/tablet.

1 Turn on the Wi-Fi function. 2 Select the SSID that matches the one displayed on the screen of this unit, and

then enter the password.

3 Start “Image App”. (P63)

When the connection is complete, live images being captured by the camera are

•

displayed on the smartphone/tablet.

VQT5B16 (ENG)

Wi-Fi/NFC

Connecting to a smartphone/tablet by using the NFC function

Using the NFC “ Near Field Communication ” function, you can easily transfer data necessary for a Wi-Fi connection between this camera and the smartphone/tablet.

∫ Compatible models

This function can be used with the NFC compatible device with Android (OS version

2.3.3 or higher). (excluding some models)

For information on the operation and settings of NFC-compatible smartphones/tablets, refer

•

to the operating instructions of your device.

Preparation:

(On the camera)

Set [NFC Operation] to [ON].

•

(On your smartphone/tablet)

•

Check that your smartphone/tablet is a compatible model.

• Turn on the Wi-Fi function.

• Install the “Image App” in advance. (P63)

1 Launch “Image App” on your smartphone/tablet. 2 While [ ] is displayed on the connection

screen of the “Image App”, touch the smartphone/tablet to [ ] of this unit.

It may take time to complete the connection.

•

• When the smartphone/tablet has connected, an

image of this smartphone/tablet.

• If a connection attempt by touching fails, restart the

“Image App”, and then display the screen in step again.

• If a connection is established during single picture

playback, the picture will be transferred to the smartphone/tablet. (P67)

camera will be displayed on the

When connecting for the first time, the connection confirmation screen is displayed

1 When the connection confirmation screen is displayed on this unit, select

[Yes].

2 Touch the smartphone/tablet to [ ] of the camera again.

•

The connected smartphone/tablet is registered to this camera.

(ENG) VQT5B16

Wi-Fi/NFC

Taking pictures via a smartphone/tablet (remote recording)

1 Connect to a smartphone/tablet. (P64) 2 Select [ ] on the smartphone/tablet.

The recorded images are saved in the camera.

•

• Motion pictures can also be recorded.

• Some settings are not available.

• The screen differs depending on the operating system.

Saving images stored in the camera/Sending images in the camera to an SNS

1 Connect to a smartphone/tablet. (P64) 2 Select [ ] on the smartphone/tablet.

3 Drag an image.

•

The function can be assigned to the top, bottom, left or right according to your preference.

• If an image is touched, the picture will be played back in an

enlarged size.

VQT5B16 (ENG)

Wi-Fi/NFC

Transferring images stored in the camera easily

A Wi-Fi connection using NFC function is possible by touching the smartphone/tablet to this unit, and you can easily transfer images displayed on the screen. An image can be sent on site immediately after taking it, so you can easily send it to the smartphone/tablet

¢ Installing the “Image App” is required for use.

Preparation:

(On the camera)

•

Set [NFC Operation] to [ON].

• Set [Touch Sharing] to [ON].

of your family or friend.

(On your smartphone/tablet)

•

Check that your smartphone/tablet is a compatible model.

• Turn on the Wi-Fi function.

• Install the “Image App” in advance. (P63)

1 Play back the picture you want to transfer to the smartphone/tablet in the

camera.

2 Launch “Image App” on the smartphone/tablet at the transfer destination. 3 While [ ] is displayed on the connection

screen of the “Image App”, touch the smartphone/tablet to [ ] of this unit.

It may take time to complete the connection.

•

• If a connection attempt by touching fails, restart the

“Image App”, and then display the screen in step again.

• They cannot be transferred as a batch.

• Depending on the environment you are using, it may take a few minutes to complete the image

transfer.

(ENG) VQT5B16

Wi-Fi/NFC

Changing the connection method

To change the connection method, press [DISP.], and then select the connection method.

Connection method Description of settings

[Via Network] Connects via a wireless access point. P69

[Direct] Your device connects directly to this unit. P71

VQT5B16 (ENG)

Via the network

You can select the method for connecting to a wireless access point.

¢ WPS refers to a function that allows you to easily configure

the settings related to the connection and security of wireless LAN devices. To check if the wireless access point you are using is compatible with WPS, refer to the manual of the wireless access point.

Connection method Description of settings

Save push button type wireless access point that is compatible with Wi-Fi Protected Setup

with a WPS mark.

Press the wireless access point WPS button until it switches to WPS

[WPS (Push-Button)]

mode.

Refer to the wireless access point

•

instruction manual for details.

Save PIN code type wireless access point that is compatible with Wi-Fi Protected Setup with a WPS mark.

1 Select the wireless access point you are connecting

[WPS (PIN code)]

to.

2 Enter the PIN code displayed on the camera screen

into the wireless access point.

3 Press [MENU/SET].

•

Refer to the wireless access point instruction manual for details.

Select this option when you are not sure about the WPS

[Manual Connection]

compatibility, or when you want to search for and connect to a wireless access point.

Refer to P70 for details.

•

Wi-Fi/NFC

e.g.:

(ENG) VQT5B16

Wi-Fi/NFC

If you are not sure about the WPS compatibility (connecting by [Manual Connection])

Search for available wireless access points.

• Confirm encryption key of the selected wireless access point if the network authentication is

encrypted.

• When connecting by [Manual Input], confirm SSID, encryption type, encryption key of the

wireless access point you are using.

1 Select the wireless access point you are connecting

to.

Pressing [DISP. ] will search for a wireless access point

•

again.

• If no wireless access point is found, refer to “When

connecting with [Manual Input]

” on P70.

2 (If network authentication is encrypted)

Enter the encryption key.

∫ When connecting with [Manual Input]

1 On the screen displayed in step 1 of “If you are not sure about the WPS

compatibility (connecting by [Manual Connection])”, select [Manual Input].

2 Enter the SSID of the wireless access point you are connecting to, then select

[Set].

3 Select the network authentication type.

•

For information on network authentication, see the manual of the wireless access point.

4 Select the encryption type.

•

The type of settings that can be changed may vary depending on the details of network authentication settings.

Network authentication type Encryption types that can be set

[WPA2-PSK]/[WPA-PSK] [TKIP]/[AES]

[Common Key] [WEP]

[Open] [No Encryption]/[WEP]

5 (When an option other than [No Encryption] is selected)

Enter the encryption key.

Check the wireless access points instruction manual and settings when saving a wireless

•

access point.

• Transmission speed may decrease, or may not be usable depending on the environment it is

used in.

VQT5B16 (ENG)

Direct connection

You can select the method for connecting to the device you are using. Select the connection method supported by your device.

Connection method Description of settings

mode.

[Wi-Fi Direct]

1 Set the device to Wi-Fi Direct 2 Select [Wi-Fi Direct]. 3 Select the device to connect to.

•

Read the operating instructions of your device for details.

[WPS (Push-Button)]

1 Select [WPS (Push-Button)]. 2 Set the device to WPS mode.

•

[WPS Connection]

You can wait longer for a connection by pressing the [DISP.] button on this unit.

[WPS (PIN code)]

1 Select [WPS (PIN code)]. 2 Enter the PIN code of the device into this unit.

Enter the SSID and password into the device. The SSID and

[Manual Connection]

password are displayed on the connection waiting screen of this unit.

Wi-Fi/NFC

(ENG) VQT5B16

About the supplied software

The supplied CD-ROM includes the following software. Install the software on to your computer before use.

PHOTOfunSTUDIO 9.2 PE (Windows XP/Vista/7/8)

•

This software allows you to manage images. For example, you can send pictures and motion pictures to a PC and sort them by recording date or model name. You can also perform operations such as writing images to a DVD, processing and correcting images, and editing motion pictures.

• SILKYPIX Developer Studio

(Windows XP/Vista/7/8, Mac OS X v10.4/v10.5/v10.6/v10.7/v10.8)

This is software to edit RAW format images. Edited images can be saved in a format (JPEG, TIFF, etc.) that can be displayed on a personal computer.

For details on how to use the SILKYPIX Developer Studio, refer to the “Help” or the Ichikawa Soft Laboratory’s support website: http://www.isl.co.jp/SILKYPIX/english/p/support/

• LoiLoScope 30 day full trial version (Windows XP/Vista/7/8)

LoiLoScope is a video editing software where that draws out the full power of your PC. Creating videos is as easy as organizing cards on top of a desk. Use your music, picture and video files to create videos to share with your friends and family by burning it to a DVD, uploading it to websites, or simply share your videos with your friends via e-mail.

– This will only install a shortcut to the trial version download site.

For more information on how to use LoiLoScope, read the LoiLoScope manual available for download at the link below. Manual URL: http://loilo.tv/product/20

VQT5B16 (ENG)

About the supplied software

∫ Installing supplied software

Before inserting the CD-ROM, close all running applications.

•

Check the environment of your PC.

• Operating environment of “PHOTOfunSTUDIO 9.2 PE”

– OS:

WindowsR XP (32bit) SP3, Windows Vista Windows Windows

–

CPU:

PentiumR III 500 MHz or higher (WindowsR XP), Pentium Pentium

–

Display:

1024k768 pixels or more (1920k1080 pixels or more recommended)

–

RAM:

512 MB or more (WindowsR XP/Windows VistaR), 1 GB or more (Windows 2 GB or more (Windows

–

Free hard disk space:

450 MB or more for installing software

•

Refer to the operating instructions of “PHOTOfunSTUDIO” (PDF) for further operating environment.

• For details on SILKYPIX Developer Studio 3.1 SE, please read the support site given on

P72.

Insert the CD-ROM with the supplied software.

• When you insert the supplied CD-ROM, the install menu will start.

(32bit) SP2,

7 (32bit/64bit) or SP1,

8 (32bit/64bit)

III 800 MHz or higher (Windows VistaR),

III 1 GHz or higher (WindowsR 7/WindowsR 8)

7 32bit/WindowsR 8 32bit),

7 64bit/WindowsR 8 64bit)

Click on the [Recommended Installation].

• Proceed with installation according to messages appearing on the screen.

• The software compatible with your PC will be installed.

• On the Mac, SILKYPIX can be installed manually.

1 Insert the CD-ROM with the supplied software.

2 Double-click on the automatically displayed folder.

3 Double-click the icon in the application folder.

Not available in these cases:

“PHOTOfunSTUDIO” and “LoiLoScope” are not compatible with Mac.

•

(ENG) VQT5B16

Others

Recording Mode

Custom settings

Photo Style

Creative control adjustment display

‰Œ

Flash Mode

Flash

Extra Tele Conversion (when recording motion pictures)

Recording format/ Recording quality

Picture size/ Aspect Ratio

Extra Tele Conversion (when taking still pictures)

989898

0000200200

6060601.71.71.7

AFSAFSAFS

4:3

AELAELAEL

BKTBKTBKT

AWBAWBAWB

ラュンラュン



C3-1

EXPS

4:3 EXM

4:3

Card (displayed only during recording)

Elapsed recording time

Simultaneous recording indicator

Peaking

Highlight Shadow

HDR

Multi exposure

Digital Zoom

Electronic shutter

Overheat indicator

ラュン

Monitor Display/Viewfinder Display

• The following images are examples of when the display screen is set to [ ] (monitor

style) in the monitor.

∫ In recording

8m30

EXPS

¢ “h” is an abbreviation for hour, “m” for minute and “s” for second.

VQT5B16 (ENG)

A ›

Quality

Focus Mode

šØ

AF Mode

Face Recognition

AF Lock

Burst

Auto Bracket

Self-timer

Battery indication

Picture Mode (Still picture priorities)

Optical Image Stabiliser

Jitter alert

Recording state (Flashes red.) Focus (Lights green.)

Time Lapse Shot

Histogram

989898

0000200200

6060601.71.71.7

AFSAFSAFS

4:3

AELAELAEL

BKTBKTBKT

AWBAWBAWB

ラュンラュン





AFS

AFF

AFC

AFL

Name

Number of days that have passed since the departure date

Age

Location

Current date and time/“: Travel destination setting

¢2

Others

¢1 This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup]

setting is set.

¢2 This is displayed for about 5 seconds when the camera is turned on, after setting the clock

and after switching from Playback Mode to Recording Mode.

(ENG) VQT5B16

Others

AF area

Spot metering target

Self-timer

¢1

Mic level display

Silent Mode

AE Lock

Metering Mode

Programme Shift

1.7 Aperture value

60 Shutter speed

Exposure compensation value

Brightness

Manual Exposure Assistance

ISO sensitivity

989898

0000200200

6060601.71.71.7

AFSAFSAFS

4:3

AELAELAEL

BKTBKTBKT

AWBAWBAWB

ラュンラュン







AEL

Dial operation guide

White Balance Bracket

White Balance Fine Adjustment

VÐîÑ

White Balance

Colour

Number of recordable pictures

¢2

Available recording time

¢2, 3

Touch tab

¢4

Touch tab

¢4

Touch tab

¢4

Touch tab

¢4

Touch tab

¢4

Touch tab

¢4

Exposure meter

Focal distance display

Step z oom

m30s

BKT

AWB

¢1 This is displayed during countdown. ¢2 It is possible to switch the display between the number of recordable pictures and available

recording time with the [Remaining Disp.] setting in the [Custom] menu.

¢3 “h” is an abbreviation for hour, “m” for minute and “s” for second. ¢4 Only displayed in the monitor.

VQT5B16 (ENG)

• Only displayed in the monitor.

××

Fn8Fn8Fn8Fn8

Fn9Fn9Fn9Fn9

Fn6Fn6Fn6Fn6

Fn5Fn5Fn5Fn5

Fn7Fn7Fn7Fn7

ISOISO

SSSSSS

Touch zoom

Touch Shutter

Touch AE

Peaking

Fn5 (Function button)

Fn6 (Function button)

Fn7 (Function button)

Fn8 (Function button)

Fn9 (Function button)

Colour

Defocus control function

Brightness

Type of defocus ([Miniature Effect])

Fn5

Fn9

One point colour

Position of the light source

Creative control adjustment

Panorama shot direction

Selects an image effect (filter)

Aperture value

Shutter speed

ISO sensitivity

Microphone level adjustment

ISO

Fn6

Fn7

Fn8

Others

(ENG) VQT5B16

Others

¢1 “h” is an abbreviation for hour, “m” for

minute and “s” for second.

¢2 It is displayed in order of [Title],

[Location], [Name] ([Baby1]/[Baby2], [Pet]), [Name] ([Face Recog.]).

¢3 This is not displayed for motion pictures

recorded in [AVCHD].

Playback Mode

Protected picture

Number of prints

Ü Favourites

Cable disconnect prohibit icon

Motion picture playback

Play panorama

Continuous Burst Picture Group Playback

Continuous [Time Lapse Shot] Picture Group Playback

Continuous playback of the Stop Motion Animation Group

‘ Stamped with text indication

Elapsed playback time

¢1

Picture size/ Aspect Ratio

Recording format/ Recording quality

A ›

Quality

Battery indication

1/98 Picture number/Total pictures

Number of pictures in burst

Motion picture recording time

¢1

F1.7

$:%

67'$<

1/98

00200

SLF

PRQWK  GD\V

8m30

4:3

AVCHD

FHD

50i

SLF

8m30

Clear Retouch completed icon

Currently retrieving information icon

Playback (Motion Pictures)

Number of days that have passed since the departure date

Burst Picture Group Display

[Time Lapse Shot] Picture Group Display

Display for the Stop Motion Animation Group

Silent Mode

Age

Multi Playback

Delete

Name

¢2

Location

¢2

Title

¢2

Recording information

¢3

PRQWKGD\V

∫ In playback





67'$<67'$<

67'$<

PRQWK  GD\VPRQWK  GD\V

PRQWK  GD\V

F1.7

VQT5B16 (ENG)

4:3

1/98

SLF





$:%



67'$<

Detailed information display

100-0001

F1.7

'(&

RGB

AFS

200

WBWB

ISOISO

AWB

STD.STD.STD.

4:3







Recording information

Intelligent Dynamic Range Control

¢1

HDR

¢2

Intelligent Resolution

Shading Compensation

¢2

Recorded date and time/World Time

Picture size/ Aspect Ratio

A › Quality

Colour space

¢2

100-001

Folder/File number

¢1

4:3

1/98

100-0001

F1.7

ISO

200







Histogram

Recording information

¢1

1/98

Picture number/Total pictures

100-001

Folder/File number

¢1

Histogram display

Others

¢1 This is not displayed for motion pictures recorded in [AVCHD]. ¢2 This is not displayed for motion pictures.

(ENG) VQT5B16

Others

Menu list

[Rec]

This menu lets you set the aspect ratio, number of pixels and other aspects of the pictures you are recording.

[Photo Style], [Metering Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution] and [Digital

•

Zoom] are common to both the [Rec] menu and [Motion Picture] menu. Changing these settings in one of these menus is reflected in other menu.

[Photo Style]

[Aspect Ratio] Sets the aspect ratio of the image. (P42)

[Picture Size] Set the number of pixels. (P43)

[Quality]

[Metering Mode]

[Burst Rate]

[Auto Bracket]

[Self Timer]

[Highlight Shadow]

[i.Dynamic] (Intelligent dynamic range control)

[i.Resolution]

[HDR]

[Multi Exp.]

[Time Lapse Shot]

You can select effects to match the type of image you wish to record. You can adjust the colour and image quality of the effects. (P39)

Set the compression rate at which the pictures are to be stored. (P43)

Sets the light metering method for measuring brightness.

Sets the burst speed for burst recording.

Sets single/burst recording, compensation range and recording sequence for Auto Bracket recording. (P52)

Sets the manner in which the self-timer works. (P53)

You can adjust the brightness of bright and dark portions on an image while checking the brightness on the screen. (P41)

Adjusts the contrast and exposure.

Records pictures with more defined outlines and sense of clarity.

You can combine 3 pictures with different levels of exposure into a single picture with rich gradation.

Gives an effect like multi exposure. (up to 4 times equivalent per a single image)

You can set the recording start time, the recording interval and the number of pictures, and automatically record subjects such as animals and plants as time elapses.

VQT5B16 (ENG)

Others

[Stop Motion Animation]

[Panorama Settings]

[Electronic Shutter]

[Shutter Delay]

[Flash]

[Red-Eye Removal]

[ISO Limit Set]

[ISO Increments]

[Extended ISO]

[Long Shtr NR]

[Shading Comp.]

[Ex. Tele Conv.]

[Digital Zoom]

[Color Space]

[Stabilizer]

[Face Recog.]

[Profile Setup]

A stop motion picture is created by splicing pictures together.

Sets the recording direction and image effect for panorama recording.

The shutter sound can be turned off for recording in a quiet environment.

To reduce the influence of hand shake, the shutter is released when a specified time period has elapsed since the shutter button was pressed.

Sets the manner in which the flash works. (P59)

Automatically detects red-eye caused by the flash and corrects the image data accordingly.

When the ISO sensitivity is set to [AUTO] or [ ], an optimal ISO sensitivity is set with the selected value as an upper limit.

The ISO sensitivity settings values changes in steps of 1/3 EV or 1 EV.

ISO sensitivity can be set up to minimum [ISO125].

You can eliminate the noise caused by recording with a slower shutter speed.

If the screen periphery darkens as a result of lens characteristics, the brightness in this region will be corrected.

When the number of pixels is set to anything other than [L], the Tele effect is increased without degradation in image quality.

Increases the Tele effect. The higher the level of magnification, the greater the degradation in image quality.

Set this when you want to correct the colour reproduction of the recorded pictures on a PC, printer etc.

When camera shake is sensed during recording, the camera corrects it automatically.

Sets the focus and exposure automatically prioritising registered faces.

If you set the name and birthday of your baby or pet in advance, you can record their name and age in months and years in the images.

(ENG) VQT5B16

Others

[Motion Picture]

This menu lets you set the [Rec Format], [Rec Quality], and other aspects for motion picture recording.

[Photo Style], [Metering Mode], [Highlight Shadow], [i.Dynamic], [i.Resolution] and [Digital

•

Zoom] are common to both the [Rec] menu and [Motion Picture] menu. Changing these settings in one of these menus is reflected in other menu.

– For details, refer to the explanation for the corresponding setting in the [Rec] menu.

[Rec Format]

[Rec Quality]

[Exposure Mode]

[Picture Mode]

[Continuous AF]

[Rec Highlight]

[Ex. Tele Conv.]

[Flkr Decrease]

[Silent Operation]

[Mic Level Disp.]

[Mic Level Adj.]

[Wind Cut]

Sets the file format for the motion pictures you record.

This sets up the picture quality of motion pictures.

Select the method for setting the aperture value and shutter speed in Creative Video Mode.

Sets the recording method for still pictures during motion picture recording.

Continues to focus on the subject for which focus has been achieved.

White saturated areas appear blinking in black and white.

Increases the Tele effect. (P58)

The shutter speed can be fixed to reduce the flicker or striping in the motion picture.

Enables touch operations to allow silent use while recording motion pictures.

Set whether or not the mic levels are displayed on the recording screen.

Adjust the sound input level to 4 different levels.

This prevents the recording of wind-noise automatically.

[Custom]

Operation of the unit, such as displaying of the screen and button operations, can be set up according to your preferences. Also, it is possible to register the modified settings.

[Cust.Set Mem.]

[Silent Mode]

[AF/AE Lock]

VQT5B16 (ENG)

Registers the current camera settings as custom set.

Disables operational sounds and output of light at once.

Sets the fixed content for focusing and exposure when the AF/ AE lock is on.

Others

[AF/AE Lock Hold]

[Shutter AF]

[Half Press Release]

[AFS/AFF/AFC]

[Quick AF]

[Eye Sensor AF]

[Pinpoint AF Time]

[AF Assist Lamp]

[Direct Focus Area]

[Focus/Release Priority]

[AF+MF]

[MF Assist]

[MF Guide]

[Peaking]

[Histogram]

[Guide Line]

[Highlight]

This will set the operation of [AF/AE LOCK] button when taking a picture with fixed focus or exposure.

Set whether or not the focus is adjusted automatically when the shutter button is pressed halfway.

The shutter will immediately fire when the shutter button is pressed halfway.

Sets the focus method. (P44)

Speeds up the focusing that takes place when you press the shutter button.

The camera automatically adjusts the focus when the eye sensor is active.

Sets the time for which the screen is enlarged when the shutter button is pressed halfway with Auto Focus Mode set to [ ].

AF assist lamp will illuminate the subject when the shutter button is pressed half-way making it easier for the camera to focus when recording in low light conditions.

Moves the AF area or MF assist using the cursor button when recording.

It will set so no picture can be taken when it is out of focus.

You can set the focus manually after the automatic focus has finished.

Sets the display method of MF Assist (enlarged screen).

When you set the focus manually, an MF guide that allows you to check the direction to achieve focus is displayed.

In-focus portions are highlighted when focus is being adjusted manually.

This allows you to set either to display or not display the histogram.

This will set the pattern of guide lines displayed when taking a picture.

When the Auto Review function is activated or when playing back, white saturated areas appear blinking in black and white.

(ENG) VQT5B16

Others

[Constant Preview]

[Expo.Meter]

[Dial Guide]

[LVF Disp.Style]

[Monitor Disp. Style]

[Monitor Info. Disp.]

[Rec Area]

[Remaining Disp.]

[Auto Review]

[Fn Button Set]

[Q.MENU] Switch the setting method of Quick Menu. (P21)

[Dial Set.] Changes the operation methods of the front dial and rear dial.

[Video Button] Enables/disables the motion picture button.

You can check the effects of the chosen aperture and shutter speed on the recording screen in Manual Exposure Mode.

Set whether or not to display the exposure meter.

Set whether or not to display the dial operation guide.

This will set the display style of the viewfinder.

This will set the display style of the monitor.

Display the recording information screen.

This changes the angle of view during motion picture recording and still picture recording.

This will switch display between the number of recordable pictures and available recording time.

Set the length of time that the picture is displayed after taking the still picture.

You can assign frequently-used functions to particular buttons or icons. (P22)

Sets the screen display and lens operations when using an

[Power Zoom Lens]

interchangeable lens that is compatible with power zoom (electrically operated zoom).

This will set the sensitivity of the eye sensor.

[Eye Sensor]

This will set whether to automatically switch the display from the Monitor to the Viewfinder when your eye or an object is brought closer to the eye sensor.

[Touch Settings]

[Touch Scroll]

[Menu Guide]

[Shoot w/o Lens]

Enables/disables the Touch operation.

This allows you to set the speed of continuously forwarding or rewinding pictures using touch operation.

Set the screen that is displayed when the mode dial is set to and .

Sets whether or not the shutter can be released when no lens is attached to the main body.

VQT5B16 (ENG)

Others

[Setup]

This menu lets you perform the clock settings, select the operating beep tone settings and set other settings which make it easier for you to operate the camera. You can also configure the settings of Wi-Fi related functions.

[Clock Set]

[World Time]

[Travel Date]

[Wi-Fi]

[Beep]

[Speaker Volume]

[Monitor Display]/ [Viewfinder]

[Monitor Luminance]

[Economy]

[USB Mode]

[Output] This sets how the unit connects to a television etc.

[VIERA Link]

[3D Playback]

[Menu Resume]

[Menu Background]

[Menu Information]

Setting Date/Time.

Sets the times for the region where you live and your holiday destination.

Departure date and return date of the trip as well as the name of the travel destination can be set.

Configure the each setting for Wi-Fi functions.

Set the volume for electronic noises and the electronic shutter noise.

Adjust the volume of the speaker to any of 7 levels.

Brightness, colour, or red or blue tint of the Monitor/viewfinder is adjusted.

Set the monitor brightness to suit the amount of surrounding light.

Suppresses the unit’s power consumption to prevent the battery from being run down.

Sets the communication method when connecting using the USB connection cable (supplied).

Equipment that supports the VIERA Link will connect automatically.

Set the output method for 3D pictures.

Stores the location of the last-used menu item for each menu.

Set the background colour for the menu screen.

Descriptions of menu items or their settings are displayed on the menu screen.

(ENG) VQT5B16

Others

[Language]

[Version Disp.]

[Exposure Comp. Reset]

[Self Timer Auto Off]

[No.Reset]

[Reset]

[Reset Wi-Fi Settings]

[Pixel Refresh]

[Sensor Cleaning]

[Format]

Set the language displayed on the screen.

This enables the firmware versions of the camera and lens to be checked.

An exposure value can be reset when the recording mode is changed or the camera is turned off.

Sets whether or not to cancel the self-timer when this unit is turned off.

Returns the image file number to 0001.

The recording or setup/custom settings are reset to the default.

Reset all settings in the [Wi-Fi] menu to factory default settings. (excluding [LUMIX CLUB])

It will perform optimisation of imaging device and image processing.

Dust reduction to blow off the debris and dust that have affixed to the front of the imaging device is performed.

The card is formatted. (P17)

VQT5B16 (ENG)

Others

[Playback]

This menu lets you set the Protection, Cropping or Print Settings, etc. of recorded pictures.

[2D/3D Settings] Switches the playback method for 3D images.

[Slide Show] Selects the type etc. of the images and plays back in order.

[Playback Mode]

[Location Logging]

[Clear Retouch]

[Title Edit]

[Text Stamp]

[Video Divide]

[Time Lapse Video]

[Stop Motion Video]

[Resize]

[Cropping]

[Rotate]

[Rotate Disp.]

[Favorite]

[Print Set] Sets the images for printing and the number of prints.

[Protect] Protects images to prevent deletion by mistake.

[Face Rec Edit] Removes or changes information relating to personal identity.

[Delete Confirmation]

Selects the type etc. of the images and plays back only particular images.

The location information (longitude/latitude) acquired by the smartphone/tablet can be sent to the camera and written in images.

You can erase unnecessary parts recorded on the pictures taken. (P61)

Input texts (comments) on the recorded pictures.

Stamps the recorded pictures with recording date and time, names, travel destination, travel date, etc.

Splits the recorded motion picture in two.

Creates a motion picture from a set of group pictures recorded with the [Time Lapse Shot].

Creates a motion picture from the Stop Motion Animation group.

Reduces the image size (number of pixels).

Crops the recorded image.

Rotate pictures manually in 90o steps.

This mode allows you to display pictures vertically if they were recorded holding the camera vertically.

Marks can be added to images, and images can be set as favourites.

This sets which option, [Yes] or [No], will be highlighted first when the confirmation screen for deleting a picture is displayed.

(ENG) VQT5B16

Others

Specifications

Specifications are subject to change without notice.

Digital Camera Body (DMC-GX7):

Information for your safety

Power Source: DC 8.4 V

Power Consumption: 2.5 W (When recording with LCD Monitor)

[When the Interchangeable lens (H-H020A) is used]

1.8 W (When playing back with LCD Monitor) [When the Interchangeable lens (H-H020A) is used]

Camera effective pixels

Image sensor 4/3q Live MOS sensor, total pixel number 16,840,000 pixels,

Digital Zoom Max. 4k

Extra Tele Conversion When taking still pictures:

Focus Auto Focus/Manual Focus,

Shutter system Focal-plane shutter

16,000,000 pixels

Primary colour filter

Max. 2k (When a picture size of [S] (4 M), aspect ratio of [4:3] is selected.) When recording motion pictures:

2.4k/3.6k/4.8k

Face Detection/AF Tracking/23-area-focusing/ 1-area-focusing/Pinpoint (Touch focus area selection possible)

VQT5B16 (ENG)

Others

Burst recording

Burst speed Mechanical shutter:

5 pictures/second (High speed), 4 pictures/second (Middle speed), 2 pictures/second (Low speed) Electronic shutter: 40 pictures/second (Super high speed), 10 pictures/second (High speed), 4 pictures/second (Middle speed), 2 pictures/second (Low speed)

Number of recordable pictures

Max. 9 pictures (when there are RAW files) Depends on the capacity of the card (when there are no RAW files)

ISO sensitivity (Standard Output Sensitivity)

AUTO/ /125 (1/3 EV step change possible) ¢Only available when [Extended ISO] is set.

/200/400/800/1600/3200/6400/12800/25600

Minimum Illumination Approx. 5 lx (when i-Low light is used, the shutter speed is

1/25th of a second) [When the Interchangeable lens (H-H020A) is used]

Shutter speed B (Bulb) (Max. approx. 120 seconds),

60 seconds to 1/8000th

of a second Taking still pictures during motion picture recording:

Motion picture priorities: 1/25th of a second to 1/16000th of a second Still picture priorities: B (Bulb) (Max. approx. 120 seconds), 60 seconds to 1/8000th of a second

Metering range EV 0 to EV 18

White Balance Auto White Balance/Daylight/Cloudy/Shade/Incandescent

lights/Flash/White set1/White set2/White Balance K set

Exposure (AE) Programme AE (P)/Aperture-priority AE (A)/Shutter-priority

AE (S)/Manual exposure (M)/AUTO Exposure Compensation (1/3 EV Step, j5EV to i5EV)

Metering Mode Multiple/Centre weighted/Spot

Monitor 3.0q TFT LCD (3:2) (Approx. 1,040,000 dots)

(field of view ratio about 100%) Touch screen

Viewfinder Live Viewfinder (16:9) (Approx. 2,760,000 dots equivalent)

(field of view ratio about 100%)

(with diopter adjustment j4 to i3diopter)

(ENG) VQT5B16

Others

Flash Built-in pop up flash

GN 7.0 equivalent (ISO200· m) [GN 5.0 equivalent (ISO100·m)] Flash range: Approx. 50 cm to 11.7 m [When the Interchangeable lens (H-H020A) is mounted, [ISO AUTO] is set] AUTO, AUTO/Red-Eye Reduction, Forced ON, Forced ON/ Red-Eye Reduction, Slow Sync., Slow Sync./Red-Eye Reduction, Forced OFF

Flash synchronisation speed

Equal to or smaller than 1/320th of a second (When external flashes are used: Equal to or smaller than 1/250th of a second)

Microphone Stereo

Speaker Monaural

Recording media SD Memory Card/SDHC Memory Card

(¢ UHS-I-compatible)

Card

Picture size

Still picture When the aspect ratio setting is [4:3]

4592k3448 pixels, 3232k2424 pixels, 2272k1704 pixels When the aspect ratio setting is [3:2] 4592k3064 pixels, 3232k2160 pixels, 2272k1520 pixels When the aspect ratio setting is [16:9] 4592k2584 pixels, 3232k1824 pixels, 1920k1080 pixels When the aspect ratio setting is [1:1] 3424k3424 pixels, 2416k2416 pixels, 1712k1712 pixels

/SDXC Memory

VQT5B16 (ENG)

Others

Recording quality

Motion pictures [AVCHD]

1920k1080/50p (28 Mbps)/1920k1080/50i (17 Mbps)/ 1920k1080/50i

(24 Mbps)/1920k1080/24p (24 Mbps)/

1280k720/50p (17 Mbps)

¢Sensor output is 25 frames/sec.)

( [MP4] 1920k1080/50p (28 Mbps)/1920k1080/25p (20 Mbps)/ 1280k720/25p (10 Mbps)/640k480/25p (4 Mbps)

Quality RAW/RAWiFine/RAWiStandard/Fine/Standard/MPOiFine/

MPOiStandard

Recording file format

Still Picture RAW/JPEG (based on “Design rule for Camera File system”,

based on “Exif 2.3” standard, DPOF corresponding)/MPO

Motion pictures AVCHD Progressive/AVCHD/MP4

Audio compression AVCHD Dolby

Digital (2 ch)

MP4 AAC (2 ch)

Interface

Digital “USB 2.0” (High Speed)

Analogue video/ audio

NTSC/PAL Composite (Switched by menu) Audio line output (monaural)

Terminal

[REMOTE]

2.5 mm jack

[AV OUT/DIGITAL] Dedicated jack (8 pin)

[HDMI] MiniHDMI Type C

(ENG) VQT5B16

Others

Dimensions Approx. 122.6 mm (W)k70.7 mm (H)k54.6 mm (D)

(excluding the projecting parts)

Mass Approx. 402 g

[with the card and battery] Approx. 360 g (camera body) Approx. 489 g [with the Interchangeable lens (H-H020A), card and battery]

Operating temperature

0 oC to 40 oC

Operating humidity 10%RH to 80%RH

Wireless transmitter

Compliance standard IEEE 802.11b/g/n (standard wireless LAN protocol)

Frequency range used

2412 MHz to 2462 MHz (1 to 11ch)

(central frequency)

Encryption method Wi-Fi compliant WPA

/WPA2

Access method Infrastructure mode

NFC

Compliance standard ISO/IEC 18092 NFC-F (Passive Mode)

Battery Charger (Panasonic DE-A98B):

Information for your safety

Input: AC 110 V to 240 V, 50/60 Hz, 0.15 A

Output: DC 8.4 V, 0.43 A

Battery Pack (lithium-ion) (Panasonic DMW-BLG10E):

Information for your safety

Voltage/capacity: 7.2 V/1025 mAh

VQT5B16 (ENG)

Interchangeable Lens H-H020A

“LUMIX G 20 mm/F1.7 II ASPH.”

Focal length f=20 mm

(35 mm film camera equivalent: 40 mm)

Aperture type 7 diaphragm blades/circular

aperture diaphragm

Aperture range F1.7

Minimum aperture

F16

value

Lens construction 7 elements in 5 groups

(2 aspherical lenses)

In focus distance 0.2 m to ¶ (from the focus

distance reference line)

Maximum image magnification

Optical Image

0.13k (35 mm film camera equivalent: 0.25k)

Not available

Stabiliser

[O.I.S.] switch None

Mount “Micro Four Thirds Mount”

Angle of view 57x

Filter diameter 46 mm

Max. diameter Approx. 63 mm

Overall length Approx. 25.5 mm

(from the tip of the lens to the base side of the lens mount)

Mass Approx. 87 g

Others

(ENG) VQT5B16

Others

Digital Camera Accessory System

Description Accessory#

Battery Pack DMW-BLG10

Flash DMW-FL220, DMW-FL360, DMW-FL360L, DMW-FL500

AC Adaptor

DC Coupler

Shutter Remote Control DMW-RSL1

Body Cap DMW-BDC1

Tripod Adaptor

USB connection Cable DMW-USBC1

AV C abl e D MW- AVC1

Mount Adaptor DMW-MA1, DMW-MA2M, DMW-MA3R

¢1 The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler

¢2 Use if the attached lens is in contact with the tripod pedestal.

Product numbers correct as of August 2013. These may be subject to change.

•

Some optional accessories may not be available in some countries.

•

NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer.

• For lens-related optional accessories such as compatible lenses and filters, refer to catalogues/

Web pages, etc.

¢1

¢2

DMW-AC8

DMW-DCC11

DMW-TA1

(optional). The AC adaptor (optional) cannot be used by itself.

VQT5B16 (ENG)

Others

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, and/or (3) open source software

The software categorised as (3) is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof displayed by selecting [MENU/ SET] > [Setup] > [Version Disp.] > [Software info].

G MICRO SYSTEM is a lens exchange type digital camera

•

system of LUMIX based on a Micro Four Thirds System standard.

• Micro Four Thirds™ and Micro Four Thirds Logo marks are

trademarks or registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.

• Four Thirds™ and Four Thirds Logo marks are trademarks or

registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.

• SDXC Logo is a trademark of SD-3C, LLC.

• “AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive”

logo are trademarks of Panasonic Corporation and Sony Corporation.

• Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and other countries.

• HDAVI Control™ is a trademark of Panasonic Corporation.

• Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United

States and/or other countries.

• Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

• App Store is a service mark of Apple Inc.

(ENG) VQT5B16

• QuickTime and the QuickTime logo are trademarks or registered

trademarks of Apple Inc., used under license therefrom.

• Windows and Windows Vista are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

• Android and Google Play are trademarks or registered trademarks of

Google Inc.

• The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi

Alliance.

• The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.

• “Wi-Fi”, “Wi-Fi Protected Setup”, “Wi-Fi Direct”, “WPA” and “WPA2” are marks or registered

marks of the Wi-Fi Alliance.

• DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification

marks of the Digital Living Network Alliance.

• This product uses “DynaFont” from DynaComware Corporation. DynaFont is a registered

trademark of DynaComware Taiwan Inc.

• Other names of systems and products mentioned in these instructions are usually the

registered trademarks or trademarks of the manufacturers who developed the system or product concerned.

This product is licensed under the AVC patent portfolio license for the personal and noncommercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com
