Panasonic DMC-GX7, DMC-GX7C, DMC-GX7K Basic Manual

Download

Basic Owner’s Manual

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649).

Digital Camera/

Lens Kit/Body

Model No. DMC-GX7C/DMC-GX7K

DMC-GX7

Please read these instructions carefully before using this product,

and save this manual for future use.

More detailed instructions on the operation of this camera are contained in “Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it.

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo

PCP

VQT5A95

F0713HH0

Dear Customer,

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information below. The serial number is on the tag located on the underside of your camera. Be sure to retain this manual as your convenient camera information source.

Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in this Owner’s Manual.

Carefully observe copyright laws.

Recording of pre-recorded tapes or discs or other published or broadcast material for purposes

•

other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

•

Do not expose this unit to rain, moisture, dripping or splashing.

• Use only the recommended accessories.

• Do not remove covers.

• Do not repair this unit by yourself. Refer servicing to qualified service personnel.

The socket outlet shall be installed near the equipment and shall be easily accessible.

VQT5A95 (ENG)

∫ Product identification marking

DMC-GX7

Product Location

Digital Camera Bottom

Battery charger Bottom

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation

instructions and use only shielded interface cables with ferrite core when

connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Declaration of Conformity

Trade Name: Panasonic Model No.: DMC-GX7 Responsible Party:Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

Support Contact Telephone No.:1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

(ENG) VQT5A95

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

Certification and Compliance

See Camera for the certification and compliance mark specific to that device.

1 Select 2 Select 3

Contains FCC ID: VPYLBXN604

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

THE FOLLOWING APPLIES ONLY IN CANADA.

CAN ICES-3(B)/NMB-3(B)

This device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, (2)This device must accept any interference received, including interference that may cause undesired operation of the device.

[Wi-Fi]

in the [Setup] menu.

[Wi-Fi Setup]

Press

3/4 to select [Approved Regulations], and then press [MENU/SET]

in the [Wi-Fi] menu.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

VQT5A95 (ENG)

∫ About the battery pack

CAUTION

Battery pack (Lithium ion battery pack)

Use the specified unit to recharge the battery pack.

•

• Do not use the battery pack with equipment other than the specified unit.

• Do not get dirt, sand, liquids, or other foreign matter on the terminals.

• Do not touch the plug terminals (i and j) with metal objects.

• Do not disassemble, remodel, heat or throw into fire. If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the type

•

recommended by the manufacturer.

• When disposing the batteries, please contact your local authorities or dealer and ask for the

correct method of disposal.

•

Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with

doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC (140 oF) or incinerate.

∫ About the battery charger

CAUTION! To reduce the risk of fire, electric shock or product damage,

Do not install or place this unit in a bookcase, built-in cabinet or in another confined

•

space. Ensure this unit is well ventilated.

Battery charger

This battery charger operates on AC between 110 V and 240 V. But

In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power

•

supply only.

• When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to

suit the AC outlet configuration.

(ENG) VQT5A95

∫ Cautions for Use

•

Do not use any other USB connection cables except the supplied one or a genuine Panasonic USB connection cable (DMW-USBC1: optional).

• Use a “High Speed HDMI mini cable” with the HDMI logo.

Cables that do not comply with the HDMI standards will not work. “High Speed HDMI mini cable” (Type C– Type A plug, up to 3 m (9.8 feet) long)

• Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

• Always use a genuine Panasonic shutter remote control (DMW-RSL1: optional).

Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be

•

disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise adversely affecting

the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields

created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,

disturbing the pictures and/or sound.

• If this unit is adversely affected by electromagnetic equipment and stops functioning properly,

turn this unit off and remove the battery or disconnect AC adaptor (DMW-AC8PP: optional). Then reinsert the battery or reconnect AC adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

•

If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound may be adversely affected.

-If you see this symbol-

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

VQT5A95 (ENG)

Deleting Pictures................................31

Information for Your Safety................. 2

Preparation

Reading the Owner’s Manual

(PDF format) ......................................... 9

Care of the camera............................. 10

Standard Accessories ........................11

Names and Functions of

Components ....................................... 13

Preparation......................................... 16

• Changing the Lens ........................ 16

• Attaching the Shoulder Strap ........ 16

• Charging the Battery ..................... 17

• Inserting/Removing the Battery ..... 18

• Inserting/Removing the Card

(Optional) ...................................... 18

• Formatting the card

(initialization) ................................. 19

• Setting Date/Time (Clock Set)....... 19

• Adjust the angle of the monitor/

viewfinder...................................... 20

• Using the Viewfinder ..................... 20

Setting the Menu................................ 21

• Setting menu items ....................... 21

Calling frequently-used menus

instantly (Quick Menu) ...................... 22

Basic

Assigning frequently used functions to

the buttons (function buttons).......... 23

Taking a Still picture.......................... 24

Recording Motion Picture ................. 25

Selecting the Recording Mode ......... 26

Switching the Information Displayed

on the recording screen.................... 27

Playing Back Pictures/

Motion Pictures.................................. 28

• Playing Back Pictures ................... 28

• Playing Back Motion Pictures........ 29

• Changing the information displayed

on the playback screen................. 30

Recording

Taking Pictures using the Automatic

Function (Intelligent Auto Mode) ...... 32

• Taking a picture with a blurred

background (Defocus Control) ...... 33

• Recording images by changing the

brightness or color tone.................33

Taking Pictures with Your Favorite

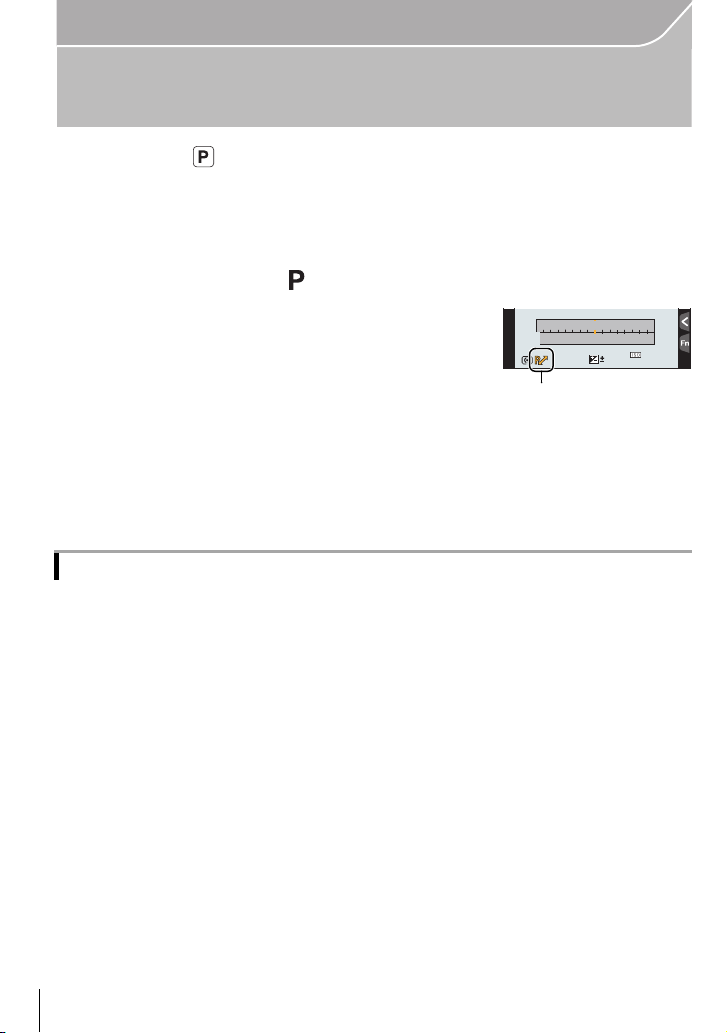

Settings (Program AE Mode).............34

Taking Pictures by Specifying the

Aperture/Shutter Speed ..................... 35

• Aperture-Priority AE Mode.............35

• Shutter-Priority AE Mode...............35

• Manual Exposure Mode.................36

• Confirm the Effects of Aperture and

Shutter Speed (Preview Mode) .....37

Taking Pictures that match the Scene being recorded (Scene Guide

Mode)................................................... 37

Taking Pictures with different image

effects (Creative Control Mode) ........ 38

Registering your preferred settings

(Custom Mode) ................................... 39

• Registering Personal Menu Settings

(Registering custom settings)......... 39

• Recording using registered

custom set.....................................39

Adjusting the Picture Quality by

Adding an Effect [Photo Style].......... 40

Adjusting Bright/Dark Portions

[Highlight Shadow]............................. 42

Adjusting the White Balance.............43

Setting the Picture Quality and

Size ...................................................... 43

• Setting the aspect ratio of

pictures..........................................43

• Setting the number of pixels.......... 44

• Setting the compression rate of

pictures [Quality]............................ 44

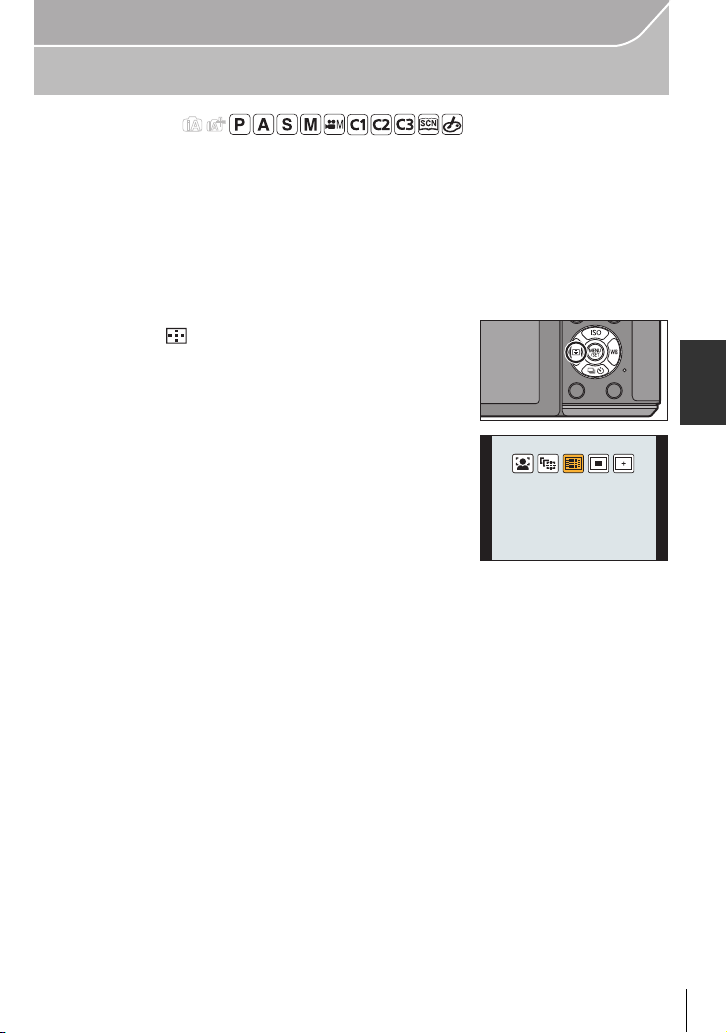

Taking Pictures with Auto Focus...... 45

• About the focus mode (AFS/AFF/

AFC)..............................................46

Taking Pictures with Manual Focus ..... 47

(ENG) VQT5A95

Fixing the Focus and the Exposure

(AF/AE Lock) ...................................... 48

Compensating the Exposure ............ 49

Setting the Light Sensitivity ............. 49

Select a Drive Mode........................... 50

Taking Pictures using Burst Mode .......51

Taking Pictures using Auto Bracket..... 53

Taking Pictures with the Self-timer ......54

Optical Image Stabilizer .................... 55

• Using the Optical Image Stabilizer

function of a lens........................... 56

• Using the Optical Image Stabilizer

function of this unit........................ 57

Taking Pictures with the Zoom......... 59

Taking pictures by using the flash... 60

• Changing Flash Mode................... 60

Playback/Editing

Switching the Playback Method ....... 61

• Displaying multiple screens

(Multi Playback)............................ 61

• Displaying Pictures by Recording

Date (Calendar Playback)............. 61

Using Playback Functions................ 62

• Creating Still Pictures from a Motion

Picture........................................... 62

• Removing unnecessary parts

[Clear Retouch]............................. 62

• Changing the connection

method .......................................... 69

About the supplied software

About the supplied software.............73

Others

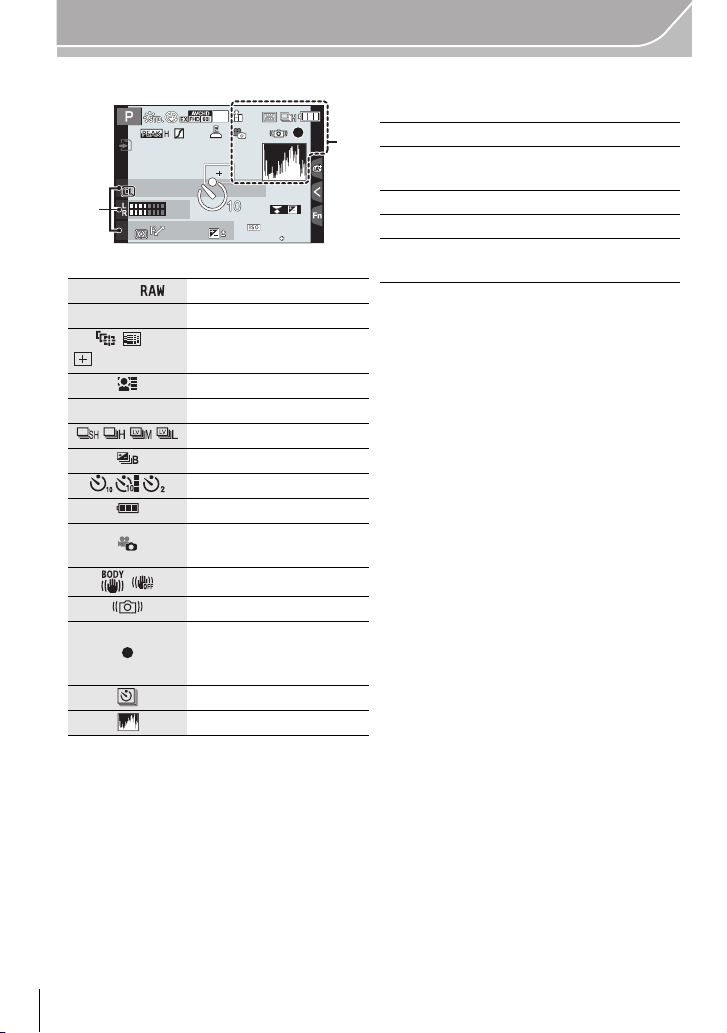

Monitor Display/Viewfinder

Display ................................................75

Menu list.............................................. 81

• [Rec]..............................................81

• [Motion Picture]..............................83

• [Custom]........................................83

• [Setup]...........................................86

• [Playback]...................................... 88

Specifications..................................... 89

Digital Camera Accessory System ... 95 Digital Camera Accessory Order Form (For USA and Puerto Rico

Customers) ......................................... 96

Limited Warranty (ONLY FOR U.S.A.

AND PUERTO RICO) .......................... 97

Limited Warranty (ONLY FOR

CANADA) .......................................... 100

Panasonic Canada Inc. LUMIX Concierge for Camera

Owners .............................................. 102

Wi-Fi/NFC

What you can do with the Wi-FiR

function............................................... 63

Controlling with a Smartphone/

Tablet................................................... 64

• Installing the smartphone/tablet

app “Panasonic Image App”......... 64

• Connecting to a smartphone/

tablet............................................. 65

• Taking pictures via a smartphone/

tablet (remote recording) .............. 67

• Saving images stored in the camera/ Sending images in the camera to an

SNS ..................................................67

VQT5A95 (ENG)

Preparation

Reading the Owner’s Manual (PDF format)

More detailed instructions on the operation of this camera are contained in “Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it.

∫ For Windows

Turn the PC on and insert the CD-ROM containing the Owner’s

Manual (supplied).

Select the desired language and then click

[Owner’s Manual] to install.

Double click the “Owner’s Manual”

shortcut icon on the desktop.

∫ When the Owner’s Manual (PDF format) will not open

You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse or print the Owner’s Manual (PDF format).

You can download and install a version of Adobe Reader that you can use with your OS from

•

the following Web Site.

http://get.adobe.com/reader/otherversions

∫ To uninstall the Owner’s Manual (PDF format)

Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder.

∫ For Mac

Turn the PC on and insert the CD-ROM containing the Owner’s

Manual (supplied).

Open the “Manual” folder in the CD-ROM and then copy the PDF file

with the desired language inside the folder.

Double click the PDF file to open it.

(ENG) VQT5A95

Preparation

Care of the camera

Do not subject to strong vibration, shock, or pressure.

•

The lens, monitor, or external case may be damaged if used in the following conditions. It may also malfunction or image may not be recorded if you:

– Drop or hit the camera. – Press hard on the lens or the monitor.

This camera is not dust/drip/water proof. Avoid using the camera in places with a lot of dust, water, sand, etc.

Liquid, sand and other foreign material may get into the space around the lens, buttons, etc. Be

•

particularly careful since it may not just cause malfunctions, but it may also become irreparable.

– Places with a lot of sand or dust. – Places where water can come into contact with this unit, such as when using it on a rainy day

or at the beach.

Do not place your hands inside the mount of the digital camera body. Since the sensor unit is a precision apparatus, it may cause a malfunction or damage.

∫ About Condensation (When the lens, the viewfinder or monitor is fogged up)

•

Condensation occurs when the ambient temperature or humidity changes. Be careful of condensation since it causes lens, viewfinder and monitor stains, fungus and camera malfunction.

• If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will

disappear naturally when the temperature of the camera becomes close to the ambient temperature.

VQT5A95 (ENG)

Preparation

Standard Accessories

Check that all the accessories are supplied before using the camera. Product numbers correct as of August 2013. These may be subject to change.

Digital Camera Body (This is referred to as camera body in this owner’s manual.)

(±: Included, —: Not included)

DMC-GX7C DMC-GX7K DMC-GX7

1 Interchangeable

Lens

¢1

2 Lens Hood — ± — 3 Lens Cap 4 Lens Rear Cap 5 Body Cap ± 6Battery Pack

(Indicated as battery pack or battery in the text) Charge the battery before use.

7 Battery Charger

(Indicated as battery charger or charger in the text) 8 USB Connection Cable 9 CD-ROM

Software:

•

Use it to install the software to your PC.

10 CD-ROM

•

Owner’s Manual for advanced features: Use it to install to your PC.

11 Shoulder Strap 12 Hot shoe cover

¢4

A:Black

B: Silver

¢1 This is referred to as lens in this owner’s manual. ¢2 This is attached to the interchangeable lens at the time of purchase. ¢3 These parts are supplied fitted together at the time of purchase. ¢4 This is attached to the camera body at the time of purchase.

• SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as card in the

text.

• The card is optional.

• Description in this owner’s manual is based on the interchangeable lens (H-H020A).

• If any accessories are lost, customers in the USA and Puerto Rico should contact Panasonic’s

parts department at 1-800-833-9626 and customers in Canada should contact 1-800-99-LUMIX (1-800-995-8649) for further information about obtaining replacement parts.

¢4

¢2

¢3

¢4

¢2

¢3

—

— —

¢4

(ENG) VQT5A95

Preparation

DMC-GX7C DMC-GX7K DMC-GX7

VFF1225 VFC5059

K1HY08YY0034

67 8 9

10 11 12

VYC1113

VYF3510VYF3371

VFC4605VFC4605

DMW-BLG10PP

H-H020A H-FS1442A

VKF4971VKF4971VKF4971

DE-A99B



VKF5259/



VKF5260

VQT5A95 (ENG)

Names and Functions of Components

2 3

45678

∫ Camera body

1 Self-timer indicator/

AF Assist Lamp 2Flash 3 Sensor 4 NFC antenna [ ] (P66) 5 Lens fitting mark (P16) 6 Mount 7 Lens lock pin 8 Lens release button (P16)

Preparation

9 Eye sensor (P20) 10 Eye Cup 11 Viewfinder (P20) 12 [LVF] button (P20)/[Fn4] button (P23) 13 Flash open lever (P60) 14 Focus mode lever (P45, 47) 15 [AF/AE LOCK] button (P48) 16 Rear dial 17 Touch screen/monitor (P15) 18 [Q.MENU] button (P22)/[Fn1] button (P23) 19 [(] (Playback) button (P28) 20 [ ] (Delete/Cancel) button (P31)/[Fn2]

button (P23) 21 [MENU/SET] button (P21) 22 [Wi-Fi] button (P65)/[Fn3] button (P23) 23 Wi-Fi 24 Cursor buttons

25 [DISP.] button (P27, 30) 26 Diopter adjustment lever (P20)

connection lamp

3/ISO button (P49)

1/WB (White Balance) (P43)

2/AF Mode button (P45)

4/[Drive Mode] button (P50)

The following settings can be made with the [Drive Mode] button.

Single/Burst/Auto bracket/Self-timer

1011

13 161415

2518 19 20 2122 2423

(ENG) VQT5A95

Preparation

3029 31 32

33 34

36 393738

27 Stereo microphone

•

Be careful not to cover the microphone with your finger. Doing so may make sound difficult to record.

28 Hot shoe (Hot shoe cover)

•

Keep the Hot Shoe Cover out of reach of children to prevent swallowing.

29 Focus distance reference mark 30 Shutter button (P24) 31 Front dial 32 Mode dial (P26) 33 Motion picture button (P25) 34 Status indicator (P19) 35 Camera ON/OFF switch (P19)

36 Tripod mount

•

A tripod with a screw length of 5.5 mm (0.22 inch) or more may damage this unit if attached.

37 DC coupler cover

•

When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC11: optional) and AC adaptor (DMW-AC8PP: optional) are used.

• Always use a genuine Panasonic AC adaptor (DMW-AC8PP: optional).

•

It is recommended to use a fully charged battery or AC adaptor when recording motion pictures.

•

If while recording motion pictures using the AC adaptor and the power supply is cut off due to a power outage or if the AC adaptor is disconnected etc., the motion picture will not be recorded.

38 Release lever 39 Card/Battery door (P18)

40 Shoulder strap eyelet (P16)

•

Be sure to attach the shoulder strap when using the camera to ensure that you will not drop it.

41 [AV OUT/DIGITAL] socket 42 [HDMI] socket 43 [REMOTE] socket 44 Speaker

Be careful not to cover the speaker with your

•

finger. Doing so may make sound difficult to hear.

45 Terminal cover

•

Open the monitor before opening the terminal cover.

VQT5A95 (ENG)

42 43

∫ Lens

12 34

276 3 415

Fn6

DISP.

6ZLWFK

2.0X2.0X2.0X2.0X

H-H020A H-FS1442A

Preparation

1 Lens surface 2 Focus ring (P47) 3 Contact point

5Tele 6Wide 7 Zoom ring

4 Lens fitting mark

Touch screen

Touch panel of this unit is capacitive. Touch the panel directly with your bare finger.

∫ Touch

To touch and release the touch screen. Use for selecting items or icons.

•

When selecting features using the touch screen, be sure to touch the center of the desired icon.

∫ Drag

A movement without releasing the touch screen. This is used to move the AF area, operate the slide bar, etc. This can also be used to move to the next image during playback, etc.

∫ Pinch (enlarge/reduce)

Pinch the touch panel apart (enlarge) or together (reduce) with two fingers. Use to enlarge/reduce the played back images or AF area.

Fn5

Fn6

Fn7

Fn8

Fn9

(ENG) VQT5A95

Preparation

123

Preparation

• Check that the camera is turned off.

Changing the Lens

• Change lenses where there is not a lot of dirt or dust.

• Do not press the lens release button A when you attach a lens.

∫ Detaching the lens

1 Attach the lens cap. 2 While pressing on the lens release button A, rotate

the lens toward the arrow until it stops and then remove.

Attaching the Shoulder Strap

We recommend attaching the shoulder strap when using the camera to prevent it from

•

dropping.

• Perform steps 1 to 4 and then attach the other side of the shoulder strap.

• Use the shoulder strap around your shoulder. – Do not wrap the strap around your neck. – It may result in injury or accident.

• Do not leave the shoulder strap where an infant can reach it. – It may result in an accident by mistakenly wrapping around the neck.

VQT5A95 (ENG)

Preparation

90°



Charging the Battery

The battery that can be used with this unit is DMW-BLG10PP.

1 Attach the battery paying attention to the direction of the battery. 2 Connect the charger to the electrical outlet.

•

The [CHARGE] indicator A lights up and charging begins.

∫ About the [CHARGE] indicator The [CHARGE] indicator turns on:

The [CHARGE] indicator is turned on during charging.

The [CHARGE] indicator turns off:

The [CHARGE] indicator will turn off once the charging has completed without any problem. (Disconnect the charger from the electrical socket and detach the battery after charging is completed.)

∫ Charging time

Charging time Approx. 190 min

The indicated charging time is for when the battery has been discharged completely.

•

The charging time may vary depending on how the battery has been used. The charging time for the battery in hot/cold environments or a battery that has not been used for a long time may be longer than normal.

(ENG) VQT5A95

Preparation

Inserting/Removing the Battery

• Always use genuine Panasonic batteries (DMW-BLG10PP).

• If you use other batteries, we cannot guarantee the quality of this product.

• Being careful about the battery orientation, insert all the way until you hear a locking sound and

then check that it is locked by lever A. Pull the lever A in the direction of the arrow to remove the battery.

Inserting/Removing the Card (Optional)

• Push it securely all the way until you hear a “click” while being careful about the direction in

which you insert it. To remove the card, push the card until it clicks, then pull the card out upright.

∫ About cards that can be used with this unit

SD Memory Card (8 MB to 2 GB) SDHC Memory Card (4 GB to 32 GB) SDXC Memory Card (48 GB, 64 GB)

∫ About the motion picture recording and SD speed class

Confirm the SD Speed Class (the speed standard regarding continuous writing) on a card label etc. when you record a motion picture. Use a card with SD Speed Class with “Class 4” or more for [AVCHD]/[MP4] motion picture recording.

e.g.:

Please confirm the latest information on the following website.

•

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

• Keep the Memory Card out of reach of children to prevent swallowing.

VQT5A95 (ENG)

Preparation

ONOFF

Formatting the card (initialization)

Format the card before recording a picture with this unit.

Since data cannot be recovered after formatting, make sure to back up necessary data in advance.

Select [Format] in the [Setup] menu. (P21)

Confirmation screen is displayed. It is executed when [Yes] is selected.

•

Setting Date/Time (Clock Set)

• The clock is not set when the camera is shipped.

Turn the camera on.

• The status indicator 1 lights when you turn this unit on.

Press [MENU/SET].

Press 2/1 to select the items (year, month,

day, hour, minute), and press 3/4 to set.

Press [MENU/SET] to set.

Press [MENU/SET] in the confirmation screen.

(ENG) VQT5A95

Preparation

Adjust the angle of the monitor/viewfinder

Adjust the angle of the monitor/viewfinder.

• Be careful not to catch your finger, etc. in the monitor/viewfinder.

• When adjusting the angle of the monitor/viewfinder, be careful not to apply too much

force, as this may cause damage or malfunction.

• When not using this unit, close the monitor/viewfinder completely back to the original position.

Using the Viewfinder

∫ Using the eye sensor to switch between the Monitor and Viewfinder

When [LVF/Monitor Auto] of [Eye Sensor] in the [Custom] menu is set to [ON] and your eye or an object is brought close to the viewfinder, the display automatically switches to the viewfinder display.

A Eye sensor B [LVF]/[Fn4] button

ロヷョバョㄏフ

∫ Switching the Monitor/Viewfinder manually

Press [LVF].

The Viewfinder lights only when your eye or an object is moved closer to it.

[LVF]/[Fn4] button can be used in two ways, as [LVF] or as [Fn4] (function 4). At the time of purchase, it is initially set to [LVF/Monitor Switch].

Refer to P23 for details about the function button.

•

∫ Diopter adjustment

Slide the diopter adjustment lever so that the characters displayed in the viewfinder can be seen clearly.

VQT5A95 (ENG)

Setting the Menu

Setting menu items

Press [MENU/SET].

Menu Description of settings

[Rec] This menu lets you set the aspect ratio, number of pixels

[Motion Picture] This menu lets you set the [Rec Format], [Rec Quality],

[Custom] Operation of the unit, such as displaying of the screen

[Setup] This menu lets you perform the clock settings, select the

[Playback] This menu lets you set the Protection, Cropping or Print

Preparation

and other aspects of the pictures you are recording.

and other aspects for motion picture recording.

and button operations, can be set up according to your preferences. Also, it is possible to register the modified settings.

operating beep tone settings and set other settings which make it easier for you to operate the camera. You can also configure the settings of Wi-Fi related functions.

Settings, etc. of recorded pictures.

Press 3/4 of the cursor button to select the menu item and press

[MENU/SET].

Press 3/4 of the cursor button to select the

setting and press [MENU/SET].

• Depending on the menu item, its setting may not appear

or it may be displayed in a different way.

∫ Close the menu Press [ ] or press the shutter button halfway.

(ENG) VQT5A95

Preparation

ヲハヮユワヶ

ョㄏヒ

AFS

∫ Switching to other menus

e.g.: Switching to the [Setup] menu from [Rec] menu.

1 Press 2. 2 Press 3/4 to select [ ] or another of the menu

toggle icons A.

3 Press [MENU/SET].

•

You can also select the menu toggle icons by rotating the front dial.

Calling frequently-used menus instantly (Quick Menu)

By using the Quick Menu, some of the menu settings can be easily found.

•

The features that can be adjusted using Quick Menu are determined by the mode or a display style the camera is in.

[Q.MENU]/[Fn1] button can be used in two ways, as [Q.MENU] or as [Fn1] (function 1). At the time of purchase, it is initially set to [Q.MENU].

Refer to P23 for details about the function button.

•

Press [Q.MENU] to display the Quick Menu.

4:3

AFS

Rotate the rear dial to select the menu item,

then press the rear dial.

Rotate the rear dial to select the setting.

AWB

setting is complete.

• You can close the menu by pressing the shutter button halfway.

VQT5A95 (ENG)

Press [Q.MENU] to exit the menu once the

601.7

Basic

Fn6Fn6Fn6

Fn5

Fn7

Fn8

Fn9

ロヷョバョㄏフ

ョㄏビ

ョㄏピ

ョㄏヒ

ヲハヮユワヶ

Fn7Fn7Fn7

Fn8Fn8Fn8

Fn9Fn9Fn9

Fn5Fn5Fn5

Fn6Fn6Fn6

Assigning frequently used functions to the buttons (function buttons)

You can assign frequently-used functions to particular buttons or icons.

1 Select the menu.

[MENU] > [Custom]>[Fn Button Set]

2 Press 3/4 to select [Setting in REC mode] or [Setting in PLAY mode] and then

press [MENU/SET].

3 Press 3/4 to select the function button you want to assign a function to and

then press [MENU/SET].

4 Press 3/4 to select the function you want to assign and then press

[MENU/SET].

Some functions cannot be assigned depending on the function button.

•

(ENG) VQT5A95

Basic

6060601.71.71.7

Taking a Still picture

• Set the drive mode to [ ] (single) by pressing 4().

Select the Recording Mode. (P26)

Press the shutter button halfway to focus.

A Aperture value B Shutter speed

• Aperture value and shutter speed are displayed.

(It will flash in red if the correct exposure is not achieved, except when set to flash.)

• When the image is correctly focused, the

picture will be taken, since the [Focus/ Release Priority] is set initially to [FOCUS].

Press the shutter button fully (push it in

further), and take the picture.

VQT5A95 (ENG)

Basic

R1m

Recording Motion Picture

This camera can record full high definition motion pictures compatible with the AVCHD format or motion pictures recorded in MP4. Audio will be recorded in stereo.

Item Format

[AVCHD]

[MP4]

Start recording by pressing the motion

picture button.

A Elapsed recording time B Available recording time

• The recording state indicator (red) C will flash while

recording motion pictures.

• If approximately 1 minute elapses without an operation

being performed, part of the display will disappear. Press [DISP.] or touch the monitor to make the display reappear.

• Release the motion picture button right after you press it.

Stop the recording by pressing the motion

picture button again.

• Maximum time to record motion pictures continuously with [MP4] is 29 minutes

59 seconds or up to 4 GB. (For [FHD/60p], [FHD/30p] in [MP4] format, the file size is large and so the recordable time will drop below 29 minutes 59 seconds.)

• Still picture recording is also possible during the motion picture recording by fully

pressing the shutter button.

This data format is suitable for when playing back on a high-definition TV, etc.

This data format is suitable for when playing back on a PC, etc.

R1m37s

(ENG) VQT5A95

Basic

Selecting the Recording Mode

Select the mode by rotating the mode dial.

• Rotate the mode dial slowly to select the desired mode A.

Intelligent Auto Mode (P32)

The subjects are recorded using settings automatically selected by the camera.

Intelligent Auto Plus Mode (P32)

Allows you to adjust the brightness and color hue when in Intelligent Auto Mode.

Program AE Mode (P34)

Records at the aperture value and shutter speed set by the camera.

Aperture-Priority AE Mode (P35)

The shutter speed is automatically determined by the aperture value you set.

Shutter-Priority AE Mode (P35)

The aperture value is automatically determined by the shutter speed you set.

Manual Exposure Mode (P36)

The exposure is adjusted by the aperture value and the shutter speed which are manually adjusted.

Creative Video Mode

Records motion pictures with a manually set aperture value and shutter speed.

¢ You cannot take still pictures.

Custom Mode (P39)

Use this mode to take pictures with previously registered settings.

Scene Guide Mode (P37)

This mode allows you to take pictures that match the scene being recorded.

Creative Control Mode (P38)

Record while checking the image effect.

VQT5A95 (ENG)

Switching the Information Displayed on the

ュリヴヱハ

AFS

recording screen

Press [DISP.] to change.

• Screen will switch as follows:

(Example of monitor display)

Basic



4:3

AFS



989898



4:3

AFS





989898



ISO

0 0

AUTO

4:3

AFS

AWB

Wi-Fi

A With information B Without information

C With information (tilt sensor display) D Without information (tilt sensor display) E On-monitor recording information

F Turned off

¢ It is displayed when the [Monitor Info. Disp.] of the [Custom] menu is set to [ON].

Settings can be adjusted directly by touching each of the items displayed on the screen.

• If approximately 1 minute elapses without an operation being performed, part of the display will

disappear. Press [DISP.] or touch the monitor to make the display reappear.

(ENG) VQT5A95

Basic

1/981/981/981/98

2.0X2.0X2.0X2.0X

Playing Back Pictures/Motion Pictures

Playing Back Pictures

Press [(].

Press 2/1.

2: Play back the previous picture 1: Play back the next picture

Using the Playback Zoom

Rotate the rear dial right.

1k 2k 4k 8k 16k

•

When you change the magnification, the zoom position indication A appears for about 1 second.

• You can move the enlarged part by pressing 3/4/2/1 of the

cursor button or dragging the screen. (P15)

• You can also enlarge (2k) the image by double-touching the

part you want to enlarge. If you double-touch the enlarged image, the magnification is reset to 1k.

VQT5A95 (ENG)

Basic

12s12s12s12s

Playing Back Motion Pictures

This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime Motion JPEG formats.

In Playback Mode, select a picture with the motion picture icon ([ ]), and then press 3 to play back.

A Motion picture recording time

• After playback starts, the elapsed playback time is displayed on

the screen.

∫ Operations during Motion Picture Playback

3 Play/Pause 4 Stop

Rear dial

(left)

Fast rewind

Frame-by-frame rewind (while pausing)

Reduce volume level Rear dial

(right)

Fast forward

Frame-by-frame forward (while pausing)

Increase volume level

(ENG) VQT5A95

Basic

ュリヴヱハ

  



4:3

60F1.7

AWBAWB

1/98981/98

4:3

100-0001

F1.7

RGB

AFS

200

WBWB

ISOISO

AWB

STD.STD.STD.

1/98

100-0001

F1.7

ISO

200

'(&

Changing the information displayed on the playback screen

Press [DISP.] to switch the monitor screen.

• Screen will switch as follows:

A With information

¢1

B Detailed information display C Histogram display D Without information (Highlight display)

¢1, 2

E Without information

¢1 If approximately 1 minute elapses without an operation being performed, part of the display

will disappear. Press [DISP.] or touch the monitor to make the display reappear.

¢2 This is displayed if [Highlight] in the [Custom] menu is set to [ON].

VQT5A95 (ENG)

Deleting Pictures

Once deleted, pictures cannot be recovered.

To delete a single picture

In Playback Mode, select the picture to delete

and then press [ ].

• The same operation can be performed by touching [ ].

Press 3 to select [Delete Single] and then

press [MENU/SET].

• Confirmation screen is displayed.

Picture is deleted by selecting [Yes].

Basic

ョㄏビ

'HOHWH6LQJOH

'HOHWH0XOWL

'HOHWH$OO

To delete multiple pictures (up to 100

¢ Picture groups are treated as a single picture. (All the pictures in the selected picture group

will be deleted.)

In Playback Mode, press [ ].

Press 3/4 to select [Delete Multi] or [Delete All] and then press

) or all the pictures

[MENU/SET].

• [Delete All] > Confirmation screen is displayed.

Pictures are deleted by selecting [Yes].

• It is possible to delete all pictures except the ones set as favorite when [All Delete

Except Favorite] is selected with the [Delete All] set.

(When [Delete Multi] is selected) Press 3/4/

2/1 to select the picture, and then press [MENU/SET] to set. (Repeat this step.)

• [‚] appears on the selected pictures. If [MENU/SET] is

pressed again, the setting is canceled.

(When [Delete Multi] is selected) Press 2 to select [OK], and then

press [MENU/SET] to execute.

• Confirmation screen is displayed.

Pictures are deleted by selecting [Yes].

(ENG) VQT5A95

Recording

Taking Pictures using the Automatic Function

(Intelligent Auto Mode)

Recording Mode:

When you wish to leave settings to the camera and record without thinking about them, use Intelligent Auto Plus Mode or Intelligent Auto Mode, which makes optimal settings for the subject and scene.

About Intelligent Auto Plus Mode and Intelligent Auto Mode

Functions that can be set differ between Intelligent Auto Plus Mode and Intelligent Auto Mode.

•

(±: possible, —: not possible)

Intelligent Auto Plus Mode Intelligent Auto Mode

Setting the brightness ± —

Setting the color tone ± —

Defocus Control ±±

Set the mode dial to [¦].

• The camera will switch to either the most recently used of Intelligent Auto Mode or

Intelligent Auto Plus Mode. At the time of purchase, the mode is set to Intelligent Auto Plus Mode.

Align the screen with the subject.

• When the camera identifies the optimum scene, the icon

of the scene concerned is displayed in blue for 2 seconds, after which its color changes to the usual red.

• When the subject is touched, AF Tracking function works.

It is also possible by pressing the cursor button towards

2, and then pressing the shutter button halfway.

∫ Switching between Intelligent Auto Plus Mode and Intelligent Auto Mode

1 Press [MENU/SET].

•

Press 2, and press 3/4 to select [ ] or [ ].

2 Press 2/1 to select [ ] or [ ] and then press

[MENU/SET].

VQT5A95 (ENG)

Recording

SSSSSS

250500

4.02.82.0 5.6 8.0

3060125

Taking a picture with a blurred background (Defocus Control)

Recording Mode:

You can easily set the blurriness of the background while checking the screen.

1 Press the rear dial to display the setting screen.

•

Each time the rear dial is pressed in Intelligent Auto Plus Mode, the camera switches between brightness setting operation, Defocus Control operation, and normal operation.

• Each time the rear dial is pressed in Intelligent Auto Mode, the camera switches between

Defocus Control operation and normal operation.

2 Set the blurriness by rotating the rear dial. 3 Record pictures or motion pictures.

Recording images by changing the brightness or color tone

Recording Mode:

This mode enables you to change the brightness and color tone to your preferred settings from the ones set by the camera.

Setting brightness

1 Press the rear dial to display the setting screen.

•

Each press of the rear dial switches among brightness setting, Defocus Control and end operation.

2 Rotate the rear dial to adjust brightness.

Setting color

1 Press 1 to display the setting screen. 2 Rotate the rear dial to adjust color.

•

This will adjust the color of the image from a reddish color to a bluish color.

• Press [MENU/SET] to return to the recording screen.

(ENG) VQT5A95

Recording

4.0

Taking Pictures with Your Favorite Settings

(Program AE Mode)

Recording Mode:

The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject. You can take pictures with greater freedom by changing various settings in the [Rec] menu.

Set the mode dial to [ ].

Press the shutter button halfway and display

the aperture value and shutter speed value

250 15

SSSSSS

4.0

2.82.0

6060604.0

3060125

4.0 5.6 8.0

989898

on the screen.

While the values are displayed (about 10 seconds), perform Program

Shift by rotating the rear dial or front dial.

• The Program Shift indication A appears on the screen.

• To cancel Program Shift, turn off this unit or rotate the front/rear dial until the Program

Shift indication disappears.

Program Shift

In Program AE Mode, you can change the preset aperture value and shutter speed without changing the exposure. This is called Program Shift. You can make the background more blurred by decreasing the aperture value or record a moving subject more dynamically by slowing the shutter speed when taking a picture in Program AE Mode.

VQT5A95 (ENG)

Recording

SSSS

8.08.08.0

60 4

4.0 5.6 8.0 11 16

81530

250

Taking Pictures by Specifying the Aperture/ Shutter Speed

Recording Mode:

Aperture-Priority AE Mode

Set the aperture value to a higher number when you want a sharp focus background. Set the aperture value to a lower number when you want a soft focus background.

Set the mode dial to [ ].

Set the aperture value by rotating the rear

dial or the front dial.

A Aperture value B Exposure meter

• The effects of the set aperture value will not be visible on

the recording screen. To check on the recording screen, please use [Preview]. (P37)

Shutter-Priority AE Mode

When you want to take a sharp picture of a fast moving subject, set with a faster shutter speed. When you want to create a trail effect, set to a slower shutter speed.

Set the mode dial to [ ].

Set the shutter speed by rotating the rear dial or the front dial.

A Shutter speed B Exposure meter

• The effects of the set shutter speed will not be visible on

the recording screen. To check on the recording screen, please use [Preview]. (P37)

SSSSSS

11 8.0 5.6 4.0 2.8

250

250 500125

000

(ENG) VQT5A95

Recording

SSSSSS

1258

5.64.02.8 8.0 11

603015

3030305.6

CDB

000

++30+

−

Manual Exposure Mode

Determine the exposure by manually setting the aperture value and the shutter speed. The Manual Exposure Assistance appears on the lower portion of the screen to indicate the exposure.

Set the mode dial to [ ].

Rotate the rear dial to set the shutter speed,

and rotate the front dial to set the aperture value.

A Exposure meter B Aperture value C Shutter speed D Manual Exposure Assistance

∫ Manual Exposure Assistance

The exposure is adequate.

Set to faster shutter speed or larger aperture value.

Set to slower shutter speed or smaller aperture value.

000

−

∫ About [B] (Bulb)

If you set the shutter speed to [B], the shutter stays open while the shutter button is pressed fully (up to about 120 seconds). The shutter closes if you release the shutter button. Use this when you want to keep the shutter open for a long time to take pictures of fireworks, a night scene etc.

When you take pictures with the shutter speed set to [B], noise may become visible. To avoid

•

picture noise, we recommend setting [Long Shtr NR] in the [Rec] menu to [ON] before taking pictures.

• The Manual Exposure Assistance does not appear.

• This cannot be used when [Electronic Shutter] is set to [ON].

• It can only be used with Manual Exposure Mode.

∫ Constant preview

In Manual Exposure Mode, when [Constant Preview] in the [Custom] menu is [ON], you will be able to confirm the effects of aperture and shutter speed on the screen.

Close the flash.

•

• It can only be used with Manual Exposure Mode.

VQT5A95 (ENG)

Recording

DISP.

6ZLWFK

DISP.

6ZLWFK

DISP.

6ZLWFK

DISP.

6ZLWFK

Confirm the Effects of Aperture and Shutter Speed (Preview Mode)

Applicable modes:

1 Set a function button to [Preview]. (P23)

•

The following step is an example in which [Preview] is assigned to [Fn5].

2 Touch [ ]. 3 Switch the confirmation screen by touching [Fn5].

•

The screen switches each time [Fn5] is touched.

Normal recording screen Effects of Aperture Effects of Shutter Speed

Taking Pictures that match the Scene being recorded

Recording Mode:

If you select a scene to suit the subject and recording conditions with reference to the example images, the camera will set optimal exposure, color, and focus, allowing you to record in a manner appropriate to the scene.

Set the mode dial to [ ].

(Scene Guide Mode)

Press 2/1 to select the scene.

• The scene can also be selected by dragging an example

image or the slide bar.

Press [MENU/SET] to set.

∫ Switching the scene selection screen display

Press [DISP.] to switch the monitor screen.

(ENG) VQT5A95

Recording

DISP.

6ZLWFK

Taking Pictures with different image effects

(Creative Control Mode)

Recording Mode:

This mode records with additional image effects. You can set the effects to add by selecting example images and checking them on the screen.

Set the mode dial to [ ].

Press 3/4 to select the image effects

(filters).

• The image effect of the selected example image will be

applied in a preview display

• You can also select the image effects (filters) by touching

the example images.

Press [MENU/SET] to set.

∫ Switching the image effect (filter) selection screen display

Press [DISP.] to switch the monitor screen.

VQT5A95 (ENG)

DISP.

6ZLWFK

DISP.

6ZLWFK

DISP.

6ZLWFK

Recording

Registering your preferred settings (Custom Mode)

Recording Mode:

You can register the current camera settings as custom settings. If you then record in Custom Mode, you can use the registered settings.

Initial setting of the Program AE Mode is registered as the custom settings initially.

•

Registering Personal Menu Settings (Registering custom settings)

To allow recording using the same settings, up to 5 sets of current camera settings can be registered using [Cust.Set Mem.]. (

Preparations: Set in advance the Recording Mode you wish to save and select the

desired menu settings on the camera.

Select the menu.

[MENU] > [Custom]>[Cust.Set Mem.]

Press 3/4 to select the custom set to register and then press

[MENU/SET].

• Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

Recording using registered custom set

You can easily call up the settings you have registered using [Cust.Set Mem.].

Set the mode dial to [ ] or [ ].

• The custom set registered for [ ] or [ ] is called up.

, , , , )

Set the mode dial to [ ].

• The custom set registered for [ ], [ ] or [ ] is called up. The most recently

used custom set is called up.

• To change a custom set

> To s t e p s

2 and 3.

(ENG) VQT5A95

Recording

Press [MENU/SET] to display the menu.

Press 2/1 to select the custom setting you want to use, and then

press [MENU/SET].

∫ Changing the settings

Registered contents do not change when the menu setting is changed temporarily with the mode dial set to , or . To change the registered settings, overwrite the registered content using [Cust.Set Mem.] on the custom settings menu.

Adjusting the Picture Quality by Adding an Effect

[Photo Style]

Applicable modes:

6 effects can be selected to match the image you wish to record. It is possible to adjust the items such as color or picture quality of the effect to your desire.

[MENU] > [Rec]>[Photo Style]

Settings Description of settings

[Standard]

[Vivid]

[Natural]

[Monochrome]

[Scenery]

[Portrait]

[Custom]

¢ This is disabled when Intelligent Auto Plus ( ) Mode is selected.

This is the standard setting.

Brilliant effect with high saturation and contrast.

Soft effect with low saturation.

Monochrome effect with no color shades.

An effect appropriate for sceneries with vivid blue skies and greens.

An effect appropriate for portraits with a healthy and beautiful skin tone.

Use the setting registered in advance.

VQT5A95 (ENG)

Recording

∫ Adjusting the picture quality

•

Picture quality cannot be adjusted in the Intelligent Auto Plus Mode.

1 Press 2/1 to select the type of Photo Style.

•

In Scene Guide Mode, you cannot select the photo style.

-5 0 +5

2 Press 3/4 to select the items, and then press 2/1

to adjust.

',63

&XVWRPVHWWLQJ

Item Effect

Increases the difference between the brightness and the

[r]

[Contrast]

[Sharpness]

[Saturation]

[Noise Reduction]

[Filter Effect]

[Yellow]

[Orange]

darkness in the picture. Decreases the difference between the brightness and

[s]

the darkness in the picture.

[r] The picture is sharply defined. [s] The picture is softly focused. [r] The colors in the picture become vivid. [s] The colors in the picture become natural.

The noise reduction effect is enhanced. Picture

[r]

resolution may deteriorate slightly. The noise reduction effect is reduced. You can obtain

[s]

pictures with higher resolution.

Enhances the contrast of an subject. (Effect: Weak) The blue sky can be recorded clearly.

Enhances the contrast of an subject. (Effect: Medium) The blue sky can be recorded in darker blue.

Enhances the contrast of an subject. (Effect: Strong)

[Red]

The blue sky can be recorded in much darker blue. The skin and lips of people and green leaves appear

[Green]

in natural tones. Green leaves appear brighter and more enhanced.

[Off] -

¢ Displayed only when [Monochrome] is selected.

•

Registered settings are memorized even if the camera is turned off.

• If you adjust the picture quality, [_] is displayed beside the Photo Style icon on the screen.

• Color can be changed by [Saturation] when [Monochrome] is selected.

3 Press [MENU/SET].

6WDQGDUG

±0

∫ Registering settings to [Custom] Adjust the picture quality following step then press

[DISP.].

2 of “Adjusting the picture quality”, and

• Confirmation screen is displayed. It is executed when [Yes] is selected.

(ENG) VQT5A95

Recording

ヤ

ヤヤ

ピ

6HW

6DYH

HIGH LIGHT

SHADOW

ヤ

ヤヤ

ビ

ヤ

Adjusting Bright/Dark Portions [Highlight Shadow]

Applicable modes:

You can adjust the brightness of bright and dark portions on an image while checking the brightness on the screen.

Select the menu.

[MENU] > [Rec]>[Highlight Shadow]

Press 2/1 to select the item.

Item Description of settings

(Standard)

(Raise the contrast)

(Lower the contrast)

(Brighten dark areas)

ヤ

// (Custom)

ヒ

ビ

Rotate the front/rear dial to adjust the

brightness of bright/dark portions.

A Bright portion B Dark portion C Preview display

• The rear dial is for adjusting dark areas, and the front dial

is for adjusting bright areas.

• To register a preferred setting, press 3, and select the

destination where the custom setting will be registered to ([Custom1] (

• Adjustments can also be made by dragging the graph.

ヤ

)/[Custom2] ()/[Custom3] ()).

ヒ

A state with no adjustments is set.

Bright areas are brightened, and dark areas are darkened.

Bright areas are darkened, and dark areas are brightened.

Dark areas are brightened.

Registered custom settings can be applied.

ヤ

ピ

Press [MENU/SET].

• The screen display can be switched by pressing [DISP.] on the brightness adjustment screen.

ヤ

• Settings registered to / / will be stored even after this unit is turned off.

ヤ

ヒ

ビ

ピ

• Turning off this unit will return the setting adjusted with / / back to the default

setting.

VQT5A95 (ENG)

Recording

WBWBWBWBWBWBWBWBWBWBWB

AWB

Adjusting the White Balance

Applicable modes:

In sunlight, under incandescent lights or in other such conditions where the color of white takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to what is seen by the eye in accordance with the light source.

Press 1 ().

Select the White Balance by rotating the rear

dial.

AWB

Press the rear dial to set.

Setting the Picture Quality and Size

Setting the aspect ratio of pictures

Applicable modes:

This allows you to select the aspect ratio of the pictures to suit printing or the playback method.

[MENU] > [Rec]>[Aspect Ratio]

Settings Description of settings

[4:3] [Aspect Ratio] of a 4:3 TV [3:2] [Aspect Ratio] of a 35 mm film camera

[16:9] [Aspect Ratio] of a high-definition TV, etc.

[1:1] Square aspect ratio

The ends of the recorded pictures may be cut at printing so check before printing.

•

(ENG) VQT5A95

Recording

Setting the number of pixels

Applicable modes:

Set the number of pixels. The higher the numbers of pixels, the finer the detail of the pictures will appear even when they are printed onto large sheets.

[MENU] > [Rec]>[Picture Size]

When the aspect ratio is [4:3]. When the aspect ratio is [3:2].

Settings Image size Settings Image size

[L] (16M) 4592k3448 [L] (14M) 4592k3064 [ M] (8M) 3232k2424 [ M] (7M) 3232k2160 [ S] (4M) 2272k1704 [ S] (3.5M) 2272k1520

When the aspect ratio is [16:9]. When the aspect ratio is [1:1].

Settings Image size Settings Image size

[L] (12M) 4592k2584 [L] (11.5M) 3424k3424 [ M] (6M) 3232k1824 [ M] (6M) 2416k2416 [ S] (2M) 1920k1080 [ S] (3M) 1712k1712

Setting the compression rate of pictures [Quality]

Applicable modes:

Set the compression rate at which the pictures are to be stored.

[MENU] > [Rec]>[Quality]

Settings File format Description of settings

[A]

[›]

[]

[] RAW

¢1 If you delete a RAW file from the camera, the corresponding JPEG image will also be

deleted.

¢2 It is fixed to maximum recordable pixels ([L]) for each image aspect ratio.

JPEG

RAWiJPEG

A JPEG image in which image quality was given priority. A standard image quality JPEG image.

This is useful for increasing the number of shots without changing the number of pixels.

You can record a RAW image and a JPEG image ([A] or [›]) simultaneously.

You can only record RAW images.

¢1

¢2

• Develop and edit RAW files using the software “SILKYPIX Developer Studio” by Ichikawa Soft

Laboratory on the CD-ROM (supplied).

VQT5A95 (ENG)

Recording

Taking Pictures with Auto Focus

Applicable modes:

This allows the focusing method that suits the positions and number of the subjects to be selected.

Set the focus mode lever to [AF].

Set [AFS/AFF/AFC] in the [Custom] menu to [AFS], [AFF] or [AFC].

(P46)

Press 2 ().

Press 2/1 to select AF Mode and then press

[MENU/SET].

(ENG) VQT5A95

Recording

About the focus mode (AFS/AFF/AFC)

Applicable modes:

Select the menu.

[MENU] > [Custom]>[AFS/AFF/AFC]

Press 3/4 to select item, and press [MENU/

SET].

• Select focus mode according to the movement of the

subject and the scene you are recording.

• The set focus mode will be assigned to [AF] of the focus

mode lever.

Item

Subject is still

AFS

(Scenery, anniversary photograph, etc.)

Movement cannot be predicted

AFF

(Children, pets, etc.)

Subject is moving

AFC

(Sport, trains, etc.)

• When the interchangeable lens (H-H020A) is used, [AFF] and [AFC] cannot be set.

VQT5A95 (ENG)

The movement of the subject and the scene

(recommended)

Recording

A C

Taking Pictures with Manual Focus

Applicable modes:

Use this function when you want to fix the focus or when the distance between the lens and the subject is determined and you do not want to activate Auto Focus.

Set the focus mode lever to [MF].

Use the focus lever or focus ring on the lens to achieve focus.

A Indicator for ¶ (infinity)

• When you focus manually, display is switched to the

assist screen and the image is enlarged (MF Assist B).

• When [Peaking] in the [Custom] menu is set to [ON],

in-focus portions are highlighted (C).

• When [MF Guide] on the [Custom] menu is set to [ON]

and you focus manually, the MF guide D is displayed on the screen. You can check whether the point of focus is to the near side or the far side.

MF ASSIST

∫ Displaying the MF Assist

•

It can be displayed by rotating the focus ring, moving the focus lever, pinching out (P15) the screen, or touching the screen twice. (In the Creative Control Mode [Miniature Effect], MF Assistance cannot be displayed by touching the screen)

• It can also be displayed by pressing 2 to display the setup screen for the enlarged area,

deciding the area to enlarge using the cursor button, and then pressing [MENU/SET].

• It will switch to the setting screen for the enlarged area by pressing the cursor button when the

[Direct Focus Area] in the [Custom] menu is set to [ON].

∫ Changing the display of the MF Assist

Each time the rear dial is pressed, an enlarged display switches between a windowed screen display and a full screen display.

(ENG) VQT5A95

Recording

606060

1.71.71.7

AELAEL

• If the front dial or rear dial is rotated, the display can be enlarged/reduced up to approximately

3 to 6 times when the enlarged display is in a windowed display or up to approximately 3 to 10 times when the enlarged display is in a full screen display. The rear dial enlarges/reduces the size at a rate of 1 time, and the front dial enlarges/reduces it at a rate of 0.1 times.

• The display can also be enlarged/reduced by pinching out/pinching in.

∫ Moving the enlarged area

•

The enlarged area can be moved by dragging the screen (P15), or pressing the cursor button.

• The following will return the MF assistance to the original position. – Pressing [DISP.] when the setting screen for determining the area to be enlarged is displayed.

∫ Closing the MF Assist

•

It will close when the shutter button is pressed halfway.

• You can also close MF Assist by pressing [MENU/SET] or touching [Exit].

• When displayed by moving the focus lever or rotating the focus ring, it is closed approximately

10 seconds after operations are stopped.

Fixing the Focus and the Exposure (AF/AE Lock)

Applicable modes:

This is useful when you want to take a picture of a subject outside the AF area or the contrast is too strong and you cannot achieve appropriate exposure.

Align the screen with the subject.

Press and hold [AF/AE LOCK] to fix the focus or exposure.

• If you release [AF/AE LOCK], AF/AE Lock is canceled.

• Only the exposure is locked in the default setting.

While pressing [AF/AE LOCK], move the

camera as you compose the picture and then press shutter button fully.

A AE Lock indication

• When [AE LOCK] is set, after pressing the shutter button halfway to focus, press the

shutter button fully.

VQT5A95 (ENG)

Recording

+1+1

+1+1 +2+2 +3+3 +4+4 +5+5

-5-5-4-4-3-3-2-2-1-

100

Compensating the Exposure

Applicable modes:

Use this function when you cannot achieve appropriate exposure due to the difference in brightness between the subject and the background.

Press the rear dial to switch to Exposure

Compensation operation.

Rotate the rear dial to compensate the

exposure.

A Exposure Compensation value

Underexposed

Compensate the exposure towards positive.

• Select [n0] to return to the original exposure.

Properly exposed

Overexposed

Compensate the exposure

towards negative.

Setting the Light Sensitivity

Applicable modes:

This allows the sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure enables pictures to be taken even in dark places without the resulting pictures coming out dark.

Press 3 ().

Select the ISO sensitivity by rotating the rear

dial.

Press the rear dial to set.

(ENG) VQT5A95

Recording

31/3

0RUHVHWWLQJV

2 3 4

Select a Drive Mode

Applicable modes:

Selecting the drive mode allows you to switch the operation, such as burst recording or the self-timer, for when you press the shutter button.

Press 4 ().

Press 2

1 to select the drive mode, and then

press [MENU/SET].

Drive mode Description of settings

[Single] (P24)

2 [Burst] (P51)

[Auto Bracket] (P53)

4 [Self Timer] (P54)

• To cancel the drive mode, select [ ]. The setting will switch to [Single].

• Settings for each drive mode can be changed by pressing 3.

When the shutter button is pressed, only one picture is recorded.

Recordings are made in succession while the shutter button is pressed.

Each time the shutter button is pressed, recordings are made with different exposure settings according to the Exposure Compensation range.

When the shutter button is pressed, recording takes place after the set time has elapsed.

VQT5A95 (ENG)

Recording

H MLVL

Taking Pictures using Burst Mode

Applicable modes:

Pictures are taken continuously while the shutter button is pressed.

•

Pictures taken with a burst speed of [SH] will be recorded as a single burst group.

Press 4 ().

1 2

Press 2

1 to select the burst icon ([ ],

etc.), and then press 3.

Select the burst speed with 2/1, and then

press [MENU/SET].

31/3

0RUHVHWWLQJV

(ENG) VQT5A95

Recording

AFSAFS

[SH]¢2

(Super high

speed)

Burst

speed

(pictures/

second)

Live View during Burst

¢1

¢1 Number of recordable pictures ¢2 The electronic shutter will operate. ¢3 Depending on the recording conditions, the number of frames in a burst may be

reduced. (For example, when you set [i.Resolution] of the recording menu, the number of frames in a burst may be reduced)

¢4 Pictures can be taken until the capacity of the card becomes full. However the burst

speed will become slower halfway. The exact timing of this depends on the aspect ratio, the picture size, the setting for the quality and the type of card used.

Focus on the subject and take a picture.

Electronic

shutter [ON]

Electronic

shutter [OFF]

Mode

With RAW files —

Without RAW

files

None None Available Available

Max. 80

[H]

(High

speed)

10 4 2

542

[M]

(Middle

speed)

¢3, 4

[L]

(Low speed)

Depends on the capacity of the card

¢4

• Hold down the shutter button fully to activate the Burst Mode.

∫ Focusing in Burst Mode

Focus Mode

AFS

AFF/AFC

¢5

Focus/Release

Priority

[FOCUS]

[RELEASE]

[FOCUS]

[RELEASE]

Focus

At the first picture

Normal focusing

Predicted focusing

¢6

¢7

MF — Focus set with Manual Focus

¢5 When the subject is dark or the burst speed is set to [SH], the focus is fixed on the first

picture.

¢6 The burst speed may become slower because the camera is continuously focusing on the

subject.

¢7 Burst speed takes priority, and focus is estimated within possible range.

VQT5A95 (ENG)

Recording

31/3

-3-2-

1 0 +1+1 +2+2 +3+3

-3-2-

1 0 +1 +2 +3

2 1 3

31/3 32/3 31 51/3 52/3 51

71/3 72/3 71

AFS

Taking Pictures using Auto Bracket

Applicable modes:

Maximum of 7 pictures will be recorded with different exposure settings following the Exposure Compensation range every time the shutter button is pressed.

Press 4 ().

Press to 2/1 to select the Auto Bracket icon

(

[ ], etc.), and then press 3.

31/3

0RUHVHWWLQJV

Press 2

1 to select the compensation

range, and then press [MENU/SET].

Focus on the subject and take a picture.

A Auto Bracket indication

• If you press and hold the shutter button, the number of

pictures that you set is taken.

• The Auto Bracket indication blinks until the number of pictures that you set is taken.

• The picture count is reset to [0] if you change the Auto Bracket setting or turn the

camera off before all the pictures that you set are taken.

∫ Changing the settings for [Single/Burst Settings], [Step] and [Sequence] in Auto

Bracket

4:3

AFS

1 Select the menu.

[MENU] > [Rec]>[Auto Bracket]

2 Press 3/4 to select [Single/Burst Settings], [Step] or [Sequence] and then

press [MENU/SET].

3 Press 3/4 to select the setting and then press [MENU/SET].

•

Exit the menu after it is set.

(ENG) VQT5A95

Recording

31/3

0RUHVHWWLQJV

10 2

Taking Pictures with the Self-timer

Applicable modes:

Press 4 ().

1 2

Press 2

1 to select the self-timer icon

([ ], etc.), and then press 3.

Press 2

1 to select the time setting for the

self-timer, and then press [MENU/SET]

Item Description of settings

Picture is taken 10 seconds after shutter is pressed. After 10 seconds the camera takes 3 pictures at about 2 seconds intervals. Picture is taken 2 seconds after shutter is pressed.

•

When using a tripod, etc., this setting is a convenient way to avoid the jitter caused by pressing the shutter button.

Press the shutter button halfway to focus and

then press it fully to take the picture.

VQT5A95 (ENG)

Recording

Optical Image Stabilizer

The camera detects jitter during recording and automatically corrects it, so you can record images with reduced jitter.

There are two types of Optical Image Stabilizers, the one built into a lens and the one built into this unit. The Optical Image Stabilizer of either a lens or this unit will be enabled.

∫ Compatible Optical Image Stabilizers

The Optical Image Stabilizer of either a lens or this unit works depending on the lens in use.

Lens in use

Supporting the Optical Image Stabilizer function

• The interchangeable lens

Micro Four Thirds mount specification lens

(H-FS1442A) supports the Optical Image Stabilizer function.

Not supporting the Optical Image Stabilizer function

• The interchangeable lens

(H-H020A) does not support the Optical Image Stabilizer function.

Four Thirds mount specification lens

• Use a mount

adaptor (DMW-MA1: optional).

Supporting the Optical Image Stabilizer function

Not supporting the Optical Image Stabilizer function

Leica mount specification lens

•

Use a Leica lens mount adaptor (DMW-MA2M, DMW-MA3R: optional).

Lenses other than those listed above that can be attached to this unit

Optical Image Stabilizer

function

Only the Optical Image Stabilizer function of the lens will be enabled.

Only the Optical Image Stabilizer function of this unit will be enabled.

Only the Optical Image Stabilizer function of the lens will be enabled.

Only the Optical Image Stabilizer function of this unit will be enabled.

P56

P57

P56

P57

(ENG) VQT5A95

Recording

Using the Optical Image Stabilizer function of a lens

Applicable modes:

A lens based on the Micro Four Thirds System standard/Four Thirds System standard equipped with the Optical Image Stabilizer function is required.

Select the menu.

[MENU] > [Rec]>[Stabilizer]>[Operation Mode]

Press 3/4 to select the item and then press [MENU/SET].

Item Description of settings

[] ([Normal])

[] ([Panning])

[OFF]

• Exit the menu after it is set.

• When using an optional interchangeable lens with an O.I.S. switch, it is possible to set to

enable the Optical Image Stabilizer by switching the O.I.S. switch on the lens to [ON]. (At the time of purchase, it is initially set to [ ].)

Vertical and horizontal shake are compensated for.

Camera shake is corrected for up/down movements. This mode is ideal for panning (a method of taking pictures which involves turning the camera to track the movements of a subject which continues to move in a fixed direction).

[Stabilizer] does not work. (This can be selected only when using a lens without the [O.I.S.] switch.)

(P55)

VQT5A95 (ENG)

Recording

Using the Optical Image Stabilizer function of this unit

Applicable modes:

If your lens does not support the Optical Image Stabilizer function or is not based on the Micro Four Thirds System standard/Four Thirds System standard, the Optical Image Stabilizer of this unit can be used. (P55)

The Optical Image Stabilizer of this unit works only when taking pictures.

•

If your lens is not based on the Micro Four Thirds System standard/Four Thirds System standard, make the following settings:

Set the [Shoot w/o Lens] to [ON]. (P85)

•

• Set the focal length of your lens in [Focal Length Set]. (P58) – If a lens not based on the Micro Four Thirds System standard/Four Thirds System standard

is in use when the Optical Image Stabilizer of this unit is available, a confirmation message for the focal length setting is displayed after this unit is turned on. Selecting [Yes] enables you to set [Focal Length Set] in [Stabilizer].

Select the menu.

[MENU] > [Rec]>[Stabilizer]

Press 3/4 to select the item and then press [MENU/SET].

Item Description of settings

[] ([Normal])

[Operation Mode]

[Focal Length Set]

¢ This item can be set only when your lens is not based on the Micro Four Thirds System

standard/Four Thirds System standard.

• Exit the menu after it is set.

[] ([Panning])

[OFF]

The focal length of your lens can be set or registered.

Vertical and horizontal shake are compensated for.

[Stabilizer] does not work.

(ENG) VQT5A95

Recording

Setting the focal length of a lens

• When a lens based on

use, a focal length is set automatically.

• If your lens is based on the Micro Four Thirds System standard/Four Thirds System standard

but does not have a communication function with the camera, set the focal length of the lens.

Preparations: Set the [Shoot w/o Lens] to [ON]. (P85)

the Micro Four Thirds System standard/Four Thirds System standard is in

1 Select the menu.

[MENU] > [Rec]>[Stabilizer]

2 Press 3/4 to select [Focal Length Set] and then press [MENU/SET]. 3 Select the focal length of your lens with 2

•

A focal length ranging from 8 mm to 1000 mm can be set.

• Set a focal length written on the body of your lens, etc.

• If the focal length setting for your lens is not found, select a

value close to the focal length of your lens.

• If your lens is a zoom lens, select a value according to the

focal length at the time of recording.

4 Press [MENU/SET].

∫ Registering a focal length

1 Perform step 3 in “Setting the focal length of a lens”. 2

Press 4.

3 Press 2

overwritten and then press [DISP.].

•

• Up to 3 focal length settings can be registered.

• Exit the menu after it is set.

1 to select the focal length to be

Confirmation screen is displayed. It is executed when [Yes] is selected.

∫ Setting a registered focal length

1 On the screen in step 3 of “Setting the focal length of a lens”, press 4. 2 Press 2

VQT5A95 (ENG)

1 to select the registered focal lengthand then press [MENU/SET].

Recording

Taking Pictures with the Zoom

Applicable modes:

∫ Types of zooms and recording magnification

Feature Optical Zoom

Recording magnification

Picture quality No deterioration No deterioration

¢1 When a picture size of [S] (4 M), aspect ratio of [4:3] is selected.

The magnification level differs depending on [Picture Size] and [Aspect Ratio] setting.

2 When recording quality setting [FHD/60p], [FHD/60i], [FHD/30p] or [FHD/24p] is selected.

Different depending on the lens used.

Extended Tele

Conversion (EX) (P82)

When taking still pictures: Max. 2k When recording motion pictures: 2.4k

¢1

¢2

Digital Zoom (P82)

When selecting [2k] When selecting [4k]

The higher the magnification level, the greater the deterioration.

(ENG) VQT5A95

Recording

Taking pictures by using the flash

Applicable modes:

∫ Open/Close the built-in flash

Taking a picture using the flash becomes possible by opening the built-in flash.

A To open the flash

Slide the flash open lever.

B To close the flash

Press the flash until it clicks.

•

Make sure to close the built-in flash when it is not in use.

• The flash setting is fixed to [Œ] while the flash

is closed.

Changing Flash Mode

Applicable modes:

Set the built-in flash to match the recording.

•

Open the flash.

1 Select the menu.

[MENU] > [Rec]>[Flash]

2 Press 3/4 to select [Flash Mode] and then press [MENU/SET]. 3 Press 3/4 to select the item and then press [MENU/SET].

VQT5A95 (ENG)

Switching the Playback Method

2013

SUN MON TUE WED THU FRI SAT

11 12

20 21

25 26 27 28

45362 71

6HW

Displaying multiple screens (Multi Playback)

Rotate the rear dial left.

Playback/Editing

1 screen 12 screens 30 screens Calendar screen display

It is possible to switch the playback screen by touching the

•

following icons.

– [ ]: 1 screen – [ ]: 12 screens – [ ]: 30 screens

CAL

– [ ]: Calendar screen display

• The screen can be switched gradually by dragging the screen up or down.

Displaying Pictures by Recording Date (Calendar Playback)

1 Rotate the rear dial left to display the Calendar screen. 2 Press 3/4/2/1 to select the date to be played back.

•

If there were no pictures recorded during a month, that month is not displayed.

3 Press [MENU/SET] to display the images that are

recorded in selected date.

4 Press 3/4/2/1 to select a picture and then press [MENU/SET].

1/98

(ENG) VQT5A95

Playback/Editing

6HW

5(029(

6&$/,1*

8QGR

Using Playback Functions

With this menu, you can use various playback functions such as cropping and other editing of recorded images, protect settings, etc.

Creating Still Pictures from a Motion Picture

You can create a single still picture from a recorded motion picture.

Press 3 to pause motion picture playback.

Press [MENU/SET].

•

The same operation can be performed by touching [ ].

• Confirmation screen is displayed. It is executed when

[Yes] is selected.

Removing unnecessary parts [Clear Retouch]

You can erase unnecessary parts recorded on the pictures taken.

•

The erasure operation can only be performed by touching. [Clear Retouch] automatically enables the touch operation.

1 Select the menu.

[MENU] > [Playback]>[Clear Retouch]

2 Press 2 3 Drag your finger over the part you want to delete.

•

• Touching [Undo] will return the colored part back to its

4 Touch [Set].

•

5 Touch [Save] or press [MENU/SET].

•

1 to select a picture, and then press [MENU/SET].

The parts to be erased are colored.

previous state.

Preview screen is displayed.

Confirmation screen is displayed. It is executed when [Yes] is selected. Exit the menu after it is executed.

VQT5A95 (ENG)

What you can do with the Wi-FiR function

ョㄏピ

What you can do

Controlling with a Smartphone/Tablet

Recording with a smartphone.

Saving images stored in the camera.

Sending images to an SNS.

Easy connection, easy transfer

You can use easily by pressing and holding [Wi-Fi] or by using the NFC function.

Displaying pictures on a TV

Wi-Fi/NFC

When sending images to Printer

When sending images to AV device

You can send pictures and motion pictures to AV devices in your house (home AV devices). You can also send them to the devices (external AV devices) of your family or friends living away from you via “LUMIX CLUB”.

When sending images to PC

Using Web services

You can send pictures and motion pictures to an SNS, etc. via “LUMIX CLUB”. By setting up automatic transfers of pictures and motion pictures to the [Cloud Sync. Service], you can receive the transferred pictures or motion pictures on a PC or smartphone.

• Please refer to “Owner’s Manual for advanced features (PDF format)” for details.

(ENG) VQT5A95

Wi-Fi/NFC

Controlling with a Smartphone/Tablet

You can remotely operate the camera using a smartphone/tablet. You need to install “Panasonic Image App” (referred to as “Image App” from this point on) on your smartphone/tablet.

Installing the smartphone/tablet app “Panasonic Image App”

The “Image App” is an application provided by Panasonic.

For AndroidTM apps For iOS apps

OS Android 2.2~ Android 4.2

1 Connect your Android device

to a network.

2 Select “Google Play

Installation procedure

Use the latest version.

•

• The service may not be able to be used properly depending on the type of smartphone/tablet

being used. For information on the Image App, refer to the support site below.

http://panasonic.jp/support/global/cs/dsc/

• When downloading the app on a mobile network, high packet communication fees may be

incurred depending on the details of your contract.

¢ Connecting to this unit with [Wi-Fi Direct] requires Android OS 4.0 or higher and Wi-Fi

Direct

3 Enter “Panasonic Image App”

into the search box.

4 Select “Panasonic Image

App” and install it.

The icon will be added to the

•

menu.

support.

iOS 5.0~ iOS 6.1

1 Connect the iOS device to the

Store”.

2 Select “App Store 3 Enter “Panasonic Image App”

4 Select “Panasonic Image

The icon will be added to the

•

menu.

(This Site is English only.)

network.

into the search box.

App” and install it.

”.

VQT5A95 (ENG)

Wi-Fi/NFC

Connecting to a smartphone/tablet

A connection can be easily established by pressing and holding [Wi-Fi] or by using the NFC function.

Preparations:

Install the “Image App” in advance. (P64)

•

1 Press and hold [Wi-Fi].

•

The information (SSID and password) required for directly connecting your smartphone/tablet to this unit is displayed.

ョㄏピ

• Except for when connecting for the first time, the screen

from the previous connection is displayed.

• The same screen can be displayed by selecting the

following menu items.

[Wi-Fi] > [New Connection]>[Remote Shooting

& View]

• To change the connection method, press [DISP.], and then

select the connection method.

2 Operate the smartphone/tablet.

1 Turn on the Wi-Fi function. 2 Select the SSID that matches the one displayed on the screen of this unit, and

then enter the password.

3 Start “Image App”. (P64)

When the connection is complete, live images being captured by the camera are

•

displayed on the smartphone/tablet.

(ENG) VQT5A95

Wi-Fi/NFC

Connecting to a smartphone/tablet by using the NFC function

Using the NFC “Near Field Communication” function, you can easily transfer data necessary for a Wi-Fi connection between this camera and the smartphone/tablet.

∫ Compatible models

This function can be used with the NFC compatible device with Android (OS version

2.3.3 or higher). (excluding some models)

For information on the operation and settings of NFC-compatible smartphones/tablets, refer

•

to the owner’s manual of your device.

Preparation:

(On the camera)

Set [NFC Operation] to [ON].

•

(On your smartphone/tablet)

•

Check that your smartphone/tablet is a compatible model.

• Turn on the Wi-Fi function.

• Install the “Image App” in advance. (P64)

1 Launch “Image App” on your smartphone/tablet. 2 While [ ] is displayed on the connection

screen of the “ Image App ”, touch the smartphone/tablet to [ ] of this unit.

It may take time to complete the connection.

•

• When the smartphone/tablet has connected, an

image of this smartphone/tablet.

• If a connection attempt by touching fails, restart the

“Image App”, and then display the screen in step again.

• If a connection is established during single picture

playback, the picture will be transferred to the smartphone/tablet. (P68)

camera will be displayed on the

When connecting for the first time, the connection confirmation screen is

displayed

1 When the connection confirmation screen is displayed on this unit, select

[Yes].

2 Touch the smartphone/tablet to [ ] of the camera again.

•

The connected smartphone/tablet is registered to this camera.

VQT5A95 (ENG)

Wi-Fi/NFC

Taking pictures via a smartphone/tablet (remote recording)

1 Connect to a smartphone/tablet. (P65) 2 Select [ ] on the smartphone/tablet.

The recorded images are saved in the camera.

•

• Motion pictures can also be recorded.

• Some settings are not available.

• The screen differs depending on the operating system.

Saving images stored in the camera/Sending images in the camera to an SNS

1 Connect to a smartphone/tablet. (P65) 2 Select [ ] on the smartphone/tablet.

3 Drag an image.

•

The function can be assigned to the top, bottom, left or right according to your preference.

• If an image is touched, the picture will be played back in an

enlarged size.

(ENG) VQT5A95

Wi-Fi/NFC

Transferring images stored in the camera easily

A Wi-Fi connection using NFC function is possible by touching the smartphone/tablet to this unit, and you can easily transfer images displayed on the screen. An image can be sent on site immediately after taking it, so you can easily send it to the smartphone/tablet

¢ Installing the “Image App” is required for use.

Preparation:

(On the camera)

•

Set [NFC Operation] to [ON].

• Set [Touch Sharing] to [ON].

of your family or friend.

(On your smartphone/tablet)

•

Check that your smartphone/tablet is a compatible model.

• Turn on the Wi-Fi function.

• Install the “Image App” in advance. (P64)

1 Play back the picture you want to transfer to the smartphone/tablet in the

camera.

2 Launch “Image App” on the smartphone/tablet at the transfer destination. 3 While [ ] is displayed on the connection

screen of the “ Image App ”, touch the smartphone/tablet to [ ] of this unit.

It may take time to complete the connection.

•

• If a connection attempt by touching fails, restart the

“Image App”, and then display the screen in step again.

• They cannot be transferred as a batch.

• Depending on the environment you are using, it may take a few minutes to complete the image

transfer.

VQT5A95 (ENG)

Wi-Fi/NFC

Changing the connection method

To change the connection method, press [DISP.], and then select the connection method.

Connection method Description of settings

[Via Network] Connects via a wireless access point. P70

[Direct] Your device connects directly to this unit. P72

(ENG) VQT5A95

Wi-Fi/NFC

Via the network

You can select the method for connecting to a wireless access point.

¢ WPS refers to a function that allows you to easily configure

the settings related to the connection and security of wireless LAN devices. To check if the wireless access point you are using is compatible with WPS, refer to the manual of the wireless access point.

Connection method Description of settings

Save push button type wireless access point that is compatible with Wi-Fi Protected Setup

with a WPS mark.

Press the wireless access point WPS button until it switches to WPS

[WPS (Push-Button)]

mode.

Refer to the wireless access point

•

instruction manual for details.

Save PIN code type wireless access point that is compatible with Wi-Fi Protected Setup with a WPS mark.

1 Select the wireless access point you are connecting

[WPS (PIN code)]

to.

2 Enter the PIN code displayed on the camera screen

into the wireless access point.

3 Press [MENU/SET].

•

Refer to the wireless access point instruction manual for details.

Select this option when you are not sure about the WPS

[Manual Connection]

compatibility, or when you want to search for and connect to a wireless access point.

Refer to P71 for details.

•

e.g.:

VQT5A95 (ENG)

Wi-Fi/NFC

If you are not sure about the WPS compatibility (connecting by [Manual Connection])

Search for available wireless access points.

• Confirm encryption key of the selected wireless access point if the network authentication is

encrypted.

• When connecting by [Manual Input], confirm SSID, encryption type, encryption key of the

wireless access point you are using.

1 Select the wireless access point you are connecting

to.

Pressing [DISP. ] will search for a wireless access point

•

again.

• If no wireless access point is found, refer to “When

connecting with [Manual Input]

” on P71.

2 (If network authentication is encrypted)

Enter the encryption key.

∫ When connecting with [Manual Input]

1 On the screen displayed in step 1 of “If you are not sure about the WPS

compatibility (connecting by [Manual Connection])”, select [Manual Input].

2 Enter the SSID of the wireless access point you are connecting to, then select

[Set].

3 Select the network authentication type.

•

For information on network authentication, see the manual of the wireless access point.

4 Select the encryption type.

•

The type of settings that can be changed may vary depending on the details of network authentication settings.

Network authentication type Encryption types that can be set

[WPA2-PSK]/[WPA-PSK] [TKIP]/[AES]

[Common Key] [WEP]

[Open] [No Encryption]/[WEP]

5 (When an option other than [No Encryption] is selected)

Enter the encryption key.

Check the wireless access points instruction manual and settings when saving a wireless

•

access point.

• Transmission speed may decrease, or may not be usable depending on the environment it is

used in.

(ENG) VQT5A95

Wi-Fi/NFC

Direct connection

You can select the method for connecting to the device you are using. Select the connection method supported by your device.

Connection method Description of settings

mode.

[Wi-Fi Direct]

1 Set the device to Wi-Fi Direct 2 Select [Wi-Fi Direct]. 3 Select the device to connect to.

•

Read the owner’s manual of your device for details.

[WPS (Push-Button)]

1 Select [WPS (Push-Button)]. 2 Set the device to WPS mode.

•

[WPS Connection]

You can wait longer for a connection by pressing the [DISP.] button on this unit.

[WPS (PIN code)]

1 Select [WPS (PIN code)]. 2 Enter the PIN code of the device into this unit.

Enter the SSID and password into the device. The SSID and

[Manual Connection]

password are displayed on the connection waiting screen of this unit.

VQT5A95 (ENG)

About the supplied software

The supplied CD-ROM includes the following software. Install the software on to your computer before use.

PHOTOfunSTUDIO 9.2 PE (Windows XP/Vista/7/8)

•

This software allows you to manage images. For example, you can send pictures and motion pictures to a PC and sort them by recording date or model name. You can also perform operations such as writing images to a DVD, processing and correcting images, and editing motion pictures.

• SILKYPIX Developer Studio

(Windows XP/Vista/7/8, Mac OS X v10.4/v10.5/v10.6/v10.7/v10.8)

This is software to edit RAW format images. Edited images can be saved in a format (JPEG, TIFF, etc.) that can be displayed on a personal computer.

For details on how to use the SILKYPIX Developer Studio, refer to the “Help” or the Ichikawa Soft Laboratory’s support website: http://www.isl.co.jp/SILKYPIX/english/p/support/

• LoiLoScope 30 day full trial version (Windows XP/Vista/7/8)

LoiLoScope is a video editing software where that draws out the full power of your PC. Creating videos is as easy as organizing cards on top of a desk. Use your music, picture and video files to create videos to share with your friends and family by burning it to a DVD, uploading it to websites, or simply share your videos with your friends via e-mail.

– This will only install a shortcut to the trial version download site.

For more information on how to use LoiLoScope, read the LoiLoScope manual available for download at the link below. Manual URL: http://loilo.tv/product/20

(ENG) VQT5A95

About the supplied software

∫ Installing supplied software

Before inserting the CD-ROM, close all running applications.

•

Check the environment of your PC.

• Operating environment of “PHOTOfunSTUDIO 9.2 PE”

– OS:

WindowsR XP (32bit) SP3, Windows Vista Windows Windows

–

CPU:

PentiumR III 500 MHz or higher (WindowsR XP), Pentium Pentium

–

Display:

1024k768 pixels or more (1920k1080 pixels or more recommended)

–

RAM:

512 MB or more (WindowsR XP/Windows VistaR), 1 GB or more (Windows 2 GB or more (Windows

–

Free hard disk space:

450 MB or more for installing software

•

Refer to the operating instructions of “PHOTOfunSTUDIO” (PDF) for further operating environment.

• For details on SILKYPIX Developer Studio 3.1 SE, please read the support site given on

P73.

Insert the CD-ROM with the supplied software.

• When you insert the supplied CD-ROM, the install menu will start.

(32bit) SP2,

7 (32bit/64bit) or SP1,

8 (32bit/64bit)

III 800 MHz or higher (Windows VistaR),

III 1 GHz or higher (WindowsR 7/WindowsR 8)

7 32bit/WindowsR 8 32bit),

7 64bit/WindowsR 8 64bit)

Click on the [Recommended Installation].

• Proceed with installation according to messages appearing on the screen.

• The software compatible with your PC will be installed.

• On the Mac, SILKYPIX can be installed manually.

1 Insert the CD-ROM with the supplied software. 2 Double-click on the automatically displayed folder. 3 Double-click the icon in the application folder.

Not available in these cases:

“PHOTOfunSTUDIO” and “LoiLoScope” are not compatible with Mac.

•

VQT5A95 (ENG)

Others

Recording Mode

Custom settings

Photo Style

Creative control adjustment display

‰Œ

Flash Mode Flash Extended Tele

Conversion (when recording motion pictures)

Recording format/ Recording quality

Picture size/ Aspect Ratio

Extended Tele Conversion (when taking still pictures)

989898

0000200200

6060601.71.71.7

AFSAFSAFS

4:3

AELAELAEL

BKTBKTBKT

AWBAWBAWB

ラュンラュン



C3-1

EXPSEXPS

4:3 EXM

4:3

Card (displayed only during recording)

Elapsed recording time

Simultaneous recording indicator

Peaking Highlight Shadow HDR Multi exposure Digital Zoom Electronic shutter

Overheat indicator

8m30

ラュン

Monitor Display/Viewfinder Display

• The following images are examples of when the display screen is set to [ ] (monitor

style) in the monitor.
