Page 1
Owner’s Manual
for advanced features
Digital Camera
Model No. DMC-G6
Please read these instructions carefully before using this product,
and save this manual for future use.
Register online at
www.panasonic.com/register
(U.S. customers only)
VQT4Z78
F0513WT0
Page 2
Finding the information you need
P4 ~
P13 ~
P314 ~
P318 ~
P322 ~
P331 ~
P3
P244 ~
In this “Owner’s Manual for advanced features”, you can
find the information you need from the following pages.
By clicking a page number, you can jump to the linked
page and quickly find the information.
Search from “Contents”
Search from “Names and
Functions of Components
Search from “Monitor Display/
Viewfinder Display
Search from the list of
on-screen messages
“Message Display”
Search from the menu list
“Menu list”
[Rec] ..............................................................P322
[Motion Picture]..............................................P325
[Custom] ........................................................P326
[Setup] ...........................................................P328
[Playback] ......................................................P330
”
”
Search from “Troubleshooting”
For details on how to use this
manual, see the next page.
R
Wi-Fi
function/NFC function
2
Page 3
How to use this manual
Click this icon to jump to “Finding the information you need”.
Click this icon to jump to “Contents”.
Click this icon to return to the previously displayed page.
About the indication of the applicable mode
Applicable modes:
The icons indicate the modes available for a function.
• Black icons: Applicable modes
• Gray icons: Unavailable modes
and will differ depending on the Recording Modes registered under
custom settings.
• Click a cross reference in the text to jump to the corresponding page.
• By entering keywords in the search field at the top of the Adobe Reader screen, you can run a
keyword search and jump to the corresponding page.
• Operations and other details of this manual may vary depending on the Adobe Reader version
you are using.
∫ About the symbols in the text
[MENU]: Indicates that the menu can be set by pressing [MENU/SET] button.
[Wi-Fi]: Indicates that the Wi-Fi setting can be made by pressing [Wi-Fi] button.
: Configurations that can be performed in the [Custom] menu.
: Tips for skillful use and points for recording.
: Conditions in which a particular function cannot be used.
: Continued to next page.
In this owner’s manual, steps for setting a menu item are described as follows.
[MENU] > [Rec]>[Quality]>[›]
3
Page 4
Contents
Finding the information you need.......................................................................2
How to use this manual .......................................................................................3
Before Use
Care of the camera.............................................................................................11
Standard Accessories........................................................................................12
Names and Functions of Components.............................................................13
About the Lens ...................................................................................................21
Preparation
Changing the Lens.............................................................................................23
Attaching the Shoulder Strap............................................................................27
Charging the Battery ..........................................................................................28
• Charging ......................................................................................................28
• Approximate operating time and number of recordable pictures .................30

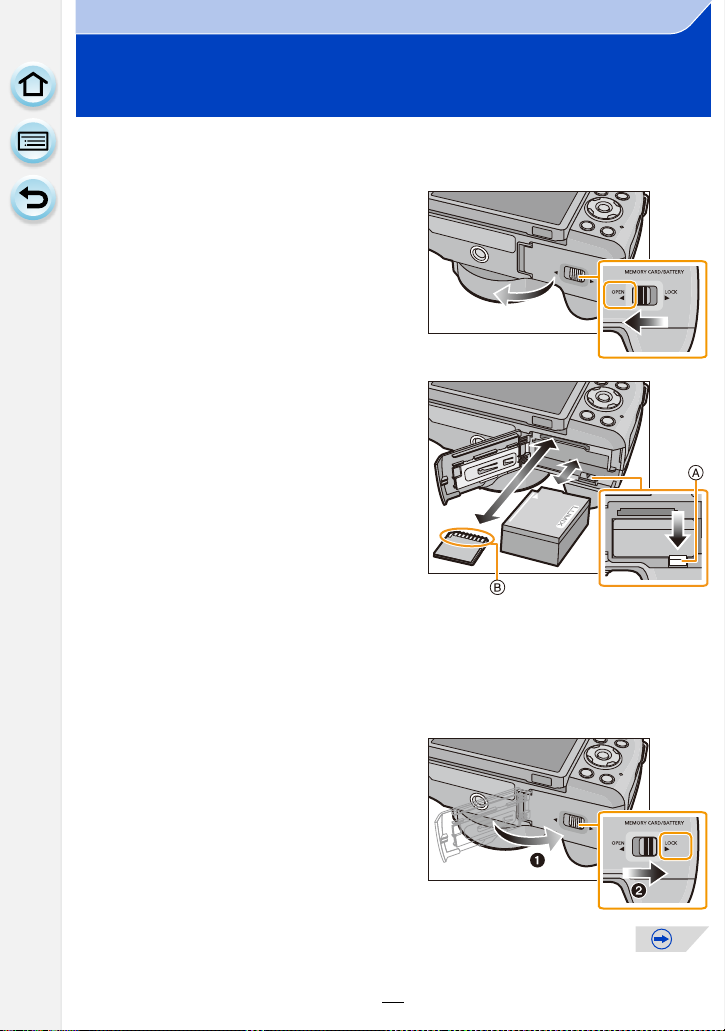

Inserting and Removing the Card (optional)/the Battery................................35
About the Card....................................................................................................37
• About cards that can be used with this unit .................................................37
• Formatting the card (initialization)................................................................38
• Approximate number of recordable pictures and
available recording time...............................................................................39
Setting Date/Time (Clock Set) ...........................................................................41
• Changing the Clock Setting .........................................................................42

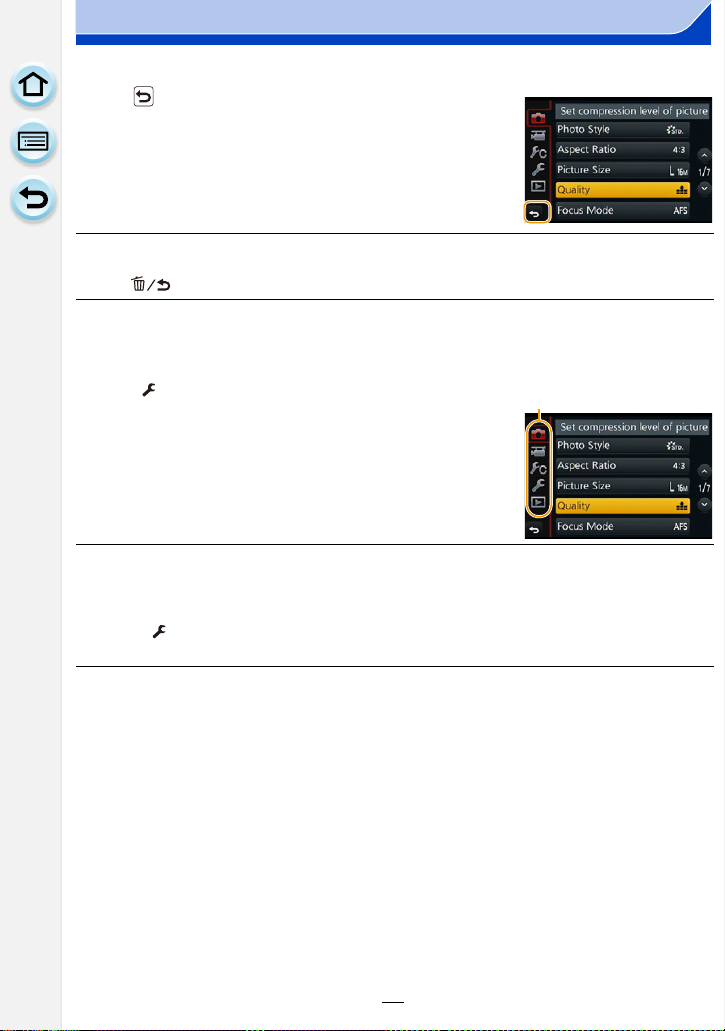

Setting the Menu.................................................................................................43
• Setting menu items ......................................................................................43

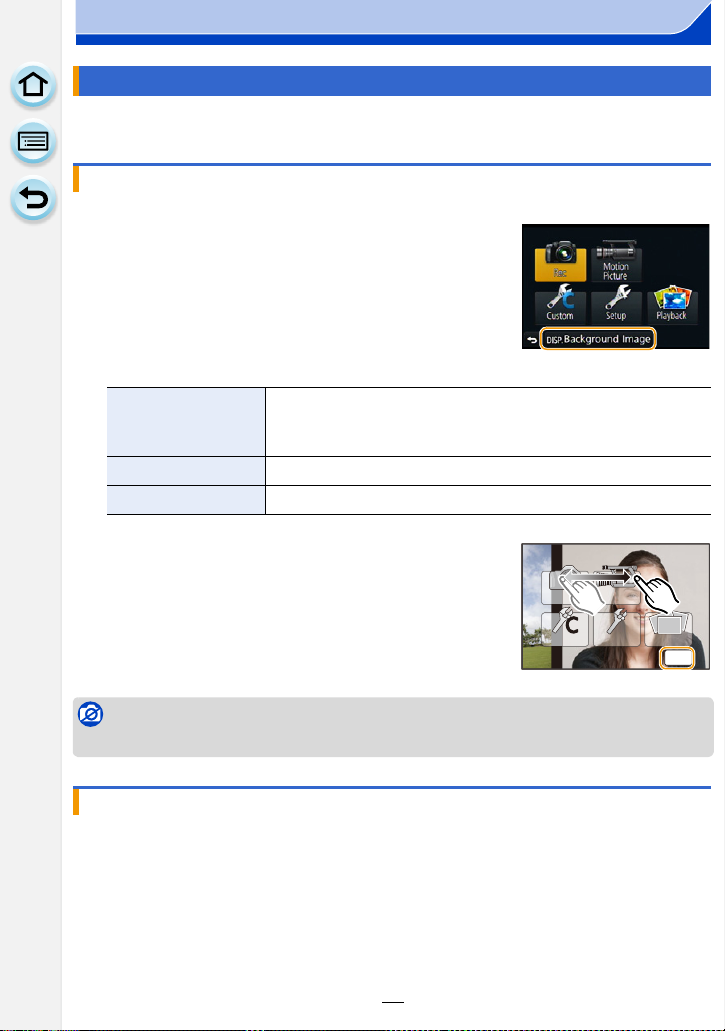

• Setting the menu screen background ..........................................................47

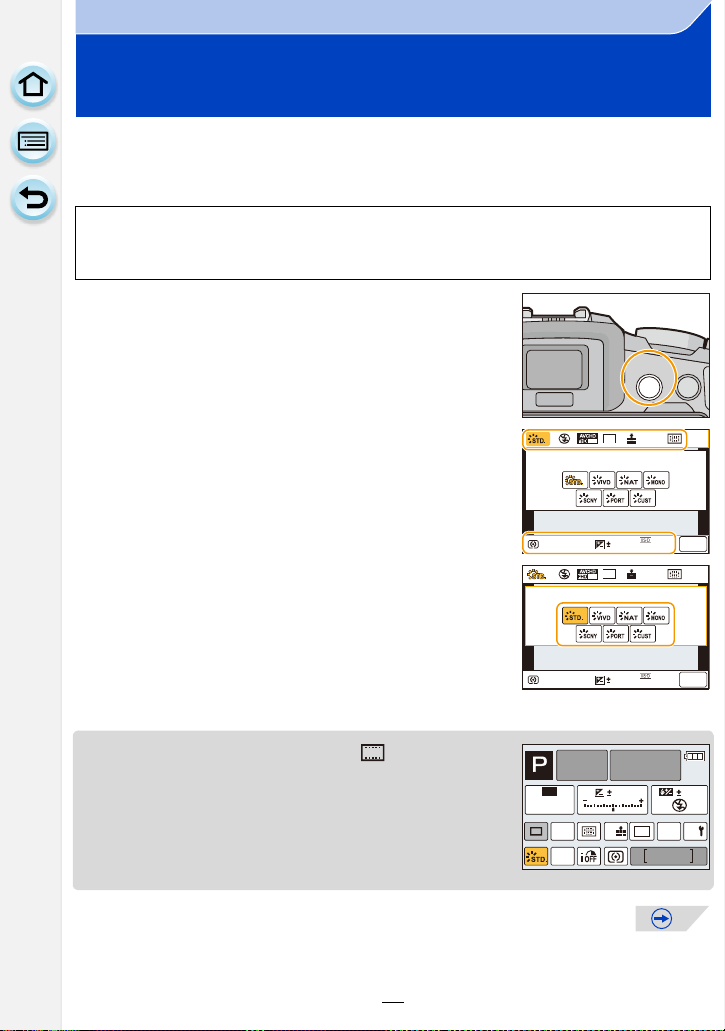

Calling frequently-used menus instantly (Quick Menu) .................................48
• Change the Quick Menu to your preferred item...........................................50

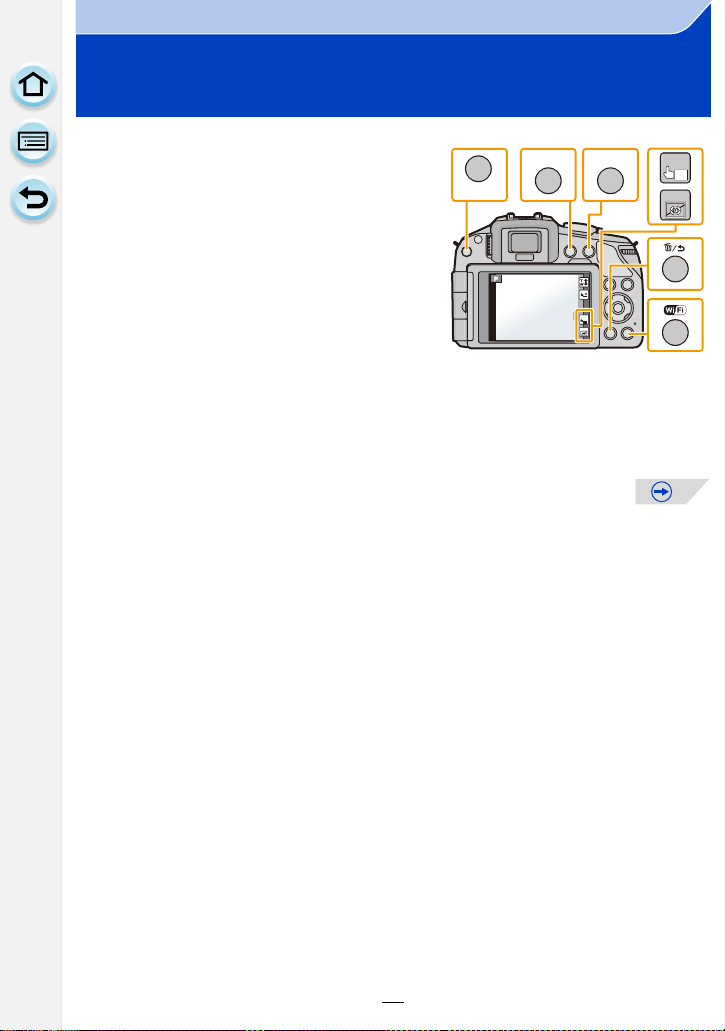

Assigning frequently used functions to the buttons (function buttons) ......52
Configuring basic settings of this unit (Setup Menu).....................................55
Entering Text.......................................................................................................64
Basic
Tips for taking good pictures ............................................................................65
• Detects orientation of camera (Direction Detection Function) .....................65
Using the Viewfinder ..........................................................................................66
• Switching the Monitor/Viewfinder.................................................................66
• About the Eye Sensor AF ............................................................................67
• Setting the focus position with the Touch Pad .............................................67
Taking a Still picture...........................................................................................68
• Taking pictures using the Touch Shutter function.........................................70

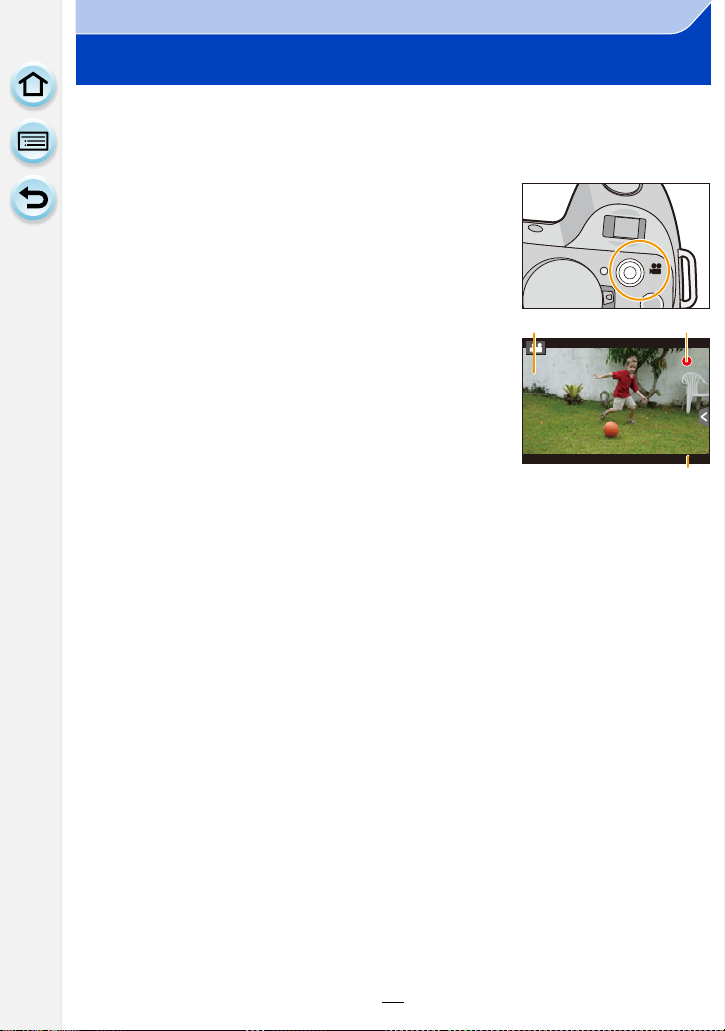

Recording Motion Picture..................................................................................71

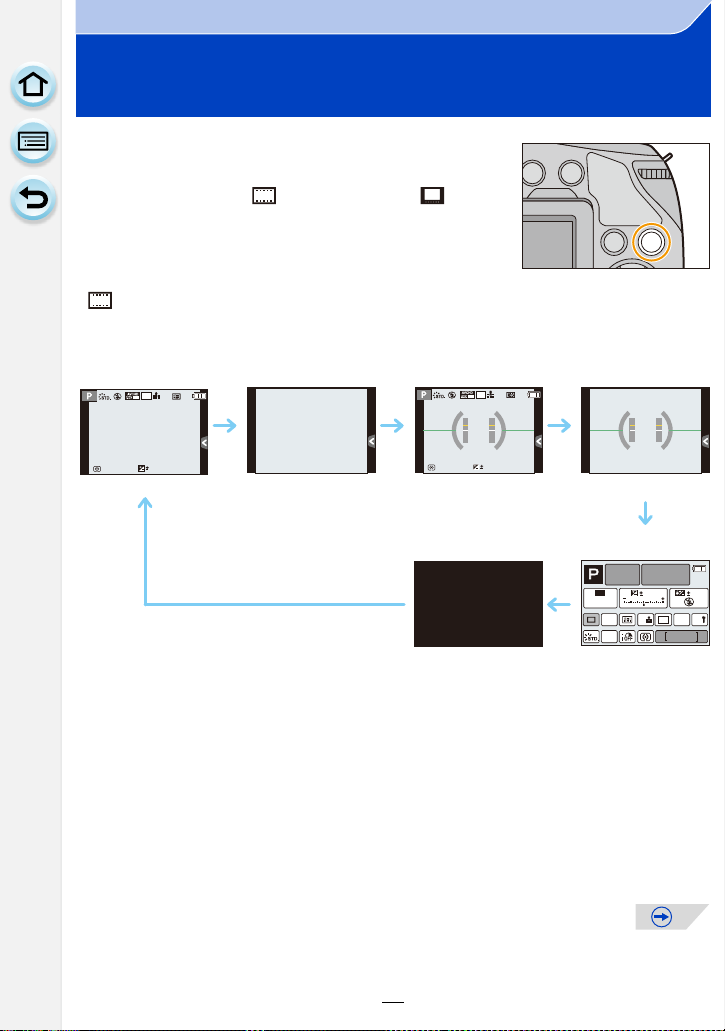

Switching the Information Displayed on the recording screen .....................72
4
Page 5
Playing Back Pictures/Motion Pictures ............................................................76
• Playing Back Pictures ..................................................................................76

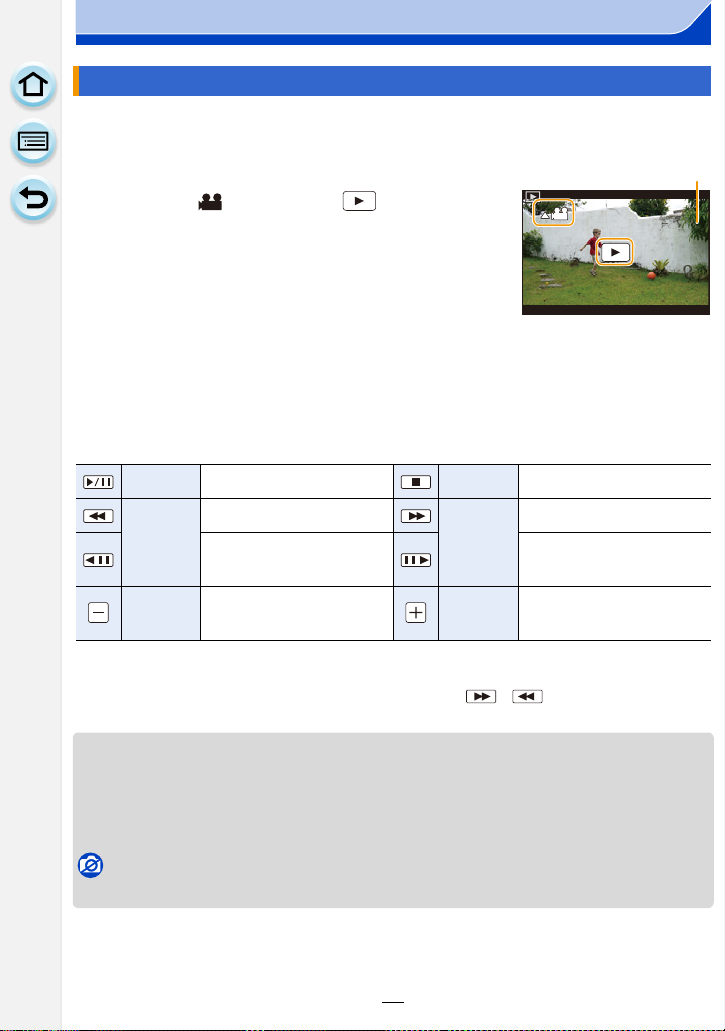

• Playing Back Motion Pictures ......................................................................80
• Creating Still Pictures from a Motion Picture................................................81
• Playing Back Group Pictures .......................................................................81
• Changing the information displayed on the playback screen.......................83
Deleting Pictures................................................................................................85
Recording

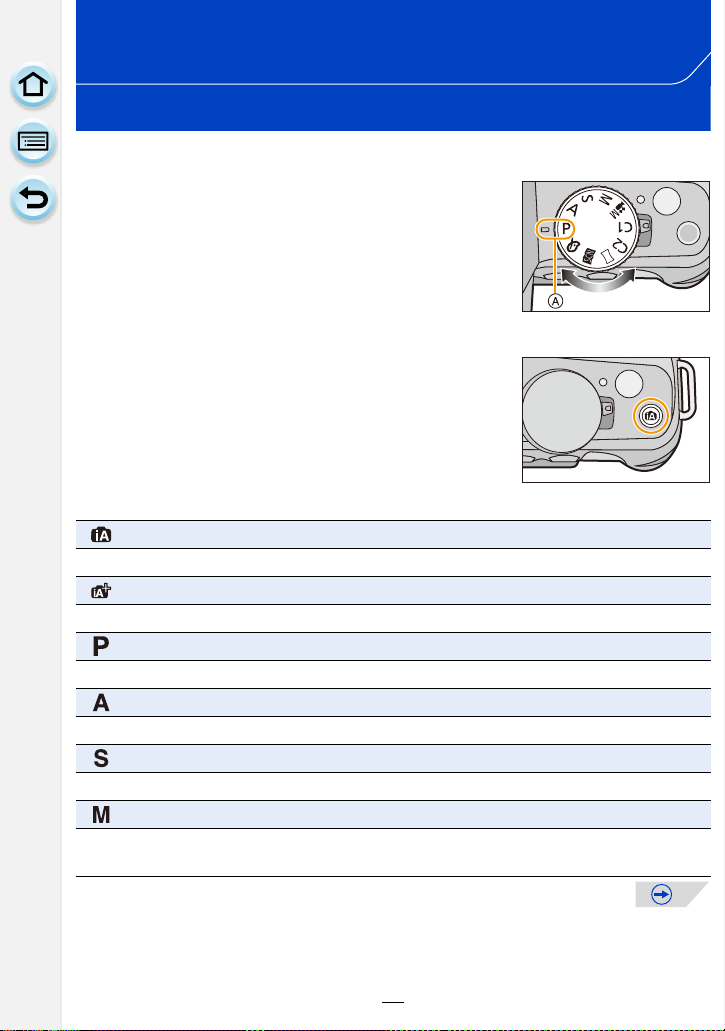

Selecting the Recording Mode ..........................................................................87
Taking Pictures using the Automatic Function
(Intelligent Auto Mode).......................................................................................89
• Recording with Camera-Recommended Effects..........................................92
• Taking a picture with a blurred background (Defocus Control) ....................93
• Recording images by changing the brightness or color tone
(Intelligent Auto Plus Mode) ........................................................................94
Taking Pictures with Your Favorite Settings (Program AE Mode) .................96
Taking Pictures by Specifying the Aperture/Shutter Speed...........................99
• Aperture-Priority AE Mode...........................................................................99
• Shutter-Priority AE Mode ...........................................................................100
• Manual Exposure Mode .............................................................................101
• Confirm the Effects of Aperture and Shutter Speed (Preview Mode).........104
• Easily set aperture/shutter speed for suitable exposure
(One Push AE) ..........................................................................................105
Taking panorama pictures (Panorama Shot Mode) .......................................106
Taking Pictures that match the Scene being recorded
(Scene Guide Mode) .........................................................................................110
• [Clear Portrait]............................................................................................111
• [Silky Skin] ................................................................................................. 111
• [Backlit Softness] .......................................................................................111
• [Clear in Backlight].....................................................................................112
• [Relaxing Tone] ..........................................................................................112
• [Sweet Child's Face] ..................................................................................112
• [Distinct Scenery].......................................................................................113
• [Bright Blue Sky] ........................................................................................113
• [Romantic Sunset Glow] ............................................................................113
• [Vivid Sunset Glow]....................................................................................113
• [Glistening Water] ......................................................................................114
• [Clear Nightscape] .....................................................................................114
• [Cool Night Sky] .........................................................................................114
• [Warm Glowing Nightscape].......................................................................115
• [Artistic Nightscape] ...................................................................................115
• [Glittering Illuminations]..............................................................................115
• [Clear Night Portrait] ..................................................................................116
• [Soft Image of a Flower].............................................................................116
• [Appetizing Food].......................................................................................117
5
Page 6
• [Cute Dessert]............................................................................................117
• [Freeze Animal Motion] .............................................................................. 117
• [Clear Sports Shot].....................................................................................118
• [Monochrome] ............................................................................................118
Taking Pictures with different image effects
(Creative Control Mode)...................................................................................119
• [Expressive] ...............................................................................................121
• [Retro]........................................................................................................121
• [Old Days]..................................................................................................121
• [High Key] ..................................................................................................121
• [Low Key]...................................................................................................122
• [Sepia]........................................................................................................122
• [Dynamic Monochrome] .............................................................................122
• [Impressive Art]..........................................................................................122
• [High Dynamic]...........................................................................................123
• [Cross Process]..........................................................................................123
• [Toy Effect] .................................................................................................123
• [Toy Pop] ....................................................................................................124
• [Bleach Bypass] .........................................................................................124
• [Miniature Effect]........................................................................................125
• [Soft Focus]................................................................................................126
• [Fantasy]....................................................................................................126
• [Star Filter]..................................................................................................126
• [One Point Color] .......................................................................................127
• [Sunshine]..................................................................................................127
Registering your preferred settings (Custom Mode) ....................................129
• Registering Personal Menu Settings (Registering custom settings) ..........129
• Recording using registered custom set......................................................130
Optical Image Stabilizer...................................................................................131
Taking Pictures with the Zoom........................................................................133
• Raising the telescopic effect......................................................................134
• Zooming using touch operations................................................................138
Taking pictures by using the flash..................................................................139
• Changing Flash Mode................................................................................141
• Setting to the 2nd Curtain Synchro............................................................144
• Adjust the flash output ...............................................................................145
• Synchronzing the output of the built-in flash
to the Exposure Compensation .................................................................145
• Setting the wireless flash ...........................................................................146
Compensating the Exposure...........................................................................149
Easily Optimizing the Brightness for a Specified Area (Touch AE).............151
Setting the Light Sensitivity ............................................................................154
Adjusting the White Balance...........................................................................156
6
Page 7
Taking Pictures with Auto Focus ....................................................................161
• About the focus mode (AFS/AFF/AFC)......................................................162
• Type of the Auto Focus Mode....................................................................164
• Setting the desired focus method ..............................................................169
Taking Pictures with Manual Focus................................................................171
Fixing the Focus and the Exposure (AF/AE Lock) ........................................176
Select a Drive Mode..........................................................................................178
Taking Pictures using Burst Mode..................................................................179
Taking Pictures using Auto Bracket...............................................................182
Taking Pictures with the Self-timer.................................................................184
Using the [Rec] Menu.......................................................................................186
• [Photo Style]...............................................................................................186
• [Aspect Ratio].............................................................................................188
• [Picture Size]..............................................................................................188
• [Quality]......................................................................................................189
• [Focus Mode] .............................................................................................189
• [Metering Mode].........................................................................................190
• [Burst Rate]................................................................................................190
• [Auto Bracket] ............................................................................................190
• [Self Timer].................................................................................................190
• [i.Dynamic] (Intelligent dynamic range control)..........................................191
• [i.Resolution] ..............................................................................................191
• [HDR] .........................................................................................................192
• [Multi Exp.].................................................................................................193
• [Time Lapse Shot]......................................................................................195
• [Stop Motion Animation].............................................................................197
• [Panorama Settings] ..................................................................................199
• [Electronic Shutter].....................................................................................200
• [Flash] ........................................................................................................200
• [Red-Eye Removal]....................................................................................201
• [ISO Limit Set]............................................................................................201
• [ISO Increments]........................................................................................202
• [Extended ISO]...........................................................................................202
• [Long Shtr NR]...........................................................................................203
• [Shading Comp.] ........................................................................................203
• [Ex. Tele Conv.]..........................................................................................204
• [Digital Zoom].............................................................................................204
• [Color Space] .............................................................................................204
• [Stabilizer] ..................................................................................................204
• [Face Recog.].............................................................................................205
• [Profile Setup] ............................................................................................210
• [Recommended Filter]................................................................................210
7
Page 8
Motion Picture
Recording Motion Picture................................................................................211
• Setting the format, size and frame rate......................................................211
• How to set focus when recording a motion picture (Continuous AF).........213
• Recording Motion Picture...........................................................................214
Recording still pictures while recording motion pictures............................216
Recording motion pictures with manually set aperture value/
shutter speed (Creative Video Mode) .............................................................217
• Minimizing operational sounds during motion picture recording................218
Using the [Motion Picture] Menu ....................................................................219
• [Rec Format]..............................................................................................219
• [Rec Quality] ..............................................................................................219
• [Exposure Mode]........................................................................................219
• [Picture Mode]............................................................................................219
• [Continuous AF] .........................................................................................219
• [Rec Highlight]............................................................................................220
• [Ex. Tele Conv.]..........................................................................................220
• [Flkr Decrease]...........................................................................................220
• [Silent Operation] .......................................................................................220
• [Mic Level Disp.].........................................................................................221
• [Mic Level Adj.]...........................................................................................221
• [Special Mic.]..............................................................................................221
• [Wind Cut]..................................................................................................221
Playback/Editing
Using the [Playback] Menu..............................................................................222
• [2D/3D Settings].........................................................................................222
• [Slide Show]...............................................................................................222
• [Playback Mode] ........................................................................................225
• [Location Logging]......................................................................................226
• [Clear Retouch]..........................................................................................227
• [Title Edit] ...................................................................................................229
• [Text Stamp] ...............................................................................................230
• [Video Divide].............................................................................................233
• [Time Lapse Video]....................................................................................234
• [Stop Motion Video]....................................................................................235
• [Resize]......................................................................................................236
• [Cropping] ..................................................................................................237
• [Rotate]/[Rotate Disp.]................................................................................238
• [Favorite]....................................................................................................239
• [Print Set]...................................................................................................240
• [Protect]......................................................................................................242
• [Face Rec Edit] ..........................................................................................243
• [Delete Confirmation] .................................................................................243
8
Page 9
Wi-Fi/NFC
Wi-FiR function/NFC function..........................................................................244
What you can do with the Wi-Fi function .......................................................247
Controlling with a Smartphone/Tablet............................................................248
• Installing the smartphone/tablet app “Panasonic Image App ” ...................248
• Connecting to a smartphone/tablet ............................................................249
• Taking pictures via a smartphone/tablet (remote recording) ......................253
• Saving images stored in the camera..........................................................253
• Sending images in the camera to an SNS .................................................255
• Sending location information to the camera from a smartphone/
tablet..........................................................................................................255
• Sending images to a smartphone/tablet by controlling the camera ...........256
Displaying pictures on a TV ............................................................................259
When sending images to Printer.....................................................................260
When sending images to AV device ...............................................................261
When sending images to PC ...........................................................................264
Using Web services..........................................................................................268
• When sending images to web service .......................................................268
• When sending images to [Cloud Sync. Service]........................................272
Registering to the “LUMIX CLUB” ..................................................................274
• About the [LUMIX CLUB]...........................................................................274
• Configuring the external AV device settings ..............................................279
About Connections ..........................................................................................280
• Connecting from your house (via the network) ..........................................281
• Connecting from a location away from your house (direct connection) .....283
• Connecting quickly with the same settings as the previous ones
([Select a destination from History]/
[Select a destination from Favorite])..........................................................284
• About settings for sending images.............................................................286
[Wi-Fi Setup] Menu ...........................................................................................288
Connecting to other equipment
Enjoying 3D pictures........................................................................................290
Playing Back Pictures on a TV Screen ...........................................................294
• Using VIERA Link (HDMI)..........................................................................296
Saving still pictures and motion pictures on your PC..................................298
• About the supplied software.......................................................................299
Saving still pictures and motion pictures on a Recorder.............................304
Printing the Pictures ........................................................................................305
9
Page 10
Others
Optional accessories .......................................................................................310
Monitor Display/Viewfinder Display................................................................314
Message Display...............................................................................................318
Menu list............................................................................................................322
• [Rec]...........................................................................................................322
• [Motion Picture]..........................................................................................325
• [Custom].....................................................................................................326
• [Setup] .......................................................................................................328
• [Playback] ..................................................................................................330
Troubleshooting ...............................................................................................331
Cautions for Use...............................................................................................347
10
Page 11
Before Use
Care of the camera
Do not subject to strong vibration, shock, or pressure.
•
The lens, monitor, or external case may be damaged if used in the
following conditions.
It may also malfunction or image may not be recorded if you:
– Drop or hit the camera.
– Press hard on the lens or the monitor.
This camera is not dust/drip/water proof.
Avoid using the camera in places with a lot of dust, water, sand,
etc.
Liquid, sand and other foreign material may get into the space around
•
the lens, buttons, etc. Be particularly careful since it may not just cause
malfunctions, but it may also become irreparable.
– Places with a lot of sand or dust.
– Places where water can come into contact with this unit, such as when
using it on a rainy day or at the beach.
Do not place your hands inside the mount of the digital camera
body. Since the sensor unit is a precision apparatus, it may cause a malfunction or
damage.
∫ About Condensation (When the lens, the viewfinder or
monitor is fogged up)
Condensation occurs when the ambient temperature or humidity
•
changes. Be careful of condensation since it causes lens,
viewfinder and monitor stains, fungus and camera malfunction.
• If condensation occurs, turn the camera off and leave it for about
2 hours. The fog will disappear naturally when the temperature of
the camera becomes close to the ambient temperature.
11
Page 12
Before Use
Standard Accessories
Check that all the accessories are supplied before using the camera.
The accessories and their shape will differ depending on the country or area where the camera
•
was purchased.
For details on the accessories, refer to “Basic Owner’s Manual”.
• Battery Pack is indicated as battery pack or battery in the text.
• Battery Charger is indicated as battery charger or charger in the text.
• SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as card in the
text.
• The card is optional.
• Description in this owner’s manual is based on the interchangeable lens (H-PS14042).
• If any accessories are lost, customers in the USA and Puerto Rico should contact Panasonic’s
parts department at 1-800-833-9626 and customers in Canada should contact 1-800-99-LUMIX
(1-800-995-8649) for further information about obtaining replacement parts.
12
Page 13
Before Use
Names and Functions of Components
∫ Camera body
1 Self-timer indicator (P184)/
AF Assist Lamp (P170)
2 Sensor
3 Flash (P139)
4 Lens fitting mark (P23)
5 Mount
6 Lens lock pin
7 Lens release button (P24)
8 [MIC] socket (P312)
9 [LVF] button (P66)/[Fn5] button (P52)
10 Flash open button (P139)
The flash opens, and recording with the flash
•
becomes possible.
91710 11
11 Viewfinder (P66)
12 Eye Cup (P348)
13 Eye sensor (P66)
14 [Q.MENU] button (P48)/[Fn1] button (P52)
15 [AF/AE LOCK] button (P176)/
[Fn2] button (P52)
16 Rear dial (P19)
17 Touch screen/monitor (P17)
18 [(] (Playback) button (P76)
19 [ ] (Delete/Cancel) button (P85)/[Fn3] button (P52)
20 [MENU/SET] button (P19, 43)
21 [Wi-Fi] button (P245)/[Fn4] button (P52)
22 Wi-Fi
®
connection lamp (P245)
23 Cursor buttons (P19)
3/ISO button (P154)
1/WB (White Balance) (P156)
2/AF Mode button (P161)
4/[Drive Mode] button
This button in picture record mode will allow the user to select between the
following options.
Single (P68)/Burst (P179)/Auto bracket (P182)/Self-timer (P184)

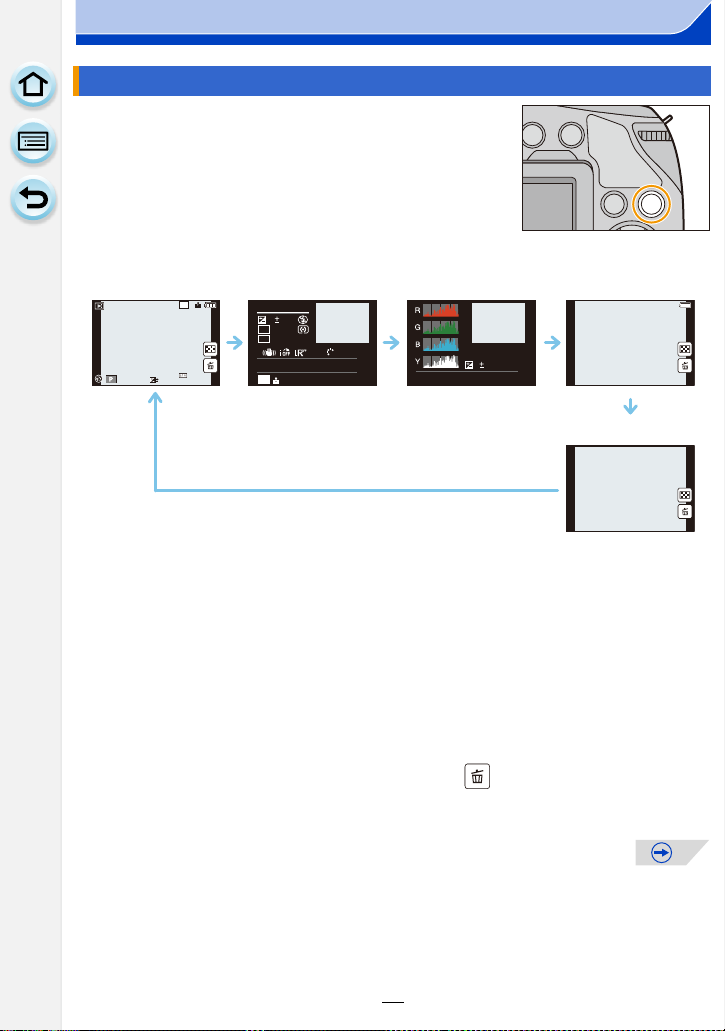

24 [DISP.] button (P72, 83)
Each time this is pressed, the display on the monitor is switched.
•
2
3
1
ヮリヤ
45678
12
13 1514 16
2418 19 20 21 22 23
13
Page 14
Before Use
3534
2928 30 31
26
25
32 33
27
37 3836
39
42
43
44
45
25 Focus distance reference mark (P175)
26 Speaker (P57)
Be careful not to cover the speaker with your
•
finger. Doing so may make sound difficult to
hear.
27 Stereo microphone (P221)
•
Be careful not to cover the microphone with
your finger. Doing so may make sound
difficult to record.
28 Hot shoe (P310)
29 Status indicator (P41)
30 Shutter button (P68)
31 Function lever (P20, 133, 150)
32 Mode dial (P87)
33 Camera ON/OFF switch (P41)
34 Intelligent Auto button (P89)
35 Motion picture button (P214)
36 Tripod mount (P354)
•
A tripod with a screw length of 5.5 mm
(0.22 inch) or more may damage this unit if
attached.
37 Card/Battery door (P35)
38 Release lever (P35)
39 Shoulder strap eyelet (P27)
•
Be sure to attach the shoulder strap when
using the camera to ensure that you will not
drop it.
40 Diopter adjustment dial (P66)
41 NFC antenna [ ] (P251)
42 [REMOTE] socket (P312)
43 [HDMI] socket (P294)
44 [AV OUT/DIGITAL] socket (P294, 301, 304, 305)
45 DC coupler cover
When using an AC adaptor, ensure that the Panasonic DC coupler (optional) and AC
•
adaptor (optional) are used. (P313)
39
40
41
14
Page 15
Before Use
6743521
182 9105 67
895 6 712
8295 6 71
89 6 7152
∫ Lens
H-PS14042
(LUMIX G X VARIO PZ 14 – 42 mm/
F3.5– 5.6 ASPH./POWER O.I.S.)
H-FS1442A
(LUMIX G VARIO 14– 42 mm/
F3.5–5.6 II ASPH./MEGA O.I.S.)
1 Lens surface
2Tele
3 Zoom lever (P133)
4 Focus lever (P171)
5Wide
6 Contact point
7 Lens fitting mark (P23)
8 Focus ring (P171)
9 Zoom ring (P133)
10 [O.I.S.] switch (P131)
H-FS14140
(LUMIX G VARIO 14–140 mm/
F3.5–5.6 ASPH./POWER O.I.S.)
H-FS014042
(LUMIX G VARIO 14– 42 mm/
F3.5– 5.6 ASPH./MEGA O.I.S.)
H-FS45150
(LUMIX G VARIO 45– 150 mm/
F4.0– 5.6 ASPH./MEGA O.I.S.)
15
Page 16
Before Use
Monitor
At the time when this camera is purchased, the monitor is stowed in the camera body.
Bring out the monitor as shown below.
1 Open the monitor. (Maximum 180o)
2 It can be rotated 180o forward.
3 Return the monitor to its original position.
Only rotate the monitor after opening it wide enough, and be careful not to use
•
excessive force as it may be damaged.
∫ Free angle shooting
The monitor can be rotated to suit your needs. This is convenient as it allows you to take
pictures from various angles by adjusting the monitor.
Do not cover the AF Assist Lamp with your fingers or other objects.
•
Taking pictures at a high angle Taking pictures at a low angle
• When not using the monitor it is recommended that you close it with the screen facing inward to
prevent dirt and scratches.
16
Page 17
Before Use
AE
Fn6
Fn7
2.0X
Touch screen
Touch panel of this unit is capacitive. Touch the panel directly with your bare finger.
∫ Touch
To touch and release the touch screen.
Use for selecting items or icons.
When selecting features using the touch screen, be sure to
•
touch the center of the desired icon.
∫ Drag
A movement without releasing the touch screen.
This is used to move the AF area, operate the slide bar,
etc.
This can also be used to move to the next image during
playback, etc.
∫ Pinch (enlarge/reduce)
Pinch the touch panel apart (enlarge) or together
(reduce) with two fingers.
2.0X2.0X
2.0X
Use to enlarge/reduce the played back images or AF
area.
17
Page 18
Before Use
• Touch the panel with the clean and dry finger.
• If you use a commercially available monitor protection sheet, please follow the instructions that
accompany the sheet. (Some monitor protection sheets may impair visibility or operability.)
• Do not press on the monitor with hard pointed tips, such as ball point pens.
• Do not operate with your fingernails.
• Wipe the monitor with dry soft cloth when it gets dirty with finger prints and others.
• Do not scratch or press the monitor too hard.
• For information about the icons displayed on the touch screen, refer to “Monitor Display/
Viewfinder Display
” on P314.
Not available in these cases:
The touch panel may not function normally in the following cases.
•
– When touched by a gloved hand
– When touched by a wet hand (water or hand cream, etc.)
– When the touch panel is wet
– When you use a commercially available monitor protect sheet
– When touched by multiple hands or fingers at the same time
Enabling/disabling the touch operation
[MENU] > [Custom]>[Touch Settings]
When set to [OFF], no corresponding touch tab or touch icon is displayed on the screen.
•
Item Description of settings
[Touch
Screen]
All touch operations. When set to [OFF], only button and dial operations
can be used.
[ON]/[OFF]
Operation to display the touch icons by touching tabs such as [ ]
[Touch Tab]
displayed on the right of the screen.
[ON]/[OFF]
Operation to optimize the focus or both the focus and brightness for a
[Touch AF]
touched subject.
[AF] (P167)/[AF+AE] (P152)/[OFF]
[Touch Pad
AF]
Using the monitor as a touch pad when the viewfinder is in use. (P67)
[EXACT]/[OFFSET]/[OFF]
18
Page 19
Before Use
Cursor buttons/[MENU/SET] button
Pressing the cursor button:
Selection of items or setting of values etc., is performed.
Pressing [MENU/SET]:
Confirmation of setting contents, etc., is performed.
This owner’s manual express the up, down, left, and right of the
•
cursor button as 3/4/2/1.
Even when the camera is operated using the touch screen, it
is possible to operate with the cursor button and [MENU/SET]
button if a guide like the one shown on the right is displayed.
Even on menu screens etc. on which the guide is not
displayed, you can make settings and selections by operating
the buttons.
Rear Dial
There are 2 ways to operate the rear dial, rotating left or right, and deciding by pressing.
Rotating:
Selection of items or setting of values is performed during the various settings.
Pressing:
Operations that are the same as [MENU/SET] button, such as determine settings,
etc., are performed during the various settings.
Rear dial is described as follows in this owner’s manual.
•
e.g.: Rotating left or right e.g.: Pressing the rear dial
Displaying/not displaying the operation guide
[MENU] > [Custom]>[Dial Guide]>[ON]/[OFF]
When [ON] is set, the operation guide for dials, buttons, levers,
•
etc. is displayed on the recording screen.
603.5
19
ZOOM
0
989898
Page 20
Before Use
Function Lever
Function lever can be used in 2 ways, for zoom operations
(P133) and for Exposure Compensation (P150).
Move the lever to left or right to operate.
To assign a function to the Function Lever
[MENU] > [Custom]>[Function Lever]
You can assign a function to the function lever. The default setting is [AUTO].
Item Description of settings
When the lens is replaced, the camera automatically assigns the setting
suitable for the lens in use.
When using an interchangeable lens (H-PS14042) that supports the power
•
[AUTO]
zoom (electrically operated zoom), the camera assigns the [ZOOM]
operation.
• When using an interchangeable lens (H-FS14140, H-FS1442A,
H-FS014042, H-FS45150) that does not support the power zoom, the
camera assigns the [EXP.] operation.
[ZOOM]
[EXP.]
Zoom operations are operable.
Exposure compensation is operable. (In the Manual Exposure Mode:
Aperture setting is operable.)
20
Page 21
Before Use
About the Lens
∫ Micro Four Thirds™ mount specification lens
This unit can use the dedicated lenses compatible with
the Micro Four Thirds System lens mount specification
(Micro Four Thirds mount).
∫ Four Thirds™ mount specification lens
Lens with the Four Thirds mount specification can be
used by using the mount adaptor (DMW-MA1: optional).
∫ Leica mount specification lens
When you use the M mount adaptor or R mount adaptor (DMW-MA2M, DMW-MA3R:
optional), you can use Leica M Mount or Leica R Mount interchangeable lenses.
For certain lenses, the actual distance at which the subject is in focus may differ slightly from
•
the rated distance.
• When using a Leica lens mount adaptor, set [Shoot w/o Lens] (P24) to [ON].
21
Page 22
Before Use
About the lens and functions
There are functions that cannot be used, or the operation may be different depending on
the lens used.
¢
Auto Focus
/Auto aperture setting¢/[Eye Sensor AF] (P67)/Defocus control function (P93)/
[Stabilizer] (P131)/Touch zoom (P138)/[Shading Comp.] (P203)/[Quick AF] (P169)/[Power
Zoom Lens] (P136)
¢ The interchangeable lens (H-PS14042, H-FS14140, H-FS1442A, H-FS014042 or
H-FS45150) is compatible with the Auto Focus and automatic Aperture operation during the
recording of motion pictures. With the interchangeable lens (H-PS14042), when using the
power zoom (electrically operated zoom); you can record motion pictures even more
smoothly and quietly thanks to the powerful high AF following performance and silence
design.
For details on the lens used, refer to the website.
Refer to catalogs/Web pages for most current information regarding compatible lenses.
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
• The available flash range etc. differs depending on the aperture value of the lens you are using.
• The focal length noted on the lens in use is equivalent to double when converted to the 35 mm
film camera. (It will be equivalent to 100 mm lens when a 50 mm lens is used.)
Refer to the website for details about the 3D interchangeable lens.
22
Page 23
Preparation
Changing the Lens
By changing the lens, you will increase your picture taking-options and further your
enjoyment of the camera. Change the lens using the following procedure.
Check that the camera is turned off.
•
• Change lenses where there is not a lot of dirt or dust. Refer to P348 when dirt or dust gets on
the lens.
Attaching the lens
Preparations: Remove the lens rear cap from the lens.
•
If the body cap is fitted to the camera, remove it.
Align the lens fitting marks A and then rotate the lens in the direction of
the arrow until it clicks.
• Do not press the lens release button B when you attach a lens.
• Do not try to attach the lens when holding it at an angle to the camera body as the lens mount
may get scratched.
• Be sure to remove the lens cap when recording.
• Do not insert your fingers into the mount when the lens and body cap
are removed from the camera body.
• To prevent dust or debris from adhering to internal parts of the
camera body, fit the body cap or a lens to the mount on the camera
body.
• To prevent scratching of the contact points, fit the lens rear cap to the
lens when it is unattached or fit the lens to the camera body.
• It is recommended to attach the lens cap or attach the MC Protector
(optional) to protect the lens surface when carrying. (P313)
23
Page 24
Preparation
Detaching the lens
Preparations: Attach the lens cap.
•
When using the interchangeable lens
(H-PS14042), change the lens only after
turning this unit off and checking that the lens
barrel has retracted. (Do not push in the lens
barrel with your fingers. Doing so may
damage the lens.)
A When retracting the lens barrel
While pressing on the lens release button B,
rotate the lens toward the arrow until it stops
and then remove.
To enable/disable the shutter release without lens.
[MENU] > [Custom]>
[ON]: Shutter will operate regardless of the lens on the unit.
[OFF]: You cannot press the shutter button when a lens is not attached to the
When using a Leica lens mount adaptor (DMW-MA2M, DMW-MA3R: optional), set it to [ON].
•
camera body or is not attached correctly.
[Shoot w/o Lens]
24
Page 25
Preparation
Attaching the Lens Hood
When recording into strong backlight, irregular reflection may occur within the lens. The
lens hood reduces the inclusion of unwanted light in the recorded images and lowers the
drop in contrast. The lens hood cuts off excess lighting and improves the picture quality.
The interchangeable lens (H-PS14042) does not have a lens hood.
•
To attach the lens hood (flower shape) that came with the interchangeable lenses
(H-FS14140/H-FS1442A)
Hold the lens hood by placing your fingers as
shown in the figure.
Do not hold the lens hood in such a way that it will be
•
bent.
1 Align the fitting mark A on the short side of the lens hood with the mark on the
tip of the lens.
2 Turn the lens hood in the direction of the arrow until it clicks, and align the stop
mark B on the long side of the lens hood with the mark on the tip of the lens.
To attach the lens hood (flower shape) that came with the interchangeable lens
(H-FS014042)
Insert the lens hood into the lens
with the short sides at the top
and bottom, and turn in the
direction of the arrow until it
stops.
C Fitting to the mark.
25
Page 26
Preparation
To attach the lens hood that came with the interchangeable lens (H-FS45150)
1 Align the fitting mark D on the lens hood with the mark on the tip of the lens.
2 Turn the lens hood in the direction of the arrow until it stops, and align the stop
mark E on the lens hood with the mark on the tip of the lens.
When carrying, the lens hood can be temporarily attached in the
•
reverse direction.
26
Page 27
Preparation
Attaching the Shoulder Strap
• We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the shoulder
1
strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through
2
the ring in the direction of the arrow and then
pass it through the stopper.
Pass the end of the shoulder strap through
3
the hole on the other side of the stopper.
Pull the other side of the shoulder
4
strap and then check that it will
not come out.
• Perform steps 1 to 4 and then attach the
other side of the shoulder strap.
• Use the shoulder strap around your shoulder.
– Do not wrap the strap around your neck.
– It may result in injury or accident.
• Do not leave the shoulder strap where an infant can reach it.
– It may result in an accident by mistakenly wrapping around the neck.
27
Page 28
Preparation
Charging the Battery
∫ About batteries that you can use with this unit
It has been found that counterfeit battery packs which look very similar to the
genuine product are made available for purchase in some markets. Some of
these battery packs are not adequately protected with internal protection to meet
the requirements of appropriate safety standards. There is a possibility that
these battery packs may lead to fire or explosion. Please be advised that we are
not liable for any accident or failure occurring as a result of use of a counterfeit
battery pack. To ensure that safe products are used, we recommend that a
genuine Panasonic battery pack is used.
Use the dedicated charger and battery.
•
Charging
• The battery is not charged when the camera is shipped. Charge the battery before use.
• Charge the battery with the charger indoors.
Attach the battery paying
1
attention to the direction of
the battery.
Connect the charger to the
2
electrical outlet.
• The [CHARGE] indicator A lights
up and charging begins.
plug-in type inlet type
28
Page 29
Preparation
∫ About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from the electrical socket and detach the battery after
charging is completed.)
When the [CHARGE] indicator flashes
•
– The battery temperature is too high or too low. It is recommended to charge the battery again
in an ambient temperature of between 10 oC and 30 oC (50 oF and 86 oF).
– The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.
∫ Charging time
Charging time Approx. 140 min
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the battery has been used. The charging
time for the battery in hot/cold environments or a battery that has not been used for a
long time may be longer than normal.
∫ Battery indication
•
The indication turns red and blinks if the remaining battery power is exhausted. (The status
indicator also blinks) Recharge the battery or replace it with a fully charged battery.
• Do not leave any metal items (such as clips) near the contact areas of the power plug.
Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the
resulting heat generated.
• The battery can be recharged even when it still has some charge left, but it is not
recommended that the battery charge be frequently topped up while the battery is fully
charged. (Since characteristic swelling may occur.)
29
Page 30
Preparation
Approximate operating time and number of recordable pictures
∫ Recording still pictures (when using the Monitor)
(By CIPA standard in Program AE Mode)
When the interchangeable lens (H-PS14042) is used
Number of recordable pictures Approx. 340 pictures
Recording time Approx. 170 min
When the interchangeable lens (H-FS14140) is used
Number of recordable pictures Approx. 340 pictures
Recording time Approx. 170 min
When the interchangeable lens (H-FS1442A) is used
Number of recordable pictures Approx. 350 pictures
Recording time Approx. 175 min
When the interchangeable lens (H-FS014042) is used
Number of recordable pictures Approx. 330 pictures
Recording time Approx. 165 min
When the interchangeable lens (H-FS45150) is used
Number of recordable pictures Approx. 350 pictures
Recording time Approx. 175 min
∫ Recording still pictures (when using the Viewfinder)
(By CIPA standard in Program AE Mode)
When the interchangeable lens (H-PS14042) is used
Number of recordable pictures Approx. 310 pictures
Recording time Approx. 155 min
When the interchangeable lens (H-FS14140) is used
Number of recordable pictures Approx. 310 pictures
Recording time Approx. 155 min
30
Page 31
Preparation
When the interchangeable lens (H-FS1442A) is used
Number of recordable pictures Approx. 330 pictures
Recording time Approx. 165 min
When the interchangeable lens (H-FS014042) is used
Number of recordable pictures Approx. 310 pictures
Recording time Approx. 155 min
When the interchangeable lens (H-FS45150) is used
Number of recordable pictures Approx. 320 pictures
Recording time Approx. 160 min
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].
• Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when monitor/viewfinder is on.
• When using a Panasonic SDHC Memory Card.
• Using the supplied battery.
• Starting recording 30 seconds after the camera is turned on.
(When attaching an interchangeable lens compatible with the Optical Image Stabilizer function,
set the Optical Image Stabilizer to [ ])
• Recording once every 30 seconds using full flash every second recording.
• When an interchangeable lens compatible with power zoom (electrically operated zoom) is
attached, the zoom moves from Tele to Wide or from Wide to Tele on each recording.
• Turning the camera off every 10 recordings and leaving it until the temperature of the battery
decreases.
The number of recordable pictures varies depending on the recording interval time.
If the recording interval time becomes longer, the number of recordable pictures
decreases. [For example, if you were to take one picture every two minutes, then the
number of pictures would be reduced to approximately one-quarter of the number
of pictures given above (based upon one picture taken every 30 seconds).]
31
Page 32
Preparation
∫ Recording motion pictures (when using the monitor)
–
[AVCHD] (Recording with picture quality set to [FHD/60i])
When the interchangeable lens (H-PS14042) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
When the interchangeable lens (H-FS14140) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
When the interchangeable lens (H-FS1442A) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
When the interchangeable lens (H-FS014042) is used
Recordable time Approx. 140 min
Actual recordable time Approx. 70 min
When the interchangeable lens (H-FS45150) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
32
Page 33
Preparation
– [MP4] (Recording with picture quality set to [FHD/30p])
When the interchangeable lens (H-PS14042) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
When the interchangeable lens (H-FS14140) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
When the interchangeable lens (H-FS1442A) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
When the interchangeable lens (H-FS014042) is used
Recordable time Approx. 140 min
Actual recordable time Approx. 70 min
When the interchangeable lens (H-FS45150) is used
Recordable time Approx. 150 min
Actual recordable time Approx. 75 min
• These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
Please be aware that these times are approximate.
• Actual recordable time is the time available for recording when repeating actions such as
turning this unit on and off, starting/stopping recording, etc.
• Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or
up to 4 GB. (For [FHD/60p], [FHD/30p] in [MP4] format, the file size is large and so the
recordable time will drop below 29 minutes 59 seconds.)
33
Page 34
Preparation
∫ Playback (when using the monitor)
When the interchangeable lens (H-PS14042) is used
Playback time Approx. 200 min
When the interchangeable lens (H-FS14140) is used
Playback time Approx. 200 min
When the interchangeable lens (H-FS1442A) is used
Playback time Approx. 210 min
When the interchangeable lens (H-FS014042) is used
Playback time Approx. 190 min
When the interchangeable lens (H-FS45150) is used
Playback time Approx. 200 min
•
The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
– In low-temperature environments, such as on ski slopes.
– Using the [AUTO] or [MODE1] of [Monitor Luminance].
– When flash is used repeatedly.
• When the operating time of the camera becomes extremely short even after properly charging
the battery, the life of the battery may have expired. Buy a new battery.
34
Page 35
Preparation
Inserting and Removing the Card (optional)/ the Battery
• Check that this unit is turned off.
• We recommend using a Panasonic card.
Slide the release lever in the
1
direction of the arrow and open
the card/battery door.
• Always use genuine Panasonic
batteries.
• If you use other batteries, we cannot
guarantee the quality of this product.
Battery: Being careful about the
2
battery orientation, insert all the
way until you hear a locking
sound and then check that it is
locked by lever A.
Pull the lever A in the direction of
the arrow to remove the battery.
Card: Push it securely all the way
until you hear a “click” while
being careful about the direction in which you insert it.
To remove the card, push the card until it clicks, then pull the card
out upright.
B: Do not touch the connection terminals of the card.
1: Close the card/battery door.
3
2: Slide the release lever in the
direction of the arrow.
35
Page 36
Preparation
• Remove the battery after use. (The battery will be exhausted if left for a long period of time after
being charged.)
• The battery becomes warm after using it and during and after charging. The camera also
becomes warm during use. This is not a malfunction.
• Before removing the card or battery, turn the camera off, and wait until the status indicator has
gone off completely. (Otherwise, this unit may no longer operate normally and the card itself
may be damaged or the recorded pictures may be lost.)
36
Page 37
Preparation
AFS
60
i
L
4:3

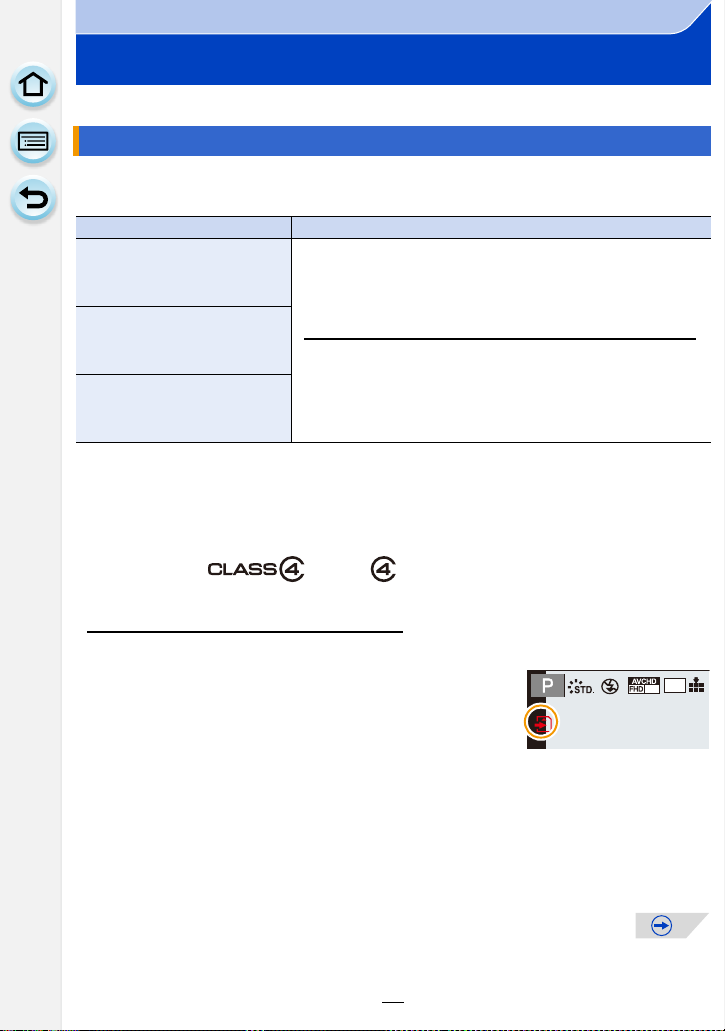

About the Card
About cards that can be used with this unit
The following cards which conform to the SD standard can be used with this unit.
(These cards are indicated as card in the text.)
Remarks
SD Memory Card
(8 MB to 2 GB)
SDHC Memory Card
(4 GB to 32 GB)
SDXC Memory Card
(48 GB, 64 GB)
∫ About the motion picture recording and SD speed class
Confirm the SD Speed Class (the speed standard regarding continuous writing) on a card
label etc. when you record a motion picture. Use a card with SD Speed Class with
“Class 4” or more for [AVCHD]/[MP4] motion picture recording.
e.g.:
• SDHC Memory Cards and SDXC Memory Cards can be
used only with their compatible devices.
• Check that the PC and other equipment are compatible when
using the SDXC Memory Cards.
http://panasonic.net/avc/sdcard/information/SDXC.html
• This unit is compatible with UHS-I standard SDHC/SDXC
memory cards.
• Only the cards with capacity listed left can be used.
Please confirm the latest information on the following website.
•
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
Access to the card
The access indication displays red when pictures are being
recorded on the card.
During access (image writing, reading and deleting, formatting etc.), do not turn this unit
•
off, remove the battery, card or disconnect the AC adaptor (optional). Furthermore, do
not subject the camera to vibration, impact or static electricity.
The card or the data on the card may be damaged, and this unit may no longer operate
normally.
If operation fails due to vibration, impact or static electricity, perform the operation
again.
37
Page 38
Preparation
2
• Write-Protect switch A provided (When this switch is set to the [LOCK] position,
no further data writing, deletion or formatting is possible. The ability to write,
delete and format data is restored when the switch is returned to its original
position.)
• The data on the card may be damaged or lost due to electromagnetic waves,
static electricity or breakdown of the camera or the card. We recommend storing
important data on a PC etc.
• Do not format the card on your PC or other equipment. Format it on the camera only to ensure
proper operation. (P63)
• Keep the Memory Card out of reach of children to prevent swallowing.
Formatting the card (initialization)
Format the card before recording a picture with this unit. (P63)
Since data cannot be recovered after formatting, make sure to back up necessary
data in advance.
Select [Format] in the [Setup] menu. (P43)
Confirmation screen is displayed. It is executed when [Yes] is selected.
•
38
Page 39
Preparation
Approximate number of recordable pictures and available recording time
∫ Number of recordable pictures
•
[9999i] is displayed if there are more than 10000 pictures remaining.
• Aspect ratio [4:3], Quality [A]
[Picture Size] 2GB 8GB 32 GB 64 GB
L (16M) 220 890 3610 7160
M (8M) 400 1630 6600 13000
S (4M) 670 2710 10980 21480
• Aspect ratio [4:3], Quality [ ]
[Picture Size] 2GB 8GB 32 GB 64 GB
L (16M) 68 270 1110 2220
M (8M) 79 310 1290 2580
S (4M) 86 340 1400 2800
∫ Available recording time (when recording motion pictures)
•
“h” is an abbreviation for hour, “m” for minute and “s” for second.
• The recordable time is the total time of all the motion pictures which have been recorded.
• [AVCHD]
[Rec Quality] 2GB 8GB 32 GB 64 GB
[FHD/60p]
8m00s 37m00s 2h31m 5h7m
[FHD/60i]
[FHD/30p]/
[FHD/24p]
[HD/60p]
14m00s 1h1m 4h9m 8h26m
10m00s 43m00s 2h57m 5h58m
14m00s 1h1m 4h9m 8h26m
• [MP4]
[Rec Quality] 2GB 8GB 32 GB 64 GB
[FHD/60p]
[FHD/30p]
[HD/30p]
[VGA/30p]
8m00s 37m00s 2h32m 5h8m
11m00s 49m00s 3h22m 6h50m
22m00s 1h34m 6h27m 13h4m
49m00s 3h28m 14h12m 28h45m
39
Page 40
Preparation
4
s
989898
0
A
B
• The number of recordable pictures and the available recording time are an approximation.
(These vary depending on the recording conditions and the type of card.)
• The number of recordable pictures and the available recording time varies depending on the
subjects.
• Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or
up to 4 GB. (For [FHD/60p], [FHD/30p] in [MP4] format, the file size is large and so the
recordable time will drop below 29 minutes 59 seconds.)
• The maximum available continuous recording time is displayed on the screen.

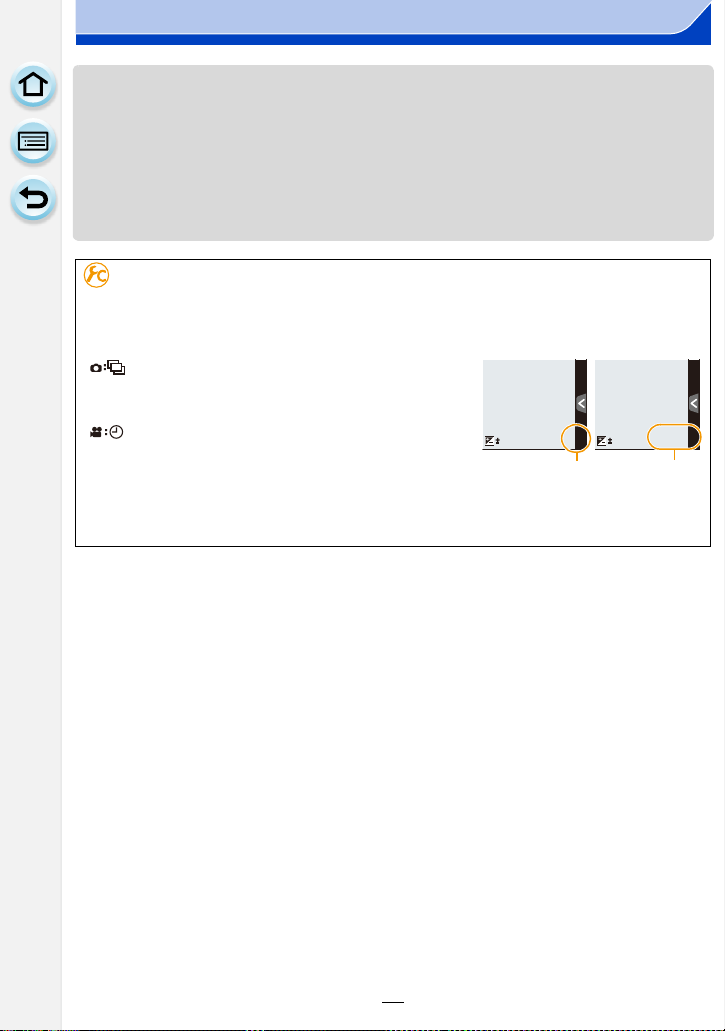

Switching the display between the number of recordable pictures and the
available recording time
[MENU] > [Custom]>
[Remaining Disp.]
[] ([Remaining Shots]):
This will display the number of recordable pictures for
still pictures.
([Remaining Time]):
[]
This will display the available recording time for motion
0
R
5m04
R
5m04
pictures.
A Number of recordable pictures
B Available recording time
s
40
Page 41
Preparation
:
:
Setting Date/Time (Clock Set)
• The clock is not set when the camera is shipped.
Turn the camera on.
1
• The status indicator 1 lights when you turn this unit on.
• If the language select screen is not displayed, proceed to
4.
step
Touch [Language Set].
2
Select the language.
3
Touch [Clock Set].
4
Touch the items you wish to set (Year/Month/
5
Day/Hours/Minutes), and set using [ ]/[ ].
A: Time at the home area
B: Time at the travel destination
You can continue to switch the settings by continuously
•
touching [ ]/[ ] .
• Touch [ ] to cancel the date and time settings without
setting a date and time.
To set the display order and the time display format.
•
Touch [Style] to display the settings screen for setting
display order/time display format.
Touch [Set] to set.
6
OFF
ON
Touch [Set] in the confirmation screen.
7
• When the clock setting is complete, the confirmation screen for the function lever setting
is displayed. Select [Change] or [Exit]. (You can check/uncheck the check box each
time you touch [Don’t show this again].)
For [Function Lever] refer to P20.
41
Page 42
Preparation
Changing the Clock Setting
Select [Clock Set] in the [Setup] menu. (P43)
•
The clock can be reset as shown in steps 5 and 6.
• The clock setting is maintained for 3 months using the built-in clock battery even
without the battery. (Leave the charged battery in the unit for 24 hours to charge the
built-in battery.)
• If the clock is not set, the correct date cannot be printed when you stamp the date on the
pictures with [Text Stamp] or order a photo studio to print the pictures.
• If the clock is set, the correct date can be printed even if the date is not displayed on the screen
of the camera.
42
Page 43
Preparation

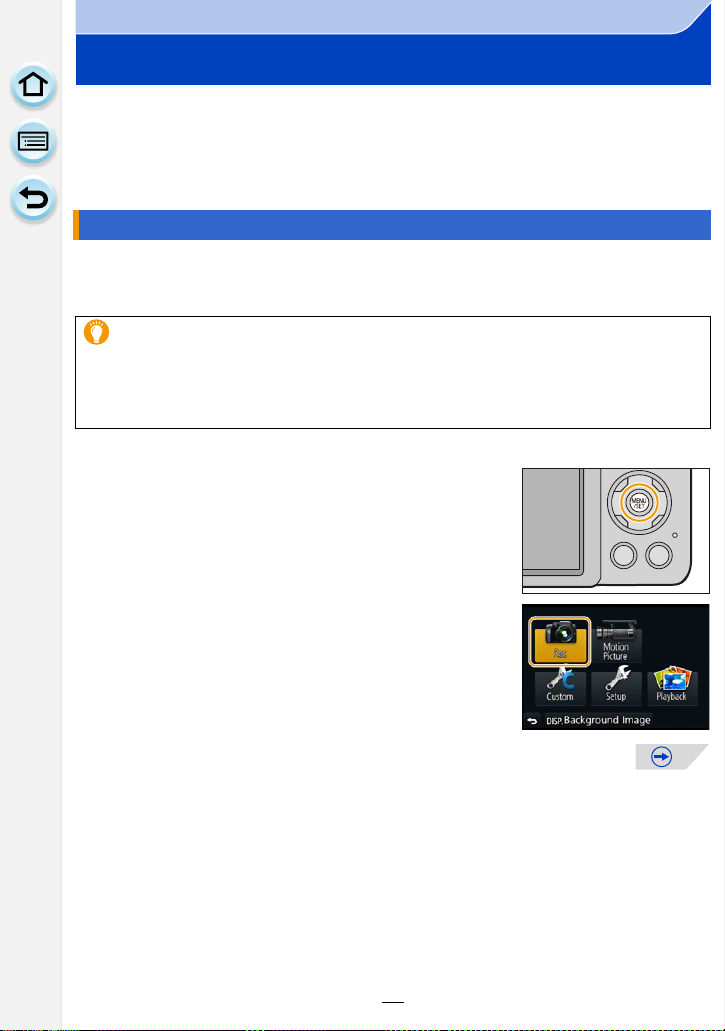

Setting the Menu
This camera offers menu selections that allow you to customize its operation to maximize
your picture taking experience.
In particular, the [Setup] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Setting menu items
You can set the menus using two types of operation - touch operations in which you touch
the screen, and button operations in which you press the cursor button and rotate the rear
dial.
• If you set [Menu Resume] (P61) in the [Setup] menu to [ON], the screen shows the last
selected menu item when the camera was turned off.
It is set to [ON] at the time of purchase.
• When [Menu Information] (P61) in the [Setup] menu is set to [ON], explanations of the
menu items and settings are displayed on the menu screen.

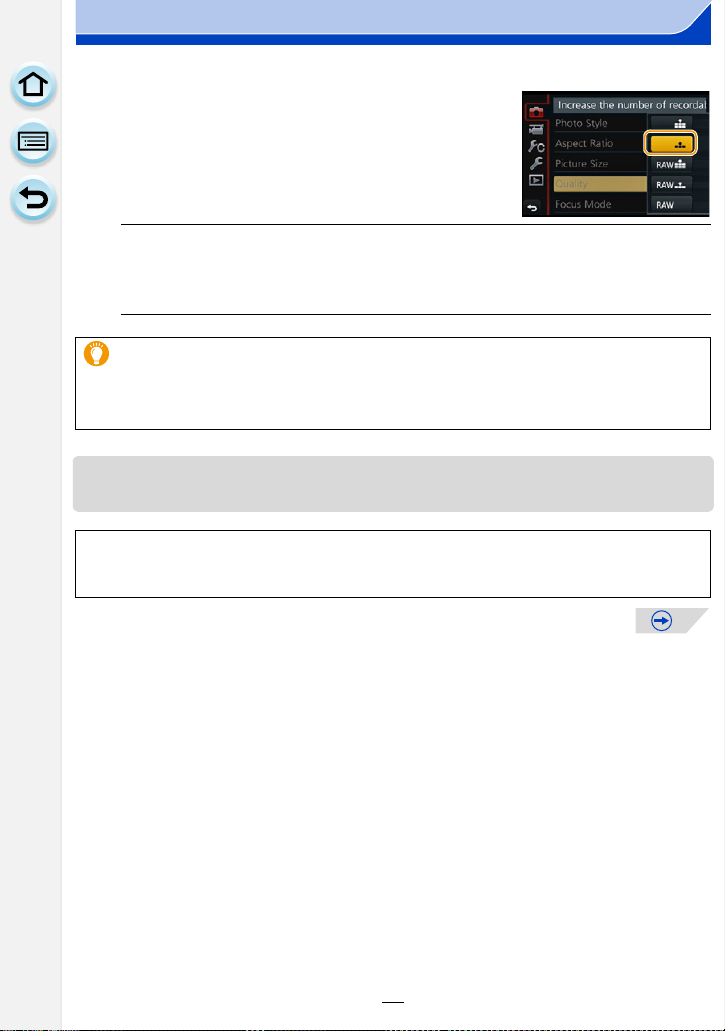

Example: In the [Rec] menu, change [Quality] from [
Press [MENU/SET].
1
• The top menu screen is displayed.
A] to [›]
Touch the menu icon.
2
43
Page 44
Preparation

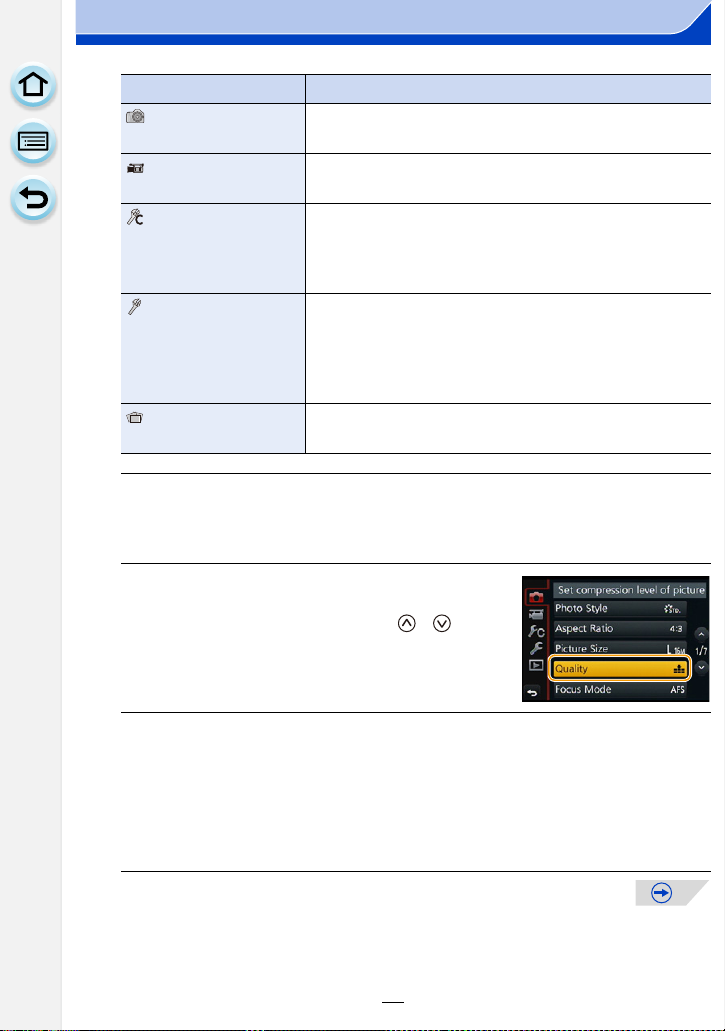

Menu Description of settings
[Rec]
(P186 to 210)
[Motion Picture]
(P219 to 221)
[Custom]
(P326 to 328)
[Setup]
(P55 to 63)
[Playback]
(P222 to 243)
This menu lets you set the aspect ratio, number of pixels
and other aspects of the pictures you are recording.
This menu lets you set the [Rec Format], [Rec Quality],
and other aspects for motion picture recording.
Operation of the unit, such as displaying of the screen
and button operations, can be set up according to your
preferences. Also, it is possible to register the modified
settings.
This menu lets you perform the clock settings, select the
operating beep tone settings and set other settings
which make it easier for you to operate the camera.
You can also configure the settings of Wi-Fi related
functions.
This menu lets you set the Protection, Cropping or Print
Settings, etc. of recorded pictures.
(When operating buttons)
Press 3/4/2/1 of the cursor button to select the menu and press [MENU/
SET], or rotate the rear dial to select the menu, and press the rear dial.
Touch the menu item.
3
• The page can be changed by touching [ ]/[ ].
(When operating buttons)
Press 3/4 of the cursor button to select the menu item and press [MENU/
SET], or rotate the rear dial to select the menu item, and press the rear dial.
• It will switch to the next page when you reach the bottom.
• You can also move to the next screen by moving the function lever.
• You can also move to the next screen by pressing [DISP.].
44
Page 45
Preparation
Touch the Setting to set.
4
• Depending on the menu item, its setting may not appear
or it may be displayed in a different way.
(When operating buttons)
Press 3/4 of the cursor button to select the setting and press [MENU/SET],
or rotate the rear dial to select the setting, and press the rear dial.
A brief description appears when you touch a menu item/option in steps
•
It will be set when you release your finger.
• You can avoid selecting an item by dragging your finger to a vacant area and releasing
the finger there.
• There are functions that cannot be set or used depending on the modes or menu settings being
used on the camera due to the specifications.
In this owner’s manual, steps for setting a menu item are described as follows.
[MENU] > [Rec]>[Quality]>[›]
3 and 4.
45
Page 46
Preparation
A
∫ Close the menu
Touch [ ] or press the shutter button halfway.
(When operating buttons)
Press [ ].
∫ Switching to other menus
e.g.: Switching to the [Setup] menu from [Rec] menu.
Touch [ ] or another of the menu toggle icons A.
• Select a menu item next and set it.
(When operating buttons)
1 Press 2 of the cursor button.
2 Press 4 of the cursor button or rotate the rear dial to select the [Setup] menu
icon [ ].
3 Press 1 of the cursor button or press the rear dial.
46
Page 47
Preparation
6HW
Setting the menu screen background
You can set the background for the menu screen according to your preferences. You can
also set one of the recorded still images as the background on the top menu screen.
Setting the top menu screen background
1 Press [MENU/SET] to display the top menu.
2 Touch [Background Image].
3 Touch the item.
[From SD card]
[Registered image] Set the last image selected from the SD card as the background.
[No static image] Set a background without an image.
• Touch [Registered image] or [No static image] to change to the selected background.
Select a background from the recorded images. The selected
image is registered in this unit. (Only 1 image can be registered. If
an image has already been registered, it will be overwritten.)
4 (When [From SD card] is selected) Drag the screen
horizontally and select an image.
5 (When [From SD card] is selected) Touch [Set].
•
Confirmation screen is displayed. It is executed when [Yes]
is selected.
Not available in these cases:
Images recorded using another device cannot be used as the background.
•
Setting the menu screen background
1 Select [Menu Background] on the [Setup] menu. (P43)
2 Select and touch background color.
•
You can select the background color from four colors.
• Exit the menu after it is set.
47
Page 48
Preparation
AFSAFS
AU
TO
603.5
0
AWB
60
i
L
4:3
([LW
L
4:3
60
i
AFSAFS
AU
TO
603.5
0
AWB
([LW
AFS
Calling frequently-used menus instantly (Quick Menu)
By using the Quick Menu, some of the menu settings can be easily found.
•
The features that can be adjusted using Quick Menu are determined by the mode or a display
style the camera is in.
[Q.MENU]/[Fn1] button can be used in two ways, as [Q.MENU] or as [Fn1] (function 1).
At the time of purchase, it is initially set to [Q.MENU].
Refer to P52 for details about the function button.
•
Press [Q.MENU] to display the Quick Menu.
1
ヲハヮユワヶ
ョㄏヒ
Touch the menu item.
2
Touch the setting.
3
Touch [Exit] to exit menu once the setting is
4
completed.
• You can close the menu by pressing the shutter button
halfway.
On-monitor recording information in [ ] (Monitor style)
(P72)
Press [Q.MENU], rotate the rear dial to select an item, and
then press the rear dial.
Rotate the rear dial to select the setting, and then press the
rear dial to set it.
You can also set with 3/4/2/1 and [MENU/SET].
•
48
ISO
AUTO
AWB
AFS
0 0
0
4:3
Wi-Fi
L
98
Fn
Page 49
Preparation
AU
TO
603.5
0
AWB
AFSAFS
60
i
L
4:3
([LW
∫ When using the viewfinder
1 Press [Q.MENU] to display the Quick Menu.
2 Rotate the rear dial to select the menu item, then
press the rear dial.
You can set the options for the selected item.
•
3 Rotate the rear dial to select the setting, then press
the rear dial.
You can select the menu items again.
•
4 Press [Q.MENU] to exit the menu once the setting is complete.
•
You can close the menu by pressing the shutter button halfway.
• You can also set items by pressing the cursor buttons 3/4/2/1.
• You can also select the settings by moving the function lever.
Switching the method for setting Quick Menu items
[MENU] > [Custom]>[Q.MENU]
[PRESET]:
Items that have been selected in advance can be set.
[CUSTOM]:
The Quick Menu will consist of desired items (P50)
49
Page 50
Preparation
L
4:3
AFS
([LW
60
i
1234
L
4:3
AFS
([LW
B
A
Change the Quick Menu to your preferred item
When [Q.MENU] (P49) in the [Custom] menu is set to [CUSTOM], the Quick Menu can be
changed as desired. Up to 15 items can be set to the Quick Menu.
1 Touch [ ].
2 Select the menu in the top row and drag it to the
bottom row.
A Items that can be setup as Quick Menus.
B Items that can be displayed in the Quick Menu
screen.
• If there is no empty space in the bottom row, drag it
into the menu item to be replaced.
New item can be set replacing the old item.
• When the item is dragged from the bottom row to the
top row, the setting will be canceled and that space will
become empty.
• Menu item or Settings can be switched by touching [ ]/[ ].
• Items that can be set are as follows:
[Rec] menu/Recording functions
•
[Photo Style] (P186)
• [Picture Setting] ([Aspect Ratio] (P188) /
[Picture Size] (P188))
• [Quality] (P189)
• [Metering Mode] (P190)
• [Focus Mode] (P162)
• [i.Dynamic] (P191)
• [i.Resolution] (P191)
• [HDR] (P192)
• [Electronic Shutter] (P200)
• [Flash Mode] (P141)
• [Flash Adjust.] (P145)
• [Ex. Tele Conv.]
(still pictures/motion pictures) (P133)
• [Digital Zoom] (P137)
• [Stabilizer] (P131)
• [Sensitivity] (P154)
• [White Balance] (P156)
• [AF Mode] (P161)
• [Drive Mode] (P178)
50
Page 51
Preparation
[Motion Picture] menu [Custom] menu
•
[Motion Pic. Set] ([Rec Format] (P219)/
[Rec Quality] (P219))
• [Picture Mode] (P216)
• [Peaking] (P172)
• [Histogram] (P74)
• [Guide Line] (P74)
• [Rec Area] (P214)
• [Function Lever] (P20)
• [Step Zoom] (P136)
• [Zoom Speed] (P136)
3 Touch [Exit].
•
It will return to screen of above step 1. Touch [Exit] to switch to the recording screen.
51
Page 52
Preparation
ロヷョ
ヲハヮユワヶ
モョバモユチロヰヤレ
ョㄏビ
ョㄏピ
ョㄏフ
ョㄏヒ
ョㄏブ
AE
Fn6
Fn7
AE
Fn6Fn6Fn6
Fn7Fn7Fn7
Assigning frequently used functions to the buttons (function buttons)
You can assign frequently-used functions to
particular buttons or icons.
1 Select [Fn Button Set] in the [Custom] menu. (P43)
2 Touch [Setting in REC mode] or [Setting in PLAY mode].
3 Touch the function button you want to assign a function to.
4 Touch the function you want to assign.
•
Refer to P53 for [Setting in REC mode] and P54 for [Setting in PLAY mode].
52
Page 53
Preparation
Making the function button settings for recording
You can use assigned functions by pressing a function button when recording.
•
The following functions can be assigned to the button [Fn1], [Fn2], [Fn3], [Fn4], or [Fn5]; or the
icon [Fn6] or [Fn7].
[Rec] menu/Recording functions
[Wi-Fi] (P245): [Fn4]
•
• [Q.MENU] (P48): [Fn1]
• [AF/AE LOCK] (P176): [Fn2]
• [LVF/Monitor Switch] (P66): [Fn5]
• [One Push AE] (P105)
• [Touch AE] (P151): [Fn6]
• [Preview] (P104)
• [Level Gauge] (P75): [Fn7]
• [Focus Area Set] (P54)
• [Photo Style] (P186)
• [Aspect Ratio] (P188)
• [Picture Size] (P188)
• [Quality] (P189)
• [Metering Mode] (P190)
• [Focus Mode] (P162)
¢
¢
¢
¢
¢
¢
• [i.Dynamic] (P191)
• [i.Resolution] (P191)
• [HDR] (P192)
• [Electronic Shutter] (P200)
• [Flash Mode] (P141)
• [Flash Adjust.] (P145)
• [Ex. Tele Conv.]
(still pictures/motion pictures) (P133)
• [Digital Zoom] (P137)
• [Stabilizer] (P131)
• [Sensitivity] (P154)
• [White Balance] (P156)
• [AF Mode] (P161)
• [Drive Mode] (P178)
• [Restore to Default] (P54)
[Motion Picture] menu
[Motion Pic. Set] (P211) • [Picture Mode] (P216)
•
[Custom] menu
[Peaking] (P172): [Fn3]
•
• [Histogram] (P74)
• [Guide Line] (P74)
¢
• [Function Lever] (P20)
• [Step Zoom] (P136)
• [Zoom Speed] (P136)
• [Rec Area] (P214)
¢ Function button settings at the time of purchase.
• Some functions cannot be assigned depending on the function button.
∫ Configuring the function button settings from the on-monitor recording
information screen
Touching [Fn] on the on-monitor recording information screen (P72) also allows you to
display the screen in step
3.
53
Page 54
Preparation
1/981/981/981/98

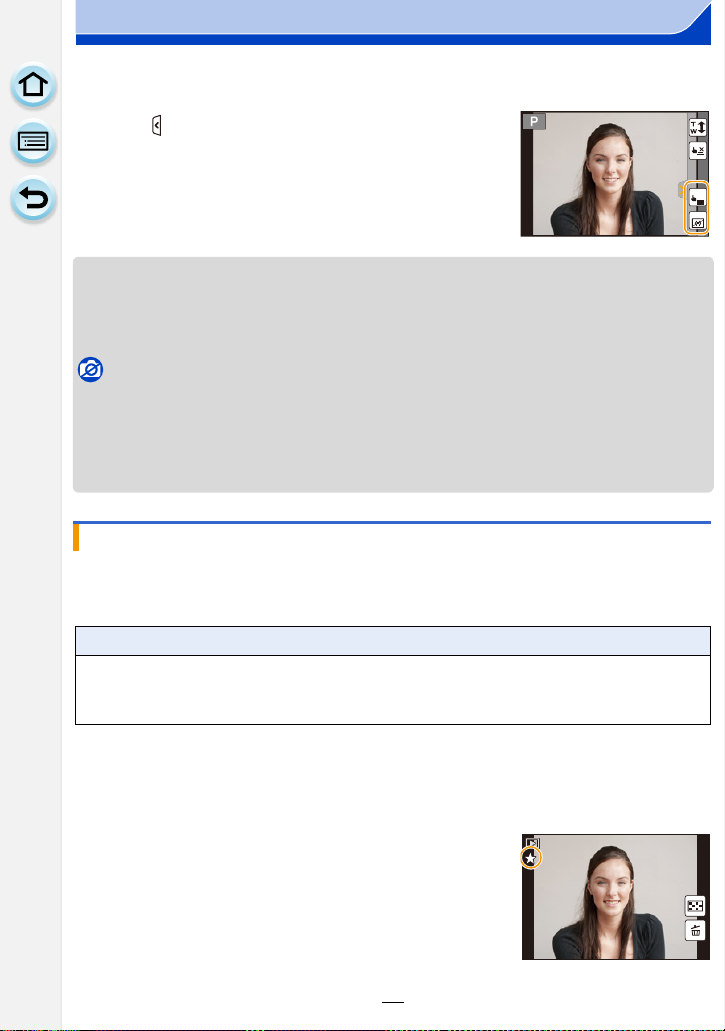

∫ Using function buttons with touch operations
[Fn6] and [Fn7] are used by touching function buttons.
1 Touch [ ].
2 Touch [Fn6] or [Fn7].
The assigned function will operate.
•
• Some functions cannot be used depending on the mode or displayed screen.
• When set to [Focus Area Set], it is possible to display the position setting screen of either AF
area or MF Assist.
• When [Restore to Default] is set, function button settings return to the default configuration.
Not available in these cases:
[Fn3] cannot be used in the following cases.
•
– [Miniature Effect]/[One Point Color]/[Sunshine] (Creative Control Mode)
– [Multi Exp.]
• [Fn4] cannot be used during Time Lapse Shooting.
• [Fn6] and [Fn7] cannot be used when the viewfinder is in use.
Making the function button settings for playback
You can directly set an assigned function to a selected image by pressing the function
button during playback.
The following functions can be assigned to the button [Fn1], [Fn2], [Fn4], or [Fn5].
•
[Playback] Menu/Playback functions
• [Favorite] (P239): [Fn1]
• [Print Set] (P240)
• [Protect] (P242)
¢
• [Delete Single] (P85)
• [Off]: [Fn2]
¢
, [Fn4]¢ or [Fn5]
¢
• [Restore to Default]
¢ Function button settings at the time of purchase.
• When [Restore to Default] is set, function button settings return to the default configuration.
Fn6
AE
Fn7
∫ Using the function buttons during playback
Example: When [Fn1] is set to [Favorite]
1 Drag the screen horizontally and select an image.
2 Press [Fn1], and then set the image as [Favorite].
When assigning [Print Set], set the number of pictures to be
•
printed next.
• When assigning [Delete Single], select [Yes] on the
confirmation screen.
54
Page 55
Preparation
B
A
D
C
Configuring basic settings of this unit (Setup Menu)
For details on how to select the [Setup] menu settings, refer to P43.
[Clock Set] and [Economy] are important items. Check their settings before using them.
[Clock Set] —
Refer to P41 for details.
•
Set the time in your home area and travel destination.
You can display the local times at the travel destinations and
record them on the pictures you take.
Set [Home] first thing after purchasing. [Destination] can be set after
•
setting up [Home].
After selecting [Destination] or [Home], select your area with
[ ]/[ ] and touch [Set].
“ [Destination]:
Travel destination area
[World Time]
A Current time of the destination
area
B Time difference from home
area
– [Home]:
Your home area
C Current time
D Time difference from GMT
(Greenwich Mean Time)
• Touch [ ] if you are using Daylight Savings. (The time will move forward by 1 hour.) Touch
again return to standard time.
• If you cannot find the travel destination in the areas displayed on the screen, set by the time
difference from the home area.
55
Page 56
Preparation
Departure date and return date of the trip as well as the name of
the travel destination can be set.
You can display the number of days that have passed when
playing back the pictures and stamp it on the recorded pictures
with [Text Stamp] (P230).
[Travel Setup]:
[SET]: Departure date and return date are set. Elapsed
days (how many days after) of the trip are recorded.
[OFF]
[Travel Date]
• The travel date is automatically canceled if the current date is
after the return date. If the [Travel Setup] is set to [OFF],
[Location] will also be set to [OFF].
[Location]:
[SET]: Travel destination is recorded at the time of
recording.
[OFF]
• For details on how to enter characters, refer to “Entering Text” on
P64.
• The number of days that have passed since the departure date can be printed out using the
“PHOTOfunSTUDIO ” bundled software on the CD-ROM (supplied).
• The travel date is calculated using the date in the clock setting and the departure date you set.
If you set [World Time] to the travel destination, the travel date is calculated using the date in
the clock setting and the travel destination setting.
• The travel date setting is memorized even if the camera is turned off.
• The [Travel Date] feature is disabled when recording [AVCHD] motion pictures.
• While recording motion pictures, the [Location] feature is disabled.
[Wi-Fi]
[Wi-Fi Function]/[Wi-Fi Setup]
• Refer to P247, 288 for details.
56
Page 57
Preparation
Set the volume for electronic noises and the electronic shutter
noise.
[Beep]
• The [E-Shutter Vol] only works when [SH] for Burst Mode or [Electronic Shutter] is set to [ON].
[Beep Volume]:
[u] (High)
[t] (Low)
[s] (OFF)
[E-Shutter Vol]:
[ ] (High)
[ ] (Low)
[ ] (OFF)
[Speaker Volume]
• When you connect the camera to a TV, the volume of the TV speakers does not change.
[Monitor Display]/
[Viewfinder]
Adjust the volume of the speaker to any of the 7 levels.
Brightness, color, or red or blue tint of the Monitor/viewfinder is
adjusted.
[ ] ([Brightness]):
Adjust the brightness.
[ ] ([Contrast · Saturation]):
Adjust the contrast or clarity of colors.
[ ] ([Red Tint]):
Adjust the red tint.
[ ] ([Blue Tint]):
Adjust the blue tint.
1 Touch the item.
2 Drag the slide bar to adjust.
•
Adjusting can also be performed by rotating the rear dial.
3 Touch [Set].
• It will adjust the monitor when the monitor is in use, and the viewfinder when the viewfinder is in
use.
• Some subjects may appear differently from actuality on the monitor. However, this does not
affect the recorded pictures.
57
Page 58
Preparation
…
2
…
3
Sets the monitor brightness according to the ambient light level.
„ [AUTO]:
The brightness is adjusted automatically depending on how bright
it is around the camera.
[MODE1]:
…
[Monitor Luminance]
1
Make the monitor brighter.
[MODE2]:
Set the monitor to the standard brightness.
[MODE3]:
Make the monitor darker.
• The brightness of pictures displayed on the monitor is enhanced, so some subjects on the
monitor may appear different from the actual subjects. However, this enhancement does not
affect recorded pictures.
• The monitor automatically returns to standard brightness if no operations are performed for
30 seconds when recording in [MODE1]. It will light up brightly again with button or touch
operation.
• When [AUTO] or [MODE1] is set, the usage time is reduced.
• [AUTO] is only available in the Recording Mode.
• The initial setting when using the AC adaptor (optional) is [MODE2].
58
Page 59
Preparation
You can conserve the battery life by setting these menus.
Also, it will turn off the monitor/viewfinder automatically when not
in use to prevent discharge of the battery.
[Sleep Mode]:
The camera is automatically turned off if the camera has not been
[Economy]
used for the time selected on the setting.
[10MIN.]/[5MIN.]/[2MIN.]/[1MIN.]/[OFF]
[Auto LVF/Monitor Off]:
The monitor/viewfinder is automatically turned off if the camera
has not been used for the time selected on the setting.
[5MIN.]/[2MIN.]/[1MIN.]
• Press the shutter button halfway or turn the camera off and on to cancel [Sleep Mode].
• To turn the monitor/viewfinder on again, press any button or touch the monitor.
• When the eye sensor automatic switching (P66) is activated, [Auto LVF/Monitor Off] is
canceled.
• [Economy] does not work in the following cases.
– When connecting to a PC or a printer
– When recording or playing back motion pictures
– During a slide show
– [Multi Exp.]
• When using the AC adaptor (optional), [Sleep Mode] is disabled.
• When using the AC adaptor (optional), [Auto LVF/Monitor Off] is fixed to [5MIN.].
Select the USB communication system after or before connecting
the camera to your PC or your printer with the USB connection
cable (supplied).
y [Select on connection]:
[USB Mode]
Select either [PC] or [PictBridge(PTP)] if you connected the
camera to a PC or a printer supporting PictBridge.
{ [PictBridge(PTP)]:
Set after or before connecting to a printer supporting PictBridge.
z [PC]:
Set after or before connecting to a PC.
59
Page 60
Preparation
[Output]
This sets how the unit connects to a television etc.
[TV Aspect]:
Set to match the type of TV.
[16:9]:
When connecting to a 16:9 screen TV.
[4:3]:
When connecting to a 4:3 screen TV.
This will work when the AV cable (optional) is connected.
•
[HDMI Mode]:
Set the format for the HDMI output when playing back on the
HDMI compatible high-definition TV connected with this unit using
the HDMI mini cable (optional).
[AUTO]:
The output resolution is automatically set based on the
information from the connected TV.
[1080p]:
The progressive method with 1080 available scan lines is used
for output.
[1080i]:
The interlace method with 1080 available scan lines is used for
output.
[720p]:
The progressive method with 720 available scan lines is used
for output.
[480p]:
The progressive method with 480 available scan lines is used
for output.
This will work when the HDMI mini cable (optional) is connected.
•
• If the images are not output on the TV when the setting is [AUTO],
match with the image format your TV can display, and select the
number of effective scanning lines. (Please read the operating
instructions for the TV.)
60
Page 61
Preparation
Settings that allow this unit to be controlled by the remote control
of the VIERA equipment by automatically coupling this unit with
the VIERA Link compatible equipment using HDMI mini cable
(optional).
[VIERA Link]
[ON]: Remote control operation of the VIERA Link
compatible equipment is enabled. (Not all
operations are possible)
Button operation of the main unit will be limited.
[OFF]: Operation is performed with the buttons on this
unit.
• This will work when the HDMI mini cable (optional) is connected.
• Refer to P296 for details.
Set the output method for 3D pictures.
[]: Set when connecting to a 3D compatible
television.
[3D Playback]
[]: Set when connecting to a television not
compatible with 3D.
Set this when you would like to view pictures in
2D (conventional image) on a 3D compatible
television.
• This will work when the HDMI mini cable (optional) is connected.
• Refer to P292 for the method to play back 3D pictures in 3D.
[Menu Resume]
[Menu Background]
• Refer to P47 for details.
[Menu Information]
Stores the location of the last-used menu item for each menu.
[ON]/[OFF]
Set the background color for the menu screen.
Explanations of the menu items and settings are displayed on the
menu screen.
[ON]/[OFF]
61
Page 62
Preparation
[Language] Set the language displayed on the screen.
• If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
[Version Disp.] —
• This enables the firmware versions of the camera and lens to be checked.
• [–. –] is displayed as the lens firmware when the lens is not mounted.
• Touch [Software info] on the version display screen to display information about the software on
the unit.
[No.Reset]
Reset the file number of the next recording to 0001.
• The folder number is updated and the file number starts from 0001.
• A folder number between 100 and 999 can be assigned.
The folder number should be reset before it reaches 999. We recommend formatting the card
(P63) after saving the data on a PC or elsewhere.
• To reset the folder number to 100, format the card first and then use this function to reset the
file number.
A reset screen for the folder number will then appear. Select [Yes] to reset the folder number.
[Reset] The recording or setup/custom settings are reset to the default.
• When the recording setting is reset, the content of the following settings is also reset.
– The [Face Recog.] setting
• When the setup/custom settings are reset, the following settings are also reset.
– The [World Time] setting
– The settings of [Travel Date] (departure date, return date, location)
– The [Profile Setup] setting
– [Registered image] set as the background of the Top Menu screen (P47)
• The folder number and the clock setting are not changed.
[Reset Wi-Fi Settings] Reset all settings in the [Wi-Fi] menu to factory default settings.
¢
• Always reset the camera when disposing or selling it to prevent personal information saved
within the camera from being misused.
• Always reset the camera after making a copy of personal information when sending the camera
in to be repaired.
¢ (Excluding [LUMIX CLUB]) (P278)
62
Page 63
Preparation
[Pixel Refresh]
It will perform optimization of imaging device and image
processing.
• Imaging device and image processing is optimized when the camera is purchased. Use this
function when bright spots that do not exist in the subject get recorded.
• Turn the camera off and on after the pixels are corrected.
[Sensor Cleaning]
Dust reduction to blow off the debris and dust that have affixed to
the front of the imaging device is performed.
• Dust Reduction Function will operate automatically when the camera is turned on, but you can
use this function when you see dust. (P348)
The card is formatted.
[Format]
Formatting permanently deletes all data on your memory
card. Please be sure all pictures and motion pictures are
saved elsewhere before using this feature.
• Use a battery with sufficient battery power or the AC adaptor (optional) when formatting. Do not
turn the camera off during formatting.
• If the card has been formatted on a PC or other equipment, format it on the camera again.
• If the card cannot be formatted, consult Panasonic.
For USA and Puerto Rico assistance, please call:
1-800-211-PANA(7262) or, contact us via the web at:
http://www.panasonic.com/contactinfo
For Canadian assistance, please call:
1-800-99-LUMIX (1-800-995-8649).
63
Page 64
Preparation

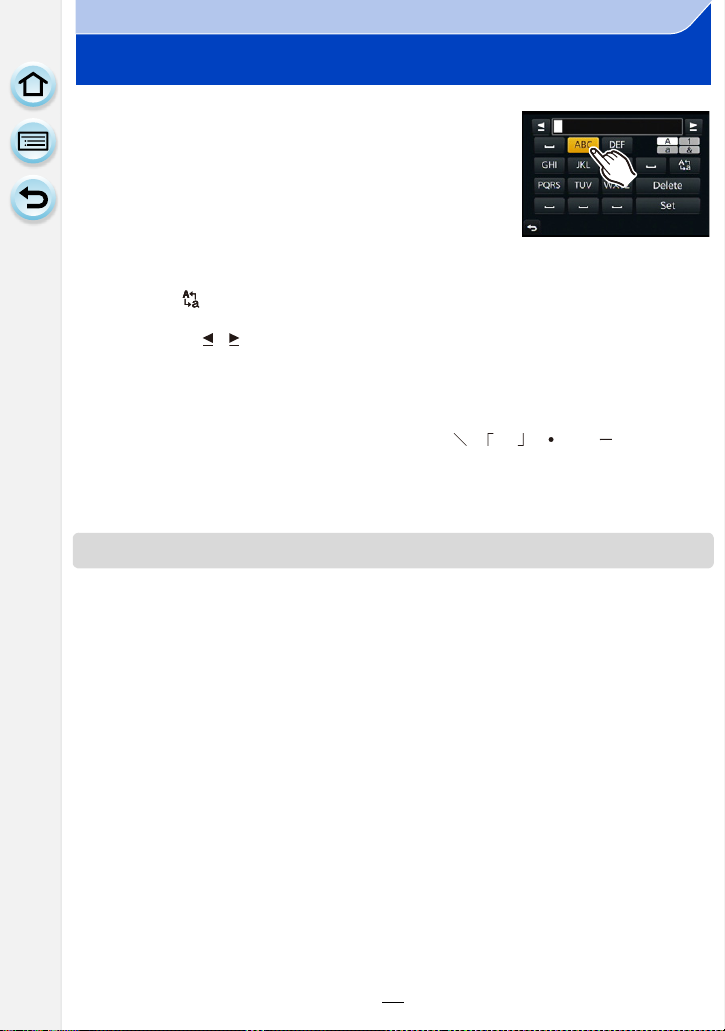

Entering Text
It is possible to enter babies’ and pets’ names and the
locations when recording. When a screen that looks like the
one on the right is displayed, you can enter characters. (Only
alphabetical characters and symbols can be entered.)
Enter characters.
1
• Touch [ ] to switch text between [A] (capitals), [a] (small case), [1] (numbers) and [&]
(special characters).
• Touching [ ]/[ ] will move the position of the text input cursor left and right.
You can also move left and right by rotating the rear dial.
• Touch []] to enter a blank, or [Delete] to delete an entered character.
• A maximum of 30 characters can be entered. (Maximum of 9 characters when setting
names in [Face Recog.])
A maximum of 15 characters can be entered for [ ], [ ], [ ], [ ] and [ ] (Maximum of
6 characters when setting names in [Face Recog.]).
Touch [Set].
2
• Text can be scrolled if all of the entered text does not fit on the screen.
64
Page 65
Basic
Tips for taking good pictures
Hold the camera gently with both hands, keep your arms still at your side
and stand with your feet slightly apart.
• Do not cover the flash, the AF assist lamp A or the microphone B (P14) with your
fingers or other objects.
• Be careful not to move the camera when you press the shutter button.
• When taking pictures, make sure your footing is stable and there is no danger of colliding with
another person, an object etc.
Detects orientation of camera (Direction Detection Function)
This function detects the vertical orientation when you record
with the camera vertically orientated. When you play back the
recording, the recording is automatically displayed in vertical
orientation. (Only available when [Rotate Disp.] (P238) is set
to [ON].)
When recording with this unit, Direction Detection can be performed even if you are using a
•
lens that is not compatible with the Direction Detection Function.
• When the camera is held vertically and tilted significantly up or down to record, the Direction
Detection Function may not work correctly.
• Motion pictures taken with the camera held vertically are not displayed vertically.
• You cannot record 3D pictures in vertical orientation.
65
Page 66
Basic
Using the Viewfinder
Switching the Monitor/Viewfinder
∫ About the eye sensor automatic switching
When [LVF/Monitor Auto] of [Eye Sensor] (P66) in the
[Custom] menu is set to [ON] and your eye or an object is
brought close to the viewfinder, the display automatically
switches to the viewfinder display.
A [LVF/Fn5] button
B Eye sensor
• Eye sensor might not work properly depending on the shape of your eyeglasses, the way you
hold the camera, or bright light shining around the eyepiece. Switch manually in that case.
• The eye sensor is disabled during motion picture playback and slide show.
Enabling/disabling the eye sensor and setting its sensitivity
[MENU] > [Custom]>[Eye Sensor]
Item Settings
[Sensitivity] This will set the sensitivity of the eye sensor.
[LVF/Monitor
Auto]
[HIGH]/[LOW]
Enables/disables the eye sensor.
[ON]/[OFF]
ロヷョ
∫ Switching the Monitor/Viewfinder manually
Press [LVF].
[LVF]/[Fn5] button can be used in two ways, as [LVF] or as [Fn5] (function 5). At the
time of purchase, it is initially set to [LVF/Monitor Switch].
Refer to P52 for details about the function button.
•
∫ Diopter adjustment
Adjust the diopter to suit your vision so that you can see
the characters displayed in the viewfinder clearly.
66
Page 67
Basic
About the Eye Sensor AF
If [Eye Sensor AF] in the [Custom] menu is set to [ON], the camera automatically adjusts
the focus as the eye sensor is activated.
Beep sounds are not emitted when the focus is achieved in [Eye Sensor AF].
•
Not available in these cases:
[Eye Sensor AF] may not work in dimly lit conditions.
•
• The [Eye Sensor AF] feature is disabled in the following conditions:
– With lenses that only offer Manual Focus
– With some Four Third lenses
Setting the focus position with the Touch Pad
By setting [Touch Pad AF] in [Touch Settings] (P18) of the
[Custom] menu, you can operate the Monitor as a touch pad
when displaying the Viewfinder.
Item Description of settings
[EXACT]
[OFFSET]
[OFF]
• Press the shutter button halfway to determine the focus position.
If you press [DISP.] before determining the focus position, the AF area frame returns to the
center position.
• To cancel the AF area frame when the Auto Focus Mode (P161) is set to [š] ([Face
Detection]), [ ] ([AF Tracking]) or [ ] ([23-Area]), press [MENU/SET].
Moves the AF area of the Viewfinder by touching a desired position
on the Touch Pad.
Moves the AF area of the Viewfinder by dragging (P17) the Touch
Pad.
—
• The Touch Shutter function (P70) is disabled when using [Touch Pad AF].
67
Page 68
Basic
6060603.53.53.5
B
A
C
D
LOW

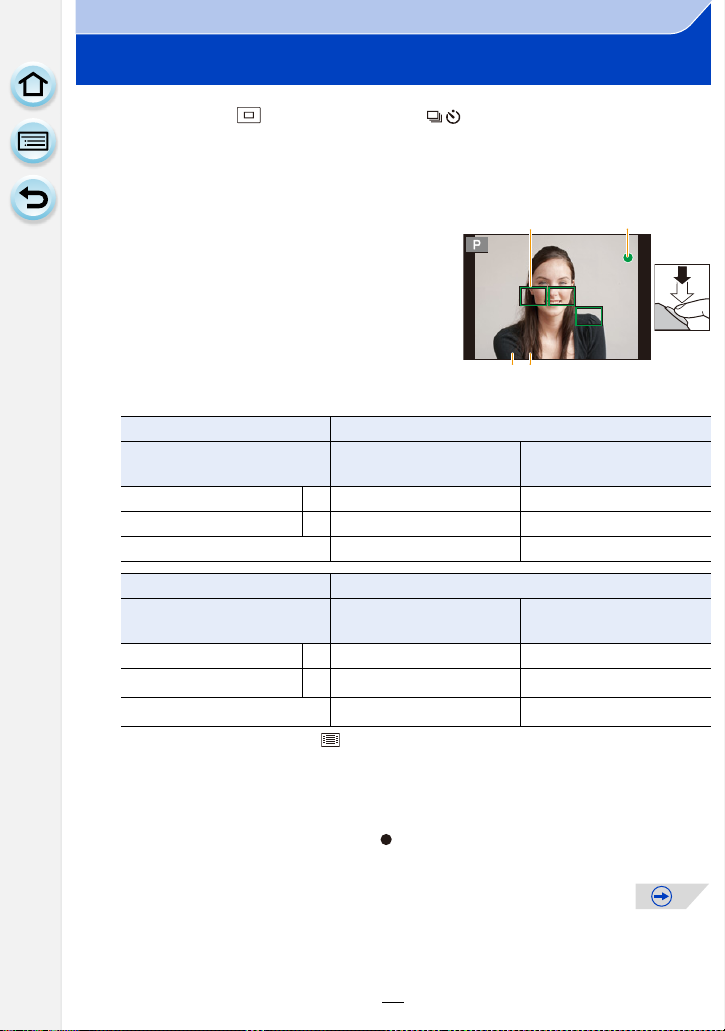

Taking a Still picture
• Set the drive mode to [ ] (single) by pressing 4().
Select the Recording Mode. (P87)
1
Press the shutter button halfway to focus.
2
A Aperture value
B Shutter speed
• Aperture value and shutter speed are displayed.
(It will flash in red if the correct exposure is not
achieved, except when set to flash.)
• When the image is correctly focused, the
picture will be taken, since the [Focus/
Release Priority] (P170) is set initially to
[FOCUS].
Focus Mode AFS
Focus
Focus indication C On Blinks
AF area D Green —
Sound Beeps 2 times —
Focus Mode AFF/AFC
Focus
Focus indication C On Blinks or Off
AF area D
Sound
¢1 When AF Mode is set to [ ], the first AF area at which focus is achieved may be
displayed momentarily while pressing halfway.
¢2 A beep will be emitted when focus is first achieved during the pressing halfway.
When the subject is
focused
When the subject is
focused
¢1
Green
Beeps 2 times
¢2
• When the brightness is insufficient for [AFF] or [AFC], the camera will operate as if
[AFS] has been set. In this case, the display will change to the yellow [AFS].
• The focus indication is displayed as [ ] in a dark environment, and focusing may take
longer than usual.
When the subject is not
focused
When the subject is not
focused
—
—
68
Page 69
Basic

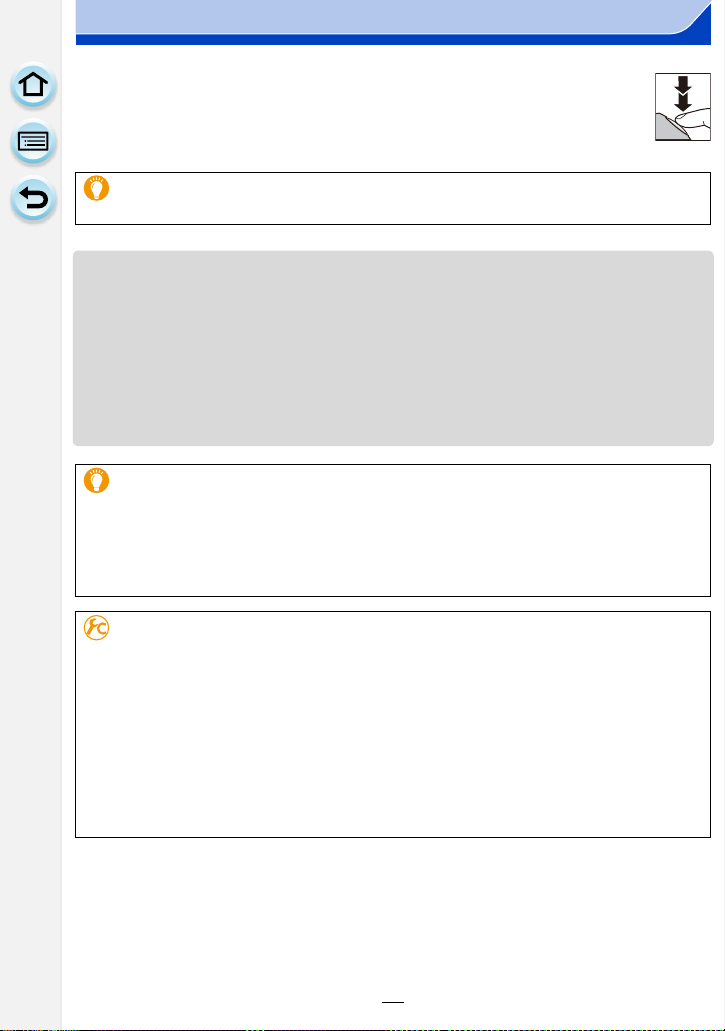

Press the shutter button fully (push it in
3
further), and take the picture.
If you zoom in/out after focusing on a subject, the focus may lose its accuracy. In that
•
case, re-adjust the focus.
• The focus range is different depending on the lens used.
– When the interchangeable lens (H-PS14042) is used: 0.2 m (0.66 feet) (Wide to focal length
20 mm) to ¶, 0.3 m (0.98 feet) (focal length 21 mm to Tele) to ¶
– When the interchangeable lens (H-FS14140) is used: 0.3 m (0.98 feet) (Wide to focal length
21 mm) to ¶, 0.5 m (1.6 feet) (focal length 22 mm to Tele) to ¶
– When the interchangeable lens (H-FS1442A) is used: 0.2 m (0.66 feet) (Wide to focal length
20 mm) to ¶, 0.3 m (0.98 feet) (focal length 21 mm to Tele) to ¶
– When the interchangeable lens (H-FS014042) is used: 0.3 m (0.98 feet) to ¶
When the interchangeable lens (H-FS45150) is used: 0.9 m (3.0 feet) to ¶
–
Subjects and recording conditions which are difficult to focus
•
Fast-moving subjects, extremely bright subjects or subjects without contrast.
• When recording subjects through windows or near shiny objects.
• When it is dark or when jitter occurs.
• When the camera is too close to the subject or when taking a picture of both distant and near
subjects.
Setting the duration for which a picture is displayed after taking it
[MENU] > [Custom]>[Auto Review]>[HOLD]/[5SEC]/[4SEC]/[3SEC]/[2SEC]/
[HOLD]:
The pictures are displayed until shutter button is pressed halfway.
Switching of the display of the playback screen, deleting pictures, etc. can be performed
•
during [Auto Review].
• [Auto Review] does not work in the following cases.
– When recording motion pictures.
[1SEC]/[OFF]
69
Page 70
Basic
AE
Fn6
Fn7
Taking pictures using the Touch Shutter function
Just by touching the subject you want as your point of focus, the camera will focus on the
subject and take the picture automatically.
Touch [ ].
1
Touch [ ].
2
• Icon will change to [ ], and taking a picture with the
Touch Shutter function becomes possible.
Touch the subject you wish to focus on, and then take a picture.
3
• The picture is taken when the focus is achieved.
• If the histogram is displayed on top of the subject you want to touch, touch the subject
after first moving the histogram by dragging it (P17).
∫ To cancel the Touch Shutter function
Touch [ ].
If shooting with the touch shutter fails, the AF area turns red and disappears. In that case, try
•
again.
• Measurement of brightness is performed on the spot touched when the [Metering Mode] (P190)
is set to [ ]. At the edge of the screen, the metering may be affected by the brightness around
the touched location.
×
70
Page 71
Basic
R1m
37
s
3
s
A
C
B
Recording Motion Picture
This camera can record full high definition motion pictures compatible with the AVCHD
format or motion pictures recorded in MP4.
Audio will be recorded in stereo.
Start recording by pressing the motion picture
1
button.
A Elapsed recording time
B Available recording time
• Recording of motion picture appropriate for each mode is
possible.
• The recording state indicator (red) C will flash while
recording motion pictures.
• If approximately 1 minute elapses without an operation
being performed, part of the display will disappear. Press
[DISP.] or touch the monitor to make the display reappear.
• When recording a motion picture, do not cover the
microphone with your fingers or other objects.
• Release the motion picture button right after you press it.
Stop the recording by pressing the motion
2
picture button again.
3
s
3
s
R1m37s
37
71
Page 72
Basic
989898
AFSAFS
60
i
L
4:3
0
989898
AFSAFS
60
i
L
4:3
0
AFS
Switching the Information Displayed on the recording screen
Press [DISP.] to change.
• You can select between [ ] (monitor style) and [ ]
(viewfinder style) for each of the monitor and the viewfinder
display screen using [Monitor Disp. Style] and [LVF Disp.Style] in
the [Custom] menu.
([ ] monitor style)
•
Screen will switch as follows:
(Example of monitor display)
ュリヴヱハ
ISO
AUTO
AFS
AWB
A With information
¢1
B Without information
C With information (tilt sensor display)
D Without information (tilt sensor display)
E On-monitor recording information
¢1
¢2
F Turned off
¢1 Histograms are displayed when the [Histogram] of the [Custom] menu is set to [ON].
It is also possible to display the Exposure meter by setting the [Expo.Meter] of the [Custom]
menu to [ON]. (P97)
¢2 It is displayed when the [Monitor Info. Disp.] of the [Custom] menu is set to [ON]. (P74)
Settings can be adjusted directly by touching each of the items displayed on the screen.
0 0
0
4:3
L
Fn
Wi-Fi
98
72
Page 73
Basic
98
AFSAFS
60
i
L
4:3
98
0
98
0
AFSAFS
60
i
L
4:3
98
0
98
0

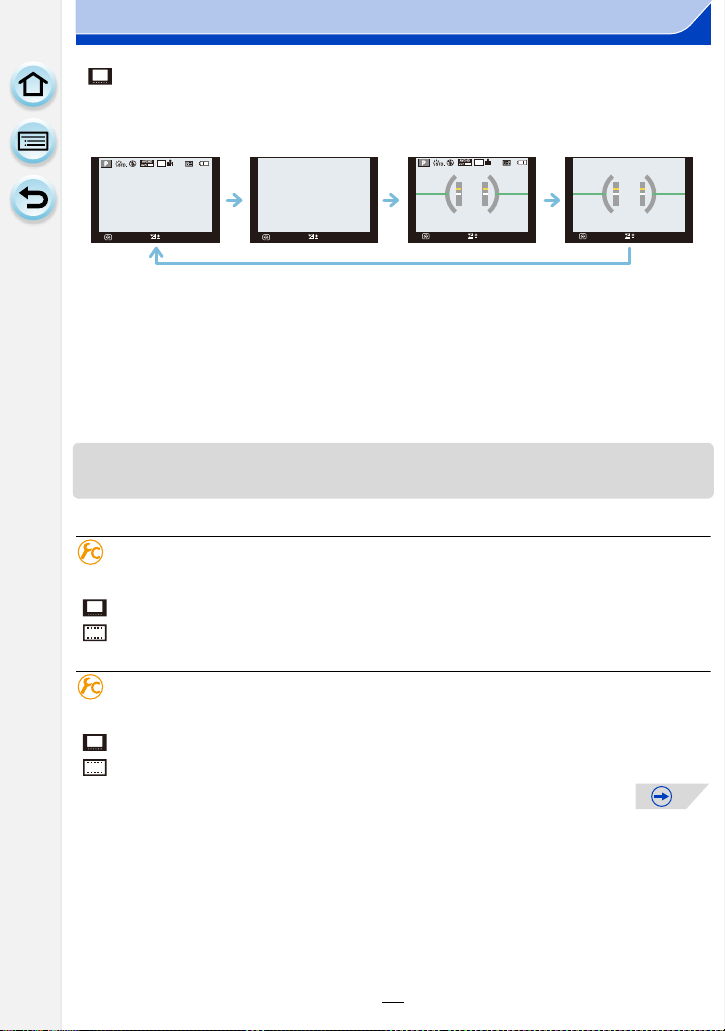

([ ] viewfinder style)
•
Screen will switch as follows:
(Example of display on viewfinder)
G With information (detailed information)
¢
H With information
I With information (detailed information
, tilt sensor display)
¢
J With information (tilt sensor display)
¢ Histograms are displayed when the [Histogram] of the [Custom] menu is set to [ON].
It is also possible to display the Exposure meter by setting the [Expo.Meter] of the [Custom]
menu to [ON]. (P97)
• If approximately 1 minute elapses without an operation being performed, part of the display will
disappear. Press [DISP.] or touch the monitor to make the display reappear.
Switching the display method of the monitor
[MENU] > [Custom]>[Monitor Disp. Style]
[]: viewfinder style
[]: monitor style
Switching the display method of the viewfinder
[MENU] > [Custom]>[LVF Disp.Style]
[]: viewfinder style
[]: monitor style
73
Page 74
Basic

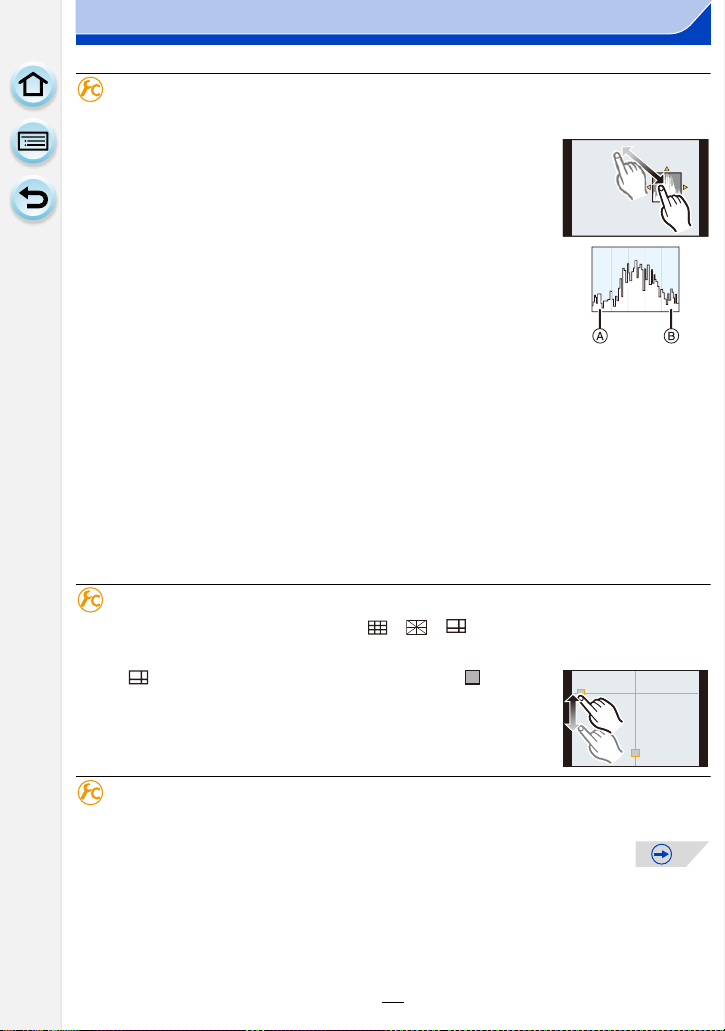

Displaying/not displaying the histogram
[MENU] > [Custom]>[Histogram]>[ON]/[OFF]
Position can be set by dragging the histogram.
A histogram is a graph that displays brightness along the horizontal
•
axis (black to white) and the number of pixels at each brightness level
on the vertical axis.
It allows you to easily check a picture’s exposure.
A dark
B bright
• When the recorded picture and the histogram do not match each other under the
following conditions, the histogram is displayed in orange.
– When the Manual Exposure Assistance is other than [n0] during Exposure Compensation or
in the Manual Exposure Mode
– When the flash is activated
– When suitable exposure is not achieved with the flash closed
– When the brightness of the screen is not correctly displayed in dark places
• The histogram is an approximation in the Recording Mode.
• The histogram displayed in this camera does not match histograms displayed by picture editing
software used in PCs etc.
Displaying/not displaying the guide lines
[MENU] > [Custom]>[Guide Line]>[ ]/[ ]/[ ]/[OFF]
The guideline is not displayed in the Panorama Shot Mode.
•
When [ ] is set, the position can be set by dragging [ ] on the
guide lines.
When it is difficult to move the guide line on the screen edge by touch
•
operation, use the cursor button to set the position.
Displaying/not displaying the on-monitor recording information screen
[MENU] > [Custom]>[Monitor Info. Disp.]>[ON]/[OFF]
74
Page 75
Basic

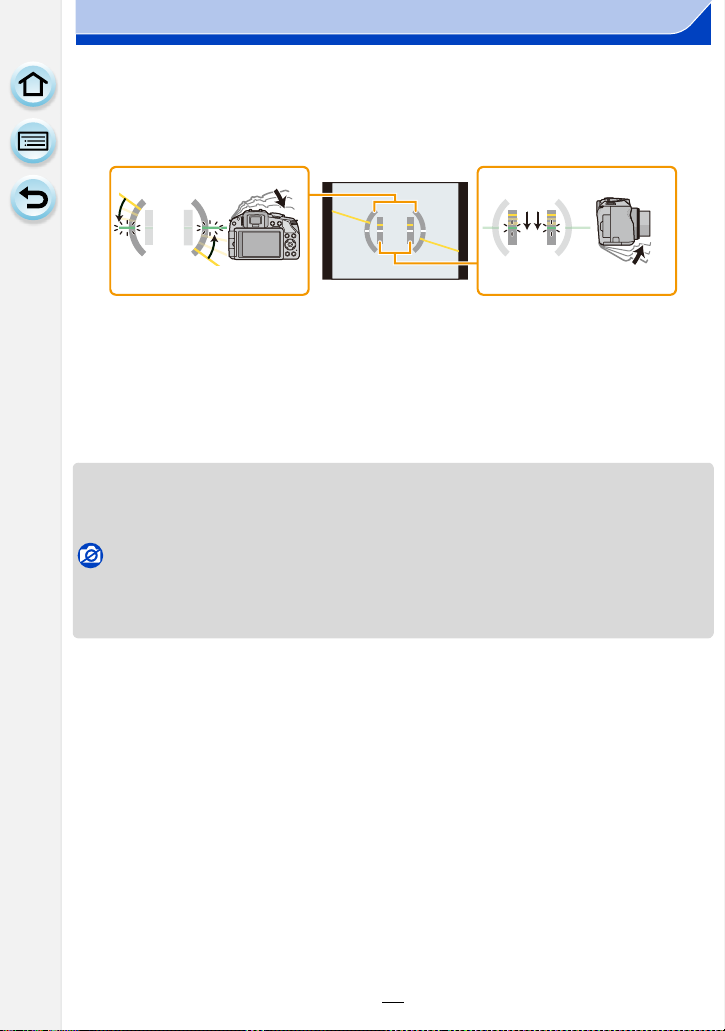

∫ About the tilt sensor display
With the tilt sensor displayed, it is easy to correct the tilt of the camera etc.
1 Press [DISP.] to display the tilt sensor.
2 Check the tilt of the camera.
A Horizontal direction:
Correcting tilt to the left
B Vertical direction:
Correcting downward tilt
•
When the tilt of the camera is little, the indicator changes to green.
• When recording with a vertical orientation, the display automatically switches to a
vertically orientated display.
• Even after correcting the tilt, there may still be an error of approximately ± 1°.
• When a function button is set to [Level Gauge], the tilt sensor display can be switched on/off by
pressing the function button.
Not available in these cases:
Tilt sensor display may not be displayed correctly when this unit is in motion.
•
• When tilted significantly upwards or downwards to record, the tilt sensor display may not be
displayed correctly, and the Direction Detection Function (P65) may not work correctly.
75
Page 76
Basic

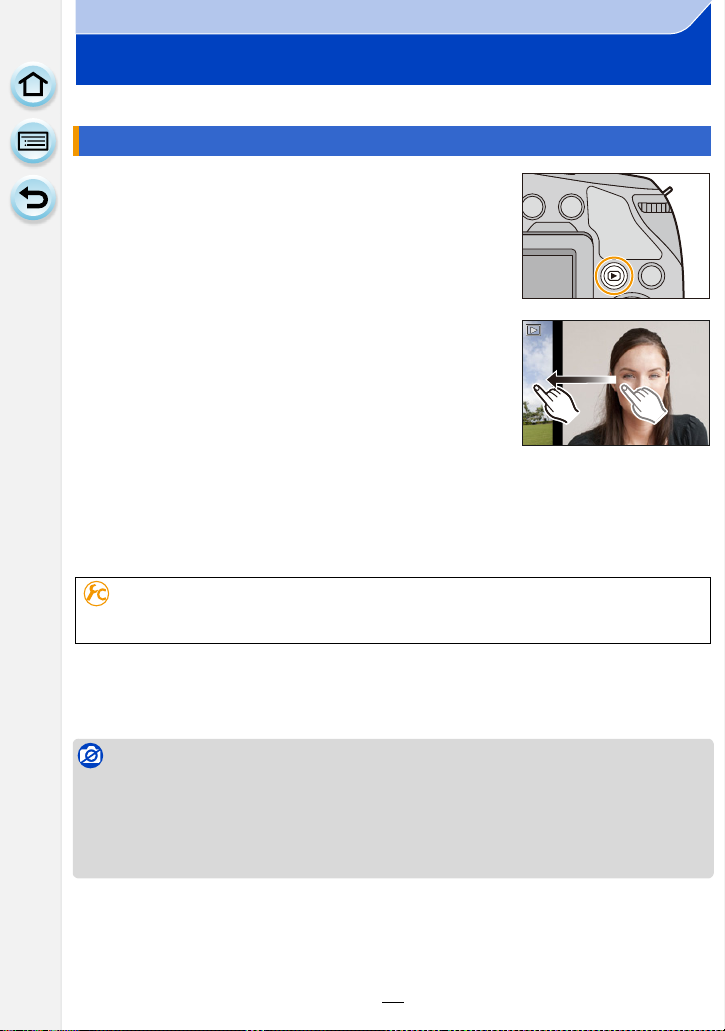

Playing Back Pictures/Motion Pictures
Playing Back Pictures
Press [(].
1
Forward or rewind the image by dragging the
2
screen horizontally.
Forward: drag from right to left
Rewind: drag from left to right
It is also possible to forward or rewind the image by
•
pressing 2/1 of the cursor button.
• Speed of picture forwarding/rewinding changes depending on the playback status.
• You can forward or rewind pictures continuously by keeping your finger on the left or
right sides of the screen after forwarding/rewinding a picture.
(Pictures are displayed reduced in size)
Switching the speed for forwarding or rewinding pictures continuously
[MENU] > [Custom]>[Touch Scroll]>[H] (High speed)/[L] (Low speed)
∫ To finish playback
(] again, press the motion picture button or press the shutter button
Press [
halfway.
Not available in these cases:
This camera complies with the DCF standard “Design rule for Camera File system” established
•
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. This camera can only display pictures that comply with the
DCF standard.
• Pictures recorded with another camera may not be able to play back on this unit.
76
Page 77
Basic
2.0X2.0X2.0X2.0X
A
2.0X

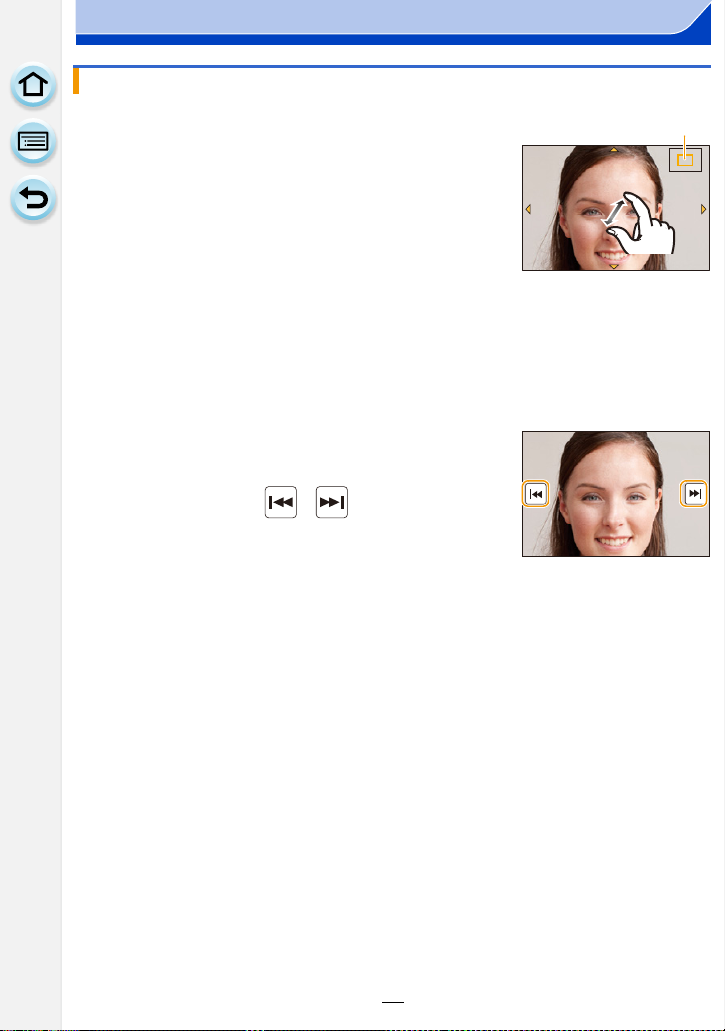

Using the Playback Zoom
Enlarging (or reducing) a picture by pinching out
(or pinching in) (P17) the screen.
• You can also enlarge/reduce the picture by rotating the rear dial.
• You can also enlarge/reduce the picture by sliding the function
lever.
• When you change the magnification, the zoom position indication
A appears for about 1 second.
• The more a picture is enlarged, the more its quality deteriorates.
• You can move the enlarged part by dragging (P17) the screen.
• You can also enlarge (2k) the image by double-touching the part you want to enlarge. If you
double-touch the enlarged image, the magnification is reset to 1k.
∫ Switching the displayed image while maintaining the Playback Zoom
You can switch the displayed image while maintaining the same zoom magnification and
zoom position for the Playback Zoom.
2.0X2.0X
Switch to picture select operation by pressing the
2.0X
rear dial during Playback Zoom, and select
pictures by touching [ ]/[ ].
• It is also possible to forward or rewind the image by pressing 2/
1 of the cursor button.
77
Page 78
Basic
CAL
1/98

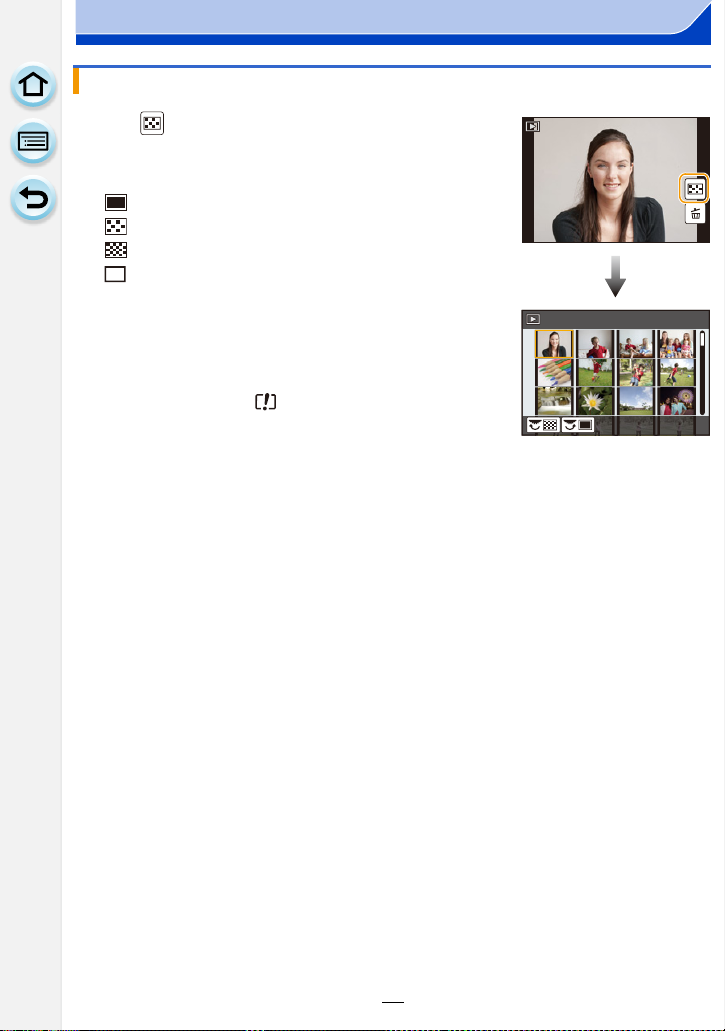

Displaying multiple screens (Multi Playback)
Touc h [ ].
• It is possible to switch the playback screen by touching the
following icons.
– [ ]: 1 screen
– [ ]: 12 screens
– [ ]: 30 screens
– [ ]: Calendar screen display
• Playback screen can also be switched by rotating the rear dial.
• Playback screen can also be switched by sliding the function
lever.
• The screen can be switched gradually by dragging the screen up
or down.
• Pictures displayed using [ ] cannot be played back.
∫ To return to Normal Playback
Touch the picture.
1/981/98
1/98
1/98
78
Page 79
Basic
CAL
2013
SUN MON TUE WED THU FRI SAT
11 12
20 21
25 26 27 28
10
17
24
31
13
18
16
23
30
9
14
19
15
22
29
8
45362 71
12
6HW
CAL

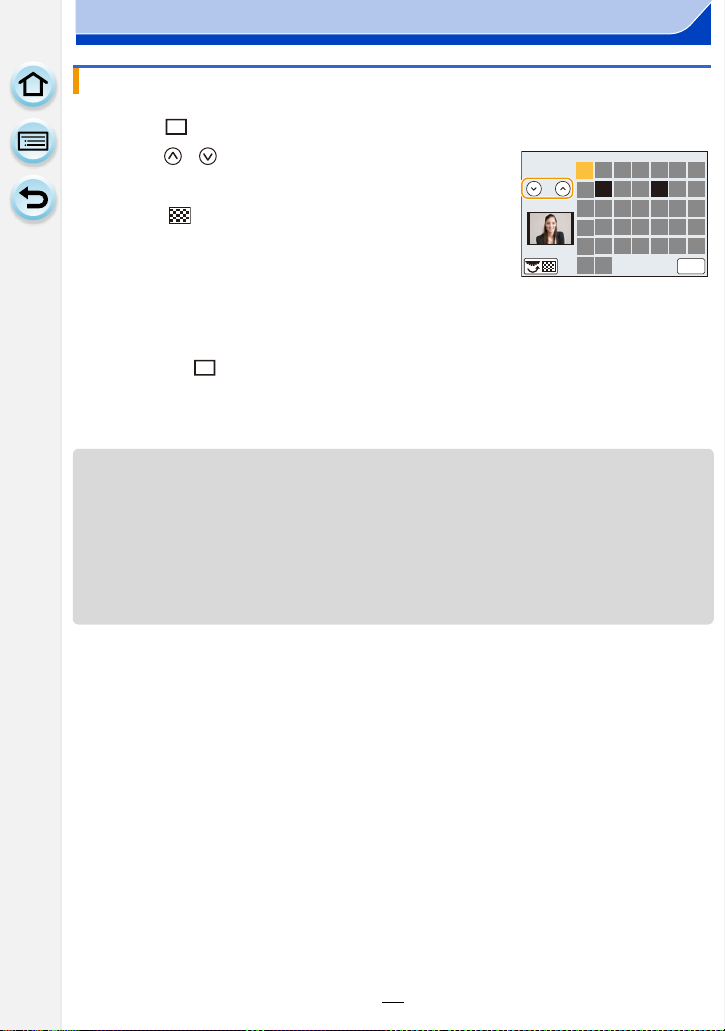

Displaying Pictures by Recording Date (Calendar Playback)
1 Touch [ ] on the Multi Playback screen.
2 Touch [ ]/[ ] to select the month to be played back.
•
If there were no pictures recorded during a month, that
month is not displayed.
• Touch [ ] to display the multi playback screen.
3 Select the date you wish to play back, and then touch [Set].
4 Touch the picture you wish to play back.
•
To return to the calendar screen, perform one of the following operations.
– Touch [ ]
– Rotate the rear dial to the left.
– Slide the function lever to the left.
• The recording date of the picture selected in the playback screen becomes the date selected
when the Calendar screen is first displayed.
• If there are multiple pictures with the same recording date, the first picture recorded on that day
is displayed.
• You can display the Calendar between January 2000 and December 2099.
• If the date is not set in the camera, the recording date is set as January 1st, 2013.
• If you take pictures after setting the travel destination in [World Time], the pictures are
displayed by the dates at the travel destination in Calendar Playback.
79
Page 80
Basic
12s
A
Playing Back Motion Pictures
This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime
Motion JPEG formats.
In Playback Mode, select a picture with the motion
picture icon ([ ]) and touch [ ] in the middle
12s12s
of the screen.
A Motion picture recording time
• After playback starts, the elapsed playback time is displayed on
the screen.
For example, 8 minutes and 30 seconds is displayed as
[8m30s].
• Some information (recording information, etc.) is not displayed for motion pictures recorded in
[AVCHD].
• Pressing the cursor button 3 allows you to play back motion pictures.
∫ Operations during Motion Picture Playback
3 Play/Pause 4 Stop
Fast rewind
2
Frame-by-frame rewind
(while pausing)
¢
Fast forward
1
Frame-by-frame forward
(while pausing)
¢
12s
Rear dial
Control panel disappears after approximately 2 seconds if no operation is performed. Touch
•
the screen to redisplay the control panel.
¢ The fast forward/rewind speed increases if you touch [ ]/[ ] again.
•
When using a high capacity card, it is possible that fast rewinding may be slower than usual.
Reduce volume level Rear dial
(left)
(right)
Increase volume level
• To play back the motion pictures recorded by this unit on a PC, use the “PHOTOfunSTUDIO”
software on the CD-ROM (supplied).
• Motion pictures recorded with [Miniature Effect] in Creative Control Mode play back at
approximately 10 times speed.
Not available in these cases:
Motion pictures recorded with other camera may not be able to play back on this unit.
•
80
Page 81
Basic
1/98
SLF
Creating Still Pictures from a Motion Picture
You can create a single still picture from a recorded motion picture.
Touch [ ] during Motion Picture playback.
1
Touc h [ ].
2
• Confirmation screen is displayed. It is executed when
[Yes] is selected.
• It will be saved with [Picture Size] set to [S] (2 M), [Aspect Ratio] set to [16:9], and [Quality] set
to [›].
• Still pictures created from a motion picture may be coarser than with normal picture quality.
• [ ] is displayed during playback of still pictures created from motion pictures.
Not available in these cases:
While recording [MP4], using [VGA/30p], the ability to create still pictures is disabled.
•
• You may not be able to save still pictures from a motion picture taken on other equipment.
Playing Back Group Pictures
A picture group consists of multiple pictures. You can play back pictures in a group either
continuously or one by one.
[]:
A picture group consisting of pictures taken in the Burst Mode
with the burst speed [SH]. (P179)
[]:
A picture group consisting of pictures taken in a Time Lapse
Shot. (P195)
[]:
A picture group consisting of pictures taken in the Stop Motion
Animation. (P197)
You can edit or delete all pictures in a group at once. (For example, if you delete a picture
•
group, all pictures in the group are deleted.)
1/981/98
1/98
SLF
SLF
• Pictures recorded on other cameras may not be recognized as a Picture Group.
• Pictures will not be grouped if recorded without setting the clock.
81
Page 82
Basic
1/981/981/981/98
SLFSLFSLF

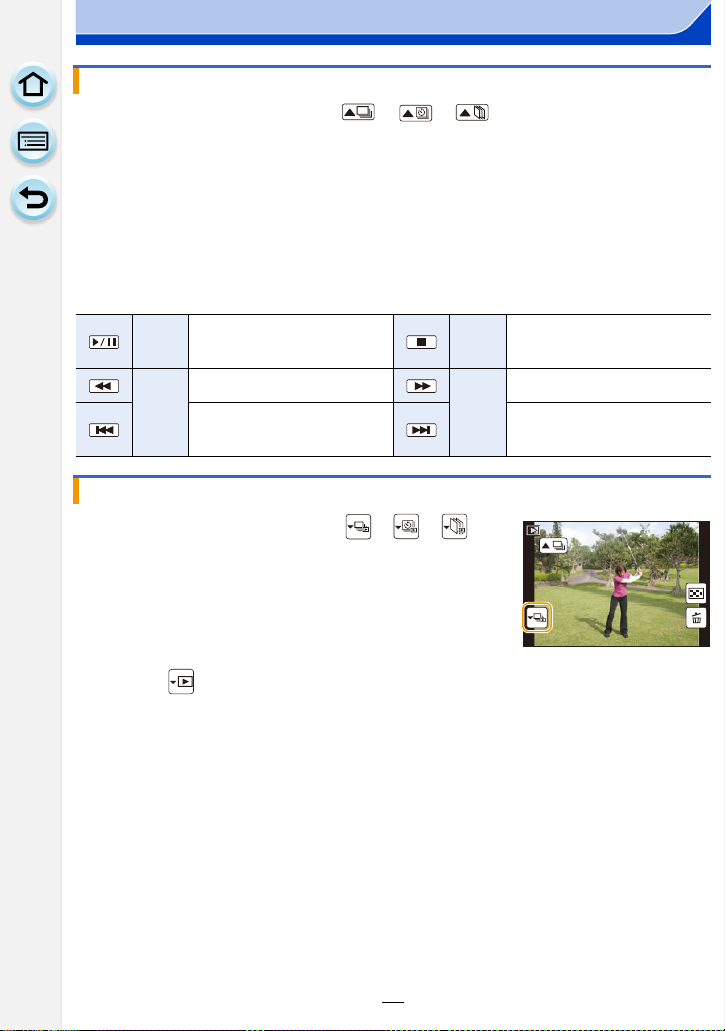

Continuously playing back Group Pictures
Touch the group picture icon ([ ], [ ], [ ]).
• The same operation can be performed by pressing 3 of the cursor buttons.
• When playing back group pictures one at a time, options are displayed.
[From the first picture]
[From the current
picture]
∫ Operations during Group Pictures playback
Pictures are played back continuously from the first picture of
the group.
Pictures are played back continuously from the picture being
played back.
Continuous playback/
3
Pause
Fast rewind
2
Rewind
(while pausing)
Playing back each Group Pictures
Stop
4
Fast forward
1
Forward
(while pausing)
1 Touch the group display icon ([ ], [ ], [ ]).
The same operation can be performed by pressing 4 of
•
the cursor buttons.
2 Drag horizontally to transfer between images.
Touch [ ] or press 4 again to return to the normal playback screen.
•
• Each picture in a group can be treated same as normal pictures when they are played
back. (Such as Multi Playback, Playback Zoom and deleting images)
82
Page 83
Basic
L
4:3
60F3.5
0
AWBAWB
1/98981/98
16
0
L
4:3
100-0001
F3.5
60
P
s
RGB
AFS
160
0
WBWB
ISOISO
AWB
STD.STD.STD.
F3.5
60
1/98
ISO
160
0
100-0001
'(&
Changing the information displayed on the playback screen
Press [DISP.] to switch the monitor screen.
• Screen will switch as follows:
ュリヴヱハ
A With information
B Detailed information display
C Histogram display
D Without information (Highlight display)
E Without information
¢1
¢2
¢2
¢1, 2, 3, 4
¢4
¢1 If approximately 1 minute elapses without an operation being performed, part of the display
will disappear. Press [DISP.] or touch the monitor to make the display reappear.
¢2 Not displayed while using the playback zoom or during motion picture playback, sequential
playback, panorama playback or a slide show.
¢3 This is displayed if [Highlight] (P84) in the [Custom] menu is set to [ON].
¢4 If no operation is performed for a number of seconds, [ ] and other touch icons will
disappear.
• Histogram is displayed in R (red), G (green), B (blue), and Y (luminance) during the playback.
83
Page 84
Basic
[ON] [OFF]
Displaying/not displaying white saturated areas
[MENU] > [Custom]>[Highlight]>[ON]/[OFF]
When the Auto Review function is activated or when playing back, white saturated areas
appear blinking in black and white.
This does not affect the recorded image.
If there are any white saturated areas, we
•
recommend compensating the exposure towards
negative (P149) referring to the histogram (P74) and
then taking the picture again. It may result in a better
quality picture.
• This does not work while in Multi Playback, Calendar
Playback, or Playback Zoom.
84
Page 85
Basic
1/981/981/981/98
Deleting Pictures
Once deleted, pictures cannot be recovered.
•
Pictures that are not in the DCF standard or those that are protected cannot be deleted.

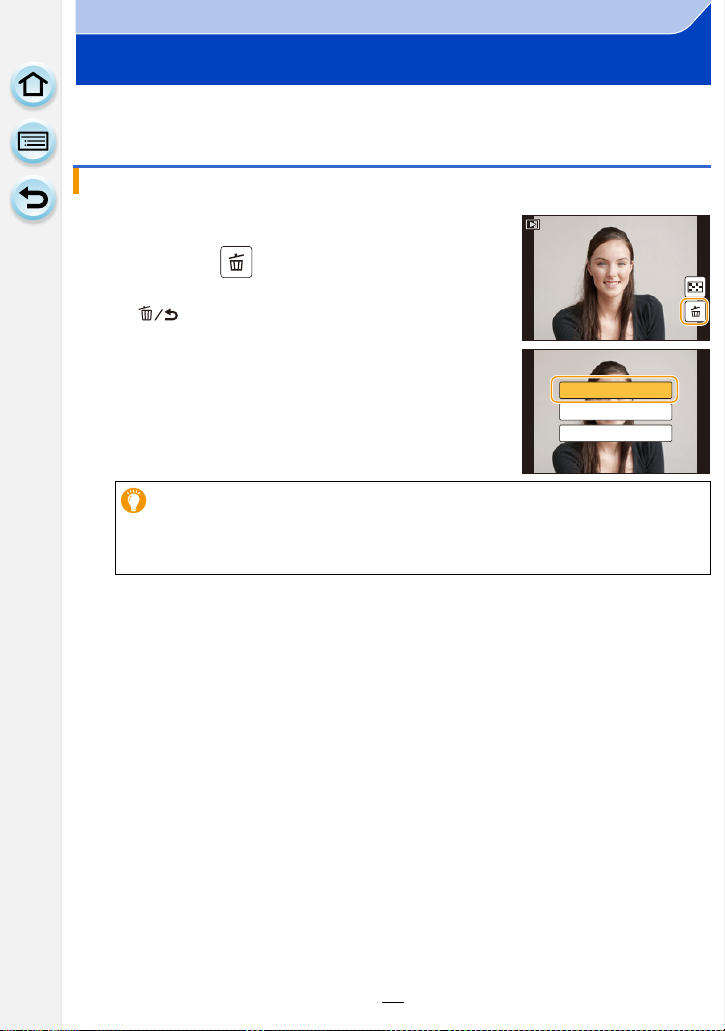

To delete a single picture
In Playback Mode, select the picture to delete
1
and touch [ ].
• The same operation can be performed by pressing
[].
Touch [Delete Single].
2
• Confirmation screen is displayed.
Picture is deleted by selecting [Yes].
• [Delete Confirmation] in the [Playback] menu enables you to set which option on
the delete confirmation screen, [Yes] or [No], will be highlighted first. The default
setting is [No]. (P243)
• [Delete Single] can be done directly by pressing a function button. (P54)
'HOHWH6LQJOH
'HOHWH0XOWL
'HOHWH$OO
85
Page 86
Basic

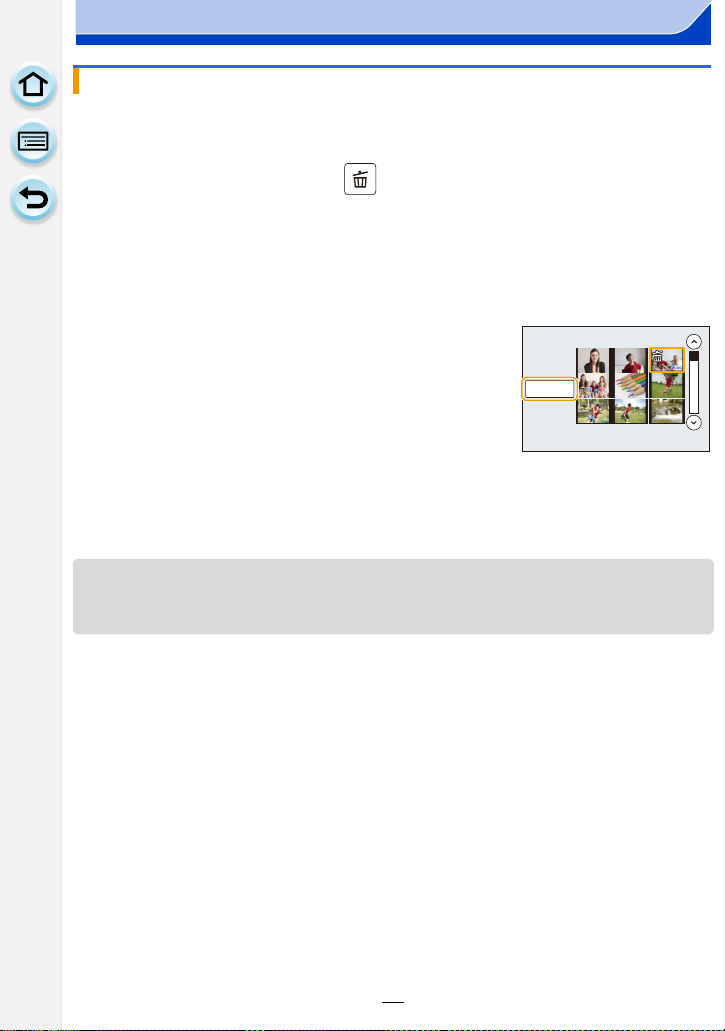

To delete multiple pictures (up to 100¢) or all the pictures
¢ Picture groups are treated as a single picture. (All the pictures in the selected picture group
will be deleted.)
In Playback Mode, touch [ ].
1
Touch [Delete Multi] or [Delete All].
2
• [Delete All] > Confirmation screen is displayed.
Pictures are deleted by selecting [Yes].
• It is possible to delete all pictures except the ones set as favorite when [All Delete
Except Favorite] is selected with the [Delete All] set.
(When [Delete Multi] is selected) Touch the
3
picture to be deleted. (repeat this step)
• [‚] appears on the selected pictures. Touching again
cancels the setting.
(When [Delete Multi] is selected) Touch [OK].
4
• Confirmation screen is displayed.
Pictures are deleted by selecting [Yes].
• Do not turn the camera off while deleting. Use a battery with sufficient battery power or the AC
adaptor (optional).
• Depending on the number of pictures to be deleted, it may take some time to delete them.
2.
86
Page 87
Recording
Selecting the Recording Mode
∫ To select a Recording Mode with the mode dial
Select the mode by rotating the mode dial.
• Rotate the mode dial slowly to select the desired mode A.
∫ To select Intelligent Auto Mode
Press [¦].
• [¦] button will light up when it is switched to Intelligent Auto
Mode.
• The Recording Mode selected by the mode dial is disabled while
¦] button is lit.
the [
Intelligent Auto Mode (P89)
The subjects are recorded using settings automatically selected by the camera.
Intelligent Auto Plus Mode (P94)
Allows you to adjust the brightness and color hue when in Intelligent Auto Mode.

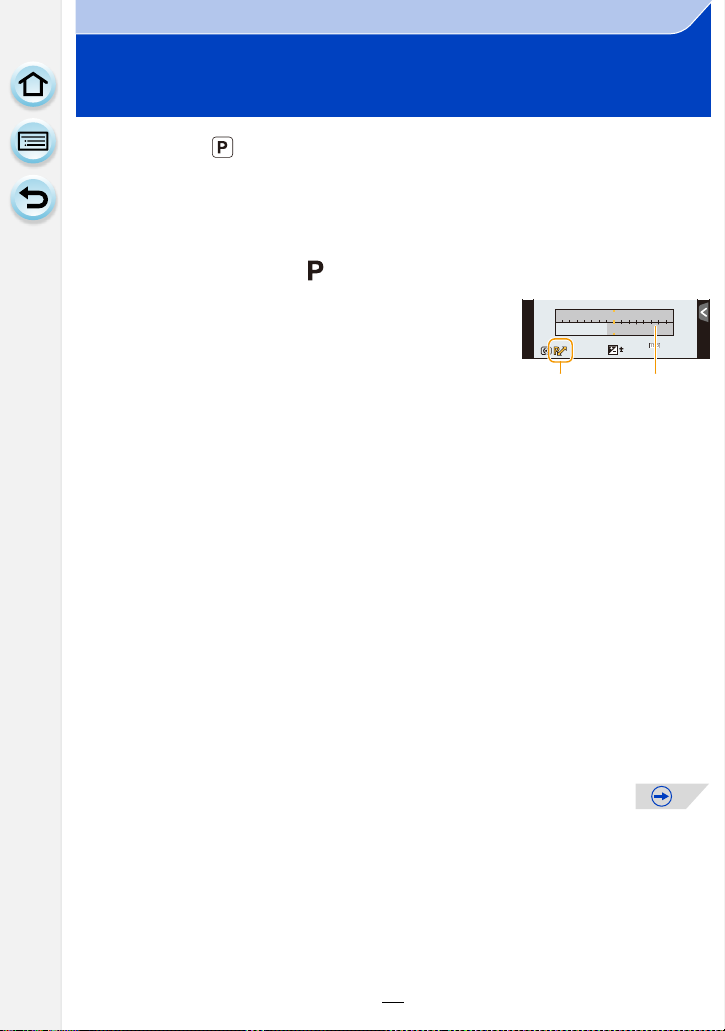

Program AE Mode (P96)
Records at the aperture value and shutter speed set by the camera.
Aperture-Priority AE Mode (P99)
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode (P100)
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode (P101)
The exposure is adjusted by the aperture value and the shutter speed which are
manually adjusted.
87
Page 88
Recording
Creative Video Mode (P217)
Records motion pictures with a manually set aperture value and shutter speed.
¢ You cannot take still pictures.
Custom Mode (P129)
Use this mode to take pictures with previously registered settings.
Panorama Shot Mode (P106)
This mode allows you to take panorama pictures.
Scene Guide Mode (P110)
This mode allows you to take pictures that match the scene being recorded.
Creative Control Mode (P119)
Record while checking the image effect.
Displaying/not displaying the selection screen when the mode dial is
switched to / .
[MENU] > [Custom]>[Menu Guide]
[ON]:
Displays the selection screen for the Scene Guide or the Creative Control Mode.
[OFF]:
Displays the recording screen of the currently selected mode of the Scene Guide or the
Creative Control Mode.
88
Page 89
Recording
60
i
4

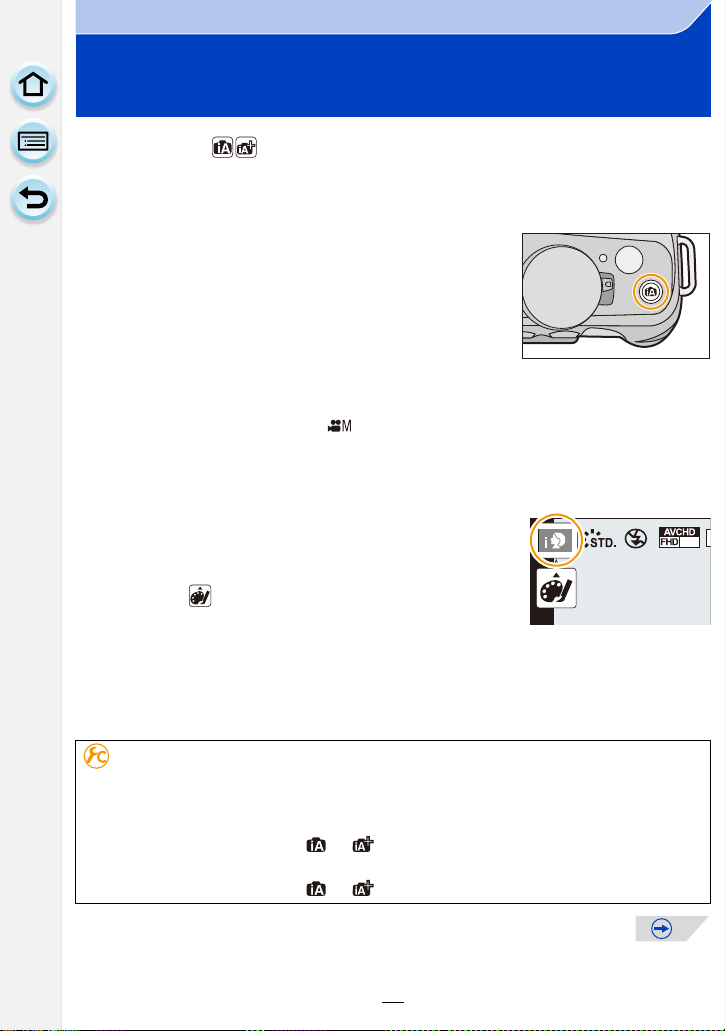

Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
Recording Mode:
In this mode, the camera makes the optimal settings for the subject and scene, so we
recommend it when you wish to leave the settings to the camera and record without
thinking about them.
Press [¦].
1
• The camera will switch to either the most recently used of
Intelligent Auto Mode or Intelligent Auto Plus Mode. At the
time of purchase, the mode is set to Intelligent Auto Mode.
• [¦] button will light up when it is switched to Intelligent
Auto Mode. (Light turns off during recording)
• [¦] button is turned off when it is pressed again, and it will be set to the Recording
Modes selected by the mode dial.
• When the mode dial is set to [ ] , recording of a motion picture can be started/stopped
by pressing the motion picture button or the shutter button. (Pictures cannot be taken)
Align the screen with the subject.
2
• When the camera identifies the optimum scene, the icon
of the scene concerned is displayed in blue for 2 seconds,
after which its color changes to the usual red.
Depending on the identified scene, the camera may
display [ ], which allows you to select the
camera-recommended effects. For details, refer to
“Recording with Camera-Recommended Effects” on P92.
• When the subject is touched, AF Tracking function works. It is also possible by pressing
the cursor button towards 2, and then pressing the shutter button halfway. For details,
refer to P165.
Switching the operation method of the [¦] button
[MENU] > [Custom]>[iA Button Switch]
[Single Press]:
It will switch to Intelligent Auto ( or ) Mode by pressing [¦].
[Press and hold]:
It will switch to Intelligent Auto ( or ) Mode by pressing [¦] for a while.
89
Page 90
Recording

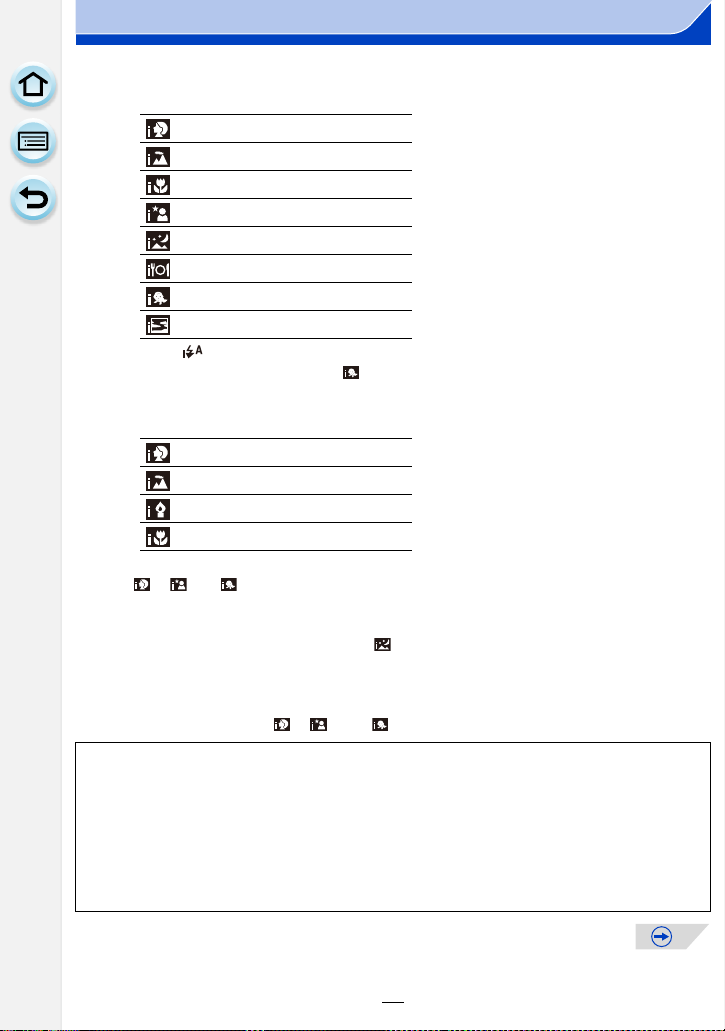

∫ Scene Detection
When taking pictures
>
¦
[i-Portrait]
[i-Scenery]
[i-Macro]
[i-Night Portrait]
¢1
[i-Night Scenery]
[i-Food]
¢2
[i-Baby]
[i-Sunset]
¢1 Only when [ ] (AUTO) is selected.
¢2 When [Face Recog.] is set to [ON], [ ] will be displayed for birthdays of registered faces
already set only when the face of a person 3 years old or younger is detected.
When recording motion pictures
¦
>
[i-Portrait]
[i-Scenery]
[i-Low Light]
[i-Macro]
[¦] is set if none of the scenes are applicable, and the standard settings are set.
•
• When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it
will adjust the focus and exposure. (Face Detection)
• If a tripod is used, for instance, and the camera has judged that camera shake is minimal when
the scene detection has been identified as [ ], the shutter speed will be slower than normal.
Take care not to move the camera while taking pictures.
• An optimum scene for the specified subject will be chosen when set to AF tracking.
• When [Face Recog.] is set to [ON], and the face similar to the registered face is detected, [R] is
displayed in the top right of [ ], [ ] and [ ].
Due to conditions such as the ones below, a different scene may be identified for the same
•
subject.
– Subject conditions: When the face is bright or dark, the size, color and shape of the subject,
the distance to the subject, the contrast of the subject, when the subject is moving
– Recording conditions: Sunset, sunrise, under low brightness conditions, when the camera
is shaken, when zoom is used
• To take pictures in an intended scene, it is recommended that you take pictures in the
appropriate Recording Mode.
90
Page 91
Recording
∫ About the flash
Flash mode is set to [Œ] when the flash is closed, and [ ] (AUTO) when it is open.
When the flash is open, the camera automatically sets [ ], [ ] (AUTO/Red-Eye
Reduction), [ ], or [ ] to match the type of subject and brightness.
Open the flash when the flash is to be used. (P139)
•
• When [ ] or [ ] is set, Red-Eye Removal is enabled.
• Shutter speed will be slower during [ ] or [ ].
∫ Functions that work automatically and menu options which are disabled
The following functions are performed automatically to allow the camera to make the
optimal settings.
– Scene Detection/Backlight Compensation/Face Detection/Auto White Balance/
Intelligent ISO sensitivity control/[Red-Eye Removal]/[i.Resolution]/[i.Dynamic]/[Long Shtr
NR]/[Shading Comp.]/[Quick AF]/ [AF Assist Lamp]
Because the camera makes the optimal settings automatically, the following menus are
disabled.
For the [Rec] menu, see “Using the [Rec] Menu” (P186). For the [Motion Picture] menu, see
–
“Using the [Motion Picture] Menu” (P219).
– [Cust.Set Mem.]/[Expo.Meter]/[AF/AE Lock]/[AF/AE Lock Hold]/[Quick AF]/[Eye Sensor AF]/
[Direct Focus Area]/[Shutter AF]/[AF Assist Lamp] ([Custom] menu)
The Backlight Compensation
–
When there is a backlight, the subject appears darker and the camera will automatically
attempt to correct it by increasing the brightness of the picture. In Intelligent Auto Mode,
backlight compensation works automatically.
91
Page 92
Recording
DISP.
6HW
A
Recording with Camera-Recommended Effects
Depending on the scene that is automatically identified, it may be possible to select from a
number of different image effects (filters) automatically recommended by the camera, with
reference to example images. (Only available when [Recommended Filter] on the
recording menu is set to [ON]. At the time of purchase, this setting is [ON].)
Touch the [ ], which is automatically
1
displayed after automatic detection.
• The selection screen for camera-recommended effects is
displayed.
• The selection screen can also be displayed by pressing
3.
Touch the example image to select image
2
effects (filters).
• The image effect of the selected example image will be
applied in a preview display
Touch [Set].
3
• The Creative Control Mode for the selected image effect is set.
A.
• [ ] is displayed on the recording screen. Touch to return to
Intelligent Auto ( or ) Mode.
The same operation can be performed by pressing the [
button.
• When using a recommended filter, you cannot use menus or
recording functions not available in Creative Control Mode.
• For how to adjust the image effects and other information, refer
“Taking Pictures with different image effects (Creative Control Mode)” on P119.
to
Not available in these cases:
Recommended filter is unavailable when the viewfinder is in use.
•
HKEY
¦]
92
Page 93
Recording
AE
Fn6
Fn7
AE
Fn6
Fn7

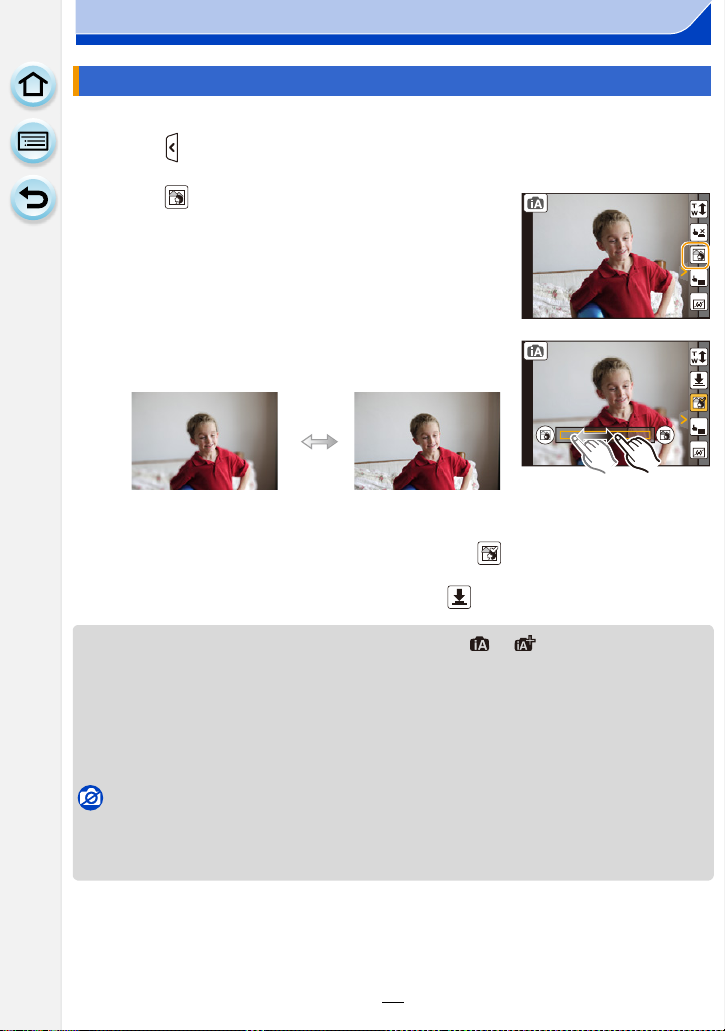

Taking a picture with a blurred background (Defocus Control)
You can easily set the blurriness of the background while checking the screen.
1 Touch [ ].
2 Touch [ ] to display the setting screen.
•
Defocus Control setting screen can also be displayed by
pressing the rear dial.
3 Drag the slide bar to set.
•
Setting can also be performed by rotating the rear dial.
Strong defocus Weak defocus
4 Record pictures or motion pictures.
Defocus Control operation can be ended by touching [ ].
•
• Defocus Control operation can also be ended by pressing the rear dial.
• It is also possible to record a picture by touching [ ].
• On the Defocus Control setting screen of Intelligent Auto ( or ) Mode, the AF Mode is
[Ø].
You can set the location of the AF area by touching the screen. (Size cannot be changed)
• Depending on the lens used, you may hear a sound from the lens when the Defocus Control is
used, but this is due to operation of the aperture of the lens and it is not a malfunction.
• Depending on the lens used, operational sound of the Defocus Control may be recorded during
the recording of a motion picture when the function is used.
Not available in these cases:
Depending on the lens used, Defocus Control function may not operate.
•
Refer to the website for compatible lenses.
• In [Miniature Effect] of Creative Control Mode, Defocus Control cannot be used.
93
Page 94
Recording

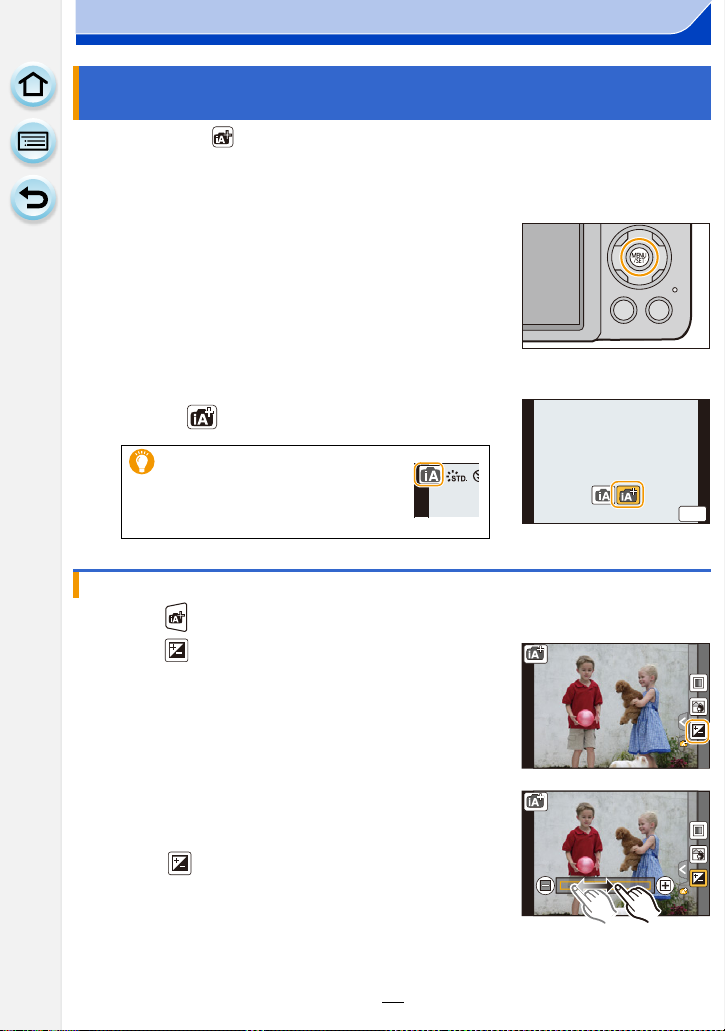

Recording images by changing the brightness or color tone (Intelligent Auto Plus Mode)
Recording Mode:
This mode enables you to change the brightness and color tone to your preferred settings
from the ones set by the camera in Intelligent Auto Mode.
Press [MENU/SET] when in Intelligent Auto
1
Mode.
Touc h [i A M O D E ] .
2
Select [ ] and then touch [Set].
3
It is also possible to display
the selection screen by
touching the Recording Mode
icon in Recording Mode.
Setting brightness
6HW
1 Touch [ ].
2 Touch [ ] to display the setting screen.
The setting screen can also be displayed from the
•
recording screen by pressing rear dial.
Each press of the rear dial switches among brightness
setting, Defocus Control (P93) and end operation.
3 Drag the slide bar to set.
•
This will adjust the brightness of the image.
• Setting can also be performed by rotating the rear dial.
• Touch [ ] again to return to the recording screen.
94
Page 95
Recording
AE
Fn6
Fn7

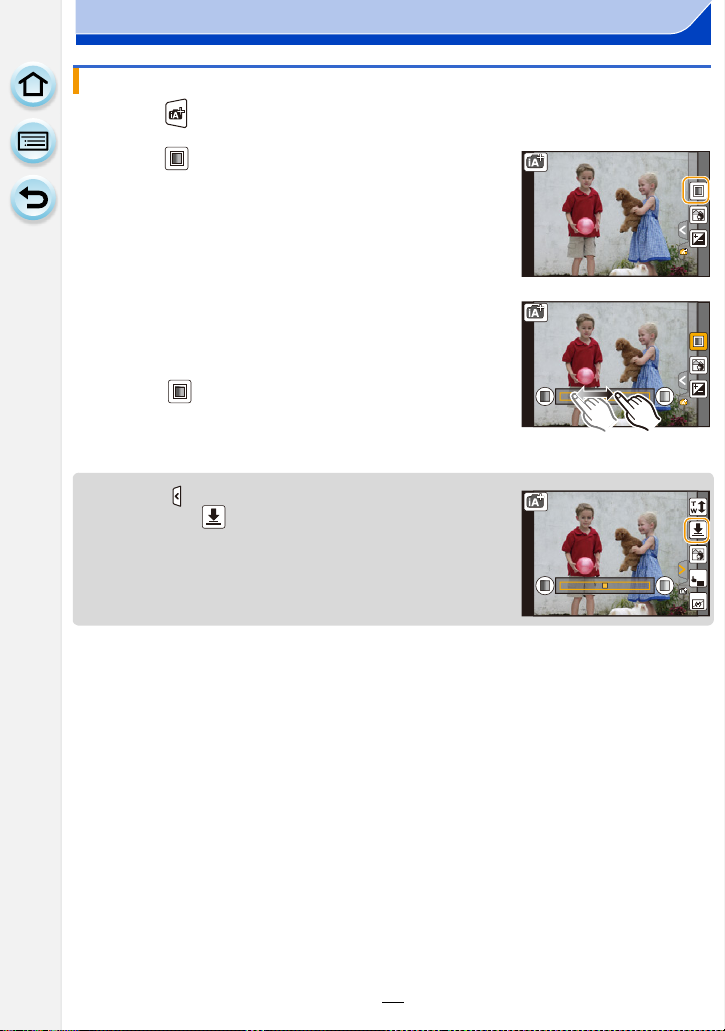

Setting color
1 Touch [ ].
2 Touch [ ] to display the setting screen.
The settings screen can also be displayed from the
•
recording screen by pressing cursor button 1.
3 Drag the slide bar to set.
•
This will adjust the color of the image from a reddish color
to a bluish color.
• Setting can also be performed by rotating the rear dial.
• Touch [ ] again to return to the recording screen. You
can also return to the recording screen by pressing the
cursor button 1.
• If you touch [ ] during the adjustment, you can take a picture
also by touching [ ].
• The brightness and color settings will return to the default
(center point) when this unit is turned off or the camera is
switched to another Recording Mode.
95
Page 96
Recording
6060604.04.04.0
16
0
SSSSSS
FF
250 15
4.0 5.6 8.0
3060125
0
989898
A B
Taking Pictures with Your Favorite Settings
(Program AE Mode)
Recording Mode:
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in the [Rec]
menu.
Set the mode dial to [ ].
1
Press the shutter button halfway and display
2
the aperture value and shutter speed value
on the screen.
• The shutter speed is automatically set between about
20 seconds and 1/4000th of a second in the following
cases.
– When the [Sensitivity] is set to [ISO160].
– When the aperture value is set to F3.5 [when the interchangeable lens (H-PS14042,
H-FS14140, H-FS1442A, H-FS014042) is attached].
– When the aperture value is set to F4.0 [when the interchangeable lens (H-FS45150) is
attached].
While the values are displayed (about 10 seconds), perform Program
3
Shift by rotating the rear dial.
• It will switch between Program Shift operation and Exposure Compensation operation
(P149) every time the rear dial is pressed while the values are displayed.
• Rotate the rear dial to display the [Expo.Meter] B. (P97)
• The Program Shift indication A appears on the screen.
• To cancel Program Shift, turn the camera off or rotate the rear dial until the Program
Shift indication disappears.
Program Shift can easily be canceled by setting a function button to [One Push AE].
(P105)
96
Page 97
Recording
S
+
50

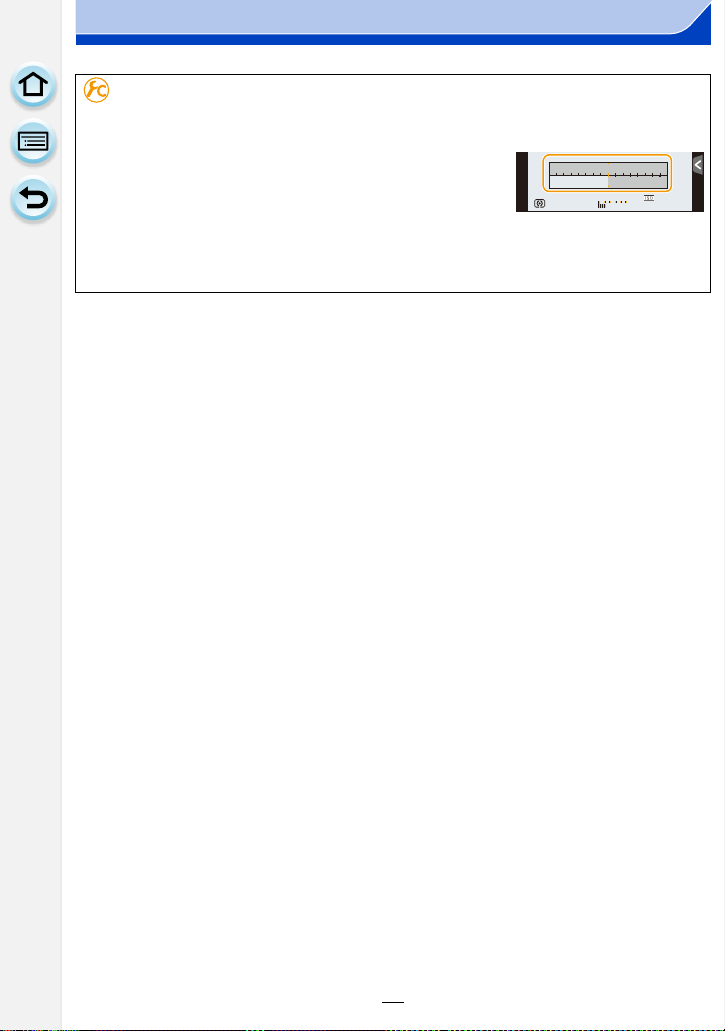

Displaying/not displaying the exposure meter
[MENU] > [Custom]>[Expo.Meter]>[ON]/[OFF]
Set to [ON] to display the [Expo.Meter] when correcting
•
exposure, performing Program Shift, setting aperture, and
setting shutter speed.
• Unsuitable areas of the range are displayed in red.
250 15
SSS
F
603.5
3060125
4.0 5.6 8.0
+
50
16
0
• When [Expo.Meter] is not displayed, switch the display information for screen by pressing
[DISP.]. (P72)
• The [Expo.Meter] disappears after approximately 4 seconds if no operation is performed.
989898
97
Page 98
Recording
(A)
(B)
4 2 1 1
/
2
1
/
4
1
/
8
1
/
15
1
/
30
1
/
60
1
/
125
1
/
250
1
/
500
1
/
1000
1
/
2000
1
/
4000
15
16
17
18
19
20
2
2.8
4
5.6
8
11
16
22
−1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
（Ev）

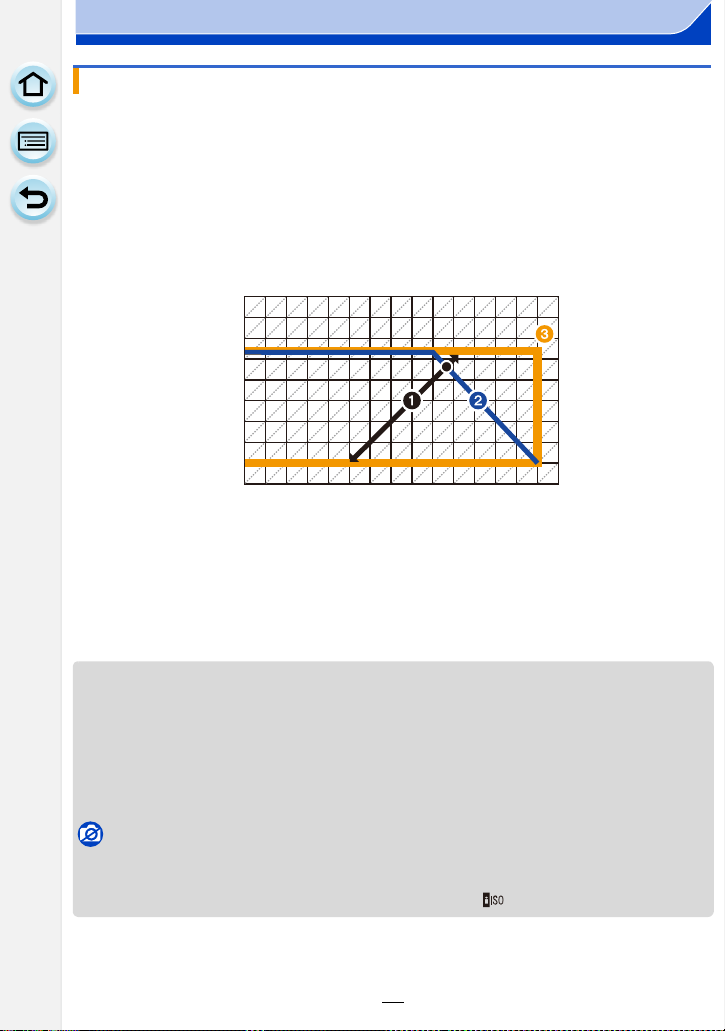

Program Shift
In Program AE Mode, you can change the preset aperture value and shutter speed without
changing the exposure. This is called Program Shift.
You can make the background more blurred by decreasing the aperture value or record a
moving subject more dynamically by slowing the shutter speed when taking a picture in
Program AE Mode.
∫ Example of Program Shift
[When the interchangeable lens (H-PS14042) is used]
(A): Aperture value
(B): Shutter speed
1 Program Shift amount
2 Program Shift line chart
3 Program Shift limit
EV is an abbreviation of [Exposure Value].
•
The EV changes with the aperture value or the shutter speed.
• If the exposure is not adequate when the shutter button is pressed halfway, the aperture value
and shutter speed turn red and blink.
• Program Shift is canceled and the camera returns to normal Program AE Mode if more than
10 seconds pass after Program Shift is activated. However, the Program Shift setting is
memorized.
Not available in these cases:
Program Shift will only allow adjustments to be made when there is an adequate amount of
•
light.
• Program Shift is available in all [Sensitivity] settings except [ ].
98
Page 99
Recording
SSSS
FF
8.08.08.0
60 4
4.0 5.6 8.0 11 16
81530
B
A
Taking Pictures by Specifying the Aperture/ Shutter Speed
Recording Mode:
Aperture-Priority AE Mode
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
1
Rotate the rear dial to set the aperture value.
2
A Aperture value
B Exposure meter
Aperture value:
Reduces
It becomes easier to
defocus the
background.
• It will switch between aperture setting operation and Exposure Compensation operation
every time the rear dial is pressed.
• The effects of the set aperture value will not be visible on the recording screen. To
check on the recording screen, please use [Preview]. (P104)
• The brightness of the screen and the recorded pictures may differ. Check the pictures on the
playback screen.
• Rotate the rear dial to display the [Expo.Meter]. Unsuitable areas of the range are displayed in
red.
• If the exposure is not adequate, the aperture value and the shutter speed turn red and blink
when the shutter button is pressed halfway.
• When using a lens having an aperture ring, set the position of the aperture ring to [A] to activate
the rear dial setting. At positions other than [A], the ring setting will take priority.
Aperture value:
Increases
It becomes easier to
maintain focus as far
as the background.
99
Page 100
Recording
250
A
B
Shutter-Priority AE Mode
When you want to take a sharp picture of a fast moving subject, set with a faster shutter
speed. When you want to create a trail effect, set to a slower shutter speed.
Set the mode dial to [ ].
1
Rotate the rear dial to set the shutter speed.
2
A Shutter speed
B Exposure meter
SSSSSS
F
60
250 500125
11 8.0 5.6 4.0
250
250
1
000
Shutter speed:
Slow
It becomes easier to
express movement.
Shutter speed:
Fast
It becomes easier to
freeze movement.
• It will switch between shutter speed setting operation and Exposure Compensation
operation every time the rear dial is pressed.
• The effects of the set shutter speed will not be visible on the recording screen. To check
on the recording screen, please use [Preview]. (P104)
• The brightness of the screen and the recorded pictures may differ. Check the pictures on the
playback screen.
• Rotate the rear dial to display the [Expo.Meter]. Unsuitable areas of the range are displayed in
red.
• If the exposure is not adequate, the aperture value and the shutter speed turn red and blink
when the shutter button is pressed halfway.
• We recommend using a tripod when the shutter speed is slow.
• The [Sensitivity] is automatically set to [AUTO] when you switch the Recording Mode to
Shutter-Priority AE Mode while the [Sensitivity] is set to [ ] (Intelligent).
Not available in these cases:
When the flash is activated, the fastest shutter speed that can be selected is 1/160th of a
•
second. (P142)
• The shutter speed slower than 1 second is not available when [Electronic Shutter] is set to
[ON].
100
