Panasonic CU-E21DKE, CS-E18DKEW, CU-E18DKE, CS-E21DKES Operating Instructions

F564983

Operating Instructions

Air Conditioner

CS-E18DKEW CU-E18DKE
CS-E21DKES CU-E21DKE

Manufactured by:

Panasonic HA Air-Conditioning (M) Sdn. Bhd.

Lot 2, Persiaran Tengku Ampuan, Section 21, Shah Alam Industrial Site, 40300 Shah Alam, Selangor, Malaysia.

ENGLISH Before operating the unit, read these operating instructions thoroughly and keep them for future reference. 2 ~ 7
ESPAÑOL

Antes de utilizar la unidad, sírvase leer atentamente estas instrucciones de funcionamiento y conservarlas como futuro elemento

de consulta.

8 ~ 13

ITALIANO

Prima di utilizzare l’unità si prega di leggere attentamente le istruzioni e di conservare questo opuscolo per potervi fare riferimento

in futuro.

14 ~ 19

NEDERLANDS Lees voor u het apparaat gebruikt deze gebruiksinstructies grondig na en bewaar ze voor toekomstig gebruik. 20 ~ 25
PORTUGUÊS Antes de ligar a unidade, leia cuidadosamente este manual de utilização e guarde-o para futura referência. 26 ~ 31
EΛΛΗΝΙΚΆ Προτού θέσετε τη μονάδα σε λειτουργία, διαβάστε προσεκτικά αυτές τις οδηγίες χρήσης και φυλάξτε τις για μελλοντική αναφορά. 32 ~ 37
БЪЛГАРСКИ

Преди да задействате климатика, прочетете внимателно инструкциите за употреба и ги запазете за бъдещи справки. 38 ~ 43

2

The appliance is not intended for use by young children or infirm
person without supervision. Young children should be supervised to
ensure that they do not play with the appliance.

Thank you for purchasing Panasonic Air Conditioner

SAFETY PRECAUTIONS

■ Definition

Safety Regulation

Operation Condition (OC)

Use this air conditioner under the following temperature
range.

DBT: Dry Bulb Temperature
WBT: Wet Bulb Temperature

Indoor Outdoor

DBT WBT DBT WBT

Maximum Temperature (COOL)

32 23 43 26

Maximum Temperature (HEAT)

30 – 24 18

Minimum Temperature (COOL)

16 11 16 11

Minimum Temperature (HEAT)

16 – -5 -6

This sign warns of death

or serious injury.

To prevent personal injury,
injury to others and property
damage, the following
instructions must be
followed.

Incorrect operation due to
failure to follow instructions
will cause harm or damage,
the seriousness of which is
classified as

below:

This symbol denotes

an action that is

PROHIBITED.

These symbols denote

actions that are

COMPULSORY.

Warning

This sign warns of injury

or damage to property.

Caution

The instructions to be
followed are classified by
the following symbols:

Installation Precautions

Caution

• Do not wash the unit with water, benzene,
thinner or scouring powder.

• Do not use for other purposes such as
preservation of food.

• Do not use any combustible equipment at
airflow direction.

• Do not sit or place anything on the indoor
or outdoor unit.

• Do not expose directly to cold air for a
long period.

• Ventilate the room regularly.

• Pay attention as to whether the
installation rack is damaged after long
period of usage.

• Switch off the power supply before
cleaning or servicing.

• Turn off the power supply if the unit is not
used for a long period of time.

Operation Precautions

• Use specified supply cord.

• If the supply cord is damaged or needed
to be replaced, it must be replaced by
the manufacturer or its service agent or
a similarly qualified person in order to
avoid a hazard.

• Remove the batteries if the unit is not
going to be use for a long period of time.

•

New batteries of the same type must be
inserted following the polarity stated to
prevent malfunction of the remote control.

• In case of emergency or abnormal
condition (burnt, smell, etc) occurs, turn
off the power supply.

Warning

• Do not share power outlet.

• Do not modi

fy power cord.

• Do not use an extension co

rd.

• Do not operate with wet hands.

• Do not insert finger or other objects into the
indoor or outdoor unit.

• Do not attempt to repair the unit by
yourself.

• Do not use

rechargeable (Ni-Cd) batteries.

• Keep the remote control away from infants
and small children to prevent them from
accidentally swallowing the batteries.

Warning

Do not install, remove and reinstall the unit by yourself.

• Improper installation will cause leakage, electric shock or fire. Please consult an authorized dealer or
specialist for the installation work.

• This equipment must be earthed and installed with ELCB. It may cause electrical shock or fire in case of
malfunction.

Caution

• This air conditioner must be earthed. Improper grounding will cause electric shock.

• Ensure that the drainage piping is connected properly.

Otherwise, water will leak.

• Do not install the unit in a

potentially explosive atmosphere.

3

ENGLISH

Note: The illustrations in this manual are for explanation purposes only and may differ from the

actual unit. It is subjected to change without notice for future improvement.

PRODUCT OVERVIEW

Outdoor Unit

Air inlet (rear)

Air outlet

Troubleshooting

● Operation delayed for few minutes after restart.

➤ This is a normal self protection control.

● Sound like water flowing during operation.

➤ Caused by refrigerant flow inside.

● Mist emerges from indoor unit.

➤ Condensation effect due to cooling process.

● Noisy during operations.

➤ Installation work could be slanted or front panel didn’t close properly.

● Remote control/display does not work.

➤ Check whether batteries are correctly inserted or need replacement.

● The unit cannot operate.

➤ Check either circuit breaker is tripped or timer is used correctly.

● Outdoor unit emits water/steam.

➤ Condensation or evaporation happens at piping surface.

Air inlet (side)

QUIET

POWERFUL

ION

SUPER

ALLERU-BUSTER

TIMERPOWER

Air intake

Airflow direction
louver

Ionizer

Air filter

Front panel

Indoor Unit

Indicator

Supersonic air
purifying device

Auto OFF/ON
button

Receiver

Discharged air

Do not touch
during operation

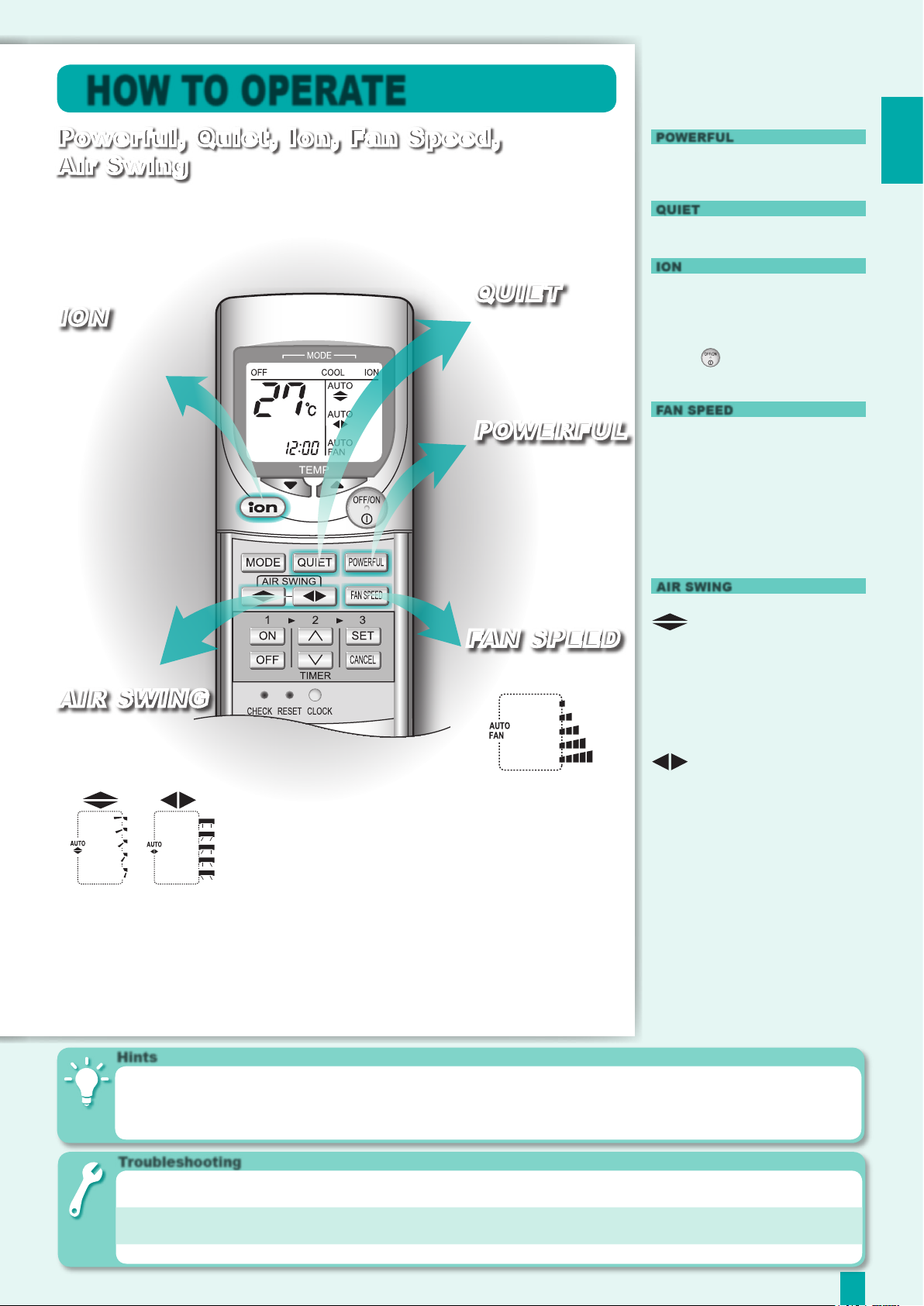

LCD display

Off/On

Fan speed selection

Memory reset

Clock setting

Temperature setting

Powerful operation

Operation mode

Quiet operation

Timer setting

Ion operation

Airflow direction
adjustment

Remote Control

Transmitter

Check

■ About

Remote Control Preparation

• Make sure it is not obstructed.

• Maximum distances: 10m.

• Certain fluorescent lights may
interfere with signal transmission.
Consult your dealer.

Remote Control Signal

• To operate the unit if the
remote control is misplaced or
malfunctioning.

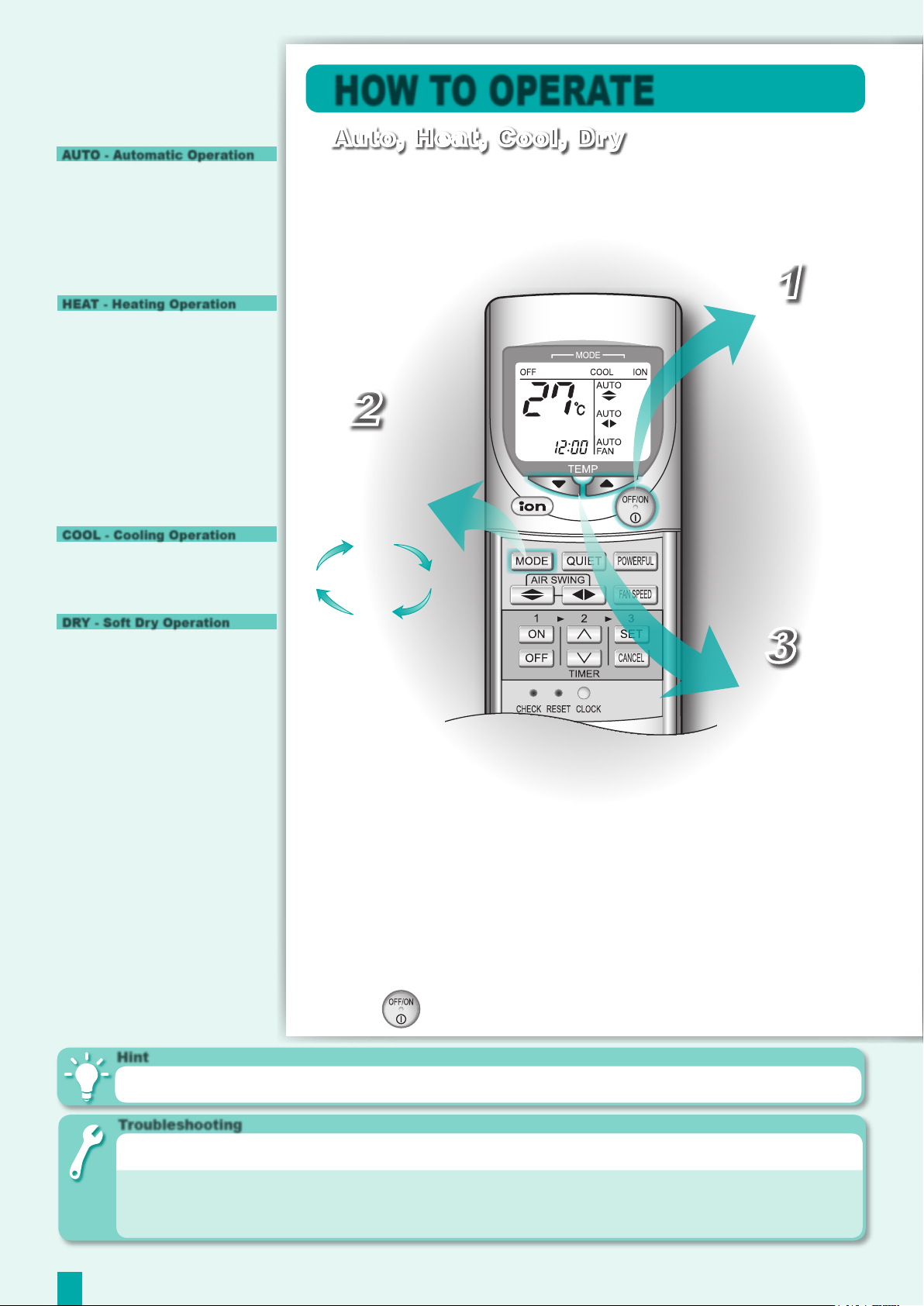

Action

Operation

mode

Press once

Automatic

Operation

Press until “beep”

sound and release.

Cooling

Operation

Press until “beep”

sound and release.

Press again until

“beep-beep” sound

and release.

Heating

Operation

• To OFF, press again the Auto OFF/
ON button.

Auto OFF/ON Button

1. Pull out

2. Insert
batteries

(AAA or

R03)

5. Press again to confirm

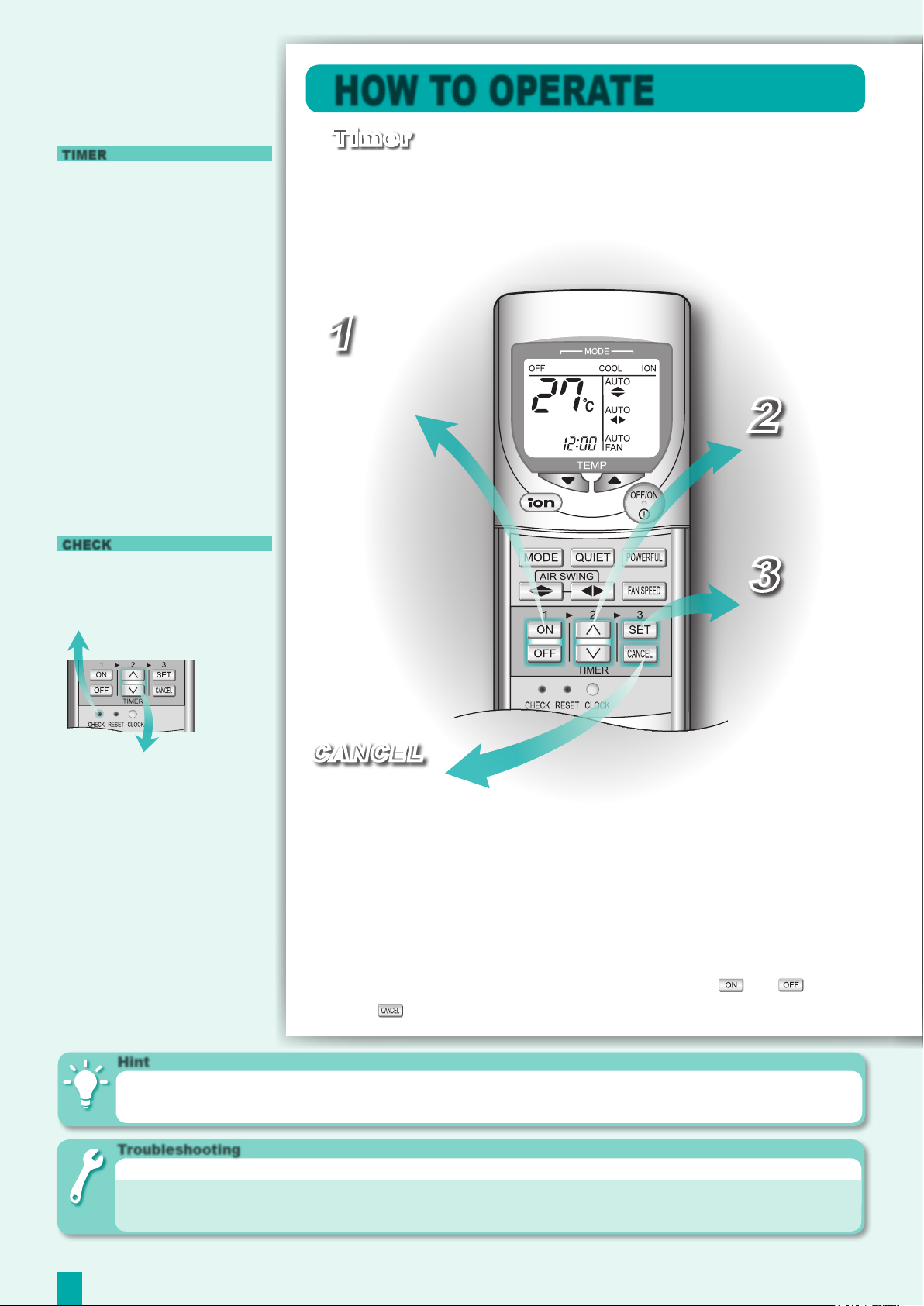

• Timer operation will be based on
current time set.

• The batteries can be used for
approximately 1 year.

• The batteries must be
recycled or disposed of
properly.

3. Press CLOCK button

4. Set
current
time
