Panasonic

Color Television

Operating Instructions

ki'-Hli.i

CT-32S21

Read these Instructions completely before operating. Contents subject to change without notice or obligation.

Copyn^ 1M7 by t^esushni Dadnc Corporaaon of Amance Afl ratarvad Unautionzad cepyaipandaairfcuionaanoaaonoHaw

CT-3268S

PnmadnU 8A

TOB2AA0122

Page 2

Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow-head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

Note To CATV System Installer: This renninder is provided to call the CATV system installer’s attention to Article

820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Safety Instructions For Television Receivers

1. Read and apply the operating instructions provided with your television receiver.

2. Read all of the instructions given here and retain them for later use.

3. Unplug this television receiverfrom the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use attachments not recommended by the television receiver manufacturer as they may cause hazards.

5. Do not use this television receiver near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming pool, etc.

6. Do not place this television receiver on an unstable cart, stand, or table. The television receiver may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the television receiver. Wall or shelf mounting should follow the manufacturer’s

instructions, and should use a mounting kit approved by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and

uneven surfaces may cause the appliance and cart combination to overturn.

7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure

reliable operation of the television receiver and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the television receiver on a bed, sofa, rug or other similar surface. This television receiver should never be placed near or over a radiator or heat register. This television receiver should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

8. Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power company. For television receivers designed to operate from battery power, refer to the operating instructions.

9. This television receiver is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug

fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the

polarized plug.

10. Do not allow anything to rest on the power cord. Do not locate this television receiver where the cord will be abused by persons walking on it.

11. Follow all warnings and instructions

marked on the television receiver.

12. Do not overload wall outlets and extension cords as this can result in fire or electric

shock.

13. Never push objects of any kind into this television receiver through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television receiver.

- 2-

Page 3

14. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Section 810 of the National Electrical Code and in Canada Part 1 of the Canadian Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure.

15. For added protection for this television receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the receiver due to lightning and power-line surges.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall intasuch power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Unplug this television receiver from the wall outlet, and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

If liquid has been spilled into the television receiver.

If the television receiver has been exposed to rain or water.

If the television receiver does not operate normally by following the operating instructions. Adjust only those

controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the television receiver to norma! operation. If the television receiver has been dropped or the cabinet has been damaged.

When the television receiver exhibits a distinct change in performance - this indicates a need for service.

18. Do not attempt to service this television receiver yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire,

electric shock, or other hazards.

20. Upon completion of any service or repairs to this television receiver, ask the service technician to perform routine safety checks to determine that the television is in safe operating condition.

21. WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

22. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NOTE: This equipment is designed to operate in the U.S.A., Canada and other countries where the broadcasting system

and AC house current is exactly the same as in the U.S.A. and Canada.

Important Information Regarding Use of Video Games, Computers, DSS or Other Fixed Image Displays.

The extended use of fixed image program material can cause a permanent “shadow image” on the picture tube. This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible picture tube deterioration can be limited by observing the following steps: A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

NOTE: The marking or retained image on the picture tube resulting from fixed Image use is not an operating defect and as

such is not covered by Warranty. This product is not designed to display fixed image patterns for extended periods of time.

Specifications

Power Source Channel Capability

Video Input Jacks (2): Audio Input Jacks (2): To Audio AMP Jacks: S-VHS input Jack

120V AC, 60Hz 181 channels (See chart)

VHF 2-13, UHF 14-69, Cable 125 channels

IV p-p, 75 ohm, phono jack type 500mV rms 47K ohm 0-2.0V rms 4.7K ohm S-Video (y-c) connector (CT-32S21 ONLY)

Stereo Sound Closed Caption Display Picture in Picture 1 Tuner

Specifications are subject to change without notice or obligation.

-3-

Channel Capability Chart

BAND

VHF UHF CABLE (Mid-Band) CABLE (Super Band) CABLE (Hyper Band) CABLE (Ultra Band)

TOTAL CHANNELS

CHANNELS

12 56 15

14 28 56

181

Page 4

Introduction

Congratulations on Your New Purchase

Your new video component features an all solid state chassis which is designed to give you many years of enjoyment, it was thoroughly tested and adjusted at the factory for best performance.

In order for you to take full advantage of your new video component, please read and follow the installation and operating instructions supplied with this product.

Customer’s Record

The model and serial number of this product may be found on its back cover. You should note the model and serial number

in the space provided and retain this book as a permanent record of your purchase to aid in identification in the event of theft or loss.

Model Number:

________________________________

Serial Number:__________________________________________

Table of Contents

Safety Instructions..............................................................2

Specifications

Introduction .........................................................................4

Installation ...........................................................................5

Television Location

Optional External Equipment Connections

AC Power Supply Cord ....................................................5

Remote Control Battery Installation

Antenna/Cable Connections............................................6

Installation

Television Location

This television is intended to be used with an optional stand or entertainment center. Consult your dealer for available options.

Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen.

Use of some types of fluorescent lighting may reduce remote control transmitter range. Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or

moisture. To insure optimum color purity do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.

Optional External Equipment Connections

The Video/Audio connections between components can be made with shielded video and audio cables. For best performance, video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic supply house.

Before you purchase any cables, be sure you know what type of output and input connectors your various components

require. Also determine the length of cable you’ll need.

AC Power Supply Cord

WITH A RECEPTACLE OR OTHER OUTLET UNL

INSERTED TO PREVENT BLADE EXPOSURE.

Remote Control Battery Installation

Batteries: Use two “AA” batteries.

1. Remove the battery compartment cover on back of the remote.

2. Install the batteries in the battery compartment. (Polarity (+) or (-) must be correct.)

3. Reattach the battery cover.

Helpful Hints:

For frequent Remote Control users, replace old batteries with Alkaline batteries for longer life.

Precaution on Battery Use

Incorrect installation can cause battery leakage and corrosion that will damage the Remote Control Transmitter.

Observe the Following Precautions:

1. Batteries must be replaced as a pair.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (Example: “Zinc Carbon” with "Alkaline”).

4. Do not attempt to charge, short-circuit, disas semble, heat or burn used batteries.

5. Battery replacement is necessary when Remote Control reacts sporadically or stops operating the

Receiver.

Helpful Hints:

Whenever you remove the batteries to replace them, you may need to reset the Remote Con

trol Infrared Codes. We recommend that you

initially record the codes in the Infrared Remote Codes for Specific Components section, prior to settinq up the remote.

______________________

-5-

Page 6

Installation (cont.)

Antenna/Cable Connections

Antenna Connection - For proper reception of VHF/UHF channels, an external

antenna is required. For best reception an outdoor antenna is recommended.

Antenna Mode must be set to TV. (Refer to Antenna Mode section.)

VHF/UHF

on Back of Set

Incoming Cable from Home Antenna

75 Ohm

VHF/UHF

on Back of Set 300 Ohm

Typical VHF/UHF Antenna

300 to 75 ohm Matching Transformer (Not Supplied)

Cable Connection - For reception of cable channels, connect the cable supplied by your local cable company. Antenna Mode must be set to CABLE. (Refer to Antenna Mode section.)

Incoming Cable from Cable Company

75 Ohm

VHF/UHF

on Back of Set

NOTE: Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A

cable converter box is required for proper reception. Check with your local Cable company for compatibility

requirements.

Care and Cleaning

Picture Tube (Turn set off)

Use a mild soap solution or window cleaner and a clean cloth. DO NOT USE ABRASIVE CLEANERS. Avoid excessive moisture and wipe dry.

Plastic Cabinets

Wipe the cabinet with a soft cloth dampened with water or a mild detergent solution and wipe dry with a soft clean cloth. Avoid excessive moisture. Do not use benzene, thinners or other petroleum based cleaners.

Wood Cabinets

When dusting or polishing the cabinet, use a clean soft cloth and stroke straight with the grain. An occasional coat of furniture polish will help preserve the finish. Do not use benzene, thinners or other petroleum based cleaners. Do not place

objects made of plastic or rubber directly on top of the cabinet. A chemical reaction could result causing permanent marring of the finish.

Remote Control Transmitter

Do not use benzene, thinners or other petroleum based cleaners to clean the Remote Control Transmitter. To clean, wipe

with a soft cloth slightly moistened with a mild detergent and then wipe dry with a soft clean cloth.

-6-

Page 7

Optional Equipment Connection and Operation

To Audio AMP Connection (Stereo)

Connect to an externa! audio amp auxiliary input for monitoring sound through a stereo system.

TERMINALS ON BACK OF TV

‘TO AUDIO AMP” terminals cannot be used directly with external speakers.

Adjustment - When an audio amp is connected to ‘TO AUDIO AMP” terminals;

1. Select TV SPEAKERS “ON ” Mode. {Refer to the Audio Menu TV Speakers section.) Set volume of audio amp to near minimum. Adjust volume of TV to desired listening level. Adjust volume of audio amp to match the level of TV. Select TV SPEAKERS “OFF&VAO ” Mode. (Refer to the Audio Menu TV Speakers section.) Volume and mute can now be controlled by the TV Remote Control.

NOTE: When Selecting TV SPEAKERS “OFF&FAO” Mode, the TV sound output is always at a constant level and cannot

be changed (Refer to the Audio Menu TV Speakers section).

Audio/Video input Connection

S-Video connection is optional and overrides the standard Video

TERMINALS ON BACK OF TV

Operation

1. Connect optional equipment as shown to INPUT 1 or 2 terminals. If S-Video is to be used, connect S-Video (YC)

connector to S-Video terminal and connect audio cables to L & R Audio INPUT 1 terminals. (S-Video Connection is

only used for CT-32S21.)

2. Select the desired Video mode by pressing the TVA/IDEO button.

3. Operate optional equipment (VCR-VDP) as instructed in Optional Equipment manual.

NOTE:

• You must select the same VIDEO Mode that the equipment is connected to.

• Connection of optional S-VIDEO jack automatically disconnects the Normal Video Input 1 jack. (S-Video Connection

is only used for CT-32S21.)

connection when connected.

(S-Video Connection is oniy used for CT-32S21.)

OPTIONAL EQUIPMENT

TERMtNALS ON BACK

OF EQUIPMENT

-7-

Page 8

Optional Equipment Connection and Operation (cent.)

VCR and Cable Box Connection

VCR or VIDEO

DISC PLAYER

TERMINALS ON BACK OF TV

CABLE

BOX

ANTtNPUT

(Cables Not Supplied)

ANT OUTPUT

ÀNTfNPtîT

Incoming Cable From Antenna or

Cable TV System

Connection

1. Program Remote Control for VCR and Cable Box.

2. Connect incoming Cable to optional cable box ant input.

3. Connect a cable from Cable box ant output to VCR ant input.

4. Connect a cable from VCR ant output to TV ant input.

5. Connect RCA cables from VCR AudioA/ideo output to TV AudioA/ideo input, 1 or 2. Select the same VIDEO Mode that the equipment is connected to.

Picture in Picture Operation with VCR and Cable Box

This Receiver has the “PICTURE IN PICTURE” feature. For the proper operation of this feature a second video source is

required (such as a VCR). We recommend that you make your antenna and External Video connection as shown below

when a second video source is available.

TERMINALS ON BACK OF TV

VCR or VIDEO

DISC PLAYER

CABLE

BOX

ANT OUTPUT

ANT INPUT

Incoming Cable From Antenna Or Cable TV System

VIDEO out

ANT INPUT

ANT OUTPUT

(Cables Not Supplied)

Operation

1. Press the PIP button to display the PIP frame.

2. Press the TVA/IDEO button to select the desired video mode. Select the same VIDEO Mode that the equipment is connected to.

3. Turn VCR ON. NOTE: PIP video and Main video source will be the same.

4. Press PLAY button for VCR. NOTE: PIP video and Main video source will be from VCR.

5. Press TVA/CR button to display TV video source for Main picture.

-8-

Page 9

Optional Equipment Connection and Operation (cont.) Picture in Picture Operation Using VCR as Second Tuner

This Television has the “PICTURE IN PICTURE” feature. For the proper operation of this feature a second video source is required (such as a VCR). We recommend that you make your antenna and External Video connection as shown below when a second video source is available.

VCR or VIDEO DISC PLAYER

To ANT Terminal

Operation

1. Press the PIP button to display the PIP frame.

2. Press the TVA/IDEO button to select the desired video mode. Select the same VIDEO Mode that the equipment is connected to.

3. Turn VCR ON. NOTE; You may lose TV video source for Main Picture.

4. Press TVA/CR button to display TV video source for Main Picture.

5. Use the VCR Tuner to select channels in the PIP frame.

Helpful Hints:

The PIP will operate using AudioA/ideo input terminals 1 or 2. Use the TVA/IDEO button

(when the PIP frame is displayed) to select proper mode.

The PIP feature will operate using S-Video input terminal 1 ( For CT-32S21 only).

-9-

Page 10

Location of Controls Television

Power Button - Press to turn ON or OFF.

Volume Buttons - Press to adjust Sound Level. Press to adjust Audio Menus, Video Menus and select

operating features when menus are displayed.

Channel Buttons - Press to select programmed channels. Press to highlight desired features when menus

are displayed.

Action Button - Press to display Main Menu and access On Screen feature and Adjustment Menus. TVA^ideo Button - Press to select TV or one of two Video Inputs.

-10-

Page 11

Location of Controls Remote

Power Button

Press to turn ON or OFF.

TVAiideo Button

Press to select TV or one of

two Video Inputs, for the Main

Picture or the PIP frame (when

the PIP frame is displayed).

Volume Buttons

Press to adjust TV sound level. Use with Channel buttons to navigate in menus.

Keypad Buttons

Press desired channel number to randomly access any channel.

R-Tune (Rapid Tune) Button

Press to switch to the previous

channel.

VCR Function Buttons

Programmable to operate many brands of VCR’s.

TVA/CR/CABLE Switch

This switch is used to select the

proper mode when programming Remote Control Infrared codes or operating the TV or external equipment (VCR or Cable box).

PiP Move Button

Press to position PIP frame

to any corner of the Main

Picture (when PIP frame is

displayed).

-------------------------

(forCT-3268S)

Mute Button

Press to mute sound. A second press resumes sound. Press also to access and delete Closed Caption.

Multi Button

Programmable to operate up to six Remote Control Function buttons simultaneously.

Channel Buttons

Press to select channels. Use with

Volume buttons to navigate in menus.

Action Button

Press to display Main Menu and access or exit On Screen feature and Adjustment Menus.

Recall Button

Press to display Time, status of Sleep Timer, Channel, Video Mode, Channel Caption (Station Identifier) and Audio

Mode.

Cable Power Button - Programmable

to operate selected CATV converter

boxes.

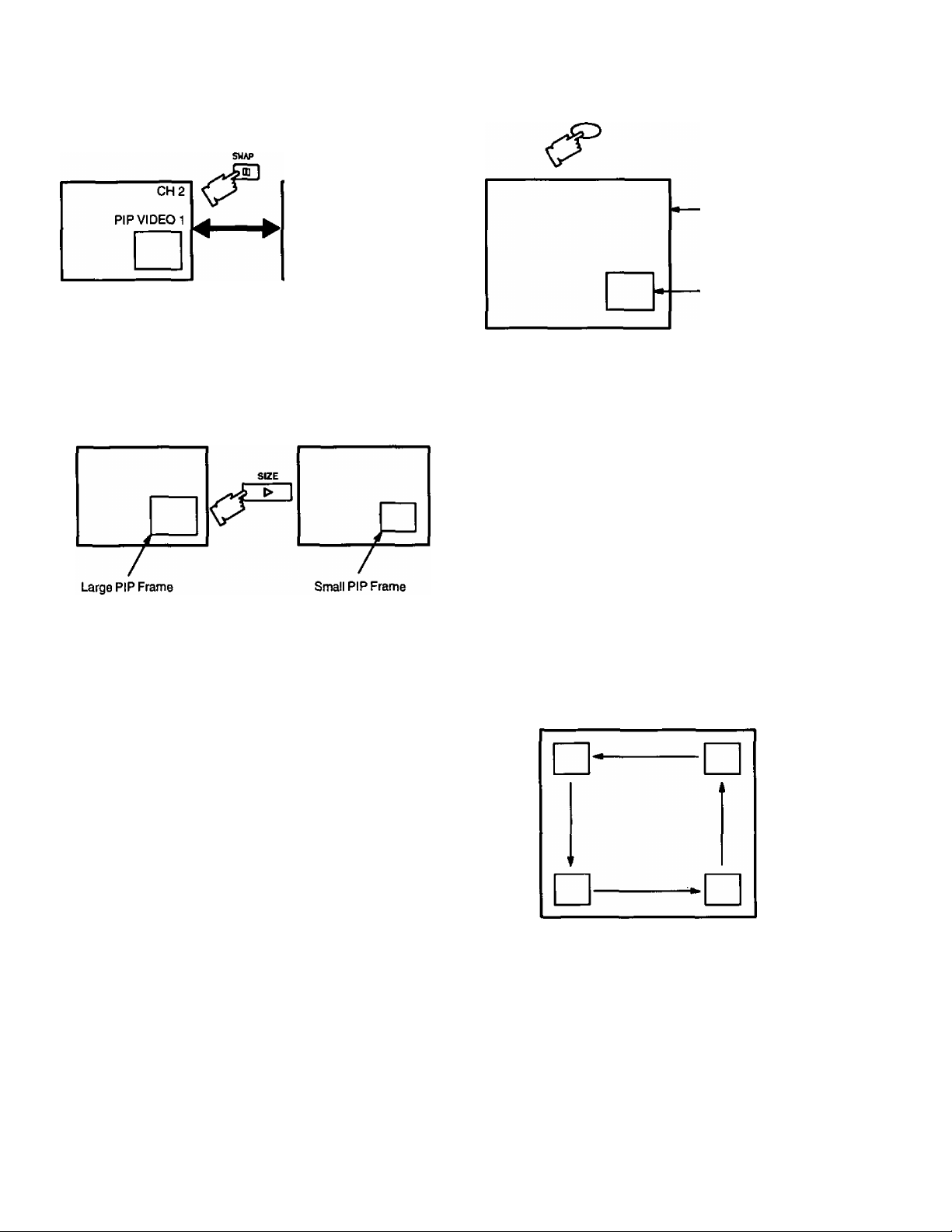

PIP (Picture In Picture) Button

Press to display the PIP frame, press again to remove PIP frame.

PIP Swap Button

Press to interchange PIP frame with

Main Picture (when the PIP frame is

displayed).

PIP Size Button

Press to select size of PIP frame

(when the PIP frame is displayed).

PIP Freeze Button

Press to stop action in the Main Picture or PIP frame (when the PIP frame is displayed).

EUR511001A

-11 -

Page 12

Remote Control

Quick Reference Functional Key Chart

(forCT-32688)

KEY OPERATES

FUNCTION

POWER

MUTE

TV/VIDEO

MULTI

ACTION

TV Turns TV On and Off

TV Mutes TV Audio

ALL COMPONENTS

TV ^

CABLE „

Selects the TV Input Mode

Programmable Button that can operate up to six (6) Remote Functions at once

Activates TV Menus

Channel Up/Down, Menu Navigation Channel Up/Down

CD (D ®

® © © © © ©

R-TUNE

RECALL

CABLE ™ ^

VCR

VCR CABLE

TV Displays Channel (or Video Mode), Channel Caption,

Volume Up/Down, Menu Navigation

Search for infrared Code when Programming Remote

Selects Channel Selects Code in Game Guard Menu

Selects Channel in Channel Caption Menu Selects Channel in Timer Menu

Selects Infrared Code when Programming Remote Selects Infrared Code when Programming Remote

Switches Between Two (2) Channels'

Time, Sleep Time, and Audio Mode

-12-

Page 13

Remote Control

Quick Reference Functional Key Chart (cent.)

(forCT-3268S)

KEY

TV/VrR/CABLF

1—n \

CABLE

POWER

□

VCR POWER

REC

STOP

rsn

VCR CHANNEL

OPERATES

TV VCR VCR Mode Selection for Remote Control CABLE

CABLE

VCR Turns VCR On and Off

VCR Record

VCR

VCR VCR Channel Up/Down

TV Mode Selection for Remote Control

CATV Mode Selection for Remote Control

Turns Cable On and Off

Stop

FUNCTION

® O

PIP

c:^

SIZE

[ t>_|

REU

MOVE

C^~l

PAUSE

SWAP

TV/VCR

FR^E

VCR Fast Forward

TV PIP Size

VCR Play

TV PIP Move

VCR Rewind

VCR Pause

TV PIP Freeze VCR Selects TVA/CR Mode

PIP ON/Off

PIP Swap

-13-

Page 14

Location of Controls Remote (for CT-32S21)

Basic Remote Control Functions

The following is an overview of the Remote Control unit for television operation. Ensure the TV mode Is selected by Initially pressing ^ .

Multi Button

Programmable to operate up to six Remote Control Function buttons simultaneously.

Power Button

Press to turn ON or OFF.

Mode Selection Buttons

Select the operation mode for the remote control.

Volume Buttons

Press to adjust TV sound level. Use with Channel buttons to' navigate in menus.

Action Button

Press to display Main Menu and access or exit On Screen feature and Adjustment Menus.

R-Tune (Rapid Tune) Button

Press to switch to the previous channel.

PIP Move Button

Press to position PIP frame to any corner of the Main Picture (when PI P frame is displayed).

PIP Freeze Button

Press to stop action in the Main Picture or PIP frame (when the PIP

frame is displayed).

PIP Size Button

Press to select size of PIP frame

(when the PIP frame is displayed).

% y ^

—f action) —

rptwr I

' HOVE SIZE PIP

Keypad “0 through 9” Buttons

Press desired channel number to randomly access any channel.

TV/Video Button

Press to select TV or one of two Video

Inputs, for the Main Picture or the PIP

" frame (when the PIP frame is displayed).

Mute Button

Press to mute sound. A second press

resumes sound.

Channel Buttons

> Press to select channels. Use with

Volume buttons to navigate in menus.

Recall Button

Press to display Time, status of Sleep Timer, Channel, Video Mode, Channel Caption (Station Identifier) and Audio Mode.

PIP (Picture In Picture) Button

Press to display the PIP frame, press again to remove PIP frame.

PIP Swap Button

Press to interchange PIP frame with Main

Picture (when the PIP frame is displayed).

VCR Function Buttons

Programmable to operate many brands of VCR’s.

VCR/DSS Channel Buttons

Select VCR or DSS Up/Down channels.

Home Theater Remote Control

Note:

For more information on the Remote Control, please refer to the Remote Control Quick Reference Functional Key Chart.

EUR511060

-14-

Helpful Hints:

If the selected component does not respond to the remote control^ ensure

that the proper mode is selected.

First, press the Mode Selection

Button that corresponds to that

component. For example, after first pressing the TV Mode Button, the

remote will remain in the TV mode for

the following commands. If a different

mode button is pressed white

operating the television, the TV mode

button must be pressed again to

enable the TV mode condition.

Page 15

Remote Control

Quick Reference Functional Key Chart

(forCT-32S21)

KEY

(D ® (D

0 ® ®

® ® ®

(^OWE^

0*JTE)

MODE FUNCTION

TV VCR, VCR 2 CABLE, DSS

RECEIVER/AMPLIFIER

CD PLAYER Selects Track Number

LO PLAYER

ALL COMPONENTS

ALL COMPONENTS Turns On and Off Selected Components

TV, DSS, VCR, VCR 2 LDP CABLE RECEIVER/AMPLIRER

Selects Channel Selects Channel Selects Channel

0 Selects Tuner ® Selects CO Player

® Selects Tape Cassette Player ® VCR1

(f) VCR 2

Selects Track Number

Programmable Button That Can Operate Up To Six (6)

Remote Functions At Once

Selects the TV Input Mode

Mutes TV Audio Mutes Audio Mutes Audio

TV Mode Selection for Remote Control

CABLE

DSS (DIGITAL SATELLITE SYSTEM)

VCR, VCR 2 VCR Mode Selection for Remote Control

RECEIVER/AMPLIRER

COMPACT DISC

CASSETTE DECK, VCR 2, DVD

LASER DISC PLAYER LD Mode Selection for Remote Control

TV CABLE

DSS

LDP CD RECEIVER/AMPLIRER

DVD

TV CABLE DSS

RECEIVER/AMPLIFIER VCR, VCR 2

LDP

Cable Mode Selection for Remote Control

DSS Mode Selection for Remote Control

Receiver/Amplifier Mode Selection for Remote Control

CD Mode Selection for Remote Control

AUX Mode Selection for Remote Control

Enables User to Operate a Cassette Deck, Digital Video Disc or Second VCR

Channel Up/Down, Menu Navigation Channel Up/Down

DSS Guides and Menu Navigation Skip FF, REW Preset or Tuning Frequency

Skip FWD/Skip REW

Volume Up/Down, Menu Navigation Volume Up/Down

DSS Guides and Menu Navigation, Also Switches Between Normal Audio and SAP Volume Up/Down TV Volume Up/Down

TV Volume Up/Down

-15-

Page 16

Remote Control

Quick Reference Functional Key Chart (cont.)

(forCT-32S21)

KEY

MODE

LDP A/B Repeat

TV Switches Between Two (2) Channels

CABLE

Switches Between Two (2) Channels

VCR, VCR 2 Switches Between Two (2) Channels DSS RECEIVER/AM PURER

Switches Between Two (2) Channels Switches between AM and FM

CD Selects Next Disc AUDIO TAPE RECORDER Selects Audio Tape Recorder AorB

[[ ACTIOWlI

TV DSS

Activates TV Menus Acts as Menu Button for DSS

Dispiays Channel, Sleep Time,Channel Caption, Time, and Audio Mode

(^calQ

DSS

Displays Current DSS Settings

VCR, VCR 2 Displays Current VCR Settings LDP Displays Current LDP Settings

<^D

REW WVE

TV DSS

VCR, VCR 2 Rewind LDP

PIP Move

DSS Guide

Rewind

TAPE Rewind CD Selects Previous Track

PLAY

SIZE

DVD TV

DSS VCR, VCR 2

LDP Play

TAPE

Rewind PIP Size

Enter/Select Play

Play (in Normal Direction)

CD Play DVD Play

r&C^

PIP

DSS ExiVCIear

VCR, VCR 2

LDP Fast Forward

TAPE

PIP On/Off

Fast Forward Fast Forward

Selects Next Track

DVD Fast Forward

REC

[lsS]

DSS One Touch Record in DSS Mode VCR, VCR 2 Record TAPE Record

CABLE VCR Record DVD Stop

STOP

1 O-J

VCR, VCR 2 Stop

LDP Stop TAPE Stop CD Stop

CABLE VCR Stop

DVD Pause

PAUSE

SWAP

CsD

VCR, VCR 2

LDP TAPE

CABLE

PIP Swap Pause Pause Pause

Pause VCR Pause

TV PIP Freeze

TV/VCR VCR, VCR 2 Selects TVA^CR Mode

FREEZE

VCR/OSS CH

DSS Selects TV/DSS Mode

CABLE

VCR, VCR 2

DSS

Selects TVA/CR Mode Channel Up/Down

Channel Up/Down

FUNCTION

-16-

Page 17

Special Functions

Recall Button

Press the RECALL button to review:

0 Audio Mode status

(|) CH number or Video Input selected @ Channel Caption (Station Identifier) ® Clock time (5) Sleep Timer status

R-Tune Button

Pressing the R-TUNE (RAPID TUNE) button will switch between the last two channels selected on the numeric keypad.

Note: When scanning channels with the CHANNEL

UP/DOWN button, pressing the R-TUNE button will switch between the last two channels scanned.

.CHANNEL NOW

’ BEING VIEWED

Press Button

CHANNELTUNED

IMMEDIATELY BEFORE

Multi Button (for CT-32S21)

The MULTI button can be programmed to operate up to six (6) Remote function buttons at the same time.

For Example: TV Power/On, VCR Power/Oh, and Cable

box Power/On (selected brands) can be operated at thè same time with one press of the MULTI button. (The VCR

Mode button should be programmed before starting procedure).

Procedure

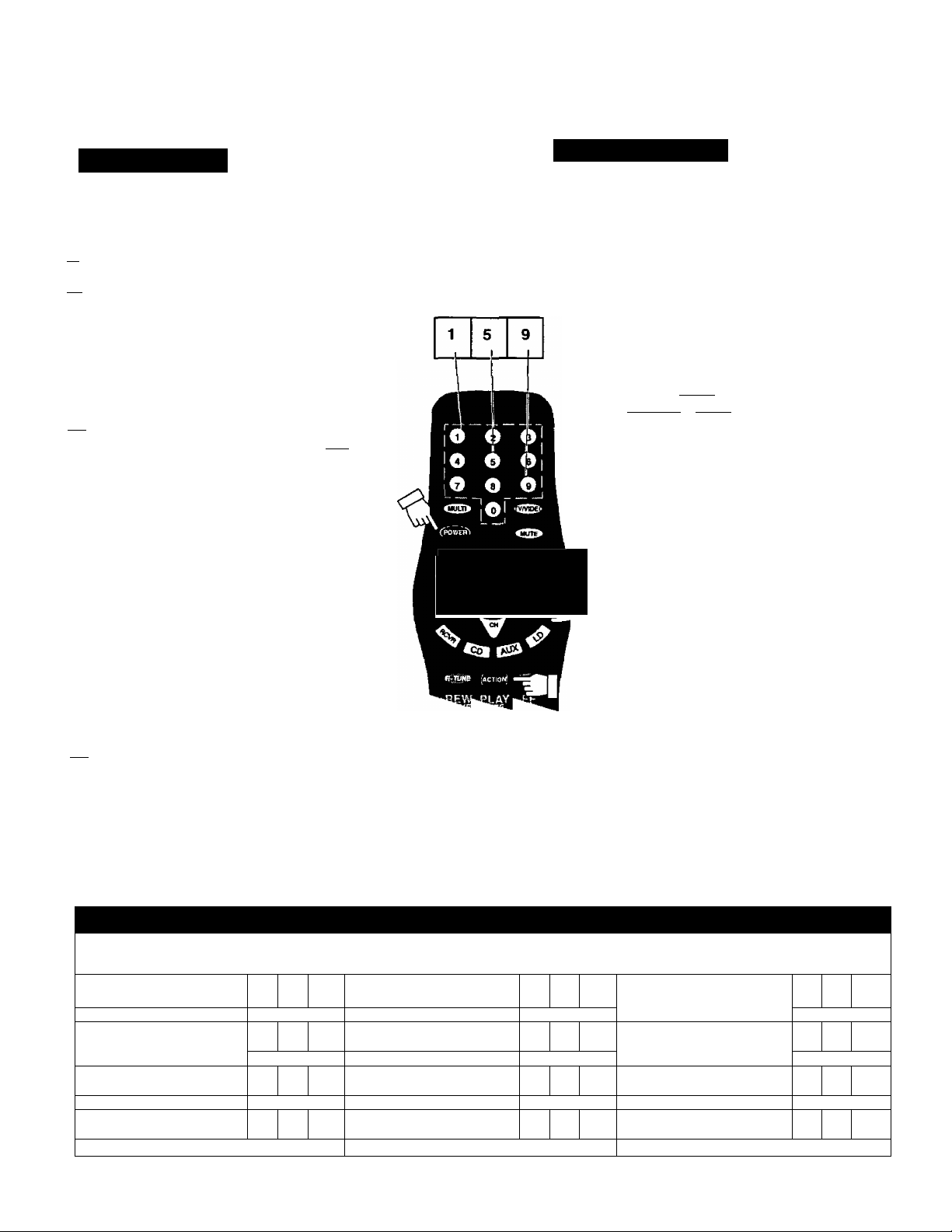

1. Program the Remote for the selected device Infrared access code. Confirm that the Remote Control is compatible with the device.

2. Face the Remote Control transmitter away from all equipment remote sensors.

3. Press and hold the Remote POWER button, then press and hold the ACTION button down at the same time for three seconds. (Air previous commands are erased.)

PRESS AT THE SAME TIME FOF THREE SECONDS

After three seconds, release the POWER and ACTION buttons.

Press the MULTI button.' (Waiting more than 30

5. seconds without pressing another button will exit the

programming mode.) Press a maximum of six (6) function buttons on the

, Remote Control.

Each button you press is equal to one function. If six (6) Remote button functions are entered, all will register in the MULTI button memory in the sequence entered. When finished, press the MULTI button to exit the programming mode.

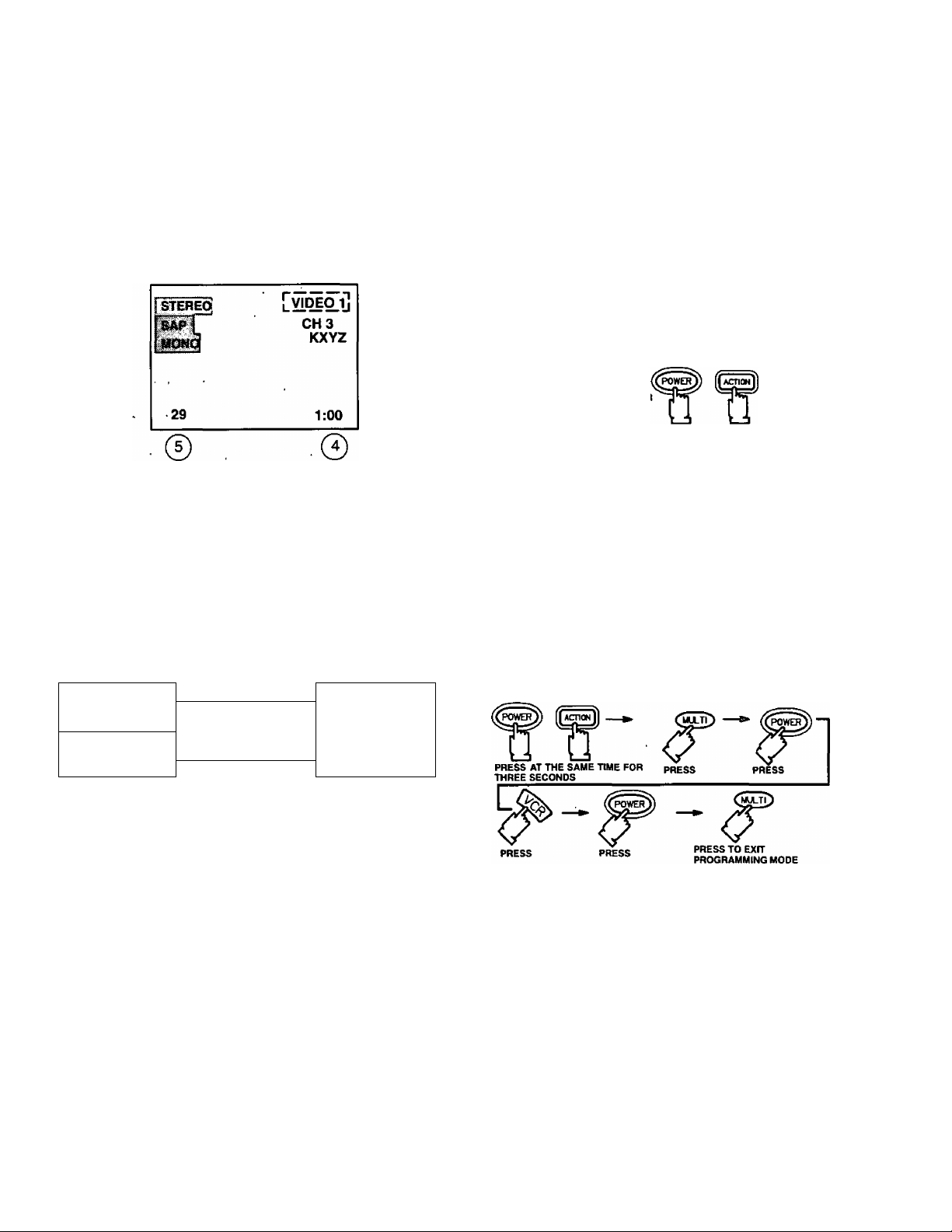

The following is an example flow chart of Remote functions that can be programmed into the MULTI

button.

Press Button Again

You can now turn the TV and VCR ON/OFF at the same time with one press of the MULTI button.

To delete entered functions - Press and hold the

Remote POWER button, then press and hold the ACTION button down at the same time for three seconds. You can now enter from one to six different

Remote functions.

NOTE: You can also program the MULTI button to perform

most individual Remote Control button functions. Buttons which continuously perform a function as long as pressed (Volume Up/Down, Channel Up/Down, etc.) cannot be programmed; only those buttons which perform a function when initially pressed (Power On/Off, Mute, Direct Channel Entry, etc.) can be programmed.

-17-

Page 18

Special Functions (cont.) Multi Button (for CT-3268S)

The MULTI button can be programmed to operate up to 6 Remote function buttons at the same time. For Example: TV Power/On, VCR Power/On (selected

brands) can be operated at the same time with one press of the MULTI button.

Procedure

1. First program the Remote for the selected VCR Infrared access code. Confirm that the Remote Control is compatible with the equipment. Face the Remote Control transmitter away from all

2. equipment remote sensors.

Press and hold down the Remote TV Power button,

3. then press and hold down the MULTI button at the same time. Release buttons (All previous commands will be erased.)

POWER MULTI

PRESS SIMULTANEOUSLY

Press a maximum of 6 Function buttons on the

Remote. Each button you press is equal to one function. If six Remote button functions are entered, all will register in the MULTI button memory in the sequence entered.

When less than six Remote button functions are

entered, press the MULTI button to end the program mode. (Waiting more than 30 seconds without pressing another button will also end the program mode.)

The following is an example of Remote functions that can be programmed into the MULTI button.

- TV Power - For turning TV ON and OFF,

- VCR Power - For turning VCR ON and OFF (selected brands after programming it’s Infrared access code, if

necessary). Both can be turned ON or OFF with one press of the MULTI button.

POWER VCR POWER

MULTI

Cable Power Button (for CT-3268S)

CABLE

POWER

The on the Remote Control has been designed

to operate selected brands of Cable Television Converter

boxes. The proper cable television converter box infrared code must be obtained prior to use. (Please refer to

Programming the Universal Remote for programming instructions.) The Remote Control TVA/CR/CABLE switch should be in the CABLE position.

NOTE: The A or ^ on the Remote may be used for

selecting Cable Converter box channels.

PIP (Picture in Picture) Button

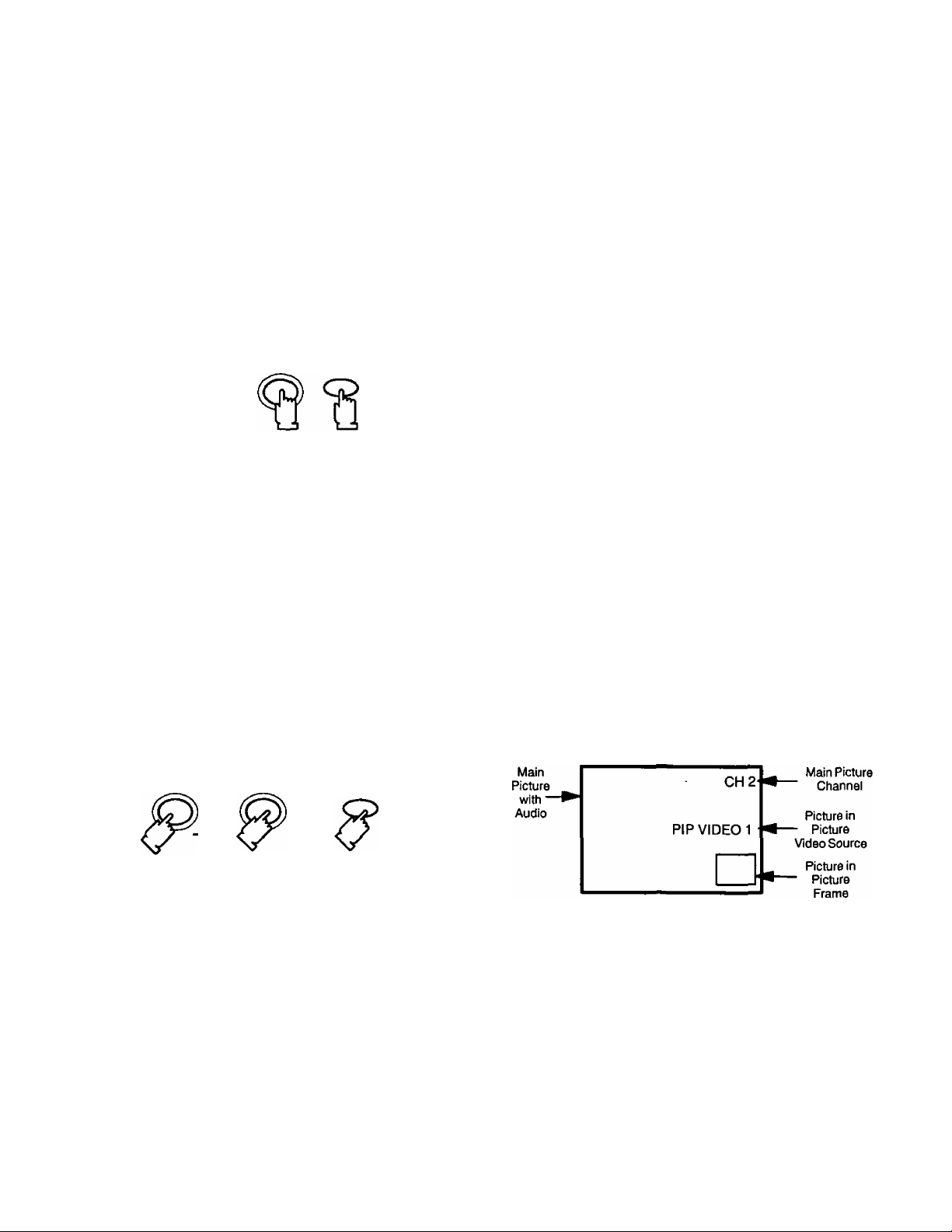

This feature allows the viewer to monitor one channel

program while watching another. The monitored source

(PIP) must be a different video source (such as a VCR)

when connected to the input jacks.

• When the Main Picture is in Video mode with no signal, the PIP will not operate properly.

PIP Operation

1. Turn VCR ON and select a desired channel.

2. Press the TV Mode Selection button to operate TV

Remote functions, if necessary (some models).

3. Press the PIP button (set must be ON). The PIP frame wilt appear at the position it was last displayed. The

Main Picture Video Source and PIP Video Source will display on screen momentarily. Audio will be that of Main Picture.

To delete entered functions - Repeat step 3. Now

you can enter from one to six different Remote functions.

NOTE: You can also program the MULTI button to perform

most individual Remote Control button functions. Buttons which continuously perform a function as long as pressed (Volume Up/Down, Channel Up/Down, etc.) cannot be programmed. Only those buttons which perform a function when initially pressed (Power On/Off, Mute, Direct Channel Entry, etc.) can be programmed.

-18-

Press the PIP button again to cancel PICTURE IN PICTURE feature (if desired).

NOTE: For PIP Video source connection, refer to the PIP

Operation Using VCR As second Tuner section.

Page 19

Special Functions (cont.)

Swap Button

Press the SWAP button (when the PIP frame is displayed) to interchange what is being viewed on the Main Picture with that of the PIP frame.

VIDEO 1

PIPCH2

NOTE: Audio will be that of Main Picture.

Size Button

Press the SIZE button (when the PIP frame is displayed)

to choose either the large or small PIP frame.

Freeze Button

Press the FREEZE button to stop action in the PIP frame.

FREEZE

Main


Freeze

Franfie

NOTES:

• Pressing the FREEZE button when the PIP frame is not displayed, will stop action in the Main Picture and display it within the PIP frame.

• Pressing the FREEZE button when PIP frame is displayed, will stop action in the PIP frame. Press the FREEZE button again to continue action.

• Press the PIP button to delete PIP frame.

Move Button

The PIP frame may be located at any corner of the Main Picture by pressing the PIP MOVE button (when the PIP frame is displayed).

NOTE: Each time MOVE button is pressed (when the PIP

frame is displayed), the PIP frame will move

counterclockwise as illustrated.

-19-

Page 20

Main Menu Icons

^5^

IMI

NOTE; When Auto Power On feature

is activated, Timer Icon will change to

an Exit Icon.

Display and Exit Menus

Menu Language Selection

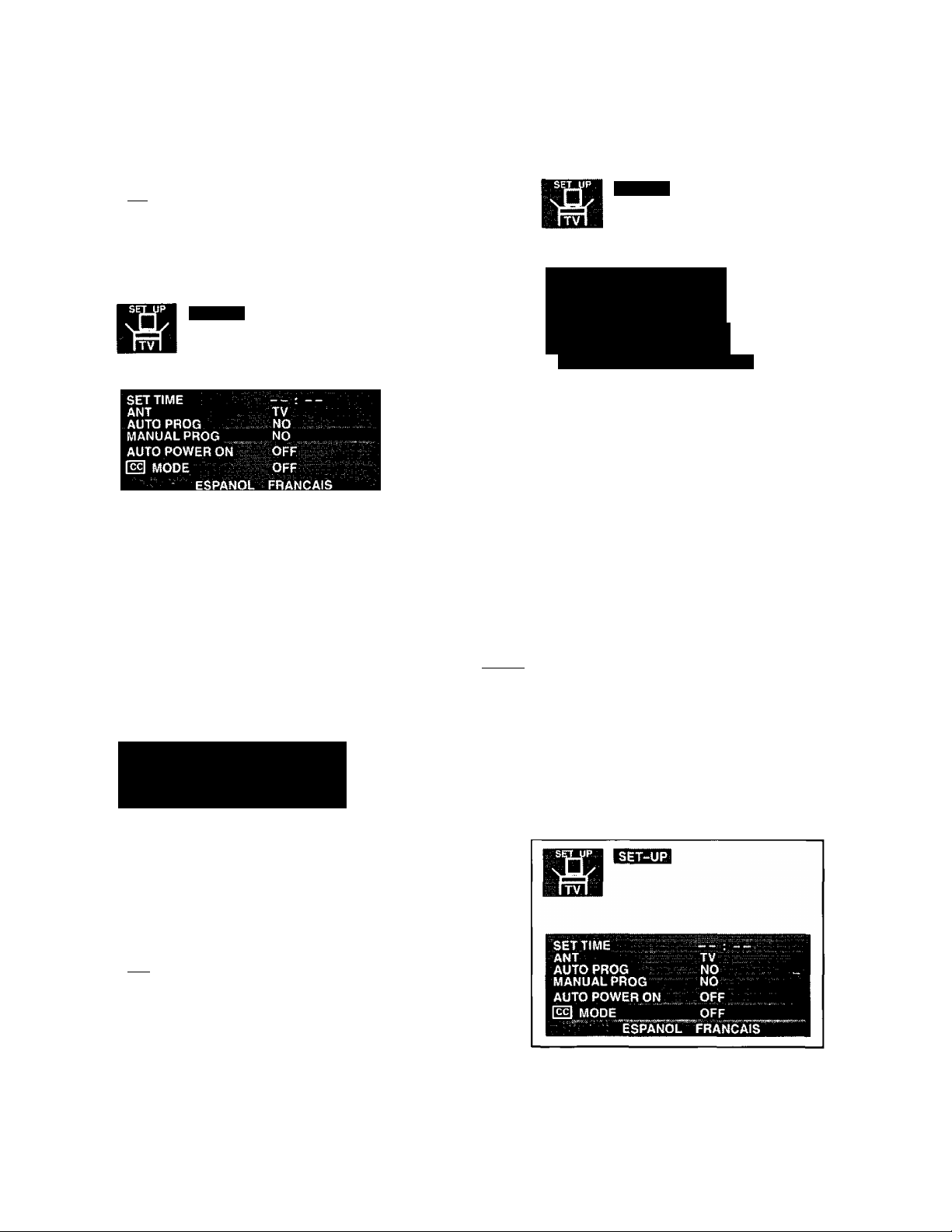

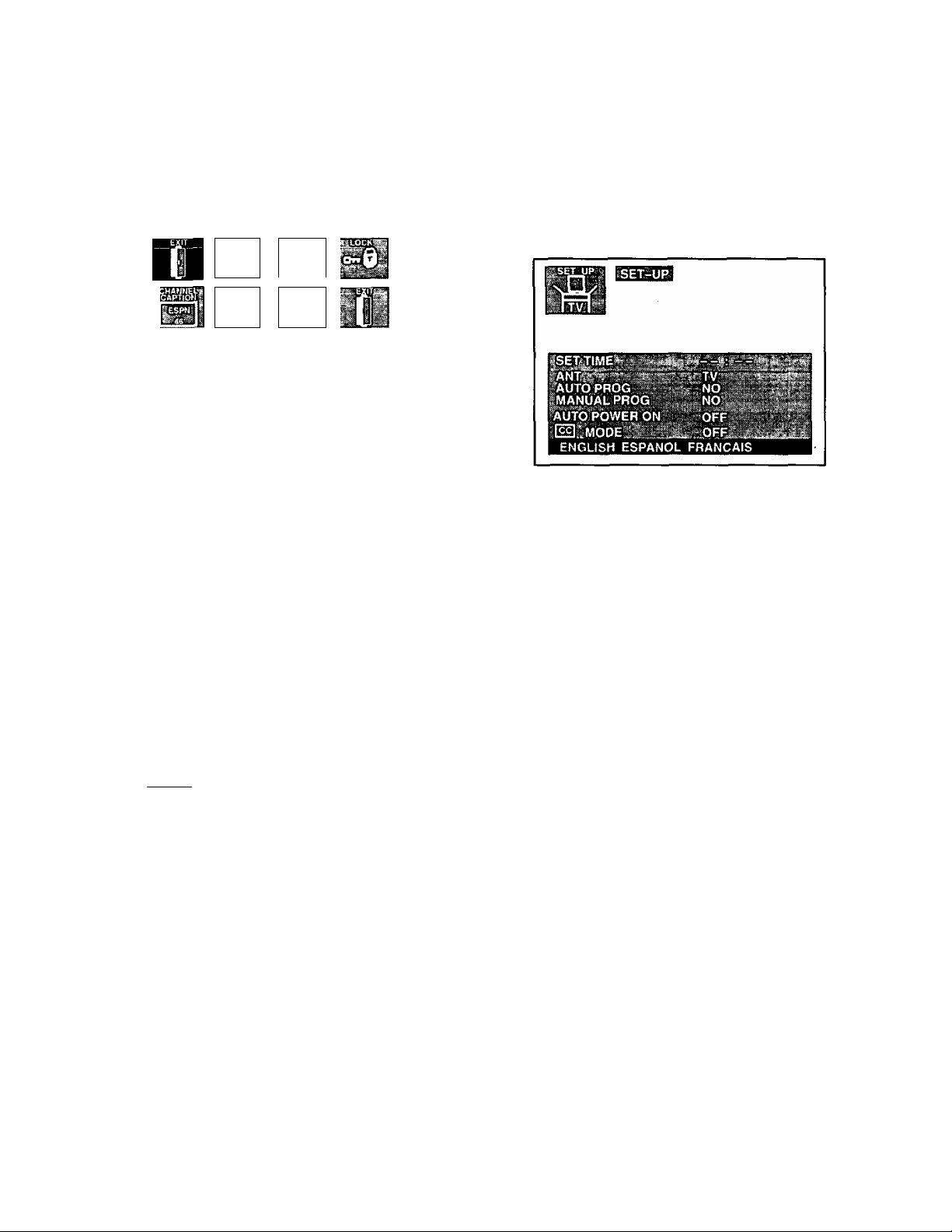

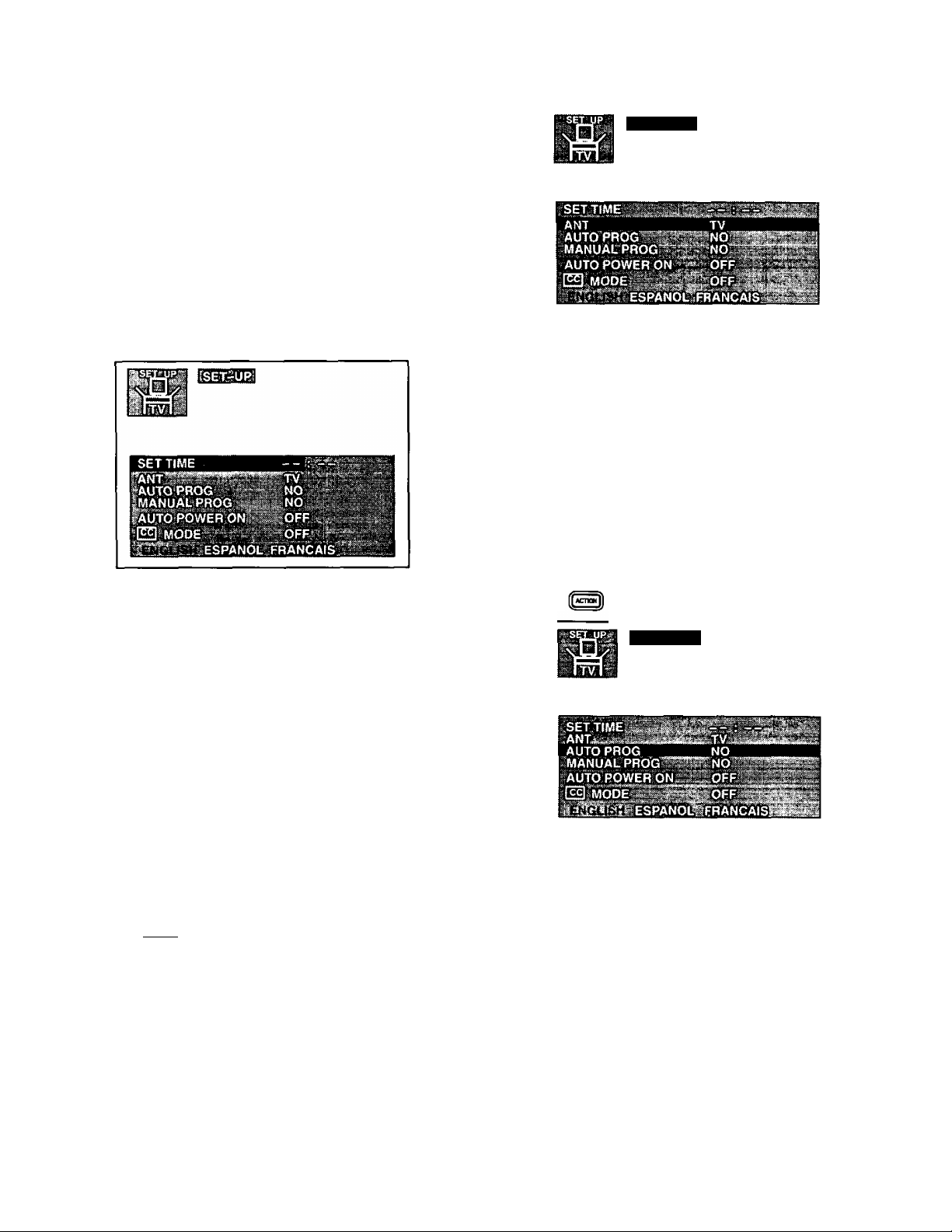

The MENU LANGUAGE is factory set to ENGLISH. Follow the Instructions to change the Menu Language to SPANISH, FRENCH, and back to ENGLISH.

1. Press

2. Press^^ or^^ and or^^ to highlight the Set-Up Icon,,

3. Presses

to display the Set-Ùp Menu.

CH BUTTONS

Highlight Desired

Feature when

Located On Remote Control

1. Press ^3.

2. Press A or ^ and ^ or ^ to select the desired Icon.

3. Press ILssiJJ after selecting the desired Icon to access sub menus.

4. Press twice to exit sub menus or press once while the EXIT Icon is highlighted to exit Main Menu.

Menu is Displayed

VOL BUTTONS

Selects or Adjusts

Features when

Menú is Displayed

4. Press A or ^ to highlight ENGLISH, ESPAÑOL, FRANÇAIS.

5. . Press or ^ to select ENGLISH, ESPAÑOL, FRANÇAIS.

6. Press ^3 twice to exit menus.

-20-

Page 21

Picture Adjustments

Picture Norm

Use to reset Color, Tint, Brightness, Picture, and Sharpness adjustments back to a factory preset level.

1. Presses.

2. Press ^ or ^ and or ^ to highlight the Picture

Icon.

3. Press to display the Picture Adjustment Menu.

PIGTIIRE

Color, Tint, Brightness, Picture, and Sharpness Adjustments

1. Press ^3.

2. Press or^^ and or to highlight the Picture Icon.

3. Press to display the Picture Adjustment Menu.


PICTURE NORM

f^CTURE

ISHKrrNESS

4. Press ^ or^ to highlight PICTURE NORM.

5. Press or ^ to select “SET’ to normalize Color, Tint, Brightness, Picture, and Sharpness.

6. Press

twice to exit menus.

piUMIJJ ImTi m^i m i |iiTfu I

4. Press ^ or W to select the desired Picture Adjustment (Color, Tint, Brightness, Picture, or

Sharpness).

5. Press or ^ to adjust your selection. (The Selected Picture Adjustment will be displayed.)

6. Repeat steps 4 and 5 for the remaining Picture Adjustments.

7. Press ^3 twice to exit menus.

HelpfulHmts:

COLOR - Adjust for desired color intensity.

TINT - Adjust for natural flesh tones.

BRIGHTNESS - Adjust so dark areas of picture slightly

become black for a crisp detail.

PICTURE - Adjust the white areas of the picture as

desired.

SHARPNESS - Adjust for best clarity of outline detail.

-21 -

Page 22

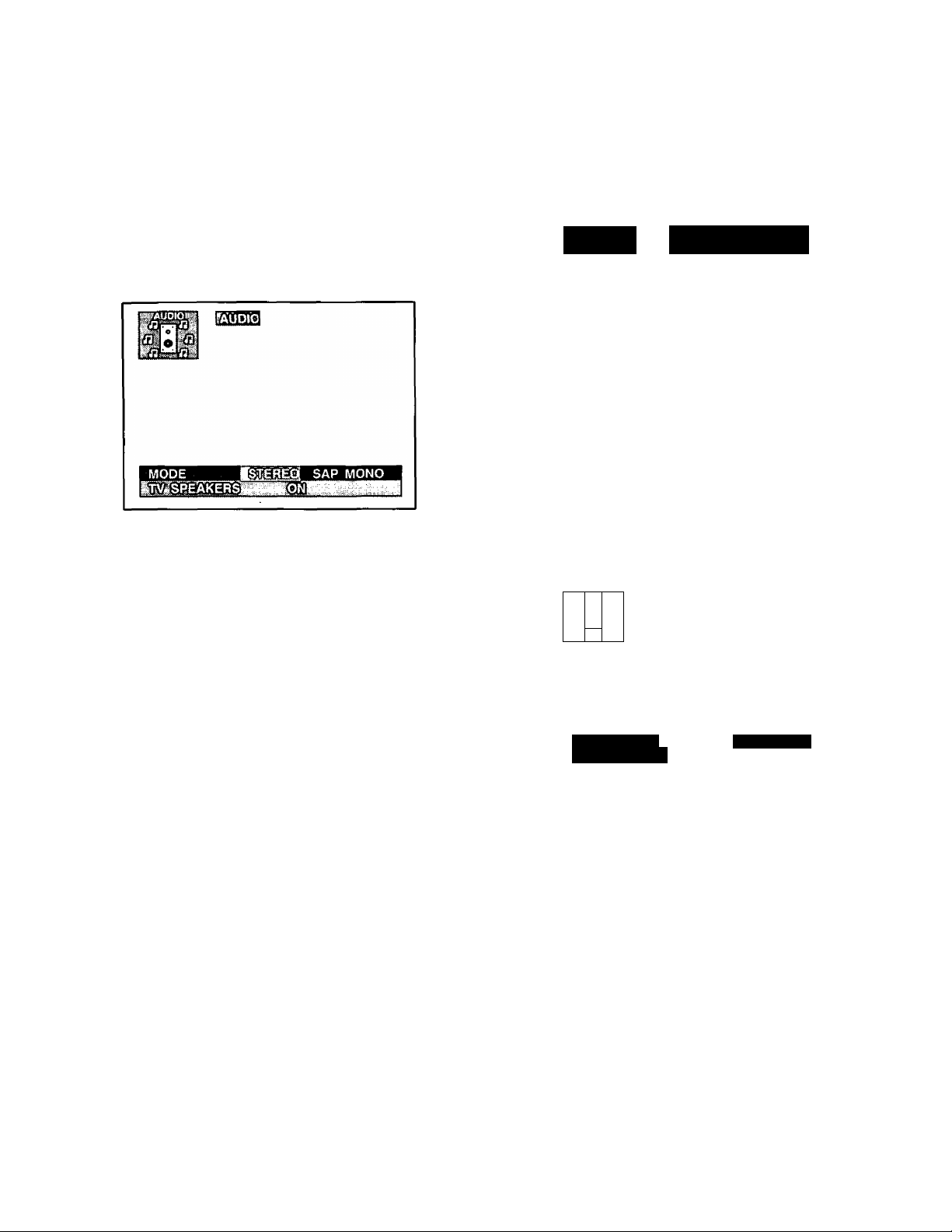

Audio Adjustments

Mode

When Audio is broadcast in Stereo or SAP, an On-Screen display will appear on initial ‘Turn On” and “Channel Change”. The available choices will be highlighted.

1. Press (^3).

2. Press ^ or ^ and or ^ to highlight the Audio Icon.

3. Press 1^3 to display the Audio Adjustment Menu.

mm Bm sap mono

-------

-AhSOUND

4. Press ^ or^ to highlight Al SOUND.

5. Press or ^ to select ON or OFF.

6. Press (^3 twice to exit menus.

^ON

TV Speakers

This feature is used to turn the internal speakers “ON” or “OFF. It is used when the TV is connected to an External

Audio Amplifier. (Refer to ‘To Audio Amp Connection”

section for further information.)

1. Press (^3.

4. Press ^ or ^ to highlight MODE.

5. Press ^ or ^ to select STEREO, SAP (Second Audio Programming), or MONO. The selected mode

will be highlighted.

6. Press ^3) twice to exit menus.

Helpful Hints:

STEREO - Two channel Audio reception.

SAP - Second Audio Programming (such as bilingual audio, weather reports, etc.).

MONO - Use when stereo signal is weak.

Al Sound (Used in CT-32S21 only)

This feature regulates the volume between programs and commercial audio to maintain a constant sound output

level.

1. Press

2. Press ^ or^ and or ^ to highlight the Audio Icon.

3. Press i

to display the Audio Adjustment Menu.

2. Press ^ or ^ and or ^ to highlight the Audio Icon.

3. Press ^3 to display the Audio Adjustment Menu.

£ri-

WOpE

TV SPEAKERS

Press A or W to highlight TV SPEAKERS.

Press ^ or ^ to select ON, OFF&VAO or OFF&FAO.

• ON - TV SPEAKERS operate normally

• OFF&VAO (Variable Audio Output) - TV

SPEAKERS off, the sound output varies according to the TV volume. Use the TV remote to control the volume and muting of the External Amplifier System

• OFF&FAO (Fixed Audio Output) - TV

SPEAKERS off, sound output is not adjustable. The audio is controlled by the External Amplifier System volume control

SAP MONO

-22-

6. Press '

twice to exit menus.

Page 23

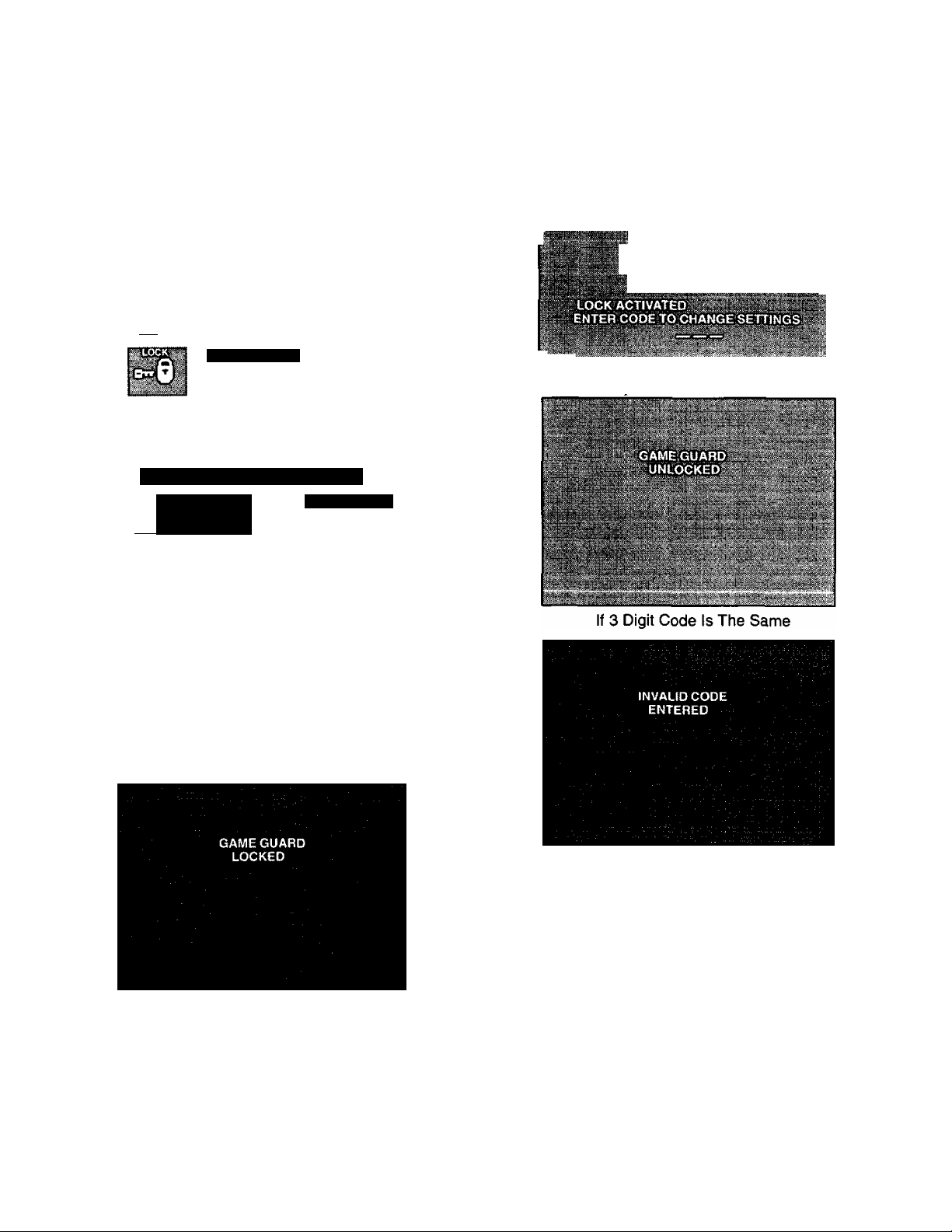

Lock Features

Lock Game Guard

Prevents video games and other video sources from being vieviied. Channel 3, 4 and video inputs are locked out for 12, 24 or 48 hours. NOTE: Be sure to understand this feature before attempting its use. Use a code that you

will easily remember or write the code on a piece of paper,

1. Press

Unlock Game Guard

To unlock the Game Guard feature, repeat steps 1 through

3. Enter the same 3 digit code previously used in step 5 with Remote Control Keypad.

2. Press or^^ and ^ or ^ to highlight the Lock Icon.

3. Press fell to display the Lock Menu.

GAME(GUARO

L#WQH:3l4^

HOW LONG? ENTERCODE

.^ET- ■

=rhM

4. “HOW LONG” should already be highlighted. Press

^ to select the desired amount of time (12, 24 or 48

hours) for Game Guard Lockout to be activated.

Press^ to highlight ENTER CODE. Then enter a 3 digit code with the Remote Control Keypad. “SET”

should be highlighted after entering the last digit.

12 HOURS

iMPORTANT NOTE: Use a code you can easily remember or write the code on a piece of paper.

L4 t* /s' t t *Kib iJitt'i* '■

Enter Same 3 Digit Code Previously Used

Press after entering three digit code. “Game Guard Locked” will display On Screen.

Game Guard Activated

If 3 Digit Code Is Not The Same

-23-

Page 24

Channel Caption

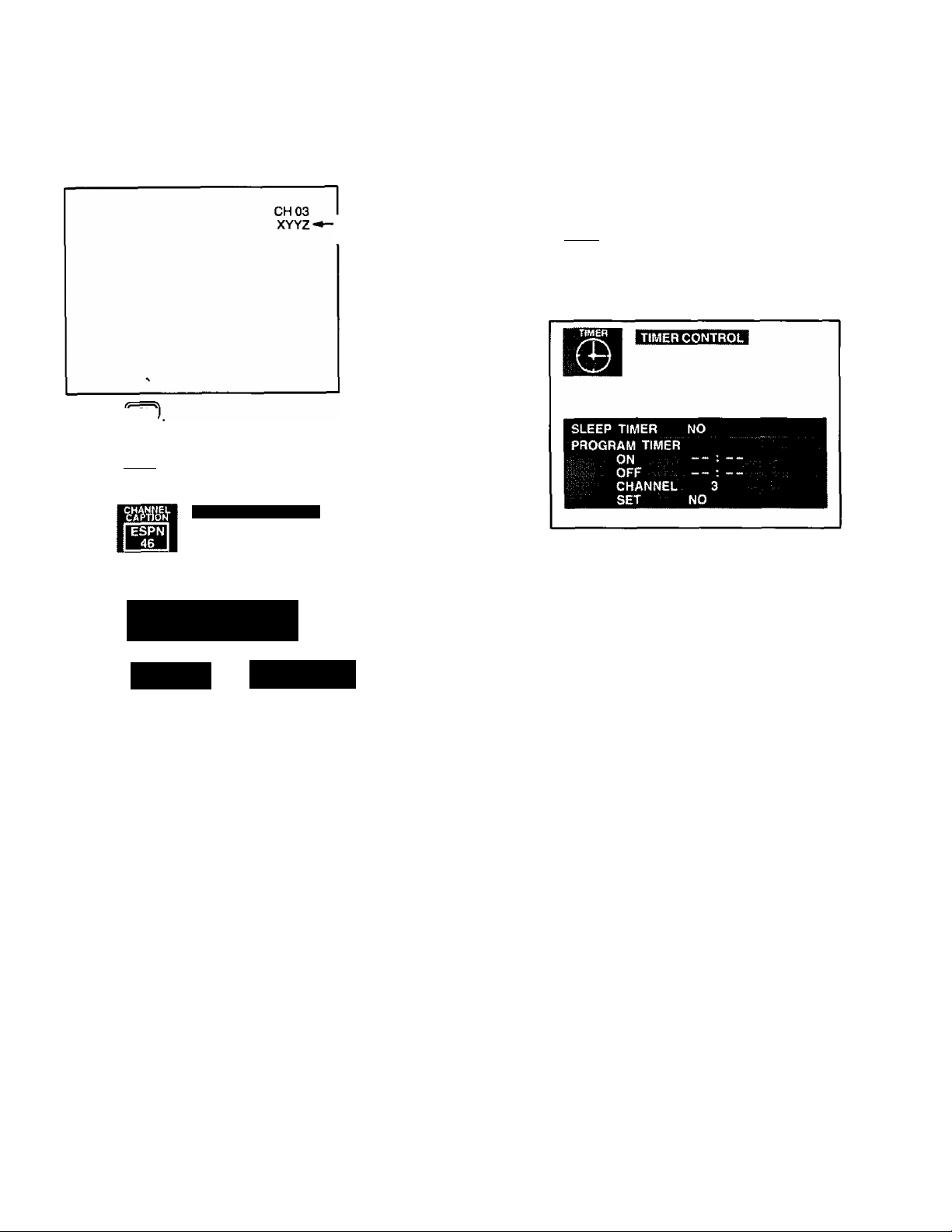

This feature allows you to enter the call names of up to 30 stations into memory (using up to 4 characters for each station). The call name will then display along with the channel number when changing channels or pressing RECALL.

Channel Caption

I Station Identifier)

Timer Features

Sleep Timer

This feature is used for automatic turn off in 30, 60 or 90

minutes. Display will flash 3,2 and 1 to indicate the last three remaining minutes prior to turn off. The Recall display will

also appear.

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press fcssd).

2. Press A or W and ^ or ^ to highlight the Timer Icon.

1. Press

2. Press ^ or ^ and ^ or ^ to highlight the Channel Caption Icon.

3. Press to display the Channel Caption Menu.

CHANNEL CAPTION

ENTER CHANNEL NUMBER

ENTER CAPTION

A TO MOVE

▼ CURSOR

Press'^or^.or use the Remote Control Keypad to

4. enter the channel number you wish to assign a Station

Identifier.

4 ► TO SELECT

CHANNEL

3. Press

Press ^ to select NO, 30, 60 or 90 minutes (Sleep

4. Timer will be activated).

Press ^3 twice to exit menus.

to display the Timer Control Menu.

NOTE: To deactivate Sleep Timer repeat steps 1 through 4.

In step 4 select “NO” instead of minutes.

Press the RECALL button to display the remaining minutes for Sleep Timer, the status will display in the bottom left corner.

Press ^ to highlight ENTER CAPTION.

5. Press or ^ to select first character in Station

Identifier. Then press ^ to move cursor to the second

position and repeat until the complete Station Identifier

is entered (up to 4 characters). Press A or to highlight ENTER CHANNEL

7. NUMBER. Then repeat steps 4 through 6 to continue

adding Channel Station Identifier(s).

8. Press ^3 twice to exit menus.

NOTE: To delete a Channel Caption (Station Identifier) from

memory all four character positions in the “ENTER CAPTION” area must display a dash mark {-).

HelpfulHints:

When the Maximum amount of station identifiers are entered, “FULL” will be displayed in the caption

position.

-24-

Page 25

Timer Features (cont.)

Special Feature:

Automatic turn "OFF” after 90 minutes.

The TV has a special feature that will shut itself

OFF after 90 minutes when turned ON by the

program timer unless a function key is pressed during the 90 minutes. This feature is useful so that the TV will not

remain ON unattended for an extended period of

time.

Programming the OFF timer wiil cancel the

automatic OFF Special Feature.

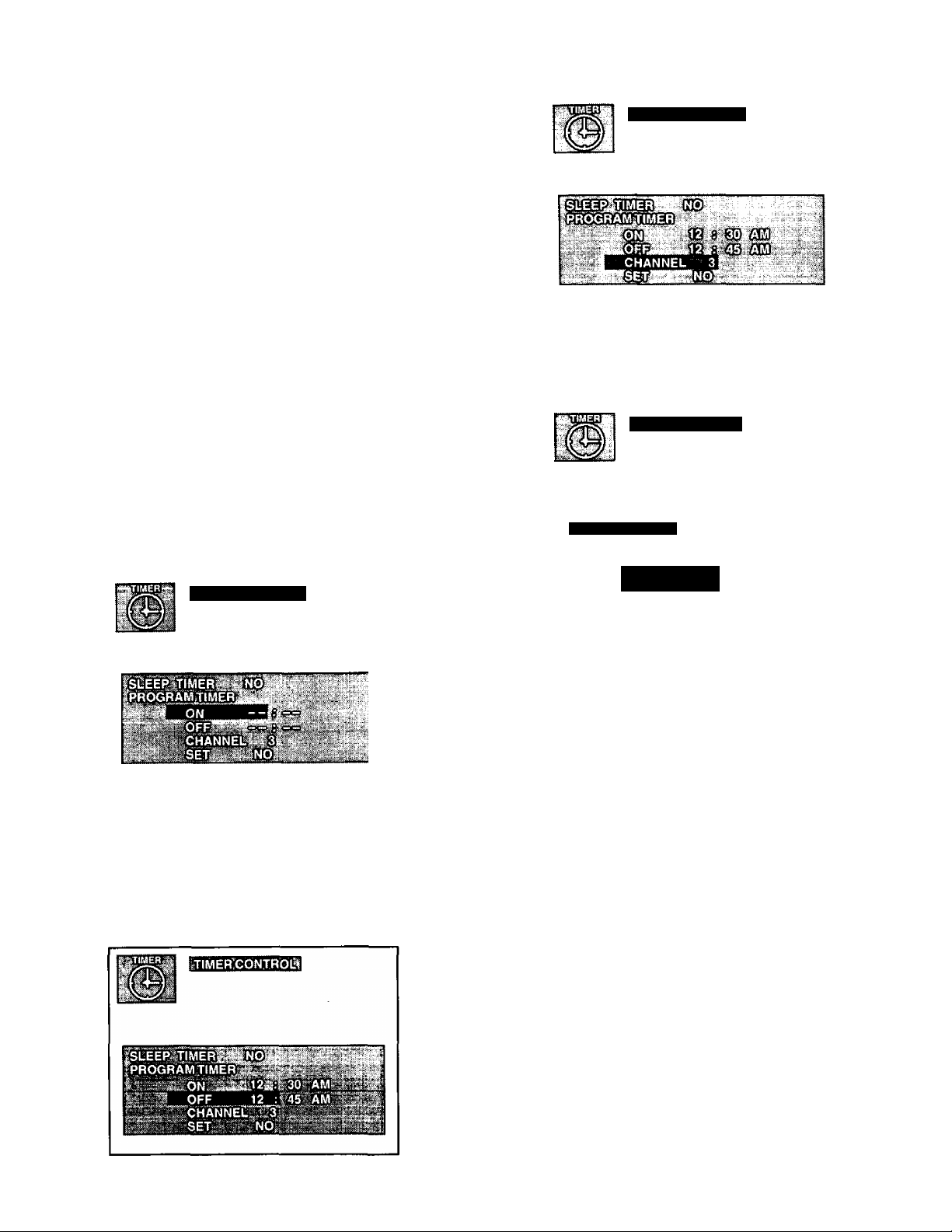

Program Timer

This feature is capable of turning the TV on, tuned to a desired channel and off at a predetermined time (one day or daily). The clock must be set for this feature to operate. (Refer to the Set-Up Menu to set time.)

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press

9. Repeat steps 5 through 7 for setting OFF (time).

10. Press ^ to highlight CHANNEL.

kTIMER.eGNTROlS

11. Press or or use the Remote Control Keypad to enter the channel number desired when the set turns “ON".

12. Press^ to highlight SET.

iTiMERTeoNTRoa

2. Press ^ or W and ^ or ^ to highlight the Timer Icon.

3. Press ^3 to display the Timer Control Menu.

kTIMERleONTROlli

4. Press ^ to highlight ON (time).

5. Press ^ or ^ repeatedly to set hours (set AM/PM accordingly).

6. Press ^ to highlight the minutes position.

7. Press ^ or ^ repeatedly to set minutes.

8. Press ^ to highlight OFF (time).

RRQGBAMinMER

Bwm

CHANNEI»3

SET NO

13. Press to select:

• NO - not activated

• ONE DAY - activated

• DAILY - activated

14. Press twice to exit menus.

NOTE: To deactivate Program Timer select NO in step 13.

HeI0mHints:

If the Program Timer “ON” functions while the set is operating, the set will automatically tune to the channel designated in the Timer Program,

-25-

Page 26

Set-Up Features

Set Time

Clock (when set) will display on screen at initial ‘Turn On”,

after a channel change and when pressing the RECALL

button. The time must be set first in order to operate the Program ON/OFF Timer.

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press

2. Press ^ or Wand‘s or^ to highlight the Set-Up Icon.

3. Press

4. Press ^ or ^ to set hours (set AM/PM accordingly).

to display the Set-Up Menu.

iSETMlR]

4. Press ^ to highlight ANT.

5. Press ^ or ^ to select TV or CABLE.

6. Press ^3 twice to exit menus.

Auto Prog

This feature allows you to place all channels with a video

signal into Channel Scan Memory. .

NOTE: This feature is disabled when Game Guard

Lock is activated.

1. Press

2. Press ^ or ^ and or ^ to highlight the Set-Up Icon.

3. Press

to display the Set-Up Menu.

5. Press W to select minutes position.

6. Press or ^ repeatedly to set minutes.

7. Press ^3) twice to exit menus.

Antenna (Ant)

The proper Input mode must be selected for the type of

signal at the antenna input.

• TV mode is used when the Receiver is not connected to a cable TV system, for example when using a VHF/UHF antenna (channels 02 - 69).

• Cable mode is used when the Receiver is connected to a Cable TV system and you are not using a cable company converter box (channels 01 - 125).

NOTE: This feature is disabled when Game Guard

Lock is activated.

1. Press (^3.

2. Press ^or^ and^ or ^ to highlight the Set-Up

Icon.

3. Press to display the Set-Up Menu.

iSET^URi

4. Press ^ to highlight AUTO PROG.

5. Press or ^ to start Auto Programming. Channels will automatically advance until all channels have

been scanned.

6. Press ^3 twice after completion of Auto Programming

to exit menus.

NOTE: Channel numbers with signal present will turn

blue which indicates stored in Channel Scan Memory.

-26-

Page 27

Set-Up Features (cont.)

Manual Prog

This feature allows you to select which channels are placed into Channel Scan Memory.

1. Press fed).

2. Press AorWand^ or ^ to highlight the Set-Up Icon.

2. Press^ or W and or ^ to highlight the Set-Up Icon.

3. Press

to display the Set-Up Menu.

SET-UP

3. Press®

4. Press ^ to highlight MANUAL PROG.

5. Press or ^ to display the Manual Programming Menu.

to display the Set-Up Menu.

SET-UP

NOTE: This feature is disabled when Game Guard

Lock is activated.

SETTiME ANT TV

AUTO PROG NO MANUAL PROG NO

AUTO POWER ON

MODE OFF

Í ' ESPAÑOL FRANÇAIS

4. Press W to highlight AUTO POWER ON.

5. Press or ^ to select SET or OFF.

6. Press ^3 twice to exit menus.

OFF

CC (Closed Caption) Mode

This Receiver has a built in decoder that provides a visual depiction of the audio portion of a television program, in the form of written words across the screen (White or Colored letters on a black background). It allows the viewer to read the dialogue of a television program or other information.

When the Closed Caption is in the OFF Mode: The viewer may display closed caption by pressing

CmD on the remote control. Press again to delete.

AT TO ENTER CHANNEL NUMBER

► TO ADD CHANNEL

< TO DELETE CHANNEL-

6. Use the^ or^ or the Remote Keypad “0 through 9” buttons to select channels.

Press ^ to add channel(s) to memory (Blue). Press

3 . ■ ■■ .

.......

^ to delete channels from memory (Yellow).

Repeat steps 6 and 7 to continue adding or deleting

channels.

9. Press twice to exit menus.

Auto Power On

This feature allows the user to power up the TV at the same time as the cable box (or other components). The

TV must be plugged into the cable box switched outlet.

NOTE: When this feature is activated (on), Timer

features will be disabled and will reset.

1. Press

1. Press ^3.

2. Press A or^ and*^ or^ to highlight the Set-Up Icon.

3. Press ' to display the Set-Up Menu.

Press ^ to highlight CC MODE.

Press ^ to select OFF, C1, or C2.

Press ^3 twice to exit menus.

-27-

Page 28

Programming The Universal

VCR

Preferred Procedure - Code Known

Programming Universal Remote Using Infrared Access Codes for VCRs

• Determine brand of VCR.

• Identify code(s) associated with the brand in the infrared code index for VCRs (located in this manual).

Procedure

1. Place the Remote CUD into the VCR position.

2. Press and hold

Remote.

3. Enter two digit code using keypad “0 through 9”

buttons.

VCR POWER

Release The Universal Remote is now

programmed.

NOTE: Some brands have multiple codes. Repeat

procedure using each code listed until VCR responds correctly,

Aiternate Procedure - Code Unknown

Programming Universal Remote Using the “Sequence Method” for VCRs

• Confirm VCR is plugged in and operating properly, then turn OFF.

Procedure

1. Place the Remote I ffl. I into the VCR position.

2. Press and hold the

Remote.

3. Press ^ repeatedly. Check for the VCR to turn ON

after each press. When the VCR turns ON, release VCR Power button. The proper infrared code has now been accessed.

NOTES:

1. It may take several attempts before the correct code is found.

2. The can be used to return to a code that was accidently passed by.

3. Some Remote Controls may have unique operating functions for some buttons. For Example: The

POWER button may only turn the VCR OFF as opposed to both ON and OFF. It will then be necessary to modify the procedure. Turn the VCR ON and

repeatedly press the ^ until the VCR turns OFF.

TV/VCR/CABLE

VCR POWER

down on Universal

TV/VCR/CABLE

VCR POWER

down on Universal

Remote Control (forCT-3268S)

Cable Box

Preferred Procedure - Code Known

Programming Universal Remote Using Infrared Access Codes for Cable Boxes

• Determine brand of Cable box.

• Identify code(s) associated with the brand in the infrared code index for Cable boxes (located in this manual).

Procedure

1. Place the Remote (—El into the CABLE position.

2. Press and hold the down on Universal Remote.

3. Enter two digit code using keypad "0 through 9” buttons.

Release □ The Universal Remote is now programmed. Use the Remote ^ and ^ for

CABLE

POWER

selecting Cable Box channels.

NOTE: Some brands have multiple codes. Repeat

procedure using each code listed until Cable box

responds correctly.

Aiternate Procedure - Code Unknown

Programming Universal Remote Using the

“Sequence Method” for Cable Boxes

• Confirm Cable box is plugged in and operating properly,

then turn OFF.

Procedure

1. Place the Remote L El into the CABLE

position.

2. Press and hold CZl down on Universal Remote.

3. Press ^ repeatedly. Check for the Cable box to turn ON after each press. When the Cable box turns ON,

release Cable Power button. The proper infrared

code has now been accessed.

NOTES:

• It may take several attempts before the correct code is

found.

• The ^ can be used to return to a code that was

accidently passed by.

• Some Remote Controls may have unique operating functions for some buttons. For Example: The POWER

button may only turn the Cable box OFF as opposed to both ON and OFF. It will then be necessary to modify the procedure. Turn the Cable box ON and repeatedly press the^ until the Cable box turns OFF.

CABLE

POWER

TV/yCR/CABLE

CABLE

POWER

TV/VCWCABLE

NOTE: When operating equipment (VCR or Cable box) with the Universal Remote Control, the TVA/CR/CABLE Switch

should be set to the same position where the Access Code was first programmed for the equipment. Otherwise, leave the switch in the TV position.

-28-

Page 29

VCR and Cable Box Infrared Codes Index

(forCT-3268S)

The Universal infrared Remote Control is capable of operating many brands of VCRs and Cable Boxes after entering the proper infrared code.

NOTE: The Universal Remote Control memory is limited. Some models of VCRs or Cable Boxes may not operate. The

Universal Remote Control is not designed to control all features that are available in all models.

Code Index for VCRs

Brand of VCR Code(s) VCR Code(s)

Audio Dynamics Broksonic Canon 00.01 Pentax Capehart 01 Philco Citizen Craig 12 Pioneer Curtis Mathes 00, 08,15 DBX Emerson Fisher 12,18,19 Samsung 07,32 Funai 15 GE Goldstar Hitachi Instant Replay JC Penney JVC 02,14,16, 30 Symphonic Kenwood Magnavox Marantz 02,14,16, 29,30 Teac 15, 30 Marta Memorex 00,12 Toshiba MGA Minolta Mitsubishi Montgomery Ward 06 Multitech 07,15,32 Zenith 11, 17

14,16 NEC 02,14,16, 30 10

14,16 10,20,34, 35,36,37

00, 07, 08, 32 09 05, 35, 36

00.02,05,14,16,30 Sylvania 02,14,16, 30

00, 29 09 04,27

05 Video Concepts 04, 27

Brand of

Panasonic 00,01

Philips 00, 29

Quasar 00,01

RCA 05, 07,08,28,35 Realistic

Sanyo 02,12 Scott 04. 13. 33,36 Sears 02, 05,18,19 Sharp 06, 24 Sony

Tashiko 09 Tatung

Teknika 21

Vector Research Wards 06

Yamaha 02,14,16, 30

00. 29 05

00, 02,06,12,15

17, 26, 33,34

00, 29

15 30

05,13 14,16 14,16

Code Index for Cable Box

Brand of

Cable Box Code(s) G.l.

Hamlin Jerrold

Macom Magnavox 19, 26, 28, 29, 32, Tocom 17,21

Oak Oak Sigma Panasonic Philips

04, 05,15, 23, 24, 25, 30, 36

12,13,34 04,05,15,23, 24, 25,30,36 Sylvania 11 27

33. 40, 41

14,16,18 Viewstar 19, 26, 28,29, 32,

27.39

19, 26, 28, 29, 32, 33, 40, 41

Brand of

Cable Box Code(s)

Pioneer RCA 27 Regency 02

Scientific Atlantic Texscan

Unika 31

Zenith 01,42

-29-

18, 20

03, 22 10,11

33, 40, 41

Page 30

Programming the Home Theater Remote (forCT-32S2i)

The remote control can be set to control other manufacturers components, by utilizing the MODE SELECTION

BUTTONS for CABLE, DSS, VCR, RCVR (a Receiver or Amplifier), CD, LD, and AUX {for Cassette Players, Second VCR or a DVD.)

Code Known

Use the following procedure for setting up the remote control using the numerical buttons

when the component’s remote code is known.

m Determine the brand of the component. [2l Identify the code(s) associated with the

brand from the infrared code index (see following pages). Record all possible codes.

Confirm that the component is plugged in and operating properly, then turn it

OFF.

[4Ì Press and hold the button, then

the button so that both are

pressed at the same time for at least]

[S^second^ All Mode buttons will

hash. Then let go of the buttons.

Press the appropriate Mode button

for the component. The pressed button will illuminate steadily. All other buttons will go out.

Enter the 3-digit code, by using the Remote Control Keypad “0”

through ”9” buttons. If a proper

code was entered, the Mode button will blink twice then go out.

Now the rimóte Is sit for the ]

(entered code.

[7l Press the button to test the remote. If

the correct code is setup for the component (in step |KI), the component will turn on.

NOTE: Some brands have multiple codes.

Repeat the procedure using another listed code until the component

responds correctly.

______

Code From

Index Sheet

EUR511060

Code Unknown

Use the following procedure for setting up the remote control when the component’s remote

access code is not known. This procedure uses the ’’sequence method”.

Confirm that thecomponent is plugged in and operating properly, then turn it

OFF.

I Press and hold the button,

then the button so that both

are pressed at the same time for at leastns seconds. All Mode buttons will flash. Then let go of the buttons.

II Press the appropriate Mode button

for the device. The pressed button will illuminate steadily. All other

buttons will go out.

Ql Press the button to step

over to the next code.

Press the button to test the remote. If the correct code is

sent, the component will turn on.

Once the correct code is found,

press the button

to store the code.

Repeat from step [H] above until the

proper component code is found. It

may take several attempts before

the correct code is found,

NOTE: If an incorrect code is entered, or

when the operation is not completed within 30 seconds, the

settings will not change.

Infrared Remote Codes for Specific Components

Helpful Hint: Write down the code numbers for your components in the space provided below. This

CABLE

Cable TV Converter Box

DSS

Digital Satellite System

other Component Other Component

I Other Component II Other Component

will serve as a handy reference whenever you need to reprogram your remote control.

VCR

□i

Video Cassette Recorder

RCVR

Receiver or Amplifier

Г□ □

-30-

□□

□

Compact Disc Player

Laser Disc Player

Other Component

II Other Component |

□

П П П

Page 31

VCR Infrared Codes Index (forCT-32S2i)

The Universal Infrared Remote Control is capable of operating many brands of VCRs. Refer to the Programming the Re mote Control section for procedures.

Note: The Universal Remote Control memory is limited; therefore, some models of VCRs may not operate. The

Universal Remote Control is not designed to control all features that are available in all models.

Note: After entering the proper infrared code, press the Remote VCR (*) Selection Mode button. A second VCR can be

activated using the same codes, from AUX (**) Selection Mode button. Then refer to the Remote Control Key

Functions section, for Remote VCR and VCR 2 function key listing.

Code Index for VCRs

VCR Brand Code(s)

Admiral 200 Aiwa 137,160 Philco Akai 014,015,016,142 Audio Dynamic 011,240 Philips Bell & Howell Broksonic Canon 125,135 Citizen 006 Craig 005,006,141 Radio Shack 005,009,130,137, Curtis Mathes

Daewoo DBX 010,011,240 130,150,170,300, Dimensia 300 310 Emerson

Fisher 005,007,008,009

Funai 081,136,137 Sansui GE 130,170,300 Sanyo 005,009 Goldstar 006 Scott OO'1,002, 004, 009, Go Video Hitachi

Instant Replay 125,130, Sears Jensen JVC 010,011,190,240 Shaintom 050

Kenwood 006,010,011,240 Sharp 200,210

LXl Magnavox 025,130,150 Sony

Marantz

Marta 006 Sylvania

Memorex

MGA

Minolta

Mitsubishi 230, 241,242,243, Technics 100,101,125,130

Multitech

NEC Olympic

Optimus 006,200,100,140 290 Orion

Panasonic 100,101,125.130

Penney

005,013 Pioneer 081,136 ProScan

130,137, 300

001,130, 250

003, 051.080,081,

135,136,243, 250 210,241

220 000,125,300, 330,340

240

000, 005, 006,007,

008,009,137 Singer 010,011,240 009,130

230,241,242, 243, 330,340 Tatung 000,300 Teac

330,340 Teknika 004,137,330 010,011, 190. 240

125,130 081,136 Yamaha 000, 005,010,011,

130,240, 300

VCR Brand

Pentax

Quasar

RCA

Realistic

Samsung

Signature 2000 137,200

SV2000 137

Symphonic

Tashiro

Toshiba Vector Research Wards

Zenith

Code(s)

000,011,300

081.125.130,136, 137,150

125,130,150 125 000,001,002, 125, 130,150,300,310

100, 101,125,130 170,210,241

OOO, 001,002,125,

005,009,130,137, 002,004, 220

081,136,240

081,136, 230,241, 000,005,006,007,

008,

OSO 140,141,142

125,130,137,150

137 006 010,011,240 010,011,137,240

130,137 001,310 Oil 006,009, 200,210,

005,010,011,240 290

-31 -

Page 32

Cable Box and CD Players

Infrared Codes Index (forCT-32S2i)

The Universal Infrared Remote Control is capable of operating many brands of Cable Boxes and CD Players. Refer to the

Programming the Remote Control section for procedures.

Note: The Universal Remote Control memory Is limited; therefore, some models of Cable Boxes and CD Players may not

operate. The Universal Remote Control is not designed to control all features that are available in all models.

Note: After entering the proper infrared code, press the Remote CBL Selection Mode button (A). Then refer to the

Remote Control Key Functions section, for Remote CBL function key listing.

Codes for Cable Box

Brand of Cable Box

Code(s)

Brand of

Cable Box

Code(s)

Note:

ABC 530 Archer Cableview Citizen 005,522 Curtis 130,131

Diamond Eagle 541 Eastern 560

Gcbrand 005,544 Gemini 522 General Instrument 122,360,520,521,

Hamlin 130,350,720, 730,

Hitachi Jerrold 122,360, 520,521,

Macom 003,004,005

Memorex

Movietime

Oak 002,702,710

Panasonic 120,121,132 Paragon

531,544 005,544

530,531,544

522, 530, 531,532, 533

731.900 003,530

522, 530,531,532, 533

542 005,544

281

Philips Pioneer

Pulsar 005,544 Puser 544 RCA Realistic Regal 130,350,720,

Regency 560

Rembrandt Samsung 005 ScientificAtlanta 122,130,131 SImark Sprucer Stargate 005,544 Teleview Texscan 810 Tocom 700,701 Toshiba

Unika 531,544

Universal

Videoway 006

Viewstar Zenith

1 Zenith/DrakeSatellite 000 |

006,007,540, 541,542 001,260

170,220 544

730,731,900 005, 544, 702

001,005 005,121

001,005

004 522, 544 541,542

000,280,281

After entering the proper infrared code, press the Remote CD Selection Mode button (AtV). Then refer to the Remote Control Key Functions section, for Remote CD Players function key listing.

Codes for CD Players

Brand of

CD Players

Code(s)

Brand of

CD Players

Code(s)

Admiral 110

Aiwa

Carver Denon 200 Emerson 172 Fisher 005 Garrard Harman/Kardon Hitachi Jensen 163 JVC 190,191,270 Kardon 058 Kenwood 000,001,050, 270 LXI Magnavox Marantz McIntosh Nakamichi Onkyo

162,164 150,151

057 059,060 007

165 150,161 151 060 032 053,054 j

-32-

Optimus

Panasonic Philips 150,151 Pioneer Quasar RCA

Sansui Sanyo 005 Scott Sharp Sherwood Sony 140 Soundesigh 220 Teac Technics 100,101,130 Victor Yamaha

030,057.059, 061 100,101.130

030

100,101,130

160.170, 171,500

032,050,320 032,050,320

200,201 059

051,055, 057

190,191,270

002,003,004

Page 33

Cassette Deck, Receivers, and Amplifiers

Infrared Codes Index (for CT-32S21)

The Universal Infrared Remote Control is capable of operating many brands of Cassette Deck, Receivers, or Amplifiers. Refer to the Programming the Remote Control section for procedures.

Note: The Universal Remote Control memory is limited; therefore, some models of Cassette Deck, Receivers, and

Amplifiers may not operate. The Universal Remote Control is not designed to control all features that are available

in all models.

Note: After entering the proper infrared code, press the Remote AUX Selection Mode button (:^<). Then refer to the

Remote Control Key Functions section, for Remote Cassette Deck function key listing.

Code Index for Cassette Deck

Brand of Cassette Deck

Aiwa 760, 761,762 Philips 751 Denon 800 Pioneer Fisher 603 RCA 763, 770, 771 Jensen JVC

Kenwood 600. 650 Sony 740 Marantz 751 Nakamichi Onkyo Panasonic

Code(s)

657 780, 781 Sharp 800

631

651.652, 656 700,701,730

Brand of

Cassette Deck

Sansui 631, 653

Teac Technics 700,701,730 Yamaha

Code(s)

630

653,654 601,602

Note: After entering the proper infrared code, press the Remote RCVR Selection Mode button (% Then refer to the

Remote Control Key Functions section, for Remote Receivers/Amplifiers function key listing.

Code Index for Receivers and Amplifiers

Brand of Receiver / Amplifier

Code(s)

Brand of Receiver /

Amplifier

Code(s)

Admiral Aiwa 160,161 Oenon

Fisher

Garrard

Harman Jensen JVC Kenwood Magnavox

Marantz

McIntosh

Nakamichi 031 Onkyo Optimus 003, 162, 170, 171

110

200, 201,202 004

055 150, 057 164 190, 191

000, 050

162 151

058

151, 156

Panasonic 100, 101, 130 Phiiips 150

Pioneer

Quasar 100,101,130

RCA 003, 130,162, 170,

Sansui 003, 053, 320

Sharp 200, 203 Sony

Soundesign Teac Technics 100,101,130

Victor Yamaha

-33-

030,032

171

140 220 053,054, 055

190, 191 001,002

Page 34

Laser Disc, DSS (Digital satellite System),

and DVD (Digital Videodisc)

Infrared Codes Index (forCT-32S2i)

The Universal Infrared Remote Control is capable of operating selected brands of Laser Disc, DSS Digital Satellite System, and DVD (Digital Videodisc). Refer to the Programming the Remote Control section for procedures.

Note: The Universal Remote Control memory is limited; therefore, some models of Laser Disc, DSS Digital Satellite

System, and DVD (Digital Videodisc) may not operate. The Universal Remote Control is not designed to control all features that are available in all models.

Note: After entering the proper infrared code, press the Remote LD Selection Mode button (O). Then referto the Remote

Control Key Functions section, for Remote Laser Disc function key listing.

Codes for Laser Disc

Brand of

Laser Disc

Denon 370 Hitachi 000 Kenwood 002,003 Marantz 370 Mitsubishi NEC 370

Panasonic 100,101,135, 380 Phiiips Pioneer 370 ProScan 370

Code(s)

370

150

Brand of Laser Disc

Quasar

RCA Samsung Sanyo 370 Sharp Sony Teac Toshiba

Yamaha 001

Code(s)

100,101,135, 380

370

160

200

140,141,142,143 370 370

Note: After entering the proper infrared code, press the Remote DSS Selection Mode button (OO). Then refer to the

Remote Control Key Functions section, for Remote DSS function key listing.

Codes for DSS (Digital Satellite System)

Brand of Satellite

GE 170 Panasonic 100 RCA 170 Sony 390

Code(s)

Note: After entering the proper infrared code, press the Remote AUX Selection Mode button (★ ). Then refer to the

Remote Control Key Functions section, for Remote DVD function key listing.

Codes for DVD (Digital Videodisc)

Brand of DVD

Panasonic 102

-34-

Code(s)

Page 35

Troubleshooting Chart

Before you call for service, determine the symptoms and make a few simple checks shown below.

Symptoms


Sound

- ANTENNA LOCATION AND/OR CONNECTION

Check

SNOWY PICTURE

NOISY SOUND

0^.

MULTIPLE IMAGE NOISY SOUND

INTERFERENCE

NORMAL PICTURE NO SOUND

NO VIDEO

NO PICTURE

NO COLOR

NOISY SOUND

NO SOUND

NORMALSOUND

ANTENNA DIRECTION AND/OR LOCATION ANTENNA LEAD-IN WIRE

ELECTRICAL APPLIANCES, LIGHTS, CARS AND TRUCKS DIATHERMY AND OTHER MEDICAL EQUIPMENT

VOLUME CONTROL SETTING

MUTE CONTROL (IF APPLICABLE) TRY ANOTHER CHANNEL TV SPEAKERS SWITCH {IF APPLICABLE) IN THE OFF POSITION

TV OR CABLE TUNING MODE SET TO PROPER SETTING

ANTENNA INPUT CORRECT (IF APPLICABLE)

CHECK THAT AC POWER LINE IS PLUGGED INTO AC OUTLET

BRIGHTNESS & AUDIO CONTROLS SET PROPERLY

TRY ANOTHER CHANNEL

COLOR CONTROL SETTI NGS

TRY ANOTHER CHANNEL

BLACK PICTURE

- RECEIVER IN VIDEO MODE WITH NO SIGNAL

NO SOUND

-35-

Page 36

Panasonic Consumer Electronics Company, Division of Matsushita Eiectric Corporation of America

One Panasonic Way

Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita Eiectric of Puerto Rico ine. (“PSC”)

Ave. 65 de Infanteria, Km 9,5 San Gabriel Industriai Park Carolina, Puerto Rico 00985 Tel. (787) 750-4300

FAX. (787) 766-2910

-36-

Panasonic Canada inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3 Canada

Panasonic CT-3268S User Manual

Color Television

Safety Instructions

WARNING

Safety Instructions For Television Receivers

Specifications

Congratulations on Your New Purchase

Installation

Television Location

Optional External Equipment Connections

AC Power Supply Cord

Remote Control Battery Installation

Installation (cont.)

Antenna/Cable Connections

75 Ohm

other Video Equipment

Care and Cleaning

Optional Equipment Connection and Operation

To Audio AMP Connection (Stereo)

Audio/Video input Connection

Operation

NOTE:

Connection

Picture in Picture Operation with VCR and Cable Box

Operation

Location of Controls Television

Location of Controls Remote

Power Button

TVAiideo Button

Volume Buttons

R-Tune (Rapid Tune) Button

VCR Function Buttons

TVA/CR/CABLE Switch

PiP Move Button

Mute Button

Channel Buttons

Action Button

Recall Button

PIP Swap Button

PIP Size Button

PIP Freeze Button

Remote Control

Quick Reference Functional Key Chart

Location of Controls Remote (for CT-32S21)

Basic Remote Control Functions

Multi Button

Power Button

PIP Freeze Button

PIP Size Button

Keypad “0 through 9” Buttons

TV/Video Button

Mute Button

Channel Buttons

Recall Button

VCR Function Buttons

VCR/DSS Channel Buttons

Note:

Recall Button

R-Tune Button

Special Functions (cont.) Multi Button (for CT-3268S)

Cable Power Button (for CT-3268S)

PIP (Picture in Picture) Button

PIP Operation

Swap Button

Size Button

Freeze Button

Move Button

Menu Language Selection

Picture Adjustments

Picture Norm

Color, Tint, Brightness, Picture, and Sharpness Adjustments

Audio Adjustments

Mode

TV Speakers

Al Sound (Used in CT-32S21 only)

Lock Features

Lock Game Guard

Unlock Game Guard

Channel Caption

Timer Features
