Color Television Operating Instructions

CT-2771S CT-3271S CT-35G25

■ ' 15&-"

PT- •

CT-G2178 CT-G2178X CT-G2188L

i *

Panasonic

PRINTED IN USA TQB?AA0329 91201

Table of Contents

Congratulations..............................................................3

Installation......................................................................4

Main Menu.....................................................................6

Picture In Picture (PIP) Operation

Main Menu Feature Chart..............................................9

Special Features

Troubleshooting Chart

Customer Record

Care and Cleaning.....................................................3

Specifications

Television Location....................................................4

Optional Cable Connections......................................4

AC Po\wer Supply Cord.............................................4

Cable / Antenna.........................................................4

Cable Connection......................................................4

Antenna Connection..................................................5

Optional Equipment Connections To Audio Amplifier

Audio Adjustments.....................................................6

ACTION Button..........................................................6

CH/VOL Buttons......................................................6

PIP Operation with a VCR and Cable Box

PIP Operation with a VCR - No Cable Box

Languages

Timer.......................................................................11

Sleep Timer..............................................................11

Program Timer........................................................11

CH CAP (Channel Caption).....................................12

LOCK.......................................................................13

Game Guard Lock and Unlock

............

............................................................

.........................................................

...............................................................

..........................................3

..............................

.....................................................

.................................

................

...............

................................

.................................................

13 14

Safety Instructions

5 6

7 7 8

WARNING

ARISK OF ELECTRIC SHOCK

/ r \

WARNING; To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow head within a triangle is intended to tell the user that

WARNING; To prevent fire or shock hazard, do not expose this appliance to

rain or moisture.

parts inside the product are a risk of electric shock to persons.

Read these instructions completely before operating TV. Contents are subject to change without notice or obligation.

DO NOT OPEN

/ • \

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

Congratulations

Your new TV features a solid state chassis that is designed to give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the TV. You should note the model and serial number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss. Product registration is available for U.S. customers at

Care and Cleaning

Screen (Turn TV Off)

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

CONGRA TULA TIONS

www.prodreg.com/panasonic.

Model Number

Serial Number

• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

• Use a soft cloth dampened with water or a mild detergent solution. Do not use benzene, thinner, or other petroleum based cleaners.

• Avoid excessive moisture and wipe dry.

Specifications

Power Source

CT-2771S/U(1.8A) CT-3271S/U(2.0A) CT-35G25 (2.3A)

Channel Capability -181

Video Input Jacks

Audio Input Jacks

To Audio AMP Jack

S-VHS Input Jack

(some models)

Specifications are subject to change without notice or obligation.

120V AC, 6OH2

VHF-12; UHF-56; Cable-113

1Vp.p, 75 Ohm, Phono Jack Type

500mV RMS 47K Ohm

0-2.0V RMS 4.7K Ohm

S-Video (Y-C) Connector

Installation

InstaUation

Television Location

This unit is intended to be used with an optional stand or entertainment

center. Consult your dealer for available options. O Avoid excessive sunlight or bright lights, including reflections. □ Keep away from excessive heat or moisture. Inadequate ventilation

may cause internal component failure. □ Fluorescent lighting may reduce remote control transmitting range. □ Avoid magnetic equipment, including motors, fans, or external speakers.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results: □ Use 75-ohm coaxial shielded cables.

□ Use appropriate input and output connectors that match your

component connectors.

□ Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. FOR SOME MODELS THAT ARE NON-POLARI2ED, THE USE OF AN AC ADAPTOR CONNECTOR MAY BE NECESSARY.

Stic

Polarized plug

Non-Polarized

Remote Control

Cable / Antenna

The Remote Control Quick Reference Guide is located within the package provided with this TV.

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Noie; A cable converter box may be

required for proper reception. Check with your local cable company for compatibility requirements.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Antenna Connection

• For proper reception of VHF/UHF Incoming Cable from channels, an external antenna is Home Antenna

required. For best reception an outdoor antenna is recommended.

• Antenna Mode must be set to TV.

Cable Mode is preset at the factoiy. Antenna users must change to Antenna Mode in the Setup Menu.

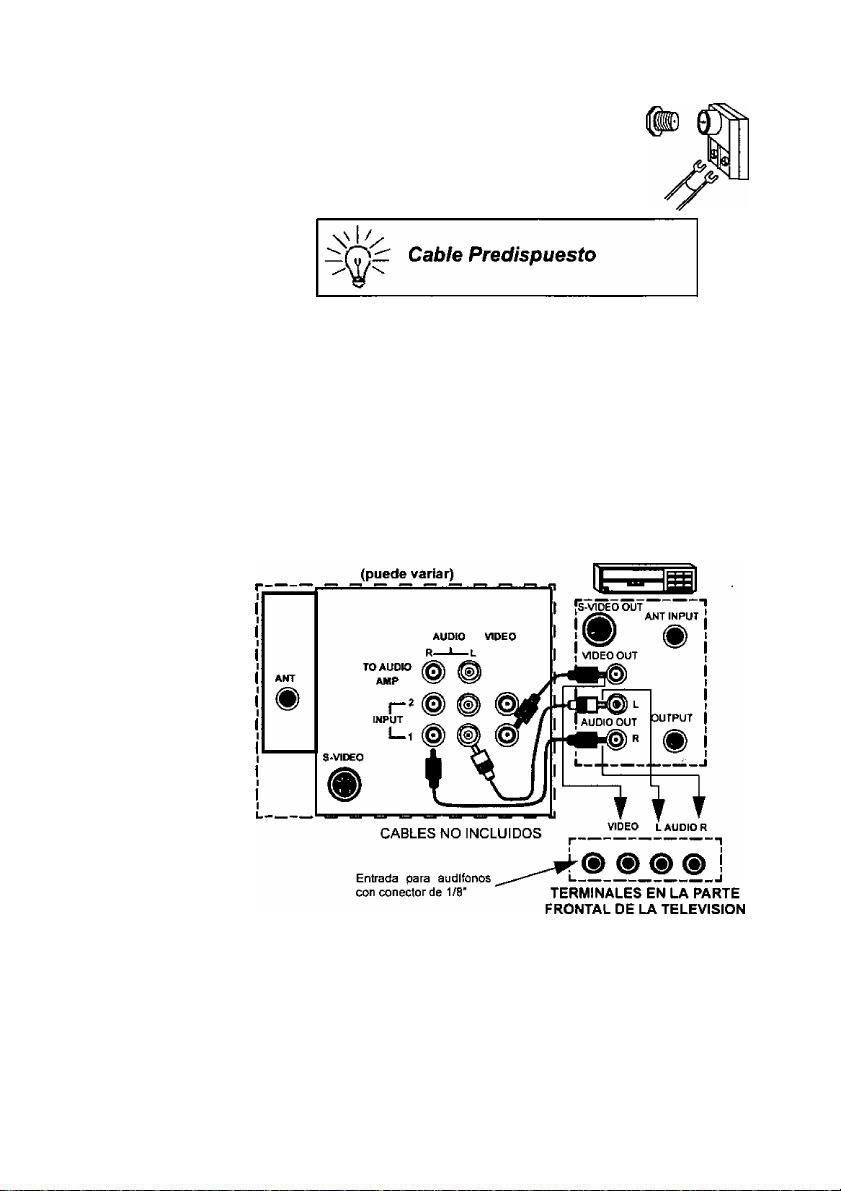

Optional Equipment Connections

VCRs, video disc players, video game equipment, and DSS equipment can

also be connected to the video inputs. See the optional equipment manual

for more information.

(Some models have only one video input and some models have an S-Video input.)

TERMINALS ON BACK OF TV

(may vary)

ìnstallation

VCR

Procedure

1. Connect equipment as shown to rear AudioA/ideo input jacks.

2. Select the Video mode by pressing TVA^IDEO button.

3. Operate optional equipment as instructed in equipment manual.

Note:

If both S-VIDEO and VIDEO input am used at the same time, two images will appear on the TV screen.

Main Menu

TO AUDIO AMPLIFIER

Connect to an external audio amplifier input for listening to a stereo system.

Note: Do not connect TO AUDIO AMP terminals directly to

Audio Adjustments

1. Select TV SPEAKERS ON from the AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Select TV SPEAKERS OFF&VAO from the AUDIO menu.

6. Volume and Mute are now controlled by the TV.

Note: In OFF&FAO the volume is controlled by the external amplifier.

Main Menu

external speakers.

Main Menu

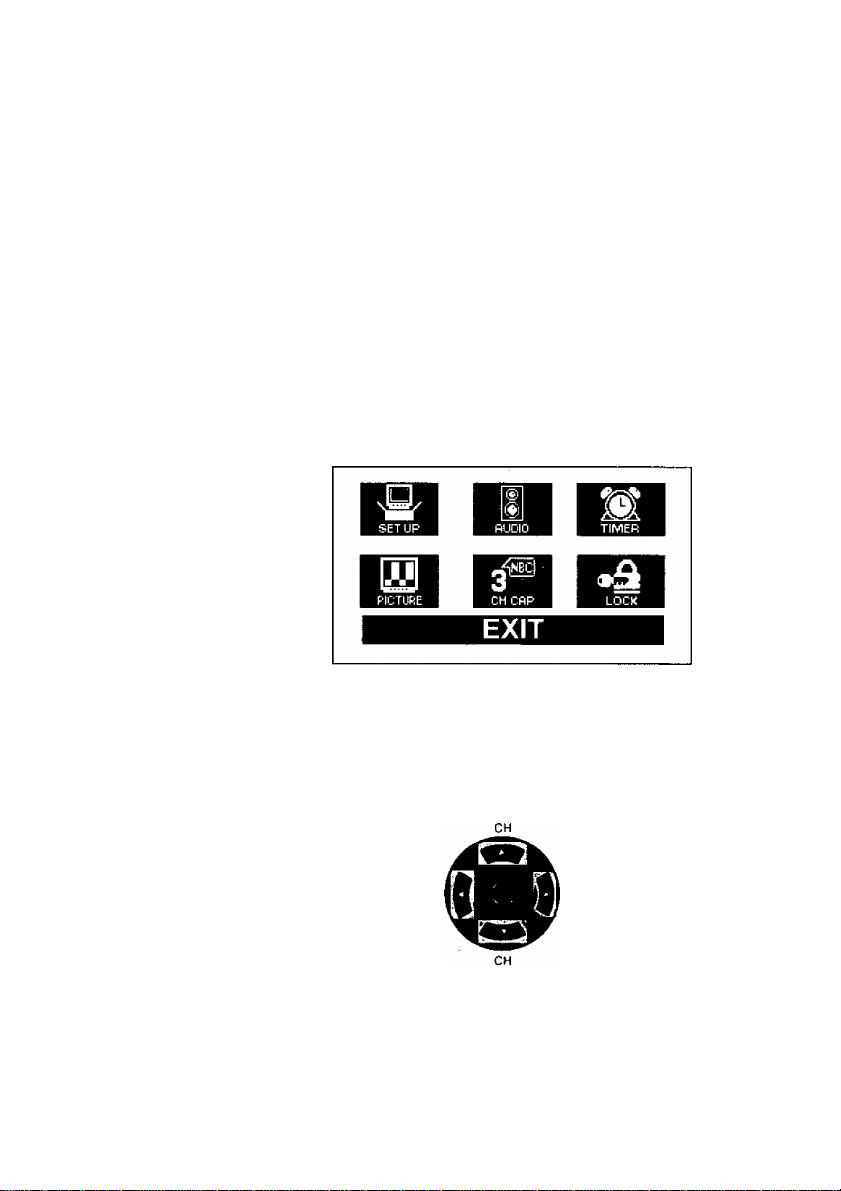

ACTION Button

Press the ACTION button to display the Main Menu and submenus. Press the ACTION button repeatedly to exit.

CH / VOL Buttons

Press the CH (channel) or VOL (volume) buttons to select an icon. Use the CH buttons to highlight the desired features. Use VOL buttons to select and

adjust features.

Remote Navigation Buttons

VOL

Picture In Picture (PiP) Operation

Picture In Picture (PIP) Operation

PIP Operation with a VCR and Cable Box

This television includes a Picture In Picture (PIP) feature. A second video source (VCR, Camcorder, etc.) is required to provide a second picture.

Connect your television to a VCR and Cable Box, as shown. (Some models

have only one video input and some models have an S-VIDEO video input.)

TERMINALS ON BACK OR TV VCR CABLE BOX

Note: The Remote Control must be programmed with supplied codes to

operate the VCR and Cable Box. See Programming the Remote Control in the Remote Confra/ Quick Reference Guide.

Procedure

Press the PIP button on the Remote Control to display the PIP frame.

Note: The PIP picture is the same as the main picture, initially.

To view a different picture in the PIP frame:

• Press the TVA/IDEO button on the Remote Control to select the video PIP source.

Verify the CABLE BOX and VCR are ON and the VCR is

tuned to channel 3.

• Choose channels for the PIP frame by pressing the CBL button on the Remote Control and using the numeric keypad or CH up/down buttons.

• Choose channels for the Main Picture by pressing the TV button on the Remote Control and using the numeric keypad or CH up/down buttons.

The SWAP button switches the PIP and Main

Picture source. Press the RECALL button for on

screen PIP and Main Picture source status.

Picture In Picture (PIP) Operation

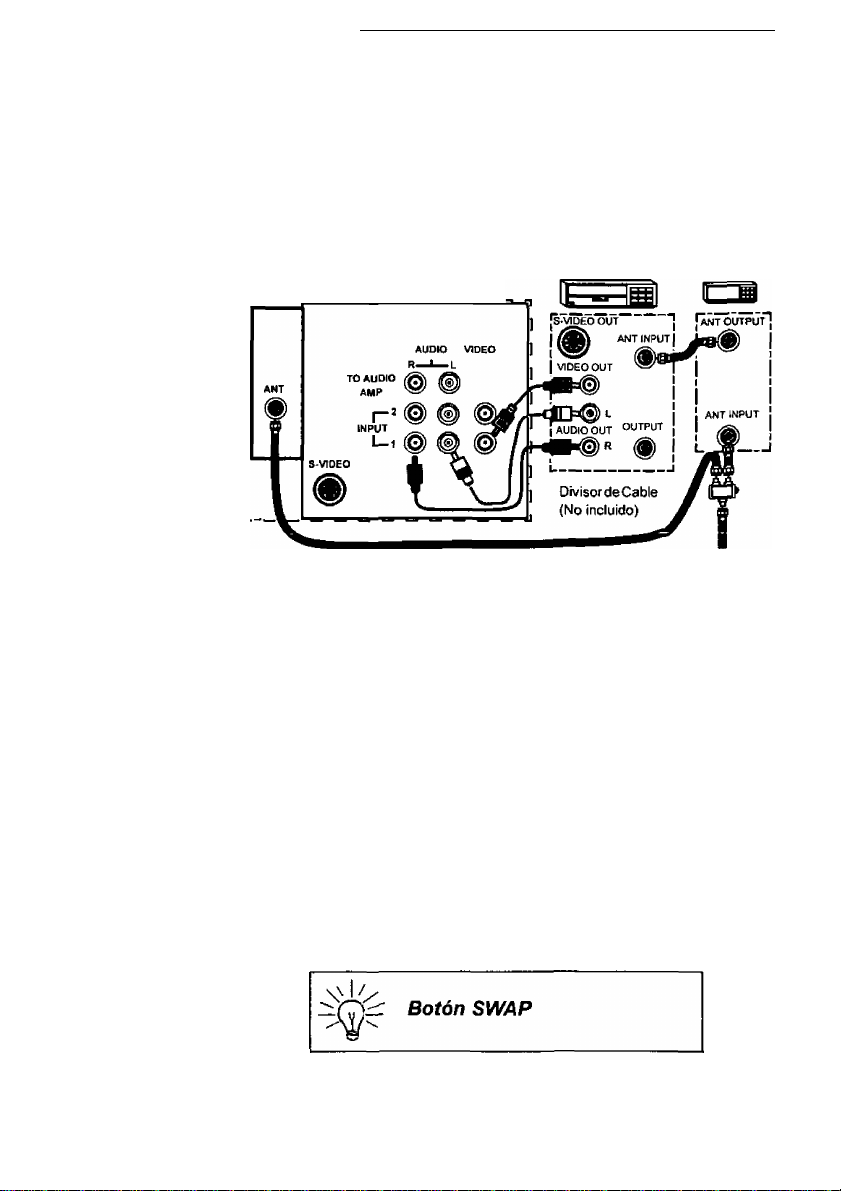

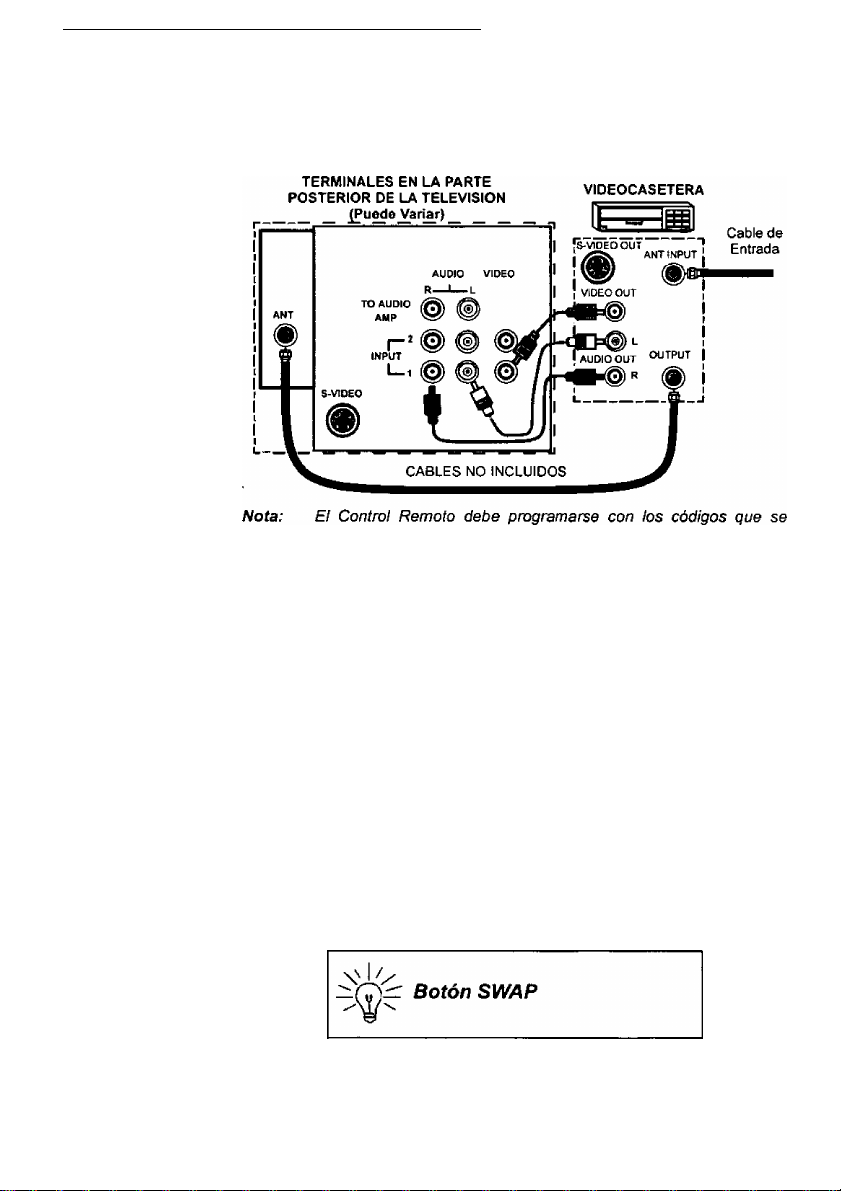

PIP Operation with a VCR - No Cable Box

This television includes a Picture In Picture (PIP) feature. A second video source (VCR) is required to provide a second picture.

Connect your television to a VCR, as shown. (Some models have only one video input and some models have an S-VIDEO input.)

TERMINALS ON BACK OF TV VCR

Note: The Remote Control must be programmed with the supplied codes

to operate the VCR. See Programming the Remote Control in the Remote Control Quick Reference Guide.

Procedure

Turn the VCR OFF and tune the TV to channel 3.

Press the PIP button on the Remote Control to display the PIP frame

on screen.

Note: The PIP picture is the same as the Main picture, initially.

• Press the TV/VIDEO button on the Remote Control to select the VIDEO PIP source.

• Press the VCR button on the Remote Control and turn ON the VCR.

• Press the TVA/CR button on the Remote Control,

• Choose channels for PIP frame by pressing VCR CHANNEL up/down buttons on the Remote Control.

• Choose channels for the Main Picture by pressing the TV button on the Remote Control and using the numeric keypad

or CH up/down buttons.

The SWAP button switches the PIP and Main Picture source. Press the RECALL button for on screen PIP and Main Picture source status.

Main Menu Feature Chart

SET TIME

ANT

AUTO PROG

MANUAL PROG Manually add or delete channels from memory.

AUTO POWER

CC MODE

LANGUAGES Select English, Spanish, or French menu.

MODE

Al SOUND

TV SPEAKERS

When entered, TIME will display on screen after pressing

POWER button, RECALL button, or changing channels.

Choose CABLE or TV to match the signal at your antenna input.

Automatically program channels with a signal

into memory.

Select SET to power up the TV at the same as the Cable

Box or other components or select NO.

Select C1 or C2 for Closed Captioning display. Select OFF to display closed captioning when MUTE button is pressed.

Select the audio mode: □ STEREO * Two channel audio reception. □ SAP - (Second Audio Program) Tune to the

alternate audio channel if available in your area (bilingual or descriptive audio).

□ MONO - One channel audio. Use when stereo

signal is weak.

Automatically maintain constant volume between programs and commercials.

Select TV SPEAKERS: □ ON - TV SPEAKERS operate normally. n OFF&VAO (Variable Audio Output) - TV Speakers

off - audio adjustable by TV.

□ OFF&FAO (Fixed Audio Output) - TV Speakers off -

audio adjustable only by the external amplifier (some models).

Description

SETUP

AUDIO

Main Menu Feature Chart

Main Menu Feature Chart (Cont)

Menu Description

CH CAP

CHANNEL CAPTION

SLEEP TIMER

PROGRAM TIMER

Provide labels for up to 30 stations using up to four characters for each station.

Program TV to automatically turn off in 30, 60, or 90 minutes. Select NO to turn timer off.

Program TV to automatically turn on and off at selected time, on a selected channel, and on a selected day or daily.

lEI

PICTURE NORM

COLOR

TINT

BRIGHTNESS


SHARPNESS Adjust clarity of outline detail.

Reset all picture adjustments to factory default settings. Adjust desired color intensity. Adjust natural flesh tones. Adjust dark areas for crisp detail. Adjust white areas of picture.

TIMER


GAME GUARD

LOCK

Program to prevent video games, cable box, and VCRs from being viewed.
