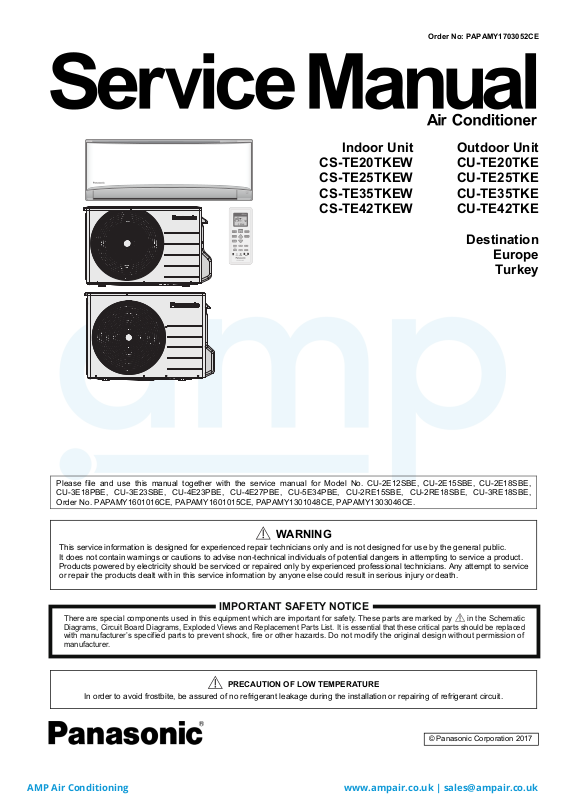

Panasonic CS-TE35TKEW Operating Instructions

Download

Order No: PAPAMY1703052CE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Indoor Unit Outdoor Unit CS-TE20TKEW CS-TE25TKEW CS-TE35TKEW CS-TE42TKEW

CU-TE20TKE CU-TE25TKE CU-TE35TKE CU-TE42TKE

Destination

Europe

Turkey

Please file and use this manual together with the service manual for Model No. CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E18PBE, CU-3E23SBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2RE15SBE, CU-2RE18SBE, CU-3RE18SBE, Order No. PAPAMY1601016CE, PAPAMY1601015CE, PAPAMY1301048CE, PAPAMY1303046CE.

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacturer.

In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.

PRECAUTION OF LOW TEMPERATURE

TABLE OF CONTENTS

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

PAGE PAGE

1. Safety Precautions ............................................. 3

2. Specifications ..................................................... 5

3. Features ............................................................. 14

4. Location of Controls and Components .......... 15

4.1 Indoor Unit .................................................. 15

4.2 Outdoor Unit ............................................... 15

4.3 Remote Control .......................................... 15

5. Dimensions ....................................................... 16

5.1 Indoor Unit .................................................. 16

5.2 Outdoor Unit ............................................... 17

6. Refrigeration Cycle Diagram ........................... 18

7. Block Diagram .................................................. 19

7.1 Indoor Unit .................................................. 19

7.2 Outdoor Unit ............................................... 20

8. Wiring Connection Diagram ............................ 23

8.1 Indoor Unit .................................................. 23

8.2 Outdoor Unit ............................................... 24

9. Electronic Circuit Diagram .............................. 27

9.1 Indoor Unit .................................................. 27

9.2 Outdoor Unit ............................................... 28

10. Printed Circuit Board ....................................... 31

10.1 Indoor Unit .................................................. 31

10.2 Outdoor Unit ............................................... 33

11. Installation Instruction ..................................... 36

11.1 Select the Best Location ............................. 36

11.2 Indoor Unit .................................................. 37

11.3 Outdoor Unit ............................................... 42

12. Operation Control ............................................. 48

12.1 Basic Function ............................................ 48

12.2 Indoor Fan Motor Operation ....................... 49

12.3 Outdoor Fan Motor Operation .................... 50

12.4 Airflow Direction .......................................... 51

12.5 Timer Control .............................................. 52

12.6 Sleep Mode Operation ............................... 53

12.7 Auto Restart Control ................................... 53

12.8 Indication Panel .......................................... 53

12.9 Quiet Operation (Cooling Mode/Cooling

Area of Dry Mode) ...................................... 53

12.10 Quiet Operation (Heating) .......................... 54

12.11 Powerful Mode Operation ........................... 54

13. Operation Control

(For Multi Split Connection) ............................ 55

13.1 Cooling operation ....................................... 55

13.2 Soft Dry Operation ...................................... 55

13.3 Heating Operation ...................................... 55

13.4 Automatic Operation ................................... 56

13.5 Indoor Fan Motor Operation ....................... 56

13.6 Powerful Mode Operation ........................... 56

13.7 Auto Restart Control ................................... 56

13.8 Indication Panel .......................................... 56

14. Protection Control ............................................57

14.1 Protection Control for All Operations ..........57

14.2 Protection Control for Cooling & Soft Dry

Operation ....................................................59

14.3 Protection Control for Heating Operation ...60

15. Servicing Mode .................................................62

15.1 Auto OFF/ON Button ..................................62

15.2 Heat Only Operation ...................................63

15.3 Remote Control Button ...............................64

16. Troubleshooting Guide ....................................67

16.1 Refrigeration Cycle System ........................67

16.2 Breakdown Self Diagnosis Function ...........69

16.3 Error Codes Table ......................................70

16.4 Self-diagnosis Method ................................72

17. Disassembly and Assembly Instructions ... 100

17.1 Indoor Electronic Controllers,

Cross Flow Fan and Indoor Fan Motor

Removal Procedures ............................... 100

17.2 Outdoor Electronic Controller Removal

Procedure ................................................ 104

18. Technical Data ............................................... 106

18.1 Cool Mode Performance Data ................. 106

18.2 Heat Mode Performance Data ................. 108

19. Service Data ................................................... 109

19.1 Cool Mode Outdoor Air Temperature

Characteristic ........................................... 109

19.2 Heat Mode Outdoor Air Temperature

Characteristic ........................................... 113

19.3 Piping Length Correction Factor .............. 117

20. Exploded View and Replacement Parts

List .................................................................. 118

20.1 Indoor Unit ............................................... 118

20.2 Outdoor Unit ............................................ 122

1. Safety Precautions

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing.  Electrical work must be installed or serviced by a licensed electrician. Be sure to use the correct rating of the power plug and

main circuit for the model installed.

 The caution items stated here must be followed because these important contents are related to safety. The meaning of each

indication used is as below. Incorrect installation or servicing due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.

WARNING

CAUTION

 The items to be followed are classified by the symbols:

 Carry out test run to confirm that no abnormality occurs after the servicing. Then, explain to user the operation, care and

maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference.

1. Do not modify the machine, part, material during repairing service.

2. If wiring unit is supplied as repairing part, do not repair or connect the wire even only partial wire break. Exchange the whole wiring unit.

3. Do not wrench the fasten terminal. Pull it out or insert it straightly.

Engage dealer or specialist for installation and servicing. If installation of servicing done by the user is defective, it will cause water

4. leakage, electrical shock or fire.

5. Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electric shock or fire.

Use the attached accessories parts and specified parts for installation and servicing. Otherwise, it will cause the set to fall, water

6. leakage, fire or electrical shock.

Install at a strong and firm location which is able to withstand the set’s weight. If the strength is not enough or installation is not properly

7. done, the set will drop and cause injury.

For electrical work, follow the local national wiring standard, regulation and the installation instruction. An independent circuit and single

8. outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.

This equipment is strongly recommended to install with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD).

9. Otherwise, it may cause electrical shock and fire in case equipment breakdown or insulation breakdown.

Do not use joint cable for indoor / outdoor connection cable. Use the specified Indoor/Outdoor connection cable, refer to installation

10.

instruction CONNECT THE CABLE TO THE INDOOR UNIT and connect tightly for indoor / outdoor connection. Clamp the cable so that no external force will be acted on the terminal. If connecting or fixing is not perfect, it will cause heat up or fire at the connection.

Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will

11. cause heat-up or fire at the connection point of terminal, fire or electrical shock.

When install or relocate air conditioner, do not let any substance other than the specified refrigerant, eg. air etc. mix into refrigeration

12. cycle (piping). (Mixing of air etc. will cause abnormal high pressure in refrigeration cycle and result in explosion, injury etc.).

Do not install outdoor unit near handrail of veranda. When installing air-conditioner unit at veranda of high rise building, child may climb

13. up to outdoor unit and cross over the handrail and causing accident.

This equipment must be properly earthed. Earth line must not be connected to gas pipe, water pipe, earth of lightning rod and

14. telephone. Otherwise, it may cause electric shock in case equipment breakdown or insulation breakdown.

This indication shows the possibility of causing death or serious injury.

This indication shows the possibility of causing injury or damage to properties.

This symbol denotes item that is PROHIBITED from doing.

WARNING

15. Keep away from small children, the thin film may cling to nose and mouth and prevent breathing.

Do not use unspecified cord, modified cord, joint cord or extension cord for power supply cord. Do not share the single outlet

16. with other electrical appliances. Poor contact, poor insulation or over current will cause electrical shock or fire.

Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the

17. flare may break and cause refrigerant gas leakage.

 For R410A model, use piping, flare nut and tools which is specified for R410A refrigerant. Using of existing (R22) piping,

flare nut and tools may cause abnormally high pressure in the refrigerant cycle (piping), and possibly result in explosion

18.

19.

and injury.

 Thickness or copper pipes used with R410A must be more than 0.8 mm. Never use copper pipes thinner than 0.8 mm.  It is desirable that the amount of residual oil less than 40 mg/10 m.

During installation, install the refrigerant piping properly before run the compressor. (Operation of compressor without fixing refrigeration piping and valves at opened condition will caused suck-in of air, abnormal high pressure in refrigeration cycle and result in explosion, injury etc).

WARNING

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

During pump down operation, stop the compressor before remove the refrigeration piping. (Removal of compressor while compressor is

20.

operating and valves are opened will cause suck-in of air, abnormal high pressure in refrigeration cycle and result in explosion, injury etc.)

After completion of installation or service, confirm there is no leakage or refrigerant gas. It may generate toxic gas when the refrigerant

21. contacts with fire.

22. Ventilate if there is refrigerant gas leakage during operation. It may cause toxic gas when refrigerant contacts with fire.

23. Do not insert your fingers or other objects into the unit, high speed rotating fan may cause injury.

24. Must not use other parts except original parts described in catalog and manual.

25. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

CAUTION

Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding

1. of the unit, it may cause fire.

Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the

2. furniture.

Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the flare

3. may break and cause refrigerant gas leakage.

4. Do not touch outdoor unit air inlet and aluminium fin. It may cause injury.

5. Select an installation location which is easy for maintenance.

Pb free solder has a higher melting point than standard solder; typically the melting point is 50°F – 70°F (30°C – 40°C) higher. Please

use a high temperature solder iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C). Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

Power supply connection to the room air conditioner. Use power supply cord 3 × 1.5 mm² (3/4 ~ 1.75HP) type designation 60245 IEC 57 or heavier cord. Connect the power supply cord of the air conditioner to the mains using one of the following method. Power supply point should be in easily accessible place for power disconnection in case of emergency. In some countries, permanent connection of this air conditioner to the power supply is prohibited.

1) Power supply connection to the receptacle using power plug. Use an approved 15/16A (3/4 ~ 1.75HP) power plug with earth pin for the connection to the socket.

2) Power supply connection to a circuit breaker for the permanent connection. Use an approved 16A (3/4 ~ 1.75HP) circuit breaker for the permanent connection. It must be a double pole switch with a minimum

3.0 mm contact gap.

Do not release refrigerant during piping work for installation, servicing, reinstallation and during repairing a refrigerant parts.

8. Take care of the liquid refrigerant, it may cause frostbite.

9. Installation or servicing work: It may need two people to carry out the installation or servicing work.

10. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

11. Do not sit or step on the unit, you may fall down accidentally.

Do not touch the sharp aluminium fins or edges of metal parts.

12.

If you are required to handle sharp parts during installation or servicing, please wear hand glove. Sharp parts may cause injury.

2. Specifications

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Model

Performance Test Condition EUROVENT EUROVENT

Power Supply

Min. Mid. Max. Min. Mid. Max.

Capacity

Running Current A – 2.40 – – 3.00 –

Input Power W 250 530 640 250 670 910

Annual Consumption kWh – 265 – – 335 –

EER

Cooling

ErP

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L / QLo)

Running Current A – 3.05 – – 3.60 –

Heating

ErP

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L / QLo)

Low Temp. : Capacity (kW) / I.Power (W) / COP 2.61 / 930 / 2.81 2.97 / 1.02k / 2.91

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP 2.14 / 870 / 2.46 2.70 / 1.07k / 2.52

Max Current (A) / Max Input Power (W) 4.7 / 1.05k 5.1 / 1.15k

Pdesign kW 2.0 2.5

SEER (W/W) 6.1 6.1

Annual

Consumption

Class A++ A++

Power Factor % – 96 – – 97 –

Capacity

Input Power W 185 680 1.05k 195 810 1.15k

COP

Pdesign kW 1.9 2.4

Tbivalent °C -10 -10

SCOP (W/W) 4.0 4.1

Annual

Consumption

Class A+ A+

Power Factor % – 97 – – 98 –

Starting Current (A) 3.05 3.60

Indoor CS-TE20TKEW CS-TE25TKEW

Outdoor CU-TE20TKE CU-TE25TKE

Phase, Hz Single, 50 Single, 50

V 230 230

kW 0.75 2.00 2.40 0.85 2.50 3.00

BTU/h 2560 6820 8180 2900 8530 10200

Kcal/h 650 1720 2060 730 2150 2580

W/W 3.00 3.77 3.75 3.40 3.73 3.30

BTU/hW 10.24 12.87 12.78 11.60 12.73 11.21

Kcal/hW 2.60 3.25 3.22 2.92 3.21 2.84

kWh 115 143

dB-A 37 / 25 / 20 40 / 26 / 20

Power Level dB 53 / 41 / 36 56 / 42 / 36

dB-A 46 / – / – 47 / – / –

Power Level dB 61 / – / – 62 / – / –

kW 0.70 2.70 3.60 0.80 3.30 4.10

BTU/h 2390 9210 12300 2730 11300 14000

Kcal/h 600 2320 3100 690 2840 3530

W/W 3.78 3.97 3.43 4.10 4.07 3.57

BTU/hW 12.92 13.54 11.71 14.00 13.95 12.17

Kcal/hW 3.24 3.41 2.95 3.54 3.51 3.07

kWh 665 820

dB-A 38 / 26 / 22 40 / 27 / 22

Power Level dB 54 / 42 / 38 56 / 43 / 38

dB-A 47 / – / – 48 / – / –

Power Level dB 62 / – / – 63 / – / –

Model

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Indoor CS-TE20TKEW CS-TE25TKEW

Outdoor CU-TE20TKE CU-TE25TKE

Type Hermetic Motor (Rotary) Hermetic Motor (Rotary)

Compressor

Motor Type Brushless (6 poles) Brushless (6 poles)

Output Power W 500 500

Type Cross-Flow Fan Cross-Flow Fan

Material ASG20K1 ASG20K1

Motor Type DC / Transistor (8-poles) DC / Transistor (8-poles)

Input Power W 47.3 47.3

Output Power W 30 30

QLo

Indoor Fan

Speed

Cool rpm 630 630

Heat rpm 730 730

Cool rpm 770 800

Heat rpm 820 850

Cool rpm 940 1010

Heat rpm 1020 1070

Cool rpm 1120 1220

Heat rpm 1220 1290

Cool rpm 1170 1270

SHi

Heat rpm 1270 1340

Type Propeller Fan Propeller Fan

Material PP PP

Motor Type DC (8-poles) DC (8-poles)

Input Power W – –

Outdoor Fan

Output Power W 40 40

Speed Hi

Cool rpm 840 830

Heat rpm 800 800

Moisture Removal L/h (Pt/h) 1.3 (2.7) 1.5 (3.2)

/min (ft3/min) 5.27 (186) 5.27 (186)

/min (ft3/min) 6.62 (234) 6.90 (244)

/min (ft3/min) 8.25 (291) 8.92 (315)

/min (ft3/min) 10.00 (350) 10.90 (385)

/min (ft3/min) 10.46 (369) 11.42 (403)

/min (ft3/min) 31.20 (1100) 30.00 (1060)

Indoor Airflow

Outdoor

Airflow

QLo

SHi

Cool m

Heat m3/min (ft3/min) 6.23 (220) 6.23 (220)

Cool m

Heat m3/min (ft3/min) 7.10 (251) 7.38 (261)

Cool m

Heat m3/min (ft3/min) 9.02 (319) 9.50 (335)

Cool m

Heat m3/min (ft3/min) 10.90 (385) 11.60 (410)

Cool m

Heat m3/min (ft3/min) 11.42 (403) 12.09 (427)

Cool m

Heat m3/min (ft3/min) 29.70 (1050) 28.90 (1020)

Control Device Expansion Valve Expansion Valve

Refrigeration

Cycle

Refrigerant Oil cm3 FV50S (250) FV50S (250)

Refrigerant Type g (oz) R410A, 660 (23.3) R410A, 770 (27.2)

GWP 2088 2088

F-Gas

CO2eq (ton)

(Precharged Amount /

1.378 / 1.613 1.608 / 1.843

Maximum Charged Amount)

Height (I/D / O/D) mm (inch) 290 (11-7/16) / 542 (21-11/32) 290 (11-7/16) / 542 (21-11/32)

Dimension

Width (I/D / O/D) mm (inch) 799 (31-15/32) / 780 (30-23/32) 799 (31-15/32) / 780 (30-23/32)

Depth (I/D / O/D) mm (inch) 197 (7-25/32) / 289 (11-13/32) 197 (7-25/32) / 289 (11-13/32)

Weight Net (I/D / O/D) kg (lb) 8 (18) / 26 (57) 8 (18) / 27 (60)

Model

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 9.52 (3/8) 6.35 (1/4) / 9.52 (3/8)

Standard length m (ft) 5.0 (16.4) 5.0 (16.4)

Length range (min – max) m (ft) 3 (9.8) ~ 15 (49.2) 3 (9.8) ~ 15 (49.2)

I/D & O/D Height different m (ft) 15.0 (49.2) 15.0 (49.2)

Piping

Additional Gas Amount g/m (oz/ft) 15 (0.2) 15 (0.2)

Length for Additional Gas m (ft) 7.5 (24.6) 7.5 (24.6)

Drain Hose

Indoor Heat

Exchanger

Outdoor

Heat

Exchanger

Air Filter

Power Supply Cord A Nil Nil

Indoor

Operation

Range

Outdoor

Operation

Range

1. Cooling capacities are based on indoor temperature of 27°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35°C DRY BULB (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor -7/-8°C

5. Standby power consumption ≤10.0w (when switched OFF by remote control, except under self protection control).

6. Specifications are subjected to change without prior notice for further improvement.

Inner Diameter mm 16.7 16.7

Length mm 650 650

Fin Material Aluminium (Pre Coat) Aluminium (Pre Coat)

Fin Type Slit Fin Slit Fin

Row × Stage × FPI 2 × 15 × 17 2 × 15 × 17

Size (W × H × L) mm 610 × 315 × 25.4 610 × 315 × 25.4

Fin Material Aluminium Aluminium

Fin Type Corrugated Fin (Pre Coat) Corrugated Fin

Row × Stage × FPI 1 × 24 × 17 1 × 24:12 × 17

Size (W × H × L) mm 36.4 × 504 × 710 36.4 × 504 × 713:684

Material Polypropelene Polypropelene

Type One-touch One-touch

Power Supply Outdoor Outdoor

Thermostat Electronic Contol Electronic Contol

Protection Device Electronic Contol Electronic Contol

Dry Bulb Wet Bulb Dry Bulb Wet Bulb

Cooling

Heating

Cooling

Heating

Indoor CS-TE20TKEW CS-TE25TKEW

Outdoor CU-TE20TKE CU-TE25TKE

Maximum °C 32 23 32 23

Minimum °C 16 11 16 11

Maximum °C 30 – 30 –

Minimum °C 16 – 16 –

Maximum °C 43 26 43 26

Minimum °C -10 – -10 –

Maximum °C 24 18 24 18

Minimum °C -15 -16 -15 -16

Model

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Performance Test Condition EUROVENT EUROVENT

Power Supply

Min. Mid. Max. Min. Mid. Max.

Capacity

Running Current A – 4.55 – – 5.65 –

Input Power W 255 1.02k 1.21k 265 1.28k 1.67k

Annual Consumption kWh – 510 – – 640 –

EER

Cooling

ErP

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L / QLo)

Running Current A – 4.70 – – 6.05 –

Heating

ErP

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L / QLo)

Low Temp. : Capacity (kW) / I.Power (W) / COP 3.70 / 1.27k / 2.91 4.93 / 1.83k / 2.69

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP 3.30 / 1.37k / 2.41 3.90 / 1.72k / 2.27

Max Current (A) / Max Input Power (W) 6.4 / 1.44k 9.2 / 2.07k

Pdesign kW 3.5 4.2

SEER (W/W) 6.1 5.6

Annual

Consumption

Class A++ A+

Power Factor % – 97 – – 98 –

Capacity

Input Power W 200 1.07k 1.44k 200 1.37k 2.07k

COP

Pdesign kW 2.8 3.6

Tbivalent °C -10 -10

SCOP (W/W) 4.1 3.8

Annual

Consumption

Class A+ A

Power Factor % – 99 – – 98 –

Starting Current (A) 4.70 6.05

Indoor CS-TE35TKEW CS-TE42TKEW

Outdoor CU-TE35TKE CU-TE42TKE

Phase, Hz Single, 50 Single, 50

V 230 230

kW 0.85 3.50 3.90 0.85 4.20 4.60

BTU/h 2900 11900 13300 2900 14300 15700

Kcal/h 730 3010 3350 730 3610 3960

W/W 3.33 3.43 3.22 3.21 3.28 2.75

BTU/hW 11.37 11.67 10.99 10.94 11.17 9.40

Kcal/hW 2.86 2.95 2.77 2.75 2.82 2.37

kWh 201 263

dB-A 42 / 30 / 20 44 / 31 / 29

Power Level dB 58 / 46 / 36 60 / 47 / 45

dB-A 48 / – / – 49 / – / –

Power Level dB 63 / – / – 64 / – / –

kW 0.80 4.00 5.10 0.80 5.00 6.80

BTU/h 2730 13600 17400 2730 17100 23200

Kcal/h 690 3440 4390 690 4300 5850

W/W 4.00 3.74 3.54 4.00 3.65 3.29

BTU/hW 13.65 12.71 12.08 13.65 12.48 11.21

Kcal/hW 3.45 3.21 3.05 3.45 3.14 2.83

kWh 956 1326

dB-A 42 / 33 / 22 44 / 35 / 28

Power Level dB 58 / 49 / 38 60 / 51 / 44

dB-A 50 / – / – 51 / – / –

Power Level dB 65 / – / – 66 / – / –

Model

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Indoor CS-TE35TKEW CS-TE42TKEW

Outdoor CU-TE35TKE CU-TE42TKE

Type Hermetic Motor (Rotary) Hermetic Motor (Rotary)

Compressor

Motor Type Brushless (6 poles) Brushless (6 poles)

Output Power W 700 700

Type Cross-Flow Fan Cross-Flow Fan

Material ASG20K1 ASG20K1

Motor Type DC / Transistor (8-poles) DC / Transistor (8-poles)

Input Power W 47.3 47.3

Output Power W 30 30

Cool rpm 630 870

Heat rpm 730 920

Cool rpm 900 930

Heat rpm 1020 1100

Cool rpm 1100 1170

Heat rpm 1200 1280

Cool rpm 1310 1410

Heat rpm 1380 1470

Cool rpm 1360 1460

Heat rpm 1430 1500

Indoor Fan

Speed

QLo

SHi

Type Propeller Fan Propeller Fan

Material PP PP

Motor Type DC (8-poles) DC (8-poles)

Input Power W – –

Outdoor Fan

Output Power W 40 40

Speed Hi

Cool rpm 830 900

Heat rpm 880 910

Moisture Removal L/h (Pt/h) 2.0 (4.2) 2.4 (5.1)

/min (ft3/min) 5.27 (186) 7.21 (255)

/min (ft3/min) 7.86 (278) 7.78 (275)

/min (ft3/min) 9.78 (345) 10.06 (355)

/min (ft3/min) 11.80 (415) 12.30 (435)

/min (ft3/min) 12.28 (434) 12.82 (453)

/min (ft3/min) 28.70 (1015) 33.60 (1185)

Indoor

Airflow

Outdoor

Airflow

QLo

SHi

Cool m

Heat m3/min (ft3/min) 6.23 (220) 7.69 (272)

Cool m

Heat m3/min (ft3/min) 9.02 (319) 9.40 (332)

Cool m

Heat m3/min (ft3/min) 10.74 (379) 11.11 (392)

Cool m

Heat m3/min (ft3/min) 12.50 (440) 12.90 (455)

Cool m

Heat m3/min (ft3/min) 12.95 (457) 13.20 (466)

Cool m

Heat m3/min (ft3/min) 30.40 (1075) 34.00 (1200)

Control Device Expansion Valve Expansion Valve

Refrigeration

Cycle

Refrigerant Oil cm3 FV50S (320) FV50S (320)

Refrigerant Type g (oz) R410A, 950 (33.5) R410A, 1.01k (35.7)

GWP 2088 2088

F-Gas

CO2eq (ton)

(Precharged Amount /

1.984 / 2.297 2.109 / 2.422

Maximum Charged Amount)

Height (I/D / O/D) mm (inch) 290 (11-7/16) / 542 (21-11/32) 290 (11-7/16) / 619 (24-3/8)

Dimension

Width (I/D / O/D) mm (inch) 799 (31-15/32) / 780 (30-23/32) 799 (31-15/32) / 824 (32-15/32)

Depth (I/D / O/D) mm (inch) 197 (7-25/32) / 289 (11-13/32) 197 (7-25/32) / 299 (11-25/32)

Weight Net (I/D / O/D) kg (lb) 8 (18) / 32 (71) 8 (18) / 32 (71)

Model

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 9.52 (3/8) 6.35 (1/4) / 12.70 (1/2)

Standard length m (ft) 5.0 (16.4) 5.0 (16.4)

Length range (min – max) m (ft) 3 (9.8) ~ 15 (49.2) 3 (9.8) ~ 15 (49.2)

I/D & O/D Height different m (ft) 15.0 (49.2) 15.0 (49.2)

Piping

Additional Gas Amount g/m (oz/ft) 20 (0.2) 20 (0.2)

Length for Additional Gas m (ft) 7.5 (24.6) 7.5 (24.6)

Drain Hose

Indoor Heat

Exchanger

Outdoor

Heat

Exchanger

Air Filter

Power Supply Cord A Nil Nil

Indoor

Operation

Range

Outdoor

Operation

Range

2. Heating capacities are based on indoor temperature of 20°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor -7/-8°C

5. Standby power consumption ≤10.0w (when switched OFF by remote control, except under self protection control).

6. Specifications are subjected to change without prior notice for further improvement.

Inner Diameter mm 16.7 16.7

Length mm 650 650

Fin Material Aluminium (Pre Coat) Aluminium (Pre Coat)

Fin Type Slit Fin Slit Fin

Row × Stage × FPI 2 × 15 × 17 2 × 15 × 21

Size (W × H × L) mm 610 × 315 × 25.4 610 × 315 × 25.4

Fin Material Aluminium Aluminium

Fin Type Corrugated Fin Corrugated Fin

Row × Stage × FPI 2 × 24 × 17 2 × 28 × 17

Size (W × H × L) mm 36.4 × 504 × 713:684 36.38 × 588 × 606.6

Material Polypropelene Polypropelene

Type One-touch One-touch

Power Supply Outdoor Outdoor

Thermostat Electronic Contol Electronic Contol

Protection Device Electronic Contol Electronic Contol

Dry Bulb Wet Bulb Dry Bulb Wet Bulb

Cooling

Heating

Cooling

Heating

Indoor CS-TE35TKEW CS-TE42TKEW

Outdoor CU-TE35TKE CU-TE42TKE

Maximum °C 32 23 32 23

Minimum °C 16 11 16 11

Maximum °C 30 – 30 –

Minimum °C 16 – 16 –

Maximum °C 43 26 43 26

Minimum °C -10 – -10 –

Maximum °C 24 18 24 18

Minimum °C -15 -16 -15 -16

 Multi Split Combination Possibility:

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

o A single outdoor unit enables air conditioning of up to two separate rooms for CU-2RE15SBE,

CU-2RE18SBE.

o A single outdoor unit enables air conditioning of up to three separate rooms for CU-3RE18SBE.

CONNECTABLE INDOOR UNIT

ROOM

TYPE

2.0kW CS-TE20TKEW ● ● ● ● ● ● ●

2.5kW CS-TE25TKEW ● ● ● ● ● ● ●

3.2kW CS-TE35TKEW – ● ● ● – ● ●

Wall

4.0kW CS-TE42TKEW – – – ● – ● ●

5.0kW CS-TE50TKEW – – – ● – – ●

Capacity range of

connectable indoor units

1 room maximum pipe length (m) 20 20 25

Allowable elevation (m) 10 10 15

Total allowable pipe length (m) 30 30 50

Total pipe length for maximum

Pipe length

chargeless length (m)

Additional gas amount over

chargeless length (g/m)

CU-2RE15SBE* CU-2RE18SBE* CU-3RE18SBE*

A B A B A B C

From 4.0kW to 5.7kW From 4.0kW to 7.5kW From 4.5kW to 9.0kW

20 20 30

15 15 20

OUTDOOR UNIT

Note: “●” : Available

Remarks for CU-2RE15SBE / CU-2RE18SBE

1. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable capacity range of indoor unit. (as shown in the table above) Example: The indoor units’ combination below is possible to connect to CU-2RE15SBE. (Total nominal capacity of indoor units is between

4.0kW to 5.7kW)

1) Two CS-TE20TKEW only. (Total nominal cooling capacity is 4.0kW)

Remarks for CU-3RE18SBE

1. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable capacity range of indoor unit. (as shown in the table above) Example: The indoor units’ combination below is possible to connect to CU-3RE18SBE. (Total nominal capacity of indoor units is between

4.5kW to 9.0kW)

1) Two CS-TE25TKEW only. (Total nominal cooling capacity is 5.0kW)

Note*: Above outdoor unit is contains and operates with refrigerant R410A gas.

 Multi Split Combination Possibility:

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

o A single outdoor unit enables air conditioning of up to two separate rooms for CU-2E12SBE, CU-2E15SBE,

CU-2E18SBE.

o A single outdoor unit enables air conditioning of up to three separate rooms for CU-3E23SBE.

CONNECTABLE INDOOR UNIT CU-2E12SBE* CU-2E15SBE* CU-2E18SBE* CU-3E23SBE*

ROOM A B A B A B A B C

2.0kW CS-TE20TKEW ● ● ● ● ● ● ● ● ●

2.5kW CS-TE25TKEW ● ● ● ● ● ● ● ● ●

3.2kW CS-TE35TKEW – ● – ● ● ● ● ● ●

Wall

4.0kW CS-TE42TKEW – – – – – ● – ● ●

5.0kW CS-TE50TKEW – – – – – ● – ● ●

6.0kW CS-TE60TKEW – – – – – – – – ●

Capacity range of connectable units From 3.2kW to 5.7kW From 3.2kW to 5.7kW From 3.2kW to 7.5kW From 4.5kW to 11.0kW

1 room maximum pipe length (m) 20 20 20 25

Allowable elevation (m) 10 10 10 15

Total allowable pipe length (m) 30 30 30 60

Total pipe length for maximum

Pipe length

chargeless length (m)

Additional gas amount over

chargeless length (g/m)

20 20 20 30

15 15 15 20

Note: “●” : Available

Remarks for CU-2E12SBE / CU-2E15SBE / CU-2E18SBE

1. The total nominal cooling capacity of indoor unit that will be connected to outdoor unit must be within connectable capacity range of indoor unit. (as shown in the table above) Example: The indoor units’ combination below is possible to connect to CU-2E15SBE. (Total nominal capacity of indoor units is between

3.2kW to 5.7kW)

1) Two CS-TE20TKEW only. (Total nominal cooling capacity is 4.0kW)

Remarks for CU-3E23SBE

1. The total nominal cooling capacity of indoor unit that will be connected to outdoor unit must be within connectable capacity range of indoor unit. (as shown in the table above) Example: The indoor units’ combination below is possible to connect to CU-3E23SBE. (Total nominal capacity of indoor units is between

4.5kW to 11.0kW)

1) Two CS-TE25TKEW only. (Total nominal cooling capacity is 5.0kW)

Note*: Above outdoor unit is contains and operates with refrigerant R410A gas.

 Multi Split Combination Possibility:

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

o A single outdoor unit enables air conditioning of up to three separate rooms for CU-3E18PBE. o A single outdoor unit enables air conditioning of up to four separate rooms for CU-4E23PBE, CU-4E27PBE. o A single outdoor unit enables air conditioning of up to five separate rooms for CU-5E34PBE.

CONNECTABLE INDOOR UNIT CU-3E18PBE* CU-4E23PBE* CU-4E27PBE* CU-5E34PBE*

ROOM A B C A B C D A B C D A B C D E

2.0kW CS-TE20TKEW ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

2.5kW CS-TE25TKEW ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

3.2kW CS-TE35TKEW – ● ● – ● ● ● ● ● ● ● ● ● ● ● ●

Wall

4.0kW CS-TE42TKEW – ● ● – – ● ● – ● ● ● – ● ● ● ●

5.0kW CS-TE50TKEW – – ● – – ● ● – – ● ● – – ● ● ●

6.0kW CS-TE60TKEW – – – – – – ● – – ● ● – – – ● ●

Capacity range of connectable units From 4.5kW to 9.0kW From 4.5kW to 11.0kW From 4.5kW to 13.6kW From 4.5kW to 17.5kW

1 room maximum pipe length (m) 25 25 25 25

Allowable elevation (m) 15 15 15 15

Total allowable pipe length (m) 50 60 70 80

Total pipe length for maximum

chargeless length (m)

Pipe length

Additional gas amount over

chargeless length (g/m)

30 30 45 45

20 20 20 20

Note: “●” : Available

Remarks for CU-3E18PBE / CU-4E23PBE / CU-4E27PBE / CU-5E34PBE

1. The total nominal cooling capacity of indoor unit that will be connected to outdoor unit must be within connectable capacity range of indoor unit. (as shown in the table above) Example: The indoor units’ combination below is possible to connect to CU-4E27PBE. (Total nominal capacity of indoor units is between

4.5kW to 13.6kW)

1) Two CS-TE25TKEW only. (Total nominal cooling capacity is 5.0kW)

Note*: Above outdoor unit is contains and operates with refrigerant R410A gas.

3. Features

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 Inverter Technology

o Wider output power range o Energy saving o Quick Cooling o Quick Heating o More precise temperature control

 Environment Protection

o Non-ozone depletion substances refrigerant (R410A)

 Long Installation Piping

o Long piping up to 15 meters (3/4 ~ 1.75HP) and 20 meters (2.0HP) during single split connection only

 Easy to use remote control

 Quality Improvement

o Random auto restart after power failure for safety restart operation o Gas leakage protection o Prevent compressor reverse cycle o Inner protector to protect compressor o Noise prevention during soft dry operation

 Operation Improvement

o Quiet mode to reduce the indoor unit operating sound o Powerful mode to reach the desired room temperature quickly o 24-hour timer setting

 Serviceability Feature

o Breakdown Self Diagnosis function

4. Location of Controls and Components

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

4.1 Indoor Unit

Air Filters

Front panel

ir Purifying Filter

Horizontal Airflow direction louver

• Manually adjustable.

Vertical Airflow direction louver

• Do not adjust by hand.

4.2 Outdoor Unit

Remote Control receiver

Auto OFF/ON button

• Use when remote control is misplaced or malfunction occurs.

Aluminium Fin

INDICATOR

POWER

TIMER

(Green) (Orange)

4.3 Remote Control

Remote control

display

Powerful/Quiet

operation

Operation mode

Sleep mode operation

Check

Transmitter

OFF/ON Fan speed selection

Airflow direction selection

Temperature setting

Timer setting

Clock setting

5. Dimensions

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

5.1 Indoor Unit

Air intake

799

direction

290

Left piping hole

Air outlet direction

92.8

144.5

41041-61

197

Right piping hole

Installation plate

Indoor unit external dimensions line

Liquid side

Gas side

Relative position between the indoor unit and the installation plate <Front View>

496.6

420380

Left piping hole

128

PIPE HOLE CENTER

128mm TO PIPE HOLE CENTER

PIPE HOLE CENTER

128mm TO PIPE HOLE CENTER

128

184 222

Right piping hole

16.4

264.6

Unit: mm

5.2 Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

5.2.1 CU-TE20TKE CU-TE25TKE CU-TE35TKE

Space necessary for

installation

100 mm

(104.7)

570.3

67.6780

60.5104.9

100 mm

1000 mm

Anchor Bolt Pitch

320 x 570

Unit: mm

5.2.2 CU-TE42TKE

Space necessary for

installation

2-way valve at Liquid side (High Pressure)

<Top View

22 (124) (62.6)

824 68 .7

540 160

85.5

155.2 34.3

3-way valve at Gas side (Low Pressure)

542

(18)

69.5 61.6

28939

100mm

Unit : mm

100mm

1000m m

Anchor Bolt Pitch

330 × 540

97 32

167

330

6269

(20)

3-way valve at Gas side (Low Pressure)

2-way valve at Liquid side (High Pressure)

37 299

619

6. Refrigeration Cycle Diagram

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

INDOOR OUTDOOR

INTAKE

AIR

TEMP.

SENSOR

HEAT EXCHANGER

(EVAPORATOR)

PIPE

TEMP.

SENSOR 2

PIPE

TEMP.

SENSOR 1

LIQUID

SIDE

2-WAY VALV E

GAS

SIDE

MUFFLER

EXPANSION

VALV E

STRAINER

AIR

TEMP.

SENSOR

CONDENSER

PIPE

TEMP.

SENSOR

3-WAY VALV E

COOLING HEATING

4-WAYS VALVE

MUFFLER

TAN K

SENSOR

COMPRESSOR

7. Block Diagram

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

7.1 Indoor Unit

(INDOOR UNIT)

FUSE 301

TEMP.

FUSE

7.2 Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

7.2.1 CU-TE20TKE CU-TE25TKE

3 ~

REACTOR

PTC

PTC1

FUSE103

FUSE104

IC19

TH3

NTC

4-WAYS

VALV E

CT102

RY-AC

(OUTDOOR UNIT)

RY-PWR

FUSE101

FUSE102

SINGLE

PHASE

POWER

NOISE FILTER

SUPPLY

7.2.2 CU-TE35TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

IC19

3 ~

Q1P

3 ~

REACTOR

PTC

PTC1

RY-AC

FUSE103

FUSE104

RY-PWR

TH3

FUSE102

NTC

4-WAYS

VALV E

CT102

COMMUNICATION

(OUTDOOR UNIT)

FUSE101

NOISE FILTER

7.2.3 CU-TE42TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Q1P

IC20

3 ~

REACTOR

PTC

PTC1

RY-AC

FUSE103

FUSE104

RY-PWR

TH3

FUSE102

NTC

4-WAYS

VALV E

CT102

COMMUNICATION

(OUTDOOR UNIT)

FUSE101

NOISE FILTER

8. Wiring Connection Diagram

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

8.1 Indoor Unit

TERMINAL BOARD

TO OUTDOOR UNIT

TEMP. FUSE 102ºC 250V 4.5A

Y/G

GROUNDING

TERMINAL

EVAPORATOR

FAN MOTOR

REMARKS : B : BLUE P : PINK BR : BROWN O : ORANGE BL : BLACK Y : YELLOW W : WHITE G : GREEN R : RED GR : GRAY Y/G : YELLOW/GREEN

AC306 (BLK)

AC303 (WHT)

AC304 (RED)

G301 (GRN)

4 1

CN-FM

(WHT)

ELECTRONIC CONTROLLER

FUSE301

T3.15A L250V

COMMUNICATION

SW01

(MAIN)

CIRCUIT

NOISE FILTER

CIRCUIT

RECTIFICATION

CIRCUIT

CN-DISP

(YLW)

WWWWW

CN-DISP

ELECTRONIC CONTROLLER

(DISPLAY & RECEIVER)

(WHT)

CN-CNT

(WHT)

CN-RMT

R O Y

(WHT)

CN-STM1

CN-STM3

R O Y

(BLU)

PIPING TEMP. SENSOR 2 (THERMISTOR)

t°

PIPING TEMP. SENSOR 1 (THERMISTOR)

t°

(RED)

CN-TH

SCUTION TEMP. SENSOR (THERMISTOR)

t°

UP DOWN LOUVER MOTOR (OUTER)

UP DOWN LOUVER MOTOR (INNER)

REMOTE CONTROLLER COMPLETE

8.2 Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

8.2.1 CU-TE20TKE CU-TE25TKE

POWER SUPPLY

GROUNDING TERMINAL

YLW/GRN

FAN MOTOR

Resistance of Compressor Windings

MODEL CU-TE20TKE / CU-TE25TKE

CONNECTION 5SS072XGA21 (Ω)

Note: Resistance at 20°C of ambient temperature.

TO INDOOR UNITSINGLE PHASE

(WHT)

(BLK) (RED)

REACTOR

RECTIFICATION

CIRCUIT

BLK

MS 3 ~

(BLK)

BLK

(WHT)

WHT

GRN

RED

1 3

(RED)

DATA (RED)

AC-BLK (BLK)

FUSE101

(20A 250V)

AC-WHT

(WHT)

FG 1 (GRN)

FG 2 (GRN)

CN-MTR2

(WHT)

CN-MTR1

(RED)

TERMINAL BOARD

FUSE104

(15A 250V)

NOISE

FILTER

CIRCUIT

FUSE102

T3.15A L250V

PFC

CIRCUIT

IC19

ELECTRONIC CONTROLLER

GRY

RAT2

(GRY)

U-V 3.034

U-W 3.021

V-W 3.009

REMARKS

BLACK; (BLK) WHITE; (WHT) YELLOW; (YLW) ORANGE; (ORG) YELLOW/GREEN; (YLW/GRN) BLUE; (BLU) RED; (RED) BROWN; (BRW) GREEN; (GRN) GRAY; (GRY)

GRY

RAT1 (GRY)

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

FUSE103

T3.15A L250V

YELLOW (YEL)

BLUE (BLU)

(TRADEMARK)

COMPRESSOR TERMINAL THE PARENTHESIZED LETTERS IS INDICATED ON TERMINAL COVER.

OUTDOOR AIR TEMP. SENSOR (THERMISTOR)

1 CN-TH (WHT)

CN-TANK

(WHT)

CN-HOT

(WHT)

CN-STM

(WHT)

U V

U (RED) V (BLU)

W (YLW)

t°

PIPING TEMP. SENSOR (THERMISTOR)

t°

COMP. TEMPERATURE SENSOR (THERMISTOR)

YLW

1 3

YLW

RED BLU YLW

COMPRESSOR

RED (RED)

ELECTRO-MAGNETIC COIL (4-WAYS VALVE)

ELECTRO-MAGNETIC COIL (EXPANSION VALVE)

MS 3 ~

8.2.2 CU-TE35TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

POWER SUPPLY

GROUNDING TERMINAL

YLW/GRN

FAN MOTOR

Resistance of Compressor Windings

MODEL CU-TE35TKE

CONNECTION 5RS102XNA21 (Ω)

Note: Resistance at 20°C of ambient temperature.

TO INDOOR UNITSINGLE PHASE

(WHT)

(BLK) (RED)

BLK

3 ~

(BLK)

BLK

(WHT)

WHT

GRN

RED

1 3

(RED)

DATA (RED)

AC-BLK (BLK)

FUSE101

(20A 250V)

AC-WHT

(WHT)

FG 1 (GRN)

FG 2 (GRN)

CN-MTR2

(WHT)

CN-MTR1

(WHT)

TERMINAL BOARD

FUSE104

(15A 250V)

NOISE FILTER

CIRCUIT

FUSE102 T3.15A L250V

PFC

CIRCUIT

10 W U

IC19

ELECTRONIC CONTROLLER

RAT2

(GRY)

GRY

REACTOR

RECTIFICATION

CIRCUIT

U-V 1.211

U-W 1.211

V-W 1.211

REMARKS

BLACK; (BLK) WHITE; (WHT) YELLOW; (YLW) ORANGE; (ORG) YELLOW/GREEN; (YLW/GRN) BLUE; (BLU) RED; (RED) BROWN; (BRW) GREEN; (GRN) GRAY; (GRY)

GRY

RAT1 (GRY)

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

FUSE103

T3.15A L250V

YELLOW (YEL)

BLUE (BLU)

(TRADEMARK)

COMPRESSOR TERMINAL THE PARENTHESIZED LETTERS IS INDICATED ON TERMINAL COVER.

OUTDOOR AIR TEMP. SENSOR (THERMISTOR)

1 CN-TH (WHT)

CN-TANK

(WHT)

CN-HOT

(WHT)

CN-STM

(WHT)

U V

U (RED) V (BLU)

W (YLW)

t°

PIPING TEMP. SENSOR (THERMISTOR)

t°

COMP. TEMPERATURE SENSOR (THERMISTOR)

YLW

1 3

YLW

RED

BLU

YLW

COMPRESSOR

RED (RED)

ELECTRO-MAGNETIC COIL (4-WAYS VALVE)

ELECTRO-MAGNETIC COIL (EXPANSION VALVE)

MS 3 ~

8.2.3 CU-TE42TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

POWER SUPPLY

GROUNDING TERMINAL

YLW/GRN

FAN MOTOR

Resistance of Compressor Windings

MODEL CU-TE42TKE

CONNECTION 5RS102XNA21 (Ω)

Note: Resistance at 20°C of ambient temperature.

TO INDOOR UNITSINGLE PHASE

(WHT)

(BLK) (RED)

REACTOR

RECTIFICATION

CIRCUIT

BLK

MS 3 ~

(BLK)

BLK

(WHT)

WHT

GRN

RED

1 3

(RED)

DATA (RED)

AC-BLK (BLK)

FUSE101

(20A 250V)

AC-WHT

(WHT)

FG 1 (GRN)

FG 2 (GRN)

CN-MTR2

(WHT)

CN-MTR1

(WHT)

TERMINAL BOARD

FUSE104

(15A 250V)

NOISE

FILTER

CIRCUIT

FUSE102 T3.15A L250V

PFC

CIRCUIT

IC20

ELECTRONIC CONTROLLER

GRY

RAT2

(GRY)

U-V 1.211

U-W 1.211

V-W 1.211

REMARKS

BLACK; (BLK) WHITE; (WHT) YELLOW; (YLW) ORANGE; (ORG) YELLOW/GREEN; (YLW/GRN) BLUE; (BLU) RED; (RED) BROWN; (BRW) GREEN; (GRN) GRAY; (GRY)

GRY

RAT1 (GRY)

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

FUSE103

T3.15A L250V

YELLOW (YEL)

BLUE (BLU)

(TRADEMARK)

COMPRESSOR TERMINAL THE PARENTHESIZED LETTERS IS INDICATED ON TERMINAL COVER.

OUTDOOR AIR TEMP. SENSOR (THERMISTOR)

1 CN-TH (WHT)

CN-TANK

(WHT)

CN-HOT

(WHT)

CN-STM

(WHT)

U (RED) V (BLU)

W (YLW)

t°

PIPING TEMP. SENSOR (THERMISTOR)

t°

COMP. TEMPERATURE SENSOR (THERMISTOR)

YLW

RED BLU YLW

COMPRESSOR

RED (RED)

ELECTRO-MAGNETIC COIL (4-WAYS VALVE)

ELECTRO-MAGNETIC COIL (EXPANSION VALVE)

MS 3 ~

9. Electronic Circuit Diagram

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

9.1 Indoor Unit

TO OUTDOOR UNIT

TEMP. FUSE 102ºC 250V 4.5A

Y/G

GROUNDING

EVAPORATOR

FAN MOTOR

Resistance (kΩ)

-10 0 10 20 30 40 50

TERMINAL BOARD

TERMINAL

W BL

Sensor (Thermistor)

Characteristics

Pipe temp. Sensor Intake Air Temp. Sensor

Temperature (°C)

AC306 (BLK)

AC303 (WHT)

AC304 (RED)

G301 (GRN)

CN-FM

FUSE301

T3.15A L250V

SW01

ELECTRONIC CONTROLLER

(WHT)

CN-DISP

NOISE FILTER

CIRCUIT

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

(MAIN)

(YLW)

WWWWW

CN-DISP

(WHT)

ELECTRONIC CONTROLLER

(DISPLAY & RECEIVER)

R89

NONE

0.1u 16V

R90 10k

C52

1000p

50V

R37 10k

IC05

116

IC03

R62 15k 1%

C47

NONE

C45

R47

68 1/2W 68 1/2W

15 14 13

12 11 10

C25

16V

R54 270

116

2 3 4 5 6 7

REMOTE CONTROLLER

COMPLETE

R61 20k

R82

1000p

R46

10k

C51

50V

R85

5.1k

NONE

12V

F301

C56

NONE

C49

BZ01

A48PKM17EPP

R30

C27

R63

16V

C48

L6 L5

C57

12V

CN-STM3

(BLU)

C28

(WHT)

CN-CNT

(WHT)

CN-RMT

(WHT)

CN-STM1

R O Y

5 1

R O Y

PIPING TEMP. SENSOR 2 (THERMISTOR)

t°

PIPING TEMP. SENSOR 1 (THERMISTOR)

t°

SCUTION TEMP. SENSOR (THERMISTOR)

t°

(RED)

CN-TH

UP DOWN LOUVER MOTOR (OUTER)

UP DOWN LOUVER MOTOR (INNER)

9.2 Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

9.2.1 CU-TE20TKE CU-TE25TKE

POWER SUPPLY

TO INDOOR UNITSINGLE PHASE

(BLK) (RED)

(WHT)

BLK

GROUNDING TERMINAL

YLW/GRN

FAN MOTOR

MS 3 ~

(BLK)

BLK

(WHT)

WHT

GRN

RED

1 3

(RED)

DATA

(RED)

AC-BLK (BLK)

FUSE101

(20A 250V)

AC-WHT

(WHT)

FG 1 (GRN)

FG 2 (GRN)

CN-MTR2

(WHT)

CN-MTR1

(RED)

TERMINAL BOARD

W U V

IC19

C173

CIRCUIT

R120

NOISE

FILTER

14 16

G5G5

FUSE104

(15A 250V)

T3.15A L250V

CIRCUIT

C175

0.01u 50V

REACTOR

GRY

RAT2

(GRY)

FUSE102

PFC

RECTIFICATION

CIRCUIT

ELECTRONIC CONTROLLER

GRY

RAT1

(GRY)

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

FUSE103

T3.15A L250V

R12

R11

1A5

D62

U (RED) V (BLU)

W (YLW)

4.99k 1%

C189

0.1u

25V

15k

CN-TH

10V

CN-TANK

CN-HOT

13V

D64

D63

(WHT)

CN-STM

(WHT)

OUTDOOR AIR TEMP. SENSOR (THERMISTOR)

t°

PIPING TEMP. SENSOR (THERMISTOR)

t°

COMP. TEMPERATURE SENSOR (THERMISTOR)

YLW

ELECTRO-MAGNETIC COIL (4-WAYS VALVE)

ELECTRO-MAGNETIC COIL (EXPANSION VALVE)

RED BLU YLW

MS 3 ~

COMPRESSOR

15.8k

1u B1 10V

B1 C3 1u

10V

D61

U V

Resistance (kΩ)

-10 0 10

Sensor (Thermistor)

Characteristics

Outdoor Air Sensor

Outdoor Heat Exchanger Sensor

20 30 40 50

Temperature (

Compressor Temp. Sensor

(Thermistor) Characteristics

Resistance (kΩ)

20 40 60

Temperature (

80 100 120 140

9.2.2 CU-TE35TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

POWER SUPPLY

TO INDOOR UNITSINGLE PHASE

(BLK) (RED)

(WHT)

BLK

GROUNDING TERMINAL

YLW/GRN

FAN MOTOR

(WHT)

WHT

GRN

RED

1 3

(RED)

(BLK)

BLK

3 ~

DATA (RED)

AC-BLK (BLK)

FUSE101

(20A 250V)

AC-WHT

(WHT)

FG 1 (GRN)

FG 2 (GRN)

CN-MTR2

(WHT)

CN-MTR1

(WHT)

TERMINAL BOARD

W U V

IC19

R120

C173

NOISE

FILTER

CIRCUIT

14 16

R111

C175

0.01u KB

50V

G5G5

FUSE104

(15A 250V)

T3.15A L250V

R105

C177

0.01u KB 50V

FUSE102

PFC

CIRCUIT

C176

0.01u KB

50V

REACTOR

GRY

RAT2

(GRY)

RECTIFICATION

CIRCUIT

ELECTRONIC CONTROLLER

GRY

RAT1

(GRY)

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

FUSE103

T3.15A L250V

IC6

13V

VCC

611

GND

IC7

13V

VCC

512

6711

GND

U (RED)

V (BLU)

W (YLW)

R12

R11

15.0k

15.8k 1%

10V

C3 1u KB

10V

CN1

CN-TH

(WHT)

CN-STM

(WHT)

13V

(WHT)

OUTDOOR AIR TEMP. SENSOR (THERMISTOR)

t°

PIPING TEMP. SENSOR (THERMISTOR)

t°

COMP. TEMPERATURE SENSOR (THERMISTOR)

YLW

ELECTRO-MAGNETIC COIL (4-WAYS VALVE)

ELECTRO-MAGNETIC COIL (EXPANSION VALVE)

RED BLU YLW

COMPRESSOR

MS 3 ~

10V

CN-TANK

4.99k 1%

CN-HOT

C189

0.1u KB

25V

D61

D62

D63

D64

Resistance (kΩ)

-10 0 10

Sensor (Thermistor)

Characteristics

Outdoor Air Sensor Outdoor Heat Exchanger Sensor

20 30 40 50

Temperature (

Compressor Temp. Sensor

(Thermistor) Characteristics

Resistance (kΩ)

20 40 60

Temperature (

80 100 120 140

9.2.3 CU-TE42TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

POWER SUPPLY

TO INDOOR UNITSINGLE PHASE

(WHT)

(BLK) (RED)

BLK

GROUNDING TERMINAL

YLW/GRN

FAN MOTOR

(BLK)

(WHT)

WHT

(RED)

RED

TERMINAL BOARD

(GRY)

BLK

WHT

DATA (RED)

AC-BLK (BLK)

FUSE101

(20A 250V)

AC-WHT

(WHT)

GRN

FG 1 (GRN)

GRN

FG 2 (GRN)

3 ~

CN-MTR1

CN-MTR2

(WHT)

W U V

R167

C173

IC20

NOISE

FILTER

CIRCUIT

14 16

R166

C175

0.01u KB 50V

G5G5

FUSE104

(15A 250V)

T3.15A L250V

R156

C177

0.01u KB

50V

FUSE102

PFC

CIRCUIT

C176

0.01u KB

50V

REACTOR

GRY

RAT2

RECTIFICATION

CIRCUIT

ELECTRONIC CONTROLLER

GRY

RAT1

(GRY)

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

FUSE103

T3.15A L250V

IC12

13V

VCC

611

GND

IC19

C6 1u KB

10V

13V

VCC

512

6711

U V

W (YLW)

R11

15.8k

GND

U (RED) V (BLU)

R12

15.0k 1%

C7 1u

CN-TH

10V

CN-TANK

(WHT)

C3 1u

4.99k

10V

CN-HOT

C190

0.1u KB

25V

D62

D60

(WHT)

D63

D61

CN-STM

(WHT)

13V

OUTDOOR AIR TEMP. SENSOR (THERMISTOR)

t°

PIPING TEMP. SENSOR (THERMISTOR)

t°

COMP. TEMPERATURE SENSOR (THERMISTOR)

YLW

YLW ELECTRO-MAGNETIC

COIL (4-WAYS VALVE)

ELECTRO-MAGNETIC COIL (EXPANSION VALVE)

RED

BLU

YLW

MS 3 ~

COMPRESSOR

Resistance (kΩ)

-10 0 10

Sensor (Thermistor)

Characteristics

Outdoor Air Sensor Outdoor Heat Exchanger Sensor

20 30 40 50

Temperature (

Resistance (kΩ)

Compressor Temp. Sensor

(Thermistor) Characteristics

20 40 60

80 100 120 140

Temperature (

10. Printed Circuit Board

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

10.1 Indoor Unit

10.1.1 Main Printed Circuit Board

C304

AC303

AC306

CN-FM

JP1 (Random Auto Restart enable/disable)

CN-STM1

CN-STM3

CN-DISP

CN-RMT

CN-CNT

CN-TH

10.1.2 Indicator Printed Circuit Board

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

CN-DISP

10.2 Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

10.2.1 CU-TE20TKE CU-TE25TKE

POWER TRANSISTOR (IPM)

CURRENT

TRANSFORMER

(CT)

AC-BLK

AC-WHT

DATA

CN-HOT

CN-TH CN-TANK

CN-STM

CN-MTR1

CN-MTR2

10.2.2 CU-TE35TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

CURRENT

TRANSFORMER

(CT)

POWER TRANSISTOR (IPM)

CN-HOT CN-STM

CN-TH CN-TANK

CN-MTR1

AC-BLK

DATA

AC-WHT

CN-MTR2

10.2.3 CU-TE42TKE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

POWER TRANSISTOR (IPM)

CURRENT

TRANSFORMER

(CT)

AC-BLK

AC-WHT

DATA

CN-HOT

CN-TANK

CN-TH CN-MTR1

CN-MTR2

CN-STM

11. Installation Instruction

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

11.1 Select the Best Location

11.1.1 Indoor Unit

 Do not install the unit in excessive oil fume area

such as kitchen, workshop and etc.

 There should not be any heat source or steam

near the unit.

 There should not be any obstacles blocking the air

circulation.

 A place where air circulation in the room is good.  A place where drainage can be easily done.  A place where noise prevention is taken into

consideration.

 Do not install the unit near the door way.  Ensure the spaces indicated by arrows from the

wall, ceiling, fence or other obstacles.

 Recommended installation height for indoor unit

shall be at least 2.5 m.

11.1.2 Outdoor Unit

 If an awning is built over the unit to prevent direct

sunlight or rain, be careful that heat radiation from the condenser is not obstructed.

 There should not be any animal or plant which

could be affected by hot air discharged.

 Keep the spaces indicated by arrows from wall,

ceiling, fence or other obstacles.

 Do not place any obstacles which may cause a

short circuit of the discharged air.

 If piping length is over the [piping length for

additional gas], additional refrigerant should be added as shown in the table.

Table A

Piping size

Capa-

Model

TE20*** 3/4HP

TE25*** 1.0HP 15 3 15 15 7.5

TE35*** 1.5HP 15 3 15 20 7.5

TE42*** 1.75H

city

(HP)

Gas Liquid

9.52 mm

6.35

(3/8

(1/4

12.7 mm

(1/2

Std.

Length

(m)

Max

Min.

Piping

Length

(m)

Max.

Piping

Length

(m)

Eleva-

tion

(m)

15 3 15 15 7.5

15 3 15 20 7.5

* Table “A” only applicable for single split connection. * In case of connection to outdoor multi inverter, refer to installation manual at outdoor unit.

Example: For TE35*** If the unit is installed at 10 m distance, the quantity of

additional refrigerant should be 50 g .... (10-7.5) m x

20 g/m = 50 g.

Additional Refri-

gerant

(g/m)

Piping

Length

for

add.

gas (m)

11.1.3 Indoor/Outdoor Unit Installation Diagram

Right

Right Rear

50 mm

or more

Right bottom

2.5 m (min)

(Front side)

Left Rear

Left bottom

(Left and right are identical)

Insulation of piping connections

Carry out insulation after

•

checking for gas leaks and secure with vinyl tape.

Attaching the remote control holder to the wall

Remote control holder ﬁ xing screws 6

Remote control 3

Floor

It is advisable to avoid more than 2 blockage directions. For better ventilation & multiple-outdoor installation, please consult authorized dealer/specialist.

up drain hose

Left

65 mm

or more

Vinyl tape

Remote control holder 5

100 mm

or more

1000 mm

or more

 This illustration is for explanation purposes only.

The indoor unit will actually face a different way.

dneb ot ton noitnettAnoitcerid gnipiP

100 mm

or more

Installation parts you should purchase (

Installation plate 1

Bushing-Sleeve (

Sleeve (

Putty ( (Gum Type Sealer)

Bend the pipe as closely on the wall as possible, but be careful that it doesn’t break.

Vinyl tape (wide) ( )

• Apply after carrying out a drainage test.

• To carry out the drainage test, remove the air ﬁlters and pour water into the heat exchanger.

Saddle

Power supply cord

Connection cable

Liquid side piping

Gas side piping

Additional drain hose

300 mm

or more

)

(

)

(

)

(

11.2 Indoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

11.2.1 How to Fix Installation Plate

The mounting wall shall be strong and solid enough to prevent it from vibration.

Wall Wall

More than 1 More than 1

screw

3 4

Ceiling

than 2

Indoor unit

Installation plate

For best strength of INDOOR unit installation, it is highly recommended to locate “

” at 5 position

as shown.

PIPE HOLE CENTER

128mm TO PIPE HOLE CENTER

128 mm

Measuring Tape

184 mm

128 mm

PIPE HOLE CENTER

128mm TO PIPE HOLE CENTER

Model

MTE16***, TZ20***, TE20*** TZ25***, TE25*** TZ35***, TE35*** TZ42***, TE42***

Wall

Measuring Tape

256 mm

128 mm

1 2 3 4 5 6

470 mm 90 mm 380 mm 420 mm 45 mm 95 mm

More than 1

Indoor unit

screw

128 mm

For best strength of INDOOR unit installation, it is highly recommended to locate “ as shown.

Dimension

Ceiling

than 2

Installation plate

” at 5 position

More than 1

128 mm

Model

TZ50***, TE50*** TZ60***, TE60*** TZ71***

1 2 3 4 5 6

605 mm 95 mm 550 mm 550 mm 270 mm 320 mm

Dimension

The center of installation plate should be at more than 1 at right and left of the wall. The distance from installation plate edge to ceiling should more than 2. From installation plate center to unit’s left side is 3. From installation plate center to unit’s right side is 4.

B : For left side piping, piping connection for liquid should be about 5 from this line. : For left side piping, piping connection for gas should be about 6 from this line.

1 Mount the installation plate on the wall with 5 screws or more (at least 5 screws).

(If mounting the unit on the concrete wall, consider using anchor bolts.) o Always mount the installation plate horizontally by aligning the marking-off line with the thread and using

a level gauge.

2 Drill the piping plate hole with ø70 mm hole-core drill.

o Line according to the left and right side of the installation plate. The meeting point of the extended line is

the center of the hole. Another method is by putting measuring tape at position as shown in the diagram above. The hole center is obtained by measuring the distance namely 128 mm for left and right hole respectively.

o Drill the piping hole at either the right or the left and the hole should be slightly slanting to the outdoor

side.

222 mm

Wall

256 mm

11.2.2 To Drill a Hole in the Wall and

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Install a Sleeve of Piping

1 Insert the piping sleeve to the hole. 2 Fix the bushing to the sleeve. 3 Cut the sleeve until it extrudes about 15 mm

from the wall.

When the wall is hollow, please be sure to use the sleeve for tube assembly to prevent dangers

caused by mice biting the connection cable.

4 Finish by sealing the sleeve with putty or

caulking compound at the final stage.

CAUTION

Sleeve for tube assembly

ø70 mm through hole

Indoor

Wall

Outdoor

15 mm

Approx. 5 - 7 mm

Putty or caulking compound

Bushing for tube assembly

11.2.3 Indoor Unit Installation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

● Do not turn over the unit without it’s shock absorber during pull out the piping. It may cause intake grille damage.

● Use shock absorber during pull out the piping to protect the intake grille from damage.

Piping

Intake grille

11.2.3.1 For the Right Rear Piping

Pull out the Indoor piping

Step-1

Install the Indoor Unit

Step-2

Secure the Indoor Unit

Step-3

Step-4

Insert the connection cable

11.2.3.2 For the Right and Right Bottom Piping

Pull out the Indoor piping

Step-1

Install the Indoor Unit

Step-2

Insert the connection cable

Step-3

Step-4

Secure the Indoor Unit

11.2.3.3 For the Embedded Piping

Replace the drain hose

Step-1

Step-2

Step-3

Step-4

Step-5

Step-6

Step-7

Step-8

Bend the embedded piping

• Use a spring bender or equivalent to bend the piping so that the piping is not crushed.

Pull the connection cable into Indoor Unit

• The inside and outside connection cable can be connected without removing the front grille.

Cut and flare the embedded piping

• When determining the dimensions of the piping, slide the unit all the way to the left on the installation plate.

• Refer to the section “Cutting and flaring the piping”.

Install the Indoor Unit

Connect the piping

• Please refer to “Connecting the piping” column in outdoor unit section. (Belo w steps are d one after connecting the outdoor piping and gas-le akage confirmation.)

Insulate and finish the piping

• Please refer to “Insulation of piping connection” column as mentioned in indoor/outdoor unit installation.

Secure the Indoor Unit

Shock absorber

Right Rear piping

Tape it with piping in a

position as mentioned in

Fig. below.

Piping

Cover for the

Drain

Cover for

hose

How to keep the cover

In case of the cover is cut, keep the cover at the rear of chassis as shown in the illustration for future reinstallation. (Left, right and 2 bottom covers for piping.)

Right and Right Bottom piping

Tape it with piping in a

position as mentioned in

Fig. below.

Drain hose

Install the indoor unit

Hook the indoor unit onto the upper portion of installation plate. (Engage the indoor unit with the upper edge of the installation plate). Ensure the hooks are properly seated on the installation plate by moving it in left and right.

Secure the Indoor Unit

Press the lower left and right side of the unit against the installation plate until hooks engages with their slot (sound click).

Insert the connection cable

About

70 – 80 mm

To take out the unit, push the the bottom unit, and pull it slightly towards you to disengage the hooks from the unit.

the right piping

Guide surface

Cover for the bottom piping

Piping

Cover for the right piping

Connection cable

bottom piping

Indoor unit

Unit’s hook

Connection cable

gnik

marking at

Cover for the bottom piping

Gas side piping

Liquid side piping

Drain hose

Hooks at installation plate

Sleeve for piping hole

Piping

Drain hose

Cover for the left piping

Cover for piping

Cover for the left piping

Installation plate

(This can be used for left rear piping and left bottom piping also.)

Exchange the drain hose and

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

the cap

Rear view for left piping installation

Drain cap

Drain hose

Connection cable

Adjust the piping slightly downwards.

Connection cable

Piping

Drain hose

Sleeve for piping hole

More than 950mm (1/2 ~ 1.75Hp) or 1150mm (2.0 ~ 2.5Hp)

How to pull the piping and drain hose out, in case of the

•

embedded piping.

Apply putty or caulking material to seal the wall opening.

PVC tube for drain hose (VP-20)

PVC tube for drain hose

More than 700 mm

More than 950mm

(1/2 ~ 1.75Hp) or

1150mm (2.0 ~ 2.5Hp)

More than

470 mm

PVC tube (VP-65) for piping and connection cable

PVC tube for drain hose (VP-30)

Indoor unit

55mm (1/2 ~ 1.75Hp) or

80mm (2.0 ~ 2.5Hp)

Connection cable

Piping

Drain hose from main unit

Cable

Piping

In case of left piping how to insert the

•

connection cable and drain hose.

45°

Drain hose

Cable

Piping

(For the right piping, follow the same procedure)

11.2.4 Connect the Cable to the Indoor Unit

1 The inside and outside connection cable can be connected without removing the front grille. 2 Connection cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed

4 x 1.5 mm Replace the wire if the existing wire (from concealed wiring, or otherwise) is too short. Allowable connection cable length of each indoor unit shall be 30 m or less.

3 Bind all the indoor and outdoor connection cable with tape and route the connection cable via the

escapement.

4 Remove the tapes and connect the connection cable between indoor unit and outdoor unit according to the

diagram below.

flexible cord, type designation 60245 IEC 57 or heavier cord. Do not use joint connection cable.

Terminals on the outdoor unit L N 1 2 3

Colour of wires

Terminals on the indoor unit 1 2 3

5 Secure the connection cable onto the control board with the holder.

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

o Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s

respectively.

o Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

Tape

Connection cable

Indoor & outdoor connection cable

Escapement

Recommended

length (mm)

Indoor & outdoor connection cable

Outdoor unit

Recommended length (mm)

abcd

35 35 35 55

WARNING

This equipment must be properly earthed.

11.2.4.1 Wire Stripping Connecting and Requirement

Terminal Board

Earth Wire longer than others AC wires for safety reason

Holder

Wire stripping

No loose strand when inserted

Indoor/outdoor connection terminal board

5 mm or more

(gap between wires)

Conductor

fully inserted

ACCEPT PROHIBITED PROHIBITED

10 ± 1 mm

Conductor over

inserted

Conductor not

fully inserted

WARNING

RISK OF FIRE

JOINING OF WIRES MAY CAUSE OVERHEATING AND FIRE.

Do not joint wires

Use complete wire

without joining.

Use approved socket

and plug with earth pin.

Wire connection in this

area must follow to national wiring rules.

11.3 Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

11.3.1 Install the Outdoor Unit

 After selecting the best location, start installation to Indoor/Outdoor Unit Installation Diagram.

1 Fix the unit on concrete or rigid frame firmly and horizontally by bolt nut (ø10 mm). 2 When installing at roof, please consider strong wind and earthquake.

Please fasten the installation stand firmly with bolt, screws or nails.

11.3.2 Connect the Piping

11.3.2.1 Connecting the Piping to Indoor

Please make flare after inserting flare nut (locate at joint portion of tube assembly) onto the copper pipe. (In case of using long piping)

Connect the piping  Align the center of piping and sufficiently tighten

the flare nut with fingers.

 Further tighten the flare nut with torque wrench in

specified torque as stated in the table.

TE20***, TE25***, TE35*** 570 mm 105 mm 18.5 mm 320 mm

TE42*** 540 mm 160 mm 18.5 mm 330 mm

Model A B C D

Spanner or Wrench

Torque wrench

11.3.2.2 Connecting the Piping to Outdoor

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut (locate at valve) onto the copper pipe. Align center of piping to valve and then tighten with torque wrench to the specified torque as stated in the table.

Do not overtighten, overtightening may cause gas leakage.

Piping size Torque

6.35 mm (1/4") [18 N•m (1.8 kgf•m)]

9.52 mm (3/8") [42 N•m (4.3 kgf•m)]

12.7 mm (1/2") [55 N•m (5.6 kgf•m)]

15.88 mm (5/8") [65 N•m (6.6 kgf•m)]

19.05 mm (3/4") [100 N•m (10.2 kgf•m)]

11.3.2.3 Connecting the Piping to Outdoor Multi

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

* For Gas side piping please refer table and diagram below

Outdoor Multi Combination Model

CS-MTZ16***, CS-TZ20***, CS-TE20***, CS-TZ25***, CS-TE25***, CS-TZ35***, CS-TE35***

CS-TZ42***, CS-TE42***, CS-TZ50***, CS-TE50***

CS-TZ60***, CS-TE60***

CS-TZ71*** CU-4Z80***,

R32 Model R410A Model

CU-2Z35***, CU-2Z41***, CU-2Z50***, CU-3Z52***, CU-3Z68***, CU-4Z68***, CU-4Z80***, CU-5Z90***, CU-2TZ41***, CU-2TZ50***, CU-3TZ52***

CU-2Z50***, CU-3Z52***, CU-3Z68***, CU-4Z68***, CU-4Z80***, CU-5Z90***, CU-2TZ50***, CU-3TZ52***

CU-4Z68***, CU-4Z80***, CU-5Z90***

CU-5Z90***

CU-2E12***, CU-2E15***, CU-2E18***, CU-3E18***, CU-3E23***, CU-4E23***, CU-4E27***, CU-5E34***, CU-2RE15***, CU-2RE18***, CU-3RE18***

CU-2E18***, CU-3E18***, CU-3E23***, CU-4E23***, CU-4E27***, CU-5E34***, CU-2RE18***, CU-3RE18***

CU-4E23***, CU-4E27***, CU-5E34***

CU-4E27***, CU-5E34***

Pipe size (refer

to diagram)

(CZ-MA1P)

(CZ-MA2P)

(CZ-MA2P) &

(CZ-MA3P)

Auxiliary pipe

(male side)

Auxiliary pipe

(male side)

Auxiliary pipe

(male side)

(Indoor)

Hall Union

Auxiliary pipe

(male side)

(Indoor)

Hall Union

Auxiliary pipe

(male side)

Hall Union

Connection pipe

(female side)

Pipe size reducer

Packing Connection pipe

Packing

Pipe size reducer (CZ-MA1P)

Flare Nut

(CZ-MA3P)

(female side)

Pipe size expander

(CZ-MA2P)

Flare Nut

Pipe size expander

Flare Nut

Packing

(CZ-MA2P)

Flare Nut

Connection pipe

(female side)

Flare Nut

Connection pipe

(female side)

Hall Union

Liquid side

Connection pipe

(female side)

Gas side

Auxiliary pipe

(male side)

(Outdoor)

Auxiliary pipe

(male side)

(Outdoor)

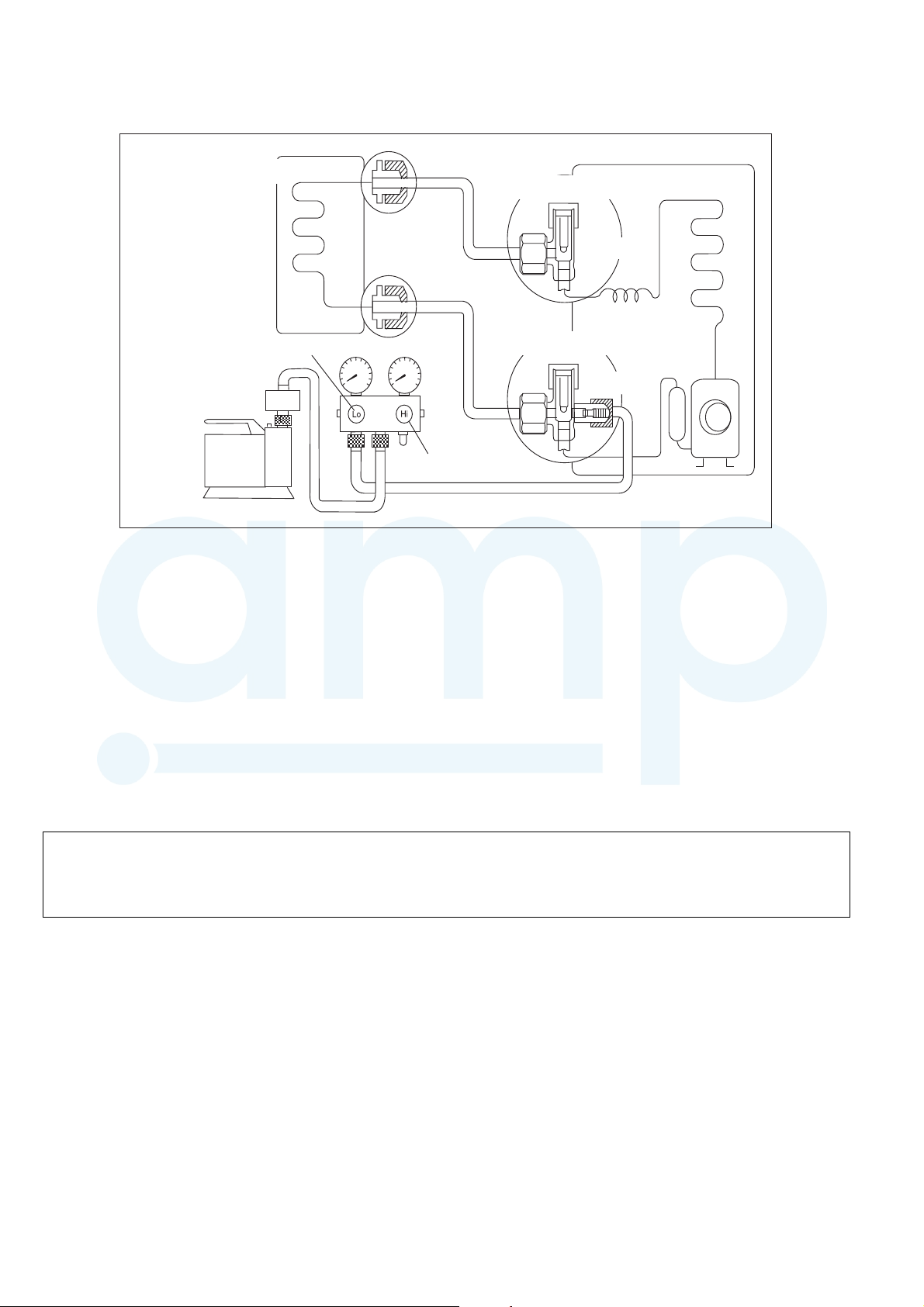

11.3.3 Evacuation of the Equipment

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

WHEN INSTALLING AN AIR CONDITIONER, BE SURE TO EVACUATE THE AIR INSIDE THE INDOOR UNIT AND PIPES in the following procedure.

Indoor unit

Liquid side

Two-way valve

Outdoor unit

Gas side

Three-way valve

OPEN

Vacuum

pump

1 Connect a charging hose with a push pin to the Low side of a charging set and the service port of the 3-way

valve.

o Be sure to connect the end of the charging hose with the push pin to the service port. 2 Connect the center hose of the charging set to a vacuum pump. 3 Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from

0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes. 4 Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the

gauge does not move after approximately five minutes.

Note: BE SURE TO TAKE THIS PROCEDURE IN ORDER TO AVOID REFRIGERENT GAS LEAKAGE. 5 Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve. 6 Tighten the service port caps of the 3-way valve at a torque of 18 N•m with a torque wrench. 7 Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN”

using a hexagonal wrench (4 mm). 8 Mount valve caps onto the 2-way valve and the 3-way valve.

o Be sure to check for gas leakage.

 If gauge needle does not move from 0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa), in step 3 above take the following measure:

- If the leak stops when the piping connections are tightened further, continue working from step 3.

- If the leak does not stop when the connections are retightened, repair location of leak.

- Do not release refrigerant during piping work for installation and reinstallation.

- Take care of the liquid refrigerant, it may cause frostbite.

11.3.4 Connect the Cable to the Outdoor Unit

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

1 Remove the control board cover from the unit by loosening the screw. 2 Cable connection to the power supply through Isolating Devices (Disconnecting means).

o Connect approved type polychloroprene sheathed power supply cord 3 x 1.5 mm

3 x 2.5 mm

(2.0 ~ 2.5HP) type designation 60245 IEC 57 or heavier cord to the terminal board, and

connect the others end of the cord to Isolating Devices (Disconnecting means).

o Do not use joint power supply cord. Replace the wire if the existing wire (from concealed wiring, or

otherwise) is too short.

o In unavoidable case, joining of power supply cord between isolating devices and terminal board of air

conditioner shall be done by using approved socket and plug with earth pin rated 15/16A (3/4 ~ 1.75HP) or 16A (2.0HP) or 20A (2.5HP). Wiring work to both socket and plug must follow to national wiring standard.

3 Connection cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed

4 x 1.5 mm

flexible cord, type designation 60245 IEC 57 or heavier cord. Do not use joint connection cable. Replace the wire if the existing wire (from concealed wiring, or otherwise) is too short. Allowable connection cable length of each indoor unit shall be 30 m or less.

4 Connect the power supply cord and connection cable between indoor unit and outdoor unit according to the

diagram below.

321tinu roodni eht no slanimreT

Colour of wires (connection cable)

Terminals on the outdoor unit

(Power supply cord)

Terminals on the isolating devices (Disconnecting means)

LN123

(L) (N)

5 Secure the power supply cord and connection cable onto the control board with the holder. 6 Attach the control board cover back to the original position with screw. 7 For wire stripping and connection requirement, refer to instruction 12.2.4 of indoor unit.

Terminal

Board

(3/4 ~ 1.75HP),

Earth wire longer than others AC wires for safety reason

Holder

Power

supply

cord

Isolating Devices Indoor unit

Indoor &

outdoor

connection

cable

WARNING

This equipment must be properly earthed.

Note

 Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.  Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.  Always ensure all above connections compliant with national wire rules.

11.3.5 Piping Insulation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

1 Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation

Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.

2 If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by

using POLY-E FOAM with thickness 6 mm or above.

11.3.5.1 Cutting and Flaring the Piping

1 Please cut using pipe cutter and then remove the burrs. 2 Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused. Turn the piping end

down to avoid the metal powder entering the pipe.

3 Please make flare after inserting the flare nut onto the copper pipes.

Point down

1. To cut 2. To remove burrs 3. To ﬂ are

Pipe

Reamer

Bar

Clamp handle

Handle

Yoke

Core

Red arrow mark

Bar

0 – 0.5 mm

Copper pipe

Improper ﬂ aring

Inclined Surface

damaged

Cracked Uneven

thickness

When properly ﬂ ared, the internal surface of the ﬂ are will evenly shine and be of even thickness. Since the ﬂ are part comes into contact with the connections, carefully check the ﬂ are ﬁ nish.

11.3.6 How to Take Out Front Grille

Please follow the steps below to take out front grille if necessary such as when servicing.

1 Set the vertical airflow direction louvers to the

horizontal position.

2 Remove the 2 caps (1/2 ~ 1.75HP) or 3 caps

(2.0 ~ 2.5HP) on the front grille as shown in the illustration at right, and then remove the 3 (1/2 ~ 1.75HP) or 4 (2.0 ~ 2.5HP) mounting screws.

3 Pull the lower section of the front grille

towards you to remove the front grille.

When reinstalling the front grille, first set the vertical airflow direction louver to the horizontal position and then carry out above steps 2 - 3 in the reverse order.

Move the vane downward

Front grille

Vane

Front grille

Cap

• Use Test pen to remove Cap

Screw

(only for 2.0HP ~ 2.5HP

model)

Test pen

Screw

11.3.7 Disposal of Outdoor Unit Drain Water

 If a drain elbow is used, the unit should be placed

on a stand which is taller than 3 cm.

 If the unit is used in an area where temperature

falls below 0°C for 2 or 3 days in succession, it is recommended not to use a drain elbow, for the drain water freezes and the fan will not rotate.

11.3.8 Check the Drainage

 Open front panel and remove air filters. (Drainage

checking can be carried out without removing the front grille.)

 Pour a glass of water into the drain tray-styrofoam.  Ensure that water flows out from drain hose of the

indoor unit.

Drain elbow

Hose

Install the hose at an angle so that the water smoothly ﬂ ows out.

Drain tray-styrofoam

11.3.9 Evaluation of the Performance

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 Operate the unit at cooling/heating operation

mode for fifteen minutes or more.

 Measure the temperature of the intake and

discharge air.

 Ensure the difference between the intake

temperature and the discharge is more than 8°C during Cooling operation or more than 14°C during Heating operation.

11.3.10 Installation of Air Purifying Filter

1 Open the front panel. 2 Remove the air filters. 3 Put the Air purifying filter into place as shown

in illustration at right.

Discharge air

Air purifying ﬁlter 7

Air ﬁlter

12. Operation Control

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

12.1 Basic Function

Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes, automatically adjusts output power for maximum comfort always. In order to achieve the suitable operating mode, the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting. The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature.

12.1.1 Internal Setting Temperature

Once the operation starts, remote control setting temperature will be taken as base value for temperature shifting processes. These shifting processes are depending on the air conditioner settings and the operation environment. The final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit.

Remote Control Setting Temperature

Auto Operation Mode Shifting

Indoor Air Temperature Shifting

Outdoor Air Temperature Shifting

16°C - 30°C

Powerful Mode Shifting

Setting Temperature Limit Checking

(Min: 16°C; Max 30°C)

Internal Setting Temperature

12.1.2 Cooling Operation

12.1.2.1 Thermostat control

 Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5°C continue for 3 minutes.  When compressor is OFF (Thermostat OFF) and AUTO FAN is set, the fan will stop periodically.  Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature >

Compressor OFF point.

12.1.3 Soft Dry Operation

12.1.3.1 Thermostat control

 Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2.0°C continue for 3 minutes.  When compressor is OFF (Thermostat OFF) and AUTO FAN is set, the fan will stop periodically.  Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature >

Compressor OFF point.

12.1.4 Heating Operation

12.1.4.1 Thermostat control

 Compressor is OFF when Intake Air Temperature - Internal Setting Temperature > +2.0°C continue for 3 minutes.  Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature <

Compressor OFF point.

12.1.5 Automatic Operation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 This mode can be set using remote control and the operation is decided by remote control setting temperature,

remote control operation mode and indoor intake air temperature.

 During operation mode judgment, indoor fan motor (with speed of Lo-) is running for 30 seconds to detect the

indoor intake air temperature.

 Every 10 minutes, the indoor temperature is judged.  For the 1st judgment

o If indoor intake temperature - remote control setting temperature ≥ 2°C, COOL mode is decided. o If -2°C ≤ indoor intake temperature - remote control setting temperature < 2°C, DRY mode is decided. o If indoor intake temperature - remote control setting temperature < -2°C, HEAT mode is decided.

Heat Dry Cool

-6 -5 -4 -3 -2 -1 2 1 0 4 3 6 5

 For the 2nd judgment onwards

o If indoor intake temperature - remote control setting temperature ≥ 3°C, if previous operate in DRY mode,

then continue in DRY mode. otherwise COOL mode is decided.

o If -2°C ≤ indoor intake temperature - remote control setting temperature < 3°C, maintain with previous mode. o If indoor intake temperature - remote control setting temperature < -2°C, HEAT mode is decided.

Maintain

Heat

-6 -5 -4 -3 -2 -1 2 1 0 4 3 6 5

current mode

Cool /Dry

12.2 Indoor Fan Motor Operation

12.2.1 Basic Rotation Speed (rpm)

A. Basic Rotation Speed (rpm)

i. Manual Fan Speed [Cooling, Dry]  Fan motor’s number of rotation is determined according to remote control setting.

Remote control ○ ○ ○ ○ ○

Tab Hi Me Me- Lo QLo

[Heating]  Fan motor’s number of rotation is determined according to remote control setting.

Remote control ○ ○ ○ ○ ○

Tab SHi Me Me- Lo QLo

ii Auto Fan Speed [Cooling, Dry]

 According to room temperature and setting temperature, indoor fan speed is determined automatically.  When set temperature is not achieved, the indoor fan will operate according to pattern below.

Fan Speed

Higher

Medium

Lower

abcdefgh

 When set temperature achieved, the indoor fan speed will be fixed. When thermostat off, the fan stop periodically.

[1 pattern : 10 s]

[Heating]

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 According to indoor pipe temperature, automatic heating fan speed is determined as follows.

RPM Increased

RPM Maintain

RPM Reduced

OFF

35oC

16oC

Indoor Pipe Temp.

B. Feedback control

 Immediately after the fan motor started, feedback control is performed once every second.  During fan motor on, if fan motor feedback ≥ 2550 rpm or < 50 rpm continue for 10 seconds, then fan motor error

counter increase, fan motor is then stop and restart. If the fan motor counter becomes 7 times, then H19 - fan motor error is detected. Operation stops and cannot on back.

12.3 Outdoor Fan Motor Operation

Outdoor fan motor is operated with one fan speed only. It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

Compressor:

Outdoor Fan:

 During cooling operation, and outdoor ambient temperature is below 8°C, outdoor fan speed will be controlled

according to outdoor piping temperature as following:

Fan Speed

30 sec

OFF

OD Pipe Temperature

A 26°C

B 33°C

 During above condition, when indoor heat exchanger temperature is below 5°C, the outdoor fan will stop

according to outdoor piping temperature as following:

12.4 Airflow Direction

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by

vertical vanes).

 Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat

exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using remote control).

12.4.1 Vertical Airflow

Operation Mode Airflow Direction

Cooling

Soft Dry

Heating

Auto 10 ~ 45 20 ~ 56

Manual 10 15 20 30 45 20 32 44 50 56

Auto 10 ~ 45 20 ~ 56

Manual 10 15 20 30 45 20 32 44 50 56

A 10 20

Auto

B 30 65

C 20 44

Manual 8 12 20 40 50 28 36 44 65 72

1 2 3 4 5 1 2 3 4 5

1 Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the

angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner is stopped using remote control, the vane will shift to close position.

2 Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above

and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

Inner Vane Angle (°) Outer Vane Angle (°)

Reference point

Step 1

Step 2

Step 3

Step 4

Side View (Inner Vane)

Step 5

110º

Stopper

Closed Position

Side View (Outer Vane)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Reference point

Closed Position

Stopper

Step 1

Step 2

Step 3

Step 4

Step 5

Figure 2

* The horizontal vane angle tolerance is within +/- 5 degree.

12.4.2 Horizontal Airflow

 The horizontal airflow direction louver can be adjusted manually by hand.

135º

12.5 Timer Control

 There are 2 sets of ON and OFF timer available to turn the unit ON or OFF at different preset time.  If more than one timer had been set, the upcoming timer will be displayed and will activate in sequence.

12.5.1 ON Timer Control

 ON timer 1 and ON timer 2 can be set using remote control, the unit with timer set will start operate earlier than

the setting time. This is to provide a comfortable environment when reaching the set ON time.

 60 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to

determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time.

 From the above judgment, the decided operation will start operate earlier than the set time as shown below.

Indoor intake air temperature (

5 min

10 min

30 35

Cooling/Soft Dry

15 min

(

Outdoor air temperature (

Indoor intake air temperature (

35 min

25 min

30 min

Heating

(

Outdoor air

temperature (

12.5.2 OFF Timer Control

OFF timer 1 and OFF timer 2 can be set using remote control, the unit with timer set will stop operate at set time.

12.6 Sleep Mode Operation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

SLEEP

To maximise comfort while sleeping

(CANCEL)

 This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep

pattern temperature during the activation period.

 The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness

has been manually dimmed.

 This operation is incorporated with the activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours).  This operation can be set together with single timer or twin timer. Sleep operation has the priority over OFF timer.  This operation can be cancelled by pressing the respective button when the sleep timer reaches 0.0h.

12.7 Auto Restart Control

 When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within

three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly) after power supply resumes.

 This type of control is not applicable during ON/OFF Timer setting.  This control can be omitted by open the circuit of JP1 at indoor unit printed circuit board.

12.8 Indication Panel

LED POWER TIMER

Color Green Orange

Light ON Operation ON Timer Setting ON

Light OFF Operation OFF Timer Setting OFF

Note:  If POWER LED is blinking, the possible operation of the unit are Hot Start, during Deice operation, operation

mode judgment, or ON timer sampling.

 If Timer LED is blinking, there is an abnormality operation occurs.

12.9 Quiet Operation (Cooling Mode/Cooling Area of Dry Mode)

A. Purpose

To provide quiet cooling operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

o When “POWERFUL/QUIET” button at remote control is pressed twice.

b. Quiet operation stop condition 1 When one of the following conditions is satisfied, quiet operation stops:

a. POWERFUL/QUIET button is pressed again. b. Stop by OFF/ON switch.

c. Timer “off” activates. 2 When quiet operation is stopped, operation is shifted to normal operation with previous setting. 3 When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed. 4 When operation mode is changed, quiet operation is shifted to quiet operation of the new mode. 5 During quiet operation, if timer “on” activates, quiet operation maintains. 6 After off, when on back, quiet operation is not memorized.

C. Control contents

1 Fan speed is changed from normal setting to quiet setting of respective fan speed. 2 Fan speed for quiet operation is reduced from setting fan speed.

12.10 Quiet Operation (Heating)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

A. Purpose

To provide quiet heating operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

o When “POWERFUL/QUIET” button at remote control is pressed.

b. Quiet operation stop condition 1 When one of the following conditions is satisfied, quiet operation stops:

a. POWERFUL/QUIET button is pressed again. b. Stop by OFF/ON switch.

C. Control contents

a. Fan Speed manual

1 Fan speed is changed from normal setting to quiet setting of respective fan speed.

2 Fan speed for quiet operation is reduced from setting fan speed. b. Fan Speed Auto

1 Indoor FM RPM depends on pipe temp sensor of indoor heat exchanger.

12.11 Powerful Mode Operation

 When the powerful mode is selected, the internal setting temperature will shift lower up to 2°C (for Cooling/Soft

Dry) or higher up to 3.5°C (for Heating) than remote control setting temperature for 20 minutes to achieve the setting temperature quickly.

13. Operation Control (For Multi Split Connection)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

During multi split connection, indoor unit’s operation controls are same with single split connection unless specified in this chapter.

13.1 Cooling operation

13.1.1 Thermostat control

 Capability supply to indoor unit is OFF (Expansion valve closed) when Intake Air Temperature — Internal setting

temperature < -2.0°C.

 Capability resume supply to indoor unit after waiting for 3 minutes, if the Intake Air temperature — Internal setting

temperature > Capability supply OFF point.

13.2 Soft Dry Operation

13.2.1 Thermostat control

 Capability supply to indoor unit is OFF (Expansion valve closed) when Intake Air Temperature — Internal setting

temperature < -3.0°C.

 Capability resume to indoor unit after waiting for 3 minutes, if the Intake Air temperature — Internal setting

temperature > Capability supply OFF point.

13.3 Heating Operation

13.3.1 Thermostat control

 Capability supply to indoor unit is OFF (Expansion valve closed) when Intake Air Temperature — Internal setting

temperature > +1.0°C.

 During this condition, the indoor fan is stopped if compressor is ON.  Capability resume supply to indoor unit after waiting for 3 minutes, if the Intake Air Temperature — Internal

setting temperature < Capability supply OFF point.

13.3.2 Temperature Sampling Control

 Temperature sampling is controlled by outdoor unit where room temperature for all power supply ON indoor unit

could be obtained.

 When capability supply to the indoor unit is OFF and the compressor is ON, the indoor fan motor is stopped.

During this condition, 15 seconds after sampling signal from outdoor unit is received, the indoor fan start operation at low fan speed.

 However, within first 4 minutes of capability stopped supply to the indoor unit, even sampling signal is received,

the sampling control is cancelled.

13.4 Automatic Operation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 This mode can be set using remote control and the operation is decided by remote control setting temperature,

remote control operation mode, indoor intake and outdoor air temperature.

 During operation mode judgment, indoor fan motor (with speed of -Lo) and outdoor fan motor are running for

30 seconds to detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.

 Every 180 minutes, the indoor and outdoor temperature is judge. Based on remote control setting temperature,

the value of T1 will increase up to 10°C, T2 will decrease by 3°C and T3 will decrease up to 8°C.

13.5 Indoor Fan Motor Operation

13.5.1 Residual Heat Removal Control

 To prevent high pressure at indoor unit, when heating mode thermostat-off condition or power supply OFF,

indoor fan continue to operate at controlled fan speed for maximum 30 seconds then stop.

13.6 Powerful Mode Operation

 When the power mode is selected, the internal setting temperature will shift lower up to 4C for Cooling/Soft Dry

or higher up to 6°C for heating than remote control setting temperature, the powerful operation continue until user cancel the Powerful operation by pressing powerful button again.

13.7 Auto Restart Control

 When the power supply is cut off during the operation of air conditioner, the compressor will re-operate between

three to four minutes (10 patterns to be selected randomly) after power resume.

 During multi split connection, Indoor unit will resume previous mode, include unit standby mode.

13.8 Indication Panel

LED POWER TIMER

Color White White

Light ON Operation ON Timer Setting ON

Light OFF Operation OFF Timer Setting OFF

Note:  If POWER LED is blinking (0.5 seconds ON, 0.5 second OFF), the possible operation of the unit are during

Indoor Residual Heat Removal, Hot Start, during Deice operation, operation mode judgment, or ON timer sampling.

 If POWER LED is blinking (2.5 seconds ON, 0.5 second OFF), the unit is in standby mode.  If TIMER LED is blinking, there is an abnormality operation occurs.

14. Protection Control

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

14.1 Protection Control for All Operations

14.1.1 Restart Control (Time Delay Safety Control)

 The Compressor will not turn on within 3 minutes from the moment operation stops, although the unit is turned on

again by pressing OFF/ON button at remote control within this period.

 This control is not applicable if the power supply is cut off and on again.  This phenomenon is to balance the pressure inside the refrigerant cycle.

14.1.2 Total Running Current

1 When the outdoor unit total running current (AC) exceeds X value, the frequency instructed for compressor

operation will be decreased. 2 If the running current does not exceed X value for 5 seconds, the frequency instructed will be increased. 3 However, if total outdoor unit running current exceeds Y value, compressor will be stopped immediately for

3 minutes.

Model TE20TKE TE25TKE TE35TKE TE42TKE

Operation Mode X (A) Y (A) X (A) Y (A) X (A) Y (A) X (A) Y (A)

Cooling / Soft Dry (A) 3.78

Cooling / Soft Dry (B) 3.30 4.73 6.45 7.42

Cooling / Soft Dry (C) 3.30 4.73 6.45 7.42

Heating 4.17 4.65 5.92 9.13

15.02

4 The first 30 minutes of cooling operation, (A) will be applied.

5.21

15.02

6.97

15.02

7.94

15.02

14.1.3 IPM (Power transistor) Prevention Control

 Overheating Prevention Control

1 When the IPM temperature rises to 120°C, compressor operation will stop immediately. 2 Compressor operation restarts after 3 minutes the temperature decreases to 110°C. 3 If this condition repeats continuously 4 times within 20 minutes, timer LED will be blinking (“F96” is indicated).

 DC Peak Current Control

1 When electric current to IPM exceeds set value of 16.0 ± 2.0A, the compressor will stop operate. Then,

operation will restart after 3 minutes. 2 If the set value is exceeded again more than 30 seconds after the compressor starts, the operation will

restart after 1 minute. 3 If the set value exceeded again within 30 seconds after the compressor starts, the operation will restart after

1 minute. If this condition repeats continuously for 7 times, all indoor and outdoor relays will be cut off, timer

LED will be blinking (“F99” is indicated).

14.1.4 Compressor Overheating Prevention Control

 Instructed frequency for compressor operation will be regulated by compressor temperature. The changes of

frequency are as below.

 If compressor temperature exceeds 103°C, compressor will be stopped, occurs 4 times per 20 minutes, timer

LED will be blinking. (“F97” is indicated.)

103°C

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

99°C

96°C

Compressor = OFF

Compressor Frequency

Reduce

Compressor Frequency

Maintain

Free

88°C

87°C

86°C

Comp. temperature

14.1.5 Low Pressure Prevention Control (Gas Leakage Detection)

 Control start conditions

o For 5 minutes, the compressor continuously operates and outdoor total current is between 0.75A and 0.95A. o During Cooling and Soft Dry operations:

Indoor suction temperature - indoor piping temperature is below 4°C.

o During Heating operations :

Indoor piping temperature - indoor suction is under 5°C.

 Control contents

o Compressor stops (and restart after 3 minutes). o If the conditions above happen 2 times within 20 minutes, the unit will:

 Stop operation  Timer LED blinks and “F91” indicated.

14.1.6 Low Frequency Protection Control 1

 When the compressor operate at frequency lower than 24 Hz continued for 20 minutes, the operation frequency

will be changed to 23 Hz for 2 minutes.

14.1.7 Low Frequency Protection Control 2

 When all the below conditions comply, the compressor frequency will change to lower frequency.

Temperature, T, for: Cooling/Soft Dry Heating

Indoor intake air (°C) T < 14 or T ≥ 30 T < 14 or T ≥ 28

Outdoor air (°C) T < 13 or T ≥ 38 T < 4 or T ≥ 24

Indoor heat exchanger (°C) T < 30 T ≥ 0

14.2 Protection Control for Cooling & Soft Dry Operation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

14.2.1 Outdoor Air Temperature Control

 The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the

diagram below.

 This control will begin 1 minute after the compressor starts.  Compressor frequency will adjust base on outdoor air temperature.

 The compressor will be stopped to avoid compressor overloading.

COMP. ON

10°

-12°C

COMP. OFF

Outdoor

Air

Temperature

14.2.2 Cooling Overload Control

 Detects the Outdoor pipe temperature and carry out below restriction/limitation (Limit the compressor Operation

frequency).

 The compressor stop if outdoor pipe temperature exceeds 60°C.  If the compressor stops 4 times in 20 minutes, Timer LED blinking (F95 indicated: outdoor high pressure rise

protection).

14.2.3 Freeze Prevention Control 1

 When indoor heat exchanger temperature is lower than 0°C continuously for 6 minutes, compressor will stop

operating.

 Compressor will resume its operation 3 minutes after the indoor heat exchanger is higher than 5°C.  At the same time, indoor fan speed will be higher than during its normal operation.  If indoor heat exchanger temperature is higher than 5°C for 5 minutes, the fan speed will return to its normal

operation.

14.2.4 Freeze Prevention Control 2

 Control start conditions

o During Cooling operation and soft dry operation

 During thermo OFF condition, indoor intake temperature is less than 10°C or

 Compressor stops for freeze prevention control

o Either one of the conditions above occurs 5 times in 60 minutes.

 Control contents

o Operation stops o Timer LED blinks and “H99” indicated

14.2.5 Dew Prevention Control 1

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 To prevent dew formation at indoor unit discharge area.  This control will be activated if:

o Outdoor air temperature and Indoor pipe temperature judgment by microcontroller is fulfilled. o When Cooling or Dry mode is operated more than 20 minutes or more.

 This control stopped if:

o Compressor stopped. o Remote control setting changed (fan speed / temperature). o Outdoor air temperature and indoor intake temperature changed.

 Fan speed will be adjusted accordingly in this control.

14.2.6 Odor Cut Control

 To reduce the odor released from the unit.

o Start Condition

 AUTO FAN Speed is selected during COOL or DRY operation.  During freeze prevention control and timer preliminary operation, this control is not applicable.

o Control content

 Depends on compressor conditions:

1. Compressor OFF → Compressor ON. The indoor unit fan stops temporarily and then starts to blow at minimum airflow for 30 seconds.

2. Compressor ON → Compressor OFF. The indoor unit fan stops for 90 seconds and then blows at minimum airflow for 20 seconds.

14.3 Protection Control for Heating Operation

14.3.1 Intake Air Temperature Control

Compressor will operate at limited freq., if indoor intake air temperature is 30°C or above.

14.3.2 Outdoor Air Temperature Control

 The Max current value is regulated when the outdoor air temperature rise above 14°C in order to avoid

compressor overloading.

14.3.3 Overload Protection Control

 The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown

below.

 If the heat exchanger temperature exceeds 60°C, compressor will stop.

14.3.4 Low Temperature Compressor Oil Return Control

 In heating operation, if the outdoor temperature falls below -10°C when compressor starts, the compressor

frequency will be regulated up to 600 seconds.

14.3.5 Cold Draught Prevention Control

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 When indoor pipe temperature is low, cold draught operation starts where indoor fan speed will be reduced.

14.3.6 Deice Operation

 When outdoor pipe temperature and outdoor air temperature is low, deice operation start where indoor fan motor

and outdoor fan motor stop and operation LED blinks.

14.3.7 Low Pressure Protection Control

 During low ambient heating operation, if the pipe temperature drops below -24°C, the max frequency will be

reduced and limited.

 If it does not rises after 3 minutes, the compressor will stop.  The compressor will start again if the pipe temperature rises above -20°C.

15. Servicing Mode

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

15.1 Auto OFF/ON Button

1 AUTO OPERATION MODE

The Auto operation will be activated immediately once the Auto OFF/ON button is pressed. This operation can be used to operate air conditioner with limited function if remote control is misplaced or malfunction.

2 TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE)

The Test Run operation will be activated if the Auto OFF/ON button is pressed continuously for more than 5 seconds. A “beep” sound will heard at the fifth seconds, in order to identify the starting of Test Run operation (Forced cooling operation). Within 5 minutes after Forced cooling operation start, the Auto OFF/ON button is pressed for more than 5 seconds. A 2 “beep” sounds will heard at the fifth seconds, in order to identify the starting of Forced heating operation.

The Auto OFF/ON button may be used together with remote control to set / change the advance setting of air conditioner operation.

3 REMOTE CONTROL NUMBER SWITCH MODE

The Remote Control Number Switch Mode will be activated if the Auto OFF/ON button is pressed continuously for more than 11 seconds (3 “beep” sounds will occur at 11th seconds to identify the Remote Control Number Switch Mode is in standby condition) and press “AC RESET” button and then press any button at remote control to transmit and store the desired transmission code to the EEPROM.

There are 4 types of remote control transmission code could be selected and stored in EEPROM of indoor unit. The indoor unit will only operate when received signal with same transmission code from remote control. This could prevent signal interference when there are 2 or more indoor units installed nearby together. To change remote control transmission code, short or open jumpers at the remote control printed circuit board.

J-A

 During Remote Control Number Switch Mode, press any button at remote control to transmit and store

the transmission code to the EEPROM.

Remote Control Printed Circuit Board

Jumper A (J-A) Jumper B (J-B) Remote Control No.

Short Open A (Default)

Open Open B

J-B

Short Short C

Open Short D

4 REMOTE CONTROL RECEIVING SOUND OFF/ON MODE

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

The Remote Control Receiving Sound OFF/ON Mode will be activated if the Auto OFF/ON button is pressed continuously for more than 16 seconds (4 “beep” sounds will occur at 16th seconds to identify the Remote Control Receiving Sound Off/On Mode is in standby condition) and press “AC Reset” button at remote control.

Press “Auto OFF/ON button” to toggle remote control receiving sound.

o Short “beep”: Turn OFF remote control receiving sound. o Long “beep”: Turn ON remote control receiving sound.

After Auto OFF/ON Button is pressed, the 20 seconds counter for Remote Control Receiving Sound OFF/ON Mode is restarted.

15.2 Heat Only Operation

15.2.1 How to Activate/Deactivate Heat only Operation

AUTO SW is pressed

Emergency Operation

5s 8s 11s 16s 21s 26s 36s

Forced Cooling Operation

Forced Heating Operation

The unit will operate under forced cooling

mode continuously if “AC reset” code is

not pressed to activate standby

Heat Only Mode Enable/ Disable

Remote Control Number Switch Mode

Remote Control Receiving Sound OFF/ON

No Setting Mode

*Operation Time Check Mode

Forced Cooling Operation

Beep

BeepBeep

BeepBeepBeep

code

BeepBeepBeepBeep

AC reset code AC reset code AC reset code AC reset codeAC reset code CHECK

Beep No

 To enable the “Heat Only” mode, press the AUTO OFF/ON SW for more than 8s and less than 11s, “Beep Beep”

sound will be heard, then release the AUTO OFF/ON SW and press remote controller CHECK button. A short “Beep” sound will be heard. “Heat Only” mode is now enable.

 To disable the “Heat Only” mode, press the AUTO OFF/ON SW for more than 8s and less than 11s, “Beep Beep”

sound will be heard, then release the AUTO OFF/ON SW and press remote controller CHECK button. A long “Beep” sound will be heard. “Heat Only” mode is now disable.

 To pump down the unit during Heat Only Operation press AUTO switch for 5 seconds.

15.2.2 Operation mode during Heating Only Operation

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 The table below shows the operation mode comparison when Heating Only Operation Mode Activated and

Deactivated.

Operation Mode Heating Only Operation Mode Activated Heating Only Operation Mode Deactivated

AUTO

HEAT The unit will run Heating operation. The unit will run Heating operation.

COOL The unit will stop and Power LED blinking. The unit will run Cooling operation.

DRY The unit will stop and Power LED blinking. The unit will run Cooling Dry operation.

NANOE-G Stand-alone The unit will stop and Power LED blinking. The unit will run Nanoe-G Stand-alone operation.

Force Cooling

Force Heating The unit will run Force Heating operation. The unit will run Force Heating operation.

AUTO (with Timer)

HEAT (with Timer)

COOL (with Timer)

DRY (with Timer)

Cooling Test Mode The unit will stop and Power LED blinking.

Heating Test Mode

After 30s sampling, regardless of the indoor intake or outdoor intake temperature judgment, the unit will run Heating operation.

The unit will run Force Cooling Operation for X_CTRYTM [15] minutes

The unit will turn ON by the timer and run Auto Operation. After 30s sampling, regardless of the indoor intake or outdoor intake temperature judgment, the unit will run Heating operation.

The unit will turn ON by the timer and run Heating Operation.

The unit will not turn ON by the timer. Power LED blinking.

The unit will operate according to specify Heating test mode operation parameter.

After 30s sampling, the unit will judge the operation mode base on remote controller temperature setting and Indoor Intake Sensor (New Auto Mode) or Outdoor Intake Sensor (Old Auto Mode).

The unit will run Force Cooling operation.

The unit will turn ON by the timer and run Auto Operation. After 30s sampling, the unit will judge the operation mode base on remote controller temperature setting and Indoor Intake Sensor (New Auto Mode) or Outdoor Intake Sensor (Old Auto Mode).

The unit will turn ON by the timer and run Heating Operation.

The unit will turn ON by the timer and run Cooling Operation.

The unit will turn ON by the timer and run Cooling Dry Operation.

The unit will operate according to specify Cooling test mode operation parameter.

The unit will operate according to specify Heating test mode operation parameter.

15.3 Remote Control Button

15.3.1 SET Button

 To check remote control transmission code and store the transmission code to EEPROM:

o Press “Set” button by using pointer. o Press “Timer Set” button until a “beep” sound is heard as confirmation of transmission code changed.

 To limit set temperature range for COOL & DRY, HEAT mode.

o Press “Set” button by using pointer. o Press TEMP increment or decrement button to choose No. 3. o Press Timer increment or decrement button to select desired temperature low limit of set temperature for

COOL & DRY mode.

o Press Timer Set button to confirm low limit selection. o Press TEMP increment or decrement button to choose No. 4. o Press Timer decrement or increment button to select desired temperature high limit of set temperature for

COOL & DRY mode.

o Press Timer Set button to confirm high limit selection. o Press TEMP increment or decrement button to choose No. 5. o Press Timer increment or decrement button to select desired temperature low limit of set temperature for

HEAT mode.

o Press Timer Set button to confirm low limit selection. o Press TEMP increment or decrement button to choose No. 6. o Press Timer decrement or increment button to select desired temperature high limit of set temperature for

HEAT mode.

o Press Timer Set button to confirm high limit selection. o LCD returns to original display if remote control does not operate for 30 seconds or press Timer Cancel

button.

15.3.2 RESET (RC)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

 To clear and restore the remote control setting to factory default.

o Press once to clear the memory.

15.3.3 RESET (AC)

 To restore the unit’s setting to factory default.

o Press once to restore the unit’s setting.

15.3.4 TIMER ▲

 To change indoor unit indicator’s LED intensity.

o Press continuously for 5 seconds.

15.3.5 TIMER ▼

 To change remote control display from Degree Celsius (°C) to Degree Fahrenheit (°F).

o Press continuously for 10 seconds.

15.3.6 Special Setting mode

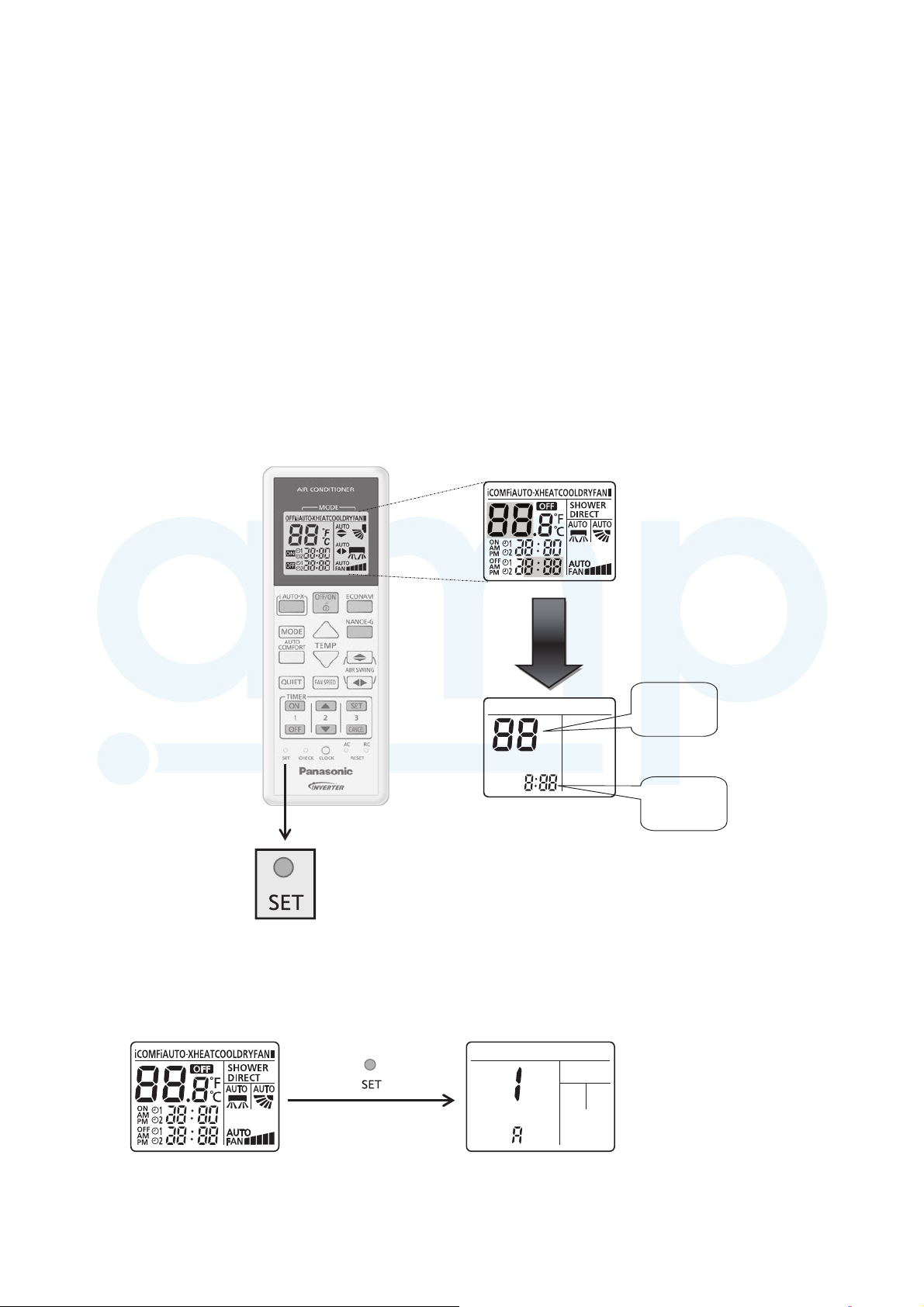

1 LCD display area:

Special setting display area

(highlighted in color)

2 Cannot enter this special setting mode under the following conditions:

1 Operation ON. 2 Under [Real/ON/OFF] time setting mode.

3 To enter zone 1 area:

Function

No.

Options

(If any)

Normal display

mode

Enter Zone1

[range (1~49)]

4 To enter zone 2 area: (Press continuously for T ≥ 5 secs)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Once T ≥ 5secs

mode

5 Function & Options list:

Note: The functions described in the table may not be applicable to the model and may subject to change without further notice.

Zone 1

Zone 2

No Name

1 Remote control number selection A, B, C, D

2 Solar radiation sensitivity level adjustment 1, 2, 3, 4, 5

[iAUTO-X/iAUTO/iCOMF, Cool & Dry] mode set temperature [Low2]

selection

[iAUTO-X/iAUTO/iCOMF, Cool & Dry] mode set temperature [High2]

selection

5 Heat mode set temperature Low1 selection 16°C ~ [High1]

6 Heat mode set temperature High1 selection [Low1] ~ 30°C

7 Filter cleaning enable/disable selection 00 / 01

8 nanoe-G default ON enable/disable selection 00 / 01

9 Dust sensor monitoring & LED enable/disable selection 00 / 01

10 Auto restart enable/disable selection 00 / 01

11 Dust sensor sensitivity level adjustment 1, 2, 3

12 ~ 49 Reserve

50 ECO demo ON None (No display)

51 Light sensor check None (No display)

52 nanoe-G / ECO sensor check None (No display)

53 DOA check None (No display)

54 Odor cut control selection [Enable (01) / Disable (00)] 00 / 01

55 Frequency tolerance selection [±3Hz (03) / ±7Hz (07)] 03 / 07

56 Fixed fan speed selection during heat mode compressor OFF 00/01

57 nanoe check None (No display)

58 Heat mode thermo shift adjustment -3°C ~ 3°C

59 Others (Cool & Dry) mode thermo shift adjustment -3°C ~ 3°C

60 Deice start determination judgment temperature switching 00/01

61 Cool mode disable selection [Yes (01) / No (00)] 00/01

62 Heat mode disable selection [Yes (01) / No (00)] 00/01

63 Base pan heater selection [A / b] A / b

Fan speed reduction during cool mode thermo-Off [Enable (01) /

Disable (00)]

65 ~ 99 Reserve

Function

Enter Zone1Normal display

Options Remark

16°C ~ [High2]

[Low2] ~ 30°C

00/01

Enter Zone2

[range (50~99)]

16. Troubleshooting Guide

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

16.1 Refrigeration Cycle System

In order to diagnose malfunctions, make sure that there are no electrical problems before inspecting the refrigeration cycle. Such problems include insufficient insulation, problem with the power source, malfunction of a compressor and a fan. The normal outlet air temperature and pressure of the refrigeration cycle depends on various conditions, the standard values for them are shown in the table on the right.

Normal Pressure and Outlet Air Temperature (Standard)

Cooling Mode 0.9 ~ 1.2 (9 ~ 12) 12 ~ 16

Heating Mode 2.3 ~ 2.9 (23 ~ 29) 36 ~ 45

*Condition: • Indoor fan speed = High

mode and 7°C at the heating mode

• Compressor operates at rated frequency

Gas Pressure

MPa

(kg/cm

• Outdoor temperature 35°C at the cooling

Outlet air

Temperature

(°C)

16.1.1 Relationship Between the Condition of the Air Conditioner and Pressure and

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Electric Current

Condition of the

air conditioner

Insufficient refrigerant

(gas leakage)

Clogged capillary tube or

Strainer

Low Pressure High Pressure

     

     

Cooling Mode Heating Mode

Electric current

during operation

Low Pressure High Pressure

Electric current

during operation

Short circuit in the indoor unit

Heat radiation deficiency

of the outdoor unit

Inefficient compression

• Carry out the measurement of pressure, electric current, and temperature fifteen minutes after an operation is started.

     

     

     

16.2 Breakdown Self Diagnosis Function

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

16.2.1 Self Diagnosis Function (Three Digits Alphanumeric Code)

 Once abnormality has occurred during operation,

the unit will stop its operation, and Timer LED blinks.

 Although Timer LED goes off when power supply

is turned off, if the unit is operated under a breakdown condition, the LED will light up again.

 In operation after breakdown repair, the Timer

LED will no more blink. The last error code (abnormality) will be stored in IC memory.

16.2.2 To Make a Diagnosis

1 Timer LED start to blink and the unit

automatically stops the operation.

2 Press the CHECK button on the remote

controller continuously for 5 seconds.

3 “- -” will be displayed on the remote controller

display. Note: Display only for “- -”. (No transmitting signal, no receiving sound and no Power LED blinking.)

4 Press the “TIMER” ▲ or ▼ button on the

remote controller. The code “H00” (no abnormality) will be displayed and signal will be transmitted to the main unit.

5 Every press of the button (up or down) will

increase abnormality numbers and transmit abnormality code signal to the main unit.

6 When the latest abnormality code on the main

unit and code transmitted from the remote controller are matched, power LED will light up for 30 seconds and a beep sound (continuously for 4 seconds) will be heard. If no codes are matched, power LED will light up for 0.5 seconds and no sound will be heard.

7 The breakdown diagnosis mode will be

canceled unless pressing the CHECK button continuously for 5 seconds or operating the unit for 30 seconds.

8 The LED will be off if the unit is turned off or

the RESET button on the main unit is pressed.

16.2.3 To Display Memorized Error Code (Protective Operation)

1 Turn power on. 2 Press the CHECK button on the remote

controller continuously for 5 seconds.

3 “- -” will be displayed on the remote controller

display. Note: Display only for “- -”. (No transmitting signal, no receiving sound and no Power LED blinking.)

4 Press the “TIMER” ▲ or ▼ button on the

remote controller. The code “H00” (no abnormality) will be displayed and signal will be transmitted to the main unit. The power LED lights up. If no abnormality is stored in the memory, three beeps sound will be heard.

5 Every press of the button (up or down) will

increase abnormality numbers and transmit abnormality code signal to the main unit.

6 When the latest abnormality code on the main

7 The breakdown diagnosis mode will be

canceled unless pressing the CHECK button continuously for 5 seconds or operating the unit for 30 seconds.

8 The same diagnosis can be repeated by

turning power on again.

“Check” button

16.2.4 To Clear Memorized Error Code after Repair (Protective Operation)

1 Turn power on (in standby condition). 2 Press the AUTO button for 5 seconds (A beep

receiving sound) on the main unit to operate the unit at Forced Cooling Operation modes.

3 Press the CHECK button on the remote

controller for about 1 second with a pointed object to transmit signal to main unit. A beep sound is heard from main unit and the data is cleared.

16.2.5 Temporary Operation (Depending On Breakdown Status)

1 Press the AUTO button (A beep receiving

sound) on the main unit to operate the unit. (Remote control will become possible.)

2 The unit can temporarily be used until

repaired.

16.3 Error Codes Table

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Diagnosis

display

H00 No memory of failure — Normal operation — —

H11

H12

H14

H15

H16

H19

H23

H24

H25

H27

H28

H30

H32

H33

H34

H36

H37

H38

H39

Abnormality /

Protection control

Indoor/outdoor abnormal communication

Indoor unit capacity unmatched

Indoor intake air temperature sensor abnormality Compressor temperature sensor abnormality Outdoor current transformer (CT) abnormality

Indoor fan motor mechanism lock

Indoor heat exchanger temperature sensor abnormality Indoor heat exchanger temperature sensor 2 abnormality Indoor ion device abnormality Outdoor air temperature sensor abnormality Outdoor heat exchanger temperature sensor 1 abnormality Outdoor discharge pipe temperature sensor abnormality Outdoor heat exchanger temperature sensor 2 abnormality Indoor / outdoor misconnection abnormality Outdoor heat sink temperature sensor abnormality Outdoor gas pipe temperature sensor abnormality Outdoor liquid pipe temperature sensor abnormality Indoor/Outdoor mismatch (brand code)

Abnormal indoor operating unit or standby units

Abnormality

Judgment

After operation for 1 minute

90s after power supply

Continuous for 5s —

— —

Continuous happen for 7 times

Continuous for 5s —

Port is ON for 10s during ion device off

Continuous for 5s —

— —

Continuous for 2s —

Continuous for 5s

— — Brand code not match

3 times happen within 40 minutes

Protection Operation

Indoor fan only operation can start by entering into force cooling operation

—

— —

Heating protection operation only Cooling protection operation only

—

Problem Check location

Indoor/outdoor communication not establish

Total indoor capability more than maximum limit or less than minimum limit, or number of indoor unit less than two Indoor intake air temperature sensor open or short circuit

Compressor temperature sensor open or short circuit

Current transformer faulty or compressor faulty

Indoor fan motor lock or feedback abnormal

Indoor heat exchanger temperature sensor open or short circuit

Indoor heat exchanger temperature sensor 2 open or short circuit

Outdoor air temperature sensor open or short circuit

Outdoor heat exchanger temperature sensor 1 open or short circuit

Outdoor discharge pipe temperature sensor open or short circuit

Outdoor heat exchanger temperature sensor 2 open or short circuit

Indoor and outdoor rated voltage different

Outdoor heat sink temperature sensor open or short circuit Outdoor gas pipe temperature sensor open or short circuit Outdoor liquid pipe temperature sensor open or short circuit

Wrong wiring and connecting pipe, expansion valve abnormality, indoor heat exchanger sensor open circuit

 Indoor/outdoor wire terminal  Indoor/outdoor PCB  Indoor/outdoor connection wire

 Indoor/outdoor connection wire  Indoor/outdoor PCB  Specification and combination

table in catalogue

 Indoor intake air temperature

sensor lead wire and connector

 Compressor temperature

sensor lead wire and connector

 Outdoor PCB faulty or

compressor faulty

 Fan motor lead wire and

connector

 Fan motor lock or block

 Indoor heat exchanger

temperature sensor lead wire and connector

 Indoor heat exchanger

temperature sensor 2 lead wire and connector

 ion device PCB

 Outdoor air temperature sensor

lead wire and connector

 Outdoor heat exchanger

temperature sensor 1 lead wire and connector

 Outdoor discharge pipe

temperature sensor lead wire and connector

 Outdoor heat exchanger

temperature sensor 2 lead wire and connector

 Indoor and outdoor units check

 Outdoor heat sink sensor

 Outdoor gas pipe temperature

sensor lead wire and connector

 Outdoor liquid pipe temperature

sensor lead wire and connector

 Check indoor unit and outdoor

unit

 Check indoor/outdoor

connection wire and connection pipe

 Indoor heat exchanger sensor

lead wire and connector

 Expansion valve and lead wire

and connector

Diagnosis

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

display

H41

H59

H64

H67 nanoe abnormality

H70

H97

H98

H99

F11

F17

F90

F91

F93

F94

F95

F96

F97

F98

F99

Abnormality /

Protection control

Abnormal wiring or piping connection

ECONAVI sensor abnormality

Outdoor high pressure sensor abnormality

Light sensor abnormality

Outdoor fan motor mechanism lock

Indoor high pressure protection

Indoor operating unit freeze protection

4-way valve switching abnormality

Indoor standby units freezing abnormality

Power factor correction (PFC) circuit protection Refrigeration cycle abnormality

Compressor abnormal revolution Compressor discharge overshoot protection

Outdoor cooling high pressure protection Power transistor module overheating protection Compressor overheating protection

Total running current protection

Outdoor direct current (DC) peak detection

Abnormality

Judgment

— —

Continuous for 25s —

Continuous for 1 minute

nanoe stop for 5 minutes for 3 times

Continuous for 24 hours, 15 days

2 times happen within 30 minutes

— —

4 times happen within 30 minutes

3 times happen within 40 minutes

4 times happen within 10 minutes

2 times happen within 20 minutes

4 times happen within 20 minutes

4 times happen within 30 minutes

4 times happen within 20 minutes

4 times happen within 30 minutes

3 times happen within 30 minutes

3 times happen within 20 minutes

Continuous happen for 7 times

Protection

Operation

—

— nanoe faulty

—

— Compressor overheat

— Total current protection

—

Problem Check location

 Check indoor/outdoor Wrong wiring and connecting pipe, expansion valve abnormality

ECONAVI sensor open or short circuit

High pressure sensor open circuit during compressor stop

Light sensor open or short circuit

Outdoor fan motor lock or feedback abnormal

Indoor high pressure protection (Heating)

Indoor freeze protection (Cooling)

4-way valve switching abnormal

Wrong wiring and connecting pipe, expansion valve leakage, indoor heat exchanger sensor open circuit

Power factor correction circuit abnormal

Refrigeration cycle abnormal

Compressor abnormal revolution

Compressor discharge pressure overshoot

Cooling high pressure protection

Power transistor module overheat

Power transistor module current protection

connection wire and connection pipe

 Expansion valve and lead wire

and connector

 ECONAVI sensor (defective or

disconnected)

 ECONAVI PCB

 High pressure sensor

 Lead wire and connector

 PCB

 nanoe system

 High voltage

 Light sensor (defective or

disconnect)

 Outdoor fan motor lead wire

and connector

 Fan motor lock or block

 Check indoor heat exchanger

 Air filter dirty

 Air circulation short circuit

 Check indoor heat exchanger

 Air filter dirty

 Air circulation short circuit

 4-way valve

 Lead wire and connector

 Check indoor/outdoor

connection wire and pipe

 Indoor heat exchanger sensor

lead wire and connector

 Expansion valve lead wire and

connector

 Outdoor PCB faulty

 Insufficient refrigerant or valve

 Power transistor module faulty

or compressor lock

 Check refrigeration system

 Outdoor air circuit

 PCB faulty

 Outdoor air circuit (fan motor)

 Insufficient refrigerant

 Check refrigeration system

 Power source or compressor

lock

 Power transistor module faulty

or compressor lock

16.4 Self-diagnosis Method

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

16.4.1 H11 (Indoor/Outdoor Abnormal Communication)

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the data received from outdoor unit in indoor unit signal

transmission is checked whether it is normal.

Malfunction Caused

 Faulty indoor unit PCB.  Faulty outdoor unit PCB.  Indoor unit-outdoor unit signal transmission error due to wiring error.  Indoor unit-outdoor unit signal transmission error due to breaking of wire in the connection wires between the

indoor and outdoor units.

Troubleshooting

When abnormality indication starts again

For safety reason and to prevent

Caution

Measure the AC voltage at terminal 1 & 2 of outdoor unit terminal board

component breakdown, always switch off the power before remove and connect the component.

Is the measured voltage 230/240V?

YES

Measure the DC voltage at terminal 2 & 3 (communication terminals) of outdoor unit terminal board

Is the measured DC voltage fluctuate between 10~70V?

YES

Measure the AC voltage at terminal 1 & 2 of indoor unit terminal board

Is the measured voltage 230/240V?

YES

Measure the DC voltage at terminal 2 & 3 of indoor unit terminal board

Is the measured DC voltage fluctuate between 10~70V?

● AC power supply abnormal fluctuation

● Defect in communication circuitry of outdoor unit PCB

● Replace the PCB

● Improper connection at terminals indoor/outdoor

● Check indoor/outdoor connecting cable

● Improper connection at terminals indoor/outdoor

● Check indoor/outdoor connecting cable

YES

● Defect in receiver/transmitter module of the communication circuitry in indoor unit PCB

● Replace the indoor unit PCB

16.4.2 H12 (Indoor/Outdoor Capacity Rank Mismatched)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup, error code appears when different types of indoor and outdoor units are interconnected.

Malfunction Caused

 Wrong models interconnected.  Wrong indoor unit or outdoor unit PCBs mounted.  Indoor unit or outdoor unit PCBs defective.  Indoor-outdoor unit signal transmission error due to wrong wiring.  Indoor-outdoor unit signal transmission error due to breaking of wire 3 in the connection wires between the indoor

and outdoor units.

Troubleshooting

16.4.3 H14 (Indoor Intake Air Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the indoor intake air

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.4 H15 (Compressor Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor compressor

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

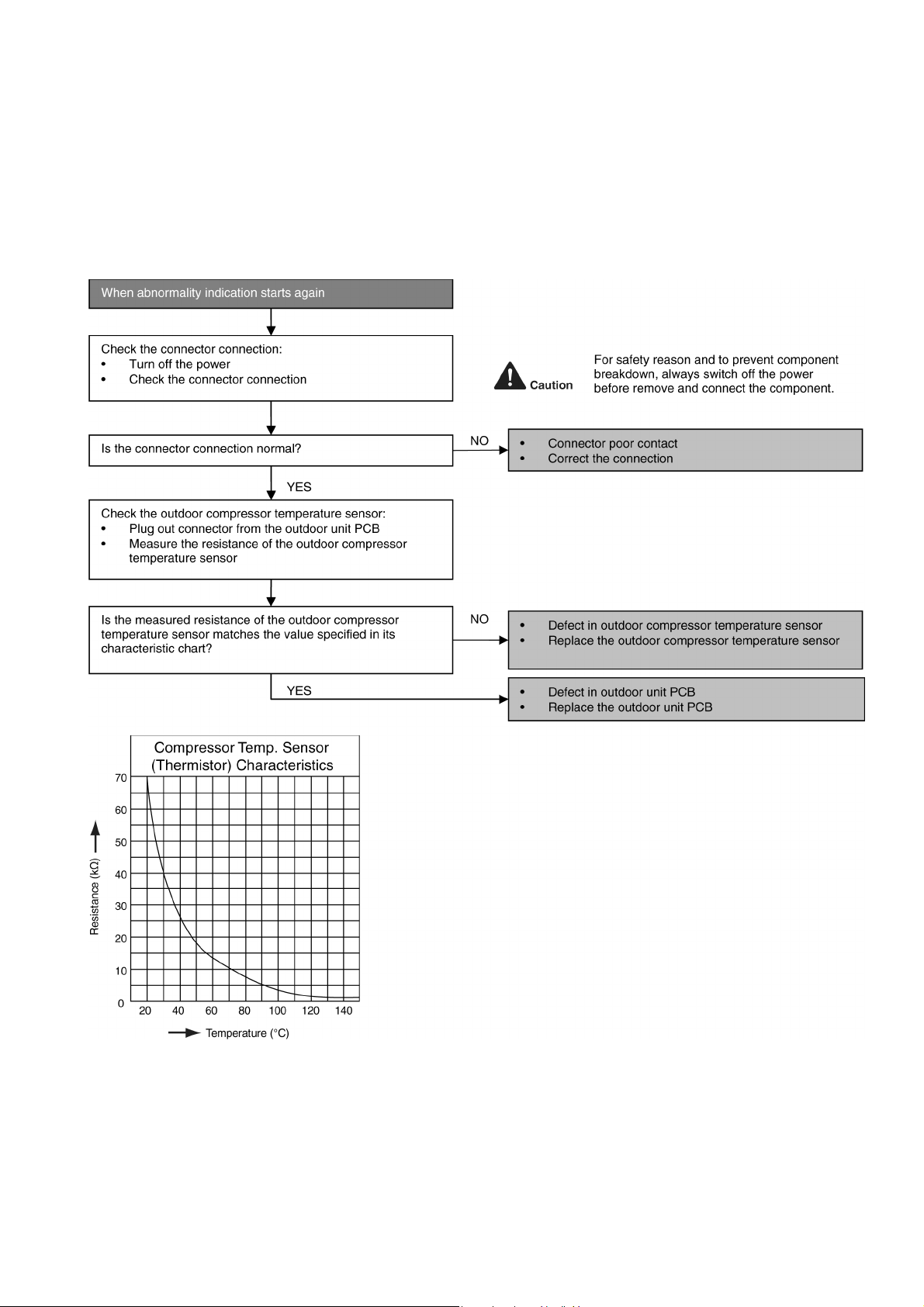

Troubleshooting

16.4.5 H16 (Outdoor Current Transformer)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 An input current, detected by Current Transformer CT, is below threshold value when the compressor is

operating at certain frequency value for 3 minutes.

Malfunction Caused

 Lack of gas  Broken CT (current transformer)  Broken Outdoor PCB

Troubleshooting

16.4.6 H19 (Indoor Fan Motor – DC Motor Mechanism Locked)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 The rotation speed detected by the Hall IC during fan motor operation is used to determine abnormal fan motor

(feedback of rotation > 2550 rpm or < 50 rpm)

Malfunction Caused

 Operation stops due to short circuit inside the fan motor winding.  Operation stops due to breaking of wire inside the fan motor.  Operation stops due to breaking of fan motor lead wires.  Operation stops due to Hall IC malfunction.  Operation error due to faulty indoor unit PCB.

Troubleshooting

16.4.7 H23 (Indoor Pipe Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the indoor heat exchanger

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.8 H27 (Outdoor Air Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor air temperature

sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.9 H28 (Outdoor Pipe Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor pipe temperature

sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.10 H30 (Compressor Discharge Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor discharge pipe

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.11 H32 (Outdoor Heat Exchanger Temperature Sensor 2 Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor heat exchanger

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.12 H33 (Unspecified Voltage between Indoor and Outdoor)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 The supply power is detected for its requirement by the indoor/outdoor transmission.

Malfunction Caused

 Wrong models interconnected.  Wrong indoor unit and outdoor unit PCBs used.  Indoor unit or outdoor unit PCB defective.

Troubleshooting

16.4.13 H34 (Outdoor Heat Sink Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor heat sink

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.14 H36 (Outdoor Gas Pipe Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor gas pipe

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.15 H37 (Outdoor Liquid Pipe Temperature Sensor Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During startup and operation of cooling and heating, the temperatures detected by the outdoor liquid pipe

temperature sensor are used to determine sensor errors.

Malfunction Caused

 Faulty connector connection.  Faulty sensor.  Faulty PCB.

Troubleshooting

16.4.16 H97 (Outdoor Fan Motor – DC Motor Mechanism Locked)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 The rotation speed detected by the Hall IC during fan motor operation is used to determine abnormal fan motor.

Malfunction Caused

Troubleshooting

When abnormality indication starts again

1 3

CN-MTR2

(WHT)

CN-MTR1

1 2 3 4

PCB BOARD

C173

R120

14 16

IC19

R105

R111

C176

C177

C175

0.01μ 50V

G5G5

0.01μ

0.01μ 50V

50V

Turn off power supply and rotate fan by hand.

Does fan rotate smoothly?

YES

Turn power supply on and operate fan.

For safety reason and to prevent

Caution

component breakdown, always switch off the power before remove and connect the component.

Replace fan motor.

FAN MOTOR

Turn off power supply and disconnect fan motor CN-MRT2 connector.

Does it rotate?

YES

Stop the fan motor

Check the rotation feedback output from fan motor’s CN-MTR1 output. Rotate the fan motor manually (by hand) while measure the voltage at PCB’s CN-MRT1

- Between 1(+) and 5(-)

- Between 2(+) and 5(-)

- Between 3(+) and 5(-)

Check resistance of the motor. Measure at fan motor connector CN-MRT1 (1-2, 1-3, 2-3).

Is the resistance normal?

YES

Use an inverter check to check on the power transistor on board. Connect it to PCB’s CN-MRT2 port. Turn power ON and run the unit.

Do all 6 LED light turn ON and turn OFF periodically?

Does the voltage at each terminal becomes 5 and 0Vdc repeatedly?

Replace fan motor.

Replace outdoor PCB.

YES

Replace fan motor.

YES

Replace outdoor PCB.

16.4.17 H98 (Error Code Stored in Memory and no alarm is triggered / no TIMER LED

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

flashing)

Malfunction Decision Conditions

 Indoor high pressure is detected when indoor heat exchanger is detecting very high temperature when the unit is

operating in heating operation.

 Phenomena: unit is stopping and re-starting very often in heating mode

Malfunction Caused

 Indoor heat exchanger thermistor  Clogged air filter or heat exchanger  Over-bent pipe (liquid side)

Troubleshooting

16.4.18 H99 (Indoor Freeze Prevention Protection: Cooling or Soft Dry)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Error Code will not display (no Timer LED blinking) but store in EEPROM

Malfunction Decision Conditions

 Freeze prevention control takes place (when indoor pipe temperature is lower than 2°C)

Malfunction Caused

 Air short circuit at indoor unit  Clogged indoor unit air filter  Dust accumulation on the indoor unit heat exchanger  2/3 way valve closed  Faulty indoor unit fan motor  Refrigerant shortage (refrigerant leakage)  Clogged expansion valve or strainer  Faulty indoor pipe temperature sensor  Faulty indoor unit PCB

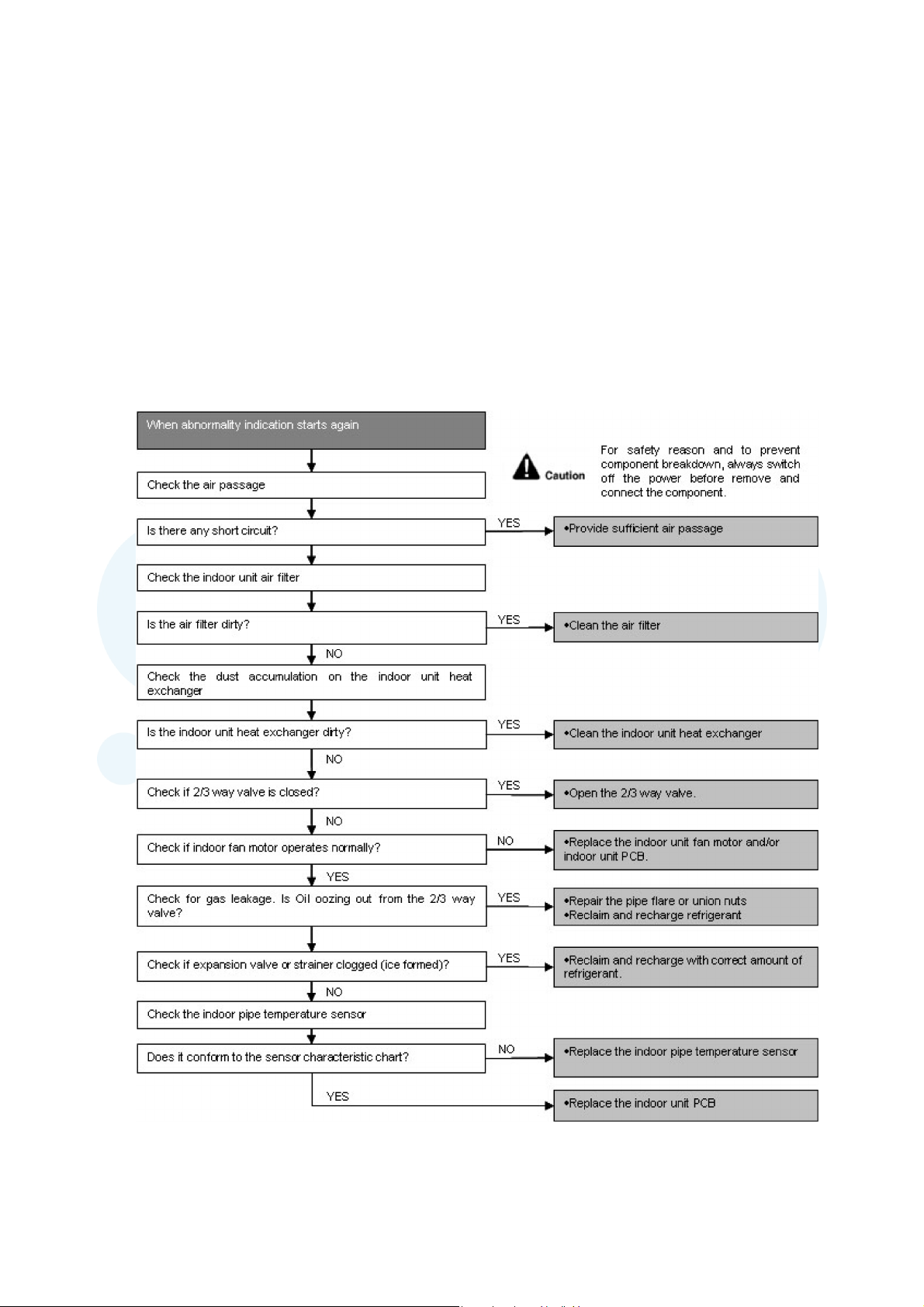

Troubleshooting

16.4.19 F11 (4-way Valve Switching Failure)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 When indoor heat exchanger is cold during heating (except deice) or when indoor heat exchanger is hot during

cooling and compressor operating, the 4-way valve is detected as malfunction.

Malfunction Caused

 Indoor heat exchanger (pipe) thermistor  4-way valve malfunction

Troubleshooting

* Check gas side pipe – for hot gas flow in cooling mode

16.4.20 F17 (Indoor Standby Units Freezing Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 When the different between indoor intake air temperature and indoor pipe temperature is above 10°C or indoor

pipe temperature is below -1.0°C.

Remark: When the indoor standby unit is freezing, the outdoor unit transfers F17 error code to the corresponding indoor unit and H39 to other indoor unit(s).

Malfunction Caused

 Wrong wiring connection  Faulty sensor  Faulty expansion valve

Troubleshooting

16.4.21 F90 (Power Factor Correction Protection)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 To maintain DC voltage level supply to power transistor.  To detect high DC voltage level after rectification.

Malfunction Caused

 During startup and operation of cooling and heating, when Power Factor Correction (PFC) protection circuitry at

the outdoor unit main PCB senses abnormal DC voltage level for power transistors.

 When DC voltage detected is LOW, transistor switching will turn ON by controller to push-up the DC level.  When DC voltage detected is HIGH (391Vdc – 425Vdc), active LOW signal will send by the controller to turn OFF

relay RY-C.

Troubleshooting

16.4.22 F91 (Refrigeration Cycle Abnormality)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 The input current is low while the compressor is running at higher than the setting frequency.

Malfunction Caused

 Lack of gas.  3-way valve close.

Troubleshooting

16.4.23 F93 (Compressor Rotation Failure)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 A compressor rotation failure is detected by checking the compressor running condition through the position

detection circuit.

Malfunction Caused

 Compressor terminal disconnect  Faulty Outdoor PCB  Faulty compressor

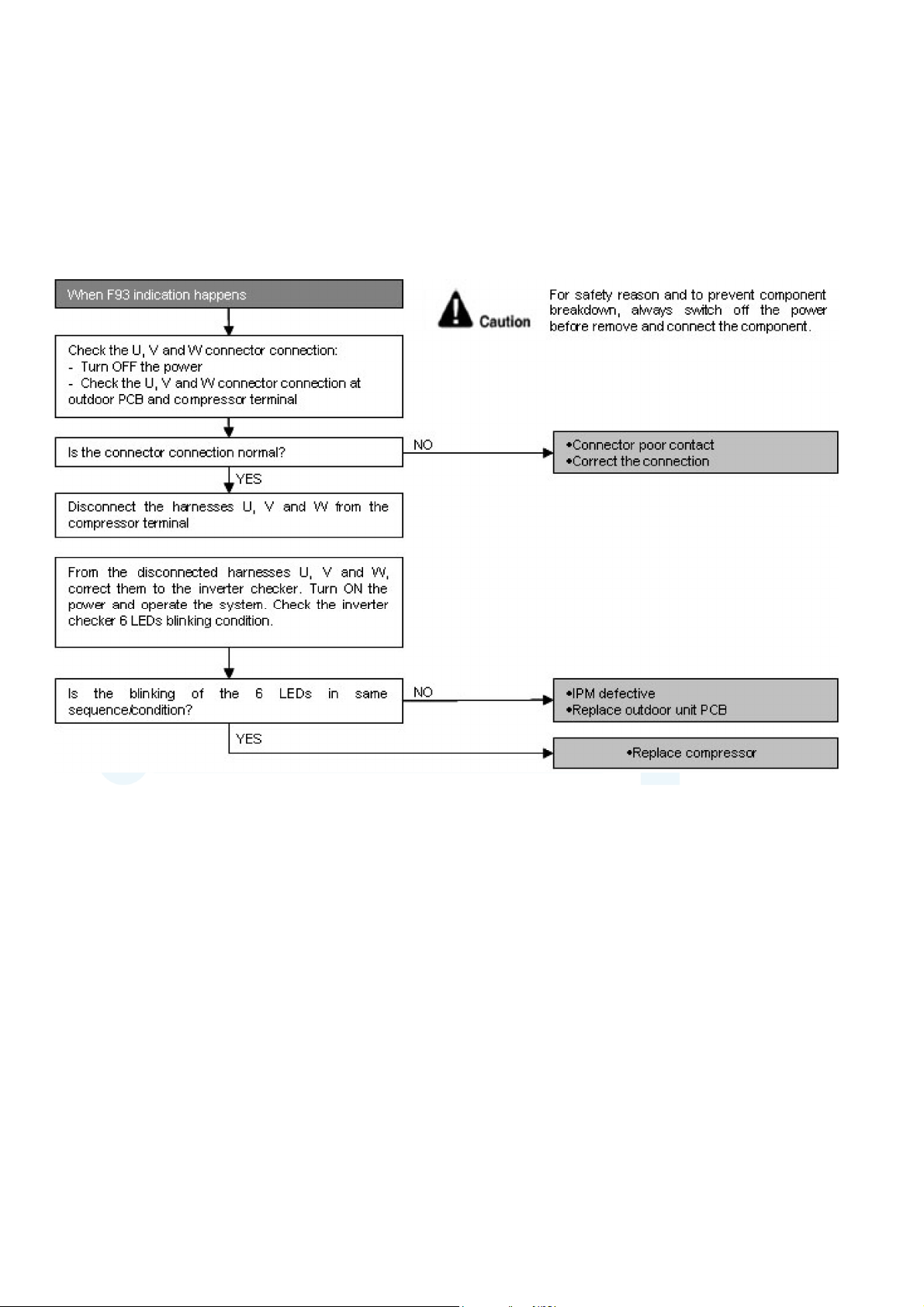

Troubleshooting

16.4.24 F95 (Outdoor High Pressure Protection: Cooling or Soft Dry)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During operation of cooling or soft dry, when outdoor unit heat exchanger high temperature data is detected by

the outdoor unit heat exchanger thermistor.

Malfunction Caused

 Outdoor heat exchanger temperature rise due to short-circuit of hot discharge air flow.  Outdoor heat exchanger temperature rise due to defective of outdoor fan motor.  Outdoor heat exchange temperature rise due to defective outdoor heat exchanger thermistor.  Outdoor heat exchanger temperature rise due to defective of outdoor unit PCB.

Troubleshooting

16.4.25 F96 (IPM Overheating)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During operating of cooling and heating, when IPM temperature data (100°C) is detected by the IPM temperature

sensor.

Multi Models only

o Compressor Overheating: During operation of cooling and heating, when the compressor OL is activated. o Heat Sink Overheating: During operation of cooling and heating, when heat sink temperature data (90°C) is

detected by the heat sink temperature sensor.

Malfunction Caused

 IPM overheats due to short circuit of hot discharge air flow.  IPM overheats due to defective of outdoor fan motor.  IPM overheats due to defective of internal circuitry of IPM.  IPM overheats due to defective IPM temperature sensor.

Multi Models Only

o Compressor OL connector poor contact. o Compressor OL faulty.

Troubleshooting

16.4.26 F97 (Compressor Overheating)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During operation of cooling and heating, when compressor tank temperature data (112°C) is detected by the

compressor tank temperature sensor.

Malfunction Caused

 Faulty compressor tank temperature sensor  2/3 way valve closed  Refrigerant shortage (refrigerant leakage)  Faulty outdoor unit PCB  Faulty compressor

Troubleshooting

16.4.27 F98 (Input Over Current Detection)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

 During operation of cooling and heating, when an input over-current (X value in Total Running Current Control) is

detected by checking the input current value being detected by current transformer (CT) with the compressor running.

Malfunction Caused

 Excessive refrigerant.  Faulty outdoor unit PCB.

Troubleshooting

16.4.28 F99 (DC Peak Detection)

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

Malfunction Decision Conditions

During startup and operation of cooling and heating, when inverter DC peak data is received by the outdoor internal DC Peak sensing circuitry.

Malfunction Caused

 DC current peak due to compressor failure.  DC current peak due to defective power transistor(s).  DC current peak due to defective outdoor unit PCB.  DC current peak due to short circuit.

Troubleshooting

17. Disassembly and Assembly Instructions

AMP Air Conditioning

www.ampair.co.uk | sales@ampair.co.uk

WARNING

High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with repair work. Failure to heed this caution may result in electric shocks.

17.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal Procedures

17.1.1 To Remove Front Grille

3 Hold both sides of the front grille and remove it by pulling up and toward yourself gently.

1 Lift to open the horizontal vane gently.

2 Remove 2 caps and 3 screws at the bottom of discharge vane.

Figure 1

17.1.2 To Remove Power Electronic Controller

Hook

4 Removing the contro board cover by releasing the hook.

Figure 2

100

Panasonic CS-TE35TKEW Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
