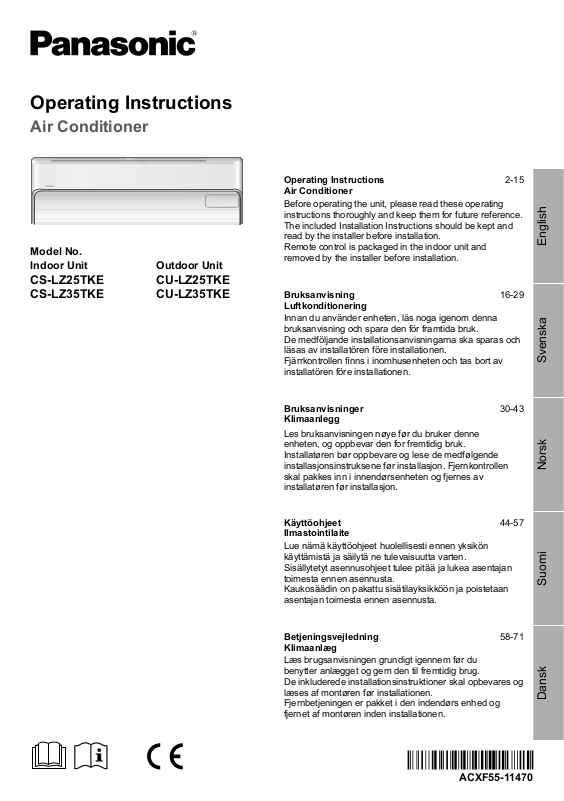

Panasonic CULZ35TKE, CULZ25TKE, CSLZ35TKE, CSLZ25TKE Operating Instructions

Operating Instructions

Air Conditioner

Model No. Indoor Unit Outdoor Unit

CS-LZ25TKE CS-LZ35TKE

CU-LZ25TKE CU-LZ35TKE

Operating Instructions Air Conditioner

Before operating the unit, please read these operating instructions thoroughly and keep them for future reference. The included Installation Instructions should be kept and read by the installer before installation. Remote control is packaged in the indoor unit and removed by the installer before installation.

Bruksanvisning Luftkonditionering

Innan du använder enheten, läs noga igenom denna bruksanvisning och spara den för framtida bruk. De medföljande installationsanvisningarna ska sparas och läsas av installatören före installationen. Fjärrkontrollen ﬁ nns i inomhusenheten och tas bort av installatören före installationen.

Bruksanvisninger Klimaanlegg

Les bruksanvisningen nøye før du bruker denne enheten, og oppbevar den for fremtidig bruk. Installatøren bør oppbevare og lese de medfølgende installasjonsinstruksene før installasjon. Fjernkontrollen skal pakkes inn i innendørsenheten og fjernes av installatøren før installasjon.

Käyttöohjeet Ilmastointilaite

Lue nämä käyttöohjeet huolellisesti ennen yksikön käyttämistä ja säilytä ne tulevaisuutta varten. Sisällytetyt asennusohjeet tulee pitää ja lukea asentajan toimesta ennen asennusta. Kaukosäädin on pakattu sisätilayksikköön ja poistetaan asentajan toimesta ennen asennusta.

2-15

16-29

30-43

44-57

Betjeningsvejledning Klimaanlæg

Læs brugsanvisningen grundigt igennem før du benytter anlægget og gem den til fremtidig brug. De inkluderede installationsinstruktioner skal opbevares og læses af montøren før installationen. Fjernbetjeningen er pakket i den indendørs enhed og fjernet af montøren inden installationen.

58-71

ACXF55-11470

Dansk Suomi Norsk Svenska English

Provides maximum comfort and clean air

AIR CONDITIONER

OFF

SET

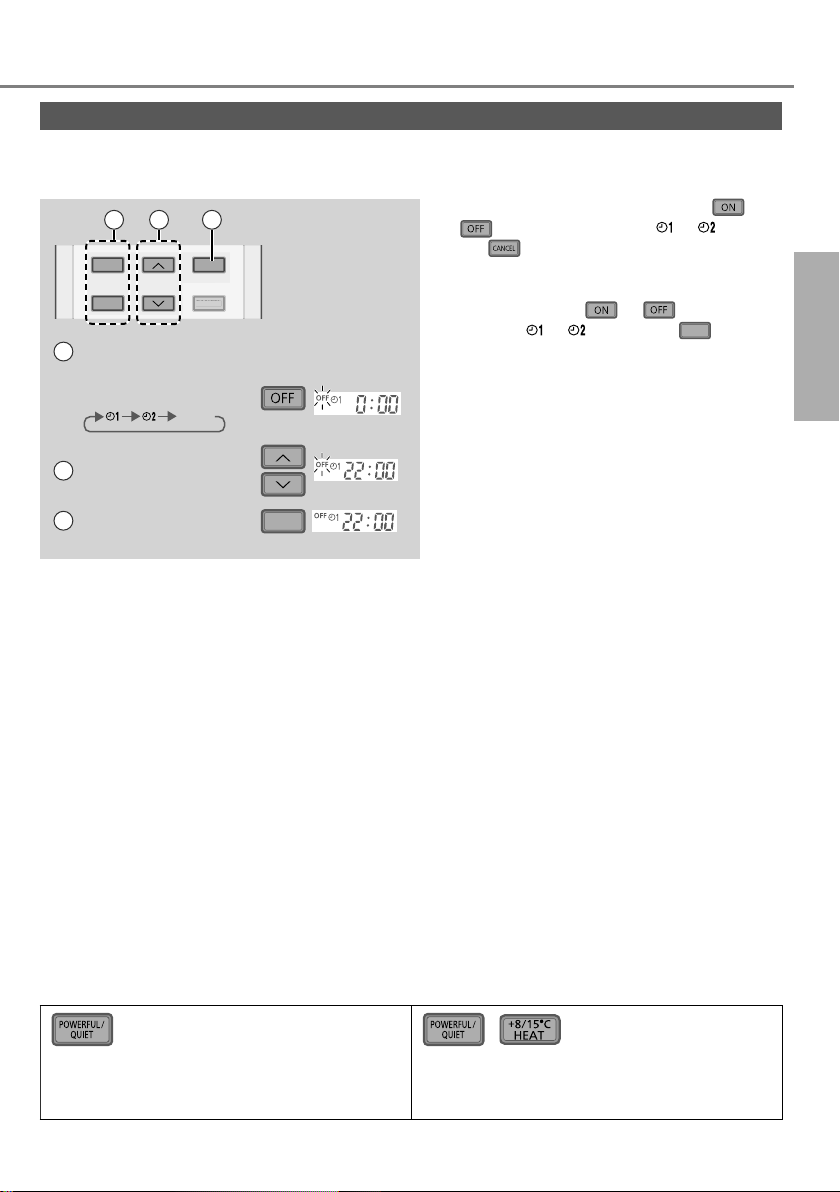

TIMER

CANCEL

TEMP

FAN SPEED

SET

TEMP

control receiver of

the indoor unit

AIR SWING

OFF/ON

MODE

AIR CO

NDITIO

NER

OFF

TIMER

CANCEL

FAN SP

EED

AIR SWING

with optimal energy saving methods.

Use remote control within 8 m from the remote control receiver of the indoor unit.

Quick Guide

Inserting the batteries

Pull out the back cover

of remote control.

Insert AAA or R03

batteries.

Close the cover.

Clock setting

Press

time .

and

• Press and hold for approximately 5 seconds to show time in 12-hour (am/pm) or 24 hour indication.

Conﬁ rm

SET

set the

Thank you for purchasing Panasonic Air Conditioner.

Table of contents

WARNING

CAUTION

This symbol shows that this equipment uses a ﬂ ammable refrigerant. If the refrigerant is leaked, together with an external ignition source, there is a possibility of ignition.

This symbol shows that the Operation Instructions should be read carefully.

This symbol shows that there is information included in the Operation Instructions and/or Installation Instructions.

Safety precautions

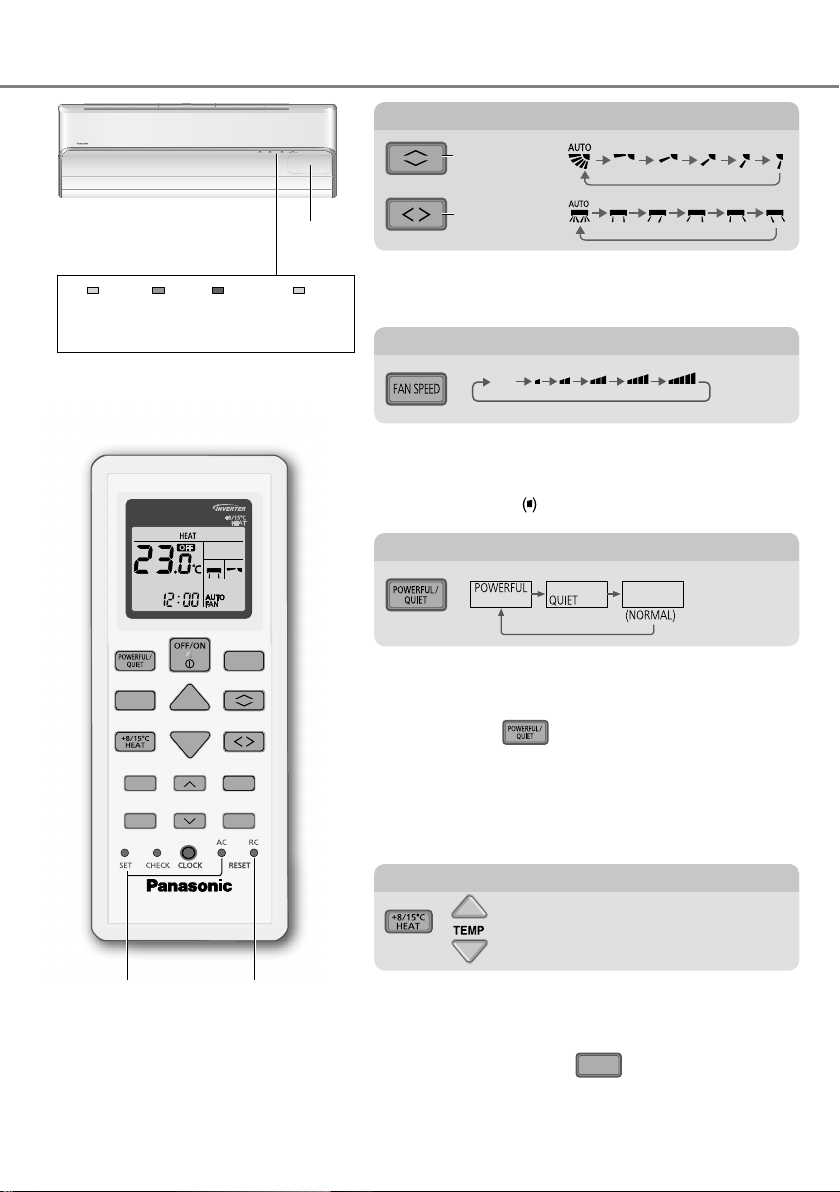

How to use

To learn more...

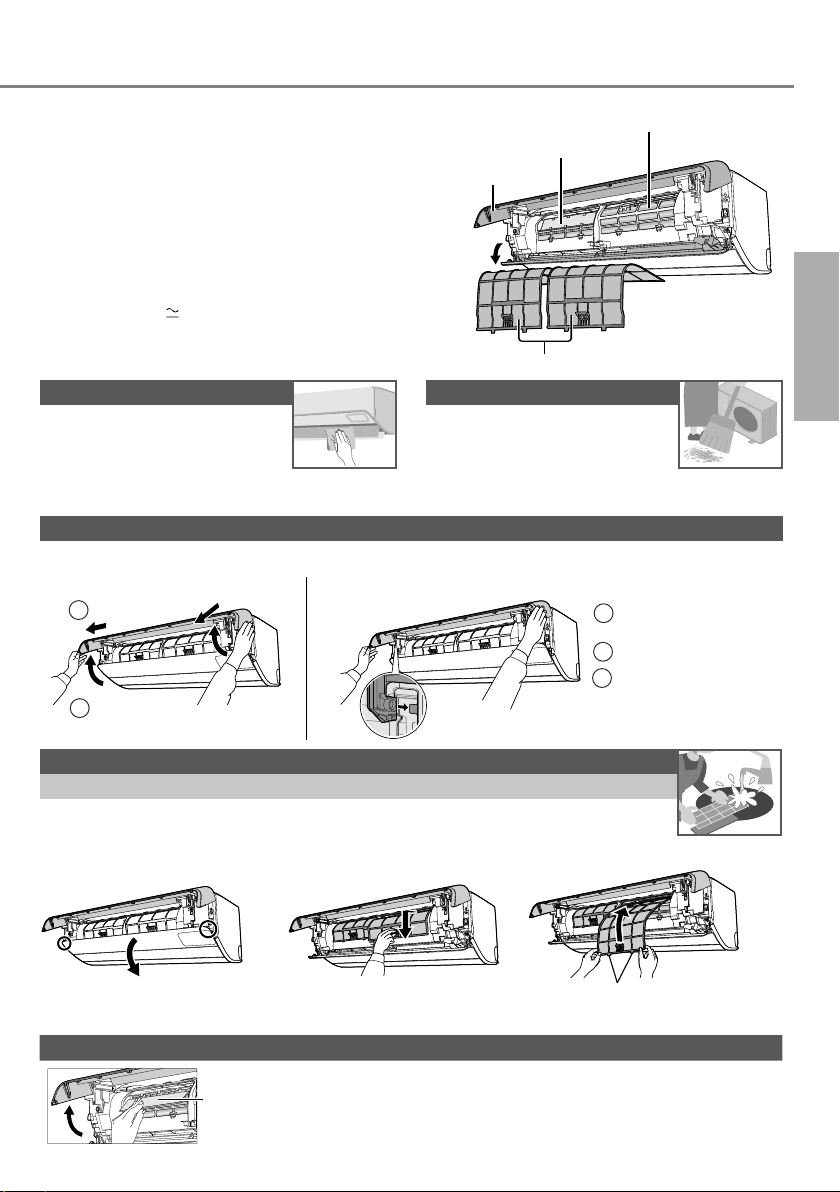

Cleaning instructions

Troubleshooting

Information

………………

…………………………

……………………

……………

.....................12-14

………………………………

4-7

8-9

Accessories

• Remote control

• AAA or R03 batteries × 2

• Remote control holder

• Screws for remote control

holder × 2

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

English

Basic operation

Press

MODE

to select

the desired mode.

HEAT COOL

AUTO

FAN DRY

Press

to start/

stop the operation.

POWER

• Please note that the

indication is on display to start the unit.

Select the desired

temperature.

Down

Selection range:

16.0 °C ~ 30.0 °C / 60 °F ~ 86 °F.

• Press and hold approximately 10 seconds to switch the temperature indication in °C or °F.

for

Safety precautions

Air inlet

Air outlet

To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classiﬁ ed as below: This appliance is not intended for accessibility by the general public.

For appliance ﬁ lled with R32 (mild ﬂ ammable refrigerant).

If the refrigerant is leaked and exposed to an external ignition source, there is a risk of ﬁ re.

This sign warns of

Air inlet

death or serious injury.

This sign warns of injury or damage to property.

Power supply

WARNING

CAUTION

The instructions to be followed are classiﬁ ed by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote actions COMPULSORY.

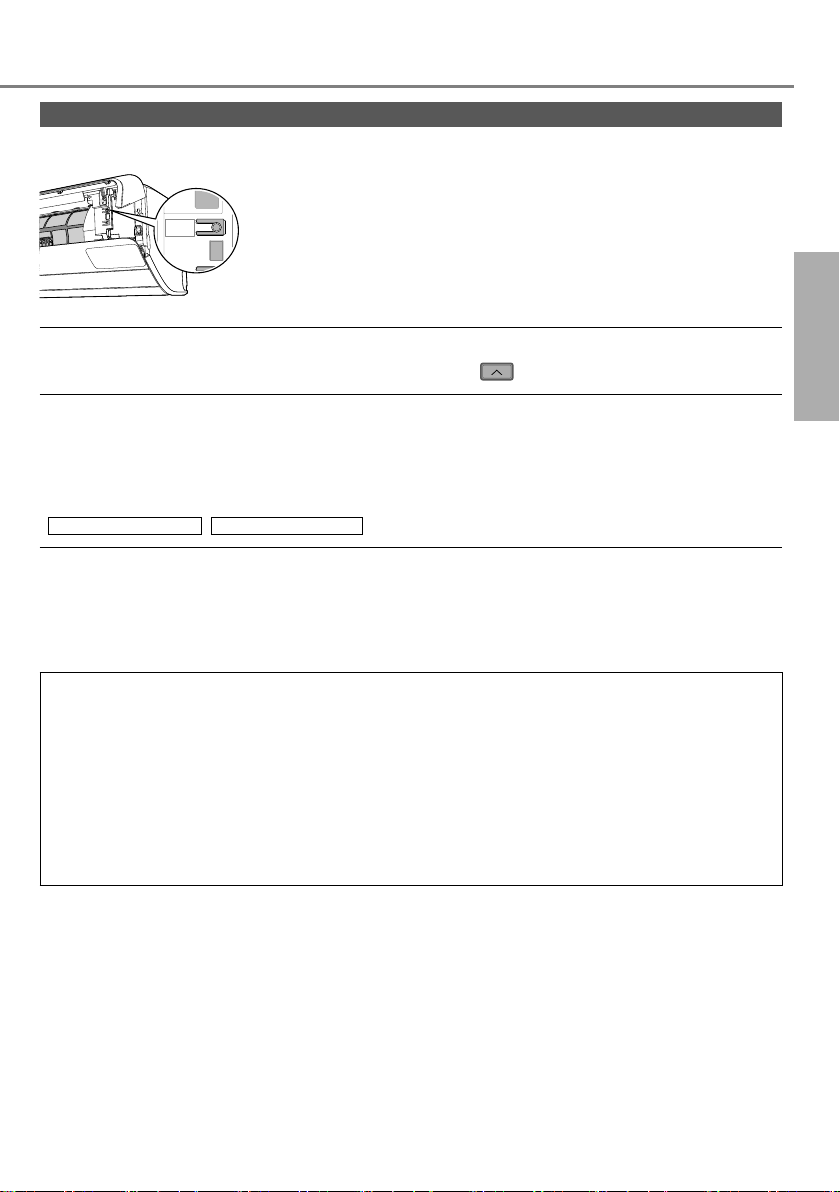

Indoor unit

Air outlet

Remote control

Air inlet

WARNING

Indoor unit and outdoor unit

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove

and reinstall the unit. Improper installation and handling will

cause leakage, electric shock or ﬁ re.

Conﬁ rm with authorised dealer or specialist on usage of any

speciﬁ ed refrigerant type. Using refrigerant type other than the speciﬁ ed may cause product

damage, burst and injury etc.

Do not install the unit in a potentially explosive or ﬂ ammable atmosphere. Failure to do so could result in ﬁ re.

Do not insert your ﬁ ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may

cause electric shock.

Outdoor unit

Air outlet

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down

accidentally.

Remote control

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

Power supply

Do not use a modiﬁ ed cord, joint cord, extension cord or unspeciﬁ ed cord to prevent overheating and ﬁ re.

To prevent overheating, ﬁ re or electric shock:

• Do not share the same power outlet with other equipment.

• Do not operate with wet hands.

• Do not over bend the power supply cord.

• Do not operate or stop the unit by inserting or pulling out the power plug.

If the supply cord is damaged, it must be replaced by the manufacturer, service agent or

similarly qualiﬁ ed persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or ﬁ re.

To prevent overheating, ﬁ re or electric shock:

• Insert the power plug properly.

• Dust on the power plug should be periodically wiped with a dry cloth.

Stop using the product if any abnormality/failure occurs and

disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/ﬁ re/electric shock) Examples of abnormality/failure

• The ELCB trips frequently.

• Burning smell is observed.

• Abnormal noise or vibration of the unit is observed.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

• The unit stops running immediately even if it is switched on for operation.

• The fan does not stop even if the operation is stopped.

Contact your local dealer immediately for maintenance/

repair.

English

Safety precautions

This equipment must be earthed to prevent electrical shock or ﬁ re.

Prevent electric shock by switching off the power supply and unplug:

-Before cleaning or servicing,

-When extended non-use, or

-During abnormally strong lightning activity.
