Order No: MAC0412064C2

Air Conditioner

CS-E9DKEW CU-E9DKE CS-E12DKEW CU-E12DKE

CONTENTS

Page Page

1 Features 2

2 Functions

2.1. Remote Control

2.2. Indoor Unit

2.3. Outdoor Unit

3 Product Specifications

3.1. CS-E9DKEW CU-E9DKE

3.2. CS-E12DKEW CU-E12DKE

4 Dimensions

4.1. Indoor Unit & Remote Control

4.2. Outdoor Unit

5 Refrigeration Cycle Diagram

6 Block Diagram

7 Wiring Diagram

8 Operation Details

8.1. Basic Function

8.2. Protection Control Features 35

9 Operating Instructions

10 Installation Instructions

10.1. Safety Precautions

10.2. Indoor Unit

10.3. Outdoor Unit

11 Installation And Servicing Air Conditioner Using R410A

11.1. Outline

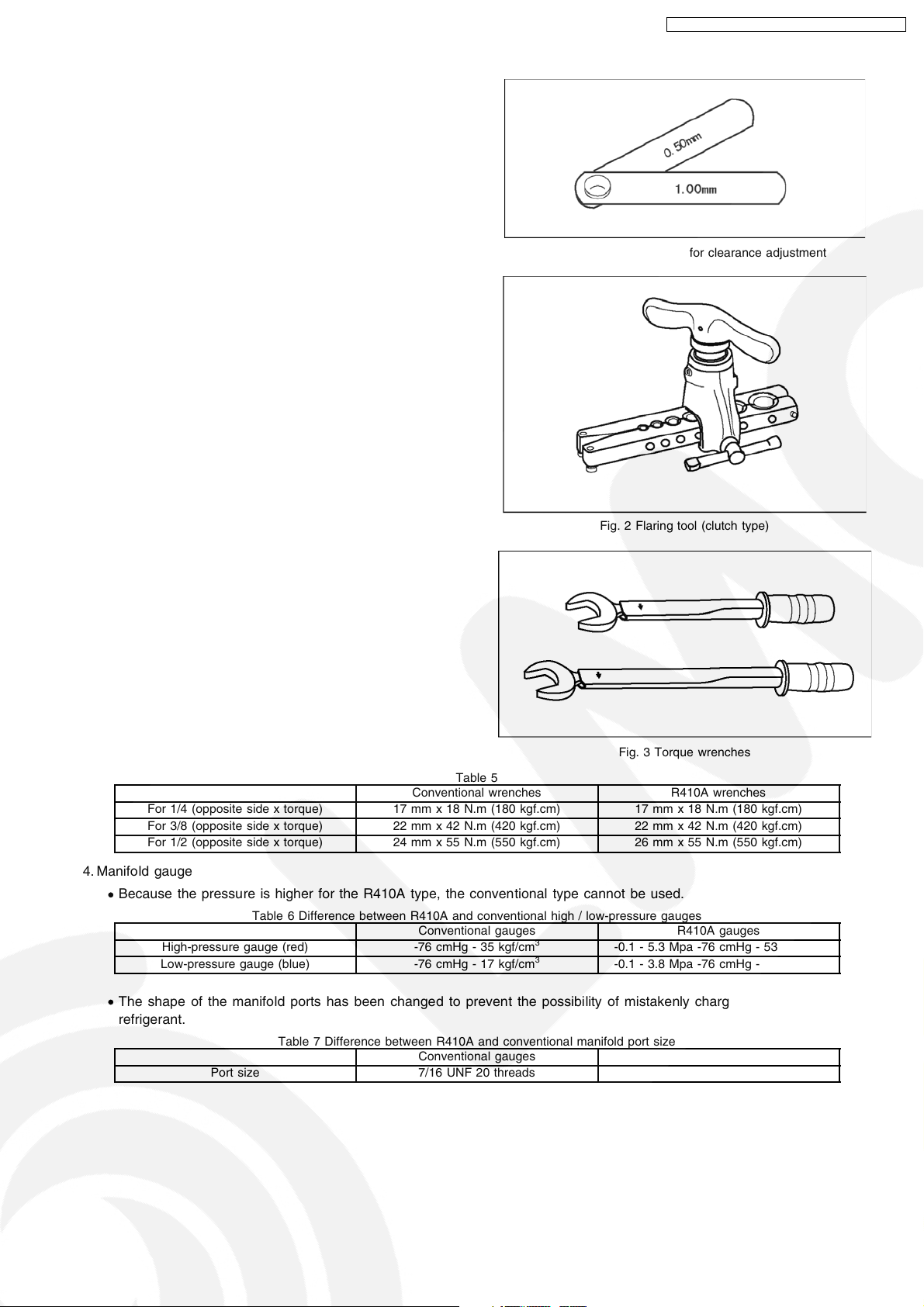

11.2. Tools For Installing/Servicing Refrigerant Piping

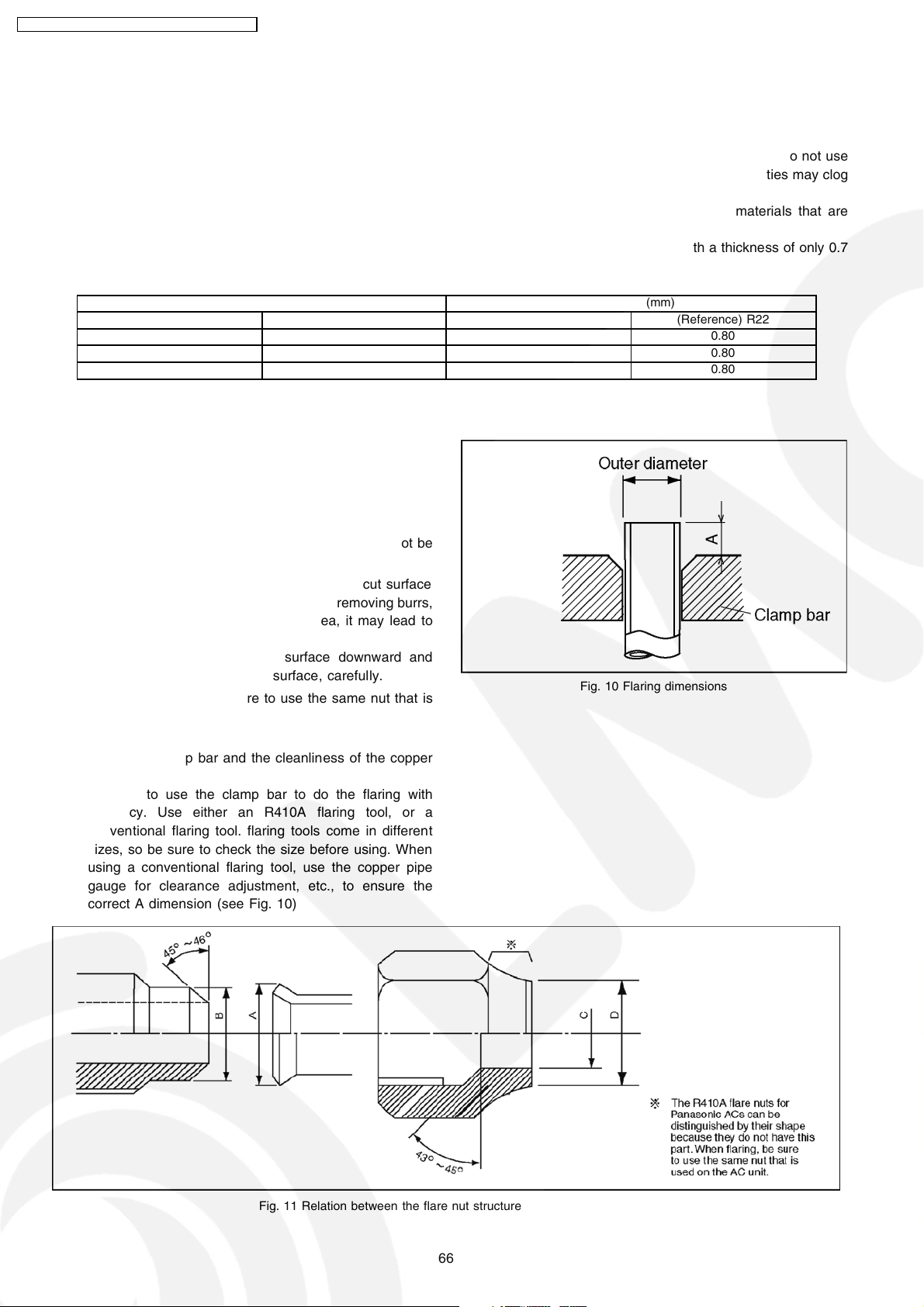

11.3. Refrigerant Piping Work

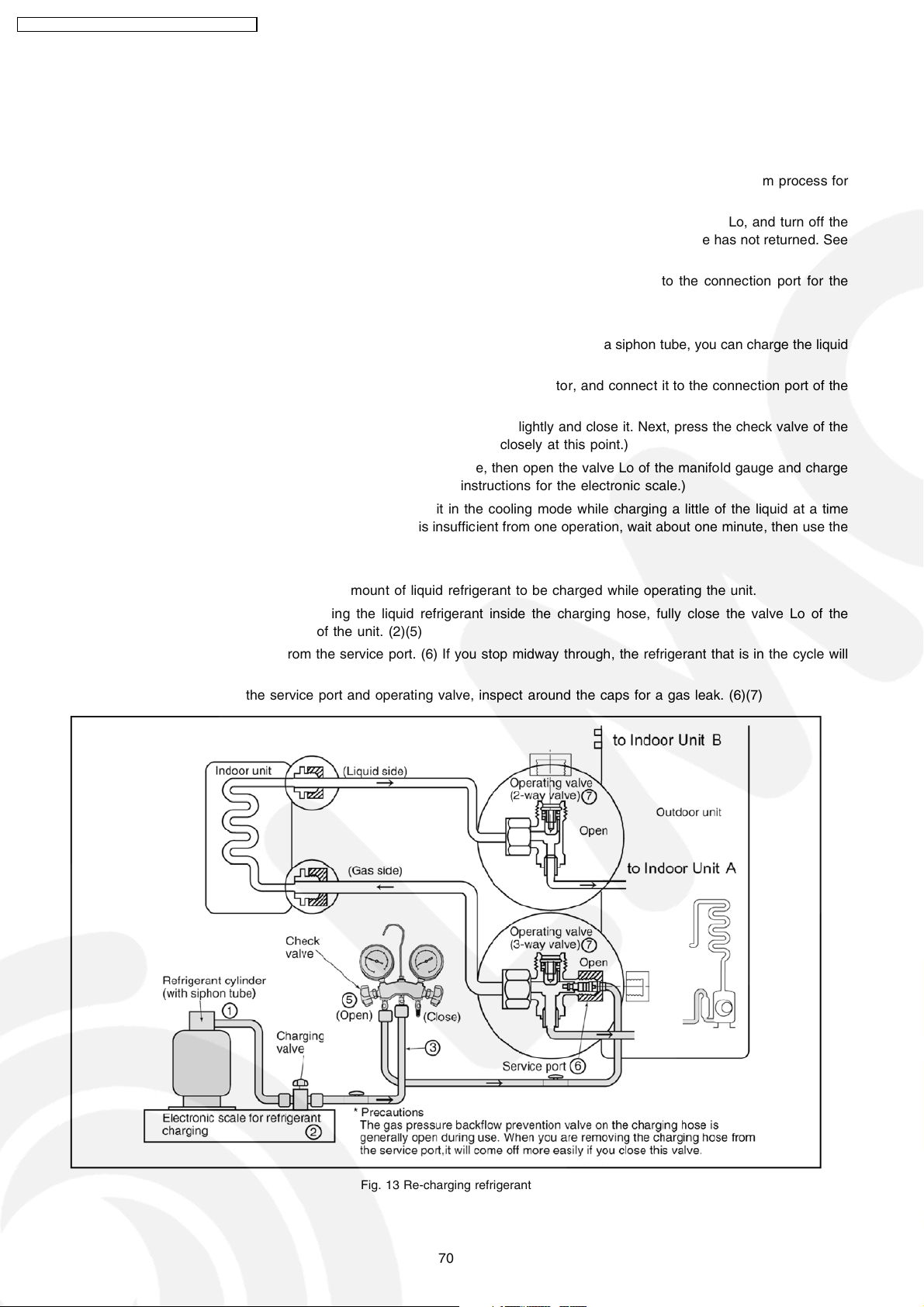

11.4. Installation, Transferring, Servicing

12 Servicing Information

12.1. Troubleshooting

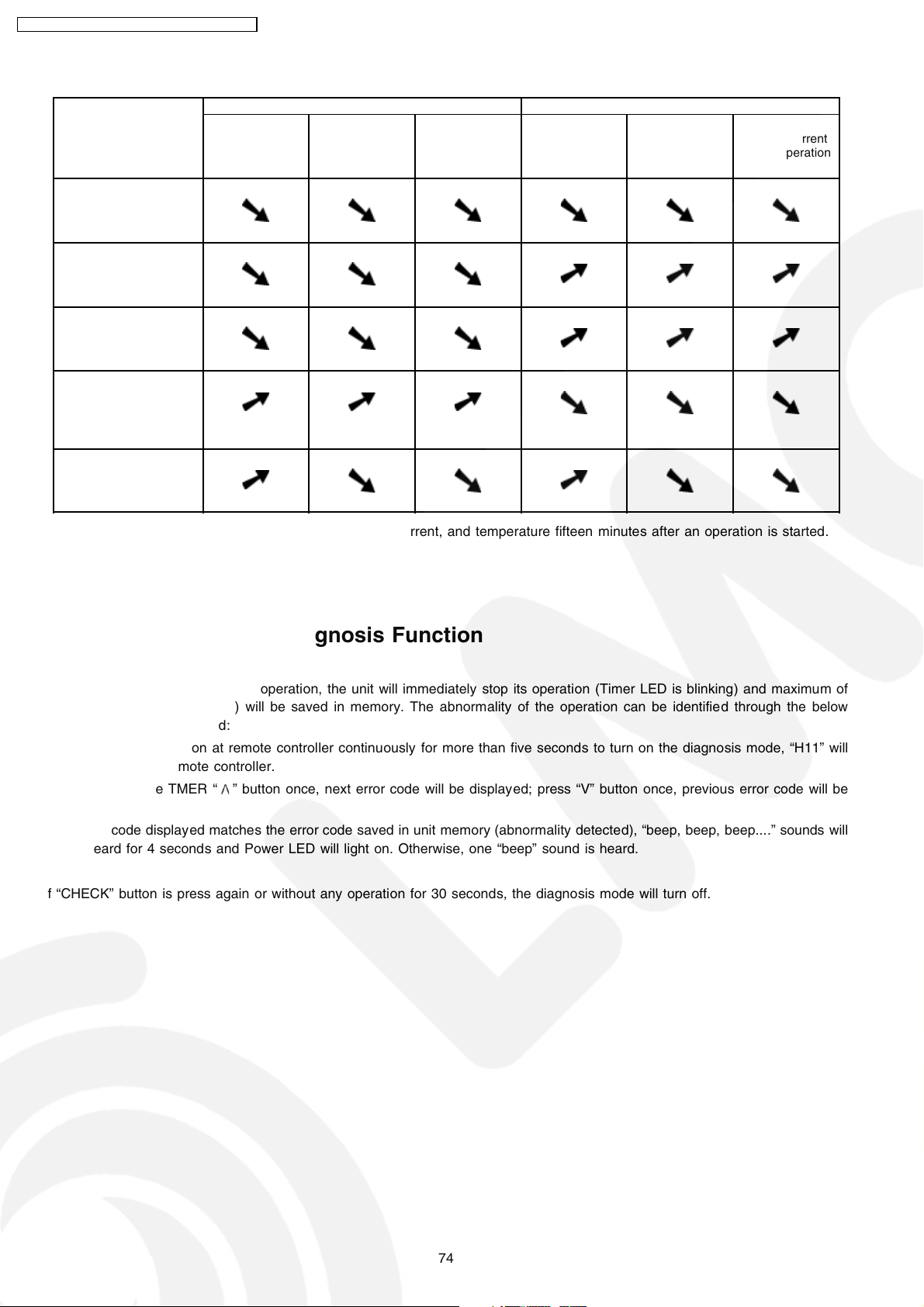

12.2. Breakdown Self Diagnosis Function

12.3. Remote Control

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DKE

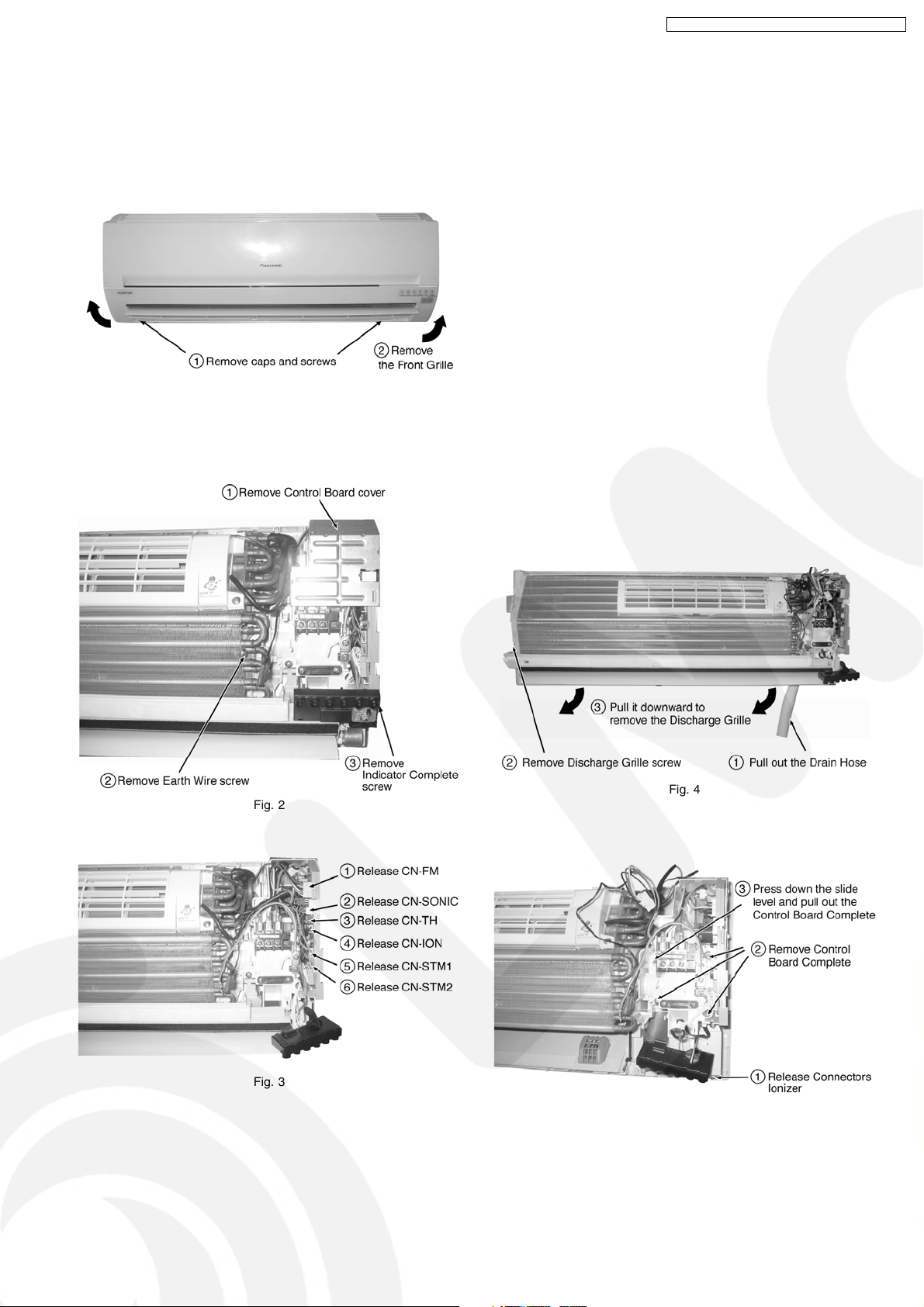

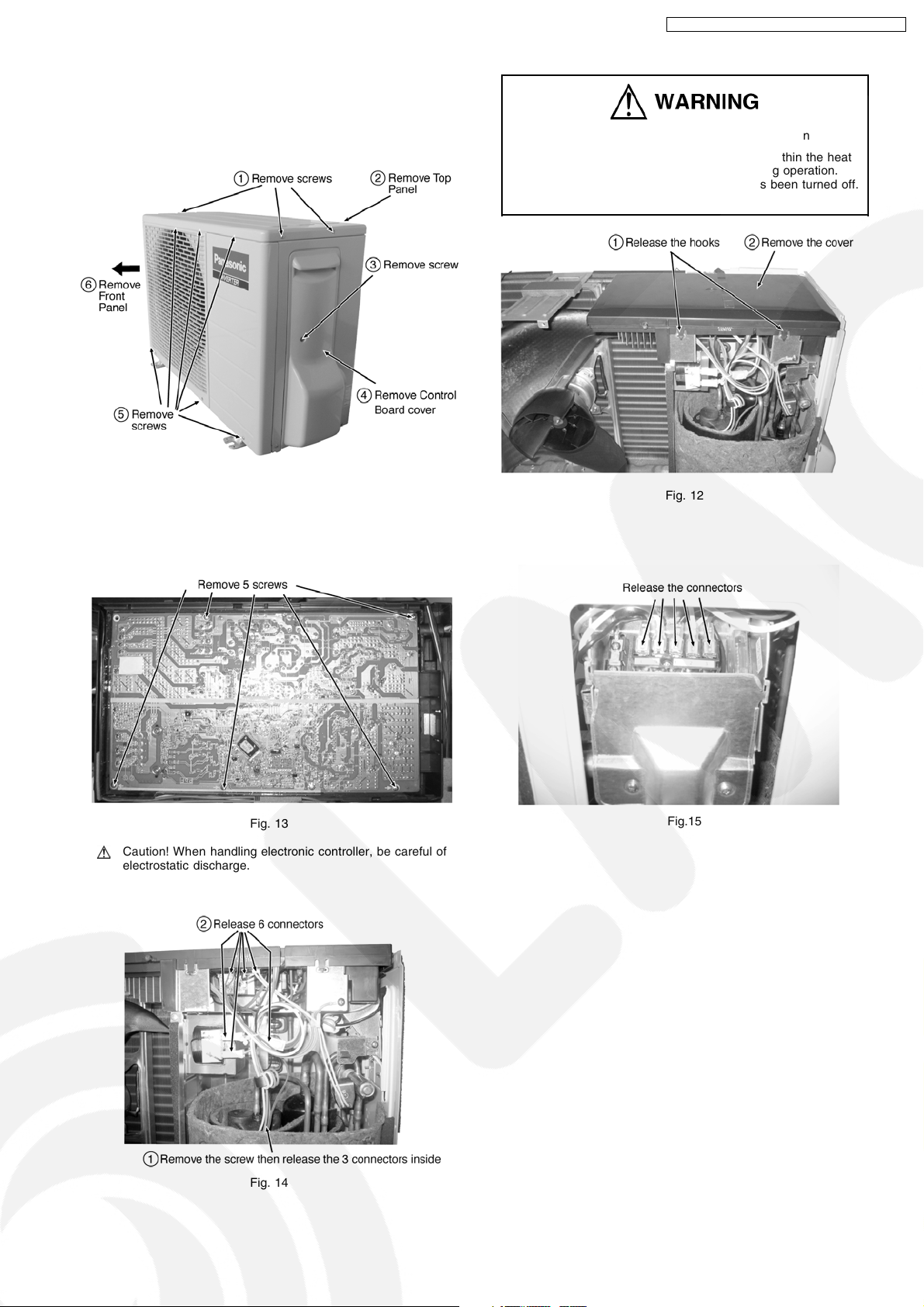

12.4. Disassembly of Parts 77

13 Technical Data

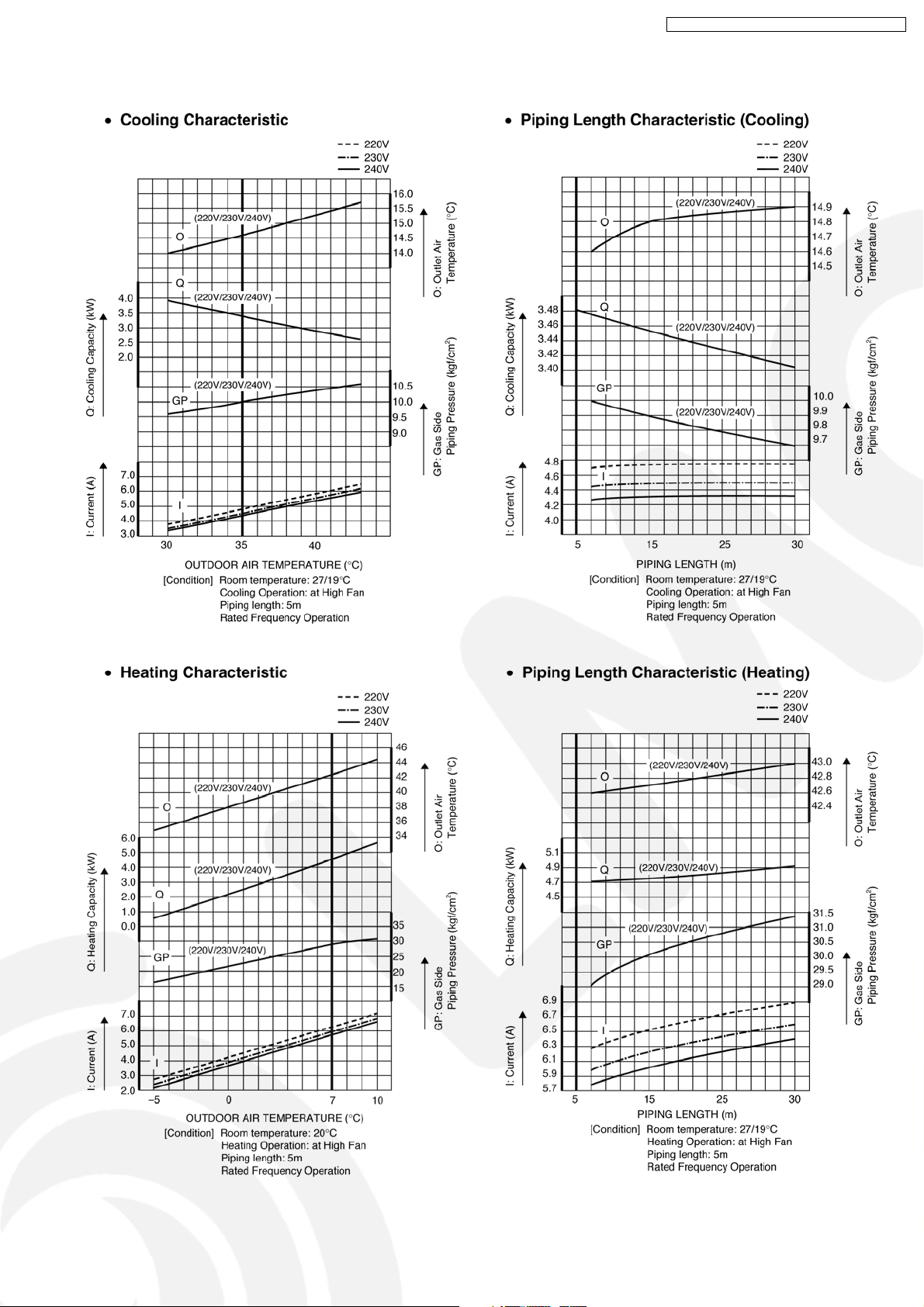

13.1. Operation Characteristics

13.2. Sensible Capacity Chart

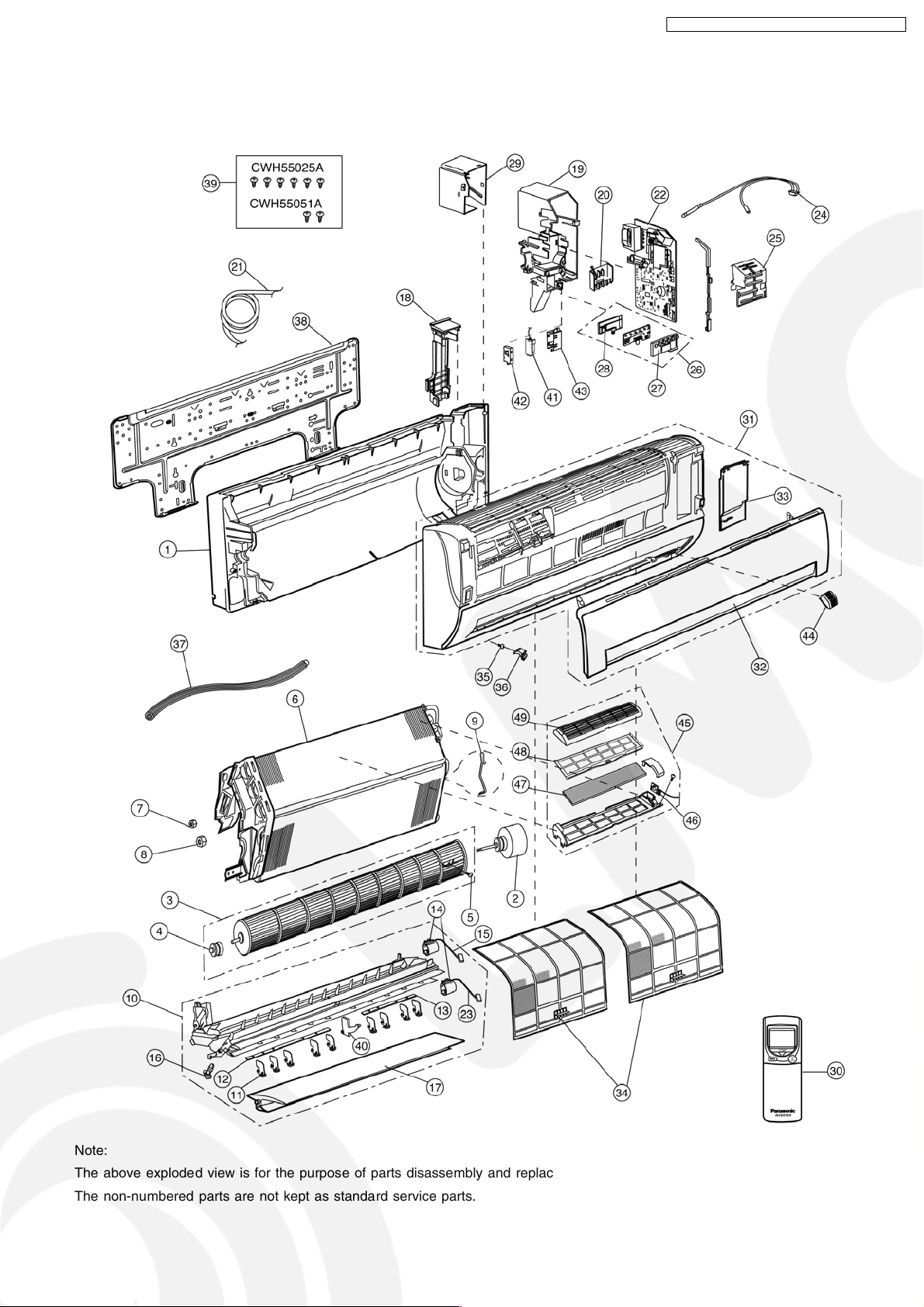

14 Exploded View (Indoor Unit)

14.1. CS-E9DKEW CS-E12DKEW

15 Replacement Parts List (Indoor Unit)

15.1. CS-E9DKEW CS-E12DKEW

16 Exploded View (Outdoor Unit)

1 Features

Product

•

− Four modes of operation selection

− Powerful Mode operation

− Delay ON Timer and OFF Timer

− Ionizer Mode Operation

− Quiet Mode Operation

− Automatic air swing and manual adjusted by Remote

Control for horizontal and vertical airflow.

− Supersonic Air Purifying System with Super Alleru- Buster.

Inactive various harmful airbone elements including allergens, viruses and bacteria.

Generated supersonic waves enhance the ability to collect dust and dirt in the air.

16.1. CU-E9DKE CU-E12DKE 85

17 Replacement Parts List (Outdoor Unit)

17.1. CU-E9DKE CU-E12DKE

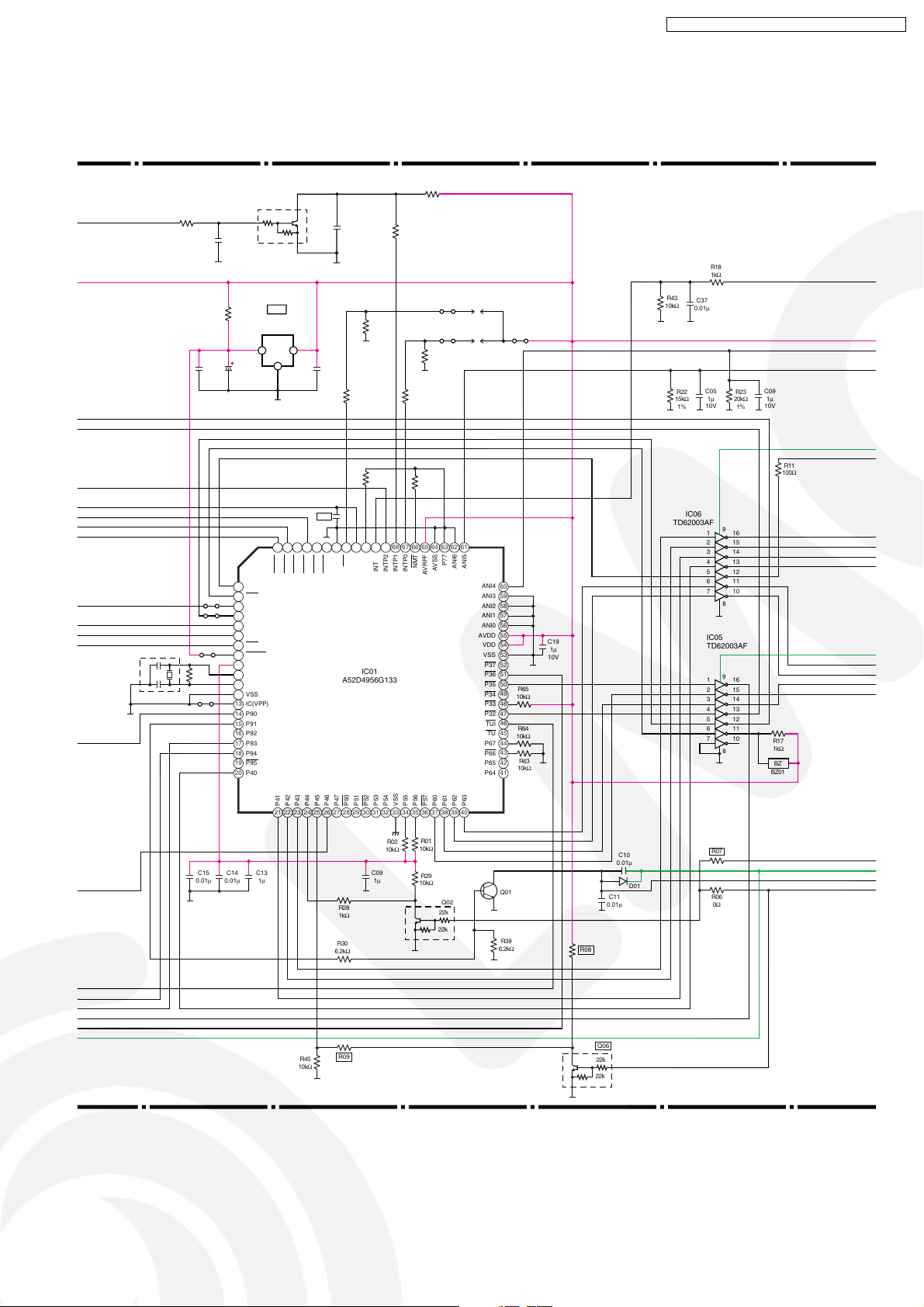

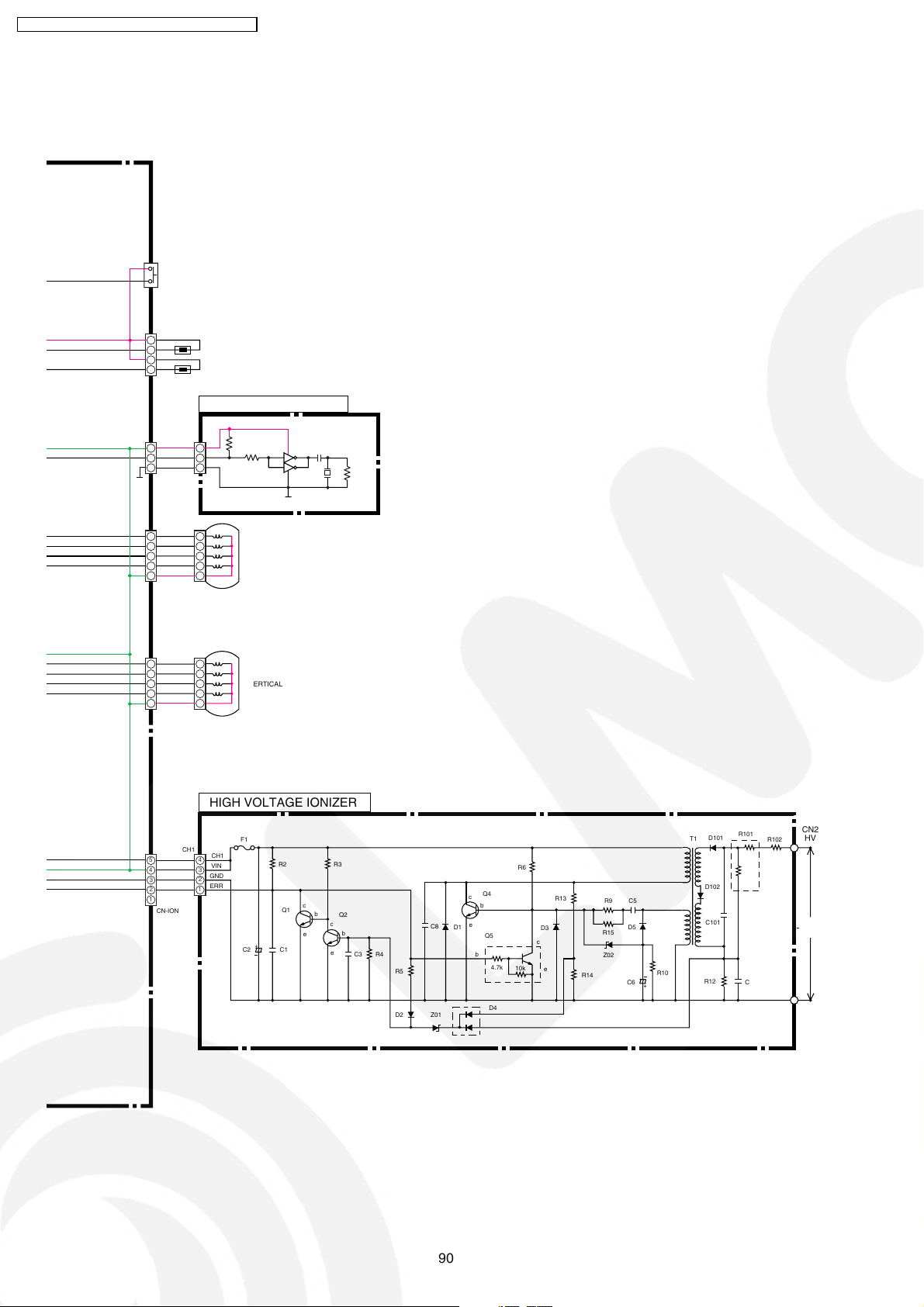

18 Electronic Circuit Diagram

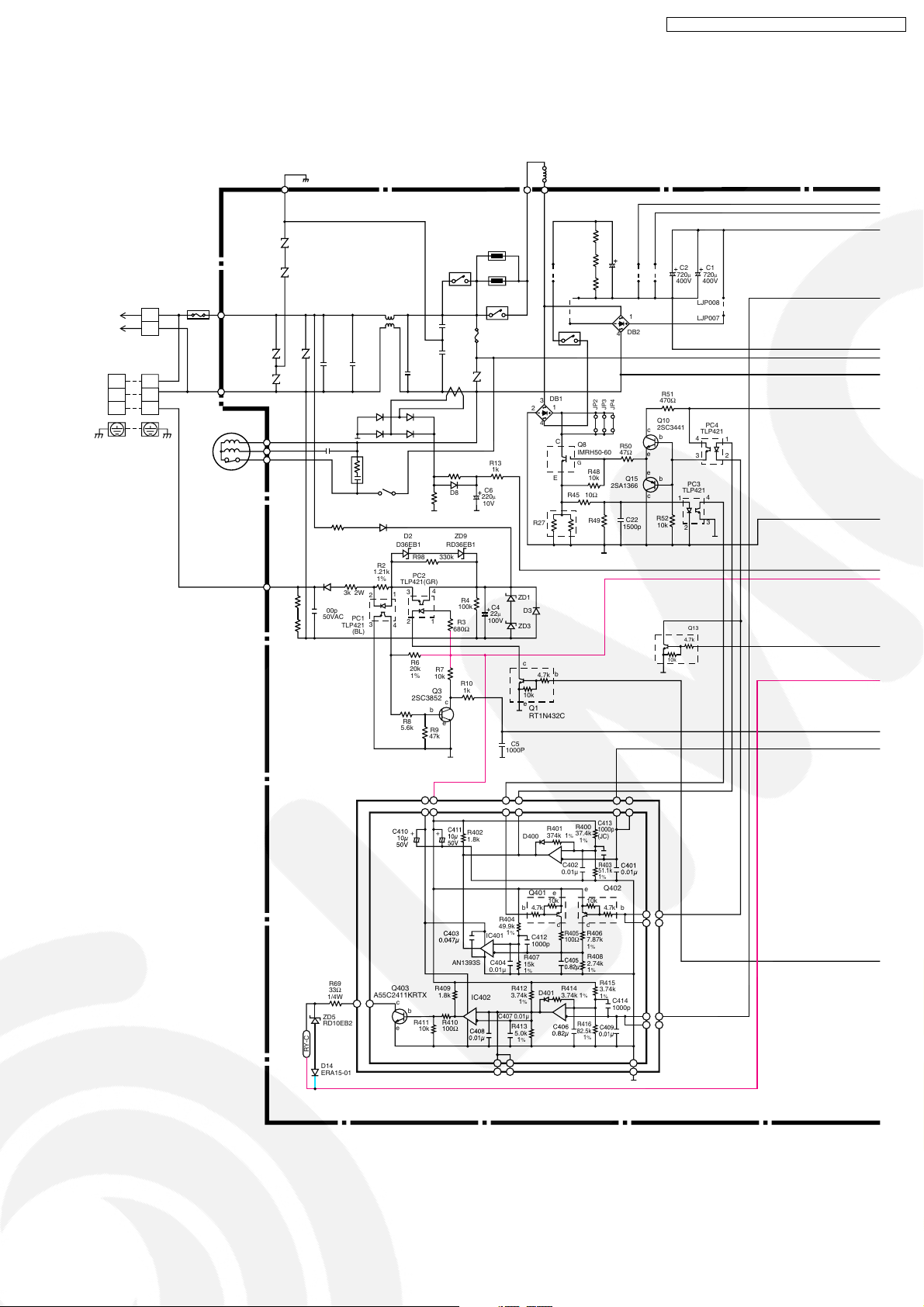

18.1. Indoor Unit

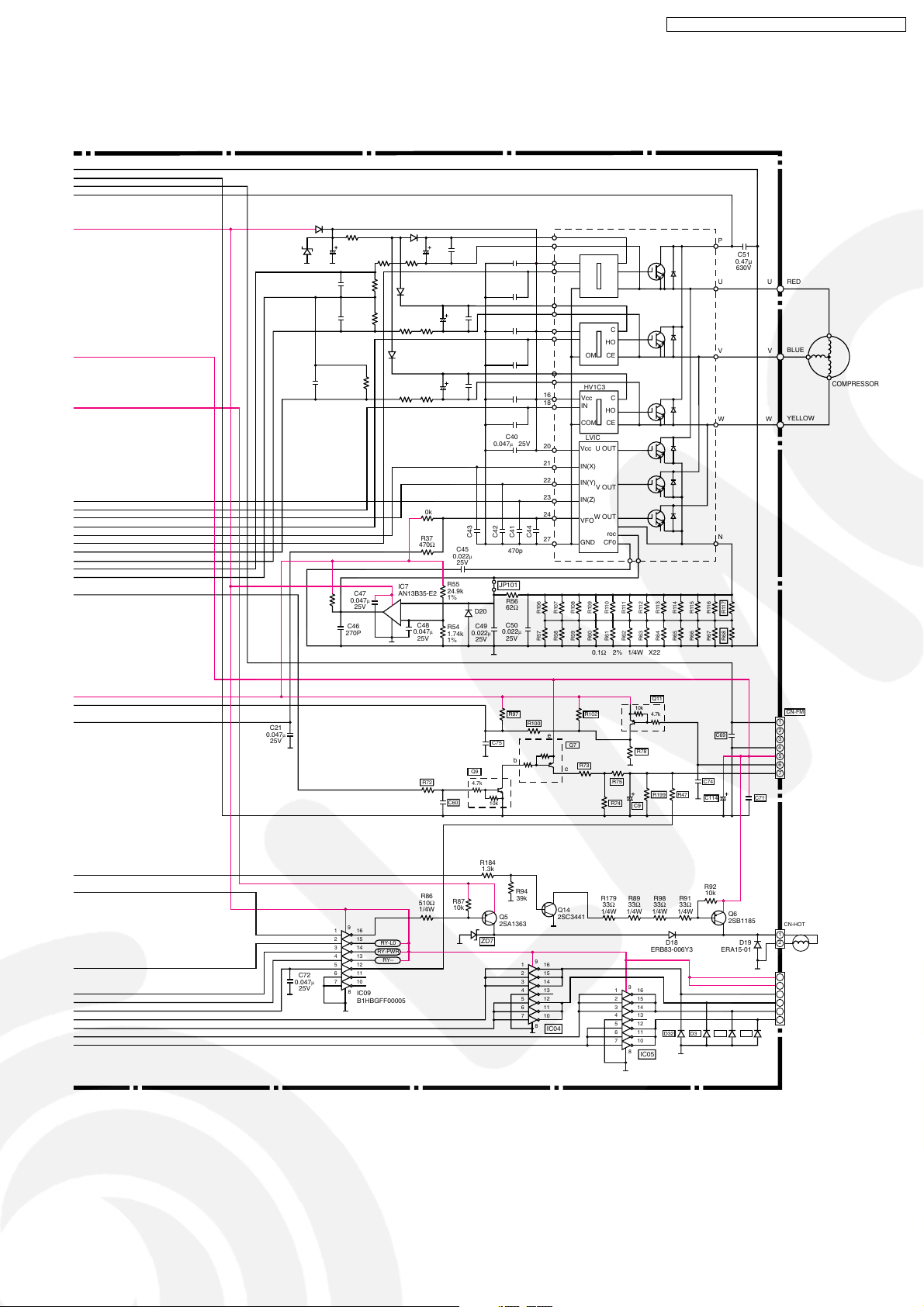

18.2. Outdoor Unit

18.3. Remote Control

18.4. Print Pattern Indoor Unit Printed Circuit Board

18.5. Print Pattern Outdoor Unit Printed Circuit Board

Serviceability Improvement

•

− Removable and washable Front Panel

− Breakdown Self Diagnosis function

Environmental Protection

•

− Non-ozone depletion substances refrigerant (R410A)

Quality Improvement

•

− Gas leakage detection

− Deice operation

− Auto restart control

2 Functions

2.1. Remote Control

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DKE

OFF/ON

MODE

POWERFUL

QUIET

AIR SWING

Operation OFF / ON

Operation Mode Selection

•

HEAT COOL DRY

Automatic Operation Heating Operation Cooling Operation Soft Dry Operation

Powerful Mode Operation

Quiet Mode Operation OFF / ON

Ion Mode Operation OFF / ON

Airflow Direction Control

• Vertical Automatic Airflow Direction Control and Manual Airflow Direction Control (5 stages of adjustment).

•

Horizontal Automatic Airflow Direction Control and Manual Airflow Direction Control (5 stages of adjustment).

FAN SPEED

TEMP

TIMER

OFF

∧ ∨

SET

CANCEL

CLOCK

CHECK

RESET

Indoor Fan Speed Selection

• Low

•

AUTO FAN

Medium- Medium Medium+ High Automatic Fan Speed

Room Temperature Setting

• Increase or decrease set temperature (16°C to 30°C)

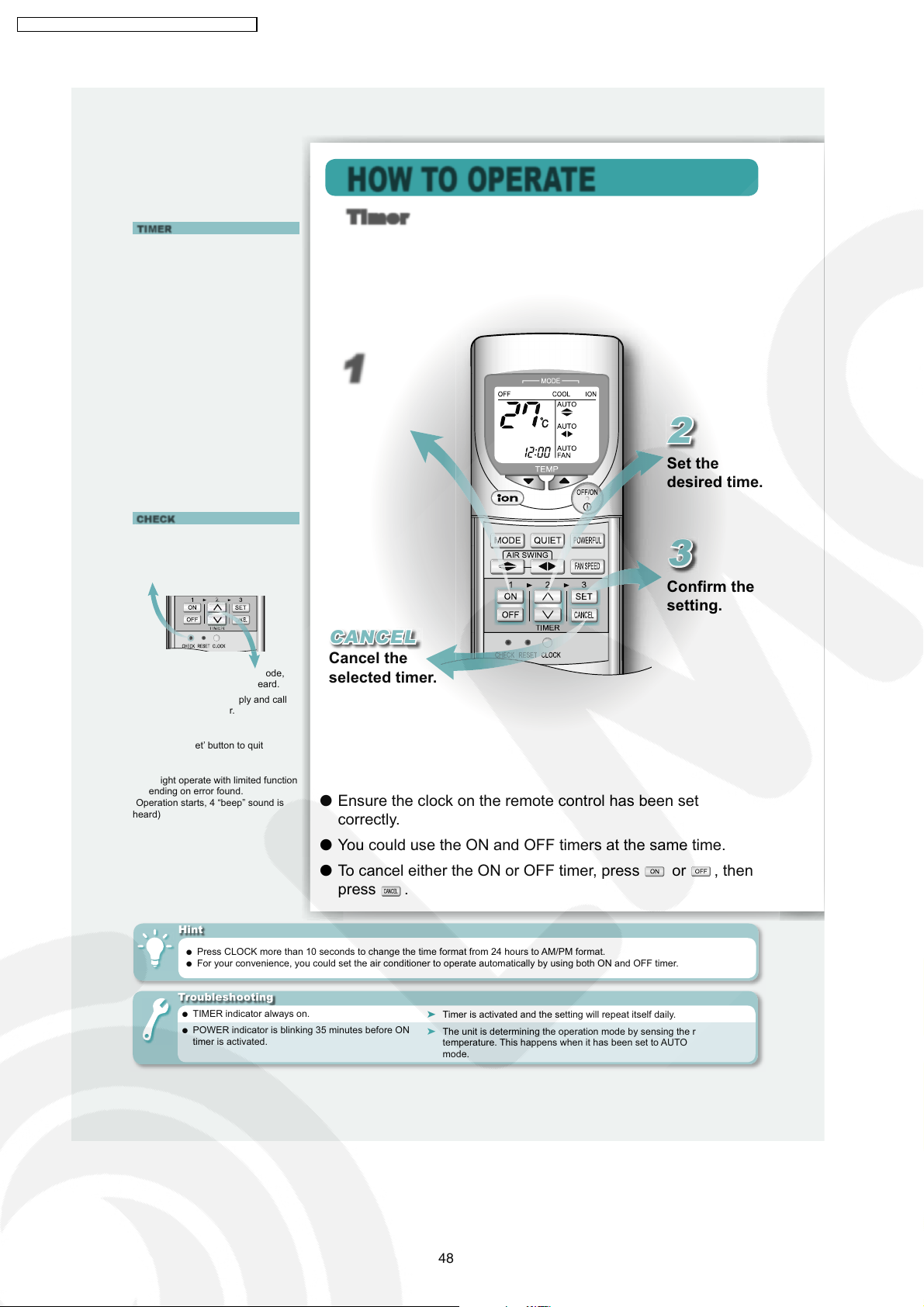

Timer Operation Selection

• 24-hour, OFF / ON Real Timer Setting.

Time / Timer Setting

• Hours and minutes setting.

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and cancellation.

Clock Setting

• Current time setting.

Check Point

• Breakdown self diagnosis function.

Reset Point

• Clear memory data.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

2.2. Indoor Unit

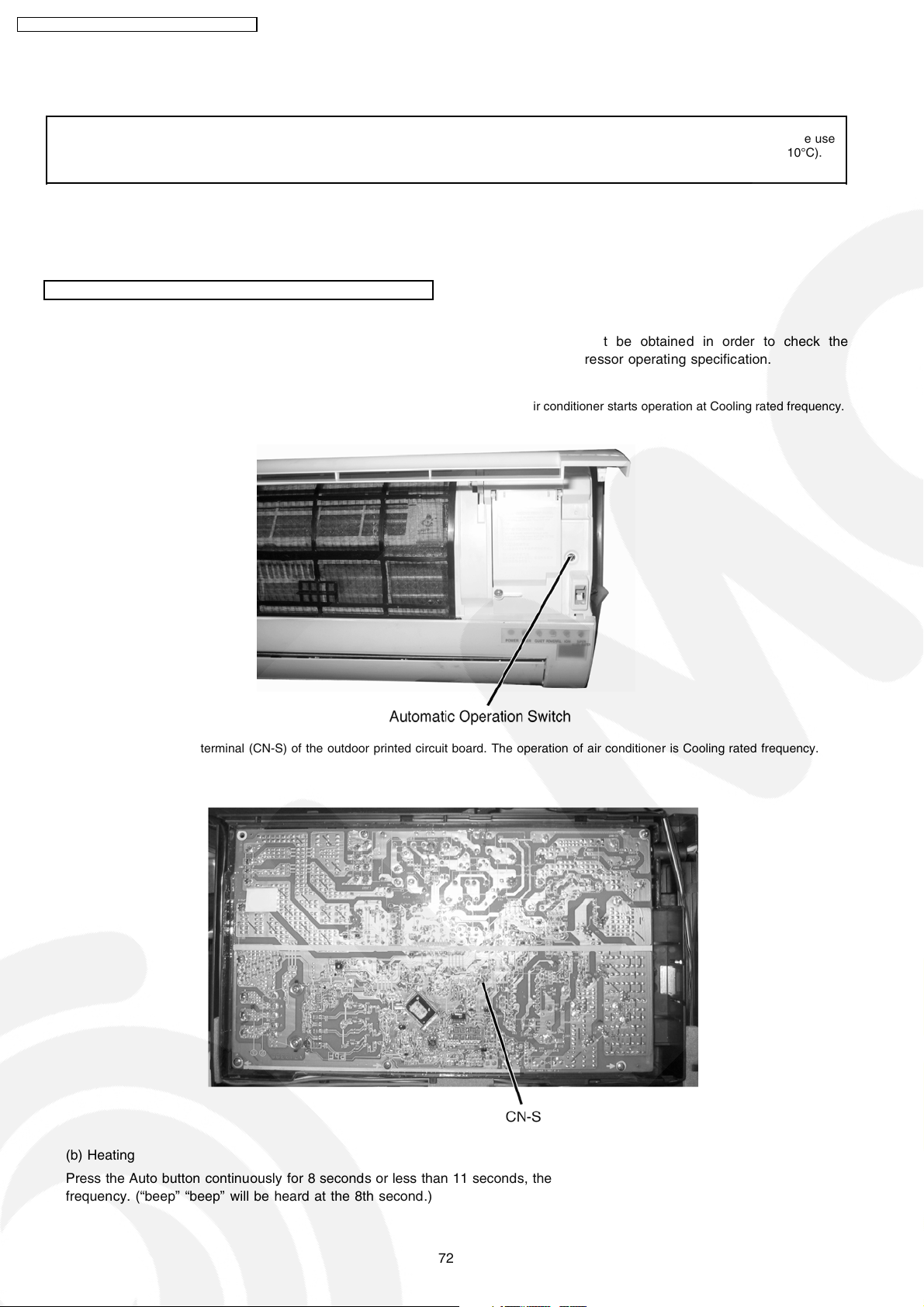

Automatic Operation Switch

• Press for < 5s to run Automatic Operation. (Used when the remote control cannot be used.)

• Press continuously for 5s and < 8s to run Forced Cooling Operation.

• Press continuously for 8s and < 11s to run Forced Heating Operation.

• Press continuously for 11s and < 16s to change different remote controlling setting (A↔B Mode).

• Press continuously for 16s or < 21s to switch OFF / ON Remote Control Receiving Sound or H14 Abnormality Detection Mode.

Operation Indication Lamps (LED)

•

POWER (Green) ........ Lights up in

operation, blinks in Automatic Operation Mode judging and Hot Start operation.

TIMER (Orange) ...... Lights up in Timer

•

Setting. Blinks in Self Diagnosis Control.

QUIET (Orange) ...... Lights up in Quiet

•

Mode Operation.

POWERFUL (Orange) ..... Lights up when

•

Powerful Mode is selected.

(Green) .............. Lights up in Ionizer

•

Mode Operation.

•

SUPER ALLERU-BUSTER

(Blue) ... Lights up in

operation.

Four Operation Modes

• Automatic, Heating, Cooling and Soft Dry Operation.

Automatic and 5 Manual Indoor Fan Speeds

Automatic and 5 Manual Vertical Airflow Directions

Automatic and 5 Manual Horizontal Airflow Directions

Powerful Mode

• For quick cooling or heating.

Quiet Mode

• To provide quiet operation.

Ionizer Control

• Ionizer control for generate negative ion in discharge air.

Delay ON Timer and OFF Timer

Automatic Restart Control

• Operation is restarted after power failure at previous setting mode.

Microcomputer-controlled Room Temperature Control

Breakdown Self Diagnosis Function

Low Pressure Control (Gas Leakeage Detection)

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Indoor Power Relay Control

Deodorizing Control

Anti-Dew Formation Control

Anti Freezing Control

Anti-Cold Draft Control

Hot Start

Intake Air Temperature Control

High Pressure Control

Deice Operation

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

2.3. Outdoor Unit

Time Delay Safety Control

30 seconds Forced Operation

Overload Protection Control

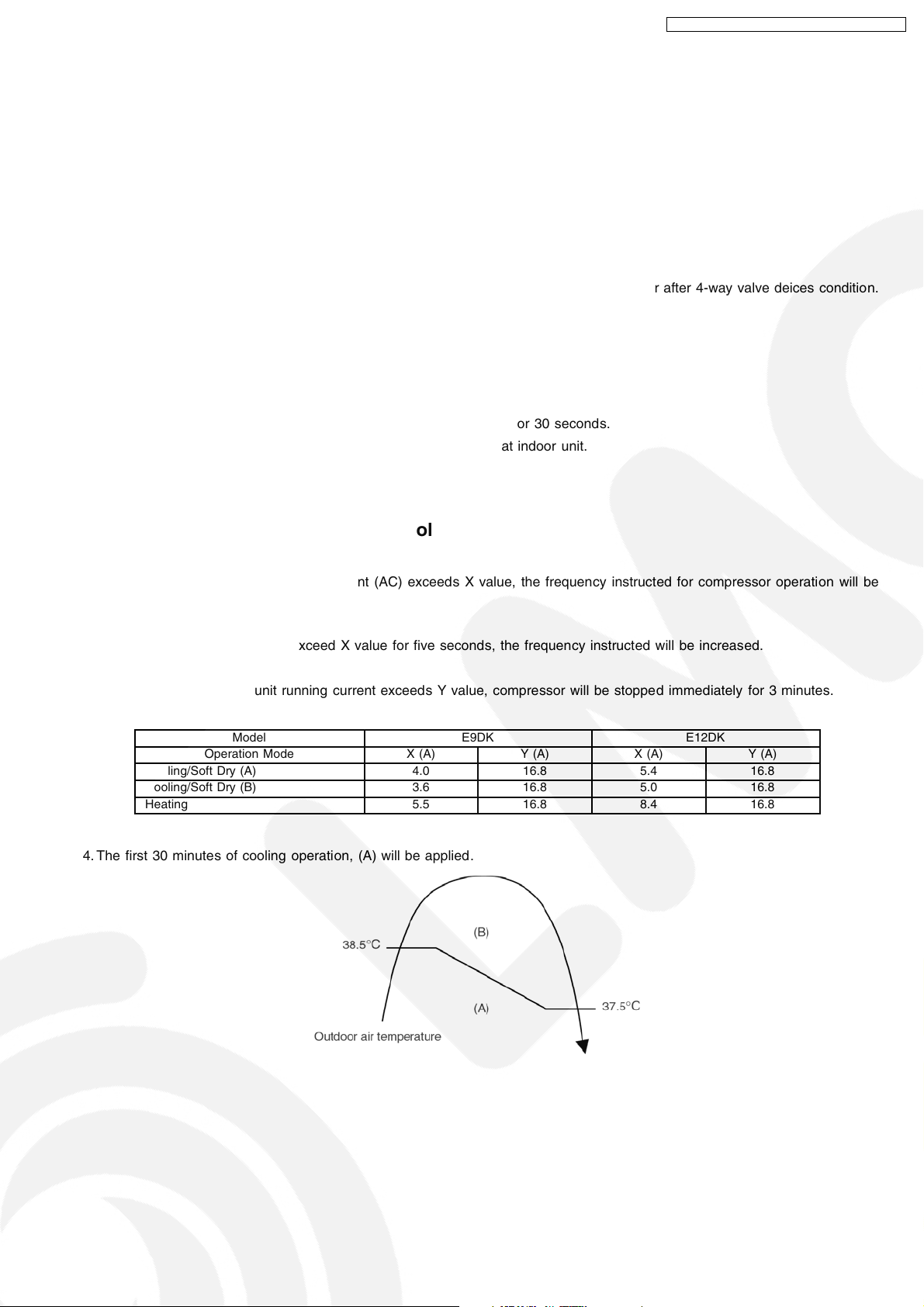

Total Running Current Control

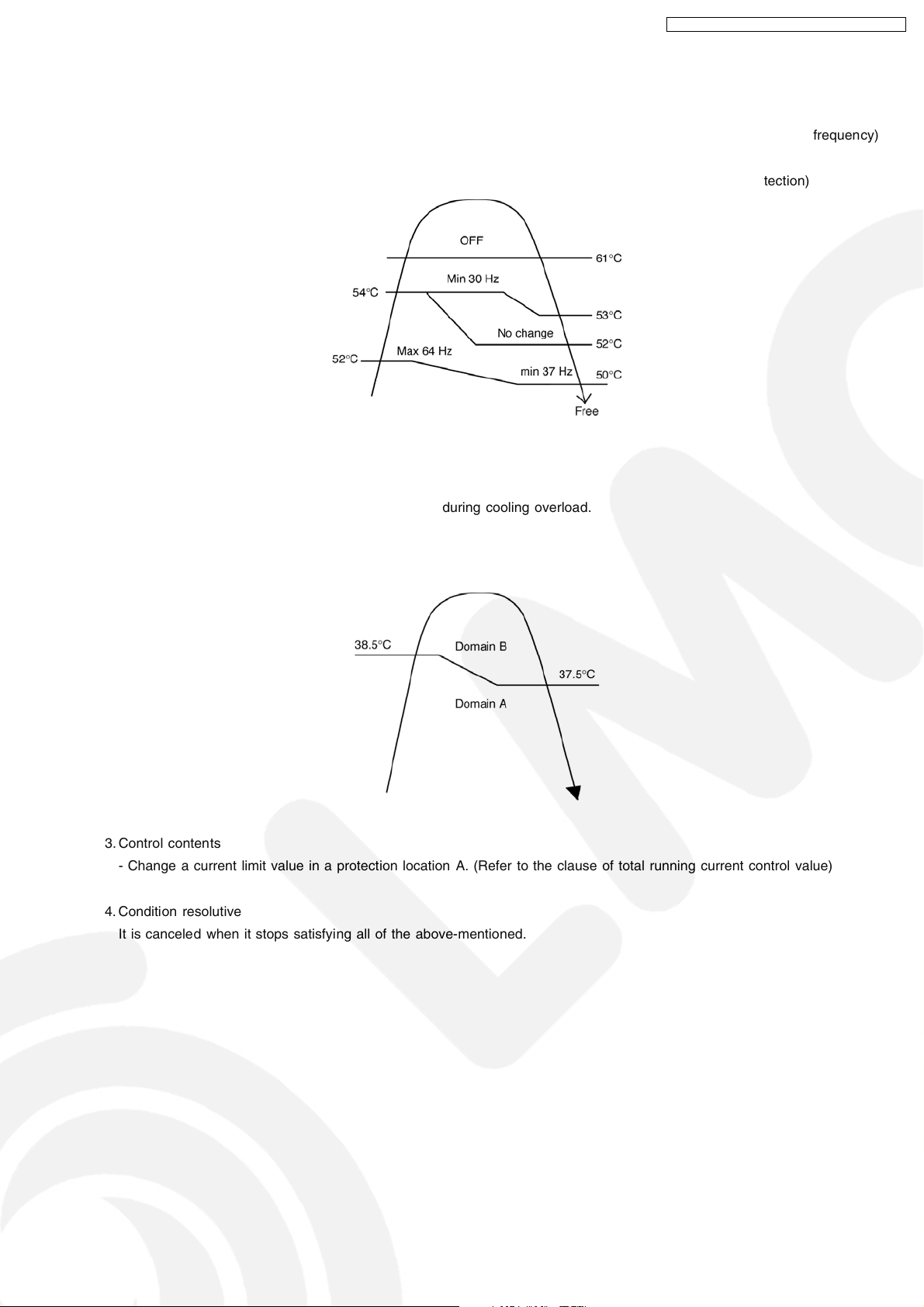

Compressor Overheating Prevention Control

IPM (Power Transistor) Overheating Protection Control

Low Operation Frequency Protection Control

Mininum Operation Frequency Protection Control

Outdoor Air Temperature Control

Standby Control

Deice Operation

3 Product Specifications

3.1. CS-E9DKEW CU-E9DKE

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Unit CS-E9DKEW CU-E9DKE

Cooling Capacity kW

kcal/h

BTU/h

Heating Capacity kW

kcal/h

BTU/h

Moisture Removal l/h

Pint/h

Power Source (Phase, Voltage, Cycle) ø

Airflow Method OUTLET

INTAKE

2.6 (0.80 - 3.00)

2,240 (690 - 2,580)

8,870 (2,050 - 10,200)

3.6 (0.80 - 5.00)

3,100 (690 - 4,300)

12,300 (2,050 - 17,100)

1.6

(3.4)

Single

230

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 6.2 (220) —

Heating; 6.6 (230)

Me m3/min (cfm) Cooling; 7.9 (280) —

Heating; 8.6 (300)

Hi m3/min (cfm) Cooling; 9.6 (340) Cooling; 29.8 (1,050)

Heating; 10.5 (370)

SHi m3/min (cfm) Cooling; 9.9 (350) —

Heating; 10.8 (380)

dB (A) Cooling; High 39, Low 26 Cooling; 46

Heating; High 40, Low 27 Heating; 47

Noise Level

Power level dB Cooling; High 50 Cooling; High 59

Heating; High 51 Heating; High 60

Electrical Data Input W Cooling; 600 (175 - 780)

Heating; 845 (165 - 1,360)

Running Current A Cooling; 2.9

Heating; 4.0

EER W/W (kcal/hw), BTU/hw Cooling; 4.33 (3.73), 14.8 COP W/W (kcal/hw), BTU/hw Heating; 4.26 (3.67), 14.6 Starting Current A 4.0

Piping Connection Port (Flare piping)

Pipe Size (Flare piping)

Drain Hose

Inner diameter mm 12 — Length m 0.65 —

inch inch

G ; Half Union 3/8”

L ; Half Union 1/4” G (gas side) ; 3/8”

L (liquid side) ; 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Unit CS-E9DKEW CU-E9DKE

Power Cord Length Number of core-wire

Dimensions Height inch (mm) 11 - 1/32 (280) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 7 - 7/32 (183) 11 - 3/8 (289) Net Weight lb (kg) 20 (9.0) 82 (37) Compressor Type — Hermetic Rotary

Motor Type — Brushless (6-pole)

Rated Output W — 700 Air Circulation Type Cross-flow Fan Propeller Fan

Material ASG20k1 P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 61.3 Rate Output W 30 28

Fan Speed Lo (Cool/Heat) rpm 820/880 —

Me (Cool/Heat) rpm 1,050/1,140 — Hi (Cool/Heat) rpm 1,280/1,400 770 SHi (Cool/Heat) rpm 1,320/1,440 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

FPI 21 17

Size (W × H × L) mm 610 × 315 × 25.4 718.4

Refrigerant Control Device — Capillary Tube Refrigeration Oil (cm3) — RB68A (320) Refrigerant (R410A) g (oz) — 965 (34.1) Thermostat Electronic Control — Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 950, C3 ; 411

Capillary Tube Flow Rate l/min — C1, C2 ; 4.1, C3 ; 18.8

Inner Diameter mm — C1, C2 ; 1.1, C3 ; 1.7

Air Filter Material

Style Fan Motor Capacitor µF, VAC — 2.0 µF, 440 VAC Compressor Capacitor µF, VAC — 65 µF, 350 VAC

— —

2/15 2/24

689.8

P.P.

Honeycomb

— —

× 504 × 36.4

—

•

Specifications are subject to change without notice for further improvement.

3.2. CS-E12DKEW CU-E12DKE

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Unit CS-E12DKEW CU-E12DKE

Cooling Capacity kW

kcal/h

BTU/h

Heating Capacity kW

kcal/h

BTU/h

Moisture Removal l/h

Pint/h

Power Source (Phase, Voltage, Cycle) ø

Airflow Method OUTLET

INTAKE

3.50 (0.80 - 4.00)

3,010 (690 - 3,440)

11,950 (2,730 - 13,600)

4.80 (0.80 - 6.50)

4,130 (690 - 5,590)

16,400 (2,730 - 22,200)

2.0

(4.2)

Single

230

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 6.9 (240) —

Heating; 8.1 (290)

Me m3/min (cfm) Cooling; 8.8 (310) —

Heating; 9.7 (340)

Hi m3/min (cfm) Cooling; 10.7 (380) Cooling; 31.0 (1,090)

Heating; 11.2 (400)

SHi m3/min (cfm) Cooling; 11.0 (390) —

Heating; 11.6 (410)

dB (A) Cooling; High 42, Low 29 Cooling; 48

Heating; High 42, Low 33 Heating; 50

Noise Level

Power level dB Cooling; High 53 Cooling; High 61

Heating; High 53 Heating; High 63

Electrical Data Input W Cooling; 965 (185 - 1,200)

Heating; 1,260 (175 - 1,890)

Running Current A Cooling; 4.5

Heating; 5.8

EER W/W (kcal/hw), BTU/hw Cooling; 3.63 (3.12), 12.4 COP W/W (kcal/hw), BTU/hw Heating; 3.81 (3.28), 13.0 Starting Current A 5.8

Piping Connection Port (Flare piping)

Pipe Size (Flare piping)

Drain Hose

Power Cord Length Number of core-wire

Inner diameter mm 12 — Length m 0.65 —

inch inch

G ; Half Union 1/2”

L ; Half Union 1/4” G (gas side) ; 1/2”

L (liquid side) ; 1/4”

— —

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

— —

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Unit CS-E12DKEW CU-E12DKE

Dimensions Height inch (mm) 11 - 1/32 (280) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 7 - 7/32 (183) 11 - 3/8 (289) Net Weight lb (kg) 20 (9.0) 82 (37) Compressor Type — Hermetic Rotary

Motor Type — Brushless (6-pole)

Rated Output W — 700 Air Circulation Type Cross-flow Fan Propeller Fan

Material ASG20k1 P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 65.9 Rate Output W 30 29

Fan Speed Lo (Cool/Heat) rpm 910/1,080 —

Me (Cool/Heat) rpm 1,165/1,290 — Hi (Cool/Heat) rpm 1,420/1,500 830 SHi (Cool/Heat) rpm 1,460/1,540 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24 FPI 21 17 Size (W × H × L) mm 610 × 315 × 25.4 718.4

Refrigerant Control Device — Capillary Tube Refrigeration Oil (cm3) — RB68A (320) Refrigerant (R410A) g (oz) — 980 (34.6) Thermostat Electronic Control — Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,120, C3 ; 370

Capillary Tube Flow Rate l/min — C1, C2 ; 4.9, C3 ; 19.6

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

Fan Motor Capacitor µF, VAC — 2.0 µF, 440 VAC Compressor Capacitor µF, VAC — 65 µF, 350 VAC

P.P.

Honeycomb

× 504 × 36.4

689.8

—

•

Specifications are subject to change without notice for further improvement.

4 Dimensions

4.1. Indoor Unit & Remote Control

4.1.1. CS-E9DKEW CS-E12DKEW

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

4.2. Outdoor Unit

4.2.1. CU-E9DKE CU-E12DKE

5 Refrigeration Cycle Diagram

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

6 Block Diagram

7 Wiring Diagram

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8 Operation Details

8.1. Basic Function

Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes, automatically adjusts output power for maximum comfort always. In order to achieve the suitable operating mode, the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting. The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature.

8.1.1. Internal Setting Temperature

Once the operation starts, remote control setting temperature will be taken as base value for temperature shifting processes. These shifting processes are depending on the air conditioner settings and the operation environment. The final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit.

Table (a): Auto Operation Mode Setting

Mode Shift: Temperature Shift (°C) Cooling/Soft Dry→Heating -2.0 Heating→Cooling/Soft Dry +2.0

Table (b): Outdoor Air Temperature Shifting

Mode: Outdoor Temperature, X (°C): Temperature Shift (°C)

Cooling/Soft Dry 30 X +0.5

Heating 9 X -1.0

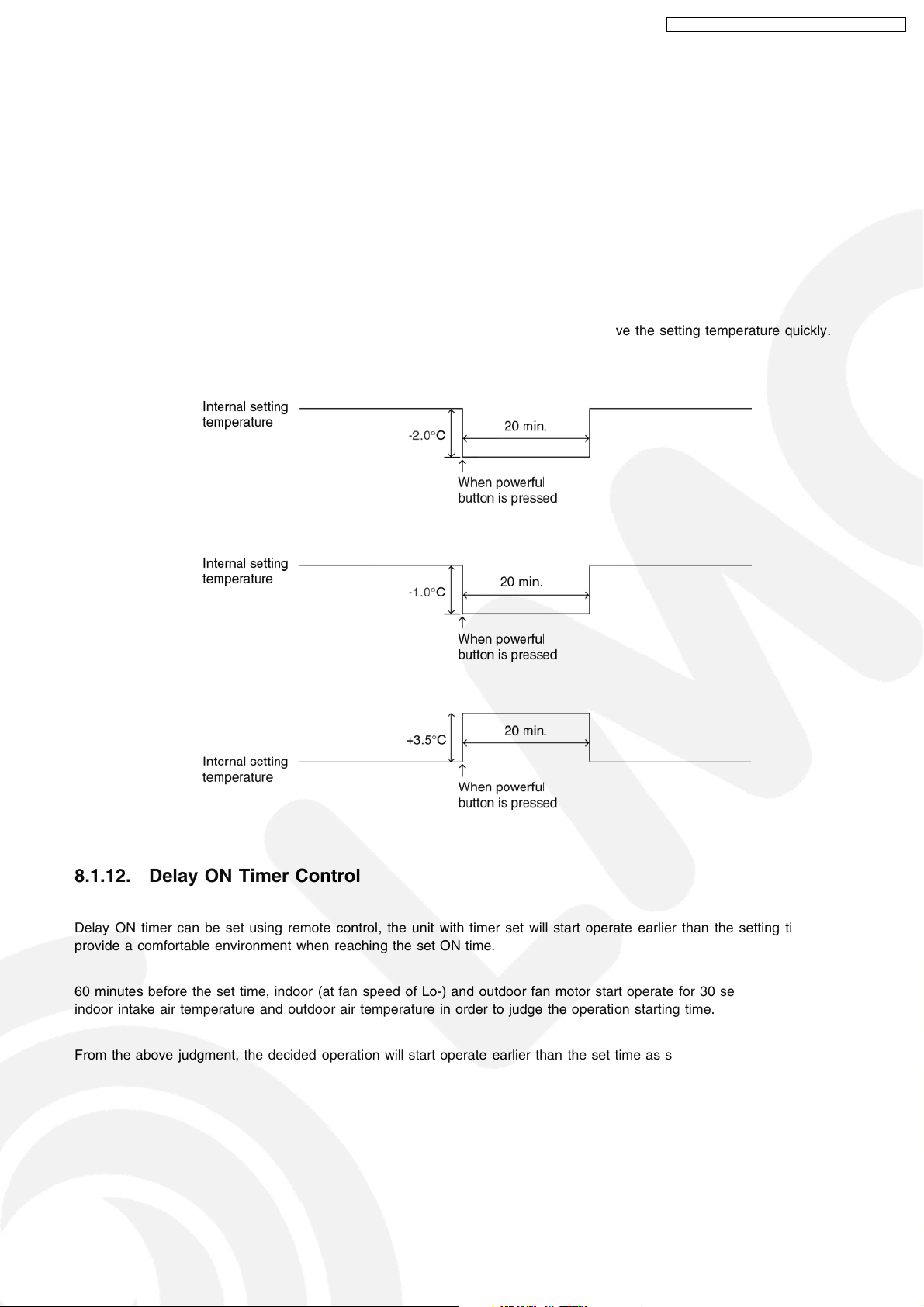

Table (c): Powerful Mode Shifting

Mode: Period, X (min): Temperature Shift (°C)

Cooling X 20 -2.0

Soft Dry X 20 -1.0

Heating X 20 +3.5

X 30 +1.0

5 X 9 -0.5 1 X 5 0.0

X 1 +1.0

X 20 0.0

X 20 +3.5

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Table (d): Indoor Air Temperature Shifting

1. Target room temperature shift value (dGetaDst)

• To offset the absolute gap between detection temperature with actual room temperature.

• The heat exchanger unit’s temperature is different based on operation mode, it become the action operation mode

value.

Actual operation mode Target room temperature offset value (dGetaDst)

Cooling (1) Heating (2)

Dry (0)

2. Room temperature shift value (dGeta)

• When compressor ON/OFF, correction of detected room temperature by shift value during defrost etc.

i) Initial value when operation starts, or changin g the actual operation mode.

Set the offset value at each operation mode. However, in order to improve the heating start up efficiency, the offset value will be changed based on the gap between setting temperature and room temperature.

Actual operation mode Gap between setting temperature and room

temperature Cool — (0) Heat (Operation start set temp. - room temp) <4°C (4)

(Operation start set temp.) 4°C (4)

Dry — (0)

Room temperature offset value

(dGeta)

ii) Updating during operation

During operation, it will compare with the target room temperature offset value at specific period, then the room temperature will be updated.

Actual operation mode Room temperature zone Updating period (sec.)

Cool — (180) Heat A, B, C, D zone (15)

Dry — (180)

Update the room temperature offset value (dGeta)

Temperature condition Room temp. offset value after modified (dGeta)

Target room temp. offset value > Room temp. offset value

(dGetaDst > dGeta)

Target room temp. offset value < Room temp. offset value

(dGetaDst < dGeta)

Target room temp. offset value = Room temp. offset value

(dGetaDst = dGeta)

dGeta + (0.5)

dGeta - (0.5)

Do not change

However, if the following condition is occurred, temperature cannot detect correctly and therefore no updating will be done.

• Heating zone E and above (Temperature gap is big and great capacity increased)

• During deice

• After deice complete *within 600 sec.

• Comp stop

Comp starting *within 600 sec.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.2. Compressor Operation Frequency

8.1.2.1. The frequency determination method (Cooling operation control)

8.1.2.1.1. Basic specification

The domain directions data (intake-setting) transmitted from the interior of a room determines a changed part of frequency.

Then, a directed changed part changes frequency to the present frequency.

8.1.2.1.2. Initial frequency determination

After a starting control end, initial frequency (absolute value) is determined.

However, a FcMAX domain judges instantly.

8.1.2.1.3. Change frequency determination

When (Suction-setup) is +0.5deg, directions of Fcmax came by the mentioned initial frequency.

Fcmax continued until it reaches. (If other directions came by protection control, priority is given)

When room temperature is reached, it shifts to relative control after moving to change frequency.

The following operation determines change frequency.

The Hzkirikae = present condition frequency * Inclines and it is calculation.

Inclination = lapsed time to remote control attaintment (Minute)

Inclination 0-60 60 - 90 90

Inclination coefficient 80% 90% 100%

1. The present frequency is real operation frequency.

2. When change directions come out with remote control after starting, continue calculation as it is.

The time to room temperature attainment is calculated.

3. When remote control directions were changed before room temperature attainment and below room temperature attainment

temperature becomes

With initial frequency, it is considered as change frequency.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.2.1.4. The frequency changed method

1. After shifting to relative control, (intake-setting) is every 60 seconds, A tap is adjusted according to the domain and frequency changes relatively to present condition.

2. Intake-setting to other domains by load sudden change (remote control setting, open air introduction, etc.). When it moves, it has the following renewal of data, an addition and subtraction tap is switched.

3. When the load change was further carried out and suction-setup separates the domain of relative control, it goes to the clause of initial frequency and operation frequency is determined.

8.1.2.2. The frequency determination method (Heating operation control)

8.1.2.2.1. Basic specification

Intake temperature domain is sent to outdoor. Renewal of data every 60 seconds in outdoor.

Domain directions data (intake-setting) transmitted from indoor determine a changed part of frequency.

Then, a directed changed part changes frequency to the present frequency.

Change of frequency may be 1 tap = 1Hz.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.2.2.2. Initial frequency determination

After a starting control end, initial frequency (absolute value) is determined and is immediately shift.

However, the domain of Fhmax is judged instantly.

8.1.2.2.3. Change frequency determination

When directions of Fhmax determined from mentioned initial frequency, (intake-setting) relativity control. Fhmax continued until (If other directions came by protection control, priority is given there) room temperature is reached, it shifts to relative control after moving to change frequency.

The following operation determines change frequency.

The Hzkirikae = present condition frequency *Inclines (calculation)

Inclination = Lapsed time to remote control attainment (min)

Inclination 0-30 30 - 60 60

Inclination coefficient 70% 90% 100%

1. The present frequency is real operation frequency.

2. When directions change come out by remote control after starting, calculation continued.

The time to room temperature attainment is calculated.

3. When remote control directions were changed before room temperature achieved and below room temperature attainment

temperature becomes

With initial frequency, it is considered as change frequency.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.2.2.4. The frequency changed method

1. When intake-setting remains for 30 seconds in a domain after shifting to relative control, a tap is adjusted according to the domain and frequency changes relatively to the present conditio n.

2. A suction-setup to other domains by load sudden change (remote control setting change, open air introduction, etc.).

When it moves, addition or subtraction tap is changed at the time of the following renewal of data.

3. When the load change was furthermore carried out and a suction-setup separates from the domain of relative control, it goes to the clause of initial frequency and operation frequency is determined.

8.1.2.3. The frequency determination method (Soft Dry operation control)

8.1.2.3.1. Basic specification

The domain directions data (intake-setting) transmitted from indoor determines a changed part of frequency.

Then, a directed changed part changes frequency to the present frequency.

Change of frequency may be 1 tap = 1Hz.

It applies to cooling correspondingly.

8.1.2.3.2. Initial frequency determination

It shifts to initial frequency after a starting frequency end.

Frequency ESCHZ02 ESCHZ01

ID intake 22°C ID intake < 22°C

38 (E12), 31 (E9) 34 (E12), 28 (E9)

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.2.3.3. The frequency change method

1. When (suction-setup) remains in a domain for 30 seconds, after shifting to relative control, a tap is adjusted according to the domain and frequency changes relatively to the present condition.

2. A suction-setup is to other domains by load sudden change (remote control setting, open air introduction, etc.). When it moves, an addition-and-subtraction tap is changed from the time of the following renewal of data.

8.1.3. Cooling Operation

8.1.3.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF

point.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.4. Soft Dry Operation

8.1.4.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2.0°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF

point.

8.1.5. Heating Operation

8.1.5.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature > +2.0°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature < Compressor OFF

point.

8.1.6. Automatic Operation

This mode can be set using remote control and the operation is decided by remote control setting temperature, indoor intake air temperature and outdoor air temperature.

During operation mode judgment, indoor fan motor (with speed of Lo-) and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Values of T1, T2, and T3 depend on remote control setting temperature, as shown in below table. After the adjustment of T1, T2 and T3 values, the operation mode for that particular environment and remote control setting is judged and performed, based on the above operation mode chart, every 30 minutes.

Remote Control Setting Temperature (°C) T1 T2 T3

16 ~ 18 +10 -3 -5 19 ~ 22 +8 -3 -7 23 ~ 26 +7 -3 -7 27 ~ 30 +6 -3 -8

There is a temperature shifting on T1, T2, and T3 if the operation mode judged is changed from Cooling/Soft Dry to Heating or vice verse.

Operation Mode change from Temperature shifts (°C)

Cooling/Soft Dry→Heating -2 Heating→Cooling/Soft Dry +2

Example of operation mode chart adjustment:

From the above table, if remote control setting temperature = 25,

T1 = 25 + 7 = 32; T2 = 25 - 3 = 22; T3 = 25 - 7 = 18

The operation mode chart for this example is as shown in below figure and the operation mode to be performed will depend on indoor intake air temperature and outdoor air temperature at the time when the judgment is made.

8.1.7. Indoor Fan Motor Operation

A. Basic Rotation Speed (rpm)

Required rotation speed for fan is set to respond to the remote control setting (10 rpm unit)

•

[Cooling, Dry, Fan]

Remote Control — — O O O O O — — —

Tab (rpm) PSHI SHI Hi Me+ Me Me- Lo Lo- SLo SSLo

E9DK 1320 1320 1280 1165 1050 935 820 760 720 710

E12DK 1460 1460 1420 1293 1165 1038 910 840 720 710

[Heating]

Remote Control — — O O O O O — — —

Tab (rpm) PSHi SSHi SHi Me+ Me Me- Lo Lo- SLo SSLo

E9DK 1440 1440 1400 1270 1140 1010 880 820 720 710

E12DK 1540 1540 1500 1395 1290 1185 1080 1010 720 710

B. Indoor Fan Control

i. Indoor fan control operation outline

1. Cooling / Dry

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

2. Heating

ii. Auto Fan Speed

1. Cooling

2. Heating

Note:

a. UP:

• If move from Lo, the fan speed will be shifted to Maximum 1520 rpm.

• If move from Maximum, the fan speed no change.

• In up zone, 10 rpm is added for every 10s until Maximum 1520 rpm.

b. DOWN:

• The fan speed will be decreased one step every 10 sec. until Minimum 1270 rpm.

c. Current Output Fixed:

• Maintain at present fan speed.

d. Instantaneous Maximum:

• Fan speed will be increased to maximum auto fan speed.

e. Temperature in ( ) is for Powerful Mode operation.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

C. Fan Motor Control

1. Motor specification

High voltage PWM Motor

2. Feedback Control

a. Number-of-rotations feedback

Immediately after the fan started, rpm is checked and duty is added, and feedback control is performed. For high voltage PWM motor, it is done once every 0.5 second.

b. Offset duty T max/min limit

High voltage PWM motor has maximum offset duty.

(Refer Indoor fan motor control basic rotation speed)

3. Abnormal Detection Control

Conditions:

a. Out of rhythm signal input

b. If feedback number of rotations exceeded #2550 r/min or when less than #50 r/min.

Control: Fans stop

Return: Restart after 5 seconds

* It will not detect the out of rhythm condition within 5s for phase control motor (PWM motor is when duty=0) after start.

A fan stops when condition (1) and (2) happen within 25.0 seconds after fan starting, and if this happens for continuously 7 times, it will not retry.

→ FM lock processing

4. Restart Prohibition Control

Restart is prohibited within 5s for phase control motor (PWM motor is when duty=0) after fan stop (except re-ON the power supply).

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

D. Deodorizing Control

i. Control conditio n

Control at cooling/dry operation and auto fan speed.

No Deodorizing Control is performed during ON timer standby operation and during Anti-freezing control prevention.

ii. Operation

The odor status is arranged as below and it is shifted as follow.

* When COMP is ON 1→2→3

(Shift to 4 when COMP is OFF)

* When COMP is OFF 4→5→6→7→6

(Shift to 1 when COMP is ON)

* Start from 4 if the Thermostat is OFF during the start operation.

Odor Status 1 2 3 4 5 6 7 6.7.6... 1

Status Shift

according to COMP

Status Shift

according

to time (s) Dry zone ON

Fan Speed

Cooling

zone

Cooling

zone

Dry zone SLo

40 50 — 30 90 20 90 20.90.20...

OFF SSLo

ON OFF ON

Auto Fan Speed

SSLo OFF SSLo OFF SSLo.OFF...

←→

8.1.8. Outdoor Fan Motor Operation

Outdoor fan motor is operated with one fan speed only. It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

8.1.9. Airflow Direction

1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).

2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using remote control).

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.9.1. Vertical Airflow

Operation Mode Airflow Direction Vane Angle (°)

1 2 3 4 5

Heating Auto with Heat Exchanger A Upward fix 3

Temperature B Downward fix 64

C Upward fix 3 D Downward fix 3

Manual 3 17 33 49 63

Cooling, Soft Dry and Ion Auto 8~36

Manual 8 15 22 30 36

Mode Judgment in Auto Auto 8

Manual 8 15 22 30 36

1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

8.1.9.2. Horizontal Airflow

1. Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the angles as stated below. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1 below.

Operation Mode Vane Angle (°)

Heating, with heat exchanger temperature A 65 ~ 115

B 90

Cooling, Soft Dry and Ion 65 ~ 115

2. Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below and the positions of the vane are as Figure 2 above.

Pattern 1 2 3 4 5 Airflow Direction

Patterns at Remote Control

Vane Angle (°) 90 65 78 102 115

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.10. Quiet operation (Cooling Mode/Cooling area of Dry Mode)

A. Purpose

To provide quiet cooling operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

• When “quiet” button at remote control is pressed.

Quiet LED illuminates.

b. Quiet operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops:

a. Powerful button is pressed.

b. Stop by OFF/ON switch.

c. Timer “off” activates.

d. Quiet button is pressed again.

2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.

3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.

4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode.

5. During quiet operation, if timer “on” activates, quiet operation maintains.

6. After off, when on back, quiet operation is not memorised.

C. Control contents

1. Fan speed is changed from normal setting to quiet setting of respective fan speed.

This is to reduce sound of Hi, Me, Lo for 3dB.

2. Fan speed for quiet operation is -1 step from setting fan speed.

8.1.10.1. Quiet operation (Heating)

A. Purpose

To provide quiet heating operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

• When “quiet” button at remote control is pressed.

Quiet LED illuminates.

b. Quiet operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops:

a. Powerful button is pressed.

b. Stop by OFF/ON switch.

c. Timer “off” activates.

d. Quiet button is pressed again.

2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.

3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.

4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode, except fan only mode.

5. During quiet operation, if timer “on” activates, quiet operation maintains.

6. After off, when on back, quiet operation is not memorised.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

C. Control contents

a. Fan Speed manual

1. Fan speed is changed from normal setting to quiet setting of respective fan speed.

This is to reduce sound of Hi, Me, Lo for 3dB.

2. Fan speed for quiet operation is -1 step from setting fan speed.

3. Fan Speed Auto

Indoor FM RPM depends on pipe temp sensor of indoor heat exchanger.

8.1.11. Powerful Mode Operation

When the powerful mode is selected, the internal setting temperature will shift to achieve the setting temperature quickly.

(a) Cooling Operation

(b) Soft Dry Operation

8.1.12. Delay ON Timer Control

Delay ON timer can be set using remote control, the unit with timer set will start operate earlier than the setting time. This is to provide a comfortable environment when reaching the set ON time.

60 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time.

From the above judgment, the decided operation will start operate earlier than the set time as shown below.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.1.13. Delay OFF Timer Control

Delay OFF timer can be set using remote control, the unit with timer set will stop operate at set time.

8.1.14. Auto Restart Control

1. When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly) after power supply resumes.

2. This type of control is not applicable during ON/OFF Timer setting.

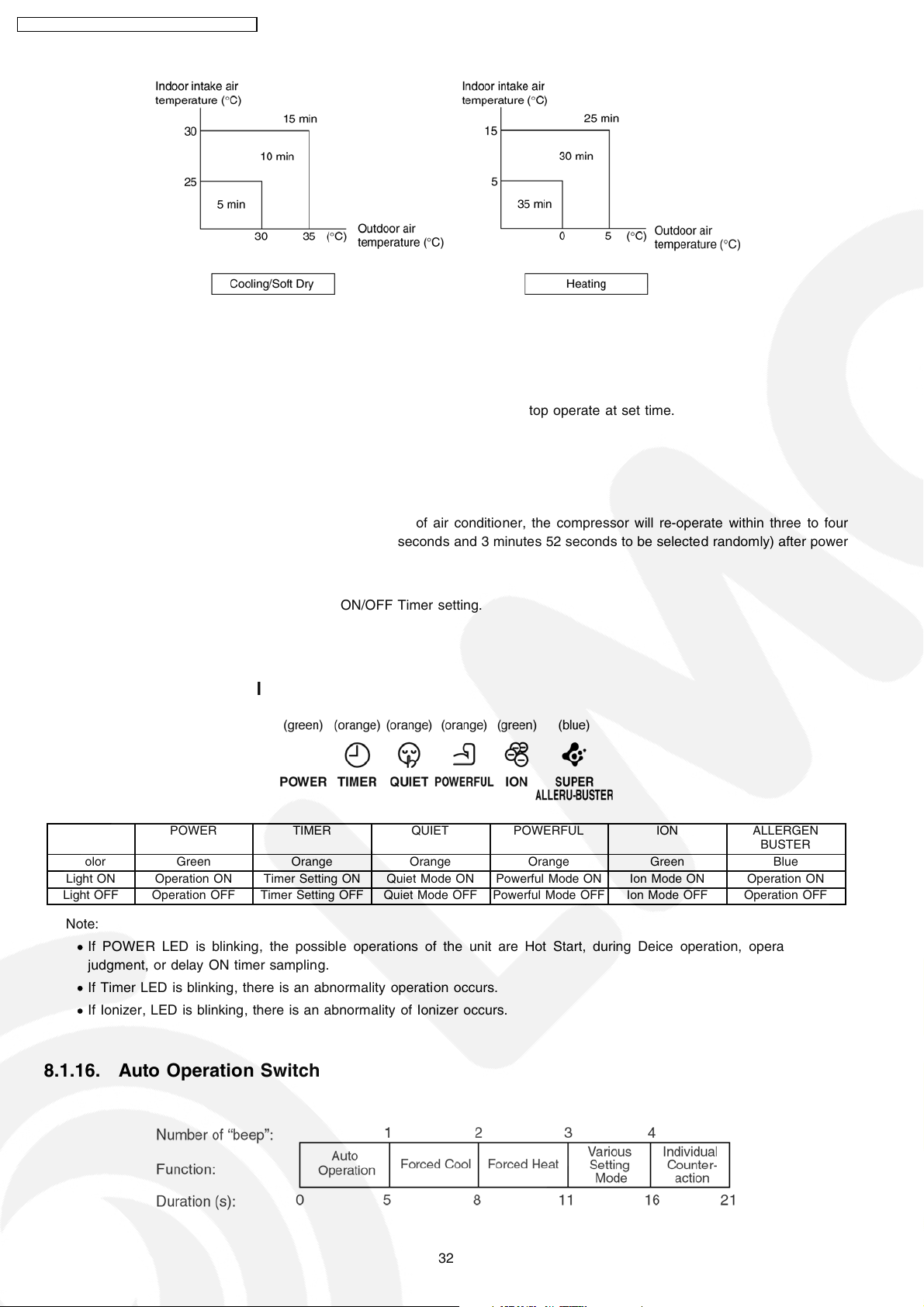

8.1.15. Indication Panel

LED POWER TIMER QUIET POWERFUL ION ALLERGEN

Color Green Orange Orange Orange Green Blue

Light ON Operation ON Timer Setting ON Quiet Mode ON Powerful Mode ON Ion Mode ON Operation ON

Light OFF Operation OFF Timer Setting OFF Quiet Mode OFF Powerful Mode OFF Ion Mode OFF Operation OFF

BUSTER

Note:

• If POWER LED is blinking, the possible operations of the unit are Hot Start, during Deice operation, operation mode

judgment, or delay ON timer sampling.

• If Timer LED is blinking, there is an abnormality operation occurs.

• If Ionizer, LED is blinking, there is an abnormality of Ionizer occurs.

8.1.16. Auto Operation Switch

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

1. When the switch is pressed between 0 to 5 seconds, Auto Mode operation starts to function.

2. When the switch is pressed between 5 to 8 seconds, the unit is forced to operate in Cooling Mode.

3. When the switch is pressed between 8 to 11 seconds, the unit will enter forced Heating Mode standby. Press timer decrement button for 5s for the unit to operate in Heating Mode.

4. When the switch is pressed between 11 to 16 seconds and together with the signal from remote control (timer decrement button for 5s), the unit can be changed to different controlling setting (4 type of transmission codes).

5. When the switch is pressed between 16 to 21 seconds, either “H14” error detection selection mode or the remote control signal receiving sound can be cancelled or turned on.

8.1.17. Ionizer Operation

Purpose

To provide fresh air effect to users by discharging minus ion to air.

Control Condition

a. Ionizer Only Operation.

1. When air-conditioner unit is at “OFF” conditio n (standby) and ION operation button at remote control is pressed.

Fan & ionizer on, ION LED illuminates, but power LED maintain off. (1 → 2)

However, fan speed can be adjusted later by customer during this operation.

Airflow direction (Horizontal Vane) control:

Follow vane direction control at cooling mode.

Horizontal vane can be changed by customer during ion only operation.

b. Operation Mode + Ionizer Operation.

1. Ionising Operation Start Condition

When air conditioner unit is in “ON” condition (Heat, Cool, Dry, Auto mode) and ION operation button at remote control is pressed. Ionizer on & ION LED illuminates. (3 → 4)

Power LED also illuminates.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

2. Ionising Operation Stop Condition

When one of the following condition is satisfied, ION operation stops.

a. Stopped by ON/OFF switch.

b. Timer OFF activates.

c. ION feedback signal shows error.

3. Ionizer operation status is not memorised by micon. After OFF, when operation is “ON” again, air conditioner operates without ionizer operation.

c. Timer during ionizer operation

Refer to case study in next page for detail.

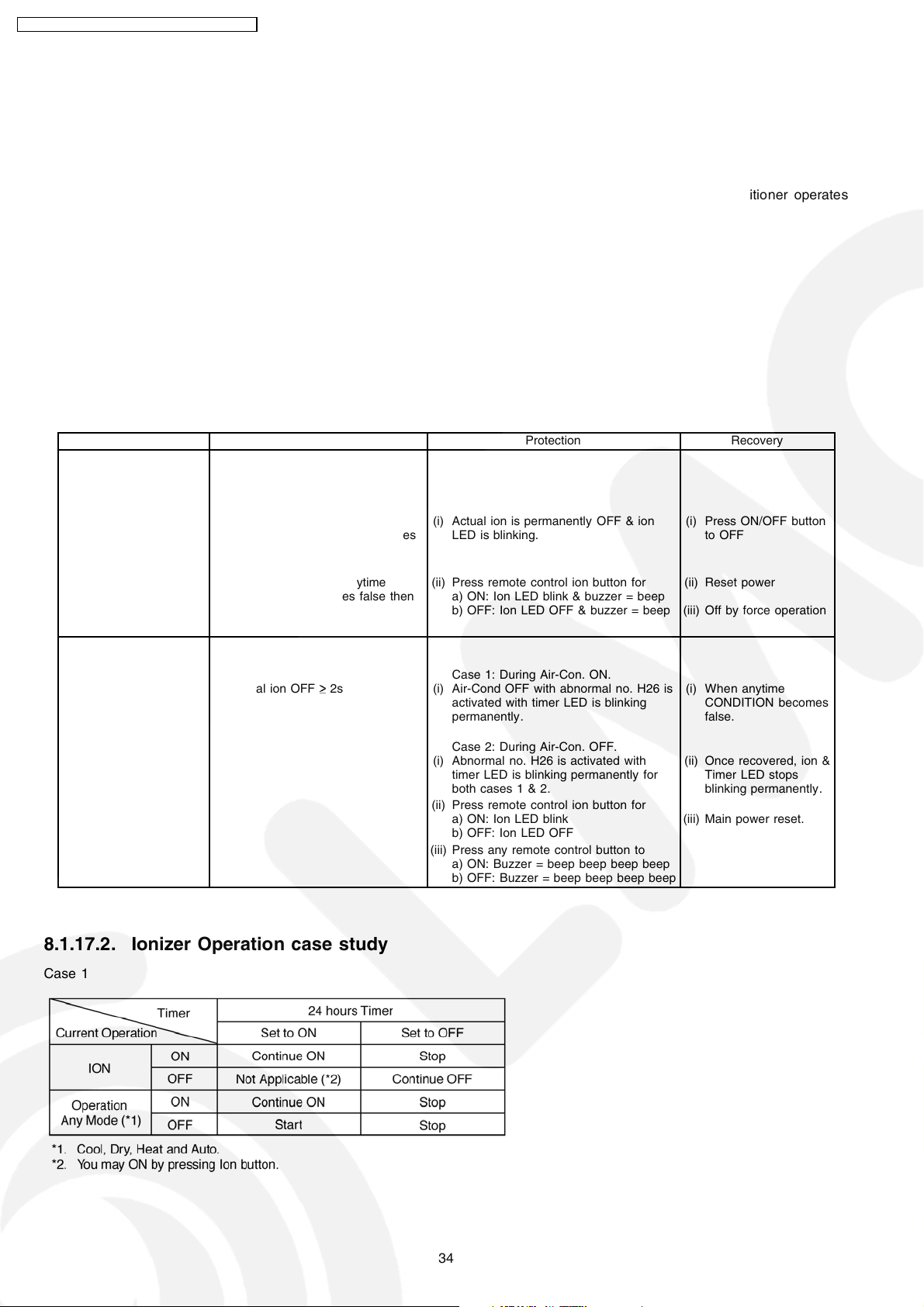

8.1.17.1. Ionizer Problem Detection Control

i. Purpose

To inform user of ionizer problems and detection.

ii. Two types of problem detection control:

Control Detection Method Protection Recovery

ERROR PROTECTION

(i) Actual ion: ON (i) Actual ion ON for 10s & OFF for

(ii) ion feedback signal:0V(ii) Within 24 counts, if anytime

BREAKDOWN PROTECTION

(i)

Actual ion: OFF

(ii)

ion feedback signal: 5V

30 min. continuously for 24 times (approx. 11 hr. 30 min.)

CONDITION becomes false then count is cleared.

(i) Actual ion OFF 2s (i)

(i) Actual ion is permanently OFF & ion

LED is blinking.

(ii) Press remote control ion button for

a) ON: Ion LED blink & buzzer = beep b) OFF: Ion LED OFF & buzzer = beep

Case 1: During Air-Con. ON. Air-Cond OFF with abnormal no. H26 is activated with timer LED is blinking permanently.

Case 2: During Air-Con. OFF. Abnormal no. H26 is activated with

(i)

timer LED is blinking permanently for both cases 1 & 2.

(ii) Press remote control ion button for

a) ON: Ion LED blink b) OFF: Ion LED OFF

(iii) Press any remote control button to

a) ON: Buzzer = beep beep beep beep b) OFF: Buzzer = beep beep beep beep

(i) Press ON/OFF button

to OFF

(ii)

Reset power

(iii)

Off by force operation

(i) When anytime

CONDITION becomes false.

(ii) Once recovered, ion &

Timer LED stops blinking permanently.

(iii) Main power reset.

8.1.17.2. Ionizer Operation case study

Case 1

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.2. Protection Control Features

8.2.1. Protection Control For All Operations

8.2.1.1. Time Delay Safety Control

1. The compressor will not start for three minutes after stop of operation.

2. This control is not applicable if the power supply is cut off for 20 seconds and on again or after 4-way valve deices condition.

8.2.1.2. 30 Seconds Forced Operation

1. Once the compressor starts operation, it will not stop its operation for 30 seconds.

2. However, it can be stopped using remote control or Auto Switch at indoor unit.

8.2.1.3. Total Running Current Control

1. When the outdoor unit total running current (AC) exceeds X value, the frequency instructed for compressor operation will be decreased.

2. If the running current does not exceed X value for five seconds, the frequency instructed will be increased.

3. However, if total outdoor unit running current exceeds Y value, compressor will be stopped immediately for 3 minutes.

Model E9DK E12DK

Operation Mode X(A) Y(A) X(A) Y(A) Cooling/Soft Dry (A) 4.0 16.8 5.4 16.8 Cooling/Soft Dry (B) 3.6 16.8 5.0 16.8 Heating 5.5 16.8 8.4 16.8

4. The first 30 minutes of cooling operation, (A) will be applied.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.2.1.4. IPM (Power transistor) Prevention Control

A. Overheating Prevention Control

1. When the IPM temperature rises to 100°C, compressor operation will stop immediately.

2. Compressor operation restarts after three minutes the temperature decreases to 95°C.

B. DC Peak Current Control

1. When electric current to IPM exceeds set value of 18.5 A, the compressor will stop operate. Then, operation will restart after three minutes.

2. If the set value is exceeded again more than 30 seconds after the compressor starts, the operation will restart after two minute.

3. If the set value is exceeded again within 30 seconds after the compressor starts, the operation will restart after one minute. If this condition repeats continuously for seven times, all indoor and outdoor relays will be cut off.

8.2.1.5. Compressor Overheating Prevention Control

Instructed frequency for compressor operation will be regulated by compressor discharge temperature. The changes of frequency are as below figure.

8.2.1.6. Low Pressure Prevention Control (Gas Leakage Detection)

a. Control start conditions

Control will perform when (1) - (3) condition continues operation for 5 minute and (4) is fulfill.

1. During cooling and dry operation: Frequency more than normal Fcmax.

During heating operation: Frequency more than normal Fh

2. Outdoor total current I cooling: Ib

Heating: Ib

Ic = Ia = 1.65 A

Ib = 0.65 A

3. It is not during deice operation.

4. During cooling and dry operation: indoor suction-indoor piping temperature is below 4°C.

During of heating operation: Indoor piping temperature-indoor suction is under 5°C.

Control contents:

• compressor stops (restart after 3 minutes)

• if happen 2 times within (20 minutes), perform the following operation

1) Unit stop operation

2) Timer LED blink and “F91” indicated

I Ic

I Ia

8.2.1.7. Compressor Tank Temperature Rise Protection Control

a. Control start conditions

Control will perform when (1) - (3) condition continues operation for 5 minute and (4) is fulfill.

1. During cooling and dry operation: Frequency more than normal Fc.

Air-temperature: Indoor and outdoor 30±5 degrees C

Remote control Hi; 16 degrees C

During Heating operation: Frequency more than Fh

Air temperature: Indoor and outdoor 20±2 degrees C

Remote control Hi; 30 degrees C

2. Outdoor total current I Air conditioning: 0.65<=I<1.65.

Heating: 0.65<=I<1.65

It is not during deice operation

3. During cooling and dry operation: indoor suction-indoor piping temperature is below 4°C.

During heating operation: Indoor piping temperature-indoor suction is under 5°C.

Control contents:

• compressor stops (restart after 3 minutes)

• if happen 2 times within (20 minutes), perform the following operation

1) Unit stop operation

2) Timer LED blink and “F91” indicated

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.2.1.8. Low Frequency Protection Control 1

When the compressor operate at frequency lower than 22 Hz continued for 20 minutes, the operation frequency will be increased to 22 Hz for two minutes.

8.2.1.9. Low Frequency Protection Control 2

When all the below conditions occur, minimum value (Freq. MIN) for the frequency instructed to compressor will change to 30 Hz for cooling mode operation and 20 Hz for heating mode operation.

Temperature, T, for: Cooling/Soft Dry Heating Indoor intake air (°C) T 15 or T 30 — Outdoor air (°C) T 16 or T 38 T 4orT 24 Indoor heat exchanger (°C) T 30 T 0

8.2.1.10. Minimum Frequency Protection Control

• During cooling operation (except Anti Freezing control, soft dry) carry out the following operation.

1. During Remote Control setting is 28°C & below.

Indoor Fan Speed min Hz

More than Hi 29 More than Me- 27 Less than Me- 27

Automatic 27

However, when less than thermo OFF for 120 sec. continuously, the above control will be cancel.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

• During heating operation, operate the followings control.

1. During Remote Control setting is 18°C & above

Indoor Fan Speed Min Hz

More than Hi 27

More than Lo 27

Under Lo 27

However, when less than thermo OFF for 100 sec. continuously, the above control will be cancel.

8.2.1.11. DC Current Protection Control

Purpose

In order to control DC current rise in a compressor low frequency region, load is detected with from indoor/outdoor heat exchanger temperature, Hz control is performed.

Control contents

1. During cooling and dry except test mode

2. During heating compressor operation, except test mode.

(However, official approval mode removes)

8.2.2. Protection Control For Cooling & Soft Dry Operation

8.2.2.1. Outdoor Air Temperature Control

The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the diagram below.

This control will begin one minute after the compressor starts.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.2.2.2. Cooling Overload Control

i. Pipe temperature limitation/restriction

• Detects the Outdoor pipe temperature and carry out below restriction/limitation (Limit the compressor Operation frequency)

• The compressor stop if outdoor pipe temperature exceed s 61°C

• If the compressor stops 4 times in 20 minutes, Timer LED blinking (F95: outdoor high pressure rise protection)

ii. Electrical part temperature rise protection control

1. Purpose

To prevent electronic components temperature rise during cooling overload.

2. Judgement Conditions

Outdoor temperature

3. Control contents

- Change a current limit value in a protection location A. (Refer to the clause of total running current control value)

4. Condition resolutive

It is canceled when it stops satisfying all of the above-mentioned.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

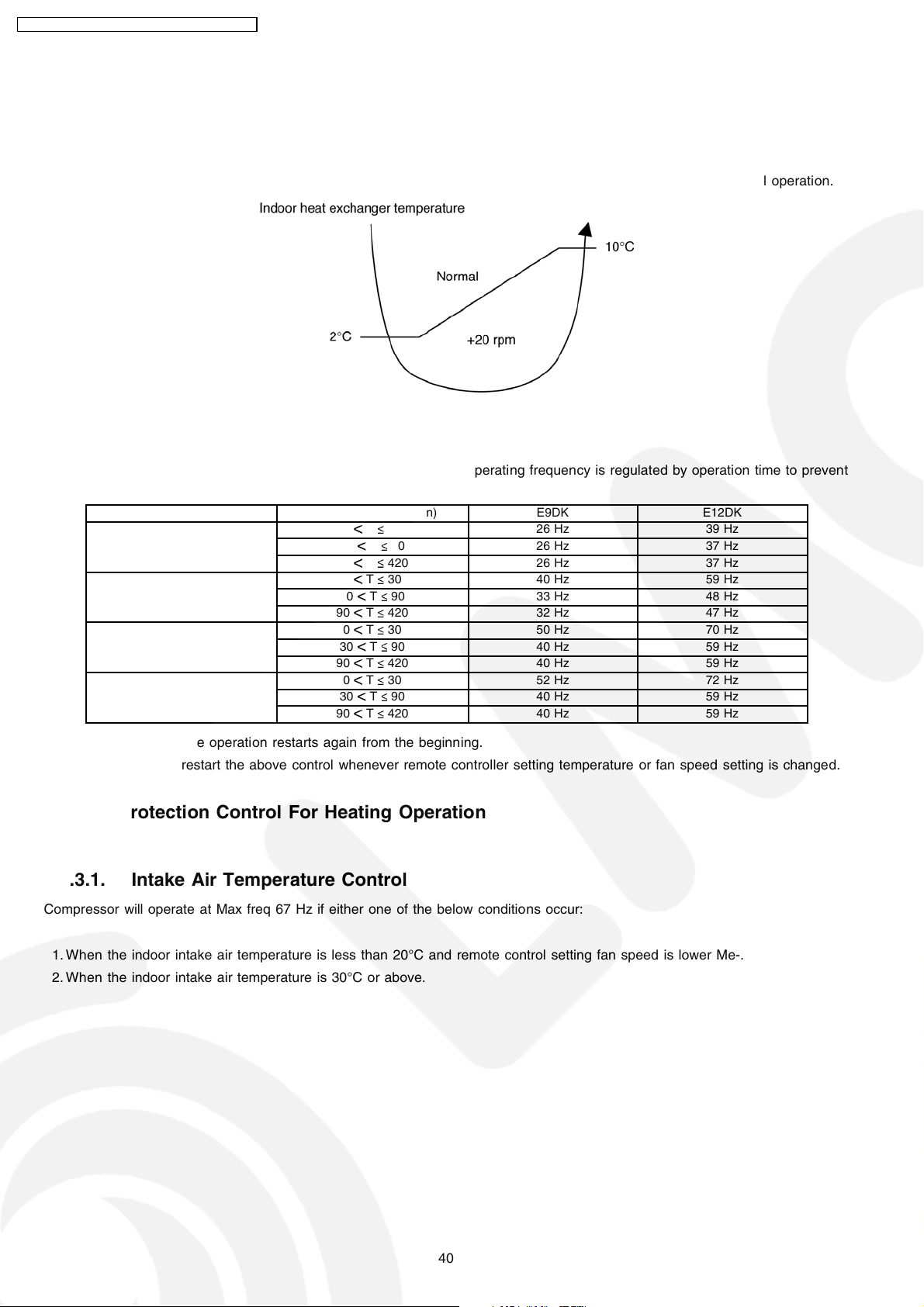

8.2.2.3. Anti-Freezing Control

1. When indoor heat exchan ger temperature is lower than 2°C continuously for six minutes, compressor will stop operating.

2. Compressor will resume its operation three minutes after the indoor heat exchanger is higher than 10°C.

3. At the same time, indoor fan speed increase +20 rpm compared to its normal operation.

4. If indoor heat exchanger temperature is higher than 10°C for five minutes, the fan speed will return to its normal operation.

8.2.2.4. Anti-Dew Formation Control

1. When indoor fan speed is set at Me- or slower, the compressor operating frequency is regulated by operation time to prevent fog discharged from indoor as shown in below table.

rpm Operation time, T (min) E9DK E12DK

0 T 30 26 Hz 39 Hz

Below 710 30 T 90 26 Hz 37 Hz

90 T 420 26 Hz 37 Hz

0 T 30 40 Hz 59 Hz

710 ~ 790 30 T 90 33 Hz 48 Hz

90 T 420 32 Hz 47 Hz

0 T 30 50 Hz 70 Hz

791 ~ 970 30 T 90 40 Hz 59 Hz

90 T 420 40 Hz 59 Hz

0 T 30 52 Hz 72 Hz

970 above 30 T 90 40 Hz 59 Hz

90 T 420 40 Hz 59 Hz

2. After 420 minutes, the operation restarts again from the beginning.

3. The operation will restart the above control whenever remote controller setting temperature or fan speed setting is changed.

8.2.3. Protection Control For Heating Operation

8.2.3.1. Intake Air Temperature Control

Compressor will operate at Max freq 67 Hz if either one of the below conditions occur:

1. When the indoor intake air temperature is less than 20°C and remote control setting fan speed is lower Me-.

2. When the indoor intake air temperature is 30°C or above.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

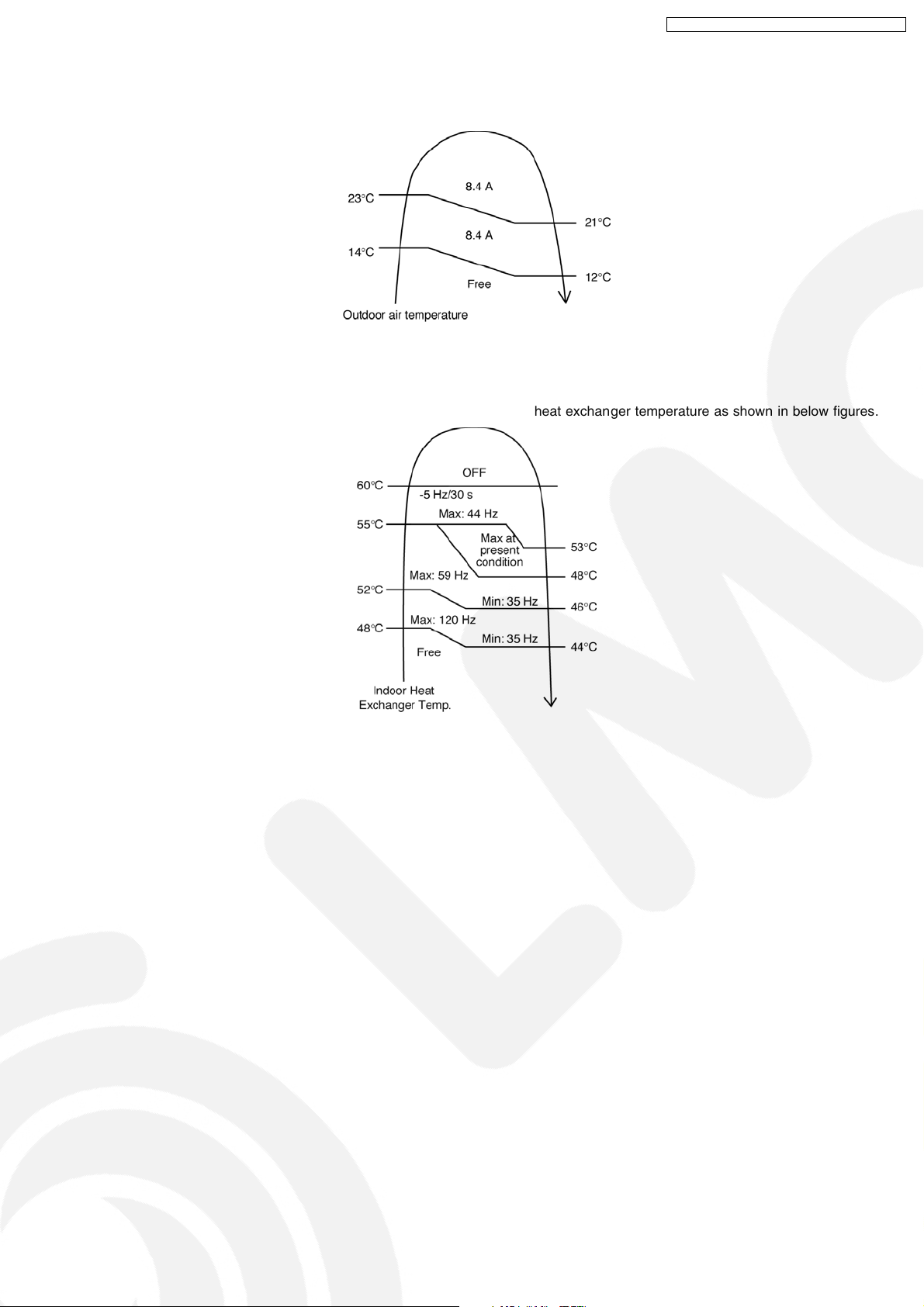

8.2.3.2. Outdoor Air Temperature Control

The Max current value is regulated in accordance to the outdoor air temperature as shown in the below figures.

8.2.3.3. Overload Protection Control

The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown in below figures.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

8.2.3.4. Deice Control

A. Deice operation (Normal Deice Operation)

1. Detection methods

Outdoor heat exchanger temperature sensor, timer.

2. Deice operation time chart

Notes

• During deice operation, as relationship for outdoor piping temperature and time T5, the priority given to the condition which is first fulfilled and shift to the next mode.

• First deice after operation restricted to 60 min. & above.

• No restart operation if compressor OFF for sequence No. 8, 9.

(Instantaneous, restart)

Outdoor heat exchanger temperature

a 15°C b 18°C c 25°C

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

3. Explanation of operation

1) At the deice starting signal, the compressor frequency is set to the value as previously mentioned.

2) At 120 sec. after deice starting signal generated, 4 way valve OFF and at the same time outdoor fan is OFF, indoor fan is OFF, compressor frequency is set to the previously mentioned value.

3) WIthin 30 sec. after the 4 way valve OFF, the compressor frequency is set to the previously mentioned value.

4) If the outdoor heat exchanger temperature is above a°C, the compressor frequency is set to the value as previously mentioned.

5) After the compressor frequency is changed according to the item 4), in case either outdoor heat exchanger temperature more than b°C or 10.5 minutes lapsed after 4 way valve OFF is fulfilled, 30 sec. calculation start.

6) After 5) operated, if the outdoor heat exchanger temperature is more than c°C or 30 sec. lapsed, deice operation completion signal transmit, the compressor frequency is set to the previously mentioned value. And timingly ON signal transmit on outdoor FM.

7) After 59 sec. lapsed after deice operation completion signal generated, 4 way valve/indoor fan is ON, compressor frequency become FREE, and recover to normal heating operation.

4. Deice operation judgement condition

When any of below a, b, c, d condition is satisfied, deice signal is produced.

a. Continuously, outdoor heat exchanger temperature < 3°C for 120 minutes and outdoor heat exchanger temperature

<-6°C for 3 minutes and outdoor air temperature > -1°C and Comp. is ON.

b. Continuously, outdoor heat exchanger temperature < 3°C for 80 minutes and outdoor heat exchanger temperature

<-7°C for 3 minutes and outdoor air temperature > -1°C and Comp. is ON.

c. Continuously, outdoor heat exchanger temperature < 3°C for 40 minutes and outdoor heat exchanger temperature

<-9°C for 3 minutes and outdoor air temperature

-3°C and Comp. is ON.

d. Continuously, outdoor heat exchanger temperature < 3°C for 40 minutes and outdoor heat exchanger temperature

< -11°C for 3 minutes and outdoor air temperature < -3°C and Comp. is ON.

However, the first deice will start only after minimum of 60 minutes in operation.

(2nd deice and onward shall follow above conditions)

Installation Precautions

Operation

Precautions

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

9 Operating Instructions

Thank you for purchasing Panasonic Air Conditioner

■ Definition

To prevent personal injury, injury to others and property damage, the following instructions must be followed.

Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classiﬁ ed as below:

Warning

This sign warns of death

or serious injury.

Caution

This sign warns of injury

or damage to property.

The instructions to be followed are classiﬁ ed by the following symbols:

This symbol denotes

an action that is

PROHIBITED.

SAFETY PRECAUTIONS

Installation Precautions

Warning

Do not install, remove and reinstall the unit by yourself.

• Improper installation will cause leakage, electric shock or ﬁ re. Please consult an authorized dealer or specialist for the installation work.

Caution

• This air conditioner must be earthed. Improper grounding will cause electric shock.

• Ensure that the drainage piping is connected properly. Otherwise, water will leak.

• Current leakage protection equipment must be installed. Otherwise, electric shock or ﬁ re may occur.

• Do not install the unit in a potentially explosive atmosphere.

Operation

• Do not share power outlet.

• Do not modify power cord.

• Do not use an extension cord.

• Do not operate with wet hands.

• Do not insert ﬁ nger or other objects into the

• Do not attempt to repair the unit by

• Do not use rechargeable (Ni-Cd) batteries.

• Keep the remote control away from infants

Precautions

indoor or outdoor unit.

yourself.

and small children to prevent them from accidentally swallowing the batteries.

Warning

• Use speciﬁ ed supply cord.

• If the supply cord is damaged or needed to be replaced, it must be replaced by the manufacturer or its service agent or a similarly qualiﬁ ed person in order to avoid a hazard.

• Remove the batteries if the unit is not going to be use for a long period of time.

New batteries of the same type must be

• inserted following the polarity stated to prevent malfunction of the remote control.

• In case of emergency or abnormal condition (burnt, smell, etc) occurs, turn off the power supply.

These symbols denote

actions that are

COMPULSORY.

Safety Regulation

The appliance is not intended for use by young children or inﬁ rm person without supervision. Young children should be supervised to ensure that they do not play with the appliance.

• Do not wash the unit with water, benzene, thinner or scouring powder.

• Do not use for other purposes such as preservation of food.

• Do not use any combustible equipment at airﬂ ow direction.

• Do not sit or place anything on the indoor or outdoor unit.

• Do not expose directly to cold air for a long period.

Caution

• Ventilate the room regularly.

• Pay attention as to whether the installation rack is damaged after long period of usage.

• Switch off the power supply before cleaning or servicing.

• Turn off the power supply if the unit is not used for a long period of time.

Operation Condition (OC)

Use this air conditioner under the following temperature range.

DBT: Dry Bulb Temperature WBT: Wet Bulb Temperature

Maximum Temperature (COOL)

Maximum Temperature (HEAT)

Minimum Temperature (COOL)

Minimum Temperature (HEAT)

Indoor Outdoor

DBT WBT DBT WBT

32 23 43 26

30 – 24 18

16 11 16 11

16 – -5 -6

IIndoor Unit

Note: The illustrations in this manual are for explanation purposes only and may differ from the

Outdoor

Unit

Remote Control

actual unit. It is subjected to change without notice for future improvement.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

PRODUCT OVERVIEW

ndoor Unit

Front panel

Air filter

Airflow direction louver

Discharged air

Outdoor

Air inlet

(side)

Remote Control

Operation mode

Airflow direction adjustment

Memory reset

Unit

Air inlet

LCD display

Ion operation

Check

Do not touch during operation

(rear)

Ionizer

Air outlet

TIM

POWE

QUIET

ERPOWE

Air intake

ION

RFUL

TIMERPOWER

Transmitter

Temperature setting

Off/On

Quiet operation

Powerful operation

Fan speed selection

Timer setting

Clock setting

Supersonic air purifying device

Auto OFF/ON button

Receiver

Indicator

QUIET

POWERFUL

ION

SUPER

ALLERU-BUSTER

■ About

Remote Control Preparation

2. Insert

1. Pull out

3. Press CLOCK button

5. Press again to conﬁ rm

• Timer operation will be based on current time set.

• The batteries can be used for approximately 1 year.

• The batteries must be recycled or disposed of properly.

Remote Control Signal

• Make sure it is not obstructed.

• Maximum distances: 10m.

• Certain fluorescent lights may interfere with signal transmission. Consult your dealer.

Auto OFF/ON Button

• To operate the unit if the remote control is misplaced or malfunctioning.

Action

Press once

Press until “beep”

sound and release.

Press until “beep”

sound and release.

Press again until

“beep-beep” sound

and release.

• To OFF, press again the Auto OFF/ ON button.

batteries

(AAA or

R03)

4. Set current time

Operation

mode

Automatic

Operation

Cooling

Operation

Heating

Operation

Troubleshooting

●

Operation delayed for few minutes after restart.

●

Sound like water ﬂ owing during operation.

●

Mist emerges from indoor unit.

●

Noisy during operations.

●

Remote control/display does not work.

●

The unit cannot operate.

●

Outdoor unit emits water/steam.

➤ This is a normal self protection control.

➤ Caused by refrigerant ﬂ ow inside.

➤ Condensation effect due to cooling process.

➤ Installation work could be slanted or front panel didn’t close properly.

➤ Check whether batteries are correctly inserted or need replacement.

➤ Check either circuit breaker is tripped or timer is used correctly.

➤ Condensation or evaporation happens at piping surface.

Auto, Heat, Cool, Dry

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

■ Operation Details

AUTO - Automatic Operation

• The unit will automatically select the operation mode according to the setting, outdoor and room temperature. During operation mode selection, power indicator blinks. For every 30 minutes, the operation mode is reselected.

HEAT - Heating Operation

• Enables you to enjoy the warming effect at your preferred setting temperature.

• For cold air prevention, air might not blow out immediately and power indicator blinks when operation starts.

• Also operates in defrost mode (maximum 10 minutes) where by the power indicator blinks. The melted frost is drained at outdoor unit and indoor fan is stopped.

COOL - Cooling Operation

• Enables you to enjoy the cooling effect at your preferred setting temperature.

DRY - Soft Dry Operation

• Enables you to set the desired temperature at low fan speed which provides you with the dehumidifying surroundings.

HOW TO OPERATE

Auto, Heat, Cool, Dry

Select the desired operation.

AUTO

HEATDRY

COOL

Start the operation.

Set the temperature. (16°C~30°C)

● Supersonic air purifying device (super alleru-buster) operates automatically while the air conditioner is switched on.

● Powerful, Quiet and Ion operations could be activated in all operation modes.

● Press

Hint

●

To save electricity, close the curtains when using air conditioner to prevent sunlight and heat from coming in.

Troubleshooting

●

The room has a peculiar odour.

●

Air conditioner does not cool or heat efﬁ ciently.

button again to stop the operation.

➤ This may be a damp smell emitted by the wall, carpet, furniture or

clothing in the room.

➤ Ensure the temperature has been set correctly. ➤ Ensure windows and doors have been closed properly. ➤ Ensure ﬁ lters are cleaned or replaced when necessary. ➤ Ensure inlet and outlet vents of the units have not been obstructed.

ION

Powerful,

Quiet,

Ion, Fan Speed,

Air Swing

POWERFUL

FAN SPEE

AIR SWING

QUIET

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

HOW TO OPERATE

Powerful, Air Swing

ION

Enables ion operation.

AIR SWING

Adjust the vertical or horizontal airﬂ ow direction louver.

Quiet,

Ion, Fan Speed,

QUIET

Enables quiet operation.

POWERFUL

Enables powerful operation.

DFAN SPEED

Select fan speed.

■ Operations Details

POWERFUL

• To achieve setting temperature quickly.

QUIET

• To provide a quiet environment.

ION

• To provide fresh air effect by producing negative ions.

• Ion operation could be activated independently.

• Press

FAN SPEED

• To provide you with the various fan

• There are 5 levels of fan speed in

• Automatic fan speed:

The speed of the indoor fan is

AIR SWING

• To ventilate air in the room.

• There are 5 selections in addition to

• If automatic vertical airﬂ ow direction

• To ventilate air in the room.

• There are 5 selections in addition

• If automatic horizontal airﬂ ow

button to stop the

operation.

speed selections.

addition to automatic fan speed.

automatically adjusted according to the operation.

automatic vertical air ﬂ ow direction.

has been set, the louver swings up and down automatically.

to automatic horizontal air ﬂ ow direction.

direction has been set, the louver swings left and right automatically.

● Powerful and Quiet operations could not be activated at the

● Powerful, Quiet and Ion operations could be cancelled by

• Please do not adjust the vertical and

same time.

horizontal airﬂ ow direction louver manually.

pressing the respective button again.

Hints

●

If you wish to have the cool air blowing directly on you, set the airﬂ ow direction downward but not for an excessive length of time,

as it may harm your health.

●

Approximately 10% of electricity can be saved if you set the temperature 1°C higher in cooling operation or 2°C lower in heating

operation than the desired temperature.

Troubleshooting

●

ION indicator on the indoor unit is blinking.

●

Indoor fan stops occasionally during Automatic Fan

Speed setting.

●

Indoor fan stops occasionally during heating operation.

➤ Press ION button twice. If the indicator is still blinking, please consult

the dealer.

➤ This is an advanced feature that helps to remove smell from the

surrounding area during operation.

➤ To avoids unintended cooling effect.

Timer

CANCEL

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

■ Operation Details

TIMER

• Use the ON timer to turn on the air conditioner at the desired time. This will give you a cooling or warming environment, e.g. when you return from work or wake up.

• When the ON timer is set, operation will start up to 35 minutes before the actual set time.

• Use the OFF timer to stop the air conditioner operation at the desired time. This can save electricity while you are going out or sleeping.

• The set timer will repeat daily once it is set.

• If there is a power failure, you can press SET button to restore the previous setting once the power is resumed.

• If the timer is cancelled, you can restore the previous setting by pressing SET button.

CHECK

• When there is error, the unit stops its operation and timer indicator blinks.

1. Press for 5 seconds.

HOW TO OPERATE

Timer

Select ON or OFF timer.

Set the desired time.

Conﬁ rm the setting.

2. Browse for respective error code, where “beep” sounds are heard.

3. Turn off the power supply and call authorized distributor.

Note: Press the ‘Reset’ button to quit checking.

Unit might operate with limited function depending on error found. (Operation starts, 4 “beep” sound is heard)

Hint

●

Press CLOCK more than 10 seconds to change the time format from 24 hours to AM/PM format.

●

For your convenience, you could set the air conditioner to operate automatically by using both ON and OFF timer.

Troubleshooting

●

TIMER indicator always on.

●

POWER indicator is blinking 35 minutes before ON

timer is activated.

CANCEL

Cancel the selected timer.

● Ensure the clock on the remote control has been set correctly.

● You could use the ON and OFF timers at the same time.

● To cancel either the ON or OFF timer, press

press

➤ Timer is activated and the setting will repeat itself daily.

➤ The unit is determining the operation mode by sensing the room

temperature. This happens when it has been set to AUTO operation mode.

or , then

Switch off the power supply before cleaning

FRONT PANEL

INDOOR UNIT

AIR FILTER

SUPERSONIC AIR PURIFYING DEVICE

IONIZER

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

CARE & CLEANING

Switch off the power supply before cleaning

AIR FILTER

Vacuum, wash and dry.

Remove

SUPERSONIC AIR PURIFYING DEVICE

Vacuum the super alleru-buster ﬁ lter.

Remove

Vacuum, wash and dry the frame.

FRONT PANEL

Raise and pull to remove. Wash and dry.

Remove

ION

POWERFUL

QUIET

TIMERPOWER

INDOOR UNIT

Wipe gently.

IONIZER

Clean with cotton bud.

■ Washing Instructions

• Do not use benzene, thinner or scouring powder.

• Use soaps or neutral household detergent (

• Do not use water with temperature higher than 40°C.

INDOOR UNIT

• Wipe the unit gently with a soft, dry cloth.

AIR FILTER

• It is recommended to clean the air ﬁ lters once every 2 weeks.

• Purchase the replacement ﬁ lter if it is damaged.

Part no.: CWD001144

SUPER ALLERU-BUSTER

• It is recommended to clean the ﬁ lter every 6 months.

• Replace the ﬁ lter every 3 years or purchase the replacement ﬁ lter if it is damaged.

Part no.: CZ-SA13P

IONIZER

• It is recommended to clean the ionizer every 6 months.

pH7) only.

≃

■ Preparation for extended Non-operation

• Operate the unit for 2~3 hours using ion operation to dry the internal parts.

• Turn off the power supply.

• Remove the remote control batteries.

■ Pre-season Inspection

• This inspection is recommended before operating the air conditioner at every season.

• Check if the remote control batteries needed to be replaced.

• Ensure there is no obstruction at all air intake and outlet vents.

• After the start of operation for 15 minutes, it is normal if the temperature differences between air intake and outlet vents at indoor unit is:-

Operation Temperature

Cooling

Heating 14°C

8°C

Hints

●

Clean the ﬁ lter regularly as dirty ﬁ lters will cause unpuriﬁ ed air, low cooling or heating capacity, unpleasant smells and higher

energy consumption.

●

The unit will become dirty and the performance of the unit will decrease after used for several seasons. Please consult an

authorized dealer to perform seasonal inspections in addition to regular cleaning.

●

This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner

from being damaged by abnormally strong lightning activity, you may switch off the power supply.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

10 Installation Instructions

Required tools for Installation Works

1. Philips screw driver 5. Spanner 9. Gas leak detector 13. Multimeter

2. Level gauge 6. Pipe cutter 10. Measuring tape 14. Torque wrench

3. Electric drill, hole core drill (ø70 mm)

4. Hexagonal wrench (4 mm) 8. Knife 12. Megameter 16. Gauge manifold

7. Reamer 11. Thermometer 15. Vacuum pump

10.1. Safety Precautions

•

Read the following “SAFETY PRECAUTIONS” carefully before installation.

•

Electrical work must be installed by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model to be installed.

•

The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below. Incorrect installation due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.

This indication shows the possibility of causing death or serious injury.

18 N.m (1.8 kgf.m) 42 N.m (4.2 kgf.m) 55 N.m (5.5 kgf.m)

This indication shows the possibility of causing injury or damage to properties only.

The items to be followed are classified by the symbols:

Symbol with background white denotes item that is PROHIBITED from doing.

•

Carry out test running to confirm that no abnormality occurs after the installation. Then, explain to user the operation, care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference.

1. Engage dealer or specialist for installation. If installation done by the user is defective, it will cause water leakage, electrical shock or fire.

2. Install according to this installation instruction strictly. If installation is defective, it will cause water leakage, electrical shock or fire.

3. Use the attached accessories parts and specified parts for installation. Otherwise, it will cause the set to fall, water leakage, fire or electrical shock.

4. Install at a strong and firm location which is able to withstand the set’s weight. If the strength is not enough or installation is not properly done, the set will drop and cause injury.

5. For electrical work, follow the local national wiring standard, regulation and this installation instruction. An independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.

6. Use the specified cable (1.5 mm2) and connect tightly for indoor/outdoor connection. Connect tightly and clamp the cable so that no external force will be acted on the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection.

7. Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause heat-up at connection point of terminal, fire or electrical shock.

8. When carrying out piping connection, take care not to let air substances other than the specified refrigerant go into refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high pressure in the refrigeration cycle, explosion and injury.

9. When connecting the piping, do not allow air or any substances other than the specified refrigerant (R410A) to enter the refrigeration cycle. Otherwise, this may lower the capacity, cause abnormally high pressure in the refrigeration cycle, and possibly result in explosion and injury.

10.

•

When connecting the piping, do not use any existing (R22) pipes and flare nuts. Using such same may cause abnormally high pressure in the refrigeration cycle (piping), and possibly result in explosion and injury. Use only R410A materials.

•

Thickness of copper pipes used with R410A must be more than 0.8 mm. Never use copper pipes thinner than 0.8 mm.

•

It is desirable that the amount of residual oil is less than 40 mg/10 m.

11. Do not modify the length of the power supply cord or use of the extension cord, and do not share the single outlet with other electrical appliances. Otherwise, it will cause fire or electrical shock.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

1. The equipment must be earthed. It may cause electrical shock if grounding is not perfect.

2. Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may cause fire.

3. Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the furniture.

1. Selection of the installation location. Select a installation location which is rigid and strong enough to support or hold the unit, and select a location for easy maintenance.

2. Power supply connection to the room air conditioner. Connect the power supply cord of the room air conditioner to the mains using one of the following method. Power supply point shall be the place where there is ease for access for the power disconnection in case of emergency. In some countries, permanent connection of this room air conditioner to the power supply is prohibited.

1. Power supply connection to the receptacle using a power plug.

Use an approved 15A/16A power plug with earth pin for the connection to the socket.

2. Power supply connection to a circuit breaker for the permanent connection. Use an approved 16A circuit breaker for the permanent

connection. It must be a double pole switch with a minimum 3.5 mm contact gap.

3. Do not release refrigerant. Do not release refrigerant during piping work for installation, reinstallation and during repairing a refrigeration parts. Take care of the liquid refrigerant, it may cause frostbite.

4. Installation work. It may need two people to carry out the installation work.

5. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Attached accessories

Applicable piping kit

CZ-3F5, 7BP (E9DK)

CZ-4F5, 7, 10BP (E12DK)

Indoor/Outdoor Unit Installation Diagram

SELECT THE BEST LOCATION

INDOOR UNIT

• There should not be any heat source or steam near the unit.

• There should not be any obstacles blocking the air circulation.

• A place where air circulation in the room is good.

• A place where drainage can be easily done.

• A place where noise prevention is taken into

consideration.

• Do not install the unit near the door way.

• Ensure the spaces indicated by arrows from the wall,

ceiling, fence or other obstacles.

• Recommended installation height for indoor unit shall be at least 2.3 m.

OUTDOOR UNIT

• If an awning is built over the unit to prevent direct sunlight or rain, be careful that heat radiation from the condenser is not obstructed.

• There should not be any animal or plant which could be affected by hot air discharged.

• Keep the spaces indicated by arrows from wall, ceiling, fence or other obstacles.

• Do not place any obstacles which may cause a short circuit of the discharged air.

• If piping length is over the rated length, additional refrigerant should be added as shown in the table.

• This illustration is for explanation purposes only. The indoor unit will actually face a different way.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

10.2. Indoor Unit

10.2.1. SELECT THE BEST LOCATION (Refer to “Select the best location” section)

10.2.2. HOW TO FIX INSTALLATION PLATE

The mounting wall is strong and solid enough to prevent it from the vibration.

10.2.3. TO DRILL A HOLE IN THE WALL AND INSTALL A SLEEVE OF PIPING

1. Insert the piping sleeve to the hole.

2. Fix the bushing to the sleeve.

3. Cut the sleeve until it extrudes about 15 mm from the wall.

Caution

When the wall is hollow, please be sure to use the sleeve for tube ass’y to prevent dangers caused by mice biting the connecting cable.

4. Finish by sealing the sleeve with putty or caulking

compound at the final stage.

The centre of installation plate should be at more than 450 mm at right and left of the wall.

The distance from installation plate edge to ceiling should more than 67 mm.

From installation plate left edge to unit’s left side is 74 mm.

From installation plate right edge to unit’s right is 94 mm.

For left side piping, piping connection for liquid should be about 15 mm from this line. For left side piping, piping connection for gas should be

about 45 mm from this line. For left side piping, piping connection cable should be

about 800 mm from this line

1. Mount the installation plate on the wall with 5 screws or more. (If mounting the unit on the concrete wall consider using anchor bolts.)

• Always mount the installation plate horizontally by

aligning the marking-off line with the thread and using a level gauge.

2. Drill the piping plate hole with ø70 mm hole-core drill.

• Line according to the arrows marked on the lower left

and right side of the installation plate. The meeting point of the extended line is the centre of the hole. Another method is by putting measuring tape at position as shown in the diagram above. The hole centre is obtained by measuring the distance namely 150 mm and 125 mm for left and right hole respectively.

• Drill the piping hole at either the right or the left and the

hole should be slightly slanted to the outdoor side.

10.2.4. INDOOR UNIT INSTALLATION

For the right rear piping

For the right and right bottom piping

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

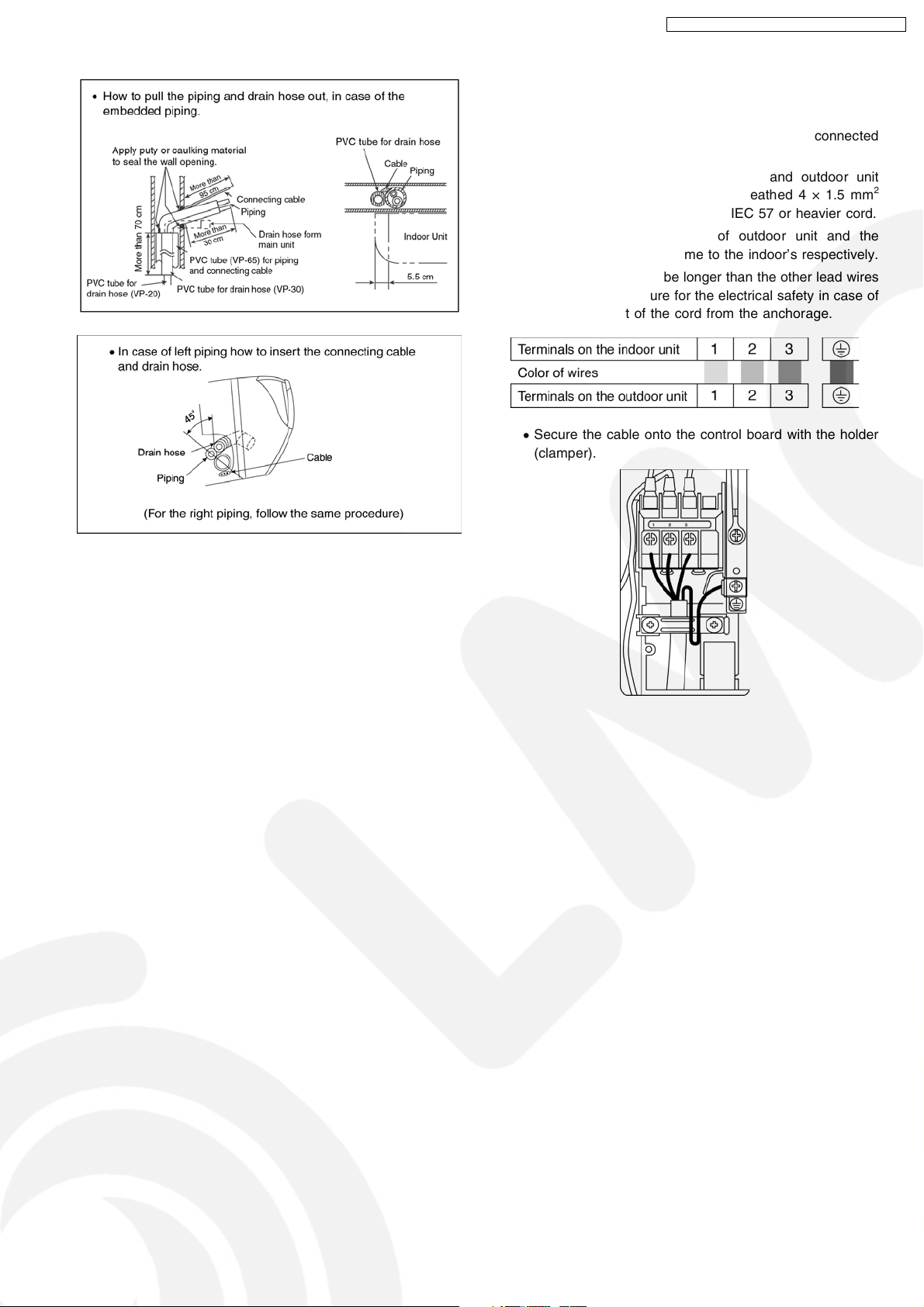

For the embedded piping

(This can be used for left rear piping & left bottom piping also.)

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

10.2.5. CONNECT THE CABLE TO THE INDOOR UNIT

1. The inside and outside connecting cable can be connected

without removing the front grille.

2. Connecting cable between indoor unit and outdoor unit

shall be approved polychloroprene sheathed 4 × 1.5 mm flexible cord, type designation 245 IEC 57 or heavier cord.

• Ensure the color of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.

• Earth lead wire shall be longer than the other lead wires as shown in the figure for the electrical safety in case of the slipping out of the cord from the anchorage.

• Secure the cable onto the control board with the holder (clamper).

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

INSTALLATION OF SUPER ALLERU-BUSTER FILTER

1. Open the front panel.

2. Remove the air filter.

3. Remove Supersonic air purifying device.

4. Open the Supersonic air purifyin g device frame.

5. Insert the super alleru-buster filter and close the Supersonic air purifying device frame as show in illustration at right.

HOW TO TAKE OUT FRONT GRILLE

Please follow the steps below to take out front grille if necessary such as when servicing.

1. Open the intake grille and remove the screw at the front of the front grille.

2. Set the vertical airflow direction louvers to the horizontal position.

3. Slide down the 2 caps on the front grille as shown in the illustration below, and then remove the 2 mounting screws.

4. Pull the lower section of the front grille towards you to remove the front grille.

When reinstalling the front grille, first set the vertical airflow direction louver to the horizontal position and then carry out above steps 2 - 3 in the reverse order.

AUTO SWITCH OPERATION

The below operations will be performed by pressing the “AUTO” switch.

1. AUTO OPERATION MODE

The Auto operation will be activated immediately once the Auto Switch is pressed.

2. TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE)

The Test Run operation will be activated if the Auto Switch is pressed continuously for more than 5 sec. A “beep” sound will occur at the fifth sec., in order to identify the starting of Test Run operation

3. REMOTE CONTROLLER RECEIVING SOUND ON/OFF

The ON/OFF of remote controller receiving sound can be change over by pressing the following step:

a. Release the Auto Switch after Test Run operation is activated.

b. Then, within 20 sec., after a., press Auto Switch for more than 5 sec.

A “beep”“beep” sound will occur at the fifth sec., then release the Auto Switch.

c. Within 20 sec. after b., press Auto Switch again. Everytime Auto Switch is pressed (within 20 sec. interval), remote

controller receiving sound status will be reversed between ON and OFF.

Long “beep” sound indicates that remote controller receiving sound is OFF.

Short “beep” sound indicates that remote controller receiving sound is ON.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

10.3. Outdoor Unit

10.3.1. SELECT THE BEST LOCATION (Refer to “Select the best location” section)

10.3.2. INSTALL THE OUTDOOR UNIT

• After selecting the best location , start installation according

to Indoor/Outdoor Unit Installation Diagram.

1. Fix the unit on concrete or rigid frame firmly and horizontally

by bolt nut. (ø10 mm).

2. When installing at roof, please conside r strong wind and

earthquake. Please fasten the installation stand firmly with bolt or nails.

10.3.3. CONNECTING THE PIPING

Connecting The Piping To Indoor Unit

Please make flare after inserting flare nut (locate at joint portion of tube assembly) onto the copper pipe. (In case of using long piping)

Connect the piping

• Align the center of piping and sufficiently tighten the flare nut with fingers.

• Further tighten the flare nut with torque wrench in specified torque as stated in the table.

MODEL Piping size (Torque)

Gas Liquid

E9DK 3/8” (42 N.m) 1/4” (18 N.m)

E12DK 1/2” (55 N.m) 1/4” (18 N.m)

Connecting The Piping To Outdoor Unit

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut (located at valve) onto the copper pipe.

Align center of piping to valves and then tighten with torque wrench to the specified torque as stated in the table.

CUTTING AND FLARING THE PIPING

1. Please cut using pipe cutter and then remove the burrs.

2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused.

Turn the piping end down to avoid the metal powder entering the pipe.

3. Please make flare after inserting the flare nut onto the copper pipes.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

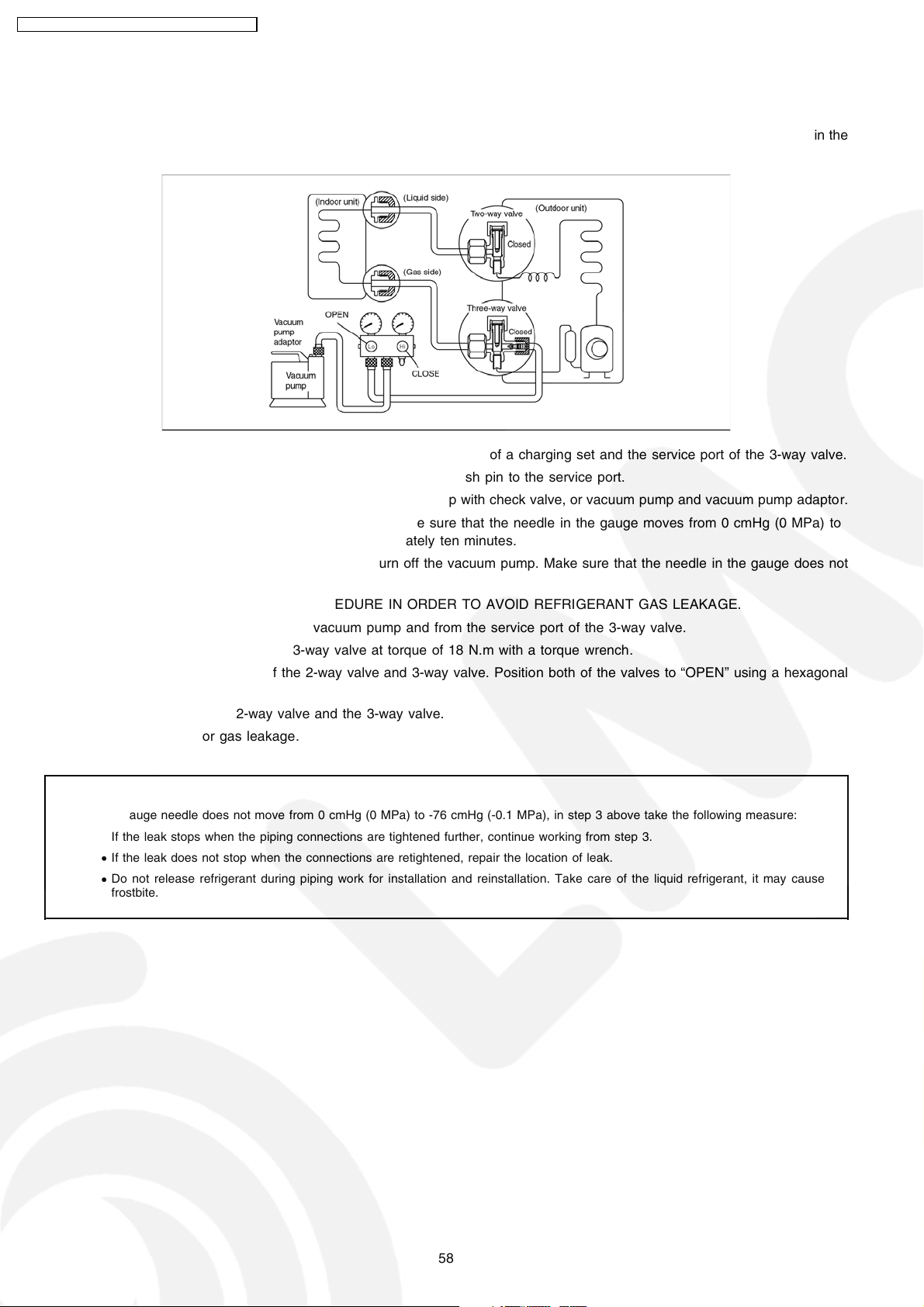

10.3.4. EVACUATION OF THE EQUIPMENT

WHEN INSTALLING AN AIR CONDITIONER, BE SURE TO EVACUATE THE AIR INSIDE THE INDOOR UNIT AND PIPES in the following procedure.

1. Connect a charging hose with a push pin to the Low and High side of a charging set and the service port of the 3-way valve.

• Be sure to connect the end of the charging hose with the push pin to the service port.

2. Connect the center hose of the charging set to a vacuum pump with check valve, or vacuum pump and vacuum pump adaptor.

3. Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from 0 cmHg (0 MPa) to

-76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes.

4. Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the gauge does not move after approximately five minutes.

Note: BE SURE TO FOLLOW THIS PROCEDURE IN ORDER TO AVOID REFRIGERANT GAS LEAKAGE.

5. Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve.

6. Tighten the service port caps of the 3-way valve at torque of 18 N.m with a torque wrench.

7. Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN” using a hexagonal wrench (4 mm).

8. Mount valve caps onto the 2-way valve and the 3-way valve.

• Be sure to check for gas leakage.

CAUTION

If gauge needle does not move from 0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa), in step 3 above take the following measure:

•

If the leak stops when the piping connections are tightened further, continue working from step 3.

•

If the leak does not stop when the connections are retightened, repair the location of leak.

•

Do not release refrigerant during piping work for installation and reinstallation. Take care of the liquid refrigerant, it may cause

•

frostbite.

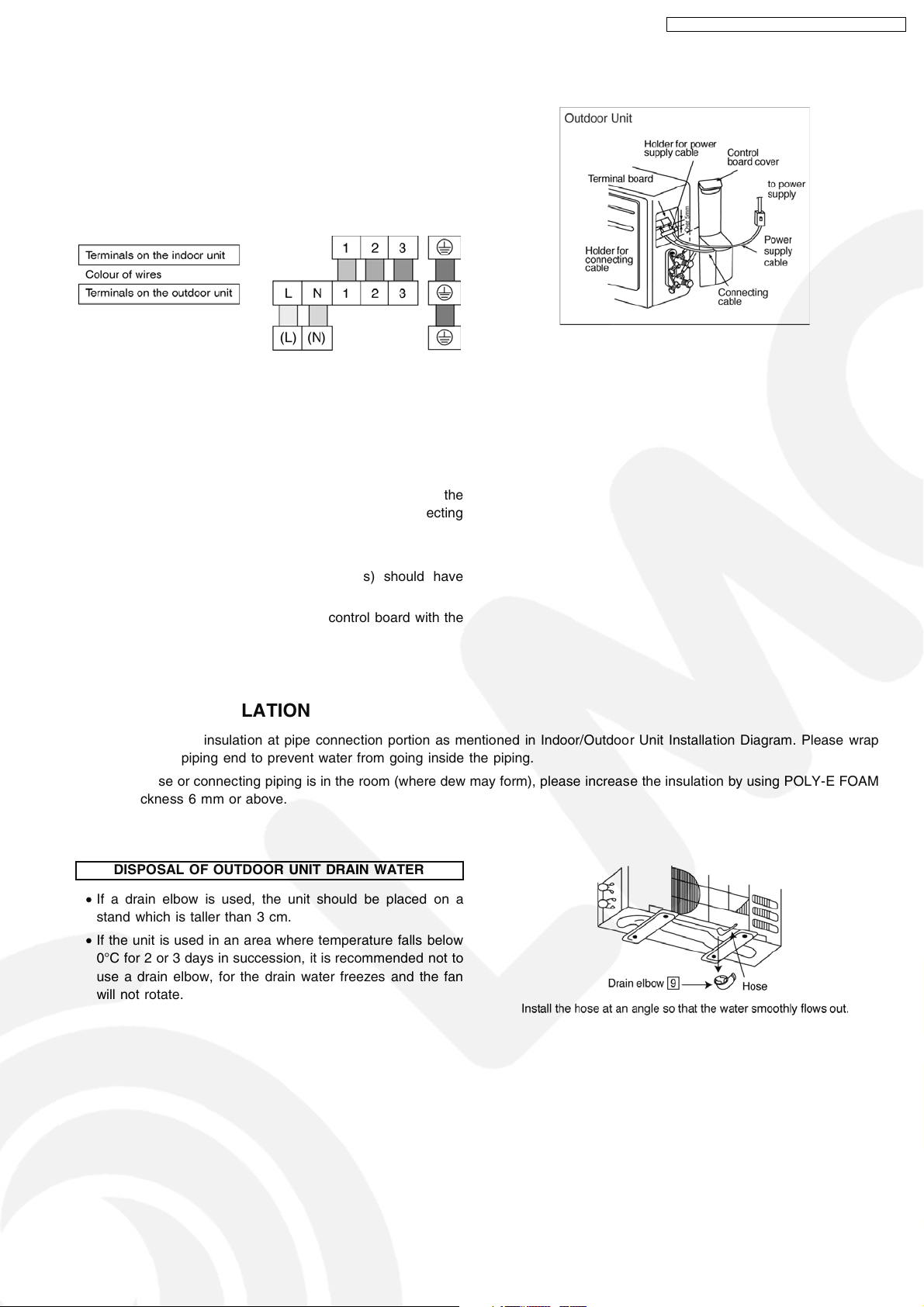

10.3.5. CONNECT THE CABLE TO THE OUTDOOR UNIT

(FOR DETAIL REFER TO WIRING DIAGRAM AT UNIT)

1. Remove the control board cover from the unit by loosening the screw.

2. Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 × 1.5 mm flexible cord, type designation 245 IEC 57 or heavier cord.

3. Secure the cable onto the control board with the holder (clamper).

4. Cable connection to the power supply through knife switch (Disconnecting means).

• Connect the approved polychloroprene sheathed power

supply cable (1.5 mm

), type designation 245 IEC 57 or heavier cord to the terminal board, and connect the other end of the cable to knife switch (Disconnecting means).

Note:

Knife switch (Disconnecting means) should have minimum 3 mm contact gap.

− Secure the cable onto the control board with the holder (clamper).

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

10.3.6. PIPE INSULATION

1. Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.

2. If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by using POLY-E FOAM with thickness 6 mm or above.

DISPOSAL OF OUTDOOR UNIT DRAIN WATER

• If a drain elbow is used, the unit should be placed on a stand which is taller than 3 cm.

• If the unit is used in an area where temperature falls below 0°C for 2 or 3 days in succession, it is recommended not to use a drain elbow, for the drain water freezes and the fan will not rotate.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

CHECK THE DRAINAGE

• Open front panel and remove air filters. (Drainage checking can be carried out without removing the front grille.)

• Pour a glass of water into the drain tray-styrofoam.

• Ensure that water flows out from drain hose of the indoor

unit.

EVALUATION OF THE PERFORMANCE

• Operate the unit at cooling operation mode for fifteen minutes or more.

• Measure the temperature of the intake and discharge air.

• Ensure the difference between the intake temperature and

the discharge is more than 8°C.

CHECK ITEMS

Is there any gas leakage at flare nut connections?

Has the heat insulation been carried out at flare nut connection?

Is the connecting cable being fixed to terminal board firmly?

Is the connecting cable being clamped firmly?

Is the drainage OK? (Refer to “Check the drainage” section)

Is the earth wire connection properly done?

Is the indoor unit properly hooked to the installation plate?

Is the power supply voltage complied with rated value?

Is there any abnormal sound?

Is the cooling operation normal?

Is the thermostat operation normal?

Is the remote control’s LCD operation normal?

Is the super alleru-buster filter is installed?

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

11 Installation And Servicing Air Conditioner Using R410A

11.1. Outline

11.1.1. About R410A Refrigerant

1. Converting air conditioners to R410A Since it was declared in1974 that chlorofluorocarbons (CFC), hydro chlorofluorocarbons (HCFC) and other substances pose a destructive danger to the ozone layer in the earth´s upper stratosphere (20 to 40 km above the earth), measures have been taken around the world to prevent this destruction. The R22 refrigerant which has conventionally been used in ACs is an HCFC refrigerant and, therefore, possesses this ozone- destroying potential. International regulations (the Montreal Protocol on Ozone-Damaging Substances) and the domestic laws of various countries call for the early substitution of R22 by a refrigerant which will not harm the ozone layer.

• In ACs, the HFC refrigerant which has become the mainstream alternative is called R410A.Compared with R22, the

pressure of R410A is approximately 1.6 times as high at the same refrigerant temperature, but the energy efficiency is about the same. Consisting of hydrogen (H), fluorine (F) and carbon (C), R410A is an HFC refrigerant. Another typical HFC refrigerant is R407C. While the energy efficiency of R407C is somewhat inferior to that of R410A, it offers the advantage of having pressure characteristics which are about the same as those of R22, and is used mainly in packaged ACs.

2. The characteristics of HFC (R410A) refrigerants

a. Chemical characteristics

The chemical characteristics of R410A are similar to those of R22 in that both are chemically stable, non-flammable refrigerants with low toxicity. However, just like R22, the specific gravity of R410A gas is heavier than that of air. Becaus e of this, it can cause an oxygen deficiency if it leaks into a closed room since it collects in the lower area of the room. It also generates toxic gas when it is directly exposed to a flame, so it must be used in a well ventilated environment where it will not collect.

Table 1 Physical comparison of R410A and R22

Composition (wt%) R32/R125 (50/50) R22 (100) Boiling point (°C) -51.4 -40.8 Vaporizing pressure (25°C) 1.56 Mpa (15.9 kgf/cm2) 0.94 Mpa (9.6 kgf/cm2) Saturated vapor density 64.0 kg/m Flammability Non-flammable Non-flammable Ozone-destroying point (ODP) 0 0.055 Global-warming point (GWP) 1730 1700

R410A R22

44.4 kg/m

b. Compositional change (pseudo-azeotropic characteristics)

R410A is a pseudo-azeotropic mixture comprising the two components R32 and R125. Multi-component refrigerants with these chemical characteristics exhibit little compositional change even from phase changes due to vaporization (or condensation), which means that there is little change in the circulating refrigerant composition even when the refrigerant leaks from the gaseous section of the piping. Accordingly, R410A can be handled in almost the same manner as the single-component refrigerant R22. However, when charging, because there is a slight change in composition between the gas phase and the liquid phase inside a cylinder or other container, charging should basically begin with the liquid side.

c. Pressure characteristics

As seen in Table 2, the gas pressure of R410A is approximately 1.6 times as high as that of R22 at the same refrigerant temperature, which means that special R410A tools and materials with high-pressure specifications must be used for all refrigerant piping work and servicing.

Table 2 Comparison of R410A and R22 saturated vapor density

Refrigerant Temperature (°C) R410A R22

-20 0.30 0.14 0 0.70 0.40

20 1.35 0.81 40 2.32 1.43 60 3.73 2.33 65 4.15 2.60

Unit: MPa

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

d. R410A refrigerating machine oil

Conventionally, mineral oil or a synthet ic oil such as alkylbenzene has been used for R22 refrigerating machine oil. Because of the poor compatibility between R410A and conventional oils like mineral oil, however, there is a tendency for the refrigerating machine oil to collect in the refrigerating cycle. For this reason, polyester and other synthetic oils which have a high compatibility with R410A are used as refrigerating machine oil. Because of the high hygroscopic property of synthetic oil, more care must be taken in its handling than was necessary with conventional refrigerating machine oils. Also, these synthetic oils will degrade if mixed with mineral oil or alkylbenzene, causing clogging in capillary tubes or compressor malfunction. Do not mix them under any circumstances.

11.1.2. Safety Measures When Installing/Servicing Refrigerant Piping

Cause the gas pressure of R410A is approximately 1.6 times as high as that of R22, a mistake in installation or servicing could result in a major accident. It is essential that you use R410A tools and materials, and that you observe the following precautions to ensure safety.

1. Do not use any refrigerant other than R410A in ACs that have been used with R410A.

2. If any refrigerant gas leaks while you are working, ventilate the room. Toxic gas may be generated if refrigerant gas is exposed to a direct flame.

3. When installing or transferring an AC, do not allow any air or substance other than R410A to mix into the refrigeration cycle. If it does, the pressure in the refrigeration cycle can become abnormally high, possibly causing an explosi on and/or injury.

4. After finishing the installation, check to make sure there is no refrigerant gas leaking.

5. When installing or transferring an AC, follow the instructions in the installation instructions carefully. Incorrect installation can result in an abnormal refrigeration cycle or water leakage, electric shock, fire, etc.

6. Do not perform any alterations on the AC unit under any circumstances. Have all repair work done by a specialist. Incorrect repairs can result in an water leakage, electric shock, fire, etc.

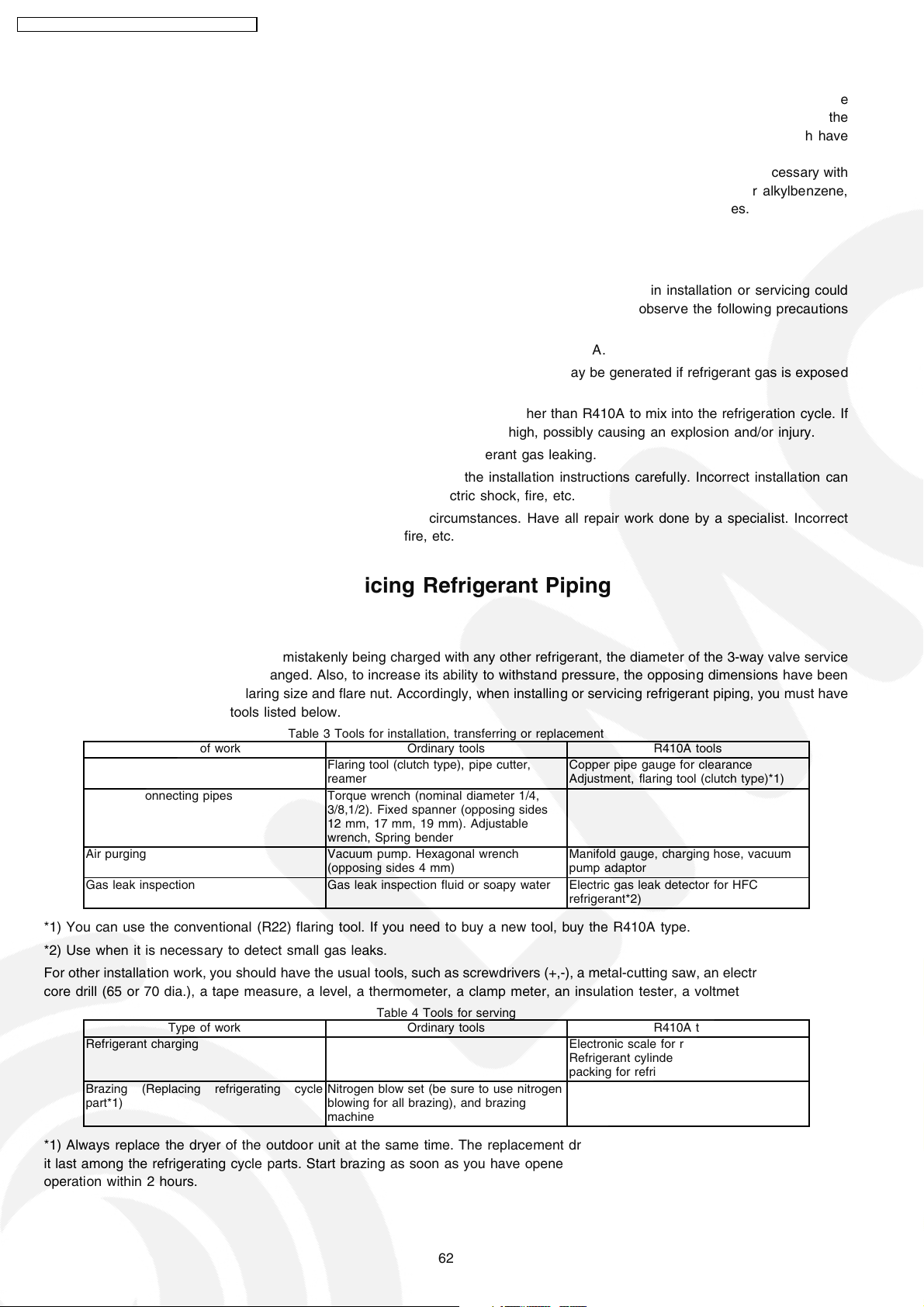

11.2. Tools For Installing/Servicing Refrigerant Piping

11.2.1. Necessary Tools

In order to prevent an R410A AC from mistakenly being charged with any other refrigerant, the diameter of the 3-way valve service port on the outdoor unit has been changed. Also, to increase its ability to withstand pressure, the opposing dimensions have been changed for the refrigerant pipe flaring size and flare nut. Accordingly, when installing or servicing refrigerant piping, you must have both the R410A and ordinary tools listed below.

Type of work Ordinary tools R410A tools

Flaring Flaring tool (clutch type), pipe cutter,

Bending, connecting pipes Torque wrench (nominal diameter 1/4,

Air purging Vacuum pump. Hexagonal wrench

Gas leak inspection Gas leak inspection fluid or soapy water Electric gas leak detector for HFC

*1) You can use the conventional (R22) flaring tool. If you need to buy a new tool, buy the R410A type.

*2) Use when it is necessary to detect small gas leaks.

For other installation work, you should have the usual tools, such as screwdrivers (+,-), a metal-cutting saw, an electrical drill, a hole core drill (65 or 70 dia.), a tape measure, a level, a thermometer, a clamp meter, an insulation tester, a voltmeter, etc.

Type of work Ordinary tools R410A tools

Refrigerant charging Electronic scale for refrigerant charging.

Brazing (Replacing refrigerating cycle part*1)

Table 3 Tools for installation, transferring or replacement

reamer

3/8,1/2). Fixed spanner (opposing sides 12 mm, 17 mm, 19 mm). Adjustable wrench, Spring bender

(opposing sides 4 mm)

Table 4 Tools for serving

Nitrogen blow set (be sure to use nitrogen blowing for all brazing), and brazing machine

Copper pipe gauge for clearance Adjustment, flaring tool (clutch type)*1)

Manifold gauge, charging hose, vacuum pump adaptor

refrigerant*2)

Refrigerant cylinder. Charging orifice and packing for refrigerant cylinder

*1) Always replace the dryer of the outdoor unit at the same time. The replacement dryer is wrapped in a vacuum pack. Replace it last among the refrigerating cycle parts. Start brazing as soon as you have opened the vacuum pack, and begin the vacuuming operation within 2 hours.

11.2.2. R410A Tools

1. Copper tube gauge for clearance adjustment (used when flaring with the conventional flaring tool (clutch type))

• This gauge makes it easy to set the clearance for the

copper tube to 1.0-1.5 mm from the clamp bar of the flaring tool.

2. Flaring tool (clutch type)

• In the R410A flaring tool, the receiving hole for the

clamp bar is enlarged so the clearance from the clamp bar can be set to 0-0.5 mm, and the spring inside the tool is strengthened to increase the strength of the pipeexpanding torque. This flaring tools can also be used with R22 piping, so we recommend that you select it if you are buying a new flaring tool.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Fig. 1 Copper tube gauge for clearance adjustment

Fig. 2 Flaring tool (clutch type)

3. Torque wrenches

Fig. 3 Torque wrenches

Table 5

Conventional wrenches R410A wrenches For 1/4 (opposite side x torque) 17 mm x 18 N.m (180 kgf.cm) 17 mm x 18 N.m (180 kgf.cm) For 3/8 (opposite side x torque) 22 mm x 42 N.m (420 kgf.cm) 22 mm x 42 N.m (420 kgf.cm) For 1/2 (opposite side x torque) 24 mm x 55 N.m (550 kgf.cm) 26 mm x 55 N.m (550 kgf.cm)

4. Manifold gauge

• Because the pressure is higher for the R410A type, the conventional type cannot be used.

Table 6 Difference between R410A and conventional high / low-pressure gauges

High-pressure gauge (red) -76 cmHg - 35 kgf/cm Low-pressure gauge (blue) -76 cmHg - 17 kgf/cm

Conventional gauges R410A gauges

-0.1 - 5.3 Mpa -76 cmHg - 53 kgf/cm

-0.1 - 3.8 Mpa -76 cmHg - 38 kgf/cm

• The shape of the manifold ports has been changed to prevent the possibility of mistakenly charging with another type of refrigerant.

Table 7 Difference between R410A and conventional manifold port size

Port size 7/16 UNF 20 threads 1/2 UNF 20 threads

Conventional gauges R410A gauges

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

5. Charging hose

• The pressure resistance of the charging hose has been raised to match the higher pressure of R410A. The hose material has also been changed to suit HFC use, and the size of the fitting has been changed to match the manifold ports.

Table 8 Difference between R410A and conventional charging hoses

Pressure resistance

Material NBR rubber HNBR rubber Nylon coating inside

Working pressure 3.4 MPa (35 kgf/cm3) 5.1 MPa (52 kgf/cm3) Bursting pressure 17.2 MPa (175 kgf/cm3) 27.4 MPa (280 kgf/cm3)

6. Vacuum pump adaptor

• When using a vacuum pump for R410A, it is necessary to install an electromagnetic valve to prevent the vacuum pump oil from flowing back into the charging hose. The vacuum pump adaptor is installed for that purpose. if the vacuum pump oil (mineral oil) becomes mixed with R410A, it will damage the unit.

Fig. 4 Manifold gauge charging hose

Conventional hoses R410A hoses

7. Electric gas leak detector for HFC refrigerant

• The leak detector and halide torch that were used with CFC and HCFC cannot be used with R410A (because there is no chlorine in the refrigerant).

• The present R134a leak detector can be used, but the detection sensitivity will be lower (setting the sensitivity for R134a at 1, the level for R410A will drop to 0.6).

• For detecting small amounts of gas leakage, use the electric gas leak detector for HFC refrigerant. (Detection sensitivity with R410A is about 23 g/year).

Fig. 5 Vacuum pump adaptor

Fig. 6 Electric gas leak detector for HFC refrigerant

8. Electronic scale for refrigerant charging

• Because of the high pressure and fast vaporizing speed of R410A, the refrigerant cannot be held in a liquid phase inside the charging cylinder when charging is done using the charging cylinder method, causing bubbles to form in the measurement scale glass and making it difficult to see the reading. (Naturally, the conventional R22 charging cylinde r cannot be used because of the differences in the pressure resistance, scale gradation, connecting port size, etc.)

• The electronic scale has been strengthened by using a structure in which the weight detector for the refrigerant cylinder is held by four supports. It is also equipped with two connection ports, one for R22 (7/16 UNF, 20 threads) and one for R410A (1/2 UNF, 20 threads), so it can also be used for conventional refrigerant charging.

• There are two types of electronic scales, one for 10-kg cylinders and one for 20-kg cylinders. (The 10-kg cylinder is recommended.)

Refrigerant charging is done manually by opening and closing the valve.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Fig. 7 Electronic scale for refrigerant charging

9. Refrigerant cylinders

• The R410A cylinders are labeled with the refrigerant name, and the coating color of the cylinder protector is pink, which is the color stipulated by ARI of the U.S.

• Cylinders equipped with a siphon tube are available to allow the cylinder to stand upright for liquid refrigerant charging.

10. Charging orifice and packing for refrigerant cylinders

• The charging orifice must match the size of the charging hose fitting (1/2 UNF, 20 threads).

• The packing must also be made of an HFC-resistant material.

Fig. 8 Refrigerant cylinders

Fig. 9 Charging orifice and packing

11.2.3. R410A Tools Which Are Usable for R22 Models

Table 9 R410A tools which are usable for R22 models

R410A tools Usable for R22 models (1) Copper tube gauge for clearance adjustment OK (2) Flaring tool (clutch type) OK (3) Manifold gauge NG (4) Charging hose NG (5) Vacuum pump adaptor OK (6) Electric gas leak detector for HFC refrigerant NG (7) Electronic scale for refrigerant charging OK (8) Refrigerant cylinder NG (9) Charging orifice and packing for refrigerant cylinder NG

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

11.3. Refrigerant Piping Work

11.3.1. Piping Materials

It is recommended that you use copper and copper alloy jointless pipes with a maximum oil adherence of 40 mg/10m. Do not use pipes that are crushed, deformed, or discolored (especially the inside surface). If these inferior pipes are used, impurities may clog the expansion valves or capillaries. Because the pressure of ACs using R410A is higher than those using R22, it is essential that you select materials that are appropriate for these standards. The thickness of the copper tubing used for R410A is shown in Table 10. Please be aware that tubing with a thickness of only 0.7 mm is also available on the market, but this should never be used.

Soft pipe Thickness (mm)

Nominal diameter Outside diameter (mm) R410A (Reference) R22

1/4 6.35 0.80 0.80 3/8 9.52 0.80 0.80 1/2 12.7 0.80 0.80

11.3.2. Processing and Connecting Piping Materials

When working with refrigerant piping, the following points must be carefully observed: no moisture od dust must be allowed to enter the piping, and there must be no refrigerant leaks.

1. Procedure and precautions for flaring work

a. Cut the pipe

Use a pipe cutter, and cut slowly so the pipe will not be deformed.

b. Remove burrs and clean shavings from the cut surface

If the shape of the pipe end is poor after removing burrs, or if shavings adhere to the flared area, it may lead to refrigerant leaks. To prevent this, turn the cut surface downward and remove burrs, then clean the surface, carefully.

c. Insert the flare nut (be sure to use the same nut that is

used on the AC unit)

d. Flaring

Check the clamp bar and the cleanliness of the copper pipe. Be sure to use the clamp bar to do the flaring with accuracy. Use either an R410A flaring tool, or a conventional flaring tool. flaring tools come in different sizes, so be sure to check the size before using. When using a conventional flaring tool, use the copper pipe gauge for clearance adjustment, etc., to ensure the correct A dimension (see Fig. 10)

Table 10 Copper tube thickness (mm)

Fig. 10 Flaring dimensions

Fig. 11 Relation between the flare nut structure and flaring tool end

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Nominal

diameter

1/4 6.35 0.8 0 - 0.5 1.0 - 1.5 1.5 - 2.0 3/8 9.52 0.8 0 - 0.5 1.0 - 1.5 1.5 - 2.0 1/2 12.70 0.8 0 - 0.5 1.0 - 1.5 2.0 - 2.5

Nominal

diameter

1/4 6.35 0.8 0 - 0.5 0.5 - 1.0 1.0 - 1.5 3/8 9.52 0.8 0 - 0.5 0.5 - 1.0 1.0 - 1.5 1/2 12.70 0.8 0 - 0.5 0.5 - 1.0 1.5 - 2.0

Nominal

diameter

1/4 6.35 0.8 9.1 9.2 6.5 13 17 3/8 9.52 0.8 13.2 13.5 9.7 20 22 1/2 12.70 0.8 16.6 16.0 12.9 23 26

Nominal

diameter

1/4 6.35 0.8 9.0 9.2 6.5 13 17 3/8 9.52 0.8 13.0 13.5 9.7 20 22 1/2 12.70 0.8 16.2 16.0 12.9 20 24

Outside

diameter

(mm)

Outside

diameter

(mm)

Outside

diameter (mm)

Outside

diameter (mm)

Table 13 R410A flare and flare nut dimensions Unit: mm

Wall thickness

(mm)

Table 14 R22 flare and flare nut dimensions Unit: mm

Wall thickness

(mm)

Table 11 R410A flaring dimensions

Wall thickness

(mm)

Table 12 R22 flaring dimensions

Wall thickness

(mm)

A +0, -0.4 B

R410A flaring

tool, clutch type

R410A flaring

tool, clutch type

dimension

A (mm)

Conventional flaring tool

Clutch type Wing-nut type

A (mm)

Conventional flaring tool

Clutch type Wing-nut type

dimension

Flare nut

width

Flare nut

width

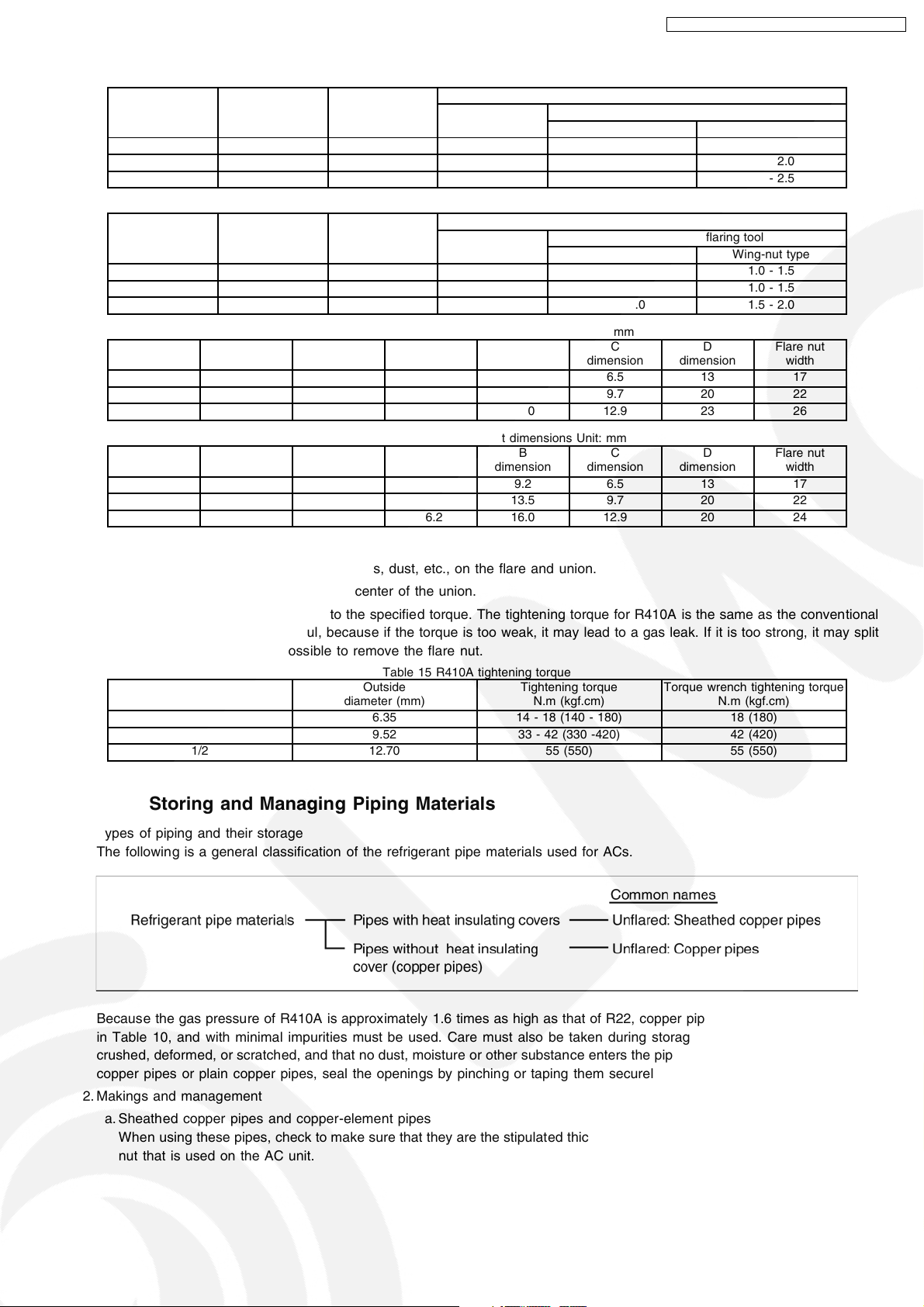

2. Procedure and precautions for flare connection

a. Check to make sure there is no scratches, dust, etc., on the flare and union.

b. Align the flared surface with the axial center of the union.

c. Use a torque wrench, and tighten to the specified torque. The tightening torque for R410A is the same as the conventional

torque value for R22. Be careful, because if the torque is too weak, it may lead to a gas leak. If it is too strong, it may split the flare nut or make it impossible to remove the flare nut.

Nominal

diameter

1/4 6.35 14 - 18 (140 - 180) 18 (180) 3/8 9.52 33 - 42 (330 -420) 42 (420) 1/2 12.70 55 (550) 55 (550)

Table 15 R410A tightening torque

Outside

diameter (mm)

Tightening torque

N.m (kgf.cm)

Torque wrench tightening torque

N.m (kgf.cm)

11.3.3. Storing and Managing Piping Materials

1. Types of piping and their storage The following is a general classification of the refrigerant pipe materials used for ACs.

Because the gas pressure of R410A is approximately 1.6 times as high as that of R22, copper pipes with the thickness shown in Table 10, and with minimal impurities must be used. Care must also be taken during storage to ensure that pipes are not crushed, deformed, or scratched, and that no dust, moisture or other substance enters the pipe interior. When storing sheathed copper pipes or plain copper pipes, seal the openings by pinching or taping them securely.

2. Makings and management

a. Sheathed copper pipes and copper-element pipes

When using these pipes, check to make sure that they are the stipulated thickness. For flare nuts, be sure to used the same nut that is used on the AC unit.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

b. Copper pipes

Use only copper pipes with the thickness given in table 10, and with minimal impurities. Becaus e the surface of the pipe is exposed, you should take special care, and also take measures such as marking the pipes to make sure they are easily distinguished from other piping materials, to prevent mistaken use.

3. Precautions during refrigerant piping work Take the following precautions on-site when connecting pipes. (Keep in mind that the need to control the entry of moisture and dust is even more important that in conventional piping).

a. Keep the open ends of all pipes sealed until connection with AC equipment is complete.

b. Take special care when doing piping work on rainy days. The entering of moisture will degrade the refrigerating machine oil,

and lead to malfunctions in the equipment.

c. Complete all pipe connections in as short a time as possible. If the pipe must be left standing for a long time after removing

the seal, it must be thoroughly purged with nitrogen, or dried with a vacuum pump.

11.4. Installation, Transferring, Servicing

11.4.1. Inspecting Gas Leaks with a Vacuum Pump for New Installations (Using New

Refrigerant Piping)

1. From the viewpoint of protecting the global environment, please do not release refrigerant into the atmosphere.

a. Connect the projecting side (pin-pushing side) of the charging hose for the manifold gauge to the service port of the 3-way

valve. (1)

b. Fully open the handle Lo of the manifold gauge and run the vacuum pump. (2) (If the needle of the low-pressure gauge

instantly reaches vacuum, re-check step a).)

c. Continue the vacuum process for at least 15 minutes, then check to make sure the low-pressure gauge has reached -0.1

MPa (-76 cmHg). Once the vacuum process has finished, fully close the handle Lo of the manifold gauge and stop the vacuum pump operation, then remove the charging hose that is connected to the vacuum pump adaptor. (Leave the unit in that conditio n for 1-2 minutes, and make sure that the needle of the manifold gauge does not return.) (2) and (3)

d. Turn the valve stem of the 2-way valve 90° counter-clockwise to open it, then, after 10 seconds, close it and inspect for a

gas leak (4)

e. Remove the charging hose from the 3-way valve service port, then open both the 2-way valve and 3-way valve. (1) (4) (Turn

the valve stem in the counter-clockwise direction until it gently makes contact. Do not turn it forcefully).

f. Tighten the service port cap with a torque wrench (18 N.m (1.8 kgf.m)). (5) Then tighten the 2-way valve and 3-way valve

caps with a torque wrench (42 N.m (4.2 kgf.m)) or (55 N.m (5.5 kgf.m)). (6)

g. After attaching each of the caps, inspect for a gas leak around the cap area. (5) (6)

Precautions

• Be sure to read the instructions for the vacuum pump,

vacuum pump adaptor and manifold gauge prior to use, and follow the instructions carefully.

• Make sure that the vacuum pump is filled with oil up to

the designated line on the oil gauge.

• The gas pressure back flow prevention valve on the

charging hose is generally open during use. When you are removing the charging hose from the service port, it will come off more easily if you close this valve.

Fig. 12 Vacuum pump air purging configuration

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

11.4.2. Transferring (Using New Refrigerant Piping)

1. Removing the unit

a. Collecting the refrigerant into the outdoor unit by pumping down

The refrigerant can be collected into the outdoor unit (pumping down) by pressing the TEST RUN button, even when the temperature of the room is low.

• Check to make sure that the valve stems of the 2-way valve and 3-way valve have been opened by turning them counter- clockwise. (Remove the valve stem caps and check to see that the valve stems are fully opened position. Always use a hex wrench (with 4-mm opposing sides) to operate the valve stems.)

• Press the TEST RUN button on the indoor unit, and allow preliminary operation for 5-6 minutes. (TEST RUN mode)

• After stopping the operation, let the unit sit for about 3 minutes, then close the 2-way valve by turning the valve stem in

the clockwise direction.

• Press the TEST RUN button on the indoor unit again, and after 2-3 minutes of operation, turn the valve stem of the 3- way valve quickly in the clockwise direction to close it, then stop the operation.

• Tighten the caps of the 2-way valve and 3-way valve to the stipulated torque.

• Remove the connection pipes (liquid side and gas side).

b. Removing the indoor and outdoor units.

• Disconnect the pipes and connecting electric cables from between the indoor and outdoor units.

• Put capped flare nuts onto all of the pipe connections of the indoor and outdoor units, to make sure no dust or other

foreign matter enters.

• Remove the indoor and outdoor units.

2. Installing the unit Install the unit using new refrigerant piping. Follow the instructions in section 4.1 to evacuate the pipes connecting the indoor and outdoor units, and the pipes of the indoor unit, and check for gas leaks.

11.4.3. AC Units Replacement (Using Existing Refrigerant Piping)

When replacing an R410A AC unit with another R410A AC unit, you should re-flare the refrigerant piping. Even though the replacement AC unit uses the R410A, problems occur when, for example, either the AC unit maker or the refrigerating machine oil is differen t. When replacing an R22 AC unit with an R410A AC unit, the following checks and cleaning procedures are necessary but are difficult to do because of the chemical characteristics of the refrigerating machine oil (as described in items c) and d) of section

About R410A Refrigerant

1. Piping check Because of the different pressure characteristics of R22 and R410A , the design pressure for the equipment is 1.6 times different. the wall thickness of the piping must comply with that shown in Table 10, but this is not easy to check. Also, even if the thickness is correct, there may be flattened or bent portions midway through the piping due to sharp curves. Buried sections of the piping also cannot be checked.

2. Pipe cleaning A large quantity of refrigerating machine oil (mineral oil) adheres to existing pipes due to the refrigeration cycle circulation. If the pipes are used just as they are for the R410A cycle, the capacity will be lowered due to the incompatibility of this oil with the R410A, or irregularities may occur in the refrigeration cycle. For this reason, the piping must be thoroughly cleaned , but this is difficult with the present technology.

). In this case, you should use new refrigerant piping rather than the existing piping.

11.4.4. Refrigerant Compatibility (Using R410A Refrigerant in R22 ACs and Vice Versa)

Do not operate an existing R22 AC with the new R410A refrigerant. Doing so would result in improper functioning of the equipment or malfunction, and might lead to a major accident such as an explosion in the refrigeration cycle. Similarly, do not operate an R410A AC with R22 refrigerant. The chemical reaction between the refrigerating machine oil used in R410A ACs and the chlorine that is contained in R22 would cause the refrigerating machine oil to degrade and lead to malfunction.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

11.4.5. Recharging Refrigerant During Servicing

When recharging is necessary, insert the specified amount of new refrigerant in accordance with the following procedure.

1. Connect the charging hose to the service port of the outdoor unit.

2. Connect the charging hose to the vacuum pump adaptor. At this time, fully open the 2-way valve and 3-way valve.

3. Fully open the handle Lo of the manifold gauge, turn on the power of the vacuum pump and continue the vacuum process for at least one hour.

4. Confirm that the low pressure gauge shows a reading of -0.1 Mpa (-76 cmHg), then fully close the handle Lo, and turn off the vacuum pump. Wait for 1-2 minutes, then check to make sure that the needle of the Low pressure gauge has not returned. See Fig. 13 for the remaining steps of this procedure.

5. Set the refrigerant cylinder onto the electronic scale, then connect the hose the cylinder and to the connection port for the electronic scale. (1)(2)

Precaution:

Be sure to set up the cylinder for liquid charging. If you use a cylinder equipped with a siphon tube, you can charge the liquid without having to turn the cylinder around

6. Remove the charging hose of the manifold gauge from the vacuum pump adaptor, and connect it to the connection port of the electronic scale. (2)(3)

7. Open the valve of the refrigerant cylinder, then open the charging valve slightly and close it. Next, press the check valve of the manifold gauge and purge the air. (2)(4) (Watch the liquid refrigerant closely at this point.)

8. After adjusting the electronic scale to zero, open the charging valve, then open the valve Lo of the manifold gauge and charge with the liquid refrigerant. (2)(5) (Be sure to read the operating instructions for the electronic scale.)

9. If you cannot charge the stipulated amount, operate the unit in the cooling mode while charging a little of the liquid at a time (about 150 g/time as a guideline). If the charging amount is insufficient from one operation, wait about one minute, then use the same procedure to do the liquid charging again.

Precaution:

Never use the gas side to allow a larger amount of liquid refrigerant to be charged while operating the unit.

10. Close the chargin g valve, and after charging the liquid refrigerant inside the charging hose, fully close the valve Lo of the manifold gauge, and stop the operation of the unit. (2)(5)

11. Quickly remove the chargin g hose from the service port. (6) If you stop midway through, the refrigerant that is in the cycle will be discharged.

12. After putting on the caps for the service port and operating valve, inspect around the caps for a gas leak. (6)(7)

Fig. 13 Re-charging refrigerant

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

11.4.6. Brazing

As brazing requires sophisticated techniques and experiences, it must be performed by a qualifie d person. In order to prevent the oxide film from occurring in the pipe interior during brazing, it is effective to proceed with brazing while letting dry nitrogen gas (N

1. Attach a reducing valve to the nitrogen gas cylinder.

2. Apply a seal onto the clearance between the piping and inserted pipe for the nitrogen gas in order to prevent the nitrogen gas from flowing backward.

3. When the nitrogen gas is flowing, be sure to keep the piping end open.

4. Adjust the flow rate of nitrogen gas so that it is lower than 0.05 m

5. After taking the steps above, keep the nitrogen gas flowing until the piping cools down to a certain extent (i.e. temperature at which pipes are touchable with finger).

6. Completely remove the flux after brazing.

) flow.

/h, or 0.02 MPa (0.2 kgf/cm2) by means of the reducing valve.

Fig. 14 Prevention of Oxidation during Brazing

Cautions during brazing

1. General Cautions

a. The brazing strength should be high as required.

b. After operation, airtightness should be kept under pressurized condition.

c. During brazing do not allow component materials to become damaged due to overheating.

d. The refrigerant pipe work should not become blocked with scale or flux.

e. The brazed part should not restrict the flow in the refrigerant circuit.

f. No corrosion should occur from the brazed part.

2. Prevention of Overheating

Due to heating, the interior and exterior surfaces of treated metal may oxidize. Especially, when the interior of the refrigerant circuit oxidizes due to overheating, scale occurs and stays in the circuit as dust, thus exerting a fatally adverse effect. So, make brazing at adequate brazing temperature and with minimum of heating area.

3. Overheating Protection

In order to prevent components near the brazed part from overheating damage or quality deterioration due to flame or heat, take adequate steps for protection such as (1) by shieldin g with a metal plate, (2) by using a wet cloth, and (3) by means of heat absorbent.

4. Movement during Brazing

Eliminate all vibration during brazing to protect brazed joints from cracking and breakage.

5. Oxidation Preventative

In order to improve the brazing efficiency, various types of antioxidant are available on the market. However, the constituents of these are widely varied, and some are anticipated to corrode the piping materials, or adversely affect HFC refrigerant, lubricating oil, etc. Exercise care when using an oxidation preventive.

11.4.7. Servicing Tips

The drier must also be replaced whenever replacing the refrigerant cycle parts. Replacing the refrigerant cycle parts first before replacing the drier. The drier is supplied in a vacuum pack. Perform brazing immediately after opening the vacuum pack, and then start the vacuum within two hours. In addition, the drier also needs to be replaced when the refrigerant has leaked completely. (Applicable for drier models only)

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

12 Servicing Information

Caution:

• Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F(30-40°C) higher. Please use a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C).

• Pb free solder will tend to splash when heated too high (about 1100° F/600°C).

12.1. Troubleshooting

Rated Frequency Operation

During troubleshooting and servicing, rated compressor operating frequency must be obtained in order to check the specification and technical data. Below are the methods used to obtain rated compressor operating specification.

(a) Cooling

(i) Press the Auto button continuously for 5 seconds or less than 8 seconds, the air conditioner starts operation at Cooling rated frequency.

(“beep” will be heard at the 5th second.)

(ii) Short the service terminal (CN-S) of the outdoor printed circuit board. The operation of air conditioner is Cooling rated frequency.

(b) Heating

Press the Auto button continuously for 8 seconds or less than 11 seconds, the air conditioner starts operation at Heating rated frequency. (“beep”“beep” will be heard at the 8th second.)

Troubleshooting Air Conditioner

Refrigeration cycle system

In order to diagnose malfunctions, make sure that there are no electrical problems before inspecting the refrigeration cycle. Such problems include insufficient insulation, problem with the power source, malfunction of a compressor and a fan.

The normal outlet air temperature and pressure of the refrigeration cycle depend s on various conditions, the standard values for them are shown in the table to the right.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

1. Relationship between the condition of the air conditioner and pressure and electric current

Cooling Mode Heating Mode

Condition of the air

conditoner Low Pressure High Pressure Electric current

during operation

Insufficient refrigerant (gas leakage)

Clogged capillary tube or Strainer

Short circuit in the indoor unit

Heat radiation deficiency of the outdoor unit

Low Pressure High Pressure Electric current

during operation

Inefficient compression

•

Carry on the measurements of pressure, electric current, and temperature fifteen minutes after an operation is started.

12.2. Breakdown Self Diagnosis Function

Once abnormality detected during operation, the unit will immediately stop its operation (Timer LED is blinking) and maximum of three error codes (abnormality) will be saved in memory. The abnormality of the operation can be identified through the below breakdown diagnosis method:

•

Press “CHECK” button at remote controller continuously for more than five seconds to turn on the diagnosis mode, “H11” will be display ed at remote controller.

•

By pressing the TMER “ displayed.

•

If error code displayed matches the error code saved in unit memory (abnormality detected), “beep, beep, beep....” sounds will

be heard for 4 seconds and Power LED will light on. Otherwise, one “beep” sound is heard.

If “CHECK” button is press again or without any operation for 30 seconds, the diagnosis mode will turn off.

” button once, next error code will be display ed; press “V” button once, previous error code will be

Error Codes Table

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Diagnosis

display

H11 Indoor / outdoor abnormal

H12 Connection capability rank abnormal — — — H14 Indoor intake air temperature sensor

H15 Outdoor compressor temperature sensor

H16 Outdoor Current Transformer open

H19 Indoor fan motor merchanism lock — —

H23 Indoor heat exchanger temperature

H26 Ionizer breakdown — — H27 Outdoor air temperature sensor

H28 Outdoor heat exchanger temperature

H33 Indoor/Outdoor wrong connection — — H38 Indoor / outdoor mismatch (brand code) — — — H98 Indoor high pressure protection — —

H99 Indoor heat exchanger anti-freezing

F11 Cooling / Heating cycle changeover

F90 PFC control 4 times occurance

F91 Refrigeration cycle abnormality 2 times occurance

F93 Compressor rotation failure — — F95 Cool high pressure protection 4 times occurance

F96 IPM (power transistor) overheating

F97 Outdoor compressor overheating

F98 Total running current protection 3 times occurance

F99 Outdoor Direct Current (DC) peak

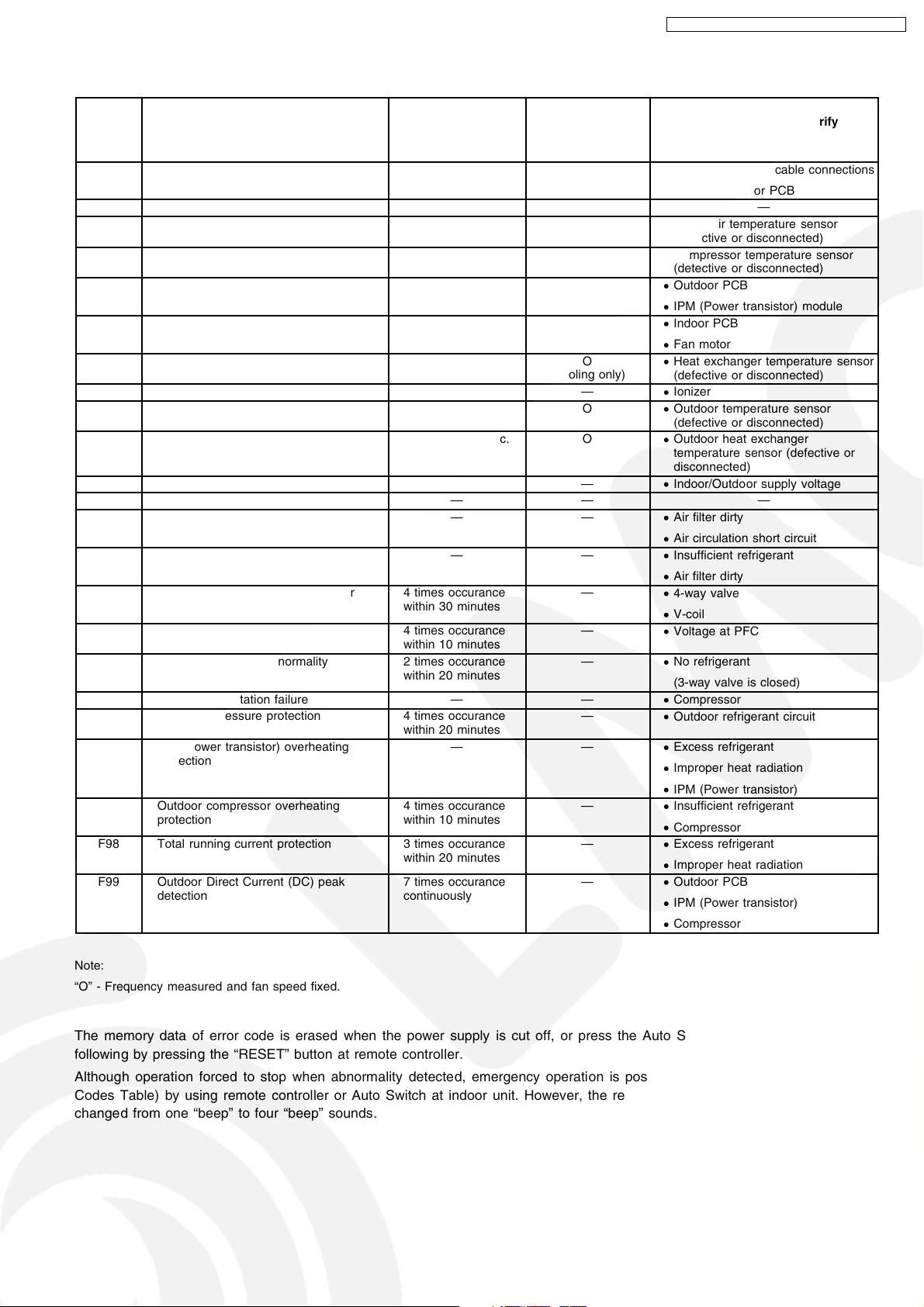

Abnormality / Protection control Abnormality

communication

abnormality

circuit

sensor abnormality

abnormality

sensor abnormality

protection

abnormality

protection

detection

Judgement

> 1 min after starting operation

Continue for 5 sec. —

— —

Continue for 5 sec. O

— —

4 times occurance within 30 minutes

within 10 minutes

within 20 minutes

— —

4 times occurance within 10 minutes

within 20 minutes

7 times occurance continuously

Emergency

operation

Indoor fan operation

only

(Cooling only)

—

Primary location to verify

• Internal / external cable connections

• Indoor / Outdoor PCB

• Intake air temperature sensor

(detective or disconnected)

• Compressor temperature sensor (detective or disconnected)

• Outdoor PCB

• IPM (Power transistor) module

• Indoor PCB

• Fan motor

• Heat exchanger temperature sensor

(defective or disconnected)

• Ionizer

• Outdoor temperature sensor

(defective or disconnected)

• Outdoor heat exchanger temperature sensor (defective or disconnected)

• Indoor/Outdoor supply voltage

• Air filter dirty

• Air circulation short circuit

• Insufficient refrigerant

• Air filter dirty

• 4-way valve

• V-coil

• Voltage at PFC

• No refrigerant

(3-way valve is closed)

• Compressor

• Outdoor refrigerant circuit

• Excess refrigerant

• Improper heat radiation

• IPM (Power transistor)

• Insufficient refrigerant

• Compressor

• Excess refrigerant

• Improper heat radiation

• Outdoor PCB

• IPM (Power transistor)

• Compressor

Note:

“O” - Frequency measured and fan speed fixed.

The memory data of error code is erased when the power supply is cut off, or press the Auto Switch until “beep” sound heard following by pressing the “RESET” button at remote controller.

Although operation forced to stop when abnormality detected, emergency operation is possible for certain errors (refer to Error Codes Table) by using remote controller or Auto Switch at indoor unit. However, the remote controller signal receiving sound is changed from one “beep” to four “beep” sounds.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

12.3. Remote Control

Remote Control Reset

•

When the batteries are inserted for the first time, or the batteries are replaced, all the indications will blink and the remote control might not work.

If this happen, remove the cover of the remote control and push the reset point once to clear the memory data.

Changing the wireless remote control transmission

•

code

When there are more than one indoor units installed in the same room, it is possible to set different remote control receiving signal by modifying the jumpers inside remote controller.

12.4. Disassembly of Parts

a. Indoor Control Board Removal Procedures

1. Remove the Front Grille

Fig. 1

2. Remove the Indoor Control Board

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Fig. 2

Fig. 3

Fig. 4

Fig. 5

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

b. Electronic Controller Removal Procedures

1. Remove Main Electronic Controller

Fig. 6

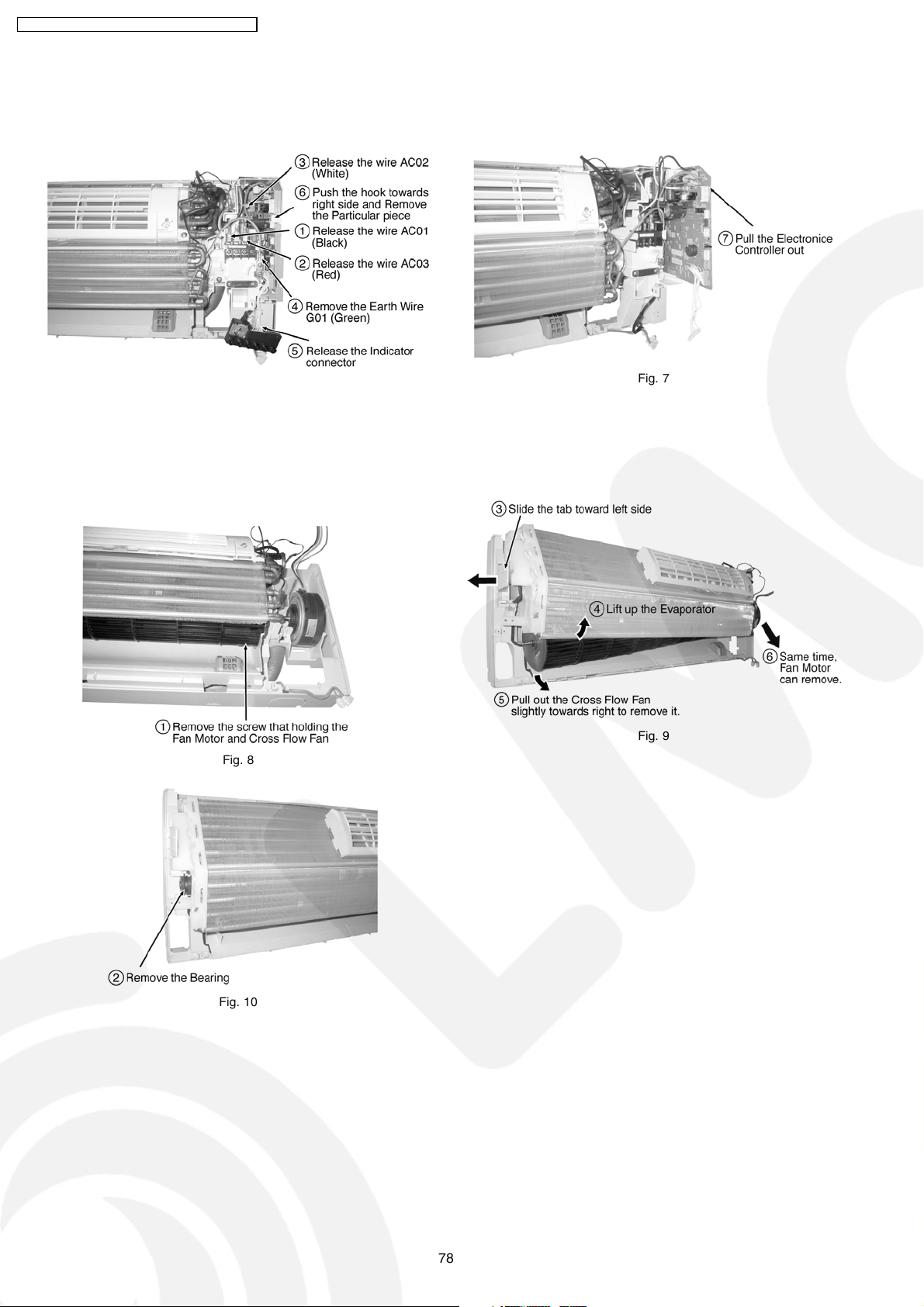

c. Cross Flow Fan and Fan Motor Removal Procedures

1. Remove Cross Flow Fan and Fan Motor

Fig. 8

Fig. 7

Fig. 9

Fig. 10

d. Outdoor Electronic Controller Removal Procedure

1. Remove the top panel and front panel

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Be save to return the wiring to its original position

•

There are many high voltage components within the heat

•

sink cover so never touch the interior during operation. Wait at least two minutes after power has been turned off.

Fig. 11

2. Remove the Outdoor Electronic Controller

Fig. 13

Caution! When handling electronic controller, be careful of electrostatic discharge.

Fig. 12

Fig.15

Fig. 14

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

13 Technical Data

13.1. Operation Characteristics

13.1.1. CS-E9DKEW CU-E9DKE

13.1.2. CS-E12DKEW CU-E12DKE

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

13.2. Sensible Capacity Chart

CS-E9DKEW CU-E9DKE

●

230V Outdoor Temp. (°C)

Indoor wet bulb temp.

17.0°C 2.58 1.96 0.55 2.41 1.88 0.59 2.24 1.80 0.63 2.04 1.71 0.68

19.0°C 2.60 0.60

19.5°C 2.83 2.05 0.56 2.65 1.97 0.60 2.46 1.89 0.64 2.24 1.80 0.69

22.0°C 3.09 2.12 0.57 2.88 2.04 0.61 2.68 1.97 0.66 2.44 1.88 0.71

CS-E12DKEW CU-E12DKE

●

230V Outdoor Temp. (°C)

Indoor wet bulb temp.

17.0°C 3.47 2.63 0.88 3.24 2.52 0.95 3.02 2.43 1.02 2.74 2.30 1.10

19.0°C 3.50 0.97

19.5°C 3.81 2.76 0.90 3.56 2.65 0.97 3.31 2.55 1.04 3.01 2.43 1.12

22.0°C 4.15 2.86 0.92 3.88 2.75 0.99 3.61 2.65 1.05 3.28 2.53 1.14

TC SHC IP TC SHC IP TC SHC IP TC SHC IP

30 35 40 46

14 Exploded View (Indoor Unit)

14.1. CS-E9DKEW CS-E12DKEW

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

15 Replacement Parts List (Indoor Unit)

15.1. CS-E9DKEW CS-E12DKEW

REF. NO. PART NAME & DESCRIPTION QTY. CS-E9DKEW CS-E12DKEW REMARKS

1 CHASSY COMPLETE 1 CWD50C1431

2 FAN MOTOR 1 CWA981149

3 CROSS FLOW FAN COMPLETE 1 CWH02C1031

4 BEARING ASS’Y 1 CWH64K007

5 SCREW - CROSS FLOW FAN 1 CWH4580304

6 EVAPORATOR 1 CWB30C1597 CWB30C1726

7 FLARE NUT 1 CWT25086 (1/4”)

8 FLARE NUT 1 CWT25087 (3/8”) CWT25096 (1/2”)

9 HOLDER SENSOR 1 CWH32143

10 DISCHARGE GRILLE COMPLETE 1 CWE20C2343

11 VERTICAL VANE 9 CWE241150

12 CONNECTING BAR 1 CWE261072

13 CONNECTING BAR 1 CWE261065

14 AIR SWING MOTOR 2 CWA98260

15 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3849

16 CAP - DRAIN TRAY 1 CWH521096

17 HORIZONTAL VANE 1 CWE241173

18 BACK COVER CHASSIS 1 CWD932454

19 CONTROL BOARD CASING 1 CWH102259

20 TERMINAL BOARD COMPLETE 1 CWA28C2082

21 POWER SUPPLY CORD 1 - -

22 ELECTRONIC CONTROLLER - MAIN 1 CWA73C1667 CWA73C1668 0

23 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3977

24 SENSOR COMPLETE 1 CWA50C2122

25 CONTROL BOARD FRONT COVER 1 CWH13C1120

26 INDICATOR COMPLETE 1 CWE39C1126

27 INDICATOR HOLDER 1 CWD932429

28 INDICATOR HOLDER 1 CWD932430

29 CONTROL BOARD TOP COVER 1 CWH131207

30 REMOTE CONTROL COMPLETE 1 CWA75C2616

31 FRONT GRILLE COMPLETE 1 CWE11C3138

32 INTAKE GRILLE 1 CWE22C1154

33 GRILLE DOOR 1 CWE141073

34 AIR FILTER 2 CWD001144

35 SCREW - FRONT GRILLE 2 XTT4+16C

36 CAP - FRONT GRILLE 2 CWH521109

37 DRAIN HOSE 1 CWH851063

38 INSTALLATION PLATE 1 CWH361067

39 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C067

40 FULCRUM 1 CWH621046

41 ELECTRONIC CONTROLLER - IONIZER 1 CWA743675

42 CASING - IONIZER 1 CWD932464

43 CASING - IONIZER 1 CWD932431

44 ION GENERATOR 1 CWH94C0001

45 SUPERSONIC AIR PURIFYING DEVICE 1 CWH91C1013

46 ELECTRONIC CONTROLLER SUPERSONIC 1 CWA743874

47 SUPER ALLERU BUSTER FILTER 1 CWD00C1133

48 FRAME FR AIR FILTER SUPERSONIC 1 CWD011026

49 FRAME FR AIR FILTER SUPERSONIC 1 CWD011027

←

(Note)

All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

•

“O” marked parts are recommended to be kept in stock.

•

16 Exploded View (Outdoor Unit)

16.1. CU-E9DKE CU-E12DKE

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

17 Replacement Parts List (Outdoor Unit)

17.1. CU-E9DKE CU-E12DKE

REF NO. DESCRIPTION & NAME QTY. CU-E9DKE CU-E12DKE REMARKS

1 CHASSY ASSY 1 CWD50K2073

2 ANTI-VIBRATION BUSHING 3 CWH50077

3 COMPRESSOR 1 5RS102XBC01

4 NUT-COMPRESSOR MOUNT 3 CWH56000

5 SOUND PROOF MATERIAL 1 CWG302293

6 FAN MOTOR BRACKET 1 CWD541030

7 FAN MOTOR 1 CWA951418 CWA951309 O

8 SCREW - FAN MOTOR BRACKET 2 CWH551060

9 SCREW - FAN MOTOR MOUNT 4 CWH55406

10 PROPELLER FAN ASSY 1 CWH03K1006

11 NUT - PROPELLER FAN 1 CWH56053

12 CONDENSER 1 CWB32C1560 CWB32C1599

13 TUBE ASS’Y CO (CAP./CHK VALVE) 1 CWT01C3257 CWT01C3258

14 HOLDER-COUPLING COMPLETE 1 CWH351023

15 3 WAYS VALVE 1 CWB011296 CWB011297 O

16 4 WAYS VALVE 1 CWB001037

17 SOUND PROOF MATERIAL 1 CWG302292

18 2 WAYS VALVE 1 CWB021255

19 DRYER 1 CWB101017

20 V-COIL COMPLETE 1 CWA43C2143

21 REACTOR 1 CWA421050 -

22 SENSOR COMPLETE 1 CWA50C2196

23 CONTROL BOARD CASING 1 CWH102273

24 TERMINAL BOARD ASSY 1 CWA28K1110

25 FUSE HOLDERS 1 K5D203BBA002

26 CONTROL BOARD 1 CWH102114

27 CONTROL BOARD 1 CWH102115

28 ELECTRONIC CONTROLLER 1 CWA73C1672R CWA73C1673R O

29 CONTROL BOARD COVER 1 CWH131104

30 SENSOR COMPLETE 1 CWA50C2066

31 HOLDER SENSOR 1 CWH321010

32 TERMINAL COVER 1 CWH171001

33 NUT-TERMINAL COVER 1 CWH7080300

34 CABINET SIDE PLATE CO. 1 CWE04C1011

35 CABINET SIDE PLATE (LEFT) 1 CWE041031A

36 HANDLE 1 CWE161010

37 WIRE NET 1 CWD041054A

38 CABINET FRONT PLATE CO. 1 CWE06C1039

39 CABINET TOP PLATE 1 CWE031014A

40 CONTROL BOARD COVER 1 CWH131110

41 CONTROL BOARD COVER 1 CWH131093

42 OPERATING INSTRUCTION (ENG., ESP., ITA., NED.,

POR., GRE., BUL.)

43 INSTALLATION INSTRUCTION (ENG., ESP., FRA., DEU.) 1 CWF612674

44 L-TUBE 1 CWH5850080

45 INSTALLATION INSTRUCTION (NED., GRE., ITA., POR.) 1 CWF612675

46 INSTALLATION INSTRUCTION (BUL.) 1 CWF612676

47 OPERATING INSTRUCTION (FRA., DEU., SWE., NOR.) 1 CWF564445

48 PACKING-L.TUBE 1 CWB81012

49 SOUND PROOF BOARD 1 CWH151025

1 CWF564451

←

(Note)

All parts are supplied from PHAAM Malaysia (Vendor Code: 061).

•

“O” marked parts are recommended to be kept in stock.

•

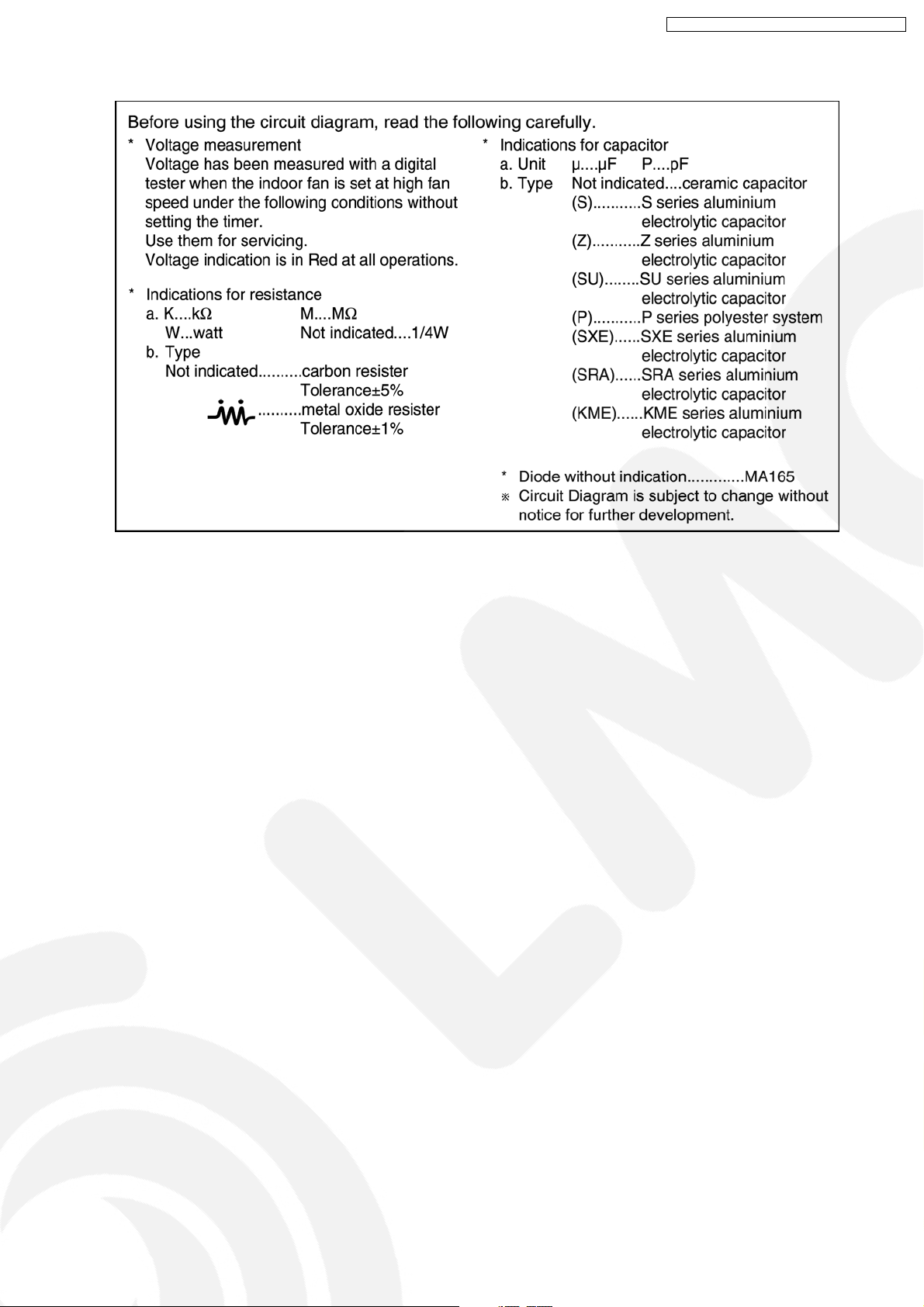

18 Electronic Circuit Diagram

18.1. Indoor Unit

• CS-E9DKEW CS-E12DKEW

SCHEMATIC DIAGRAM 1/4

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

DISPLAY COMPLETE

IC401

VOUT

VCC

RECEIVER

GND

D402 TIMER/AIR SW (ORG)

D401 POWER (GRN)

D403 POWERFUL (ORG)

D404 QUIET (ORG)

D406 SUPERSONIC (BLU)

D405 ION (GRN)

TERMINAL

R401

47Ω

C401

47µ

6.3V

TEMPERATURE

FUSE

JP402

FAN

MOTOR

HAJEM-A

CN-DISP

AC01 (BLK)

AC03 (RED)

GD1 (GRN)

AC02 (WHT)

CN-FM

CN-DISP

FUSE

T3.15A L250V

C27

4700P

250VAC

C26

4700P

250VAC

C38

2200P

250VAC

R38 82kΩ 1/4W

R20

10kΩ

R19

10kΩ

C04

1000P

PC04

R21 1kΩ

R48 220Ω

R51 220Ω

R16 5.1kΩ

R50 220Ω

R49 220Ω

R66 3.3kΩ

R42 220Ω

C12

0.01µ

82kΩ 1/4W

R40

R61

R68

R13

20kΩ

R12 1kΩ

C29 68µ

450V

C40

C36

C35

C07

0.01µ

C08

0.01µ

R36

10kΩ

R15 1kΩ

DB01

R47

7.5k

R138

7.5Ω

ZNR01 ERZVEAV511

D04

100µ

ZD01

LF01

C23

C22

0.22µ

R59

6.8kΩ 2W

R114

6.80Ω

R116 20kΩ

R115 10kΩ

R117 47kΩ

Q03

2SD2531

C32

25V

C28 10µ 50V

ZD04

ZD03

10kΩ

R52

R118

5.6kΩ

R60

6.2kΩ 2W

R57

6.2kΩ 1/4W

R69

6.2kΩ 1/4W

R55

5.62kΩ 1%

PC01

PC02

4.75k 1%

2SD2531

R53

Q05

C24

R58

6.2kΩ 1/4W

R70

6.2kΩ 1/4W

R25

330kΩ

R24

1.21kΩ

C03

1000P

T01

R62 22M

1/2W

R56 22M 1/2W

ZD02

ZD05

PC05

PC06

C25

Q04

10k

4.7k

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

SCHEMATIC DIAGRAM 2/4

DB03

R113

160Ω 1/4W

3300µ

R46

22kΩ

C31

35V

REGULATOR

R71

22kΩ

R44 10kΩ

C18

1µ

16V

IC08

12V

R34

R35

10kΩ

DB02

C30

C30 470µ

470µ 63V

63V

C33

470µ

25V

SCK

IC09

REGULATOR

RST

BUSY

BR9080F

IC03

10kΩ

JP8

C34 100µ 16V

R33

R112

1kΩ

SCHEMATIC DIAGRAM 3/4

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

H2B40040022

(47pFx2) 4MHz

Q07

C01

0.1µ 25V

C17

2.2µ 50V

DTC114EK

IC04

C0EBH00C0282

REGULATOR

P16

TU6

RXD

TXD

SCK

RESET

VDD

VSS

IC(VPP)

P90

P91

P92

P93

P94

P95

P40

RTP07

RTP06

RTP05

RTP04

C16

0.01µ

C39

RTP03

RTP02

C02

0.047µ 25V

R41

10kΩ

R31 1kΩ

R54

10kΩ

727374757677787980

P07

VSS

INTP5

INTP4

IC01

A52D4956G133

INTP3

R03

5.1kΩ

R32

100kΩ

C20

0.01µ

JP1

JP2

R37

150kΩ

JP3

JP4

X01

INTP2

R05 1kΩ

INTP1

R27 1kΩ

INTP0

NMT

10kΩ

R67

R04

10kΩ

AVRFF

R18 1kΩ

R43

F-TEST

JP7

S-TEST

JP5

R26

P77

ANI6

ANI5

AVSS

ANI4

ANI3

ANI2

ANI1

ANI0

AVDD

VDD

VSS

JP6

P37

P36

P35

P34

P33

P32

TUI

P67

P66

P65

P64

R65 10kΩ

R64 10kΩ

10kΩ

C19

1µ

10V

R63

10kΩ

R22

15kΩ

IC06

TD62003AF

C37

0.01µ

C05

1µ

10V

IC05 TD62003AF

C09

R23

1µ

20kΩ

10V

R11

100Ω

R17

BZ01

1kΩ

C15

0.01µ

C14

0.01µ

P41

P42

P43

P44

21 22 23 24 25 26 27 28 29

C13

1µ

R45

10kΩ

P45

P46

P47

P50

P51

P52

P53

P54

VSS

P55

P56

P57

P60

P61

P62

P63

37643863396240

3467356636

326933

R01

R02

10kΩ

R28 1kΩ

R30

6.2kΩ

R09

10kΩ

C09

1µ

10kΩ

R29

Q02

22k

Q01

R39

6.2kΩ

C10

0.01µ

D01

C11

0.01µ

R08

Q06

22k

R07

R06

0Ω

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

SCHEMATIC DIAGRAM 4/4

SW01

CN-TH

CN-SONIC

CN-SONIC1

CN-STM2

CN-STM1

PIPE TEMP. SENSOR 1 (20k 3950)

AIR TEMP. SENSOR (15k 3950)

AIR CLEANER COMPLETE

R602

5.1k

R601

HORIZONTAL

VERTICAL

IC601

X601

C601

0.1µ

R603

CN-ION

HIGH VOLTAGE IONIZER

CH1

VIN

GND

ERR

C2 C1

R102

CN2

-4.2kV

CN3 GND

R101

D101

C3 R4

Z01

4.7k

R13

10k

R14

R15

Z02

R10

D102

C101

R12

18.2. Outdoor Unit

AC-WHT

AC-BLK

ZNR3 ERZV10D102

ZNR4 ERZVEAV511

ZNR6 ERZVEAV511

TERMINAL

POWER SUPPLY

DATA

ERA15-06

PC1

TLP421

(BL)

PC2

TLP421(GR)

RED

R98 330k

R178

510k

1/4W

R180

510k

1/4W

ZD1

ZD3

1.21k 1%

ERA15-10

13k 2W

GD1

GRN

ZNR1

ERZVEAV511

ZNR2

ERZVEAV511

FM2 FM3

LF1

C54

1.0

250VAC

C73

1.0µ

250VAC

C55

1.0

250VAC

220

10V

RY-PWR

FUSE1

1.15A 125V

ZNR5 510V

PTC2

PTC1

C-FM

CR1

RY-L0

R5 20k

CT1D1

REACTOR

GRY2GRY1

R11

1.65k 1%

R12

825Ω

100k

10k

R10

1000P

2SC3852

5.6k

R6 20k 1%

47k

Q1 RT1N432C

10k

4.7k

680Ω

R172 100k 1/4W

R173 100k

R174 100k

LJP007LJP001

LJP002

LJP008

RY-C

R48 10k

R50 47Ω

Q10 2SC3441

Q15

2SA1366

R27

R45 10Ω

R49

C22

1500p

PC3

TLP421

PC4

TLP421

554

R400

37.4k 1

C413 1000p (JC)

C402

0.01µ

D401

C404

0.01µ

AN1393S

C412 1000p

D400

R403

51.1k 1

R406

7.87k 1

R404

49.9k 1

R408

2.74k 1

R407 15k 1

R402

1.8k

R401 374k 1

Q402

Q401

10k

4.7k

10k

4.7k 11 11

12 12

88 99

R405 100Ω

IC401

IC402

R409

1.8k

R411

10k

Q403

A55C2411KRTX

C414 1000p

R416

82.5k 1

R413

5.0k 1

R412

3.74k 1

R415

3.74k 1

R414

3.74k 1

C407 0.01µ

R410 100Ω

332

1414

RY-C

D14 ERA15-01

ZD5 RD10EB2

1 1

776

R51

470Ω

C63 4700pF 250VAC

C62 4700pF 250VAC

DB2

DB1

Q8 IMRH50-60

C86 2200p 250VAC

FAN MOTOR

RY-AC1

FM1

22µ

100V

R69 33Ω

1/4W

R13

65µ

350V

C1 720µ 400V

C2 720µ 400V

JP2

JP3

JP4

R52

10k

ZD2

RD36EB1

ZD9

RD36EB1

4.7k

10k

Q13

• CU-E9DKE CU-E12DKE

SCHEMATIC DIAGRAM 1/3

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

SCHEMATIC DIAGRAM 2/3

R71 464k 1/4W

R70 464k 1/4W

R131 107k 1/4W

R136

39k

1/4W

R148

39k

1/4W

R79

C82

0.047 25V

C85

0.047 25V

C83

0.047 25V

C84

0.047 25V

R104

R15

15.0k 1%

C8 1

10V

R16

4.99k 1%

CN-TANK

TANK TEMP.

SENSOR

(50k, 3950)

R93 464k

R81

R77

R138

7.5Ω

39k

15.0k

DB3

RB500V-4B

R14

OUTDOOR

SENSOR

(50k, 3950)

FUSE2

1.15A

L250V

D13

C56 56µ

450V

D15

R135

R134

39k

1/4W

R133

R146

39k

1/4W

PC5

TLP620

R101

Q4 2SD1950VL

R20 110k

C13

IC2

XC61CN4602MR

R23 10k

R103

C10

10V

TEMP.

C57

0.22 630V

ZD6

MAZ4047

CN-JP2

R105

C78

0.047

25V

C26

270p

C12

0.01

R22

30k

C15

2.2

R25

R24

10k

BR9016AF

CN-TH

PIPE TEMP. SENSOR (4.96k, 3800)

C59

220P

2kV

C107

M28400460024

IC3

C7 1

10V

AM01Z

IC10

STR-V152

C11

10V

R19

10k

4MHz

D22

TH1

R18 1k

R21

150k

R26 10k

R125

47k

R122

0.1Ω

C61 22 35V

R152 4.7k

C79

10V

C110

0.047 25V

R128

C68

49k

R136

4.7Ω

1/4W

C58

0.047µ 25V

0.01µ 400V

EG01Z

D23

D24

AL01Z

R126

C67

C65

R17

12.1k 1%

680P

R8500V-48

C77

10V

AN-3

AN-4

AN-5

AVDD1

AVSS1

A-0

A-1

A-2

A-3

A-4

A-5

A-6

A-7

MODE0

VSS3

RYDD

REGOUT

REGIN

RESET

CVSS

CKSEL

SCKN

P30

P31

RXD1

TXD1

CN-STM

1/4W

464k 1/4W

107k 1/4W

R137

1/4W

R132

1/4W

PC6

PC817E7

C108

D21

100

AN-2

AN-1

AN-0

TO015

AVSS0

AVDD0

P34

P20

P21

P22

P23

R76 10k

P24

31 32 33 34 35 36 37 38 39

D30

EG01Z

D31

RL4Z

D28

EX16

D29

C88

AL01Z

680 16V

R141

R140

2.2k

IC8

MM1431

9293949596979899

TO014

TO013

TO012

TO011

IC1

A52703114E28

P25

P26

P27

VSS

C14

0.047µ 25V

TO010

VDD

R144

428943

27k

VSS

PDL0

470

C94

25V

VDD

PDL1

4487458646

R151

C109

3900P

TO005

PDL2

510

470

C89

0.1 16V

50V

C96

10V

TO004

PDL3

R129

1/4W

TO003

PDL4

47844883498250

TO002

PDL5

C98 470 25V

TO001

PDL6

R159

1/4W

R147

1/4W

TO000

PDL7

CN-JP1

D34

D33 D17

D26

C113

R161 470Ω

R127

R149

100Ω

P05

INTP1

INTP0

INTP101

PCM1

PCM0

MODE1

PDH5

PDH4

PDH3

PDH2

PDH1

PDH0

PDL15

PDL14

PDL13

PDL12

PDL11

PDL10

PDL9

PDL8

1000p

18k 1%

R158

3.3k

R150

P0-3

P0-4

P00

P11

P10

PICS

PIC4

PIC1

PIC0

VDD

VSS3

C80

C100

0.01

IC11

NJM78M05F

R160

0.047

R170

D25

R31

10k

R28 20k

CN-S

C76

25V

39k

R185

100

200Ω

25V

C111

220

10V

R153

4.7k

Q12

R154

R169

C185 0.01

C106

R171

C01

0.047µ

C19

C17

0.047 25V

S-TEST

R34 10k

LED1

0.01

C20

C18

0.01

R36 10k

25V

R32 10k

R33

R30 10k

R29

620Ω

R35

SCHEMATIC DIAGRAM 3/3

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

ZD4

D16

R46

C27

33Ω

47µ

25V

C23

270p

C24

270p

R43

C25

10.7k

270p

1/4W

R139

10.7k 1/4W

R41

10.7k 1/4W

R40 464k

D10

464k 1/4W

D12

464k 1/4W

R42

R44

R190

464k

D11

R189 464k 1/4W

R188 464k 1/4W

C30 47µ 25V

C29 47 25V

C28

47 25V

C31

0.047µ

0.047

25V

C32

0.047 25V

0.047

C39

0.047 25V

0.047

C37

470p

C38

470p

C39

470p

C40

C36

C35

C34

25V

4 6

9 7

25V

10 12

15 13

25V

16 18

25V

R53

5.1k

C46

270P

C47

0.047 25V

R38 10k

C42

R37

470Ω

IC7 AN13B35-E2

C48

0.047 25V

C43

C45

0.022

25V

R55

24.9k 1%

D20

C49

R54

0.022µ

1.74k 25V

JP101

0.022

470p

R56 62Ω

C50

25V

C44

C41

R108R59

R107R58

R106R57

PS21543

HV1C1

Vcc IN

COM

HV1C2

Vcc IN

COM

HV1C3

Vcc IN

COM

LVIC

Vcc

U OUT

IN(X)

IN(Y)

V OUT

IN(Z)

W OUT

VFO

roc

CF0

GND

R110R61

R109R60

0.1Ω 2% 1/4W X22

C51

0.47µ 630V

RED

BLUE

COMPRESSOR

YELLOW

R117R68

R116R67

R115R66

R114R65

R113R64

R112R63

R111R62

C21

0.047µ 25V

C72

0.047µ 25V

IC09 B1HBGFF00005

RY-L0

RY-PWR

RY--

R72

R86 510Ω 1/4W

Q11

R179

33Ω

1/4W

10k

4.7k

C69

R78

R75

R199

R74

R98

R89

33Ω

1/4W

ERB83-006Y3

IC05

C74

R47

C114

R92 10k

R91 33Ω

1/4W

D18

D32 D35 D36

RB501V-40 X4

Q6 2SB1185

ERA15-01

Q14 2SC3441

R102R97

R73

R100

C75

4.7k

C60

10k

R184

1.3k

R94

Q5 2SA1363

39k

R87 10k

ZD7

IC04

D19

D27

CN-FM

C71

CN-HOT

CN-STM

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

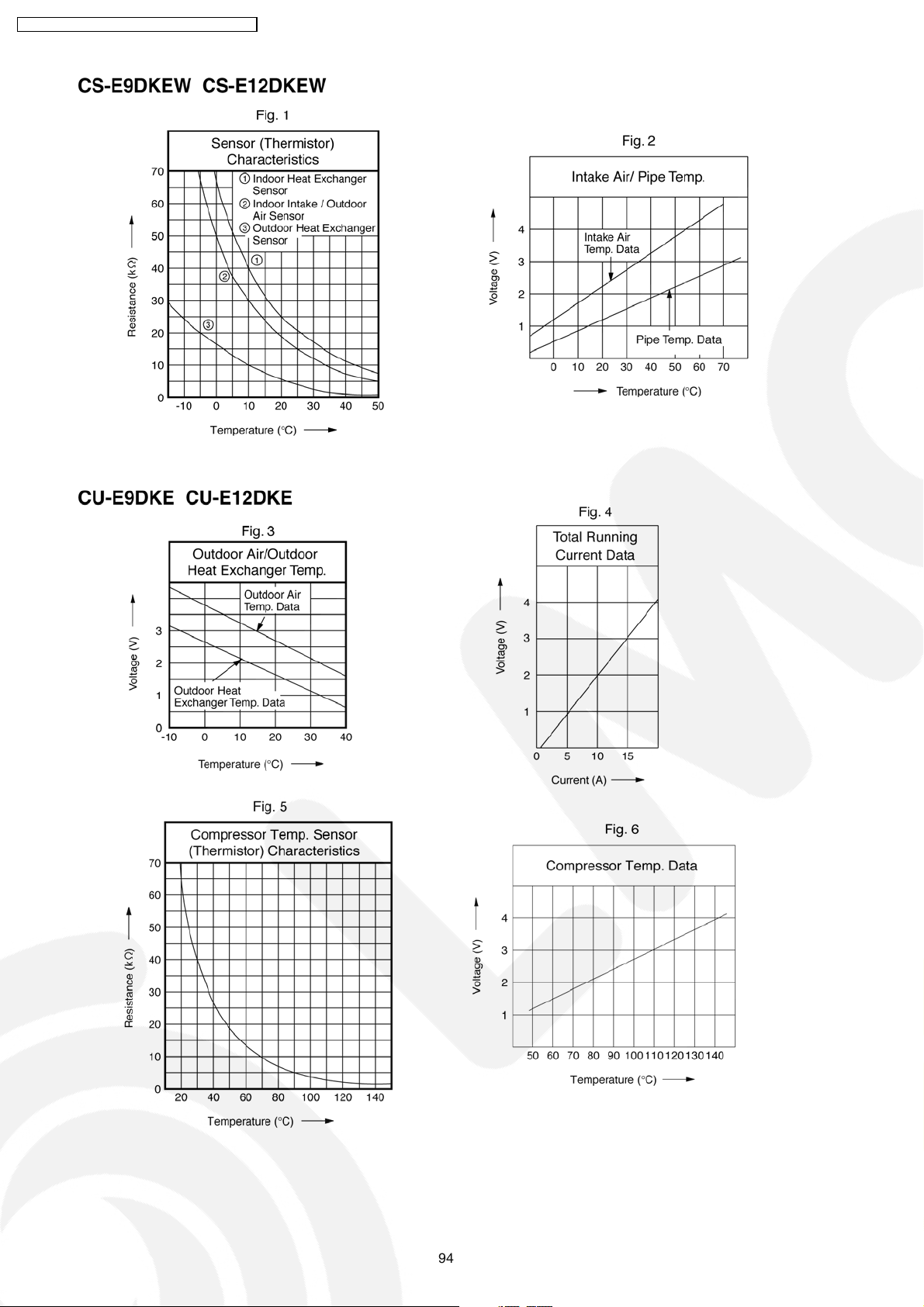

How to use electronic circuit diagram

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

18.3. Remote Control

18.4. Print Pattern Indoor Unit Printed Circuit Board

CS-E9DKEW CU-E9DKE / CS-E12DKE W CU-E12DK E

18.5. Print Pattern Outdoor Unit Printed Circuit Board

[PHAAM] Printed in Malaysia

Panasonic CS-E9DKEW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
