Panasonic CS-E9BKP, CS-E12BKP Service Manual

Order No: MAC0112083C2

Room Air Conditioner

CS-E9BKP CU-E9BKP5 CS-E12BKP CU-E12BKP5

CONTENTS

Page Page

1 Features 2 2 Functions 3 Product Specifications 4 Dimensions 5 Refrigeration Cycle Diagram 6 Block Diagram 7 Wiring Diagram 8 Operation Details 9 Operating Instructions

10 Installation And Servicing Air Conditioner Using R410A 41

11 Installation Instructions

12 Servicing Information 13 Technical Data

10 12

14 Exploded View

15 Replaceme nt Parts List 16 Exploded View

14 16

17 Replaceme nt Parts List

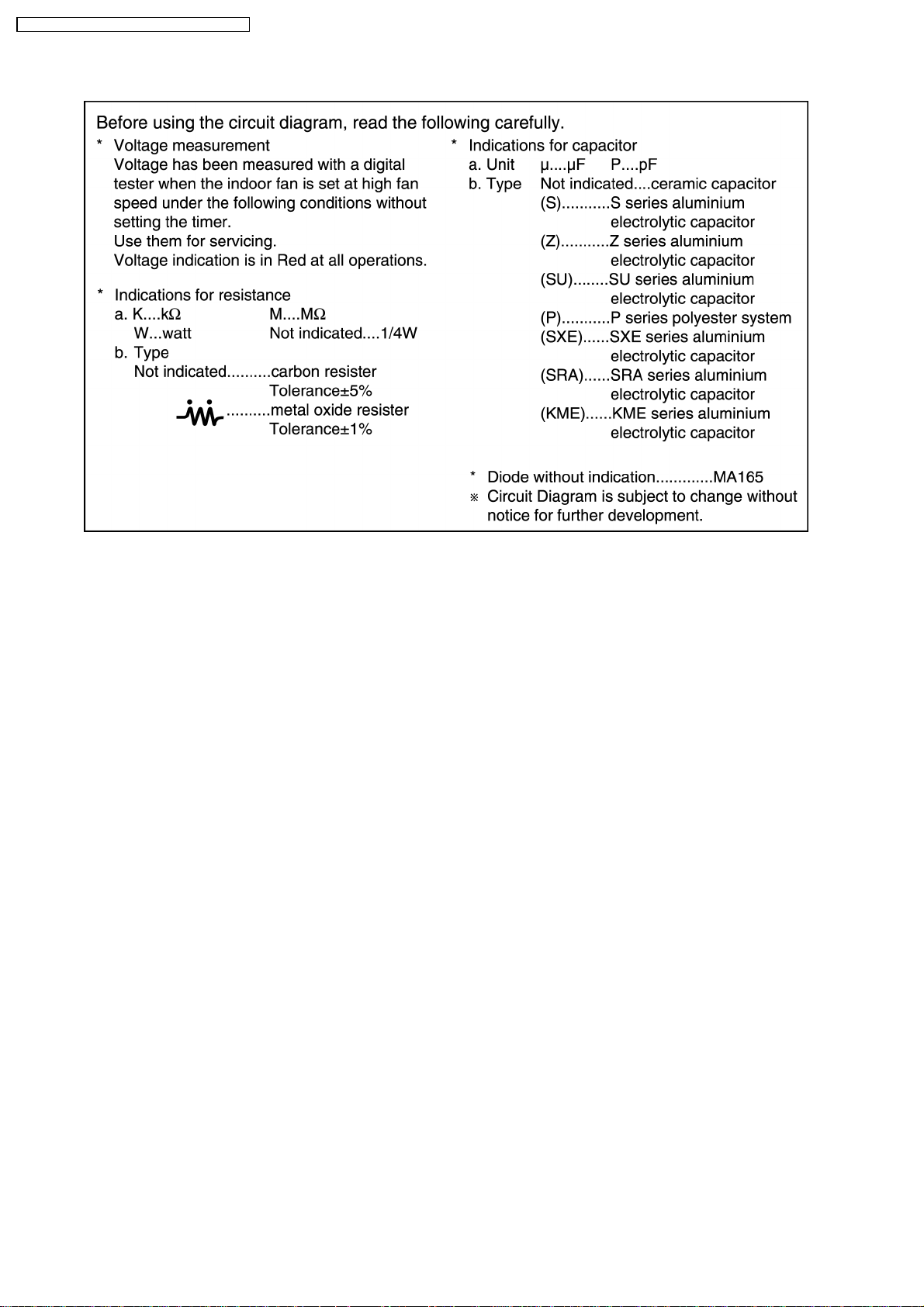

18 Electronic Circuit Diagram

52 61 70 73 74 75 76 77

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

1 Features

Product

•

Microcomputer-controlled compressor operating

−

frequency Vertical and Horizontal Airflow Directions

−

Five modes of operation selection

−

Power Mode operation

−

Sleep Mode operation

−

Delay ON Timer and OFF Timer

−

Standby operation

−

Remote Controller with illuminable buttons

−

Power Monitor Display LED

−

Catechin Air Purifying Filter

−

Solar Refreshing Deodorizing Filter

−

Serviceability

•

Washable Front Panel

−

Breakdown Self Diagnosis function

−

Environmental Protection

•

Non-ozone depletion substances refrigerant (R410A)

−

Quality Improvement

•

Gas leakage detection

−

Deice operation

−

Auto restart control

−

2 Functions

Remote Control

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Illuminable

buttons

OFF/ON

MODE

POWERFUL

SLEEP

Operation OFF / ON

Operation Mode Selection

•

HEAT COOL DRY FAN

Automatic Operation Heating Operation Cooling Operation Soft Dry Operation Fan Operation

Powerful Mode Operation

Sleep Mode Operation OFF / ON

FAN SPEED

TEMP

TIMER

OFF

∧ ∨

SET

CANCEL

Indoor Fan Speed Selection

• Low

• Medium-

• Medium

•

AUTO FAN

Medium+ High Automatic Fan Speed

Room Temperature Setting

• Temperature Setting (16°C to 30°C)

Timer Operation Selection

• 24-hour, OFF / ON Real Timer Setting.

Time / Timer Setting

• Hours and minutes setting.

Timer Operation Set / Cancel

AIR SWING

Airflow Direction Control

• Vertical Automatic Airflow Direction Control and Manual Airflow Direction Control (5 stages of adjustment).

•

Horizontal Automatic Airflow Direction Control and Manual Airflow Direction Control (5 stages of adjustment).

• ON Timer and OFF Timer setting and cancellation.

CLOCK

Clock Setting

• Current time setting.

CHECK

Check Point

• Breakdown self diagnosis function.

RESET

Reset Point

• Clear memory data.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Indoor Unit

Automatic Operation Switch

• Press for < 5s to run Automatic Operation. (Used when the remote control cannot be used.)

• Press continuously for 5s and < 8s to run Forced Cooling Operation.

• Press continuously for 8s and < 11s to run Forced Heating Operation.

• Press continuously for 11s and < 16s to change different remote controlling setting (A↔B Mode).

• Press continuously for 16s or < 21s to switch OFF / ON Remote Control Receiving Sound or H14 Abnormality Detection Mode.

Operation Indication Lamps (LED)

•

POWER MONITOR

•

POWER

TIMER

•

SLEEP

•

POWERFUL

•

(Orange) .....

(Green) ........ Lights up in

(Orange) .......Lights up in Timer

(Orange)........ Lights up in Sleep

(Orange)..Lights up when

Lights up during compressor operation.

operation, blinks in Automatic Operation Mode judging and Hot Start operation.

Setting. Blinks in Self Diagnosis Control.

Mode Operation. Powerful Mode is

selected.

Five Operation Modes

• Automatic, Heating, Cooling, Soft Dry and Fan Operation.

Automatic and 5 Manual Indoor Fan Speeds

Automatic and 5 Manual Vertical Airflow Directions

Automatic and 5 Manual Horizontal Airflow Directions

Powerful Mode

• For quick cooling or heating.

Sleep Mode

Delay ON Timer and OFF Timer

Automatic Restart Control

• Operation is restarted after power failure at previous setting mode.

Microcomputer-controlled Room Temperature Control

Breakdown Self Diagnosis Function

Low Pressure Control (Gas Leakage Detection)

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Outdoor Unit

Time Delay Safety Control

30 seconds Forced Operation

Indoor Power Relay Control

Automatic Restart Control

Deodorizing Control

Anti-Fog Discharge Control

Anti Freezing Control

Anti-Cold Draft Control

Hot Start

Intake Air Temperature Control

High Pressure Control

Total Running Current Control

Compressor Overheating Prevention Control

IPM (Power Transistor) Overheating Protection Control

Low Operation Frequency Protection Control

Mininum Operation Frequency Protection Control

Outdoor Air Temperature Control

Standby Control

Deice Operation

Standby Control

Deice Operation

* Details can be refered to OPERATION

DETAILS in this manual.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

3 Product Specifications

Unit CS-E9BKP CU-E9BKP5

Cooling Capacity kW

kcal/h

Heating Capacity kW

kcal/h

Moisture Removal l/h

Pint/h

Power Source Phase

Cycle

Airflow Method OUTLET

INTAKE

2.6 (0.60 - 3.00)

2,240 (520 - 2,580)

3.6 (0.60 - 5.00)

3,100 (520 - 4,300)

1.6

(3.4)

Single

230

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.5 (231) —

Heating; 7.1 (249)

Indoor Air (Me) m3/min (cfm) Cooling; 8.1 (286) —

Heating; 8.8 (312)

Indoor Air (Hi) m3/min (cfm) Cooling; 9.9 (350) —

Heating; 10.6 (374)

dB (A) Cooling; High 39, Low 26 Cooling; 46

Heating; High 40, Low 27 Heating; 47

Noise Level

Power level dB Cooling; High 50 Cooling; High 59

Heating; High 51 Heating; High 60

Electrical Data Input W Cooling; 700 (115 - 880)

Heating; 900 (110 - 1,400)

Running Current A Cooling; 3.3

Heating; 4.0

Piping Connection Port (Flare piping)

Pipe Size (Flare piping)

Drain Hose

EER W/W (kcal/hw) Cooling; 3.71(3.20) COP W/W (kcal/hw) Heating; 4.00 (3.44) Starting Current A 4.00

inch inch

inch

inch Inner diameter mm 12 — Length m 0.7 —

G ; Half Union 3/8”

L ; Half Union 1/4” G (gas side) ; 3/8”

L (liquid side) ; 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Power Cord Length Number of core-wire

3 core wires × 1.0 mm

2.1 m

— —

Dimensions Height inch (mm) 10 - 31/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 27 - 17/32 (780)

Depth inch (mm) 7 - 27/32 (210) 11 - 7/32 (289) Net Weight lb (kg) 20 (9.0) 77 (35) Compressor Type — Involute scroll

Motor Type — Brushless (4-pole)

Rated Output W — 700 Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (4-poles) Induction (6-poles)

Input W — 61.3 Rate Output W 30 25

Fan Speed Lo (Cool/Heat) rpm 800 / 840 —

Me (Cool/Heat ) rpm 1,000 / 1,040 — Hi (Cool/Heat ) rpm 1,200 / 1,270 770

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 1/20 FPI 21 19 Size (W × H × L) mm 610 × 315 × 25.4 732.1 × 508 × 22

Refrigerant Control Device — Capillary Tube Refrigeration Oil (c.c) — RB68A (360) Refrigerant (R-22) g (oz) — 840 (29.7) Thermostat Electronic Control — Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,100, C3 ; 440

Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 18.6

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC — 1.8 µF, 400 VAC

•

Specifications are subject to change without notice for further improvement.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Unit CS-E12BKP CU-E12BKP5

Cooling Capacity kW

kcal/h

Heating Capacity kW

kcal/h

Moisture Removal l/h

Pint/h

Power Source Phase

Cycle

Airflow Method OUTLET

INTAKE

3.45 (0.60 - 4.00)

2,970 (520 - 3,440)

4.80 (0.60 - 6.50)

4,130 (520 - 5,590)

2.0

(4.2)

Single

230

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 7.3 (258) —

Heating; 9.2 (325)

Indoor Air (Me) m3/min (cfm) Cooling; 9.2 (323) —

Heating; 10.3 (360)

Indoor Air (Hi) m3/min (cfm) Cooling; 10.9 (384.4) —

Heating; 11.8 (416.5)

dB (A) Cooling; High 42, Low 29 Cooling; 48

Heating; High 42, Low 33 Heating; 50

Noise Level

Power level dB Cooling; High 53 Cooling; High 61

Heating; High 53 Heating; High 63

Electrical Data Input W Cooling; 950 (120 - 1,280)

Heating; 1,260 (115 - 1,890)

Running Current A Cooling; 4.4

Heating; 5.6

Piping Connection Port (Flare piping)

Pipe Size (Flare piping)

Drain Hose

Power Cord Length Number of core-wire

EER W/W (kcal/hw) Cooling; 3.63 (3.13) COP W/W (kcal/hw) Heating; 3.81 (3.28) Starting Current A 5.60

inch inch

G ; Half Union 1/2”

L ; Half Union 1/4” G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4” Inner diameter mm 12 — Length m 0.7 —

3 core wires × 1.5 mm

2.1 m

— —

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Dimensions Height inch (mm) 10 - 31/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 27 - 17/32 (980)

Depth inch (mm) 7 - 27/32 (210) 11 - 7/32 (289) Net Weight lb (kg) 20 (9.0) 81.6 (37) Compressor Type — Involute scroll

Motor Type — Brushless (4-pole)

Rated Output W — 700 Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (4-poles) Induction (6-poles)

Input W — 65.9 Rate Output W 30 29

Fan Speed Lo (Cool/Heat) rpm 880 / 1,100 —

Me (Cool/Heat ) rpm 1,100 / 1,230 — Hi (Cool/Heat ) rpm 1,310 / 1,410 830

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24 FPI 21 17 Size (W × H × L) mm 610 × 315 × 25.4 703.8

Refrigerant Control Device — Capillary Tube Refrigeration Oil (c.c) — RB68A (360) Refrigerant (R410A) g (oz) — 1,020 (36.0) Thermostat Electronic Control — Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,100, C3 ; 750

Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 15.4

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

Fan Motor Capacitor µF, VAC — 2.0 µF, 400 VAC

P.P.

Honeycomb

× 504 × 36.4

735.0

—

•

Specifications are subject to change without notice for further improvement.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

4 Dimensions

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

5 Refrigeration Cycle Diagram

6 Block Diagram

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

7 Wiring Diagram

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8 Operation Details

8.1. BASIC FUNCTION

Inverter control, which equipped with a microcomputer in determining the most suitabl e operating mode as time passes, automatically adjust output power for maximum comfort always. In order to achieve the suitable operating mode, the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting. The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature.

8.1.1. Internal Setting Temperature

Once the operation starts, remote controller setting temperature will be taken as base value for temperature shifting processes. These shifting processes are depending on the air conditioner settings and the operation environment. The final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit.

Table (a): Auto Operation Mode Setting

Cooling/Soft Dry → Heating -2.0 -2.0 Heating → Cooling/Soft Dry +2.0 +2.0

Table (b): Outdoor Air Temperature Shifting

Mode: Outdoor Temperature, X (°C): Temperature Shift (K)

Cooling/Soft Dry X 30 0.0 0.0

Heating X 9 0.0 0.0

Table (c): Powerful Mode Shifting

Mode: Period, X (min): Temperature Shift (K)

Cooling X<20 -2.0 -2.0

Soft Dry X<20 -1.0 -1.0

Heating X<20 +3.5 +3.5

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Mode Shift: Temperature Shift (K)

E9BKP E12BKP

X<30 +0.5 +0.5

5 X<9 +0.5 +1.0 1 X<5 +1.0 +1.5

X<1 +1.5 +2.0

E9BKP E12BKP

X 20 0.0 0.0

X 20 +3.5 +3.5

Table (d): Fan Speed Shifting

Mode: Fan Speed: Temperature Shift (K)

Cooling All +1.5 +1.5 Soft Dry All +1.0 +1.0 Heating Lo +1.0 +1.0

Table (e): Start-Up Shifting

Cooling/Soft Dry -1.0 -1.0 Heating +2.0 +2.0

Table (f): Soft Dry Mode Shifting

Soft Dry +1.0 +1.0

E9BKP E12BKP

Me-, Me, Me+, Hi, Auto +0.5 +0.5

Mode within 60 Minutes from Start-up: Temperature Shift (K)

E9BKP E12BKP

Mode: Temperature Shift (K)

E9BKP E12BKP

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.1.2. Frequency Instruction for Compressor Operation

Operation of compressor is based on instructed frequency, continuously from indoor unit´s microcomputer after performing temperature sampling and judgment.

There are total 30 different frequency values, which listed as Table on Frequency Number, to be instructed based on the temperature judgment

No. Frequency (Hz) Remarks

E9BKP E12BKP 1 12.0 12.0 Freq. MIN 2 15.0 15.0 3 18.0 18.0 4 21.0 21.0 5 23.0 23.0 6 25.0 25.0 7 26.0 28.0 8 30.0 32.0 9 33.0 36.0

10 35.0 40.0 11 36.0 44.0 12 38.0 48.0 13 39.0 52.0 14 40.0 57.0 15 47.0 62.0 16 49.0 67.0 17 56.0 68.5 18 58.0 72.0 19 63.0 76.0 20 66.0 80.0 21 70.0 85.0 22 73.0 88.0 23 77.0 91.0 24 80.0 94.0 25 83.0 98.0 26 86.0 102.0 27 87.0 104.0 28 88.0 106.0 29 89.0 108.0 30 90.0 110.0 Freq. MAX

Table on Frequency Number

For normal start of operation, including Thermo-OFF, Deice-Resuming, and remote controller ON-OFF starts, the compressor starts to operate at frequency no. 8, values of 30Hz and 32Hz for E9BKP and E12BKP respectively, for 60 seconds.

The frequency to be judged and instructed, however, starts to judge once the air conditioner operated and the judgment will continue every 30 seconds until it is stopped by all kinds of compressor off conditions. This judgment is based on the internal temperature sampling that involving internal setting temperature and intake air temperature.

From the internal sampling, the temperature different (intake air temperature - internal setting temperature) will be used to judge the Zone on which the frequency to be instructed for the initial operation of compressor (refer to Table on Initial Frequency Zone).

Temperature, X (K) Zone Freq. No. - E9BKP Freq. No. - E12BKP

(Intake Air - Internal Setting) Cooling Soft Dry Heating Cooling Soft Dry Heating

X -2.5 0 1 4 30 1 4 30

-2.5 < X -1.5 1 1 4 30 1 4 30

-1.5 < X -1.0 2 1 4 10 1 4 10

-1.0 < X -0.5 3 1 4 7 1 4 7

-0.5 < X +1.0 4 4 4 4 4 4 4 +0.5 < X +1.0 5 6 6 1 6 6 1 +1.0 < X +1.5 6 9 7 1 9 8 1 +1.5 < X +2.5 7 15 7 1 15 8 1

X > +2.5 8 15 7 1 15 8 1

Table on Initial Frequency Zone

After the initial operation, the instructed frequency will change or shift from initial frequency according to the judgment on temperature different from sampling (refer to the Table on Shifting Frequency Zone).

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Temperature, X (K) Zone Frequency No. Shifting (shifting direction):

(Intake Air - Internal Setting) Cooling Mode / Soft Dry Mode Heating Mode

X -2.5 0 Shift to Freq. MIN (↑) Shift to Freq. MAX (↓)

-2.5 < X -1.5 1 Shift to Freq. MIN (↑) Shift to Freq. MAX (↓)

-1.5 < X -1.0 2 -2 Freq. No. (↑) +2 Freq. No. (↓)

-1.0 < X -0.5 3 -1 Freq. No. (↑) +1 Freq. No. (↓)

-0.5 < X +1.0 4 Same Freq. No. Same Freq. No. +0.5 < X +1.0 5 +1 Freq. No. (↓) -1 Freq. No. (↑) +1.0 < X +1.5 6 +2 Freq. No. (↓) -2 Freq. No. (↑) +1.5 < X +2.5 7 Shift to Freq. MAX (↓) Shift to Freq. MIN (↑)

X > +2.5 8 Shift to Freq. MAX (↓) Shift to Freq. MIN (↑)

Table on Shifting Frequency Zone

Besides, the range of operation frequency will change according to the setting environment as listed below:

Condition: Freq. no. for E9BKP Freq. no. for E12BKP Remarks

MIN MAX MIN MAX

Cooling Mode 1 15 1 30 (a)

- if remote controller set 28°C & fan speed = Hi

- if remote controller set 28°C & fan speed = Me-, Me, Me+, Auto

- if remote controller set 28°C & fan speed = Lo

- if Powerful Mode ON 7 15 7 30 (a), (c) Soft Dry Mode 4 7 4 8 Heating Mode 1 16 1 30 (b)

- if remote controller set 18°C & fan speed = Hi

- if remote control set 18°C & fan speed = Me-, Me, Me+, Auto

- if remote controller set 18°C & fan speed = Lo

- if Powerful Mode ON 10 16 10 30 (b), (d)

7 15 7 30 (a), (c)

5 15 6 30 (a), (c)

4 15 5 30 (a), (c)

10 16 10 30 (b), (d)

9 16 9 30 (b), (d)

8 16 8 30 (b), (d)

Remark:

(a) If frequency shifts up from MAX, the following frequency performed will be depending to outdoor temperature, as given in below table (for

30 seconds only) and then continues as normal rule.

Outdoor Temperature, X (°C) Frequency No.

X 30 13

X<30 7

(b) (If frequency shifts up from Freq. No. 17, the following frequency performed is as below (for 30 seconds only) and then continue as normal

rule.

Outdoor Temperature, X (°C) Frequency No.

X 10 10

X X<10 13

X<4 17

(c) When temperature different (intake - setting) < -1.0 K or Thermo-Off activated and only valid for 120 seconds; not applicable during Sleep

Mode, Soft Dry Mode, and Anti-freezing control.

(d) When temperature different (intake - setting) > +1.5 K or Thermo-Off activated and only valid for 130 seconds.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

The frequency judgment will perform every 30 seconds. Nevertheless, the frequency is instructed to outdoor compressor after every 90 seconds except when either one of the below conditions is met:

(a) The frequency judged changes from frequency number decreasing zones (Zone No. 0 or 1 or 2 or 3) to frequency number increasing zones (Zone No. 5 or 6 or 7 or 8) and vice verse.

(b) The frequency judged falls on frequency shifting zone number 0 or 1 (shift to Frequency MIN).

(d) The frequency judged falls on frequency shifting zone number 7 or 8 (shift to Frequency MAX).

The instructed frequency is the value referred by the frequency number, which resulted from previous instructed frequency number with the numbers of frequency numbers to be shifted, in Table on Frequency Number.

Time (s) 0 30 60 90 120 150 180 210 240 270 300 330 Zone (+/-) + + + + + +/- + - - +/- + Freq. zone based on temp. diff. 8 7 7 6 6 6 4 5 3 1 4 5 Frequency shift Max Max +2 +2 +2 0 +1 -1 Min 0 +1 Freq. no. judged based on

previous Freq. instruction (Y/N) & its

condition Freq. control condition (g) (g) (h) (h) (i) Instructed freq. 8 8 15 15 15 14 5 5 5 Operation freq. 8 8 15 15 15 15 15 15 14 5 5 5

15 30 30 17 17 17 15 16 14 5 4 6

Y (a) Y (a) Y (b) N N Y (c) Y (d) N Y (e) Y (f) Y (d) N

Note: (a) Starting frequency. (b) Frequency judged falls on Zone 7 or 8 (shift to Frequency MAX). (c) 90 seconds frequency instruction limit. (d) Frequency judged falls on Zone 4 (no shifting). (e) Frequency no. changes from no. increasing zones to no. decreasing zones. (f) Frequency judged falls on Zone 0 or 1 (shift to Frequency MIN). (g) Normal initial operation starts (60 s). (h) Maximum frequency for normal cooling operation (i) Minimum frequency for normal cooling operation.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.1.3. Indoor Fan Motor Operation

There are 31 fan speed numbers assigned for different fan speed operation at designed conditions, as shown in below table. The fan speed can be set manually using remote control (5 speeds for cooling mode: Lo, Me-, Me, Me+, Hi; 5 speeds for heating: Lo, Me-, Me, Me+, Shi) or let it automatically changes depending on the operation and its environment.

Fan

Speed

Voltage

No.

0 OFF OFF OFF OFF OFF OFF - Hot start control.

1 2 3.03 3.03 3 3.05 SLo 3.05 SLo - Soft Dry operation mode.

4 3.13 3.13 - Auto operation mode judgment (C/D).

5 3.15 3.23 - Auto operation mode judgment (H).

6 3.16 Lo 3.29 Lo - Sleep shift operation (C).

7 3.23 Lo 3.34 - ON timer pre-operation at Auto fan for E9BKP

8 3.24 3.40

9 3.31 Me- 3.44 Me10 3.36 3.53 11 3.39 Me- 3.60 Me - Powerful Mode at Lo fan for E123BKP (C). 12 3.44 3.63 13 3.47 Me 3.66 Lo - Powerful Mode at Lo fan for E9BKP (C).

14 3.55 Me 3.68 - Powerful Mode at Lo fan for E9BKP (H). 15 3.57 3.71 16 3.60 3.75 Me17 3.63 Me+ 3.77 Me+ - Powerful Mode at Me- fan (C). 18 3.66 3.83 19 3.68 3.85 20 3.71 3.86 Me - Powerful Mode at Lo fan for E12BKP (H). 21 3.73 Me+ 3.91 - Powerful Mode at Me- fan for E9BKP (H). 22 3.77 3.94 23 3.79 3.98 Me+ - Powerful Mode at Me- fan for E12BKP (H). 24 3.80 4.00 25 3.82 Hi 4.00 Hi - Powerful mode at Me, Me+ or Hi fan (C). 26 3.85 4.01 27 3.89 4.05 28 3.90 4.08 29 3.91 4.11 30 3.93 SHi 4.16 SHi - Powerful mode at Me, Me+ or Hi fan (H). 31 4.07 4.30

(V)

CS-E9BKP CS-E12BKP Remark

Cooling Dry Heating Voltage

Cooling Dry Heating

(v)

- Deice control.

- ON timer pre-operation (D).

- Sleep shift operation (D).

- ON timer preparation sampling (C/D).

- ON timer preparation sampling (H).

- Sleep shift operation at compressor off.

- ON timer pre-operation at Auto fan (C).

(H).

- ON timer pre-operation at Auto fan for E12BKP (H).

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.1.4. Cooling Mode Automatic Indoor Fan Speed

The automatic fan speed for cooling operation is as shown in below patterns (a→b→c

h) with each pattern 10 seconds.

→→

The fan speed for each level (X or Y or Z) is as below table.

Model No. E9BKP E12BKP Level X Y Z X Y Z Normal Operation Fan Speed No. 11 9 7 10 9 7 Powerful Mode Fan Speed No. 13 11 9 12 10 9

(a) During cooling operation, if all the following conditions occur, indoor fan speed will be shifted to Shi internally. (i) Indoor intake air temperature

24°C. (ii) Instructed frequency = 39 Hz (E9BKP) or 52 Hz (E12BKP). (iii) Remote controller setting temperature = 16°C. (iv) Remote controller setting fan speed = Hi. (v) Outdoor air temperature (vi) Operation starts

30 minutes.

30°C.

8.1.5. Heating Mode Indoor Fan Motor Operation (Anti Cold draft Control)

Indoor fan speed varies in accordance to indoor heat exchanger temperature, based on type of air volume and direction, as shown below.

1. Manual Fan Speed

2. Auto Fan Speed

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Note: a. UP:

If move from Lo-, the fan speed will be shifted to Maximum.

•

If move from Maximum, the fan speed no change.

•

Other than that, the fan speed will be increased one Fan Speed No.

•

b. DOWN:

The fan speed will be decreased one Fan Speed No.

•

c. Fix:

No change in fan speed.

•

d. Maximum:

Fan speed will be increased to maximum auto fan speed.

•

e. Temperature in ( ) is for Powerful Mode operation.

8.1.6. Outdoor Fan Motor Operation

Outdoor fan motor is operated with one fan speed only. It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.1.7. Airflow Direction

1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).

2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature

and intake air temperature) and manual (angles of direction can be adjusted using remote controller).

Vertical Airflow

Operation Mode Airflow Direction Vane Angle (°)

1 2 3 4 5

Heating Auto, with Heat Exchanger A 17

Temperature B 58

C 7

Manual 7 17 33 49 67

Cooling, Soft Dry and Fan Auto 7~37

Manual 7 17 25 33 41

Mode Judgment in Auto Auto 7

Manual 7 17 25 33 41

1. Automatic vertical airflow direction can be set using remote controller; the vane swings up and down within the angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1 below. When the air conditioner is stopped using remote controller, the vane will shift to close position.

2. Manual vertical airflow direction can be set using remote controller; the angles of the vane are as stated above and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote controller, the vane will shift to close position.

Horizontal Airflow

1. Automatic horizontal airflow direction can be set using remote controller; the vane swings left and right within the angles as stated below. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1 below.

Operation Mode Vane Angle (°)

Heating, with heat exchanger temperature A 55 ~ 125

B 90

Cooling, Soft Dry and Fan 55 ~ 125

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

2. Manual horizontal airflow direction can be set using remote controller; the angles of the vane are as stated below and the positions of the vane are as Figure 2 above.

Pattern 1 2 3 4 5 Airflow Direction

Patterns at Remote Controller

Vane Angle (°) 90 55 70 110 125

8.1.8. Automatic Mode Operation

This mode can be set using remote controller and the operation is decided by remote controller setting temperature, indoor intake air temperature and outdoor air temperature.

During operation mode judgment, indoor fan motor (with speed of Lo-) and outdoor fan motor are running for 20 seconds to detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.

Values of T1, T2, and T3 depend on remote controller setting temperature, as shown in below table. After the adjustment of T1, T2 and T3 values, the operation mode for that particular environment and remote controller setting is judged and performed, based on the above operation mode chart, every 30 minutes. Heating mode operation will be performed, however, if deice operation is detected.

Remote Controller Setting Temperature (°C) T1 T2 T3

16 ~ 18 +10 +8 -5 19 ~ 22 +8 +7 -7 23 ~ 26 +7 +6 -7 27 ~ 30 +6 +5 -8

There is a temperature shifting on T1, T2, and T3 if the operation mode judged is changed from Cooling/Soft Dry to Heating or vice verse.

Operation Mode change from Temperature shifts (K)

Cooling/Soft Dry→Heating -2 Heating→Cooling/Soft Dry +2

Example of operation mode chart adjustment: From the above table, if remote controller setting temperature = 25, T1 = 25 + 7 = 32; T2 = 25 + 6 = 31; T3 = 25 - 7 = 18

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

The operation mode chart for this example is as shown in below figure and the operation mode to be performed will depend on indoor intake air temperature and outdoor air temperature at the time when the judgment is made.

8.1.9. Sleep Mode Operation

1. Sleep Mode operation starts by pressing the button at remote controller and the operation last for a maximum of 10 hours. The Sleep Shift operation starts when the intake air temperature = internal setting temperature or one hour after Sleep Mode operation starts

2. For Cooling Mode or Soft Dry Mode operations, during Sleep Shift operation, indoor fan motor will operate at Lo speed and SLo speed respectively. The internal setting temperature is shifted as stated in below figure and table.

Condition Shifting Temperature (°C)

Remote Controller Setting

Temperature (°C)

26 <25 +2 +3.0 +4.0 +5.0 +1.5 +2.0 +3.0 +4.0

27 <25 +2 +3.0 +4.0 +4.0 +1.5 +2.0 +3.0 +3.0

28 — +2 +3.0 +3.0 +3.0 +1.5 +2.0 +2.0 +2.0

Outdoor Air

Temperature (°C)

25 +2 +3.0 +3.5 +4.0 +1.5 +2.0 +2.5 +3.0

Cooling Mode Soft Dry Mode

A B C A B C

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

3. For Heating Mode operation, during Sleep Shift operation, indoor fan motor will operate at Lo- speed. The internal setting temperature is shifted as stated in below figure and table.

Remote Controller Setting Fan Speed Shifting Temperature (°C)

A B C Lo -1.0 -1.0 -5.0 -4.0 Me-, Me, Me+, Hi, Auto -0.5 -0.5 -4.5 -3.5

8.2. Protection Control Features

8.2.1. Delay ON Timer Control

This control is applicable to all kinds of operation mode.

Delay ON timer can be set using remote controller, the unit with timer set will start operate earlier than the setting time. This is to provide a comfortable environment when reaching the set ON time.

Seventy minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 20 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation mode.

From the above judgment, the decided operation will start operate earlier than the set time as shown below.

8.2.2. OFF Timer Control

This control is applicable to all kinds of operation mode.

OFF timer can be set using remote controller, the unit with timer set will stop operate at set time.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.2.3. Indoor Power Relay Control

Power relay will turn on during operation or in progress of stopping operation. Although operation stops, the power relay continues on for three minutes.

However, during instantaneous power failure (< 0.5s), power relay will turn off. Then, it will turn on two minutes after power recover and the unit will operate as previous operation condition.

8.2.4. Time Delay Safety Control

This control is applicable to all kinds of operation mode.

1. The compressor will not start for three minutes after stop of operation.

2. This control is not applicable if the power supply is cut off and on again or after 4-way valve deices condition.

8.2.5. 30 Seconds Forced Operation

This control is applicable to all kinds of operation mode.

1. Once the compressor starts operation, it will not stop its operation for 30 seconds.

2. However, it can be stopped using remote control or Auto Switch at indoor unit.

8.2.6. Total Running Current Control

This control is applicable to all kinds of operation mode.

1. When the total outdoor unit running current (AC) exceeds X value, the frequency instructed for compressor operation will be shifted up a step to smaller frequency number.

2. If the running current does not exceed X value for five seconds, the frequency instructed will be shifted down a step at one time to bigger frequency number.

3. However, if total outdoor unit running current exceeds Y value, compressor will be stopped immediately for three minutes.

Operation Mode E9BKP E12BKP

X(A) Y(A) X(A) Y(A) Cooling/Soft Dry (I) 4.5 17.0 6.5 17.0 Cooling/Soft Dry (II) 4.0 17.0 6.0 17.0 Heating 6.1 17.0 9.2 17.0

4. The first 30 minutes of cooling operation, (I) will be applied.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.2.7. IPM (Power transistor) Prevention Control

This control is applicable to all kinds of operation mode.

A. DC Peak Current Control

1. When electric current to IPM exceeds set value of 22.5 A, the compressor will stop operate. Then, operation will restart after three minutes.

2. If the set value is exceeded again within 30 seconds, the operation will restart after one minute. If this condition repeats continuously for seven times, all indoor and outdoor relays will be cut off.

B. Overheating Prevention Control

1. When the IPM temperature rises to 110°C, compressor operation will stop immediately.

2. Compressor operation restarts after three minutes the temperature decreases to 95°C.

8.2.8. Compressor Overheating Prevention Control

This control is applicable to all kinds of operation mode.

Instructed frequency for compressor operation will be regulated by compressor discharge temperature. The changes of frequency are as below figure.

8.2.9. Low Pressure Control (Gas Leakage Detection)

This control is applicable to all kinds of operation mode.

1. When the conditions listed in below table occur, the compressor stops and restarts after three minutes.

2. If this phenomenon is continuously occurring for twice within 20 minutes, all indoor and outdoor relays will be cut off.

3. This control is not applicable for deice operation.

Conditions E9BKP E12BKP

Cooling/Soft Dry Heating Cooling/Soft Dry Heating

1. Compressor frequency (Hz) 47 56 67 68.5

2. Outdoor total running current (A) < 1.21 < 1.21 < 1.21 < 1.21

3. Indoor heat exchanger temperature >20 <25 >20 <25

Note: Conditions 1 and 2 needed to be happened continuously for 5 seconds.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.2.10. Minimum Operation Frequency Protection Control

This control is applicable to all kinds of operation mode.

When the compressor operate at frequency lower than 26 Hz (E9BKP) or 28 Hz (E12BKP) for 240 minutes, the operation frequency will be increased to 26 Hz (E9BKP) or 28 Hz (E12BKP) for two minutes.

8.2.11. Low Operation Frequency Protection Control

This control is applicable to all kinds of operation mode.

When all the below conditions occur, minimum value (Freq. MIN) for the frequency instructed to compressor will change to 30 Hz (E9BKP) and 32 Hz (E12BKP) for cooling mode operation, and 21 Hz (E9BKP & E12BKP) for heating mode operation.

Temperature, T, for: Cooling/Soft Dry Heating Indoor intake air (°C) 15 < T 30 — Outdoor air (°C) 16 < T 38 4<T 24 Indoor heat exchanger (ºC) T<30 T 0

8.2.12. Auto Restart Control

This control is applicable to all kinds of operation mode.

1. When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly) after power supply resumes.

2. This type of control is not applicable during Sleep Mode Operation and ON/OFF Timer setting.

8.2.13. Outdoor Air Temperature Control

1. For Cooling Mode and Soft Dry Mode operation, the compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the diagram below. This control will begin one minute after the compressor starts.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

2. For Heating Mode operation, the compressor operating frequency is regulated in accordance to outdoor air temperature as shown in the below figures. This control will begin 50 seconds after the compressor starts.

8.2.14. Deodorizing Control

This type of control is applicable on Cooling Mode and Soft Dry Mode operation only.

1. During cooling or soft dry operation with automatic fan speed, the unit will operate as state below for deodorizing purpose.

2. When compressor is in operation, the steps follow: 1→2→3.

3. When compressor stops operation, the steps follow: 4→5→4→5

4. If the compressor still stops operation after three minutes, the step will start from 4.

5. This control is not applicable during sleep shift operation, ON timer preparation and anti-freezing control.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.2.15. High Pressure at Minimum Frequency Control

This type of control is applicable on Cooling Mode and Soft Dry Mode operation only.

1. When outdoor air temperature increas es to 38.6°C, compressor operating frequency reduces to minimum of 30 Hz and 32 Hz for E9BKP and E12BKP respectively.

2. Compressor operating frequency will resume to normal when outdoor air temperature decrease to 37.8°C.

8.2.16. Anti-Freezing Control

This type of control is applicable on Cooling Mode and Soft Dry Mode operation only.

1. When indoor heat exchanger temperature is lower than 2°C continuously for six minutes, compressor will stop operating.

2. Compressor will resume its operation three minutes after the indoor heat exchanger is higher than 10°C.

3. At the same time, indoor fan speed increase its frequency as value of two steps up in Fan Speed Number compared to its normal operation. (Refer Table on Fan Speed Level and Supplied Voltage).

4. If indoor heat exchanger temperature is higher than 10°C for five minutes, the fan speed will return to its normal operation.

8.2.17. Anti-Fog Discharge Control

This type of control is applicable on Cooling Mode and Soft Dry Mode operation only.

1. When indoor fan speed is set at Me- or slower, the compressor operating frequency is regulated by operation time to prevent fog discharged from indoor as shown in below table.

Operation time, T (min) E9BKP E12BKP

0<T 30 33 Hz 44 Hz

30 < T 90 26 Hz 36 Hz

90 < T 420 26 Hz 36 Hz

2. After 420 minutes, the operation restarts again from the beginning.

3. The operation will restart the above control whenever remote controller setting temperature or fan speed setting is changed.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

8.2.18. Indoor Heat Exchanger Temperature Control

This control is applicable for Heating Mode operation only.

The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown in below figures.

8.2.19. Intake Air Temperature Control

This control is applicable for Heating Mode operation only.

Compressor will operate at maximum of 56 Hz or 68.5 Hz for E9BKP and E12BKP respectively if either one of the below conditions occur:

1. When the intake air temperature is 10°C or above and remote controller setting fan speed is Me- or lower.

2. 2. When the intake air temperature is 30°C or above.

8.2.20. Deice Operation Control

This control is applicable for Heating Mode operation only.

Deice operation occurs when the deice operation starting signal is generated. This happens when one of he following condition occurs. However, the first deice operation will begin one hour after the start of heating mode operation.

Condition Outdoor heat exchanger

temp. T

1 For 120 minutes <-6°C >-1°C 2 For 80 minutes <-7°C >-1°C 3 For 40 minutes <-9°C -3°C 4 For 40 minutes <-11°C >-3°C

<3°C

In between, for 3 minutes,

outdoor heat exchanger

temp. T

Provided, compressor is

ON and outdoor air temp.

Once the deice operation signal produced, the instructed frequency for the operation of compressor will be set to zero hertz (0 Hz) for 30 seconds. Then, deice operation starts with both indoor and outdoor fan motor, and 4-way valve turn off for 30 seconds. The compressor operates following the frequency as shown in below chart that depending on outdoor heat exchanger temperature and operation period, with a maximum of 10 minutes and 30 seconds. When the deice operation ends, before back to normal operation, the instructed frequency for compressor will be set to zero hertz (0 Hz) again and outdoor fan motor will turn on for a period of 59 seconds.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Freq.

(Hz)

Indoor fan motor Free Free OFF OFF OFF OFF OFF Free Outdoor fan motor ON ON OFF OFF OFF OFF ON ON 4-way valve ON ON OFF OFF OFF OFF OFF ON

E9BKP Free 0 47 58 35 35 0 Free

E12BKP Free 0 62 67 40 40 0 Free

8.2.21. Auto Clean Deice Control

This control is applicable for Heating Mode operation only and before operation starting time set by ON Timer control to improve heating start-up operation if residual ice on outdoor heat exchanger detected.

Fifteen minutes before Standby operation, pre-deice heating operation will be performed to determine the operation decision as shown in below figure. Auto Clean Deice operation starts to operate as soon as the pre-deice operation if all the below conditions occur.

(a) Outdoor air temperature (b) Outdoor heat exchanger temperature < 0°C for 14 minutes, and (c) Outdoor heat exchanger temperature < -8°C for 10 minutes. The Auto Clean Deice is operated for a maximum of 12 minutes as normal Deice operation, and the period of Standby operation

is maintained including the 12-minute Auto Clean Deice operation.

0°C,

8.2.22. Indication Panel

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Led POWER MONITOR POWER SLEEP TIMER POWERFUL

Color Orange Green Orange Orange Orange

Light ON Operation ON Operation ON Sleep Mode ON Timer Setting ON Powerful Mode ON

Light OFF Operation OFF Operation OFF Sleep Mode OFF Timer Setting OFF Powerful Mode OFF

Note:

•

If POWER LED is blinking, the possible operations of the unit are Hot Start, during Deice operation, operation mode

judgment, or delay ON timer sampling.

•

If Timer LED is blinking, there is an abnormality operation occurs.

8.2.23. Auto Operation Switch

1. When the switch is pressed between 0 to 5 seconds, Auto Mode operation starts to function.

2. When the switch is pressed between 5 to 8 seconds, the unit is forced to operate in Cooling Mode.

3. When the switch is pressed between 8 to 11 seconds, the unit is forced to operate in Heating Mode.

4. When the switch is pressed between 11 to 16 seconds and together with the signal from remote control, the unit can be changed to different controlling setting (A-B mode).

5. When the switch is pressed between 16 to 21 seconds, either “H14” error detection selection mode or the remote controller´s signal receiving sound can be cancelled or turned on.

COOL

HEA

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

9 Operating Instructions

SAFETY PRECAUTIONS

Before operating, please read the following “Safety Precautions” carefully.

● To prevent personal injury, injury to others and property damage, the following instructions must be followed.

● Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classified as follow:

This sign warns of death or serious injury.

This sign warns of damage to property.

● The instructions to be followed are classified by the following symbols:

This symbol (with a white background) denotes an

These symbols (with a black background) denote

Warning

Caution

action that is PROHIBITED.

actions that are COMPULSORY.

■ Installation Precautions

Warning

● Do not install, remove and reinstall the unit by

yourself.

Improper installation will cause leakage, electric shock or fire. Please engage an authorized dealer or specialist for the installation work.

Caution

● This room air conditioner must be

earthed.

Improper grounding could cause electric shock.

● Ensure that the drainage piping is

connected properly.

Otherwise, water will leak out.

● Do not install the unit in a

potentially explosive atmosphere.

Gas leak near the unit could cause fire.

■ Operation Precautions

This sign warns of death or serious injury.

● Do not share outlet.

● Do not insert plug to operate the unit. Do not

● Do not operate with wet hands.

● Do not damage or modify the power cord.

● Do not insert finger or other objects into the

● Do not expose directly to cold air for a long

● Plug in properly.

● Use specified power cord.

● If abnormal condition (burnt smell, etc.)

● Do not pull the cord to disconnect the plug.

● Do not wash the unit with water.

● Do not use for other purposes such as

● Do not use any combustible equipment at

● Do not sit or place anything on the outdoor

● Switch off the power supply before cleaning.

● Ventilate the room regularly.

● Pay attention as to whether the installation

● Switch off the power supply if the unit is not

Warning

pull out plug to stop the unit.

indoor or outdoor units. period.

occurs, switch off and unplug the power supply.

Caution

This sign warns of injury.

preservation. airflow direction. unit.

rack is damaged after long period of usage.

used for a long period.

NAME OF EACH PART

■ Indoor Unit

E T R

V N I

4576

1 Front Panel 2 Air Intake Vent 3 Power Supply Cord 4 Air Outlet Vent 5 Vertical Airflow Direction Louver 6 Horizontal Airflow Direction Louver 7 Indicator Panel

123456

INVERTER

LOW-POWER MONITOR-HIGH

1 Auto Operation Button

(when the front panel is opened)

2 Power Monitor Lamps – ORANGE

• Lights up from LOW to HIGH to show the

compressor operating condition.

• Light off when then compessor stops.

3 Power Indicator – GREEN 4 Sleep Mode Indicator – ORANGE 5 Timer Mode Indicator – ORANGE 6 Powerful Mode Indicator – ORANGE

ECONOMY TIMER POWERFULSLEEP

ECONOMYLOW-POWER MONITOR-HIGH TIMER POWERFULSLEEP

● Indoor Unit

(when the front panel is opened)

■ Accessories

● Remote Control

F F

P O

E R

F U

M O

D E

S L

E E

S PE

E D

H E

S E

C A

L O

A T T

E R

TER

H E

T C

O L

YFA

U T

T O

● Remote Control Indication Sticker

1 Front Panel 2 Air Filters 3 Air Purifying Filter

■ Outdoor Unit

1 Air Intake Vents 2 Ground Terminal

(Inside cover)

3 Piping 4 Connecting Cable 5 Drain Hose 6 Air Outlet Vents

● Remote Control Holder

● Two RO3 (AAA) dry-cell batteries or equivalent

● Air Purifying Filter

(Catechin Air

Purifying Filter)

(Solar Refreshing

Deodorizing Filter)

AUTO

AUTOHEAT

DRY

FANCOOL

FAN

AUTO

S L

ECONOMY

TEMP

AUTUTO

ON OFF

AUTUTOHEAHEAT DRDR YFANANCOOLCOOL

FANAN

AUTUTO

CLOCK

MODE

SLEEP

FAN SPEED

AIR SWING

OFF

CANCEL

SET

TIMER

OFF/ON

POWERFUL

(

CHECK RESET

AUTO

AUTO HEAT DRYFANCOOL

FAN

AUTO

CLOCK

FAN SPEED

AIR SWING

OFF

CANCEL

SET

TIMER

HEAT

DRDRY

ANC

COOL

UTO

AIR SWING

SLEEP

ODE

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

NAME OF EACH PART

■ Remote Control

● Remote Control Signal.

• Make sure it is not obstructed.

• Maximum distance : 10 m.

• Signal received sound.

One short beep or one long beep.

● Notes for Remote Control.

• Do not throw or drop.

• Do not get it wet.

• Certain type of fluorescent lamps may affect

signal reception. Consult your dealer.

1 Signal Transmitter 2 Operation Display 3 Powerful Mode Operation Button 4 Room Temperature Setting Button

(self-illuminating button)

5 Operation Mode Selection Button 6 Vertical Airflow Direction Button 7 ON-Timer Button 8 OFF-Timer Button

9 Reset Point

(Press with fine-tipped object to clear the memory)

0 Check Point

To be used by the service technician only.

! OFF/ON Button

(self-illuminating button)

@ Sleep Mode Operation Button # Fan Speed Selection Button $ Horizontal Airflow Direction Button % Timer Set Button ^ Timer Cancellation Button & Time-Setting Button * Clock Button ( Remote Control Cover

● How to Insert the Batteries

Slide down the remote control cover completely

Insert the batteries

– Be sure the direction is correct – 12.00 at display - flashing

• Set the current time (CLOCK) immediately to

prevent battery exhaustion.

● About the batteries

• Can be used for approximately one year.

● Observe the following when replacing the

batteries

• Replace with new batteries of the same type.

• Do not use rechargeable batteries (Ni-Cd).

• Remove the batteries if the unit is not going to be

used for a long period.

PREPARATION BEFORE OPERATION

■ Indoor Unit

Connect the power supply cord to an independent power supply

Open the front panel

Remove the air filters

Fit the air purifying filters in place

Insert the air filters

Close the front panel

■ Remote Control

– To set the current time

RESETCHECK

Press 1.

Then press 2 to increase or decrease the time.

Press 1 again.

Set time at display will light up.

HOW T O OPERATE

3 5

■ To start the operation

• Press 1.

•

POWER indicator (green) on the indoor unit will light up. (LED blinks when the room temperature is low at the start of heating or operation mode is selected during Automatic Operation.) The power monitor lamps light up to show the compressor operating condition.

• To stop, press once more.

■ Setting Mode

• Press 2 to select:-

HEAT – Heating Operation COOL – Cooling Operation DRY – Soft Dry Operation FAN – Fan Operation AUTO – Automatic Operation

1 6 4

■ Setting Temperature

• Press 3 to increase or decrease the temperature.

• The temperature can be set between 16°C ~ 30°C.

(Not adjustable during Fan Operation.)

• Recommended temperature:

HEAT : 20°C ~ 24°C COOL : 26°C ~ 28°C DRY : Approx. room temperature

■ Automatic Operation

• At the start of the Automatic operation, Heating, Cooling or Soft Dry is automatically selected according to the outdoor temperature, indoor temperature and setting temperature.

• The operation mode changes every half hour, when necessary.

(Ex) Setting Temperature at 25°C

36°C 32°C 31°C

18°C

Room Temperature

16°C

S O F T

H E

I N G

13°C 19°C 21°C 23°C 25°C

Outdoor Temperature

C O O L

I N G

ECONOMY

AUTO

AUTO HEAT DRYFANCOOL

FAN

AUTO

MODE

SLEEP

FAN SPEED

AIR SWING

OFF

CANCEL

SET

TIMER

OFF/ON

POWERFUL

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

■ Setting the Fan Speed

• Press 4 to select:- There are five stages of fan speed in addition to Auto Fan speed.

AUTO FAN – Heating

When the temperature of the discharge air increases, the fan speed increases. Cooling ● Dry Changes the fan speed to generate a cool breeze. The air starts to blow out approximately 40 seconds after the start

■ Setting the Vertical Airflow Direction.

of Cooling or Soft Dry.

• Press 5 to select:-

AUTO

• For COOL/DRY operation. Swing up/down automatically.

AUTO

• For HEAT operation When the discharge air temperature is low such as at the start of the heating operation, the air blows at horizontal level. As the temperature rises, the hot air blows in a downwards direction.

● Louver adjustment range

•

The adjustment range is different

Soft

Dry

Cooling,

Fan

Heating

About 30°

About 60°

Five stages of adjustments can be made in this range.

for each operation i.e. Heating, Cooling and Soft Dry. (Fig.at left)

•

The angle indicated on the remote control is different from that on the

About 30°

indoor unit.

•

The louver angle automatically changes to prevent condensation during Cooling and Soft Dry.

•

When operation stops, the louver automatically closes.

● Notes

Do not adjust the vertical airflow direction louver downward

•

during Cooling and Soft Dry. Drops of water may condense on the air outlet vent and drip down.

•

Use the remote control to change the vertical airflow direction louver. Using your hands to adjust the direction may cause the louver to malfunction. If this happens, stop operation immediately and restart.

■ Setting the Horizontal Airflow Direction.

• Press 6 to select:- Indoor

Horizontal

Unit

Airflow Direction

AUTO

● Use this air conditioner under the following

conditions:

DBT: Dry Bulb Temp WBT: Wet Bulb Temp

Maximum Temperature-Cooling (Maximum Temperature-Heating)

Minimum Temperature-Cooling (Minimum Temperature-Heating)

AUTO

Remote Control

• For COOL/DRY operation. Louvers swing horizontally at a fixed speed.

• For HEAT operation When air temperature is low, air is sent in

. When temperature goes up, louver swing horizontally at a fixed speed.

Indoor

DBT

WBT

(30)

(-)

(2)

(-)

Unit in °C

Outdoor

DBT

(24)

(-5)

WBT

(18)

(-6)

● Notes

• If the unit is not going to be used for an extended period of time, turn off the main power supply. If it is left at the ON position, approximately 2.8 W of electricity will be used even if the indoor unit has been turned off with the remote control.

• When standby mode is activated, approximately 35 W of electric power will be consumed on the heat of compressor to warm up the room quickly. This mode can be switched off if you do not require it. Please consult your dealer.

• If operation is stopped, then restart immediately, the unit will resume operation only after 3 minutes.

● Operation Details

COOL – Cooling Operation

• To set the room temperature at your preference cooling comfort.

AUTO – Automatic Operation

Sense indoor temperature to select the optimum mode.

•

• Temperature is not displayed on the remote control

during AUTO operation.

DRY – Soft Dry Operation

• Dehumidifies while maintaining the setting temperature. The Soft Dry Operation is recommended during the rainy season.

• If the room temperature exceeds the setting temperature, operation switches to Cooling. The fan speed is rather slow during Soft Dry Operation.

•

• The humidity may not decrease when the indoor

temperature is lower than the setting temperature on the remote control.

HEAT – Heating Operation

• To warm up the room temperature upon your preference setting temperature.

• Heat is obtained from outdoor air to warm up the room. When the outdoor ambient air temperature falls, the heating capacity of the unit might be reduced. We recommend that you use an additional heating device when the outdoor ambient air temperature is low.

FAN – FAN Operation

• Circulates air throughout the room.

• Purifies and deodorizes the air if the air purifying filter

is used. Fan Operation is recommended during seasons in which neither Heating nor Cooling is used.

SETTING THE TIMER

Ensure that the current time is correct before setting the timer. The timer cannot be set if the time display is flashing.

■ ON-TIMER Operation

To start the air conditioner operation automatically.

• Press 1 to set the operation.

• Press 2 to increase or decrease the time.

• Then press 3.

• To cancel this operation, press 4.

■ OFF-TIMER Operation

To stop the air conditioner operation automatically.

• Press 5 to set the operation.

• Press 2 to increase or decrease the time.

• Then press 3.

• To cancel this operation, press 4.

● Timer Mode Operation Details

• When the ON-Timer is set, operation will start before the actual set time. This is to allow the room temperature to reach the setting temperature by the setting time. (Maximum of 35 minutes in advance).

• Once the timer is set, operation will start and stop at the same time everyday.

• The current time is not displayed when the timers are set.

• When both timers are used together, the TIMER mode indicator on the indoor unit remains lit even when the operation is stopped by the OFF-TIMER.

CONVENIENCE OPERATION

Powerful and Sleep modes are available for Automatic Operation, Heating, Cooling and Soft Dry.

■ Sleep Mode Operation

To obtain a comfortable room temperature while sleeping:-

• Press 6.

• Sleep mode indicator on the indoor unit will light up.

• To cancel this operation, press once more.

● Sleep Mode Operation Details

• When the room temperature reaches the set temperature, the airflow volume will change to low, automatically

• When used together with the timer, the timer has a priority.

• Air blows out gently during sleep.

• For COOL/DRY operation.

Maximum 1.0°C increase

3.0°C increase

Sleep Operation

button is pressed.

0~1 hour

2 hours

Approximately 10 hours operation

Sleep Operation

button is pressed.

Sleep Shift

operation starts

0~1

1 hour

hour

Approximately 10 hours operation

Maximum 1.0°C increase

Sleep Shift

operation starts

4 hours 3 hours

Maximum 1.0°C

decrease

4.0°C decrease

5 hours

1.0°C

increase

3 hours

Temperature

T e

t u r e

• For HEAT operation

Temperature

T e

■ Powerful Mode Operation

To obtain the set temperature quickly.

• Used in winter to warm yourself quickly upon returning home (Heating + Powerful).

• Used in summer to cool yourself after a hot bath (Cooling + Powerful).

• Press 7.

* Powerful mode indicator (orange) on the indoor

unit will light up.

• To cancel this operation, press once more.

● Note

• The setting temperature and the fan speed changes automatically in order to heat, cool or dehumidify the room quickly.

• The Powerful and Sleep modes can be set during Automatic Operation.

Operation Temperature Fan Speed

3.5°C higher

HEAT

Automatic

COOL

DRY

2°C lower (For

first 20 minutes)

1°C lower (For

first 20 minutes)

Stronger

Slightly

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

CARE AND MAINTENANCE

■ Cleaning the Indoor Unit and Remote

Control

• Wipe gently with a soft, dry cloth.

• Do not use water hotter than 40˚C or polishing fluid

to clean the unit.

■ Cleaning the Air Filter

(Recommendation:- If the unit is operated in a dusty environment, clean the filters every two weeks, continuous use of this dirty filters will reduce cooling or heating efficiency)

Remove dirt using a vacuum cleaner.

Wash back of the air filter with water.

If badly soiled, wash it with soap or a mild household detergent.

Let it dry and reinstall it. Be sure the “FRONT” mark is facing you.

* Damaged air filter.

Consult the nearest authorized dealer. Part No.: CWD001047.

•

Do not use benzene, thinner, scouring powder or clothes soaked in caustic chemical to clean the unit.

■ Cleaning the Front Panel

(Must be removed before washing)

Raise the front panel higher than the horizontal and pull to remove it.

Gently wash with water and a sponge.

• Do not press the front panel too hard when washing.

• When use kitchen cleaning fluid (neutral detergent),

rinse throughly.

• Do not dry the front panel under direct sunlight.

To fix the front panel, raise the front panel horizontally, match the protruding portion on the indoor unit to the fulcrum and push into place.

Fulcrum

Protruding portion on indoor unit

■ Air Purifying Filters

Raise the

front panel

Solar Refreshing Deodorizing Filter

Catechin Air Purifying Filter

Remove the air filters

● Solar Refreshing Deodorizing Filter

• Used to remove unpleasant odour and deodorize the air in the room.

• Reusable.

• Vacuum, place under direct sunlight for 6 hours and

fit it back in place. (Recommended : every 6 months)

● Catechin Air Purifying Filter

• The filter is coated with catechin to prevent growth of bacteria and viruses.

• Reusable.

• Vacuum and fit it back in place

(Recommended : every 6 months)

• Recommended to change these filters every 3 years. Do not reuse damaged filters. Consult the nearest authorized dealer to purchase a new filter. Catechin Air Purifying Filter No.: CZ-SF70P Solar Refreshing Deodorizing Filter No.: CZ-SFD70P

• If you operate the air conditioner with dirty filters:- – Air is not purified – Cooling capacity decreases – Foul odour is emitted

■ Pre-season Inspection

● Is the discharged air cold/warm?

Operation is normal if 15 minutes after the start of operation, the difference between the air intake and outlet vents temperature is:-

COOL – 8°C or above HEAT – 14°C or above

● Are the air intake or outlet vents of the indoor or

outdoor units obstructed?

● Are the remote control batteries weak?

If the remote control display appears weak, replace the batteries.

● Do not ignore a damaged installation rack.

A damaged rack may fall and cause injury. Consult an authorized dealer.

■ When the Air Conditioner is Not Used

for an Extended Period of Time 1

To dry the internal parts of the indoor unit, operate the unit for 2 - 3 hours using:-

FAN operation

Turn off the power supply and unplug. Note: If the unit is not switched off by the remote control, it will start operating when you plug in (because the unit is equipped with Auto Restart Control).

Remove the remote control batteries.

■ Recommended Inspection

• After used over several seasons, the unit will become dirty and thus decreases the unit’s performance. Depending on the operation conditions, a dirty unit may produce odour and dust may pollute dehumidification system. Therefore, a seasonal inspection is recommended in addition to regular cleaning. (Consult an authorized dealer).

HELPFUL INFORMATION

■ Auto Operation Button

INVERTER

LOW-POWER MONITOR-HIGH

• Raise the front panel and press.

● Automatic Operation

• If the remote control fails to function or has been misplaced, press the Auto Operation button to start the Automatic operation.

• The Automatic operation will be activated immediately once the Auto operation button is pressed. However, temperature cannot be adjusted in this operation.

• The power indicator on the indoor unit will blink until the operation mode is selected automatically.

• To cancel this operation, press once more.

ECONOMY TIMER POWERFULSLEEP

ECONOMYLOW-POWER MONITOR-HIGH TIMER POWERFULSLEEP

■ Auto Restart Control

• If there is a power failure, operation will be automatically restarted under the previous operation mode and airflow direction when power is resumed. (When the operation is not stopped by remote control).

• If you do not want the unit to restart automatically when power is resumed, switch off the power supply.

• If you do not require Auto Restart Control, consult your dealer.

• Auto Restart Control is not available when Timer or Sleep Mode is set.

• When the operation restarts, the outdoor unit will operate only after 3~4 minutes.

■ Timer Setting

• When power failure occurs, the timer setting will be cancelled. Once power is resumed, reset the timer.

■ Thunder and Lightning

• This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may switch off the main power supply and unplug from power socket.

■ Voltage fluctuation

• The outdoor unit stops operation frequently due to a fluctuation in the voltage. Consult your dealer.

ENERGY SAVING AND OPERATION HINTS

Here are some useful tips for optimum performance and cost-effective operation.

■ Setting the Temperature

• Approximately 10% of electricity can be saved.

• Set the temperature higher or lower than the

desired temperature.

Cooling Operation : 1°C higher Heating Operation : 2°C lower

■ Air Filters and Air Purifying Filters

• Clean the air filters every 2 weeks and the Air Purifying Filters every 6 months.

• Dirty filters may reduces cooling or heating efficiency.

■ Keep All Doors and Windows Closed

• Otherwise, cooling or heating performance will be reduced and electricity cost is wasted.

■ Outdoor Unit

• Do not block the air outlet vents. Otherwise, it will lower the cooling or heating performance.

■ Timer and Sleep Mode

• To prevent wastage of electricity, use sleep mode when sleeping or Timer when going out.

■ Avoid Direct Sunlight

• Keep curtains or drapes closed to avoid direct sunlight during cooling operation.

■ Do not overcool!

• A difference of 6°C or less between the outdoor and indoor temperatures during cooling is ideal. Anything cooler may harm your health.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

TROUBLESHOOTING

Before calling your dealer, refer to the checklist

Problem?

• The unit does not operate

• The unit does not cool or heat effectively

• The unit does not receive remote control signals, or

the remote control display is weak or non-existent

Problem?

• Air is not discharged immediately

• Operation stops suddenly

• Fog is blowing out from the unit

• There is a noise

• The outdoor unit gives off water and steam

Check

• Has a circuit breaker been tripped or a fuse blown?

• Is the power supply plug disconnected from the outlet?

• Is the Timer being used correctly?

• Has the temperature been set correctly?

• Are the air filters dirty?

• Are the air intake or outlet vents blocked?

• Are all the windows and doors closed?

Measure the temperature difference. Operation is normal if, 15 minutes after the start of operation, the temperature difference between the air intake and outlet vents is 8°C or above for cooling and 14°C or above for heating.

• Are the batteries weak?

• Have the batteries been inserted with the e and r

poles in the correct position?

Reason

•

At Cooling • Soft Dry (auto Fan Speed)

Air will not be discharged for approximately 40 seconds. The unit is designed to prevent tobacco, cooking and body odors from being discharged together with the cool air.

•

At Heating (POWER LED blinks)

This is to prevent cold air from blowing out. Please wait.

•

At Cooling • Soft Dry (auto Fan Speed)

The indoor fan repeatedly stops for 80 seconds and operates for 20 seconds to check the indoor temperature. Whenever the temperature reaches the setting temperature, operation starts again.

•

At Heating (POWER LED blinks)

When the outdoor temperature is low and humidity is high, frost accumulates on the outdoor unit. The POWER LED blinks when the unit is melting the frost. (Please wait as defrosting may take up to 10 minutes.)

• This occurs when the airflow from the air conditioner cools the room.

• A ‘passt’ sound is heard during defrosting or when the air conditioner operation has been stopped. This is caused by the refrigerant inside the air conditioner flowing in the opposite direction.

• The air conditioner will expand or contract due to changes in temperature, causing a cracking sound.

• The sound of water flowing is caused by the refrigerant flowing inside the unit.

• When defrosting, the frost melts and changes to water and steam.

■ Call the Dealer Immediately

If the following conditions occur, turn off and unplug the main power supply, and then call the dealer immediately.

• Abnormal noise is heard during operation.

• Water or foreign material gets into the remote

control by mistake.

• Water leak from the indoor unit.

• Switches or buttons do not operate properly.

• Circuit breaker trips or fuse blows frequently.

•

Power supply cord and plug become unusually warm.

• A smell of burning is emitted.

■

When the Timer LED at indoor unit blinks

The Timer LED blinks indicating abnormality. Press the check button at remote control for 5 seconds, error code will be displayed.

Remote Control

ON OFF

Press TIMER or button to identify the error code. Beep sound (4 times) will be heard for the correct error code shown. Turn off the power supply and remove the power supply plug. Inform the error code to an authorised dealer.

• Depending on which 3 characters are displayed, temporary operation may be possible.

Characters allowing

temporary operation

H23 H27

H28

●

Temporary operation

1. Press the MODE button and select Heating or Cooling.

2. Press the operation OFF/ON button (‘beep! beep! beep! beep!’ sound is heard). * Use this operation temporarily, until repairs can be

made.

Display.

Possible

temporary

operations

Cooling

Heating

Cooling

Description

of operation Emergency

operation with

limited functions.

(The Timer LED

continues to blink.)

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

10 Installation And Servicing Air Condition er Using R410A

10.1. OUTLINE

10.1.1. About R410A Refrigerant

1. Converting air conditioners to R410A Since it was declared in1974 that chlorofluorocarbons (CFC), hydro chlorofluorocarbons (HCFC) and other substances pose a destructive danger to the ozone layer in the earth´s upper stratosphere (20 to 40 km above the earth), measures have been taken around the world to prevent this destruction. The R22 refrigerant which has conventionally been used in ACs is an HCFC refrigerant and, therefore, possesses this ozonedestroying potential. International regulations (the Montreal Protocol Ozone-Damaging Substances) and the domestic laws of various countries call for the early substitution of R22 by a refrigerant which will not harm the ozone layer.

In ACs, the HFC refrigerant which has become the mainstream alternative called R410A.Compared with R22, the pressure

•

of R410A is approximately 1.6 times as high at the same refrigerant temperature, but the energy efficiency is about the same. Consisting of hydrogen (H), fluorine (F) and carbon (C), R410A is an HFC refrigerant. Another typical HFC refrigerant is R407C. While the energy efficiency of R407C is some what inferior to that of R410A, it offers the advantage of having pressure characteristics which are about the same as those of R22, and is used mainly in packaged ACs.

2. The characteristics of HFC (R410A) refrigerants a. Chemical characteristics

The chemical characteristics of R410A are similar to those of R22 in that both are chemically stable, non- flammable refrigerants with low toxicity. However, just like R22, the specific gravity of R410A gas is heavier than that of air. Because of this, it can cause an oxygen deficiency if it leaks into a closed room since it collects in the lower area of the room. It also generates toxic gas when it is directly exposed to a flame, so it must be used in a well ventilated environment where it will not collect.

Table 1 Physical comparison of R410A and R22

Composition (wt%) R32/R125 (50/50) R22 (100) Boiling point (°C) -51.4 -40.8 Vaporizing pressure (25°C) 1.56 Mpa (15.9 kgf/cm2) 0.94 Mpa (9.6 kgf/cm2) Saturated vapor density 64.0 kg/m Flammability Non-flammable Non-flammable Ozone-destroying point (ODP) 0 0.005 Global-warming point (G WP) 1730 1700

R410A R22

44.4 kg/m

b. Compositional change (pseudo-azeotropic characteristics)

R410A is a pseudo-azeotropic mixture comprising the two components R32 and R125. Multi-component refrigerants with these chemical characteristics exhibit little compositional change even from phase changes due to vaporization 9or condensation), which means that there is little change in the circulating refrigerant composition even when the refrigerant leaks from the gaseous section of the piping. Accordingly, R410A can be handled in almost the same manner as the single-component refrigerant R22. However, when charging, because there is a slight change in composition between the gas phase and the liquid phase inside a cylinder or other container, charging should basically begin with the liquid side.

c. Pressure characteristics

As seen in Table 2, the gas pressure of R410A is approximately 1.6 times as high as that of R22 at the same refrigerant temperature, which means that special R410A tools and materials with high-pressure specifications must be used for all refrigerant piping work and servicing.

Table 2 Comparison of R410A and R22 saturated vapor density

Refrigerant Temperature (°C) R410A R22

-20 0.30 0.14 0 0.70 0.40

20 1.35 0.81 40 2.32 1.43 60 3.73 2.33 65 4.15 2.60

Unit: MPa

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

d. R410A refrigerating machine oil

Conventionally, mineral oil or a synthetic oil such as alkylbenzene has been used for R22 refrigerating machine oil. Because of the poor compatibility between R410A and conventional oils like mineral oil, however, there is a tendency for the refrigerating machine oil to collect in the refrigerating cycle. For this reason, polyester and other synthetic oils which have a high compatibility with R410A are used as refrigerating machine oil. Because of the high hygroscopic property of synthetic oil, more care must be taken in its handling than was necessary with conventional refrigerating machine oils. Also, these synthetic oils will degrade if mixed with mineral oil or alkylbenzene, causing clogging in capillary tubes or compressor malfunction. Do not mix them under any circumstances.

10.1.2. Safety Measure When Installing / Receiving Refrigerant Piping

Cause the gas pressure of R410A is approximately 1.6 times as high as that of R22, a mistake in installation or servicing could result in a major accident. It is essential that you use R410a tools and materials, and that you observe the following precautions to ensure safety.

1. Do not use any refrigerant other than R410A in ACs that have been used with R410A.

2. If any refrigerant gas leaks while you are working, ventilate the room. Toxic gas may be generated if refrigerant gas is exposed to a direct flame.

3. When installing or transferring an AC, do not allow any air or substance other than R410A to mix into the refrigeration cycle. If it does, the pressure in the refrigeration cycle can become abnormally high, possibly causing an explosion and/or injury.

4. After finishing the installation, check to make sure there is no refrigerant gas leaking.

5. When installing or transferring an AC, follow the instructions in the installation instructions carefully. Incorrect installation can result in an abnormal refrigeration cycle or water leakage, electric shock, fire, etc.

6. Do not perform any alterations on the AC unit under any circumstances. Have all repair work done by a specialist. Incorrect repairs can result in an water leakage, electric shock, fire, etc.

10.2. TOOL FOR INSTALLING / SERVICING REFRIGERANT PIPING

10.2.1. Necessary Tools

In order to prevent an R410A AC from mistakenly being charged with any other refrigerant, the diameter of the 3-way valve service port on the outdoor unit has been changed. Also, to increase its ability to withstand pressure, the opposing dimensions have been changed for the refrigerant pipe flaring size and flare nut. Accordingly, when installing or servicing refrigerant piping, you must have both the R410A and ordinary tools listed below.

Type of work Ordinary tools R410A tools

Flaring Flaring tool (clutch type), pipe cutter,

Bending, connecting pipes Torque wrench (nominal diameter 1/4,

Air purging Vacuum pump Hexagonal wrench

Gas leak inspection Gas leak inspection fluid or soapy water Electric gas leak detector for HFC

*1) You can use the conventional (R22) flaring tool. If you need to buy a new tool, buy the R410A type. *2) Use when it is necessary to detect small gas leaks. For other installation work, you should have the usual tools, such as screwdrivers (+,-), a metal-cutting saw, an electrical drill, a hole

core drill (65 or 70 dia.), a tape measure, a level, a thermometer, a clamp meter, an insulation tester, a voltmeter, etc.

Type of work Ordinary tools R410A tools

Refrigerant charging Electronic scale for refrigerant charging

Brazing (Replacing refrigerating cycle part*1)

Table 3 Tools for installation, transferring or replacement

reamer

3/8,1/2) Fixed spanner (opposing sides 12 mm, 17 mm, 19 mm)Adjustable wrench, Spring bender

(opposing sides 4 mm)

Table 4 Tools for serving

Nitrogen blow set (be sure to use nitrogen blowing for all brazing), and brazing), and brazing machine

Copper pipe gauge for clearance Adjustment, flaring tool (clutch type)*1)

Manifold gauge, charging hose, vacuum pump adaptor

refrigerant*2)

Refrigerant cylinder Charging orifice and packing for refrigerant cylinder

*1) Always replace the dryer of the outdoor unit at the same time. The replacement dryer is wrapped in a vacuum pack. Replace it last among the refrigerating cycle parts. Start brazing as soon as you have opened the vacuum pack, and begin the vacuuming operation within 2 hours.

10.2.2. R410A Tools

1. Cooper tube gauge for clearance adjustment (used when flaring with the conventional flaring tool (clutch type))

This gauge makes it easy to set the clearance for the

•

copper tube to 1.0-1.5 mm from the clamp bar of the flaring tool.

2. Flaring tool (clutch type)

In the R410A flaring tool, the receiving hole for the

•

clamp bar is enlarged so the clearance from the clamp bar can be set to 0-0.5 mm, and the spring inside the tool is strengthened to increase the strength of the pipeexpanding torque. This flaring tools can also be used with R22 piping, so we recommend that you select it if you are buying a new flaring tool.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Fig. 1 Copper tube gauge for clearance adjustment

3. Torque wrenches

Table 5

Conventional wrenches R410A wrenches For 1/4 (opposite side x torque) 17 mm x 18 N.m (180 kgf.cm) 17 mm x 18 N.m (180 kgf.cm) For 3/3 (opposite side x torque) 22 mm x 42 N.m (180 kgf.cm) 22 mm x 42 N.m (180 kgf.cm) For 1/2 (opposite side x torque) 24 mm x 55 N.m (180 kgf.cm) 26 mm x 55 N.m (180 kgf.cm)

4. Manifold gauge Because the pressure is higher for the R410A type, the conventional type cannot be used.

•

Table 6 Difference between R410A and conventional high / low-pressure gauges

High-pressure gauge (red) -76 cmHg - 35 kgf/cm

High-pressure gauge (blue) -76 cmHg - 17 kgf/cm

Conventional wrenches R410A wrenches

3 3

Fig. 2 Flaring tool (clutch type)

Fig. 3 Torque wrenches

-0.1 - 5.3 Mpa -76 cmHg - 53 kgf/cm

-0.1 - 3.8 Mpa -76 cmHg - 38 kgf/cm

3 3

The shape of the manifold ports has been changed to prevent the possibility of mistakenly charging with another type of

•

refrigerant.

Table 7 Difference between R410A and conventional manifold port size

Port size 7/6 UNF 20 threads 1/2 UNF 20 threads

Conventional gauges R410A gauges

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

5. Charging hose The pressure resistance of the charging hose has been

•

raised to match the higher pressure of R410A. The hose material has also been changed to suit HFC use, and the size of the fitting has been changed to match the manifold ports.

Pressure resistance

Material NBR rubber HNBR rubber Nylon coating inside

Working pressure 3.4 MPa (35 kgf/cm3) 5.1 MPa (52 kgf/cm3) Bursting pressure 17.2 MPa (175 kgf/cm3) 27.4 MPa (280 kgf/cm3)

6. Vacuum pump adaptor When using a vacuum pump for R410A, it is necessary

•

to install an electromagnetic valve to prevent the vacuum pump oil from flowing back into the charging hose. The vacuum pump adaptor is installed for that purpose. if the vacuum pump oil (mineral oil) becomes mixed with R410A, it will damage the unit.

Fig. 4 Manifold gauge charging hose

Table 8 Difference between R410A and conventional charging hoses

Conventional hoses R410A hoses

7. Electric gas leak detector for HFC refrigerant The leak detector and halide torch that were used with

•

CFC and HCFC cannot be used with R410A (because there is no chlorine in the refrigerant).

The present R134a leak detector can be used, but the

•

detection sensitivity will be lower (setting the sensitivity for R134a at 1, the level for R410A will drop to 0.6).

For detecting small amounts of gas leakage, use the

•

electric gas leak detector for HFC refrigerant. (Detection sensitivity with R410A is about 23 g/year).

Fig. 5 Vacuum pump adaptor

Fig. 6 Electric gas leak detector for HFC refrigerant

8. Electronic scale for refrigerant charging Because of the high pressure and fast vaporizing speed

•

of R410A, the refrigerant cannot be held in a liquid phase inside the charging cylinder when charging is done using the charging cylinder method, causing bubbles to form in the measurement scale glass and making it difficult to see the reading. (Naturally, the conventional R22 charging cylinder cannot be used because of the differences in the pressure resistance, scale gradation, connecting port size, etc.)

The electronic scale has been strengthened by using a

•

structure in which the weight detector for the refrigerant cylinder is held by four supports. It is also equipped with two connection ports, one for R22 *7/16 UNF, 20 threads) and one for R410A (1/2 UNF, 20 threads), so it can also be used for conventional refrigerant charging.

There are two types of electronic scales, one for 10-kg

•

cylinders and one for 20-kg cylinders. (The 10-kg cylinder is recommende d.)

Refrigerant charging is done manually by opening and closing the valve.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Fig. 7 Electronic scale for refrigerant charging

9. Refrigerant cylinders The R410A cylinders are labeled with the refrigerant

•

name, and the coating color of the cylinder protector is pink, which is the color stipulated by ARI of the U.S.

Cylinder equipped with a siphon tube are available to

•

allow the cylinder to stand upright for liquid refrigerant charging.

10. Charging orifice and packing for refrigerant cylinders The charging orifice must match the size of the charging

•

hose fitting (1/2 UNF, 20 threads). The packing must also be made of an HFC-resistant

•

material.

Fig. 8 Refrigerant cylinders

Fig. 9 Charging orifice and packing

10.2.3. R410A Tools Which Are Usable for R22 Models

Table 9 R410A tools which are usable for R22 models

R410A tools Usable for R22 models (1) Copper tube gauge for clearance adjustment OK (2) Flaring tool (clutch type) OK (3) Manifold gauge NG (4) Charging hose NG (5) Vacuum pump adaptor OK (6) Electric gas leak detector for HFC refrigerant NG (7) Electronic scale for refrigerant charging OK (8) Refrigerant cylinder NG (9) Charging orifice and packing for refrigerant cylinder NG

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

10.3. REFRIGERANT PIPING WORK

10.3.1. Piping Materials

It is recommended that you use copper and copper alloy jointless pipes with a maximum oil adherence of 40 mg/10m. Do not used pipes that are crushed, deformed, or discolored (especially the inside surface). If these inferior pipes are used, impurities may clog the expansion valves or capillaries. Because the pressure of ACs using R410A is higher than those using R22, it is essential that you select materials that are appropriate for these standards. The thickness of the copper tubing used for R410A is shown in Table 10. Please be aware that tubing with a thickness of only 0.7 mm is also available on the market, but this should never be used.

Table 8 Difference between R410A and conventional charging hoses

Soft pipe Thickness (mm)

Nominal diameter Outside diameter (mm) R410A (Reference) R22

1/4 6.35 0.80 0.80 3/8 9.52 0.80 0.80 1/2 12.7 0.80 0.80

10.3.2. Processing and Connecting Piping Materials

When working with refrigerant piping, the following points must be carefully observed: no moisture od dust must be allowed to enter the piping, and there must be no refrigerant leaks.

1. Procedure and precautions for flaring work a. Cut the pipe

Use a pipe cutter, and cut slowly so the pipe will not be deformed.

b. Remove burrs and clean shavings from the cut surface

If the shape of the pipe end is poor after removing burrs, or if shavings adhere to the flared area, it may lead to refrigerant leaks. To prevent this, turn the cut surface downward and remove burrs, then clean the surface, carefully.

c. Insert the flare nut (be sure to used the same nut that is

used on the AC unit)

d. Flaring

Check the clamp bar and the cleanliness of the copper pipe. Be sure to sued the clamp bar to do the flaring with accuracy. Use either an R410A flaring tool, or a conventional flaring tool. flaring tools come in different sizes, so be sure to check the size before using. When using a conventional flaring tool, use the copper pipe gauge for clearance adjustment, etc., to ensure the correct A dimension (see Fig. 10)

Fig. 10 Flaring dimensions

Fig. 11 Relation between the flare nut structure and flaring tool end

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Nominal

diameter

1/4 6.35 0.8 0 - 0.5 1.0 - 1.5 1.5 - 2.0 3/8 9.52 0.8 0 - 0.5 1.0 - 1.5 1.5 - 2.0 1/2 12.70 0.8 0 - 0.5 1.0 - 1.5 2.0 - 2.5

Nominal

diameter

1/4 6.35 0.8 0 - 0.5 0.5 - 1.0 1.0 - 1.5 3/8 9.52 0.8 0 - 0.5 0.5 - 1.0 1.0 - 1.5 1/2 12.70 0.8 0 - 0.5 0.5 - 1.0 1.5 - 2.0

Nominal

diameter

1/4 6.35 0.8 9.1 9.2 6.5 13 17 3/8 9.52 0.8 13.2 13.5 9.7 20 22 1/2 12.70 0.8 16.6 16.0 12.9 23 26

Nominal

diameter

1/4 6.35 0.8 9.0 9.2 6.5 13 17 3/8 9.52 0.8 13.0 13.5 9.7 20 22 1/2 12.70 0.8 16.2 16.0 12.9 20 24

Outside

diameter

(mm)

Outside

diameter

(mm)

Outside

diameter (mm)

Outside

diameter (mm)

Table 13 R410A flaring and flare nut dimensions Unit: mm

Wall thickness

(mm)

Table 14 R410A flaring and flare nut dimensions Unit: mm

Wall thickness

(mm)

Table 11 R410A flaring dimensions

Wall thickness

(mm)

Table 12 R410A flaring dimensions

Wall thickness

(mm)

A +0, -0.4 B

R410A flaring

tool, clutch type

R410A flaring

tool, clutch type

dimension

A (mm)

Conventional flaring tool

Clutch type Wing-nut type

A (mm)

Conventional flaring tool

Clutch type Wing-nut type

dimension

Flare nut

width

Flare nut

width

2. Procedure and precautions for flare connection a. Check to make sure there are no scratches, dust, etc., on the flare and union. b. Align the flared surface with the axial center of the union. c. Use a torque wrench, and tighten to the specified torque. The tightening torque for R410A is the same as the conventional

torque value for R22. Be careful, because if the torque is too weak, it may lead to a gas leak. If it is too strong, it may split the flare nut or make it impossible to remove the flare nut.

Nominal

diameter

1/4 6.35 14 - 18 (140 - 180) 18 (180) 3/8 9.52 33 - 42 (330 -420) 42 (420) 1/2 12.70 55 (550) 55 (550)

Table 15 R410A tightening torque

Outside

diameter (mm)

Tightening torque

N.m (kgf.cm)

Torque wrench tightening torque

N.m (kgf.cm)

10.3.3. Storing and managing Piping Materials

1. Types of piping and their storage The following is a general classification of the refrigerant pipe materials used for ACs.

Because the gas pressure of R410A is approximately 1.6 times as high as that of R22, copper pipes with the thickness shown in Table 10, and with minimal impurities must be used. Care must also be taken during storage to ensure that pipes are not crushed, deformed, or scratched, and that no dust, moisture or other substance enters the pipe interior. When storing sheathed copper pipes or plain copper pipes, seal the openings by pinching or taping them securely.

2. Makings and management a. Sheathed copper pipes and copper-element pipes

When using these pipes, check to make sure that they are the stipulated thickness. For flare nuts, be sure to used the same nut that is used on the AC unit.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

b. Copper pipes

Use only copper pipes with the thickness given in table 10, and with minimal impurities. Because the surface of the pipe is exposed, you should take special care, and also take measures such as marking the pipes to make sure they are easily distinguished from other piping materials, to prevent mistaken use.

3. Precautions during refrigerant piping work Take the following precautions on-site when connecting pipes. (Keep in mind that the need to control the entry of moisture and dust is even more important that in conventional piping).

a. Keep the open ends of all pipes sealed until connection with AC equipment is complete. b. Take special care when doing piping work on rainy days. The entering of moisture will degrade the refrigerating machine oil,

and lead to malfunctions in the equipment.

c. Complete all pipe connections in as short a time as possible. If the pipe must be left standing for a long time after removing

the seal, it must be thoroughly purged with nitrogen, or dried with a vacuum pump.

10.4. INSTALLATION, TRANSFERRING, SERVICING

10.4.1. Inspecting Gas Leaks with a Vacuum Pump for New Installations (Using New

Refrigerant Piping)

1. From the viewpoint of protecting the global environment, please do not release refrigerant into the atmosphere. a. Connect the projecting side (pin-pushing side) of the charging hose for the manifold gauge to the service port of the 3-way

valve. (1)

b. Fully open the handle Lo of the manifold gauge and run the vacuum pump. (2) (If the needle of the low-pressure gauge

instantly reaches vacuum, re-check step a).)

c. Continue the vacuum process for at least 15 minutes, then check to make sure the low-pressure gauge has reached -0.1

MPa (-76 cmHg). Once the vacuum process has finished, fully close the handle Lo of the manifold gauge and stop the vacuum pump operation, then remove the charging hose that is connected to the vacuum pump adaptor. (Leave the unit in that condition for 1-2 minutes, and make sure that the needle of the manifold gauge does not return.) (2) and (3)

d. Turn the valve stem of the 2-way valve 90 counter-clockwise to open it, then, after 10 seconds, close it and inspect for a gas

leak (4)

e. Remove the charging hose from the 3-way valve service port, then open both the 2-way valve and 3-way valve. (1) (4)(Turn

the valve stem in the counter-clockwise direction until it gently makes contact. Do not turn it forcefully).

f. Tighten the service port cap with a torque wrench (18 N.m (1.8 kgf.m)). (5) Then tighten the 2-way valve and 3-way valve

caps with a torque wrench (42 N.m (4.2 kgf.m)) or (55 N.m (5.5 kgf.m)).

g. After attaching each of the caps, inspect for a gas leak around the cap area. (5) (6)

Precautions

Be sure to read the instructions for the vacuum pump,

•

vacuum pump adaptor and manifold gauge prior to use, and follow the instructions carefully.

Make sure that the vacuum pump is filled with oil up to

•

the designated line on the oil gauge. The gas pressure back flow prevention valve on the

•

charging hose is generally open during use. When you are removing the charging hose from the service port, it will come off more easily if you close this valve.

Fig. 12 Vacuum pump air purging configuration

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

10.4.2. Transferring (Using New Refrigerant Piping)

1. Removing the unit a. Collecting the refrigerant into the outdoor unit by pumping down

The refrigerant can be collected into the outdoor unit (pumping down) by pressing the TEST RUN button, even when the temperature of the room is low.

Check to make sure that the valve stems of the 2-way valve and 3-way valve have been opened by turning them counter-

•

clockwise. (Remove the valve stem caps and check to see that the valve stems are fully opened position. Always use a hex wrench (with 4-mm opposing sides) to operate the valve stems.)

Press the TEST RUN button on the indoor unit, and allow preliminary for 5-6 minutes. (TEST RUN mode)

•

After stopping the operation, let the unit sit for about 3 minutes, then close the 2-way valve by turning the valve stem in

•

the clockwise direction. Press the TEST RUN button on the indoor unit again, and after 2-3 minutes of operation, turn the valve stem of the 3-

•

way valve quickly in the clockwise direction to close it, then stop the operation. Tighten the caps of the 2-way valve and 3-way valve to the stipulated torque.

•

Remove the connection pipes (liquid side and gas side).

•

2. Installing the unit Install the unit using new refrigerant piping. Follow the instructions in section 4.1 to evacuate the pipes connecting the indoor and outdoor units, and the pipes of the indoor unit, and check for gas leaks.

10.4.3. AC Units Replacement (Using Existing Refrigerant Piping)

When replacing and R410A AC unit with another R410A AC unit, you should re-flare the refrigerant piping. Even though the replacement AC unit uses the R410A, problems occur when, for example, either the AC unit maker or the refrigerating machine oil is different. When replacing an R22 AC unit with an R410A AC unit, the following checks and cleaning procedures are necessary but are difficult to do because of the chemical characteristics of the refrigerating machine oil (as described in items c) and d) of section

10.1.1.(2)). In this case, you should use new refrigerant piping rather than the existing piping.

1. Piping check Because of the different pressure characteristics of R22 and R410A, the design pressure for the equipment is 1.6 times different. the wall thickness of the piping must comply with that shown in Table 10, but this is not easy to check. Also, even if the thickness is correct, there may be flattened or bent portions midway through the piping due to sharp curves. Buried sections of the piping also cannot be checked.

2. Pipe cleaning A large quantity of refrigerating machine oil (mineral oil) adheres to existing pipes due to the refrigeration cycle circulation. If the pipes are used just as they are for the R410A cycle, the capacity will be lowered due to the incompatibility of this oil with the R410A, or irregularities may occur in the refrigeration cycle. For this reason, the piping must be thoroughly cleaned, but this is difficult with the present technology.

10.4.4. Refrigerant Compatibility (Using R410A Refrigerant in R22 ACs and Vice Versa)

Do not operate an existing R22 AC with the new R410A refrigerant. Doing so would result in improper functioning of the equipment or malfunction, and might lead to a major accident such as an explosion in the refrigeration cycle. Similarly, do not operate an R410A AC with R22 refrigerant. The chemical reaction between the refrigerating machine oil used in R410A ACs and the chlorine that is contained in R22 would cause the refrigerating machine oil to degrade and lead to malfunction.

10.4.5. Recharging Refrigerant During Servicing

When recharging is necessary, insert the specified amount of new refrigerant in accordance with the following procedure.

1. Connect the charging hose to the service port of the outdoor unit.

2. Connect the charging hose to the vacuum pump adaptor. At this time, fully open the 2-way valve and 3-way valve.

3. Fully open the handle Lo of the manifold gauge, turn on the power of the vacuum pump and continue the vacuum process for at least one hour.

4. Confirm that the low pressure gauge shows a reading of -0.1 Mpa (-76 cmHg), then fully close the handle Lo, and turn off the vacuum pump. Wait for 1-2 minutes, then check to make sure that the needle of the Low pressure gauge has not returned. See Fig. 13 for the remaining steps of this procedure.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

5. Set the refrigerant cylinder onto the electronic scale, then correct the hose the cylinder and to the connection port for the electronic scale. (1)(2)

Precaution:

Be sure to set up the cylinder for liquid charging. If you use a cylinder equipped with a siphon tube, you can charge the liquid without having to turn the cylinder around

6. Remove the charging hose of the manifold gauge from the vacuum pump adaptor, and connect it to the connection port of the electronic scale. (2)(3)

7. Open the valve of the refrigerant cylinder, then open the charging valve slightly and close it. Next, press the check valve of the manifold gauge and purge the air. (2)(4) (Watch the liquid refrigerant closely at this point.)

8. After adjusting the electronic scale to zero, open the charging valve, then open the valve Lo of the manifold gauge and charge with the liquid refrigerant. (2)(5) (Be sure to read the operating instructions for the electronic scale.)

9. If you cannot charge the stipulated amount, operate the unit in the cooling mode while charging a little of the liquid at a time (about 150 g/time as a guideline). If the charging amount is insufficient from one operation, wait about one minute, then use the same procedure to do the liquid charging again.

Precaution:

Never use the gas side to allow a larger amount of liquid refrigerant to be charged while operating the unit.

10. Close the charging valve, and after charging the liquid refrigerant inside the charging hose, fully close the valve Lo of the manifold gauge, and stop the operation of the unit. (2)(5)

11. Quickly remove the charging hose from the service port. (6) If you stop midway through, the refrigerant that is in the cycle will be discharged.

12. After putting on the caps for the service port and operating valve, inspect around the caps for a gas leak. (6)(7)

Fig. 13 Re-charging refrigerant

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

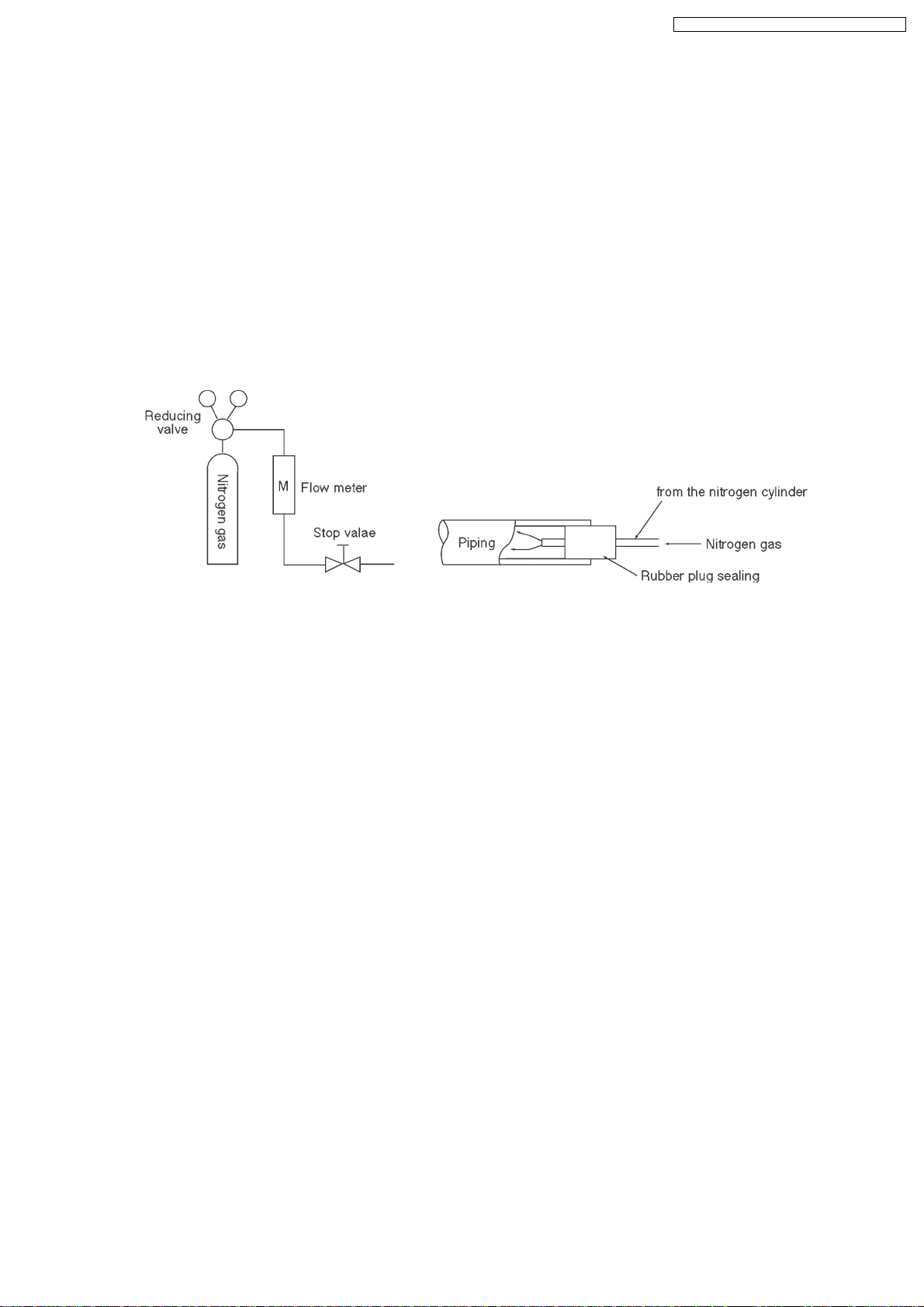

10.4.6. Brazing

As brazing requires sophisticated techniques and experiences, it must be performed by a qualified person. In order to prevent the oxide film from occurring in the pipe interior during brazing, it is effective to proceed with brazing while letting dry nitrogen gas (N2) flow.

1. Attach a reducing valve to the nitrogen gas cylinder.

2. Attach a reducing valve to the nitrogen gas cylinder.

3. Apply a seal onto the clearance between the piping and inserted pipe for the nitrogen gas in order to prevent the nitrogen gas from flowing backward.

4. When the nitrogen gas is flowing, be sure to keep the piping end open.

5. Adjust the flow rate of nitrogen gas so that it is lower than 0.05 m

6. After taking the steps above, keep the nitrogen gas flowing until the piping cools down to a certain extent (i.e. temperature at which pipes are touchable with finger).

7. Completely remove the flux after brazing.

/h, or 0.02 MPa (0.2 kgf/cm2) by means of the reducing valve.

Cautions during brazing

1. General Cautions

a. The brazing strength should be high as required. b. After operation, airtightness should be kept under pressurized condition. c. During brazing do not allow component materials to become damaged due to overheating. d. The refrigerant pipe work should not become blocked with scale or flux. e. The brazed part should not restrict the flow in the refrigerant circuit. f. No corrosion should occur from the brazed part.

2. Preventing of Overheating

Due to heating, the interior and exterior surfaces of treated metal may oxidize. Especially, when the interior of the refrigerant circuit oxidizes due to overheating, scale occurs and stays in the circuit as dust, thus exerting a fatally adverse effect. So, make brazing at adequate brazing temperature and with minimum of heating area.

3. Overheating Protection

In order to prevent components near the brazed part from overheating damaged or quality deterioration due to flame or heat, take adequate steps for protection such as (1) by shielding with a metal plate, (2) by using a wet cloth, and (3) by means of heat absorbent.

4. Movement during Brazing

Eliminate all vibration during brazing to protect brazed joints from cracking and breakage.

5. Oxidation Preventative

In order to improve the brazing efficiency, various types of antioxidant are available on the market. However, the constituents of these are widely varied, and some are anticip ated to corrode the piping materials, or adversely affect HFC refrigerant, lubricating oil, etc. Exercise care when using an oxidation preventive.

10.4.7. Servicing Tips

The drier must also be replaced whenever replacing the refrigerant cycle parts. Replacing the refrigerant cycle parts first before replacing the drier. The drier is supplied in a vacuum pack. Perform brazing immediately after opening the vacuum pack, and then start the vacuum within two hours. In addition, the drier also needs to be replaced when the refrigerant has leaked completely.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

11 Installation Instructions

Required tools for Installation Works

1. Philips screw driver 5. Spanner 9. Gas leak detector 13. Multimeter

2. Level gauge 6. Pipe cutter 10. Measuring tape 14. Torque wrench

3. Electric drill, hole core drill (ø70 mm)

4. Hexagonal wrench (4 mm) 8. Knife 12. Megameter 16. Gauge manifold

7. Reamer 11. Thermometer 15. Vacuum pump

11.1. Safety Precautions

•

Read the following “SAFETY PRECAUTIONS” carefully before installation.

•

Electrical work must be installed by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model to be installed.

•

The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below. Incorrect installation due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.

This indication shows the possibility of causing death or serious injury.

18 N.m (1.8 kgf.m) 42 N.m (4.2 kgf.m) 55 N.m (5.5 kgf.m)

This indication shows the possibility of causing injury or damage to properties only.

The items to be followed are classified by the symbols:

Symbol with background white denotes item that is PROHIBITED from doing.

•

Carry out test running to confirm that no abnormality occurs after the installation. Then, explain to user the operation, care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference.

1. Engage dealer or specialist for installation. If installation done by the user is defective, it will cause water leakage, electrical shock or fire.

2. Install according to this installation instruction strictly. If installation is defective, it will cause water leakage, electrical shock or fire.

3. Use the attached accessories parts and specified parts for installation. Otherwise, it will cause the set to fall, water leakage, fire or electrical shock.

4. Install at a strong and firm location which is able to withstand the set’s weight. If the strength is not enough or installation is not properly done, the set will drop and cause injury.

5. For electrical work, follow the local national wiring standard, regulation and this installation instruction. An independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.

6. Use the specified cable (1.5 mm2) and connect tightly for indoor/outdoor connection. Connect tightly and clamp the cable so that no external force will be acted on the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection .

7. Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause heat-up at connection point of terminal, fire or electrical shock.

8. When carrying out piping connection, take care not to let air substances other than the specified refrigerant go into refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high pressure in the refrigeration cycle, explosion and injury.

When connecting the piping, do not allow air or any substances other than the specified refrigerant (R410A) to enter the

refrigeration cycle. Otherwise, this may lower the capacity, cause abnormally high pressure in the refrigeration cycle, and possibly result in explosion and injury.

•

When connecting the piping, do not use any existing (R22) pipes and flare nuts. Using such same may cause

10.

abnormally high pressure in the refrigeration cycle (piping), and possibly result in explosion and injury. Use only R410A materials.

•

Thickness of copper pipes used with R410A must be more than 0.8 mm. Never use copper pipes thinner than 0.8 mm.

•

It is desirable that the amount of residual oil is less than 40 mg/10 m.

11. Do not modify the length of the power supply cord or use of the extension cord, and do not share the single outlet with other electrical appliances. Otherwise, it will cause fire or electrical shock.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

1. The equipment must be earthed. It may cause electrical shock if grounding is not perfect.

2. Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may cause fire.

3. Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the furniture.

1. Selection of the installation location. Select a installation location which is rigid and strong enough to support or hold the unit, and select a location for easy maintenance.

2. Power supply connection to the room air conditioner. Connect the power supply cord of the room air conditioner to the mains using one of the following method. Power supply point shall be the place where there is ease for access for the power disconnection in case of emergency. In some countries, permanent connection of this room air conditioner to the power supply is prohibited.

1. Power supply connection to the receptacle using a power plug.

Use an approved 15A/16A power plug with earth pin for the connection to the socket.

2. Power supply connection to a circuit breaker for the permanent connection. Use an approved 16A circuit breaker for the permanent

connection. It must be a double pole switch with a minimum 3 mm contact gap.

3. Do not release refrigerant. Do not release refrigerant during piping work for installation, reinstallation and during repairing a refrigeration parts. Take care of the liquid refrigerant, it may cause frostbite.

4. Installation work. It may need two people to carry out the installation work.

5. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Attached accessories

Piping size Common

Model Gas Liquid

E9BK 3/8” 1/4” 7.5 5 10 10

E12BK 1/2” 1/4” 7.5 5 15 10

Length

(m)

Max.

Elevation

(m)

Max.

Piping

Length

(m)

Indoor/Outdoor Unit Installation Diagram

Additional

Refrigerant

(g/m)

Applicable piping kit CZ-3F5, 7AEN (E9BK) CZ-4F5, 7, 10AN (E12BK)

SELECT THE BEST LOCATION

INDOOR UNIT

There should not be any heat source or steam near the

•

unit. There should not be any obstacles blocking the air

•

circulation. A place where air circulation in the room is good.

•

A place where drainage can be easily done.

•

A place where noise prevention is taken into

•

consideration. Do not install the unit near the door way.

•

Ensure the spaces indicated by arrows from the wall,

•

ceiling, fence or other obstacles. Recommended installation height for indoor unit shall be

•

at least 2.3 m.

OUTDOOR UNIT

If an awning is built over the unit to prevent direct

•

sunlight or rain, be careful that heat radiation from the condenser is not obstructed.

There should not be any animal or plant which could be

•

affected by hot air discharged. Keep the spaces indicated by arrows from wall, ceiling,

•

fence or other obstacles. Do not place any obstacles which may cause a short

•

circuit of the discharged air. If piping length is over the common length, additional

•

refrigerant should be added as shown in the table.

This illustration is for explanation purposes only.

•

The indoor unit will actually face a different way.

11.2. INDOOR UNIT

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

11.2.1. SELECT THE BEST LOCATION (Refer to “Select the best location” section)

11.2.2. HOW TO FIX INSTALLATION PLATE

The mounting wall is strong and solid enough to prevent it from the vibration.

11.2.3. TO DRILL A HOLE IN THE WALL AND INSTALL A SLEEVE OF PIPING

1. Insert the piping sleeve to the hole.

2. Fix the bushing to the sleeve.

3. Cut the sleeve until it extrudes about 15 mm from the wall.

Caution

When the wall is hollow, please be sure to use the sleeve for tube ass’y to prevent dangers caused by mice biting the connecting cable.

4. Finish by sealing the sleeve with putty or caulking

compound at the final stage.

The centre of installation plate should be at more than 450 mm at right and left of the wall.

The distance from installation plate edge to ceiling should more than 67 mm.

From installation plate left edge to unit’s left side is 47 mm. From installation plate right edge to unit’s right is 73 mm.

For left side piping, piping connection for liquid should be about 14 mm from this line.

For left side piping, piping connection for gas should be about 56 mm from this line.

For left side piping, piping connecting cable should be about 785 mm from this line.

1. Mount the installation plate on the wall with 5 screws or more. (If mounting the unit on the concrete wall consider using anchor bolts.)

Always mount the installation plate horizontally by

•

aligning the marking-off line with the thread and using a level gauge.

2. Drill the piping plate hole with ø70 mm hole-core drill.

Line according to the arrows marked on the lower left

•

and right side of the installation plate. The meeting point of the extended line is the centre of the hole. Another method is by putting measuring tape at position as shown in the diagram above. The hole centre is obtained by measuring the distance namely 150 mm and 125 mm for left and right hole respectively.

Drill the piping hole at either the right or the left and the

•

hole should be slightly slanted to the outdoor side.

11.2.4. INDOOR UNIT INSTALLATION

For the right rear piping

For the right and right bottom piping

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

For the embedded piping

(This can be used for left rear piping & left bottom piping also.)

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

INSTALLATION OF AIR PURIFYING FILTERS

1. Open the front panel.

2. Remove the air filters.

3. Put air purifying filters (left) and solar refreshing deodorizing filter (right) into place as shown in illustration below.

11.2.5. CONNECT THE CABLE TO THE INDOOR UNIT

1. The inside and outside connecting cable can be connected

without removing the front grille.

2. Connecting cable between indoor unit and outdoor unit

shall be approved polychloroprene sheathed 4 (E9BK, E12BK) × 1.5 mm 57 or heavier cord.

Ensure the color of wires of outdoor unit and the

•

terminal Nos. are the same to the indoor’s respectively. Earth lead wire shall be longer than the other lead wires

•

as shown in the figure for the electrical safety in case of the slipping out of the cord from the anchorage.

Secure the cable onto the control board with the holder

•

(clamper).

flexible cord, type designation 245 IEC

HOW TO TAKE OUT FRONT GRILLE

Please follow the steps below to take out front grille if necessary such as when servicing.

1. Set the vertical airflow direction louver to the horizontal position.

2. Slide down the two caps on the front grille as shown in the illustration below, and then remove the two mounting screws.

3. Pull the lower section of the front grille towards you to remove the front grille.

When reinstalling the front grille, first set the vertical airflow direction louver to the horizontal position and then carry out above steps 2 - 3 in the reverse order.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

AUTO SWITCH OPERATION

The below operations will be performed by pressing the “AUTO” switch.

1. AUTO OPERATION MODE The Auto operation will be activated immediately once the

Auto Switch is pressed.

2. TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE)

The Test Run operation will be activated if the Auto Switch is pressed continuously for more than 5 sec. to below 10 sec.. A “pep” sound will occur at the fifth sec., in order to identify the starting of Test Run operation

3. HEATING CONTROLLER RECEIVING SOUND ON/OFF The ON/OFF of remote controller receiving sound can be

changed over by following steps:

4. REMOTE CONTROLLER RECEIVING SOUND ON/OFF The ON/OFF of remote controller receiving sound can be

changed over by following steps: a. Press “AUTO” switch continuously for more than 16 sec.

to below 21 sec. A “pep”“pep” sound will occur at sixteenth sec..

b. Press the “Check” button once at remote controller. A

“pep” sound will occur.

c. Press the “AUTO” switch once to select remote

controller receiving sound ON/OFF. A “pep” sound indicates receiving sound ON, and a “pep” sound indicates receiving sound OFF.

11.3. OUTDOOR UNIT

11.3.1. SELECT THE BEST LOCATION (Refer to “Select the best location” section)

11.3.2. INSTALL THE OUTDOOR UNIT

After selecting the best location, start installation according

•

to Indoor/Outdoor Unit Installation Diagram.

1. Fix the unit on concrete or rigid frame firmly and horizontally

by bolt nut. (ø10 mm).

2. When installing at roof, please consider strong wind and

earthquake. Please fasten the installation stand firmly with bolt or nails.

11.3.3. CONNECTING THE PIPING

Connecting The Piping To Indoor Unit

Please make flare after inserting flare nut (locate at joint portion of tube assembly) onto the copper pipe. (In case of using long piping)

Connect the piping

Align the center of piping and sufficiently tighten the flare

•

nut with fingers. Further tighten the flare nut with torque wrench in specified

•

torque as stated in the table.

MODEL Piping size (Torque)

Gas Liquid

E9BK 3/8” (42 N.m) 1/4” (18 N.m)

E12BK 1/2” (55 N.m) 1/4” (18 N.m)

Connecting The Piping To Outdoor Unit

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut (located at valve) onto the copper pipe.

Align center of piping to valves and then tighten with torque wrench to the specified torque as stated in the table.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

CUTTING AND FLARING THE PIPING

1. Please cut using pipe cutter and then remove the burrs.

2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused.

Turn the piping end down to avoid the metal powder entering the pipe.

3. Please make flare after inserting the flare nut onto the copper pipes.

11.3.4. (a) EVACUATION OF THE EQUIPMENT (FOR EUROPE & OCEANIA DESTINATION)

WHEN INSTALLING AN AIR CONDITIONER, BE SURE TO EVACUATE THE AIR INSIDE THE INDOOR UNIT AND PIPES in the following procedure.

1. Connect a charging hose with a push pin to the Low and High side of a charging set and the service port of the 3-way valve. Be sure to connect the end of the charging hose with the push pin to the service port.

•

2. Connect the center hose of the charging set to a vacuum pump with check valve, or vacuum pump and vacuum pump adaptor.

3. Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from 0 cmHg (0 MPa) to

-76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes.

4. Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the gauge does not

move after approximately five minutes. Note: BE SURE TO FOLLOW THIS PROCEDURE IN ORDER TO AVOID REFRIGERANT GAS LEAKAGE.

5. Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve.

6. Tighten the service port caps of the 3-way valve at torque of 18 N.m with a torque wrench.

7. Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN” using a hexagonal

wrench (4 mm).

8. Mount valve caps onto the 2-way valve and the 3-way valve. Be sure to check for gas leakage.

•

CAUTION

If gauge needle does not move from 0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa), in step 3 above take the following measure:

•

If the leak stops when the piping connections are tightened further, continue working from step 3.

•

If the leak does not stop when the connections are retightened, repair the location of leak.

•

Do not release refrigerant during piping work for installation and reinstallation. Take care of the liquid refrigerant, it may cause

•

frostbite.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

11.3.5. CONNECT THE CABLE TO THE OUTDOOR UNIT

1. Remove the control board cover from the unit by loosening

the screw.

2. Connecting cable between indoor unit and outdoor unit

shall be approved polychloroprene sheathed 4 (E9BK, E12BK) × 1.5 mm

flexible cord, type designation 245 IEC

57 or heavier cord.

3. Secure the cable onto the control board with the holder

(clamper).

4. Attach the control board cover back to the original position

with the screw.

11.3.6. PIPE INSULATION

CHECK THE DRAINAGE

Open front panel and remove air filters.

•

(Drainage checking can be carried out without removing the front grille.)

Pour a glass of water into the drain tray-styrofoam.

•

Ensure that water flows out from drain hose of the indoor

•

unit.

EVALUATION OF THE PERFORMANCE

Operate the unit at cooling operation mode for fifteen

•

minutes or more. Measure the temperature of the intake and discharge air.

•

Ensure the difference between the intake temperature and

•

the discharge is more than 8°C.

1. Please carry out insulation at pipe connection portion as

mentioned in Indoor/Outdoor Unit Installation Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.

2. If drain hose or connecting piping is in the room (where dew

may form), please increase the insulation by using POLY-E FOAM with thickness 6 mm or above.

DISPOSAL OF OUTDOOR UNIT DRAIN WATER

If a drain elbow is used, the unit should be placed on a

•

stand which is taller than 3 cm. If the unit is used in an area where temperature falls below

•

0°C for 2 or 3 days in succession, it is recommended not to use a drain elbow, for the drain water freezes and the fan will not rotate.

CHECK ITEMS

Is there any gas leakage at flare nut connections?

Has the heat insulation been carried out at flare nut connection?

Is the connecting cable being fixed to terminal board firmly?

Is the connecting cable being clamped firmly?

Is the drainage OK? (Refer to “Check the drainage” section)

Is the earth wire connection properly done?

Is the indoor unit properly hooked to the installation plate?

Is the power supply voltage complied with rated value?

Is there any abnormal sound?

Is the cooling operation normal?

Is the thermostat operation normal?

Is the remote control’s LCD operation normal?

Is the air purifying filter installed?

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

12 Servicing Information

12.1. Troubleshooting

Rated Frequency Operation

During troubleshooting and servicing, rated compressor operating frequency must be obtained in order to check the specification and technical data. Below are the methods used to obtain rated compressor operating specification.

(a) Cooling

(i) Press the Auto button continuously for 5 seconds or less than 8 seconds, the air conditioner starts operation at Cooling rated frequency.

(“beep” will be heard at the 5th second.)

(ii) Short the service terminal (CN-S) of the outdoor printed circuit board. The operation of air conditioner is Cooling rated frequency.

(b) Heating Press the Auto button continuously for 8 seconds or less than 11 seconds, the air conditioner starts operation at Heating rated

frequency. (“beep”“beep” will be heard at the 8th second.)

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Troubleshooting Air Conditioner

Refrigeration cycle system

In order to diagnose malfunctions, make sure that there are no electrical problems before inspecting the refrigeration cycle. Such problems include insufficient insulation, problem with the power source, malfunction of a compressor and a fan.

The normal outlet air temperature and pressure of the refrigeration cycle depends on various conditions, the standard values for them are shown in the table to the right.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

1. Relationship between the condition of the air conditioner and pressure and electric current

Cooling Mode Heating Mode

Condition of the air

conditoner Low Pressure High Pressure Electric current

during operation

Insufficient refrigerant (gas leakage)

Clogged capillary tube or Strainer

Short circuit in the indoor unit

Heat radiation deficiency of the outdoor unit

Low Pressure High Pressure Electric current

during operation

Inefficient compression

•

Carry on the measurements of pressure, electric current, and temperature fifteen minute s after an operation is started.

12.2. Breakdown Self Diagnosis Function

Once abnormality detected during operation, the unit will immediately stop its operation (Timer LED is blinking) and maximum of three error codes (abnormality) will be saved in memory. The abnormality of the operation can be identified through the below breakdown diagnosis method:

•

Press “CHECK” button at remote controller continuously for more than five seconds to turn on the diagnosis mode, “H11” will be displayed at remote controller.

•

By pressing the TMER “ displayed.

•

If error code displayed matches the error code saved in unit memory (abnormality detected), four “beep” sounds will be heard and Power LED will light on. Otherwise, one “beep” sound is heard.

If “CHECK” button is press again or without any operation for 30 seconds, the diagnosis mode will turn off.

” button once, next error code will be displayed; press “V” button once, previous error code will be

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Error Codes Table

Diagnosis

display

H11 Indoor / outdoor abnormal

H14 Indoor intake air temperature sensor

H15 Outdoor compressor temperature sensor

H16 Outdoor Current Transformer open

H19 Indoor fan motor merchanism lock — —

H23 Indoor heat exchanger temperature

H27 Outdoor air temperature sensor

H28 Outdoor heat exchanger temperature

H33 Indoor/Outdoor wrong connection — — H98 Indoor high pressure protection — —

H99 Indoor heat exchanger anti-freezing

F11 Cooli ng / Heating cycle changeover

F90 PFC control 4 times occurance

F91 Refrigeration cycle abnormality 2 times occurance

F95 Cool high pressure protection 4 times occurance

F96 IPM (power transistor) overheating

F97 Outdoor compressor overheating

F98 Total running current protection 3 times occurance

F99 Outdoor Direct Current (DC) peak

Abnormality / Protection control Abnormality

communication

abnormality

circuit

sensor abnormality

abnormality

sensor abnormality

protection

abnormality

protection

detection

Judgement

> 1 min after starting operation

— —

Continue for 5 sec. —

— —

Continue for 5 sec. O

— —

4 times occurance within 30 minutes

within 10 minutes

within 20 minutes

— —

4 times occurance within 10 minutes

within 20 minutes 7 times occurance

continuously

Indoor fan operation

Emergency

operation

only

(Cooling only)

—

Primary location to verify

• In ternal / external cable connections

• I ndoor / Outdoor PCB

• I ntake air temperature sensor

(defective or disconnected)

• Compressor temperature sensor (defective or disconnected)

• O utdoor PCB

• I PM (Power transistor) module

• Indoor PCB

• Fan motor

• Heat exchanger temperature sensor

(defective or disconnected)

• O utdoor temperature sensor (defective or disconnected)

• O utdoor heat exchanger temperature sensor (defective or disconnected)

• I ndoor/Outdoor supply voltage

• Air filter dirty

• Air circulation short circuit

• Insufficient refrigerant

• Air filter dirty

• 4-way valve

• V -coil

• Voltage at PFC

• No refrigerant

(3-way valve is closed)

• Outdoor refrigerant circuit

• Excess refrigerant

• Improper heat radiation

• IPM (Power transistor)

• Insufficient refrigerant

• Compressor

• Excess refrigerant

• Improper heat radiation

• O utdoor PCB

• IPM (Power transistor)

• Compressor

Note: “O” - Frequency measured and fan speed fixed.

The memory data of error code is erased when the power supply is cut off, or press the Auto Switch until “beep” sound heard following by pressing the “RESET” button at remote controller.

Although operation forced to stop when abnormality detected, emergency operation is possible for certain errors (refer to Error Codes Table) by using remote controller or Auto Switch at indoor unit. However, the remote controller signal receiving sound is changed from one “beep” to four “beep” sounds.

12.3. Remote Control

Remote Control Reset

•

When the batteries are inserted for the first time, or the batteries are replaced, all the indications will blink and the remote control might not work.

If this happen, remove the cover of the remote control and push the reset point once to clear the memory data.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Changing the wireless remote control transmission

•

code

When there are more than one indoor units installed in the same room, it is possible to set different remote control receiving signal by modifying the jumpers inside remote controller.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

12.4. Disassembly of Parts

a. Indoor Control Board Removal Procedures

1. Remove the Front Grille

Fig. 1

Fig. 2

2. Remove the Indoor Control Board

Fig. 3

Fig. 4

Fig. 5

Fig. 6

b. Electronic Controller Removal Procedures

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

1. Remove Main Electronic Controller

Fig. 7

2. Remove Power Electronic Controller

Fig. 10

Fig. 8

Fig. 9

Fig. 11

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

c. Cross Flow Fan and Fan Motor Removal Procedures

1. Remove Cross Flow Fan

Fig. 12

Fig. 14

Fig. 13

2. Remove the Fan Motor

Fig. 15

c. Outdoor Electronic Controller Removal Procedure

1. Remove the top panel and front panel

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Be save to return the wiring to its original position

•

There are many high voltage components within the heat

•

sink cover so never touch the interior during operation. Wait at least two minutes after power has been turned off.

Fig. 16

2. Remove the Outdoor Electronic Controller

Fig. 18

Caution! When handling electronic controller, be careful of electrostatic discharge.

Fig. 17

Fig.20

Fig. 19

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

13 Technical Data

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

230V Outdoor Temp. (°C)

Indoor wet bulb temp.

TC SHC IP TC SHC IP TC SHC IP TC SHC IP

17.0°C 2.58 1.96 0.64 2.41 1.88 0.69 2.24 1.80 0.74 2.04 1.71 0.80

19.0°C 2.60 0.70

19.5°C 2.83 2.05 0.65 2.65 1.97 0.70 2.46 1.89 0.75 2.24 1.80 0.81

22.0°C 3.09 2.12 0.67 2.88 2.04 0.72 2.68 1.97 0.77 2.44 1.88 0.83

230V Outdoor Temp. (°C)

Indoor wet bulb temp.

TC SHC IP TC SHC IP TC SHC IP TC SHC IP

17.0°C 3.42 2.59 0.87 3.20 2.49 0.94 2.97 2.39 1.00 2.70 2.27 1.08

19.0°C 3.45 0.95

19.5°C 3.76 2.72 0.89 3.51 2.61 0.95 3.27 2.51 1.02 2.97 2.39 1.10

22.0°C 4.10 2.82 0.90 3.83 2.71 0.97 3.56 2.61 1.04 3.24 2.49 1.12

30 35 40 46

14 Exploded View

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Note: The above exploded view is for the purpose of parts disassembly and replacement. The non-numbered parts are not kept as standard service parts.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

15 Replacement Parts List

<Model: CS-E9BKP / CS-E12BKP>

REF NO. DESCRIPTION & NAME QTY. CS-E9BKP CS-E12BKP REMARKS

1 CHASSY COMPLETE 1 CWD50C1177 2 FAN MOTOR 1 CWA981056 3 CROSS-FLOW FAN COMPLETE 1 CWH02C1012 4 SCREW - CROSS-FLOW FAN 1 CWH4580304 5 BEARING ASSY 1 CWH64K007 6 EVAPORATOR 1 CWB30C1149 CWB30C1154 7 FLARE NUT (1/4) 1 CWH6002140 8 FLARE NUT 1 CWT25005 (3/8) CWT25007 (1/2)

9 ANTI-VIBRATION BUSHING 1 CWH501027 10 INTAKE AIR SENSOR HOLDER 1 CWH32142 11 DISCHARGE GRILLE COMPLETE 1 CWE20C2120 12 VANE 12 CWE241088 13 CONNECTING BAR 2 CWE261035 14 AIR SWING MOTOR 1 CWA98259 15 LEADWIRE 1 CWA67C3849 16 FULCRUM 1 CWH621013 17 LEADWIRE - AIR SWING MOTOR 1 CWA67C3977 18 CAP COMPLETE 1 CWH52C1001 19 VANE 1 CWE241070 20 PARTICULAR PIECE 1 CWD932162 21 CONTROL BOARD 1 CWH102103 22 TERMINAL BOARD COMPLETE 1 CWA28C2082 23 POWER SUPPLY CORD 1 CWA20C2207 CWA20C2238 24 ELECTRONIC CONTROLLER-MAIN 1 CWA742518 25 ELECTRONIC CONTROLLER -P.SUPPLY 1 CWA742616 26 PCB RECEIVER 1 CWA73C1124 27 INDICATOR COMPLETE 1 CWE39C1049 28 INDICATOR HOLDER 1 CWD932163 29 SENSOR COMPLETE 1 CWA50C608 30 CONTROL BOARD COVER (TOP) 1 CWH131091 31 CONTROL BOARD COVER (FRONT) 1 CWH131090 32 REMOTE CONTROL COMPLETE 1 CWA75C2154 33 FRONT GRILLE COMPLETE 1 CWE11C2329 34 INTAKE GRILLE 1 CWE221036 35 GRILLE DOOR 1 CWE141033 36 DECORATION BASE (RIGHT) 1 CWE351067 37 DECORATION BASE (LEFT) 1 CWE351068 38 AIR FILTER 2 CWD001047 39 CONTROL PANEL 1 CWE312143 40 SCREW FOR FRONT GRILLE 2 XTN4+16C 41 CAP FOR FRONT GRILLE 2 CWH521062 42 DRAIN HOSE 1 CWH85287 43 INSTALLING HOLDER ASSY 1 CWH36K1006 44 BAG COMPLETE FOR INSTALLATION 1 CWH82C067 45 AIR PURIFYING FILTER 1 CWMD00C0001 46 SOLAR DEODORIZING FILTER 1 CWMD00C0002

← ← ← ← ←

←

← ← ← ← ← ← ← ← ← ← ← ← ← ←

← ← ←

← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ←

O O

(Note)

All parts are supplied from MACC, Malaysia (Vendor Code: 086).

•

“O” marked parts are recommended to be kept in stock.

•

16 Exploded View

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Note: The above exploded view is for the purpose of parts disassembly and replacement. The non-numbered parts are not kept as standard service parts.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

17 Replacement Parts List

<Model: CU-E9BKP5 / CU-E12BKP5>

REF NO. DESCRIPTION & NAME QTY. CU-E9BKP5 CU-E12BKP5 REMARKS

1 CHASSY ASSY 1 CWD50K2045A

2 ANTI-VIBRATION BUSHING 3 CWH50077

3 COMPRESSOR 1 5CS102XEA

4 NUT-COMPRESSOR MOUNT 3 CWH56000

5 SOUND PROOF MATERIAL 1 CWG302111 -

6 FAN MOTOR BRACKET 1 CWD541030

7 FAN MOTOR 1 CWA951125 CWA951126 O

8 SCREW - FAN MOTOR BRACKET 2 CWH551060

9 SCREW - FAN MOTOR MOUNT 4 CWH55406 10 PROPELLER FAN ASSY 1 CWH03K1006 11 NUT - PROPELLER FAN 1 CWH56053 12 CONDENSER 1 CWB32C1145 CWB32C1146 13 TUBE ASS’Y CO (CAP./CHK VALVE) 1 CWT01C2360 CWT01C2361 14 HOLDER-COUPLING COMPLETE 1 CWT01C2420 CWT01C2421 O 15 3 WAYS VALVE 1 CWB011074 CWB011075 O 16 4 WAYS VALVE 1 CWB001011 17 STRAINER 1 CWMB110002 18 2 WAYS VALVE 1 CWB021065 19 DRYER 1 CWB101009 20 V-COIL COMPLETE 1 CWA43C2072 21 REACTOR 1 CWA421050 CWA421051 22 SENSOR COMPLETE 1 CWA50C2084 23 CONTROL BOARD 1 CWH102122 24 TERMINAL BOARD ASSY 1 CWA28K224 25 FUSE HOLDERS 1 K3GB1PH00016 26 CONTROL BOARD 1 CWH102114 27 CONTROL BOARD 1 CWH102115 28 ELECTRONIC CONTROLLER 1 CWA742656 CWA742657 29 CONTROL BOARD COVER 1 CWH131104 30 SENSOR COMPLETE 1 CWA50C2066 31 HOLDER SENSOR 1 CWH321010 32 TERMINAL COVER 1 CWH171001 33 NUT-TERMINAL COVER 1 CWH7080300 34 CABINET SIDE PLATE CO. 1 CWE04C1011 35 CABINET SIDE PLATE (LEFT) 1 CWE041031A 36 HANDLE 1 CWE161010 37 WIRE NET 1 CWD041026 CWD041027 38 CABINET FRONT PLATE CO. 1 CWE06C1039 39 CABINET TOP PLATE 1 CWE031014A 40 CONTROL BOARD COVER 1 CWH131110 41 CONTROL BOARD COVER 1 CWH131093 42 OPERATING INSTRUCTION 1 CWF563352 43 INSTALLATION INSTRUCTION 1 CWF612207 44 L-TUBE 1 CWH5850080

← ← ← ←

←

← ← ← ←

← ← ← ← ←

← ← ← ← ← ←

← ← ← ← ← ← ← ←

← ← ← ← ← ← ←

(Note)

All parts are supplied from MACC, Malaysia (Vendor Code: 086).

•

“O” marked parts are recommended to be kept in stock.

•

18 Electronic Circuit Diagram

• CS-E9BKP / CU-E9BKP5

SCHEMATIC DIAGRAM 1/3

WHT AC5

(WHT)

DISPLAY

POWER MONITOR

AUTO SW

POWERFUL

DISPLAY

TIMER

SLEEP

POWER

WHT AC3

TEMPERATURE

FUSE

121

TO OUTDOOR

POWER SUPPLY

D401

HIGH

D402

D403

D404

LOW

D405

SW401

EVQ11L09K

D406

D407

D408

D409

D501

D502

SW501

EVQ11L07K

D503

SW502

EVQ11L09K

D504

D505

D506

D507

(PH11)

CN-DISP1

1 2 3 4 5 6 7 8

9 10 11

(PH11)

CN-DISP2

9 10 11

(WHT)

FG1

FG2

AC4

AC2

AC1

4 3 2 1

CN-DISP

1 2 3 4 5 6 7 8

9 10 11

CN-NETWORK 5

4 3 2 1

C29

C30

C10

0.01µ

R48 430

C22 C23

R49 430

R19 10k

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

CN-MAIN

PH10

(WHT)

R14 510

R4 20k

R3 100

R28 10k

R55 430

R44 430

R53 1k

C24

0.01µ

R52 430

RY-PWR

R21 1k

R45 430

R47 430

R46 430

R18 1k

R51 430

0.1µ

P.9

100µ

330

16V

C6 47µ

25V

1000p

0.01µ

R42 430

R43

430

IC2 IC2

611

1/2W 1/2W

R17 1k

BZ1

R50 430

R54 10k

R5 20k

R2 43R1 43

R6 100

16 15 14 13 10

IC2

TD62003AF

R7 20k

R8 5.1k

0.022µ

1 2 3 4 7

C17

C16

C15

0.01µ

R40

R38 10k

R34

R35

C20

10k

0.01µ

R33

10k

RST

BUSY

IC3

BR9080F

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

SCHEMATIC DIAGRAM 2/3

R12 1k

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

P47

P44

P45

P46

P50

P51 P52

P53

P54

P55

P56

P57

Vss0

Vdd0

P30

P31

P32

P33

TXD2

RXD2

JX8

SCK1

S01

S1L

P36

P43

RXD0

JX1

P41

P42

A52D076GK515

P25

TXD0

JX2

P40

IC01

Vdd1

P64

P65

P66

P67

P15

P16

P17

Avss

26252423222120191817

R56

EXCML32A680U

IC5

TD62003AF

1 2 3 4 5 6 7

R28 1kR29

R16

5.1k

C18

0.01µ

IC4

JP5 JP7

JP6

PC1

PS2501

DTC114EK

50V 100mA

16 15 14 13 12 11 10

R31

10k

C12

C13

0.01µ

R39 100

EXCML32A680U

10k

IC6

TD62003AF

A67C3859

CN-RCV

R15

1 2

3 C14 3300p

CN-TH

1 2 3 4 5 6

R13

1000p

20k

10k

P72

P73

P74

BUZ

P14

C28

P71

TOD0

INTP3

INTP2

INTP1

INTP0

C21

1µ

+C8

150k

JX4

R27 1k R41 10k

R22

10µ

15k

50V

X01

R37

JX3

C19

2.2µ 50V

C11 1µ

+C7

8 MHz (15pF X 2) CSTS080DMG03

R32 100k

IC-PST600DMR

R26 10k

Vss1

IC(VPP)

XT1

XT2

Reset

P80

AVref

ANI0

ANI1

ANI2

ANI3

323130292827

R23

10µ

20k

50V

R30 10k

(MX-3)

CN-RCV1

(MX-3)

CN-RCV1

CN-CLNSW 2

CN-CLN

4 3 2 1

CN-STM1

5 4 3 2 1

CN-STM2

5 4 3 2 1

RECEIVER

1 2 3

RECEIVER

1 2 3

AIR TEMP. SENSOR (15k 3950)

PIPE TEMP. SENSOR 1 (20k 3950)

PIPE TEMP. SENSOR 2

(PH5)

5 4 3 2 1

VERTICAL

(PH5)

5 4 3 2 1

HORIZONTAL

PH302C

IN+

VCC1

1 2 3

6.3V 47µ

137k

–

3 2 1 5 4

330

IN-

OUT

0.01µ

VCC2

0.01µ

GND

SCHEMATIC DIAGRAM 3/3

ELECTRONIC CONTROL UNIT

CN001

CN002

CN101

F001

11 10 9 8 7 6 5 4 3 2 1

1 2 3 4 5 6 7

1 2 3 4 5

Z001

D007 R030

R114

R116

R118

R115

R117

Q102

L001

C002

Z002 R056

R046

L002

PC001

PC002

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

C003

C005

C004

TH001 TH002

R003

R002

R007 R006

D003

R004

R005

ZD005

R001

R008

PC003

D002

DB004

R028

R010R009

PC005

R029

ebQ001

10k

4.7k

R113

PC006

R112

Q002

PC004

feedback

C066 R011

ZD001

R020

R026

R027

Q004

R060

R057

R018

Q003

ZD006 ZD007

C611

D611 D612 D613 D614

C612 C614

C012

R015

R025

R019

R021ZD004

D045

C011

D013

R048 R047

C613

R611

R609

R052

R051

R050

R048

R053

R023

R024

R032

CN601

R601 3 2 1

R602

Q602

R603

C601

R608

R607

R033

C016

C014

DTA143XK

C015

R054

R034

IC001

R055

C017

R30

C602

10k

C603

Q602

D600 D601

10k

4.7k

Q603

10k

R031

C007

R013

Q005

R605

D602

ZD601

D603

C604 D603

R016

R017

R014

D006

Q006

D602

R606

ZD002

ZD003

C009 C010

R012 C018C008

Q604

R058 R059

D014

T601

T02

D101

549

R105

L101

R612

C103

ZD101

IC101

C013

C105

C016

-9.5kV

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

• CS-E12BKP / CU-E12BKP5

SCHEMATIC DIAGRAM 1/3

TERMINAL

FG1

GRN

R174

ZNR109

R175

R178R177

ZNR107

R176

R181R179

ZNR108

R180

AC-BLK

121

R183

4-WAYS VALVE

AC-WHT

ZNR102R182

R184

R185

C77

C144

ZNR103

FM1

FM2

FM3

C-FM

HOT1 CR101

HOT2

R170

2W 5.6k

ERA15-06

DATA

RED

R171

2W 15k

C140

C78!C137

PC1

TLP421

(BL)

LF101

C50 C48

CR102

RY-FM

RY-HOT A00207M

R5 1.6k

R65

R140 33k

R172 5.6k

ZD2

R9 47k

C49

D2 ERA15-10

R147 10k

PC4 TLP421 (GR)

PIC3

PIC2

PIC1

RY-PWR

R62

R61 590 1%

VR1 200

R64 680

R66

C46

100k

22 100V

4.7k

10k e

Q1 DTC143XK

D12 ZD4

RY-C

REACTOR

GRY2

GRY1

C-PFC2 BLUE

R196

R195

DC-1

R194

BLACK

DB101

JP1

JP12

JP3 JP14 JP11

RY-C

DB102

R145

R81

1/4W 1%

R143

C47 220 10V

D17 ERA15-01

ZD1

ZD3

Q403

A55C2411KRTX

1414

R82 C131

1/4W 1%

JP12 JP13

PC2

R30

R31

C410

10 50V

D402

332

C411

10 50V

C403

0.047

AN1393S

R409

1.8k

R411

R410

10k

100

DC-2 BLACK

R402

1.8k

C2 C1 +

JP8 JP9

JP10

RED

R139

R36

e e

R144

R37

R32

C132

101013

D400

4.7k

R404

49.9k 1%

IC401

C412 1000p

R407

C404

15k

0.01

R412

D401

3.74k 1%

IC402

C407 0.01

R413

C408

5.0k

0.01

776

JP5 JP6 JP7

PC3

PC5

R401

R400

374k 1%

C402

0.01

10k

cc R406

R405

7.87k

100

C405

R408

2.74k

0.82 1%

R414

3.74k 1%

R416

C406

82.5k

0.82

DC+2 RED

R33 232k 1/4W 1%

R197 232k 1/4W 1%

R34 232k 1/4W 1%

R198 232k 1/4W 1%

R35

11.5k 1/4W 1%

FUSE101

R148

R199

R149

R200

R150

554

C413 1000p (JC)

C401

R403

51.1k

0.01

Q402

4.7k 11 11

12 12

R415

3.74k 1%

C414 1000p

8 8 9 9

C409

0.01

1 1

RY-HOT

RY-FM

RY-PWR

R141C130

SCHEMATIC DIAGRAM 2/3

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

1010

C206

R205

R245

0.01 10k

C205

IC204

10 50V

R/B

Vcc

GND

R206

A52PST600DR

IC203

C203

0.047

IC202

TD62003AF

R204 100k

C415

C204

3.3 16V

16 15 14 13 12 11 10

1111

1126

55 99 66

6 MHz (47pF X 2) CSTCC6-00

1 2 3 4 5 6 7

R207

10k

X201

C208 1000p

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

RTP07

RTP05

R208 10k

R203 150k

RTP06

P16

T06

RXD

TXD

SCK

RESET

Vdd

Vss

IC (VPP)

P90

P91

P92

P93

P94

P95

P4020

P43

P42

P41

LED1

0.01

A5448YPXTA3E

R227

R229

10k

R239

Vss

P07

INTP4

INTP5

RTP02

RTP03

RTP04

INTP0

INTP1

INTP2

INTP3

AVREF

IC201

P57

P56

P55

Vss

P54

P53

P52

P51

P50

P47

P46

P45

P44

R231 47k

R63 620

30292827262524232221

D201

R217 10k

C37

0.01

363534333231

R210

R238

10k

TEST

R228

C214

0.01

64 63 62 61

AN17

AVSS

P61

P60

393837

R74 10k

1414

R202 100k

R215

C201

10k

0.01

AN15

AN16

R233

AN14

AN13

AN12

AN11

AN10

AVDD

Vdd

Vss

P37

P36

P35

P34

P33

P32

T01

T00

P67

P66

P65

P64

P63

P62

R232 51k

JP201 R211 1k

R209

10k R237 10k

R73 10k

R218 10k

C211

0.01

C209

0.01

C210

10 50V

Q203

4.7k

10k

R216 10k

R341

R240

431344

C202

0.01

R201

Q201

R235 1k

R213

R214

10k

1515

10k

4.7k

R226

R224

1313

R225

C212

322

4515

3 33 4 34

1212 205 238 227 216

2914 2712 311 2813

183

ECU1

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

SCHEMATIC DIAGRAM 3/3

C53

0.22 630V

D9 ERA2204-04

C61

470

25V

D10 ERB83-006

C67

+ 470 25V

D11 ERA22-04

NJM78M15F

IC2

C62

0.01

R104 R101 R102 R103 110

C72 470 25V

C113

C63

100

0.01 25V

(JUMPER)

NJM78M05F

IC1

R133

C69

0.01

R126

4.7k 1/4W

C70 100 16V

R134 R137

R135

C124 R136 C123

IC7

C125

R138

CN-FM1

1 2 3 4 5 6 7

D13 ERA22-06

R106

C126

33 47 25V

D15

ERA22-06

C105

47 25V

R27

5.11k 1%

R29

C76

C75

5.11k 1%

C115

R131

100p

4.99k 1%

C116 100p

IC3

0.047

R28

5.11k 1%

R130

5.11k 1%

R132

4.99k 1%

1 2 3 4 5 6 7

IC6

16 15 14 13 12 11 10

R24 510k

R23 510k

IC 3 AN1393S

D14 ERA22-06

C103 47 25V

C106

0.047

C128 2p

R22

IC5

C101

47 25V

C127 2p

C102

0.047

R56 680

C104

0.047

R55 680

R54 680

C122

C121

C120

C107

0.0471000p

R53 680

R52 680

R51 680

5600p

C119

R109

R107

499k

1/4W 1%

R17

R12 1W 1%

R21

R18 1W 1%

R15 1W 1%

C129 2p

499k

1/4W 1%

R13

34k

82p

HV1C1

Vcc

COM

HV1C2

Vcc

COM

HV1C3

Vcc

COM

LVIC

U OUT

C108

C109

C117

C118

R106 499k

1/4W 1%

R14

499k

1/4W 1%

R19 34k 1%

82p

Vcc

C110

IN(X)

V OUT

IN(Y)

IN(Z)

C139

0.047

R16 34k 1%

W OUT

VFO

roc

CCT

GND

R105 82.5

C112

C141

C111

0.022

25V

R191

10k

R110 R111

R154D18

IC4

R2 15k 1%

C40 10 50V

R112 R113

R114 R115

R116 R117

R152

R153

R193

C142

R192

15.8k 1%

C41 10 50V

D19 D20 D21 D22

C114

0.47 630V

R118 R119

R120 R121

R122 R123

R124 R125

R187 R186

C143

C44

0.01

RED

BLUE

YELLOW

R190 R189

C-

BLACK

CN-PTR

1 2

R151C138

R1C39

R4C43

POWER-TR TEMP SENSOR (15k 3950)

TANK TEMP. SENSOR (15k 3950)

CN-TANK

1 2 3

CN-TH

1 2 3 4

CN-DIS

1 2 3

CN-STM

EXPAND VALVE 5 4 3 2 1

CN-S

1 2

OUTDOOR TEMP. SENSOR (15k 3950)

PIPE TEMP. SENSOR (20k 3950)

DISCHARGE TEMP. SENSOR (4.96k 3800)

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

How to use electronic circuit diagram

18.1. REMOTE CONTROL

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

18.2. PRINT PATTERN INDOOR UNIT PRINTED CIRCUIT BOARD

18.3. PRINT PATTERN OUTDOOR UNIT PRINTED CIRCUIT BOARD VIEW

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

[MACC] Printed in Malaysia

Panasonic CS-E9BKP, CS-E12BKP Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
