Panasonic CU-E15DKR, CS-E18DKRW, CU-E21DKR, CS-E21DKRS, CS-E15DKRW User Manual

...

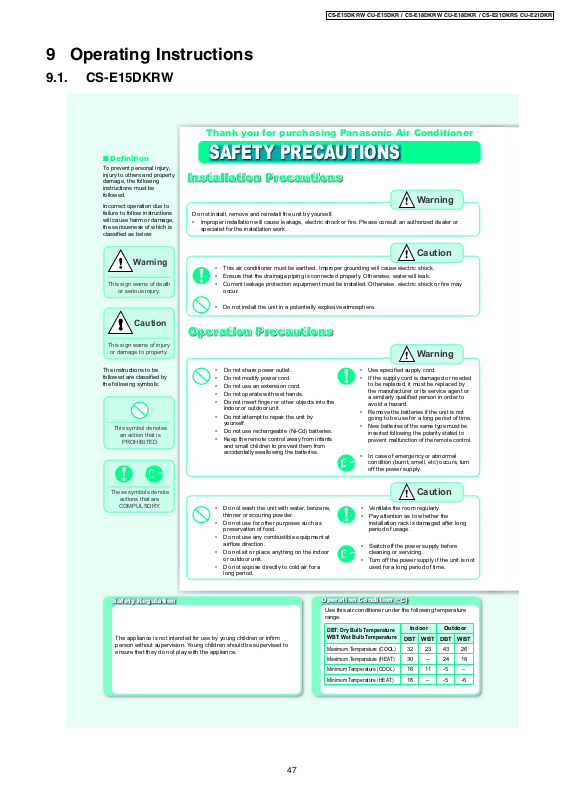

9 Operating Instructions
9.1 . C S -E 1 5 D K R W
The appliance is not intended for use by young children or infi rm person without supervision. Young children should be supervised to ensure that they do not play with the appliance.
Thank you for purchasing Panasonic Air Conditioner
SAFETY PRECAUTIONS
Safety Regulation
Operation Condition (OC)
Use this air conditioner under the following temperature range.
DBT: Dry Bulb Temperature WBT: Wet Bulb Temperature
Indoor Outdoor
DBT WBT DBT WBT
Maximum Temperature (COOL)
32 23 43 26
Maximum Temperature (HEAT)
30 24 18
Minimum Temperature (COOL)
16 11 -5
Minimum Temperature (HEAT)
16 -5 -6
This sign warns of death
or serious injury.
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classifi ed as below:
This symbol denotes
an action that is
PROHIBITED.
Caution
• This air conditioner must be earthed. Improper grounding will cause electric shock.
• Ensure that the drainage piping is connected properly. Otherwise, water will leak.
• Current leakage protection equipment must be installed. Otherwise, electric shock or fi re may occur.
• Do not install the unit in a potentially explosive atmosphere.
Warning
Do not install, remove and reinstall the unit by yourself.
• Improper installation will cause leakage, electric shock or fi re. Please consult an authorized dealer or specialist for the installation work.
These symbols denote
actions that are
COMPULSORY.
Warning
This sign warns of injury
or damage to property.
Caution
The instructions to be followed are classifi ed by the following symbols:
Installation Precautions
Operation Precautions
• Use specifi ed supply cord.
• If the supply cord is damaged or needed to be replaced, it must be replaced by the manufacturer or its service agent or a similarly qualifi ed person in order to avoid a hazard.
• Remove the batteries if the unit is not going to be use for a long period of time.
New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.
• In case of emergency or abnormal condition (burnt, smell, etc) occurs, turn off the power supply.
• Do not share power outlet.
• Do not modify power cord.
• Do not use an extension cord.
• Do not operate with wet hands.
• Do not insert fi nger or other objects into the indoor or outdoor unit.
• Do not attempt to repair the unit by yourself.
• Do not use rechargeable (Ni-Cd) batteries.
• Keep the remote control away from infants and small children to prevent them from accidentally swallowing the batteries.
Warning
• Do not wash the unit with water, benzene, thinner or scouring powder.
• Do not use for other purposes such as preservation of food.
• Do not use any combustible equipment at airfl ow direction.
• Do not sit or place anything on the indoor or outdoor unit.
• Do not expose directly to cold air for a long period.
• Ventilate the room regularly.
• Pay attention as to whether the installation rack is damaged after long period of usage.
• Switch off the power supply before cleaning or servicing.
• Turn off the power supply if the unit is not used for a long period of time.
Caution
47
C S -E 1 5 D K R W C U -E 1 5 D K R / C S - E 1 8 D K R W C U - E 1 8 D K R / C S - E 2 1 D K R S C U -E 2 1 D K R
QUIET
POW
E
RFUL
I
ON
TIM
ERPOWER
QUIET
POWERFUL
ION
SUPER
A LLERU-B USTER
TIMERPOWER

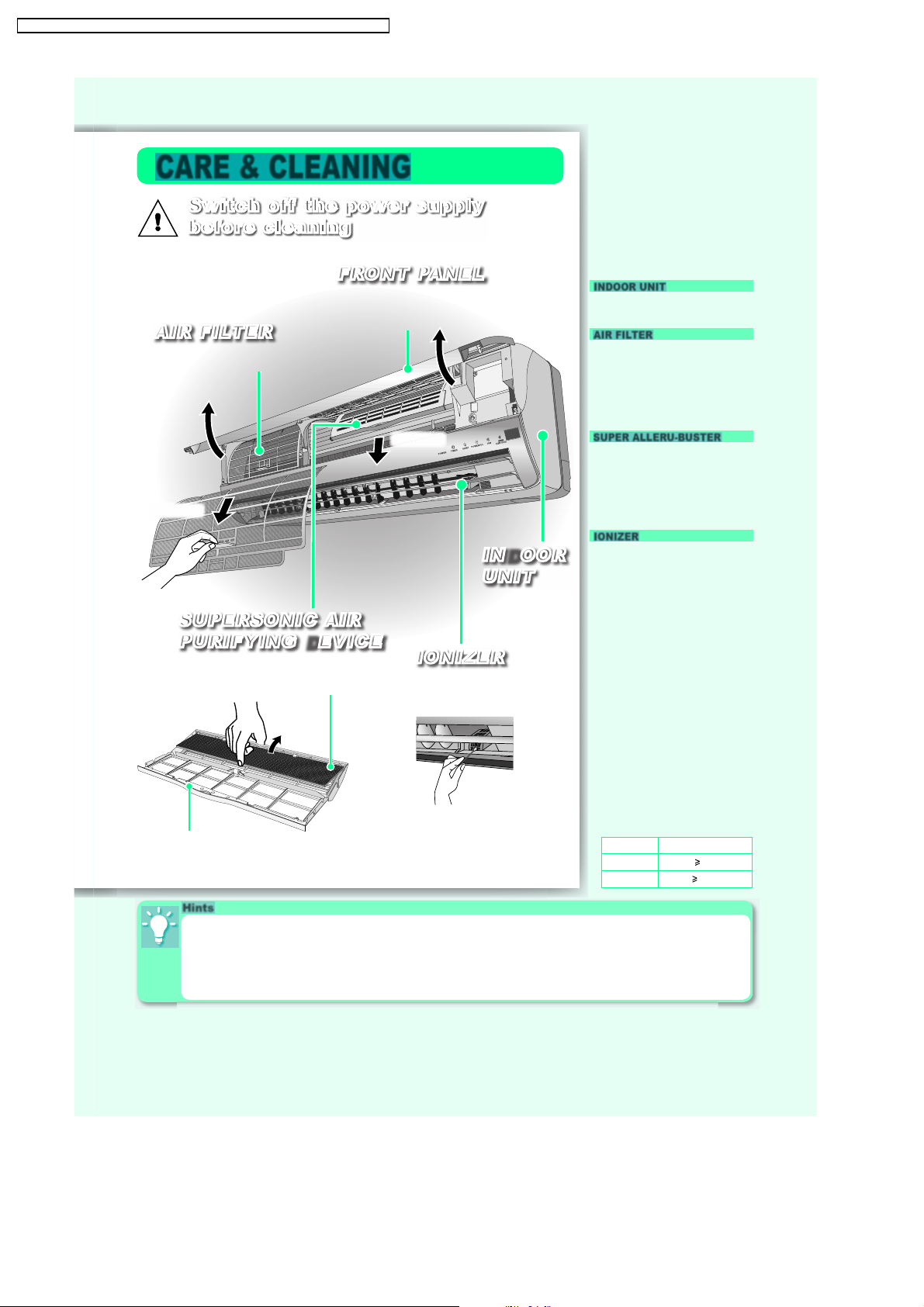

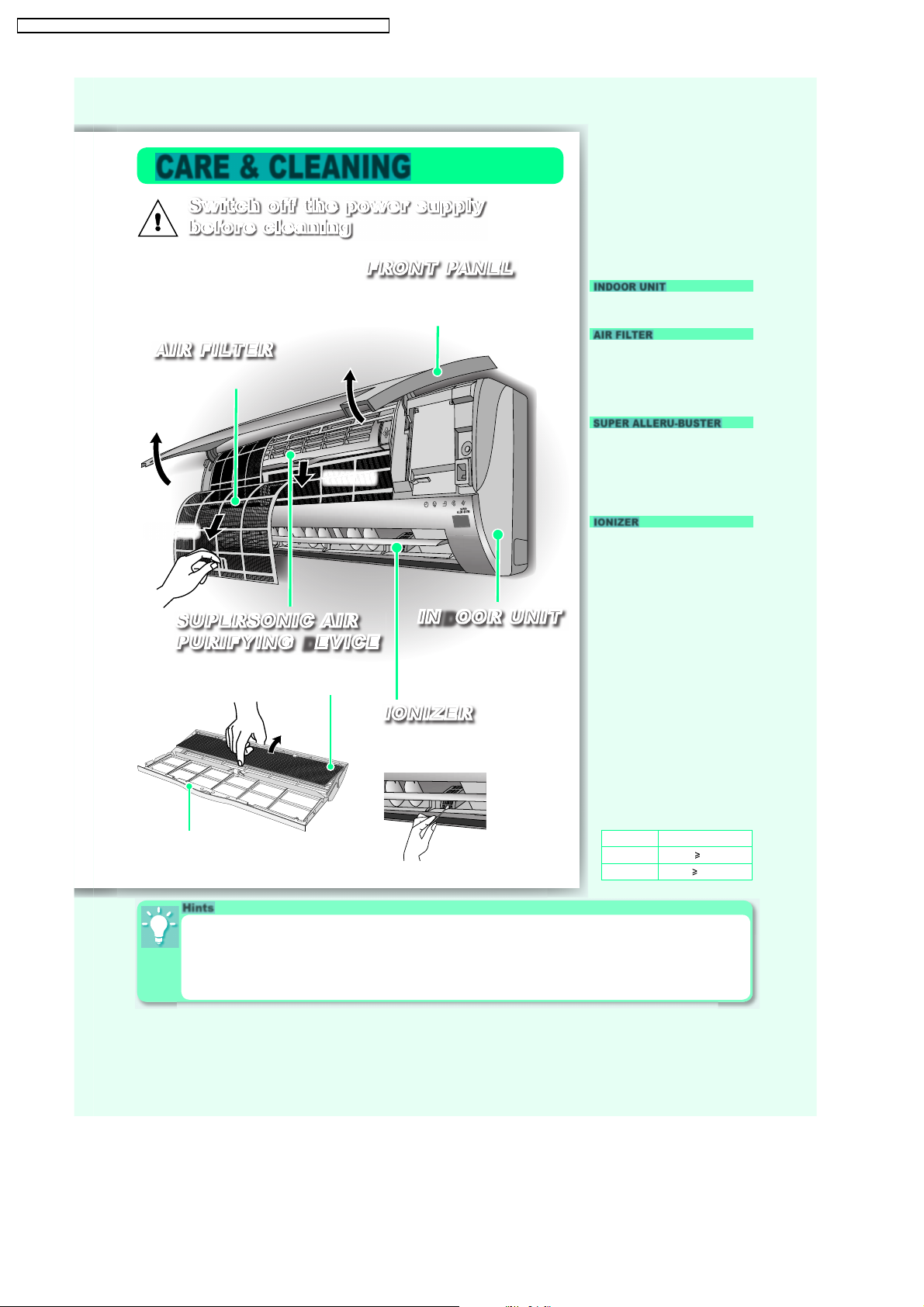

Air intake
Airflow direction louver
Ionizer
Air filter
Front panel
Indoor Unit
Indicator
Supersonic air purifying device
Auto OFF/ON button
Receiver
Discharged air
Do not touch during operation
Note: The illustrations in this manual are for explanation purposes only and may differ from the
actual unit. It is subjected to change without notice for future improvement.

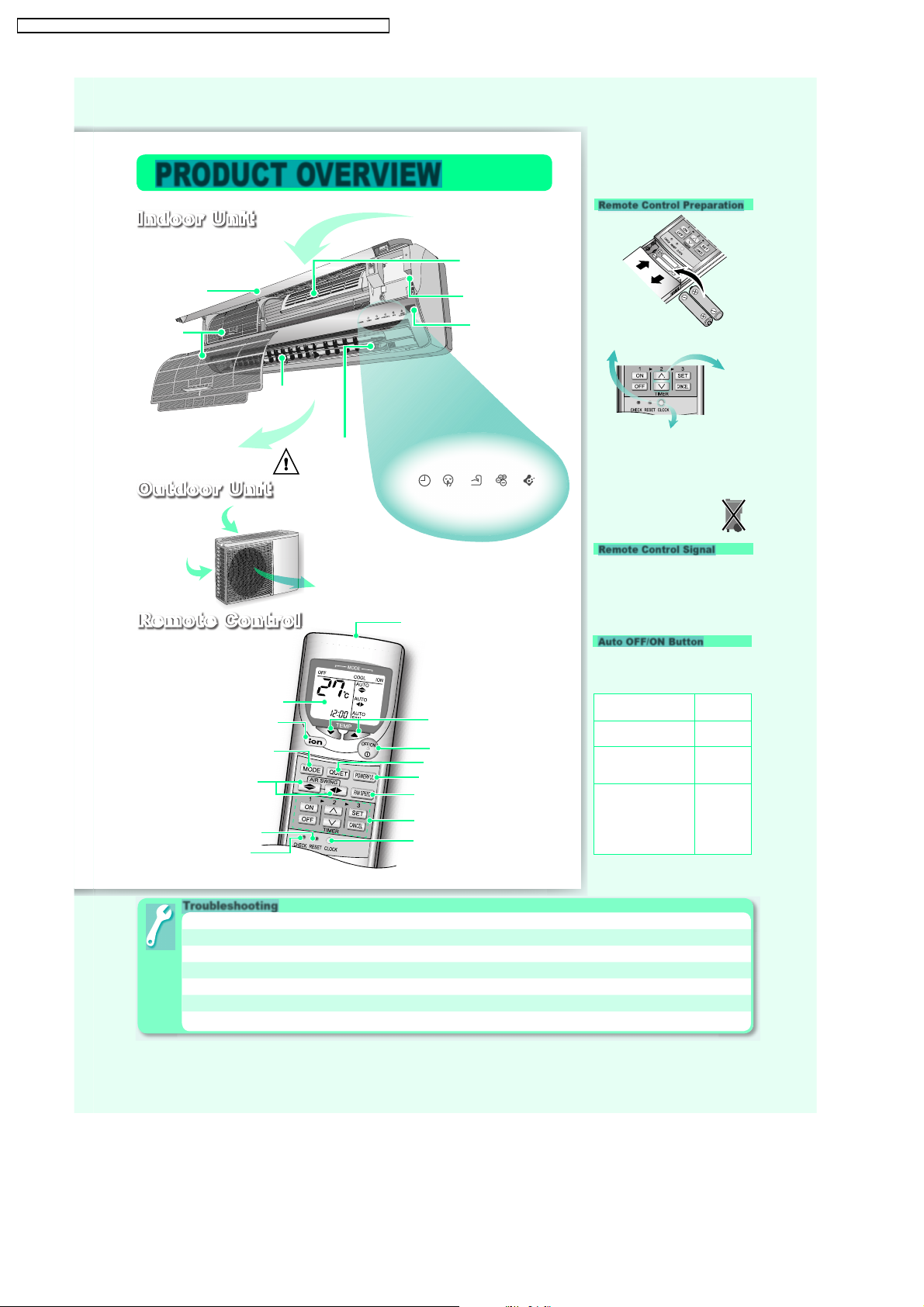

PRODUCT OVERVIEW
Outdoor Unit
Air inlet
(rear)
Air outlet
About
Remote Control Preparation
• Make sure it is not obstructed.
• Maximum distances: 10m.
• Certain fluorescent lights may interfere with signal transmission. Consult your dealer.
Remote Control Signal
• To operate the unit if the remote control is misplaced or malfunctioning.
Action
Operation
mode
Press once
Automatic
Operation
Press until “beep”
sound and release.
Cooling
Operation
Press until “beep”
sound and release.
Press again until
“beep-beep” sound
and release.
Heating
Operation
• To OFF, press again the Auto OFF/ ON button.
Auto OFF/ON Button
1. Pull out
2. Insert batteries
(AAA or
R03)
5. Press again to confi rm
• Timer operation will be based on current time set.
• The batteries can be used for approximately 1 year.
• The batteries must be recycled or disposed of properly.
3. Press CLOCK button
4. Set current time
Troubleshooting
Operation delayed for few minutes after restart.
This is a normal self protection control.
Sound like water fl owing during operation.
Caused by refrigerant fl ow inside.
Mist emerges from indoor unit.
Condensation effect due to cooling process.
Noisy during operations.
Installation work could be slanted or front panel didn’t close properly.
Remote control/display does not work.
Check whether batteries are correctly inserted or need replacement.
The unit cannot operate.
Check either circuit breaker is tripped or timer is used correctly.
Outdoor unit emits water/steam.
Condensation or evaporation happens at piping surface.
Air inlet
(side)
LCD display
Off/On
Fan speed selection
Memory reset
Clock setting
Temperature setting
Powerful operation
Operation mode
Quiet operation
Timer setting
Ion operation
Airflow direction adjustment
Remote Control
Transmitter
Check
48
CS-E15DKRW CU-E1 5DKR / CS-E1 8DKRW CU-E1 8DKR / CS-E2 1DKRS CU- E21DKR

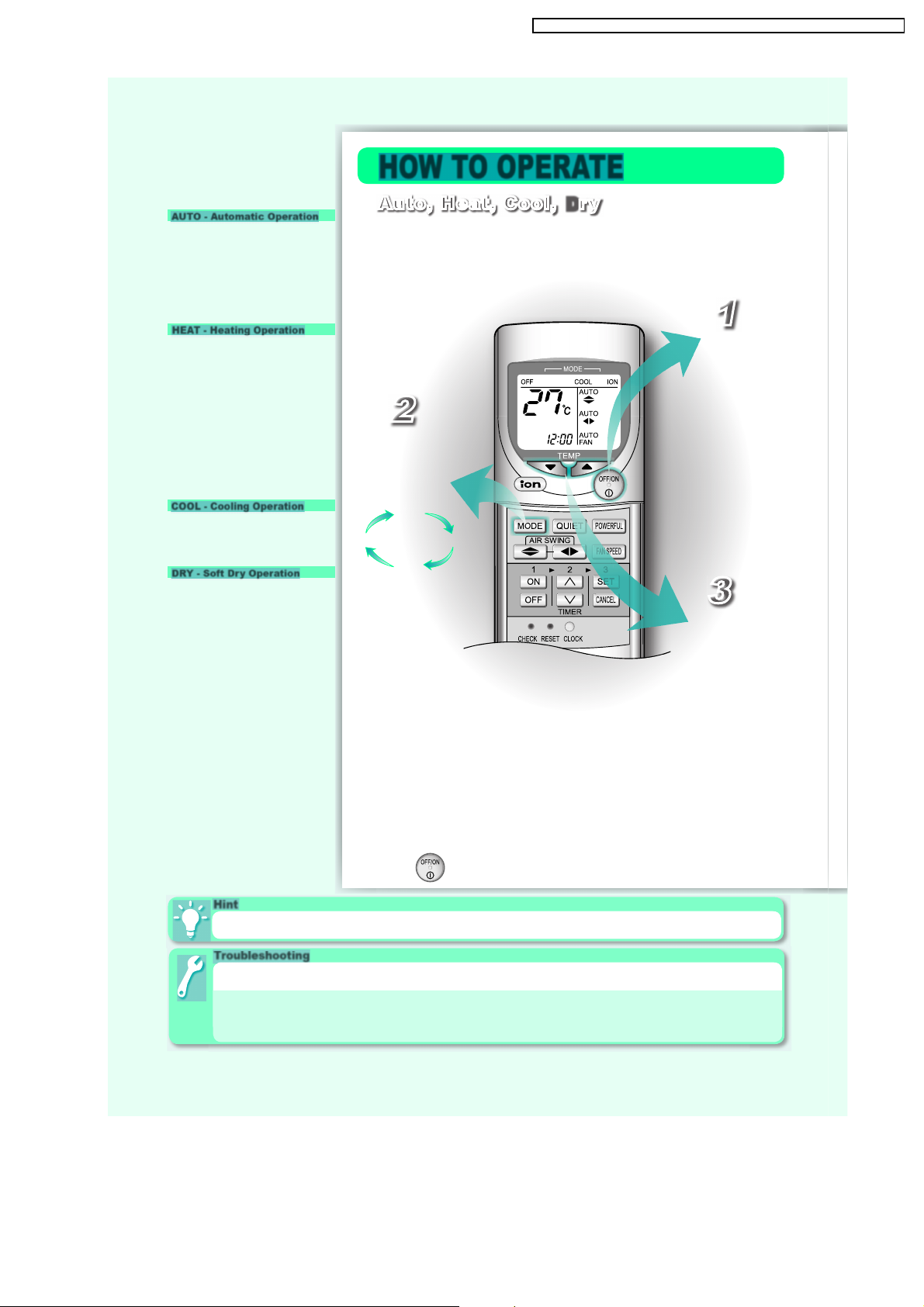

Operation Details
D
Auto, Heat, Cool, Dr y
2
Select the desired operation.
3
Set the temperature. (16°C~30°C)
Start the operation.
1
HOW TO OPERATE
Supersonic air purifying device (super alleru-buster) operates
automatically while the air conditioner is switched on.
Powerful, Quiet and Ion operations could be activated in all
operation modes.
Press
button again to stop the operation.
AUTO - Automatic Operation
• Enables you to enjoy the cooling effect at your preferred setting temperature.
COOL - Cooling Operation
• Enables you to set the desired temperature at low fan speed which provides you with the dehumidifying surroundings.
DRY - Soft Dry Operation
• The unit will automatically select the operation mode according to the setting, outdoor and room temperature. During operation mode selection, power indicator blinks. For every 30 minutes, the operation mode is reselected.
• Enables you to enjoy the warming effect at your preferred setting temperature.
• For cold air prevention, air might not blow out immediately and power indicator blinks when operation starts.
• Also operates in defrost mode (maximum 10 minutes) where by the power indicator blinks. The melted frost is drained at outdoor unit and indoor fan is stopped.
HEAT - Heating Operation
AUTO
COOL
HEATDRY
Troubleshooting
The room has a peculiar odour.
This may be a damp smell emitted by the wall, carpet, furniture or
clothing in the room.
Air conditioner does not cool or heat effi ciently.
Ensure the temperature has been set correctly. Ensure windows and doors have been closed properly. Ensure fi lters are cleaned or replaced when necessary. Ensure inlet and outlet vents of the units have not been obstructed.
To save electricity, close the curtains when using air conditioner to prevent sunlight and heat from coming in.
Hint
49
CS-E15DKRW CU-E1 5DKR / CS-E1 8DKRW CU-E1 8DKR / CS-E2 1DKRS CU- E21DKR

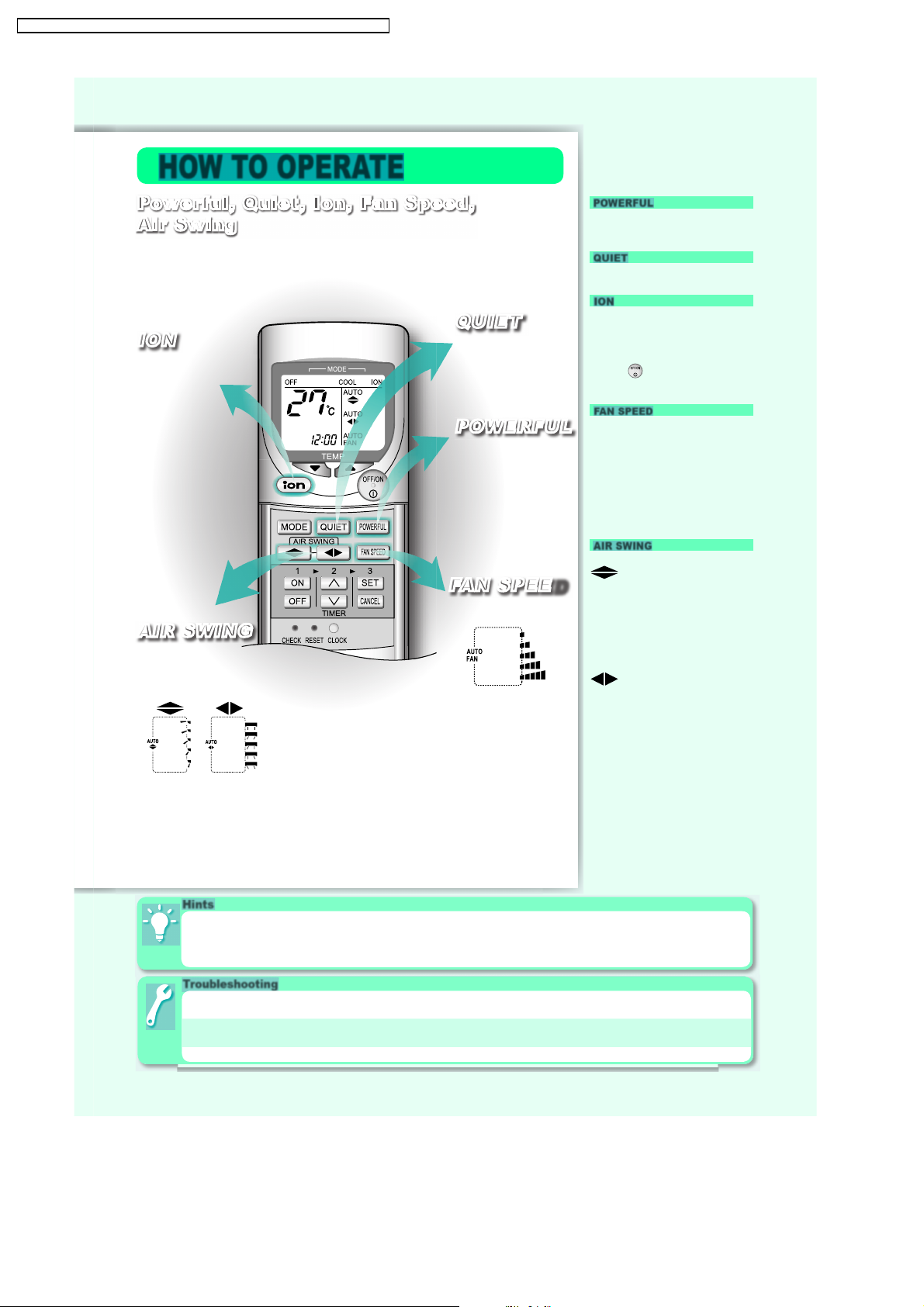

Adjust the vertical or horizontal airfl ow direction louver.
Operations Details
• To provide fresh air effect by producing negative ions.
• Ion operation could be activated independently.
• Press
button to stop the
operation.
• To achieve setting temperature quickly.
ION
POWERFUL
Enables powerful operation.
Enables ion operation.
ION
Pow erful, Quiet, Ion, Fan Speed, Air Sw ing
POWERFUL
Select fan speed.
DFAN SPEED
AIR SWING
• To provide a quiet environment.
QUIET
Powerful and Quiet operations could not be activated at the
same time.
Powerful, Quiet and Ion operations could be cancelled by
pressing the respective button again.
Troubleshooting
ION indicator on the indoor unit is blinking.
Press ION button twice. If the indicator is still blinking, please consult
the dealer.
Indoor fan stops occasionally during Automatic Fan
Speed setting.
Indoor fan stops occasionally during heating operation.
This is an advanced feature that helps to remove smell from the
surrounding area during operation.
To avoids unintended cooling effect.

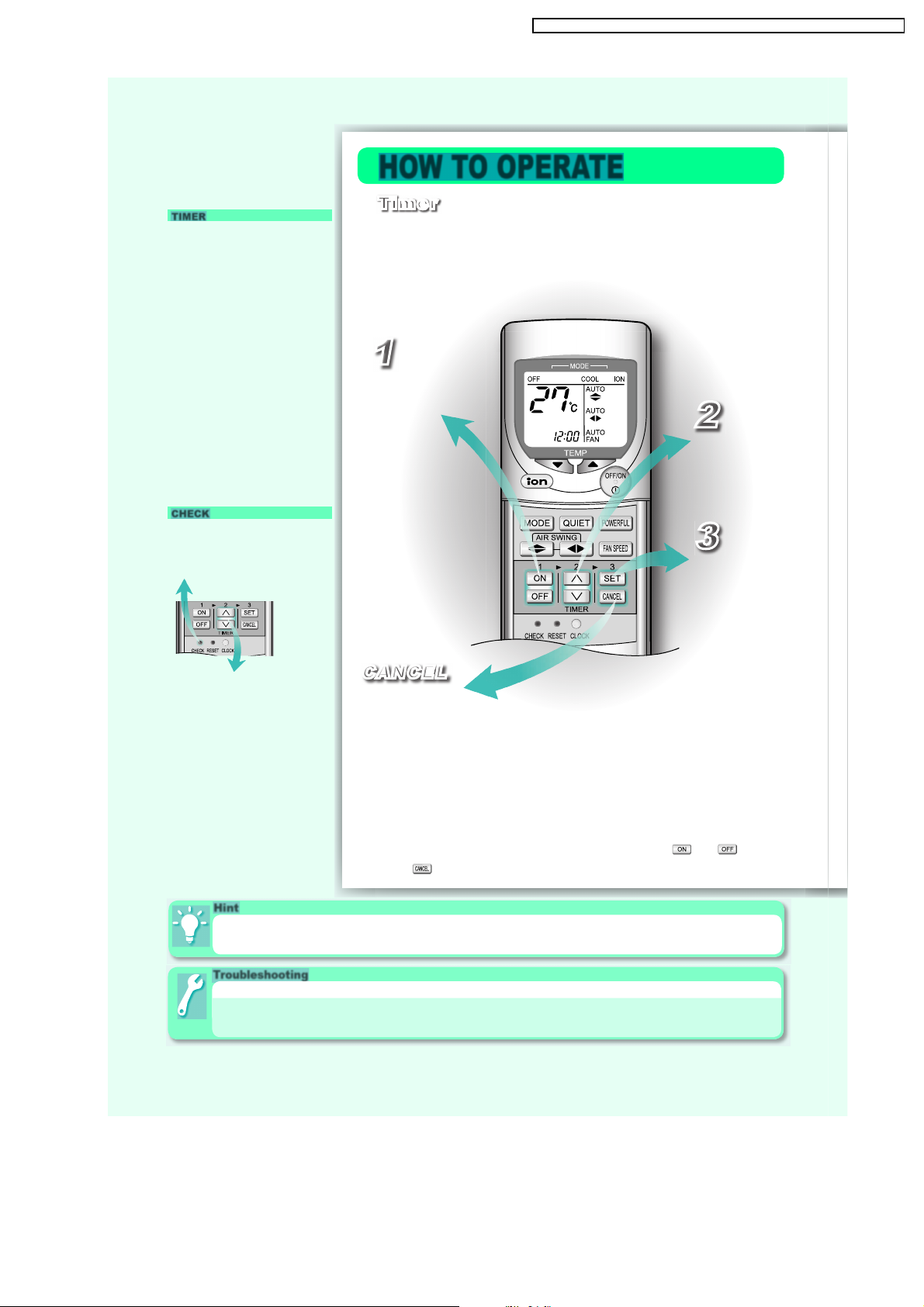

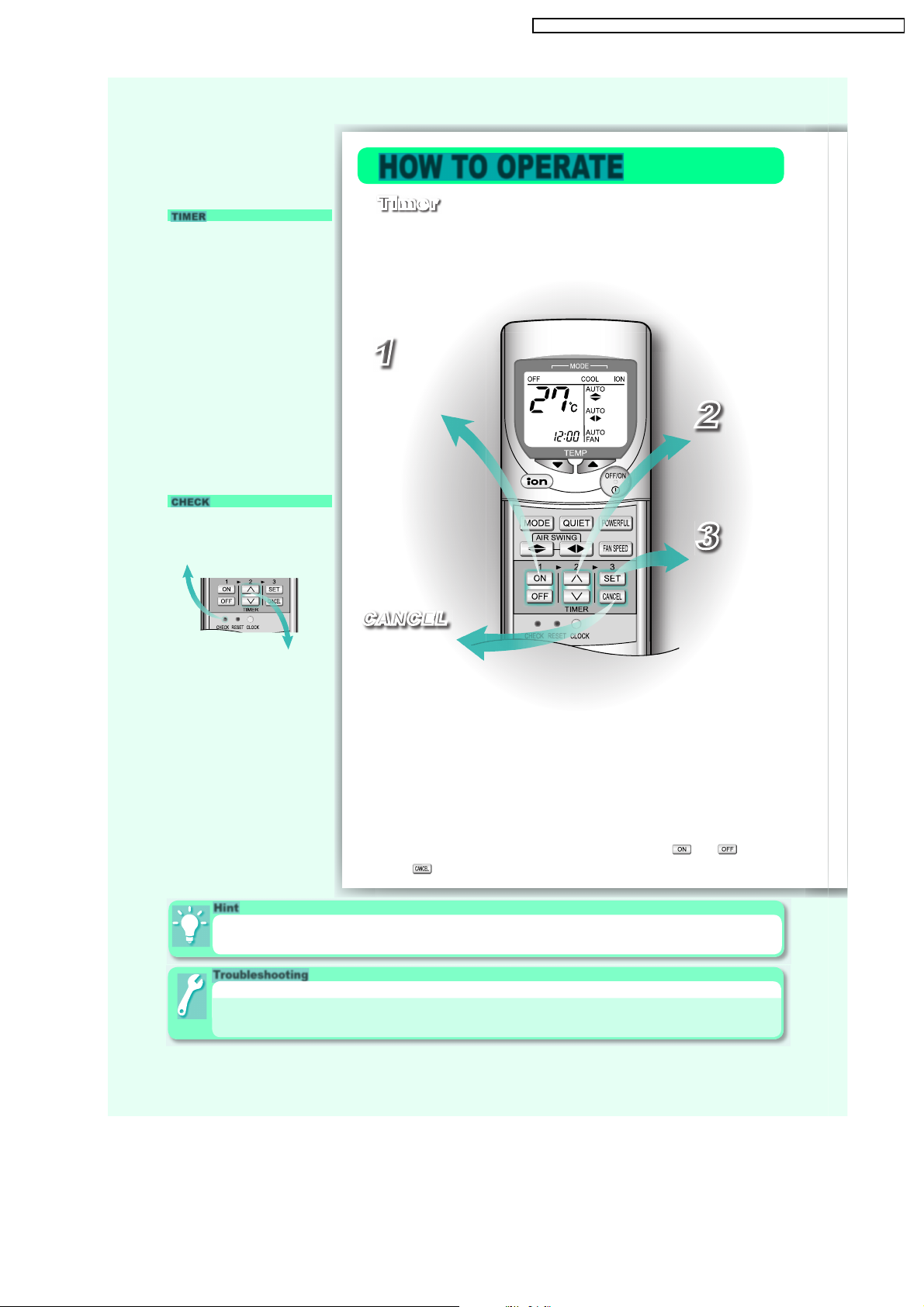

HOW TO OPERATE
Hints
If you wish to have the cool air blowing directly on you, set the airfl ow direction downward but not for an excessive length of time,
as it may harm your health.
Approximately 10% of electricity can be saved if you set the temperature 1°C higher in cooling operation or 2°C lower in heating
operation than the desired temperature.
• To provide you with the various fan speed selections.
• There are 5 levels of fan speed in addition to automatic fan speed.
• Automatic fan speed:
The speed of the indoor fan is
automatically adjusted according to the operation.
FAN SPEED
• To ventilate air in the room.
• There are 5 selections in addition to automatic vertical air fl ow direction.
• If automatic vertical airfl ow direction has been set, the louver swings up and down automatically.
• To ventilate air in the room.
• There are 5 selections in addition to automatic horizontal air fl ow direction.
• If automatic horizontal airfl ow direction has been set, the louver swings left and right automatically.
• Please do not adjust the vertical and horizontal airfl ow direction louver manually.
AIR SWING
Enables quiet operation.
QUIET
50
CS-E15DKRW CU-E1 5DKR / CS-E1 8DKRW CU-E1 8DKR / CS-E2 1DKRS CU- E21DKR
