Panasonic CS-CE9JKE User Manual

Order No. PHAAM0905053C2

Air Conditioner

Indoor Unit Outdoor Unit CS-CE9JKE CU-CE9JKE CS-CE12JKE CU-CE12JKE

TABLE OF CONTENTS

1 Safety Precautions ----------------------------------------------- 3 2 Specifications ----------------------------------------------------- 5 3Features------------------------------------------------------------ 11 4 Location of Controls and Components ------------------12

4.1. Indoor Unit--------------------------------------------------12

4.2. Outdoor Unit -----------------------------------------------12

4.3. Remote Control -------------------------------------------12

5Dimensions--------------------------------------------------------13

5.1. Indoor Unit--------------------------------------------------13

5.2. Outdoor Unit -----------------------------------------------14

6 Refrigeration Cycle Diagram --------------------------------15 7 Block Diagram ----------------------------------------------------16 8 Wiring Connection Diagram ---------------------------------17

8.1. Indoor Unit--------------------------------------------------17

8.2. Outdoor Unit -----------------------------------------------18

9 Electronic Circuit Diagram -----------------------------------19

PAG E PAG E

9.1. Indoor Unit ------------------------------------------------- 19

9.2. Outdoor Unit ----------------------------------------------- 20

10 Printed Circuit Board ------------------------------------------ 21

10.1. Indoor Unit ------------------------------------------------- 21

10.2. Outdoor Unit----------------------------------------------- 23

11 Installation Instruction ---------------------------------------- 24

11.1. Select the Best Location ------------------------------- 24

11.2. Indoor Unit ------------------------------------------------- 25

11.3. Outdoor Unit----------------------------------------------- 28

12 Operation and Control ---------------------------------------- 30

12.1. Basic Function -------------------------------------------- 30

12.2. Indoor Fan Motor Operation--------------------------- 31

12.3. Outdoor Fan Motor Operation ------------------------ 32

12.4. Airflow Direction ------------------------------------------ 32

12.5. Timer Control---------------------------------------------- 33

12.6. Auto Restart Control------------------------------------- 33

12.7. Indication Panel------------------------------------------- 33

13 Protection Control ---------------------------------------------- 34

13.1. Protection Control For All Operations --------------- 34

13.2. Protection Control For Cooling & Soft Dry Operation--------------------------------------------------- 36

13.3. Protection Control For Heating Operation --------- 37

14 Servicing Mode -------------------------------------------------- 38

14.1. Auto OFF/ON Button ------------------------------------ 38

14.2. Remote Control Button --------------------------------- 39

15 Troubleshooting Guide---------------------------------------- 40

15.1. Refrigeration Cycle System --------------------------- 40

15.2. Breakdown Self Diagnosis Function ---------------- 42

15.3. Error Codes Table ---------------------------------------- 43

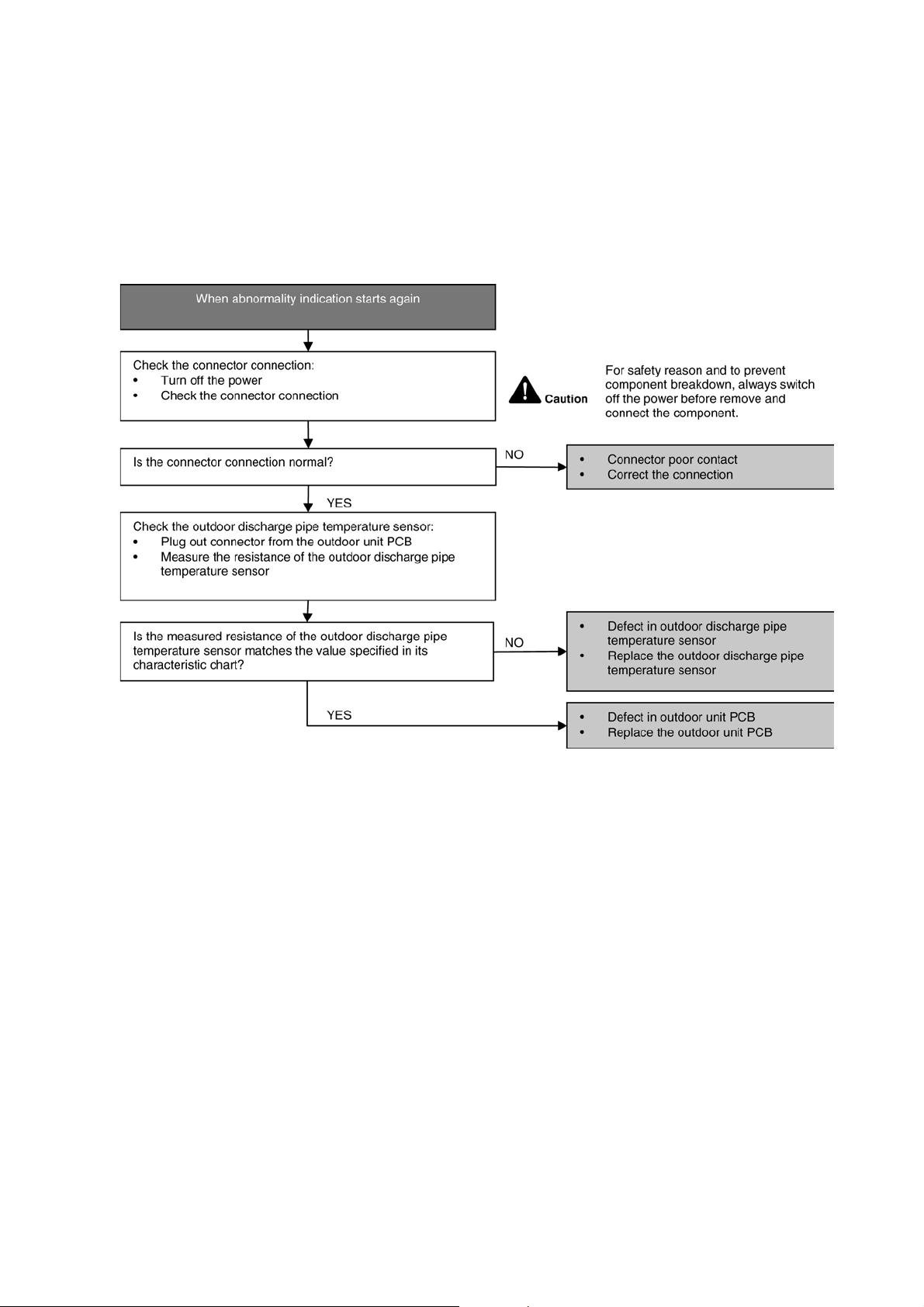

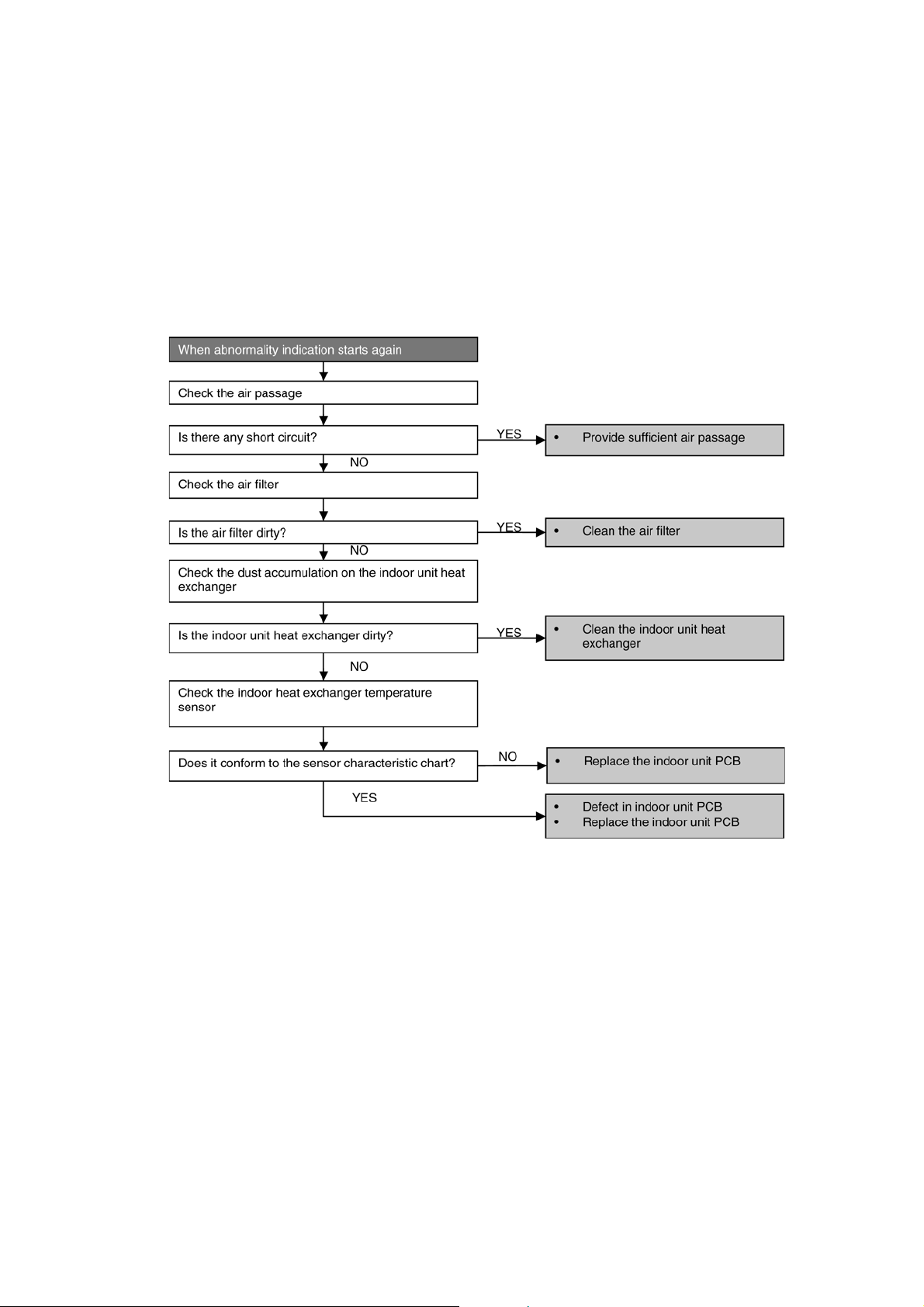

15.4. Self-diagnosis Method ----------------------------------45

16 Disassembly and Assembly Instructions --------------- 67

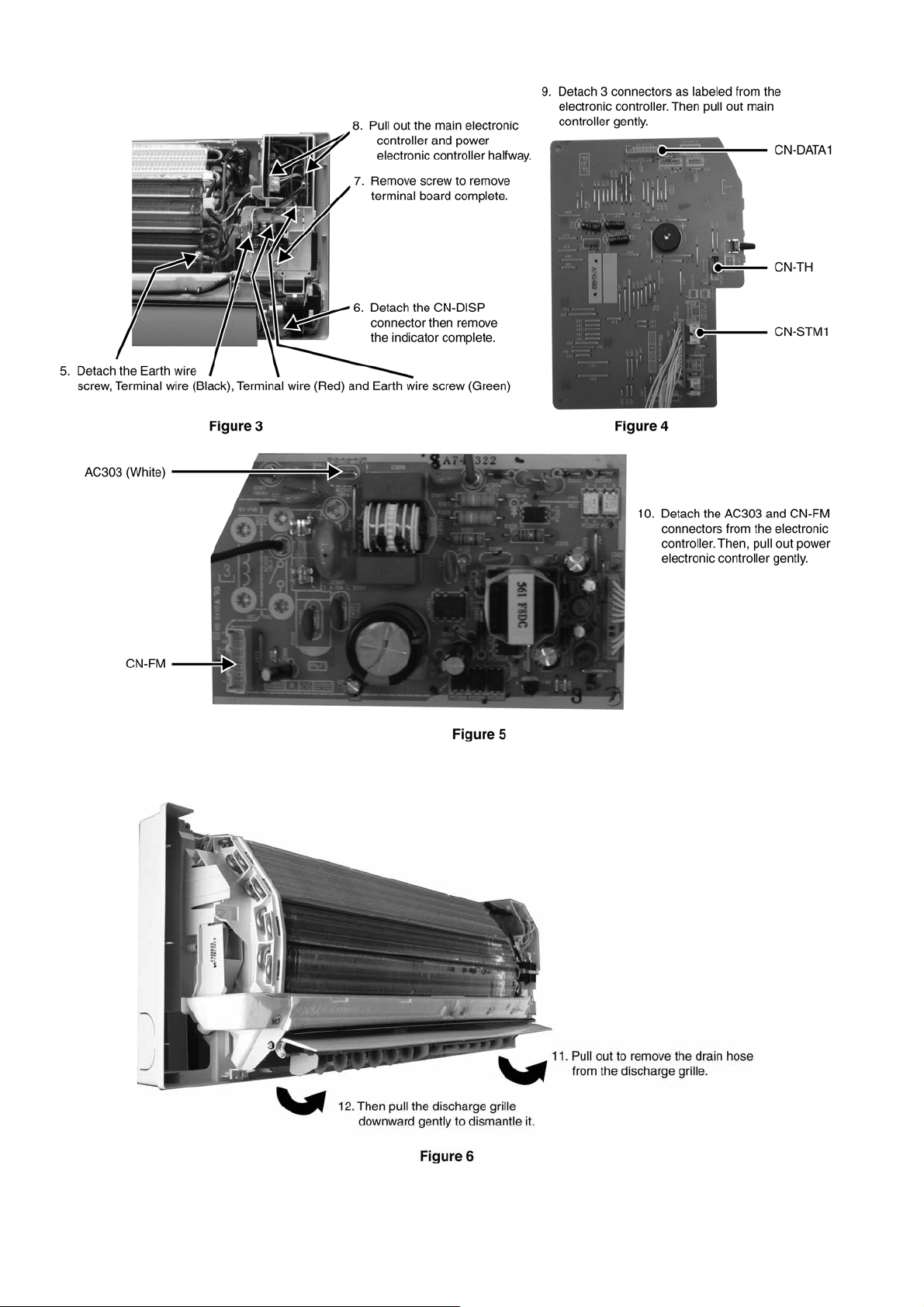

16.1. Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal Procedures ------ 67

16.2. Outdoor Electronic Controller Removal Procedure -------------------------------------------------- 71

17 Technical Data---------------------------------------------------- 72

17.1. Operation Characteristics ------------------------------ 72

17.2. Sensible Capacity Chart-------------------------------- 80

18 Exploded View and Replacement Parts List -----------81

18.1. Indoor Unit ------------------------------------------------- 81

18.2. Outdoor Unit ----------------------------------------------- 83

1 Safety Precautions

• Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing.

• Electrical work must be installed or serviced by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model installed.

• The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below. Incorrect installation or servicing due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.

This indication shows the possibility of causing death or serious injury.

This indication shows the possibility of causing injury or damage to properties.

• The items to be followed are classified by the symbols:

This symbol denotes item that is PROHIBITTED from doing.

• Carry out test run to confirm that no abnormality occurs after the servicing. Then, explain to user the operation, care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference.

1. Do not modify the machine, part, material during repairing service.

2. If wiring unit is supplied as repairing part, do not repair or connect the wire even only partial wire break. Exchange the whole wiring unit.

3. Do not wrench the fasten terminal. Pull it out or insert it straightly.

4. Engage authorized dealer or specialist for installation and servicing. If installation or servicing done by the user is defective, it will cause

water leakage, electrical shock or fire.

5. Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electrical shock or fire.

6. Use the attached accessories parts and specified parts for installation and servicing. Otherwise, it will cause the set to fall, water leakage,

fire or electrical shock.

7. Install at a strong and firm location which is able to withstand the set's weight. If the strength is not enough or installation is not properly

done, the set will drop and cause injury.

8. For electrical work, follow the local national wiring standard, regulation and the installation instruction. An independent circuit and single

outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.

9. This equipment is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD).

Otherwise, it may cause electrical shock and fire in case equipment breakdown or insulation breakdown.

10. Do not use joint cable for indoor/outdoor connection cable. Use the specified indoor/outdoor connection cable, refer to installation

instruction CONNECT THE CABLE TO THE INDOOR UNIT and connect tightly for indoor/outdoor connection. Clamp the cable so that no external force will be acted on the terminal. If connection or fixing is not perfect, it will cause heat up or fire at the connection.

11. Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause

heat-up or fire at connection point of terminal, fire or electrical shock.

12. When install or relocate air conditioner, do not let any substance other than the specified refrigerant, eg. air etc. mix into refrigeration cycle

(piping). (Mixing of air etc. will cause abnormal high pressure in refrigeration cycle and result in explosion, injury etc.).

13. Do not install outdoor unit near handrail of veranda. When installing air-conditioner unit at veranda of high rise building, child may climb up

to outdoor unit and cross over the handrail and causing accident.

14. This equipment must be properly earthed. Earth line must not be connected to gas pipe, water pipe, earth of lightning rod and

telephone. Otherwise, it may cause electrical shock in case equipment breakdown or insulation breakdown.

15. Keep away from small children, the thin film may cling to nose and mouth and prevent breathing.

16. Do not use unspecified cord, modified cord, joint cord or extension cord for power supply cord. Do not share the single outlet

with other electrical appliances. Poor contact, poor insulation or over current will cause electrical shock or fire.

17. Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the

flare may break and cause refrigerant gas leakage.

18. For R410A models, when connecting the piping, do not use any existing (R22) pipes and flare nuts. Using such same may cause abnormally high pressure in the refrigeration cycle (piping), and possibly result in explosion and injury. Use only R410A materials. Thickness of copper pipes used with R410A must be more than 0.8mm. Never use copper pipes thinner than 0.8mm. It is desirable that the amount of residual oil is less than 40 mg/10m.

19. During installation, install the refrigerant piping properly before run the compressor. (Operation of compressor without fixing refrigeration piping and valves at opened condition will cause suck-in of air, abnormal high pressure in refrigeration cycle and result in explosion, injury etc.).

20. During pump down operation, stop the compressor before remove the refrigeration piping. (Removal of refrigeration piping while compressor is operating and valves are opened condition will cause suck-in of air, abnormal high pressure in refrigeration cycle and result in explosion, injury etc.).

21. After completion of installation or service, confirm there is no leakage of refrigerant gas. It may generate toxic gas when the refrigerant contacts with fire.

22. Ventilate if there is refrigerant gas leakage during operation. It may cause toxic gas when the refrigerant contacts with fire.

23. Do not insert your fingers or other objects into the unit, high speed rotating fan may cause injury.

24. Must not use other parts except original parts describe in catalog and manual.

1. Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may cause fire.

2. Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the furniture.

3. Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the flare may break and cause refrigerant gas leakage.

4. Do not touch outdoor unit air inlet and aluminium fin. It may cause injury.

5. Select an installation location which is easy for maintenance.

6. Pb free solder has a higher melting point than standard solder; typically the melting point is 50°F - 70°F (30°C - 40°C) higher. Please use a high temperature solder iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C). Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

7. Power supply connection to the air conditioner. Connect the power supply cord of the air conditioner to the mains using one of the following methods. Power supply point shall be the place where there is ease for access for the power disconnection in case of emergency. In some countries, permanent connection of this room air conditioner to the power supply is prohibited. i. Power supply connection to the receptacle using a power plug. Use an approved 15/16A (3/4~1.75HP), 16A (2.0HP), 20A (2.5HP) or

25A (3.0HP) power plug with earth pin for the connection to the socket.

ii. Power supply connection to a circuit breaker for the permanent connection. Use an approved 16A (3/4~2.0HP), 20A (2.5HP) or 25A

(3.0HP) circuit breaker for the permanent connection. It must be a double pole switch with a minimum 3.0 mm contact gap.

8. Do not release refrigerant during piping work for installation, servicing, reinstallation and during repairing a refrigerant parts. Take care of the liquid refrigerant, it may cause frostbite.

9. Installation or servicing work: It may need two people to carry out the installation or servicing work.

10. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

11. Do not sit or step on the unit, you may fall down accidentally.

12. Do not touch the sharp aluminium fin, sharp parts may cause injury.

2 Specifications

MODEL

Performance Test Condition EUROVENT

Power Supply

Capacity

Running Current A — 2.8 —

Input Power W 125 590 750

Annual Consumption kWh — 295 —

EER

Cooling

Power Factor % — 92 —

Indoor Noise (H / L)

Outdoor Noise (H / L)

Capacity

Running Current A — 3.9 —

Input Power W 120 835 1.34k

COP

Heating

Power Factor % — 93 —

Indoor Noise (H / L)

Outdoor Noise (H / L)

Low Temp. : Capacity (kW) / I.Power (W) / COP 3.62 / 1.19k / 3.04

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP 3.05 / 1.27k / 2.40

Max Current (A) / Max Input Power (W) 6.0 / 1.34k

Starting Current (A) 3.9

Type Hermetic Motor

Compressor

Type Cross-flow Fan

Material ASG20K1

Motor Type Transistor (8-poles)

Input Power W 47

Output Power W 40

Indoor Fan

Speed

Motor Type Brushless (4-poles)

Output Power W 750

Cool/Fan rpm 750

Heat rpm 800

Cool/Fan rpm 935

Heat rpm 1015

Cool/Fan rpm 1120

Heat rpm 1230

INDOOR CS-CE9JKE

OUTDOOR CU-CE9JKE

Phase, Hz Single, 50

V 230

Min. Mid. Max.

kW 0.60 2.60 3.00

BTU/h — — —

Kcal/h 520 2240 2580

W/W 4.80 4.41 4.00

Kcal/hW 4.16 3.80 3.44

dB-A 39 / 25

Power Level dB 55 / 42

dB-A 46 / -

Power Level dB 61 / -

kW 0.60 3.60 5.00

BTU/h — — —

Kcal/h 520 3100 4300

W/W 5.00 4.31 3.73

Kcal/hW 4.33 3.71 3.21

dB-A 40 / 27

Power Level dB 56 / 43

dB-A 47 / -

Power Level dB 62 / -

MODEL

INDOOR CS-CE9JKE

OUTDOOR CU-CE9JKE

Type Propeller Fan

Material PP

Motor Type DC Type (8-poles)

Input Power W —

Output Power W 40

Outdoor Fan

Speed Hi

Cool rpm 800

Heat rpm 790

Moisture Removal L/h (Pt/h) 1.6 (3.4)

Indoor Airflow

Outdoor Airflow Hi

Cool/Fan

Heat

Cool/Fan

Heat

Cool/Fan

Heat

Cool

Heat

/min (ft3/min)

5.4 (190)

6.4 (230)

8.0 (280)

9.3 (330)

11.3 (400)

11.9 (420)

29.8 (1050)

29.4 (1040)

Control Device Check Valve & Capillary Tube

Refrigeration Cycle

Refrigerant Oil

RB68A or Freol Alpha 68M (400)

Refrigerant Type g (oz) R410A, 930 (32.8)

Height (I/D / O/D) mm (inch) 290 (11-7/16) / 540 (21-9/32)

Dimension

Width (I/D / O/D) mm (inch) 870 (34-9/32) / 780 (30-23/32)

Depth (I/D / O/D) mm (inch) 204 (8-1/16) / 289 (11-13/32)

Weight Net (I/D / O/D) kg (lb) 9 (20) / 35 (77)

Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 9.52 (3/8)

Standard Length m (ft) 5 (16.4)

Length Range (min - max) m (ft) 3 (9.8) ~ 15 (49.2)

I/D & O/D Height Different m (ft) 5 (16.4)

Piping

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Length for Additional Gas m (ft) 7.5 (24.6)

Drain Hose

Inner Diameter mm 16

Length mm 650

Fin Material Aluminium (Pre Coat)

Indoor Heat Exchanger

Fin Type Slit Fin

Row x Stage x FPI 2 x 15 x 19

Size (W x H x L) mm 610 x 315 x 25.4

Fin Material Aluminium

Outdoor Heat Exchanger

Air Filter

Fin Type Corrugated Fin

Row x Stage x FPI 2 x 24 x 17

Size (W x H x L) mm

36.4 x 504 x 725 713

Material Polypropelene

Type One-touch

Power Supply Outdoor Power Supply

Power Supply Cord A Nil

Thermostat Electronic Control

Protection Device Electronic Control

MODEL

Cooling

Indoor Operation Range

Heating

Cooling

Outdoor Operation Range

Heating

INDOOR CS-CE9JKE

OUTDOOR CU-CE9JKE

Dry Bulb Wet Bulb

Maximum 32 23

Minimum 16 11

Maximum 30 —

Minimum 16 —

Maximum 43 26

Minimum 16 11

Maximum 24 18

Minimum -15 -6

1. Cooling capacities are based on indoor temperature of 27°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor

-7/-8°C

5. Specifications are subjected to change without prior notice for further improvement.

MODEL

Performance Test Condition EUROVENT

Power Supply

Capacity

Running Current A — 4.4 —

Input Power W 125 915 1.18k

Annual Consumption kWh — 458 —

EER

Cooling

Power Factor % — 90 —

Indoor Noise (H / L)

Outdoor Noise (H / L)

Capacity

Running Current A — 5.9 —

Input Power W 120 1.26k 1.89k

COP

Heating

Power Factor % — 93 —

Indoor Noise (H / L)

Outdoor Noise (H / L)

Low Temp. : Capacity (kW) / I.Power (W) / COP 4.71 / 1.66k / 2.84

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP 3.80 / 1.76k / 2.16

Max Current (A) / Max Input Power (W) 8.6 / 1.89k

Starting Current (A) 5.9

Type Hermetic Motor

Compressor

Type Cross-flow Fan

Material ASG20K1

Motor Type Transistor (8-poles)

Input Power W 47

Output Power W 40

Indoor Fan

Speed

Motor Type Brushless (4-poles)

Output Power W 750

Cool/Fan rpm 850

Heat rpm 1010

Cool/Fan rpm 1055

Heat rpm 1150

Cool/Fan rpm 1260

Heat rpm 1300

INDOOR CS-CE12JKE

OUTDOOR CU-CE12JKE

Phase, Hz Single, 50

V 230

Min. Mid. Max.

kW 0.60 3.50 4.00

BTU/h — — —

Kcal/h 520 3010 3440

W/W 4.80 3.83 3.39

Kcal/hW 4.16 3.29 2.92

dB-A 42 / 28

Power Level dB 58 / 45

dB-A 48 / -

Power Level dB 63 / -

kW 0.60 4.80 6.50

BTU/h — — —

Kcal/h 520 4130 5590

W/W 5.00 3.81 3.44

Kcal/hW 4.33 3.28 2.96

dB-A 42 / 33

Power Level dB 58 / 49

dB-A 50 / -

Power Level dB 65 / -

MODEL

INDOOR CS-CE12JKE

OUTDOOR CU-CE12JKE

Type Propeller Fan

Material PP

Motor Type DC Type (8-poles)

Input Power W —

Output Power W 40

Outdoor Fan

Speed Hi

Cool rpm 840

Heat rpm 820

Moisture Removal L/h (Pt/h) 2.0 (4.2)

Indoor Airflow

Outdoor Airflow Hi

Cool/Fan

Heat

Cool/Fan

Heat

Cool/Fan

Heat

Cool

Heat

/min (ft3/min)

6.3 (220)

9.4 (332)

8.5 (300)

11.0 (389)

12.5 (440)

12.8 (450)

31.0 (1090)

30.2 (1070)

Control Device Check Valve & Capillary Tube

Refrigeration Cycle

Refrigerant Oil

RB68A or Freol Alpha 68M (400)

Refrigerant Type g (oz) R410A, 970 (34.2)

Height (I/D / O/D) mm (inch) 290 (11-7/16) / 540 (21-9/32)

Dimension

Width (I/D / O/D) mm (inch) 870 (34-9/32) / 780 (30-23/32)

Depth (I/D / O/D) mm (inch) 204 (8-1/16) / 289 (11-13/32)

Weight Net (I/D / O/D) kg (lb) 9 (20) / 35 (77)

Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 12.7 (1/2)

Standard Length m (ft) 5 (16.4)

Length Range (min - max) m (ft) 3 (9.8) ~ 15 (49.2)

I/D & O/D Height Different m (ft) 5 (16.4)

Piping

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Length for Additional Gas m (ft) 7.5 (24.6)

Drain Hose

Inner Diameter mm 16

Length mm 650

Fin Material Aluminium (Pre Coat)

Indoor Heat Exchanger

Fin Type Slit Fin

Row x Stage x FPI 2 x 15 x 21

Size (W x H x L) mm 610 x 315 x 25.4

Fin Material Aluminium

Outdoor Heat Exchanger

Air Filter

Fin Type Corrugated Fin

Row x Stage x FPI 2 x 24 x 17

Size (W x H x L) mm

36.4 x 504 x 725 713

Material Polypropelene

Type One-touch

Power Supply Outdoor Power Supply

Power Supply Cord A Nil

Thermostat Electronic Control

Protection Device Electronic Control

MODEL

Cooling

Indoor Operation Range

Heating

Cooling

Outdoor Operation Range

Heating

INDOOR CS-CE12JKE

OUTDOOR CU-CE12JKE

Dry Bulb Wet Bulb

Maximum 32 23

Minimum 16 11

Maximum 30 —

Minimum 16 —

Maximum 43 26

Minimum 16 11

Maximum 24 18

Minimum -15 -6

2. Heating capacities are based on indoor temperature of 20°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20°C, outdoor

-7/-8°C

5. Specifications are subjected to change without prior notice for further improvement.

3 Features

• Inverter Technology

- Wider output power range

- Energy saving

- More precise temperature control

• Environment Protection

- Non-ozone depletion substances refrigerant (R410A)

• Long Installation Piping

- Long piping up to 15 meters during single split connection only

• Easy to use remote control

• Quality Improvement

- Random auto restart after power failure for safety restart operation

- Gas leakage protection

- Prevent compressor reverse cycle

- Inner protector to protect Compressor

- Noise prevention during soft dry operation

• Operation Improvement

- 24-hour timer setting

• Serviceability Improvement

- Breakdown Self Diagnosis function

4 Location of Controls and Components

4.1. Indoor Unit

4.2. Outdoor Unit

4.3. Remote Control

5 Dimensions

5.1. Indoor Unit

5.2. Outdoor Unit

6 Refrigeration Cycle Diagram

7 Block Diagram

8 Wiring Connection Diagram

8.1. Indoor Unit

8.2. Outdoor Unit

9 Electronic Circuit Diagram

9.1. Indoor Unit

9.2. Outdoor Unit

10 Printed Circuit Board

10.1. Indoor Unit

10.1.1. Main Printed Circuit Board

10.1.2. Power Printed Circuit Board

10.1.3. Indicator Printed Circuit Board

10.2. Outdoor Unit

11 Installation Instruction

11.1. Select the Best Location

11.1.1. Indoor Unit

• Do not install the unit in excessive oil fume area such as kitchen, workshop and etc.

• There should not be any heat source or steam near the unit.

• There should not be any obstacles blocking the air circulation.

• A place where air circulation in the room is good.

• A place where drainage can be easily done.

• A place where noise prevention is taken into consideration.

• Do not install the unit near the door way.

• Ensure the spaces indicated by arrows from the wall, ceiling, fence or other obstacles.

• Recommended installation height for indoor unit shall be at least 2.5 m.

11.1.2. Outdoor Unit

• If an awning is built over the unit to prevent direct sunlight or rain, be careful that heat radiation from the condenser is not obstructed.

• There should not be any animal or plant which could be affected by hot air discharged.

• Keep the spaces indicated by arrows from wall, ceiling, fence or other obstacles.

• Do not place any obstacles which may cause a short circuit of the discharged air.

• If piping length is over the [piping length for additional gas], additional refrigerant should be added as shown in the table.

11.1.3. Indoor/Outdoor Unit Installation Diagram

Piping

Gas

size

Li-

quid

1/4” 5

Model

CE9*** 1.0HP 3/8”

CE12*** 1.5HP 1/2” 5 3 15 20 7.5

Horse Power

(HP)

Std.

Length

(m)

Max.

Ele-

vation

(m)

5 3 15 20 7.5

Min.

Piping

Length

(m)

Max. Piping Length

(m)

Additional Refri-

gerant

(g/m)

Piping

Length

for

add.

gas (m)

Example: For CE9*** If the unit is installed at 10 m distance, the quantity of additional

refrigerant should be 50 g .... (10-7.5) m x 20 g/m = 50 g

11.2. Indoor Unit

11.2.1. How to Fix Installation Plate

The mounting wall is strong and solid enough to prevent it from the vibration.

Model Dimension

CE9*** CE12***

The centre of installation plate should be at more than at right and left of the wall. The distance from installation plate edge to ceiling should more

than . From installation plate left edge to unit’s left side is . From installation plate right edge to unit’s right is .

B : For left side piping, piping connection for liquid should be

about from this line.

: For left side piping, piping connection for gas should be

about from this line.

485 mm 82 mm 165 mm 158 mm 127 mm 85 mm

11.2.2. To Drill a Hole in the Wall and Install a Sleeve of Piping

1. Insert the piping sleeve to the hole.

2. Fix the bushing to the sleeve.

3. Cut the sleeve until it extrudes about 15 mm from the wall.

When the wall is hollow, please be sure to use the sleeve for tube ass’y to prevent dangers caused by mice biting the connecting cable.

4. Finish by sealing the sleeve with putty or caulking compound at the final stage.

1. Mount the installation plate on the wall with 5 screws or more (at least 5 screws). (If mounting the unit on the concrete wall, consider using anchor bolts.)

• Always mount the installation plate horizontally by aligning the marking-off line with the thread and using a level gauge.

2. Drill the piping plate hole with ø70 mm hole-core drill.

• Line according to the left and right side of the installation plate. The meeting point of the extended line is the center of the hole. Another method is by putting measuring tape at position as shown in the diagram above. The hole center is obtained by measuring the distance namely 128 mm for left and right hole respectively.

• Drill the piping hole at either the right or the left and the hole should be slightly slanting to the outdoor side.

11.2.3. Indoor Unit Installation

1. For the right rear piping

2. For the right and right bottom piping

3. For the embedded piping

(This can be used for left rear piping and bottom piping also.)

11.2.4. Connect the Cable to the Indoor Unit

1. The inside and outside connecting cable can be connected without removing the front grille.

2. Connecting cable between indoor unit and outdoor unit

shall be approved polychloroprene sheathed 4 x 1.5 mm flexible cord, type designation 245 IEC 57 or heavier cord.

• Secure the connecting cable onto the control board with the holder (clamper).

This equipment must be properly earthed.

• Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.

• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

CUTTING AND FLARING THE PIPING

1. Please cut using pipe cutter and then remove the burrs.

2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused. Turn the piping end down to avoid the metal powder entering the pipe.

3. Please make flare after inserting the flare nut onto the copper pipes.

11.3. Outdoor Unit

11.3.1. Install the Outdoor Unit

• After selecting the best location, start installation according to Indoor/Outdoor Unit Installation Diagram.

1. Fix the unit on concrete or rigid frame firmly and horizontally by bolt nut (ø10 mm).

2. When installing at roof, please consider strong wind and earthquake. Please fasten the installation stand firmly with bolt or nails.

Model A B C D

11.3.2. Connect the Piping

Connecting the Piping to Indoor

Please make flare after inserting flare nut (locate at joint portion of tube assembly) onto the copper pipe. (In case of using long piping) Connect the piping

• Align the center of piping and sufficiently tighten the flare nut with fingers.

• Further tighten the flare nut with torque wrench in specified torque as stated in the table.

CE9***

CE12***

Do not over tighten, over tightening cause gas leakage.

Piping Size Torque

1/4” (6.35 mm) [18 N•m (1.8 kgf.m)]

3/8” (9.52 mm) [42 N•m (4.3 kgf.m)]

1/2” (12.7 mm) [55 N•m (5.6 kgf.m)]

5/8” (15.88 mm) [65 N•m (6.6 kgf.m)]

3/4” (19.05 mm) [100 N•m (10.2 kgf.m)]

570 mm 105 mm 18.5 mm 320 mm

Connecting the Piping to Outdoor

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut (located at valve) onto the copper pipe. Align center of piping to valve and then tighten with torque wrench to the specified torque as stated in the table.

11.3.3. Evacuation of the Equipment

WHEN INSTALLING AN AIR CONDITIONER, BE SURE TO EVACUATE THE AIR INSIDE THE INDOOR UNIT AND PIPES in the following procedure.

1. Connect a charging hose with a push pin to the Low side of a charging set and the service port of the 3-way valve.

• Be sure to connect the end of the charging hose with the push pin to the service port.

2. Connect the center hose of the charging set to a vacuum pump.

3. Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from 0 cmHg (0 MPa) to

-76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes.

4. Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the gauge does not move after approximately five minutes. Note: BE SURE TO TAKE THIS PROCEDURE IN ORDER TO AVOID REFRIGERANT GAS LEAKAGE.

5. Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve.

6. Tighten the service port caps of the 3-way valve at a torque of 18 N

•m with a torque wrench.

7. Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN” using a hexagonal wrench (4 mm).

8. Mount valve caps onto the 2-way valve and the 3-way valve.

• Be sure to check for gas leakage.

• If gauge needle does not move from 0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa), in step above take the following measure:

- If the leak stops when the piping connections are tightened further, continue working from step .

- If the leak does not stop when the connections are retightened, repair the location of leak.

- Do not release refrigerant during piping work for installation and reinstallation.

- Take care of the liquid refrigerant, it may cause frostbite.

11.3.4. Connect the Cable to the Outdoor Unit

1. Remove the control board cover from the unit by loosening the screw.

2. Cable connection to the power supply through Isolating Devices (Disconnecting means).

• Connect approved type polychloroprene sheathed

power supply cord 3 x 1.5 mm designation 245 IEC 57 or heavier cord to the terminal board, and connect the others end of the cord to Isolating Devices (Disconnecting means).

3. Connecting cable between indoor unit and outdoor unit

shall be approved polychloroprene sheathed 4 x 1.5 mm flexible cord, type designation 245 IEC 57 or heavier cord.

4. Connect the power supply cord and connecting cable between indoor unit and outdoor unit according to the diagram below.

(1.0 ~ 1.5HP) type

5. Secure the power supply cord and connecting cable onto the control board with the holder.

6. Attach the control board cover back to the original position with screw.

7. For wire stripping and connection requirement, refer to instruction of indoor unit.

This equipment must be properly earthed.

• Note: Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.

• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

11.3.5. Pipe Insulation

1. Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.

2. If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by using POLY-E FOAM with thickness 6mm or above.

12 Operation and Control

12.1. Basic Function

Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes, automatically adjusts output power for maximum comfort always. In order to achieve the suitable operating mode, the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting. The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature.

12.1.1. Internal Setting Temperature

Once the operation starts, remote control setting temperature will be taken as base value for temperature shifting processes. These shifting processes are depending on the air conditioner settings and the operation environment. The final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit.

12.1.2. Cooling Operation

12.1.2.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF point.

12.1.3. Soft Dry Operation

12.1.3.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2.0°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF point.

12.1.4. Heating Operation

12.1.4.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature > +2.0°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature < Compressor OFF point.

12.1.5. Automatic Operation

• This mode can be set using remote control and the operation is decided by remote control setting temperature, remote control operation mode, indoor intake air temperature and outdoor air temperature.

• During operation mode judgment, indoor fan motor (with speed of Lo-) and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.

• Every 30 minutes, the indoor and outdoor temperature is judged. Based on remote control setting temperature, the value of T1 will increase up to 10°C, T2 will decrease by 3°C and T3 will decrease up to 8°C.

• The Auto Operation Mode shifting will take place whenever operation mode changed from Cool/Soft Dry to Heating or vice versa.

12.1.6. Fan Operation

• Fan Operation is used to circulate air in a room.

• During operation, indoor fan run continuously but outdoor fan and compressor stop.

• Temperature setting is not applicable.

12.2. Indoor Fan Motor Operation

A. Basic Rotation Speed (rpm)

i. Manual Fan Speed [Cooling, Dry, Fan]

• Fan motor’s number of rotation is determined according to remote control setting.

Remote ControlOOOOO

Tab Hi Me+ Me Me- Lo

[Heating]

• Fan motor’s number of rotation is determined according to remote control setting.

Remote ControlOOOOO

Tab SHi Me+ Me Me- Lo

ii. Auto Fan Speed [Cooling, Dry]

• According to room temperature and setting temperature, indoor fan speed is determined automatically.

• The indoor fan will operate according to pattern below.

[Fan]

• Indoor fan speed is fixed at predetermined speed.

[Heating]

• According to indoor pipe temperature, automatic heating fan speed is determined as follows.

B. Feedback control

• Immediately after the fan motor started, feedback control is performed once every second.

• During fan motor on, if fan motor feedback 2550 rpm or < 50 rpm continue for 10 seconds, then fan motor error counter increase, fan motor is then stop and restart. If the fan motor counter becomes 7 times, then H19 - fan motor error is detected. Operation stops and cannot on back.

12.3. Outdoor Fan Motor Operation

Outdoor fan motor is operated with 15 fan speed number of rotations. It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

12.4. Airflow Direction

1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).

2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using remote control).

12.4.1. Vertical Airflow

Operation Mode Airflow Direction Vane Angle (°)

12345

Heating Auto with Heat Exchanger

Temperature

Manual 20 33 45 58 70

Cooling and Fan Auto 20 ~ 46

Manual 20 27 33 40 46

Soft Dry Auto 20 ~ 46

Manual 20 27 33 40 46

1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated above. For heating mode operation, the angle of the vane depands on the indoor heat exchanger temperature as Figure 1 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

A20

B58

C33

12.4.2. Horizontal Airflow

• The horizontal airflow direction louvers can be adjusted manually by hand.

12.5. Timer Control

12.5.1. ON Timer Control

• ON timer can be set using remote control, the unit with timer set will start operate earlier than the setting time. This is to provide a comfortable environment when reaching the set ON time.

• 60 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time.

• From the above judgment, the decided operation will start operate earlier than the set time as shown below.

12.5.2. OFF Timer Control

OFF timer can be set using remote control, the unit with timer set will stop operate at set time.

12.6. Auto Restart Control

1. When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly) after power supply resumes.

2. This type of control is not applicable during ON/OFF Timer setting.

12.7. Indication Panel

LED POWER TIMER

Color Green Orange

Light ON Operation ON Timer Setting ON

Light OFF Operation OFF Timer Setting OFF

Note:

• If POWER LED is blinking, the possible operation of the unit are Hot Start, during Deice operation, operation mode judgment, or ON timer sampling.

• If Timer LED is blinking, there is an abnormality operation occurs.

13 Protection Control

13.1. Protection Control For All Operations

13.1.1. Restart Control (Time Delay Safety Control)

• The Compressor will not turn on within 3 minutes from the moment operation stops, although the unit is turned on again by pressing OFF/ON button at remote control within this period.

• This control is not applicable if the power supply is cut off and on again.

• This phenomenon is to balance the pressure inside the refrigerant cycle.

13.1.2. 30 Seconds Forced Operation

• Once the air conditioner is turned on, the compressor will not stop within 30 seconds in a normal operation although the intake air temperature has reached the thermo-off temperature. However, force stop by pressing the OFF/ON button at the remote control is permitted or the Auto OFF/ON button at indoor unit.

• The reason for the compressor to force operation for minimum 30 seconds is to allow the refrigerant oil run in a full cycle and return back to the outdoor unit.

13.1.3. Total Running Current Control

1. When the outdoor unit total running current (AC) exceeds X value, the frequency instructed for compressor operation will be decreased.

2. If the running current does not exceed X value for 5 seconds, the frequency instructed will be increased.

3. However, if total outdoor unit running current exceeds Y value, compressor will be stopped immediately for 3 minutes.

Model CE9JK CE12JK

Operation Mode X (A) Y (A) X (A) Y (A)

Cooling/Soft Dry (A) 4.95 14.98 5.76 14.98

Cooling/Soft Dry (B) 4.43 14.98 5.24 14.98

Cooling/Soft Dry (C) 4.95 14.98 5.76 14.98

Heating 6.2 14.98 8.1 14.98

4. The first 30 minutes of cooling operation, (A) will be applied.

13.1.4. IPM (Power transistor) Prevention Control

A. Overheating Prevention Control

1. When the IPM temperature rises to 100°C, compressor operation will stop immediately.

2. Compressor operation restarts after 3 minutes the temperature decreases to 95°C.

3. If this condition repeats continuously 4 times within 20 minutes, timer LED will be blinking (“F96” is indicated).

B. DC Peak Current Control

1. When electric current to IPM exceeds set value of 20.2 A, the compressor will stop operate. Then, operation will restart after 3 minutes.

2. If the set value is exceeded again more than 30 seconds after the compressor starts, the operation will restart after 1 minute.

3. If the set value exceeded again within 30 seconds after the compressor starts, the operation will restart after 2 minutes. If this condition repeats continuously for 7 times, all indoor and outdoor relays will be cut off, timer LED will be blinking (“F99” is indicated).

13.1.5. Compressor Overheating Prevention Control

• Instructed frequency for compressor operation will be regulated by compressor discharge temperature. The changes of frequency are as below.

• If compressor discharge temperature exceeds 112°C, compressor will be stopped, occurs 4 times per 20 minutes, timer LED will be blinking. (“F97” is indicated.)

13.1.6. Low Pressure Prevention Control (Gas Leakage Detection)

a. Control start conditions

• For 5 minutes, the compressor continuously operates and outdoor total current is between 0.6A and 1.15A.

• During Cooling and Soft Dry operations: Indoor suction temperature - indoor piping temperature is below 4°C.

• During Heating operations : Indoor piping temperature - indoor suction is under 5°C.

b. Control contents

• Compressor stops (and restart after 3 minutes).

• If the conditions above happen 2 times within 20 minutes, the unit will:

- Stop operation

- Timer LED blinks and “F91” indicated.

13.1.7. Low Frequency Protection Control 1

• When the compressor operate at frequency lower than 25 Hz continued for 240 minutes, the operation frequency will be changed to 24 Hz for 2 minutes.

13.1.8. Low Frequency Protection Control 2

• When all the below conditions comply, the compressor frequency will change to lower frequency.

Temperature, T, for: Cooling/Soft Dry Heating

Indoor intake air (°C)

Outdoor air (°C)

Indoor heat exchanger (°C) T < 30

T < 14 or T 30 T < 14 or T 28

T < 13 or T 38 T < 4 or T 24

T 0

13.2. Protection Control For Cooling & Soft Dry Operation

13.2.1. Outdoor Air Temperature Control

• The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the diagram below.

• This control will begin 1 minute after the compressor starts.

• Compressor frequency will adjust base on outdoor air temperature.

13.2.2. Cooling Overload Control

• Detects the Outdoor pipe temperature and carry out below restriction/limitation (Limit the compressor Operation frequency)

• The compressor stop if outdoor pipe temperature exceeds 63°C.

• If the compressor stops 4 times in 20 minutes, Timer LED blinking (F95 indicated: outdoor high pressure rise protection)

13.2.3. Freeze Prevention Control 1

1. When indoor heat exchanger temperature is lower than 0°C continuously for 6 minutes, compressor will stop operating.

2. Compressor will resume its operation 3 minutes after the indoor heat exchanger is higher than 5°C.

3. At the same time, indoor fan speed will be higher than during its normal operation.

4. If indoor heat exchanger temperature is higher than 5°C for 5 minutes, the fan speed will return to its normal operation.

13.2.4. Freeze Prevention Control 2

1. Control start conditions

• During Cooling operation and soft dry operation

- During thermo OFF condition, indoor intake temperature is less than 10°C or

- Compressor stops for freeze prevention control

• Either one of the conditions above occurs 5 times in 60 minutes.

2. Control contents

• Operation stops

• Timer LED blinks and “H99” indicated

13.2.5. Dew Prevention Control 1

• To prevent dew formation at indoor unit discharge area.

• This control will be activated if:

- Outdoor air temperature and Indoor pipe temperature judgment by microcontroller is fulfilled.

- When Cooling or Dry mode is operated more than 20 minutes or more.

• This control stopped if:

- Compressor stopped.

- Remote control setting changed (fan speed / temperature).

- Outdoor air temperature and indoor intake temperature changed.

• Fan speed, angle of louver (vertical airflow angle) will be adjusted accordingly in this control.

- Fan speed will be increased slowly if the unit is in quiet mode but no change in normal cooling mode.

13.2.6. Dew Prevention Control 2

• To prevent dew formation at indoor unit discharge area.

• This control starts if all conditions continue for 20 minutes:

- Operated with Cooling or Soft Dry Mode.

- Indoor intake temperature is between 25°C and 29°C.

- Outdoor air temperature is less than 30°C.

• This control stopped if:

- When receive air swing change signal from Remote Control.

• The horizontal louver will be fixed at 26° (regardless of Auto or Manual Airflow Direction Setting).

13.3. Protection Control For Heating Operation

13.3.1. Intake Air Temperature Control

Compressor will operate at limited freq., if indoor intake air temperature is 30°C or above.

13.3.2. Outdoor Air Temperature Control

• The Max current value is regulated when the outdoor air temperature rise above 14°C in order to avoid compressor overloading.

13.3.3. Overload Protection Control

• The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown below.

• If the heat exchanger temperature exceeds 60°C, compressor will stop.

13.3.4. Low Temperature Compressor Oil Return Control

• In heating operation, if the outdoor temperature falls below -10°C when compressor starts, the compressor frequency will be regulated up to 600 seconds.

13.3.5. Cold Draught Prevention Control

• When indoor pipe temperature is low, cold draught operation starts where indoor fan speed will be reduced.

13.3.6. Deice Operation

• When outdoor pipe temperature and outdoor air temperature is low, deice operation start where indoor fan motor and outdoor fan motor stop and operation LED blinks.

14 Servicing Mode

14.1. Auto OFF/ON Button

1. AUTO OPERATION MODE The Auto operation will be activated immediately once the Auto OFF/ON button is pressed. This operation can be used to operate air conditioner with limited function if remote control is misplaced or malfunction.

2. TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE) The Test Run operation will be activated if the Auto OFF/ON button is pressed continuously for more than 5 seconds. A “beep” sound will heard at the fifth seconds, in order to identify the starting of Test Run operation (Forced cooling operation). Within 5 minutes after Forced cooling operation start, the Auto OFF/ON button is pressed for more than 5 seconds. A 2 “beep” sounds will heard at the fifth seconds, in order to identify the starting of Forced heating operation.

The Auto OFF/ON button may be used together with remote control to set / change the advance setting of air conditioner operation.

3. REMOTE CONTROL NUMBER SWITCH MODE The Remote Control Number Switch Mode will be activated if the Auto OFF/ON button is pressed continuously for more than 11 seconds (3 “beep” sounds will occur at 11th seconds to identify the Remote Control Number Switch Mode is in standby condition) and press “AC RESET” button and then press any button at remote control to transmit and store the desired transmission code to the EEPROM.

There are 4 types of remote control transmission code could be selected and stored in EEPROM of indoor unit. The indoor unit will only operate when received signal with same transmission code from remote control. This could prevent signal interference when there are 2 or more indoor units installed nearby together. To change remote control transmission code, short or open jumpers at the remote control printed circuit board.

Remote Control Printed Circuit Board

Jumper A (J-A) Jumper B (J-B) Remote Control No.

Short Open A (Default)

Open Open B

Short Short C

Open Short D

• During Remote Control Number Switch Mode, press any button at remote control to transmit and store the transmission

code to the EEPROM.

4. REMOTE CONTROL RECEIVING SOUND OFF/ON MODE The Remote Control Receiving Sound OFF/ON Mode will be activated if the Auto OFF/ON button is pressed continuously for more than 16 seconds (4 “beep” sounds will occur at 16th seconds to identify the Remote Control Receiving Sound Off/On Mode is in standby condition) and press “AC Reset” button at remote control.

Press “Auto OFF/ON button” to toggle remote control receiving sound.

- Short “beep”: Turn OFF remote control receiving sound.

- Long “beep”: Turn ON remote control receiving sound.

After Auto OFF/ON Button is pressed, the 20 seconds counter for Remote Control Receiving Sound OFF/ON Mode is restarted.

14.2. Remote Control Button

14.2.1. SET BUTTON

• To check remote control transmission code and store the transmission code to EEPROM

- Press “SET” button for more than 10 seconds by using pointer.

- Press “TIMER SET” button until a “beep” sound is heard as confirmation of transmission code changed.

14.2.2. CLOCK BUTTON

• To change the remote control’s time format

- Press for more than 5 seconds.

14.2.3. RESET (RC)

• To clear and restore the remote control setting to factory default

- Press once to clear the memory.

14.2.4. RESET (AC)

• To restore the unit’s setting to factory default

- Press once to restore the unit’s setting.

14.2.5. TIMER

• To change indoor unit indicator’s LED intensity

- Press continuously for 5 seconds.

14.2.6. TIMER

• To change remote control display from Degree Celsius (°C) to Degree Fahrenheit (°F).

- Press continuously for 10 seconds.

15 Troubleshooting Guide

15.1. Refrigeration Cycle System

In order to diagnose malfunctions, make sure that there are no electrical problems before inspecting the refrigeration cycle. Such problems include insufficient insulation, problem with the power source, malfunction of a compressor and a fan. The normal outlet air temperature and pressure of the refrigeration cycle depends on various conditions, the standard values for them are shown in the table on the right.

15.1.1. Relationship between the condition of the air conditioner and pressure and electric current

Cooling Mode Heating Mode

Condition of the air

conditioner

Insufficient refrigerant

(gas leakage)

Clogged capillary tube

or Strainer

Short circuit in the

indoor unit

Heat radiation deficiency

of the outdoor unit

Inefficient compression

Low Pressure High Pressure

Electric current

during operating

Low Pressure High Pressure

Electric current

during operating

• Carry out the measurements of pressure, electric current, and temperature fifteen minutes after an operation is started.

15.2. Breakdown Self Diagnosis Function

15.2.1. Self Diagnosis Function (Three Digits Alphanumeric Code)

• Once abnormality has occurred during operation, the unit will stop its operation, and Timer LED blinks.

• Although Timer LED goes off when power supply is turned off, if the unit is operated under a breakdown condition, the LED will light up again.

• In operation after breakdown repair, the Timer LED will no more blink. The last error code (abnormality) will be stored in IC memory.

• To make a diagnosis

1. Timer LED start to blink and the unit automatically stops the operation.

2. Press the CHECK button on the remote controller continuously for 5 seconds.

3. “- -” will be displayed on the remote controller display. Note: Display only for “- -”. (No transmitting signal, no receiving sound and no Power LED blinking.)

4. Press the “TIMER” or button on the remote controller. The code “H00” (no abnormality) will be displayed and signal will be transmitted to the main unit.

5. Every press of the button (up or down) will increase abnormality numbers and transmit abnormality code signal to the main unit.

6. When the latest abnormality code on the main unit and code transmitted from the remote controller are matched, power LED will light up for 30 seconds and a beep sound (continuously for 4 seconds) will be heard. If no codes are matched, power LED will light up for 0.5 seconds and no sound will be heard.

7. The breakdown diagnosis mode will be canceled unless pressing the CHECK button continuously for 5 seconds or operating the unit for 30 seconds.

8. The LED will be off if the unit is turned off or the RESET button on the main unit is pressed.

• To display memorized error (Protective operation)

status

1. Turn power on.

2. Press the CHECK button on the remote controller continuously for 5 seconds.

3. “- -” will be displayed on the remote controller display. Note: Display only for “- -”. (No transmitting signal, no receiving sound and no Power LED blinking.)

4. Press the “TIMER” or button on the remote controller. The code “H00” (no abnormality) will be displayed and signal will be transmitted to the main unit. The power LED lights up. If no abnormality is stored in the memory, three beeps sound will be heard.

5. Every press of the button (up or down) will increase abnormality numbers and transmit abnormality code signal to the main unit.

7. The breakdown diagnosis mode will be canceled unless pressing the CHECK button continuously for 5 seconds or operating the unit for 30 seconds.

8. The same diagnosis can be repeated by turning power on again.

• To clear memorized error (Protective operation) status

after repair:

1. Turn power on (in standby condition).

2. Press the AUTO button for 5 seconds (A beep receiving sound) on the main unit to operate the unit at Forced Cooling Operation modes.

3. Press the CHECK button on the remote controller for about 1 second with a pointed object to transmit signal to main unit. A beep sound is heard from main unit and the data is cleared.

• Temporary Operation (Depending on breakdown status)

1. Press the AUTO button (A beep receiving sound) on the main unit to operate the unit. (Remote control will become possible.)

2. The unit can temporarily be used until repaired.

15.3. Error Codes Table

Diagnosis

display

H00 No memory of failure — Normal operation — —

H11 Indoor/outdoor

H14 Indoor intake air

H15 Compressor

H16 Outdoor current

H19 Indoor fan motor

H23 Indoor heat exchanger

H27 Outdoor air temperature

H28 Outdoor heat exchanger

H30 Outdoor discharge pipe

H33 Indoor / outdoor

H38 Indoor/Outdoor

H97 Outdoor fan motor

H98 Indoor high pressure

H99 Indoor operating unit

F11 4-way valve switching

F90 Power factor correction

F91 Refrigeration cycle

F93 Compressor abnormal

F95 Outdoor cooling high

F96 Power transistor module

Abnormality /

Protection control

abnormal communication

temperature sensor abnormality

transformer (CT) abnormality

merchanism lock

temperature sensor abnormality

sensor abnormality

temperature sensor 1 abnormality

temperature sensor abnormality

misconnection abnormality

mismatch (brand code)

mechanism lock

protection

freeze protection

abnormality

(PFC) circuit protection

abnormality

revolution

pressure protection

overheating protection

Abnormality

Judgement

After operation for 1 minute

Continuous for 5s — Indoor intake air temperature

Continuous for 5s — Compressor temperature

— — Current transformer faulty or

Continuous happen for 7 times

Continuous for 5s — Indoor heat exchanger

Continuous for 5s — Outdoor air temperature

Continuous for 5s — Outdoor heat exchanger

Continuous for 5s — Outdoor discharge pipe

— — Indoor and outdoor rated

— — Brand code not match

2 times happen within 30 minutes

— — Indoor high pressure

— — Indoor freeze protection

4 times happen within 30 minutes

4 times happen within 10 minutes

2 times happen within 20 minutes

4 times happen within 20 minutes

4 times happen within 30 minutes

Protection

operation

Indoor fan only operation can start by entering into force cooling operation

— Indoor fan motor lock or

— Outdoor fan motor lock or

— 4-way valve switching

— Power factor correction

— Refrigeration cycle abnormal • Insufficient refrigerant or valve

— Compressor abnormal

— Cooling high pressure

— Power transistor module

Indoor/outdoor communication not establish

sensor open or short circuit

compressor faulty

feedback abnormal

temperature sensor open or short circuit

sensor open or short circuit

temperature sensor 1 open or short circuit

temperature sensor open or short circuit

voltage different

feedback abnormal

protection (Heating)

(Cooling)

abnormal

circuit abnormal

revolution

protection

overheat

Problem Check location

• Indoor/outdoor wire terminal

• Indoor/outdoor PCB

• Indoor/outdoor connection wire

• Indoor intake air temperature sensor lead wire and connector

• Compressor temperature sensor lead wire and connector

• Outdoor PCB faulty or compressor faulty

• Fan motor lead wire and connector

• Fan motor lock or block

• Indoor heat exchanger temperature sensor lead wire and connector

• Outdoor air temperature sensor lead wire and connector

• Outdoor heat exchanger temperature sensor 1 lead wire and connector

• Outdoor discharge pipe temperature sensor lead wire and connector

• Indoor and outdoor units check

• Check indoor unit and outdoor unit.

• Outdoor fan motor lead wire and connector

• Fan motor lock or block

• Check indoor heat exchanger

• Air filter dirty

• Air circulation short circuit

• Check indoor heat exchanger

• Air filter dirty

• Air circulation short circuit

•4-way valve

• Lead wire and connector.

• Outdoor PCB faulty

• Power transistor module faulty or compressor lock

• Check refrigeration system

• Outdoor air circuit

• PCB faulty

• Outdoor air circuit (fan motor)

Diagnosis

display

Abnormality /

Protection control

Abnormality

Judgement

Protection

operation

Problem Check location

F97 Compressor

overheating protection

F98 Total running current

protection

F99 Outdoor direct current

(DC) peak detection

3 times happen within 30 minutes

3 times happen within 20 minutes

Continuous happen for 7 times

— Compressor overheat • Insufficient refrigerant

— Total current protection • Check refrigeration system

— Power transistor module

current protection

• Power source or compressor lock

• Power transistor module faulty or compressor lock

15.4. Self-diagnosis Method

15.4.1. H11 (Indoor/Outdoor Abnormal Communication)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the data received from outdoor unit in indoor unit signal transmission is checked whether it is normal.

Malfunction Caused

• Faulty indoor unit PCB.

• Faulty outdoor unit PCB.

• Indoor unit-outdoor unit signal transmission error due to wrong wiring.

• Indoor unit-outdoor unit signal transmission error due to breaking of wire in the connection wires between the indoor and outdoor units.

• Indoor unit-outdoor unit signal transmission error due to disturbed power supply waveform.

Troubleshooting

15.4.2. H14 (Indoor Intake Air Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the indoor intake air temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

15.4.3. H15 (Compressor Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor compressor temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

•Faulty PCB.

Troubleshooting

15.4.4. H16 (Outdoor Current Transformer Open Circuit)

Malfunction Decision Conditions

A current transformer (CT) is detected by checking the compressor running frequency ( rated frequency) and CT detected input current (less than 0.65A) for continuously 20 seconds.

Malfunction Caused

• CT defective

• Outdoor PCB defective

• Compressor defective (low compression)

Troubleshooting

15.4.5. H19 (Indoor Fan Motor - DC Motor Mechanism Locked)

Malfunction Decision Conditions

The rotation speed detected by the Hall IC during fan motor operation is used to determine abnormal fan motor (feedback of rotation > 2550rpm or < 50rpm)

Malfunction Caused

• Operation stops due to short circuit inside the fan motor winding.

• Operation stops due to breaking of wire inside the fan motor.

• Operation stops due to breaking of fan motor lead wires.

• Operation stops due to Hall IC malfunction.

• Operation error due to faulty indoor unit PCB.

Troubleshooting

15.4.6. H23 (Indoor Pipe Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the indoor heat exchanger temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

15.4.7. H27 (Outdoor Air Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor air temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

•Faulty PCB.

Troubleshooting

15.4.8. H28 (Outdoor Pipe Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor pipe temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

15.4.9. H30 (Compressor Discharge Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor discharge pipe temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

•Faulty PCB.

Troubleshooting

15.4.10. H33 (Unspecified Voltage between Indoor and Outdoor)

Malfunction Decision Conditions

The supply power is detected for its requirement by the indoor/outdoor transmission.

Malfunction Caused

• Wrong models interconnected.

• Wrong indoor unit and outdoor unit PCBs used.

• Indoor unit or outdoor unit PCB defective.

Troubleshooting

15.4.11. H97 (Outdoor Fan Motor - DC Motor Mechanism Locked)

Malfunction Decision Conditions

The rotation speed detected by the Hall IC during fan motor operation is used to determine abnormal fan motor.

Malfunction Caused

• Operation stops due to short circuit inside the fan motor winding.

• Operation stops due to breaking of wire inside the fan motor.

• Operation stops due to breaking of fan motor lead wires.

• Operation stops due to Hall IC malfunction.

• Operation error due to faulty outdoor unit PCB.

Troubleshooting

15.4.12. H98 (Indoor High Pressure Protection)

Error Code will not display (no Timer LED blinking) but store in EEPROM

Malfunction Decision Conditions

During heating operation, the temperature detected by the indoor pipe temperature sensor is above 60°C.

Malfunction Caused

• Clogged air filter of the indoor unit

• Dust accumulation on the indoor unit heat exchanger

• Air short circuit

• Detection error due to faulty indoor pipe temperature sensor

• Detection error due to faulty indoor unit PCB

Troubleshooting

15.4.13. H99 (Indoor Freeze Prevention Protection: Cooling or Soft Dry)

Error code will not display (no TIMER LED blinking) but store in EEPROM

Malfunction Decision Conditions

Freeze prevention control takes place (when indoor pipe temperature is lower than 2°C)

Malfunction Caused

• Clogged air filter of the indoor unit

• Dust accumulation on the indoor unit heat exchanger

• Air short circuit

• Detection error due to faulty indoor pipe temperature sensor

• Detection error due to faulty indoor unit PCB

Troubleshooting

15.4.14. F11 (4-way valve Abnormality)

Malfunction Decision Conditions

• When heating operation, when indoor pipe temperature is below 10°C

• When cooling operation, when indoor pipe temperature is above 45°C

Malfunction Caused

• Connector in poor contact

• Faulty sensor

• Faulty outdoor unit PCB

• 4-way valve defective

Troubleshooting

15.4.15. F90 (Power Factor Correction Protection)

Malfunction Decision Conditions

During startup and operation of cooling and heating, when Power Factor Correction (PFC) protection circuitry at the outdoor unit main PCB senses abnormal high DC voltage level.

Malfunction Caused

• DC voltage peak due to power supply surge.

• DC voltage peak due to compressor windings not uniform.

• Faulty outdoor PCB.

Troubleshooting

15.4.16. F91 (Refrigeration Cycle Abnormality)

Malfunction Decision Conditions

• During cooling, compressor frequency = Fcmax.

• During heating, compressor frequency > Fhrated.

• During cooling and heating operation, running current: 0.65A < I < 1.65A.

• During cooling, indoor intake - indoor pipe < 4°C

• During heating, indoor pipe - indoor intake < 5°C

Multi Models Only

- Gas shortage detection 1: A gas shortage is detected by checking the CT-detected input current value and the compressor running frequency. During startup and operating of cooling and heating, input current < 8.78/256 (A/Hz) x compressor running frequency + 0.25.

- Gas shortage detection 2: A gas shortage is detected by checking the difference between indoor pipe temperature and indoor intake air temperature during cooling and heating.

Malfunction Caused

• Refrigerant shortage (refrigerant leakage)

• Poor compression performance of compressor.

• 2/3 way valve closed.

• Detection error due to faulty indoor intake air or indoor pipe temperature sensors.

Troubleshooting

15.4.17. F93 (Compressor Rotation Failure)

Malfunction Decision Conditions

A compressor rotation failure is detected by checking the compressor running condition through the position detection circuit.

Malfunction Caused

• Compressor terminal disconnect

• Outdoor PCB malfunction

Troubleshooting

15.4.18. F95 (Cooling High Pressure Abnormality)

Malfunction Decision Conditions

During operation of cooling, when outdoor unit heat exchanger high temperature data (61°C) is detected by the outdoor pipe temperature sensor.

Malfunction Caused

• Outdoor pipe temperature rise due to short circuit of hot discharge air flow.

• Outdoor pipe temperature rise due to defective of outdoor fan motor.

• Outdoor pipe temperature rise due to defective outdoor pipe temperature sensor.

• Outdoor pipe temperature rise due to defective outdoor unit PCB.

Troubleshooting

15.4.19. F96 (IPM Overheating)

Malfunction Decision Conditions

During operating of cooling and heating, when IPM temperature data (100°C) is detected by the IPM temperature sensor.

Multi Models Only

• Compressor Overheating: During operation of cooling and heating, when the compressor OL is activated.

• Heat Sink Overheating: During operation of cooling and heating, when heat sink temperature data (90°C) is detected by the heat sink temperature sensor.

Malfunction Caused

• IPM overheats due to short circuit of hot discharge air flow.

• IPM overheats due to defective of outdoor fan motor.

• IPM overheats due to defective of internal circuitry of IPM.

• IPM overheats due to defective IPM temperature sensor.

Multi Models Only

- Compressor OL connector poor contact.

- Compressor OL faulty.

Troubleshooting

15.4.20. F97 (Compressor Overheating)

Malfunction Decision Conditions

During operation of cooling and heating, when compressor tank temperature data (112°C) is detected by the compressor tank temperature sensor.

Malfunction Caused

• Refrigerant shortage (refrigerant leakage).

• 2/3 way valve closed.

• Detection error due to faulty compressor tank temperature sensor.

Troubleshooting

15.4.21. F98 (Input Over Current Detection)

Malfunction Decision Conditions

During operation of cooling and heating, when an input over-current (14.98A) is detected by checking the input current value being detected by current transformer (CT) with the compressor running.

Malfunction Caused

• Over-current due to compressor failure.

• Over-current due to defective outdoor unit PCB.

• Over-current due to defective inverter main circuit electrolytic capacitor.

• Over-current due to excessive refrigerant.

Troubleshooting

14.98A?

15.4.22. F99 (Output Over Current Detection)

Malfunction Decision Conditions

During operation of cooling and heating, when an output over-current (20.2A) is detected by checking the current that flows in the inverter DC peak sensing circuitry.

Malfunction Caused

• DC peak due to compressor failure.

• DC peak due to defective power transistor(s).

• DC peak due to defective outdoor unit PCB.

Troubleshooting

20.2A?

• Checking the power transistor

• Never touch any live parts for at least 10 minutes after turning off the circuit breaker.

• If unavoidable necessary to touch a live part, make sure the power transistor’s supply voltage is below 50V using the tester.

• For the UV

Tester’s negative terminal Power transistor (+) UVW Power transistor (-) UVW

Tester’s positive terminal UVW Power transistor (+) UVW Power transistor (-)

W, make measurement at the Faston terminal on the board of the relay connector.

k lareveSecnatsiser lamroN  to several M

ro 0ecnatsiser lamronbA

16 Disassembly and Assembly Instructions

High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with repair work. Failure to heed this caution may result in electric shocks.

16.1. Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal Procedures

16.1.1. To remove front grille

16.1.2. To remove power electronic controller

16.1.3. To remove discharge grille

16.1.4. To remove control board

16.1.5. To remove cross flow fan and indoor fan motor

16.2. Outdoor Electronic Controller Removal Procedure

Caution! When handling electronic controller, be careful of electrostatic discharge.

1. Remove the 3 screws of the Top Panel.

Fig. 1

2. Remove the 6 screws of the Front Panel.

5. Remove the Control Board as follows:

Fig. 4

Fig. 2

3. Remove the screw of the Terminal Board Cover.

4. Remove the Top Cover of the Control Board by 4 hooks.

Fig. 3

Fig. 5

Fig. 6

17 Technical Data

17.1. Operation Characteristics

17.1.1. CU-CE9JKE

737475

17.1.2. CU-CE12JKE

777879

17.2. Sensible Capacity Chart

CU-CE9JKE

230V Outdoor Temp. (°C)

30 35 40 46

CU-CE12JKE

Indoor wet bulb temp.

17.0°C 2.58 1.96 0.54 2.41 1.88 0.58 2.24 1.80 0.62 2.04 1.71 0.67

19.0°C 2.60 0.59

19.5°C 2.83 2.05 0.55 2.65 1.97 0.59 2.46 1.89 0.63 2.24 1.80 0.68

22.0°C 3.09 2.12 0.56 2.88 2.04 0.60 2.68 1.97 0.64 2.44 1.88 0.70

230V Outdoor Temp. (°C)

Indoor wet bulb temp.

17.0°C 3.47 2.63 0.84 3.24 2.52 0.90 3.02 2.43 0.96 2.74 2.30 1.04

19.0°C 3.50 0.92

19.5°C 3.81 2.76 0.85 3.56 2.65 0.92 3.31 2.55 0.98 3.01 2.43 1.06

22.0°C 4.15 2.86 0.87 3.88 2.75 0.94 3.61 2.65 1.00 3.28 2.53 1.08

TCSHCIPTCSHCIPTCSHCIPTCSHCIP

Total Cooling Capacity (kW)

Sensible Heat Capacity (kW)

SHC

Input Power (kW)

Indoor 27°C/19°C Outdoor 35°C/24°C

18 Exploded View and Replacement Parts List

18.1. Indoor Unit

Note The above exploded view is for the purpose of parts disassembly and replacement. The non-numbered parts are not kept as standard service parts.

REF. NO. PART NAME & DESCRIPTION QTY. CS-CE9JKE CS-CE12JKE REMARKS

1 CHASSY COMPLETE 1 CWD50C1599 ←

2 FAN MOTOR 1 ARW6101CB ← O

3 CROSS FLOW FAN COMPLETE 1 CWH02C1076 ←

4 BEARING ASS’Y 1 CWH64K007 ←

5 SCREW - CROSS FLOW FAN 1 CWH551146 ←

6 EVAPORATOR CO. 1 CWB30C3074 CWB30C3075

7 FLARE NUT (LIQUID) 1 CWT251030 ←

8 FLARE NUT (GAS) 1 CWT251031 CWT251032

9 CLIP FOR SENSOR 1 CWH32143 ←

10 DISCHARGE GRILLE COMPLETE 1 CWE20C3009 ←

11 VERTICAL VANE 11 CWE241287 ←

12 CONNECTING BAR 1 CWE261152 ←

13 CONNECTING BAR 1 CWE261153 ←

14 CONNECTING BAR 1 CWE261154 ←

15 CONNECTING BAR 1 CWE261155 ←

16 FULCRUM 1 CWH621102 ←

17 AIR SWING MOTOR 1 CWA981240 ← O

18 CAP - DRAIN TRAY 1 CWH521096 ←

19 HORIZONTAL VANE COMPLETE 1 CWE24C1268 ←

20 BACK COVER CHASSIS 1 CWD933019 ←

21 CONTROL BOARD CASING 1 CWH102370 ←

22 TERMINAL BOARD COMPLETE 1 CWA28C2357 ← O

23 ELECTRONIC CONTROLLER - MAIN 1 CWA73C3888 CWA73C3889 O

24 ELECTRONIC CONTROLLER - POWER 1 CWA745322 ← O

25 ELECTRONIC CONTROLLER - INDICATOR & RECEIVER 1 CWA745300 ← O

26 INDICATOR HOLDER 1 CWD933021 ←

27 SENSOR COMPLETE 1 CWA50C2401 ← O

28 CONTROL BOARD FRONT COVER 1 CWH13C1183 ←

29 CONTROL BOARD TOP COVER 1 CWH131350 ←

31 REMOTE CONTROL COMPLETE 1 CWA75C3425 ← O

32 FRONT GRILLE COMPLETE 1 CWE11C4307 ← O

33 INTAKE GRILLE COMPLETE 1 CWE22C1508 ←

34 GRILLE DOOR COMPLETE 1 CWE14C1029 ←

35 AIR FILTER 2 CWD001279 ←

36 SCREW - FRONT GRILLE 2 XTT4+16CFJ ←

37 CAP - FRONT GRILLE 2 CWH521194 ←

38 DRAIN HOSE 1 CWH851173 ←

39 INSTALLATION PLATE 1 CWH361097 ←

40 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C067 ←

45 OPERATING INSTRUCTIONS 1 CWF566888 ←

46 INSTALLATION INSTRUCTIONS 1 CWF614037 ←

47 INSTALLATION INSTRUCTIONS 1 CWF614038 ←

48 INSTALLATION INSTRUCTIONS 1 CWF614039 ←

49 INSTALLATION INSTRUCTIONS 1 CWF614040 ←

50 INSTALLATION INSTRUCTIONS 1 CWF614041 ←

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

18.2. Outdoor Unit

Note The above exploded view is for the purpose of parts disassembly and replacement. The non-numbered parts are not kept as standard service parts.

REF. NO. PART NAME & DESCRIPTION QTY. CU-CE9JKE CU-CE12JKE REMARKS

1 CHASSY ASS’Y 1 CWD50K2202 ←

2 ANTI-VIBRATION BUSHING 3 CWH50077 ←

3 COMPRESSOR 1 5CS110XBD04 ← O

4 NUT - COMPRESSOR MOUNT 3 CWH56000J ←

5 CRANKCASE HEATER 1 CWA341050 ←

6 SOUND PROOF MATERIAL 1 CWG302466 ←

7 FAN MOTOR BRACKET 1 CWD541089 ←

8 FAN MOTOR 1 ARW44W8P40AC ← O

9 SCREW - FAN MOTOR BRACKET 2 CWH551217 ←

10 SCREW - FAN MOTOR MOUNT 4 CWH55252J ←

11 PROPELLER FAN ASS’Y 1 CWH03K1014 ←

12 NUT - PROPELLER FAN 1 CWH56053J ←

13 CONDENSER CO. 1 CWB32C2874 ←

14 TUBE ASSY CO. (CAP./CHK VALVE/RECEIVER) 1 CWT01C5125 CWT01C5126

16 HOLDER - COUPLING 1 CWH351023 ←

17 3-WAY VALVE (GAS) 1 CWB011434 CWB011523 O

18 4-WAY VALVE 1 CWB001037J ← O

19 2-WAY VALVE (LIQUID) 1 CWB021400 ← O

21 V-COIL CO. (4-WAY VALVE) 1 CWA43C2144J ←

24 SENSOR COMPLETE (AIR & PIPE TEMP.) 1 CWA50C2402 ←

25 SENSOR COMPLETE (DISCHARGE TEMP.) 1 CWA50C2512 ←

27 TERMINAL BOARD ASS’Y 1 CWA28K1110J ←

29 REACTOR 1 G0C193J00003 ←

31 ELECTRONIC CONTROLLER - MAIN 1 CWA73C3898R CWA73C3899R

32 CRANKCASE HEATER 1 CWA341060 ←

33 CONTROL BOARD COVER - TOP 1 CWH131264 ←

34 SENSOR COMPLETE (COMP. TEMP.) 1 CWA50C2205 ←

36 TERMINAL COVER 1 CWH171039A ←

37 NUT - TERMINAL COVER 1 CWH7080300J ←

38 SOUND PROOF BOARD 1 CWH151188 ←

39 CABINET SIDE PLATE (RIGHT) 1 CWE04C1212 ←

40 CABINET SIDE PLATE (LEFT) 1 CWE041278A ←

41 HANDLE 1 CWE161010 ←

42 WIRE NET 1 CWD041111A ←

43 CABINET FRONT PLATE CO. 1 CWE06C1136 ←

44 CABINET TOP PLATE 1 CWE031014A ←

45 PLATE - CONTROL BOARD COVER 1 CWH131301 ←

46 CONTROL BOARD COVER COMPLETE 1 CWH13C1064 ←

50 RECEIVER 1 CWB14011 ←

51 STRAINER 1 CWB111004 ←

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

[PHAAM] Printed in Malaysia

SFYW0905-00

Panasonic CS-CE9JKE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
