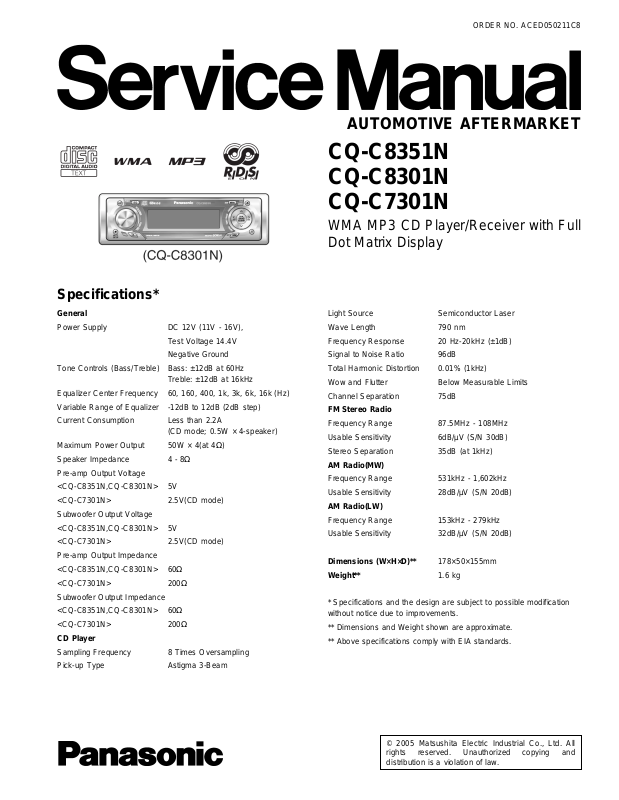

Panasonic CQC-7301-N, CQC-8301-N, CQC-8351-N Service manual

Specifications*

ORDER NO. ACED050211C8

AUTOMOTIVE AFTERMARKET

CQ-C8351N CQ-C8301N CQ-C7301N

WMA MP3 CD Player/Receiver with Full Dot Matrix Display

General

Power Supply DC 12V (11V - 16V),

Test Voltage 14.4V Negative Ground

Tone Controls (Bass/Treble) Bass: ±12dB at 60Hz

Treble: ±12dB at 16kHz Equalizer Center Frequency 60, 160, 400, 1k, 3k, 6k, 16k (Hz) Variable Range of Equalizer -12dB to 12dB (2dB step) Current Consumption Less than 2.2A

(CD mode; 0.5W × 4-speaker) Maximum Power Output 50W × 4(at 4Ω) Speaker Impedance 4-8Ω Pre-amp Output Voltage <CQ-C8351N,CQ-C8301N> 5V <CQ-C7301N> 2.5V(CD mode) Subwoofer Output Voltage <CQ-C8351N,CQ-C8301N> 5V <CQ-C7301N> 2.5V(CD mode) Pre-amp Output Impedance <CQ-C8351N,CQ-C8301N> 60Ω <CQ-C7301N> 200Ω Subwoofer Output Impedance <CQ-C8351N,CQ-C8301N> 60Ω <CQ-C7301N> 200Ω

CD Player

Sampling Frequency 8 Times Oversampling Pick-up Type Astigma 3-Beam

Light Source Semiconductor Laser Wave Length 790 nm Frequency Response 20 Hz-20kHz (±1dB) Signal to Noise Ratio 96dB Total Harmonic Distortion 0.01% (1kHz) Wow and Flutter Below Measurable Limits Channel Separation 75dB

FM Stereo Radio

Frequency Range 87.5MHz - 108MHz Usable Sensitivity 6dB/µV (S/N 30dB) Stereo Separation 35dB (at 1kHz)

AM Radio(MW)

Frequency Range 531kHz - 1,602kHz Usable Sensitivity 28dB/µV (S/N 20dB)

AM Radio(LW)

Frequency Range 153kHz - 279kHz Usable Sensitivity 32dB/µV (S/N 20dB)

Dimensions (W×H×D)** Weight** 1.6 kg

* Specifications and the design are subject to possible modification without notice due to improvements.

** Dimensions and Weight shown are approximate. ** Above specifications comply with EIA standards.

178×50×155mm

CQ-C8351N / CQ-C8301N / CQ-C7301N

CONTENTS

Page Page

1 ABOUT LEAD FREE SOLDER (PbF) 3 2 FEATURES 3 REPLACEING THE FUSE 4 MAINTENANCE 5 NOTES 6 DIMENSIONS 7 LASER PRODUCTS 8 WIRING CONNECTION 9 BLOCK DIAGRAM 10 DISASSEMB LY INSTRUCTI ONS

11 TERMINALS DESCRIPTION 12 IC BLOCK DIAGRAM

3 3

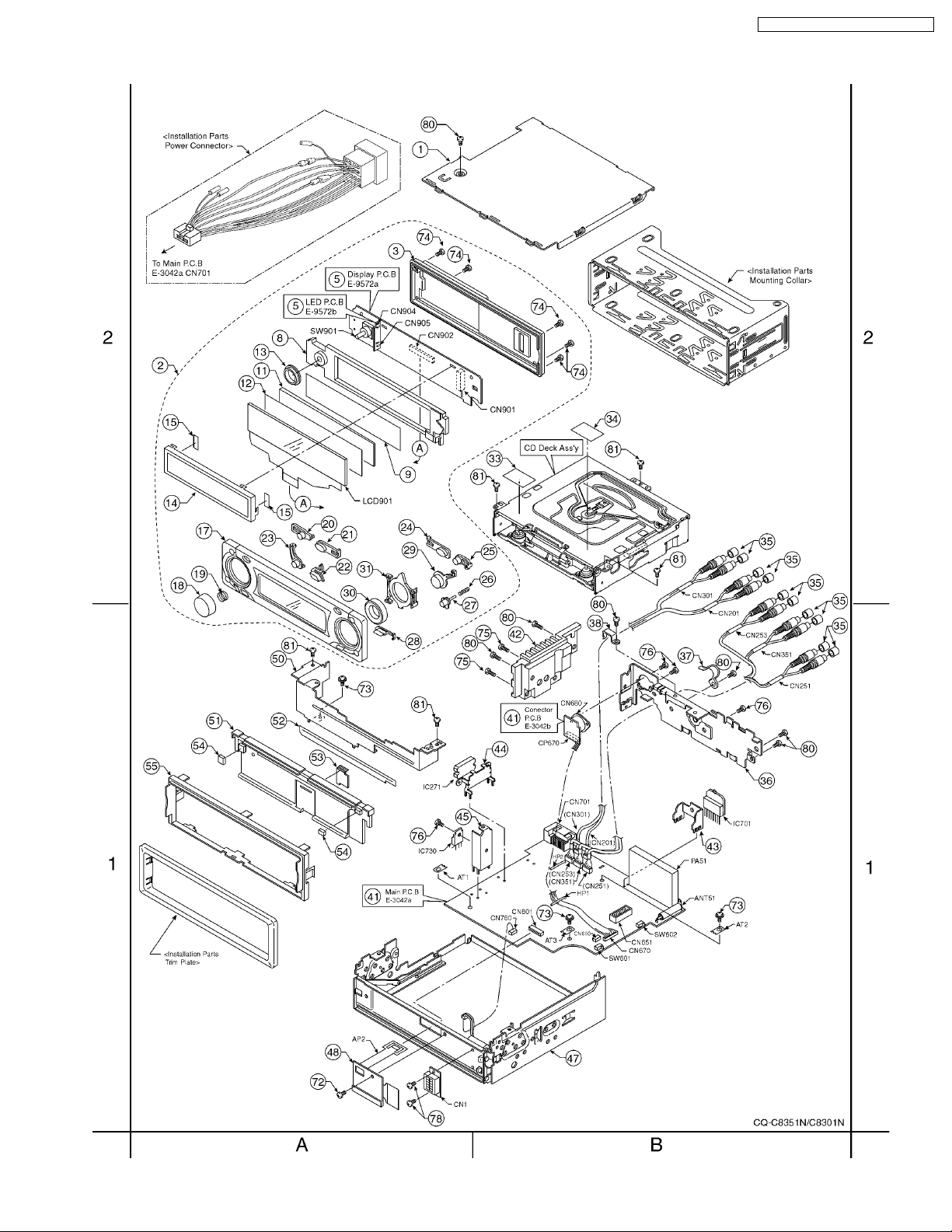

13 REPLACEM ENT PARTS LIST [CQ-C8351N/C8301N] 14 EXPLODED VIEW (Unit) [CQ-C8351N/C8301N]

3 3

15 REPLACEM ENT PARTS LIST [CQ-C7301N]

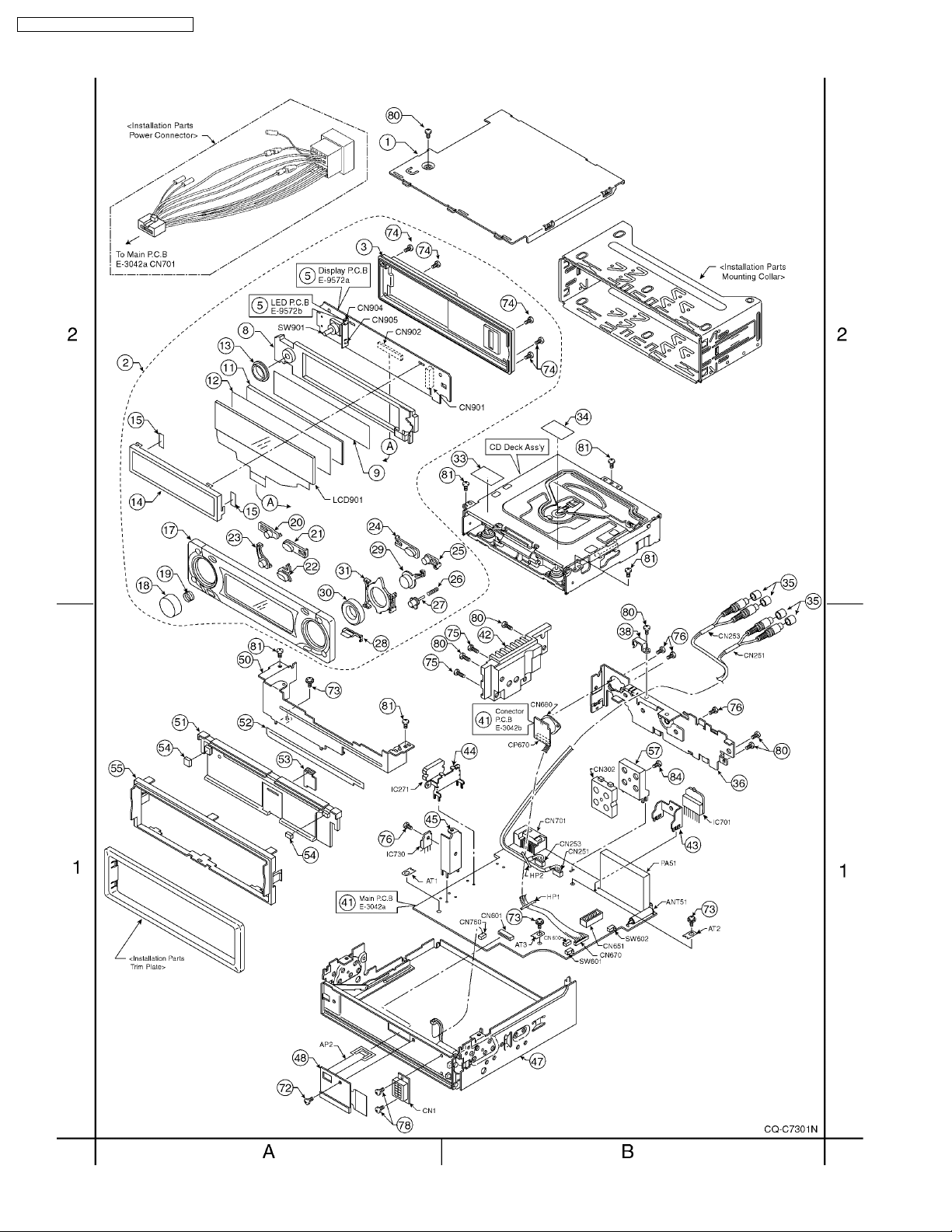

16 EXPLODED VIEW (Unit) [CQ-C7301N] 17 CD PLAYER PARTS LIST

3 4

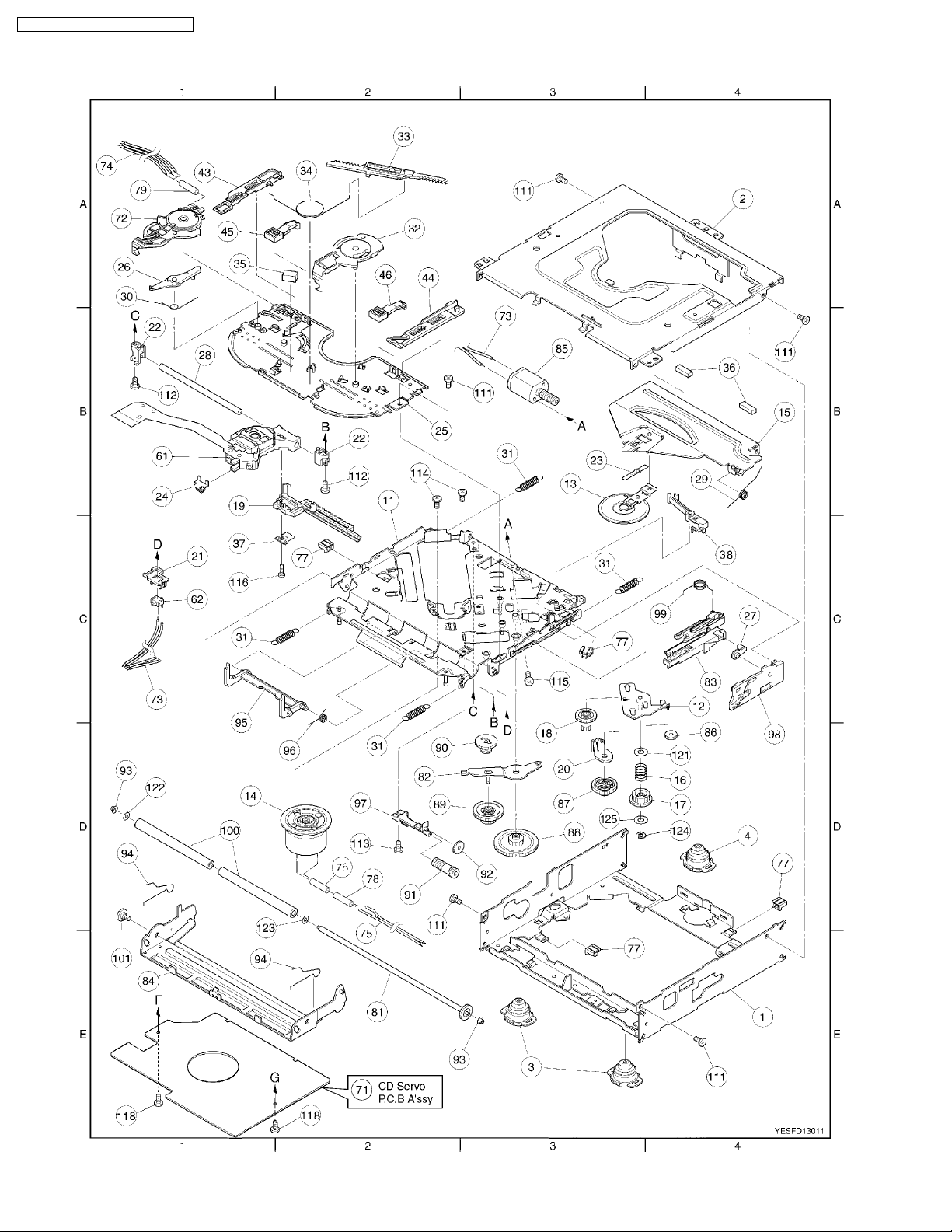

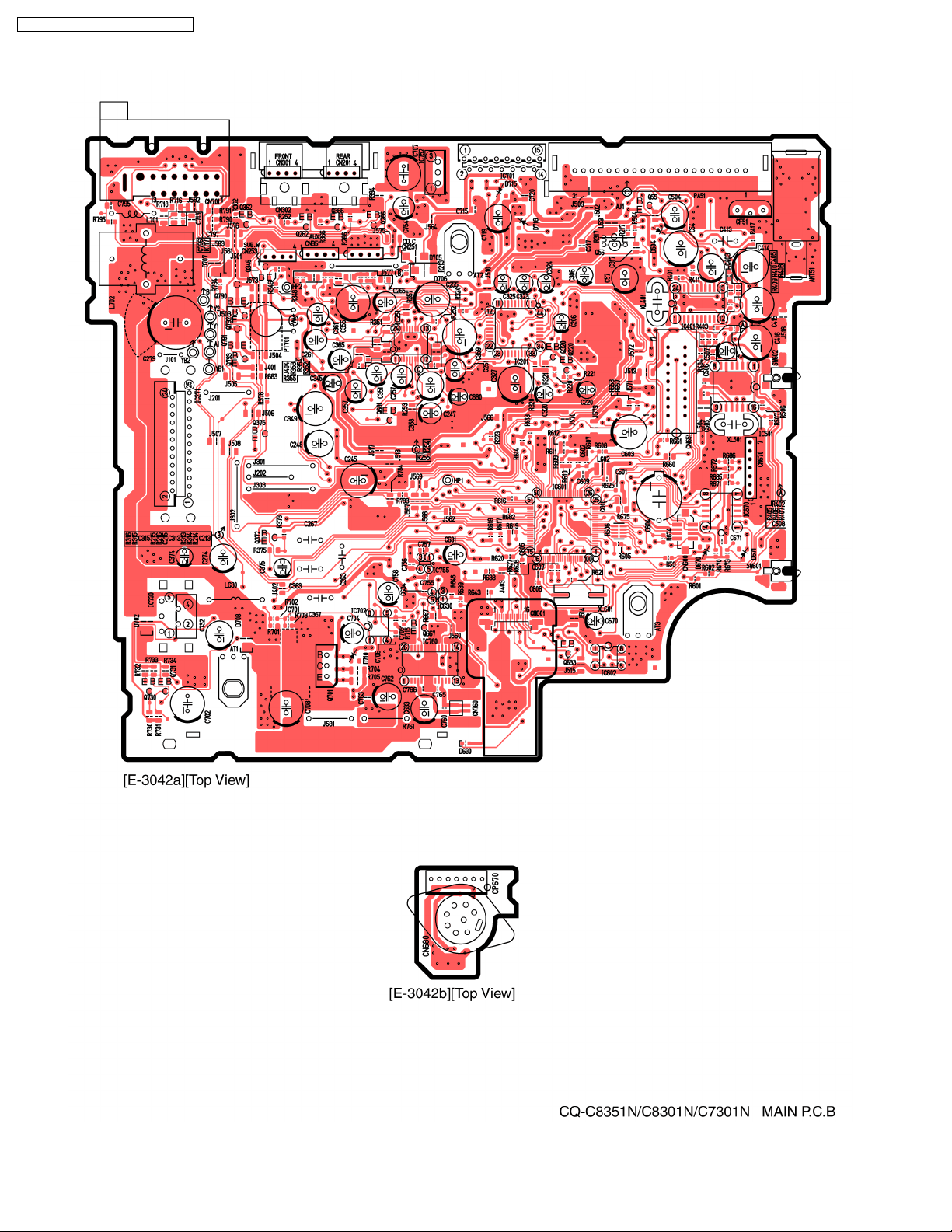

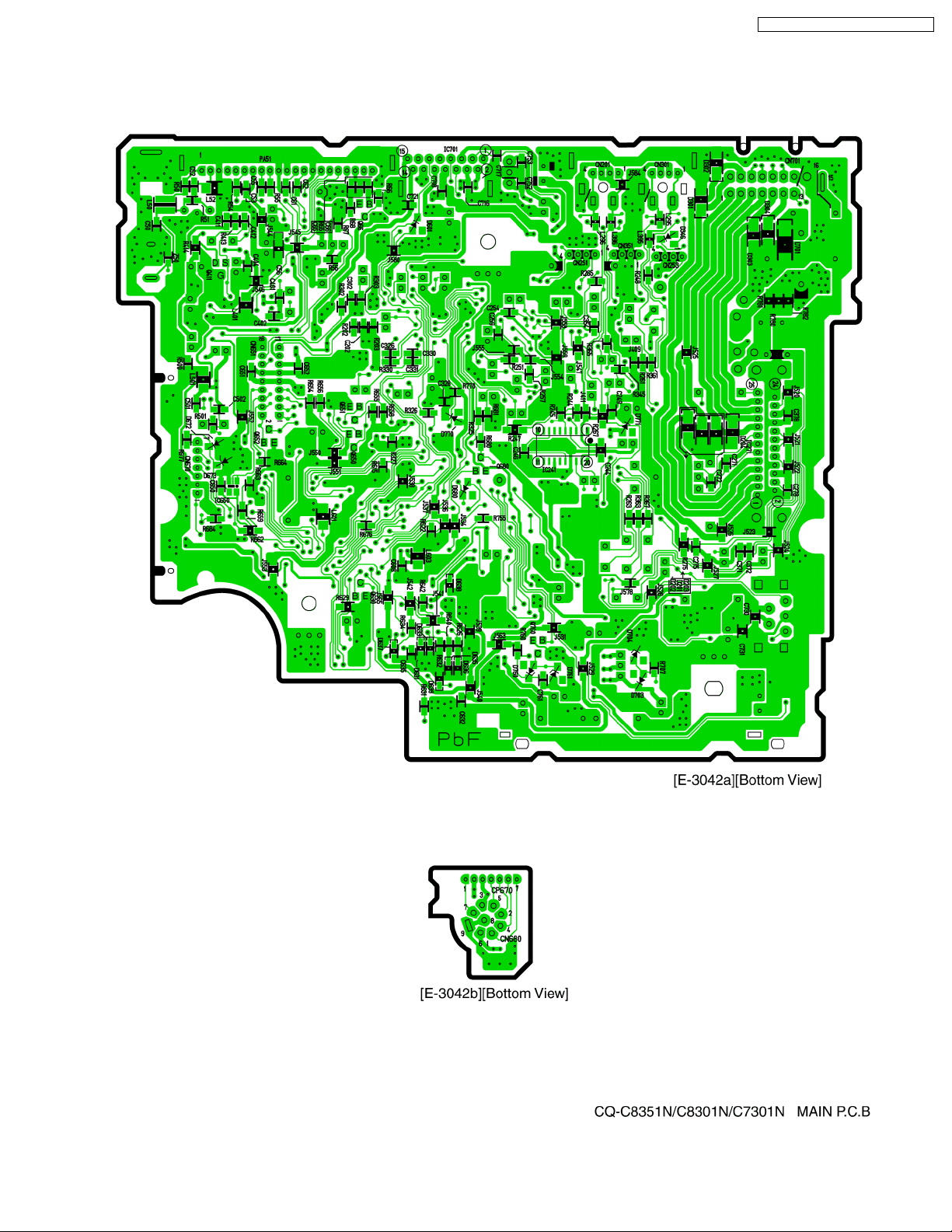

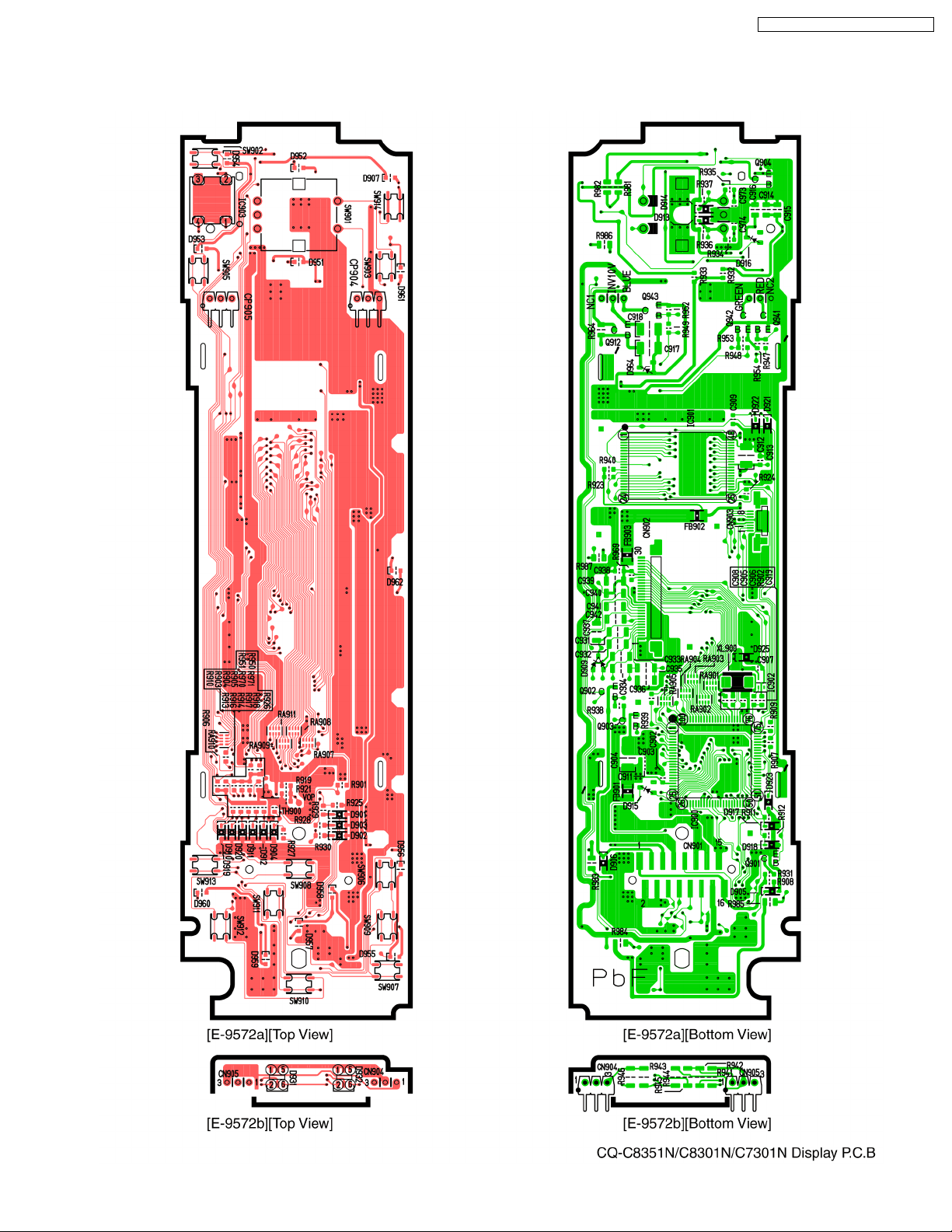

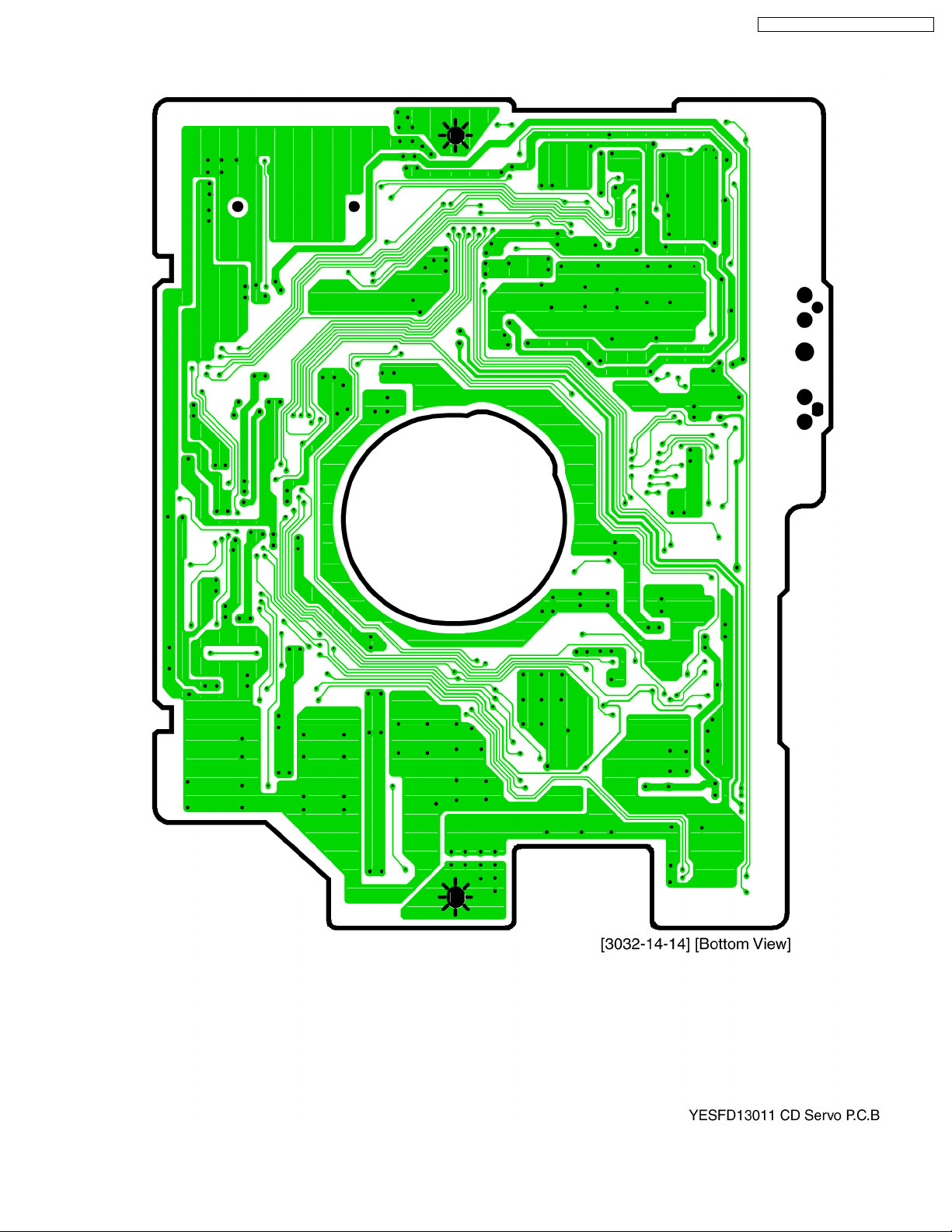

18 EXPLODED VIEW (CD PLAYER) 19 WIRING DIAGRAM

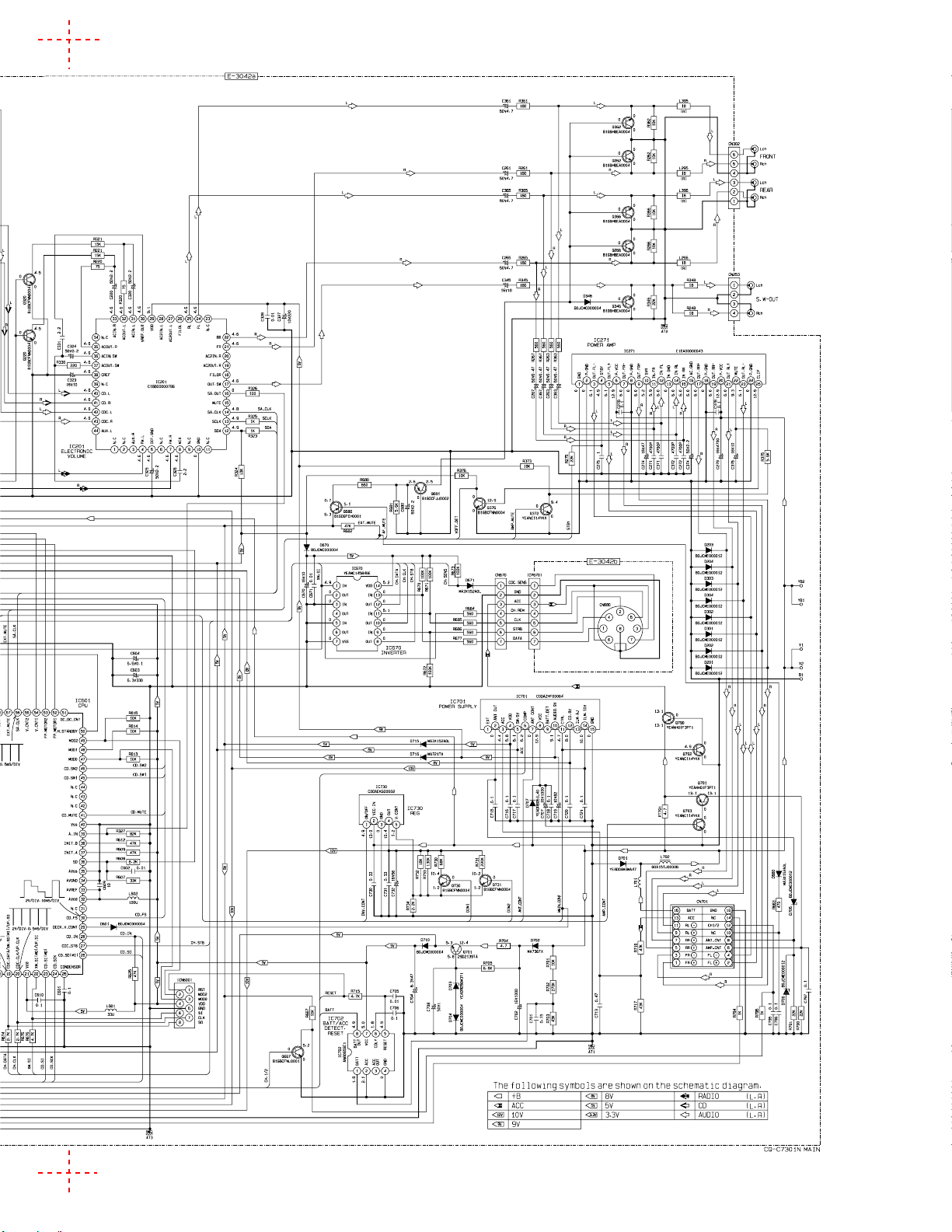

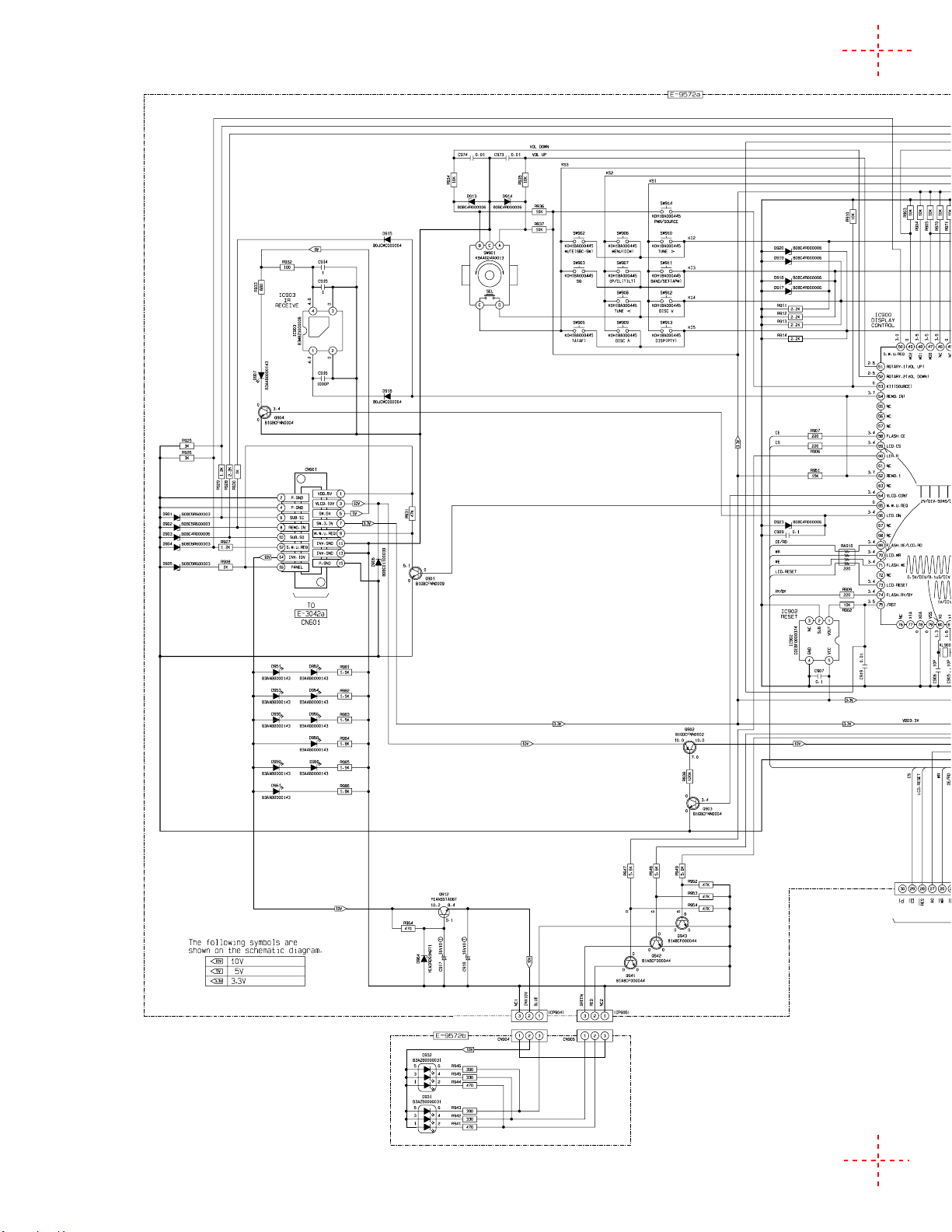

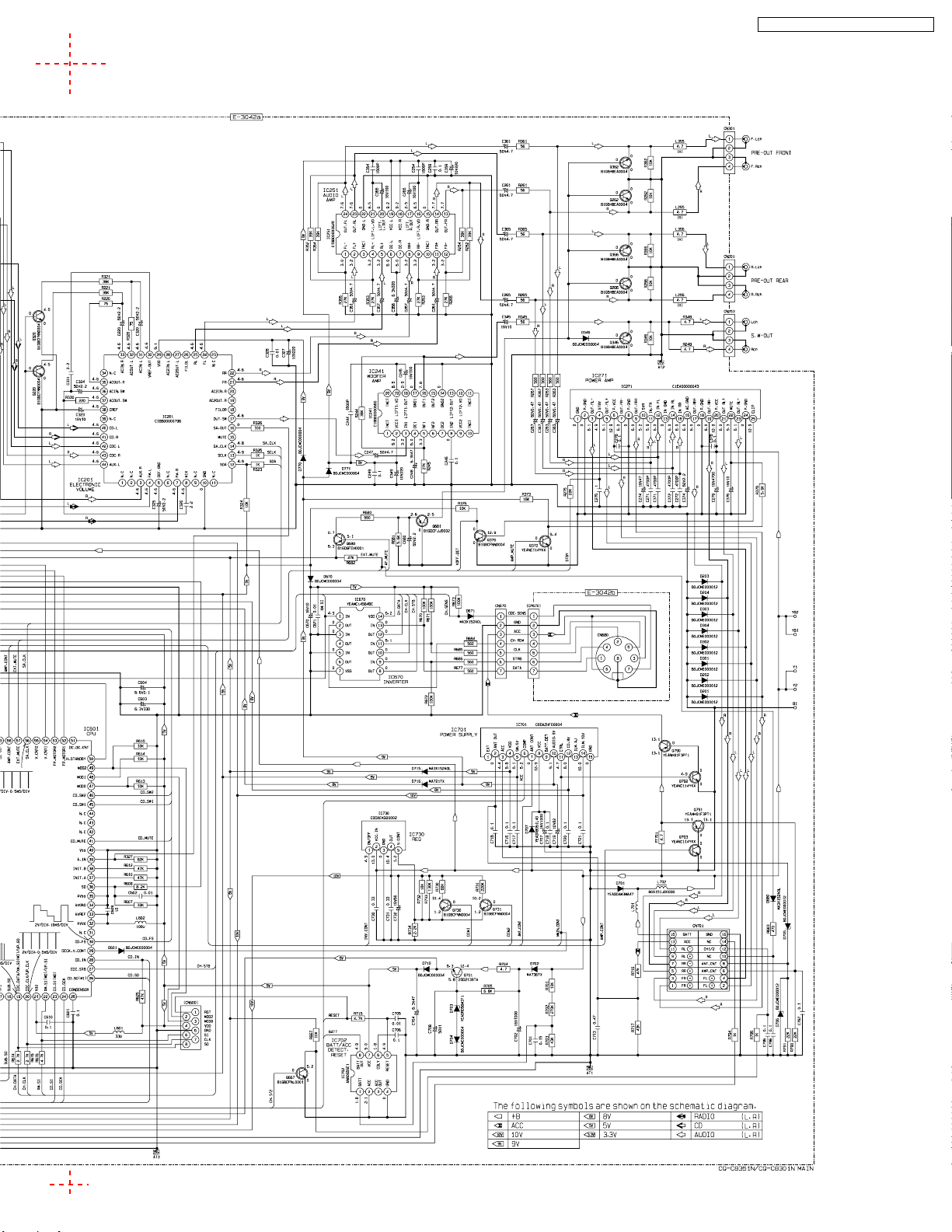

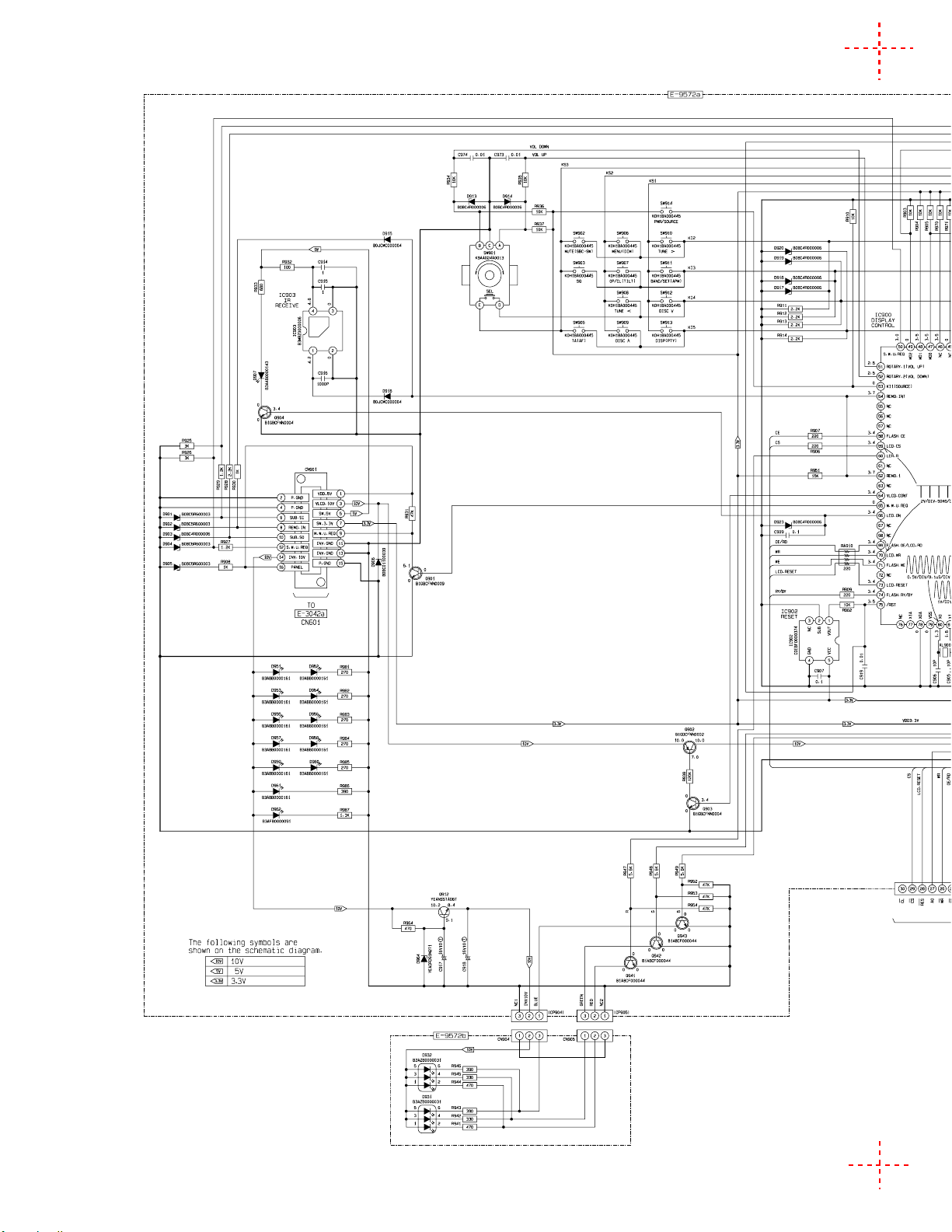

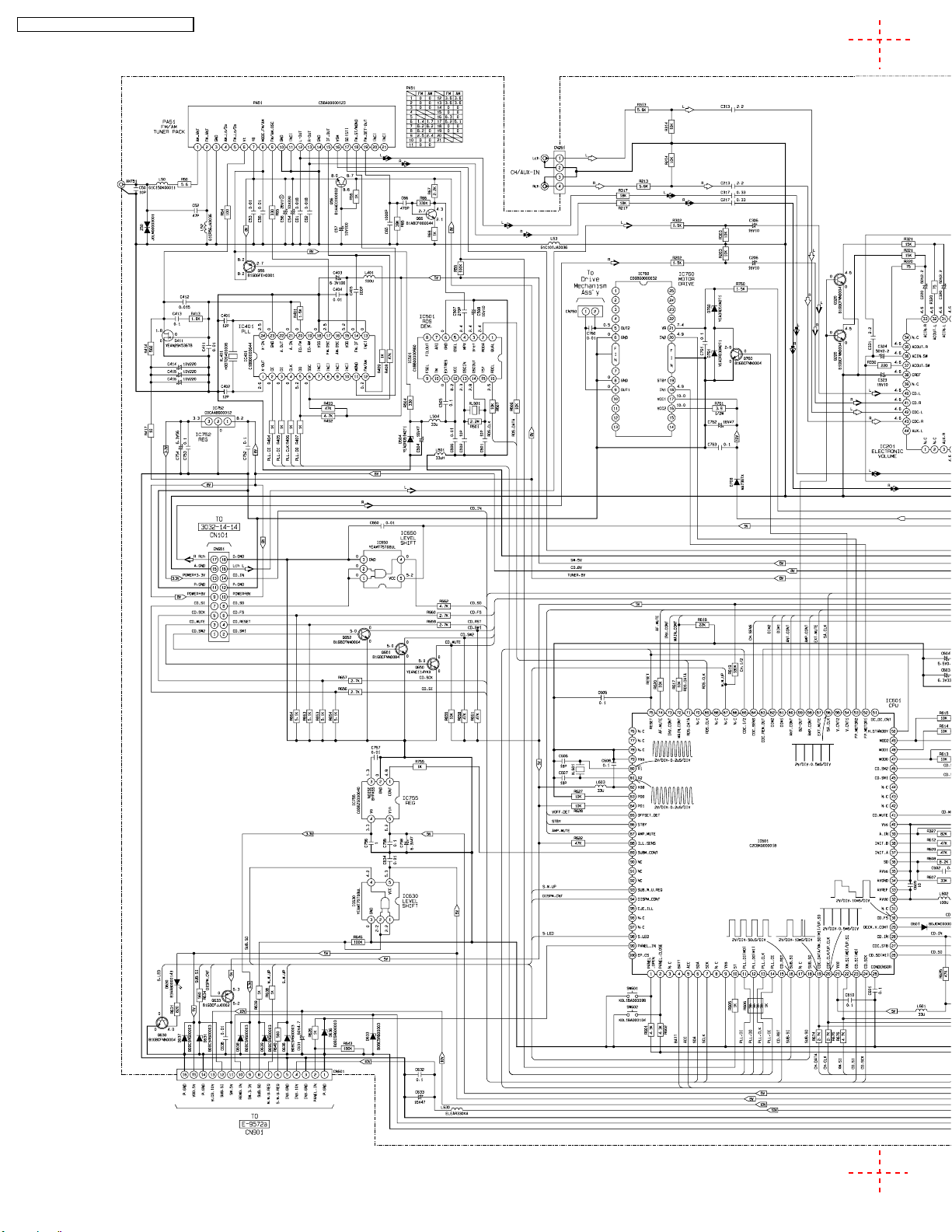

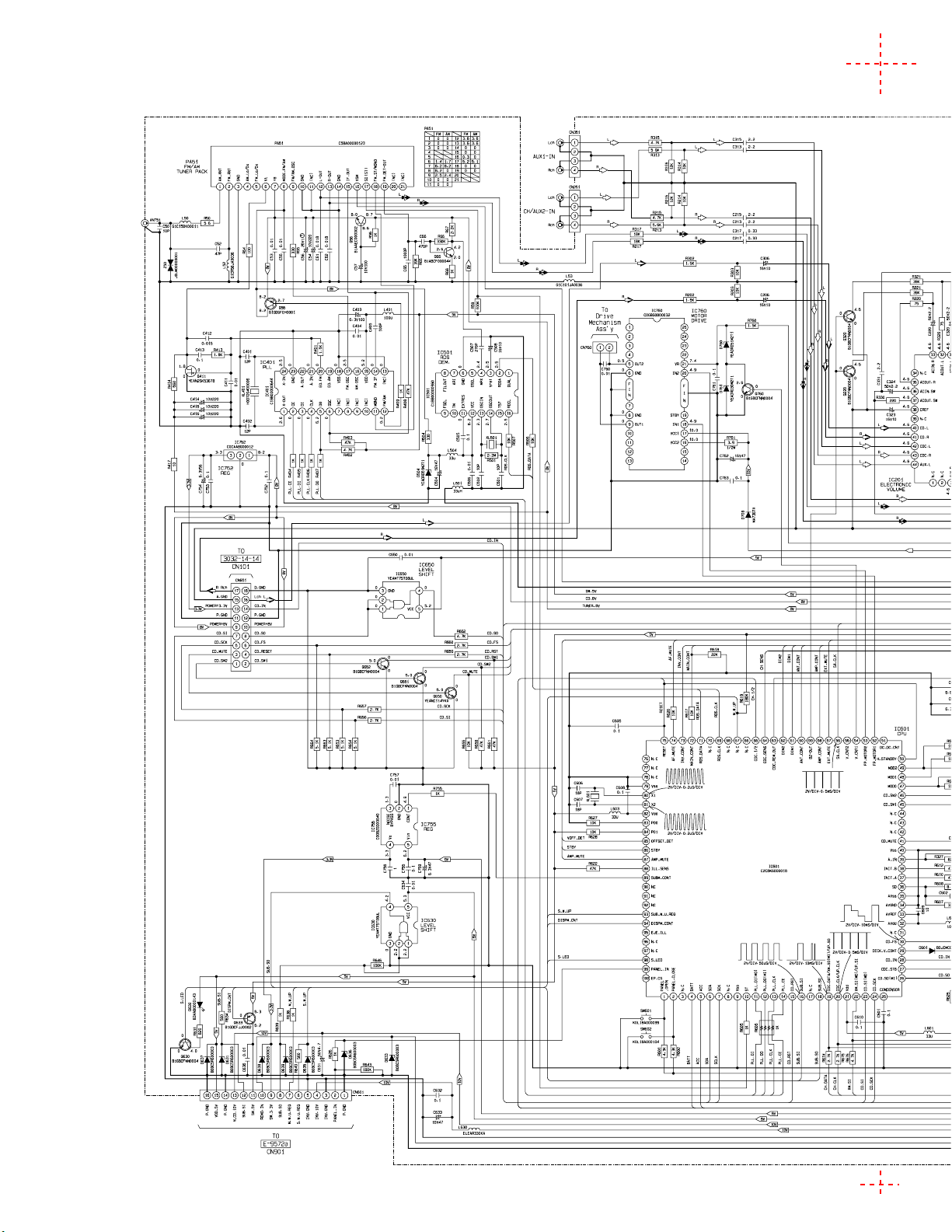

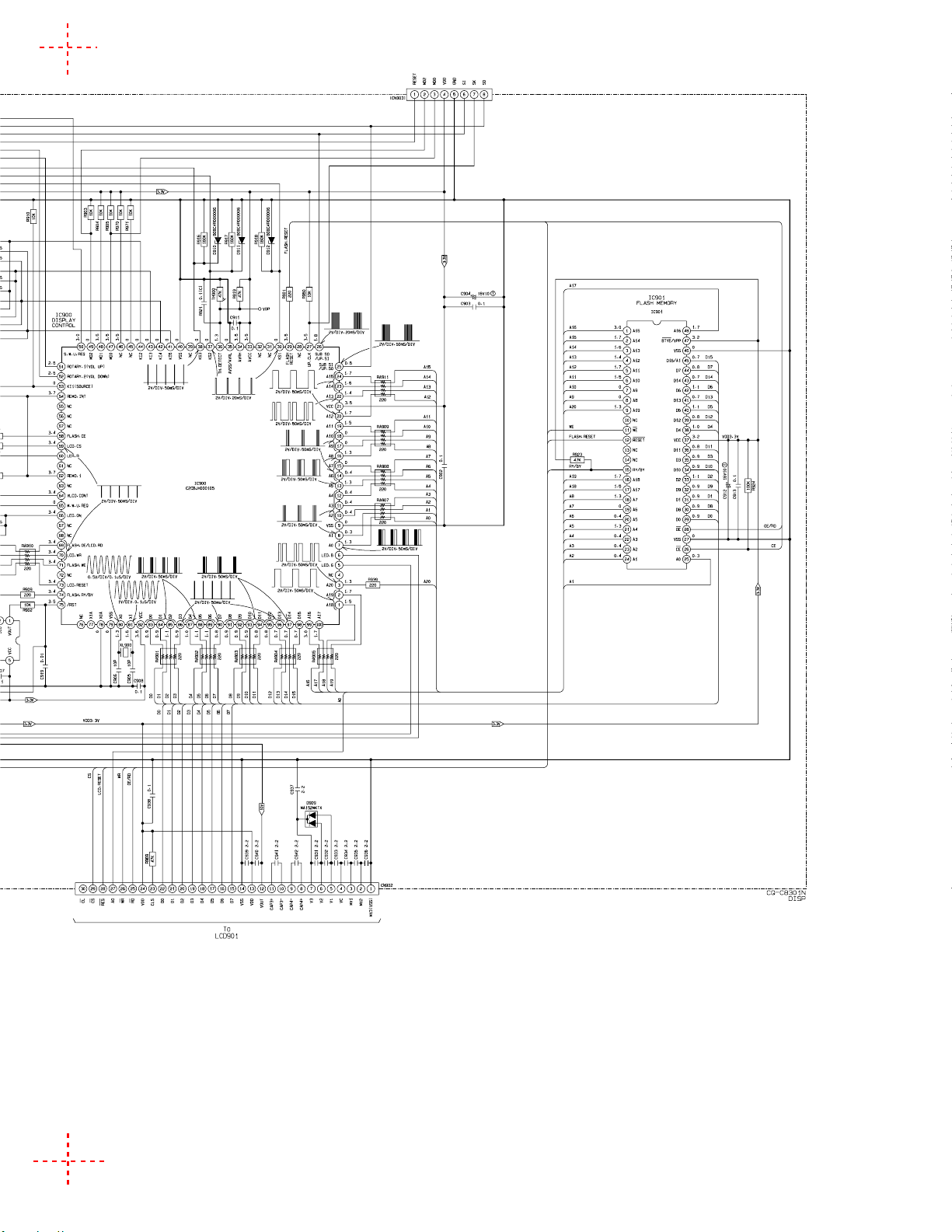

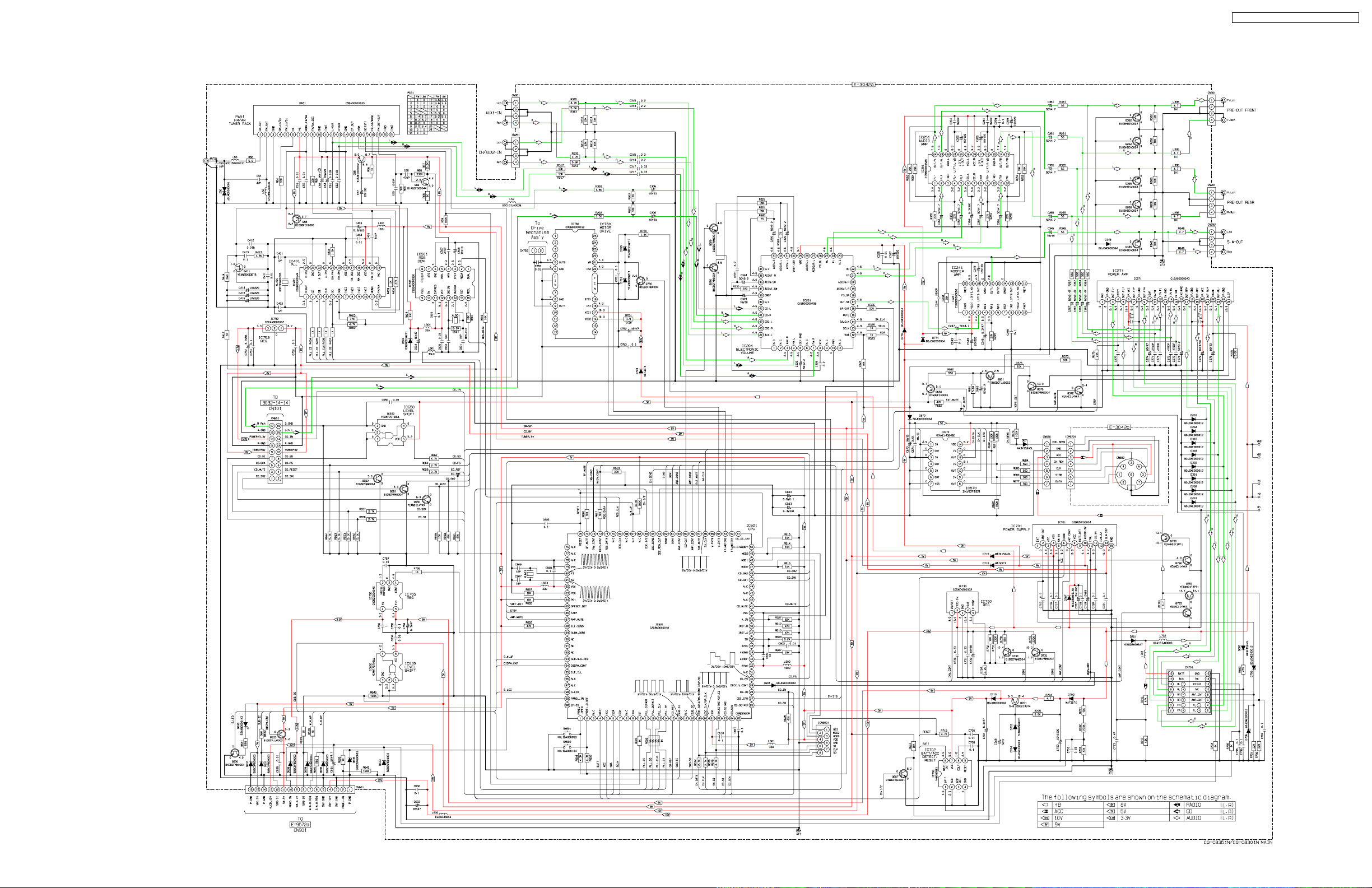

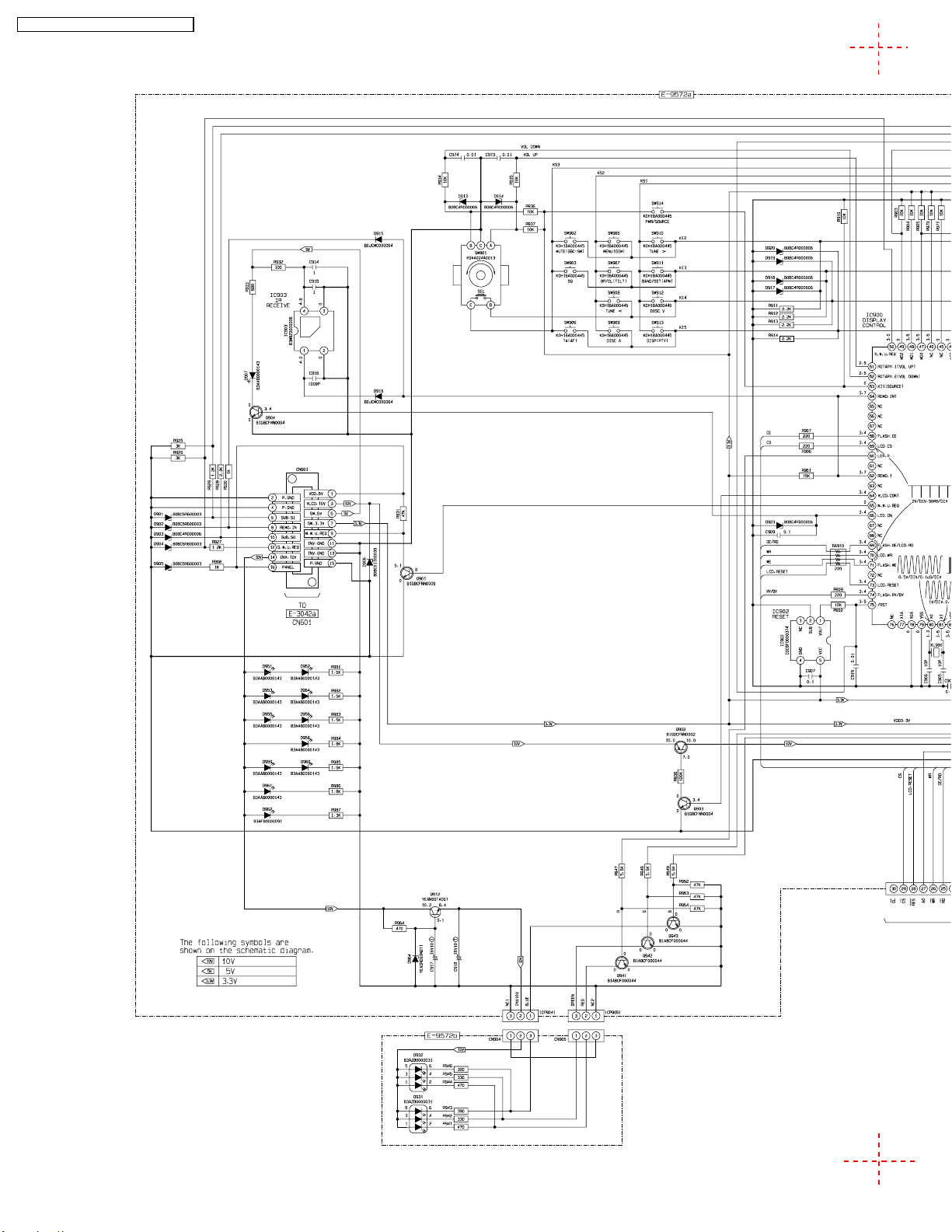

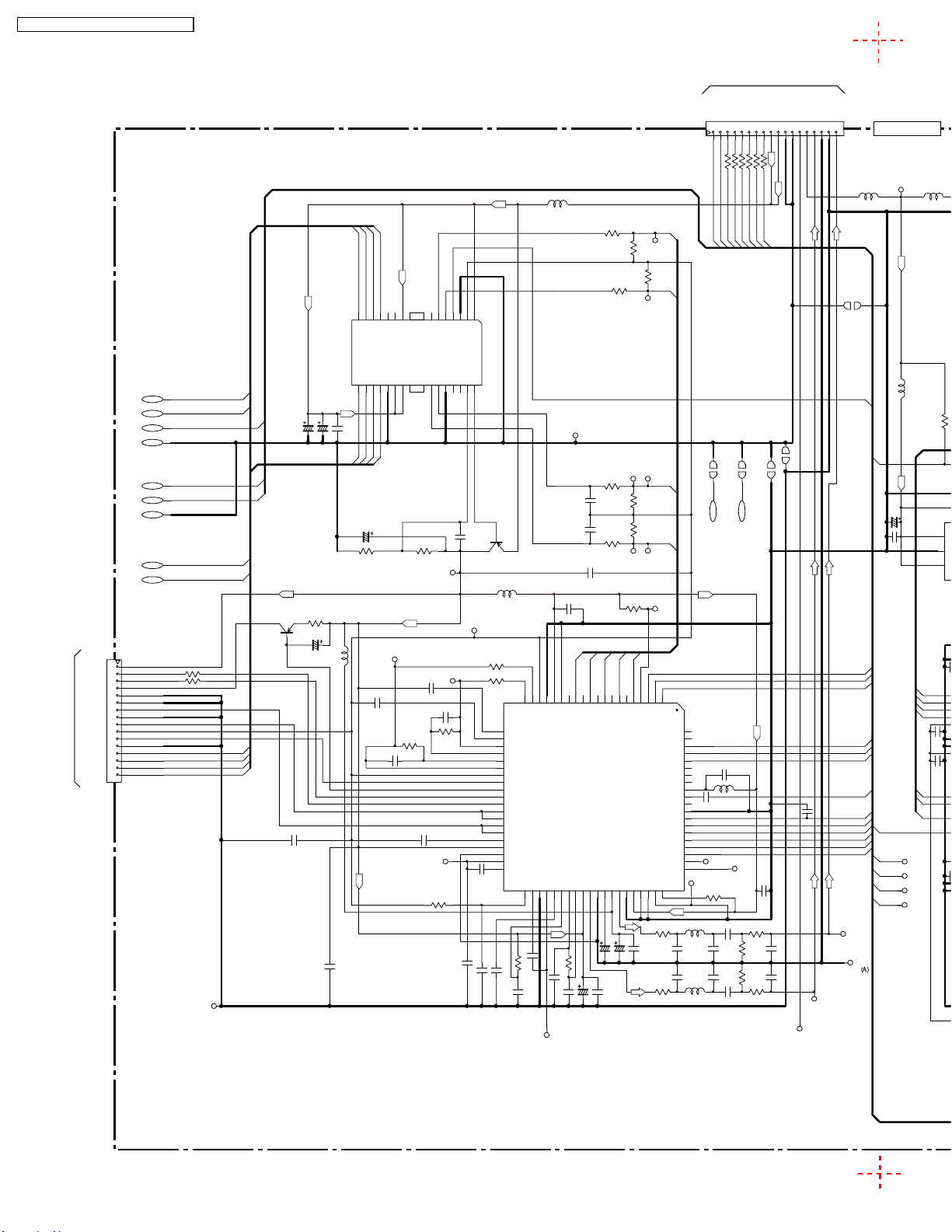

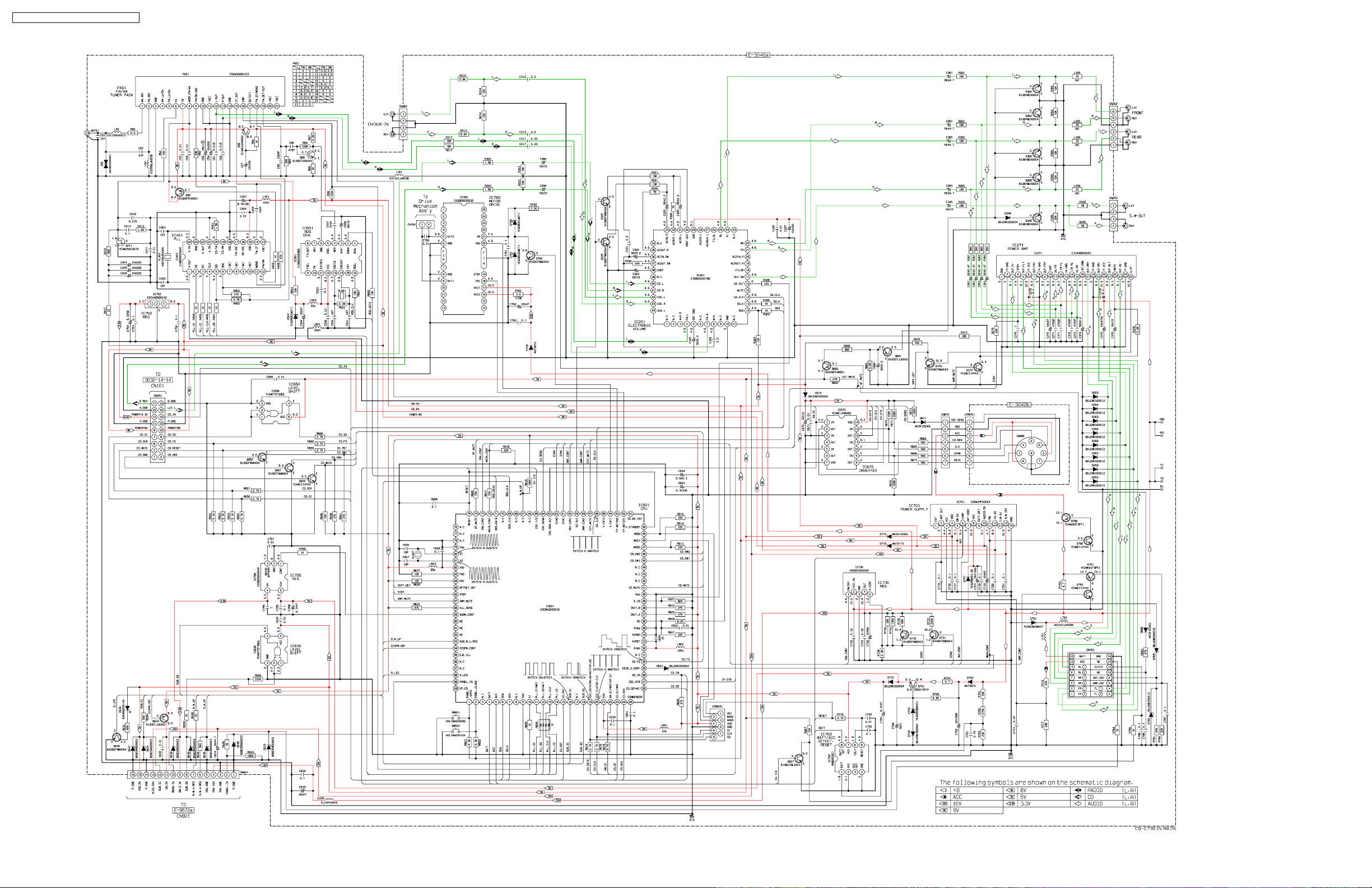

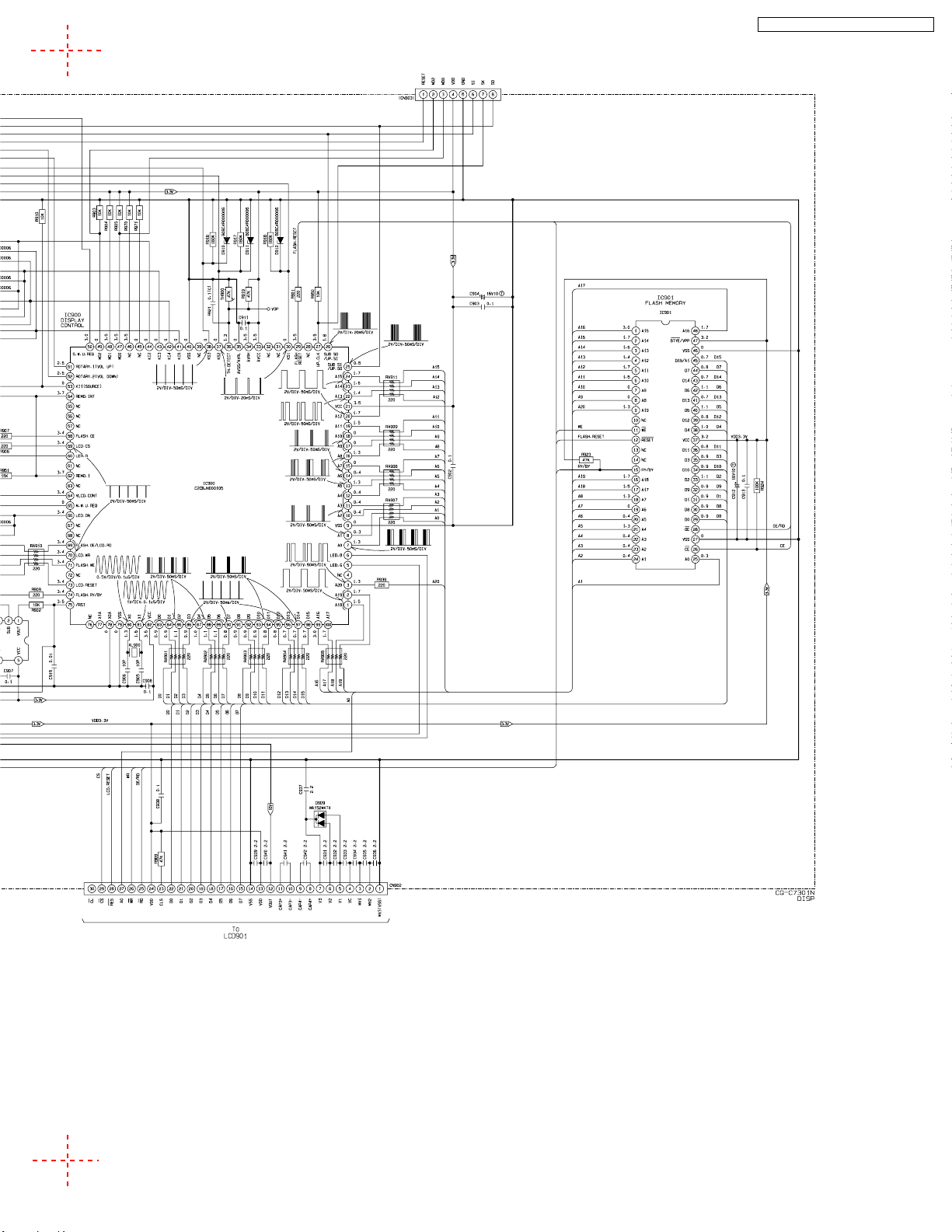

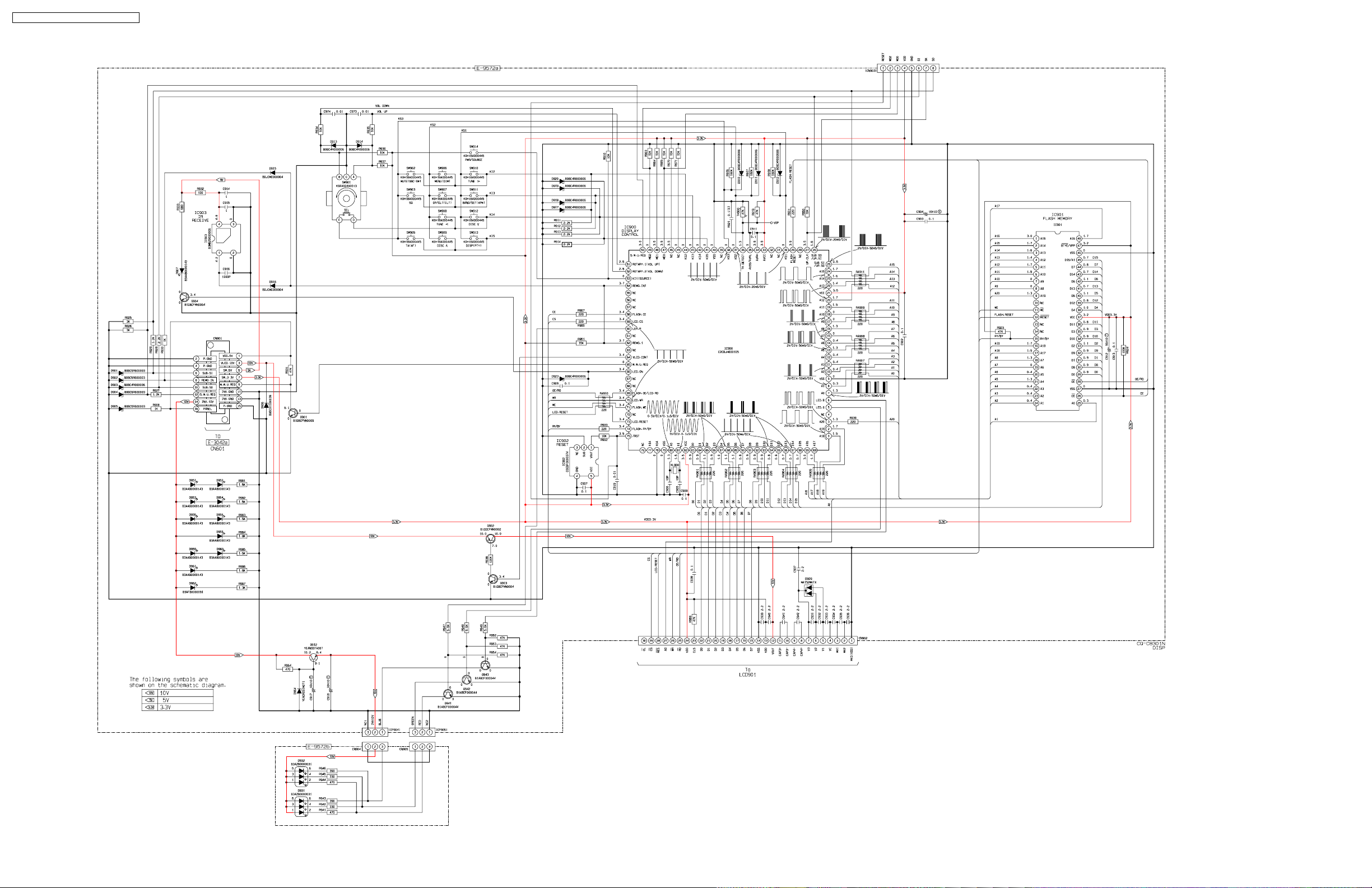

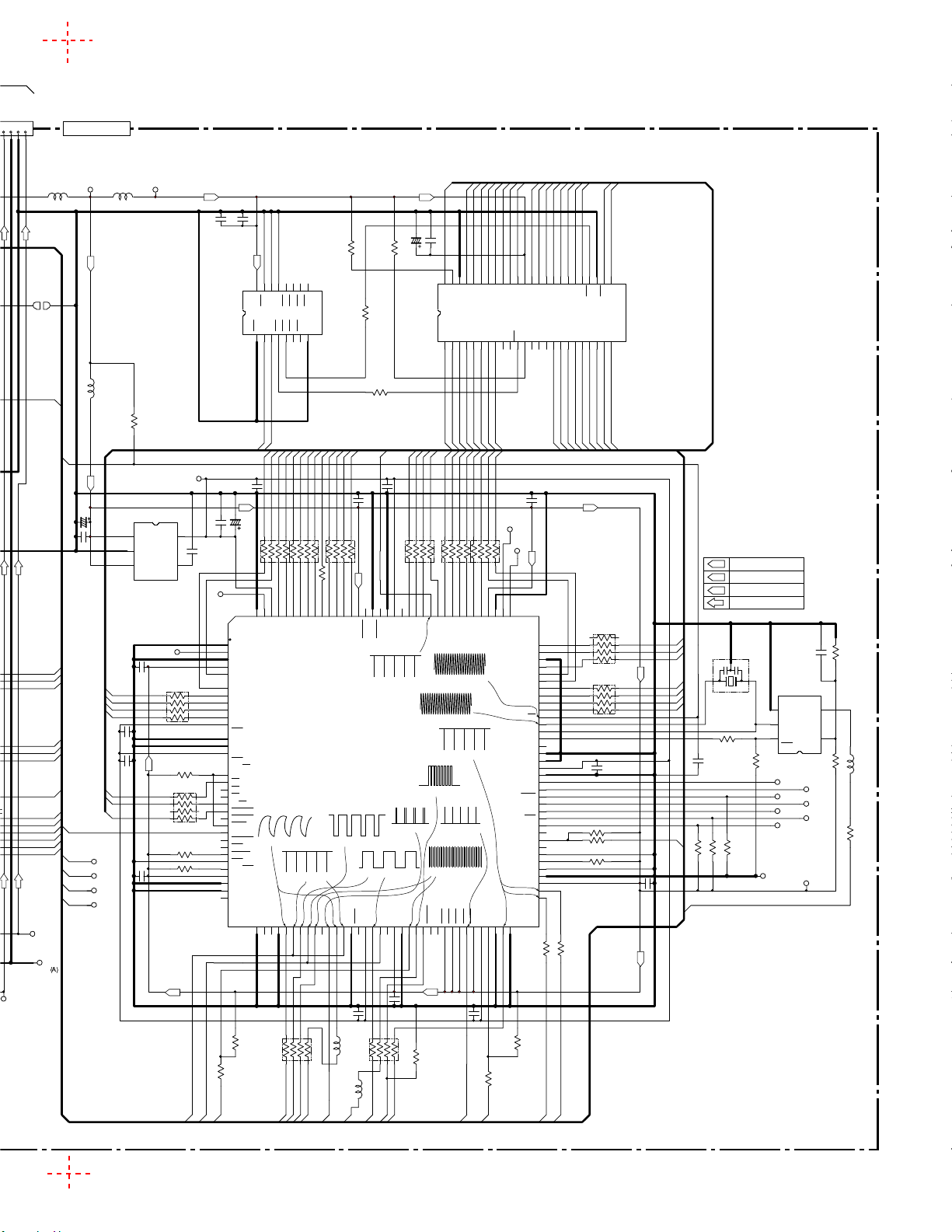

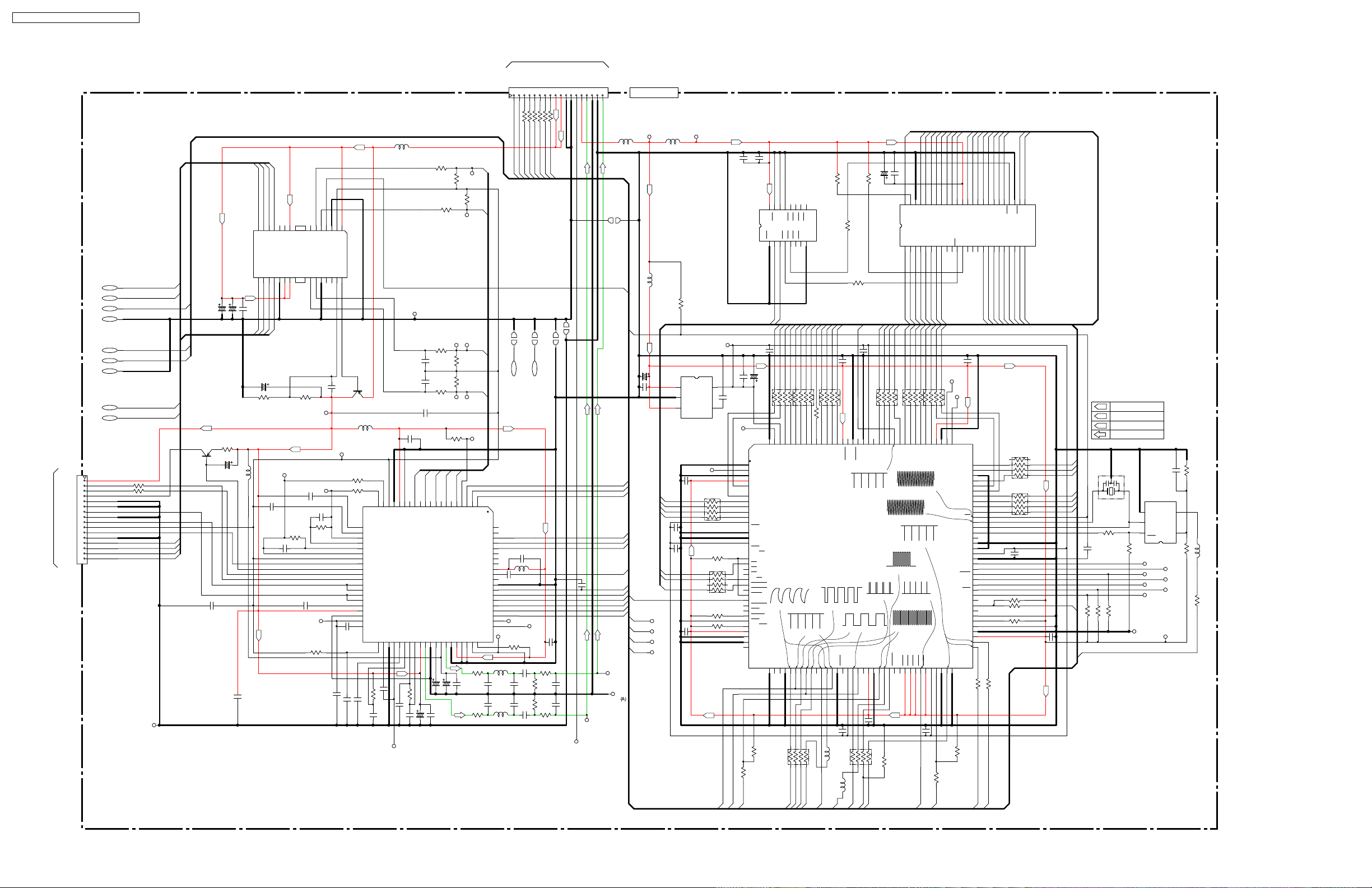

20 SCHEMATIC DIAGRAM

13 17 21 27 28 34 35 38 39 45

1 ABOUT LEAD FREE

SOLDER (PbF)

Distinction of PbF PCB: PCBs (manufactured) using lead free solder will have a PbF

stamp on the PCB.

Caution :

•

• Pb free solder has a higher melting point than standard

• •

solder; Typically the melting point is 50 - 70°F (30 40°C) higher. Please use a soldering iron with temperature control and adjust it to 700 ± 20°F (370 ± 10°C). In case of using high temperature soldering iron, please be careful not to heat too long.

•

• Pb free solder will tend to splash when heated too high

• •

(about 1100°F/600°C)

•

• This lead free solder will be used for the products after

• •

serial No. 1,000,001.

CQ-C8351N / CQ-C8301N / CQ-C7301N

[CD DECK BLOCK]

This model has no servo alignment points because microcomputer controls the servo circuit

6 DIMENSIONS

2 FEATURES

•

• MP3/WMA Playback from CD-R/RW

• •

•

• Fully Motorized Front Panel

• •

•

• Innovated APM (Auto Preset Memory) method

• •

•

• Six Preset Modes (FLAT, ROCK, POP, VOCAL, JAZZ,

• •

CLUB)

•

• SQ7 (7 Bands Sound Quality)

• •

•

• CD Changer Control

• •

•

• DVD Changer Control

• •

•

• Customize the Display (Customize Function)

• •

•

• Delightful sound space thanks to system buildup

• •

•

• The difference among these models’ are mentioned below.

• •

3 REPLACEING THE FUSE

7 LASER PRODUCTS

Use fuses of the same specified rating 15 amps. Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.

4 MAINTENANCE

Your products is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvent.

5 NOTES

[RADIO BLOCK]

Do not align the AM/FM package block. When the package block is necessary, it will be supplied already aligned at the factory.

CQ-C8351N / CQ-C8301N / CQ-C7301N

8 WIRING CONNECTION

8.1. CQ-C8351N/C8301N

8.2. CQ-C7301N

CQ-C8351N / CQ-C8301N / CQ-C7301N

9 BLOCK DIAGRAM

9.1. Main-1 Block [CQ-C8351N/C8301N]

9.2. Main-1 Block [CQ-C7301N]

CQ-C8351N / CQ-C8301N / CQ-C7301N

9.3. Main-2/Display/LED Block

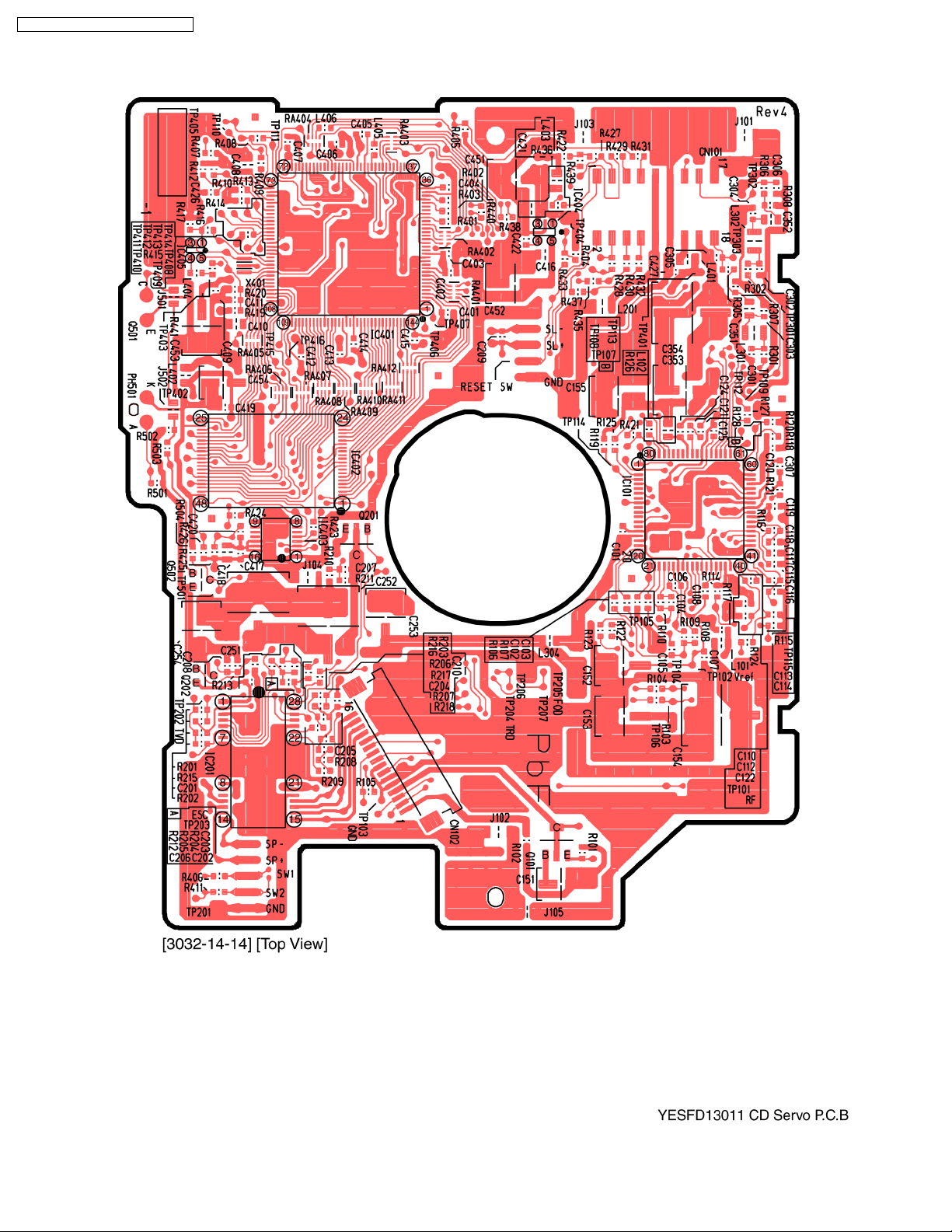

9.4. CD Servo Block

CQ-C8351N / CQ-C8301N / CQ-C7301N

10 DISASSEMBLY INSTRUCTIONS

10.1. How to Remove the Flexible PCB(AP2)

10.2. How to Install the Main P.C.B. of the Electric Display

CQ-C8351N / CQ-C8301N / CQ-C7301N

11 TERMINALS DESCRIPTION

CQ-C8351N / CQ-C8301N / CQ-C7301N

11.1. Main Block

Pin No.

1 PANEL OPEN PANEL OPEN detection I 0 5.2 5.2 2 PANEL

3 NC No Connection - - - 4 BATT BATT detection I 4.8 5 5 5 ACC ACC detection I 4.8 5 5 6 SDA Electronic VOL data I/O 4.9 4.9 4.9 7 SCK Electronic VOL clock O 4.9 4.9 4.9 8 NC No Connection - - - -

9 Vss Power supply GND I 0 0 0 10 ST FM ST detection I 5.1 5.2 5.2 11 PLL DI(MO) PLL data output O 0.6 0 0 12 PLL DO(MI) PLL data input I 5.2 5.2 5.2 13 PLL CLK PLL clock output O 4.9 4.9 4.9 14 PLL CE PLL chip enable output O 0 0 0 15 CD RST CD deck reset output O 4.9 4.9 4.9 16 SUB SI SUB u-com Data trans SO 0.6 0.6 0.8 17 NC No Connection - - - 18 SUB SO SUB u-com data recept SI 4.4 4.4 4.4 19 CH DATA CD Data recept/FLASH

20 CH CLK CD clock

21 Vdd Power supply I 4.9 4.9 4.9 22 XM SI CD Data transmit/FLASH

23 SD SI - - - - 24 CD SCK Clock recept from

25 CONDENSOR Capacitor for power

26 CD SO Data recept from

27 CH STB Changer stororb signal

28 CD IN DISC in detect I 4.9 4.9 0.4 29 DECK V

30 CD FS Strobe signal for CD

31 NC No Connection - - - 32 Avdd Power supply of D/A

33 AVREF Reference voltage for

34 AVGND Reference GND for D/A

35 AVSS Grand for A/D and D/A

36 SD FM/AM signal meter

37 INIT A Initializ A (CQ-C7401U) A/D 0 0 0 38 INIT B Initializ B A/D 0 0 0 39 AIN SPE.ANA A.IN A/D 0 0 0 40 Vss GND I 0 0 0 41 CD MUTE CD deck mute detection I 0 0 5.1 42 NC No Connection - - - 43 NC No Connection - - - 44 NC No Connection - - - 45 CD SW1 CD disc in detection I - - 46 CD SW2 CD disc in detection I - - 47 MOD0 Operating mode input 0 I 5.1 5.1 5.1 48 MOD1 Operating mode input 1 I 5.1 5.1 5.1

Port Description (I/O) (V)

CONT

IC601 : C2CBKG000018

FM AM CD

PANEL CLOSE detection I 0 0 5.2

WSO

transmit/FLASH W CLK

WSI

Changer

supply

Changer

input

DECK power supply control output

communication

converter

D/A converter

converter

signal input

SI 1.6 1.6 1.6

SCK 4.9 4.9 4.9

S0 0 0 0

SCK 0 0.4 0

- 3.3 3.3 3.3

SI 0 0 0

INT 0 0 0

O 4.9 4.9 4.9

O 3.7 3.7 3.7

I 5.1 5.1 5.1

I 0 0 0

A/D 0.2 0 0.3

Pin No.

49 MOD2 Operating mode input 2 I 0 0 0 50 H STANDBY External standby input I 5 5 5 51 NC No Connection - - - 52 FP MOTOR1 Front open/close control1O 4.9 5 4.9

53 FP MOTOR2 Front open/close control2O 4.9 5 4.9

54 V CNT1 Panel driving voltage

55 V CNT2(NC) No Connection - - - 56 SA CLK Control for Speana

57 EXT MUTE TEL/NAVI MUTE input I 5.3 5.2 5.2 58 AMP CONT External AMP control O 4.9 5 4.9 59 BZ-OUT Buzzer output PPG 0 0 0 60 ANT CONT Motor antenna control O 4.9 5 0 61 DIM1 Dimmer control output 1 O 0 0 0 62 DIM2 Dimmer control output 2 O 0 0 0 63 CDC REM

64 CDC SENS CDC 1/2 detection I 5.1 5.1 5.1 65 CDC 1/2 CDC 1/2 change output O 0 0 0 66 NC No Connection - - - 67 MWUP MAIN.WAKE.UP.REQ

68 NC No Connection - - - 69 RDS CLK 70 NC No Connection - - - 71 RDS DATA - - - 72 MAIN CONT MAIN power supply

73 INV CONT INV power supply control

74 AF MUTE Tr-MUTE control O/I 5 5 5 75 RESET Reset input I 5 5 5 76 NC No Connection - - - 77 NC No Connection - - - 78 NC GND I 0 0 0 79 Vss GND I 0 0 0 80 X1 Crystal oscillator input I 2 2 2 81 X2 Crystal oscillator output O 2.5 2.5 2.5 82 Vdd Power supply I 5 5 5 83 P00 Pldaun port for writing I 0 0 0 84 P01 Pull-up port for writing I 5.1 5 5.1 85 VOFF DET PWR-IC OFFSET

86 STBY PWR-IC STBY control

87 AMP MUTE PWR-IC MUTE control

88 ILL SENS External dimmer control

89 SUBM CNT 3.3V control for SUB

90 NC No Connection - - - 91 NC No Connection - - - 92 NC No Connection - - - 93 SWUP SUB.WAKE.UP.REQ O 4.9 5 4.9 94 DISPM CNT Power supply control

95 EJE ILL(NC) No Connection - - - 96 NC No Connection - - - 97 NC No Connection - - - 98 S LED Security LED control

99 PANEL IN PANEL detect I 5.2 5.2 5.2

Port Description (I/O) (V)

O 0 0 5

O 5 5 4.9

O 5 5 5

O 4.9 4.9 4.9

O 5 5 5

O 0 0 0

O 5 5 5

O/I 0 0 0

O 0 0 5

OUT

control 1

acquisition

Remote control code output to Changer

input

control output

output

detection

output

input

microcomputer

output of display 5V

output

FM AM CD

I 5 4.9 5

I 0 0 0

I 5 5 5

CQ-C8351N / CQ-C8301N / CQ-C7301N

Pin No.

100 EP CS(NC) No Connection - - - -

Port Description (I/O) (V)

FM AM CD

11.2. Display Block

Pin No.

1 A18 FLASH A17 O 1.5 2 A19 FLASH A18 O 1.7 3 A20 FLASH A19 O 1.3 4 NC No Connection - 5 LED.G - - 6 LED.B - - 7 A0 LCD driver data or command

8 A1 FLASH A0 O 0.3

9 VSS Ground potential - 0 10 A2 FLASH A1 O 0.4 11 A3 FLASH A2 O 0.4 12 A4 FLASH A3 O 0.4 13 A5 FLASH A4 O 1.3 14 A6 FLASH A5 O 0.4 15 A7 FLASH A6 O 0 16 A8 FLASH A7 O 1.3 17 A9 FLASH A8 O 0 18 A10 FLASH A9 O 0 19 A11 FLASH A10 O 1.5 20 A12 FLASH A11 O 1.7 21 VCC Positive power supply

22 A13 FLASH A12 O 1.4 23 A14 FLASH A13 O 1.6 24 A15 FLASH A14 O 1.7 25 SUB SI/UP SO MAIN-u-com communication

26 SUB SO/UP SI MAIN-u-com communication

27 UP CLK External flash rewritting

28 NC No Connection - 29 FLASH RESET FLASH reset control output O 3.5 30 KS1 Key scan signal 1 output I 0 31 NC No Connection - 32 NC No Connection - 33 AVCC Positive power supply for A/D

34 AVRH A/D converter standard

35 AVSS/AVRL A/D converter ground

36 TH DETECT Temperature detection input I 1.3 37 KS2 Key scan signal 2 output I 0 38 KS3 Key scan signal 3 output I 0 39 NC No Connection - 40 VSS Ground potential - 0 41 KI5 Key return signal 5 input I 0 42 KI4 Key return signal 4 input I 0 43 KI3 Key return signal 3 input I 0 44 KI2 Key return signal 2 input I 0 45 NC FLASH writing program

46 NC FLASH writing program

47 MD0 Mode setting terminal I 3.5 48 MD1 Mode setting terminal I 3.5 49 MD2 Mode setting terminal I 0 50 S W U REQ SUB-u-com wake up request INT 3.0 51 ROTARY.1 Rotary encoder signal 1(VOL

52 ROTARY.2 Rotary encoder signal 2 (VOL

Port Part Name & Description I/O (V)

IC900 C2CBJH000105

O 1.3

distinction

- 3.5

terminal

- 0.5 data input and external flash rewritting

O 1.8 data output and external flash rewritting

I 3.5

switch

- 3.5

converter

- 3.5

voltage input

- 0

potential

I 0

starter

I 3.5

starter

I 2.5

UP)

I 2.5

DOWN)

No.

53 KI1(SOURCE) Key return signal 1 INT/I 0 54 REMO INT Remote control signal

55 NC No Connection - 56 NC No Connection - 57 NC No Connection - 58 FLASH CE FLASH chip enable O 3.4 59 LCD CS LCD driver chip select O 3.4 60 LER R - - 61 NC No Connection - 62 REMO 1 Remote control signal I 3.7 63 NC No Connection - 64 VLCD CONT VLCD 16V control O 3.4 65 M W U REQ MAIN-u-com wake up request O 0 66 LED ON P.LED control output O 3.4 67 NC No Connection - 68 NC No Connection - 69 FLASH OE/ LCDRDFLASH output enable and

70 LCD WR LCD driver light strobe signal O 3.4 71 FLASH WE FLASH light enable signal O 3.4 72 NC No Connection - 73 LCD RESET LCD driver reset control O 3.4 74 FLASH RY/BY FLASH ready/busy input I 3.4 75 /RST System reset signal input I 3.5 76 NC No Connection - 77 X1A(NC) No Connection - 78 X0A Not used I 0 79 VSS Ground - 0 80 X0 MAIN system clock input

81 X1 MAIN system clock output

82 VCC Positive power supply - 3.5 83 D0 FLASH D0/LCD D0 I 0.9 84 D1 FLASH D1/LCD D1 I 0.9 85 D2 FLASH D2/LCD D2 I 1.1 86 D3 FLASH D3/LCD D3 I 0.9 87 D4 FLASH D4/LCD D4 I 1.0 88 D5 FLASH D5/LCD D5 I 1.1 89 D6 FLASH D6/LCD D6 I 1.1 90 D7 FLASH D7/LCD D7 I 0.8 91 D8 FLASH D8 I/O 0.9 92 D9 FLASH D9 I/O 0.9 93 D10 FLASH D10 I/O 0.9 94 D11 FLASH D11 I/O 0.8 95 D12 FLASH D12 I/O 0.8 96 D13 FLASH D13 I/O 0.7 97 D14 FLASH D14 I/O 0.7 98 D15 FLASH D15 I/O 0.7 99 A16 FLASH A15 O 3.0

100 A17 FLASH A16 O 1.7

Port Part Name & Description I/O (V)

INT 3.7

interference

O 3.4

LCD driver lead strobe

I 1.3

(12.5MHz)

O 1.5

(12.5MHz)

CQ-C8351N / CQ-C8301N / CQ-C7301N

11.3. CD Servo Block

Pin No.

1 CVSS1 GND - 0 2 A22 TP407 - 0 3 CVSS2 GND - 0 4 DVDD1 I/O system (3.3V) power supply - 3.1 5 A10 Address bus of FLASH ROM O 3.1 6 HD7(NC) No Connection - 7 A11 Address bus of FLASH ROM O 0 8 A12 O 3.1

9 A13 O 3.1 10 A14 O 3.1 11 A15 O 0 12 /CVDD1 CORE CPU system (1.6V) power

13 /HAS(NC) No Connection - 14 DVSS1 GND - 0 15 CVSS3 GND - 0 16 /CVDD2 I/O system (3.3V) power supply - 1.6 17 /HCS(NC) No Connection - 18 HR/W(NC) No Connection - 19 READY - - 3.1 20 /PS FLASH ROM selection signal O 3.1 21 /DS(NC) No Connection - 22 /IS(NC) No Connection - 23 R/W Lead/light signal to FLASH ROM O 3.1 24 /MSTRB Memory access signal O 3.1 25 /IOSTRB

26 /MSC - - 3.1 27 MUTE Mute signal output (H:Mute on) O 0 28 /HOLDA

29 /IAQ(NC) No Connection - 30 /HOLD - - 3.1 31 BIO SUBO input I 0 32 MP/MC Operation mode setting (external

33 DVDD2 I/O system (3.3V) power supply - 3.1 34 CVSS4 GND - 0 35 BD R1 GND I 0 36 BFSR1

37 CVSS5 GND - 0 38 BCLKR1

39 HCNTL0

40 DVSS2 GND - 0 41 CLK C M AUDIO bit clock input I 1.6 42 SCK Clock input I 3.0 43 LRCK C M AUDIO L/R identifying signal input I 1.6 44 CDFS Serial frame sink signal input I 2.4 45 DATA CM AUDIO serial data input I 1.6 46 HCNTL1

47 SI Serial data input I 0 48 CLK M C AUDIO bit clock output O 1.6 49 SCK Clock input I 3.0 50 CVSS6 GND - 0 51 /HINT(NC) No Connection - 52 CVDD3 CORE CPU system (1.6V) power

53 LRCK M C AUDIO L/R identifying signal

54 CDFS Serial frame sink signal input I 2.4 55 HRDY(NC) No Connection - -

Port Descriptions I/O (V)

(NC)

IC401 : YESAM275

supply

No Connection - -

pull-up)

No Connection - -

supply

O 1.5

output

- 1.6

I 3.1

- 1.6

CQ-C8351N / CQ-C8301N / CQ-C7301N

Port Descriptions I/O (V)

No.

56 DVDD3 I/O system (3.3V) power supply - 3.1 57 DVSS3 GND - 0 58 REST SW Mechanics deck REST SW input I 3.1 59 DATA M C AUDIO serial data output O 1.6 60 SO Serial data output O 1.1 61 /IACK(NC) No Connection - 62 HBL(NC) No Connection - 63 /NMI - - 3.1 64 /INT0 - - 3.1 65 /INT1 - - 3.1 66 BLKCK Subcode block clock pulse input I 0 67 /INT3 - - 3.1 68 CV DD4 CORE CPU system (1.6V) power

supply 69 SW1 Mechanics deck SW1 input I 0 70 CVSS7 GND - 0 71 MCLK Clock output (To Servo DSP) O 3.1 72 DVSS4 GND - 0 73 MLD Command load signal output (To

Servo DSP) 74 MDATA Command data output (To Servo

DSP) 75 DVDD4 I/O system (3.3V) power supply - 3.1 76 DVSS5 GND - 0 77 CLK MD1 Clock mode setting (L fixation) I 0 78 CLK MD2 Clock mode setting (H fixation) I 3.1 79 CLK MD3 Clock mode setting (L fixation) I 0 80 HPI60

No Connection - -

(NC) 81 SW2 Mechanics deck SW2 input I 0.2 82 TOUT(NC) No Connection - 83 EMU0 - - 3.1 84 EMU/OFF - - 3.1 85 TDO - - 0 86 TDI - - 3.1 87 /TRST - - 0 88 TCK - - 3.1 89 TMS - - 3.1 90 CVSS8 GND - 0 91 CVDD5 CORE CPU system (1.6V) power

supply 92 HPIENA GND I 0 93 DVSS6 GND - 0 94 CLKOUT No Connection - 95 CLKENA Oscillation output Cainabl signal O 0 96 X1 Crystal Connection O 0.7 97 X2/CLKIN Crystal Connection I 1.0 98 RS Reset signal input I 3.1 99 D0 Data base of FLASH ROM I/O 0

100 D1 I/O 0 101 D2 I/O 0 102 D3 I/O 0 103 D4 I/O 0 104 D5 I/O 0 105 A16 Address bus of FLASH ROM O 3.1 106 DVSS7 GND - 0 107 A17 Address bus of FLASH ROM O 3.1 108 A18 Address bus of FLASH ROM O 0 109 A19 TP419 O 0 110 A20 TP416 O 0 111 CVSS9 GND - 0 112 DVDD5 I/O system (3.3V) power supply - 3.1 113 D6 Data bus of FLASH ROM I/O 0 114 D7 I/O 0 115 D8 I/O 0 116 D9 I/O 0 117 D10 I/O 0

- 1.6

I 3.1

O 3.1

- 1.6

Port Descriptions I/O (V)

No. 118 D11 Data bus of FLASH ROM I/O 0 119 D12 I/O 0 120 STAT Status signal input I 3.0 121 D13 Data path of FLASH ROM I/O 3.1 122 D14 I/O 0 123 D15 I/O 0 124 HD5(NC) No Connection - 125 CVDD6 CORE CPU system (1.6V) power

- 1.6

supply 126 CVSS10 GND - 0 127 /HDS1(NC) No Connection - 128 DVSS8 I/O system (3.3V) power supply - 0 129 /HDS2(NC) No Connection - 130 DVDD6 I/O system (3.3V) power supply - 3.1 131 A0 Address bus of FLASH ROM O 3.1 132 A1 O 0 133 A2 O 0 134 A3 O 0 135 /RST Reset signal output(To Servo

O 3.1

DSP) 136 A4 Address bus of FLASH ROM O 0 137 A5 O 3.1 138 A6 O 3.1 139 A7 O 0 140 A8 O 3.1 141 A9 O 3.1 142 CVDD7 CORE CPU system (1.6V) power

- 1.6

supply 143 A12 TP406 - 0 144 DVSS9 GND - 0

12 IC BLOCK DIAGRAM

12.1. Main Block

CQ-C8351N / CQ-C8301N / CQ-C7301N

IC201 : C1BB00000796

IC241 : C1BB00000650 (CQ-C8351N/C8301N)

IC670 : YEAMC14584BE

IC251 : C1BB00000649 (CQ-C8351N/C8301N)

CQ-C8351N / CQ-C8301N / CQ-C7301N

IC271 : C1EA00000043

IC401 : C1BB00000644

IC701 : C0DAZHF00004

IC730 : C0DAEKG00002

IC702 : AN8065SE1

IC752 : C0CAABG00012

CQ-C8351N / CQ-C8301N / CQ-C7301N

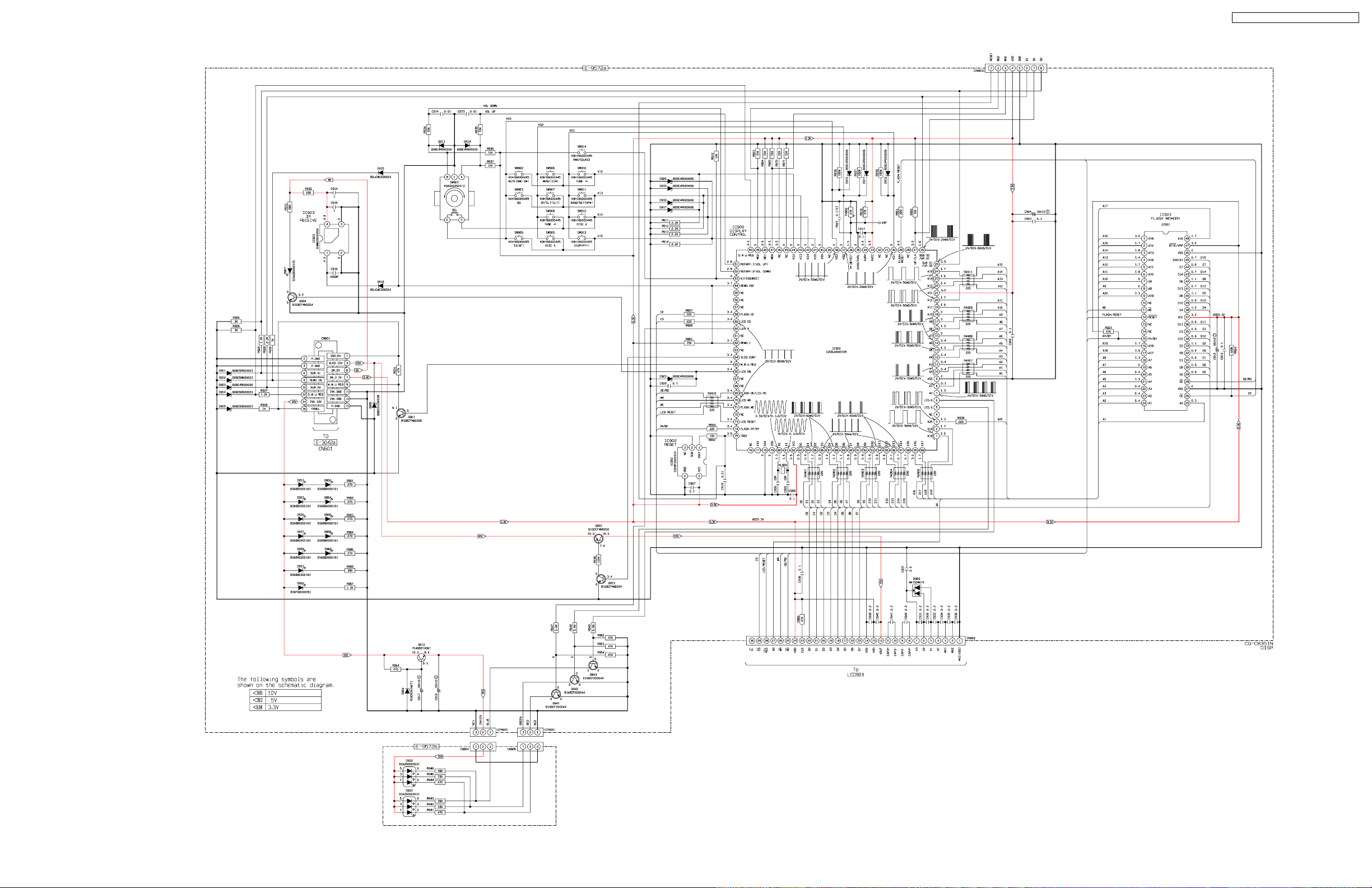

12.2. Display Block

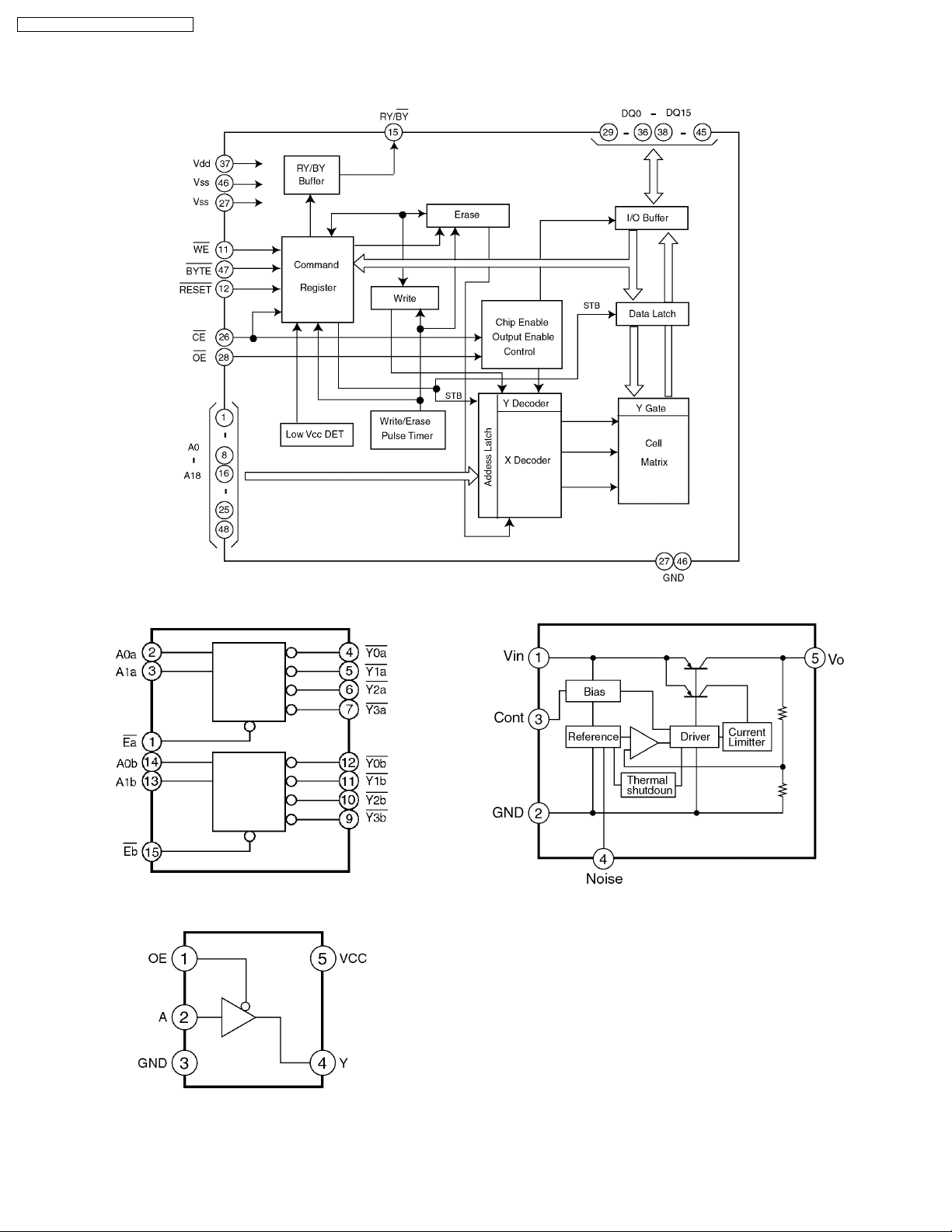

IC901 : MBM29V14N

IC755 : C0DBZGD00040

IC760 : C0GBG0000032

IC902 : C0EBF0000374

IC903 : B3MBZ0000006
