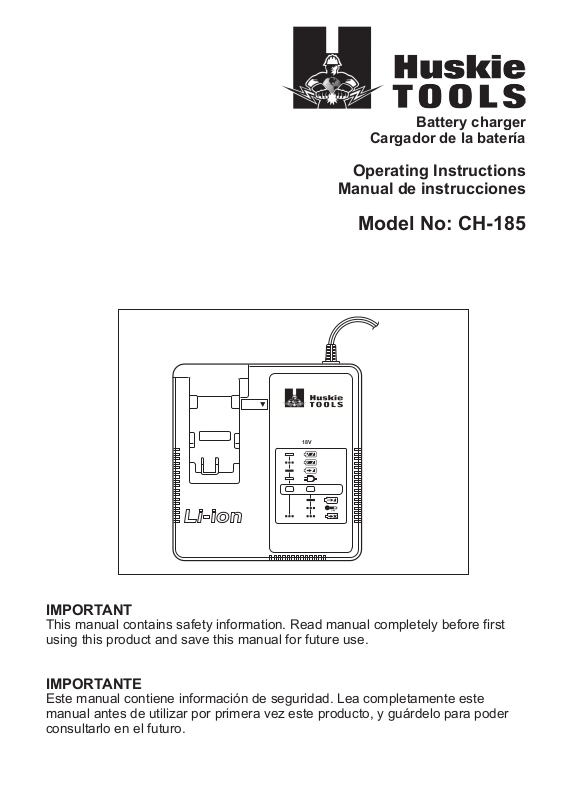

Panasonic ch-185 Operation Manual

18V

10.8 V ─ 28.8 V

Battery charger

Cargador de la batería

Operating Instructions

Manual de instrucciones

Model No: CH-185

IMPORTANT

This manual contains safety information. Read manual completely before first
using this product and save this manual for future use.

IMPORTANTE

Este manual contiene información de seguridad. Lea completamente este
manual antes de utilizar por primera vez este producto, y guárdelo para poder
consultarlo en el futuro.

Index/Index/Indice

English: Page 3
Español: Página 13

FUNCTIONAL DESCRIPTION
DESCRIPCIÓN FUNCIONAL

(A)

(B)

18V

10.8 V ─ 28.8 V

(A)

Li-ion battery pack dock

E

nchufe de carga de bate ría Li-ión

(B) Alignment marks Marcas de alineación

I

.

IMPORTANT SAFE-

TY INSTRUCTIONS

Read All Instructions

1) SAVE THESE INSTRUCTIONS

-This manual contains important
safety and operating instructions
for battery charger CH-185.

2) Before using battery charger,
read all instructions and caution­ary markings on battery charger,
battery pack, and product using
battery pack.

3) CAUTION -To reduce the risk of
injury, charge only Huskie Tools
Battery pack as shown in last
page. Other types of batteries
may burst causing personal in­jury and damage.

4) Do not expose charger and bat­tery pack to rain or snow or use
in damp location.

5) To reduce risk of damaging the
electric plug and cord, pull by
plug rather than cord when dis­connecting charger.

6) Make sure cord is located so that
it will not be stepped on, tripped
over, or otherwise subjected to
damage or stress.

7) An extension cord should not be
used unless absolutely neces­sary.

Use of improper extension cord

could result in a risk of fire and
electric shock. If extension cord
must be used, make sure that:
a. pins on plug of extension cord

are the same number, size
and shape as those of plug on
charger.

b. extension cord is properly wired

and in good electrical condition.

c. wire size is large enough for

ampere rating of charger as
specified below.

RECOMMENDED MINIMUM AWG

SIZE OF EXTENSION CORDS FOR

BATTERY CHARGERS

AC Input
Rating.

Equal to or
greater than

0 2 18 18 18 16

8) Do not operate charger with
damaged cord or plug — replace
them immediately.

9) Do not operate charger if it has
received a sharp blow, been
dropped, or otherwise damaged
in any way; take it to a qualified
service agent.

10) Do not disassemble charger;
take it to a qualified service agent
when service or repair is re­quired. Incorrect reassembly may
result in a risk of electric shock or
fire.

11) To reduce risk of electric shock,
unplug charger from outlet before
attempting any maintenance or
cleaning.

12) The charger and battery pack are
specifically designed to work to­gether. Do not attempt to charge
any other cordless tool or battery
pack with this charger.

13) Do not attempt to charge the bat­tery pack with any other charger.

14) Do not attempt to disassemble
the battery charger and the bat­tery pack housing.

15) Do not store battery pack in loca­tions where the temperature may
reach or exceed 50°C (122°F)
(such as a metal tool shed, or a
car in the summer), which can
lead to deterioration of the stor­age battery.

Amperes AWG Size

of Cord

But less
than

Length of

Cord, Feet

25 50

100 150

16) Do not charge battery pack when
the temperature is BELOW 0°C
(32°F) or ABOVE 40°C (104°F).
This is very important.

17) Do not incinerate the battery
pack. It can be explode in a fire.

18) Avoid dangerous environment.
Do not use charger in damp or
wet locations.

19) The charger is designed to oper­ate on standard household elec­trical power only. Charge only
on the voltage indicated on the
nameplate. Do not attempt to use
it on any other voltage!

20) Do not abuse cord. Never carry
charg er by cord or yank it to dis­connect from outlet. Keep cord
away from heat, oil and sharp
edges.

21) Charge the battery pack in a well
ventilated place, do not cover the
charger and battery pack with a
cloth, etc., while charging.

22) Use of an attachment not recom­mended may result in a risk of
fire, electric shock, or injury to
persons.

23) Do not short the battery pack. A
battery short can cause a large
current flow, over heating and
burns.

24) NOTE: If the supply cord of this
appliance is damaged, it must
only be replaced by a repair shop
appointed by the manufacturer,
because special purpose tools
are required.

25) TO REDUCE THE RISK OF
ELECTRIC SHOCK, THIS AP­PLIANCE HAS A POLARIZED
PLUG (ONE BLADE IS WIDER
THAN THE OTHER).
This plug will fit in a polarized
outlet only one way. If the plug
does not fit fully in the outlet, re­verse the plug. If it still does not
fit, contact a qualified electrician
to install the proper outlet. Do not
change the plug in any way.

II

. CHARGING THE

BATTERY

CAUTION:

• The charger is designed to oper­ate on standard domestic electri­cal power only as stated in the
rating plate. Charge only on the
voltage indicated on the rating
plate of unit. e.g.120V / 50-60Hz.

• Do not attempt to use it on any
other voltage or frequency rating!

• If the temperature of the battery
pack falls approximately below

−10°C (14°F), charging will auto­matically stop to prevent degra­dation of the battery.

• Do not charge the battery pack
whose temperature is below 0°C
(32°F).

• When charging a cool bat­tery pack (below 0°C (32°F))
in a warm place, leave the bat­tery pack at the place and wait
for more than one hour to warm
up the battery to the level of the
ambient temperature. Otherwise
battery pack may not be fully
charged.

• Cool down the charger when
charging more than two battery
packs consecutively.

• Do not insert your fingers into
contact hole, when holding char­ger or any other occasions.

CAUTION:

To prevent the risk of fire or damage
to the battery charger.

• Do not cover vent holes on the
charger and the battery pack.

• Unplug the charger when not in
use.

NOTE:

Your battery pack is not fully
charged at the time of purchase.
Be sure to charge the battery
before use.

How to charge

1. Plug the charger into the AC outlet.

NOTE:

Sparks may be produced when
the plug is inserted into the AC
power supply, but this is not a
problem in terms of safety.

2. Insert the battery pack firmly into
the charger.

1) Line up the alignment marks and

place the battery onto the dock
on the charger.

2) Slide forward in the direction of

the arrow.

Alignment marks

4. The charge lamp (green) will flash
slowly once the battery is approxi­mate ly 80% charged.

5. When charging is completed, the
charging lamp in green color will
turn off.

6. If the temperature of the battery
pack is 0°C or less, charging takes
longer to fully charge the battery
pack than the standard charging
time.
Even when the battery is fully
charg ed, it will have approximately
50% of the power of a fully charged
battery at normal operating temper­ature.

7. Consult an authorized dealer if the
charging lamp (green) does not turn
off.

8. If a fully charged battery pack is
insert ed into the charger again, the
charging lamp lights up. After sev­eral minutes, the charging lamp in
green color will turn off.

3. During charging, the charging lamp
will be lit.
When charging is completed, an
internal electronic switch will auto­matically be triggered to prevent
overcharging.

• Charging will not start if the bat­tery pack is warm (for example,
immediately after heavy-duty
operation).
The orange standby lamp will be
flashing until the battery cools
down.
Charging will then begin auto­matically.

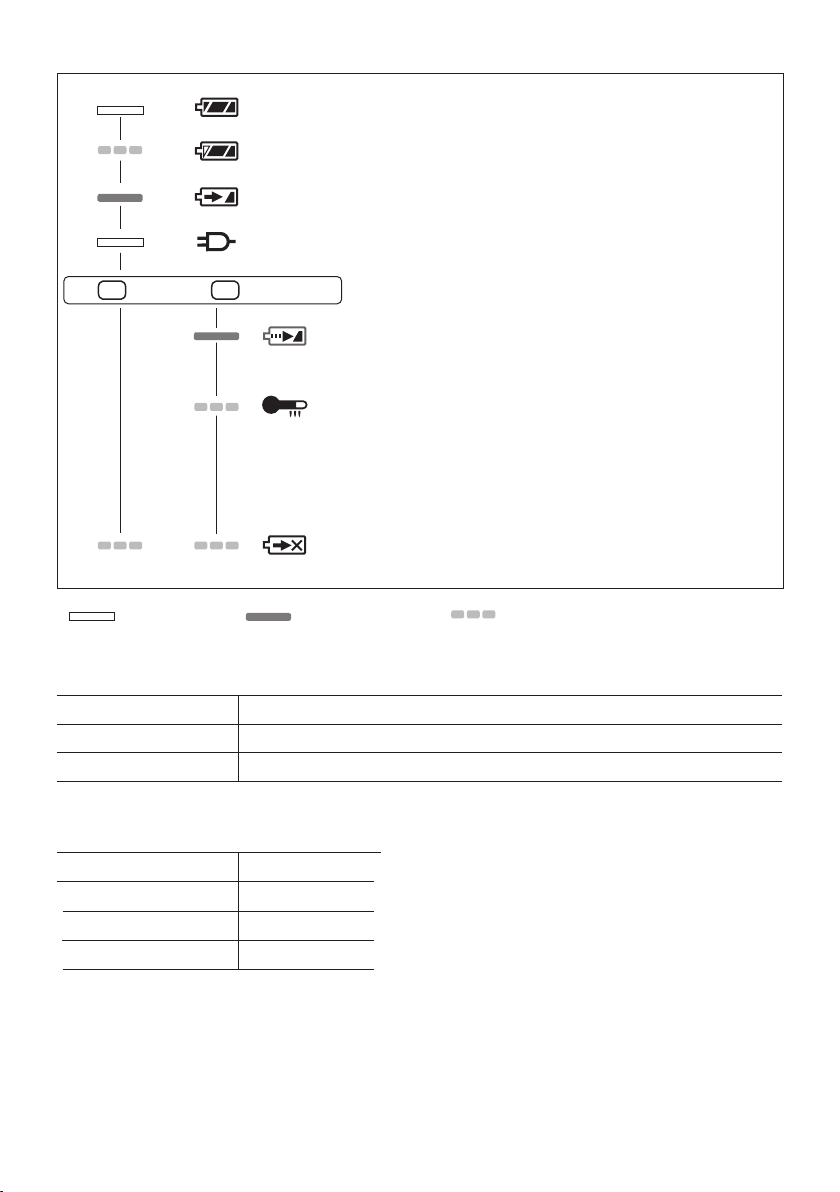

LAMP INDICATIONS

Turn off

Illuminated

Flashing

Charging is completed. (Full charge.)

Battery is approximately 80% charged.

Now charging.

Charger is plugged into the AC outlet. Ready to charge.

(Green)(Orange)

III

. SPECIFICATIONS

Model No. CH-185
Electrical rating See the rating plate on the bottom of the charger.
Weight 0.93 kg (2lbs)

Charging Status Lamp.
Left: green Right: orange will be displayed.

Battery pack is cool.
The battery pack is being charged slowly to reduce
the load on the battery.

Battery pack is warm.
Charging will begin when temperature of battery
pack drops. If the temperature of the battery pack
is -10° or less, the charging status lamp (orange)
will also start flashing. Charging will begin when
the temperature of the battery pack goes up"

Charging is not possible. Clogged with dust or
malfunction of the battery pack.

Voltage 18V

Model No.
Capacity 5.0 Ah
Full Charging Time 80min.

NOTE : This chart may include models that are not available in your area.

Please refer to the latest general catalogue.

NOTE : For the dealer name and address, please see the incuded warranty card.

BP-185

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are de­signed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses and can radiate radio fre­quency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equip­ment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, install and use in accordance
with provided instructions. Use only the battery pack specified in the instruc­tions. Any changes or modifications not expressly approved by the party respon­sible for compliance could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

IV. HARMONIZED STANDARDS

Conforms to UL Std.1310

Certied to CSA Std.C22.2 No. 223-M91

-
