Panasonic CGR18650AF User Manual

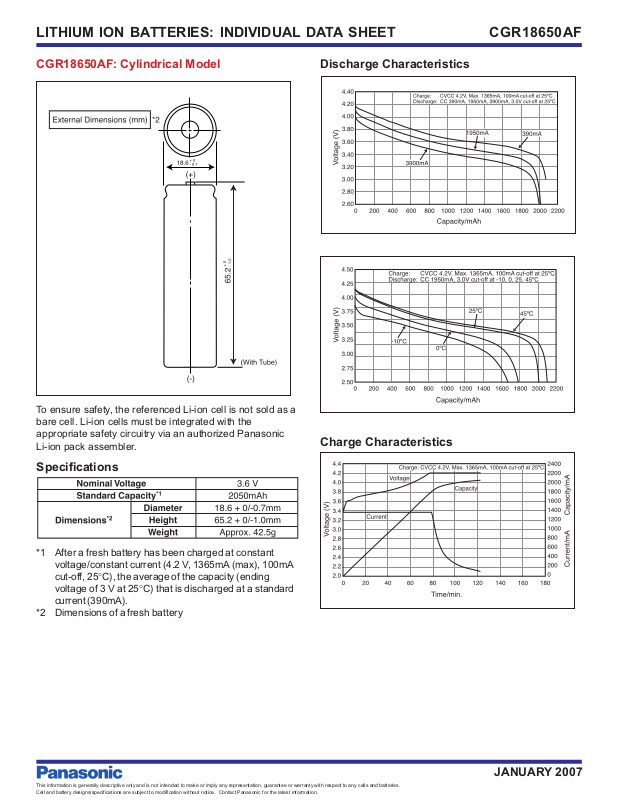

LITHIUM ION BATTERIES: INDIVIDUAL DATA SHEET

CGR18650AF

CGR18650AF: Cylindrical Model

Discharge Characteristics

To ensure safety, the referenced Li-ion cell is not sold as a
bare cell. Li-ion cells must be integrated with the
appropriate safety circuitry via an authorized Panasonic
Li-ion pack assembler.

Specifications

*1 After a fresh battery has been charged at constant

voltage/constant current (4.2 V, 1365mA (max), 100mA
cut-off, 25°C), the average of the capacity (ending
voltage of 3 V at 25°C) that is discharged at a standard
current (390mA).

*2 Dimensions of a fresh battery

Charge Characteristics

JANUARY 2007

This information is generally descriptive only and is not intended to make or imply any representation, guarantee or warranty with respect to any cells and batteries.
Cell and battery designs/specifications are subject to modification without notice. Contact Panasonic for the latest information.
