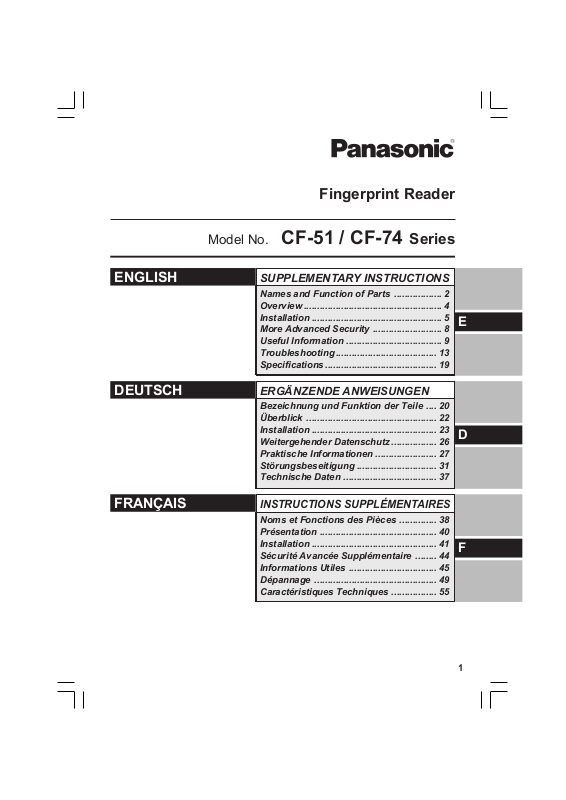

Panasonic CF74CCBAXBM Fingerprint Reader Operating Instruction

Fingerprint Reader

Model No. CF-51 / CF-74 Series

ENGLISH

DEUTSCH

FRANÇAIS

SUPPLEMENTARY INSTRUCTIONS

Names and Function of Parts .................. 2

Overview .................................................... 4

Installation ................................................. 5

More Advanced Security .......................... 8

Useful Information .................................... 9

Troubleshooting...................................... 13

Specifications.......................................... 19

ERGÄNZENDE ANWEISUNGEN

Bezeichnung und Funktion der Teile .... 20

Überblick ................................................. 22

Installation ............................................... 23

Weitergehender Datenschutz ................. 26

Praktische Informationen ....................... 27

Störungsbeseitigung .............................. 31

Technische Daten ................................... 37

INSTRUCTIONS SUPPLÉMENTAIRES

Noms et Fonctions des Pièces .............. 38

Présentation ............................................ 40

Installation ............................................... 41

Sécurité Avancée Supplémentaire ........ 44

Informations Utiles ................................. 45

Dépannage .............................................. 49

Caractéristiques Techniques ................. 55

E

D

F

1

Names and Functions of Parts

Except the following, refer to the Operating Instructions for the computer.

<CF-51 Series>

E

<CF-74 Series>

Fingerprint Reader

(Appearance may differ, depending on specifications.)

Fingerprint Reader

(Appearance may differ, depending on specifications.)

2

How to Use the Fingerprint Reader

This section explains how your fingerprints are enrolled and authenticated.

1 Slide your finger toward yourself.

To prevent a reading error.

A Set the first joint of your index finger on the

sensor as illustrated to the right.

B Slide your finger toward yourself while keep-

ing it in contact with the fingerprint sensor.

C Slide your finger down until the sensor is

visible.

When the fingerprint sensor does not en-

roll or authenticate your fingerprint prop­erly:

· You slid your finger too fast or too slow.

· Your finger was soiled or it has a scar on
the surface.

· Your finger was wet or extremely dry.

· Your fingerprint does not have sufficient data for personal identification.

For further information, refer to “Troubleshooting (For Devices)”. (Î page 13)

CAUTION

We shall not be liable for any loss or damage whatsoever resulting from
your Fingerprint device or neglect of Fingerprint device use, or any data
loss resulting from such developments as Fingerprint authentication
device malfunctioning.

Fingerprint sensor

E

3

Overview

Fingerprint’s Outline

The conventional security systems use ID/passwords and token devices such as IC
cards to authenticate users. Therefore the passwords and token devices are ex­posed to the risk of being lost, stolen and hacking.
The Fingerprint authentication method uses user’s fingerprints instead of passwords
for security authentication. You can use your fingerprints to start up your computer
and log on Windows.
We recommend you use the Fingerprint Reader in combination with the TPM (Trusted
Platform Module) to increase the security level of your computer.

Recommended Installation Procedure

E

Performed by the Computer Administrator

Step 1

TPM Installation ( “Installation Manual of TPM”)

(If the TPM is not being used, skip this step.)

Step 2

Fingerprint Utility Installation

User Fingerprint Enrollment

Performed by each user

Step 4

User’s Data

• Windows Logon Password

• Fingerprint

• Fingerprint Backup Password

• Power-on Password

Step 3

TPM Fingerprint Utility Initialization

(If the TPM is not being used, skip this step.)

This manual describes Steps 2, 3 and the initial part of Step 4.
For further steps, refer to the UPEK Protector Suite QL Help menu. (Click [start] - [All
Programs] - [Protector Suite QL] - [Help].)

Precautions

Security Functions

Fingerprint Authentication Technology does not guarantee complete authentication and
individual identification. Please acknowledge we shall not be liable for any loss or dam­age whatsoever resulting from the use of, or inability to use your Fingerprint device.

The Fingerprint authentication method uses multiple fingerprints, encryption keys,

credentials data and passwords. You might not be able to use your data if you
lose fingerprints, keys, credentials and passwords, so keep them in a safe place.
For further information, refer to “Backup”. (Îpage 9)

General interaction with 3rd party applications: There is no guarantee that

there will not be any negative interaction with any 3rd party software, and
will not accept any responsibility for such an interaction.

4

Installation

Step1 TPM Installation

Refer to on-screen manuals “Installation Manual Trusted Platform Module (TPM)”.
(Click [start] - [Run], enter [C:\util\drivers\tpm\README.pdf], and click [OK].)

If the TPM is not being used, skip this step.

Step2 Fingerprint Utility Installation

Performed by the Computer Administrator.

1 Log on to Windows as an Administrator.
2 Close all other programs.
3 Click [start] - [Run], enter [C:\util\drivers\fngprint\psql\

setup.exe], and click [OK].

The “Protector Suite ∗.∗ Setup” screen appears.

4 Click [Next].

Installation starts. Carefully read the License Agreement, select “I accept the
license agreement”, and click [Next]. Follow the on-screen instructions.

∗∗

5 When the “Protector Suite

message appears, click [Finish].

The computer restarts.

∗∗

∗.

∗ has been successfully installed.”

∗∗

∗∗

6 Log on to Windows as an Administrator.

The “Protector Suite QL Icon” appears in the notification area.

Step 3 TPM Fingerprint Utility Initialization

Performed by the Computer Administrator.
The “Invalid TPM status” message is displayed by the “Protector Suite QL Icon”
in the notification area.

If the TPM is not being used, skip this step.

E

1 Click on the “Invalid TPM status” message to start “Advanced

Security Initialization Wizard”.

Follow the on-screen instructions.

5

Installation

NOTE

If the “Invalid TPM status” message is not displayed, click [start] - [All Programs]

- [Protector Suite QL] - [Control Center] - [Settings] - [System Settings] - [TPM]

- [Initialized TPM].

Step 4 User Fingerprint Enrollment

Performed by each user.

E

1 Click [start] - [All Programs] - [Protector Suite QL] - [User En-

rollment].

The “Welcome” message appears, read the description carefully.

2 Click [Next].
3 Select an enrollment mode, and click [Finish].

Enrollment mode

You can make the configuration for the enrollment only once during this initializa­tion phase.

· Enrollment to the biometric device

All enrolled fingerprints are stored directly in the fingerprint sensor. The user
data will be secured by the hardware protection keys obtained by the fingerprint
sensor. This mode allows up to 21 fingerprints to be enrolled.

· Enrollment to the hard disk

All enrolled fingerprints are stored on the hard disk. Hardware protection of the
user data is not possible, but multiple users can enroll their fingerprints.

When the “Finish” screen appears, read the description carefully.
“User Enrollment” wizard starts. Follow the on-screen instructions.

NOTE

Enroll at least two fingers. Even if one of them is injured, you can use
another one to access your account and secret data. For further informa­tion about the enrollment, refer to “How to Use the Fingerprint Reader”
(Îpage 3) and “Fingerprint Tutorial”. (Click [start] - [All Programs] - [Pro­tector Suite QL] - [Fingerprint Tutorial].)

6

We recommend you use the Power-on Security feature. This feature pre-

vents unauthorized access to the user’s computer at the BIOS level.

A When the “Power-on Security” screen appears, click [Manage Passwords...].
B Select [Power-On] in [Password Types], and click [Set password...].
C Enter the password for “Power-on Security”, and click [OK].
D Click [Close].
E Add a check mark for [Power-On] in [Password Types].
F Enter the password (step C), and click [OK].
G Click [Next].

· Follow the on-screen instructions.

NOTE

The number of fingerprints for “Power-on Security” is maximum of 21, be­cause they are stored in the fingerprint sensor regardless of the selected
enrollment mode.

E

7

More Advanced Security

You can increase your computer’s security level by setting the BIOS level described
in this section.
Performed by the Computer Administrator.

1 Register the Supervisor Password.

You have to register the Supervisor Password to proceed to the next step.
If you have already registered the Supervisor Password, you can skip this
step, and move on to step 2.
If you have not done this, have enrolled your fingerprint using Protector Suite
QL, and have already made Power-on Security effective, after step B, your
fingerprint authentication will be necessary.

E

A Turn on or restart the computer.
B Press F2 several times while [Panasonic] boot screen is displayed soon

after the computer starts the startup procedure.

C Select the [Security] menu.
D Select [Set Supervisor Password], and press Enter .
E Enter your password in the [Enter New Password], and press Enter .

· The password will not be displayed on the screen.

· You can use up to 32 alphanumeric characters (including spaces).

· The case (upper/lower) is ignored.

·

To input numbers for the password, use the numbered keys on the keyboard.

· You cannot use Shift and Ctrl to input a password.

F Enter your password again in [Confirm New Password], and press Enter .
G In [Setup Notice], press Enter .

2 Set the High Security Level.

A Select [Fingerprint Security Sub-Menu], and press Enter .
B Select [Security mode:], and select [High].

· Default setting: Simple

C Press ESC to close the sub-menu.
D Press F10 , select [Yes], and press Enter to exit the Setup Utility.

NOTE

In the “High” security mode, you have to enter the Supervisor or User
Password even after fingerprint authentication.
In the “Simple” security mode, you do not have to enter the Supervisor or
User password after fingerprint authentication.

8

Useful Information

Backup

The file described below is necessary for recovering the Fingerprint authentication
data. Back up this file periodically in a safe location such as removable disk to avoid
data loss resulting from some accidents. We recommend you to store the file in a
removable disk or network drive because the benefit of Fingerprint authentication
security can be reduced if you keep the file in the internal hard disk drive.
The backup password described below is necessary for bypassing the Fingerprint
authentication. We recommend you set the backup password using the “User En­rollment” wizard. If you do not define the backup password, you may lose your data
in case of authentication hardware failure.

File used by each user

· Backup user passport data

(Default name: <UserAccount>.vtp)
You need this file when you replace the embedded fingerprint chip, or the hard disk
drive, or when reinstalling Windows.
This file contains the fingerprints, encryption keys, and logon authentication data.

NOTE

How to Backup:

Select “Export” in “Import or Export User Data” to save the user data. (Click [start]

- [All Programs] - [Protector Suite QL] - [Control Center] - [Fingerprints])
For further information, refer to the UPEK Protector Suite QL Help menu. (Click
[start] - [All Programs] - [Protector Suite QL] - [Help])

Password used by each user

· Backup Password for Enrollment

This backup password can be used in case of hardware failure to bypass the finger­print authentication.

CAUTION

The passwords other than those explained above are also used for security,
so do not lose them. For further information, refer to the UPEK Protector Suite
QL Help menu (Click [start] - [All Programs] - [Protector Suite QL] - [Help]).

E

9

Useful Information

Limitations in Use

My Safe*1: Antivirus software should be configured to ignore the “My Safe” data file
(C:\Documents and Settings\(user account)\Application Data\Protector Suite\My
Safe.fdp). Otherwise the user may experience problems when unlocking “My Safe”.

Password Bank*1 limitations: The following web pages cannot be supported.

Web pages which are created by the following technologies:

· Web forms created on the fly using javascript.

· Web forms which looks as one form (ie login field, password field), but internally
created with two independent forms.

· There can be auto submit problems with web forms which do not have Submit
button. All forms that you cannot submit with Enter will be entered by Pass-

E

word Bank, but not submitted.

Password Bank*1 limitations: The following Windows applications cannot

be supported.

· Applications which do not use standard Windows controls and draw controls by
their own.

· This includes any Java based application.

*1 For information of these functions, refer to the UPEK Protector Suite QL Help

menu (Click [start] - [All Programs] - [Protector Suite QL] - [Help]).

Handling & Maintenance

The enrolling and authentication sensitivity may decline under the condi-

tions below. Wipe off stains or moisture on the sensor surface with a soft
cloth.

· The surface of the fingerprint sensor is soiled with dust, skin oil, or sweat.

· The surface of the fingerprint sensor is wet as a result of moisture or condensa­tion.

Static electricity may also cause the sensor to malfunction. To make your

finger static-free, touch a metal surface before placing it on the fingerprint
sensor. Exercise caution against static electricity in winter and other dry
conditions.

Malfunction or damage may occur when:

· The fingerprint sensor surface was damaged by the strong rubbing of a solid
material, scratches, or being pecked with a pointed item.

· The sensor was touched with a finger soiled with mud, damaging the sensor
surface with a tiny substance, and staining the surface.

· The sensor surface was covered with a seal, or soiled with ink.

10

Deleting (Initializing) Owner’s Data

When you dispose of the computer or transfer the ownership, delete (initialize) the
owner’s data to avoid unauthorized access.

NOTE

The data enrolled in the fingerprint sensor is not image data. You cannot restore
fingerprint image data from the data enrolled in the fingerprint sensor.

1 Disable Power-on Security

Performed by the Computer Administrator.

A Click [start] - [All Programs] - [Protector Suite QL] - [Control Center].

· The “Fingerprint Software Management” screen appears.

B Click [Settings], and click [Power-on Security].
C Remove the check mark from [Replace the power-on and hard drive pass-

words with the fingerprint reader.], and click [OK].

D Click [Fingerprints], and click [Enroll or Edit Fingerprints].

· “User Enrollment” wizard starts. Follow the on-screen instructions.

E When the “User’s Fingers” screen appears, click [Next] without deleting fin-

gerprint samples.

F Click [Manage Passwords...].
G Select [Power-On] in [Password Types], and click [Unset password...].
H Enter the password for Power-on Security, and click [OK].
I Click [Close].

· Confirm that there is no item in [Password Types].

J Click [Next].

· At the confirmation message, click [Yes].

K Click [Next].
L Click [Finish].

· Follow the on-screen instructions.

E

11

Useful Information

2 Delete Fingerprint Data

Performed by each user.

A Click [Fingerprints], and click [Delete]. The “Swipe finger” screen will appear.
B Swipe user’s finger.

· If the authentication is successfully completed, the confirmation mes­sage appears.

C Click [Yes].

· Confirm that all users’ data was deleted.

NOTE

E

If the enrollment mode is set to “Enrollment to the hard disk” (Îpage 6), you
need to remove the fingerprints data after Step 2.
Performed by the Computer Administrator.

A Click [start]-[All Programs]-[Protector Suite QL]-[Control Center].
B Click [Settings], and click [Power-on Security].
C Select the fingerprint, and click [Remove].

· Surely remove all of the fingerprints.

3 Uninstall Protector Suite

Performed by the Computer Administrator.

A Log on to Windows as an Administrator.
B Close all programs.
C Click [start] - [Control Panel] - [Add or Remove Programs].
D Click [Protector Suite ∗.∗], and click [Change].
E Select [Remove], and click [Next].
F Select [Remove all Protector Suite data], and click [Next].

· Uninstallation starts. Follow the on-screen instructions.

G When the “Protector Suite ∗.∗ has been successfully uninstalled.” message

appears, click [Finish].

· The computer restarts.

12

Troubleshooting

When a problem occurs, refer to this page. If you still cannot troubleshoot the prob­lem, contact PANASONIC TECHNICAL SUPPORT.

For Devices

The sensor does not
enroll or authenticate
my fingerprint.

Slide your finger correctly. (For further information
about enrollment and authentication, refer to “How
to Use the Fingerprint Reader” (Îpage 3) and “Fin­gerprint Tutorial”. (Click [start] - [All Programs] - [Pro­tector Suite QL] - [Fingerprint Tutorial])
The sensor enrolls or authenticates no fingerprint,
or performs authentication poorly, despite the cor­rect way of finger sliding when your finger is in any
of the conditions stated below:

· Rough skin, or injured finger (with a cut or a skin
inflammation)

· Extremely dry

· Soiled with mud or oil

· Fingerprint has been worn and has faded

· Wet with water or sweat

<You can improve enrolling and authentication sen­sitivity by taking the following steps when any of the
conditions described above exists>

· Wash your hands or wipe them dry.

· Use a different finger for registration or authentica­tion.

· Treat your finger with a hand cream when it is rough
skin or dry.

Clean the fingerprint sensor. (For further informa­tion, refer to “Handling & Maintenance” (Îpage 10))
The fingerprint sensor may be malfunctioning when
it continues to perform poorly after the steps de­scribed above have been performed. Contact
PANASONIC TECHNICAL SUPPORT.

E

(Enrollment and authentication is unavailable to an extremely minority of people in­cluding those whose fingerprints give little data for personal identification.)

13

Troubleshooting

For Application

Sensor does not work.

E

User cannot use en­rolled finger. (e.g. in­jury)

Exported passport can help you if you need to
replace the sensor.

· Log on to Windows as an Administrator.
You can always access the computer by using

your Windows log on password. In convenient
mode, any user can access the computer by us­ing your Windows log on password.

· To access “My Safe”
“My Safe” can be always accessed by using the

“My Safe” backup password.

· Other functions
Replace/Repair the sensor, then follow the in-

structions in section “Replacing sensor”.
Some limited functions (e.g. deleting passport)

is available without a functional sensor. In case
of deleted operation, it is necessary to cancel
the fingerprint verification operation to get to the
password dialog.

It is strongly recommended to enroll at least two
fingers to avoid this problem.

If you enrolled multiple fingers, simply use other fin­ger. If you only enrolled one finger that can be used,
we recommend to use the “Enroll or Edit Fingerprints”
wizard and enroll additional fingerprints.

14

If none of your enrolled fingers can be used, follow
this procedure:

A Log on to Windows as an Administrator.

You can always access the computer by using
your Windows log on password. In convenient
mode, any user can access the computer by us­ing your Windows log on password.

B Update the enrolled fingerprints.

To be able to fully use Protector Suite QL, you
need to have usable enrolled fingerprints. Enter
the “Enroll or Edit Fingerprints” wizard.

User cannot use en­rolled finger. (e.g. in­jury) (continued)

TPM failure.

· If you do not use “Advanced Security”, you can
still enter using the Windows password.

· If you use “Advanced Security” with backup pass­word, you can enter using the backup password.

·

If you use “Advanced Security” without backup
password, there is no other way to add a different
fingerprint. In this case we recommend either to
wait until your finger is usable again (e.g. the in­jury heals), or to delete the passport (Use “De­lete” wizard) and then reenroll new fingerprints.
Please note that in the latter case all your stored
secret data (passwords, “My Safe” encryption
keys) will be lost. To perform the delete operation
it is necessary to cancel the fingerprint verifica­tion operation to get to the password dialog, then
enter your Windows log on password.

· To access “My Safe”
If you did not perform the procedure in step B

or it did not work, you can still access “My Safe”
by using the “My Safe” backup password.

If you use “Advanced Security” with TPM (Trusted
Platform Module) and TPM is broken, erased or dis­abled, the “Advanced Security” will not work anymore.
If you do not use the “Advanced Security” backup
password, follow the instructions “Starting Over”. Oth­erwise, if you use “Advanced Security” backup pass­word, you can follow these steps:

A Enter the “Enroll or Edit Fingerprints” wizard us-

ing the backup password.

B Disable “Advanced Security” and finish.
C

After the TPM is repaired and enabled (or if you
only erased its contents) you can enter the “Enroll
or Edit Fingerprints” wizard again using your finger
and enable the “Advanced Security” with TPM again.

E

15

Troubleshooting

Replacing sensor.

E

Lost Advanced Secu­rity backup password.

Protector Suite QL re­installation.

Lost “My Safe” backup
password.

If you need to replace a non-functioning fingerprint

reader, follow this procedure:

Enrollment to the hard disk:

If enrollment to hard disk is used, “Protector Suite
QL” has not stored any data on the device and there­fore has no problem to continue after you replaced
the sensor. However, in case you use the Power-on
security (Preboot Authentication), you may need to
use the “Enroll or Edit Fingerprints” wizard to up­date the related data.

Enrollment to the device:

If the fingerprint have been enrolled to the device, a
new passport will be required. Follow the procedure
in the section “Starting Over”.

To change the “Advanced Security” backup pass­word, go to the “Enroll or Edit Fingerprints” wizard
and swipe your finger and go through the Finger­print enrollment. On the Advanced Security page you
can change the backup password.

During Protector Suite QL uninstallation, you can
select whether to delete the Protector Suite Data ­including passports.
If you want to reinstall the product, select button to
leave the Protector Suite QL data on the computer.
After the new installation, you will be able to use
your data again.
If the Protector Suite QL was uninstalled including
the passports, then in case of enrollment to device
the fingerprints will still be stored in the device and
the user can use them reenrollment.

“My Safe” backup password cannot be changed di­rectly. It is necessary to create a new “My Safe”.
You have to:

A Unlock “My Safe”.
B Copy the data from “My Safe” to some other

folder.

C Delete “My Safe” from “My Safe” settings.
D Create a new “My Safe” and define the new “My

Safe” backup password.

16

Accessing “My Safe”
after Protector Suite
QL uninstallation.

Accessing “My Safe”
after computer crash.

Removing data from
the reader.

“My Safe” data can be accessed only using Protec­tor Suite QL. If you accidentally uninstalled Protec­tor Suite QL, you have to reinstall it. If passport data
was not removed during uninstallation, everything
will work automatically including “My Safe”. If the
passport data was removed during uninstallation the
“My Safe” will recognize that the installation was
changed and will offer to use the backup password,
instead.

If you have an exported passport, import it now so
you can access “My Safe” directly using fingerprints.
Otherwise you can access “My Safe” using the “My
Safe” backup password: “My Safe” will recognize
that the installation was changed and will offer to
use the backup password, instead.

When enrollment to the device is used, passport
data is stored to the device. To remove it, go to the
“Delete” passport wizard and delete existing pass­ports, and then use the “Fingerprint Inspector” to
remove remaining fingerprints (e.g. left over from
previous installations).
In convenient mode, the “Fingerprint Inspector” does
not allow deleting the last fingerprint for an existing
passport and only user’s own fingerprints can be
deleted. Therefore it is necessary to delete pass­ports first.

E

Starting Over

If the specific solutions for your problem does not work, you can use these instruc­tions as the last measure and start over. However, please note that you can lose your
data - passwords, secret keys and fingerprints.

A Log on to Windows as an Administrator.

· You can always access the computer by using your Windows log on pass­word. In convenient mode, any user can access the computer by using the
Windows log on password.

B Try to export your passport to a file if you are planning to use your pass-

words, secret keys or enrolled fingers in the future.

· If you exported your passport recently, this step is not required.

17
