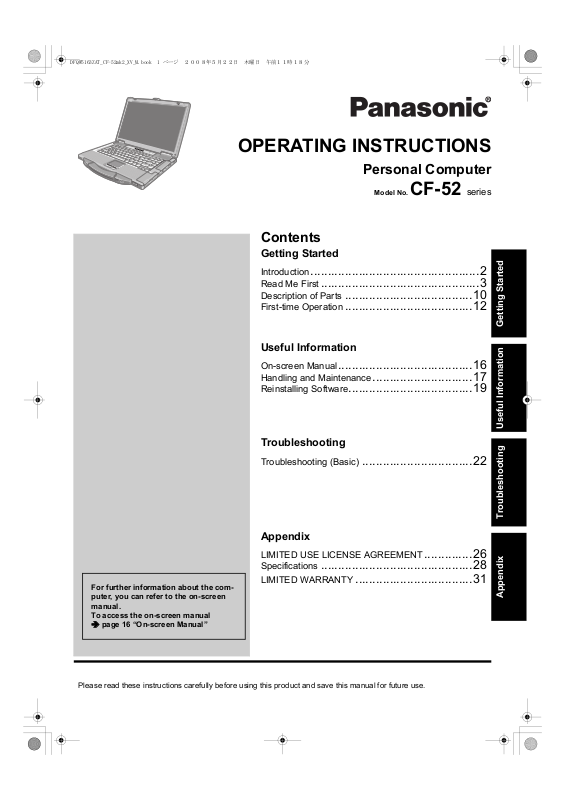

Panasonic CF52GUNBVAM Operating Instruction

OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-52 series

Contents

Getting Started

Introduction.................................................2

Read Me First ..............................................3

Description of Parts .....................................10

First-time Operation .....................................12

Useful Information

On-screen Manual.......................................16

Handling and Maintenance.............................17

Reinstalling Software....................................19

Getting StartedUseful InformationTroubleshootingAppendix

For further information about the com­puter, you can refer to the on-screen
manual.
To access the on-screen manual
Î page 16 “On-screen Manual”

Troubleshooting

Troubleshooting (Basic) ................................22

Appendix

LIMITED USE LICENSE AGREEMENT..............26

Specifications ............................................28

LIMITED WARRANTY ..................................31

Please read these instructions carefully before using this product and save this manual for future use.

Introduction

Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc­tions carefully.

 Terms and illustrations in these instructions

CAUTION

NOTE

Enter
Fn

+ F5 : Press and hold [Fn] key, and then press [F5] key.

(Start) - [All Programs]: Click (Start), and then click [All Programs].

[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.

Î : Page in these Operating Instructions or in the Reference Manual.

z indicates Windows Vista
z indicates Microsoft

z Some illustrations are simplified to help your understanding and may look different from the actual unit.
z If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
z Refer for the latest information about optional products to the catalogs, etc.
z In these instructions, the names and terms are referred as follows.

Getting StartedUseful InformationTroubleshootingAppendix

• “Windows Vista

• “Microsoft
“Windows XP”

• DVD-ROM & CD-R/RW drive and DVD MULTI drive as “CD/DVD drive”

• Circular media including DVD-ROM and CD-ROM as “discs”

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

: Press [Enter] key.

: Reference to the on-screen manuals.

®

Business Operating System.

®

Windows® XP Professional Operating System.

®

Business” as “Windows” or “Windows Vista”

®

Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or

 Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may
be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

 Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd.
assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com­puter and the manuals.

 Trademarks

®

Microsoft
the United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SDHC Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo­rated in the United States and/or other countries.

Computrace
Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.

InterVideo, WinDVD™, the InterVideo logo, Ulead and the Corel logo are trademarks or registered trademarks of Corel
Corporation and/or its subsidiaries in Canada, the United States and/or other countries.

Panasonic
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.

, Windows®, Windows Vista® and the Windows logo are registered trademarks of Microsoft Corporation of

®

is a registered trademark of Absolute® Software Corp.

®

is a registered trademark of Matsushita Electric Industrial Co., Ltd.

2

Read Me First

Models for U.S.A.

Federal Communications Commission Radio Fre­quency Interference Statement

Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide rea­sonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and

receiver.

z Connect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

z Consult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter­face cables when connecting to a computer or peripheral.
Also, any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.

FCC RF Exposure Warning:
<Only for model with wireless LAN/wireless WAN/Bluetooth>
z This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

z This equipment has been approved for mobile opera-

tion, and unless otherwise advised in separate supple­mental instructions for individual wireless transmitter(s),
requires minimum 20 cm spacing be provided between
antenna(s) and all person’s body (excluding extremities
of hands, wrist and feet) during wireless modes of oper­ation.

z This equipment is provided with PC Card slot that could

be used with wireless transmitters, which will be specifi­cally recommended when they become available.
Other third-party wireless transmitters have not been
RF exposure evaluated for use with this computer and
may not comply with FCC RF exposure requirements.

25-M-4-3

<Only for model with wireless LAN>
This product is restricted to indoor use due to its operation
in the 5.15 to 5.25 GHz frequency range. FCC requires
this product to be used indoors for the frequency range

5.15 to 5.25 GHz to reduce the potential for harmful inter­ference to co-channel Mobile Satellite systems. High
power radars are allocated as primary users of the 5.25 to

5.35 GHz and 5.65 to 5.85 GHz bands. These radar sta­tions can cause interference with and/or damage this
product.

25-M-W-1

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and

This device must accept any interference received,

(2)

including interference that may cause undesired opera­tion.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

FCC Regulation Notice for modem
This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.
On the computer is a label that contains, among other
information, the FCC registration number and ringer
equivalence number (REN) for this equipment. If
required, this information must be provided to the tele­phone company.

2. An FCC compliant telephone cord and modular plug is
provided with this equipment. This equipment is
designed to be connected to the telephone network or
premises wiring using a compatible modular jack
which is Part 68 compliant. See Installation Instruc­tions for details.

3. The REN is used to determine the quantity of devices
which may be connected to the telephone line. Excessive
RENs on the telephone line may result in the devices not
ringing in response to an incoming call. In most, but not
all area, the sum of RENs should not exceed five (5.0). To
be certain of the number of devices that may be con­nected to a line, as determined by the total RENs, contact
the local telephone company.

4. If your telephone equipment cause harm to the tele­phone network, the telephone company will notify you
in advice that temporary discontinuance of service
may be required. But if advice notice isn’t practical, the
telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facili­ties, equipment, operations or procedures that could
affect the operation of the equipment. If this happens
the telephone company will provide advance notice in
order for you to make necessary modifications to
maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair
or warranty information, please contact Panasonic
Corporation of North America at DIAL TOLL FREE 1­800-LAPTOP5 (1-800-527-8675). If the equipment is
causing harm to the telephone network, the telephone
company may request that you disconnect the equip­ment until the problem is resolved.

7. There are no user serviceable parts contained in this
equipment.

Getting StartedUseful InformationTroubleshootingAppendix

3

Read Me First

8. This equipment may not be used on coin service pro­vided by the telephone company. Connection to party
lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes
it unlawful for any person to use a computer or other elec­tronic device to send any message via a telephone fax
machine unless such message clearly contains in a mar­gin at the top or bottom of each transmitted page or on
the first page of the transmission, the date and time it is
sent and an identification of the business or other entry,
or other individual sending the message and the tele­phone number of the sending machine or such business,
other entity, or individual. In order to program this infor­mation into your fax software, you should refer to the
manual of the Fax software being used.

10.According to the FCC’s electrical safety advisory, we
recommend that you may install an AC surge arrestor
in the AC outlet to which this equipment is connected.
Telephone companies report that electrical surges,
typically lightning transients, are very destructive to
customer terminal equipment connected to AC power
sources and that this is a major nationwide problem.

Getting StartedUseful InformationTroubleshootingAppendix

Models for Canada

“Caution : To reduce the risk of fire, use only No.26 AWG
or larger telecommunication line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser
uniquement des conducteurs de télécommunications 26
AWG ou de section supérieure.”

16-M-1

Notice for the products using LCD

This product has a fluorescent lamp that contains mer­cury. Disposal may be regulated in your community due to
environmental considerations.
For disposal or recycling information, please contact your
local authorities, or the Electronic Industries Alliance:
<http://www.eiae.org/>

24-M-2

For U.S.A.-California Only

This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material - special handling
may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

38-M-1

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved
modem unit.
The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified equip­ment. This certification means that the equipment meets tele­communications network protective, operational and safety
requirements as prescribed in the appropriate Terminal Equip­ment Technical Requirements document(s). The Department
does not guarantee the equipment will operate to the user’s sat­isfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local telecom­munications company. The equipment must also be installed
using an acceptable method of connection. The customer
should be aware that compliance with the above conditions may
not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a rep­resentative designated by the supplier. Any repairs or alter­ations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company cause
to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas. Caution: Users should not attempt to make such connec­tions themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned to
each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the
sum of the Ringer Equivalence Numbers of all the devices does
not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel homo­logué. Cette étiquette certifie que le matériel est conforme aux
normes de protection, d’exploitation et de sécurité des réseaux
de télécommunications, comme le prescrivent les documents
concernant les exigences techniques relatives au matériel ter­minal. Le Ministère n’assure toutefois pas que le matériel fonc­tionnera à la satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est
permis de le raccorder aux installations de l’entreprise locale
de télécommunication. Le matériel doit également être installé
en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la confor­mité aux conditions énoncées ci-dessus n’empêche pas la
dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être coordon­nées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à l’utili­sateur de débrancher un appareil à la suite de réparations ou
de modifications effectuées par l’utilisateur ou à cause de mau­vais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique, des
lignes téléphoniques et des canalisations d’eau métalliques, s’il
y en a, sont raccordés ensemble. Cette précaution est particu­lièrement importante dans les régions rurales. Avertissement:
L’utilisateur ne doit pas tenter de faire ces raccordements lui­même; il doit avoir recours à un service d’inspection des instal­lations électriques, ou à un électricien, selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à
chaque dispositif terminal indique le nombre maximal de ter­minaux qui peuvent être raccordés à une interface. La termi­naison d’une interface téléphonique peut consister en une
combinaison de quelques dispositifs, à la seule condition que
la somme d’indices d’équivalence de la sonnerie de touts les
dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

17-Ca-1

4

Canadian ICES-003

This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.

7-M-2

<Only for model with wireless LAN/Bluetooth>

Industry Canada

This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including inter-

ference that may cause undesired operation of the device.

30-Ca-1-1

<Only for model with wireless LAN>
This product (local network devices) for the band 5150-5250
MHz is only for indoor usage to reduce potential for harmful
interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users (mean­ing they have priority) of 5250-5350 MHz and 5650-5850
MHz and these radars could cause interference and/or
damage to LELAN devices.

30-Ca-2-1

<Only for model with external antenna port>
This device has been designed to operate with an antenna
having a maximum gain of 2.15 dB. Antenna having a higher
gain is strictly prohibited per regulations of Industry Canada.
The Required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more
than that required for successful communication.

25-Ca-1-1

<Only for model with wireless LAN>

RF Exposure Warning

This equipment has been approved for mobile operation, and unless
otherwise advised in separate supplemental instructions for individual
wireless transmitter(s), requires minimum 20cm spacing be proved
between antenna(s) and all person’s body (excluding extremities of
hands, wrist and feet) during wireless modes of operation.

<Pour modèles LAN sans fil uniquement>

Mise en garde concernant l’exposition à l’énergie
radiofréquence

Cet équipement a été homologué pour un fonctionnement
sans fil et, sauf avis contraire inclus dans la notice d’utili­sation d’un autre émetteur sans fil, une distance minimale
de 20 cm doit être assurée entre l’antenne et le corps de
toute personne (à l’exclusion des mains, poignets et
pieds) pendant le fonctionnement sans fil.

25-M-5-1

Models for Europe

<Only for model with a “CE” mark on the bottom of
the computer>

Declaration of Conformity (DoC)

“Hereby, we declare that this Personal
Computer is in compliance with the
essential requirements and other rele­vant provisions of the Directive 1999/5/
EC.”

Hint:
If you want to get a copy of the original DoC of our prod-

ucts which relates to the R&TTE, please contact our web
address: http://www.doc.panasonic.de

Contact and pursuant to at the directive 2004/108/EC, article 9 (2)
Panasonic Testing Centre
Panasonic Service Europe, a division of
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany

Network connection.
The terminal equipment is intended for connection to the
following public network;
In all the countries of European Economical Area;

- Public Switched Telephony Networks
Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

18-E-2

Important Safety Instructions /
Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precau­tions should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the
vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

19-E-1

Certaines mesures de sécurité doivent être prises pen­dant l’utilisation de matérial téléphonique afin de réduire
les risques d’incendie, de choc électrique et de blessures.
En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter
un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler
une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de
piles indiqués dans ce manual. Ne pas jeter les piles
dans le feu: elles peuvent exploser. Se conformer aux
règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

19-F-1

Getting StartedUseful InformationTroubleshootingAppendix

5

Read Me First

Information to the User

<Only for model with wireless LAN/Bluetooth>

This product and your Health

This product, like other radio devices, emits radio fre­quency electromagnetic energy. The level of energy emit­ted by this product however is far much less than the
electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we
believe this product is safe for use by consumers. These
standards and recommendations reflect the consensus of
the scientific community and result from deliberations of
panels and committees of scientists who continually review
and interpret the extensive research literature.
In some situations or environments, the use of this prod­uct may be restricted by the proprietor of the building or
responsible representatives of the organization. These sit­uations may for example include:

z Using this product on board of airplanes, or
z In any other environment where the risk of interference

to other devices or services is perceived or identified
as harmful.

If you are uncertain of the policy that applies on the use of
wireless devices in a specific organization or environment
(e.g. airports), you are encouraged to ask for authoriza-

tion to use this product prior to turning on the product

Regulatory Information

We are not responsible for any radio or television interfer­ence caused by unauthorized modification of this product.
The correction of interference caused by such unautho­rized modification will be the responsibility of the user. We
and its authorized resellers or distributors are not liable for
damage or violation of government regulations that may
arise from failing to comply with these guidelines.

Getting StartedUseful InformationTroubleshootingAppendix

Safety Precautions

<Only for model with wireless WAN>
The following safety precautions must be observed during all phases of the operation, usage, service or repair of any
Personal Computer or Handheld Computer incorporating wireless WAN modem. Manufacturers of the cellular terminal
are advised to convey the following safety information to users and operating personnel and to incorporate these guide­lines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of
design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply

*1

with these precautions

When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal
Computer or Handheld Computer incorporating wireless WAN modem off, if instructed to do so by the
guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by
interference from Personal Computer or Handheld Computer incorporating wireless WAN modem placed close
to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device to verify
that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or
Handheld Computer incorporating wireless WAN modem away from the pacemaker, while it is on.

Switch off Personal Computer or Handheld Computer incorporating wireless WAN modem before boarding
an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an
aircraft is forbidden to prevent interference with communications systems. Failure to observe these
instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.

Do not operate Personal Computer or Handheld Computer incorporating wireless WAN modem in the
presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel
depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment
in potentially explosive atmospheres can constitute a safety hazard.

Your Personal Computer or Handheld Computer incorporating wireless WAN modem receives and transmits
radio frequency energy while switched on. Remember that interference can occur if it is used close to TV
sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always
switch off Personal Computer or Handheld Computer incorporating wireless WAN modem wherever
forbidden, or when you suspect that it may cause interference or danger.

Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating wireless
WAN modem while driving a vehicle. Do not place the computer with wireless WAN modem in an area where
it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the boot or
secure stowage area while driving.
Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity where an air
bag may deploy.
Air bags inflate with great force and if the computer with wireless WAN modem is placed in the air bag
deployment area may be propelled with great force and cause serious injury to occupants of the vehicle.

.

*1

.

26-M-1

6

IMPORTANT!
Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio signals
and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely
solely upon any wireless device for essential communications, for example emergency calls.

Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating
wireless WAN modem must be switched on and in a service area with adequate cellular signal strength.

Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g.
lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an
emergency call.

Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld
Computer incorporating wireless WAN modem.

*1

In locations where the use of wireless devices is prohibited, please turn your Wireless Switch off (CF-74 Series), or check to
make sure that your Wireless Ready Indicator is off (CF-52 Series). Please note that in some cases, wireless devices may be
operating even in Sleep/Standby modes.

Lithium Battery / Pile au lithium

27-1-2

Lithium Battery!

This computer contains a lithium battery to enable the
date, time, and other data to be stored. The battery should
only be exchanged by authorized service personnel.
Warning! A risk of explosion from incorrect installation or
misapplication may possibly occur.

15-E-1

CD/DVD Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.

12-E-1

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.
L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU
L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES
SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À
DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE
RÉPARER SOIMÊME.
CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL
QUALIFIÉ.

12-F-1

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui per­met de sauvegarder certaines données, notamment la
date et l’heure. La pile ne doit être remplacée que par un
technicien qualifié.
Danger ! Risque d’explosion en cas de non respect de
cette mise en garde!

15-F-1

Laser safety information is appropriate only when drive
with laser is installed.

12-M-2-1

Les mesures de sécurité relatives au laser ne s’appliquent
que lors de l’installation d’une unité avec laser.

12-F-2-1

The following label is put on the bottom of the computer.

12-1-1

Getting StartedUseful InformationTroubleshootingAppendix

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.

36-M-1

7

Read Me First

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR
AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR
TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIR-

*

CRAFT COCKPIT EQUIPMENT/SYSTEMS

1

. PANA­SONIC WILL NOT BE RESPONSIBLE FOR ANY
LIABILITY RESULTING FROM THE USE OF THIS
PRODUCT ARISING OUT OF THE FOREGOING USES.

*1

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2
Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during take-off and
landing) and/or mounted on to the aircraft. Class1 EFB Systems
and 2 EFB Systems are defined by FAA: AC (Advisory Circular)
120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.

Panasonic cannot guarantee any specifications, tech­nologies, reliability, safety (e.g. Flammability/Smoke/
Toxicity/Radio Frequency Emission, etc) requirements
related to aviation standards that exceed the specifica­tions of our COTS (Commercial-Off-The-Shelf) products.

39-E-1

This computer is not intended for use in medical equipment
including life-support systems, air traffic control systems, or other

Getting StartedUseful InformationTroubleshootingAppendix

equipment, devices or systems that are involved with ensuring
human life or safety. Panasonic cannot be held responsible in
any way for any damages or loss resulting from the use of this
unit in these types of equipment, devices or systems, etc.
This computer has been designed so as to minimize shock to the
LCD and hard disk drive, the leakage of liquid (e.g., water) on to
the keyboard, etc., but no warranty is provided against such trou­ble. Therefore, as a precision instrument, be extremely careful in
the handling.

If a Malfunction Occurs, Immediately Unplug the AC Plug
and the Battery Pack

• This product is damaged

• Foreign object inside this product

• Smoke emitted

• Unusual smell emitted

• Unusually hot
Continuing to use this product while any of the above con­ditions are present may result in fire or electric shock.

• If a malfunction occurs, immediately turn the power off and
unplug the AC plug, and then remove the battery pack.
Then contact your technical support office.

Do Not Touch This Product and Cable When It Starts Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source Other
Than a Standard Household AC Outlet

Otherwise, a fire due to overheating may result. Connect­ing to a DC/AC converter (inverter) may damage the AC
adaptor. On an airplane, only connect the AC adaptor/
charger to an AC outlet specifically approved for such use.

Do Not Do Anything That May Damage the AC Cord, the AC
Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools,
bend, twist, or pull it forcefully, place heavy objects on it,
or bundle it tightly.
Continuing to use a damaged cord may result in fire, short
circuit, or electric shock.

Do Not Pull or Insert the AC Plug If Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC Plug Regularly

If dust or other debris accumulates on the plug, humidity, etc.
may cause a defect in the insulation, which may result in a fire.

• Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being used for a long
period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fire due to overheat­ing or electric shock may result.

• Do not use a damaged plug or loose AC outlet.

Do Not Place Containers of Liquid or Metal Objects on Top
of This Product

If water or other liquid spills, or if paper clips, coins, or for­eign matter get inside this product, fire or electric shock
may result.

• If foreign matter has found its way inside, immediately
turn the power off and unplug the AC plug and remove
the battery pack. Then contact your technical support
office.

Do Not Disassemble This Product

There are high-voltage areas inside which may give you
an electric shock if you should touch them. Do not touch
the pins and circuit boards inside, and do not allow foreign
matter to enter inside.
Also, remodeling or disassembly may cause a fire.

Keep SD Memory Cards Away from Infants and Small Chil­dren

Accidental swallowing will result in bodily injury.

• In the event of accidental swallowing, see a doctor
immediately.

Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, result­ing in an injury.

Avoid Stacking

If balance is lost, this product may fall over or drop, result­ing in an injury.

Do Not Keep This Product Wherever There is a Lot of Water,
Moisture, Steam, Dust, Oily Vapors, etc.

Otherwise, possibly resulting in fire or electric shock.

Do Not Leave This Product in High Temperature Environment
for a Long Period of Time

Leaving this product where it will be exposed to extremely
high temperatures such as near fire or in direct sunlight
may deform the cabinet and/or cause trouble in the internal
parts. Continued use in such a resulting condition may lead
to short-circuiting or insulation defects, etc. which may in
turn lead to a fire or electric shocks.

Do Not Block the Ventilation Hole

Otherwise, heat will build up inside, possibly resulting in a fire.

Hold the Plug When Unplugging the AC Plug

Pulling on the cord may damage the cord, resulting in a
fire or electric shock.

Do Not Move This Product While the AC Plug Is Connected

The AC cord may be damaged, resulting in fire or electric shock.

• If the AC cord is damaged, unplug the AC plug immediately.

Use Only the Specified AC Adaptor With This Product

Using an AC adaptor other than the one supplied
(attached to your product or supplied by Panasonic) may
result in a fire.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being
dropped may result in electric shock, short circuit, or fire.

Take a Break of 10-15 Minutes Every Hour

Using this product for long periods of time may have detri­mental health effects on the eyes or hands.

Do Not Look into the CD/DVD Drive

Looking directly at the internal laser light source may
result in damage to eyesight.

Do Not Use Discs That Are Cracked or Deformed

Because the discs rotate at high speeds, damaged discs
may break apart causing injury.

• Discs that are not round and discs that have been
repaired using adhesives are similarly dangerous, and
so should not be used.

Do Not Turn the Volume Up to Loud When Using Head­phones

Listening at high volumes that overstimulate the ear for
long periods of time may result in loss of hearing.

8

Use the Modem With a Regular Telephone Line

Connection to an internal phone line (on-premise switches) of a
company or business office, etc. or to a digital public phone or
use in a country or area not supported by the computer may
result in a fire or electric shocks.

Do Not Connect a Telephone Line, or a Network Cable Other
Than the One Specified, into the LAN Port

If the LAN port is connected to a network such as the ones listed
below, a fire or electric shock may result.

• Networks other than 1000BASE-T, 100BASE-TX or 10BASE-T

• Phone lines (IP phone (Internet Protocol Telephone), Tele­phone lines, internal phone lines (on-premise switches), digital
public phones, etc.)

Precautions (Battery Pack)

Do Not Use With Exposing the Skin to This Product For a
Long Period of Time

Using this product with exposing the skin to the heat source of
this product or AC adaptor for a long period of time can cause a
low-temperature burn.

z Do not place the computer near a television or radio

receiver.

z Keep the computer away from magnets. Data stored

on the hard disk may be lost.

Do Not Use With Any Other Product

The battery pack is rechargeable and was intended for
the specified product. If it is used with a product other
than the one for which it was designed, electrolyte leak­age, generation of heat, ignition or rupture may result.

Do Not Charge the Battery Using Methods Other Than
Those Specified

If the battery is not charged using one of the specified
methods, electrolyte leakage, generation of heat, ignition
or rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It
to Excessive Heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight,
for Example)

Electrolyte leakage, generation of heat, ignition or rupture
may result.

Do Not Insert Sharp Objects into the Battery Pack,
Expose It to Bumps or Shocks, Disassemble, or Modify It

Electrolyte leakage, generation of heat, ignition or rupture
may result.

• If this product is subjected to a strong impact, stop using it
immediately.

Do Not Short the Positive (+) and Negative (-) Contacts

Generation of heat, ignition or rupture may result. Do not
place the battery pack together with articles such as neck­laces or hairpins when carrying or storing.

Do Not Use This Product With a Battery Pack Other
Than the One Specified

Use only the specified battery pack (Î page 10) with your
product. Use of battery packs other than those manufac­tured and supplied by Panasonic may present a safety
hazard (generation of heat, ignition or rupture).

z Do not touch the terminals on the battery pack. The

battery pack may no longer function properly if the
contacts are dirty or damaged.

z Do not expose the battery pack to water, or allow it to

become wet.

z If the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.

z This computer prevents overcharging of the battery by

recharging only when the remaining power is less than
approx. 95% of capacity.

z The battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for
the first time. When the AC adaptor is connected to the
computer, charging begins automatically.

z Should the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your
eyes with clear water and see a doctor for medical
treatment as soon as possible.

NOTE

z The battery pack may become warm during recharging

or normal use. This is completely normal.

z Recharging will not commence if internal temperature

of the battery pack is outside of the allowable tempera­ture range (0 °C to 50 °C {32°F to 122°F}) (Î Ref-
erence Manual “Battery Power”). Once the allowable
range requirement is satisfied, charging begins auto­matically. Note that the recharging time varies based
on the usage conditions. (Recharging takes longer
than usual when the temperature is 10 °C {50°F} or
below.)

z If the temperature is low, the operating time is short-

ened. Only use the computer within the allowable tem­perature range.

z This computer has a high temperature mode function

that prevents the degradation of the battery in high
temperature environments. (Î Reference Manual
“Battery Power”) A level corresponding to a 100%
charge for high temperature mode is approximately
equivalent to an 80% charge level for normal tempera­ture mode.

z The battery pack is a consumable item. If the amount

of time the computer can be run by using a particular
battery pack becomes dramatically shorter and
repeated recharging does not restore its performance,
the battery pack should be replaced with a new one.

z When transporting a spare battery inside a package,

briefcase, etc., it is recommended that it be placed in a
plastic bag so that its contacts are protected.

z Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity
(Î Reference Manual “LAN”).

A lithium ion battery that is recyclable
powers the product you have pur­chased.
Please call 1-800-8-BATTERY for
information on how to recycle this bat­tery.

L’appareil que vous vous êtes procuré
est alimenté par une batterie au lith­ium-ion.
Pour des renseignements sur le recy­clage de la batterie, veuillez com­poser le 1-800-8-BATTERY.

48-M-1

Getting StartedUseful InformationTroubleshootingAppendix

9

Description of Parts

A

G
H

I

J
K
A

L

M
N

B

I

C
D
E
F

A : Speaker

Getting Started

Î Reference Manual “Key Combinations”

B : Multimedia pocket

Î Reference Manual “Multimedia Pocket”

C : SD Memory Card slot

Î Reference Manual “SD Memory Card”

D : Battery pack

Specified Battery pack: CF-VZSU29ASU

E : Headphone jack

You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.

F : Microphone jack

A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos­sible, or malfunctions may occur as a result.

• When recording in stereo using a stereo microphone:

Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] ­[Properties], and then add a check mark for [No Fil­tering] in [Microphone Enhancements].

Click [start] - [All Programs] - [SoundMAX] - [Control
Panel] and select [Microphone], and then add a check
mark for [No Filtering] in [Microphone Enhancements].

• When using a monaural microphone with a 2-terminal plug:

Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] ­[Properties], and then add a check mark for [Voice
Recording] in [Microphone Enhancements].
Otherwise, only audio on the left track will be recorded.

Click [start] - [All Programs] - [SoundMAX] - [Control Panel]
and select [Microphone], and then add a check mark for
[Voice Recording] in [Microphone Enhancements].
Otherwise, only audio on the left track will be recorded.

G : Wireless LAN/Wireless WAN antenna

<Only for model with wireless LAN/wireless WAN>
Î Reference Manual “Wireless LAN”

H : LCD

*1

10

I

O

I

P

I : LED indicator

Caps lock
Numeric key (NumLk)
Scroll lock (ScrLk)
Multimedia pocket device status

Î Reference Manual “Multimedia Pocket”
Hard disk drive status
Battery status

Î Reference Manual “Battery Power”
Power status

(Off: Power off/Hibernation, Green: Power on, Blink-

ing green: Sleep/

Standby, Blinking green rapidly: Cannot power on or

resume due to low temperature.)
SD Memory Card status

(Blinking: During access or a password is requested)

Î
Wireless ready

This indicator lights when Wireless LAN, Blue-

tooth, and/or Wireless WAN are connected and

ready. It does not necessarily indicate the On/Off

condition of the wireless connection.

Î

Wireless WAN status

J : Power switch
K : Function key

Î Reference Manual “Key Combinations”

L : Bluetooth antenna

<Only for model with Bluetooth>
Î Reference Manual “Bluetooth”

M : Keyboard
N : Touch pad
O : Carrying handle
P : Wireless switch

Î Reference Manual “Disabling/Enabling Wire-

less Communication” “Wireless LAN” “Bluetooth”

*1

The battery pack is a consumable item. If you continue to
use a battery pack after it has degraded, problems may
occur. Be sure to replace the degraded battery pack with a
new battery pack of the specified type.

Reference Manual “SD Memory Card”

Reference Manual “Disabling/Enabling

Wireless Communication” “Wireless LAN”
“Bluetooth”

Right side

A

Rear side Bottom

HJILM

F

LOCK

A : Hard disk drive

Î Reference Manual “Hard Disk Drive”

B : Smart Card slot

<Only for model with Smart Card slot>
Î Reference Manual “Smart Card”

C : ExpressCard slot

Î Reference Manual “PC Card / ExpressCard”

D :PC Card slot

Î Reference Manual “PC Card / ExpressCard”

E : IEEE 1394 interface connector

Î Reference Manual “IEEE 1394 Devices”

F : USB port

Î Reference Manual “USB Devices”

G : DC-IN jack
H : External display port

Î Reference Manual “External Display”

I : Security lock

A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.

J : Ventilation hole
K : SIM Card slot

<For Wireless WAN model>
When the SIM Card is necessary, remove the screw of
the cover and then remove the cover to insert/remove
the SIM Card.

L : Modem port

Î Reference Manual "Modem"

M : LAN port

Î Reference Manual "LAN"

N : Serial port

CDBG

EX PC 1394

K

N

EF

O : Expansion bus connector

Î Reference Manual "Port Replicator"

P : RAM module slot

Î Reference Manual "RAM Module"

Q : Hard disk drive latch

Î Reference Manual "Hard Disk Drive"

R : Multimedia pocket release button

Î Reference Manual "Multimedia Pocket"

S : Battery latch

NOTE

z When you open the covers

of ExpressCard slot, PC
card slot, IEEE 1394
interface connector, USB
port, External display port,
Modem port, LAN port and
Serial port, push down and
pull the covers.

z This computer contains a

magnet and magnetic
products at the locations
circled in the illustration
at right. Avoid leaving
metallic object or mag­netic media in contact
with these areas.

O

P

Q

R

S

Getting StartedUseful InformationTroubleshootingAppendix

(Example: USB port cover)

11
