Personal Computer

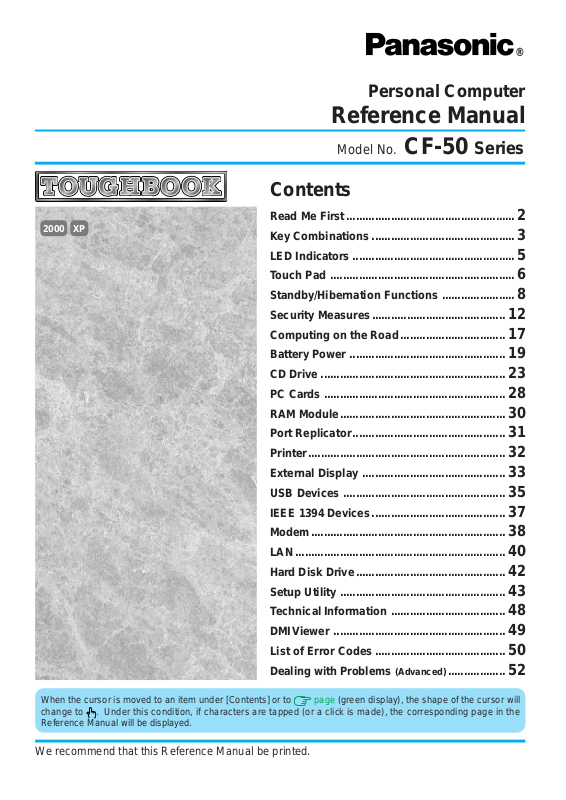

Reference Manual

Model No. CF-50 Series

Contents

Read Me First.....................................................2

Key Combinations............................................. 3

LED Indicators ................................................... 5

Touch Pad ..........................................................6

Standby/Hibernation Functions ....................... 8

Security Measures.......................................... 12

Computing on the Road................................. 17

Battery Power ................................................. 19

CD Drive .......................................................... 23

PC Cards ......................................................... 28

RAM Module.................................................... 30

Port Replicator................................................ 31

Printer.............................................................. 32

External Display ............................................. 33

USB Devices ................................................... 35

IEEE 1394 Devices.......................................... 37

Modem............................................................. 38

LAN.................................................................. 40

Hard Disk Drive............................................... 42

Setup Utility .................................................... 43

Technical Information .................................... 48

DMI Viewer ...................................................... 49

List of Error Codes......................................... 50

Dealing with Problems (Advanced).................. 52

When the cursor is moved to an item under [Contents] or to page (green display), the shape of the cursor will change to . Under this condition, if characters are tapped (or a click is made), the corresponding page in the Reference Manual will be displayed.

We recommend that this Reference Manual be printed.

Read Me First

If the user has logged on without the administrator authority, some functions may not be executable, and some screens may not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc.

Terminology in this Reference Manual

The following terminology is used in this Reference Man ual particularly when notes are not used.

Circular media such as CD-ROM and DVD-ROM are described as “discs”. The following drives are described as “CD drive”. CD-ROM drive, DVD-ROM drive, CD-R/RW drive, DVD-ROM & CD-R/RW drive

Illustrations in this Reference Manual

NOTE: NOTE provides a useful fact or helpful information. CAUTION: CAUTION indicates a condition that ma y result in minor or moder-

ate injury.

WARNING: WARNING indicates a hazard that may result in moderate or seri-

ous injury.

Windows 2000 : Information for Microsoft Windows® 2000 Professional users. Windows XP : Information for Microsoft Windows® XP Professional users. Enter : This illustration means to press the [Enter] key. Fn + F5 : This illustration means to press and hold the [Fn] key, then press

the [F5] key.

[Start]* - [Run]: This illustration means to click [Start]*, then to click [Run].

For some applications, you may need to double-click.

* Windows XP : [start]

page: When the cursor is moved to an item under [Contents] or to

page (green display), the shape of the cursor will change to .

Under this condition, if characters are tapped (or a click is made), the corresponding page in the Reference Manual will be displa y ed.

: This illustration means to refer to the Operating Instructions.

Windows 2000 screens are used in this manual when no specific OS notes are required. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand.

Key Combinations

CAUTION

Do not press the following key combinations repeatedly in (quick) succession. Do not press the following key combinations while using the touch pad (mouse) or other keys.

NOTE

The key combinations below may not work while some applications are running in high priority. After you log on to Windows, it will take some time until the key combinations will be operable. The popup window may not be displayed depending on the state of the application you are using (e.g., when [Command Prompt] screen is set to “Full Screen”).

Popup Window

Key

Fn + F1 Fn + F2

Fn + F3

Fn + F4

Functions

LCD brightness

control ( down)

LCD brightness control ( up)

Display change

Speaker on/off switch

Pressing this key combination adjusts the brightness of LCD . The brightness setting is stored in memory separately under the condition the AC adaptor is connected and under the condition the AC adaptor is not connected.

By pressing this key combination, you can select either an external display, LCD or simultaneous.( page 33)

Pressing this key combination turns on/off audio from the internal speakers and headphone jack.

NOTE

Disabling the speakers will also disable the warning beep.

Function Descriptions

(Displayed after logging on to Windows)

OFF (MUTE)

Fn + F5 Fn + F6

Fn + F7

Fn + F9

Fn + F

*1Operable even before you log on to Windows, but popup windows will not be displayed. *2Operable even before you log on to Windows.

Volume contr ol ( down) Volume contr ol ( up)

Power off using the standby function

Remaining capacity of the battery pack

Power off using

the hibernation function

Pressing this key combination adjusts the volume of the internal speakers and headphone jack.

NOTE

This key combination cannot be used to adjust the volume of the warning beep or speakers connected to the USB port.

Pressing this key combination causes the current status of the computer to be saved to memory, and powers off the computer. ( page 8)

Pressing this key combination displa ys the remaining battery capacity on the screen. ( page 19)

Pressing this key combination causes the current status of the computer to be saved to the hard disk, and po wers off the computer. ( page 8)

Remaining capacity (%) display

Battery pack is not inserted.

Key Combinations

Hotkey Settings

There are two Fn key functions as follows:

Fn key lock function After Fn is pressed once, it stays in the “pressed” position until another key is pressed. This is convenient when it is difficult to press two buttons simultaneously. Popup windows display ON/OFF

1 Run the Hotkey Settings

Windows 2000 Select [Start] - [Programs] - [Panasonic] - [Hotkey Settings]. Windows XP Select [start] - [All Programs] - [Panasonic] - [Hotkey Settings].

2 Set the parameters

Use Fn key lock

Add the check mark if you want to enable the Fn key lock function. The following Fn key lock function will then be enabled. To use Fn only once : 1 Press Fn once. (Locked)

To use Fn successively: 1 Press Fn twice. (Locked)

2 Press another key for combination. (Lock released) 2 Press another key for combination.

Fn key remains loc k ed until Fn is pressed once more.

Notification

This setting is only available when [Use Fn key lock] is checked. [Make sounds when Fn key is pressed]: Notifies the user with a sound when Fn is pressed, locked, or released. (If MUTE is set, you will not hear a beep.) [Show status on screen]: Displays the Fn key status on the taskbar.

: Fn is locked : Fn is not locked

Disable popup

Add the check mark if you want to turn the popup window display function OFF. The full-screen display of [Command Prompt] screen or MPEG files may change to a window display if Fn + Fx * are pressed. To prevent this, turn the popup window display function OFF.

* “ Fx ” indicates any function key from F1 to F10 .

3 Select [OK]

NOTE

Each user can select separate settings for whether or not to use the Hotkey settings.

LED Indicators

Caps Lock

NumLk (Numeric key)

ScrLk (Scroll lock)

CD drive status

Floppy disk drive status

Hard disk drive status

This indicator lights green when Caps Lock is pressed. Subsequent non-shifted input is capitalized.

This indicator lights green when NumLK is pressed. This causes a portion of the keyboard to function as a numeric keypad. The [Enter] key functions differently depending on the application. (If an external keyboard or ten-keyboard is connected to the external keyboard/mouse port, the numeric keypad of the internal keyboard will not operate.)

This indicator lights green when ScrLK is pressed. Scroll lock functions differently depending on the application.

This indicator lights when the CD drive is accessed. The access lamp on the CD drive lights at the same time as this indicator. (In some cases, only one of them may light.)

This indicator lights when the floppy disk drive is accessed.

This indicator lights when the hard disk drive is accessed.

Battery pack status

Po wer status

* When the AC adaptor is connected.

Not lit : AC adaptor not connected or charging not

being performed.

Orange * : Charging in progress. Green * : Charging finished. Red : Battery is low

(remaining battery capacity is approx. 9% or less).

Blinking red * : Battery pack or charging malfunction. Blinking orange *:Unable to recharge due to violation of

temperature limits. The ambient temperature is outside the allowable range . Once the allowable range requirement is satisfied, charging begins automatically. When using the application, power consumption is high; therefore there is insufficient power to recharge the battery.

Not lit : Power off / Hibernation mode Green : Power on Blinking green : Standby mode Blinking green rapidly : Due to extremely low temperatures, power

cannot be turned on, or computer cannot resume from standby mode.

Touch Pad

Use the touch pad to move the cursor on the display and perform normal computer operations.

Basic Operation

Work Surface

NOTE

By design the touch pad is to be used with a finger tip only. Therefore, do not use any implement which causes damage on the work surface. The double-tapping speed of the touch pad cannot be changed.

Function Operation

Moving the Cursor

Move the tip of your finger lightly over the surface.

Tapping/Clicking

tapping

clicking

Right Button

Left Button

Double-Tapping/ Double-Clicking

double-tapping

Dragging

Two quick taps, but on the second tap leaving your finger down (applying pressure) and moving it on the work surface.

Scroll

Scroll a document

(The movements will differ depending on the application.)

Besides the above operations, operations such as Zoom and Pan are possible by allocating these functions to the buttons and/or pad. For more details , refer to [Mouse Properties]*.

* Windows 2000 : Select [Start] - [Settings] - [Control Panel] - [Mouse].

Windows XP : Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

double-clicking

While holding down the button, moving y our finger on the work surface.

NOTE

The operations of Scroll, Pan or Zoom will diff er depending on the application. There are cases the touch pad will not support these operations even with an application that supports the functions.

Touch Pad

Handling the Touch Pad

Do not place any object on the work surface or press down forcefully with sharppointed objects (e.g. nails) or hard objects that can leave marks (e.g. pencils and ball point pens). Try to avoid having any harmful substances, such as oil, come in contact with the touch pad. The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with detergent diluted with water and then thoroughly wrung. Do not use benzene or thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

Standby/Hibernation Functions

Starting Up Your Computer Quickly

If you want to immediately start up and continue an application after shutting down your computer, you can do so by using either the standby or hibernation function.

Differences between the standby and hibernation functions

Function Where data is saved to Speed Requires power supply

Standby Memory Fast Yes (if power is cut, all data is lost) function

Hibernation Hard disk Somewhat Power is not required to maintain data function slow

NOTE

We recommend plugging in the AC adaptor if the standby function is to be used for a long period of time. If the AC adaptor cannot be connected, we recommend that hibernation mode be used instead of the standby mode. If the standby or hibernation function is used repeatedly, the computer may not work properly. To stabilize computer operations, we recommend shutting down Windows on a regular basis (about once a week) without using the standby or hibernation function.

Entering the Standby or Hibernation mode

Use any of the following methods to enter the standby or hibernation mode. To use the hiber nation mode, make the setting below in advance. (Enabled in factory preset.)

Fn key combinations ( page 3) Using the power switch ( page 10) From the shut down screen:

•Standby

Windows 2000 : In [Start] - [Shut Down], select [Stand by]. Windows XP : In [start] - [Turn Off Computer], select [Stand By].

•Hibernation

Windows 2000 : In [Start] - [Shut Down], select [Hibernate]. Windows XP : In [star t] - [Turn Off Computer], press and hold Shift , then

select [Hibernate].

Setting for using the hibernation mode

Windows 2000

1 Select [Start] - [Settings] - [Control Panel] - [Power Options]. 2 In [Hibernate], add the check mark for [Enable hibernate support] and select [OK].

Windows XP

1 Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Op-

tions].

2 In [Hibernate], add the check mark for [Enable hibernation] and select [OK].

(To next page)

Standby/Hibernation Functions

Precautions

Before entering the standby or hibernation mode

Save all data. When a file in an external device such as a CD drive, external hard disk, or ATA card is opened, close the file. Even when a password has been set in the Setup Utility, [Enter Password] does not appear when the computer resumes from the standby or hibernation mode. If you want to use the security function when using the standby or hibernation mode, use the Windows password as follows:

Windows 2000

1 Set the password in [Control Panel] - [Users and Passwords]. 2 Add the check mark for [Prompt for password when computer goes off standb y]

in [Control Panel] - [Power Options] - [Advanced].

Windows XP

1 Select the account to change in [Control Panel] - [User Accounts]. 2 Set the password. 3 Add the check mark for [Prompt for password when computer resumes from

standby] in [Control Panel] - [Performance and Maintenance] - [Power Options]

- [Advanced]. Do not enter either the standby or hibernation mode under the following conditions. You may corrupt your data or file, the standby or hibernation function may not work, or the computer (or peripherals) may fail to work properly.

• When the floppy disk drive indicator ( ), hard disk drive indicator ( ), CD drive

indicator ( ) or access lamp on the CD drive is on ( page 5).

• When playing/recording audio files and displaying images (such as MPEG files).

• When using the communications software and the network function.

• When using LAN port (cards), SCSI cards and modem port (cards) etc. (If these

cards fail to work properly, restart the computer.)

When entering the standby or hibernation mode*

Avoid the following:

•Touching the keyboard, pointing device (touch pad, external mouse, etc.), or power switch.

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

* Standby mode: until the power indicator blinks green

Hibernation mode: until the power indicator goes off

In standby or hibernation mode

Do not insert or remove peripherals; abnormal operation may result. In standby mode, power is consumed. If PC Cards are inserted, more of that power is consumed. When all po wer has been consumed, all data sav ed at standb y is lost since it is retained in memory . We therefore recommend plugging in the AC adaptor when using the standby function.

Standby/Hibernation Functions

Using the Power Switch

Setting

Windows 2000

1 Select [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced]. 2 Select [Standby] or [Hibernate] for [When I press the power button on my com-

puter] and then select [OK].

Windows XP

1 Select [start] - [Control Panel] - [Performance and Maintenance] - [P ow er Options]

- [Advanced].

2 Select [Stand by] or [Hibernate] for [When I press the power button on my com-

puter], then select [OK].

Shutting down

Press the power switch; at the “beep*” sound, release your finger

The computer will enter either the standby or hibernation mode, depending on the setting.

CA UTION

After releasing your finger from the power s witch, do not touch the pow er s witch until the power indicator goes off or blinks. At the “beep*” sound, release your finger from the power switch. If you continue to press down on the switch and hold it for more than four seconds, the unit will emit a second “beep*” then power off. Data not previously saved will be lost.

Windows 2000

Even when [When I press the power button on my computer] is set to [Power Off] with [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced], if you press the power switch for more than f our seconds and do not release it, a second “beep*” will sound and the computer will be turned off forcib ly. Data not previously saved will be lost.

Windows XP

Even when [When I press the power button on my computer] is set to [Shut down] with [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced], if you press the power switch for more than four seconds and do not release it, a second “beep” will sound and the computer will be turned off forcibly. Data not previously saved will be lost.

* When the speaker function is disabled, e.g., by the key combination Fn + F4 , there will

be no beep sound.

Standby/Hibernation Functions

Resuming Operation

Press the power switch

When [Standby]*1 or [Hibernate] is selected as the setting for [When I close the lid of my portable computer] in [Control Panel]*2 - [Power Options] - [Advanced], the computer will enter either the standby or hibernation mode when the LCD panel is closed. Operation will resume when the LCD panel is opened. Even if the display is closed after the computer has entered either the standby or hibernation mode, operation will resume when the display is opened. If the computer does not resume when the LCD panel is opened, press the power switch.

*1 Windows XP : [Stand by] *2 Windows XP : [Control Panel] - [Performance and Maintenance]

CA UTION

When resuming operation, avoid the following:

• Touching the ke yboard (except for password input), pointing device (touch pad, external mouse, etc.), or power switch.

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

After the display returns, the computer needs about 15 seconds to reinitialize. Do not shut down or restart Windows, or enter either the standby or hibernation mode again during this time, as this may subsequently cause Windows to operate abnormally.

Security Measures

To prevent unauthorized access of your computer, the various security measures are provided below.

ReferenceSituation

below

page 15

page 16

“Names and Functions of Parts”

You do not want your computer to be used without permission

You do not want the data on the hard disk to be read, or data to be written to the hard disk, in cases including theft.

You want to prevent theft or damage to data by using a floppy disk

You want to prevent theft of your computer

Function to use

Supervisor Password User Password

Hard Disk Lock

Prevent operation by using a floppy disk

Security lock

NOTE

Windows has a security function that differs from the above security measures. For detailed information, refer to the Windows help.

When you do not want y our computer to be used without permission

You should set your “Supervisor Password” and “User Password” (The User Password can only be set when the Supervisor Password has been set). Without the password, access to your computer is impossible.

Starting up when the password is set

When [Password on boot] of [Security] menu is set to [Enable], enter your password*1 and press Enter .

Enter Pass word [ ]

The correct password

Three incorrect attempts

No password f or about a minute*

*1Supervisor Password or User Pass word set in the Setup Utility (not the Windows pass word). *2Even if no password is entered for about a minute when starting up the Setup Utility, the

power will not be turned off.

Will Start

Will Not Start

(Power off)

When the Setup Utility is started with the Supervisor Password

You can register all items of the Setup Utility ( page 43).

When the Setup Utility is started with the User Password

You can not register [Advanced] menu and [Boot] menu. When [User Pass w ord Protection] has been set to [Protected], you can not register the User Password. F9 does not work.

NOTE

When [Pass w ord on boot] in the Setup Utility is set to [Disable], the passw ord is not necessary when the computer is started up , but the password becomes necessary when the Setup Utility is started up. This alternative makes it possib le to pre v ent the contents of the Setup Utility from being changed.

Security Measures

Setting the Supervisor Password (enabling, changing, disabling)

1 Run the Setup Utility ( page 43) 2 Using either or , select [Security]

3 Using either or , select [Set Supervisor Password] and

press Enter

4 <Only when the Supervisor Password has been set>

Enter your passw o rd at [Enter Current Passwor d] and press

Enter

5 Enter your password at [Enter New Password] and press

Enter

To disable the Supervisor Password

Press only Enter

6 Re-enter your passw or d at [Confirm New P assw or d] and press

Enter

To disable the Supervisor Password

Press only Enter

7 At [Setup Notice], press Enter 8 Press F10 and select [Yes], then press Enter

NOTE

Your password will not be displayed on the screen. Limit your password to seven characters. Note that there is no distinction between upper and lower case letters. Do not input your password while holding down on Shift or Ctrl . Use only the upper horizontal row of numeric keys to input your password. Only the alphabet keys or number k e ys can be used. Note that the space bar and function keys cannot be used. Disabling the Supervisor Password also disables the User Password.

CA UTION

Do not forget your password. If your Supervisor Password is forgotten you will be unable to use your computer. Contact Panasonic Technical Support. When running the Setup Utility, do not leave your computer even for a short time, as the possibility exists for the password to be set/changed by another person.

Security Measures

Setting the User Pass word (enabling, changing, disabling)

NOTE

When the Supervisor Pass word has not been set, the User Passw ord can not be set. Set the Supervisor Password if you have not done so. ( page 13)

1 Run the Setup Utility ( page 43) 2 Using either or , select [Security]

3 Using either or , select [Set User Password] and press

Enter

4 <Only when the User Password has been set>

Enter your password at [Enter Current Password] and press

Enter

5 Enter your password at [Enter New Password] and press

Enter

To disable the User Pass word

Press only Enter

6 Re-enter your passw or d at [Confirm New P assw or d] and press

Enter <When the Setup Utility is started up with the Supervisor Password>

To disable the User Pass word

Press only Enter

7 At [Setup Notice], press Enter 8 Press F10 and select [Yes], then press Enter

NOTE

Your password will not be displayed on the screen. Limit your password to seven characters. Note that there is no distinction between upper and lower case letters. Do not input your password while holding down on Shift or Ctrl . Use only the upper horizontal row of numeric keys to input your password. Only the alphabet keys or number k eys can be used. Note that the space bar and function keys cannot be used.

When you do not want the User Password enabled or changed without permission:

1 Run the Setup Utility and enter the Supervisor Password. 2 Using and , select [User Password Protection] in [Security] menu and

press Enter .

3 Using and , select [Protected] and press Enter .

CAUTION

Do not forget your pass word. If a password is forgotten, you will be unab le to use your computer. Contact Panasonic Technical Support. When running the Setup Utility , do not lea v e y our computer e ven f or a short time, as the possibility exists f or the password to be set/changed by another person.

Security Measures

When you do not want the data on the hard disk to be read/written

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard disk when the hard disk is inserted in a different computer, since a pass w ord is also set for the hard disk. When the hard disk is returned to the original computer, you can read and write data as before. In this case, however, mak e the settings in the Setup Utility exactly the same as they were before the hard disk was removed. It is possible to set the Hard Disk Lock e ven if [Password on boot] is set to [Disable], b ut we recommend that [Password on boot] be set to [Enable] for security reasons. (Note that this Hard Disk Lock does not guarantee complete protection of data.)

NOTE

In the default setting, [Hard Disk Lock] is set to [Disable]. You cannot set [Hard Disk Lock] without setting the Supervisor Password. Set

the Supervisor Password if you have not done so. ( page 13) The hard disk protection function only works with the internal hard disk. This

function does not work with the external hard disk.

Procedure

1 Run the Setup Utility ( page 43) 2 Using either or , select [Security] 3 Using either or , select [Hard Disk Lock] and press

Enter

4 To enable the Hard Disk Lock

Select [Enable] and press Enter

At [Caution], press Enter .

To disable the Hard Disk Lock Select [Disable] and press Enter

5 Press F10 and select [Yes], then press Enter

CAUTION

If your computer requires repair

Contact Panasonic Technical Support. Be sure to set [Hard Disk Lock] to [Disable].

Security Measures

Preventing theft or damage to data using a flopp y disk

Disabling the floppy disk operation makes it impossible to read and write a floppy disk and to start the computer from a floppy disk. This can prevent data from being accessed illegally or overwritten accidentally using a floppy disk.

Procedure

1 Run the Setup Utility ( page 43) 2 Using either or , select [Security]

3 Using either or , select [Floppy Operation] and press

Enter

4 Using and , select [Disable] and press Enter

To enable the floppy operation

Select [Enable].

5 Press F10 and select [Yes], then press Enter

Computing on the Road

Saving Power

One of the main features of notebook-type computers is that you have the power of computing away from your home or office. In the following, information is provided on how to maximize use of the battery pack which is necessary for such computing. Select

to view important tips for using the battery pack.

You can also view important tips using the following procedure.

Windows 2000

Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].

Windows XP

Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].

Four Important Points

POINT 1 POINT 2

POINT 3

POINT 4

Be sure to charge your battery before and after use. To get the maximum use of your battery, set the power man-

agement mode. Check to see that you have your AC adaptor with you before

leaving your home or office. Purchasing a spare battery (CF-VZSU18A) is highly recommended.

Always watch your battery level!

Things to Remember

Leave your computer off when it is not in use

( “Starting Up/Shutting Down”)

Adjust the brightness (darker) with Fn + F1

By holding down on the keys ( will be displayed), the degree of brightness will be lowered, thereby lowering the power consumption.

Before stepping awa y fr om y our computer, press Fn + F7 or Fn + F10 to put your computer in the standby or hiberna-

tion mode ( page 3)

Windows 2000

In [Control P anel] - [Power Options], make settings in detail

By making settings in detail for the timeout, alarm, etc., it is possible to control the consumption of power.

Windows XP

In [Control P anel] - [Performance and Maintenance] - [ Power Options], make settings in detail

By making settings in detail for the timeout, alarm, etc., it is possible to control the consumption of power.

Windows 2000

Setting the Intel® SpeedStep™ technology ( page 18)

CAUTION

When installed in a network en vironment (except when the Wake up from LAN function is in use).

Do not use the standby or hibernation mode. After resuming operation from the standby or hibernation mode, the network connection may be severed or the computer may not work properly.

Computing on the Road

Setting the Intel(R) SpeedStep (TM) technology

By using the Intel(R) SpeedStep(TM) technology applet, you can set the computer’ s performance to optimize power consumption.

Starting up the Intel(R) SpeedStep(TM) technology

Select on the taskbar

NOTE

The icon differs depending on the current setting.

Maximum Perf ormance (The CPU performance is maximized at all times.) Automatic (The CPU perf ormance is automatically maximized only when

necessary.) Battery Optimized Performance Maximum Battery (Maximum battery life)

You can also start using [Start] - [Settings] - [Control Panel] - [Pow er Options]

- [Intel(R) SpeedStep(TM) technology].

Windows 2000

Displays settings currently in effect.

Do not add the check mark.

Battery Power

Use the Battery Indicator to Check the Battery Status

Battery Indicator Orange* Green* Red

Blinking red*

Blinking orange*

Not lit

* When the AC adaptor is connected.

NOTE

This computer prevents overcharging of the battery by recharging only when the remaining power is less than approx. 95% of capacity after the battery is fully charged.

Battery Status

Charging Fully-charged Battery charge is low (the charge is less than approx. 9%

capacity) Battery pack or charger may not be working properly.

Quickly remove the battery pack and disconnect the AC adaptor, then connect them again. If the problem persists, contact Panasonic Technical Suppor t.

Unable to recharge due to violation of temperature limits. The ambient temperature is outside the allowable range . Once the allowable range requirement is satisfied, charging begins automatically. When using the application, power consumption is high; therefore there is insufficient power to recharge the battery.

Battery pack is not connected or charging not being performed.

Check the Remaining Battery Power

NOTE

Until you log on to Windows, this key combination will be inoperable. The actual remaining battery capacity and the displayed indication may differ as follows.

• The battery indicator light remains red.

• The batter y remaining displays 99% and the indicator light is orange for a long period of time.

• Low battery warning appears after a short period of time. This may be caused b y the use of standby mode f or long periods of time. The battery is discharging while the computer is in standby mode when the AC adaptor is not connected.

To correct them, perform the “Refresh Battery” utility. ( page 21) There may be a discrepancy with the % value that is displayed on the taskbar of Windows, but this is not a malfunction.

Press Fn + F9 to Check the Remaining Battery Po wer on the Screen (After logging on to Windows)

Fn + F9

When the battery pack is inserted in the computer (example)

When the battery pack is not inserted in the computer

Battery Power

Remaining Battery Level Confirmation by Alarm

The computer can be set to notify of a low battery level, etc. using the following procedure. When the battery level goes down to the level specified, the computer sets off an alarm and displays a message indicating the low battery level.

Windows 2000

[Start] - [Settings] - [Control Panel] - [Power Options] - [Alarms]

Windows XP

[start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Alarms]

Set the value for [Critical battery alar m] to 5% or more. This is necessary for the standby or hibernation function to be completed (assuring data is saved) when the battery level is low. When making a setting for [When the alarm goes off, the computer will:] in [Alarms][Alarm Action], add a check mark for [Force standby or shutdown even if a program stops responding.]. If the computer shuts down or enters the standby or hibernation mode by the Alarm settings function, start up the computer or resume operations after connecting the AC adaptor. If the computer starts up or resumes while the AC adaptor is not connected, Windows may not operate properly or alarm operations may stop working. When disabling the speakers with pressing Fn + F4 , the sound alarm is also disabled.

When the Remaining Battery Charge Becomes Low

Save your data and power off your computer

Then:

Plug in the AC adaptor, and fully charge your battery. Use a spare battery if you have one. In the standby mode, do not remove/change the battery pack. If you have neither the AC adaptor nor an extra battery, power the computer off.

About High Temperature Mode

This computer has a high temperature mode function that prevents the degradation of the battery in high temperature environments. We recommend setting the high temperature mode function when installing the computer in a car, etc. To do this, set [Environment] in [Main] menu of the Setup Utility to [High Temperature]. Note that a 100% remaining battery reading in [High Temperature] mode is about an 80% reading in [Normal Temperature] mode. After switching from [Normal Temperature] to [High Temperature], or vice versa, the remaining battery will not be displayed properly until the battery pack is completely discharged or fully charged.

Battery Power

Accurately Displaying Battery Capacity

The battery pack has a function for measuring, storing and learning about battery capacity. Using this function properly to accurately display remaining battery capacity requires that the battery pack be fully charged (charged to 100%), then fully discharged, and then fully charged again. This procedure should be performed once after you purchase the computer. As you use the battery pack over a long period of time, the remaining capacity displa y may become inaccurate due to aging of the battery pack and other factors. The procedure described below should be performed again.

NOTE

If the computer is turned off while refreshing the battery (electr ical power outage, accidental removal of the AC adaptor or battery pack, etc.), the battery will not be refreshed correctly.

1 Attach the battery pack and connect the AC adaptor

Remove all peripherals (except for the battery pack and AC adaptor).

2 Use the “Refresh Battery” utility to fully discharge the battery

pack

1 Run the Setup Utility. ( page 43) 2 Select [Refresh Battery] from [Exit] menu and press Enter . 3 At the confirmation message, select [Yes] and press Enter .

Once the battery indicator turns green, the battery pack will be completely discharged. It takes approximately 2.5 hours until the po w er automatically goes off through the complete discharge of the battery from the fully charged state.

3 Allow the battery pack to charge until the battery indicator turns

green

Charging Time: Approximately 3.5 hours.

Battery Power

Replacing the Battery Pack

When the charge provided by your battery pack is supplied for only a short period of time, even after fully charging according to the instructions, it may be time to replace your battery pack. The battery pack is a consumable item and therefore will require replacement (CF-VZSU18A).

CA UTION

Do not touch the terminals on the battery pack and the computer. The battery pack may no longer function properly if the contacts are dirty or damaged. The battery pack is not charged when the computer is first purchased. Be sure to charge it before using it for the first time. When the AC adaptor is connected to the computer, charging begins automatically. Use only the specified battery pack (CF-VZSU18A, yellow tab) with your computer. CF-VZSU18 (blue tab) cannot be used with this computer. In the standby mode, do not remove/change the battery pack. Removing the pack in the standby mode will erase your data and may damage the computer.

Latch

Battery Pack

Cover

Tab

1 Po wer off y our computer ( “Starting Up/Shutting Down”)

Do not shut down using the standby function.

2 Turn your computer over and remove the co ver

Slide the latch, and then without releasing it, slide and remove the co ve r .

3 Taking out the battery pack

Pull the tab on the battery pack and remove it from the computer.

Inserting a battery pack

Firmly attach the battery pack to the connector.

CAUTION

Be sure the battery pack is properly connected to the connector.

Mark

4 Reattach the cover

Match the mark on the cover to the body of the computer and slide the cover back into place.

CAUTION

For an improperly attached cover, your battery pack may fall out while you are carrying around your computer. Be sure the tab does not get caught when closing the cover.

CD Drive

Usage Precautions

Do not leave the tray in the open position or touch the lens area. Should the lens become soiled by dust or dirt, the unit may not read discs properly. Do not apply excessive force to the tray in the open position, doing so could damage the tray. Do not place items other than discs on the tray. Under some conditions, dust may build up on the optical lens or disc, possibly resulting in malfunction. Do not expose the CD drive to oily or tobacco smoke. Doing so could shorten the service life of the lens. Do not use discs that have become deformed (warped, not completely round, etc.). Never insert foreign objects such as paper clips into the slot in the CD drive. Do not open the CD drive or mov e the computer while the CD drive is being accessed. Doing so could cause it to malfunction. In addition, after running an application inv olving access to a disc, do not open the CD drive or remove the disc until after the application has been closed. After closing the tray, do not attempt to access a disc until the CD drive indicator ( ) and access lamp on the CD drive goes off ( page 5). If the CD drive malfunctions, we recommend cleaning it with a b low er used for camera lenses. (Do not use strong, spray-type products.)

To avoid damaging discs:

Do not allow discs to become dirty or scratched. Do not place or store discs in locations exposed to heat, direct sunlight, humidity or dust. If the disc is brought from a cold into a warm environment, moisture may form on the disc. Wipe this moisture off with a soft, dry, lint-free cloth before using the disc. Do not touch the data surface (the side opposite the side with the title printed on it) as it can cause the disc to become dirty or scratched. Do not write on the surface of the disc with a ball-point pen or other writing instrument. Do not drop, bend, or place heavy objects on top of discs. Cleaning the disc using a disc cleaner is recommended once every 2 or 3 months.

If the disc gets dirty

After wiping the disc with a moist, soft cloth, wipe it with a dry cloth. Alwa ys wipe from the center toward the edge.

CD Drive

Setting a Disc

Title-side up

Center Holder

Eject Button

1 Turn your computer on 2 Press the disc eject button and slowly pull out the tray 3 Place the disc securely on the center holder 4 Close the tray

CAUTION

Do not apply excessive force to the tray in the open position, doing so could damage the tray.

Power-saving Mode

If the CD drive has not been accessed within 90 seconds, the drive motor will automatically shut down to reduce the power consumption. When the CD drive is accessed once again, the power of the drive motor is turned on. However, approximately 30 seconds are required until data is actually read from the disc.

NOTE

If the vibration of the CD drive is excessive, set [CD Drive Speed] to [Low] in the Setup Utility. For AutoPlay CDs:

• If an AutoPlay CD does not start after the computer resumes from the standby or hibernation mode, we recommend reinser ting the CD again after a 15-second wait.

• An AutoPlay CD may start during the access of a file.

The playback of CDs containing mo ving pictures (Video CDs, CDs including MPEG data, etc.) may not be smooth.

Information for the DVD-ROM Drive (Model with a DVD-ROM Drive)

To play DVD-Video or MPEG2 files, install the DVD playback software (included). For information on how to install the softw are , refer to the instructions of the software ( “WinD VD”). The region code has been set to the following: <For U.S.A. and Canada> Set to “1” <For Europe> Set to “2” Use of another region code or alteration of the region code invalidates the warranty. For more information, contact Panasonic Technical Support. If commercially available DVD playback software asks you the region code , set to the following: <For U.S.A. and Canada> Set to “1” <For Europe> Set to “2”

CD Drive

Information for the CD-R/RW Drive (Model with a CD-R/RW Drive)

Before using the drive for the first time, remove the protective sheet from the lens area. The protective sheet inside the drive delays the opening of the drive by about ten seconds. This delay is not a problem. When using CD-R or CD-RW discs, read the description on the disc package. CD-RW discs cannot be read with other drives* unab le to accommodate CD-R W discs.

* Consult with the manufacturer of each drive.

Using the CD-ROM of the CD-R/RW writer softw are (included), install the application software on your computer. For information on how to install the software, ref er to the instructions of the CD-R/RW writer software ( “Easy CD Creator 5”).

Be sure to use discs conforming to the proper write speeds.

CD-R write speed*

CD-RW write speed High Speed CD-RW write

speed

* Depending on the disc, the writing speed may become slower.

If the write operation is to involve a long period of time, be sure to connect the AC adaptor . If the battery power runs low and the power of the computer is cut, the write operation may end in failure. Depending on the disc, the quality of the write operation may not be so good. We recommend using any of the following discs.

600 KB/s (4X speed) 1200 KB/s (8X speed) 2400 KB/s (16X speed Max.) 3600 KB/s (24X speed Max.)

600 KB/s (4X speed) 600 KB/s (4X speed)

1200 KB/s (8X speed) 1500 KB/s (10X speed)

Recommended Discs: <CD-R>

HITACHI MAXELL, Ltd. MITSUBISHI CHEMICAL Co., Ltd. MITSUI CHEMICALS, Inc. RICOH Co., Ltd. TAIYOYUDEN Co., Ltd.

<CD-RW/High Speed CD-RW>

MITSUBISHI CHEMICAL Co., Ltd. RICOH Co., Ltd.

CD Drive

Information f or the D VD-R OM & CD-R/R W Drive

Before using the drive for the first time, remove the protective sheet from the lens area. The protective sheet inside the drive delays the opening of the drive by about ten seconds. This delay is not a problem. To play DVD-Video or MPEG2 files, install the DVD playback software (included). For information on how to install the softw are , refer to the instructions of the software ( “WinD VD”). The region code has been set to the following: <For U.S.A. and Canada> Set to “1” <For Europe> Set to “2” Use of another region code or alteration of the region code invalidates the warranty. For more information, contact Panasonic Technical Support. If commercially available DVD playback software asks you the region code , set to the following: <For U.S.A. and Canada> Set to “1” <For Europe> Set to “2” When using CD-R or CD-RW discs, read the description on the disc package. CD-RW discs cannot be read with other drives* unab le to accommodate CD-R W discs.

* Consult with the manufacturer of each drive.

Be sure to use discs conforming to the proper write speeds.

CD-R write speed*

CD-RW write speed High Speed CD-RW write

speed

600 KB/s (4X speed) 1200 KB/s (8X speed) 2400 KB/s (16X speed Max.) 3600 KB/s (24X speed Max.)

600 KB/s (4X speed) 600 KB/s (4X speed)

1200 KB/s (8X speed) 1500 KB/s (10X speed)

(Model with a DVD-R OM & CD-R/R W Drive)

* Depending on the disc, the writing speed may become slower.

Recommended Discs: <CD-R>

HITACHI MAXELL, Ltd. MITSUBISHI CHEMICAL Co., Ltd. MITSUI CHEMICALS, Inc. RICOH Co., Ltd. TAIYOYUDEN Co., Ltd.

<CD-RW/High Speed CD-RW>

MITSUBISHI CHEMICAL Co., Ltd. RICOH Co., Ltd.

CD Drive

Information for the DVD Multi Drive (Model with a DVD Multi Drive)

Before using the drive for the first time, remove the protective sheet from the lens area. The protective sheet inside the drive delays the opening of the drive by about ten seconds. This delay is not a problem. To play DVD-Video or MPEG2 files, install the DVD playback software (included). For information on how to install the software, refer to the instructions of the software ( “WinDVD”). The region code has been set to the following: <For U.S.A. and Canada> Set to “1” <For Europe> Set to “2” Use of another region code or alteration of the region code invalidates the warranty. For more information, contact Panasonic Technical Support. If commercially available DVD playback software asks you the region code, set to the following: <For U.S.A. and Canada> Set to “1” <For Europe> Set to “2” When using CD-R or CD-RW discs, read the description on the disc package. CD-RW discs cannot be read with other drives* unab le to accommodate CD-R W discs. * Consult with the manufacturer of each drive.

Using the CD-ROM of the writer software (included), install the application software on your computer. For information on how to install the software, ref er to the instructions of the writer software. Be sure to use discs conforming to the proper write speeds.

CD-R write speed*

CD-RW write speed High Speed CD-RW write

speed DVD-R write speed DVD-RW write speed DVD-RAM write speed

* Depending on the disc, the writing speed may become slower.

If the write operation is to involve a long period of time, be sure to connect the AC adaptor . If the battery power runs low and the power of the computer is cut, the write operation may end in failure. Be sure to use discs that meet the following specifications.

DVD-R for General Ver.2.0 (4.7 GB) DVD-R for General Ver.2.0/4X-SPEED DVD-R REVISION 1.0 (4.7 GB) D VD-RW Ver.1.1 (4.7 GB) DVD-RW Ver.1.1/2X-SPEED DVD-R REVISION 1.0 (4.7 GB)

D VD-RAM V er .2.0 or V er .2.1 (4.7 GB/9.4 GB) In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be used. Depending on the disc, the quality of the write operation may not be so good. We recommend using any of the following discs.

Recommended Discs: <CD-R>

HITACHI MAXELL, Ltd. MITSUBISHI CHEMICAL Co., Ltd. MITSUI CHEMICALS, Inc. RICOH Co., Ltd. T AIY O YUDEN Co., Ltd.

<CD-RW/High Speed CD-RW>

MITSUBISHI CHEMICAL Co., Ltd. RICOH Co., Ltd.

600 KB/s (4X speed) 1200 KB/s (8X speed) 2400 KB/s (16X speed Max.)

600 KB/s (4X speed) 600 KB/s (4X speed)

1200 KB/s (8X speed) 1,350 KB/s (1X speed) 1,350 KB/s (1X speed) 2,700 KB/s (2X speed)

<DVD-R>

Matsushita Electric Industrial Co., Ltd. PIONEER VIDEO CORPORA TION T AIY O YUDEN Co., Ltd.

<DVD-RW>

TDK Corporation Victor Company of Japan, Limited

<DVD-RAM>

Matsushita Electric Industrial Co., Ltd.

PC Cards

Your computer has two PC Card slots. These slots conform to the PC Card Standard; therefore, communications or SCSI devices, etc., ma y be utiliz ed. The slots allow y ou to use two Type I or Type II cards (or one Type I and one Type II), or one Type III card.

Type I or II

Two cards can be used simultaneously.

Slot (Socket) 2

Slot (Socket) 1

CA UTION

Check the PC Cards’ specifications. Be sure the total operating current does not

exceed the specified limit. Damage may result otherwise.

Allowable Current (total for two slots) : 3.3 V: 400 mA, 5 V: 400 mA

There are times when both a Type I card and a Type II card will not work at the

same time.

ZV card, SRAM card, FLASH ROM card (except for an ATA interface) and card

requiring 12V are not suppor ted.

With the repeated insertion/removal of a PC Card, the computer may no longer

recognize the PC Card (depending on the type of card).

In such cases, restart the computer.

When inserting one more CardBus type card with one already inserted, after en-

tering the standby or hibernation mode, the computer may not function properly.

If the computer freezes after resuming from the standby or hibernation mode, try

removing and then reinserting the PC Card. If this does not correct the problem,

restart the computer.

T ype III

One card can be used only in the slot 1.

Inserting/Removing the PC Card

Inserting a PC Card

Simply slide the PC Card in with label-side up until it snaps into place

Refer to the operation manual of each card on how to insert the card (insertion is typically label-side up).

CAUTION

When using a PC Card to connect a peripheral device (SCSI, IEEE 1394, etc.):

1 Connect the peripheral device to the card. 2 Turn the device on. 3 Slide the card in until it snaps into place.

When inserting a card, do not force the card in if difficulty is encountered. Depending on the shape of the card, a segment may remain protruding from the slot after insertion. Do not try to force the card all the way in. You

Label-side up

may damage the slot, making it impossible to remove the card.

(To next page)

PC Cards

Button

Removing a PC Card

CAUTION

Do not remove a PC Card while y our computer is in the standby or hibernation mode. When two PC Cards are inserted, perform the following procedure (from Step 1 to Step 3 for each of the two cards. Note that the operation of removing the PC Card may not be complete, depending on the status of the PC Card or device connected to the PC Card, such as when a SCSI card is used to connect an external hard disk to the computer. In such cases, turn off the power from [Star t]* menu, then remove the card. * Windows XP : [start]

Windows 2000

Select on the taskbar, select the PC Card, then select [Stop]

Follow the on-screen instructions. (When the PC Card has been removed after the computer is turned off, this step is not necessary.)

Windows XP

Select on the taskbar, select the PC Card, then select [Stop]

Follow the on-screen instructions. (When the PC Card has been removed after the computer is turned off, this step is not necessary.)

2 Press the button out, then press the button again 3 Slide the PC Card out

RAM Module

Use a RAM module meeting the RAM module specifications below. If a module is

used that does not meet the specifications, there are cases in which data may

become unusable or the computer may not operate properly.

200 pins, SO-DIMM, DDR-SDRAM, PC2100 Compliant

Only a RAM module designed for PC2100 can be added.

CAUTION

RAM modules are extremely sensitive to static electricity. There are cases where static electricity generated by the human body has adversely affected such modules. When inserting or removing a RAM module, do not touch the terminals or internal components, insert objects other than the module, or allow foreign particles to enter . Doing so has been known to cause damage, fire or electric shock.

RAM module specifications

Inserting/Removing RAM Module

Screw

Memory Cover

1 Power off your computer ( "Starting Up/Shutting Down")

Do not shut down using the standby or hibernation function. Disconnect the AC adaptor, turn the computer over and remove the battery pack.

2 Turn the computer over and remove the memory cover after

removing the screw holding it in place

RAM Module

3 Inserting the RAM module

1 Slide in the module at an angle. 2 Snap the module into place by pushing down on it.

Removing the RAM module

1 Open the left and right hooks. 2 Gently remove the RAM module from the slot.

RAM Module Slot

Hooks

4 Put the cover back into place

1 Insert the cover diagonally, then fit it in place. 2 Fasten the screw.

NOTE

Whether the RAM module is properly recognized or not can be confirmed in [Information] of the Setup Utility ( page 44). If the RAM module is not recognized, power off the computer and insert it again.

Port Replicator

A port replicator is available as an option (CF-VEB501). This device elimi-

Expansion Bus Connector

nates the hassles of having you connect/disconnect the v arious cables when carrying your computer around and allows a variety of peripherals to be connected including a headphone or microphone, etc.

The port replicator connects to the expansion bus connector on the bottom of your computer. For more detailed information, refer to the operation manual of the port replicator.

Printer

Parallel Port

1 Power off your computer ( “Starting Up/Shutting Down”)

Do not shut down using the standby or hibernation function.

2 Connect the printer to your computer

3 Turn on the printer, then turn on your computer 4 Setting your printer

Windows 2000

Select [Start] - [Settings] - [Printers]. Find your printer’s icon, click on it, then select [File] - [Set as Default Printer]. If no icon is available, select [Add Printer] icon and follow the on-screen instructions.

Windows XP

Select [start] - [Printers and Faxes]. Find your printer’s icon, double-click on it, then select [Printer] - [Set as Default Printer]. If no icon is available, select [Add a printer] and follow the on-screen instructions.

NOTE

You may need to install a driver for your printer. Follow the onscreen instructions and refer to the operation manual of the printer on how to install the driver. Confirm whether or not the setting for [Parallel Port] in the Setup

Utility is optimal. ( page 45)

External Display

1 Po wer off y our computer ( "Starting Up/Shutting Down")

Do not shut down using the standby or hibernation function.

2 Connect the external display to the e xternal displa y port

on your computer

3 Turn on the external display, then turn on your computer

When an external display is connected, the computer displays on both the internal LCD and the external display after Windows starts up re-

External Display Port

gardless of [Display] setting in the Setup Utility. It is possible to change the setting to display only on the external display

or only on the internal LCD with Fn + F3 .

4 Set your external display

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Display] - [Settings] - [Advanced] - [Monitor] and make the monitor settings. When a monitor that does not conform to the Plug & Play standards is connected, select [Monitor] - [Properties] - [Driver] - [Update Driver] and make the monitor settings.

Windows XP

Select [start] - [Control Panel] - [Appearance and Themes] - [Display] [Settings] - [Advanced] - [Monitor] and make the monitor settings. When a monitor that does not conform to the Plug & Play standards is connected, select [Monitor] - [Properties] - [Driver] - [Update Driver] and make the monitor settings.

Dualview Windows XP

NOTE

For more detailed information, refer to the operation manual of the external display. Set number of colors, screen resolution, or refresh rate correctly to suit the monitor. When the display destination of the screen is switched using Fn +

F3 after [Command Prompt] screen is set to “Full Screen”, the display destination returns to the destination before switching if an “EXIT” is input and [Command Prompt] screen is closed. This can also happen if the “Full Screen” is canceled via an Alt + Enter command. Press Fn + F3 again.

With Dualview, you can use both the internal LCD and the external display as an extended display domain. You can also drag a window from the internal LCD to the external display. To use the Dualview;

1 Select [Settings] in [Control Panel] - [Appearance and Themes] - [Dis-

play].

2 Select display [2] and add a check mark f or [Extend my Windows desktop

onto this monitor], then select [Apply].

3 Make the settings for each display (screen area, colors, etc.).

(To next page)

External Display

NOTE

If you change the resolution and/or color setting, be sure to restart the computer. There are some applications that cannot be used in the Dualview. When the button to maximize a windo w is pressed, one of the displays will show the maximized display. A window that has been maximized cannot be mov ed to the other display. When the Dualview is being utilized, the pop-up icon window is displayed only on the display [1].

CAUTION

When the application running is not shown on the display, refer to the following items. (Under the condition the application is in the external display (external display [2]), or after the application is closed in the external display, there are cases the application will not be shown in the display when executed the next time if the position of the Extension Display is changed or the Dualview is closed.)

When there is no display after the position of the extension display is changed:

The application running is being displayed at the position of the extension display before the change. Return the position of the extension display to the condition before the change. Move the application to the internal LCD (internal LCD [1]), and then correct the position of the extension display.

When there is no display when the Dualview is disabled:

The application running is being displayed in the external display (external display [2]). Set the Dualview again, move the application from the external display (external display [2]) to the internal LCD (internal LCD [1]) and then disable the Dualview.

When the Dualview is used, set [Never] for [Plugged in] and [Running on batteries] for [Turn off monitor] in [Control Panel] - [Performance and Maintenance] [Power Options] - [Power Schemes]. If this setting is not made, there are cases the display will not be shown properly. To prevent images from being burned onto the external display, manually shut off the power to the external display when the display does not have to be used. When the display domain for the Dualview is changed, there are cases the wallpaper and icons become displaced. Wallpaper: Change the setting for the wallpaper. Icons: Run the command to automatically realign the icons. (Auto Arrange) When an animated pointer is used for the mouse pointer (e.g., when changing the theme in [Appearance and Themes] of [Control Panel]), an error may occur when resuming from the standby or hibernation mode. In such cases, change the mouse pointer to the standard pointer with the following procedure.

1 In [Control Panel], select [Printers and Other Hardware] - [Mouse].

2 Select [Pointers].

3 Select [Windows Default (system scheme)] in [Scheme], then select [OK].

When an external display not compatible with VESA DPMS is used, there are cases the display of the external displa y will be adversely affected when the LCD panel is closed. In such cases, turn the power of the external display OFF.

USB Devices

Connecting USB devices

Connect the USB device to your computer, referring to the operation manual of the USB device

You may need to install drivers compatible with the OS y ou are using f or your USB devices. Follow the on-screen instructions and refer to the operation manual for USB devices on how to install the driver.

NOTE

USB Ports

USB devices may be attached or removed without turning off the computer’s power. When a USB device is connected, there are cases the standby or hibernation function will not operate in a normal manner due to the USB device. In addition, a USB device may have to be removed temporarily and the computer restarted in cases where the computer is unable to start up properly. Some devices will not operate when connected to a USB HUB; these devices must be connected directly to the USB port on your computer . When the computer enters standby or hibernation mode, or a USB device is removed and then connected, the device may not be correctly recognized. If this happens, try removing and connecting the device once more.

Windows 2000

When the computer enters standby or hibernation mode and then resumes while a USB 1.1 device is connected, a device disconnection warning message may appear on the screen, but this will not impede the computer’s operation.

Windows XP

If noise is generated when speakers are used with a USB connection, perform the following oper ations after logging on with the administrator authority. Input [c:\util\cpupower\setup.exe] in [start] - [Run] and select [OK]. Follow the on-screen instructions. Select [Performance] in [start] - [All Programs] - [Panasonic] - [CPU Idle Setting] and select [OK], then [Yes]. The computer will restart automatically. In [start] - [Control Panel] - [Performance and Maintenance] - [Power Options], select [Always On] in [Power Schemes] and select [OK]. These operations will reduce the noise from speakers with USB connections generated as a result of the CPU’s power saving function, but the noise will not be completely eliminated. Furthermore, these operations will have no effect on noise generated due to other factors (e.g., noise generated during periods of exceptionally high load on the CPU, such as during video playback). When these operations are performed, the battery running time will be reduced to some extent. We thus recommend that when not using speakers with USB connections, select [Battery (Windows XP Standard)] in [CPU Idle Setting], and return [Power Schemes] in [Power Options] to [Portable/Laptop].

USB Devices

Removing USB devices

CAUTION

Do not remove a USB device while your computer is in the standb y or hibernation mode. Save important data and close each application.

1 Windows 2000

Select on the taskbar and select the USB device, then select [Stop]

Follow the on-screen instructions. (When is not displayed or when the USB device has been removed

after the computer is turned off, this step is not necessary.)

Windows XP

Select on the taskbar and select the USB device, then select [Stop]

Follow the on-screen instructions. (When is not displayed or when the USB device has been removed

after the computer is turned off, this step is not necessary.)

2 Remove the USB device

IEEE 1394 Devices

A digital video camcorder or other IEEE 1394 standard device can be connected to the computer.

Connecting IEEE 1394 devices

1 Turn on the computer ( “Star ting Up/Shutting Down”)

and the IEEE 1394 device

2 Connect the IEEE 1394 device to the computer

Refer to the instructions manual included with the IEEE 1394 devices.

NOTE

For more detailed inf ormation, refer to the oper ation man ual of the IEEE

IEEE 1394 Interface Connector

1394 device. You may need to install drivers compatible with the OS you are using for your IEEE 1394 devices. Follow the on-screen instructions and refer to the operation manual for IEEE 1394 devices on how to install the driver.

Removing IEEE 1394 devices

CAUTION

When an IEEE 1394 device is connected to the computer and the pow er for both the device and the computer is on, do not power off the IEEE 1394 device.

1 Power off the computer ( “Starting Up/Shutting Down”)

and remove the cable fr om the IEEE 1394 Interface connector of the computer

2 Po wer off the IEEE 1394 device and remove the cable

Modem

Connecting the Internal Modem with a Telephone Jack

CA UTION

Do not use the PBX internal phone lines inser ted in company offices. Doing so may lead to a fire or electric shock. It is not possible to connect the modem to any of the following lines.

· Internal home phones

· Intercoms

Be sure to connect the modular cable into the modem port, not into the LAN port.

Modem

1 Connect the computer and the telephone jack using a mo-

dem telephone cable

Open the modem cover, position the cable so that the tab matches the port ( ), and insert the cable.

2 Set the modem

Windows 2000

1 Select [Edit] in [Start] - [Settings] - [Control Panel] - [Phone and Modem Op-

tions] - [Dialing Rules], then select the location from which you will be dialing in [Country/region].

2 Input the necessary information (items such as the country, area code, etc.),

select [OK], then select [OK].

Windows XP

1 Select [Edit] in [start] - [Control Panel] - [Printers and Other Hardware] - [Phone

and Modem Options] - [Dialing Rules], then select the location from which you will be dialing in [Country/region].

2 Input the necessary information (items such as the country, area code, etc.),

select [OK], then select [OK].

NOTE

Do not enter either the standby or hibernation mode during communications.

Modem

Ring Resume Function

With this function, if the telephone that is connected to the modem rings in the standby mode, the power of the computer automatically switches ON. This function is convenient when using automatic information receiving applications such as a FAX application. When using this function, it is necessary to run a software application able to maintain the condition to receive telephone calls and to return the computer to the original condition after a call. For further details, refer to the operation manuals pro vided with software applications.

Enabling the Ring Resume Function

1 Windows 2000

Select [Device Manager] in [Start] - [Settings] - [Control Panel] - [System] [Hardware].

Windows XP

Select [Device Manager] in [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware].

2 Select the modem you are using from [Modems]. 3 Select [Power Management], add the check mark f or [Allow this de vice to bring

the computer out of standby], then select [OK].

NOTE

This function does not work when the computer is off or is in hibernation mode. After operations are resumed from standby status, the screen remains dark. The former screen display will be restored when the keyboard or touch pad is touched. The computer cannot resume if a telephone is connected to the line of a modem (e.g., a PC Card modem) other than the internal modem.

CA UTION

When using this function, it is recommended that the AC adaptor be connected to the computer. Concerning the setting for [System standby]*

• Roughly consider the communication time and then set [System standby]. There may be cases where the computer enters the standby mode after the time set for [System standby] elapses even during communications, and cuts off the communications.

• If [Never] is set, the computer will not enter the standby mode during communications, but once the computer resumes, the power of the computer will remain on while the user is absent.

* Windows 2000 : Select [Start] - [Settings] - [Control P anel] - [Power Options]

- [Power Schemes]

Windows XP : Select [start] - [Control Panel] - [Performance and Mainte-

nance] - [Power Options] - [Power Schemes]

When the Ring Resume function is being used, some time elapses before a connection is established (equal to the time for the computer to resume). To allow the computer to resume, set the “Call” to a larger value than a typical telephone call. If it is not possible for the sending side to set a long “Call”, set the “Number of rings until answer” (with the softw are application that is able to maintain the condition to receive telephone calls) to a small value.

LAN

Connecting LAN

LAN

When using the computer as a network computer, some additional settings may have to be made depending on the usage conditions. We recommend asking your system administrator or the person in charge of the network.

1 Po wer off your computer ( “Starting Up/Shutting Down”)

Do not shut down using the standby or hibernation function.

2 Connect the cable

Connect the LAN port and the network system (server, HUB, etc.) using a LAN cable.

NOTE

Do not use the standby or hibernation functions during communications (except when the Wake up from LAN function is in use), as this may cause an error in data transmission or reception. The timeout function may engage even during data transmissions, causing the computer to automatically go into standby or hibernation mode. When not using the Wake up from LAN function, we recommend disabling the timeout function using the following procedure.

Windows 2000 : [Control Panel] - [Power Options] - [Power Schemes] Windows XP : [Control Panel] - [Performance and Maintenance] - [Power

Options] - [Power Schemes] If you are unable to connect to the network (when the indicator of your HUB unit does not light):

1 Windows 2000

Select [Device Manager] in [Start] - [Settings] - [Control Panel] - [System] [Hardware].

Windows XP

Select [Device Manager] in [start] - [Control Panel] - [P erf ormance and Maintenance] - [System] - [Hardware].

2 Select the network adaptor name you are using from [Network adapters]. 3 Select [Advanced]. 4 Confirm the settings of each item.

LAN

Wake up from LAN

This is a function of the internal LAN to automatically power the computer on from a network server when the computer is in the standby or hibernation mode. T o use this function, it is necessary to have a network environment that accommodates Wake up from LAN.

Enabling the Wake up from LAN Function

1 Windows 2000

Select [Device Manager] in [Start] - [Settings] - [Control Panel] - [System] [Hardware].

Windows XP

Select [Device Manager] in [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware].

2 Select the network adaptor name you are using from [Network adapters]. 3 Select [P o wer Management], add the check mark for [Allow this device to bring

the computer out of standby] and [Allow the computer to turn off this device to save power], then select [OK].

4 Delete the check mark for [Prompt f or password when computer resumes from

standby] in [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced], then select [OK].

NOTE

Be sure to connect the AC adaptor, and enable the supply of power. Make settings to allow the use of a Local Area Network. The computer will not “wake up” if the LAN cable is disconnected and reconnected. The Wake up from LAN function will not operate under the f ollowing conditions:

When the computer has been shut down. When the AC adaptor and battery pack are removed from the computer or reattached to the computer.

Hard Disk Drive

To change your hard disk drive, contact P anasonic Technical Support

CA UTION

To change your hard disk drive, contact Panasonic Technical Support. Be sure to back up all important data before the change. You can erase the data before changing the hard disk drive. ( “Hard Disk Data Erase Utility”) If [Hard Disk Lock] is set to [Enable] in the Setup Utility, change this to [Disable] before the change. Be careful when replacing the hard disk drive. The hard disk drive is extremely sensitive to shock. In addition, static electr icity could later affect some internal components.

Installing/Removing the hard disk drive

Latch

Mark

Cover

1 Power off y our computer ( “Starting Up/Shutting Down”)

Do not shut down using the standby or hibernation function. Disconnect the AC adaptor, then turn your computer over and remove the battery pack.

2 Remove the cover

Slide the latch, and then without releasing it, slide and lift the cover carefully. The hard disk is attached behind the cover.

3 Change the hard disk drive and close the cover

Match the mark on the cover to the body of the computer, then slide the cover back into place and put the battery pack back in place.

CAUTION

For an improperly attached cover, the hard disk dr ive may fall out while you are carrying around your computer.

Setup Utility

Running the Setup Utility

1 Turn on or restart the computer 2 Press F2 while [Press F2 to enter SETUP] is displayed soon

after the computer begins the startup procedure

(If you fail to press F2 at this time, restart your computer.) If [Enter Password] is displayed, enter your password. When a User Pass word is entered, some contents cannot be changed ( page 12).

NOTE

If you fail to press F2 at the right moment, the Setup Utility will not start up. In this case, power off the computer and try again. To close the Setup Utility, press Esc , select the exiting method in [Exit] menu, then press Enter .

Key Operations

F1 :To display the corresponding “help” file. Esc :To display [Exit] menu.

:To move among the items.

:To move among the menus.

F5 F6 :To move among the values. Enter :To display sub-menu of each item selected by .

F9 :To set default settings (except the password).

(When starting up the Setup Utility with the User Password, this key is not available.)

F10 :To save the settings and exit.

NOTE

When setting date and time, Tab can be used to move the cursor.

Setup Utility

Information Menu

Language: [English] Model No.: xxxx

Serial No.: xxxx CPU Type: xxxx CPU Speed x.x GHz BIOS: Vx.xxLxx Embedded Controller: Vx.xxLxx System Memory: xxx MB Video RAM: xxx MB Primary Master: xx GB Secondary Master: CD Drive

Parameters

Language*

Main Menu

Parameters

Touch Pad

Display*

Display Expansion

CD Drive Speed*

Environment

( : Default)

English Japanese

System Date: [xx/xx/xxxx] System Time: [xx:xx:xx] Touch Pad: [Enable] Display: [Simultaneous] Display Expansion: [Enable] CD Drive Speed: [High] Environment: [Normal T emperature]

( : Default)

Disable Enable

External Monitor Internal LCD Simultaneous

Disable Enable

High Low

Normal T emper ature High Temperature

* Select the language for displaying the Setup Util-

ity.

*1When an external display is connected, the

computer displays on both the internal LCD and the external display after Windo ws starts up regardless of [Display] setting.

For a CD-R/RW and DVD Multi dr ive, the de-

scription for “CD Drive Speed” applies to read only.

Setup Utility

Advanced Menu

Serial Port : [Enable] Parallel Port: [Enable]

Modem : [Enable] LAN: [Enable]

1394 Port: [Enable]

(Display may differ depending on computer model.)

Mode: [ECP]

Boot up from LAN: [Enable]

Parameters

Serial Port

Parallel Port

Mode*

Modem

LAN

Boot up from LAN*

1394 Port

( : Default)

Disable Enable

Uni-directional Bi-directional EPP ECP

Disable Enable

*1This item is displayed only when [Parallel P ort]

is set to [Enable].

[Disable] is automatically set when [LAN] is set to [Disable].

Setup Utility

Security Menu

Password on boot: [Enable] Display Boot Menu: [Enable]

Set Supervisor Password: [Enter] Hard Disk Lock: [Disable] User Password Protection: [No Protection]

Set User Password: [Enter] Floppy Oper ation: [Enable]

When the Setup Utility is started up with the User Password;

NOTE

[Set Supervisor Password] and [Hard Disk Lock] will not be displayed. The User Password can be changed only when [User P assword Protection] has been set to [No Protection]. The User Password cannot be deleted.

Parameters

Password on boot

Display Boot Menu

Set Supervisor Password Hard Disk Lock*

User Password Protection

Set User Password* Floppy Operation

( : Default)

Disable Enable

To the sub-menu Disable

Enable No Protection

Protected To the sub-menu Disable

Enable

* Setting impossible when the Supervisor Pass-

word is not set.

Setup Utility

Boot Menu

Floppy Drive Hard Disk Drive CD Drive LAN

The default order is as follows: [Floppy Drive] [Hard Disk Drive] [CD Drive] [LAN]. To move a device up by one in the order, select the device with and ,and then press F6 . To move a device down b y one in the order, select the device with and ,and then press

F5 .

Boot First Menu

NOTE

The device for starting up the Operating System can also be selected during computer start-up. After the computer is turned on, the device selection display will appear when Esc is pressed while “Press Esc to enter Boot First Menu” is shown. When the setting of [Boot] menu is changed, the selection screen display will also change. The Boot First Menu is displayed only when [Display Boot Menu] in Security Menu is set to [Enable].

Exit Menu

Save Values & Exit Exit Without Saving Changes Get Default Values Load Previous Values Save Current Values

Refresh Battery

Parameters

Save Values & Exit Exit Without Saving Changes Get Default Values* Load Previous Values Save Current Values Refresh Battery

* This item may not be displayed when starting up the Setup Utility with the User Password.

Exit the Setup Utility and save your changes to CMOS. Exit the Setup Utility without saving your changes to CMOS. Set the default settings. Load previous values from CMOS for all Setup items. Save your changes to CMOS. Refreshing the Battery ( page 21)

Technical Information

Network Connections and Communications Software

If the power saving function (standby or hibernation mode) activates while communications software is being used, the network connection may be interrupted, or performance may be adversely affected. If this happens, restart the computer. Be sure to close the communications software before using the power saving function. When using the computer in a network environment, we recommend that you set [System standby] and [System hibernates] to [Never], using the following procedure:

Windows 2000

[Start] - [Settings] - [Control Panel] - [Power Options]

Windows XP

[start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power Schemes]

When using the Files on the Retail Ver sion of the Windows CD-ROM

The Windows files included in the Retail Version of the Windows CD-ROM for each OS are contained in the following folders:

Windows 2000

c:\winnt\cdimage

Windows XP

c:\windows\docs, c:\windows\dotnetfx, c:\windows\i386, c:\windows\support, c:\windows\valueadd

Precautions When Using a CardBus Type LAN Card

Prior to usage, optimize the LAN card settings by following the procedure given below. Failure to do so may result in an error message being displayed when performing a copy operation via the LAN card with a computer on the network.

1 Select the network card you are using from [Network adapters] in [Control Panel] -

[System] - [Hardware] - [Device Manager]

2 Select [Advanced], select [Store And Forward] from [Property], then set [Enable] for

[Value] if it is set to [Disable] (This item may be unavailable for some types of network cards.)

Windows 2000

DMI Viewer

This computer conforms to the specifications of the Desktop Management Interface (DMI). The DMI Viewer can be used when you want to know information on the internal systems this computer supports, star ting with the CPU and memory.

Running DMI Viewer

Windows 2000

Select [DMI Viewer] from [Start] - [Programs] - [Panasonic]

Windows XP

Select [DMI Viewer] from [start] - [All Programs] - [Panasonic]

The screen shown below is displayed. When you click on an item, detailed information on that item will be displayed.

Saving Information to a File

Displayed information can be saved to a text file (.txt). Run the DMI Viewer and display the information you wish to save.

1 To save the item that is displayed

Select [Save Selected Data] from [File] menu.

To save all items

Select [Save All Data] from [File] menu.

2 Select the folder, input the file name, and select [Save]

List of Error Codes

The following is a list of the messages that BIOS can display. Most of them occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured. Following the list are explanations of the messages and remedies for reported problems. If your system displa ys any of the below error messages other that the ones marked with an asterisk (*), write down the message and contact Panasonic Technical Support. If your system fails after you make changes in the Setup menus, reset the computer, enter Setup and install Setup defaults or correct the error.

0200 Failure Fixed Disk

Fixed disk in not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup. Find out if the fixed-disk type is correctly identified.

0210 Stuck key

Stuck key on keyboard.

0211 Keyboard error

Keyboard not working.

0212 Keyboard Contr oller Failed

Keyboard controller failed test. May require replacing keyboard controller.

0213 Keyboard loc ked - Unlock key switch

Unlock the system to proceed.

0230 System RAM Failed at offset : nnnn

System RAM failed at offset nnnn of the 64k block at which the error was detected.

0231 Shadow RAM Failed at offset : nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.

0232 Extended RAM Failed at offset : nnnn

Extended memory not working or not configured properly at offset nnnn.

0250 System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.

*0251 System CMOS checksum bad - Default configuration used

System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default SETUP Values. If y ou do not w ant these values , enter Setup and enter y our o wn values . If the error persists, check the system battery or contact Panasonic Technical Support.

0260 System timer error

The timer test failed. Requires repair of system board.

0270 Real time clock error

Real-time clock fails BIOS test. May require board repair.

*0280 Previous boot incomplete - Default configuration used

Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect values and they are not corrected, the ne xt boot will likely fail. On systems with control of wait states, improper Setup settings can also terminate POST and cause this error on the next boot. Run Setup and verify that the wait-state configuration is correct. This error is cleared the next time the system is booted.

0281 Memory Size found by POST differed from EISA CMOS

Memory size found by POST differed from EISA CMOS.

02B0 Diskette drive A error 02B1 Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that the drive is defined with the proper diskette type in Setup and that the diskette drive is attached correctly.

02B2 Incorrect Drive A type - run SETUP

Type of floppy drive A: not correctly identified in Setup.

02B3 Incorrect Drive B type - run SETUP

Type of floppy drive B: not correctly identified in Setup.

02D0 System cache error - Cache disabled

Contact Panasonic Technical Support.

02F0: CPU ID:

CPU socket number for Multi-Processor error.

02F4: EISA CMOS not writable

ServerBIOS2 test error: Cannot write to EISA CMOS.

List of Error Codes

02F5: DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.

02F6: Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).

02F7: Fail - Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device address Conflict

Address conflict for specified device.

Allocation Error for: device

Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.

Failing Bits : nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map indicates a failed bit. See error 230,231 or 232 for offset address of the failure in System, Extended or Shadow memory.

Invalid System Configuration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ conflict

I/O device IRQ conflict error.

Operating System not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly identified.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. P arity is a method for checking errors in binary data. A parity error indicates that some data has been corrupted.

Parity Check 2 nnnn

Parity error found in the I/O bu s. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????.

Press <F1> to resume, <F2> to Setup

Displayed after any reco v e r ab le error message . Press <F1> to start the boot process or <F2> to enter a Setup and change the settings. Write down and follow the information shown on the screen.

Dealing with Problems (Advanced)

When a problem occurs, refer to this page . If a problem appears to be related to a softw are application, read the softw are related manual. If you still cannot troubleshoot the problem, contact Panasonic Technical Support.

Starting Up

The power indicator or battery indicator is not lit

[Enter Password] is displayed

POST Startup Error(s) is displayed

Windows startup, or an operation is extremely slow

The date and time are incorrect

When resuming from the standby or hibernation mode, [Enter Password] does not appear even if a passwor d has been set in the Setup Utility

When the administrator password is forgotten

Check the cable connection for the AC adaptor. Check to see if a fully charged battery is properly inser ted. Remove the battery pack and disconnect the A C adaptor , then connect them again.

Input your password. If you have forgotten it, contact Panasonic Technical Support.

page 50

Press F9 in the Setup Utility ( page 43). This will restore the Setup Utility's settings to their default values (except the passw ord settings). Then, the Setup Utility must be run once again for you to input the appropriate operating environment settings. (The processing speed depends on the application software used, so this operation may not cause the processing speed to increase.)

You can set the date and time using the following procedure.

Windows 2000 : [Control Panel] - [Date/Time] Windows XP : [Control Panel] - [Date, Time, Language, and Regional Options]

- [Date and Time] When the computer is connected to a LAN, confirm the date and time of the server. If you continue to experience problems, the internal battery maintaining the clock

may need to be replaced. Contact Panasonic Technical Support. This computer will not correctly recognize the date and time starting from the year 2100 A.D.

Even when a password has been set in the Setup Utility, [Enter Password] does not appear when the computer resumes from the standby or hibernation mode. If you want to use the security function when using the standby or hibernation mode, use the Windows password as follows:

Windows 2000

Set the password in [Control Panel] - [Users and Passwords], then add the check mark for [Prompt for password when computer goes off standby] in [Control Panel] [Power Options] - [Advanced].

Windows XP

Select the account to change in [Control Panel] - [User Accounts] and set the password, then add the check mark for [Prompt for password when computer resumes from standby] in [Control Panel] - [Performance and Maintenance] - [Power Options]

- [Advanced].

Windows 2000

After reinstalling, setup Windows and then set the password again.

Windows XP

If you have created a password reset disk ( “First-time Operation”), a message is displayed when y ou fail to correctly enter the password. Follow the message’s instructions and set the password again by using the password reset disk. If you have not created a password reset disk, after reinstalling, setup Windows and then set the password again.

Dealing with Problems (Advanced)

Starting Up (continued)

When the previous item is not the cause

Display

No display after powering on

The power has not been turned off, but after a cer tain period of time, there is no display

The cursor cannot be controlled properly

An afterimage appears (e.g., green, red, and b lue dots remain on the display) or there are dots not displaying the correct colors

The screen becomes disordered

The external display no longer displays properly

Press F9 in the Setup Utility ( page 43). This will restore the Setup Utility’s settings to their default values (except the password settings). Try removing all peripheral devices. Check a disk error using the following procedure.

Windows 2000

1 Select [Local Disk(C:)] with the right button in [My Computer], and select [Properties]. 2 Select [Tools] - [Check Now]. 3 Select [Start] after selecting required items in [Check disk options].

Windows XP

1 Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select [Properties]. 2 Select [Tools] - [Check Now]. 3 Select [Start] after selecting required items in [Check disk options].

At start-up, press F8 to operate the computer in the safe mode.

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display. Try switching the display by pressing Fn + F3 . When displaying only through an external display, if the computer is shut down by using the standby or hibernation function, there will be no display on the LCD unless the external display is connected when operations are resumed. In this case, connect the external display or press Fn + F3 .

Has the computer been set to the power-saving mode? To resume operation of your computer from the condition the power of the display is off (for energy conservation purposes), press any key unrelated to the direct triggering of a selection, like Ctrl . To save power, your computer may have automatically entered the standby mode (power indicator blinks green) or hibernation mode (power indicator turns off). In such cases, press the power switch.

If you are using an external mouse, ensure that the external mouse has been connected correctly. Restart the computer by using the keyboard (Press , U , and select [Restart] with , then press Enter ). If the computer does not respond to keyboard commands , read “Computer hangs” ( page 57).

If an image is displayed f or a prolonged period of time, an afterimage may appear. This is not a malfunction. The afterimage will disappear when a diff erent screen is display ed. High-precision and advanced technologies are necessary in the production of color liquid crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either fail to light or remain constantly lit (that is, more than 99.998% of elements are functioning properly), no defect is considered to exist.

Changing the number of colors of the display ma y affect the screen. Restart the computer .

Windows XP

When using Dualview, use the same display colors for the external display as those used by the LCD.

When an external display not compatible with the power saving mode is used with the computer, the e xternal displa y may no longer display properly when the computer enters the condition the power of the display is OFF (for energy conservation purposes). In such cases, turn off the power to the external display.

Dealing with Problems (Advanced)

Display (continued)

When you want to display the fonts or icons at a larger size

Windows XP

An error occurs or the computer freezes while using Dualview

Battery Indicator

The red indicator lights

The red indicator blinks

The orange indicator blinks

Change the settings as follows (for more details, refer to the Windows Help).

Windows 2000

1 Select [Start] - [Settings] - [Control Panel] - [Display] - [Appearance]. 2 Select the scheme labeled “large” or “extra large” in [Scheme] to change the font

size, and select [Icon] in [Item] to change the icon size.]

3 Select [OK].

Windows XP

1 Select [start] - [Control Panel] - [Appearance and Themes] - [Display] - [Appear-

ance].

2 Select the font size in [F ont siz e], and select [Effects] and then add the check mark

for [Use large icons] to increase the icon size.

3 Select [OK], then select [OK].

If you use a 3D screen saver while in Dualview mode at a high resolution, an error may occur or the computer may freeze. Under these conditions, do not use a 3D screen saver.

The battery level is low. Quickly save current data and power off your computer. After connecting the AC adaptor or replacing the battery pack with a fully charged one, turn your computer on.

The battery pack or recharging function may be defective. Quickly save current data and power off your computer. Remove the battery pack and disconnect the AC adaptor, then connect them again. Check the model number of the battery pack. CF-VZSU18 (blue tab) cannot be used with this computer. Use only the specified battery pack (CF-VZSU18A, yellow tab). If the problem persists, contact Panasonic Technical Support.

Unable to recharge due to violation of temperature limits. The ambient temperature is outside the allowable range. Once the allowable range requirement is satisfied, charging begins automatically. When using the application, power consumption is high; therefore there is insufficient power to recharge the battery.

Shutting Down

Windows cannot be shut down or restarted

If a USB device is connected, try removing it.

Standby/Hibernation Function

Unable to enter standby or hibernation mode

Unable to automatically enter standby or hibernation mode

The computer does not resume

If a USB device is connected to the computer (note: only for some USB devices), remove the USB device temporarily. If the problem persists, restart the computer.

If an IEEE1394 device or other peripheral is connected to the computer, disconnect the device.

Did you press the power switch and hold it for four seconds or more? If you press the power switch and hold it for four seconds or more, the power will be turned off forcibly. In this case, all unsaved data will be lost.

T ouch Pad

Unable to input using the touch pad

Has the Setup Utility been used to set [Touch Pad] to [Enable]? ( page 44) When mouse drivers are installed (e.g., Intellimouse), the touch pad is unable to be used. Has the touchpad driver been properly installed?

Dealing with Problems (Advanced)

Keyboard

Only numbers can be inputted

Only capital letters are being inputted

How to input European characters (ß, à, ç), symbols or Euro Currency Symbol is unclear

Windows 2000

After resuming, input ke ys do not work properl y

Setup Utility

[Enter Password] is displayed

[Advanced] or [Boot] menu can not be registered

Some items in [Security] menu can not be registered

F9 does not work

Check whether the indicator is on. If it is on, the computer is in ten-key keyboard mode. To disable the ten-key mode, press NumLk .

Check whether the indicator is on. If it is on, the computer is in Caps Lock mode. To disable the Caps Lock mode, press Caps Lock .

Windows 2000

Select [Start] - [Programs] - [Accessories] - [System Tools] - [Character Map].

Windows XP

Select [start] - [All Programs] - [Accessories] - [System Tools] - [Character Map]. The Character Map will be displayed. Point to the desired font name and select it.

When the computer enters standby or hibernation mode while Alt , Ctrl or Shift are held down, these keys may remain in “pressed” mode when the computer resumes operation. Pressing these keys once will return the keys to normal.

Enter the User Password or Supervisor Password. If you have forgotten it, contact Panasonic Technical Support.

Restart the Setup Utility with the Supervisor Password.

Network

Unable to connect to a network

Windows 2000

When performing a copy operation via a LAN card with a computer on the network, an error message is displayed and the copy operation fails

Confirm that either [Modem] or [LAN] is set to [Enable] in the Setup Utility. When using the computer as a network computer, some additional settings may have to be made depending on the usage conditions . We recommend asking y our system administrator or the person in charge of the network. If the standby or hibernation mode is entered, the computer may hav e to be restarted. If the link lamp on the HUB unit is not on and the network cannot be accessed, set the speed to match the HUB unit. ( page 40)

The settings for the LAN card you are using may not be optimized. Confirm this with the following procedure.

1 Select the network card you are using from [Network adapters] in [Control P anel]

- [System] - [Hardware] - [Device Manager].

2 Select [Advanced], select [Store And Forward] from [Property], then set [En-

able] for [Value] if it is set to [Disable].

(This item may be unavailable for some types of network cards.) Confirm that the computer on the network is operating properly and that the file is not corrupt.

Sound

The sound is not heard

Try changing the mute by pressing Fn + F4 or Fn + F6 .

Fast User Switching function

Some applications do not work properly

When switching to a diff erent user with the Fast User Switching function, the following problems may occur.

• Some applications may not work properly (for example , PDF files may not be printed properly).

• It may not be possible to set the settings of the display.

• A serial mouse may not work.

• Fn + F3 may not work.

If any of the above occur, log on with the administrator authority again, not using the Fast User Switching function, and try the operation once more.

Windows XP

Dealing with Problems (Advanced)

Connecting Peripherals

An error occurs while installing the driver

Your peripheral does not work

Unable to print

The cursor does not move from mouse operations

The device connected to the serial port does not work

External mouse or trackball connected to the external keyboar d/mouse port does not work

A PC Card does not work

You do not know the available RAM module

The RAM module has not been recognized

The address map for IRQ, I/O port address, etc. is unclear

A USB device does not work

When you install the driver f or a PC Card or peripheral de vice , be sure to use a driv er that is compatible with the operating system. If you use an incompatible driver, malfunction may occur. For information on drivers, contact the manufacturer of the peripheral device you purchased.

When operation resumes from the standby or hibernation mode, serial devices such as a mouse, modem or PC Cards may not function properly. In such cases, you will need to restart your computer or reinitialize the individual devices.

Check the computer-printer connection. Make sure the printer is on. Make sure the printer is in the online state. Make sure paper is in the printer tray and there is no paper jam. Has the Setup Utility been used to set [Parallel Port] to [Enable]? Depending on the printer, EPP or ECP may not work at times.

Check your mouse connection, then restart the computer by using the keyboard (Press

, U , and select [Restart] with , then press Enter ).

Check the connection. Confirm that the device driver for the serial port works. Refer to the reference manual of the device. Confirm that two mouse devices are not connected, one through the external keyboard/mouse port and the other through the serial port. Try setting [Touch Pad] to [Disable] in the Setup Utility. Confirm that [Serial Port] has not been set to [Disable].

Try setting [Touch Pad] to [Disable] in the Setup Utility. In some circumstances, if a PS/2 external mouse with a serial interface con v ersion function is connected to the port, it may not operate normally. Try connecting it to the serial port .

Make sure the card is properly inserted. Confirm that the card conforms to the PC Card Standard. Note that after a driver (PC card driver or other) is installed, the computer must be restarted. Check that the proper port settings have been made. Read the PC Card’s man ual. Or, you ma y need to call the man uf acturer of the PC Card. Try removing/reinserting the PC Card by following the proper procedure. ( page 28) Confirm that a driver for your operating system has been installed.

page 30

Make sure the RAM module has been properly inserted. Use the RAM module that supports the recommended specifications.

Windows 2000

Check the address map by going to [View] - [Resources by type] in [Control Panel] [System] - [Hardware] - [Device Manager].

Windows XP

Check the address map by going to [View] - [Resources by type] in [Control Panel] [Performance and Maintenance] - [System] - [Hardware] - [Device Manager].

Make sure a driver is installed. Contact the manufacturer of the product.

Dealing with Problems (Advanced)

Disk Operations

Cannot read/write to a floppy disk

Unable to write to a floppy disk

How to format a floppy disk is unclear

Unable to read/write to the hard disk

When the previous item is not the cause

Trouble has occurred with the disc

The access lamp ( ) does not light

Cannot play disc or read data from it

Cannot eject disc

Has the floppy disk been correctly inserted? Has the floppy disk been correctly formatted? Has the Setup Utility been used to set [Floppy Operation] to [Enable]?

( page 46)

Your floppy disk content may be corrupted.

Is the floppy disk write-protected?

Windows 2000

Select [Format] in [My Computer] - [3 1/2 Floppy (A:)] - [File]. After confir ming the disk volume and format type, start formatting.

Windows XP

Select [Format] in [start] - [My Computer] - [3 1/2 Floppy (A:)] - [File]. After confirming the disk volume and format type, start formatting.

Your drive or file may not have been properly set. Check to see if the hard disk is full. If it is full, delete unnecessary files. Your hard disk content may be corrupted. Contact Panasonic Technical Support .

Try testing another drive or media.

You may need to clean the lens or disc.

Is the disc loaded on the tray correctly?

Is the disc bent, scratched, or dirty?

Is the computer powered on? To remove a disc when the computer is powered off, insert a pointed object (e.g., the bent-out tip of a paper clip, or the tip of a pencil or ballpoint pen) into the emergency hole. Pushing it completely to the end will free the tray so that it can be pulled out.

A blue background appears on the screen with the MPEG image

The CD drive vibrates a lot

The disc tray does not close

Others

Computer hangs

Emergency Hole

(The position of the emergency hole differs depending on the drive.)

Did you open the CD drive or remove the MPEG disc while it was operating? Re-insert the MPEG disc and close the CD drive. Press Enter .

Is the disc bent or labeled? Set [CD Drive Speed] to [Low] in the Setup Utility. ( page 44)

Did you touch the eject button when you close the tray?

Press Ctrl + Shift + Esc to open Task Manager and close the software application which is not responding. After shutting down by pressing the power switch for more than four seconds, press the power switch to power on and open the application again. If the program no longer works normally, delete the program using the following procedure. Then reinstall the program.

Windows 2000 : [Start] - [Settings] - [Control Panel] - [Add/Remove Programs] Windows XP : [start] - [Control Panel] - [Add or Remove Programs]

This manual is copyrighted by Matsushita Electric Industrial Co ., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the United States and/or other countries. PS/2® is a registered trademark of International Business Machines Corporation. Intel, Pentium and SpeedStep are either registered trademarks or trademarks of Intel Cor poration. Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

PCE0112A_2K/XP

Panasonic CF50B9KFBKM Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Read Me First

Key Combinations

LED Indicators

Touch Pad

Standby/Hibernation Functions

Security Measures

Computing on the Road

Battery Power

CD Drive

PC Cards

RAM Module

Port Replicator

Printer

External Display

IEEE 1394 Devices

Modem

Hard Disk Drive

Setup Utility

Technical Information

DMI Viewer

List of Error Codes

Dealing with Problems (Advanced)
