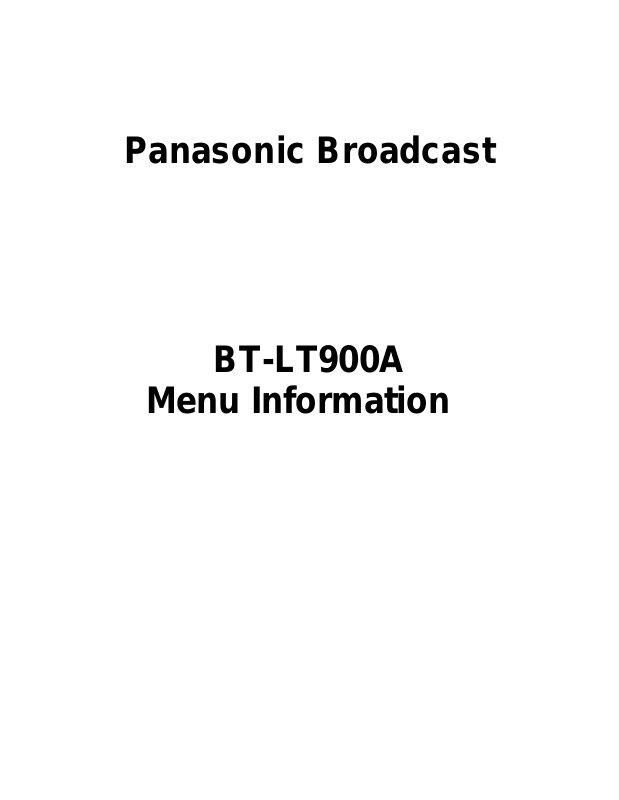

Panasonic BT-LT900A User Manual

Panasonic Broadcast

BT-LT900A

Menu Information

How to use the on-screen menus

[MAIN MENU]
MARKER 4
VIDEO CONFIG 4
SYSTEM CONFIG 4
OSD CONFIG 4
GPI 4
INPUT SELECT 4
CONTROL 4

EXIT SEL ENTER

1

MENU

XW

ENTER

SDI1 1080/60I
CRCC
DC150V 60%

.

Four kinds of information—menus, status displays, image control settings and battery voltage—can be displayed on the
screen.

Menu display

This display appears when the MENU/EXIT button is
pressed. If no further action is taken for the next 120
seconds, the display will be automatically cleared.
The position where the display appears on the screen can
be changed using the marker setting.
For details on the menu, refer to “MAIN MENU” (page 15).

Status display

The status display information is displayed under the

1

2

3

1

Channel and signal format

The channel which has been selected—whether SDI 1,
SDI 2, VIDEO, YPBPR or RGB—is displayed here.
Indicated as the signal format is the format of the signals
which have been input. However, “UNSUPPORTED
SIGNAL” will appear if signals which are not supported
have been input.
Similarly, “UNSUPPORTED SIGNAL” will also appear if
signals not selected as the FORMAT item setting on the
INPUT SELECT screen of the main menu are input even
when those signals are supported.
For details on the signals supported and format displays,
refer to page 12.

following conditions while the menu display is not on the
screen.

≥ When the input signals have been switched
≥ When the input channel has been changed
≥ When no signals are supplied

The display location and display time can be changed using
the menu settings. When images are adjusted using the
image controls while the status display information is on the
screen, the display is cleared, and the settings adjusted by
the controls are displayed instead.

2

Warning display

This appears when an error has occurred or when a
special mode is being used.
CRCC This indicates a CRCC error, and it appears

when the SDI signals contain an error.

FILM This appears when the film mode (FILM) has

been selected as the GAMMA SELECT item
setting on the VIDEO CONFIG screen of the
main menu.
This appears when REMOTE has been
selected as the CONTROL item setting on the
CONTROL screen of the main unit. The
monitor controls will no longer function at this
time.

3

Battery voltage display

This indicates the voltage level of the battery. If an Anton
Bauer digital battery is being used, its remaining level is
indicated as a number of “∫” blocks and as a percentage
along with the voltage value.

11

How to use the on-screen menus

DC150V 80%

.

[CONTRAST] 50

Image control display

The image control information is displayed when an image
has been adjusted using the image controls. (Refer to page

6)
It appears when a control has been pressed in so that it has
popped out or when an adjustment is made by turning an
already popped out control.
It is cleared when a control is pressed again and returned to
its original position. It is also cleared when a popped out
control is not touched for 10 seconds.

Battery voltage display

The battery voltage information is displayed all the time
when ON has been selected as the BATTERY REMAIN
item setting on the OSD screen of the main menu.
It indicates the voltage level of the battery. If an Anton
Bauer digital battery is being used, its remaining level is
indicated as a number of “∫” blocks and as a percentage
along with the voltage value.

Concerning the signal formats

Menu setting Signals whose input is accepted Status display

AUTO All supported signals The format of the input signals is displayed.

1080/60I

1080/50I 1080/50I 1080/50I

1080/30P

1080/25P 1080/25P 1080/25P

1080/24P

1080/24PsF

1035/60I

720/60P

720/60P ANAMO

576/50I 576/50I

480/60P 480/59.94P

480/60I 480/59.94I

NTSC NTSC

PAL PAL

1080/60I

1080/59.94I 1080/59.94I

1080/30P

1080/29.97P 1080/29.97P

1080/24P

1080/23.98P 1080/23.98P

1080/24psF

1080/23.98psF 1080/23.98PsF

1035/60I

1035/59.94I 1035/59.94I

720/60P

720/59.94P 720/59.94P

720/60P

720/59.94P 720/59.94P

1080/60I

1080/30P

1080/24P

1080/24PsF

1035/60I

720/60P

720/60P

576/50I

480/60P

480/60I

NTSC

PAL

12

Menu operations

[MAIN]

MARKER 4

VIDEO CONFIG 4
SYSTEM CONFIG 4
OSD CONFIG 4
GPI 4
INPUT SELECT 4
CONTROL 4

EXIT SEL ENTER

1

MENU

XW

ENTER

[MARKER]

MARKER SELECT MENU

MARKER 16:9 OFF
MARKER 4:3 OFF
MARKER BACK NORMAL
CENTER MARKER OFF
GPI PRESET1 80%
GPI PRESET2 80%

EXIT SEL ENTER

1

MENU

ENTER

XW

[MARKER]

MARKER SELECT GPI

MARKER 16:9 OFF
MARKER 4:3 OFF
MARKER BACK NORMAL
CENTER MARKER OFF
GPI PRESET1 80%
GPI PRESET2 80%

EXIT SEL SET

1

MENU

ENTER

XW

Menu operations

When the MENU/EXIT button is pressed, the main

1

menu appears on the screen.

MENU/EXIT button

Use the HD ZOOM/X button and BLUE/W button to

2

move the cursor, and select the desired menu using the
FUNCTION/ENTER button.

Use the HD ZOOM/X button and BLUE/W button to

4

change the setting, and press the FUNCTION/ENTER
button to enter the change.
Alternatively, the change will be canceled when the
MENU/EXIT button is pressed instead.

Displayed in green.

Press the MENU/EXIT button to exit the menu settings.

5

Use the HD ZOOM/X button and BLUE/W button to

3

align the cursor with the item to be changed, and press
the FUNCTION/ENTER button. The setting is now
displayed in green.

13

User data

[SYSTEM CONFIG]

BACK LIGHT 60

FUNCTION WFM
WFM FUNCTION
HD ZOOM FRONT
PEAKING PHASE PHASE
USER MODE LOAD FACTORY
USER MODE SAVE USER1

EXIT SEL SET

1

MENU

ENTER

XW

[USER MODE SAVE]

USER1

YES
NO

EXIT SEL SET

1

MENU

ENTER

XW

[SYSTEM CONFIG]

BACK LIGHT 60

FUNCTION WFM
WFM FUNCTION
HD ZOOM FRONT
PEAKING PHASE PHASE
USER MODE LOAD FACTORY
USER MODE SAVE USER1

EXIT SEL SET

1

MENU

ENTER

XW

[USER MODE LOAD]

USER1

YES
NO

EXIT SEL SET

1

MENU

ENTER

XW

This monitor enables the menu settings and screen values which have been adjusted by the image controls to be saved in
five user data files which can then be loaded as required.
The following data can be saved and loaded as user data files:

≥ All menu settings (including the function settings of the buttons at the front of the monitor) with the exception of USER

MODE LOAD/SAVE

≥ Screen values which have been adjusted by the image controls

Saving the user data

When the MENU/EXIT button is pressed, the main

1

menu appears on the screen.

Using menu operations (see page 13), select USER

2

MODE SAVE on the SYSTEM CONFIG screen, and
press the FUNCTION/ENTER button. The setting is
now displayed in green.

Displayed in green.

When the file whose data is to be saved is selected

3

from the USER1 to USER5 files and the
FUNCTION/ENTER button is then pressed, the screen
shown below appears.

Loading the user data

When the MENU/EXIT button is pressed, the main

1

menu appears on the screen.

Using menu operations (see page 13), select USER

2

MODE LOAD on the SYSTEM CONFIG screen, and
press the FUNCTION/ENTER button. The setting is
now displayed in green.

Displayed in green.

When the file whose data is to be loaded is selected

3

from the FACTORY or USER1 to USER5 files and the
FUNCTION/ENTER button is then pressed, the screen
shown below appears.
If FACTORY is selected at this time, the data is restored
to the factory settings.

Align the cursor with YES, and press the

4

FUNCTION/ENTER button.

14

Align the cursor with YES, and press the

4

FUNCTION/ENTER button.

MAIN MENU

MARKER

MARKER SELECT
MARKER 16:9
MARKER 4:3

GAMMA SELECT

SHARPNESS H
SHARPNESS V

BATTERY REMAIN
STATUS DISPLAY
CRCC MESSAGE
MENU POSITION
STATUS POSITION

ROTARY POSITION

COLOR TEMP.
SHARPNESS MODE

CONTROL
LOCAL ENABLE
BACKLIGHT TIME

SD ASPECT

I-P MODE
MONO

BACKLIGHT
FUNCTION
WFM
HD ZOOM
PEAKING/PHASE
USER MODE LOAD

GPI1
GPI2
GPI3
GPI4
GPI5

MAIN

VIDEO CONFIG

SYSTEM CONFIG

MARKER BACK

USER MODE SAVE

OSD CONFIG

GPI

INPUT SELECT

CONTROL

GPI PRESET1
GPI PRESET2

GPI6
GPI7
GPI8

SDI1
FORMAT
SDI2
FORMAT
VIDEO
FORMAT
YPBPR/RGB
MODE
FORMAT
COMPONENT LEVEL
RGB SYNC

CENTER MARKER

FILM GAMMA

Menu configuration

15

MAIN MENU

Menu items

MARKER

Item Setting Description

MARKER SELECT

MARKER 16:9 OFF

MARKER 4:3 OFF

MARKER BACK NORMAL

CENTER MARKER OFF

MENU
GPI

4:3
13:9
14:9
VISTA
CNSCO
95%
93%
90%
88%
80%

95%
93%
90%
88%
80%

HALF
BLACK

ON

For setting whether the marker display
settings are to be performed using the
menu or from the GPI connector.

MENU

: The operations are performed using

the menu. Operations from the GPI
connector are canceled.

GPI

: The operations are performed from

the GPI connector. The settings
established using the menu are
canceled.

For selecting the type of marker used for
16:9 images.

OFF

: No markers are displayed.

4:3: Markers indicating the 4:3 size are

displayed.

13:9: Markers indicating the 13:9 size are

displayed.

14:9: Markers indicating the 14:9 size are

displayed.

VISTA

: Markers in the vista size (1.85:1)

are displayed.

CNSCO

: Markers in the cinemascope size

(2.35:1) are displayed.

95%: The 95% area markers are displayed.
93%: The 93% area markers are displayed.
90%: The 90% area markers are displayed.
88%: The 88% area markers are displayed.
80%: The 80% area markers are displayed.
<Note>

When 4:3 images are displayed, the setting
of this item is not reflected.

For selecting the type of marker used for
4:3 images.

OFF

: No markers are displayed.
95%: The 95% area markers are displayed.
93%: The 93% area markers are displayed.
90%: The 90% area markers are displayed.
88%: The 88% area markers are displayed.
80%: The 80% area markers are displayed.
<Note>

When 16:9 images are displayed, the
setting of this item is not reflected.

For setting the background brightness of
the markers.

NORMAL

: The background is set to the

normal brightness.

HALF

: The background brightness is set

to 50%.

BLACK

: The background brightness is set

to 0%.

<Note>

The setting of this item is valid only when
4:3, 13:9 or 14:9 has been selected as the
MARKER 16:9 item setting.

For selecting whether to display the center
marker.

OFF: The center marker is not displayed.
ON: The center marker is displayed.

Item Setting Description

GPI PRESET1 4:3

13:9
14:9
VISTA
CNSCO
95%
93%
90%
88%
80%

GPI PRESET2 4:3

13:9
14:9
VISTA
CNSCO
95%
93%
90%
88%
80%

For setting the markers to be displayed if,
when MARKER1 ON/OFF has been
allocated to any item and GPI has been
selected as the MARKER SELECT item
setting on the GPI screen, the
corresponding pin has been set to ON.
For details, refer to “REMOTE
specifications” (page 22).
4:3: Markers indicating the 4:3 size are

displayed.

13:9: Markers indicating the 13:9 size are

displayed.

14:9: Markers indicating the 14:9 size are

displayed.

VISTA

: Markers in the vista size (1.85:1)

are displayed.

CNSCO

: Markers in the cinemascope size

(2.35:1) are displayed.

95%: The 95% area markers are displayed.
93%: The 93% area markers are displayed.
90%: The 90% area markers are displayed.
88%: The 88% area markers are displayed.
80%: The 80% area markers are displayed.

For setting the markers to be displayed if,
when MARKER2 ON/OFF has been
allocated to any item and GPI has been
selected as the MARKER SELECT item
setting on the GPI screen, the
corresponding pin has been set to ON.
For details, refer to “REMOTE
specifications” (page 22).
4:3: Markers indicating the 4:3 size are

displayed.

13:9: Markers indicating the 13:9 size are

displayed.

14:9: Markers indicating the 14:9 size are

displayed.

VISTA

: Markers in the vista size (1.85:1)

are displayed.

: Markers in the cinemascope size

CNSCO

(2.35:1) are displayed.

95%: The 95% area markers are displayed.
93%: The 93% area markers are displayed.
90%: The 90% area markers are displayed.
88%: The 88% area markers are displayed.
80%: The 80% area markers are displayed.

The underlined setting indicates the factory setting mode.

16

MAIN MENU

Types of markers

16:9 markers
(These appear when HD signals or when SD
signals with a 16:9 aspect ratio are supplied.)

Markers are displayed only in the form of vertical lines.
The shaded areas indicate what is set by the MARKER
BACK item.

4:3 markers 13:9 markers

80% area markers

4:3 markers
(These appear when SD signals with a 4:3
aspect ratio are supplied.)

Dotted lines are displayed as the markers.

95% area markers 93% area markers

14:9 markers

VISTA markers and CNSCO markers

Two rows of dotted lines are displayed across the screen as
these markers.

VISTA markers CNSCO markers

Area markers

Dotted lines are displayed as the markers.

95% area markers 93% area markers

90% area markers 88% area markers

80% area markers

Center marker

This appears at the center of the image.

Center marker

90% area markers

88% area markers

17

MAIN MENU

VIDEO CONFIG

Item Setting Description

GAMMA SELECT GPI

FILM GAMMA TYPE1

COLOR TEMP. USER

SHARPNESS
MODE

NORMAL
FILM

TYPE2

D93
D65
D56

HIGH
LOW

For setting the gamma mode.
GPI: This is the GPI setting. For

details, refer to “REMOTE
specifications” (page 22).

NORMAL

: The normal gamma mode is

established.

FILM: The film mode that supports the

Varicam digital cine camera is
established. The actual film mode
setting can be changed using the
FILM GAMMA item listed next.

This enables TYPE1 or TYPE2 to be
selected as the FILM setting for the
GAMMA SELECT item.
For the differences between TYPE1 and
TYPE2, refer to the graph below showing
the gamma characteristics curves.

Luminance

For setting the color temperature.

USER

: Any setting from 0 to 63 (equivalent

to a color temperature range from
3000 K to 9300 K) can be
established.

D93: This is equivalent to a color

temperature of 9300 K.

D65: This is equivalent to a color

temperature of 6500 K.

D56: This is equivalent to a color

temperature of 5600 K.

<Note>

The color temperature can be set for each
gamma mode (NORMAL, FILM).

For setting the image sharpness.
HIGH: The images are accentuated with

fine edges.

LOW: The images are accentuated with

thick edges.

<Note>

The sharpness can be set for VIDEO and
all other input channels.

Input level

Normal gamma characteristics
TYPE1 characteristics
TYPE2 characteristics

Item Setting Description

SHARPNESS H

SHARPNESS V 0

I-P MODE MODE2

MONO GPI

SD ASPECT GPI

0

:

2

:

30

:

2

:

30

MODE1

OFF
ON

16:9
4:3

For setting the image sharpness in the
horizontal direction.
This item enables two settings, one for the
VIDEO input signals and one for other
signals, to be stored in the memory.

<Notes>

≥ While this item’s setting is selected, the

only information displayed on the screen
is this item which appears at the bottom
left regardless of the MENU POSI setting
selected on the OSD screen.

≥ The sharpness can be set for VIDEO and

all other input channels.

For setting the image sharpness in the
vertical direction.
This item enables two settings, one for the
VIDEO input signals and one for other
signals, to be stored in the memory.

<Notes>

≥ While this item’s setting is selected, the

only information displayed on the screen
is this item which appears at the bottom
left regardless of the MENU POSI setting
selected on the OSD screen.

≥ The sharpness can be set for VIDEO and

all other input channels.

For switching the IP conversion mode.

MODE2

: Movement compensation mode

MODE1

: Normal mode

<Note>

This setting takes effect when progressive
signals (1080/30P, 1080/25P, 1080/24P,
720/60P or 480/60P) are input.

For selecting monochrome images.
GPI: This is the GPI setting. For details,

refer to “Concerning the REMOTE
specifications” (page 22).

OFF: Normal images
ON: Monochrome images
<Notes>

≥ No adjustments are possible when RGB

signals are input.

≥ When ON has been selected as this

item’s setting, the setting for the
CHROMA image control is fixed at 0.
When the setting is returned to OFF, the
CHROMA setting prior to the change is
restored.

For setting the aspect ratio of the SD
signals.
GPI : This is the GPI setting. For details,

refer to “REMOTE specifications”
(page 22).

16:9 : The images are displayed with a

16:9 aspect ratio.

4:3 : The images are displayed with a 4:3

aspect ratio.

The underlined setting indicates the factory setting mode.

18

MAIN MENU

SYSTEM CONFIG

Item Setting Description

BACKLIGHT 0

FUNCTION WFM

WFM FUNCTION

HD ZOOM FRONT

PEAKING/ PHASE PEAKING

USER MODE
LOAD

USER MODE SAVE USER5

:

60

ON/OFF
HV DELAY
UNDEF

GPI

GPI

PHASE

USER5
USER4
USER3
USER2
USER1
FACTORY

USER4
USER3
USER2
USER1

The underlined setting indicates the factory setting mode.

For adjusting the backlight brightness to a
level from 0 to 60. The higher the setting,
the brighter the backlight.

For setting the function to be allocated to
the FUNCTION/ENTER button.

WFM ON/OFF

HV DELAY: The blanked parts of the

UNDEF: No function is allocated.

For selecting whether the Y signal
(luminance) waveforms are to be displayed
using the FUNCTION/ENTER button or
from the GPI connector.

FUNCTION

GPI: The operations are performed

For selecting whether the HD ZOOM
function is to be operated using the HD
ZOOM/X button or from the GPI connector.

FRONT

GPI

For selecting the PEAKING or PHASE
function for the image control.

PEAKING

PHASE: The PHASE function is allocated

For calling the file in which the user data is
stored.

USER1-5

FACTORY

For saving the user data.

: The Y signal (luminance)

waveforms are displayed.

images are displayed.

: The waveforms are displayed

using the FUNCTION/ENTER
button.

from the GPI connector. For
details, refer to “REMOTE
specifications” (page 22).

: The function is operated using the

HD ZOOM/X button.

: The operations are performed from

the GPI connector. For details,
refer to “REMOTE specifications”
(page 22).

: The PEAKING function is

allocated to the control.

to the control.

: These are the files in which the

user has stored data. If the user
data has not yet been stored,
the settings are the same as the
ones in the FACTORY file.

: This file contains the factory

settings.

OSD CONFIG

Item Setting Description

BATTERY REMAIN OFF

STATUS DISPLAY CONTINUE

CRCC MESSAGE OFF

MENU POSITION LT

STATUS POSITION LT

ROTARY
POSITION

ON

3SEC. OFF
OFF

ON

CENTER
LB
RB
RT

CENTER
LB
RB
RT

LB
CB
RB
RT
LT
CENTER
OFF

For selecting whether to display the
remaining battery charge.

OFF:

The remaining charge is not displayed.

ON:

The remaining charge is displayed.

For setting how long the status display is to
remain on the screen.

CONTINUE

: The status display appears

3SEC.OFF

OFF

For selecting whether a message is to be
displayed when a CRCC error has been
detected.

OFF:
ON:

For setting the menu display position.

LT:
CENTER:

LB:
RB:
RT:

For setting the status display position.

LT:
CENTER:

LB:
RB:
RT:

For setting the display position of the
settings when images have been adjusted
using the image controls.

LB:The settings are displayed at the

CB:
RB:The settings are displayed at the

RT:
LT:
CENTER:

OFF:The settings are not displayed.

continuously at all times.

: The status display appears for

three seconds.

: The status display does not appear.

A CRCC error message is not displayed.
A CRCC error message is displayed.

The menu is displayed at the top left.

The menu is displayed in the center.

The menu is displayed at the bottom left.
The menu is displayed at the bottom right.
The menu is displayed at the top right.

The menu is displayed at the top left.

The menu is displayed in the center.

The menu is displayed at the bottom left.
The menu is displayed at the bottom right.
The menu is displayed at the top right.

bottom left.
The settings are displayed below the center.

bottom right.
The settings are displayed at the top right.
The settings are displayed at the top left.

The settings are displayed in the center.

GPI

Item Setting Description

GPI1-8 UNDEF

MARKER1 ON/OFF
MARKER2 ON/OFF
MARKER BACK HALF
MARKER BACK BLACK
CENTER MARKER
INPUT SEL. SDI1
INPUT SEL. SDI2
INPUT SEL. VIDEO
INPUT SEL. YPBPR/RGB
SD ASPECT
HD ZOOM
BACKLIGHT MIN.
R.TALLY
G.TALLY
MONO ON/OFF
GAMMA SELECT
WFM ON/OFF

For allocating particular
functions to particular pins
when remote control
operations are to be
performed using the GPI
signals. For details, refer to
“REMOTE specifications”
(page 22).

19

MAIN MENU

INPUT SELECT

Item Setting Description

1

SDI1 *

FORMAT AUTO

OFF
ON

1080/60I
1080/50I
1080/30P
1080/25P
1080/24P
1080/24PsF
1035/60I
720/60P
720/60P

576/50I
480/60I

ANAMO

For setting whether the SDI 1 signals can
be selected when the channels are to be
switched using the INPUT button.

OFF:

The SDI 1 signals cannot be selected.

ON:

The SDI 1 signals can be selected.

For selecting the signals whose input is to
be accepted at the SDI 1 connector.

AUTO:

All supported signals are accepted.

1080/60I:

1080/60I or 1080/59.94I format signals
are accepted.

1080/50I:

1080/50I format signals are accepted.

1080/30P:

1080/30P or 1080/29.97P format signals
are accepted.

1080/25P:

1080/25P format signals are accepted.

1080/24P:

1080/24P or 1080/23.98P format signals
are accepted.

1080/24PsF:

1080/24psF or 1080/23.98psF format
signals are accepted.

1035/60I:

1035/60I or 1035/59.94I format signals
are accepted.

720/60P:

720/60P or 720/59.94P format signals
are accepted.

720/60P ANAMO:

720/60P or 720/59.94P format signals
which support an anamorphic lens are
accepted.

576/50I:

576/50I format signals are accepted.

480/60I:

480/59.94I format signals are accepted.

Item Setting Description

1

SDI2 *

FORMAT AUTO

1

VIDEO *

FORMAT AUTO

1

YPBPR *

MODE YPBPR

OFF
ON

1080/60I
1080/50I
1080/30P
1080/25P
1080/24P
1080/24PsF
1035/60I
720/60P
720/60P

ANAMO
576/50I
480/60I

OFF
ON

NTSC
PAL

OFF
ON

RGB

For setting whether the SDI 2 signals can
be selected when the channels are to be
switched using the INPUT button.

OFF:

The SDI 2 signals cannot be selected.

ON:

The SDI 2 signals can be selected.

For selecting the signals whose input is to
be accepted at the SDI 2 connector.
The setting selection is the same as for the
SDI 1 FORMAT item.

For setting whether the VIDEO signals can
be selected when the channels are to be
switched using the INPUT button.

OFF:

The VIDEO signals cannot be selected.

ON:

The VIDEO signals can be selected.

For selecting the signals whose input is to
be accepted at the VIDEO connector.

AUTO:

All supported signals are accepted.

NTSC:

NTSC signals are accepted.

PAL:

PAL signals are accepted.

For setting whether the YPBPR/RGB
signals can be selected when the channels
are to be switched using the INPUT button.

OFF:

The YPBPR/RGB signals cannot be
selected.

ON:

The YPBPR/RGB signals can be
selected.

For switching between the YPBPR and
RGB analog signals.

YPBPR:

The analog signals are switched to
Y/Pb/Pr.

RGB:

The analog signals are switched to RGB.

The underlined setting indicates the factory setting mode.

20

*1 Up to three of these items can be set to OFF at the same time. Once the

three items have been set to OFF, it is no longer possible to set a fourth
item to OFF. It is not possible to set all the inputs to OFF.

MAIN MENU

INPUT SELECT

Item Setting Description

FORMAT AUTO

COMPONENT
LEVEL

RGB-SYNC G-ON

1080/60I
1080/50I
1080/30P
1080/25P
1080/24P
1080/24PsF
1035/60I
720/60P
576/50I
480/60P
480/60I

SMPTE
B75

EXT

For selecting the signals whose input is to
be accepted in the YPBPR mode and in the
RGB mode.
The signals can be set for each mode, and
when the MODE item setting is switched
from YPBPR to RGB or vice versa, the
mode is automatically switched so that the
signal format which has been set for the
mode now set is accepted.

AUTO:

All supported signals are accepted.

1080/60I:

1080/60I or 1080/59.94I format signals
are accepted.

1080/50I:

1080/50I format signals are accepted.

1080/30P:

1080/30P or 1080/29.97P format signals
are accepted. (This setting takes effect
only when YPBPR is selected.)

1080/25P:

1080/25P format signals are accepted.
(This setting takes effect only when
YPBPR is selected.)

1080/24P:

1080/24P or 1080/23.98P format signals
are accepted. (This setting takes effect
only when YPBPR is selected.)

1080/24PsF:

1080/24psF or 1080/23.98psF format
signals are accepted. (This setting takes
effect only when YPBPR is selected.)

1035/60I:

1035/60I or 1035/59.94I format signals
are accepted. (This setting takes effect
only when YPBPR is selected.)

720/60P:

720/60P or 720/59.94P format signals
are accepted.

576/50I:

576/50I format signals are accepted.

480/60P:

480/60P format signals are accepted.

480/60I:

480/59.94I format signals are accepted.

For selecting the input level of the Y/Pb/Pr
signals.

SMPTE

: This is selected when the signals

are to be output from an MII VTR.

B75: This is selected when the signals

are to be output from a Betacam
VTR.

For switching the connector where the sync
signal is to be accepted.
G-ON: This is selected when the sync

signal has been superimposed onto
the G signal.

EXT: The sync signal is accepted at the

SYNC connector among the analog
component/RGBS connectors.

CONTROL

Item Setting Description

CONTROL LOCAL

LOCALENABLE

BACKLIGHT TIME

REMOTE

DIS.
INPUT

For selecting where the operations are to
be initiated.

LOCAL

: Only operations initiated from the

main controls can be performed.
Remote control operations cannot
be performed.

REMOTE

: Remote control operations can be

performed, but no operations
initiated by the main controls can
be performed although there are a
few exceptions to this.

<Notes>

≥ When REMOTE has been selected, the

“” lock mark appears on the status
display.

≥ When REMOTE has been selected, only

the settings of the CONTROL item and
LOCALENABLE item on the CONTROL
screen can be changed as menu
operations.

For selecting whether to enable the input to
be switched to the main controls when
REMOTE has been selected.
DIS: When REMOTE has been selected,

the input can no longer be switched
to the main controls.

INPUT

:Even when REMOTE has been

selected, the input can be switched
to the main controls.

For displaying the total operation time of
the backlight.

The underlined setting indicates the factory setting mode.

21
