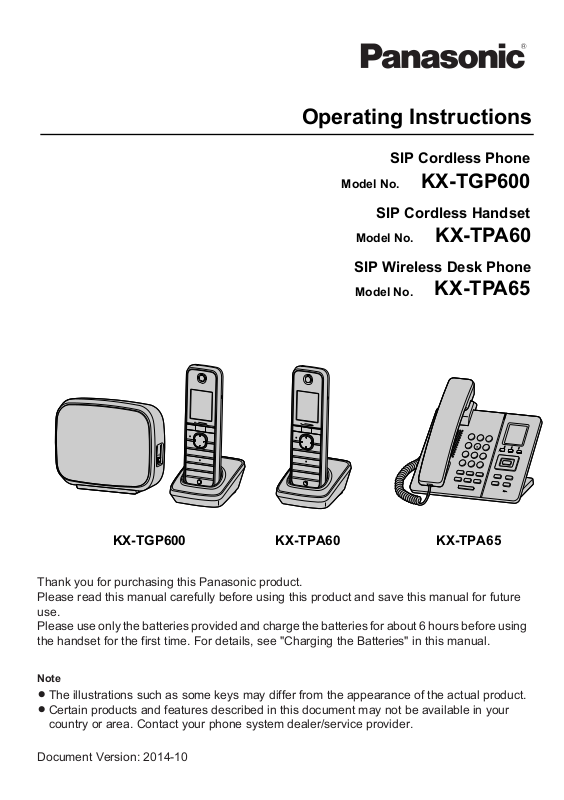

Panasonic 96NKX TPA65 Users Manual
KX-TGP600
KX-TPA60
Operating Instructions
SIP Cordless Phone
SIP Cordless Handset
KX-TGP600
KX-TPA60
Model No.
Model No.
SIP Wireless Desk Phone
KX-TPA65
Model No.
KX-TPA65
Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future
use.
Please use only the batteries provided and charge the batteries for about 6 hours before using
the handset for the first time. For details, see "Charging the Batteries" in this manual.
Note
R The illustrations such as some keys may differ from the appearance of the actual product.
R Certain products and features described in this document may not be available in your
country or area. Contact your phone system dealer/service provider.
Document Version: 2014-10
MODEL NO.
SERIAL NO.
DATE OF PURCHASE
NAME OF DEALER
DEALER’S ADDRESS
DEALER’S TEL. NO.
Introduction
Outline
This manual describes information about the installation and operation of KX-TGP600, KX-TPA60 and
KX-TPA65.
Note
R The contents and design of the software are subject to change without notice.
Related Documentation
R Quick Start Guide
Describes basic information about the installation and safety precautions to prevent personal injury
and/or damage to property.
R Administrator Guide
Describes detailed information on the configuration and management of this unit.
This guide describes information about not only KX-TGP600.@@
Manuals and supporting information are provided on the Panasonic Web site at:
http://panasonic.net/pcc/support/sipphone
For Future Reference
Record the information in the space below for future reference.
Note
R The serial number of this product may be found on the labels affixed to the following places:
– Base unit (KX-TGP600): the back of the unit
– Handset (KX-TPA60): the inside of the battery compartment on the back of the handset
– Charger (KX-TPA60): the bottom of the charger
– Desk Phone (KX-TPA65): the bottom of the phone
You should note the serial numbers of these units in the space provided and retain this manual as a
permanent record of your purchase to aid in identification in the event of theft.
Trademarks
R The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Panasonic Corporation is under license.
R All other trademarks identified herein are the property of their respective owners.
2
