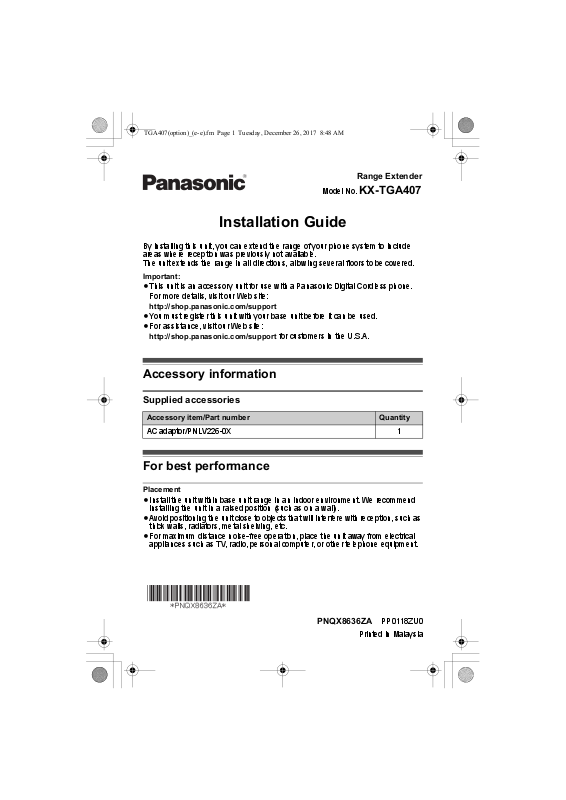

Range Extender
Model No. KX-TGA407
Installation Guide
By installing this unit, you can extend the range of your phone system to include
areas where reception was previously not available.
The unit extends the range in all directions, allowing several floors to be covered.
Important:
LThis unit is an accessory unit for use with a Panasonic Digital Cordless phone.
For more details, visit our Web site:
http://shop.panasonic.com/support
LYou must register this unit with your base unit before it can be used.
LFor assistance, visit our Web site:
http://shop.panasonic.com/support for customers in the U.S.A.
Accessory information
Supplied accessories
Accessory item/Part number Quantity
AC adaptor/PNLV226-0X 1
For best performance
Placement
LInstall the unit within base unit range in an indoor environment. We recommend
installing the unit in a raised position (such as on a wall).
LAvoid positioning the unit close to objects that will interfere with reception, such as
thick walls, radiators, metal shelving, etc.
LFor maximum distance noise-free operation, place the unit away from electrical
appliances such as TV, radio, personal computer, or other telephone equipment.
PNQX8636ZA PP0118ZU0
Printed in Malaysia
B
A
C
TGA407(option)_(e-e).fm Page 2 Tuesday, December 26, 2017 8:48 AM
LKeep an appropriate distance from the base unit to maximize the range of your
phone system. Find the appropriate location by checking the w indicator. If the w
indicator lights red or amber, re-position this unit in a place where the w indicator
lights green.
Base unit
Range extender
Handset
Range extender rangeBase unit range
Controls
A STATUS indicator
B w indicator
ID indicator
C {PROGRAM}
Understanding the STATUS indicator and w indicator
Indicators
STATUS w/ ID
Amber On Off Unregistered.
Green On Green On Within base unit range. The unit is ready for use.
(Signal strength is strong)
Amber On Within base unit range. The unit is ready for use.
Red On Red Flashing Out of base unit range.
Green
Flashing
Green
Flashing
Rapidly
Green On 1 handset is communicating with the base unit
Amber On 1 handset is communicating with the base unit
Off The unit is in registration mode.
Green On 2 handsets are communicating with the base unit
Amber On 2 handsets are communicating with the base unit
(Signal strength is weak)
through this unit. (Signal strength is strong)
through this unit. (Signal strength is weak)
through this unit. (Signal strength is strong)
through this unit. (Signal strength is weak)
2 For assistance, please visit http://shop.panasonic.com/support
Meaning
TGA407(option)_(e-e).fm Page 3 Tuesday, December 26, 2017 8:48 AM
Indicators
STATUS w/ ID
Red Flashing Off Entering deregistration mode. (0-10 seconds
Red On Off Deregistration complete. (after 10 seconds
Off Off The power is off.
*1 The time elapsed after turning on the range extender while pressing and holding
down {PROGRAM}.
Meaning
*1
)
*1
)
Installation/Registering the range extender to the base unit
1 Range extender: Connect the AC adaptor to a power outlet.
LUse only the supplied Panasonic AC adaptor PNLV226.
LWhen the unit is turned on, the STATUS indicator and w indicator light amber
for about 2 seconds.
LIf the range extender is not yet registered, the STATUS indicator lights amber. If
the range extender is already registered, the STATUS indicator lights red while
the w indicator flashing red.
Hook
(120 V AC, 60 Hz)
Press plug firmly.
2 Base unit: Press and hold {LOCATOR} for about 5 seconds.
LDepending on the base unit, a registration tone sounds.
LIf all registered handsets start ringing, press the same button to stop. Then
repeat this step.
LThe next step must be completed within 90 seconds.
3 Range extender: Press and hold {PROGRAM} for about 3 seconds to enter
the registration mode.
LWhen the unit is in the registration mode, the STATUS indicator flashing green.
4 Range extender: Release {PROGRAM}
LThe STATUS indicator continue flashing green while registering.
LAfter registration complete, STATUS indicator and w indicator light amber for 2
seconds. Then, the STATUS indicator lights red while the w indicator flashing
red before registration complete.
5 Range extender: Confirm that the STATUS indicator and w indicator light
green. (The unit is ready for use.)
LIf the indicators do not light green, re-position the unit in a place where the
indicators light green.
For assistance, please visit http://shop.panasonic.com/support 3
37.0 mm
(1
15
/32 inches)
Screws
TGA407(option)_(e-e).fm Page 4 Tuesday, December 26, 2017 8:48 AM
6 Base unit: To exit registration mode, press {LOCATOR}.
LDepending on the base unit, it will automatically return to standby after
registration completed.
Note:
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a horizontally oriented AC outlet that faces
the floor, such as an AC outlet installed on a ceiling or under a table, as the weight
of the adaptor may cause it to become disconnected.
LThe unit can support a maximum of 2 handsets at a time.
LUp to 2 range extenders can be registered to the base unit.
Deregistering the range extender from the base unit
1 Unplug the AC adaptor from power outlet, then press and hold {PROGRAM}.
2 While pressing and holding {PROGRAM}, re-connect the AC adaptor.
LWhen the unit is in the deregistration mode, the STATUS indicator flashing red.
3 Keep pressing and holding {PROGRAM} for about 10 seconds until the
STATUS indicator light red. Then release {PROGRAM}.
LAfter deregistration complete, STATUS indicator and w indicator light amber for
2 seconds. Then, w indicator lights off.
Wall Mounting
Drive the screws (not supplied) into the wall. Mount the unit, then slide it down.
Note:
LMake sure that the wall is strong enough to support the weight of the unit.
4 For assistance, please visit http://shop.panasonic.com/support
