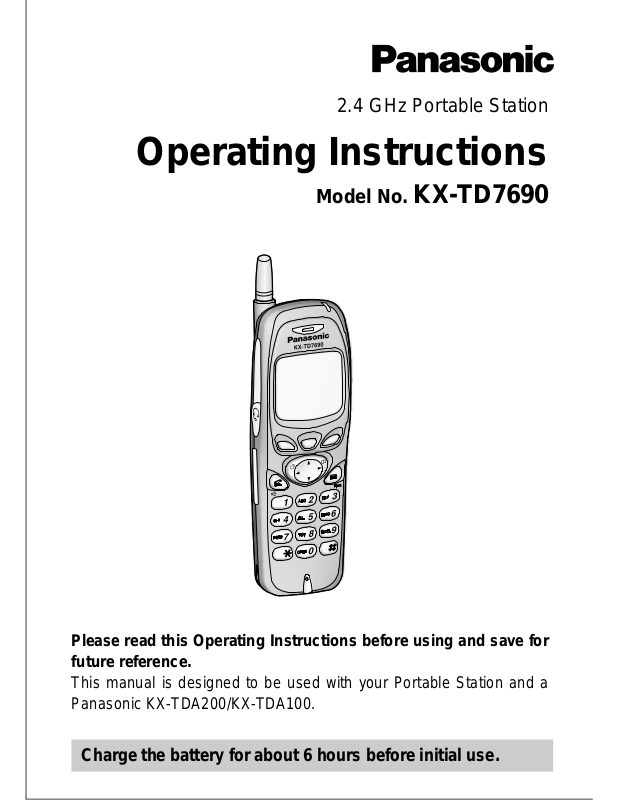

Panasonic 96NKX TD7690 User Manual

2.4 GHz Portable Station

Operating Instructions

Model No.

KX-TD7690

Please read this Operating Instructions b efore using and save for future reference.

This manual is designed to be used with your Portable Station and a Panasonic KX-TDA200/KX-TDA100.

Charge the battery for about 6 hours before initial use.

Before Initial Use

Thank you for pur chasing a Panasonic 2.4 GHz Portable Station. Please read IMPORTANT SAFETY INSTRUCTIONS on page 40 before use. Read and understand all instructions.

Registration

You must register your PS to the system and determine its extension number before initial use. For PS registration, consult your dealer.

Accessories (included)

Operating Instructions

Battery

For extra orders, call toll free 1-800-332-5368

Charger

One

AC adaptor (KX-TCA1-DK)

Screws and Washers

One

Two

Table of Contents

Before Initial Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Before Operating the PS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Charging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Wall Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wave Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Locking the Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Ringer Volume Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Receiver Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 10

F-CO key Display Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Key Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Calling Another Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Calling an External Party . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the Call Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Making Calls Using the Directories. . . . . . . . . . . . . . . . . . . . . . 14

Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Intercom Calls/Outside Calls/Group Calls . . . . . . . . . . . . . . . . 16

During a Conversation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Holding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Handsfree/Monitor Conversation . . . . . . . . . . . . . . . . . . . . . . . 19

Using the Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Directories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Quick Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

PS Dialing Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Entering Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Changing the Initial Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Before Operating the PS

Open the cover.

Location of Controls

Antenna

Receiver

Headset Jack

Back view

Speaker

Call/Charge Indicator

Display

The headset is optional. Please use only the Panasonic KX-TCA88 headset.

I/O Port

- for service use only

Soft Buttons

to select the item displayed on the bottom line on LCD.

Navigator key

to select the function, adjust the volume, or to enter characters on the display. Press the

arrow repeatedly until the desired item appears.

CANCEL/POWER Button

Dial Buttons

TALK Button

Microphone

Display

<Radio Signal Strength>*

Before Operating the PS

When using the navigator key, only the display ed arro ws can be pressed.

<Battery Strength>*

Full

Low Needs to be charged

Catches noises or disconnects

Out of range

<Off-hook Status>

<Off-hook Status for Intercom calls>

The display depends on the operation. Pres s the corres pondin g soft button to select the item.

RINGER ON & VIB OFF

RINGER ON & VIB ON RINGER OFF & VIB ON

RINGER OFF & VIB OFF

MEETING MODE FWD

DND

When you are out of range or the

battery strength b ecomes lo w , the beep tone sounds.

Before Operating the PS

Setting Up

Open the battery

cover.

Connect the cord and

install the battery.

Cord (Red)

Cord (Black)

Charging

Connect the charger to a power

outlet using the AC adaptor.

Close t he cover.

Cords

Charge the battery for about 6

hours.

Charger

AC adaptor

• When charge is completed, the charge indicator will change from red to green. Refer to “Battery Information” on page 39.

• The PS and charger get warm during charging. This is normal and not dangerous.

• Keep magnetically sensitive things (such as a credit card) away from the charger.

Cord holder

To power outlet

Charge indicator

Charger

Before Operating the PS

W all Mounting

The charger can be mounted on a wall.

Connect the charger to a power

outlet using the AC adaptor.

Charger

AC adaptor

Mount the charger securely on the screws.

Cord holder

To power outlet

Drive screws in using the wal l

template below.

Screws

45mm

Before Operating the PS

Power On/Off

Power On

Press POWER for more than 2 seconds until "KX-TD7690" is displayed.

Power Off

Press POWER for more than 2 seconds.

• If the following display appears, consult your dealer.

NEED REPAIR N

Wave Search

You can search the best cel l station while in stand-by mo de.

Press S1.

Press TALK.

SEARCHING

SEARCH OK

Locking the Keypads

You can lock the dialing buttons.

Press S1for more than 2 seconds

HOLD DOWN TO LOCK THE DIAL

KEY LOCK

HOLD DOWN TO UNLOCK THE DIAL

KEY LOCK

Before Operating the PS

Ringer Volume Adjustment

While in stand-by mode or receiving a call, press repeatedly. (Defa ult : high)

Button

Ringer Volume Display

High

RINGER

Medium

RINGER

Low

RINGER

Gradually turns higher

• Low→Medium→High Gradually turns lower

• High→Medium→Low Vibration only

• Vibration only

• Key tone off Microphone volume high

•

RINGER STEP UP

RINGER STEP DOWN

VIBRATION ON RINGER OFF

MEETING MODE

Icon

Key tone only

• Hold down

to set “VIBRATION OFF RINGER OFF”.

VIBRATION OFF RINGER OFF

• If Key Tone is set to “OFF”, the ring tone does not sound while adjusting the volume.

• While charging, the PS rings for incoming calls (except in “MEETING MODE” and “VIBRATION OFF RINGER OFF”).

• If y ou press

while in st and -by mode, the ring tone doe s no t

sound for confirmation.

• Vibration & Ring setting is also available (see page 32).

Before Operating the PS

Receiver Volume Adjustment

During a conversation or in off-hook status, press repeatedly. (Default : medium)

Display

Button Receiver Volume

Extra High

High

Medium

Handset

RECEIVERRECEIVER

RECEIVER

Handsfree / Monitor

SP-PHONE

Low

RECEIVER

SP-PHONE

• You can change the receiver v o lum e in han dse t, hand sfree or monitor mode conversation. Press to select the mode, and follow the operation above (see page 19).

Before Operating the PS

F-CO Key Displ ay Example

F-CO Key Condition

key number

1GDN[200] 2CO01 3Loop-CO 4DSS[1234]

Key Menu

The following keys can be activated using a display operation.

blank: idle

(On): You are using the line. (flashing rapidly): You have an incoming call. (flashing slowly): You have a held call.

(On): Others are using the line. (flashing rapidly): Others have an incoming

call.

(flashing slowly): Others have a held call.

Key no.

(default)

1 2 3 4 5 6

Key

ICM PAUSE

TRANSFER HOLD

FWD/DND MESSAGE

FLASH(RECALL)

AUTO ANSWER CONFERENCE

TONE

Description

Used to make or receive intercom calls. Used to insert a pause between numbers.

Used to tranfer a call to another extention. Used to place a call on hold. Used to set the Call Forwarding or Do Not Disturb features. Used to leave a message to the called party or call back the

message sender.

Used to disconnect a current call and make another call without hanging up.

Used to answer an incoming call automatically. Used to establish a multiple-party conversation. Used to change the dialing mode to tone temporarily.

• You can change the key menu assignment (see page 38).

Making Calls

Calling Another Extension

extension no.

Press TALK.

Enter extension

number.

Talk.

Press CANCEL.

Calling an External Party

Using automatic line access number / outside line numbers

Press TALK.

Press 9 or 0.

Using Flexible CO buttons

phone no.phone no.

Enter phone number.

Talk.

Press CANCEL.

F-CO

Press S3.

Press the idle CO key number.

phone no.

Enter phone number.

Talk.

Press

CANCEL.

Select the

CO key.

idle

SEL

Press S1.

• You can go off-hook after confirming the number you dialed (Predialing).

• If you misdial, press new one.

CLR

to clear each number, and enter the

CLR

•To clear an entire number, hold down .

• If “ ” flashes, move towards the Cell Station and try again.

Using the Call Log

Making Calls

Function

Outgoing

Display

REDIAL

Call Log

Incoming

INCOMING LOG

Call Log

Using the outgoing call log

Select

“REDIAL

”.

Select the desired dialed item.

Press

TALK.

Description

You can make a call using the phone numbers you have dialed.

You can make a call using the outside line phone numbers you have received.

Talk.

Press CANCEL.

Using the incoming call log

Select

“INCOMING LOG

• If the dialed or received outside line phone number is stored in

the PS Dialing Directory, the name will be displayed.

• You can store the logged number in the PS Dialing Directory

(see page 24).

Select the desired

”.

received item.

Press TALK.

Talk.

Press CANCEL.

Making Calls

Making Calls Using the Directories

Function

Quick Dial

PS Dialing Directory

PBX System Speed Dialing Directory

Display

QUICK DIAL

PS-DIALING

PBX-SYS-DIALING

Description

You can make a call using the names and phone numbers stored in the PS.

You can make a call using the names and phone numbers of outside parties stored in the PS.

You can make a call using the names and phone numbers stored in the

system.

PBX Extension Dialing Directory

PBX-EXT-DIALING

You can make a call using the extension names and numbers stored in the system.
