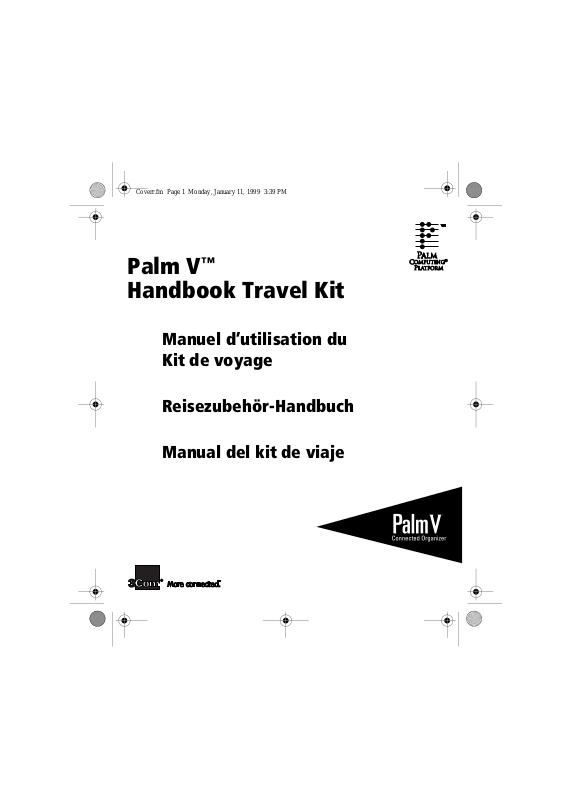

Palm Handbook Travel Kit User Manual

Palm V™
Handbook Travel Kit

Manuel d’utilisation du
Kit de voyage

Reisezubehör-Handbuch

Manual del kit de viaje

Contents

English.......................................................................................... 4

Français ...................................................................................... 16

Deutch ........................................................................................ 28

Español....................................................................................... 42

Contents Page 3

Palm V™ Travel Kit
Handbook

Copyright

Copyright © 1998 3Com Corporation or its subsidiaries. All rights reserved. 3Com, the 3Com logo,
and HotSync are registered trademarks, and Palm, Palm V, the Palm Computing Platform logo, the
Palm V logo, and the HotSync logo are trademarks of Palm Computing, Inc., 3Com Corporation or
its subsidiaries. Other product and brand names may be trademarks or registered trademarks of
their respective owners.

Disclaimer

3Com Corporation and its subsidiaries assume no responsibility for any damage or loss resulting
from the use of this handbook.

3Com Corporation and its subsidiaries assume no responsibility for any loss or claims by third
parties which may arise through the use of this product. 3Com Corporation and its subsidiaries
assume no responsibility for any damage or loss caused by deletion of data as a result of
malfunction, dead battery or repairs. Be sure to make backup copies of all important data on other
media to protect against data loss.

Page 4 Palm V™ Travel Kit Handbook

Using Your Palm V™ Travel Kit

The Palm V™ Travel Kit is so light and compact it gives you the
flexibility to travel the world without leaving your valuable
data behind, and without having to carry the cradle.

With the Palm V Travel Kit you can:

■

Recharge your organizer batteries.

■

Synchronize data on your Palm V organizer with your
computer.

What’s in the Palm V Travel Kit?

Your Palm V Travel Kit includes:

Palm V HotSync

Palm V recharger unit with retractable prongs
that automatically adjusts to all voltages and
frequencies worldwide (AC, 50/60Hz,
100V-240V)

Using Your Palm V™ Travel Kit Page 5

®

cable

Snap-on plug adapters
to connect the recharger
to international power
sockets

United Europe Australia
Kingdom

A nylon carrying case

Technical Support

For Technical Support phone numbers, go to this web site:
http://www.palm.com.

Page 6 Palm V™ Travel Kit Handbook

Using the Recharger

The compact recharger unit enables you to recharge your
Palm V™ organizer when you are on the road. The recharger
unit has a plug with flip-down U.S. AC prongs at one end and a
10-pin organizer connector at the other end.

Note: The LED illuminates only when the recharger is

plugged into a wall outlet or power strip. It can take up
to 3 hours to recharge your organizer.

Using the Recharger Page 7

To attach a plug adapter:

Flip up
prongs

Page 8 Palm V™ Travel Kit Handbook

Snap firmly
into place

Using the HotSync® Cable

The HotSync® cable enables you to synchronize data between
your Palm V™ organizer and a computer. The HotSync cable
has a 9-pin (DB-9) connector at one end that connects to your
computer, and a 10-pin organizer connector at the other end.

Note:

Using the HotSync® Cable Page 9

Macintosh users also require a Mac serial adapter cable
(sold separately).

Performing a local HotSync operation

When you perform a local HotSync operation using the
HotSync cable, you must first make sure Palm™ Desktop
organizer software settings are correct on your computer.

To set up your PC for a local HotSync operation:

1. Click the HotSync Manager icon
(bottom-right corner of the taskbar).

2. In the HotSync Manager menu in the System Tray, make
sure Local is checked.

3. From the HotSync Manager menu in the System Tray,
choose Setup.

4. Click the Local tab and adjust the connection setting options
as needed.

5. Click OK.

To set up your Macintosh for a local HotSync operation:

1. Click the HotSync Manager icon from the Instant Palm
Desktop menu (upper-right corner of your screen).

2. From the HotSync menu, select HotSync Setup, and on the
Serial Port Settings tab make sure Local is checked.

3. Adjust the Local Setup options as needed.

4. From the File menu, choose Quit.

Page 10 Palm V™ Travel Kit Handbook

from the System Tray

™

Serial Port

Identifies the port Palm Desktop software
uses to communicate with the organizer.
This selection should match the port number
(Windows) or name (Macintosh) to which
you connected the organizer.

Speed

Determines the fastest speed at which data is
transferred between your organizer and
Palm Desktop software. Try the As Fast As
Possible rate first, and adjust downward if
you experience problems.

To start the local HotSync operation from your organizer:

1. Tap the Applications icon .

2. Tap the HotSync icon .

3. Tap the Local icon .

4. Wait for a message on your computer indicating that the
process is working.

Note: Do not disconnect the cable until your organizer beeps

to indicate the HotSync operation is complete.

Using the HotSync® Cable Page 11

Limited Warranty

HARDWARE: Palm Computing, Inc., a subsidiary of 3Com Corporation (collectively
"3Com"), warrants to the original end user ("Customer") that this product will be free from
defects in workmanship and materials, under normal use, for one year from the date of
original purchase from 3Com or its authorized reseller. 3Com’s sole obligation under this
express warranty shall be, at 3Com’s option and expense, to replace the product or part with
a comparable product or part, repair the product or part, or if neither repair nor
replacement is reasonably available, 3Com may, in its sole discretion, refund to Customer
the purchase price paid for the product or part. Replacement products or parts may be new
or reconditioned. 3Com warrants any replaced or repaired product or part, and any
hardware upgrade to which Customer is entitled under an agreement between Customer
and 3Com, for a period of ninety (90) days from shipment, or through the end of the original
warranty, whichever is longer. All products or parts that are replaced become the property
of 3Com.

Accessory products, as listed in the applicable 3Com catalogue, are not covered under this
Limited Warranty except for the modem for the connected organizer, the cradles, cables,
memory upgrades, and leather items sold under the 3Com® brand. 3Com shall not be
responsible for Customer's software, firmware, information, or memory data contained in,
stored on, or integrated with any products returned to 3Com for repair, whether under
warranty or not.

SOFTWARE: 3Com warrants to Customer that the Palm™ Desktop organizer software
and Palm OS™ software licensed from it will perform in substantial conformance to their
program specifications, for a period of ninety (90) days from the date of original purchase
from 3Com or its authorized reseller. 3Com warrants the media containing software against
failure during the warranty period. No updates are provided. 3Com does not provide any
warranty for Adobe® Acrobat® Reader or any other third-party applications software that
is licensed to Customer by the third party. 3Com’s sole obligation with respect to this
express warranty shall be (at 3Com’s discretion) to refund the purchase price paid by
Customer for any defective software product, or to replace any defective media with
software which substantially conforms to applicable 3Com published specifications. 3Com
makes no warranty or representation that its software products will meet Customer's
requirements or will work in combination with any hardware or applications software
products provided by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software products will be corrected.

Limited Warranty Page 12

OBTAINING WARRANTY SERVICE: Customer must contact a Palm Computing, Inc.
or 3Com Technical Support or Customer Service center within the applicable warranty
period to obtain warranty service authorization. Dated proof of original purchase from
3Com or its authorized reseller will be required. 3Com is not responsible for Customer
products or parts received without a warranty service authorization. In the United States,
3Com may ship a replacement product or part prior to receiving the original product or part
("advance exchange"). If advance exchange is not available, then the repaired product or
part will be shipped as soon as reasonably possible, which will be no later than thirty (30)
days after 3Com receives the original product or part. Repaired or replacement products
will be shipped to Customer at 3Com’s expense. The repair and replacement process for
products or parts in locations outside of the United States will vary depending on
Customer's location.

Products or parts shipped by Customer to 3Com must be sent prepaid and packaged
appropriately for safe shipment, and it is recommended that they be insured or sent by a
method that provides for tracking of the package. When an advance exchange is provided
and Customer fails to return the original product or part to 3Com within thirty (30) days
from the date the warranty service authorization is issued, 3Com will charge Customer the
then-current published catalogue price of such product or part.

WARRANTIES EXCLUSIVE: IF THIS PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY FOR BREACH OF THAT
WARRANTY SHALL BE REPLACEMENT OR REPAIR OF THE PRODUCT OR PART OR
REFUND OF THE PURCHASE PRICE PAID, AT 3COM'S OPTION. TO THE FULL
EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR
CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW,
STATUTORY OR OTHERWISE, INCLUDING WARRANTIES, TERMS, OR CONDITIONS
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY
QUALITY, CORRESPONDENCE WITH DESCRIPTION, AND NON-INFRINGEMENT,
ALL OF WHICH ARE EXPRESSLY DISCLAIMED. 3COM NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS
PRODUCTS.

3COM SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN
THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD
PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING,
UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR, OR MODIFY THE PRODUCT, OR
ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD. THIS
WARRANTY DOES NOT COVER PHYSICAL DAMAGE TO THE SURFACE OF THE

Limited Warranty Page 13

PRODUCT, INCLUDING CRACKS OR SCRATCHES ON THE LCD TOUCHSCREEN OR
OUTSIDE CASING. THIS WARRANTY DOES NOT APPLY WHEN THE MALFUNCTION
RESULTS FROM THE USE OF THIS PRODUCT IN CONJUNCTION WITH
ACCESSORIES, OTHER PRODUCTS, OR ANCILLARY OR PERIPHERAL EQUIPMENT
AND 3COM DETERMINES THAT THERE IS NO FAULT WITH THE PRODUCT ITSELF.
THIS WARRANTY DOES NOT APPLY TO ANY MALFUNCTION OR FAILURE OF THE
PRODUCT OR PART DUE TO ANY COMMUNICATION SERVICE CUSTOMER MAY
SUBSCRIBE TO OR USE WITH THE PRODUCT.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW, 3COM
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR
FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION
OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE,
OR INTERRUPTION OF THIS PRODUCT, EVEN IF 3COM OR ITS AUTHORIZED
RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND
LIMITS ITS LIABILITY TO REPLACEMENT, REPAIR, OR REFUND OF THE PURCHASE
PRICE PAID, AT 3COM'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES
WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS
ESSENTIAL PURPOSE.

DISCLAIMER: Some countries, states, or provinces do not allow the exclusion or
limitation of implied warranties or the limitation of incidental or consequential damages for
certain products supplied to consumers, or the limitation of liability for personal injury, so
the above limitations and exclusions may be limited in their application to you. When the
implied warranties are not allowed to be excluded in their entirety, they will be limited to
the duration of the applicable written warranty. This warranty gives you specific legal
rights which may vary depending on local law.

GOVERNING LAW: This Limited Warranty shall be governed by the laws of the State of
California, U.S.A. excluding its conflicts of laws principles and excluding the United
Nations Convention on Contracts for the International Sale of Goods.

Palm Computing, Inc., a subsidiary of 3Com Corporation
5400 Bayfront Plaza
PO Box 58007
Santa Clara, California 95052-8007
United States
[phone]
September 3, 1998

Page 14 Palm V™ Travel Kit Handbook

Page 15

Manuel d’utilisation du
Kit de voyage Palm V

Copyright

Copyright © 1998 3Com Corporation ou ses filiales. Tous droits réservés. 3Com, le logo 3Com et
HotSync sont des marques déposées et Palm, Palm V, le logo de la plate-forme Palm Computing,
le logo Palm V et le logo HotSync sont des marques de Palm Computing, Inc., 3Com Corporation
ou de ses filiales. Les autres marques et noms de produits sont des marques déposées ou des
marques commerciales de leur détenteur respectif.

Clause de non-responsabilité

3Com Corporation et ses filiales déclinent toute responsabilité en cas de dommage ou de perte
résultant de l’utilisation de ce manuel.

3Com Corporation et ses filiales déclinent toute responsabilité en cas de perte ou de dommage
subis par des tiers, qui découleraient de l’utilisation de ce logiciel. 3Com Corporation et ses filiales
déclinent toute responsabilité en cas de dommage ou de perte faisant suite à un effacement des
données dû à une défaillance technique, à la décharge de la batterie ou à des réparations. Veillez à
effectuer sur d’autres supports des copies de sauvegarde de l’intégralité des données importantes,
afin d’éviter leur perte éventuelle.

™

Page 16 Manuel d’utilisation du Kit de voyage Palm V™

Utilisation de votre
Kit de voyage Palm V

Léger et compact, le Kit de voyage Palm V™ vous offre la liberté
de parcourir le monde en emportant toutes vos informations
indispensables sans avoir à transporter la station d’accueil.

Avec le Kit de voyage Palm V, vous pouvez :

■

Recharger les batteries de votre organiseur.

■

Synchroniser vos données entre Palm V et votre ordinateur.

Description du Kit de voyage Palm V

Votre Kit de voyage Palm V comporte les éléments suivants :

Câble HotSync

Unité de recharge Palm V, avec ses fiches
rétractables qui s’adaptent automatiquement
aux différentes tensions et fréquences utilisées
de par le monde (C.A., 50/60 Hz, 100 à 240 V)

®

™

Palm V

Utilisation de votre Kit de voyage Palm V™ Page 17
