Getting Started

The Palm®GPS Navigator provides detailed maps, route planning, and voice navigation.

The GPS Navigator uses TomTom NAVIGATOR 5 software and maps on your device. To use Navigator, your device makes a wireless connection to the included GPS receiver using Bluetooth transmits information to the NAVIGATOR 5 software that is displayed on your device screen.

This guide explains how to set up the TomTom NAVIGATOR 5 software on your device and how to customize maps. The procedure for setting up the NAVIGATOR 5 software is different depending on whether you have a Palm

™

Treo

650 smartphone or a Palm® Treo™ 700w smartphone (not available in all

markets).

For information on setting up the GPS receiver, see the GPS Navigator Setup poster included in this package. For more detailed instructions on using TomTom NAVIGATOR 5, refer to the included TomTom Quick Start Guide.

Installation requirements

• A Treo 650 smartphone or a Treo 700w smartphone (not available in all markets). For information on other supported devices, visit the Palm website at

www.palm.com

• GPS receiver (included).

To add or remove maps from an expansion card:

• Expansion card reader (included).

wireless technology. The receiver then

GPS Navigator 1

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

• Computer with Windows 2000/XP or Mac OS X 10.3, Internet access, powered USB port, and DVD-ROM drive.

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

If you have a Treo 700w smartphone, see “Setting up NAVIGATOR 5 software on a Treo 700w smartphone” on page 9.

0your

Turn the GPS receiver on and position it in a location with an

unobstructed view of the sky.

2 GPS Navigator

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

Create a partnership between the receiver and your device:

a. Press Applications and select Bluetooth .

b. Select On if it is not already selected.

c. Select Setup Devices, and then

select Trusted Devices.

d. Select Add Device, and then select

Palm GPS. Select OK.

e. Enter the passkey that appears on

the bottom of the receiver, and then check Add Palm GPS to trusted device list. Select OK.

After your device and the receiver create a partnership, the blue light on the receiver blinks.

f. Select OK twice.

Insert the TomTom NAVIGATOR 5 expansion card included in this

package into your device’s expansion card slot. The NAVIGATOR 5 software application opens automatically.

GPS Navigator 3

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

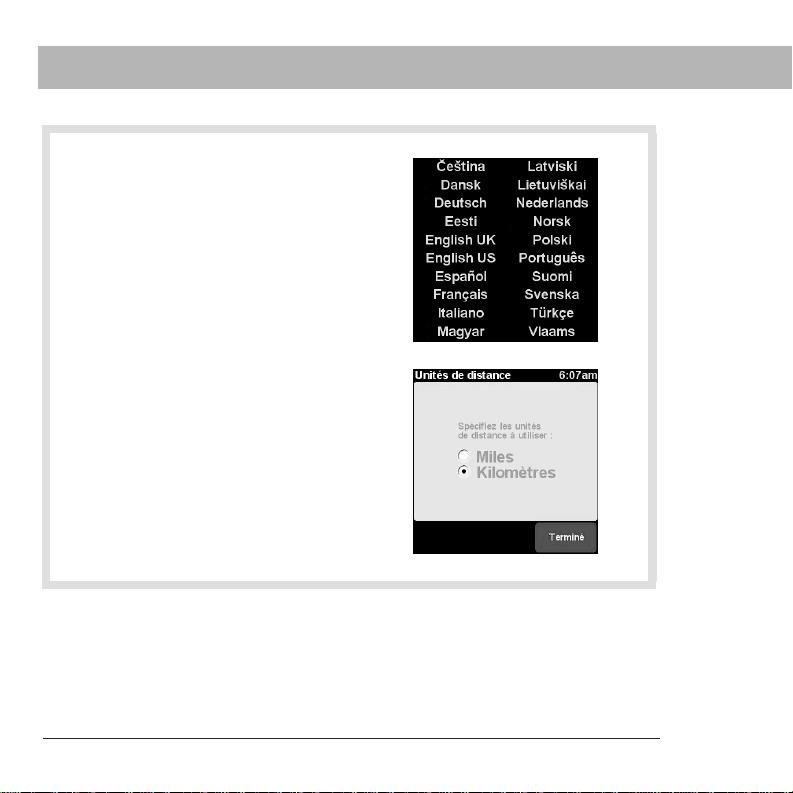

Select your basic NAVIGATOR 5

settings:

a. Tap the language you want, and

then tap Ye s .

b. When prompted, tap the screen

to begin preference selection.

c. Select right- or left-handed

operation, and then tap Done.

d. Select how distances are

displayed, and then tap Done.

Tap to scroll voice options

4 GPS Navigator

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

e. Select how time is displayed,

and then tap Done.

f. Tap the left and right arrows to

select a voice, and then tap Select.

g. If prompted to select a map, tap

the map you want.

GPS Navigator 5

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

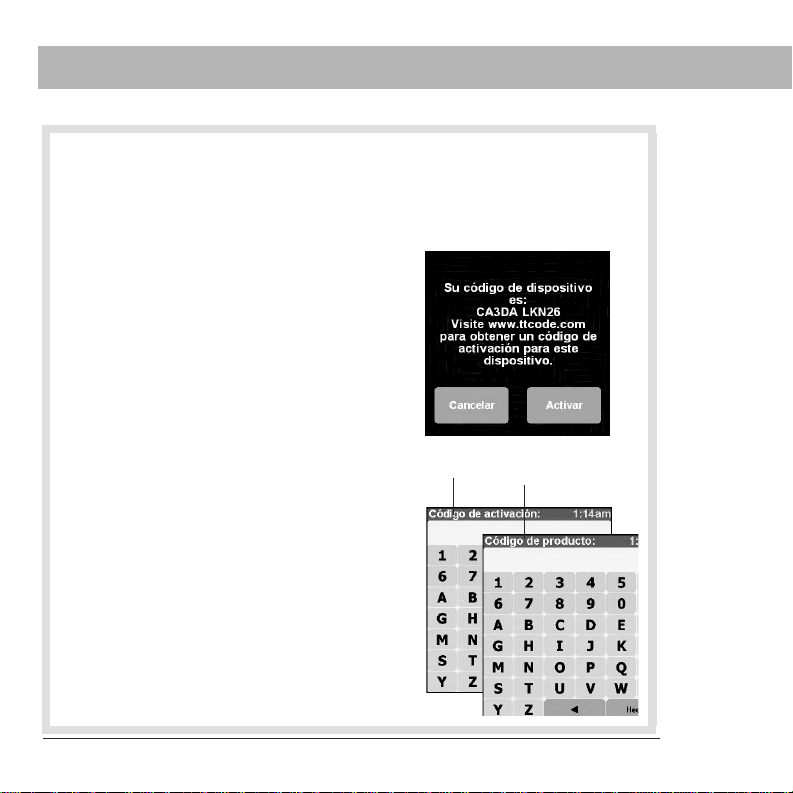

Activate the NAVIGATOR 5 software:

a. If you have a data plan with your wireless carrier, tap Automatic. If

you do not have a plan or aren’t sure, tap Manual.

b. If you selected Automatic, tap

Activate and then enter the 15-character product code written on the back of the TomTom NAVIGATOR 5 DVD sleeve. The software is activated through your device’s wireless connection.

c. If you selected Manual, do the

following:

• On your computer, go to

www.ttcode.com

Product Activation option for your country. Enter the 15-character product code written on the label on the back of the TomTom NAVIGATOR 5 DVD sleeve, and then enter the device code displayed on your device screen.

• On your device, tap Activate.

• Enter the activation code displayed on your computer screen.

d. Tap Done.

and select the

Manual activation

Automatic activatio

6 GPS Navigator

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

Enter your home address:

a. Tap Continue, and then tap Ye s .

b. Enter or scroll to your zip code or

city, and then tap it when it is displayed.

c. Enter or scroll to your street name,

and then tap it when it is displayed.

d. Enter your house number, and then

tap Done.

On the Specify your GPS hardware

screen, tap the left or right arrow until Other Bluetooth GPS is displayed, and then tap Select.

Repeatedly tap the screen to take a tour of NAVIGATOR 5.

GPS Navigator 7

Setting up NAVIGATOR 5 software on a Treo 650 smartphone

On the Legal notice screen, read the

information and then tap I agree if you agree.

NOTE

[*]

to use the software.

You m ust t ap I agree

NAVIGATOR 5 is now ready for use on your device.

8 GPS Navigator

Setting up NAVIGATOR 5 software on a Treo 700w smartphone

0your

Make sure your device’s Bluetooth

functionality is turned on:

a. Go to the Today screen, and

then tap Bluetooth .

b. Select Turn on Bluetooth if it is

not already selected.

Turn the GPS receiver on and position it in a location with an

unobstructed view of the sky.

Start the software:

a. Insert the TomTom NAVIGATOR 5 expansion card into your

device’s expansion card slot.

b. When asked if you want to continue, select Ye s , and then select

Ye s again.

c. After the installation is complete, select OK.

GPS Navigator 9

Setting up NAVIGATOR 5 software on a Treo 700w smartphone

Select your basic NAVIGATOR 5

settings:

a. Tap the language you want, and

then tap Ye s .

b. When prompted, tap the screen

to begin preference selection.

c. Select right- or left-handed

operation, and then tap Done.

d. Select how distances are

displayed, and then tap Done.

Tap to scroll voice options

10 GPS Navigator

Setting up NAVIGATOR 5 software on a Treo 700w smartphone

e. Select how time is displayed,

and then tap Done.

f. Tap the left and right arrows to

select a voice, and then tap Select.

g. If prompted to select a map, tap

the map you want.

GPS Navigator 11

Setting up NAVIGATOR 5 software on a Treo 700w smartphone

Activate the NAVIGATOR 5 software:

a. If you have a data plan with your wireless carrier, tap Automatic. If

you do not have a plan or aren’t sure, tap Manual.

b. If you selected Automatic, tap

Activate and then enter the 15-character product code written on the back of the TomTom NAVIGATOR 5 DVD sleeve. The software is activated through your device’s wireless connection.

c. If you selected Manual, do the

following:

• On your computer, go to

www.ttcode.com

• On your device, tap Activate.

• Enter the activation code displayed on your computer screen.

d. Tap Done.

and select the

Manual activation

Automatic activatio

12 GPS Navigator

Setting up NAVIGATOR 5 software on a Treo 700w smartphone

Enter your home address:

a. Tap Continue, and then tap Ye s .

b. Enter or scroll to your zip code or

city, and then tap it when it is displayed.

c. Enter or scroll to your street name,

and then tap it when it is displayed.

d. Enter your house number, and then

tap Done.

On the Specify your GPS hardware

screen, select TomTom/Palm GPS, and then tap Select. Once you make this selection, your device creates a partnership with the receiver automatically.

Repeatedly tap the screen to take a tour of NAVIGATOR 5.

GPS Navigator 13

Setting up NAVIGATOR 5 software on a Treo 700w smartphone

On the Legal notice screen, read the

information and then tap I agree if you agree.

NOTE

[*]

to use the software.

You m u st ta p I agree

NAVIGATOR 5 is now ready for use on your device.

14 GPS Navigator

Exiting NAVIGATOR 5

On a Treo 700w smartphone, you should exit the NAVIGATOR 5 application when you are finished using it. On a Treo 650 smartphone, NAVIGATOR 5 automatically closes when you switch to another application, so you do not need to exit.

On the NAVIGATOR 5 navigation screen, tap the top portion of the

screen to open the Main Menu.

Exit NAVIGATOR 5:

a. Tap the blue arrow until the

Main Menu 3 of 3 screen is displayed.

b. Tap Exit application.

GPS Navigator 15

Customizing Maps

The TomTom NAVIGATOR 5 expansion card includes a continental U.S.A. map by default. You can customize which maps you use in the following ways:

• Add one or more additional maps to the TomTom NAVIGATOR 5 expansion card, up to the available memory on the card.

• Replace the continental U.S.A. map with a different map.

• Put multiple maps on a blank expansion card. If you choose this option, you need to purchase a separate, high-capacity expansion card.

NOTE

[*]

NAVIGATOR 5 software.

Adding a map to the TomTom NAVIGATOR 5 expansion card

0the

You must have at least one map on the expansion card to use the

Connect the card to your computer:

a. Insert the card reader included in this package into a powered USB

port on your computer.

b. Insert the TomTom NAVIGATOR 5 expansion card included in this

package into the card reader.

16 GPS Navigator

Adding a map to the TomTom NAVIGATOR 5 expansion card

Add a map:

a. Insert the TomTom NAVIGATOR 5 DVD into your computer’s DVD

drive. On a Mac computer, click the icon to run the DVD software.

b. Select your language and check the I Agree box if you agree. Click

the arrow.

NOTE

[*]

c. Select Add maps and click the arrow.

You must check the I Agree box to add a map.

GPS Navigator 17

Adding a map to the TomTom NAVIGATOR 5 expansion card

d. Select the map you want to add, and click the forward arrow.

e. Select Memory card reader/writer and click the forward arrow.

f. When the Installation complete message appears, click the arrow.

18 GPS Navigator

Adding a map to the TomTom NAVIGATOR 5 expansion card

Do one of the following:

• To add another map, select Add maps, click the arrow, and repeat steps 2d through 2f.

• When you have finished adding maps, select Quit and click the arrow.

GPS Navigator 19

Deleting a map from the TomTom NAVIGATOR 5 expansion card

0the

Connect the card to your computer:

a. Insert the card reader included in this package into a powered USB

port on your computer.

b. Insert the TomTom NAVIGATOR 5 expansion card into the card

reader.

Delete a map:

a. Insert the TomTom NAVIGATOR 5 DVD into your computer’s DVD

drive. On a Mac computer, click the icon to run the DVD software.

b. Select your language and check the I Agree box if you agree. Click

the arrow.

NOTE

[*]

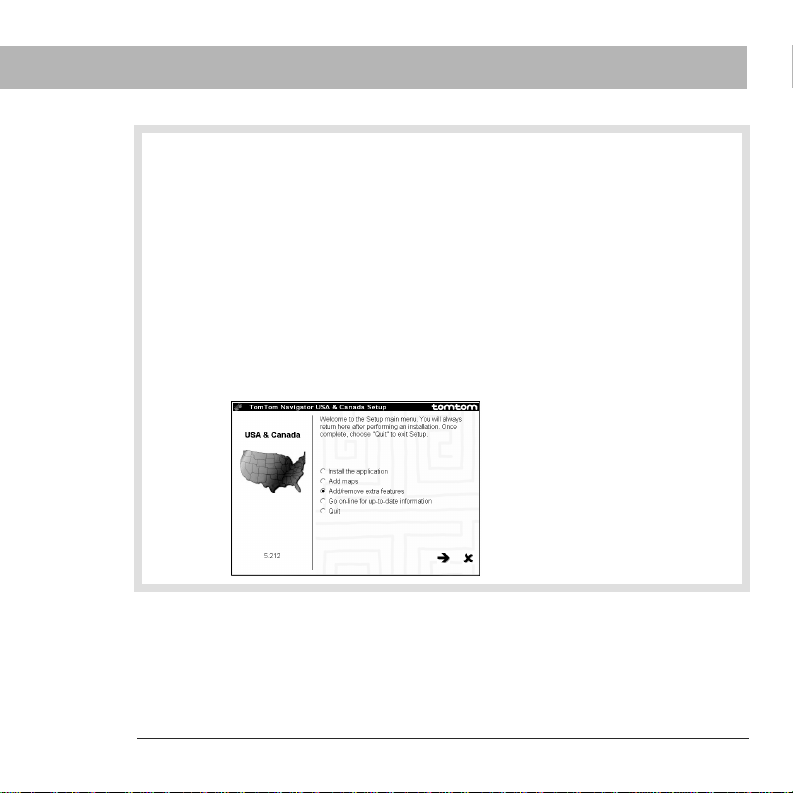

c. Select Add/remove extra features and click the arrow.

You must check the I Agree box to delete a map.

20 GPS Navigator

Deleting a map from the TomTom NAVIGATOR 5 expansion card

d. Select Remove maps and click the forward arrow.

e. Select the drive containing the card reader and click the forward

arrow. If only one option appears, simply click the arrow.

f. Select the map you want to remove, and click the forward arrow.

g. When the <name> map removed message appears, click the

arrow.

GPS Navigator 21

Putting maps on a blank expansion card

Do one of the following:

• To remove another map, select Remove maps, click the forward arrow, and repeat steps 2e through 2g.

• When you have finished removing maps, click the back arrow to return to the setup screen, select Quit, and click the arrow.

Putting maps on a blank expansion card

If you want to install maps on a separately purchased high-capacity card, you must first install the NAVIGATOR 5 software onto the card.

0the

Connect the card to your computer:

a. Insert the card reader included in this package into a powered USB

port on your computer.

b. Insert the blank expansion card into the card reader.

22 GPS Navigator

Putting maps on a blank expansion card

Install the software:

a. Insert the TomTom NAVIGATOR 5 DVD into your computer’s DVD

drive. On a Mac computer, click the icon to run the DVD software.

b. Select your language and check the I Agree box if you agree. Click

the arrow.

NOTE

[*]

software.

c. Select Install the application and click the arrow.

d. Select Memory card reader/writer and click the forward arrow.

e. When the Installation complete message appears, click the arrow.

You must check the I Agree box to install the

To add maps to the card, see “Adding a map to the TomTom

NAVIGATOR 5 expansion card” on page 16. You can install multiple maps one at a time as described in that procedure.

GPS Navigator 23

Common Questions

What is the passkey I’m asked to enter when creating a partnership

between my device and the Bluetooth

Like a password, the passkey is a security measure. Connections can happen only between your Treo

The passkey for the receiver is noted on the bottom of the receiver. You should need to enter the passkey only the first time you establish a Bluetooth connection between your Treo device and the receiver.

™

device and a Bluetooth device that has the same passkey.

GPS receiver?

Should I keep my device and the receiver connected to the vehicle power adapter while they are in use?

If your device is fully charged, it can run for about four to five hours in the car. For longer trips, it is a good idea to keep the vehicle power adapter connected to keep both your device and the receiver charged. This prevents the batteries from getting too low for the Bluetooth connection to function.

Where can I get customer support if I need it?

See the TomTom Quick Start Guide included in this package for detailed information about NAVIGATOR 5 features. If you still need help, refer to the support section of the TomTom website at www.tomtom.com

If you have problems with the Bluetooth Holux website at www.holux.com

24 GPS Navigator

GPS receiver hardware, refer to the

/support/.

Safety Information

Please read the following information to ensure safe use of the GPS Navigator.

Global Positioning System

The Global Positioning System (GPS) is a satellite-based system that provides location and timing information around the globe. GPS is operated and controlled under the sole responsibility of the Government of the United States of America, which is responsible for its availability and accuracy. Any changes in GPS availability and accuracy may impact the operation of your GPS receiver. Environmental conditions will affect the operation of your GPS receiver. TomTom B.V. and Palm cannot accept any liability for the availability and accuracy of GPS.

Use With Care

Use of a GPS receiver for navigation does not by any means substitute for the need to drive with due care and attention.

WARNING!

Do not mount the GPS Navigator where the driver’s field of vision is obscured or where airbags may deploy, and do not place it on the dashboard without securing it reliably. Do not mount the unit or route the cables in such a way as to interfere with control of the vehicle. Failure to follow these guidelines could result in an accident or collision resulting in serious injury or death.

Drive safely using information from street signs and landmarks in addition to the GPS Navigator. Do not become distracted by the GPS Navigator while operating the vehicle. Use voice prompts to minimize the need to look at the display. Do not input destinations or access other functions that take time to complete unless the

GPS Navigator 25

Safety Information

vehicle is safely stopped. Make all settings before departing or pull off the road in a safe and legal manner if changes need to be made.

CAUTION

Use GPS Navigator only as an aid to navigation. It is not designed for any use requiring precise measurements. The Global Positioning System (GPS) is operated by the government of the United States of America and is subject to changes which could affect the accuracy and performance of this GPS equipment.

NOTICE TO DRIVERS

When using this product you must obey your local vehicle codes. Some vehicle codes restrict any object or material from being placed, displayed, installed, affixed, or applied upon the windshield or side or rear windows. Where such codes exist, when using this product, the suction cup mount pad should be used instead of attaching the mount directly to the vehicle windshield or side or rear windows. Palm is not responsible for any damages, fines, or penalties that may result from disregarding this notice.

Aircraft and Hospitals

Use of devices with an antenna is prohibited on most aircraft, in many hospitals, and in many other locations. The GPS receiver must not be used in these environments.

26 GPS Navigator

Safety Information

Heat-Reflective Shields

Some newer-model vehicles may have a heat-reflective shield embedded in the windshield, which may prevent proper GPS signal reception if the receiver is placed behind the windshield. To enable proper reception:

• Place the receiver in a different position, or

• Place the receiver behind the rearview mirror, where many vehicles have an opening in the heat reflective shield, as indicated by a black outline.

Installation, Use, and Maintenance

IMPORTANT

open, puncture, or disassemble the product.

In order for the GPS receiver to work properly, make sure that the receiver has an unobstructed view of the sky. Protect the receiver from excessive heat, extreme cold, dust, liquids, and direct sunlight. Do not use in a humid environment or on an unstable surface. Make sure the receiver is always securely mounted to prevent accidental movement. Handle all parts, cables, and connectors with care. Use only supplied and recommended accessories and power supplies. Ensure that any power supply is cooled by placing it in a ventilated area. The power supply and the receiver unit may become warm or hot during operation. Unplug the product from any external power source before cleaning. Only clean the product with a dry cloth. Follow the instructions in this manual carefully.

Do not attempt to service this product yourself. Do not

GPS Navigator 27

Product Regulatory Information

FCC statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may violate FCC rules.

[!]

IMPORTANT

approved in writing by the manufacturer’s Regulatory Engineering Department. Changes or modifications made without written approval may void the user’s authority to operate this equipment.

Changes or modifications not covered in this manual must be

28 GPS Navigator

+ 82 hidden pages
