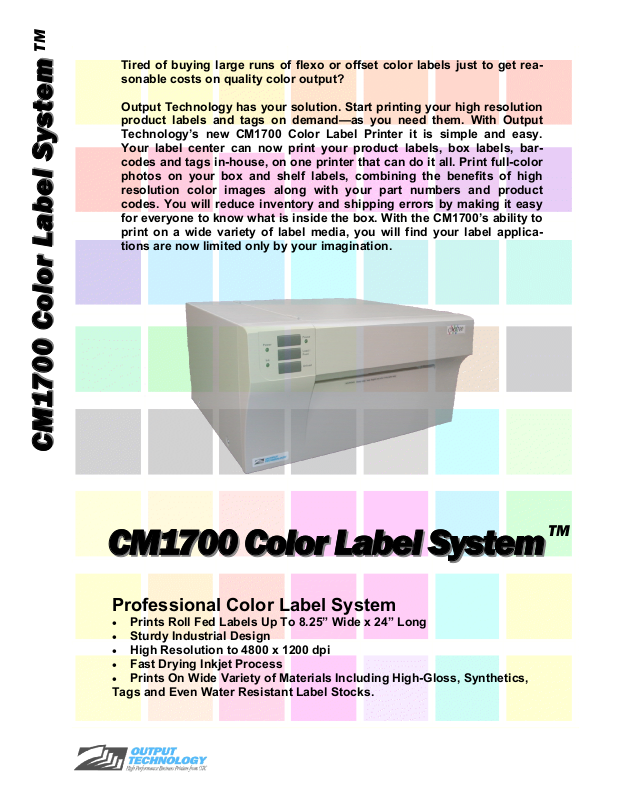

Tired of buying large runs of flexo or offset color labels just to get reasonable costs on quality color output?
Output Technology has your solution. Start printing your high resolution
product labels and tags on demand—as you need them. With Output
Technology’s new CM1700 Color Label Printer it is simple and easy.
Your label center can now print your product labels, box labels, barcodes and tags in-house, on one printer that can do it all. Print full-color
photos on your box and shelf labels, combining the benefits of high
resolution color images along with your part numbers and product
codes. You will reduce inventory and shipping errors by making it easy
for everyone to know what is inside the box. With the CM1700’s ability to
print on a wide variety of label media, you will find your label applications are now limited only by your imagination.
CM1700 Color Label System
CM1700 Color Label System
CM1700 Color Label System
CM1700 Color Label System
Professional Color Label System
• Prints Roll Fed Labels Up To 8.25” Wide x 24” Long
• Sturdy Industrial Design
• High Resolution to 4800 x 1200 dpi
• Fast Drying Inkjet Process
• Prints On Wide Variety of Materials Including High-Gloss, Synthetics,
Tags and Even Water Resistant Label Stocks.
TM
CM1700 Color Label Printer
Specifications
TM
Print Method: Inkjet
Print Resolutions:
4800 x 1200 dpi, 2400 x 1200 dpi, 600 x 600 dpi
Print Speeds:
Approximately 2" (51mm) per second for black
Approximately 1.5" (38mm) per second for
color + black
Approximately 10" per second feed rate
Ink Cartridges:
CM1700C103 Color (CMY) (8ml per color)
CM1700C104 Black Dye-Based (Kd) (19ml)
CM1700
CM1700C105 Black Pigment-Based (Kp) (24ml)
CM1700
Colors:
16.7 million
Color Ink Management
Photo Based Color Pallet
Graphics Based Color Pallet
Built in Ink Estimator
Min. Print Width:
0.75" (19mm)
Max. Print Width:
8.25" (210mm)
Min. Media Length:
0.75" (19mm)
Max. Print Length:
24" (609mm)
** Banner Length Printing Available
Media Types:
Roll-fed pressure-sensitive labels, roll-fed tags
Media Sensing:
Moveable see-through sensor for die-cut labels;
Reflective for tags with black stripe sensing;
Continuous label stock;
Preprinted label stock.
Supply Roll:
6" (152mm) maximum diameter on 3" (76mm)
core
Indicator Lights:
Power, Pause, Ink Low
Controls:
Pause, Load/ Feed, Unload
Operating Systems:
Windows XP/2000
Mac OSX, 10.2 or higher
Data Interface:
USB 2.0/ 1.1
Minimum System Requirements:
Pentium® IV computer or better
AMD Athlon XP/Barton 2500+ or better
Mac 700 Mhz G4 or better
512MB RAM
5GB free hard drive space
USB 2.0/ 1.1 port
Label Design Software:
NiceLabel™ SE Demo Edition included
Can be used with most popular Windows-based
label design software programs..
Electrical Rating:
12VDC, 5.0A
Power Requirements:
100-240VAC, 50/60 Hz, 60 watts
Certifications:
UL, UL-C, CE, FCC Class B
Weight:
29 lbs. (13.2 Kg)
Dimensions:
17"W x 9.1"H x 15.5"D
(432mmW x 231mmH x 394mmD)
Specifications subject to change without notice.
Corporate Office
3808 N. Sullivan Rd. Bldg #3
Spokane, WA 99212-1381
509-536-0468
800-393-7693 (USA Only)
FAX: 509-533-1285
All company and product names are trademarks of their
respective owners.
060-00510-00
