CHIPS TM 2.0
+
WALKIE-TALKIE
Hi.
Good call on picking up the Outdoor Tech
®
CHIPSTM 2.0 , universal wireless helmet
audio. Your experience of the universe will
soon be enhanced wirelessly. This manual
exists to help make sure that you use
them correctly, so you’re denitely going
to want to relax for a hot second and look
through this manual.
Kisses,
ANATOMY
Right ear button
Left ear button
Charge port/3.5 mm
LED light
Microphone
ANATOMY (CONTINUED)
Power On RIGHT Press for 4 sec
Power Off LEFT Press for 4 sec
Enter Pairing Mode RIGHT Press for 6 sec
Answer RIGHT Short press once
Reject RIGHT Press for 2 sec
Hang Up RIGHT Short press once
Mute RIGHT Short press twice
Play RIGHT Short press once
Pause RIGHT Short press once
Skip Forward LEFT Press till song skips
Raise Volume LEFT Short press twice
Lower Volume LEFT Short press once
Siri/Voice Activation Press & hold until you hear
Walkie-Talkie Function RIGHT Press & hold till you hear a
FUNCTION VOICE PROMPT
Power On “Power On”
Power Off “Power Off”
Enter Pairing Mode “Pairing”
Successful Pairing “Connected”
Answer “Answer”
Reject “Reject”
Hang Up “Call Terminated”
LEFT + RIGHT
voice prompt
chime then speak (still hold
until you’re done talking)
POWER UP
For best results, fully charge your CHIPSTM 2.0 using the
supplied 3.5 mm to USB charging cable before use.
You can manage/check your CHIPSTM 2.0 battery by the
fuel gauge that appears on your smartphone.
The indicator light located on the right ear piece will
ash red to indicate a low battery.
Once the CHIPS
the indicator light will turn red. It will turn off once the
CHIPS are completely charged.
NOTE: It takes 2.5 hours to give your CHIPSTM 2.0 a full
charge.
TM 2.0 are plugged into the micro-USB,
PAIRING
To pair the CHIPSTM 2.0 with a Bluetoothenabled device:
Prior to using the OT CHIPSTM 2.0 for the rst time,
you will have to pair them with a Bluetooth-enabled
device. The pairing procedure may vary for different
devices. Please refer to your device’s user manual for
further information. The general pairing procedure is
as follows:
1.) Place the CHIPSTM 2.0 and Bluetooth-enabled
device no more than 3 feet apart.
2.) Hold the right ear button down until the LED
ashes red and blue alternately. The voice
prompt will state “Pairing”
3.) Activate your device’s Bluetooth function and
set your device search for Bluetooth devices
within range. Select “ODT CHIPSTM 2.0 ” from
the list of devices shown.
4.) According to the indication, enter password or
Use pairing code: 0000.
5.) If prompted by your device to connect, select
“Yes” (this will vary among devices)
6.) After successfully connecting, the blue LED will
ash twice or three times every 4 seconds. The
voice prompt will state “Connected.”
If your Bluetooth device disconnects from the
CHIPSTM 2.0 the voice prompt will state “Your
headset is disconnected.”
TALK
The built-in microphone means that the CHIPSTM 2.0 can
be used wirelessly.
*NOTE: The built-in microphone only works when
connected via Bluetooth.
The following are tips on how to use your CHIPSTM 2.0 to
speak on the telephone:
Answer a call............. Press right ear button
End a call................... Press right ear button
Decline a call............. Press and hold the right ear
button for two seconds
Make a call................ Use your phone to dial as usual
Listen & talk through the CHIPS
Mute/cancel mute
during a call.............. Press the right ear button twice
Transfer conversation
to mobile phone or
headset during call.. Press and hold right ear button for
2 seconds
Volume up during a
call.......................... Double press the left ear button
Volume down during
a call........................ Press left ear button
Voice Activation....... Press and hold both left and right
ear buttons simultaneously.
Release and speak when you hear
the voice prompt.
®
SPECS
Battery life............ 10 hours of play time / 200
hours of standby
*Battery life varies subject to different
playing circumstances, such as music type
and volume.
Bluetooth Version.... V4.0
Bluetooth Proles.... A2DP, AVRCP
Operating distance.. 32 feet
Charging input......... DC5.0V/90~130mA
Dimensions.............. 51x14.5mm
Weight...................... 60g
Battery capacity...... 240mAH

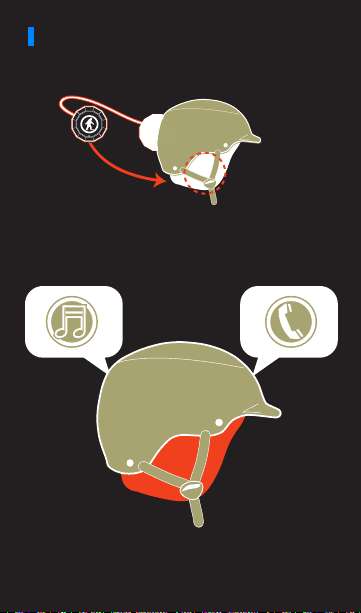

PUT THE CHIPS IN YOUR HELMET
1. Drop the CHIPSTM 2.0 into the slots inside
your helmet liner.
2. Rock out, make calls, and, you know, ski
and snowboard and whatnot.
JACK IT IN
The included 3.5mm cord allows you to rock
out when the CHIPSTM 2.0 are out of power.
Plug the end with the microphone and control
wheel into the CHIPSTM 2.0, and into your
preferred music playing robotic device. Then
proceed to rock out.
*The microphone on the CHIPSTM 2.0 will not
function when you’re playing music through
the 3.5 mm jack. Instead, you’ll be able to use
the inline mic on the 3.5mm cord.
CONNECT TO THE APP
Once you have turned on and paired your
CHIPSTM 2.0 to your smartphone, you will
be able to connect to the Walkie-Talkie
App. (Hooray!!)
STEP 1: Pair CHIPS to device
STEP 2: Go to outdoortech.com/apps
STEP 3: Download app and follow app
instructions.
Yes... It is that easy.

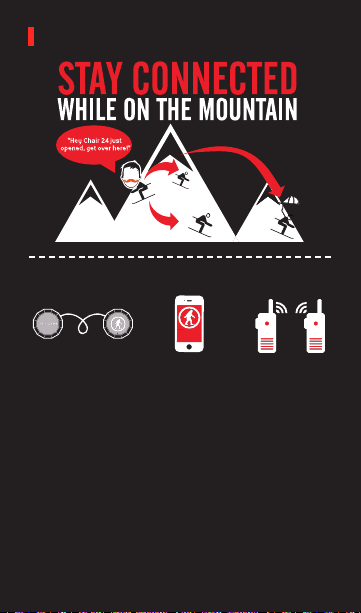

WALKIE-TALKIE APP
+
To use the Walkie-Talkie Function on the
mountain with your buds, everyone needs
to have the app running on their device.
Once everyone has joined a group, all you
have to do is press and hold on the Right
button till you hear a chirp; then continue
to press down on the piece until you are
nished talking.
=
FAQ
Why is the red LED ashing twice every 20 seconds?
The battery is low. Recharge it.
Why is the red LED off when charging?
A. Make sure the connection between the charging
cable and the CHIPSTM 2.0 is tight.
B. If the CHIPSTM 2.0 haven’t been used in awhile, the
light may not come on immediately. Charge the
battery for at least 30 minutes.
Why can’t I pair my CHIPSTM 2.0 ?
A. Your Bluetooth device and the CHIPSTM 2.0 must both
be in pairing mode.
B. Your CHIPSTM 2.0 should not be paired to any other
devices.
Why do I have Bluetooth signal loss/dropout/unclear
conversations?
A. Move your device closer to your CHIPSTM 2.0.
B. Make sure your CHIPSTM 2.0 are charged up.
C. Turn off your CHIPSTM 2.0 and device, then power up
and reconnect.
Why can’t the CHIPSTM 2.0 hear my voice during a call?
A. Make sure the CHIPSTM 2.0 are on.
B. Make sure the volume is not too low or muted.
C. Make sure the CHIPSTM 2.0 are properly connected
with your device.
D. Make sure the CHIPSTM 2.0 are within range of your
device.
CARE & MAINTENANCE
-Keep the CHIPSTM 2.0 dry
-Keep the CHIPSTM 2.0 away from direct sunlight or
hot places. High temperatures will shorten the
life of electronic devices, destroy the battery or
distort certain plastic parts.
-Do not try to disassemble the CHIPSTM 2.0 .
-Do not let the CHIPSTM 2.0 fall onto the oor or
other hard surfaces. The internal circuit board
may get damaged.
-Do not use intensive chemical products or
detergent to clean the product.
-Do not scratch the surface with sharp things.
DON’T BE SO ANTISOCIAL
Facebook.com/outdoortech
Twitter & Instagram: @outdoortech
Questions, comments, complaints, secret desires,
or just to say what’s up: email info@outdoortech.com
K bye.
outdoortech.com
U.S. Des. Pat. No. D704,676 S.
