WELCOME TO THE OUTBACK POWER SYSTEMS FX SERIES INVERTER/CHARGER SYSTEM

The FX Series Inverter/Charger oers a complete power conversion system—DC to AC, battery charging, and an AC Transfer Switch—and can be used for stand-alone or back-up applications.

OutBack Power Systems does everything possible to assure the components you purchase will function properly and safely when installed as instructed according to local and national electrical codes. Please read all of the following instructions and the instructions that come with any OutBack components included in your power system. Further instructions on individual FX set-ups as well as systems assemblies are included with the FX and VFX Series Inverter/Charger Installation Manual.

The OutBack Power Systems FX Series Inverter/Charger is ETL listed to UL1741 (Inverters, Converters, Controllers, and Interconnection System Equipment for Use with Distributed Energy Resources). All Mobile FX Series Inverter/Chargers are ETL listed to UL 458

Grounding Instructions – Each FX should be connected to a grounded, permanent wiring system. For most installations, the negative battery conductor should be bonded to the grounding system at one (and only one) point in the DC system. All installations must comply with all national and local codes and ordinances. System grounding as required by the National Electric Code, ANSI /NFPA 70-1996, is the responsibility of the

system installer.

The equipment ground is marked with this symbol:

The Grid-interactive FX and VFX Inverter/Charger Programming Manual covers safety and the programming or “stacking” multiple FXs using the OutBack Power Systems MATE.

IMPORTANT SAFETY INSTRUCTIONS General Precautions

1. Use caution whenever working around electricity, electrical components, and batteries. There is always a potential

for shocks, burns, injury, and even death if an installer or user comes in contact with electricity.

2. Read all instructions and cautionary markings on the FX, the batteries and all appropriate sections of this manual as

well as other component manuals before using the system.

3. Be sure each system FX is securely installed according to the FX and VFX Series Inverter/Charger Installation Manual.

4. Follow all local and national electrical codes when installing OutBack equipment and components.

NOTE:

Neither the GTFX nor the GVFX is designed to be used with a generator. They are strictly for grid-interactive usage. An OutBack MATE is required to program the FXs beyond their default values. If an OutBack Charge Controller is in use, be sure to read its manual for optimum operation with a grid-interactive FX. When powered up, the GTFX/GVFX will automatically sense if a utility grid is present and then connect to it after a 30second delay. There is a ve-minute delay before battery charging starts, which is done as a default action to assure the batteries are charged should the grid fail. The inverter can sell power to the grid after the batteries are charged. Ul 1741 requires approved surge protection for a grid-interactive system. The optional OutBack FLEXware Surge Protector meets this requirement.

•

GRIDINTERACTIVE FX SERIES INVERTER/CHARGER PROGRAMMING

NOTE: Please see the FX and VFX Series Inverter/Charger Installation Manual to install, wire, and connect each FX Series Inverter/Charger. This programming manual assumes all FXs have been installed and are ready to program according to the way they were wired. To familiarize yourself with the programming concepts, please read through the entire manual before programming your system.

Up to two grid-interactive FXs can be combined and wired or “stacked.”

• Stacking FXs does not refer to physically placing one FX on top of another, but to how they are wired

within the system and then programmed for operation. Stacking allows all the FXs to work together as a single system.

• Stacking assigns the FXs to power individual legs of the system and to operate at certain times; this

order is assigned using the MATE.

NOTE

: An OutBack MATE with a code revision of 3.30 or higher is required to recognize and program

Grid-Interactive FXs. When multiple FXs are used, each needs to be assigned a status—Master or Slave (at least one FX must be a Master).

• The Master FX is the primary and most heavily used unit. The loads and demands of the system

determine when and which Slaves are used. A Slave FX assists when the load demands are more than the Master FX can handle alone.

• This is an orderly process as long as the user assigns each FX correctly. This is mainly a matter of

paying attention to the Port number for each FX when programming with the MATE.

Stacking Concerns

FXs should be wired and stacked appropriately to their individual power system. Problems can occur when:

• An FX is incorrectly wired.

• An FX plugged into a HUB Port is mistakenly programmed (assigned the wrong status) or

misidentied.

An easy rule to remember is any FX wired to a specic phase or leg must be programmed to that phase.

Stacking Options

• The Grid-Interactive FX Series Inverter/Chargers can be stacked in Classic Series only, which is limited

to two grid-interactive FXs.

• A HUB-4 or HUB-10 must be included to stack grid-interactive FXs. The Grid-Interactive FX cannot do

time-of-day selling.

• If the utility grid fails, the GTFX or GVFX seamlessly transfers the loads to the battery bank. When

the utility grid reappears, the Grid-Interactive FX automatically recharges the battery bank in case of future power outages.

NOTE: The FW-X240 Auto Transformer cannot be used for stacking with a Grid-Interactive FX system. The FW-X240 can be used to step-up the AC output of a single Grid-Interactive FX system, however.

The FX connected to Port 01 is always programmed as the Master.

AC Breakers O DC Breakers O

Components and Connections:

1. With all AC and DC breakers OFF, connect all FXs to the HUB with individual lengths of CAT5 cable.

a) Connect the OutBack MATE after all other components,

including any OutBack Charge Controllers, have been connected and powered up.

b) Components installed after powering up the system will

require repolling the MATE (please see page 8).

c) With the MATE, a user assigns a status and stacking value to

the FX on each Port. These status and value assignments can be changed at any time as long as the Master FX is plugged into HUB Port 01.

•“Master” for one and two-phase systems

• The Master FX is always considered to be the leg one or L-1 phase.

POWER HUB

10 9 8 7 6 5 4 3 2 1

Mate

Slave FXs plug into Ports 02 and higher

OutBack Charge Controllers plug into any ports after the last FX is connected.

MATE

port is not

operable

MATE

connects

at 1st MATE

port

BYPASS OUTPUT INPUT

NOTE: Pay attention to the Port number on the screen! Be sure the FX whose status and stacking value you’re changing is the one you mean to change.

AC Breakers O DC Breakers On

2. With the FXs connected to the HUB, turn only the DC breakers ON and power up the components. All AC breakers should be OFF.

NOTE: Powering up the FXs can cause the red ERROR STATUS light to blink. After 5-10 seconds, the green INVERTER light should be bright and the ERROR and AC IN lights dark. The FX is now producing AC output voltage.

LED Color LED Action LED Indicates

Green Solid GREEN Inverter ON Flashing GREEN

Search Mode or Slave Power

Off Inverter OFF

Yellow Solid YELLOW AC Source is Connecteced

Flashing YELLOW

AC Input Live-Waiting to Connect to the FX Off No AC Input Present

Red Solid RED Error-Error Message, dis- plays on the MATE Flashing RED Warning: Non-critical FX fault, the MATE can access this informatio

BYPASS OUTPUT INPUT

3. After powering up the components, connect the MATE to the HUB.

a) Plug the MATE into the 1st MATE Port on the HUB.

b) The MATE will power up and should recognize any component connected to the HUB.

c) The MATE can then program the FXs.

d) The fth MATE screen (“Port Assignment”) should display all the FXs and any Outback Charge Controllers in

the system.

MATE Screens

PATH

OutBack Code a.aa for Devices 1> FX 2> FX 3> CC 4> CC

Power 5> 6> 7> 8>

Systems Serial #xxxxxxxx HUB Found 9> 10> 2M> Screen EE b.bb

4. To verify the MATE recognizes each HUB connected FX and OutBack Charge Controller, disconnect and then either (a) reconnect the MATE to view its boot-up and repoll sequence or (b) follow this path to manually repoll:

PATH

AIN------------------- SETUP----------------- SETUP/MATE/PAGE1 SETUP/MATE/PAGE2 SETUP/MATE/COMM

12.15:30p mate code rev: 402 choose category: choose produce:

choose device: choose category:

SUM STATUS SETUP ADV FX MATE CLOCK CNT GLOW PG2 PG1 SUMRY COMM MAIN BACK REPOLL PC DEBUG

The FXs are now ready to be programmed according to the stacking options described in the next section.

STACKING OPTIONS

OutBack Grid-Interactive FXs can be stacked in Classic Series only.

CLASSIC STACKING

• Two FXs are wired to two 120 VAC output legs producing 240 VAC between them.

• Each FX powers one leg and acts independently of the other, but both combine when 240 VAC is required for a load.

• The AC input must be 240 split phase VAC.

3 kW 120 VAC

3 kW

120 VAC

Leg 2

LOAD

3 kW

120 VAC

Leg 2

6 kW

240 VAC

Leg 1

and

Leg 2

STACKING AND ASSIGNING FX STATUS

Stacking Phases/Assigning FX Status (in order as they appear on the MATE):

1. Master

2. Classic Slave

Use the MATE to establish the order or hierarchy of all the system FXs by designating one as the Master and one as the Classic Slave.

1. Master

• This is the default ranking of every FX. It applies to one-phase and two-phase systems.

• One Master FX is established for every multiple FX system.

• Each Grid-Interactive FX can be a Master as long as each is connected to a separate AC output leg (both HOT and NEUTRAL)

• If one Grid-Interactive FX is designated as the system’s only Master, it is always considered to be the Leg 1 phase.

2. Classic Slave

• Classic Slave is the designation of the second FX in a two-inverter, split-phase system that produces

240 VAC without using an FW-X240 Auto Transformer.

• This FX is plugged into Port 02 of the HUB and is considered to be the L2 phase.

Once the MATE recognizes each FX (and OutBack Charge Controller), push and hold the rst two soft keys simultaneously to return to the MAIN menu. To program the FXs, go to the ADV/FX/STACK menu on the MATE navigating with the following steps:

• Press the <ADV> soft key.

NOTE: Pressing and holding the rst two soft keys

at the same time will always bring up the Main Menu screen.

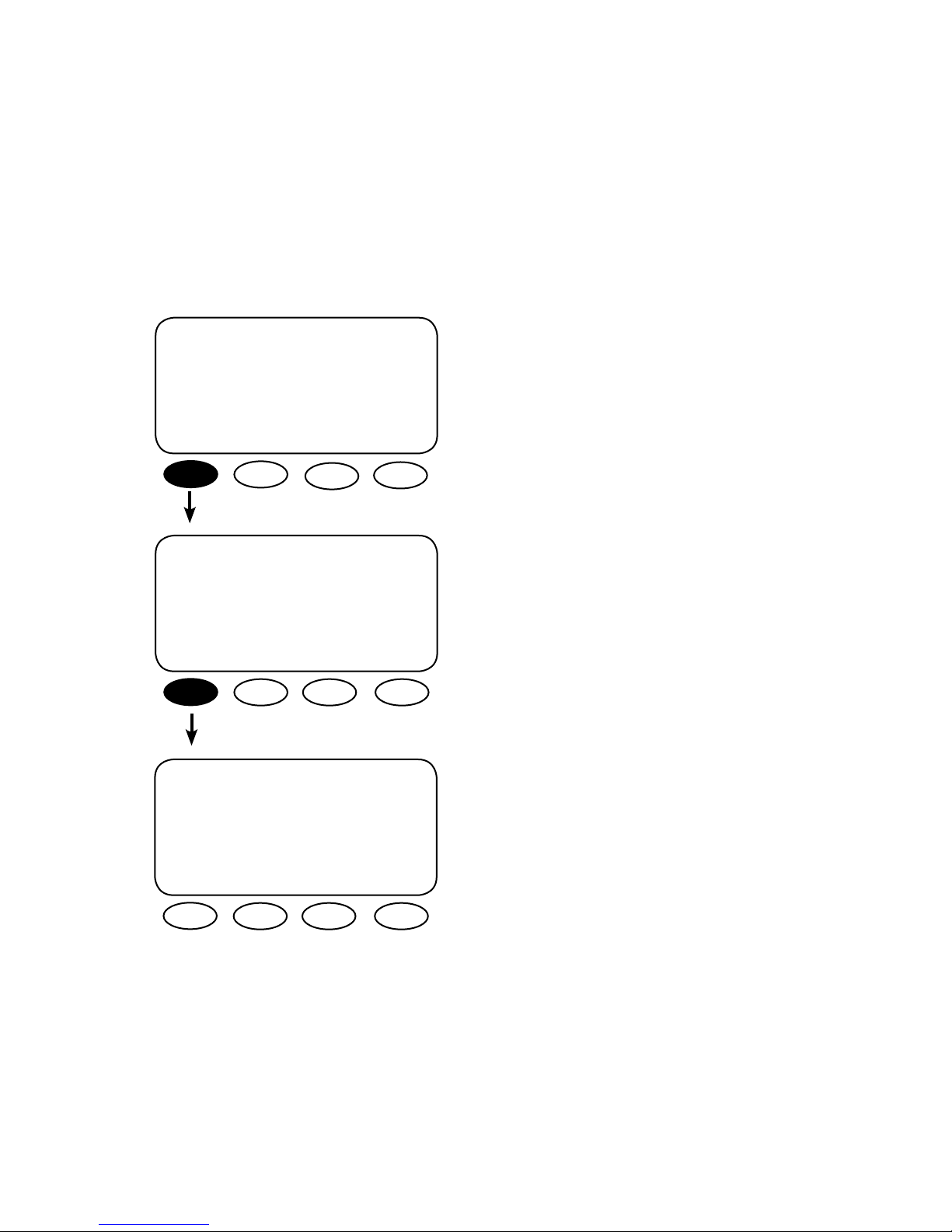

• Push any soft key on the ADV/SETTINGS/WARNING screen and go to the ADV/PASSWORD screen.

MAIN--------------------------

12:12:16A

SUM STATUS SETUP ADV

ADV/SETTINGS/WARNING

changes made could adversely aect system performance

PROGRAMMING THE FXS

• The screen displays <132>. Press the <INC> button

until it scrolls to the password 141.

ADV/PASSWORD

enter the password

132

ENTER INC DEC EXIT

ADV/PASSWORD

enter the password

141

ENTER INC DEC EXIT

• Push the <ENTER> soft key.

ADV

choose device:

FX CC DC MATE

ADV/FX/PAGE 1----------------

choose category:

ADV INV CHGR PG2

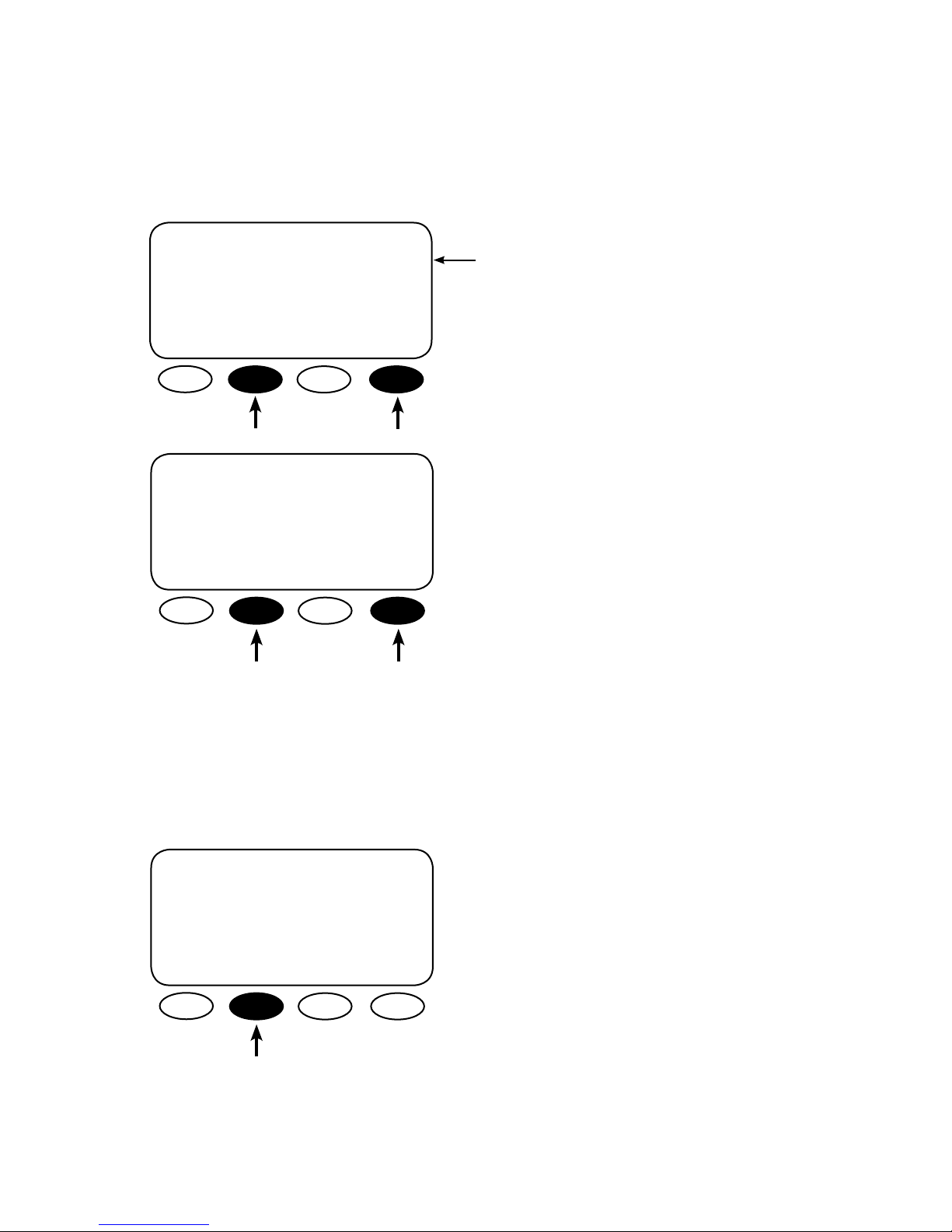

• On the ADV/FX/PAGE 1 screen, press the <PG2> soft key and go to the ADV/FX/PAGE2 screen.

• In the ADV menu, press the <FX> soft key.

ADV/FX/PG2-------------------

choose category:

PG1 GRID GEN PG3

• Press the <PG3> soft key which leads to the

ADV/FX/PAGE3 screen.

ADV/FX/PAGE3----------------

choose category:

PG2 AUX STACK PG4

• On the ADV/FX/PAGE3 screen, press the

<STACK> soft key.

ADV/FX/STACK--------P01

stack Master

phase

DOWN INC DEC PORT

• Stacking the FX Inverter/Chargers begins on this screen. See specic stacking procedures in the next section.

ADV/FX/STACK----------P01

stack Master phase

DOWN INC DEC PORT

• Port 01 always takes the Master FX.

• Pressing the <PORT> soft key changes the HUB Port whose value you wish to adjust.

Pressing the <INC> or <DEC> soft keys changes the stacking phase.

MASTER

With the Port 01 FX as the Master, press the <PORT> soft key to change the remaining Ports and designate the remaining FXs as Slaves. The MATE screen for Port 02 will look like this:

ADV/FX/STACK--------P02

stack Master

phase

DOWN INC DEC PORT

• The MATE is now ready to program the FX plugged into Port 02 of the HUB.

• Master is the factory default value for each grid-interactive FX.

ADV/FX/STACK---------P02

stack Master

phase

DOWN INC DEC PORT

• Pressing the <INC> soft key will keep the MATE’s

attention on Port 02, but will change the stack phase to Classic Slave screen. Port 02 will then be assigned as a Classic slave. You can change the stacking phase by pressing the <INC> or <DEC> soft keys and change to a dierent port by continuously pushing the <PORT> soft key.

NOTE: There are no <OK> or <DONE> commands in the stacking menu. Whichever value—Master or Slave—shows up on the MATE screen will be assigned to the chosen Port (and FX) upon leaving that screen. It’s important to watch the Port number in the top right corner of each screen to be sure you’ve assigned it the desired status.

• PO2 is now assigned as a Classic Slave.

ADV/FX/STACK---------P02

stack Classic Slave

phase

DOWN INC DEC PORT

CLASSIC SLAVE

POWER SAVE LEVELS

Depending on the model, each FX consumes 20-25 watts of power when it remains on, even if it isn’t actively inverting or charging. OutBack oers a power save feature for its non-grid-interactive systems, but is not available for grid-interactive systems. The power save level screens can be viewed from any stacking screen, but the default values should remain unchanged in a grid-interactive system.

ADV/FX/STACK------------P01

(ANY SCREEN IN STACK PHASE)

DOWN INC DEC PORT

ADV/FX/STACK-----------P01

power save level

master adjust only

DOWN INC DEC PORT

• Press the <DOWN> soft key once to view the power

save level master adjust only screen

• Press the <DOWN> soft key to view the power save

level slave adjust only screen.

ADV/FX/STACK---------P02

power save level 1

slave adjust only

DOWN INC DEC PORT

• Do not adust these values when using a gridinteractive FX.

AC ON

• With the programming completed, turn the AC output breakers ON with the AC BYPASS on the AC breaker panel switched to NORMAL.

Verify the AC voltage output through the MATE following path:

PATH

MAIN------- SETUP------------ STATUS/FX/PAGE1---------- Float P00 STATUS/FX/METER--P00

12.15:30p choose device: choose category: inv 0.0Kw zer 0.0kw output 117 vac chg 0.0kw buy 0.0kw voltage

SUM STATUS SETUP ADV

FX CC DC MAIN MODES METER BATT PG2 DOWN STATUS PORT DOWN UP TOP PORT

NOTE: If you are using the FW-X240 Auto Transformer for step-up functioning, turn on its breaker now. Otherwise, go to the next step.

BYPASS OUTPUT INPUT

If the FX’s AC source is available, the yellow AC IN STATUS light will blink. The FX will connect to the utility grid when the voltage is within 108-140 VAC and the frequency between 59.3-60.5 Hz. After about 30 seconds, the AC IN light should stop blinking and stay lit. A ve-minute waiting period begins before selling or charging can occur. The FX can then perform a battery charge using the available AC.

• Turn the AC input breakers ON.

BYPASS OUTPUT INPUT

AUXILIARY AUX FUNCTIONS

The AUX output provides a 12 VDC, 0.7 ADC max output at the AUX terminals to control either DC or AC external loads. Typical loads include sending a fault alarm signal or running a small fan to cool the FX.

ADV/SETTINGS/WARNING

changes made could

adversely aect

system performance

MAIN--------------------------

12:12:16A

SUM STATUS SETUP ADV

• Press the <ADV> soft key.

NOTE: Pressing and holding the rst two soft keys at the same time will always bring up the Main Menu screen.

• Push any soft key on the ADV/SETTINGS/WARNING screen and go to the ADV/PASSWORD screen.

• The screen displays <132>. Press the <INC> button until it scrolls to the password 141.

ADV/PASSWORD--------------

enter the password

132

ENTER INC DEC EXIT

ADV/PASSWORD----------------

enter the password

141

ENTER INC DEC EXIT

ADV------------------------------

choose device:

FX CC DC MATE

ADV/FX/PAGE 1----------------

choose category:

ADV INV CHGR PG2

• On the ADV/FX/PAGE 1 screen, press the <PG2> soft key and go to the ADV/FX/PAGE2 screen.

• In the ADV menu, press the <FX> soft key.

• Push the <ENTER> soft key.

ADV/FX/PG2---------------------

choose category:

PG1 GRID GEN PG3

• Press the <PG3> soft key which leads to the ADV/ FX/PAGE3 screen.

ADV/FX/PAGE3-----------------

choose category:

PG2 AUX STACK PG4

• On the ADV/FX/PAGE3 screen, press the <AUX> soft key to adjust the AUX output set points and operation.

ADV/FX/AUX---------------P00

aux output AUTO

control

DOWN INC DEC PORT

• Selecting the <INC> or <DEC> soft keys changes the mode of the AUX.

AUTO allows the AUX to perform a selected AUX OUTPUT FUNCTION, determined in the following screens. OFF disables the AUX. ON activates the AUX regardless of the selected function.

• Press the <DOWN> soft key to select on an AUX OUTPUT FUNCTION

•

ADV/FX/AUX--------------P00

aux output Cool Fan function

DOWN INC DEC PORT

There are nine AUX OUTPUT FUNCTIONS:

• Cool Fan

• Divert DC

• Divert AC

• AC Drop

• Vent Fan

• Fault

• GenAlert

• Load Shed

• Remote

Pressing either the <INC> or <DEC> soft key will

bring up another AUX OUTPUT FUNCTION

Pressing the <INC> or <DEC> soft keys changes the aux output function.

LIST OF AUX FUNCTIONS

• Cool Fan activates the standard TurboFan which cools the FX.

• Divert DC and Divert AC allows the AUX to divert excess renewable energy to a DC or AC load, respectively. This allows control of energy sources such as wind turbines or hydro-generators. When using Divert AC, the AUX output will shut o if the inverter is overloaded.

• AC Drop is activated when an AC power source disconnects from an FX. An indicator, such as an alarm, connected to the AUX warns a user that AC power is no longer available.

• Vent Fan provides 0.7 amps to run a 12 VDC fan for removing hydrogen from the battery compartment. Vent Fan can operate automatically when the VENTFAN ON voltage set point is exceeded or it can operate intermittently by adjusting the VENTFAN OFF PERIOD.

• In Fault mode, the AUX can send an alarm signal via radio, pager, or telephone device when the FX enters into an error condition. Fault mode can also be used to log error conditions by triggering an event recording device.

• GenAlert, through a 12VDC relay, will tell the system to start a two-wire type generator when the battery voltage falls below a certain set point. GenAlert can be adjusted according to the shortfallbattery voltage, the amount of time spent at this voltage, the recharged voltage and amount of time at this voltage before GenAlert is de-energized.

• Load Shed energizes the AUX the reduce the load demand on the batteries and the inverter function, thus acting as a load management system.

• Setting the AUX to Remote allows a message sent through the serial port on the MATE to switch the AUX on and o.

NOTE: Using Advanced Generator Start (AGS) overrides any programmed AUX function.

ADV/FX/AUX-------------P00

aux output Remote function

DOWN INC DEC PORT

• From the Remote aux output function screen, press

the <DOWN> soft key

ADJUSTABLE AUX OUTPUT FUNCTIONS

There are four AUX functions whose settings can be adjusted by the user:

• Diversion

• Vent Fan

• GenAlert

• Load Shed

ADV/FX/AUX---------------P00

genalert 11.5vdc on setpoint

DOWN INC DEC PORT

• From the Remote aux output function screen, press the <DOWN> soft key. This will bring up the rst of several screen used to adjust which ever mode you have chosen for the AUX function.

ADV/FX/AUX-------------P00

aux output Remote function

DOWN INC DEC PORT

• The genalert on setpoint functions are not available for grid-interactive FXs. Press the <DOWN> soft key three times to view the loadshed o setpoint screen.

• The loadshed o setpoint is the battery voltage

which triggers the AUX to reduce the inverter and battery loads. When the battery voltage drops below this value for three seconds, the AUX powers a DC coil relay to disconnect an AC load. Once triggered, loadshed remains on for at least three minutes. The loadshed o setpoint is adjustable from10 VDC-14 VDC in 0.1 VDC increments using the <INC> and <DEC> soft keys. Press the <DOWN> soft key to bring up the ventfan on setpoint.

• When the AUX is set to ventfan, a fan ventilates

a battery enclosure. The ventfan on setpoint establishes the battery voltage which energizes the AUX and thus the fan for a one minute period. The voltage setting has a range of 10.0 VDC-16.0 VDC in

0.1 VDC increments using the <INC> and <DEC> soft keys. Recharging causes batteries to emit mostly hydrogen gas; higher recharging voltages emit more gas. Press the <DOWN> soft key to view the ventfan o period screen.

ADV/FX/AUX---------------P00

loadshed 11.0 vdc o setpoint

DOWN INC DEC PORT

ADV/FX/AUX---------------P00

ventfan 13.0 vdc on setpoint

DOWN INC DEC PORT

• If a ventilation fan is only needed intermittently, the ventfan o period shuts the fan o for a userdetermined time before starting up again for a oneminute period when the battery voltage exceeds the ventfan on setpoint. This o period can be set from 0-30 minutes in one-minute increments using the <INC> and <DEC> soft keys. Setting this period to zero will keep the fan running the entire time the battery voltage is high enough to activate the ventfan function. Setting it to ve minutes means the fan will run for one minute and then shut o for ve minutes until the battery voltage drops and the fan is no longer needed. Press the <DOWN> soft key to view the diversion on setpoint screen.

ADV/FX/AUX---------------P00

ventfan o 5 min period

DOWN INC DEC PORT

• After deciding on Divert DC or Divert AC, use the diversion on setpoint screen to choose the voltage which will activate this AUX OUTPUT FUNCTION. This value can range from 12.0 VDC-16.0 VDC and can be adjusted in 0.1 VDC increments using the <INC> and <DEC> soft keys. Press the <DOWN> soft key to view the diversion o delay screen.

ADV/FX/AUX---------------P00

diversion 14.6 vdc on setpoint

DOWN INC DEC PORT

• The diversion o relay determines how long the AUX will be energized after the battery voltage which caused the diversion falls below the diversion on setpoint. This delay can range from 0-240 seconds in one-second increments as adjusted with the <INC> and <DEC> soft keys.

ADV/FX/AUX--------------P00

diversion 30 sec o delay

DOWN INC DEC PORT

BATTERY CHARGING INSTRUCTIONS

Keeping your battery bank energized is very important. Although a battery bank can last for many years if properly cared for, it can also be ruined in a short period of time if neglected.

Battery Charging Setpoints

To preserve your batteries always follow your battery manufacturer’s recommendations using the following information:

• Absorb Voltage

• Float Voltage

• Equalize Voltage

• Recommended Depth of Discharge (DOD) of the batteries

These Absorb, Float, and Equalize voltage set points should be programmed into the FX through the MATE (see MATE User Manual).

MAINTENANCE

Please contact OutBack Power Systems Technical Services for any FX repairs due to malfunctions or damage. For routine, user-approved maintenance:

• Disconnect all circuit breakers and related electrical connections before doing any cleaning or adjustments.

• Solar modules may produce hazardous voltages when exposed to light; cover them with opaque material before servicing any connected equipment.

• If a remote start system is used, disable the automatic starting circuit while servicing it to prevent starting while servicing.

13.6

14.4

14.4 u

12.5

10.5

12.5

13.0

14 11 11 13

14.6

1.0 hours

1.0 hours 60 cycles* *20 for Grid-Tie 6 108 208 140 270 .5 min USE AUTO COOL FAN 4 min 9 min 5 min 108 208 140 270 6 AUTO 8 60

1 or 2 Phase Master Gen 18 Amp AC 12 Amp AC 10 Amp AC 10 Amp

28 Amp 48 Amp 28 Amp 50 Amp

28 48 28 50 120 230

12 13 14 11 9 10 10

12 10 10 10 12

0.0 hours

0.0 hours 0 cycles

0 40 80 130 250 .2 MIN N/A

0 min 0 min 0 min 40 80 130 250 0

2 4

0 Amp AC 0 Amp AC 0 Amp AC 0 AMp AC

5 Amp 5 AMp 5 Amp

2 2 2

110 210

Float Voltage Absorb Voltage EQ Voltage ReFloat LBCO LBCI Sell RE

GenAlert

O Set Point On Set Point Load Shed o Set Point Vent Fan ON set Point Diversion On Set Point Absorb Time EQ Time Float Time AC2/Gen Transfer Delay (Cycles for AC)

Search Grid Lower Limit Export Grid Lower Limit Only Grid Upper Limit (USA) Grid Upper Limit (Export) Grid Connect Delay Drop or Use Charger O/Auto/On Aux Output Option Gen Alert On Delay Gen Alert O Delay Vent Fan O Delay Gen Window Lower Limit 60 Hz Export Only Gen Upper Window Limit 60 Hz Export Only Ac 1/Grid Transfer Delay (Cycles of AC) Set AUX Control Search Pulses Search Pulse Spacing (Cycles AC)

Stacking Phase InPut Select

Charge Rates for Vented 24 & 48 VDC Charge Rates for Vented 12 VDC Charge Rates for Sealed 24 & 48 VDC Charge Rates for Sealed 12 VDC

Grid Input Settings

Set AC Input Size Mobile Non-Mobile (US) Export GT

Gen Input Settings

Mobile Non-Mobile (US) Export GT Set VAC (US)

Export

15 16 17 u

(24VDC Grid-Tie is 29.2 default) 13 12 14 15

18V 14V 14V 16V 16V

24.0 hours

24.0 hours 240 cycles

50 115 220 150 300

15.0 min N/A

240 min 240 min 30 min 115 220 150v 300 240

20 120

20 Amp AC 14 Amp AC 14 Amp AC 12 Amp AC

30 Amp 60 Amp 30 Amp

30 60 30

125V 240V

E models are one-half of these values

Correction Factor 24 VDC: Multiply 12VDC values by 2 32 VDC: Multiply 12 VDC values by 2.64 48 VDC: Multiply 12VDC values by 4

FX Default Values (subject to change with FX upgrades)

WARRANTY

OutBack Power Systems Two Year Limited Warranty

OutBack Power Systems Inc. warrants that the products it manufactures will be free from defects in materials and workmanship for a period of two (2) years subject to the conditions set forth below.

The limited warranty is extended to the original user and is transferable. The limited warranty term begins on the date of invoice to the original user of the product. The limited warranty does not apply to any product or part thereof damaged by a) alteration or disassembly, b) accident or abuse, c) corrosion, d) lightning, e) reverse polarity, f ) repair or service provided by an unauthorized repair facility, g) operation or installation contrary to instructions pertaining to the product.

OutBack Power Systems’ liability for any defective product or any part thereof shall be limited to the repair or replacement of the product, at OutBack Power Systems’ discretion. OutBack Power Systems does not warrant or guarantee the workmanship performed by any person or rm installing its products.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). OUTBACK POWER SYSTEMS’ RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN THIS LIMITED WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER SUCH PERIOD. SOME STATES (OR JURISDICTIONS) DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

OUTBACK POWER SYSTEMS DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY STATEMENT OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT BEING AVAILABLE FOR USE. SOME STATES (OR JURISDICTIONS) DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

During the two year period beginning on the invoice date, OutBack Power Systems will repair or replace products covered under this limited warranty that are returned to OutBack Power Systems’ facility or to an OutBack Power Systems authorized repair facility, or that are repaired on site by an OutBack Power Systems authorized repair technician. To request limited warranty service, you must contact OutBack Power Systems at 360-435-6030 within the limited warranty period. If limited warranty service is required, OutBack Power Systems will issue a Return Material Authorization (RMA) Number. Mark the outside of the package with the RMA number and include a copy of the purchase invoice in the package. You must ship the products back to OutBack Power Systems in their original or equivalent packaging, prepay shipping charges, and insure the shipment or accept the risk of loss or damage during shipment. OutBack Power Systems will ship the repaired or replacement products to you freight prepaid if you use an address in the continental United States, where applicable. Shipments to other locations will be made freight collect.

PRODUCT REGISTRATION

Your purchase of an OutBack Power Systems product is an important investment. Registering your products will help us maintain the standard of excellence you expect from us in terms of performance, quality and reliability.

Please take a moment to register and provide us with some important information.

NAME: __________________________________

ADDRESS: _______________________________

CITY:____________________________________

STATE:________________ZIP CODE: __________

COUNTRY: _______________________________

TELEPHONE NUMBER: ______________________

E-MAIL: _______________________________

SOLD BY: ______________________________

INSTALLER: ____________________________

PURCHASE DATE: _______________________

MODEL NUMBER: ________________________

SERIAL NUMBER: _________________________ _

Circle all that apply: O-Grid Installation Residential Installation North America Location Utility Connected Installation Commercial Installation Other ________________

EXTENDED WARRANTY APPLICATION U.S. AND CANADA ONLY

OutBack Power Systems oers an optional three year extension to the standard two year limited warranty. Purchase of extended warranty coverage is available on products listed below provided conditions shown are met. Extended warranty coverage must be purchased within 90 days of the original sale of the product covered.

PRODUCT COST REQUIRED SURGE PROTECTION EXTENDED WARRANTY

Any FX Series Inverter/Charger AC Input; AC Output, DC Input $300.00 OutBack Charge Controller DC Input; DC Output $100.00 MATE NA $50.00 HUB 4 NA $35.00 HUB 10 NA $50.00

Product Covered Serial Number Quantity Extended Warranty Cost

________________________ _________________________________ _______________ _____________________

________________________ _________________________________ _______________ ____________________

Total _______________

Send check or money order payable to OutBack Power Systems. Washington residents please include

8.5% sales tax. Include a completed copy of this application and send to: OutBack Power Systems Extended Warranty Program 19009 62nd Ave NE • Arlington, WA 98223 USA

10YEAR LIMITED WARRANTY

(California)

GTFX, GVFX and PS1 Products

OutBack Power Systems, Inc. (“OutBack”) provides a ten-year (10) limited warranty (“Warranty”) against defects

in materials and workmanship for its GTFX, GVFX and PS1 products (“Products”) if installed in xed location

applications within the State of California.

For this Warranty to be eective, the Product purchaser must complete and submit the applicable Product

registration card within ninety (90) days of the eligible Product’s rst retail sale. The term of this Warranty is

governed by the date issued by OutBack on the 10-year Warranty Certicate. This Warranty applies to the

original OutBack Product purchaser, and is transferable only if the Product remains installed in the original use

location. The warranty does not apply to any Product or Product part that has been modied or damaged by the

following:

• Installation or Removal;

• Alteration or Disassembly;

• Normal Wear and Tear;

• Accident or Abuse;

• Corrosion;

• Lightning;

• Repair or service provided by an unauthorized repair facility;

• Operation contrary to manufacturer product instructions;

• Fire, Floods or Acts of God;

• Shipping or Transportation;

• Incidental or consequential damage caused by other components of the power system;

• Any product whose serial number has been altered, defaced or removed; or

• Any other event not foreseeable by OutBack.

OutBack’s liability for any defective Product, or any Product part, shall be limited to the repair or replacement of

the Product, at OutBack’s discretion. OutBack does not warrant or guarantee workmanship performed by any

person or rm installing its Products. This Warranty does not cover the costs of installation, removal, shipping

(except as described below), or reinstallation of Products.

To request warranty service, you must contact OutBack Technical Services at (360) 435-6030 or support@

outbackpower.com within the eective warranty period. If warranty service is required, OutBack will issue

a Return Material Authorization (RMA) number. A request for an RMA number requires all of the following

information:

Revision.2007-06-01

1. Proof-of-purchase in the form of a copy of the original Product purchase invoice or receipt conrming the

Product model number and serial number;

2. OutBack issued 10-year warranty certicate;

3. Description of the problem; and

4. Shipping address for the repaired or replacement equipment.

After receiving the RMA number, pack the Product(s) authorized for return, along with a copy of the original

purchase invoice and warranty certicate, in the original Product shipping container(s) or packaging providing

equivalent protection and mark the outside clearly with the RMA number. The sender must prepay all shipping

charges, and insure the shipment, or accept the risk of loss or damage during shipment. OutBack is not

responsible for shipping damage caused by improperly packaged Products, the repairs this damage might

require, or the costs of these repairs. If, upon receipt of the Product, OutBack determines the Product is defective

and that the defect is covered under the terms of this Warranty, OutBack will then and only then ship a repaired

or replacement Product to the purchaser freight prepaid, non-expedited, using a carrier of OutBack’s choice

within the continental United States, where applicable.

Shipments to other locations will be made freight collect. The warranty period of any repaired or replacement Product is twelve (12) months from the date of shipment from OutBack, or the remainder of the initial warranty term, which ever is greater.

THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY APPLICABLE TO OUTBACK PRODUCTS. OUTBACK EXPRESSLY DISCLAIMS ANY OTHER EXPRESS OR IMPLIED WARRANTIES OF ITS PRODUCTS, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. OUTBACK ALSO EXPRESSLY LIMITS ITS LIABILITY IN THE EVENT OF A PRODUCT DEFECT TO REPAIR OR REPLACEMENT IN ACCORDANCE WITH THE TERMS OF THIS LIMITED WARRANTY AND EXCLUDES ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT BEING AVAILABLE FOR USE OR LOST REVENUES OR PROFITS, EVEN IF IT IS MADE AWARE OF SUCH POTENTIAL DAMAGES. SOME STATES (OR JURISDICTIONS) MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF WARRANTIES OR DAMAGES, SO

THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

Revision.2007-06-01

10-Year Warranty Registration for GVFX, GTFX and PS1-California

10YEAR WARRANTY REGISTRATION  CALIFORNIA

To request a 10-year Limited Warranty; complete this form along with a check or money order in the amount of $599 USD payable to OutBack Power Systems, Inc., and return it to:

Outback Power Systems Inc. 19009 62nd Ave. NE • Arlington, WA 98223

NOTE: A 10-Year Limited Warranty Certicate will only be issued if this registration card is received by

Outback within 90 days of the date of the rst retail sale of the eligible product.

Please submit a copy (not the original) of the product purchase invoice, which conrms the date and location of purchase, the price paid, and the product model and serial number. The warranty certicate is available only for and will only be issued for GTFX, GVFX and PS1 products installed in xed location (non-mobile) applications within the state of California.

System Owner

Name: ______________________________________ E-mail: __________________________________

Address: ____________________________________ City, State, Zip Code: _______________________

Country: ____________________________________ Telephone number: ________________________

Product

Product model number:________________________ Product serial number:______________________

Sold by:______________________________________ Purchase date: _____________________________

Please circle the three most important factors aecting your purchase decision:

• Price • Product Reputation • Product Features

• Reputation of OutBack Power • Value

System

System install/commission date: __________________ System array size: __________________________

System array nominal voltage: ___________________ Type of PV modules: _______________________

System battery bank bize (amp hours):_____________ Type of batteries:___________________________

Please list other sources of back-up power:_____________________________________________________________

_____________________________________________________________________________

______________________________________________________________________________________

Installer

Installer: ____________________________________ Installer e-mail:____________________________

Installer address: ______________________________ Installer City, State, Zip: _____________________

Contractor number:____________________________

Revision.2007-06-26

European Sales Oce

Barcelona, ESPAÑA

(+34) 600.843.845

19009 62nd Avenue NE Arlington, WA 98223 USA (+1) 360.435.6030

www.outbackpower.com

900-0087-01-00 REV A

Outback Power Systems GRID-INTERACTIVE GTFX, GRID-INTERACTIVE GVFX, GTFX, GVFX Programing Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
