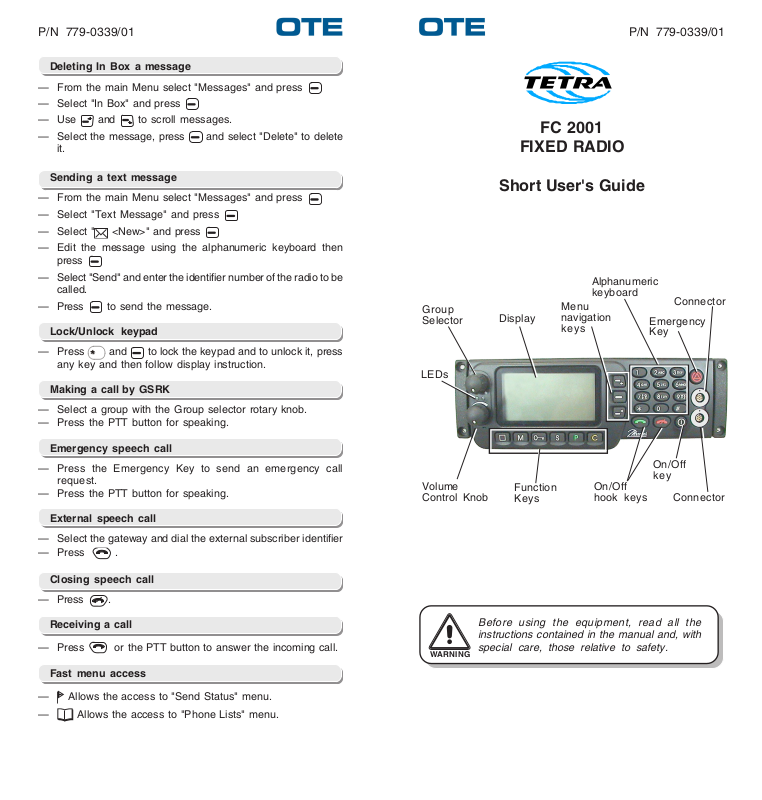

P/N 779-0339/01 P/N 779-0339/01
Deleting In Box a message
— From the main Menu select "Messages" and press
— Select "In Box" and press
— Use and to scroll messages.
— Select the message, press and select "Delete" to delete
it.
FC 2001
FIXED RADIO
Sending a text message
— From the main Menu select "Messages" and press
— Select "Text Message" and press
— Select " <New>" and press
— Edit the message using the alphanumeric keyboard then
press
— Select "Send" and enter the identifier number of the radio to be
called.
— Press to send the message.
Lock/Unlock keypad
— Press and to lock the keypad and to unlock it, press
any key and then follow display instruction.
Making a call by GSRK
— Select a group with the Group selector rotary knob.
— Press the PTT button for speaking.
Emergency speech call
— Press the Emergency Key to send an emergency call
request.
— Press the PTT button for speaking.
External speech call
— Select the gateway and dial the external subscriber identifier
— Press .
Group
Selector
LEDs
Volume
Control Knob
Short User's Guide
Alphanumeric
keyboard
Menu
Display
Function
Keys
navigation
keys
On/Off
hook keys
Connector
Emergency
Key
On/Off
key
Connector
Closing speech call
— Press .
Receiving a call
— Press or the PTT button to answer the incoming call.
Fast menu access
— Allows the access to "Send Status" menu.
— Allows the access to "Phone Lists" menu.
WARNING
Before using the equipment, read all the
instructions contained in the manual and, with
special care, those relative to safety.
P/N 779-0339/01 P/N 779-0339/01
F
Indication Description
Group
Selector
16 settings selector: it enables selection of any
of the previously preset 16 groups.
The group call is activated pressing the PTT.
LEDs
Green led: lit while the radio is receiving.
Red led: lit while the radio is transmitting; blinking
in Tx Inhibit mode.
Volume
Control
It lets user control the volume of the audio output
of the loudspeaker or of the earphone.
Knob
Function
Keys
: Not active.
: Change Mode (Not active if only one
M
mode is set).
: Encryption.
: By PRP programmable key.
S
: Shows the sentence "Press PTT for indi-
P
vidual call" (only TMO).
: clear/escape key.
The on hook green key is used to accept/make
a call and if pressed in idle status accesses the
calls list. The off hook red key is used to end a
connection.
To switch the radio on/off. Fitted with a time
delay and a low profile to prevent accidental
activation.
Connector
Connector
Audio input signals.
RS232 serial line connector.
Symbol Meaning
Signal level
Trunked Mode, searching network (flashing)
Direct Mode with DM-GATE device presence
detected
Direct Mode
D
Fall-back Mode
Direct Mode with DM-REP device presence
D
detected
Encryption enable
No read messages, full queue (flashing)
Full queue, each message is read
Data connection active
+
P
Earphone active
Loudspeaker active
Keypad DTMF OFF
Keypad locked
Headphone
Group scanning enable
S
Alphanumeric
keyboard
Menu
navigation
keys
Display
It lets the user make a call with emergency
priority to the group or user preset by PRP
Alphanumeric keypad for dialling numbers and/
or strings. It is made up of 12 keys (10 digits plus
and #).
*
: scrolling previous menu
: selection
: scrolling next menu
Backlit LCD display (160x80 pixel).
Turning on/off the equipment
— Press to switch on the equipment.
— Press for several seconds in order to switch off the radio.
Main menu
— Press to enter main Menu.
— Press or to switch among Menu options.
— Press to go to the upper Menu level.
Reading In Box messages
— From the main Menu select "Messages" and press .
— Select "In Box" and press .
— Use and to scroll messages.
— Select the message to read.
