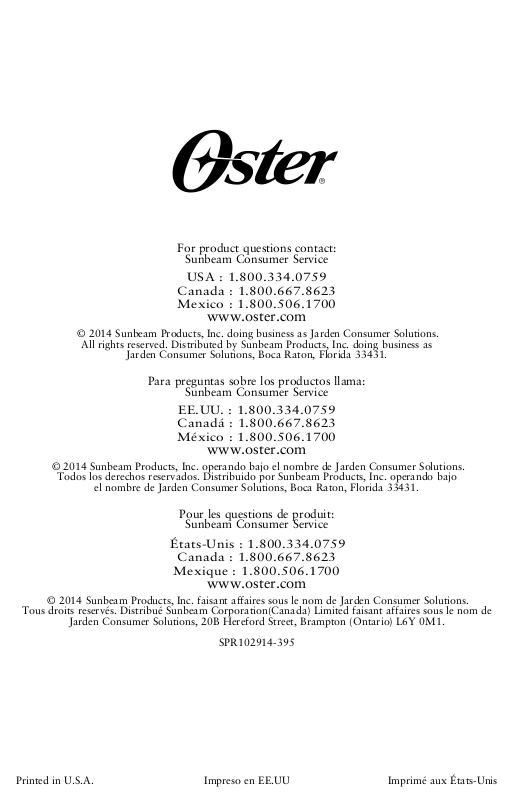

Oster 6629 Instruction Manual

For product questions contact:

Sunbeam Consumer Service

USA : 1.800.334.0759
Canada : 1.800.667.8623
Mexico : 1.800.506.1700

www.oster.com

© 2014 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions.

All rights reserved. Distributed by Sunbeam Products, Inc. doing business as

Jarden Consumer Solutions, Boca Raton, Florida 33431.

Para preguntas sobre los productos llama:

Sunbeam Consumer Service

EE.UU. : 1.800.334.0759
Canadá : 1.800.667.8623
México : 1.800.506.1700

www.oster.com

© 2014 Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions.

Todos los derechos reservados. Distribuido por Sunbeam Products, Inc. operando bajo

el nombre de Jarden Consumer Solutions, Boca Raton, Florida 33431.

Pour les questions de produit:

Sunbeam Consumer Service

États-Unis : 1.800.334.0759

Canada : 1.800.667.8623

Mexique : 1.800.506.1700

www.oster.com

© 2014 Sunbeam Products, Inc. faisant affaires sous le nom de Jarden Consumer Solutions.

Tous droits reservés. Distribué Sunbeam Corporation(Canada) Limited faisant affaires sous le nom de

Jarden Consumer Solutions, 20B Hereford Street, Brampton (Ontario) L6Y 0M1.

SPR102914-395

Printed in U.S.A. Impreso en EE.UU Imprimé aux États-Unis

User Manual

BLENDERS

Manual de Instrucciones

Manuel d’Instructions

MODELS/

Push Button Blenders

MODELOS

MODÈLES

Mélangeurs à poussoirs

LICUADORAS
MÉLANGEURS

www.oster.com

Ice

High Grate Blend Grind Liquefy

Low

Stir Puree Chop Whip Pulse

Crush

OFF

P.N. 133093-012-000 Rev. A

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed,
including the following:

Read all instRuctions befoRe use

• Unplug cord from outlet when not in use or before cleaning.

• To protect against risk of electrical shock, do not immerse the cord, plug or motor base in
water or any other liquids.

• Do not let cord hang over edge of table or counter or touch hot surfaces.

• Never leave appliance unattended when in use.

• Close supervision is necessary when used by or near children.

• Avoid contact with moving parts. Keep hands and utensils out of jar while blending to prevent
personal injury or damage to the blender. A rubber spatula may be used only when the blender
is not running.

• The blade is sharp. Handle with care.

• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly
attached.

• Always put the lid on the jar before operating the blender.

• Do not blend boiling liquids in the blender.

• When blending hot liquids beware of steam. Remove the filler cap from the lid to allow steam
to escape.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions
or is dropped or damaged in any manner. Return the appliance to the nearest Authorized
Sunbeam Appliance Service Center for examination, repair or electrical mechanical adjustment.

• Do not use outdoors or for commercial purposes; this appliance is for household use only.

• Always operate on a flat surface.

• Unplug the blender when not in use, before taking off or putting on parts and before cleaning.

• Use this appliance for its intended use as described in this manual. The use of attachments not
made by the manufacturer, including canning or ordinary jar and processing assembly parts, is
not recommended by Sunbeam Products, Inc. and may cause injury.

this PRoduct is foR household use only

The maximum rating marked on the product is based on the attachment that draws
the greatest load. Other attachments may draw less power.

Power Cord InstruCtIons

Please follow the instructions below to ensure the safe use of the power cord.

• This appliance is equipped with a polarized plug. This type of plug has one blade that

is wider than the other. This plug will fit in a polarized outlet only one way. This is
a safety feature intended to help reduce the risk of electrical shock. If you are unable
to insert the plug into the outlet, contact a qualified electrician to replace the obsolete
outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying
the plug in any way.

• You may use an extension cord, if necessary, but be certain to follow these guidelines:

– The marked electrical rating of the extension cord must be at least 120/127 Volt,

60 Hz, 10A.
The extension must be arranged so that it will not drape over the countertop

–

tabletop, will not be within the reach of children, and will not be tripped over.

– Do not pull, twist or otherwise abuse the power cord.

or

SAVE THESE INSTRUCTIONS

2

welCome

Congratulations on your purchase of an Oster® Blender!

OSTER

®

products, please visit us at www.oster.com.

Features oF Your Blender

A. Feeder cap for adding ingredients while blending
B. Leak-proof lid
C. Your

5 or 6-cup (1.2–1.4 L) Dishwasher-Safe Glass Jar
8-cup (1.89 L) Party Pitcher Glass Jar
6-cup (1.4 L) Break-Resistant Plastic Jar

D. Sealing ring for tight seal
E. Ice Crusher Blade pulverizes ice for smooth frozen drinks
F. Threaded Jar Nut or Threaded Jar Skirt (Select Models Feature a Threaded

G. Powerful motor with ALL-METAL-DRIVE for lasting durability
H. Control panel
I. Pulse for precise blending control (Location varies per model)
J. HIGH/LOW Switch (Select Models Only)

Oster® Blender includes one of the following:

Jar Skirt)

A

To learn more about

D

E

B

C

*Note: Blender models will feature a Threaded Jar Nut OR a Threaded Jar Skirt (F)

3

*F

G

H

I

J

Using YoUr Blender

12345678910 11 12

EASY CLEAN

PURÉE CREAM CHOP WHIPMIX GRATE BLENDSHRED GRINDLIQUEFY

ICE CRUSH

LOW HIGH

16-Speed

LOW HIGH

1234567891011121314

EASYCLEAN

BEAT PURÉE CREAM CHOP WHIPMIX MINCEGRATE BLENDSHRED GRINDLIQUEFY ICE CRUSH

14-Speed

LOW HIGH

12-Speed

LOW HIGH

12345678910

EASY CLEAN

PURÉE CHOP WHIPMIX GRATE BLENDGRIND LIQUEFY

ICE CRUSH

10-Speed

LOW HIGH

12345678

PURÉE CHOP MIX PULSE LIQUEFY SHAKE SMOOTHIEICE CRUSH

8-Speed

12345678910111213141516

PULSE

EASY CLEAN

STIR BEAT PURÉE CHOP WHIP MIX

ICECRUSH

GRATEBLEND SHREDGRIND MASH LIQUEFY FRAPPÉ

1. Clean blender according to the instructions in the “Cleaning and Storing

Your Blender” section.

2. Turn jar upside down so the small opening is at the top. (Figure 1)

3. Place sealing ring over jar opening. (Figure 2)

4. Place blade into jar. (Figure 3)

FigUre 1 FigUre 2 FigUre 3

4

5. Place threaded jar nut or threaded jar skirt over

blade and jar (Note: If there are slots on top of
collar, line them up with notches on jar.) Place the
threaded jar nut or threaded jar skirt on jar and turn
it clockwise to tighten. (Figure 4)

6. Place jar assembly onto base. (Figure 5)

7.

Line up tabs of jar with tabs on blender base.

Make sure the tab of the jar on the
back of the tab of the blender base and the tab of
the jar on the right side is in front of the tab of the
blender base. Make sure jar is seated into position.

(Figure 6)

8. Place ingredients into jar.

9. Place lid with feeder cap on jar.

10. Plug the power cord into a 120 Volt

AC electrical outlet.

11. Slide switch to HIGH or LOW. (If your model does

not have a slide switch, push HIGH or LOW button.)

12. Push desired speed and blend ingredients

to desired consistency.

13. Press OFF to stop the blender.

14. To use PULSE, select HIGH or LOW. Push PULSE

and hold down for desired length of time. Release
PULSE and allow blade to stop. Repeat cycle as
desired.

left

side is in the

FigUre 4

FigUre 5

Blending Tips

• Put liquids in the jar first, unless a recipe says otherwise.

• Crushing ice: Crush 6 ice cubes or approximately 2 cups

of ice at a time.

• Do not remove the lid while in use. Remove filler cap to

add smaller ingredients. (Figure 7)

• Cut all firm fruits and vegetables, cooked meats, fish and

seafood into pieces no larger than ¾ inch (1.8 cm) to
1 inch (2.5 cm). Cut all kinds of cheeses into pieces no
larger than 3/4 inch (1.8 cm).

• This blender will not mash potatoes, whip egg whites

or substitute dairy toppings, mix stiff dough or grind
raw meat.

HoT Foods

• Open the Filler Cap to vent steam. Tilt Filler Cap away from you.

Keep hands away from the cover opening to prevent possible burns.

• When working with hot liquids, remove Filler Cap and start blending at

a low speed. Then move to a faster speed. DO NOT add liquid over the 4 cup
(1 liter) level.

5

FigUre 6

FigUre 7

processing Foods in Blender*

PRocessed unPRocessed sPecial

food Quantity Quantity instRuctions

Breadcrumbs ½-cup (125 ml) 1 slice, torn in 8 pieces Pulse on low
Celery ¾-cup (200 ml) 1-cup (250 ml) of 1-inch (2.5 cm) pieces Pulse on low
Cheese, Cheddar 1-cup (250 ml) 1-cup (250 ml) of 1-inch (2.5 cm) pieces Pulse on low
Cheese, Swiss 1-cup (250 ml) 1-cup (250 ml) of 1-inch (2.5 cm) pieces Pulse on low
Cheese, Hard

or Semi-Hard 1-cup (250 ml) 1-cup (250 ml) of 1-inch (2.5 cm) pieces Chop continuously
Coffee Beans 1-cup (250 ml) 1-cup (250 ml) Grind 45 seconds or to

Cookies, Wafer ½-cup (125 ml) 10 wafers Pulse on low
Crackers, Graham ½-cup (125 ml) 8 crackers Pulse on low
Peppers ²⁄³-cup (150 ml) 1-cup (250 ml) Pulse on high
Meat, Boneless,

Cooked 1-cup (250 ml) 1-cup (250 ml) of 1-inch (2.5 cm) pieces Chop continuously
Nuts, almonds,

peanuts, pecans, 1-cup (250 ml) 1-cup (250 ml) Pulse on high
walnuts

*Suggested processing and blending guidelines.

desired consistency

cleaning and sToring YoUr Blender

IMPORTANT: UNPLUG BEFORE CLEANING. DO NOT IMMERSE THE
BLENDER BASE IN WATER OR ANY OTHER LIQUID.

sponge with mild detergent to clean the outside of the blender base. All parts except
for the blender base are dishwasher-safe. Place sealing ring in bottom basket of
dishwasher. You can also wash the parts in warm, soapy water. Rinse well and dry.

Use a damp, soft

easY clean

Note: Easy Clean is not a substitute for regular cleaning described above.
It is especially important to disassemble and thoroughly clean your blender when
processing milk, dairy products, meats, seafood and eggs.

Pour 3 cups of warm water in the blender jar. Add 1 – 2 drops of liquid dishwashing
detergent. Select Easy Clean or blend on lowest speed. Blend detergent for 10 – 15
seconds. Empty jar of soapy water into sink. Rinse jar thoroughly with clean water.

sToring YoUr Blender

After cleaning, reassemble blade to jar with sealing ring and jar bottom. Store blender
with cover ajar to prevent container odor.

recipes

For fun and creative recipes for your new Oster® blender please visit www.oster.com.
Here you will find everything from the perfect Breakfast Smoothie to creamy Soups,
Sauces and a host of Oster signature Frozen Drinks. For the perfect recipe for any
occasion—turn on your creativity with Oster

®

Blenders!

6

3 Year Satisfaction Guarantee

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation
(Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a
period of three (3) years from the date of purchase, this product will be free from defects in material and
workmanship. JCS, at the Consumer’s sole option, will repair, or replace this product or any component of
the product found to be defective during the guarantee period. This guarantee is valid for the original retail
purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof
of purchase is required to obtain satisfaction guarantee performance. JCS dealers, service centers, or retail
stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions
of this guarantee.

All Metal Drive Ten (10) Year Limited Warranty

JCS also warrants that for a period of ten (10) years from the date of purchase, the All Metal Drive base unit
metal coupling will be free from defects in material and workmanship. JCS, at its option, will repair or replace
the metal drive stud component of the All Metal Drive coupling if found to be defective during the warranty
period. Replacement will be made with a new or remanufactured product or component. If the product is
no longer available, replacement may be made with a similar product of equal or greater value. This is your
exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product.
Doing so will void this warranty.

This warranty does not cover damage resulting from any of the following: negligent use or misuse of the
product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or
alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover:
Acts of God, such as fire, flood, hurricanes and tornadoes.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not
transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.
JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or
any way change the terms and conditions of this limited warranty.

What are the limits on JCS’ Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express,
implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied
warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the
duration of the above limited warranty. JCS disclaims all other warranties, conditions or representations,
express, implied, statutory or otherwise. JCS shall not be liable for any damages of any kind resulting from the
purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar
damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought
against purchaser by any other party. Some provinces, states or jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the
above limitations or exclusion may not apply to you. This limited warranty gives you specific legal rights, and
you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Satisfaction Guarantee and/or Limited Warranty Service

In the U.S.A.

If you have any question regarding this guarantee or limited warranty or would like to obtain guarantee or limited
warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this guarantee or limited warranty or would like to obtain guarantee or limited
warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this guarantee and limited warranty is offered by Sunbeam Products, Inc. doing business as
Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this guarantee and limited
warranty is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton,
Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write to the
Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF

THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

For inquiries regarding recycling and proper disposal of this product,

please contact your local waste management facility.

7
