Operating Instructions
UHF2190K 80 Channel UHF 2 Way
Citizen Band Radio
Keep this user guide for future reference.
Always retain your proof of purchase in case of warranty service.
www.oricom.com.au
Need Help?
If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support.
Australia 02 4574 8888 www.oricom.com.au Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66 www.oricom.co.nz Mon-Fri 10am – 8pm NZST
Table of contents
Safety Information and Warnings .............................. 4
Getting Started ....................................................... 10
Oricom UHF2190K instructions ............................... 15
Operation ................................................................ 17
Channel Frequency Table ........................................ 26
Troubleshooting guide ............................................. 29
Customer Support ................................................... 30
Express Warranty (Australia) ................................... 31
When a narrowband radio receives a transmission from an older wideband radio the speech may sound loud and distorted – simply adjust your radio volume for the best listening performance. When an older wideband radio receives a signal from a new narrowband radio the speech may sound quieter - simply adjust your radio volume for best listening performance. When operating a narrowband radio or Channel 41 - 80 interference is possible from wideband radios transmitting on high power or on adjacent frequency.
The issues described above are not a fault of the radio but a consequence of mixed use of wideband and narrowband radios.
This unit complies with all relevant Australian and New Zealand approval requirements AS/NZS 4365:2011 including radio communications (Electromagnetic Radiation Human Exposure) standard 2003.
3
Safety Information and Warnings
Safety Information and Warnings
Information on Safe Operation
WARNING
Read This Information Before Using Your Oricom Radio. The operation of your UHF radio in Australia
and New Zealand is subject to conditions in the following licenses:
In Australia, the ACMA Radio communications (Citizen Band Radio Stations) and in New Zealand by MED the General User Radio License for Citizen Band Radio.
Radio Antenna
Do not use any radio that has a damaged antenna. If a damaged antenna comes in contact with the skin, a minor burn may result.
Unauthorized antennas, modifications, or attachments could damage the radio and violate compliance. Do NOT change or modify the antenna.
Do NOT hold the antenna when the radio is “IN USE.” Holding the antenna reduces range and may cause bodily harm.
Safety and general use whilst in a vehicle
Check the State and Federal laws and regulations regarding the use of two way radios in the area where you drive, and always obey them.
For Vehicles tted with Air Bags
Do not place your radio in the area over an air bag or in the air bag deployment area. Air bags inate with great force. If a radio is placed in the air bag deployment area and the air bag inflates, the radio may be propelled with great force and cause serious injury to the occupants of the vehicle.
4
WARNING
Safety Information and Warnings
Read all these Safety Warnings before you install batteries.
• Do not dispose of the batteries in a re as they may explode.
• Exercise extreme care when handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conduction material may overheat explode and or cause burns.
• Never replace batteries in a potentially explosive atmosphere (such as where gas is leaking) as contact sparking may occur while installing or removing the batteries and cause a fire or an explosion.
• Do not modify, cut, disassemble, crush, bend, puncture, heat or damage the batteries
• If batteries leak, do not let the battery liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, and seek medical assistance. Released electrolyte is corrosive and may cause damage to the eyes and skin. It may be toxic if swallowed.
• Do not immerse or expose the batteries to water or other liquids.
• Never use damaged batteries as they may explode.
• Remove batteries when they are no longer able to hold a charge and when the equipment will not be used for an extended period of time.
• Dispose of batteries according to local regulations, never in your household rubbish.
.
5
Safety Information and Warnings
WARNING:
WARNING
Risk of explosion if battery is replaced by an incorrect type.
Potentially Explosive Atmospheres
Turn your radio OFF when in any area with a potentially explosive atmosphere. Sparks in such areas could cause an explosion or fire resulting in injury or even death.
NOTE: Areas with potentially explosive atmospheres are often, but not always clearly marked. They include fueling areas such as below deck on boats; fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn your radio OFF near electrical blasting caps or in a “blasting area” or in areas posted: “Turn off the two way radio.” Obey all signs and instructions.
6
WARNING
Safety Information and Warnings
Exposure to Radio Frequency Energy
Your Oricom two-way radio complies with Australian Communications Authority Radio communications (Electromagnetic Radiation-Human Exposure) Standard,
2003.
To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set out in the above standards always adhere to the following procedures.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/ uncontrolled environment exposure limits, always adhere to the following procedure:
• Transmit no more than 50% of the time.
• To receive calls, release the PTT button.
• To transmit (talk), press the Push to Talk (PTT) button.
Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).
Always hold the radio approximately 5cm in front of your mouth with the antenna pointing away from your head.
7
Safety Information and Warnings
Radio Operation and EME Exposure
WARNING
Unauthorized antennas, modifications, or attachments could damage the radio and violate compliance.
Do NOT hold the antenna when the radio is “IN USE.” Holding the antenna reduces the effective range.
Do not use the radio if the antenna is damaged. If a damaged antenna makes contact with your skin, a minor burn can result.
If you wear a radio on your body when transmitting, always fit the radio on the belt clip (supplied). Always ensure the radio and it's antenna are at least 5cm from your body when transmitting.
Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic interference (EMI). To avoid the possibility of electromagnetic interference and/ or compatibility conicts, turn off your radio in any location where posted notices instruct you to do so such as health care facilities.
Aircraft
When instructed to do so, turn off your radio when onboard an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions.
8
WARNING
Safety Information and Warnings
Medical Devices - Pacemakers
The Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by and recommendations of the U.S. Food and Drug Administration.
People with pacemakers should:
• ALWAYS keep the radio more than 15cm from their pacemaker when the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• Turn the radio OFF immediately if there is any reason to suspect that interference is taking place.
Medical Devices - Hearing Aids
Some radios may interfere with some hearing aids. In the event of such interference, you may want to
consult your hearing aid manufacturer to discuss alternatives.
9
Safety Information and Warnings
Other Medical Devices
WARNING
If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.
General warnings
Never use your radio outdoors during a thunderstorm.
Keep the radio out of reach of babies and young children.
Installation
Removing the Belt Clip
Pull the belt clip latch away from the radio. While pulling the belt clip latch, push up the belt clip.
Installing the Belt Clip
Slide the belt clip into the slot. A “click” indicates the belt clip is locked into position.
10
Installing the Batteries
Lift the battery cover lock to open then remove the battery cover. Install the rechargeable batteries by following the orientation as shown in Figure 1. Replace the Battery compartment cover and lock.
Getting Started
WARNING
• Follow the polar directions and insert 4 x AAA 600mA Ni-MH rechargeable batteries.
• Incorrect positioning can damage both the batteries and unit.
• Don’t try to recharge non-rechargeable batteries.
• Make sure the battery compartment cover is securely locked in place when you are charging the batteries.
• Dispose of used batteries safely according to local regulations, never in your household rubbish.
• Don’t leave dead batteries in the unit. They might leak.
CHARGING BATTERIES
When the “Battery level ” icon is low, you need to charge the battery with the enclosed desk cradle and AC/DC adaptor.
Figure 1
11
Getting Started

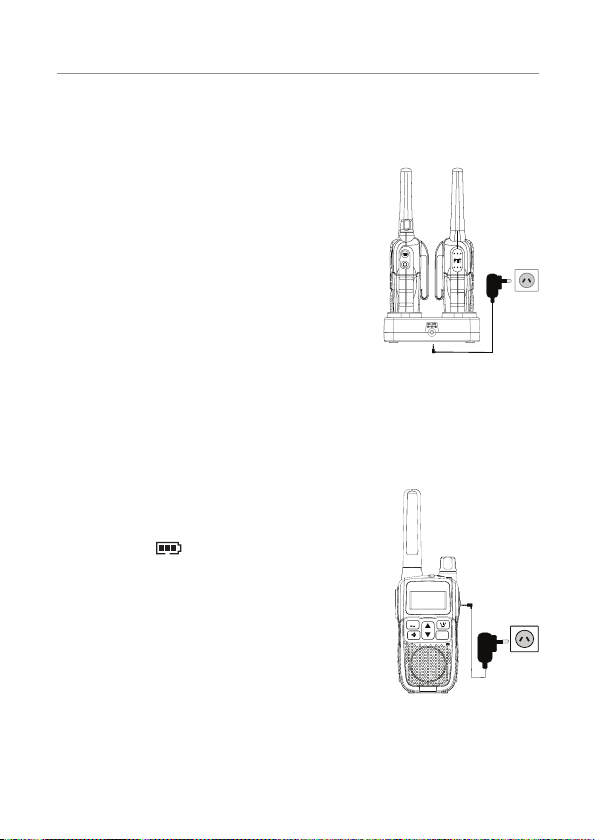

CHARGING WITH DESK CRADLE
Plug the adaptor into the wall socket and the other end into charging desk cradle. The cradle LED will illuminate red once you dock the radio for charging, there will be no charging indication on the radio's LCD display.
CHG
PTT
2 radios can be charged at the same time with the cradle. Charge time from at to full requires about 8 ~ 10 hours. After charging, remove the radio from the cradle.
CHARGING WITH AC Adaptor
To charge directly with AC adaptor instead of the cradle, please make sure the radio is off before charging. Plug the adaptor into the wall socket and the other end into the radio earphone jack. The LCD Icon will ash. Note: If you don't turn off the radio, the radio will automatically turn off during charging. Once charging is complete, turn radio off, wait a few seconds then turn it back on. Charge time from at to full requires about 8 ~ 10 hours. After charging, unplug the adaptor from the socket.
MENU
SC / MON
12
Getting Started
Transmitting Range
The talk range depends on the environment and terrain. In general the radio can reach further in wide open spaces, without obstructions such as hills or buildings. Range is affected by concrete structures, heavy foliage and by operating radios indoors or in vehicles. Don’t try to use two radio units which are less than 1.5m (5 feet) apart. Otherwise, you may experience interference.
Optimal Range
Outdoors
Flat, open areas
Medium Range
Outdoors
Buildings or trees
Also near residential
buildings
UHF2190K Pack Contents:
2 x UHF2190K UHF CB Radios 1 x Twin Charging Pod 1 x AC Adaptor 8 x AAA 600mA Ni-MH Rechargeable Batteries 2 x Belt Clips
Minimal Range
Outdoors
Dense foliage or
mountains. Also inside
some buildings
13
Getting Started
Oricom UHF2190K Accessories
The following Oricom UHF2190K accessories can be purchased directly from Oricom. Visit www.oricom.com.au or call (02) 4574 8888.
Model No. Description
2U0175 Heavy duty speaker microphone
2U0176 Twin charging cradle
2U0177 AC adaptor
2U0178 Car charger
2U0179 Ear bud mics
2U0180 Single belt clip
2U0181 AAA 600mA Ni-MH Rechargeable Battery
FOR A FULL LIST OF CURRENT PARTS AND ACCESSORIES VISIT www.oricom.com.au
14
Oricom UHF2190K instructions
1
2
3
4 5 6
10 11 12
14
Oricom UHF2190K 2-Way CB Radio
7
8
9
MENU
SC /
MON
13
1. Antenna
2. Torch LED
3. PTT key
4. Menu / Key lock key
5. Call Tone key
6. Down key
7. Power On/Off/Volume Knob
8. LCD display
9. Earphone & Charger Jack
10. Up key
11. Torch On/Off key
12. Scan / Monitor key
13. Microphone
14. Speaker
15
Oricom UHF2190K instructions
LCD DISPLAY ICONS
1. TX
2. RX
3. Dual Watch
4. VOX
5. Repeater
6. Battery Level
7. DCS
16
8. CTCSS
9. Code for CTCSS/DCS
10. APO (Auto Power Off)
11. Main Channel Digits
12. Key Lock
13. Vibrator
14. Call Tone
Operation
Operation
Turning the Radio ON/OFF
To Turn ON;
Rotate the POWER/VOL knob clockwise until the LCD Screen turns ON and displays the current channel.
To switch OFF;
Rotate the POWER/VOL knob counter clockwise until the LCD screen turns blank and you hear a click.
Adjusting the Speaker Volume
After turning on the radio, you can adjust the volume level by rotating the Power/Vol knob.
Changing Channels
To select the main channel Press ▲ or ▼ key to select your desired main channel number. Press the PTT key to conrm and quit or press MENU to continue to the next menu setting. LCD will display the channel frequency. You have 10 seconds to decide before auto-reverting back to the main screen. Your UHF2190K is simplex “one way at a time”. While you are speaking, you can not receive a transmission. Your UHF2190K is an open- ‐license band. Always identify yourself when transmitting on the same channel. IMPORTANT: Before transmitting on a channel listen to ensure it is not already in use.
17
Operation
Key Lock
Press and hold key for 3 seconds, LCD displays icon. All keys are locked except PTT , torch and
To unlock, press and hold
key for 3 seconds again.
key.
Torch
Press key to turn on the LED torch. Press the key again to turn the torch off.
Scanning Channels
Press the SC/MON key once, LCD will display SC/MON and radio will start scanning. LCD display shows the scanning channel one by one. It will stop at channels with a signal for a while.
Note: Please be aware that the scanning will stop at the channels with the same CTCSS / DCS as your radio setting only.
Press ▲ or ▼ key to continue scanning. Or if you want to use this channel, press PTT to conrm and your radio will stay on this channel. If there is no signal, it will continue to scan. Press SCAN key or PTT to exit Scan funtion and return to preset Channel.
Monitor (Zero squelch)
Press and hold SC/MON key to temporarily open the squelch in order to listen to signals that are too weak to keep the squelch permanently opened. Release the SC/MON key to stop.
18
Operation
Transmitting and Receiving
The radio has 75 main frequencies and 38 CTCSS codes or 83 DCS codes. You can communicate with any other user who is using the same combinations, providing they are within range. To transmit, press & hold the PTT key, LCD displays indicating the radio is transmitting. Hold the radio in a vertical position with the microphone 3-5 cm from your mouth and then speak. When you nish speaking, release the PTT key. The radio will automatically sound the received signal from the other radio on the same channel, the LCD will display the receive icon The transmission is SIMPLEX “one way at-a-time.” While you are speaking, you can not receive a transmission. Adjust volume control if necessary.
.

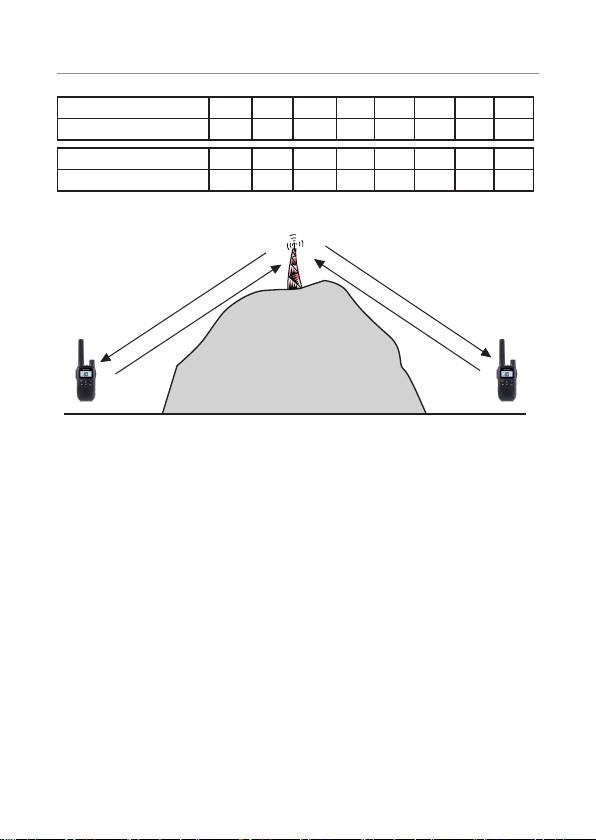

RPT ON/OFF information
If a Repeater channel is selected, press MENU key once, then use ▲ or ▼ button to turn on or off.
PLEASE NOTE: if the selected channel is not a repeater channel, this feature is not available and all other menu features will require 1 button push less to select that feature.
CTCSS
Press Menu key MENU twice, the current CTCSS sub-channel number ashes on the LCD Screen. Press the ▲ or ▼ button to select one of the 38 CTCSS sub-
channels.
TX icon
19
Operation
Press the PTT key to conrm and quit or press MENU to continue to the next menu setting. Each channel also has 83 digital codes to let you set up a group of users for more private communication. Press Menu key MENU 3 times, the DCS code is blinking on the LCD Screen. Press the ▲ or ▼ button to select the desired DCS code.
Press the PTT key to conrm and quit or press MENU to continue to the next menu setting.
Note:
- The unit will use the last codes either CTCSS or DCS being selected and conrmed.
CTCSS = Coded tone controlled squelching system. This allows you to talk on a private sub channel on an active channel. DCS is a digital extension of CTCSS. It provides extra, digitally coded, squelch codes that follow after the 38 CTCSS codes. CTCSS 1 to 38, followed by DCS 1-83.
Dual Watch
The unit has dual watch function. You can monitor two channels, the current and another (dual watch) channel. If the unit detects a signal on either channel, it will stop and receive the signal. Press the MENU key 4 times, LCD displays DW icon and the CH icon will ash. Press ▲ or ▼ key to select the dual watch channel (1-80,
except the current channel), or OF to turn OFF. After function has been turned on, LCD will display DW icon. Press the PTT key to conrm and quit or press MENU to continue to the next menu setting.
20
Operation
VOX
Voice operated transmitter, allows you to transmit with your voice without pressing the PTT button. Your UHF2190K is equipped with an adjustable Voice Operated Transmitter (VOX) that can be used for automatic voice transmission. You can enjoy talking and listening without pressing PTT key. The level of VOX sensitivity is shown by a number on the LCD Screen. At the highest level, the units will pick up softer noise (including background noise); and the lowest level, will pick up louder noise. Press the MENU key 5 times, the LCD will display VOX icon and the VOX sensitivity digit will ash. Press ▲ or ▼ key to select sensitivity level from “OF, 1, 2, 3”
for “OFF, Low, Medium and High respectively. After turning on the VOX function, LCD will display VOX icon. Press the PTT key to conrm and quit or press MENU to continue to the next menu setting. Please speak close to the mic in order to activate VOX function.
Note: VOX operation is not recommended if the radio will be used in a noisy or windy environment.
Call Tone
You can use 1 of 10 different “Call Tones” to get the attention of another user on the same channel.
Press the sound, the LCD will display the transmit and the call tone
icons.
key to send the selected tone, the tone will
21
Operation
To select a call tone
Press the MENU key 6 times, the LCD will display the icon and call the tone number will ash. Press ▲ or ▼ key to select your desired call tone.
Press the PTT key to conrm and quit or press MENU to continue next menu setting.
VIBRATE MODE
The unit will vibrate to alert you when it receives a Call or radio voice signal from other UHF2190K radios. Press MENU key 7 times, the LCD will display “ Press ▲ or ▼ key to turn the vibrator on or off.
After turning on the function, LCD will display Press PTT to conrm and quit or press MENU to continue next menu setting.
Note: Call tone and Vibrate can be activated at the same time. While the unit is in standby mode for over 30 seconds, it will vibrate 1 time upon receiving a voice signal.
”.
icon.
Key Tone
This feature allows the radio to emit a conrmation tone after pressing each button. Press MENU key 8 times, LCD display “t o”. Press ▲ or ▼ key to select the Key Tone On/Off.
Press PTT to conrm and quit or press MENU to continue next menu setting.
22
Roger Beep
The Roger Beep is a tone which is automatically transmitted whenever the PTT button is released. Press MENU key 9 times, LCD display “r o”. Press ▲ or ▼ key to select the Roger beep On/Off.
Press PTT to conrm and quit or press MENU to continue next menu setting.
Auto Power Off
Press MENU key 10 times, LCD display icon. Press▲ or ▼ key to select auto power off time from 30, 60 and 90 mins. Press PTT key to conrm and quit or press MENU to return to Main screen. After turning on this feature, LCD will display automatically turn off at the designated time.
icon and
Reset the unit
To reset the radio to default: Power off the radio, press and hold "SCAN" + "PTT", and then Power ON.
Operation
23
Operation
Duplex operation via Repeaters
This feature allows you to use local repeater stations that are designed to automatically re-transmit your broadcast over a large area thus giving you increased range. Repeater stations are privately operated radio systems installed throughout Australia. For example, if you wish to access a repeater station in your area which operates on channel 2, you need to set the Duplex access on this Channel. When you have turned on the Duplex setting in the menu for the selected channel (and you are within range of a local repeater), your radio will automatically transmit to the repeater on channel 32. Turning on/off Duplex on channels a. Select the required channel to suit the repeater station you
wish to access (Channels 1~8 and 41 ~ 48) b. Press the MENU key once, “RPT” icon will display. c. Press the Up or Down key to set the Repeater function to ON
or OFF. d. Press the PTT key to conrm your setting. e. The RPT icon will display to indicate that Repeater function is
set on that channel.
24
Operation
Receive Channel 1 2 3 4 5* 6 7 8
Transmit channel 31 32 33 34 35* 36 37 38
Receive Channel 41 42 43 44 45 46 47 48
Transmit channel 71 72 73 74 75 76 77 78
* Channel 5 is emergency channel only
Channel 2
Channel 2
Channel 32
Repeater Station
Channel 32
25
Channel Frequency Table
Channel Frequency Table
Radiocommunications (Citizen Band Radio Stations) Class Licence 2002
No licence is required to own or operate this radio in Australia and New Zealand. The Radiocommunications (Citizen Band Radio Stations) Class Licence 2002 contains the technical parameters, operating requirements, conditions of licence and relevant standards for Citizen Band (CB) radios. CB radios must comply with the class licence for their use to be authorised under the class licence.
UHF channels and frequencies
IMPORTANT NOTE: The operation of your UHF radio in Australia and New Zealand is subject to conditions in the following licenses: In Australia the ACMA Radio communications (Citizen Band Radio Stations) and in New Zealand by MED the General User Radio License for Citizen Band Radio.
26
Channel Frequency Table
EMC Technologies (NZ) Ltd
Test Report No 101127.1
Report date: 25
th
November 2010
6.2 Nominal Carrier
Table 1 Nominal Carrier Frequency
EMC Technologies (NZ) Ltd
Test Report No 101127.1
Report date: 25
th
November 2010
6.2 Nominal Carrier
Table 1 Nominal Carrier Frequency
Channel
Tx Rx
Channel
Tx Rx
Freq Freq Freq Freq
MHZ MHz MHz MHz
01* 476.4250 476.4250 21 476.9250 476.9250
41* - 476.4375 61‡
02* 476.4500 476.4500 22† 476.9500 476.9500
42* - 476.4625 62‡
03* 476.4750 476.4750 23† 476.9750 476.9750
43* - 476.4875 63‡
04* 476.5000 476.5000 24 477.0000 477.0000
44* - 476.5125 64 477.0125 47 7.0125
05* 476.5250 476.5250 25 477.0250 477.0250
45* - 476.5375 65 477.0375 47 7.0375
06* 476.5500 476.5500 26 477.0500 477.0500
46* - 476.5625 66 477.0625 47 7.0625
07* 476.5750 476.5750 27 477.0750 477.0750
47* - 476.5875 67 477.0875 47 7.0875
08* 476.6000 476.6000 28 477.1000 477.1000
48* - 476.6125 68 477.1125 47 7.1125
9 476.6250 476.6250 29 477.1250 477.1250
49 476.6375 476.6375 69 477.1375 477.1375
10 476.6500 476.6500 30 477.1500 477.1500
50 476.6625 476.6625 70 477.1625 477.1625
11 476.6750 476.6750 31* 477.1750 477.1750
Channel
01* 476. 4250 476.4250 21 476.9250 476.9250
02* 476. 4500 476.4500 22† 476.9500 476.9500
03* 476. 4750 476.4750 23† 476.9750 476.9750
04* 476. 5000 476.5000 24 477.0000 477.0000
05* 476. 5250 476.5250 25 477.0250 477.0250
06* 476. 5500 476.5500 26 477.0500 477.0500
41* - 476.4375 61‡
42* - 476.4625 62‡
43* - 476.4875 63‡
44* - 476.5125 64 477.0125 477.0125
45* - 476.5375 65 477.0375 477.0375
46* - 476.5625 66 477.0625 477.0625
07* 476.5750 476.5750 27 477.0750 477.0750
47* - 476.5875 67 477.0875 477.0875
08* 476.6000 476.6000 28 477.1000 477.1000
48* - 476.6125 68 477.1125 477.1125
9 476.6250 476.6250 29 477.125 0 477.1250
10 476.6500 476.6500 30 477.150 0 477.1500
11 476.6750 476.6750 31* 477.1750 477.1750
51 476.6875 476.6875 71* 477.1875 -
12 476.7000 476.7000 32* 477.2000 477.2000
52 476.7125 476.7125 72* 477.2125 -
13 476.7250 476.7250 33* 477.2250 477.2250
53 476.7375 476.7375 73* 477.2375 -
14 476.7500 476.7500 34* 477.2500 477.2500
54 476.7625 476.7625 74* 477.2625 -
15 476.7750 476.7750 35* 477.2750 477.2750
55 476.7875 476.7875 75* 477.2875 -
16 476.8000 476.8000 36* 477.3000 477.3000
56 476.8125 476.8125 76* 477.3125 -
17 476.8250 476.8250 37* 477.3250 477.3250
57 476.8375 476.8375 77* 477.3375 -
18 476.8500 476.8500 38* 477.3500 477.3500
58 476.8625 476.8625 78* 477.3625 -
19 476.8750 476.8750 39 477.3750 477.3750
59 476.8875 476.8875 79 477.3875 477.3875
20 476.9000 476.9000 40 477.4000 477.4000
60 476.9125 476.9125 80 477.4125 477.4125
Tx Rx Freq Freq Freq Freq MHZ MHz MHz MHz
49 476.637 5 476.6375 69 477.1375 477.1375
50 476.662 5 476.6625 70 477.1625 477.1625
Channel
Tx Rx
27
Channel Frequency Table
* The primary use for these channels is repeater operation using 750
kHz offset. Channels 1-8 and 41-48 inclusive are used for mobile reception and channels 31-38 and 71-78 for mobile transmission. In addition, any designated repeater channel may be used for simplex
operation in areas where it is not used for repeater operation. † Speech telephony shall be inhibited on these channels. ‡ At the time of production, Channels 61, 62 and 63 are guard channels
and are not available for use.
Channel 5 and 35 (paired for Duplex repeaters) are reserved as emergency channels and should be used only in an emergency.
CTCSS and DCS will not operate on channels 5 and 35. A list of currently authorised channels can be obtained from the
ACMA website in Australia and the MED website in New Zealand. Channel 11 is a calling channel generally used to call others and channel 40 is the customary road vehicle channel.
Once contact is established on the calling channel, both stations should move to another unused “SIMPLEX” channel to allow others to use the calling channel.
Channels 22 and 23 are for Telemetry and Telecommand use, voice communications are not allowed on these channels by law.
Channel 9 and above are the best choices for general use in Simplex mode.
28
TROUBLE SHOOTING GUIDE
PROBLEM GUIDE
No power or radio switches off after a short time
I cannot communicate with other group members
Audio cutting in and out at receivers end.
Too many transmissions heard on my channel.
1: Check charger and batteries are
installed correctly.
2: Clean battery contacts
(Important!).
3: Replace batteries with fully
charged or new batteries.
4: Battery capacity poor: battery
defective or at end of life, replace batteries.
1: Verify, that the channel frequency
and the CTCSS settings are the same on all radios.
2: The other group members are not
within radio coverage. 1: Too weak signal-too far away. 2: External mic defective?
Please contact Oricom Support. 1: Another group is using the same
channel number -change channel
Troubleshooting guide
29
Customer Support
Customer Support
If you have any problems setting up or using this product, you will nd useful tips and information in the Troubleshooting section of this user guide as well as “Frequently Asked Questions” on our website www.oricom.com.au.
If you have further questions about using the product after reviewing the resources above or would like to purchase replacement parts or accessories, please call our Customer Support Team.
Important
Please retain your purchase receipt and attach to the back page of this user guide as you will need to produce this if warranty service is required.
30
Express Warranty (Australia)
Express Warranty (Australia)
This Express Warranty is provided by Oricom International Pty Ltd ABN 46 086 116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein after referred to as “Oricom”.
Oricom warrants that the product is free from defects in materials or workmanship during the Express Warranty Period. This Express Warranty does not extend to any product from which the serial number has been removed or was purchased outside of Australia.
The benets of this Express Warranty are in addition to other rights and remedies you may have under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. In the event of a minor failure, Oricom reserves the right to choose to repair or replace the product.
The Express Warranty Period will be a period of 3 years beginning on the date of purchase of the product evidenced by your dated sales receipt. You are required to provide proof of purchase as a condition of receiving Express Warranty services.
You are entitled to a replacement product or repair of the product at our discretion according to the terms and conditions of this document if your product is found to be faulty within the Express Warranty Period. This Express Warranty extends to the original purchaser only and is not transferable.
31
Express Warranty (Australia)
Products distributed by Oricom are manufactured using new materials or new and used materials equivalent to new in performance and reliability. Spare parts may be new or equivalent to new. Spare parts are warranted to be free from defects in material or workmanship for thirty (30) days or for the remainder of the Express Warranty Period of the Oricom branded product in which they are installed, whichever is longer. During the Express Warranty Period, Oricom will where possible repair and if not replace the faulty product or part thereof. All component parts removed under this Express Warranty become the property of Oricom. In the unlikely event that your Oricom product has a recurring failure, Oricom may always, subject to the Competition and Consumer Act 2010, at its discretion, elect to provide you with a replacement product of its choosing that is at least equivalent to your product in performance.
No change to the conditions of this Express Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom.
Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury arising out of or in connection with a:
1. Failure by you to adhere to the warnings and follow the instructions set out in this user guide for the proper installation and use of the product;
2. Willful misconduct or deliberate misuse by you of the product;
3. Any external cause beyond our control, including but not limited to power failure, lightning or over voltage; or
4. Modification to the product or services carried out on the product by anyone other than Oricom or Oricom’s authorised service provider.
32
Express Warranty (Australia)
How to make a claim under your Express Warranty in Australia
Oricom has a simple warranty process for you to follow:
• Please call or email our Customer Support Team, 02 4574 8888 or support@oricom.com.au.
• A Customer Support Team member will verify after troubleshooting with you if your product qualifies under warranty. If so, they will give you a Product Return Authorisation number.
• We will then email a Return Authorisation form and a Repair Notice (if necessary), together with instructions on how to return the product for warranty service.
Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following:
• A completed Return Authorisation form
• A copy of your Proof of Purchase (please keep your original copy)
• The faulty product, including all accessories.
Send the approved returns to: Oricom International Pty Ltd Locked Bag 658 South Windsor NSW 2756 Australia
33
Express Warranty (Australia)
Please note that this Express Warranty excludes expenses incurred by you in returning any faulty product to us. You must arrange and pay any expenses incurred (including postage, delivery, freight, transportation or insurance of the product) to return the faulty product to us, however, we will arrange delivery of the repaired or replaced faulty product to you.
Important Information
Repair Notice
Please be aware that the repair of your products may result in the loss of any user-generated data (such as stored telephone numbers, text messages and contact information). Please ensure that you have made a copy of any data saved on your product before sending for repair. Please also be aware that products presented for repair may be replaced by refurbished products or parts of the same type rather than being repaired.
34
Loading...
