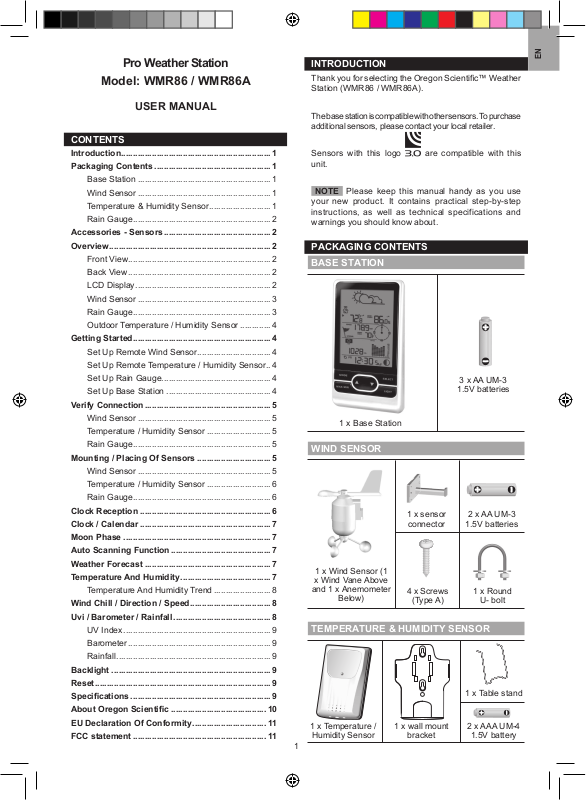

Oregon WMR86, WMR86A User Manual

Pro Weather Station

Model: WMR86 / WMR86A

USER MANUAL

INTRODUCTION

Thank you for selecting the Oregon Scientiﬁc™ Weather Station (WMR86 / WMR86A).

The base station is compatible with other sensors. To purchase additional sensors, please contact your local retailer.

Sensors with this logo

are compatible with this

unit.

NOTE Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about.

PACKAGING CONTENTS

BASE STATION

WIND SENSOR

TEMPERATURE & HUMIDITY SENSOR

3 x AA UM-3

1.5V batteries

1 x Wind Sensor (1 x Wind Vane Above

and 1 x Anemometer

Below)

1 x sensor

connector

2 x AA UM-3

1.5V batteries

4 x Screws

(Type A)

1 x Round

U- bolt

2 x AAA UM-4

1.5V battery

1 x wall mount

bracket

1 x Temperature /

Humidity Sensor

1 x Base Station

1 x Table stand

CONTENTS

Introduction ............................................................... 1

Packaging Contents ................................................. 1

Base Station ........................................................ 1

Wind Sensor ........................................................ 1

Temperatur

e & Humidity Sensor .......................... 1

Rain Gauge .......................................................... 2

Accessories - Sensors ............................................. 2

Overview .................................................................... 2

Front View ............................................................ 2

Back View ............................................................

LCD Display ......................................................... 2

Wind Sensor ........................................................ 3

Rain Gauge .......................................................... 3

Outdoor Temperature / Humidity

Sensor .............4

Getting Started .......................................................... 4

Set Up Remote Wind Sensor ............................... 4

Set Up Remote Tempe

rature / Humidity Sensor .. 4

Set Up Rain Gauge .............................................. 4

Set Up Base Station ............................................ 4

Verify Connection ..................................................... 5

Wind Sensor ........................................................ 5

Temperature / Humidity Sensor ...........................5

Rain Gauge .......................................................... 5

Mounting / Placing Of Sensors ............................... 5

Wind Sensor ........................................................ 5

Temperature / Humidity Sensor ...........................6

Rain Gauge .......................................................... 6

Clock Reception ....................................................... 6

Clock / Calendar ....................................................... 7

Moon Phase .............................................................. 7

Auto Scanning Function .......................................... 7

Weather F

orecast ..................................................... 7

Temperature And Humidity ......................................

Temperature And Humidity Trend ........................ 8

Wind Chill / Direction / Speed .................................. 8

Uvi / Barometer / Rainfall ......................................... 8

UV Index .............................................................. 9

Barometer ............................................................ 9

Rainfall ................................................................. 9

Backlight ................................................................... 9

Reset .......................................................................... 9

Speciﬁcations ...........................................................9

About Oregon Scientiﬁc ........................................ 10

EU Declaration Of Conformity ............................... 11

FCC statement ........................................................ 11

RAIN GAUGE

ACCESSORIES - SENSORS

This product can work with up to 3 sensors at any one time to capture outdoor temperature, relative humidity or UV readings in various locations.

Option al wireless rem ot e sens or s such as those listed below can be purchased separately. For more information, please contact your local retailer.*

• Solar Panel STC800 connectable to Wind Sensor and Temperature / humidity sensor

• Thermo-hygro THGR800 (3-Ch)

• Thermo-hygro THGR810 (10-Ch)

• UV UVN800

• Pool sensor THWR800

* Features and accessories will not be available in all countries.

OVERVIEW

FRONT VIEW

1. MODE: Switch between the different display modes / settings; set clock; set altitude; activate autoscan

2 x AA UM-3

1.5V batteries

4 x Screws

(Type B)

1 x Rain Collector

2. MAX/MIN: Read the max / min memory readings; clear readings

3. SELECT: Switch between the different areas

4. LIGHT: Activate backlight

5. / : Increase / decrease values of the selected setting; toggle between indoor / outdoor channels

BACK VIEW

1 2

1. RESET: Returns unit to default settings

2. UNIT: Select unit of measurement

3. SEARCH: Searches for sensors or for the radiocontrolled clock signal

4. EU / UK switch: Select the nearest radio signal (WMR86 only)

5. Battery compartment

LCD DISPLAY

6 x Washers

1. : Main unit battery low

2. Weather forecast

A. Temperature Area B. Humidity / Dew Point Area C. Wind Speed / Wind Direction / Wind Chill Area D. UVI / Barometer / Rainfall Area E. Clock / Calendar / Moon Phase Area

A Temperature Area

2 3

1. Indoor / Outdoor channel temperature and humidity is displayed

2. Outdoor sensor battery is low

3. Selected area icon

4. MAX / MIN temperature is displayed

5. Temperature trend

6. Temperature reading (°C / °F)

B Humidity / Dew Point Area

1. Dew point level – Temperature is displayed

2. MAX / MIN humidity / dew point level is displayed

3. Humidity trend

4. Humidity reading

C Wind Speed / Wind Direction / Wind Chill Area

1. Selected area icon

2. Wind speed level indicator

3. Wind speed level description

4. Wind speed reading (m/s, kph, mph or knots)

5. Wind direction display

6. Minimum wind chill is displayed

D UVI / Barometer / Rainfall Area

1 2

3 4

1. UVI / barometer / rainfall reading is displayed

2. Outdoor UV / rain sensor battery is low

3. Past 24hrs rainfall is displayed

4. UVI level indicator

5. UVI / barometric pressure (mmHg, inHg or mb) / rainfall readings (in or mm) for the current hour

6. Maximum UV is displayed

7. UVI / barometric pressure / rainfall historical bar chart display

E Clock / Calendar / Moon Phase Area

3 4

1. Clock signal reception indicator

2. Timestamp is displayed

3. Time zone offset

4. Moon phase

5. Time / date / calendar

WIND SENSOR

1. Wind direction

2. Wind vane casing

3. Anemometer

4. Solar power socket

RAIN GAUGE

Base and funnel:

1. Rain gauge

2. Battery compartment

3. RESET button

1. Funnel

2. Indicator

OUTDOOR TEMPERATURE / HUMIDITY SENSOR

1. LED status indicator

2. RESET hole

3. °C / °F: Select temperature unit

4. CHANNEL switch

5. Battery compartment

GETTING STARTED

NOTE Install batteries in the remote sensors before the

base station matching the polarities (+ and -).

NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing.

SET UP REMOTE WIND SENSOR

The wind sensor takes wind speed and direction readings.

The sensor is battery operated. It is capable of transmitting data to the base station wirelessly within an approximate operating range of 100 meters (328 feet).

To insert batteries:

1. Unscrew the anemometer from the wind sensor carefully.

2. Insert batteries matching the polarities (+ / -) and replace the anemometer. Press

RESET after each

battery change.

SET UP REMOTE TEMPERATURE / HUMIDITY SENSOR

The remote sensor can collect data from up to 3 channels.

To set up the remote sensor:

1. Slide open the battery door.

2. Slid e channe l switch to sel ect a chann el (1, 2,

3). Ensure you use a different channel for each sensor.

3. Insert the batteries, matching the polarities (+ / -).

4. Press

RESET after each battery change.

5. Close the battery door.

SET UP RAIN GAUGE

The rain gauge collects rain and takes rainfall readings. The sensor can remotely transmit data to the base station.

To set up the rain gauge:

1. Remove screws and slide the cover off in an upwards motion.

2. Insert the batteries (2 x UM-3 / AA), matching the polarities (+ / -). Press RESET after each battery change.

3. Remove the ﬁbre tape.

SET UP BASE STATION

NOTE Install batteries in the remote sensors before the

base station matching the polarities (+ and -).

1. Slide open the battery door.

C F
