Oreck CC1600 User Guide

5 (1)

Ultimate Handheld

Vacuum

User’s

Guide

1600 Series

Important!

Read this manual carefully, and keep for future reference.

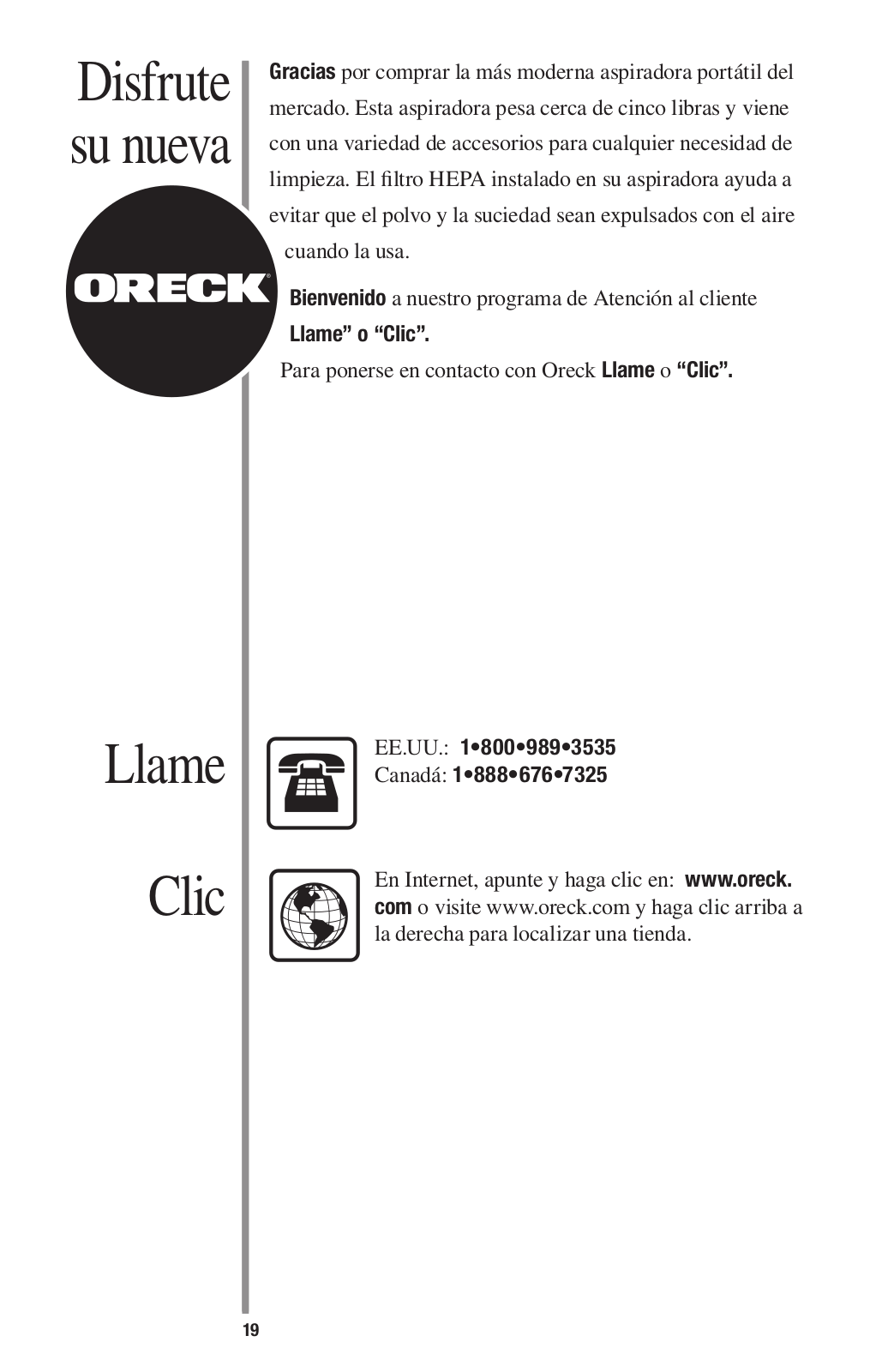

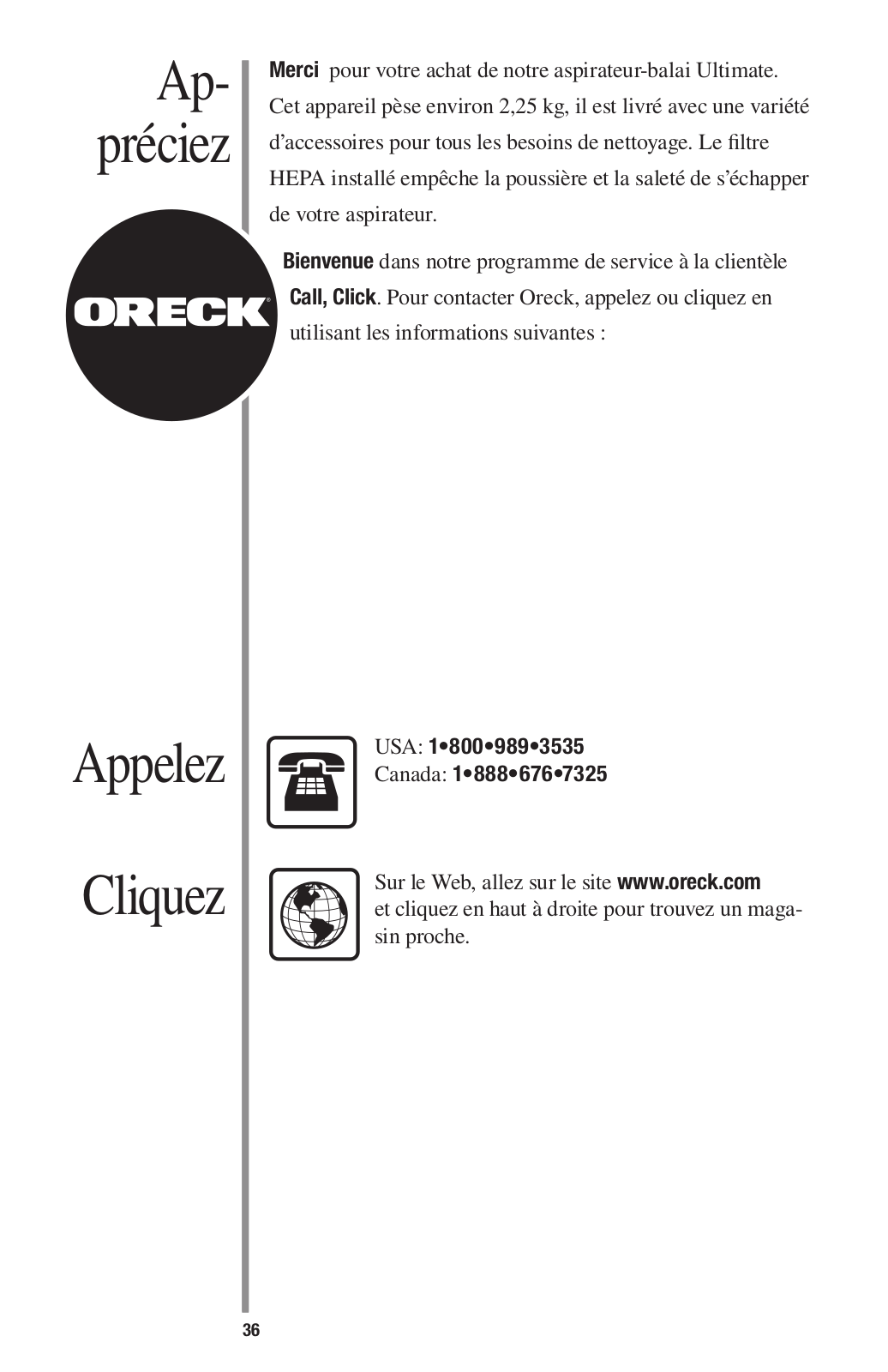

Enjoy

Thank You for purchasing our Ultimate Handheld Vacuum.



The Ultimate Handheld Vacuum weighs about five pounds and



comes with a variety of accessories for any cleaning need. The



installed HEPA filter helps keep dust and dirt from escaping as



you vacuum.



Welcome to our Call, Click customer service program.



To contact Oreck Call or Click using the information below.

Call

Click

USA: 1•800•989•3535

Canada: 1•888•676•7325

On the web, point and click at: www.oreck.com and click locate a store on the top right.

2

Contents Safety . . . . . . . . . . . . . . . .

. 4

General Warnings . . . . . . . . . . . . 4

Polarized Plug . . . . . . . . . . . . . . 5

Parts & Features . . . . . . . . . . . .

. 6

Assemble . . . . . . . . . . . . . . . . 8

Attach the Tool Caddy . . . . . . . . .

. 8

Attach the Slinky Hose and Tools . . . . .

. 9

Attach the Adjustable Shoulder Strap . . . . . . .

. 10

Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 11

Using the Vacuum . . . . . . . . . . . . . . . . . . . . . .

. 11

After Using the Vacuum . . . . . . . . .

11

Maintain . . . . . . . . . . . . . . . 12

Replacing the Disposable Inner Bag . . . . . . . .

. 12

Replacing the Micro Filter . . . . . . . .

13

Replacing the HEPA Filter . . . . . . . . . . . . . . .

. 14

Trouble shoot . . . . . . . . . . . . . . . . . . . . . . . . . .

. 15

Parts . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . .

17

3

Safety General Warnings

! IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the vacuum cleaner.

WARNING! To reduce the risk of fire, electric shock, or injury when using an electrical appliance, basic precautions should always be followed, including the following:

Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.

Do not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close attention is necessary when used by or near children.

Use only as described in this manual. Use only manufac- turer’s recommended attachments.

Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center or call customer service at: US: 1-800-989-3535

Canada: 1-888-676-7325

Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners.

Keep cord away from heated surfaces.

Do not run appliance over cord.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Do not handle plug or appliance with wet hands.

Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.

Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Do not use without filter bag assembly in place.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

4

Do not use to pick up flammable or combustible liquids, such as gasoline or lighter fluid, or use in areas where they may be present.

Do not use appliance in an enclosed space where flammable, explosive or toxic vapors are given off by oil base paint, paint thinner, some mothproofing substances, or in an area where flammable dust is present.

Do not pick up toxic material such as chlorine bleach, drain cleaner, gasoline, etc. with this appliance.

Use caution when vacuuming over area rug edges and fringe.

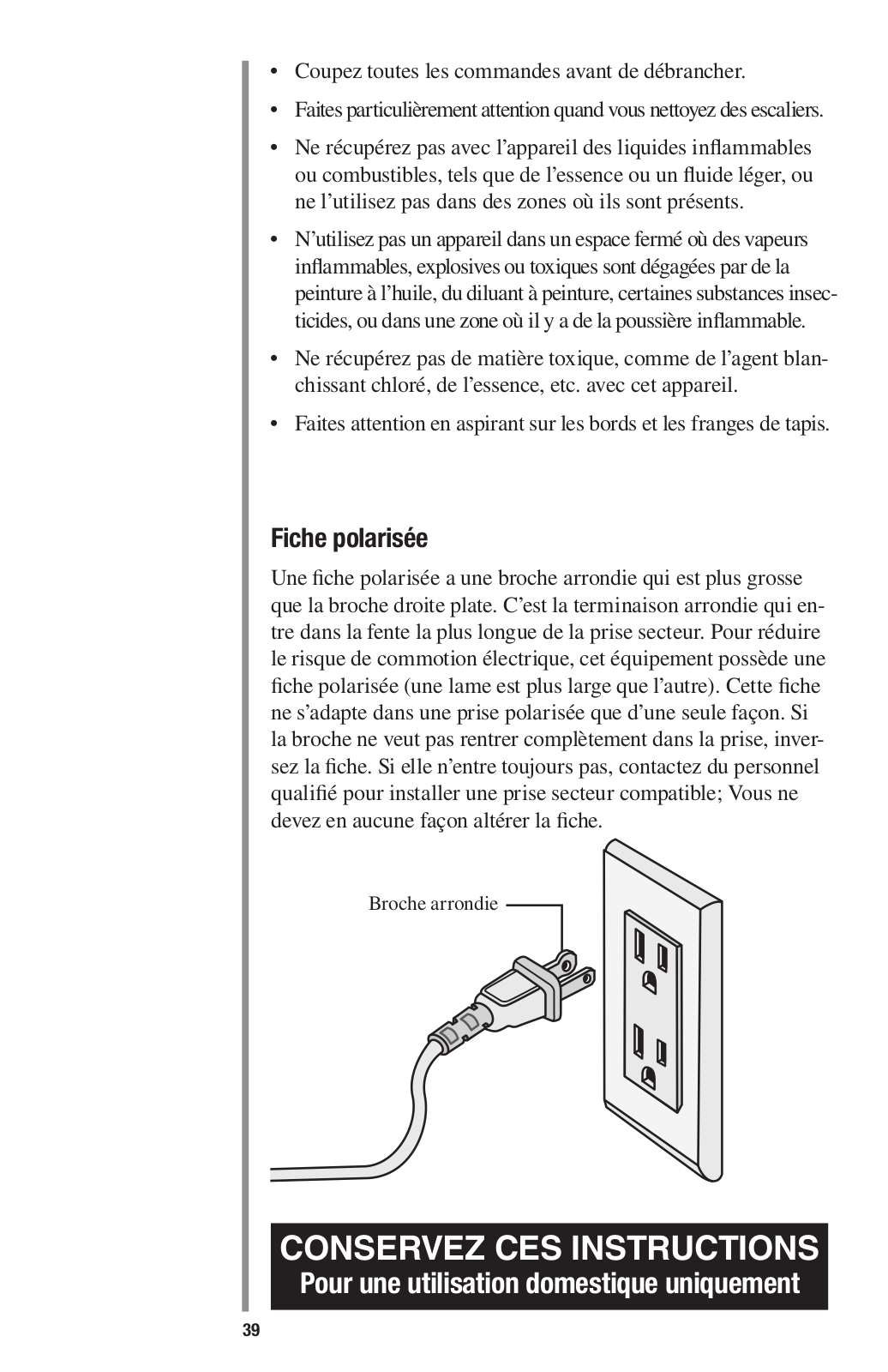

Polarized Plug

A polarized plug has one rounded prong and one straight prong. The rounded end goes into the longest socket slot. To reduce the risk of electric shock, this equipment has a polar- ized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet. Do not alter the plug in any way.

Rounded prong

SAVE THESE INSTRUCTIONS

For household use only

5

Oreck CC1600 User Guide

Parts

&

Features

12

11



10









13

















9









shown with

1







hose, crevice







tool and

















dusting brush









installed

2















8











7



3

4

5

6

1.Ultimate handheld vacuum: Core canister vacuum unit.

2.Adjustable shoulder strap: Attaches to the canister in both horizontal and vertical positions.

3.Upholstery tool: Cleans upholstered furniture and drapery.

4.Large floor tool: Handheld tool for cleaning bare floors and walls.

5.Dusting brush: Best for delicate surfaces.

6.Crevice tool: Cleans tight areas such as cracks and crevices.

7.Power cord: Twenty foot cord for long distances.

8.Cord wrap: Power cord storage area.

9.Tool caddy: Stores tools on board the vacuum.

10.On/Off switch: Turns the vacuum on and off.

11.Carry handle with strap hooks: Use to carry the

vacuum and attach the straps.

6

14

10” extension



18



21

15

Hose inlet side



12.Slinky hose: Easy to use flexible hose.

13.Hose inlet: Hose connection location.

14.Extension wand:

Extends an additional ten inches with the push of a button.

15.Micro Filter: Keeps dirt and dust from entering the vacuum motor.

16.Inner bag door: Allows access to the inner bag.

17

19

16 20

HEPA filter side

17.Bag Gasket: Creates a tight seal to guard against air leaks. Do not remove.

18.Disposable inner bag:

Collects debris from the vacuuming process.

19.HEPA Filter: Helps keep dust and dirt inside the vacuum as you clean.

20.HEPAFilterdoor: The HEPA filter is secured to this door.

21.Micro Filter Frame: Holds the Micro Filter.

7

Assemble Attach the Tool Caddy

Before you attach the hose or any tools onto your vacuum, you will first want to attach the tool caddy.

1.Align the middle slot and two pronged tabs on the tool caddy with the middle tab and two slots on the side of the vacuum.

2.Rotate and snap the tool caddy down into place.

3.Load the tools onto the tool caddy in the designated outside slots.

1

8

3

Cleans delicate surfaces

5

Cleans upholstery

Attach the Slinky Hose and Tools

1. Align the J-shaped slot at the end of the hose with the tab inside the hose inlet.

2

hose collar



1





J-shaped slot



2. Turn the hose collar clockwise to



lock into place. To unlock, turn the



collar counterclockwise.



3. Attach the adjustable extension



wand. The wand and all cleaning



tools supplied with the vacuum lock



together with friction. Twist and



push to lock tightly when attaching.



Twist and pull to remove.

4.Choose the tool you would like to use for your cleaning job.

5. Attach the tool onto the end of the extension wand by using the twist and push friction method described in step three.

4

Cleans bare

Cleans tight

floors and walls

areas

9

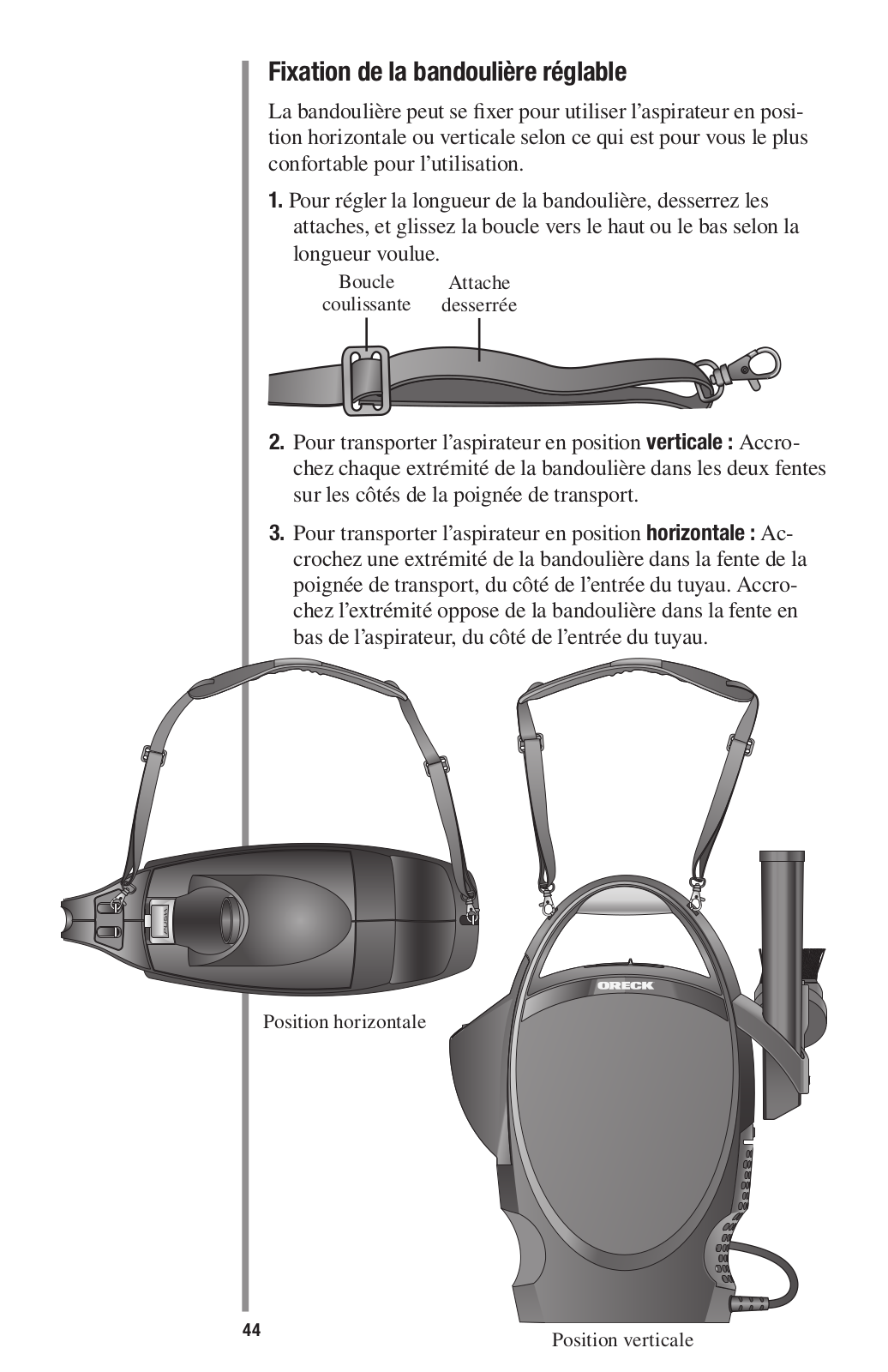

Attach the Adjustable Shoulder Strap

The shoulder strap can be attached to use the vacuum in the horizontal or vertical position depending on what is most comfortable for your use.

1.To adjust the shoulder strap length, loosen the straps, and slide the clip up or down depending on the length you desire.

slide clip

loosen strap

2.To carry the vacuum in the vertical position: clip each end of the shoulder strap into the two slots on the sides of the carry handle.

3.To carry the vacuum in the horizontal position: clip one end of the shoulder strap into the slot of the carry handle, on the hose inlet side. Clip the opposite end of the strap into the slot on the bottom of the vacuum on the hose inlet side.

horizontal position

vertical position

10

Use

Using the Vacuum



1.

Unwrap the cord around the bottom of the cord wrap area.



2.

Plug the cord into the electrical socket.



3. Attach the tool you need for your cleaning job to the end of





the extension wand.



4.

Press the button on the extension wand for more length





if needed.



5.

Slide the power switch to the ON position.



6.

Begin vacuuming.





5

4

2



1

After Using the Vacuum

7. Slide the power switch to the OFF position.

8. Unplug the power cord.



9. Wrap the cord around the cord wrap area and store.



Note: The Ultimate Handheld Vacuum has a MOTOR



PROTECTION SYSTEM: If fine materials such as soot,



cement, plaster dust, copy machine powder, etc. are picked up,

3

the bag surface may seal and cause the motor to shut off to

avoid overheating. If this happens, turn the switch off and





unplug the cleaner. If full, replace disposable inner bag. Check



and clear any clogs in hose or accessories. After approximately



thirty minutes the motor will have cooled and the cleaner will



be ready to use.



IMPORTANT: The cleaner must remain unplugged for thirty



11 minutes for motor to cool and system to reset.

Maintain

1

Replacing the Disposable Inner Bag

When the disposable inner bag is full you will need to replace the bag with a new one. Use only genuine Oreck filter bags.

For best results, change disposable inner bag regularly even if it is not completely full. An extremely dirty bag or a bag close to full will affect the suction of the cleaner and can create exces- sive motor heat that could damage the motor.

To replace the inner bag:

1.Push down on the inner bag door release button located above the hose inlet.

2.Rotate the inner bag door down.

3.Pull the inner bag out.

4.Insert a new inner bag by fitting the cardboard rim between the tabs inside the recessed bag holder.

5.Close the inner bag door.

3

2

12

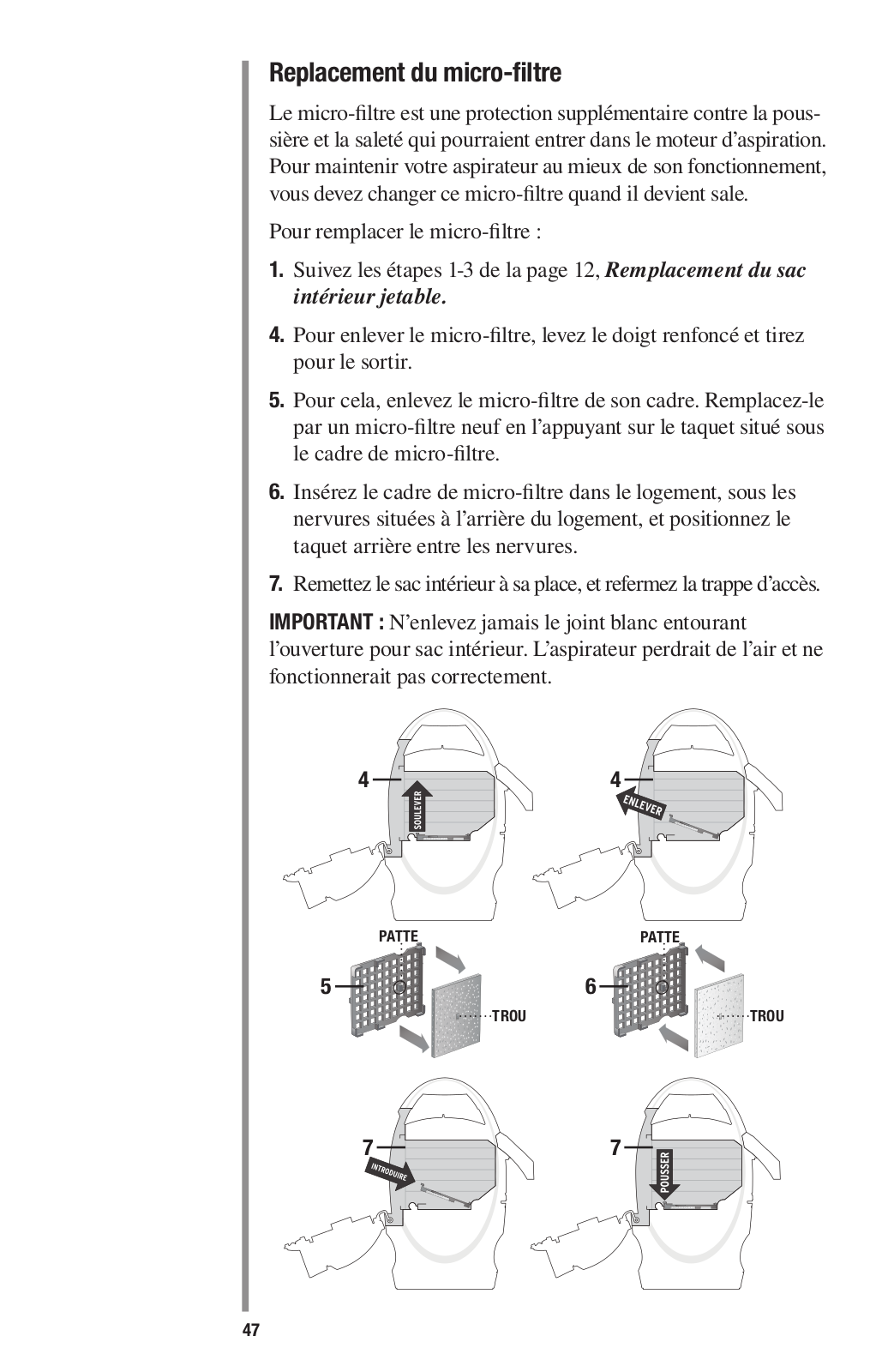

Replacing the Micro Filter

The micro filter is extra protection against dust and dirt getting into the vacuum motor. To keep your vacuum running in top condition you will want to change the micro filter when it gets dirty.

To replace the micro filter:

1.Follow steps 1-3 on page 12, Replacing the Disposable

Inner Bag.

4.To remove the Micro Filter, lift up on the recessed finger tab and pull out.

5.Remove the Micro Filter from the Micro Filter Frame.

6.Replace by pressing a new Micro Filter onto the tab located on the underside of the Micro Filter Frame.

7.Insert the Micro Filter Frame into the housing under the ribs located at the back of the housings, and locate the rear tab between the ribs.

8.Insert the inner bag back into place, and close the inner bag door.

IMPORTANT: Never remove the white gasket surrounding the inner bag opening. The vacuum will leak air and not

run properly.

4



4







TAB





TAB

5



HOLE

6



HOLE













7



7



13

Replacing the HEPA Filter

The HEPA filter should be replaced every six months, or more often if the vacuum is used to pick up fine particles or in extremely dirty areas.

To replace the HEPA door:

1.Push down on tab of the HEPA filter door.

2.Pull the door out of its slot.

3.Slide the HEPA filter up and out of the door.

4.Insert a new filter by aligning the slots on the side of the filter with the tabs on the inside of the filter door.

5.Place the HEPA filter door assembly back into the slot and rotate the door up until it snaps into place.

1

2

3

14

Trouble

shoot

Service problems that appear to be major can often be solved easily. You can be your own troubleshooter by reviewing this guide. All other servicing should be done by an Oreck authorized service center.

Problem

Check

Solution

Vacuum will

Not plugged in

Be sure cleaner is

not run

properly

firmly plugged into



No electricity in

wall outlet.







wall outlet.

Reset circuit



Motor protector

breaker/ground



fault interrupter, or



tripped.



replace fuse. If you



Needs service.



need assistance





contact a licensed





electrician.





See Motor Protec-





tion System





page 11.





Visit or call your





nearest service





center.







Vacuum will not

Inner bag is full.

Replace the Inner

pick up or has

Hose/wand tool is

bag. See Replacing

low suction.

the Disposable In-

clogged.



ner Bag, page 12.



Air leak due to



Remove



missing or



obstructions.



damaged gasket.









Replace the white





bag gasket.







Extension wand

Proper friction fit

Push and twist the

and tools will

not being obtained.

tools together to

not stay together.



properly attach.







15

Parts





All accessories and replacement parts are sold separately.







To order, call our customer service group or visit our website.







Please have your model number from the data label on the







bottom of the unit.



















Part

Number

















Replacement Paper inner bags

PKBB12DW







(Twelve pack with one Micro filter)



















Replacement Odor Fighting inner bags

PKBB12OF







(Twelve pack with one Micro filter)



















Replacement HEPA filter

HF1000

















Replacement Micro filter

72005-01

















Replacement white bag gasket

72017-02





















16
