The manual outlet of the timer give s access
to the hose f aucet without inter rupting the
progra mmed cycle of the digital por t.
1. Open the valv e in the port by pulli ng the lever
away from the timer (se e drawing)
2. Close th e valve by pushing the l ever towards
the timer (See drawing)
PROGRAMMING THE TIMED OUTLET
NOTE: This sec tion only rel ates to the time d outlet. Th e
manual outlet cannot be programmed.
SET CLOCK
1. Turn dial t o SET CLOCK.
2. Usin g the +/- buttons, set th e time of day,
includin g AM and PM.
3. Turn dial t o save changes.
STA RT TIME
1. Turn dial t o START TIME.
2. Usin g the +/- buttons, set your star t time,
includin g AM and PM.
3. Turn dial t o save changes
DIAL—Rotate th e dial to customize your
watering schedule
RESET—Press to c lear all program ming
MANUAL/CLEAR—Press to water m anually or to
clear pro gramming within a s pecific program
+/- BUTTONS—Use these buttons to adjus t time
and system setup

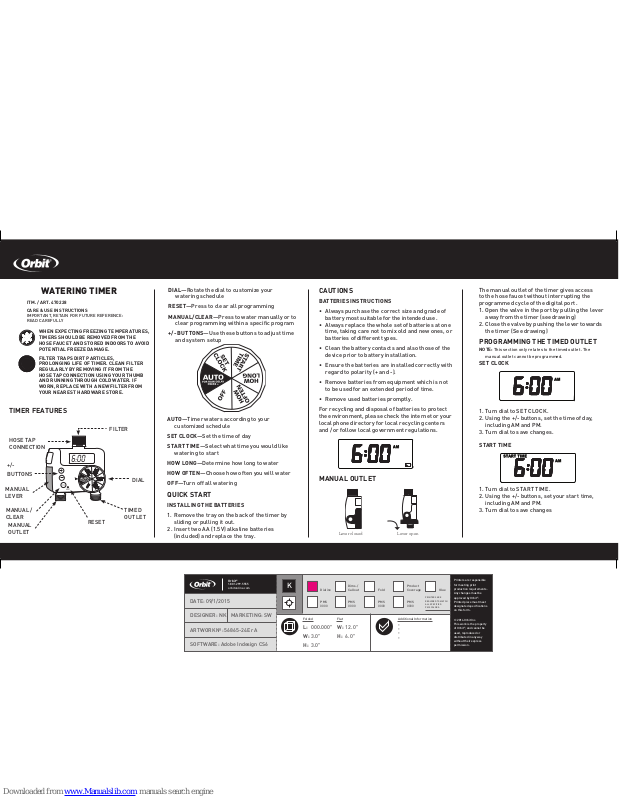

WATERING TIMER
TIMER FEATURES
AUTO—Timer waters accor ding to your
customized schedule
SET CLOCK—Set the time of day
STA RT TIME —Select what tim e you would like
watering to star t
HOW LONG—Determine how long to water
HOW OFTEN—Choos e how often you will w ater
OFF—Turn off all water ing
QUIC K S TART
INSTALLING THE BATTERIES
1. Remo ve the tray on the back of t he timer by
sliding or p ulling it out.
2. Ins ert two AA (1.5V ) alkaline batte ries
(include d) and replace the tra y.
WHEN EXPECTING FREEZING TEMPERATURES,
TIMERS S HOULD BE REMOV ED FROM THE
HOSE FAUC ET AND STORED I NDOORS TO AVOID
POTENTIAL FREEZE DAMAGE.
ITM. / AR T. 470228
CARE & U SE INSTRUC TIONS
IMPORTA NT, RETAIN FOR F UTURE REFE RENCE:
READ CAREFULLY
FILTER TRA PS DIRT PARTI CLES,
PROLON GING LIFE OF TIME R. CLEAN FI LTER
REGUL ARLY BY REMOVING I T FROM THE
HOSE TAP C ONNECTION US ING YOUR THUMB
AND RUNNI NG THROUGH C OLD WATER. IF
WORN, RE PLACE WIT H A NEW FILTER FROM
YOUR NEAREST HARDWARE STORE.
HOSE TAP
CONNECTION
+/-
BUTTONS
MANUAL/
CLEAR
MANUAL
LEVER
FILTER
DIAL
RESET
CAUTIONS
BATTERIES INSTRUCTIONS
• Always purchase the correc t size and grade of
batter y most suitable f or the intended use.
• Always replace the whole set of batter ies at one
time, taki ng care not to mix old and new ones, or
batteries of different types.
• Clean the b attery contac ts and also those of the
device pr ior to battery in stallation.
• Ensure the b atteries are ins talled correc tly with
regard to p olarity (+ and -).
• Remove bat teries from equipment whi ch is not
to be used fo r an extended peri od of time.
• Remove used batteries promptly.
For recy cling and disposal of batter ies to protect
the environment, please check the internet or your
local phone directory for local recycling centers
and / or follow local government regulations.
MANUAL OUTLET
Lever closed Lever open
AM
AM
MANUAL
OUTLET
TIMED
OUTLET
AM
Printers are responsible
for meeting print
production requirements.
Any changes must be
approved by Orbit
®
.
Printed piece must meet
designated specifications
on this form.
© 2014 Orbit Inc.
This work is the property
of Orbit
®
, and cannot be
used, reproduced or
distributed in any way
without their express
permission.
Dieline
PMS
0000
Fold
PMS
0000
Product
Coverage
PMS
0000
Dims./
Callout
PMS
0000
∙
∙
∙
∙
Orbit
®
1.801.299.5555
orbitonline.com
Glue
Folded Flat Additional Information
PRINTERS AR E
REQUIRED TO MATCH
ALL SPECIFIE D
PMS COLORS.
K
DATE: 09/1/2015
DESIGNER: NK MARKETING: SW
SOFTWARE: Adobe Indesign CS6
ARTWORK №: 56865-24E rA
L:
W:
H:
000.000" W:
H:3.0"
3.0"
12.0 "
6.0"
56865-24E rA
HOW LONG
1. Turn dial t o HOW LONG.
2. Usin g the +/- buttons, select wate ring
duratio n from 1 to 240 minute s
3. Turn dial t o save changes.
HOW OFTEN
1. Turn dial t o HOW OFTEN.
2. Usin g the +/- buttons, set y our watering
frequen cy. You can cho ose to water every 6
hours, 12 hours, or fro m 1 to 7 days.
NOTE: 1 is every d ay, 2 is every ot her day, etc.
3. Turn dial t o save changes.
Congratulations! Your timer is now programmed.
Turn your dial to AUTO to allow your timer to
water according to programmed time, station,
duration, and frequency.
ADDITIONAL FEATURES
RAIN DELAY
HRS
Rain dela y allows you to postpone water ing for
a set peri od of time. To access the rain d elay,
follow the steps below.
1. Wi th the dial on AUTO, pres s the + button to
select a d elay of 24 hrs, 4 8 hrs, or 72 hrs.
2. Scr een will flash bet ween clock and hou rs
remainin g before programm ed cycle
resumes.
3. To remove r ain delay, turn dial to O FF
and then bac k to AUTO.
MANUAL/HAND WATERING
This feat ure allows you to wate r without
interrupting you r set schedule for your timed
outlet. To access this fea ture, follow the step s
below.
1. Wi th the dial on AUTO, pres s the
MANUAL button.
2. Use the + an d – buttons to selec t watering
time, from 1 to 240 minu tes.
NOTE: There may be a s light delay b etween the ti me
the manua l button is pre ssed and whe n watering be gins.
To stop manual wa tering, turn the dia l to OFF.
Turn the dial bac k to AUTO to resume your
programmed watering schedule.
Turning the dial t o the OFF position at any ti me
during the day will re set the timer’s interna l
timing. Th is will cancel all sc heduled waterin g
MANUAL
MINUTES
times for th e day until the next pro grammed
START TIME . This means if you tur n the dial
back to AUT O the timer will not wat er until the
next day; b eginning at your des ired programmed
START TIME .
Example:
You have a 6:00 A M START TIME with HOW
OFTEN 6 hour inter vals. If you tur n the dial to
OFF at 10:00 A M today the timer will not water
until tomor row at 6:00 AM. Th e 12:00 PM, 6: 00
PM, and 12:00 A M watering times h ave been
cancelled for the day.
TROUBLESHOOTING
NOTE: Please ma ke sure you are u sing the timed o utlet. The
manual outlet can only be opened using the side lever.
WATER DOES NOT C OME ON AT DESIRED TIME .
CHECK IF:
• Clock is se t to correct time,
includin g AM and PM.
• Start ti me is set to desired tim e, including AM
and PM.
• Rain Dela y is on. Clear if neces sary.
TIMER DOE S NOT WATER.
CHECK IF:
• Timer is se t to AUTO.
• Hose fauc et is on.
• Batter ies are low.
DAYS
• Clock is se t to correct time,
includin g AM and PM.
• Rain Dela y is on. Clear if neces sary.
WATER WON’T TUR N OFF.
CHECK IF:
• HOW LONG is s et to desired time.
WORKING WATER PRESSURE
Minimum: 25 p si
Maximum: 100 psi
WORKING TEMPERATURE
Maximum: Do not exceed 120 °F
Minimum: Ke ep from freezing
WARNI NGS
For outdoo r use with cold water o nly.
MINUTES
Orbit® Irrigation Products, Inc.
North Salt Lake, UT 84054 USA
1.801.299.5555
orbitonline.com
M-F, 7 AM - 5 PM MSDT
English
United States, Canada, Mexico
© 2015 Orbit Irrigation Products, Inc.
All rights reserved. All trade names are
registered trademarks of respective
manufacturers listed.
Customer Service
1-801-299-5555
orbitonline.com
