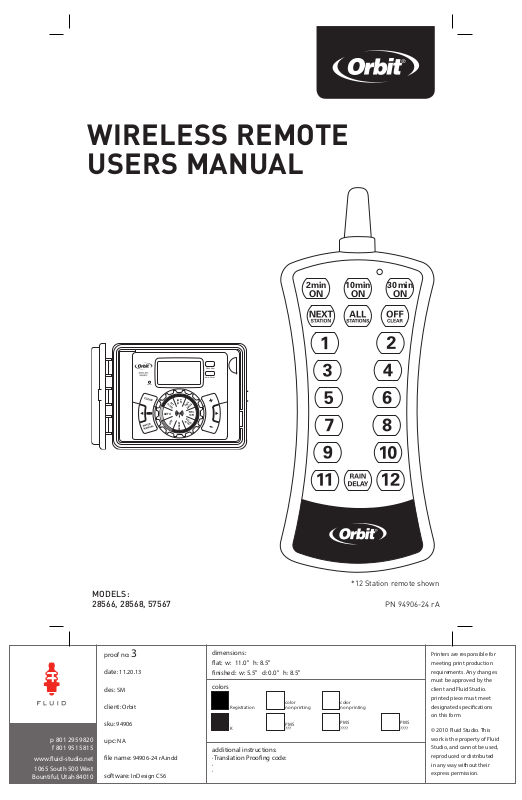

Wireless remote
Users manUal
2 min 10 min 30 min
ON
PROGRAM
RESET
SET
CLOCK
AUTO
OFF
RAIN DELAY
DATE
SET
TIME
START
TIME
RUN
OFTEN
HOW
BUDGET
ON ON
p 801 295 9820
f 801 951 5815
www.uid-studio.net
1065 South 500 West
Bountiful, Utah 84010
MODELS:
28566, 28568, 57567
proof no: 3
date: 11.20.13
des: SM
client: Orbit
sku: 94906
upc: NA
le name: 94906-24 rA.indd
software: InDesign CS6
dimensions:
at: w: 11.0" h: 8.5"
nished: w: 5.5" d: 0.0" h: 8.5"
colors
color
Registration
K
non printing
PMS
???
additional instructions:
·Translation Proong code:
·
·
*12 Station remote shown
PN 94906-24 rA
color
non printing
PMS
????
PMS
????
Printers are responsible for
meeting print production
requirements. Any changes
must be approved by the
client and Fluid Studio.
printed piece must meet
designated specications
on this form.
© 2010 Fluid Studio. This
work is the property of Fluid
Studio, and cannot be used,
reproduced or distributed
in any way without their
express permission.
The wireless remote (another Orbit® innovation) allows the homeowner a
simple way to turn sprinklers on and off without having to go to the timer.
This feature is useful during repairs and sprinkler adjustments or manually
running the sprinklers for extra watering.
Remote Features:
• Turning on the sprinklers to a single station, selected stations or all stations.
• Preset watering durations of 2, 10 or 30 minutes.
• Operating range up to 300' from the timer.
Some of the common uses are:
• Turning sprinklers on and off while adjusting sprinkler heads.
• Turning the sprinklers on to test repairs.
• Turning sprinklers on to provide extra water to dry sections of your lawn.
B
A
2 min 10 min 30 min
ON
ON ON
A
F
C
DE

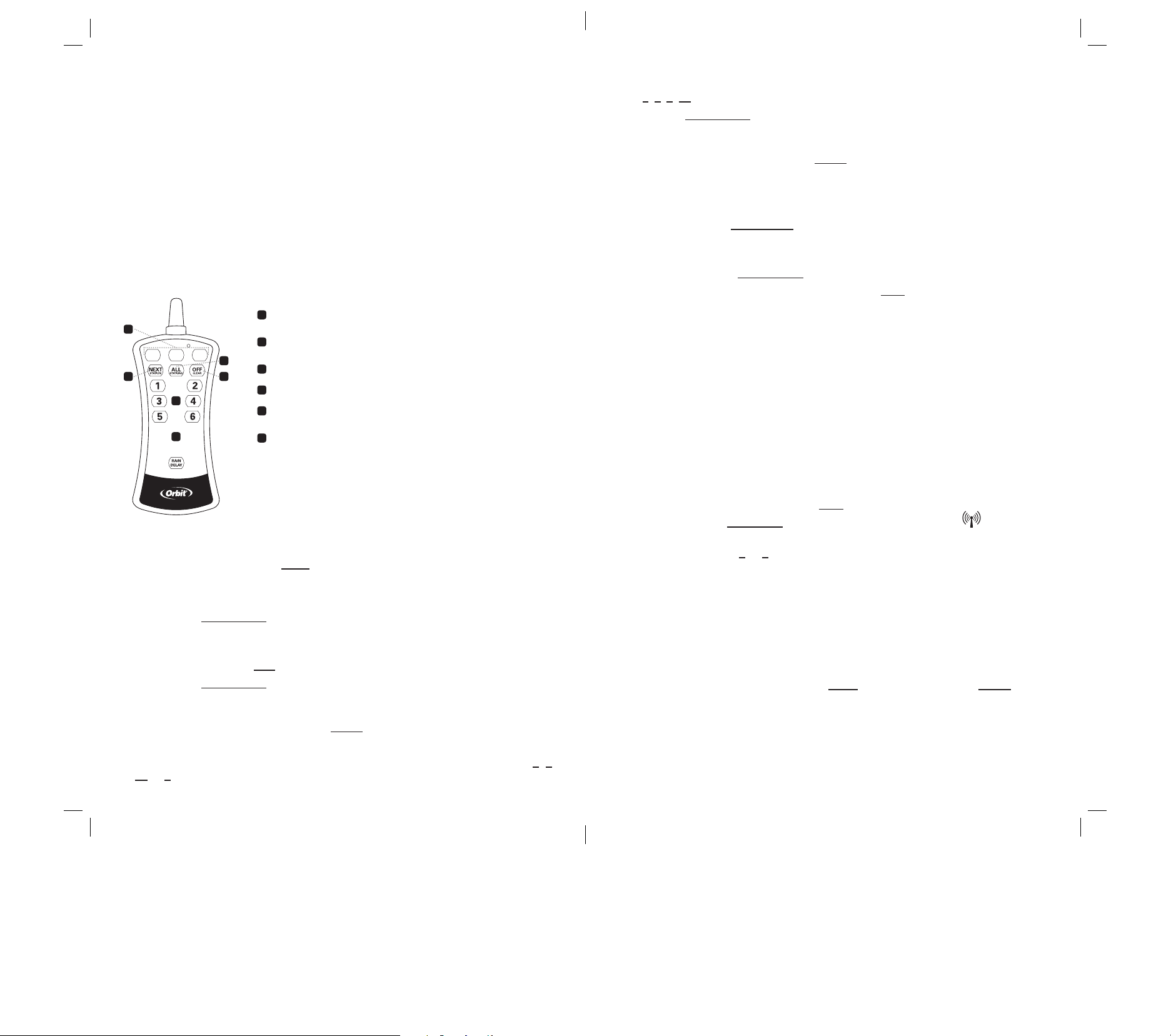

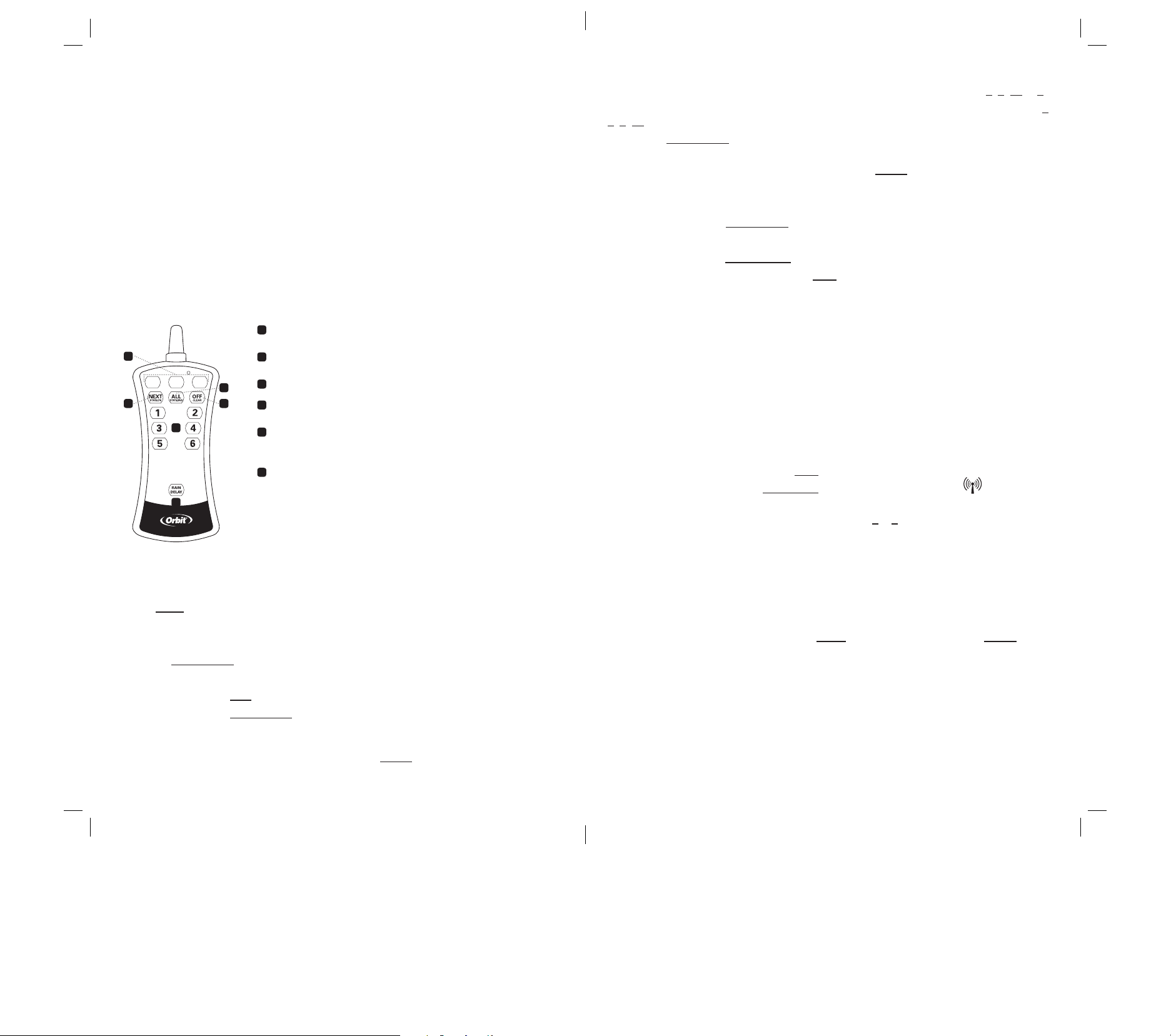

6 Station remote shown
1 – 6 (or 12) Individual Station Buttons
B
ON
C
ALL Water All Stations
D
OFF Turn off all stations
E
NEXT Moves to next station
RAIN
F
DELAY
Watering Duration
(2, 10 & 30 minutes)
Stops watering for 24 Hours.
Note: This remote is water resistant but is not waterproof.
Please do not submerge in water.
Using the remote
Important: The wireless remote will not work unless the timer dial is on AUTO.
To Water One Station:
• Press the station number.
• Press “X” MIN ON to water the station for the minutes selected.
To Water All Stations:
• Press the ALL button on the remote control.
• Press the “X” MIN ON button to water all stations (sequentially) for the
minutes selected.
• To advance to the next station (before the current station’s watering duration
is complete) press NEXT.
To Water Selected Stations:
• Press the station numbers that you want to run. (Example: 3, 7, 10, and 6).
Note: The timer will water in sequence from lowest to the highest (3, 6, 7, 10) no
matter which order you press the keys.
• Press “X” MIN ON to water each station for the minutes selected.
• To advance to the next station (before the current station’s watering duration is
complete) press NEXT.
Rain Delay
The “Rain Delay” feature prevents the sprinkler timer from watering for 24 hours.
Note: Use the RAIN DELAY button on the timer to delay watering for 48 or 72 hours.
Using the remote to activate “Rain Delay”:
• Press the RAIN DELAY button.
• To cancel the Rain Delay, press OFF.
installing the Wireless remote battery
• Remove the battery lid by inserting (and twisting) a flat bladed screwdriver in
the slot (located on the bottom of the remote).
• Install a 9-volt battery in the battery compartment.
• Replace the battery compartment door (ensuring that the rubber gasket is in place).
re-syncing the remote to yoUr timer
Note: The remote and timer will already be synced. The instructions below should
only be used if you obtain a replacement remote or if your remote fails to work after
following the solutions (listed below) in trouble shooting.
• Turn the timer dial to OFF.
• Hold down the PROGRAM button (on the timer) until the icon flashes on the LCD.
• Press and hold buttons 1 and 2 (on the remote) at the same time. When you
hear 4 beeps, release the buttons.
troUble shooting
Note: To maximize the remote range, install the timer in an area with the least amount of
solid obstructions or electrical interference between the timer and remote.
Problem: The remote does not turn the sprinklers on.
Possible Solutions:
• The timer dial is not on AUTO; turn the dial to AUTO.
• The timer is not plugged in; plug in timer.
• Low battery; replace the 9-volt battery in the remote.
• Out of range; move closer to the timer and try again.
• Remote and Timer are no longer synced; re-sync the remote.
help
Before returning this sprinkler timer to the store, contact Orbit® Technical
Service at: 1-800-488-6156, 1-801-299-5555.
Listings: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. This Class B digital
apparatus complies with Canadian ICES-003. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SAFETY OF CHILDREN: The controller is not intended for use by young
children or infirm person without supervision. Young children should be
supervised to ensure they do not play with the controller.
orbit® irrigation limited 3 year Warranty
Orbit® Irrigation Products, Inc. warrants to its customers that its products will
be free from defects in materials and workmanship for a period of 3 years
from the date of purchase. We will replace, free of charge, the defective part
or parts found to be defective under normal use and service for a period of up
to 3 years after purchase (proof of purchase required). We reserve the right to
inspect the defective part prior to replacement. Orbit® Irrigation Products, Inc.
will not be responsible for consequential or incidental cost or damage caused
by the product failure. Orbit® liability under this warranty is limited solely to
the replacement or repair of defective parts. To exercise your warranty, return
the unit to your dealer with a copy of the sales receipt.
Orbit® Irrigation Products, Inc.
North Salt Lake, UT 84054 USA
www.orbitonline.com | 1-800-488-6156
© 2011 Orbit® Irrigation Products, Inc.
All rights reserved. All trade names are registered
trademarks of respective manufacturers listed.
control remoto
inalámbrico
manUal del
UsUario
2 min 10 min 30 min
ON
PROGRAM
RESET
MODELOS:
28566, 28568, 57567
SET
CLOCK
AUTO
OFF
RAIN DELAY
DATE
SET
TIME
START
TIME
RUN
OFTEN
HOW
BUDGET
*Se muestra la estación remota 12
ON ON
El control inalámbrico (otra innovación de Orbit®) le ofrece a al propietario una
manera simple de encender y apagar los regadores sin tener que ir al temporizador.
Esta resulta ser una característica útil mientras se reparan o regulan los regadores
o cuando se opera de forma manual para obtener un mayor riego.
El control remoto presenta:
• Encendido de los regadores en una estación, varias estaciones seleccionadas o en
todas.
• Duración de riego programado de 2, 10 ó 30 minutos.
• Rango de operación de hasta 91,44 m desde el temporizador.
Algunos de sus usos más comunes son:
• Encendido y apagado de los regadores mientras se regulan los cabezales de los
regadores.
• Encendido de los regadores para probar reparaciones.
• Encendido de los regadores para proporcionar agua adicional a las áreas secas del
césped.
A
B
2 min 10 min 30 min
ON
ON ON
A
F
C
DE

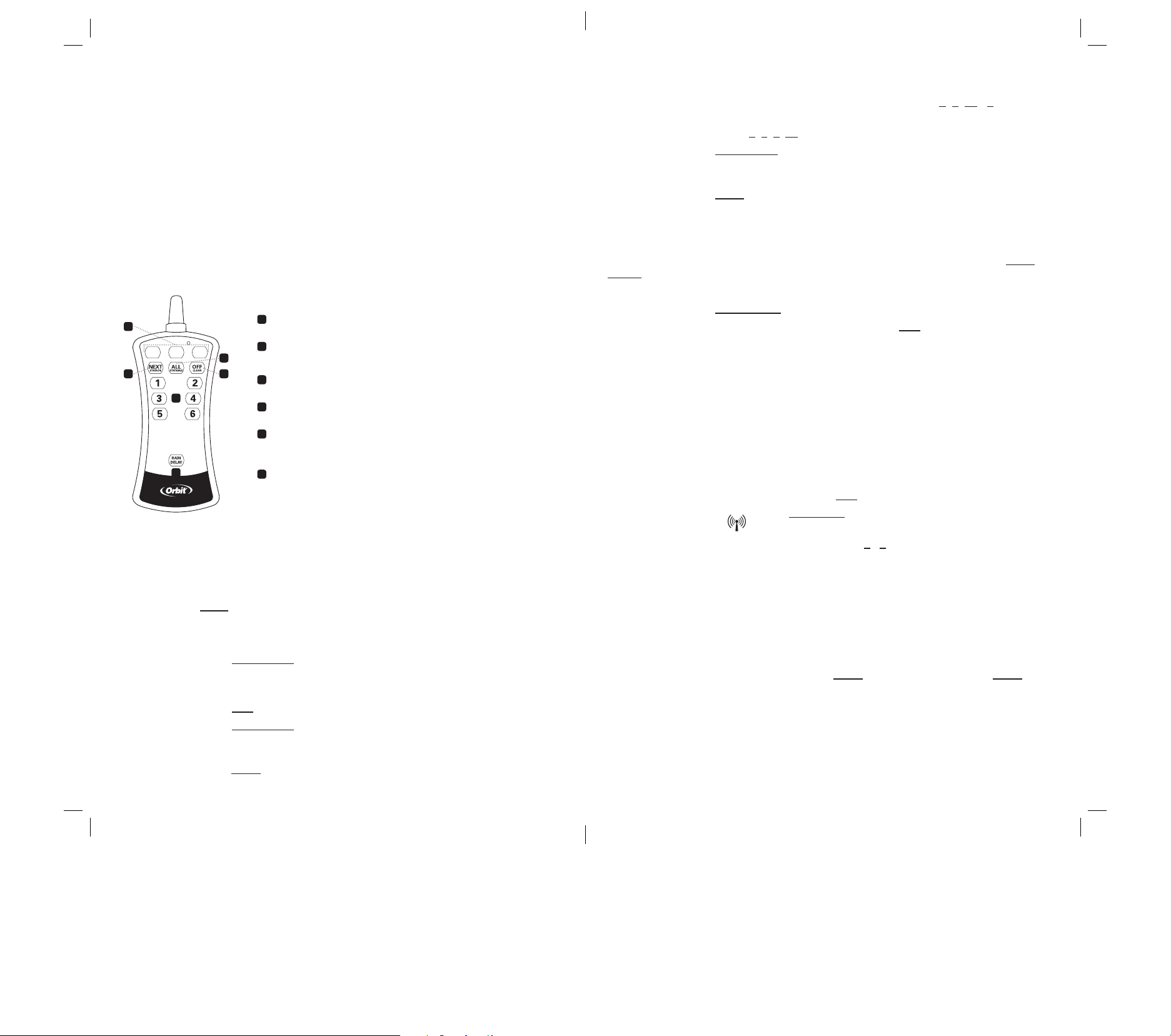

Se muestra la estación remota 6
1 – 6 (o 12) Botones de estaciones individuales
B
ON
C
ALL Todas las estaciones de riego
D
OFF Apagado de todas las estaciones
E
NEXT Continúa a la siguiente estación.
F
RAIN DELAY Detiene el riego por 24 horas.
Duración de riego
(2, 10 y 30 minutos)
Nota: Este control remoto es resistente al agua pero no es a
prueba de ella. No lo sumerja en agua.
Uso del control remoto
Importante: El control remoto sólo funcionará si el selector del temporizador está en
AUTO.
Para regar una estación:
• Presione el número de la estación.
• Presione “X” MIN ON para regar la estación durante la cantidad de minutos
seleccionados.
Para regar todas las estaciones:
• Presione el botón ALL en el control remoto.
• Presione el botón “X” MIN ON para regar todas las estaciones (de manera
secuencial) durante la cantidad de minutos seleccionados.
• Para avanzar a la siguiente estación (antes de que haya finalizado el riego de la
estación actual) presione NEXT.
Para regar las estaciones seleccionadas:
• Presione los números de las estaciones que desee operar. (Ejemplo: 3, 7, 10, y 6).
Nota: : El temporizador regará en secuencia, comenzando desde el más bajo hasta el
más alto, sin importar el orden en que presione los botones.
• Presione “X” MIN ON para regar cada estación durante la cantidad de minutos
seleccionados.
• Para avanzar a la siguiente estación (antes de que haya finalizado el riego de la
estación actual) presione NEXT.
Retardo por lluvia
La función “Rain Delay” evita que el temporizador del regador riegue durante 24 horas.
Nota: Presione el botón RAIN DELAY en el temporizador para detener el riego durante 48
ó 72 horas.
Uso del control remoto para activar el modo “retardo por lluvia”:
• Presione el botón RAIN DELAY.
• Para cancelar el modo de retardo por lluvia presione OFF.
instalación de la batería del control remoto inalámbrico
• Retire la tapa de la batería insertando (y girando) un destornillador de punta plana
en la ranura (ubicada en el parte inferior del control remoto).
• Instale una batería de 9 voltios en el compartimiento.
• Reemplace la puerta del compartimiento de la batería (asegúrese de que la
empaquetadura de goma esté en su posición).
cómo volver a sincronizar el control remoto con el
temporizador
Nota: El control remoto y el temporizador ya estarán sincronizados. Debe seguir las
siguientes instrucciones sólo si usted tiene un control remoto de repuesto o si éste no
funciona correctamente después de seguir las soluciones (descritas más abajo) en la
sección solución de problemas.
• Gire el selector del temporizador a OFF.
• Mantenga presionado el botón PROGRAM (en el temporizador) hasta que el ícono
aparezca en la pantalla LCD.
• Presione al mismo tiempo los botones 1 y 2 (en el control remoto). Cuando oiga 4
pitidos, suelte los botones.
solUción de problemas
Nota: Para maximizar el rango del control remoto, instale el temporizador en un área donde
exista la menor cantidad de obstrucción sólida o interferencia eléctrica entre el temporizador
y el control remoto.
Problema: El control remoto no enciende los regadores.
Posibles soluciones:
• El selector del temporizador no está en AUTO; gírelo hasta AUTO.
• El temporizador no está enchufado; enchúfelo.
• Batería baja; reemplace la batería de 9 voltios en el control remoto.
• Fuera de rango; acérquese al temporizador e intente de nuevo.
• El control remoto y el temporizador ya no están sincronizados; vuelva a sincronizar
el control remoto.
Loading...
