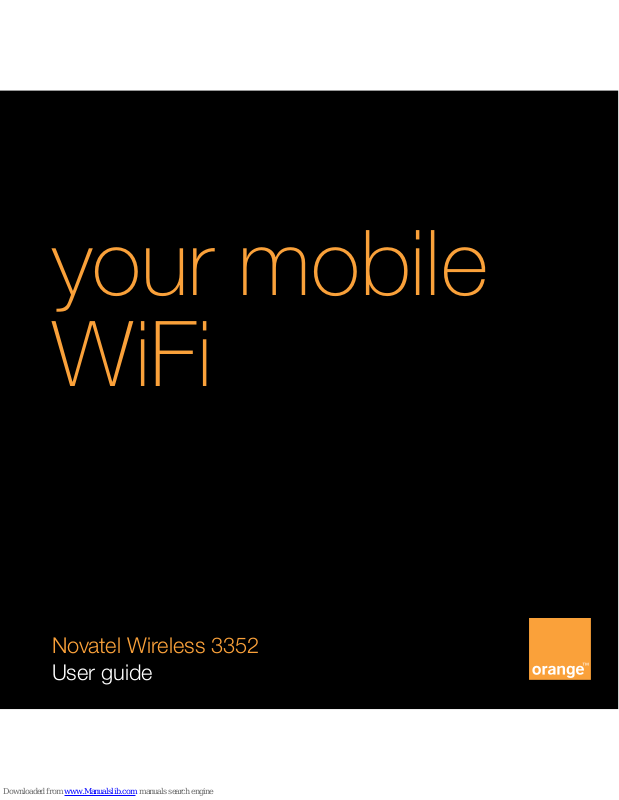

ORANGE Novatel Wireless 3352 User Manual

your mobile
WiFi

Novatel Wireless 3352

User guide

Novatel Wireless 3352 User guide 2

contents

n

Novatel Wireless 3352 mobile WiFi

n

Battery

n

Charger

n

User guide

system requirements

Any device with WiFi 802.11 b/g and an internet browser.
You can connect up to 5 devices simultaneously.

Novatel Wireless 3352 User guide 3

hello

welcome to Orange mobile WiFi

With your Novatel Wireless 3352 mobile WiFi you can connect your
WiFi gadgets to the internet when you’re out and about. Access email
away from the office, connect with friends when you’re on the move and
keep up with the latest information anywhere.

Your mobile WiFi is a personal internet bubble, just for you.
No wires, no complicated software – just the internet on all your
gadgets, everywhere.

Turn over to get your WiFi gadgets online in no time.

Novatel Wireless 3352 User guide 4

your mobile WiFi

microSD slot

connection LED

micro USB port

WiFi LED

Novatel Wireless 3352 User guide 5

master reset

battery compartment SIM compartment

Novatel Wireless 3352 User guide 6

inserting the battery and SIM Card

Before connecting to your mobile WiFi for the first time, you must
insert your Orange SIM Card, then insert and fully charge the battery.

1

Slide open the battery cover

2

Take note of the SSID (network
name) and WiFi key. These can
be found inside the battery
cover

SSID (network name)

WiFi key

Novatel Wireless 3352 User guide 7

4

Insert the battery,
line up the contact points

5

Replace the battery cover

6

Charge the battery
for four hours

3

Insert the SIM Card

Novatel Wireless 3352 User guide 8

connecting to your mobile WiFi

1

Input the WiFi key and you’ll
be connected to your mobile
WiFi and the internet. You
can connect up to 5 of your
gadgets at the same time.

After your mobile WiFi is fully
charged, press the Power
button to turn it on. The Power/
Connection LED and WiFi LED
will light up.

You can connect to your mobile
WiFi the same way you would
connect to any WiFi router.
Go to the WiFi connection
application on the device you
want to connect.

2

Find the SSID (network
name) in your list of available
networks and select Connect.

3

4

SSID (network name) refers to the unique
name that will come up when you are
searching for WiFi signal on your gadgets.

WiFi Key is the password that will connect
your gadgets to the mobile WiFi.

Novatel Wireless 3352 User guide 9

red Flashing: Low battery

Solid: Mobile WiFi has encountered an error

amber Flashing: Battery charging

Solid: Battery fully charged

green Flashing: 2G (GPRS/EDGE) service is available

Solid: Connected to a network using 2G (GPRS/EDGE)

violet Flashing: 3G (UMTS/HSPA) service is available

Solid: Connected to a network using

3G (UMTS/HSPA) UMTS/HSPA

blue Flashing: You have received an SMS message

Solid: Connected to a roaming network

blue WiFi No Light: WiFi is off or the mobile WiFi is connected by

USB port*
Flashing: WiFi is on with devices connected
Solid: WiFi is on with no devices connected

* USB cable can be purchased separately at

www.orangeaccessories.co.uk

Novatel Wireless 3352 User guide 10

your Orange landing page

Whenever you connect to the internet with your Novatel Wireless 3352
mobile WiFi you’ll see the Orange landing page. Your Orange landing page
comes with widgets like a data and SMS manager, GPS search tool and a
weather station.

Customise your landing page with more widgets to quickly access the
information that’s important to you. To come back to your Orange landing
page at any time just go to http://orangemobile.wifi

If you would like to change some of the parameters, or to manage
simultaneous connections on your mobile WiFi device, you will need to log
into your Orange landing page as an administrator. The default password is
admin - you’ll be able to change it at any time once you’re logged in.

Novatel Wireless 3352 User guide 11

caring for your mobile WiFi

n

Avoid storing your device in extreme temperatures.

n

Store your device in a dry and clean environment.

n

Avoid spilling any liquid on your device or immersing it in water.

n

Do not place any labels on the device as doing so could alter the

sensitivity of the antenna.

n

Do not force the cable into the USB port.

n

Do not force the SIM card into the SIM card slot.

n

Do not force the microSD card into the microSD slot.

n

Do not apply force to the top or bottom of your device.

n

Detach the USB cable (sold separately) from your mobile

WiFi before transport.

For regulatory and safety information please visit: www.novatelwireless.com

Note: USB cable not included but
can be purchased separately at
www.orangeaccessories.co.uk

Novatel Wireless 3352 user guide12

we’re always here to help

just give us a call

07973 100 150

from an Orange phone: 150, option 3
small business customers: 345

Opening hours are 7am - 11pm, 7 days a week.
Calls cost 5p a minute from a BT landline or Orange home phone.
Costs may vary when calling from a mobile phone.

go online

orange.co.uk/help

visit any time of the day or night.

This booklet is printed entirely on recycled paper containing
25% post-consumer recovered fibre. You can recycle it again.

Everything Everywhere Limited

Registered Office
Hatfield Business Park, Hatfield
Hertfordshire, AL10 9BW
orange.co.uk

P/N: 90026290 R2
