Optoma ZU606t User guide

Download

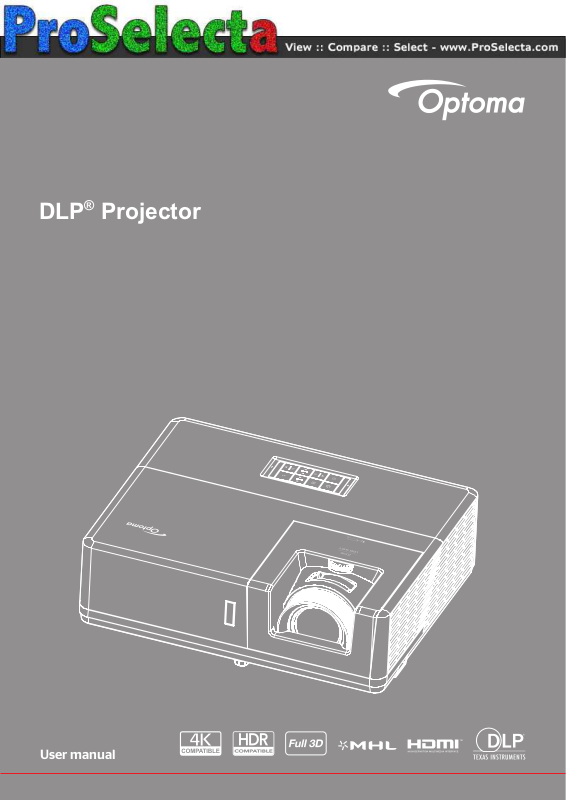

Page 1
DLP® Projector
User manual
Page 2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
INTRODUCTION .................................................................................. 8
Connections.............................................................................................................................. 10

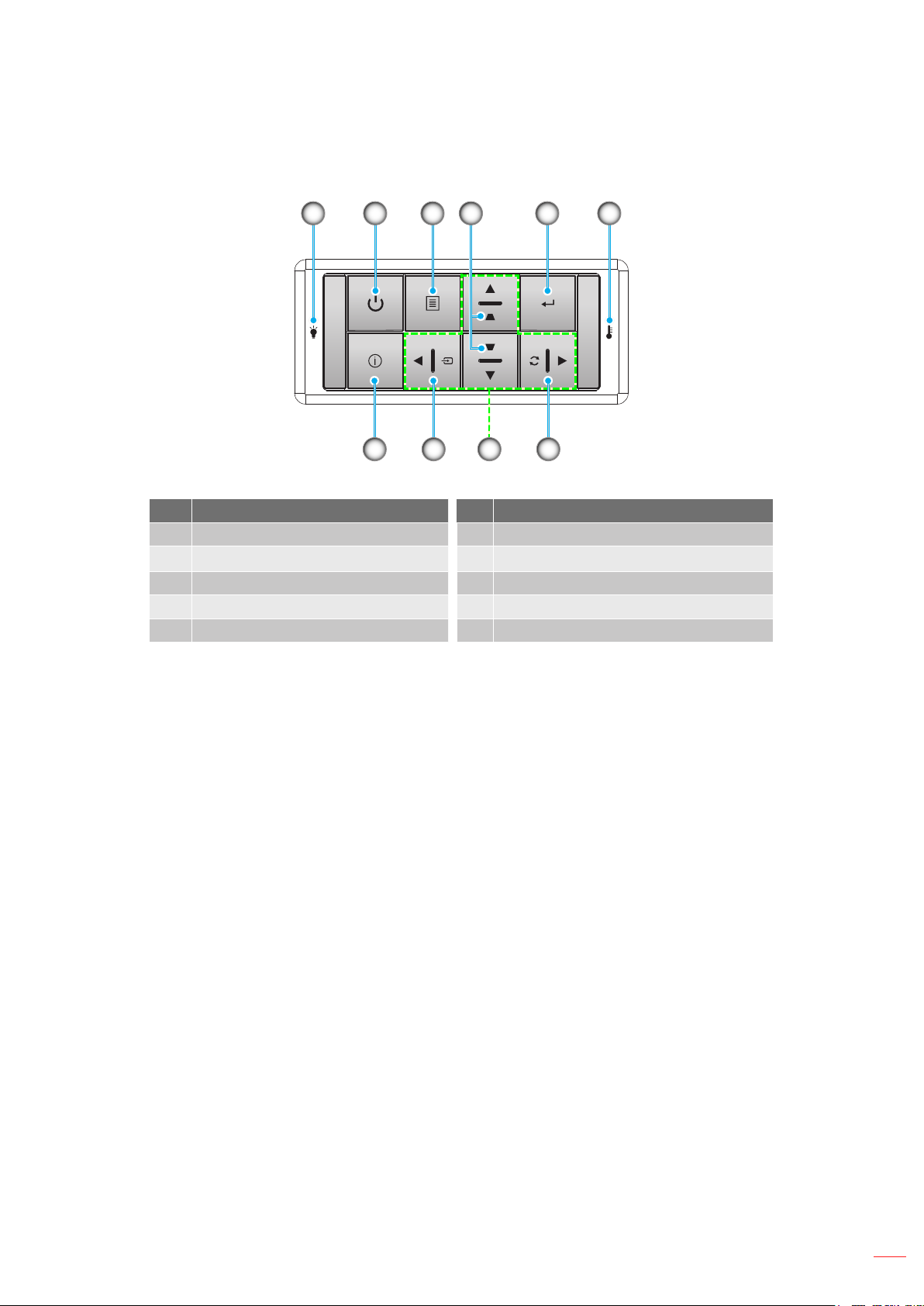

Keypad ..................................................................................................................................... 11

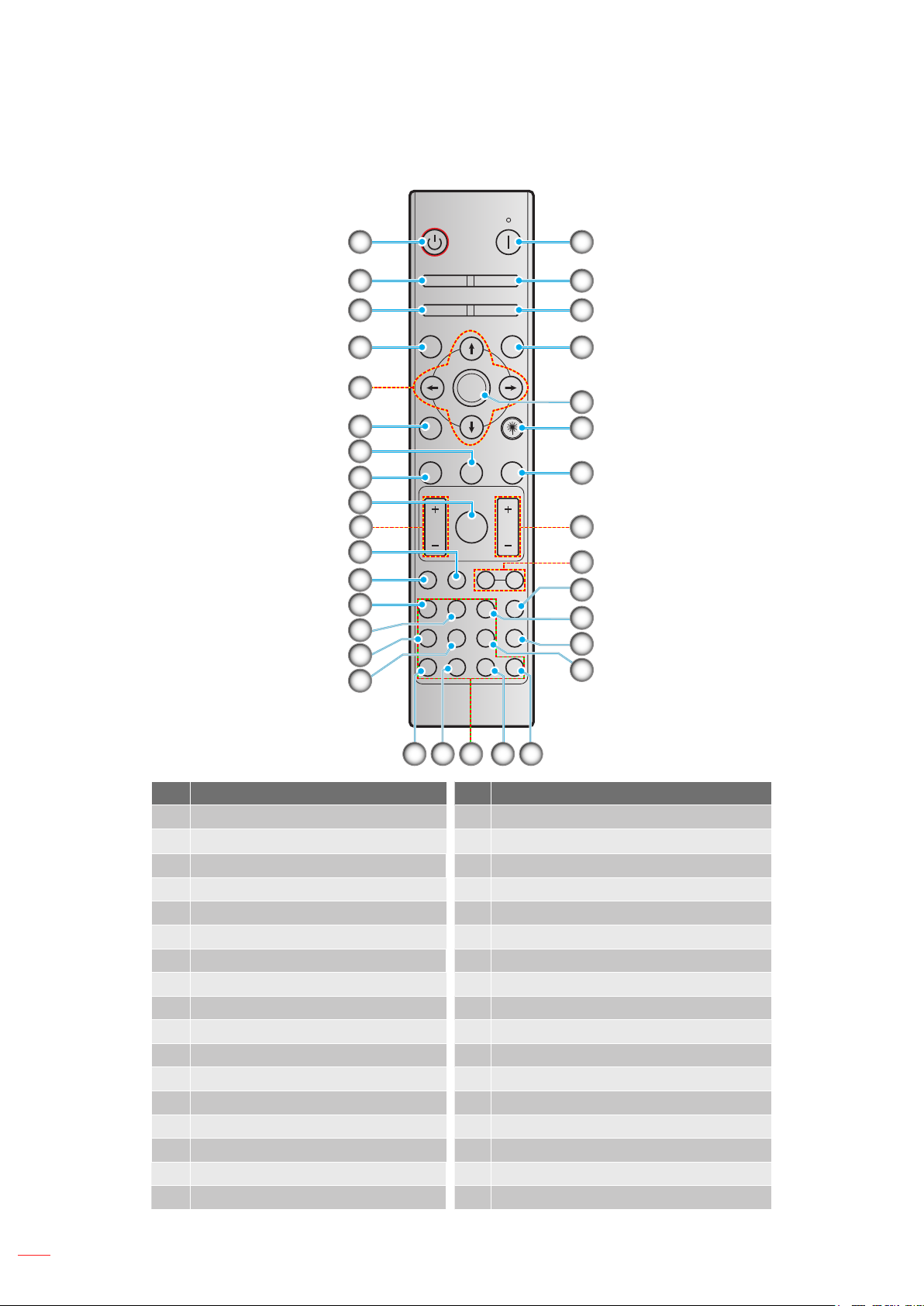

Remote control ......................................................................................................................... 12
SETUP AND INSTALLATION ............................................................. 13

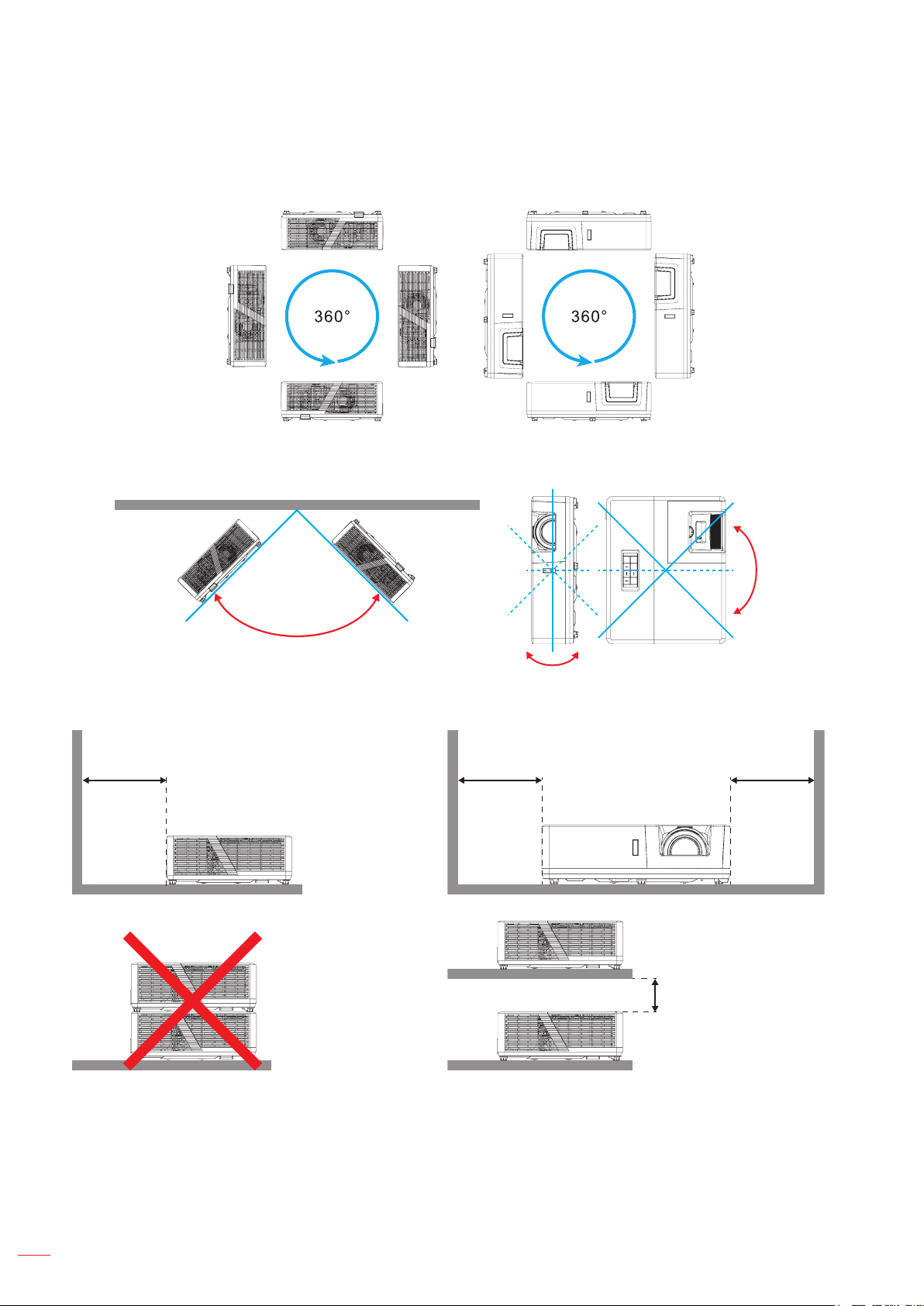

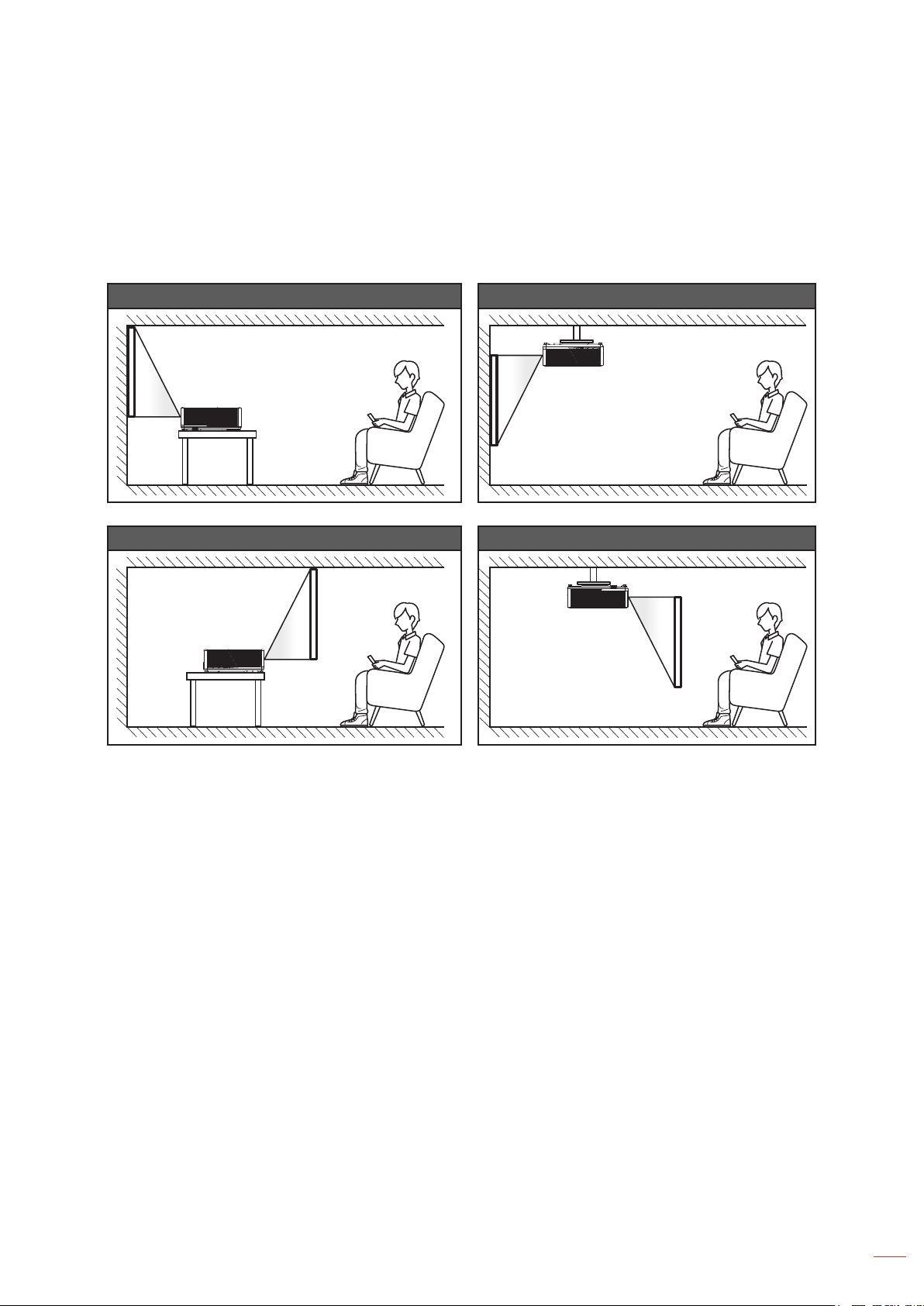

Installing the projector .............................................................................................................. 13

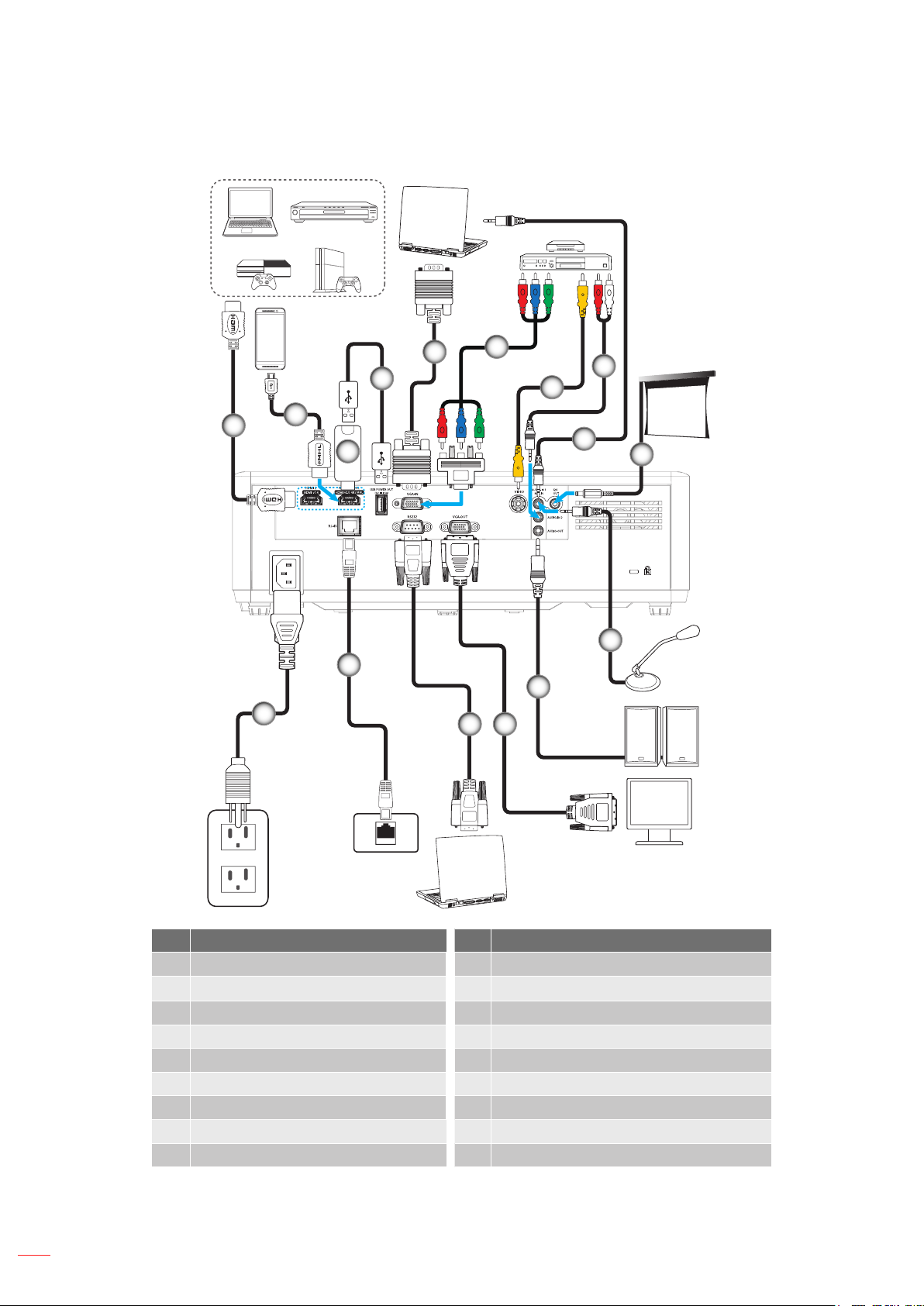

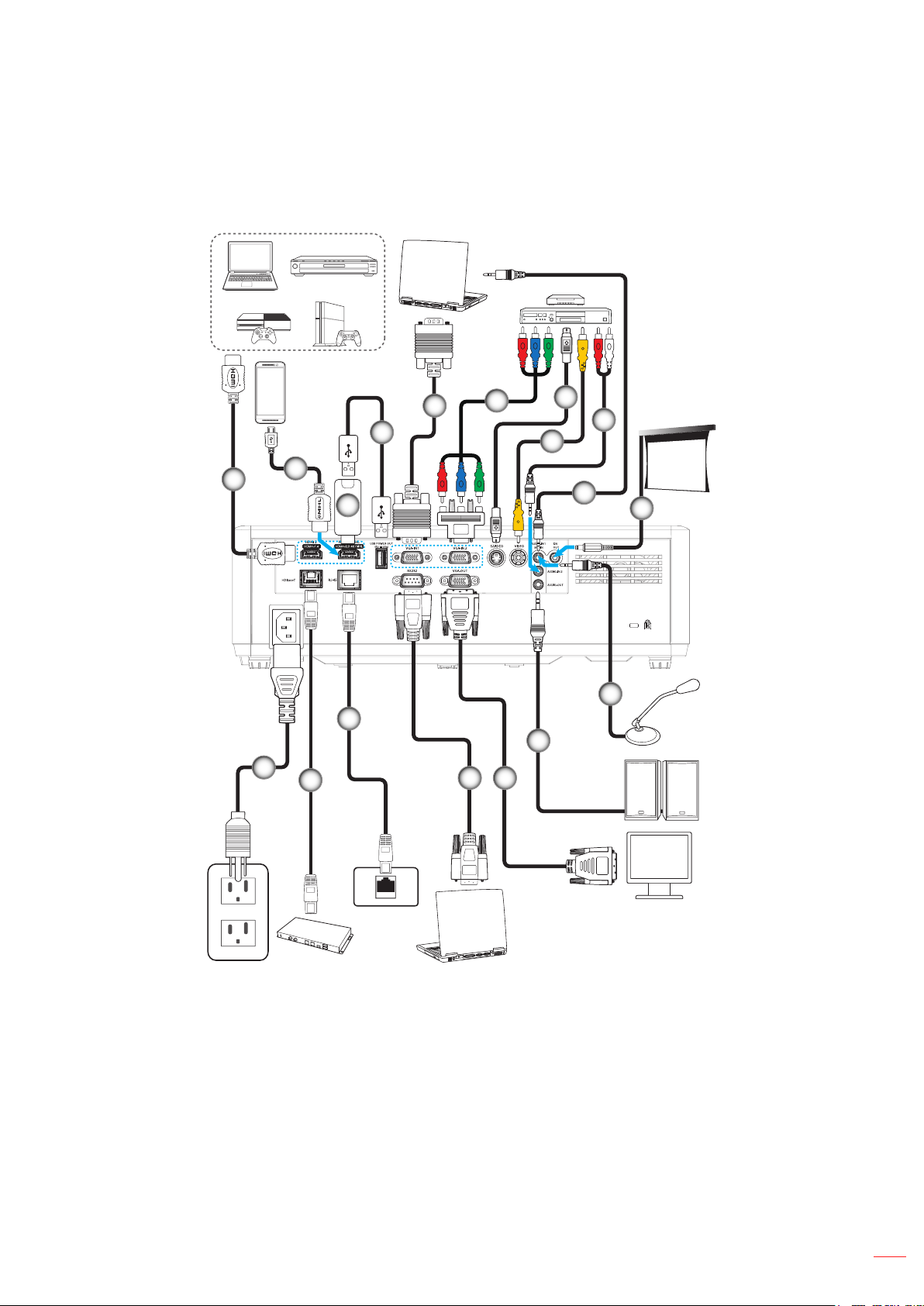

Connecting sources to the projector ......................................................................................... 15

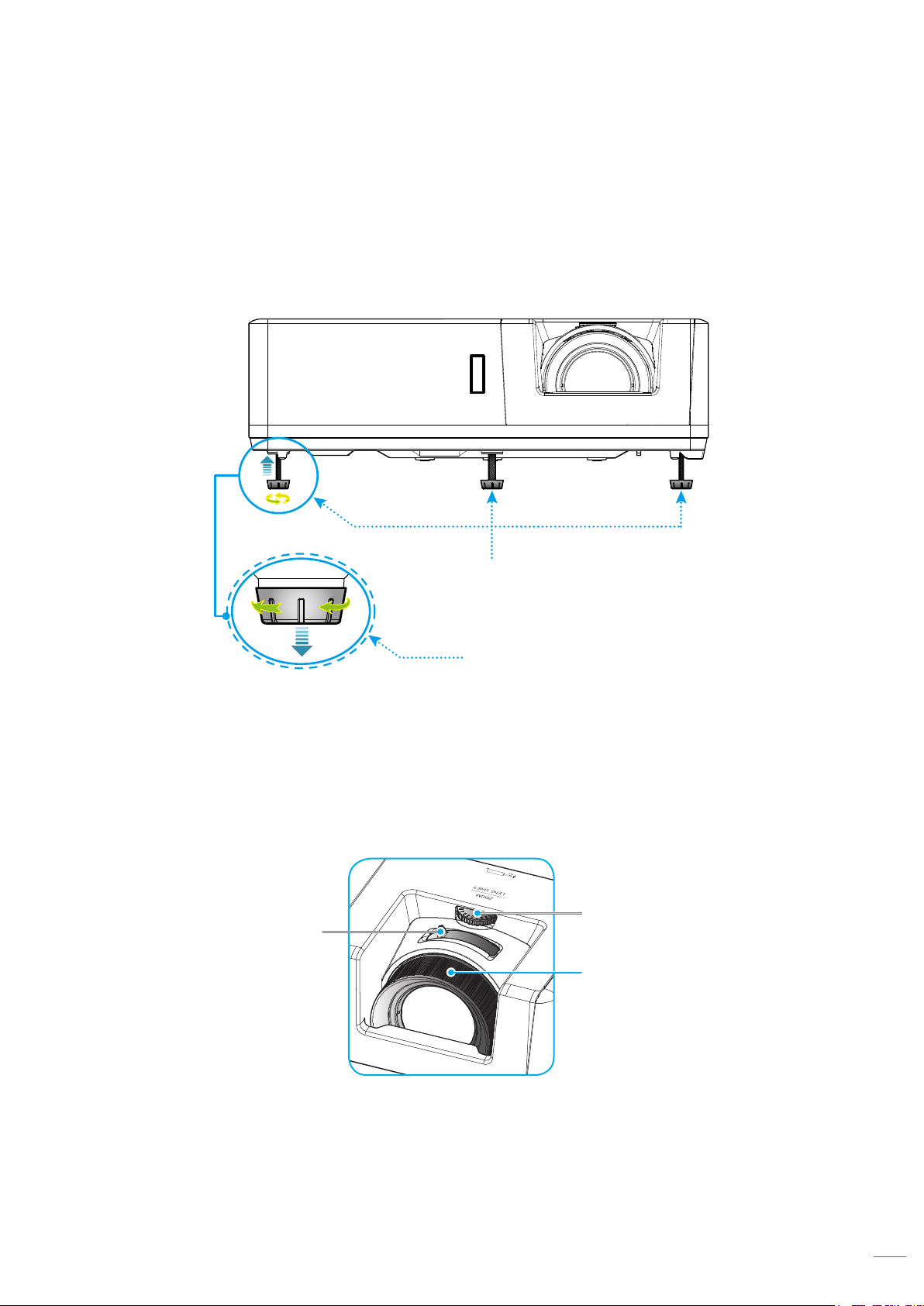

Adjusting the projector image ................................................................................................... 17

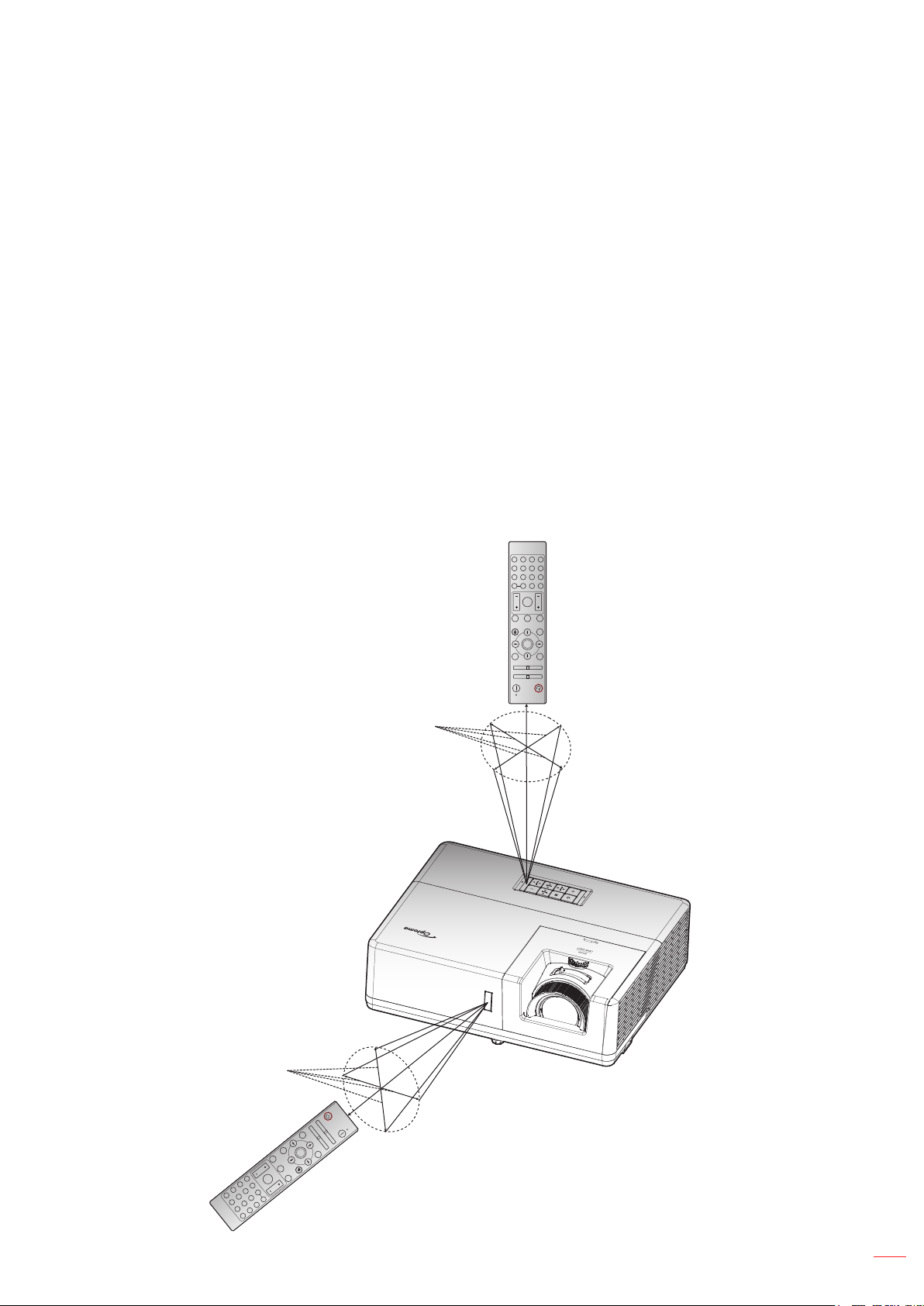

Remote setup ........................................................................................................................... 18
USING THE PROJECTOR .................................................................. 20

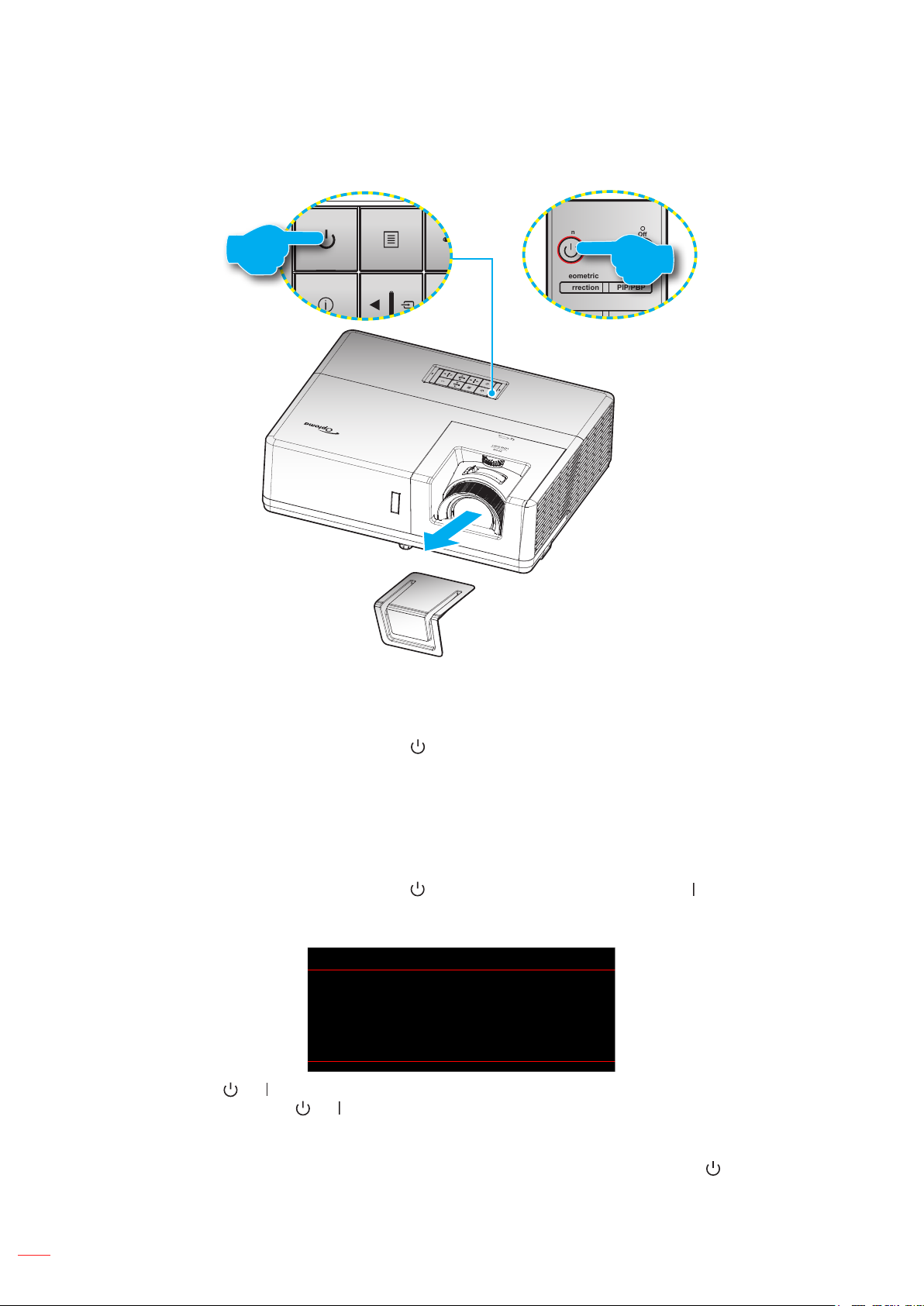

Powering on / off the projector.................................................................................................. 20
Selecting an input source ......................................................................................................... 21

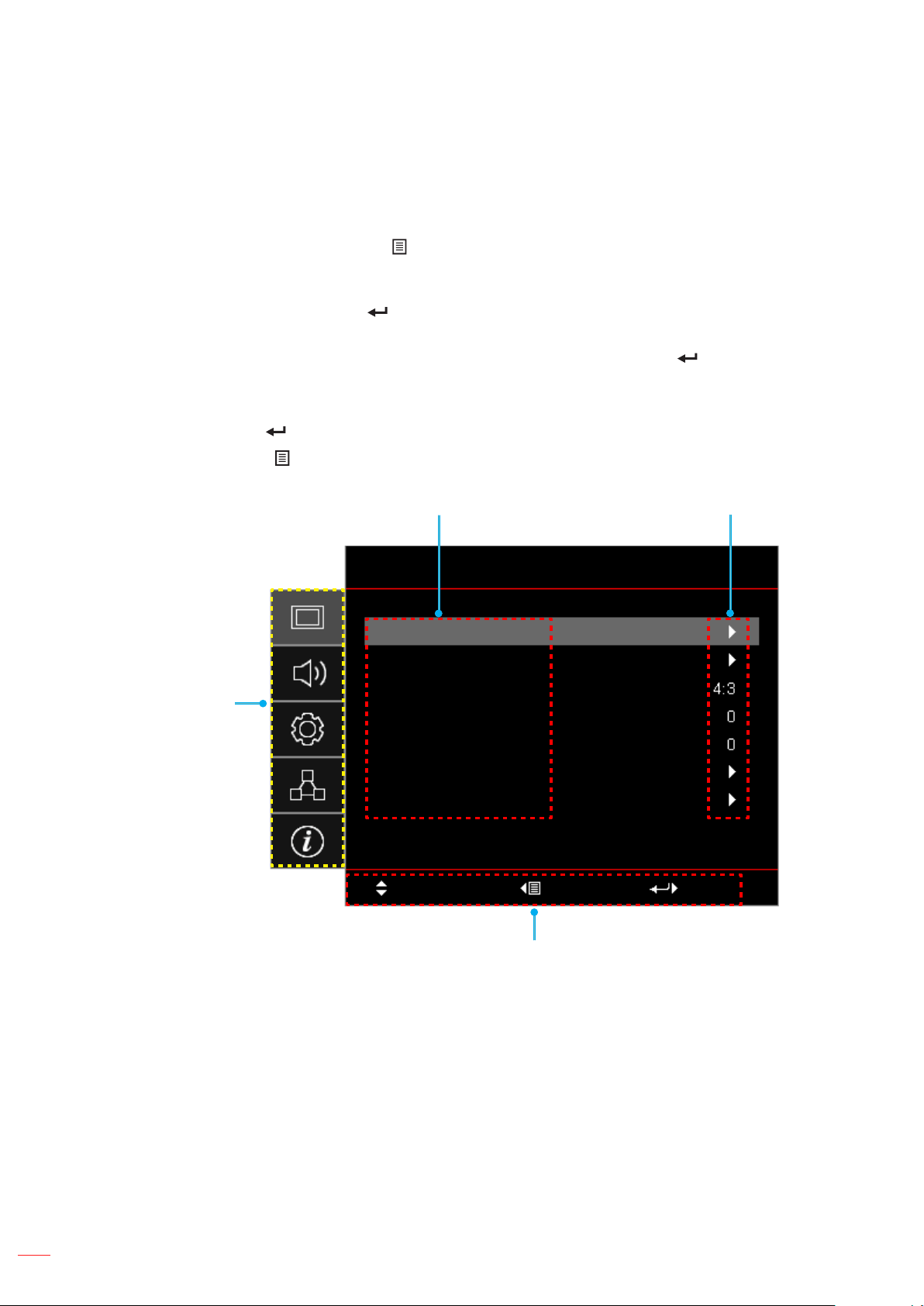

Menu navigation and features .................................................................................................. 22
OSD Menu tree......................................................................................................................... 23
Display image settings menu.................................................................................................... 32
Display 3D menu ...................................................................................................................... 35
Display aspect ratio menu ........................................................................................................ 36
Display edge mask menu ......................................................................................................... 39
Display zoom menu .................................................................................................................. 39
Display image shift menu ......................................................................................................... 39
Display geometric correction menu .......................................................................................... 39
Audio mute menu ..................................................................................................................... 40
Audio volume menu .................................................................................................................. 40
Audio audio input menu ............................................................................................................ 40
Audio audio / mic input function menu...................................................................................... 40
Setup projection menu.............................................................................................................. 41
Setup screen type menu........................................................................................................... 41
2
English
Page 3
Setup power settings menu ...................................................................................................... 41
Setup security menu ................................................................................................................. 42

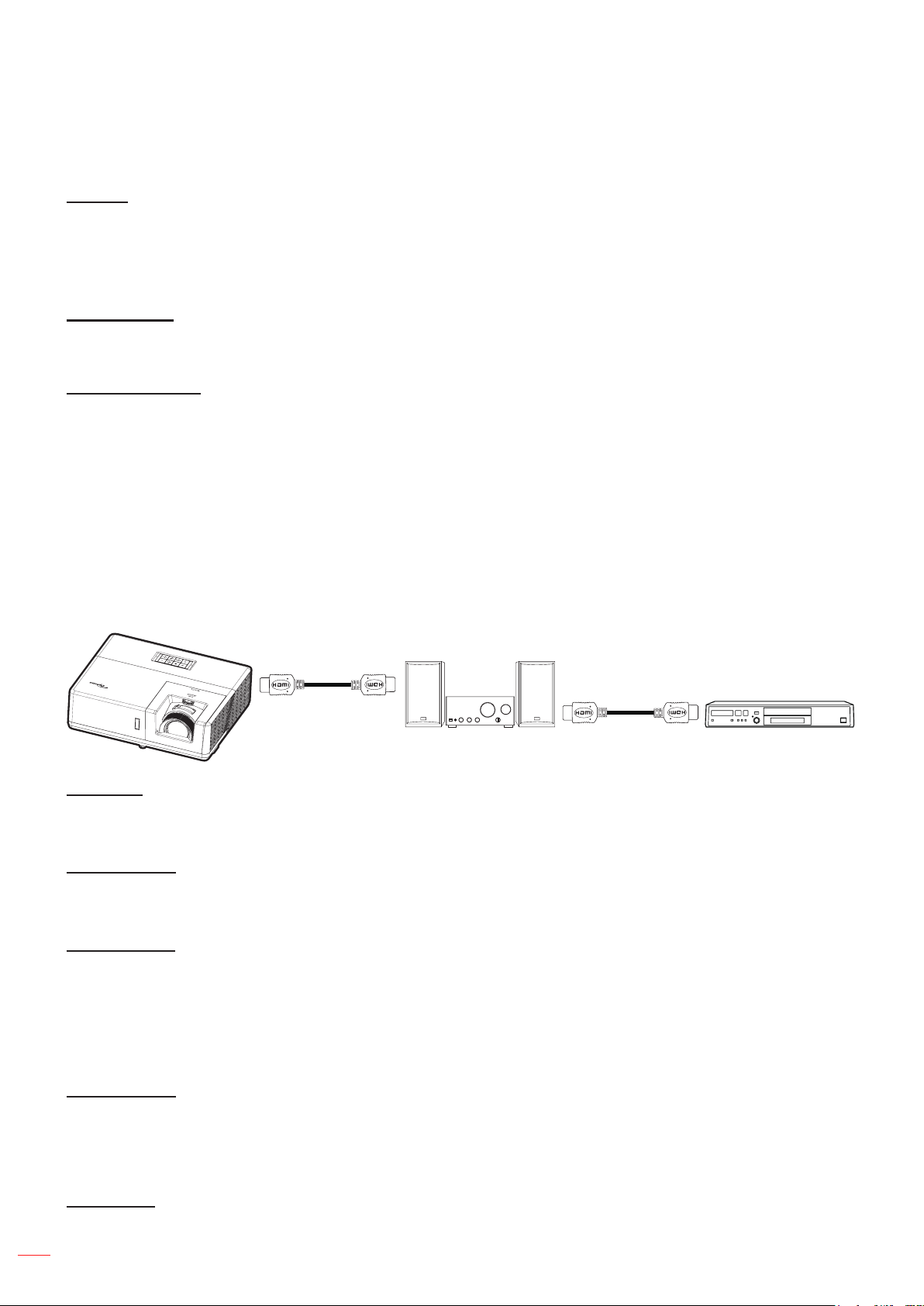

Setup HDMI link settings menu ................................................................................................ 42
Setup test pattern menu ........................................................................................................... 42
Setup remote settings menu..................................................................................................... 43
Setup projector ID menu........................................................................................................... 43
Setup 12V trigger menu............................................................................................................ 43
Setup HDBaseT control menu .................................................................................................. 43
Setup options menu.................................................................................................................. 44
Setup reset OSD menu ............................................................................................................ 45
Network LAN menu .................................................................................................................. 45

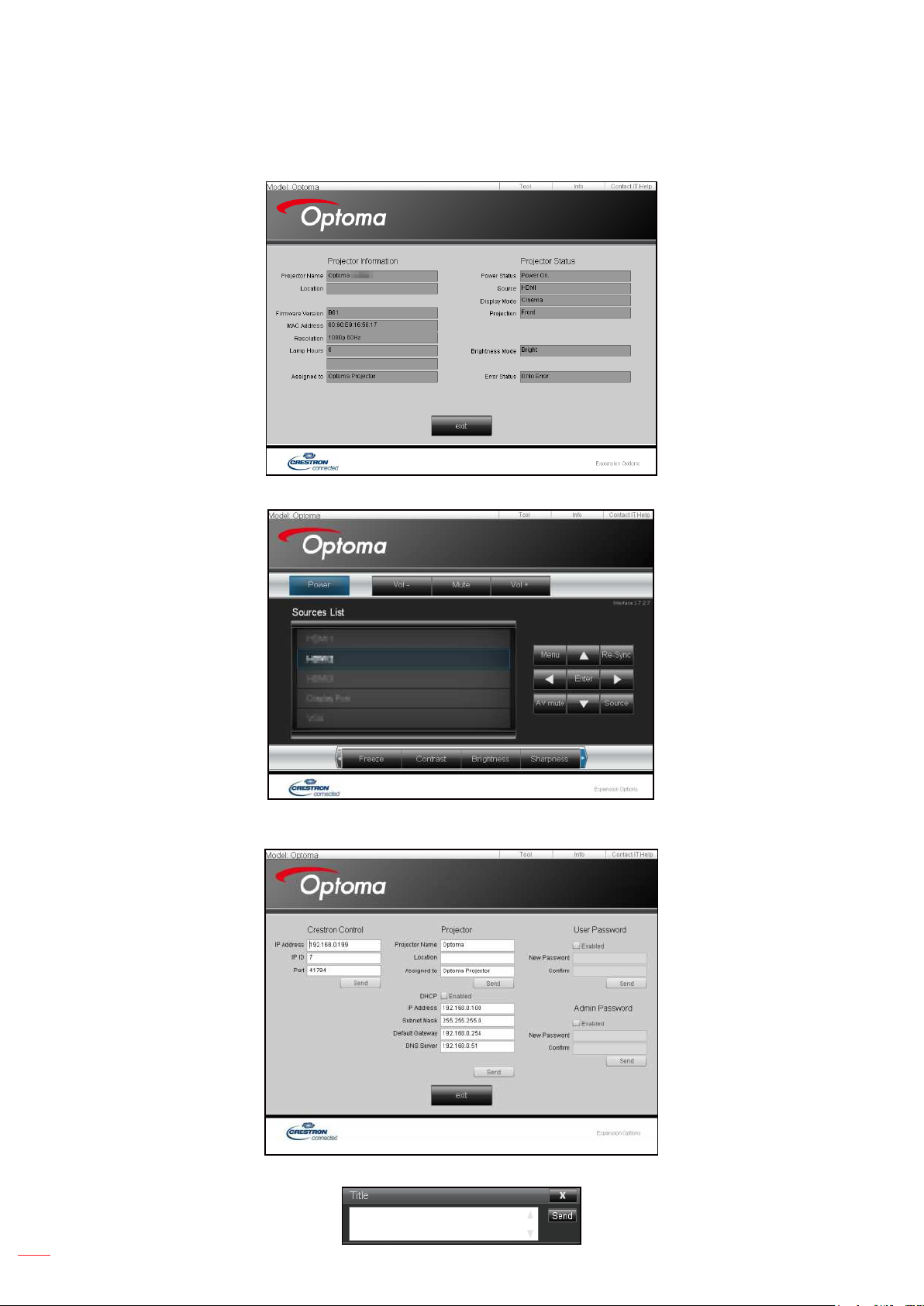

Network control menu............................................................................................................... 46

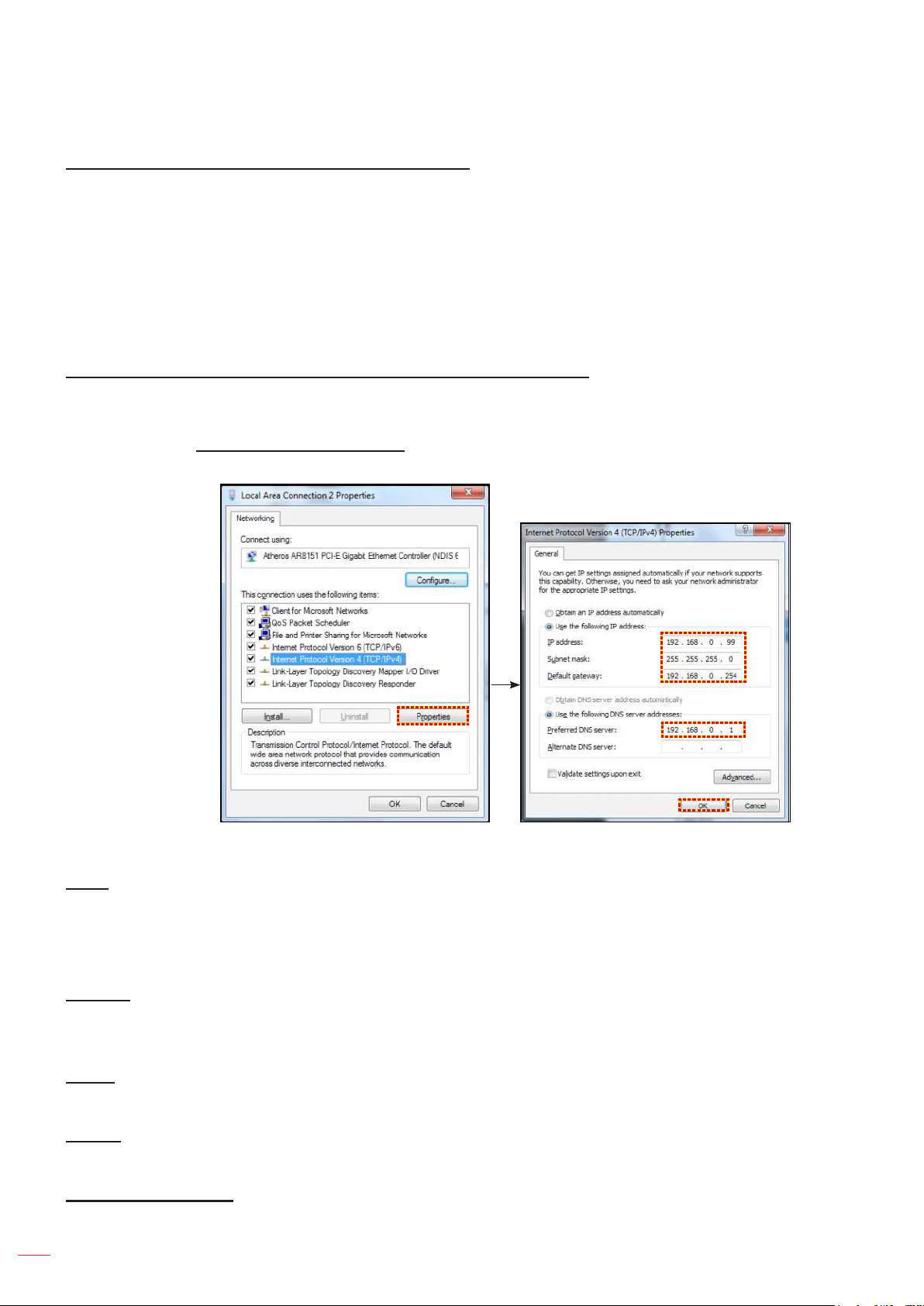

Setup network control settings menu ....................................................................................... 47
Info menu.................................................................................................................................. 52
MAINTENANCE .................................................................................. 53

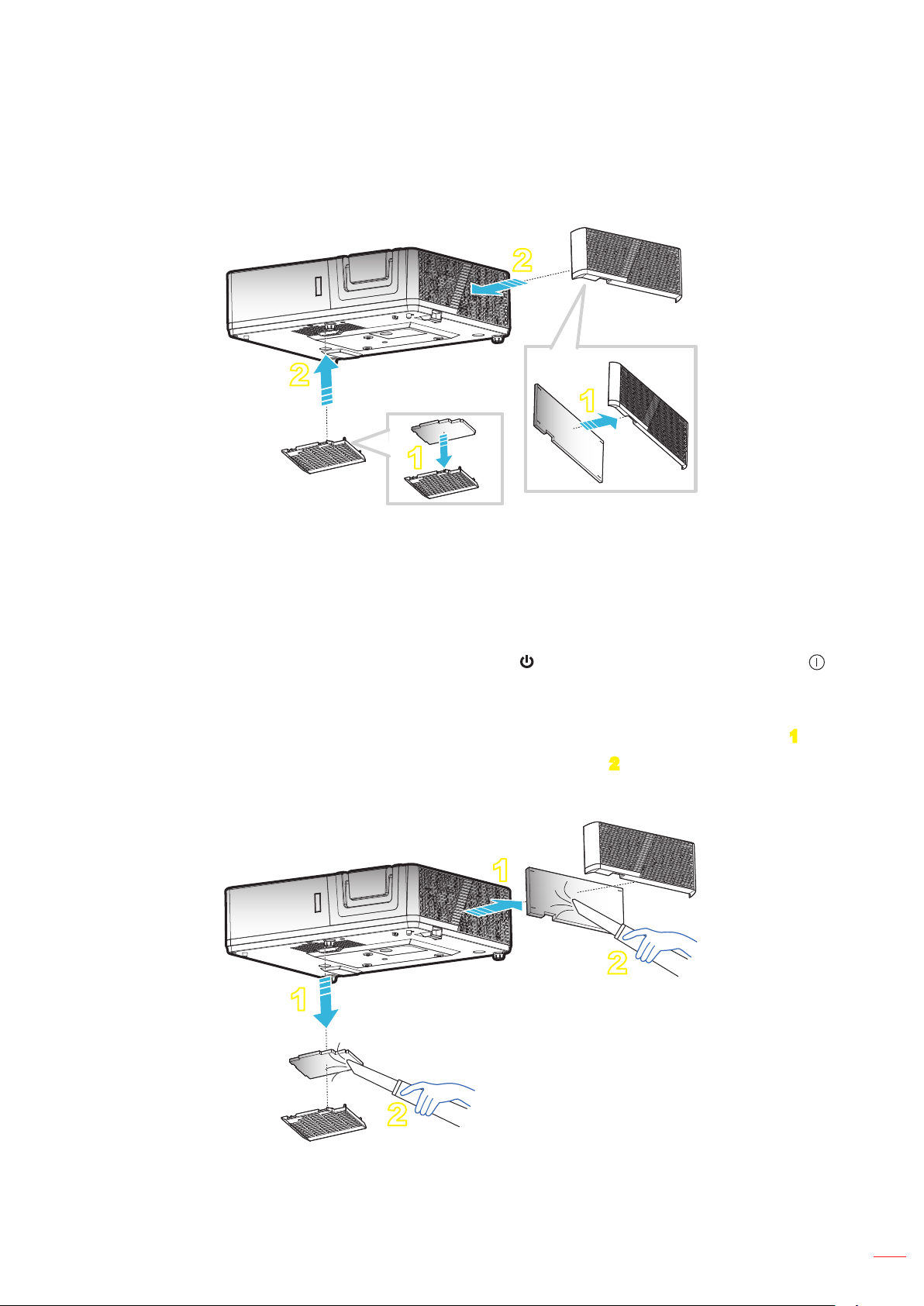

Installing and cleaning the dust lter ........................................................................................ 53
ADDITIONAL INFORMATION ............................................................ 54
Compatible resolutions ............................................................................................................. 54

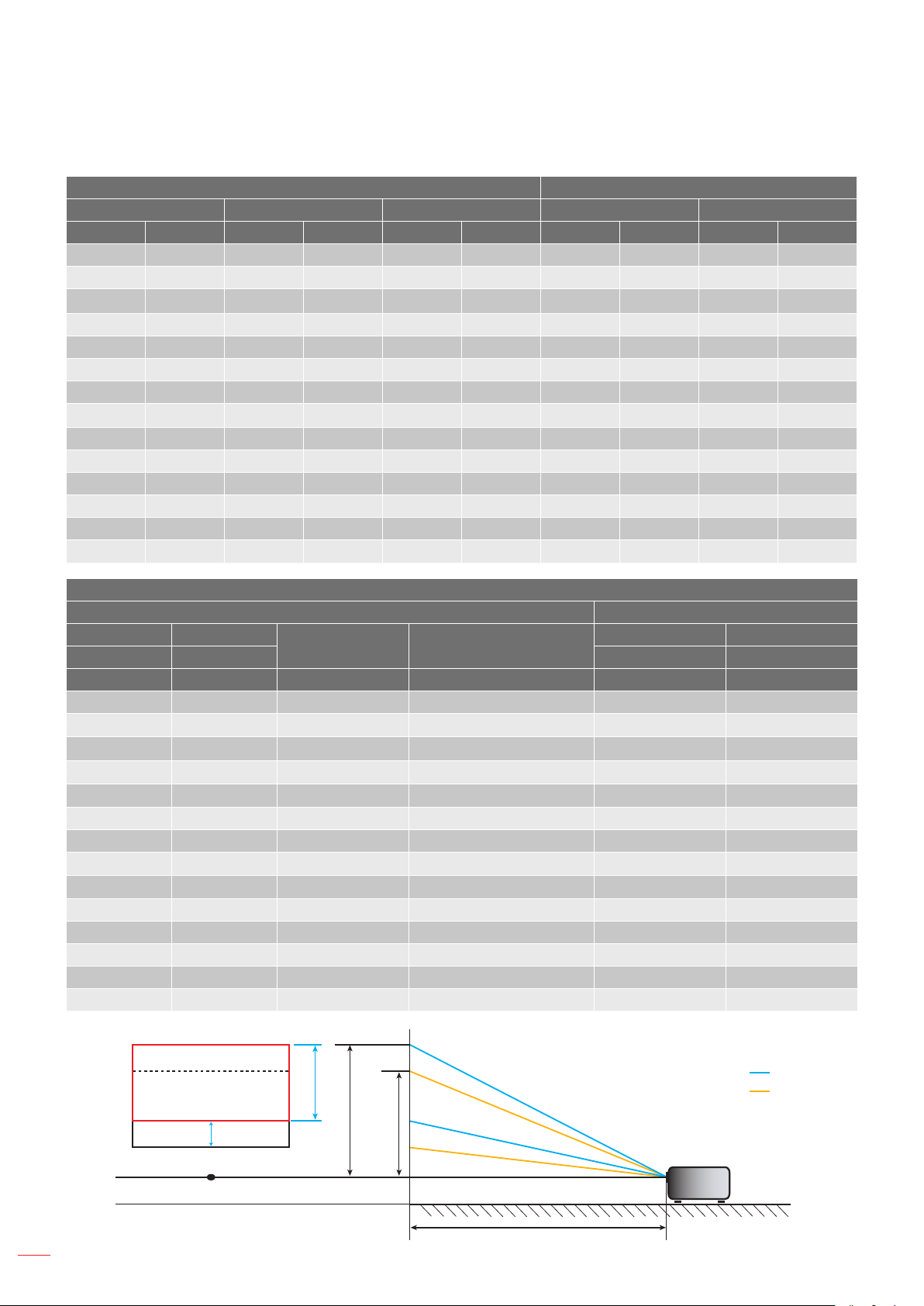

Image size and projection distance .......................................................................................... 57

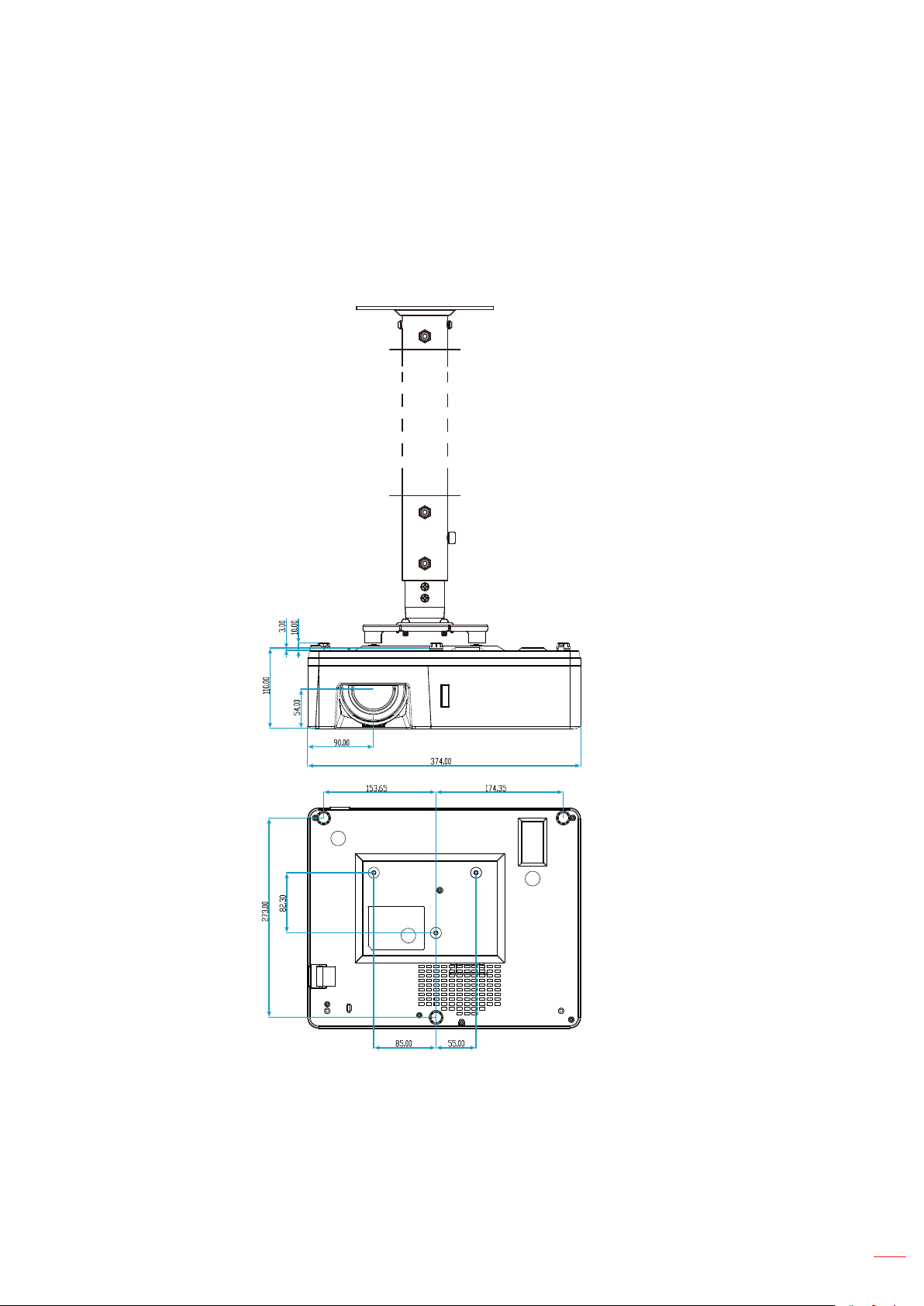

Projector dimensions and ceiling mount installation ................................................................. 59

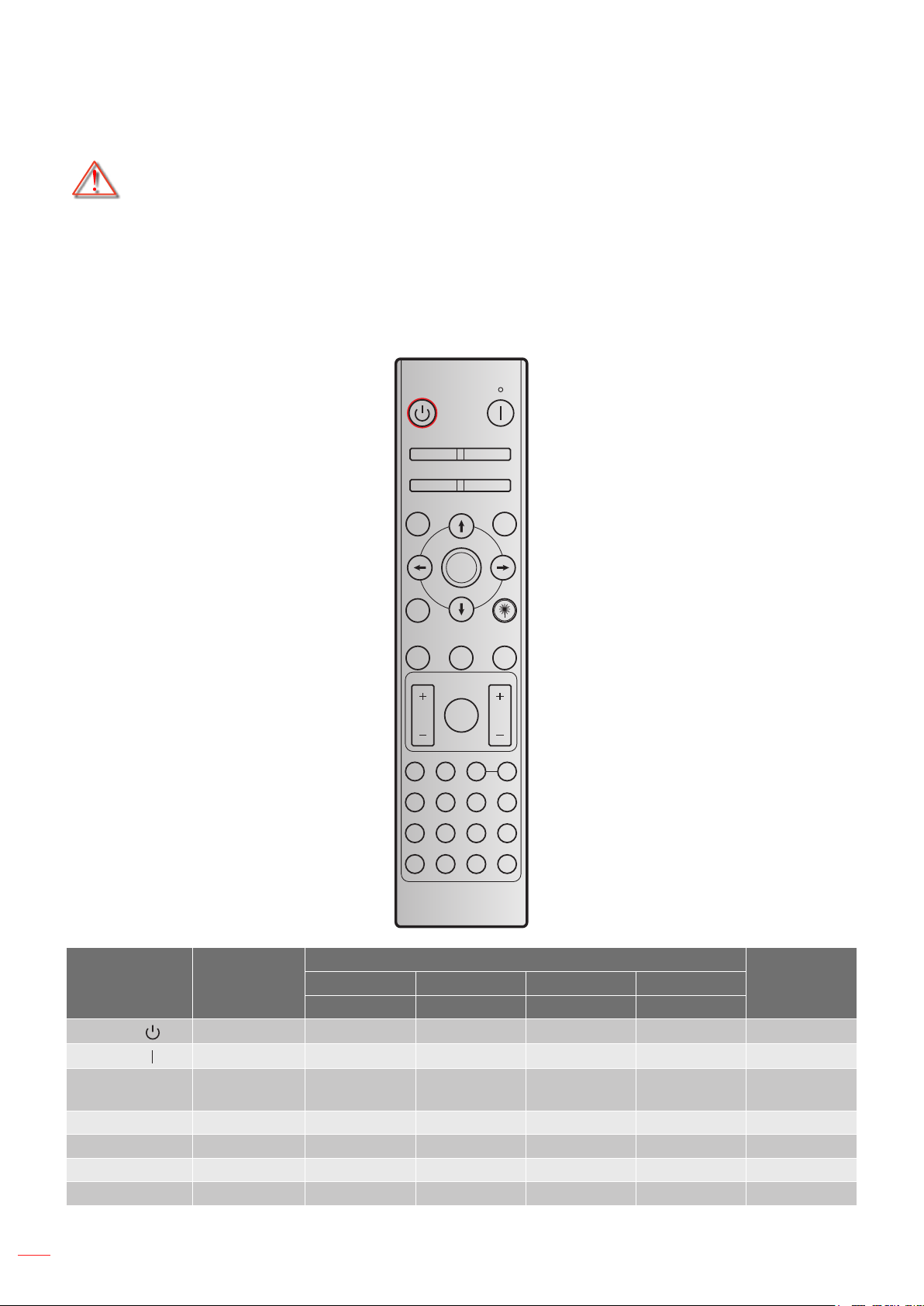

IR remote codes ....................................................................................................................... 60
Troubleshooting ........................................................................................................................ 62
Warning indicators .................................................................................................................... 64
Specications ........................................................................................................................... 65
Optoma global ofces ............................................................................................................... 66
English
3
Page 4

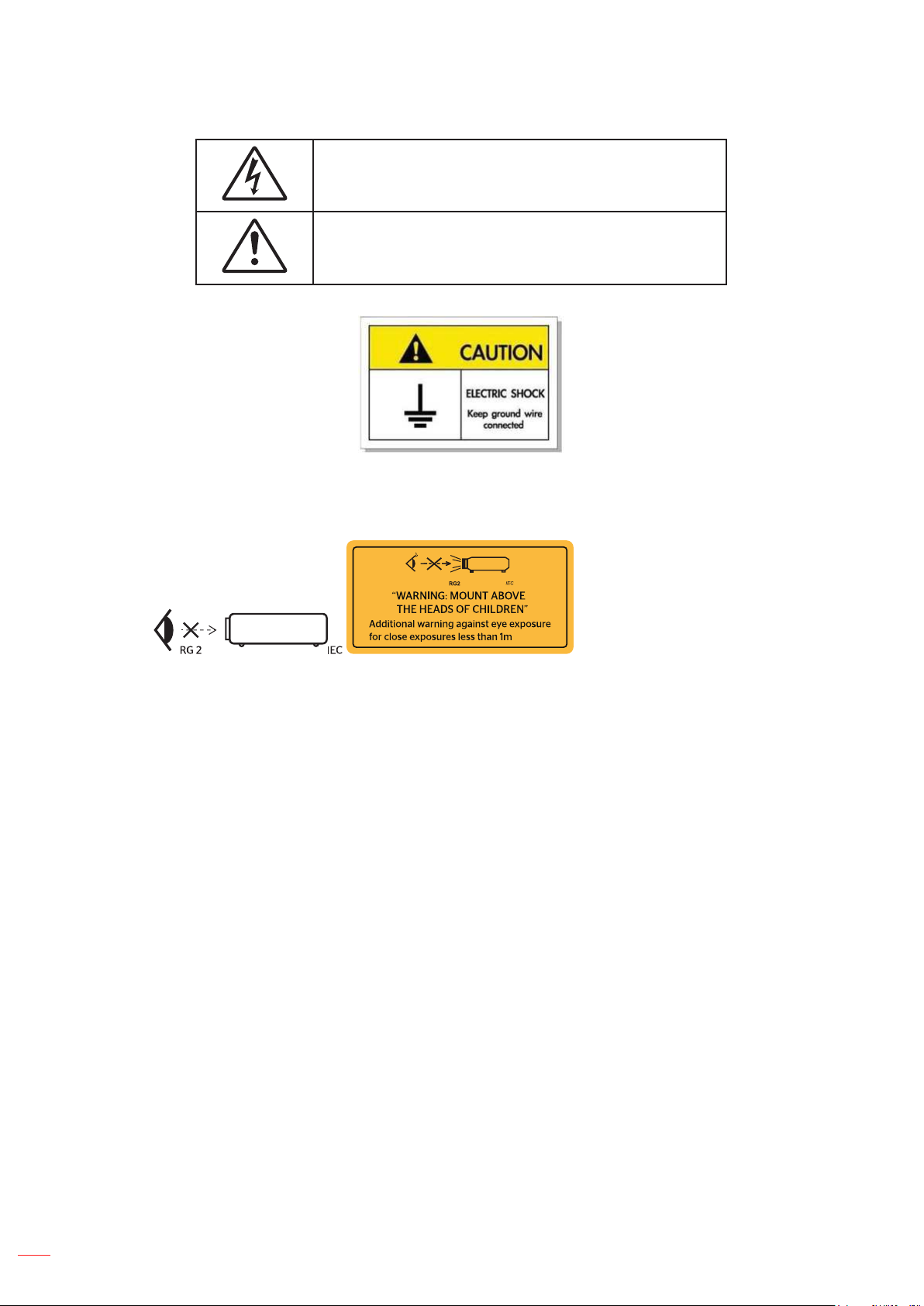

SAFETY

The lightning ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
Important Safety Instruction
Do not stare into the beam, RG2.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
4
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt. ± Near any appliance generating a strong magnetic eld. ± In direct sunlight.
English
Page 5
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped. ± Power supply cord or plug has been damaged. ± Liquid has been spilled on to the projector. ± Projector has been exposed to rain or moisture. ± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock. Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings. The unit should only be repaired by authorized service personnel. Only use attachments/accessories specied by the manufacturer. Do not look into straight into the projector lens during operation. The bright light may harm your eyes. This projector will detect the life of the light source itself. When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
Turn off and unplug the power plug from the AC outlet before cleaning the product. Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time. Do not setup the projector in places where it might be subjected to vibration or shock. Do not touch the lens with bare hands. Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Cleaning the Lens
Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust. Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers. Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm to peel off.
English
5
Page 6
Warning: Do not wipe or tap the lens with a hard object.
Laser Radiation Safety Information
This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector) as dened in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
IEC 60825-1:2014 CLASS 1 LASER PRODUCT RISK GROUP 2 Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
IEC 60825-1:2014 PRODUIT LASER DE CLASSE 1 GROUPE DE RISQUE 2 Conforme aux normes 21 CFR 1040.10 et 1040.11, à l'exception de la conformité en tant que PIL du groupe de risque 2 définie dans la CEI 62471-5: Ed. 1,0. Pour plus d'informations, voir l'avis au laser n ° 57 du 8 mai 2019.
IEC 60825-1:2014 1五◶ݿ⭘૷RG2ধ䳠ㅿ㍐ 䲚ҼIEC 62471-5:Ed.1.0ѣᇐ㗟ⲺRG2 LIP ধ䳠ㅿ㍐ԛཌ, 㾷ㅜ21 CFR 1040.10ૂ
1040.11θᴪཐ⴮䰒䋽䁀θ䄁৹䯧2019ᒪ5ᴾ8ᰛⲺㅢ57㲕◶ݿޢ઀.
IEC 60825-1:2014 1㊱◶ݿӝ૷RG2ধ䲟ㅿ㓝 䲚ҼIEC 62471-5:Ed.1.0ѣᇐѿⲺRG2 LIP ধ䲟ㅿ㓝ԛཌ, 㾷ㅜ21 CFR 1040.10ૂ
1040.11θᴪཐ⴮ީؗᚥθ䈭৸䰻2019ᒪ5ᴾ8ᰛⲺㅢ57◶ݿޢ઀.
Failure to comply with the following could result in death or serious injury.
This projector has built-in Class 4 laser module. Disassembly or modication is very dangerous and
should never be attempted.
Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
Do not open or disassemble the projector as htis may cause damage by the exposure of laser
radiation.
Do not stare into beam when the projector is on. The bright light may result in permanent eye damage. When turning on the projector, make sure no one within projection range is looking at the lens. Without following the control, adjustment or operation procedure may cause damage by the exposure
of laser radiation.
Adequate instructions for assembly, operation, and maintenance, including clear warnings concerning
precautions to avoid possible exposure to laser.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
© Copyright 2019

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specically disclaims any implied warranties of merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a
trademark of Texas Instruments.
6
English
Page 7
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the device and receiver. Connect the device into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003. Remarque à l'intention des utilisateurs canadiens Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

EMC Directive 2014/30/EU (including amendments) Low Voltage Directive 2014/35/EU RED 2014/53/EU (if product has RF function)

WEEE

Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
English
7
Page 8

INTRODUCTION

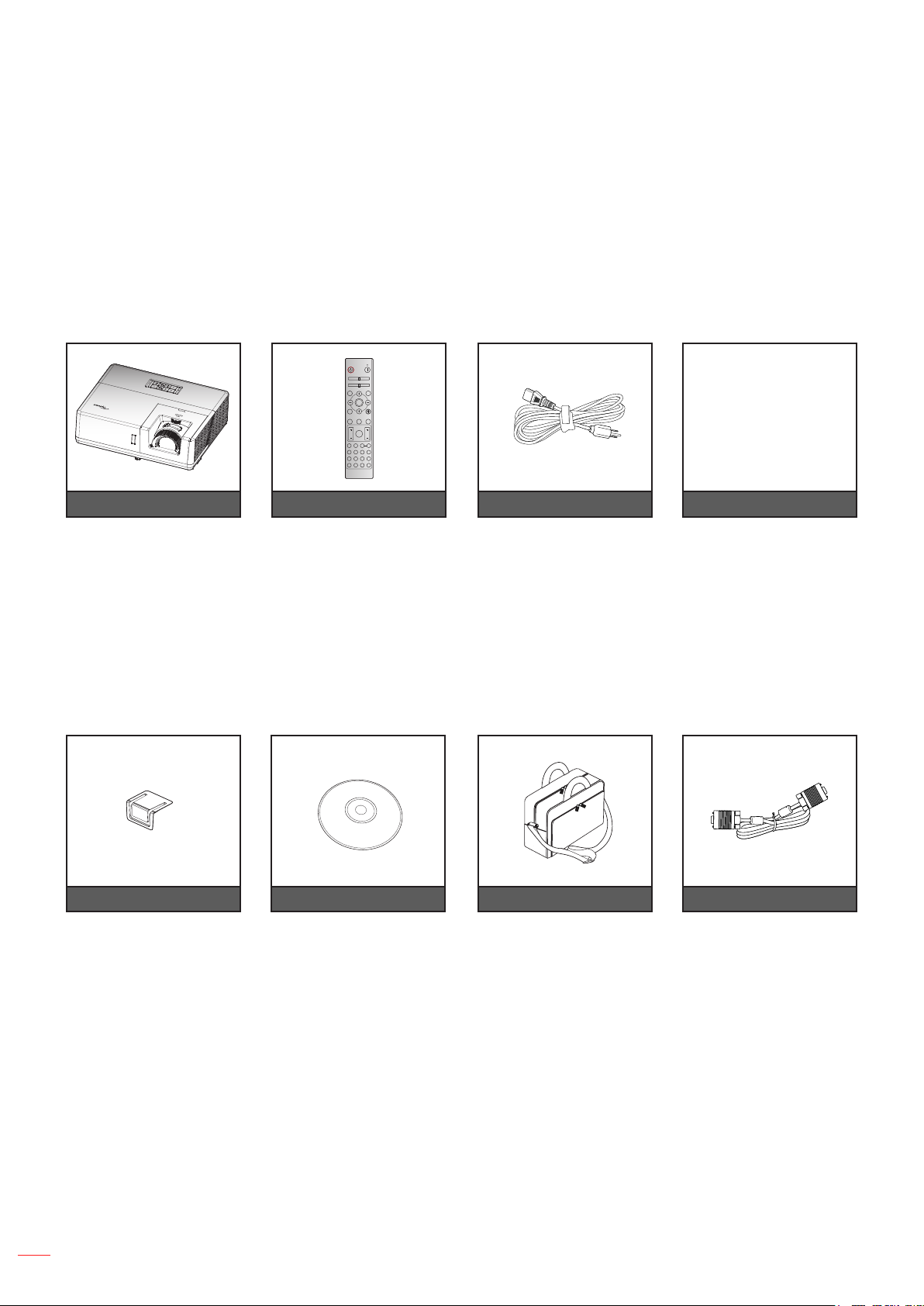

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specication and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.

Standard accessories

On
Off
Geometric
Correction PIP/PBP
F1 F2
AV Mute
Mode
ENTER
Info.
Source
Re-Sync
F3 F3
Volume D Zoom
Menu
FormatFreeze Remote
ID All
VGA1S-Video2HDMI13HDMI2
HDMI3
HDBaseT4Video5DVI
6
BNC7YPbPr8DisplayPort93D
0
Projector Remote control Power lead Documentation
Warranty Card*

Basic User Manual

Paper UM

Note:
The remote control is shipped with the battery. * For European warranty Information, please visit www.optoma.com.

Optional accessories

Lens cap CD user manual Carry bag VGA cable
Note:
Optional accessories vary depending on model, specication and region.
8
English
Page 9
INTRODUCTION

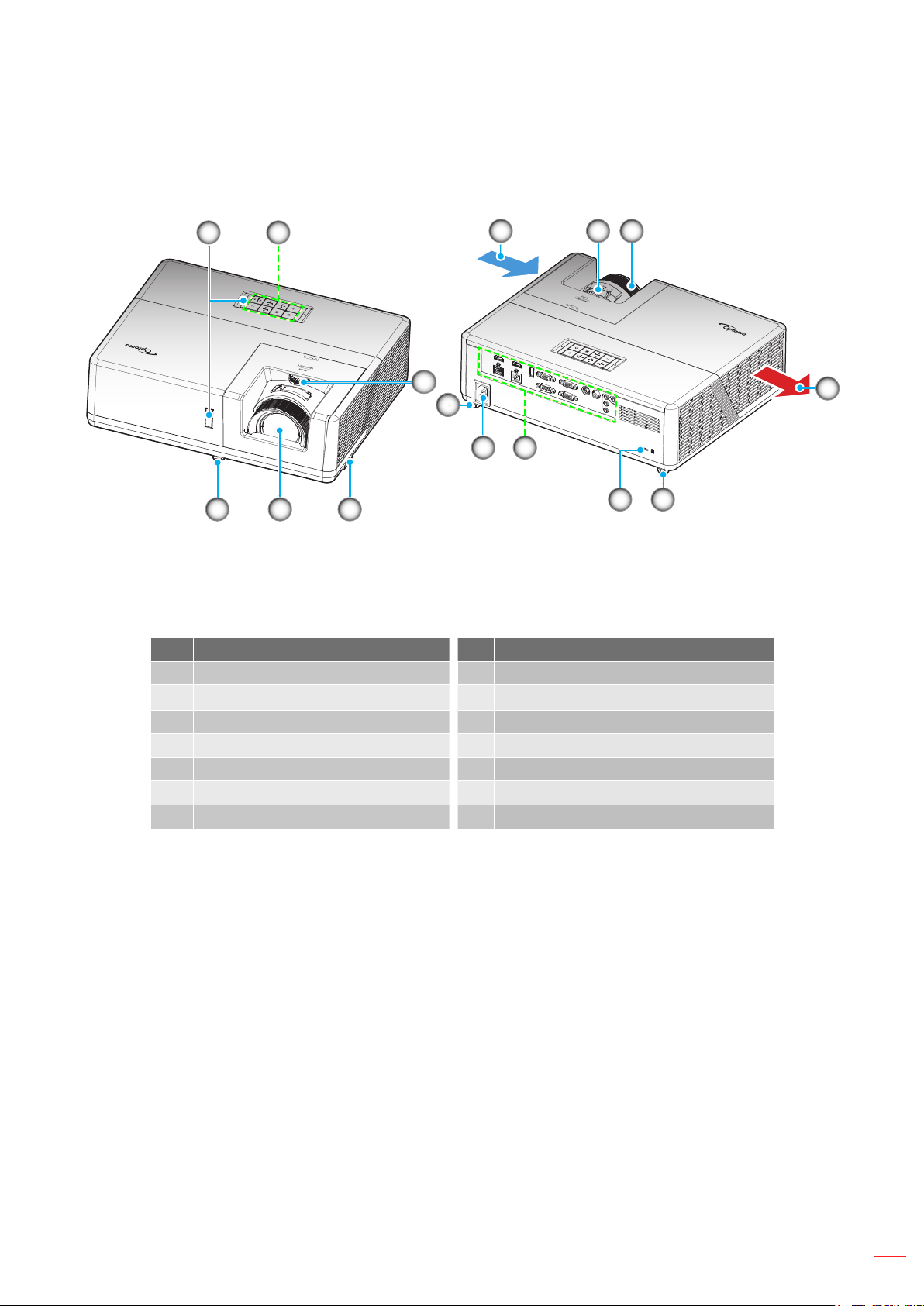

Product Overview

21
3
8
8
1213
4 5 6
10
11
89
Note:
Do not block projector intake and exhaust vents. When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. IR Receivers 8. Tilt-Adjustment Feet
2.
Keypad
Kensington™ Lock Port
9.
3. Lens Shift Dial 10. Input / Output
4. Ventilation (inlet) 11. Power Socket
5. Zoom Lever 12. Security Bar
6. Focus Ring 13. Lens
7. Ventilation (outlet)
7
English
9
Page 10
INTRODUCTION

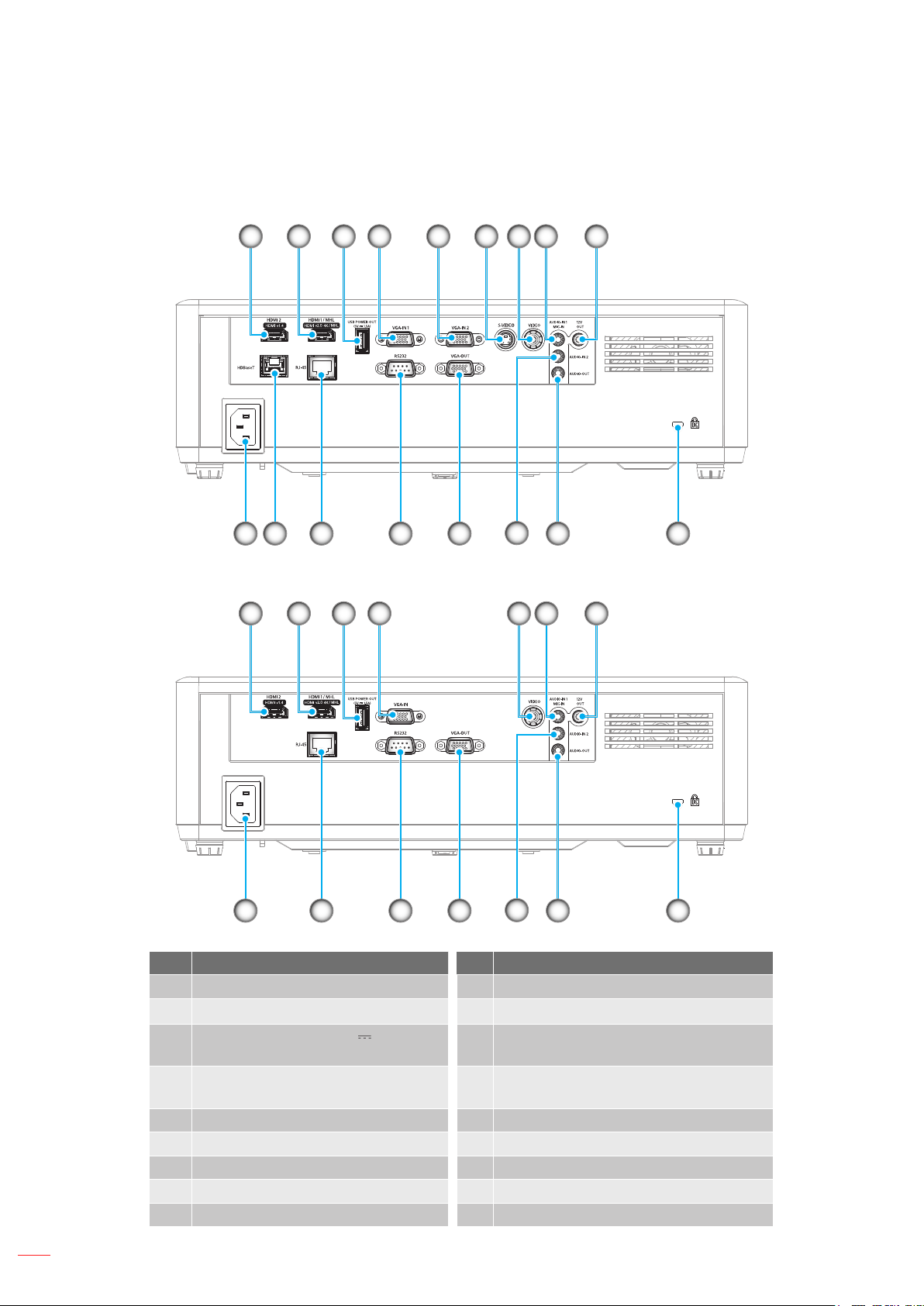

Connections

Type 1 WUXGA
Type 2 1080P
21 3
21 3
4a
4b
65 9
7
13141517 16
12
7
8
11
8
9
10
10
English
12
13141517
11
No Item No Item
1. HDMI2 Connector 10. KensingtonTM Lock Port HDMI1 / MHL Connector
2. USB POWER OUT (5V 1.5A)
3. Connector
a: VGA-IN 1 Connector
4. b: VGA-IN Connector
AUDIO-OUT Connector
11.
12. AUDIO-IN 2 Connector
13. VGA-OUT Connector
5. VGA-IN 2 Connector 14. RS232
6. S-VIDEO Connector 15. RJ-45 Connector
7. VIDEO Connector 16. HDBaseT Connector
8. AUDIO-IN 1 / MIC-IN Connector 17. Power Socket
9. 12V OUT Connector
10
Page 11
INTRODUCTION

Keypad

21 3 5 6
10
No Item No Item
1. Lamp LED 6. Temp LED Power and Power LED
2.
3. Menu 8. Four Directional Select Keys
4. Keystone Correction 9. Source
5. Enter 10. Information
4
9 78
7.
Re-Sync
English
11
Page 12
INTRODUCTION
10
19
27
26
Remote control
11
12
13
14
15
16
On
1
Geometric
2
3
4
5
6
7
8
9
Correction PIP/PBP
F1 F2
Mode
Info.
Source
Volume D Zoom
Format Freeze Remote
VGA1S-Video2HDMI13HDMI2
HDBaseT4Video5DVI
BNC7YPbPr8DisplayPort93D
ENTER
F3
F3
Menu
Off
AV Mute
Re-Sync
ID All
HDMI3
6
34
33
32
31
30
29
28
25
24
23
0
22
2017 2118
No Item No Item
1. Power on 18. YPbPr (not supported)
Geometric Correction 19. Numeric keypad (0-9)
2.
3. Function button (F1) (Assignable) 20. Display port (not supported)
4. Mode 21. 3D
5. Four directional select keys 22. DVI (not supported)
6. Information 23. HDMI3 (not supported)
7. Function button (F3) (Assignable) 24. HDMI1
8. Source 25. HDMI2
9. Menu 26. Remote ID / Remote all
10. Volume - / + 27. Digital Zoom - / +
11. Freeze 28. Re-sync
12. Format (Aspect Ratio) 29. Laser
13. VGA 30. Enter
14. S-Video 31. AV Mute
15. HDBase-T 32. Function button (F2) (Assignable)
16. Video 33. PIP/PBP (not supported)
17. BNC (not supported) 34. Power off
Note: Some keys may have no function for models that do not support these features.
English
12
Page 13
SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions. Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size, please refer to distance table on pages
57-58.
How to determine screen size for a given distance, please refer to distance table on pages 57-58.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
offset also increases proportionally.
English
13
Page 14
SETUP AND INSTALLATION
Projector installation notice
360 degree free orientation operation.
Note: The brightness will vary when the projector is installed within the range highlighted.
The fan will default to “High altitude mode” when the projector is installed within the range highlighted.
225°~315°
Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm (3.94 inches)
Minimum 300mm (11.81 inches)
45°
45°
45° 45°
Minimum 300mm
(11.81 inches)
Minimum 100mm (3.94 inches)
14
Ensure that the intake vents do not recycle hot air from the exhaust vent. When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.
English
Page 15
SETUP AND INSTALLATION

Connecting sources to the projector

Type 1 WUXGA
5
4
1
2
3
16
18
17
6
1415
7
9
8
10
11
12
13
English
15
Page 16
SETUP AND INSTALLATION
Type 2 1080P
5
4
1
2
3
16
18
6
9
8
10
11
12
13
1415
16
English
No Item No Item
1. HDMI Cable 10. Audio In Cable
MHL Cable
2.
12V DC Jack
11.
3. HDMI Dongle 12. Microphone Cable
4. USB Power Cable 13. Audio Out Cable
5. VGA In Cable 14. VGA Out Cable
6. RCA Component Cable 15. RS232 Cable
7. S-Video Cable 16. RJ-45 Cable
8. Video Cable 17. RJ-45 Cable (Cat-5e/6 Cables)
9. Audio In Cable 18. Power Cord
Page 17
SETUP AND INSTALLATION

Adjusting the projector image

Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Lens shift, focus, and zoom
To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
Zoom Lever
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Lens Shift Dial
Focus Ring
English
17
Page 18
SETUP AND INSTALLATION

Remote setup

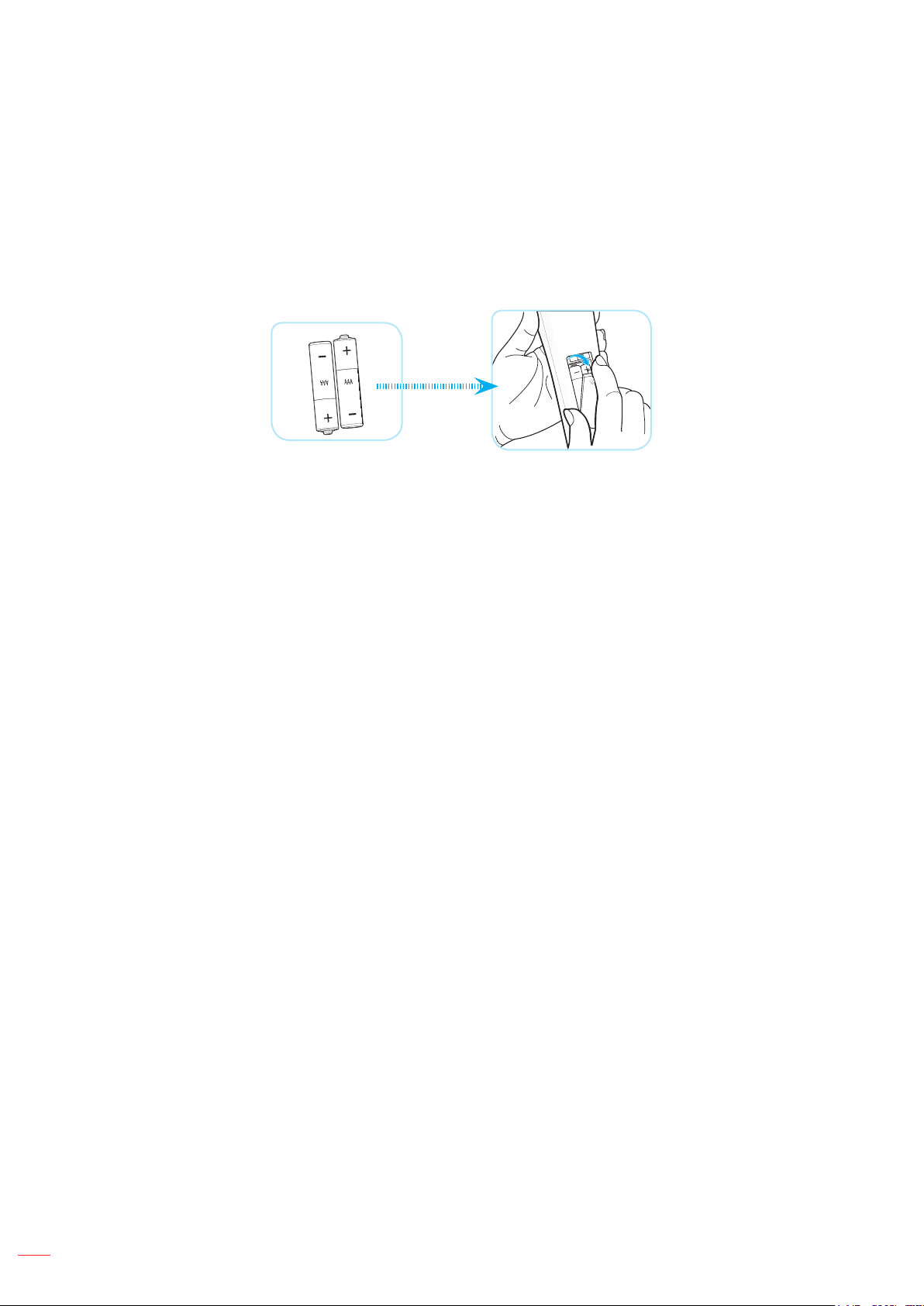

Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics. Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions. If you will not be using the remote control for an extended period of time, remove the batteries. When you dispose of the batteries, you must obey the law in the relative area or country.
18
English
Page 19
SETUP AND INSTALLATION
Effective range
Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector’s IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 6 meters (19.7 feet) when holding in an angle ±15° and not longer than 8 meters (26.2 feet) when aiming the sensor at 0°.
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 m or the remote controller
might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 5 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change according to screens.
8
93D0
BNC7YPbPr
DisplayPort
4
6
HDMI3
Video5DVI
HDBaseT
VGA1S-Video2HDMI13HDMI2
ID All
FormatFreeze Remote
Menu
Volume D Zoom
F3 F3
Source
Re-Sync
Info.
ENTER
Mode
AV Mute
F1 F2
Correction PIP/PBP
Geometric
Off
On
Approx. ±15°
Source
Volume D Zoom
Format
Menu
VGA
Freeze
1
HDBaseT
S-Video
4
Remote
2
BNC
ID
Video
HDMI1
7
5
YPbPr
3
All
DVI
HDMI2
8
6
DisplayPort
HDMI3
9
3D
0
Approx. ±15°
On
Geometric
Correction PIP/PBP
Off
Mode
F1 F2
AV Mute
ENTER
Info.
F3 F3
Re-Sync
English
19
Page 20
USING THE PROJECTOR
On
Geometric
Correction PIP/PBP
Off

Powering on / off the projector

or
Lens cap
Powering on
1. Remove the lens cap.
2. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red.
3. Turn on the projector by pressing the button on the projector keypad or remote control.
4. A start up screen will display in approximately 10 seconds and the Power LED will be ashing blue or ashing green.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
Powering off
1. Turn off the projector by pressing the button on the projector keypad or the button on the remote control.
2. The following message will be displayed:
Power Off
Press power key again.
Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.
English
20
3. Press the or button again to conrm, otherwise the message will disappear after 15 seconds. When you press the or button for the second time, the projector will shut down.
4. When the Power turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has nished and the projector has entered standby mode. When the projector is in standby mode, simply press the button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Page 21
USING THE PROJECTOR
F3
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
Re-Sync
Menu
F3

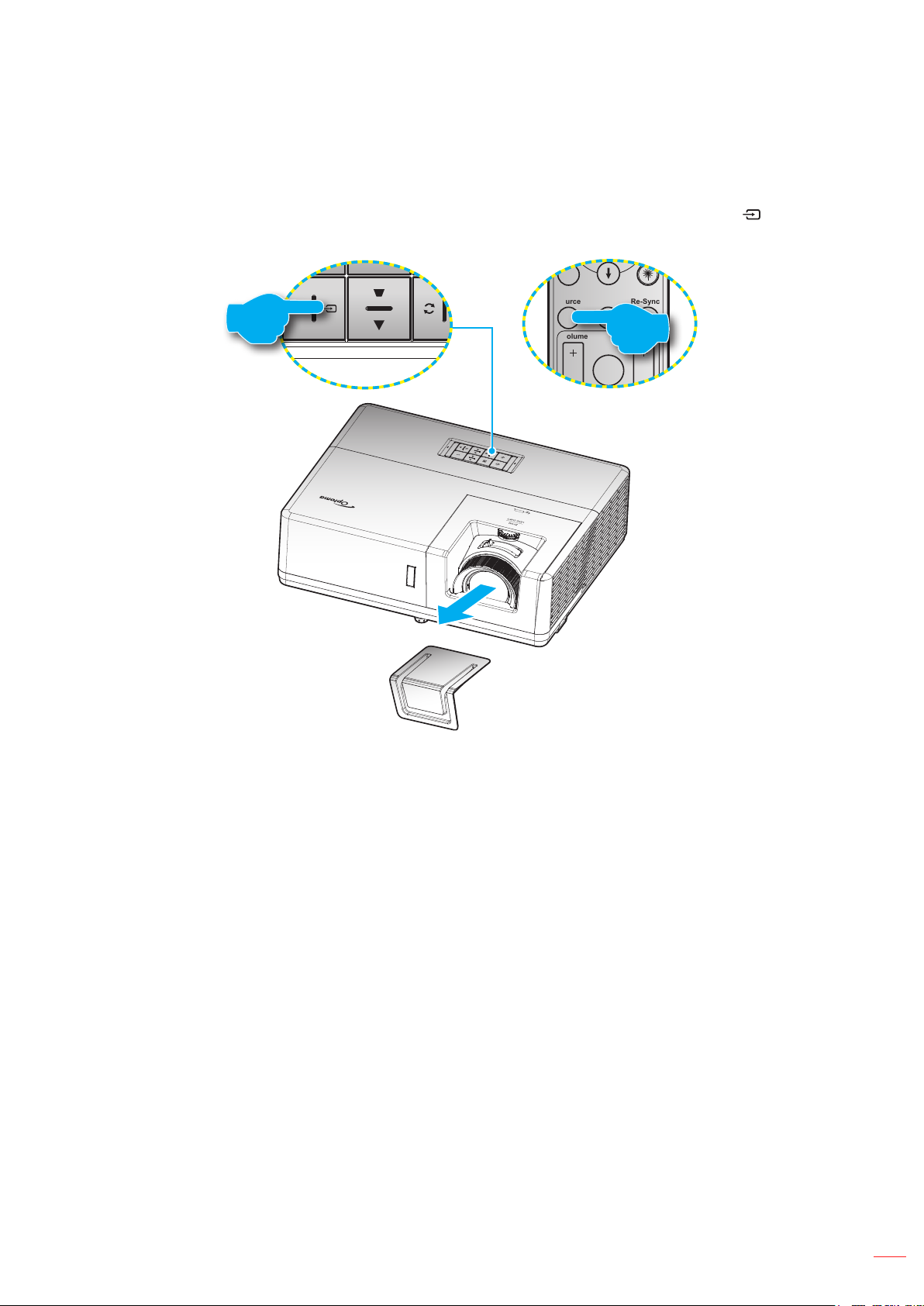

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the projector keypad or the Source button on the remote control to select the desired input.
or
Lens cap
English
21
Page 22
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press the button on the projector keypad or the Menu button on the remote control.
2. When OSD is displayed, use pq keys to select any item in the main menu. While making a selection on a particular page, press the button on the projector keypad or the Enter button on the remote control to enter sub menu.
3. Use tu keys to select the desired item in the sub menu and then press the or Enter button to view further settings. Adjust the settings by using tu keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press press the or Enter button to conrm, and the screen will return to the main menu.
6. To exit, press the or Menu button again. The OSD menu will close and the projector will automatically save the new settings.
Sub Menu
Settings
Main Menu
Display
Image Settings 3D
Aspect Ratio Edge Mask Zoom
Image Shift
Geometric Correction
Select Exit Enter
Navigation guide
22
English
Page 23
USING THE PROJECTOR

OSD Menu tree

Main
Menu
Display Image Settings
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Presentation Bright
HDR
Cinema
Display Mode
Wall Color
HDR
Dynamic Range
HDR Picture Mode
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
Film
Video
Graphics
Gamma
Color Settings BrilliantColor
Standard(2.2)
1.8
2.0
2.4
2.6
TM
Game
sRGB
DICOM SIM.
User
3D
Off [Default]
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Off
Auto [Default]
Bright
Standard [Default]
Film
Detail
1 ~ 10
English
23
Page 24
USING THE PROJECTOR
Main
Menu
Display Image Settings
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Color Settings
Signal
Warm
Color Temperature
Color
Color Matching
Hue / R(*) -50 ~ 50 [Default: 0]
Saturation / G(*) -50 ~ 50 [Default: 0]
Gain / B(*) -50 ~ 50 [Default: 0]
Reset
Exit
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias -50 ~ 50
RGB Gain/Bias
Color Space [Not HDMI Input]
Color Space [HDMI Input]
White Level 0 ~ 31
Black Level -5 ~ 5
IRE
Automatic
Frequency
Phase
Green Bias -50 ~ 50
Blue Bias -50 ~ 50
Reset
Exit
Standard
Cool
Cold
Red [Default]
Green
Blue
Cyan
Yellow
Magenta
White(*)
Cancel [Default] Yes
Cancel [Default]
Yes
Auto [Default]
RGB
YUV
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
0
7.5
Off
On [Default]
-10 ~ 10 (depends on signal) [Default: 0]
0~31 (depends on signal) [Default: 0]
24
English
Page 25
USING THE PROJECTOR
Main
Menu
Display
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
H. Position
Signal
V. Position
Image Settings
Brightness Mode
Reset
3D Mode
3D Tech
3D 2D
3D
3D Format
3D Sync Invert
Reset
Aspect Ratio
Edge Mask 0 ~ 10 [Default: 0] Zoom -5 ~ 25 [Default: 0]
-5 ~ 5 (depends on signal) [Default: 0]
-5 ~ 5 (depends on signal) [Default: 0]
DynamicBlack Power
(Power = 100%/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/ 50%)
Off
On [Default]
DLP-Link [Default]
3D Sync
3D [Default]
L
R
Auto [Default]
SBS
Top and Bottom
Frame Sequential
On
Off [Default]
Cancel
Yes
4:3
16:9 16:10
Note: For WUXGA model only.
LBX
Native
Auto
Audio
Image Shift
Geometric Correction
Mute
Volume 0 ~ 10 [Default: 5]
H
V Four Corners H Keystone -30 ~ 30 [Default: 0] V Keystone -30 ~ 30 [Default: 0]
Auto Keystone
Reset
-100 ~ 100 [Default: 0]
-100 ~ 100 [Default: 0]
Off On [Default]
Off [Default]
On
English
25
Page 26
USING THE PROJECTOR
Main
Menu
Audio
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Audio 1 Audio 2
Default [Default]
Audio 1
Audio 2
Default [Default]
Audio 1
Audio 2
Default [Default]
Audio 1
Audio 2
Audio 1
Audio 2
Audio 1
Audio 2
Audio 1
Audio 2
Audio 1
Audio 2
Audio Input [Default]
Mic
Audio Input
Audio / Mic Input Function
HDMI1/MHL
HDMI2
HDBaseT [Only for HDBaseT model]
VGA [Only for non-HDBaseT model]
VGA 1 [Only for HDBaseT model]
VGA 2 [Only for HDBaseT model]
S-Video [Only for HDBaseT model]
Video
Setup
Projection
Screen Type [Only for WUXGA model]
Power Settings
Direct Power On
Signal Power On
Auto Power Off (min.)
Sleep Timer (min.)
Power Mode (Standby)
USB Power (Standby)
Always On
Front [Default]
Rear
Ceiling-top
Rear-top 16:9
16:10 [Default]
Off [Default]
On
Off [Default]
On 0 ~ 180 (5 min increments)
[Default: 20] 0 ~ 990 (30 min increments)
[Default: 0] No [Default]
Yes
Active
Eco [Default]
Off [Default]
On
26
English
Page 27
USING THE PROJECTOR
Main
Menu
Setup
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Off
On
[Default: 1234]
Off [Default] On No [Default] Yes Mutual [Default] PJ → Device Device → PJ Off [Default] On Green Grid
Magenta Grid
White Grid
White
Off
On [Default]
Off
Test Pattern
Brightness
Contrast
Sleep Timer
Color Matching
Color Temp
Gamma
Projection
MHL Test Pattern Brightness
Contrast
Sleep Timer
Color Matching
Color Temp
Gamma Projection MHL
Security
HDMI Link Settings
Test Pattern
Remote Settings [depends on remote]
Security
Month
Security Timer
Change Password
HDMI Link
Inclusive of TV
Power On Link
Power Off Link
IR Function
Remote Code 00~99
F1
F2
Day
Hour
English
27
Page 28
USING THE PROJECTOR
Main
Menu
Setup
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Test Pattern Brightness
Contrast
Remote Settings [depends on remote]
Projector ID 00 ~ 99
12V Trigger
HDBaseT Control
Options Language
F3
Ethernet
RS232
HDBaseT Mode
Sleep Timer
Color Matching
Color Temp
Gamma
Projection
MHL
On
Off
On
Off [Default]
On
Off [Default]
Auto
HDBaseT [Default] English [Default] Deutsch
Français
Italiano
Español
Português
Polski
Nederlands
Svenska
Norsk/Dansk
Suomi
ελληνικά
繁體中文
簡体中文
日本語
한국어
Русский
Magyar
Čeština
28
ไทย
Türkçe
Tiếng Việt
Bahasa Indonesia Română Slovenčina
English
Page 29
USING THE PROJECTOR
Main
Menu
Setup Options
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Closed Captioning
Menu Settings
Auto Source
Input Source
Input Name
High Altitude
Display Mode Lock
Menu Location
Menu Timer
HDMI1/MHL
HDMI2
HDBaseT [Only for HDBaseT model]
VGA [Only for non-HDBaseT model]
VGA 1 [Only for HDBaseT model]
VGA 2 [Only for HDBaseT model]
S-Video [Only for HDBaseT model]
Video
CC1
CC2
Off [Default]
Top left
Top right
Center [Default]
Bottom left
Bottom right
Off
5sec
10sec [Default]
Off [Default]
On
HDMI1/MHL
HDMI2
HDBaseT
VGA
VGA 1
VGA 2
S-Video
Video
Default [Default]
Custom
Default [Default]
Custom
Default [Default]
Custom
Default [Default]
Custom
Default [Default]
Custom
Default [Default]
Custom
Default [Default]
Custom
Default [Default]
Custom
Off [Default]
On
Off [Default]
On
English
29
Page 30
USING THE PROJECTOR
Main
Menu
Setup
Network
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Off [Default]
On
Off [Default]
On Default [Default] Neutral
User None [Default for Video/Pro-AV model]
Note: “None” means black color
background.
Blue [Default for data model]
Red
Green
Gray
Logo
Cancel [Default]
Yes Cancel [Default] Yes
Off [Default]
On
Off On [Default]
Note: Port 41794
Off On [Default]
Note: Port 2023
Off On [Default]
Note: Port 4352
Off On [Default]
Note: Port 9131
Off On [Default]
Note: Port 23
Off On [Default]
Note: Port 80
Options
Reset
LAN
Control
Keypad Lock
Information Hide
Logo
Background Color
Reset OSD
Reset to Default
Network Status (read only)
MAC Address (read only)
DHCP
IP Address 192.168.0.100 [Default]
Subnet Mask 255.255.255.0 [Default]
Gateway 192.168.0.254 [Default]
DNS 192.168.0.51 [Default] Reset
Crestron
Extron
PJ Link
AMX Device Discovery
Telnet
HTTP
30
English
Page 31
USING THE PROJECTOR
Info
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Regulatory Serial Number Source
Resolution 00x00
Refresh Rate 0.00Hz
Display Mode
Remote Code 00 ~ 99 Remote
Code(Active) Power Mode
(Standby) Light Source
Hours Network Status IP Address Projector ID 00 ~ 99 Brightness
Mode
System
FW Version
LAN
MCU
00 ~ 99
0 hr
English
31
Page 32
USING THE PROJECTOR

Display menu

Display image settings menu
Display Mode
There are many factory presets optimized for various types of images.
Presentation: This mode is suitable for showing in front of public in connection to the PC. Bright: Maximum brightness from PC input. HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest
whites, and vivid cinematic color using REC.2020 color gamut. This mode will be automatically enabled if HDR is set to ON (and HDR Content is sent to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR Games, 4K UHD Streaming Video). While HDR mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as HDR delivers color that is highly accurate, exceeding the color performance of the other display modes.
Cinema: Provides the best colors for watching movies. Game: Select this mode to increase the brightness and response time level for enjoying video games. sRGB: Standardized accurate color. DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography,
MRI, etc.
User: Memorize user’s settings. 3D: To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.
Wall Color
Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.
Dynamic Range
Congure the High Dynamic Range (HDR) setting and its effect when displaying video from 4K Blu-ray players and streaming devices.
Note: HDMI2 and VGA do not support Dynamic Range.
HDR
Off: Turn off HDR Processing. When set to Off, the projector will NOT decode HDR content. Auto: Auto detect HDR signal.
HDR Picture Mode
Bright: Choose this mode for brighter more saturated colors. Standard: Choose this mode for natural looking colors with a balance of warm and cool tones. Film: Choose this mode for improved detail and image sharpness. Details: The signal comes from OETF conversion to achieve the best color matching.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
English
32
Page 33
USING THE PROJECTOR
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.
Film: For home theater. Video: For video or TV source. Graphics: For PC / Photo source. Standard(2.2): For standardized setting. 1.8 / 2.0 / 2.4 / 2.6: For specic PC / Photo source.
Note:
These options are only available if the 3D mode function is disabled, the Wall Color setting is not set
to Blackboard, and the Display Mode setting is not set to DICOM SIM. or HDR.
If the Display Mode setting is set to HDR, user can only select HDR for Gamma setting. In 3D mode, user can only select 3D for Gamma setting. If the Wall Color setting is set to Blackboard, user can only select Blackboard for Gamma setting. If the Display Mode setting is set to DICOM SIM., user can only select DICOM SIM. for Gamma
setting.
Color Settings
Congure the color settings.
BrilliantColorTM: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold. Color Matching: Select the following options:
± Color: Adjust the red, green, black, cyan, yellow, magenta, and white level of the image. ± Hue / R(red)*: Adjust the color balance of red and green.
Note: *If the Color setting is set to White, you can adjust the red color setting.
± Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.
Note: *If the Color setting is set to White, you can adjust the green color setting.
± Gain / B(blue)*: Adjust the image brightness.
Note: *If the Color setting is set to White, you can adjust the blue color setting.
± Reset: Return the factory default settings for color matching. ± Exit: Exit the “Color Matching” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias. ± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (non-HDMI input only): Select an appropriate color matrix type from the following:
AUTO, RGB, or YUV.
English
33
Page 34
USING THE PROJECTOR
Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
White Level: Allow user to adjust White Level when inputting Video signals.
Note: White level can only be adjusted for Video/S-Video input sources.
Black Level: Allow user to adjust Black Level when inputting Video signals.
Note: Black level can only be adjusted for Video/S-Video input sources.
IRE: Allow user to adjust IRE value when inputting Video signals.
Note:
IRE is only available with NTSC video format. IRE can only be adjusted for Video/S-Video input sources.
Signal
Adjust the signal options.
Automatic: Congure automatically the signal (the frequency and phase items are grayed out). If
automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
Frequency: Change the display data frequency to match the frequency of your computer’s graphic
card. Use this function only if the image appears to icker vertically.
Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be
unstable or ickers, use this function to correct it.
H. Position: Adjust the horizontal positioning of the image. V. Position: Adjust the vertical positioning of the image.
Note: This menu is only available if the input source is RGB/Component.
Brightness Mode
Adjust the brightness mode settings.
DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast
performance.
Power: Choose the power percentage for brightness mode.
Reset
Return the factory default settings for color settings.
34
English
Page 35
USING THE PROJECTOR
Display 3D menu
Note:
This projector is a 3D ready projector with DLP-Link 3D solution. Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video. This projector supports frame sequential (page-ip) 3D via HDMI1/HDMI2/VGA ports. To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not
supported.
To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K
(3840x2160) resolution is not supported in 3D mode.
3D Mode
Use this option to enable or disable the 3D function.
Off: Select “Off” to turn off 3D mode. On: Select “On” to turn on 3D mode.
Note: If the 2D and 3D sources enter PJ at the same time, if the ghosting image appears in the 2D source, make
sure to manually turn off the 3D function.
3D Tech
Set the 3D tech. parameter to “DLP-Link” or “3D Sync”.
3D → 2D
Use this option to specify how the 3D content should appear on the screen.
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
3D Format
Use this option to select the appropriate 3D format content.
Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
SBS: Display 3D signal in “Side-by-Side” format.
Top and Bottom: Display 3D signal in “Top and Bottom” format.
Frame Sequential: Display 3D signal in “Frame Sequential” format.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Reset
Return the factory default settings for 3D settings.
English
35
Page 36
USING THE PROJECTOR
Display aspect ratio menu
Aspect Ratio
Select the aspect ratio of the displayed image between the following options:
4:3: This format is for 4:3 input sources.
16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
16:10 (for WUXGA model only): This format is for 16:10 input sources, like widescreen laptops. LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1
aspect ratio in full resolution.
Native: This format displays the original image without any scaling. Auto: Automatically selects the appropriate display format.
Note:
Detailed informations about LBX mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image
will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image
in 16:9 display. For this type of content, you can use LBX mode to ll the image on the 16:9
display.
± If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical resolution are fully utilized.
1080p scaling table:
16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode - 1:1 mapping centered.
- No scaling will be made; the image is displayed with the resolution based on input source.
Auto - If auto format is selected, the screen type will automatically become16:9 (1920x1080).
- If source is 4:3, the screen type will be scaled to 1440 x1080.
- If source is 16:9, the screen type will be scaled to 1920x1080.
- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.
36
English
Page 37
USING THE PROJECTOR
1080p auto mapping rule:
Auto
4:3
Wide Laptop
SDTV
HDTV
WUXGA scaling table for 1920 x 1200 DMD (screen type 16:10):
Note:
Supported screen type 16:10 (1920 x 1200), 16:9 (1920x1080).
H-resolution V-resolution 1920 1080
Input resolution Auto/Scale
640 480 1440 1080
800 600 1440 1080 1024 768 1440 1080 1280 1024 1440 1080 1400 1050 1440 1080 1600 1200 1440 1080 1280 720 1920 1080 1280 768 1800 1080 1280 800 1728 1080
720 576 1350 1080
720 480 1620 1080 1280 720 1920 1080 1920 1080 1920 1080
When screen type is 16:9, the16x10 format becomes unavailable.
When screen type is 16:10, the 16x9 format becomes unavailable.
If you select auto option then the display mode will be also automatically changed.
16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1600x1200.
16x10 Scale to 1920x1200.
LBX Scale to 1920x1440, then get the central 1920x1200 image to display.
Native mode - 1:1 mapping centered.
- No scaling will be made; the image is displayed with the resolution based on input source.
Auto - If this format is selected, the screen type will automatically become 16:10 (1920x1200).
- If source is 4:3, the screen type will be scaled to 1600x1200.
- If source is 16:9, the screen type will be scaled to 1920x1080.
- If source is 16:10, the screen type will be scaled to 1920x1200.
English
37
Page 38
USING THE PROJECTOR
WUXGA auto mapping rule (screen type 16:10):
Auto
4:3
Wide Laptop
SDTV
HDTV
WUXGA scaling table (screen type 16:9):
16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode - 1:1 mapping centered.
H-resolution V-resolution 1920 1200
Input resolution Auto/Scale
640 480 1600 1200
800 600 1600 1200 1024 768 1600 1200 1280 1024 1600 1200 1400 1050 1600 1200 1600 1200 1600 1200 1280 720 1920 1080 1280 768 1920 1152 1280 800 1920 1200
720 576 1500 1200
720 480 1800 1200 1280 720 1920 1080 1920 1080 1920 1080
- No scaling will be made; the image is displayed with the resolution based on input source.
Auto - If this format is selected, the screen type will automatically become 16:9 (1920x1080).
- If source is 4:3, the screen type will be scaled to 1440x1080.
- If source is 16:9, the screen type will be scaled to 1920x1080.
- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.
38
English
Page 39
USING THE PROJECTOR
WUXGA auto mapping rule (screen type 16:9):
Auto
4:3
Wide Laptop
SDTV
HDTV
H-resolution V-resolution 1920 1080
Input resolution Auto/Scale
640 480 1440 1080
800 600 1440 1080 1024 768 1440 1080 1280 1024 1440 1080 1400 1050 1440 1080 1600 1200 1440 1080 1280 720 1920 1080 1280 768 1800 1080 1280 800 1728 1080
720 576 1350 1080
720 480 1620 1080 1280 720 1920 1080 1920 1080 1920 1080
Display edge mask menu
Edge Mask
Use this function to remove the video encoding noise on the edge of video source.
Display zoom menu
Zoom
Use to reduce or magnify an image on the projection screen.
Display image shift menu
Image Shift
Adjust the projected image position horizontally (H) or vertically (V).
Display geometric correction menu
Four Corners
Allow the image to be squeezed to t an area dened by moving each of the four corners’ x and y position.
H Keystone
Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length. This is intended for use with horizontally on-axis applications.
V Keystone
Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.
English
39
Page 40
USING THE PROJECTOR
Auto Keystone
Correct keystone digitally to t the projected image on the area on which you are projecting.
Note:
The image size will reduce slightly when adjusting the horizontal and vertical keystone. When the Auto Keystone is used, the Four Corner Adjustment function will be disabled.
Reset
Return the factory default settings for geometric correction settings.

Audio menu

Audio mute menu
Mute
Use this option to temporarily turn off the sound.
On: Choose “On” to turn mute on. Off: Choose “Off” to turn mute off.
Note: “Mute” function affects both internal and external speaker volume.
Audio volume menu
Volume
Adjust the volume level.
Audio audio input menu
Audio Input
Select the audio input port for the video sources as follows:
HDMI1/MHL: Audio 1, Audio 2, or Default. HDMI2: Audio 1, Audio 2, or Default. HDBaseT: Audio 1, Audio 2, or Default. VGA: Audio 1 and Audio 2. VGA 1: Audio 1 and Audio 2. VGA 2: Audio 1 and Audio 2. S-Video: Audio 1 and Audio 2. Video: Audio 1 and Audio 2.
Note:
HDBaseT, VGA 1, VGA 2, and S-Video options are only applicable for HDBaseT model. VGA option is only applicable for non-HDBaseT model.
Audio audio / mic input function menu
Audio / Mic Input Function
Congure the audio input source setting.
English
40
Page 41
USING THE PROJECTOR

Setup menu

Setup projection menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Setup screen type menu
Screen Type (for WUXGA model only)
Choose the screen type from 16:9 and 16:10.
Setup power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.
Signal Power On
Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the remote control.
Auto Power Off (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has nished (in minutes).
Sleep Timer (min.)
Congure the sleep timer.
Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without
a signal being sent to the projector. The projector will automatically power off when the countdown has nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered off.
Always On: Check to set the sleep timer always on.
Power Mode (Standby)
Set the power mode setting.
Active: Choose “Active” to return to normal standby. Eco: Choose “Eco.” to save power dissipation further < 0.5W.
USB Power (Standby)
Enable or disable the USB power function when the projector is in standby mode.
Note: The USB is not able to supply power with S-Video or MHL sources.
English
41
Page 42
USING THE PROJECTOR
Setup security menu
Security
Enable this function to prompt for a password before using the projector.
On: Choose “On” to use security verication when the turning on the projector. Off: Choose “Off” to be able to switch on the projector without password verication.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Setup HDMI link settings menu
Note:
When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control
them on the same power on or power off status using the HDMI Link control feature in the projector’s OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature
in a typical conguration, your DVD player may be connected to the projector through an amplier or
home theater system.
HDMI
Amplier
HDMI Link
Enable/disable the HDMI Link function. The inclusive TV, power on link, and power off link options will only available if the setting is set to “On”.
Inclusive of TV
Set to “Yes” if you prefer both TV and projector to be automatically turned off at the same time. To prevent both devices to be turned off at the same time, set the setting to “No”.
Power On Link
CEC power on command.
Mutual: Both projector and CEC device will be turned on simultaneously. PJ Device: The CEC device will be turned on only after the projector is switched on. Device PJ: The projector will be switched on only after the CEC device is turned on.
Power Off Link
Enable this function to let both HDMI Link and projector to be automatically turned off at the same time.
HDMI
DVD Player
Setup test pattern menu
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off).
English
42
Page 43
USING THE PROJECTOR
Setup remote settings menu
IR Function
Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from the top and front IR
receivers.
Off: Choose “Off”, the projector can’t be operated by the remote control. By selecting “Off”, you will be
able to use the Keypad keys.
Remote Code
Set the remote custom code by pressing the remote ID button for 3 seconds and you will notice the remote indicator (above the Off button) starts blinking. Then, input a number between 00-99 using the keyboard numbered keys. After inserting the number, the remote indicator blinks twice quickly indicating that the remote code has changed.
F1/F2/F3
Assign the default function for F1, F2, or F3 between Test Pattern, Brightness, Contrast, Sleep Timer, Color Matching, Color Temp, Gamma, Projection, or MHL.
Setup projector ID menu
Projector ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

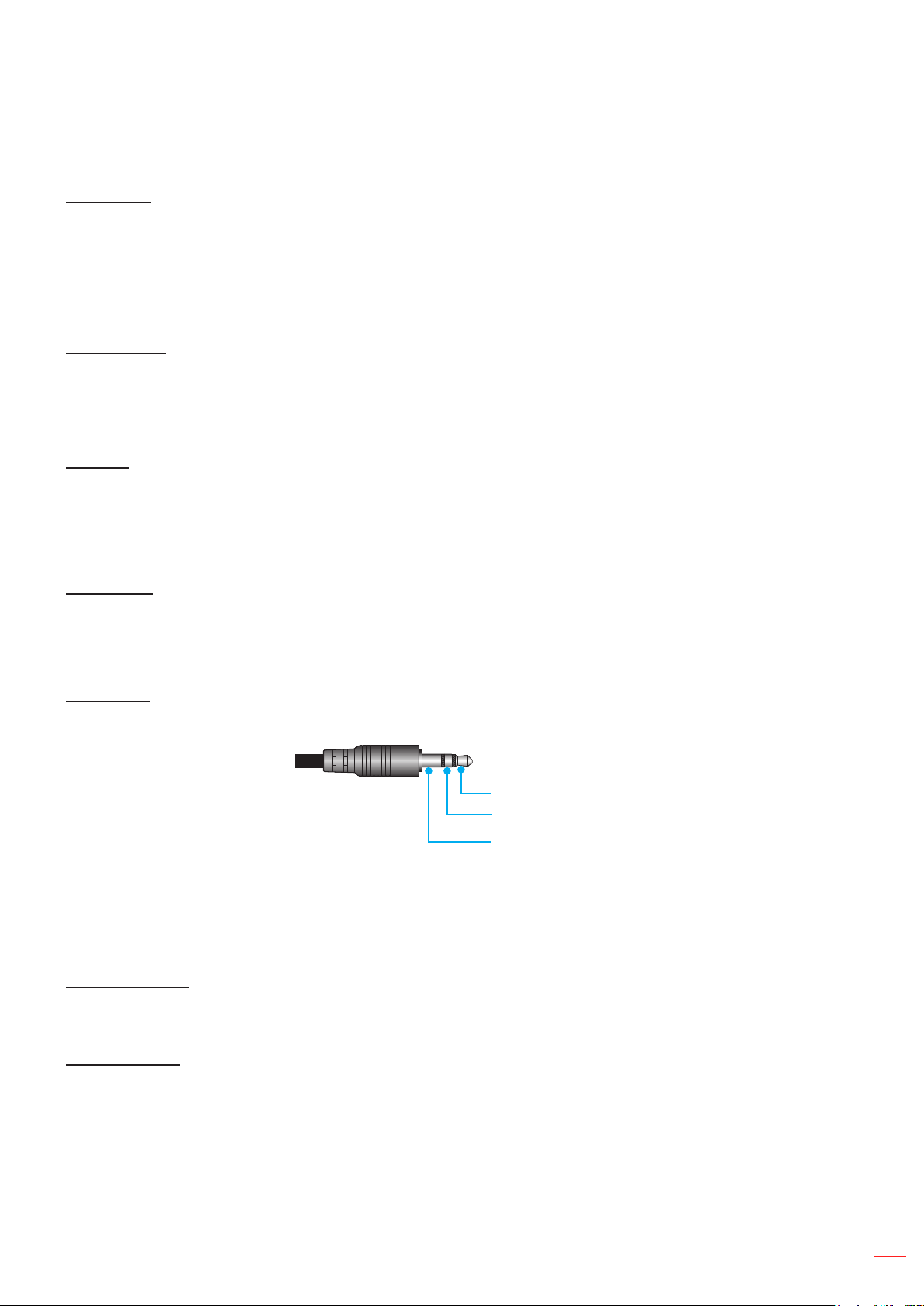

Setup 12V trigger menu
12V Trigger
Use this function to enable or disable the trigger.
12V Trigger Output Reserved
GND
Off: Choose “Off” to disable the trigger. On: Choose “On” to enable the trigger.
Setup HDBaseT control menu
Ethernet / RS232
The projector can automatically detect the Ethernet or RS232 signal from the HDBaseT transmitter supplied. For an automatic detection, make sure the respective signal is enabled.
HDBaseT Mode
Select the HDBaseT mode.
Auto: The projector will automatically detect the signal from HDBaseT transmitter supplied. HDBaseT: The projector will activate Direct Power mode.
English
43
Page 44
USING THE PROJECTOR
Setup options menu
Language
Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplied Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovenian.
Closed Captioning
Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. The available options include “Off”, “CC1”, and “CC2”.
Menu Settings
Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen. Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source
Choose this option to let the projector automatically nd an available input source.
Input Source
Select the input source between HDMI1/MHL, HDMI2, HDBaseT, VGA, VGA 1, VGA 2, S-Video and Video.
Note:
HDBaseT, VGA 1, VGA 2, and S-Video options are only applicable for HDBaseT model. VGA option is only applicable for non-HDBaseT model.
Input Name
Use to rename the input function for easier identication. The available options include HDMI1/MHL, HDMI2, HDBaseT, VGA, VGA 1, VGA 2, S-Video, and Video.
Note:
HDBaseT, VGA 1, VGA 2, and S-Video options are only applicable for HDBaseT model. VGA option is only applicable for non-HDBaseT model.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Display Mode Lock
Choose “On” or “Off” to lock or unlock adjusting display mode settings.
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the remote control. By selecting “Off”, you will be able to reuse the Keypad.
Information Hide
Enable this function to hide the information message.
Off: Choose “Off” to show the “searching” message. On: Choose “On” to hide the info message.
English
44
Page 45
USING THE PROJECTOR
Logo
Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.
Default: The default startup screen. Neutral: Logo is not displayed on startup screen. User: Logo capture tool required.
Background Color
Use this function to display a blue, red, green, gray color, none, or logo screen when no signal is available.
Note: If the background color is set to “None”, then the background color is black.
Setup reset OSD menu
Reset OSD
Return the factory default settings for OSD menu settings.
Reset to Default
Return the factory default settings for all settings.

Network menu

Network LAN menu
Network Status
Display the network connection status (read-only).
MAC Address
Display the MAC address (read-only).
DHCP
Use this option to enable or disable the DHCP function.
Off: To assign IP, subnet mask, gateway, and DNS conguration manually. On: Projector will obtain an IP address automatically from your network.
Note: Exiting OSD will automatically apply the entered values.
IP Address
Display the IP address.
Subnet Mask
Display subnet mask number.
Gateway
Display the default gateway of the network connected to the projector.
DNS
Display the DNS number.
English
45
Page 46
USING THE PROJECTOR
How to use web browser to control your projector
1. Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector’s IP address (“Network > LAN > IP Address”).
3. Enter the user name and password, and click “Login”. The projector’s conguration web interface opens.
Note:
The default user name and password is “admin”. The steps in this section is based on Windows 7 operating system.
Making a direct connection from your computer to the projector*
1. Turn “Off” the DHCP option on the projector.
2. Congure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”).
3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click “OK” to save the parameters.
4. Open the web browser on your PC and type in to the URL eld the IP address, assigned in step 3. Then press “Enter” key.
Reset
Reset all values for LAN parameters.
Network control menu
Crestron
Use this function to select the network function (port: 41794). For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.
Extron
Use this function to select the network function (port: 2023).
PJ Link
Use this function to select the network function (port: 4352).
AMX Device Discovery
Use this function to select the network function (port: 9131).
English
46
Page 47
USING THE PROJECTOR
Telnet
Use this function to select the network function (port: 23).
HTTP
Use this function to select the network function (port: 80).
Setup network control settings menu

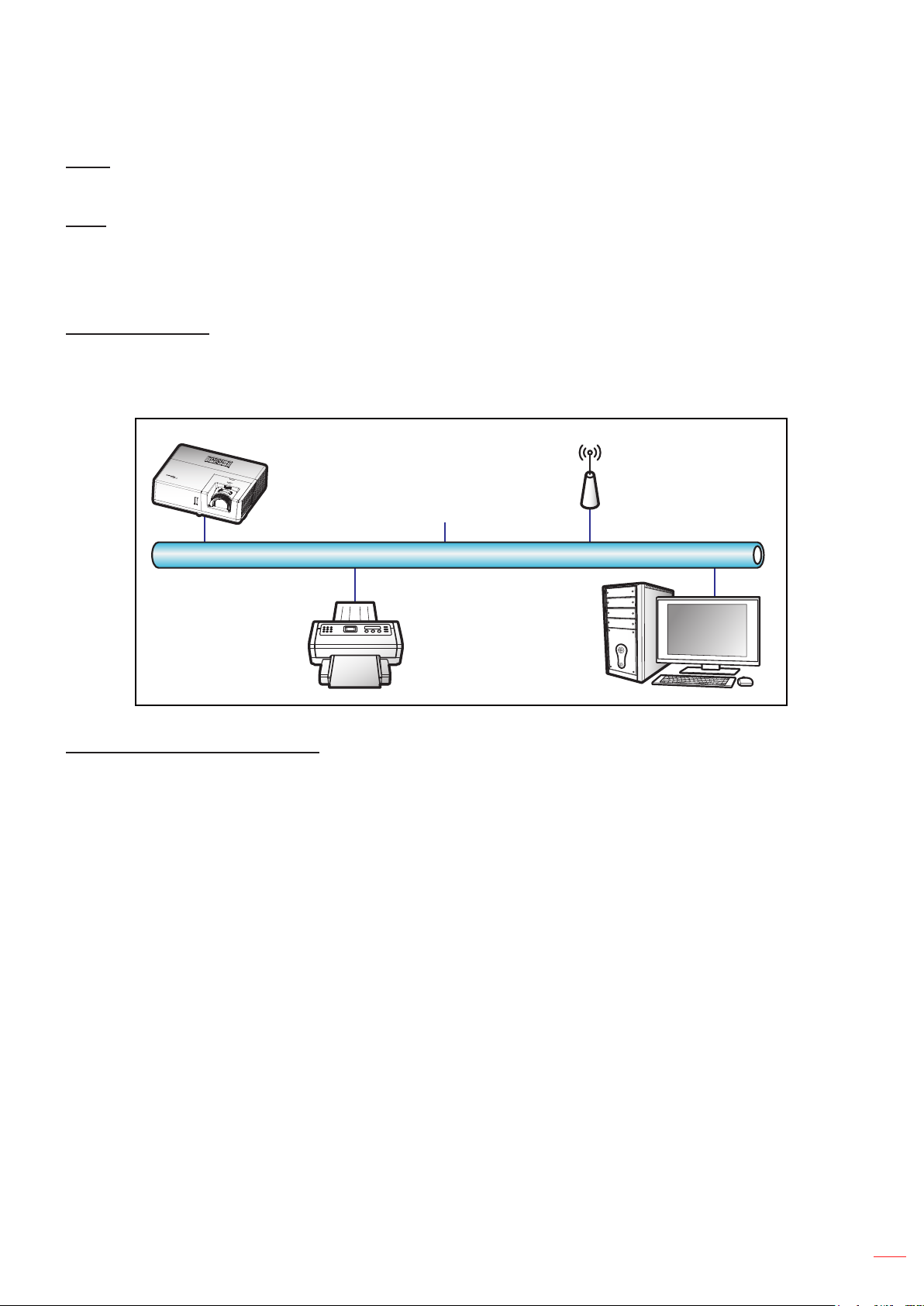

LAN_RJ45 function
For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.
Projector
(Ethernet)
Wired LAN terminal functionalities
This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.
Crestron is a registered trademark of Crestron Electronics, Inc. of the United States. Extron is a registered trademark of Extron Electronics, Inc. of the United States. AMX is a registered trademark of AMX LLC of the United States. PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.
The projector is supported by the specied commands of the Crestron Electronics controller and related software, for example RoomView®.
http://www.crestron.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector is supported by AMX ( Device Discovery ).
http://www.amx.com/
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.
English
47
Page 48
USING THE PROJECTOR

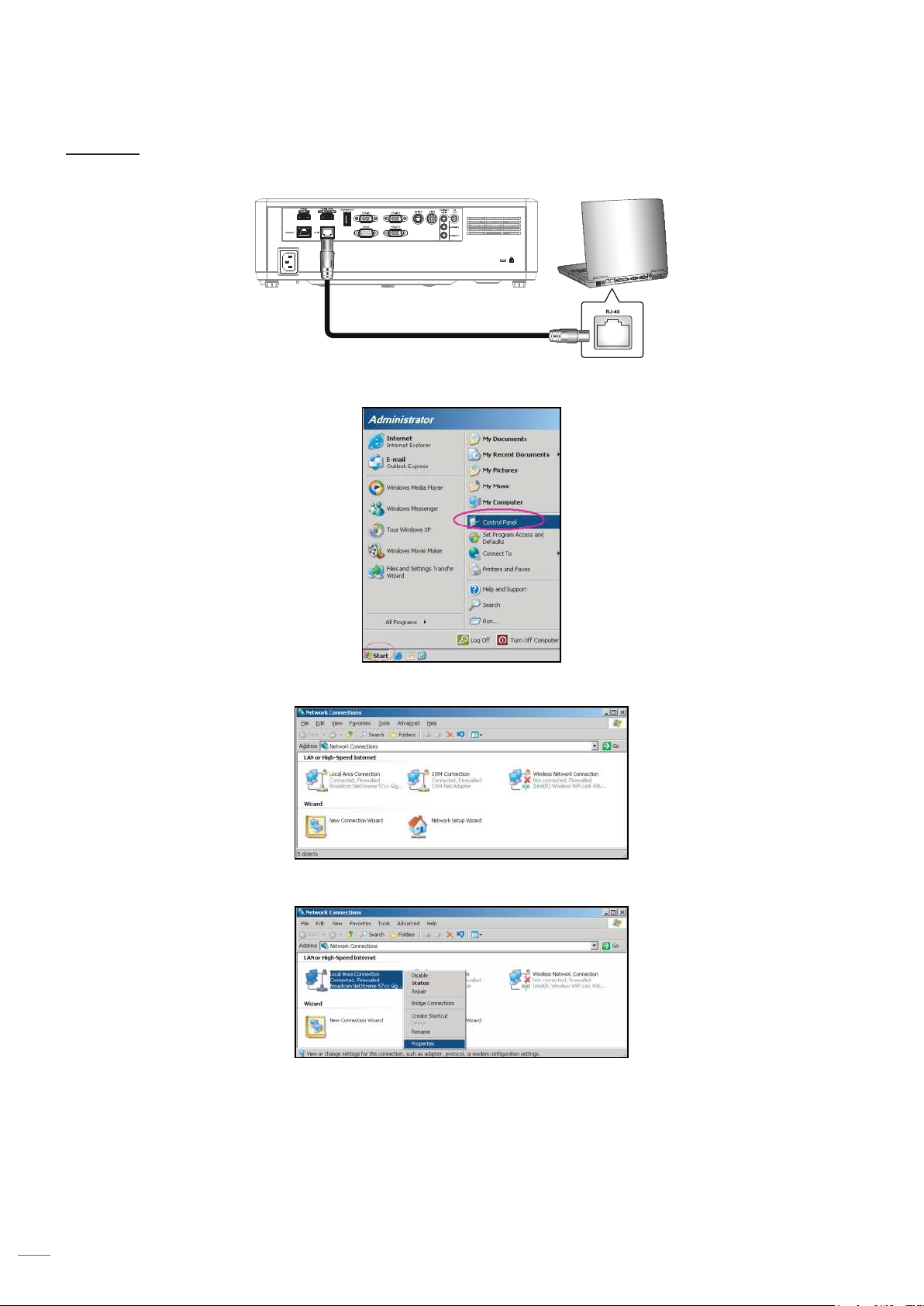

LAN RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).
2. On the PC (Laptop), select Start > Control Panel > Network Connections.
3. Right-click on the Local Area Connection, and select Property.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
48
English
Page 49
USING THE PROJECTOR

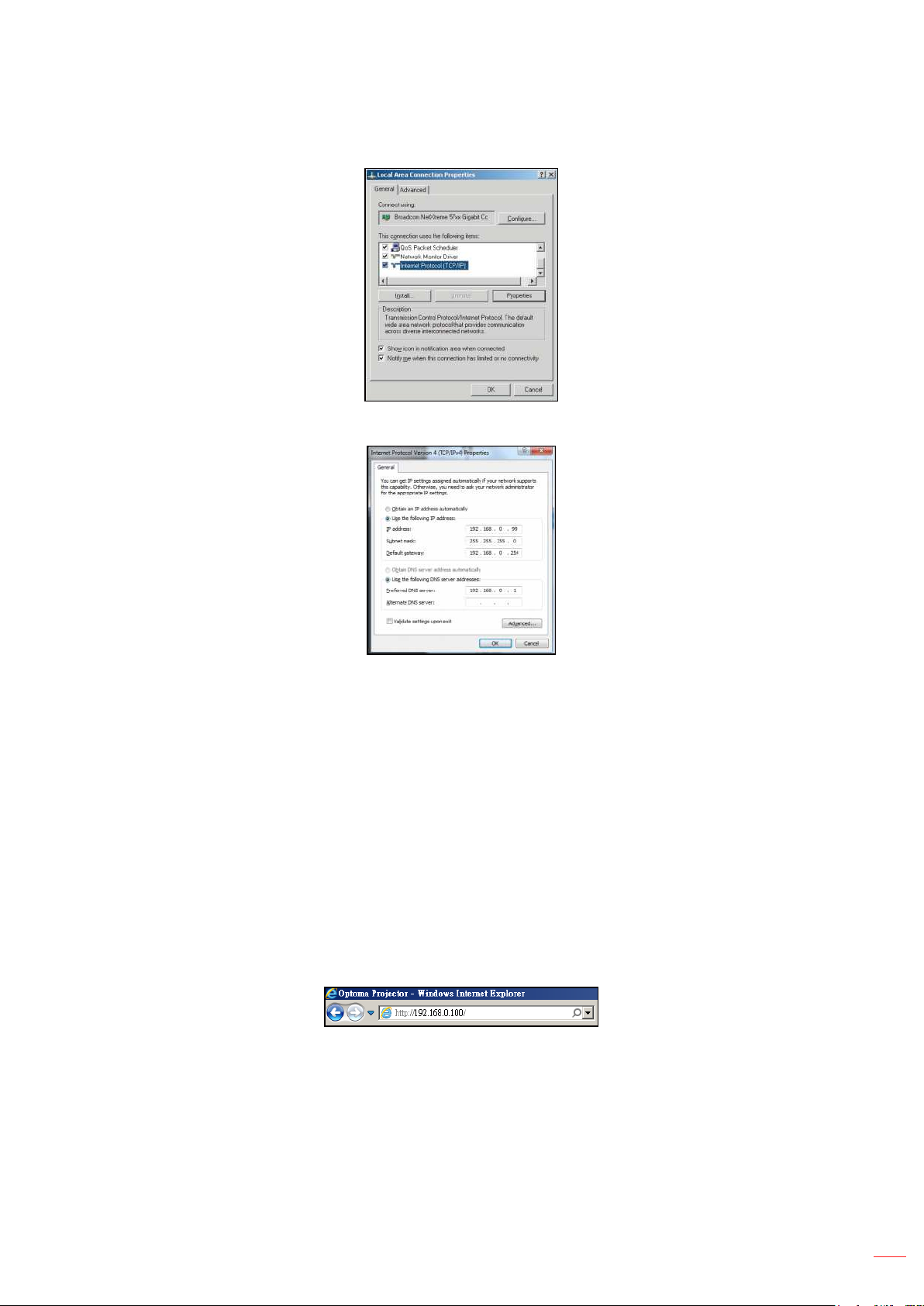

5. Click “Properties”.
6. Type in the IP address and Subnet mask, then press “OK”.
7. Press the “Menu” button on the projector.
8. Open on projector Network > LAN.
9. Enter the following connection parameters:
± DHCP: Off ± IP Address: 192.168.0.100 ± Subnet Mask: 255.255.255.0 ± Gateway: 192.168.0.254 ± DNS: 192.168.0.51
10. Press “Enter” to conrm settings.
11. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
12. In the Address bar, input the projector’s IP address: 192.168.0.100.
13. Press “Enter”. The projector is setup for remote management. The LAN / RJ45 function displays as follows:
English
49
Page 50
USING THE PROJECTOR
Information page
Main page
50
Tool page
Contact IT helpdesk
English
Page 51
USING THE PROJECTOR

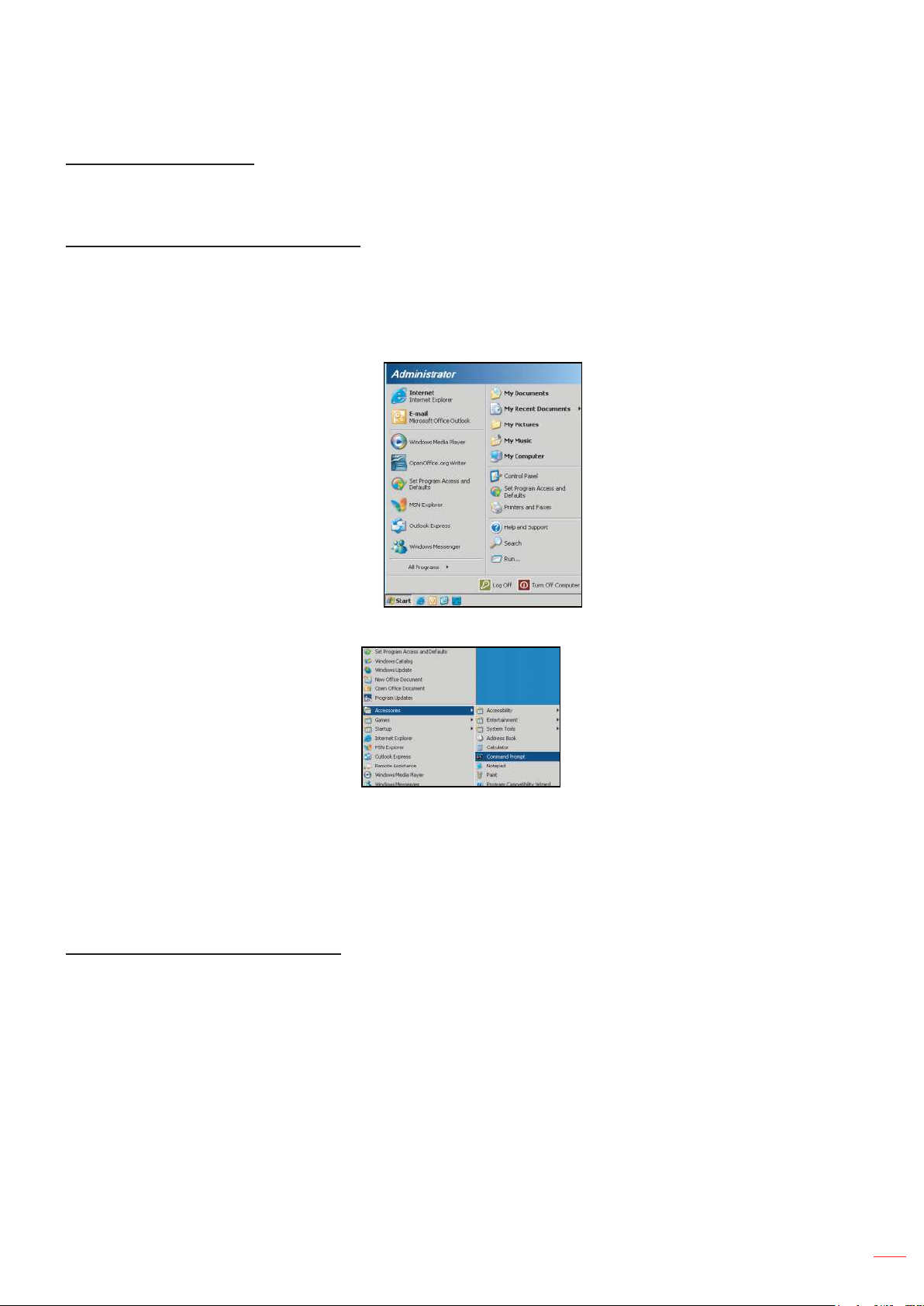

RS232 by Telnet Function
There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface.
Quick Start-Guide for “RS232 by Telnet”
Check and get the IP address on OSD of the projector. Make sure that the PC / laptop can access the web-page of the projector. Make sure that “Windows Firewall” setting is set disabled in case of “TELNET” function ltering out by
PC / laptop.
1. Select Start > All Programs.> Accessories > Command Prompt.
2. Input the command format as follows:
± telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) ± (ttt.xxx.yyy.zzz: IP-Address of the projector)
3. If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the RS232 command will be workable.
Specication for “RS232 by TELNET”:
1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows “TELNET.exe” (console mode).
4. Disconnection for RS232-by-Telnet control normally: Close
5. Windows Telnet utility directly after TELNET connection ready.
± Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for
Telnet-Control application.
± Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for
Telnet-Control.
± Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).
English
51
Page 52
USING THE PROJECTOR

Info menu

Info menu
View the projector information as listed below:
Regulatory Serial Number Source Resolution Refresh Rate Display Mode Remote Code Remote Code(Active) Power Mode (Standby) Light Source Hours Network Status IP Address Projector ID Brightness Mode FW Version
52
English
Page 53

MAINTENANCE

Installing and cleaning the dust lter
Installing the dust lter
2
2
1
1
Note: Dust lters are only required/supplied in the selected regions with excessive dust.
Cleaning the dust lter
We recommend you to clean the dust lter every three months. Clean it more often if the projector is used in a dusty environment.
Procedure:
1. Switch off the power to the projector by pressing the " " button on the projector keypad or the “ ” button on the remote control.
2. Disconnect the power cord.
3. Pull the dust lter compartment downwards to remove it out from the bottom of the projector. 1
4. Carefully remove the air lter. Then clean or replace the dust lter. 2
5. To install the dust lter, reverse the previous steps.
1
2
1
2
English
53
Page 54

ADDITIONAL INFORMATION

Compatible resolutions

Digital (HDMI 1.4)
Native resolution: 1920 x 1080 @ 60Hz (1080P); 1920 x 1200 @ 60Hz (WUXGA)
B0 / Established
Timing
720 x 400 @ 70Hz 1080P/WUXGA: Native timing: 1080P: 640 x 480p @ 60Hz 4:3 1366 x 768 @ 60Hz 640 x 480 @ 60Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 640 x 480 @ 67Hz 1280 x 800 @ 60Hz WUXGA: 1280 x 720p @ 60Hz 16:9 1920 x 1080 @120Hz 640 x 480 @ 72Hz 1280 x 1024 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1080i @ 60Hz 16:9 1920 x 1200 @ 60Hz
640 x 480 @ 75Hz 1024 x 768 @ 120Hz 720 x 480i @ 60Hz 16:9 800 x 600 @ 56Hz 640 x 480 @ 120Hz 1920 x 1080p @ 60Hz 16:9 800 x 600 @ 60Hz 800 x 600 @ 120Hz 720 x 576p @ 50Hz 4:3 800 x 600 @ 72Hz 1280 x 800 @ 120Hz 1280 x 720p @ 50Hz 16:9 800 x 600 @ 75Hz 1920 x 1080i @ 50Hz 16:9 832 x 624 @ 75Hz 720 x 576i @ 50Hz 16:9 1024 x 768 @ 60Hz 1920 x 1080p @ 50Hz 16:9 1024 x 768 @ 70Hz 1920 x 1080p @ 24Hz 16:9 1024 x 768 @ 75Hz 720 x 480p @ 60Hz 16:9 1280 x 1024 @ 75Hz 720 x 576p @ 50Hz 16:9 1152 x 870 @ 75Hz 3840 x 2160 @ 24Hz
B0 / Standard
Timing
B0 / Detail Timing: B1 / Video Mode B1 / Detail Timing:
720 x 480p @ 60Hz 4:3
3840 x 2160 @ 25Hz 3840 x 2160 @ 30Hz 4096 x 2160 @ 24Hz
1920 x 1080p @ 60Hz
(RB) (1080P)
Digital (HDMI 2.0)
Native resolution: 1920 x 1080 @ 60Hz (1080P); 1920 x 1200 @ 60Hz (WUXGA)
B0 / Established
Timing
720 x 400 @ 70Hz 800 x 600 @120Hz Native timing: 1080P: 640 x 480p @ 60Hz 4:3 1366 x 768 @ 60Hz 640 x 480 @ 60Hz 1024 x 768 @120Hz 1920 x 1080 @ 60Hz 720 x 480i @ 60Hz 16:9 1920 x 1080 @120Hz 640 x 480 @ 67Hz 1280 x 800 @ 60Hz WUXGA: 720 x 480p @ 60Hz 4:3 640 x 480 @ 72Hz 1280 x 1024 @ 60Hz 1920 x 1200 @ 60Hz 720 x 480p @ 60Hz 16:9 640 x 480 @ 75Hz 1280 x 720 @ 60Hz 720 x 576i @ 50Hz 16:9 800 x 600 @ 56Hz 640 x 480 @120Hz 720 x 576p @ 50Hz 4:3 800 x 600 @ 60Hz 1280 x 800 @120Hz 720 x 576p @ 50Hz 16:9 800 x 600 @ 72Hz 1280 x 720p @ 60Hz 16:9 800 x 600 @ 75Hz 1280 x 720p @ 50Hz 16:9 832 x 624 @ 75Hz 1920 x 1080i @ 60Hz 16:9 1024 x 768 @ 60Hz 1920 x 1080i @ 50Hz 16:9 1024 x 768 @ 70Hz 1920 x 1080p @ 60Hz 16:9 1024 x 768 @ 75Hz 1920 x 1080p @ 50Hz 16:9 1280 x 1024 @ 75Hz 1920 x 1080p @ 24Hz 16:9 1152 x 870 @ 75Hz 3840 x 2160 @ 24Hz 16:9
B0 / Standard
Timing
B0 / Detail Timing: B1 / Video Mode B1 / Detail Timing:
3840 x 2160 @ 25Hz 16:9 3840 x 2160 @ 30Hz 16:9 4096 x 2160 @ 24Hz
256:135
54
English
Page 55
ADDITIONAL INFORMATION
B0 / Established
Timing
B0 / Standard
Timing
B0 / Detail Timing: B1 / Video Mode B1 / Detail Timing:
3840 x 2160 @ 50Hz 16:9 3840 x 2160 @ 60Hz 16:9 4096 x 2160 @ 50Hz
256:135 4096 x 2160 @ 60Hz
256:135 4096 x 2160 @ 25Hz
256:135 4096 x 2160 @ 30Hz
256:135
Analog
Native resolution: 1920 x 1080 @ 60Hz (1080P); 1920 x 1200 @ 60Hz (WUXGA)
B0 / Established Timing B0 / Standard Timing B0 / Detail Timing B1 / Detail Timing
720 x 400 @ 70Hz 1080P/WUXGA: Native timing: 1080P: 1366 x 768 @ 60Hz 640 x 480 @ 60Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 1280 x 800 @ 120Hz (RB) 640 x 480 @ 67Hz 1280 x 800 @ 60Hz Native timing: WUXGA: 1920 x 1200 @ 60Hz (RB)
(1080P)
640 x 480 @ 72Hz 1280 x 1024 @ 60Hz 1920 x 1200 @ 60Hz 640 x 480 @ 75Hz 1024 x 768 @ 120Hz 800 x 600 @ 56Hz 640 x 480 @ 120Hz 800 x 600 @ 60Hz 800 x 600 @120Hz 800 x 600 @ 72Hz 800 x 600 @ 75Hz 832 x 624 @ 75Hz 1024 x 768 @ 60Hz 1024 x 768 @ 70Hz 1024 x 768 @ 75Hz 1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz
English
55
Page 56
ADDITIONAL INFORMATION
True 3D video compatibility
Input timing
1280 x 720P @ 50Hz Top-and-Bottom 1280 x 720P @ 60Hz Top-and-Bottom
HDMI 1.4a 3D Input
Input resolutions
HDMI 1.3
Note:
1280 x 720P @ 50Hz Frame packing 1280 x 720P @ 60Hz Frame packing 1920 x 1080i @ 50Hz Side-by-Side(Half) 1920 x 1080i @ 60Hz Side-by-Side(Half) 1920 x 1080P @ 24Hz Top-and-Bottom 1920 x 1080P @ 24Hz Frame packing 1920 x 1080i @ 50Hz 1920 x 1080i @ 60Hz 1280 x 720P @ 50Hz 1280 x 720P @ 60Hz 1920 x 1080i @ 50Hz 1920 x 1080i @ 60Hz 1280 x 720P @ 50Hz 1280 x 720P @ 60Hz 480i HQFS 3D format is Frame sequential
Side-by-Side(Half) SBS mode is on
Top-and-Bottom TAB mode is on
If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode. Support NVIDIA 3DTV Play if there is no patent fee from Optoma. 1080i@25Hz and 720p@50Hz will run in 100Hz, other 3D timing will run in 120Hz, and 1080P@24Hz
will run in 144Hz.
56
English
Page 57
ADDITIONAL INFORMATION

Image size and projection distance

1080P
Desired Image Size Projection Distance (C)
Diagonal Width Height Wide Tele
m inch m inch m inch m feet m feet
0.78 30.6 0.68 26.67 0.38 15.00 / / 1.3 4.27
1.02 40 0.89 34.86 0.50 19.61 / / 1.7 5.58
1.27 50 1.11 43.58 0.62 24.51 1.3 4.36 2.1 6.97
1.52 60 1.33 52.29 0.75 29.42 1.6 5.23 2.6 8.37
1.78 70 1.55 61.01 0.87 34.32 1.9 6.10 3.0 9.76
2.03 80 1.77 69.73 1.00 39.22 2.1 6.97 3.4 11.16
2.29 90 1.99 78.44 1.12 44.12 2.4 7.84 3.8 12.55
2.54 100 2.21 87.16 1.25 49.03 2.7 8.72 4.3 13.95
3.05 120 2.66 104.59 1.49 58.83 3.2 10.46 5.1 16.73
3.81 150 3.32 130.74 1.87 73.54 4.0 13.07 6.4 20.92
4.57 180 3.98 156.88 2.24 88.25 4.8 15.69 7.7 25.10
5.08 200 4.43 174.32 2.49 98.05 5.3 17.43 8.5 27.89
6.35 250 5.53 217.89 3.11 122.57 6.6 21.79 / /
7.65 301 6.66 262.34 3.75 147.57 8.0 26.23 / /
Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical + Vertical -
(Max) (A) (Min) (B) (Right) (Left)
cm cm cm cm cm cm
48.4 40.4 8.0 N/A 0 0
63.3 52.8 10.5 N/A 0 0
79.1 66.0 13.1 N/A 0 0
94.9 79.2 15.7 N/A 0 0
110.7 92.4 18.3 N/A 0 0
126.5 105.6 20.9 N/A 0 0
142.3 118.8 23.5 N/A 0 0
158.1 132.0 26.2 N/A 0 0
189.8 158.4 31.4 N/A 0 0
237.2 198.0 39.2 N/A 0 0
284.7 237.6 47.1 N/A 0 0
316.3 264.0 52.3 N/A 0 0
395.4 330.0 65.4 N/A 0 0
476.0 397.3 78.7 N/A 0 0
Vertical Shift
Range
Vertical range at any
Horizontal position
Horizontal + Horizontal -
English
57
Page 58
ADDITIONAL INFORMATION
WUXGA
Desired Image Size Projection Distance (C)
Diagonal Width Height Wide Tele
m inch m inch m inch m feet m feet
0.80 31.5 0.68 26.71 0.42 16.69 / / 1.3 4.27
1.02 40 0.86 33.92 0.54 21.20 / / 1.7 5.43
1.27 50 1.08 42.40 0.67 26.50 1.3 4.24 2.1 6.78
1.52 60 1.29 50.88 0.81 31.80 1.6 5.09 2.5 8.14
1.78 70 1.51 59.36 0.94 37.10 1.8 5.94 2.9 9.50
2.03 80 1.72 67.84 1.08 42.40 2.1 6.78 3.3 10.85
2.29 90 1.94 76.32 1.21 47.70 2.3 7.63 3.7 12.21
2.54 100 2.15 84.80 1.35 53.00 2.6 8.48 4.1 13.57
3.05 120 2.58 101.76 1.62 63.60 3.1 10.18 5.0 16.28
3.81 150 3.23 127.20 2.02 79.50 3.9 12.72 6.2 20.35
4.57 180 3.88 152.64 2.42 95.40 4.7 15.26 7.4 24.42
5.08 200 4.31 169.60 2.69 106.00 5.2 16.96 8.3 27.14
6.35 250 5.38 212.00 3.37 132.50 6.5 21.20 / /
7.65 301 6.48 255.25 4.05 159.53 7.8 25.52 / /
Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical + Vertical -
(Max) (A) (Min) (B) (Right) (Left)
Vertical Shift
Range
Vertical range at any
Horizontal position
Horizontal + Horizontal -
cm cm cm cm cm cm
50.9 42.4 8.5 N/A 0 0
64.6 53.8 10.8 N/A 0 0
80.8 67.3 13.5 N/A 0 0
96.9 80.8 16.2 N/A 0 0
113.1 94.2 18.8 N/A 0 0
129.2 107.7 21.5 N/A 0 0
145.4 121.2 24.2 N/A 0 0
161.5 134.6 26.9 N/A 0 0
193.9 161.5 32.3 N/A 0 0
242.3 201.9 40.4 N/A 0 0
290.8 242.3 48.5 N/A 0 0
323.1 269.2 53.8 N/A 0 0
403.9 336.5 67.3 N/A 0 0
486.2 405.2 81.0 N/A 0 0
Projection distance
58
English
V+
V
A
B
C
V-
Page 59
ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specications:
Screw type: M4*5
Minimum screw length: 5mm
Unit: mm
Note: Please note that damage resulting from incorrect installation will void the warranty.
English
59
Page 60
ADDITIONAL INFORMATION
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector. Avoid installing the projector near a heat source.
IR remote codes
On
Geometric
Correction PIP/PBP
F1 F2
Mode
ENTER
Info.
Source
Volume D Zoom
Format Freeze Remote
VGA1S-Video2HDMI13HDMI2
HDBaseT4Video5DVI
BNC7YPbPr8DisplayPort93D
F3
F3
Menu
Off
AV Mute
Re-Sync
ID All
HDMI3
6
0
Key
Printing-key
denition
customer 0 customer 1 data 0 data 1
Key code
Power On Power Off Geometric
Correction
On 32 CD 02 #BYTE3 F1
Off 32 CD 2E #BYTE3 F1
Geometric Correction
32 CD 96 #BYTE3 F1
PIP/PBP PIP/PBP 32 CD 78 #BYTE3 F1 F1 F1 32 CD 26 #BYTE3 F1 F2 F2 32 CD 27 #BYTE3 F1 Mode Mode 32 CD 95 #BYTE3 F1
English
60
RepeatBYTE1 BYTE2 BYTE3 BYTE4
Page 61
ADDITIONAL INFORMATION
Key
Four directional select keys ( / / / )
Enter Enter 32 CD C5 #BYTE3 F1 AV Mute AV Mute 32 CD 03 #BYTE3 F1 Information Info. 32 CD 25 #BYTE3 F1
Laser Source Source 32 CD 18 #BYTE3 F1 F3 F3 32 CD 66 #BYTE3 F1 Re-Sync Re-Sync 32 CD 04 #BYTE3 F1
Volume
D Zoom
Menu Menu 32 CD 88 #BYTE3 F1 Format Format 32 CD 15 #BYTE3 F1 Freeze Freeze 32 CD 06 #BYTE3 F1
Remote
1 / VGA 1/VGA 32 CD 8E #BYTE3 F1 2 / S-Video 2/S-Video 32 CD 1D #BYTE3 F1 3 / HDMI1 3/HDMI1 32 CD 16 #BYTE3 F1 HDMI2 HDMI2 32 CD 9B #BYTE3 F1 4 / HDBaseT 4/HDBaseT 32 CD 70 #BYTE3 F1 5 / Video 5/Video 32 CD 1C #BYTE3 F1 6 6 32 CD 19 #BYTE3 F1 HDMI3 HDMI3 32 CD 98 #BYTE3 F1 7 7 32 CD 1A #BYTE3 F1 8 / YPbPr 8/YPbPr 32 CD 17 #BYTE3 F1 9 9 32 CD 9F #BYTE3 F1 0 / 3D 0/3D 32 CD 89 #BYTE3 F1 F3 F3 32 CD 66 #BYTE3 F1
Printing-key
denition
customer 0 customer 1 data 0 data 1
Up arrow 32 CD C6 #BYTE3 F1
Down arrow 32 CD C7 #BYTE3 F1
Left arrow 32 CD C8 #BYTE3 F1
Right arrow 32 CD C9 #BYTE3 F1
Laser N/A N/A N/A N/A N/A
Volume + 32 CD 09 #BYTE3 F1
Volume - 32 CD 0C #BYTE3 F1
D Zoom + 32 CD 08 #BYTE3 F1
D Zoom - 32 CD 0B #BYTE3 F1
ID N/A N/A 3201~ 3299 N/A N/A All N/A N/A 32CD N/A N/A
Key code
RepeatBYTE1 BYTE2 BYTE3 BYTE4
English
61
Page 62
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken. Ensure that the "Mute" feature is not turned on.
Image is out of focus
Turn the focus ring clockwise or counterclockwise until the image is sharp and legible. (Please see
page 17).
Make sure the projection screen is between the required distance from the projector. (Please refer to
pages 57-58).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play the LBX format DVD title, please change the format as LBX in projector OSD. If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD. Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Move the projector closer to or further from the screen. Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the different settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
62
Image is reversed
Select "Setup → Projection" from the OSD and adjust the projection direction.
English
Page 63
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±15° to the IR receiver on the
projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
6 m (19.7 ft) of the projector.
Make sure batteries are inserted correctly. Replace batteries if they are exhausted.
English
63
Page 64
ADDITIONAL INFORMATION

Warning indicators

When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
“Lamp” LED indicator is lit red and if “Power” indicator ashes red. “Temp” LED indicator is lit red and if “Power” indicator ashes red. This indicates the projector has
overheated. Under normal conditions, the project can be switched back on.
“Temp” LED indicator ashes red and if “Power” indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or ash, please contact your nearest service center for assistance.
LED lightning messages
Message
Standby state (Input power cord)
Power on (Warming)
Power on and Lamp lighting Steady light Power off Steady light Error (Lamp failure) Flashing Steady light Error (Fan failure) Flashing Flashing Error (Over temp.) Flashing Steady light
(Red) (Blue) or (Green) (Red) (Red)
Steady light
Power LED Temp LED Lamp LED
Flashing
(0.5 sec off / 0.5 sec
on)
Power off:
Power Off
Press power key again.
64
Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
Page 65
ADDITIONAL INFORMATION
Specications
Optical Description
Maximum resolution WUXGA
Native resolution
Lens Manual zoom and manual focus
Image size (diagonal)
Projection distance
Electrical Description
Inputs
Outputs
Control
Color reproduction 1073.4 Million color
Scan rate
Built-in speaker Yes, 10W x2 Power requirement 100 - 240V ±10%, AC 50/60Hz Input current 4.6A
1080p
WUXGA
1080p (optimized at 82”):
30.6”~301.1” (mechanism travel) 30.6”–112.9”(full optical performance)
WUXGA (optimized at 82”):
31.5”–301.8” (mechanism travel)
31.5”–116” (full optical performance)
1.3m to 10m mechanism travel 1.3m to 3m optical performance range
HDMI 1 v1.4a HDMI 2 v2.0 / 4K/MHL v2.2
VGA-IN 1 VGA-IN 2 (only for WUXGA model)
VIDEO (RCA connector (Y)) AUDIO-IN 1 3.5mm AUDIO-IN 2 3.5mm, with microphone USB Type-A for power USB 5V/1.5A S-VIDEO (only for WUXGA model) (*)
VGA-OUT AUDIO-OUT 3.5mm 12V OUT Trigger
USB Type A for mouse
RS232 RJ-45 (support web control) HDBaseT (only for WUXGA model)
Horizontal scan rate: 15.375~91.146 KHz
Vertical scan rate: 24~85 Hz (120Hz for 3D feature projector)
Mechanical Description
Installation orientation Front, Rear, Ceiling, Rear-top, Portrait
Dimensions
Weight 5.6 ±0.5kg
Environmental conditions Operating in 5~40°C , 10% to 85% humidity (non-condensing)
Note:
All specications are subject to change without notice. (*) During video playback from S-Video source, the USB charging function is disabled.
374.0mm (W) x 302mm (D) x 107mm (H) (without feet)
374.0mm (W) x 302mm (D) x 117mm( H) (with feet)
English
65
Page 66
ADDITIONAL INFORMATION
Optoma global ofces
For service or support, please contact your local ofce.
USA
47697 Westinghouse Drive, 888-289-6786 Fremont, CA 94539, USA 510-897-8601 www.optomausa.com [email protected]
Canada
47697 Westinghouse Drive, 888-289-6786 Fremont, CA 94539, USA 510-897-8601 www.optomausa.com [email protected]
Latin America
47697 Westinghouse Drive, 888-289-6786 Fremont, CA 94539, USA 510-897-8601 www.optomausa.com [email protected]
Europe
Unit 1, Network 41, Bourne End Mills Hemel Hempstead, Herts, HP1 2UJ, United Kingdom +44 (0) 1923 691 800 www.optoma.eu +44 (0) 1923 691 888 Service Tel : +44 (0)1923 691865 [email protected]
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252 1316 BW Almere +31 (0) 36 548 9052 The Netherlands www.optoma.nl
Japan
東京都足立区綾瀬3-25-18 株式会社オーエス [email protected] コンタクトセンター:0120-380-495 www.os-worldwide.com
Taiwan
12F., No.213, Sec. 3, Beixin Rd., +886-2-8911-8600 Xindian Dist., New Taipei City 231, +886-2-8911-6550 Taiwan, R.O.C. [email protected] www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre, 79 Wing Hong Street, +852-2396-8968 Cheung Sha Wan, +852-2370-1222 Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376 Changning District +86-21-62947375 Shanghai, 200052, China www.optoma.com.cn
France
Bâtiment E +33 1 41 46 12 20 81-83 avenue Edouard Vaillant +33 1 41 46 94 35 92100 Boulogne Billancourt, France [email protected]
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06 28522 Rivas VaciaMadrid, +34 91 670 08 32 Spain
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670 D40549 Düsseldorf, +49 (0) 211 506 66799 Germany [email protected]
Scandinavia
Lerpeveien 25 +47 32 98 89 90 3040 Drammen +47 32 98 89 99 Norway [email protected]
PO.BOX 9515 3038 Drammen Norway
Korea
WOOMI TECH.CO.,LTD. +82+2+34430004 4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005 Seoul,135-815, KOREA korea.optoma.com
66
English
Page 67
www.optoma.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
