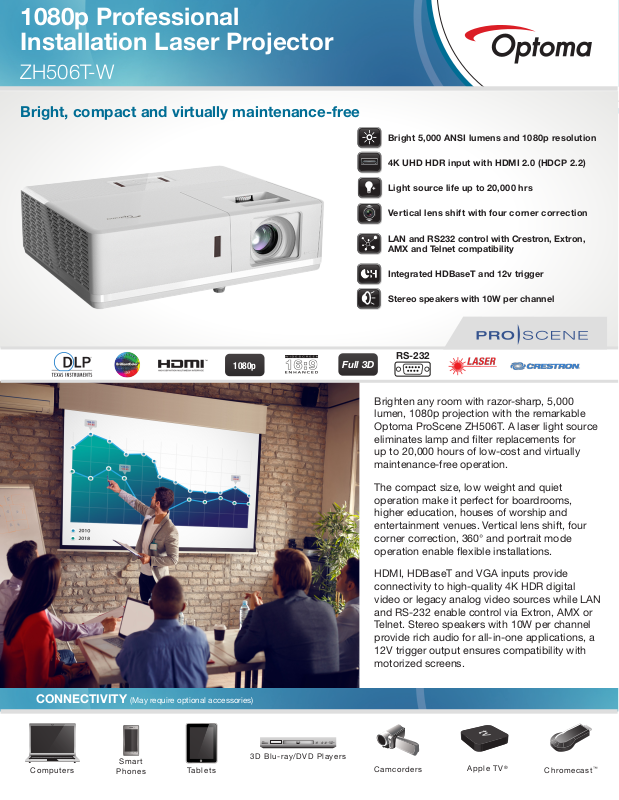

Optoma ZH506T Data Sheet
1080p Professional
Installation Laser Projector
ZH506T-W
Bright, compact and virtually maintenance-free
Bright 5,000 ANSI lumens and 1080p resolution
4K UHD HDR input with HDMI 2.0 (HDCP 2.2)
Light source life up to 20,000 hrs
Vertical lens shift with four corner correction
LANand RS232 control with Crestron, Extron,
AMX and Telnet compatibility
Integrated HDBaseT and 12v trigger
Stereo speakers with 10W per channel
1080p
Full 3D
RS-232
Brighten any room with razor-sharp, 5,000
lumen, 1080p projection with the remarkable
Optoma ProScene ZH506T. A laser light source
eliminates lamp and lter replacements for
up to 20,000 hours of low-cost and virtually
maintenance-free operation.
The compact size, low weight and quiet
operation make it perfect for boardrooms,
higher education, houses of worship and
entertainment venues. Vertical lens shift, four
corner correction, 360° and portrait mode
operation enable exible installations.
HDMI, HDBaseT and VGA inputs provide
connectivity to high-quality 4K HDR digital
video or legacy analog video sources while LAN
and RS-232 enable control via Extron, AMX or
Telnet. Stereo speakers with 10W per channel
provide rich audio for all-in-one applications, a
12V trigger output ensures compatibility with
motorized screens.
CONNECTIVITY (May require optional accessories)
Computers
Smart
Phones
Tablets
3D Blu-ray/DVD Players
Camcorders
Apple TV
®
Chromecast
™
1080p Professional Installation Laser Projector - ZH506T-W
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Texas Instruments™ 0.65” 1080p DMD
Color Wheel 4 segment RGBY
Native Resolution 1080p
Maximum Resolution 4K UHD (3840 x 2160 @ 60Hz)
Brightness 5,000 ANSI lumens
Contrast Ratio 300,000:1 (Ex treme Black en abled) 1,800:1 full on/full off
Displayable Colors 1.07 billion
Lamp L ife an d Type* Up to 20,00 0 hrs
Light Sour ce Type* Laser phosphor
Proje ction Met hod 360, fro nt, rea r, ceiling mo unt, table top
Keystone Correction ±30° horizontal and vertical
Geometry Four corner adjustment
Lens S hif t 15% vertic al
Uniformity 80%
Offset 10 3% -118% ± 5%
Aspe ct Ratio 16:9 (native) 4:3 compatible
Throw Ratio 1.40 -2 .24:1
Projection Distance 3. 28’- 32.8
Image Size 20.2” – 322.6”
Projection Lens F=2.5-3.26 f=20.91-32.62
Optical Zoom 1.6x
Digital Zoom 0.8 - 2.0x
Audio 2 x 10W (stereo)
Noise Level 36db (Normal ) / 30db (Eco)
Remote Control Full size remote with laser pointer
360 d egree and Port rait mode Ye s
operation
Operating Temperature 41–104°F (5–40°C), 85% max humidit y
Power Suppl y AC input 100 –240V, 50–60Hz, auto -switching
Power Consumption 353W ±15% (Full), 321W±15% (Eco)
High Altitude Ope rating temper ature at sea level u p to 10,000 fe et =
104° F (max); Mus t manua lly switch to high altitude mode
from 5,000 feet and above (using OSD menu) to ma intain
optimal functionality.
COMPATIBILITY SPECIFICATIONS
Computer Compatibility VGA, SVGA, HDT V(720P), WXGA, WXGA+, SXGA , SXGA+,
UXGA , HDT V(1080 p), WUXG A
Video Input Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p
4K UHD 2160p (24/50/60 Hz)
3D Compatibility
Vertical Scan Rate 24 ~ 85 Hz
Horizontal Scan Rate 15.375 ~ 91.146 KHz
User Controls Graphic user interface and on-screen
menuin27languages
I/O Connection Ports 2x HDMI 1.4 (HDMI 2 MHL), 1x HDBaseT 1x composite,
Control 1x RJ-45, 1x RS-232C, 1x wired rem ote
Loop Through (Au dio) Yes
†
Supports all HDMI 1.4a man dator y 3D formats (Fra me
pack, si de-by-side, top-bottom) and up conver ts frame
rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or
72 frames per eye). 3D glasse s are needed and sold
separately. Refer to user manual fo r details.
2x VGA, 1x S-video, 1x audio in, 1x mic/audio in, 1x
USB-A( power), 1x VGA out (VGA 1 only), 1x audio out, 1x
12v trigger
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, password (OSD)
Weight 12.12 lbs
Dimensions (W x H x D) 14.7” x 4.6” x 11.9”
1 6 7 8 92 3 4 5
14
10
11 151312
16
1. HDMI 2
2. HDMI 1/MHL
3. USB Power-Out
4. VGA-In 1
5. VGA-In 2
6. S-Vi deo
Power On
Mode
7. Video
8. Audio-In/Mic-In
9. 12V-Out
10. HDBaseT
11. RJ-45
12. RS232
13. VG A-Out
14. Audio-in 2
15. Audio-Out
16. AC Power
17. Lock
Power Off
Mute
17
Four Directional
Select Keys
Source
Re-sync
Menu
Volume
Format
Freeze
S-Video
VGA
HDBaseT
Video
B-NC
YPbPr
Warranty
3-year or 20,000 hour light source warranty (whichever comes rst), 3-year Optoma
Express advance exchange warranty on the projector.
What’s in the Box
ZH506T-W, AC power cable, lens cap, remote control, batteries, quick start guide, CD
user manual, carrying case
Optional Accessories
Remote, mount, HDCast Pro, 3D glasses, HDBaseT transmitter
Accessory Part Numbers
Universal ceiling mount: BM-5001U
HDBaseT transmitter: 4K100TX
DLP®Link™ 3D glasses: ZD302
Remote: BR-3075W
Wireless: HDCast PRO - BLACK
UPC 796435 44 352 8
Zoom
HDMI1
HDMI2
HDMI3
DVI
3D
DisplayPort
Light source life is dependent on brightness mode, display mode, usage, environmental conditions and
more. Light source brightness can decrease over time.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause
headaches or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
Portrait orientation must follow the recommended positions. Please consult the user manual for
further information.
Optoma.com
Copyright © 2019 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks
of Texas Instruments™. All other trademarks are the property of their respective owners. All
specications subject to change at any time. 01302019
