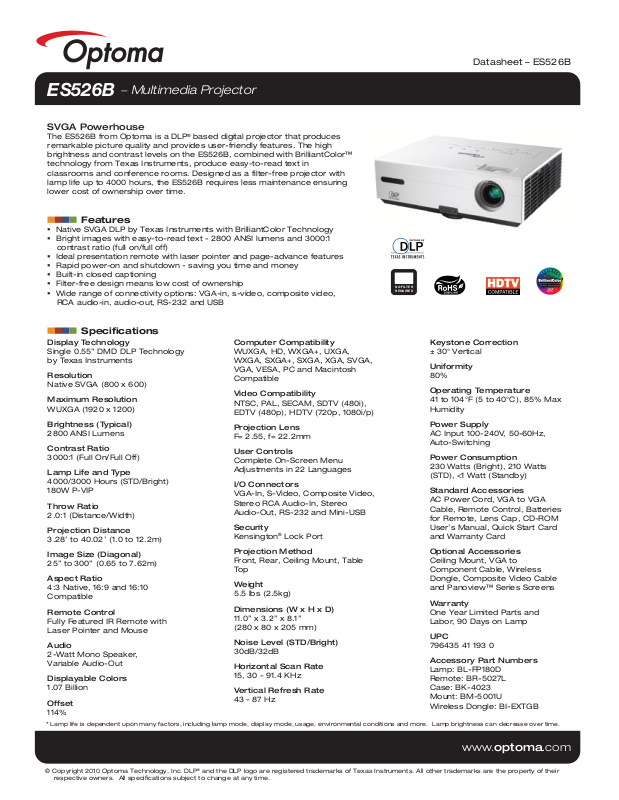

Optoma ES526B Product Sheet
Datasheet – ES526B
ES526B
− Multimedia Projector
SVGA Powerhouse
The ES526B from Optoma is a DLP® based digital projector that produces
remarkable picture quality and provides user-friendly features. The high
brightness and contrast levels on the ES526B, combined with BrilliantColor™
technology from Texas Instruments, produce easy-to-read text in
classrooms and conference rooms. Designed as a filter-free projector with
lamp life up to 4000 hours, the ES526B requires less maintenance ensuring
lower cost of ownership over time.
Features
Native SVGA DLP by Texas Instruments with BrilliantColor Technology
Bright images with easy-to-read text - 2800 ANSI lumens and 3000:1
contrast ratio (full on/full off)
Ideal presentation remote with laser pointer and page-advance features
Rapid power-on and shutdown - saving you time and money
Built-in closed captioning
Filter-free design means low cost of ownership
Wide range of connectivity options: VGA-in, s-video, composite video,
RCA audio-in, audio-out, RS-232 and USB
NO FILTER
REQUIRED
Specifications
Display Technology
Single 0.55” DMD DLP Technology
by Texas Instruments
Resolution
Native SVGA (800 x 600)
Maximum Resolution
WUXGA (1920 x 1200)
Brightness (Typical)
2800 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
180W P-VIP
Throw Ratio
2.0:1 (Distance/Width)
Projection Distance
3.28’ to 40.02’ (1.0 to 12.2m)
Image Size (Diagonal)
25” to 300” (0.65 to 7.62m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Remote Control
Fully Featured IR Remote with
Laser Pointer and Mouse
Audio
2-Watt Mono Speaker,
Variable Audio-Out
Displayable Colors
1.07 Billion
Offset
114%
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
Computer Compatibility
WUXGA, HD, WXGA+, UXGA,
WXGA, SXGA+, SXGA, XGA, SVGA,
VGA, VESA, PC and Macintosh
Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
Projection Lens
F= 2.55, f= 22.2mm
User Controls
Complete On-Screen Menu
Adjustments in 22 Languages
I/O Connectors
VGA-In, S-Video, Composite Video,
Stereo RCA Audio-In, Stereo
Audio-Out, RS-232 and Mini-USB
Security
Kensington
Projection Method
Front, Rear, Ceiling Mount, Table
Top
Weight
5.5 lbs (2.5kg)
Dimensions (W x H x D)
11.0” x 3.2” x 8.1”
(280 x 80 x 205 mm)
Noise Level (STD/Bright)
30dB/32dB
Horizontal Scan Rate
15, 30 - 91.4 KHz
Vertical Refresh Rate
43 - 87 Hz
®
Lock Port
Keystone Correction
± 30° Vertical
Uniformity
80%
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max
Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
230 Watts (Bright), 210 Watts
(STD), <1 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA
Cable, Remote Control, Batteries
for Remote, Lens Cap, CD-ROM
User’s Manual, Quick Start Card
and Warranty Card
Optional Accessories
Ceiling Mount, VGA to
Component Cable, Wireless
Dongle, Composite Video Cable
and Panoview™ Series Screens
Warranty
One Year Limited Parts and
Labor, 90 Days on Lamp
UPC
796435 41 193 0
Accessory Part Numbers
Lamp: BL-FP180D
Remote: BR-5027L
Case: BK-4023
Mount: BM-5001U
Wireless Dongle: BI-EXTGB
www.optoma.com
© Copyright 2010 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instruments. All other trademarks are the property of their
respective owners. All specifications subject to change at any time.
