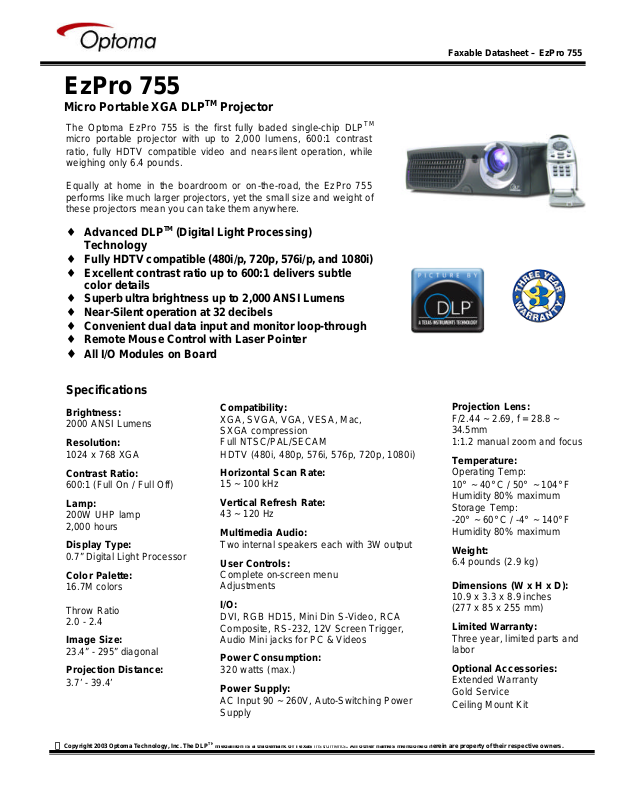

Optoma EP755 Brochure

The Optoma EzPro 755 is the first fully loaded single-chip DLPTM

♦ All I/O Modules on Board

Specifications

Compatibility: Projection Lens:

EzPro 755

Micro Portable XGA DLPTM Projector

micro portable projector with up to 2,000 lumens, 600:1 contrast ratio, fully HDTV compatible video and near-silent operation, while weighing only 6.4 pounds.

Equally at home in the boardroom or on-the-road, the EzPro 755 performs like much larger projectors, yet the small size and weight of these projectors mean you can take them anywhere.

♦ Advanced DLPTM (Digital Light Processing)

Technology

♦ Fully HDTV compatible (480i/p, 720p, 576i/p, and 1080i) ♦ Excellent contrast ratio up to 600:1 delivers subtle

color details

♦ Superb ultra brightness up to 2,000 ANSI Lumens ♦ Near-Silent operation at 32 decibels ♦ Convenient dual data input and monitor loop-through ♦ Remote Mouse Control with Laser Pointer

Faxable Datasheet – EzPro 755

Brightness:

2000 ANSI Lumens Resolution:

1024 x 768 XGA Contrast Ratio:

600:1 (Full On / Full Off) Lamp:

200W UHP lamp 2,000 hours

Display Type:

0.7” Digital Light Processor Color Palette:

16.7M colors Throw Ratio

2.0 - 2.4 Image Size:

23.4” - 295” diagonal

Projection Distance:

3.7’ - 39.4’

XGA, SVGA, VGA, VESA, Mac, SXGA compression Full NTSC/PAL/SECAM HDTV (480i, 480p, 576i, 576p, 720p, 1080i)

Horizontal Scan Rate:

15 ~ 100 kHz

Vertical Refresh Rate:

43 ~ 120 Hz

Multimedia Audio:

Two internal speakers each with 3W output User Controls:

Complete on-screen menu Adjustments

I/O:

DVI, RGB HD15, Mini Din S-Video, RCA Composite, RS -232, 12V Screen Trigger, Audio Mini jacks for PC & Videos

Power Consumption: 320 watts (max.)

Power Supply: AC Input 90 ~ 260V, Auto-Switching Power Supply

F/2.44 ~ 2.69, f = 28.8 ~

34.5mm 1:1.2 manual zoom and focus

Temperature: Operating Temp:

10° ~ 40°C / 50° ~ 104°F Humidity 80% maximum Storage Temp:

-20° ~ 60°C / -4° ~ 140°F Humidity 80% maximum

Weight:

6.4 pounds (2.9 kg) Dimensions (W x H x D):

10.9 x 3.3 x 8.9 inches (277 x 85 x 255 mm)

Limited Warranty: Three year, limited parts and labor

Optional Accessories: Extended Warranty Gold Service Ceiling Mount Kit

medallion is a trademark of Texas Instruments. All other names mentioned herein are property of their respective owners.
