Optoma EP710 User Guide

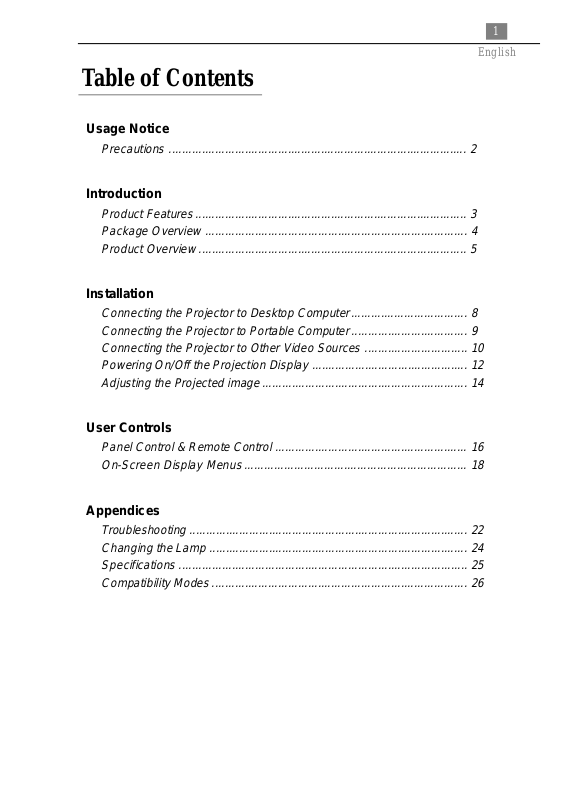

Table of Contents
Usage Notice
Precautions .......................................................................................... 2
Introduction
Product Features.................................................................................. 3
Package Overview ............................................................................... 4
Product Overview ................................................................................. 5
Installation
Connecting the Projector to Desktop Computer................................... 8
Connecting the Projector to Portable Computer................................... 9
Connecting the Projector to Other Video Sources ............................... 10
Powering On/Off the Projection Display ............................................... 12
Adjusting the Projected image.............................................................. 14
1
English
User Controls
Panel Control & Remote Control .......................................................... 16
On-Screen Display Menus................................................................... 18
Appendices
Troubleshooting .................................................................................... 22
Changing the Lamp .............................................................................. 24
Specifications ....................................................................................... 25
Compatibility Modes............................................................................. 26
2
English
Usage Notice
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When changing the lamp, please allow unit to cool down, and follow
all changing instructions.
Warning- This product will detect the life of the lamp itself. Please be sure to
change the lamp when it shows warning messages.
Warning- After changing a new lamp, please reset the lamp life from OSD
menu.
Warning- Before switching off the product, please keep the cooling fan
running for a few minutes.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s manual to maximize the life of your unit.
Do:
q Turn off the product before cleaning.
q Use a soft cloth moistened with mild detergent to clean the display housing.
q Disconnect the power plug from AC outlet if the product is not being used for a
long period of time.
Don’t:
q Block the slots and openings on the unit provided for ventilation.
q Use abrasive cleaners, waxes or solvents for your cleaning.
q Use under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Introduction
Product Features
This product, is an XGA single chip DMDä Projector. The outstanding
features of it are listed as follows:
q True XGA, 1024 x 768 addressable pixels
q 5 lbs (2.3 kgs) lightweight compact design
q Single chip DMDä technology
q SXGA compression and VGA, SVGA resizing
q 120 Watts user replaceable UHP lamp
q Mac/ NEC PC-98/ FM Towns compatible
3
English
q NTSC/ PAL/ SECAM compatible
q Full function remote control
q Real plug & play with auto image function
q User friendly Multilingual on-screen display menu
q Advanced electronic keystone correction and picture in picture function
q Luxurious carrying case included
4
English
Package Overview
This projection display comes with all the items shown below. Check to make
sure your unit is complete. Contact your dealer immediately if anything is
missing.
Projection Display
S-Video Cable
Audio Cable
Power Cord
Audio-In Cable for Computer
User’s Manual
VGA Cable
Composite Video Cable
Warranty Card
Remote Control
Carrying Case
Product Overview
Main Unit
Focus Ring
Lens
5
English
Panel Control
Remote Control
Receiver
Speaker
Carrying Handle
Connection Ports
Power Connector
Power Switch
Elevator Button

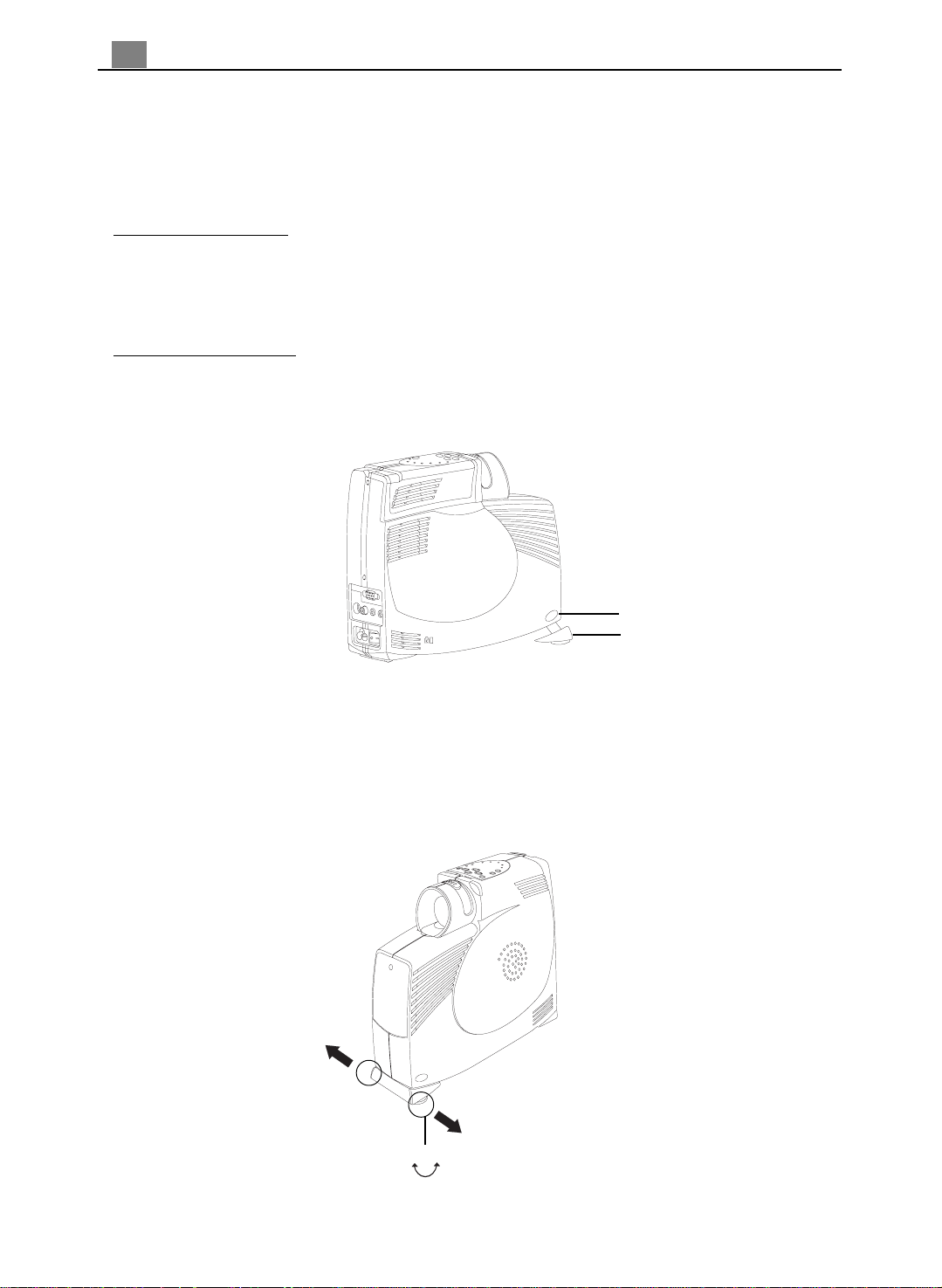

Elevator Foot
Security Lock Slot
6
English
Connection Ports
Composite Video
Connector
S-video
Connector
Computer Input
Connector
Audio Iuput
Connector
Audio Output
Connector
Power Connector
Panel Control
Four Directional
Select Keys
Menu
Reset
Source
Power Switch
Power /
Standby
T e mperature
Lamp
Enter

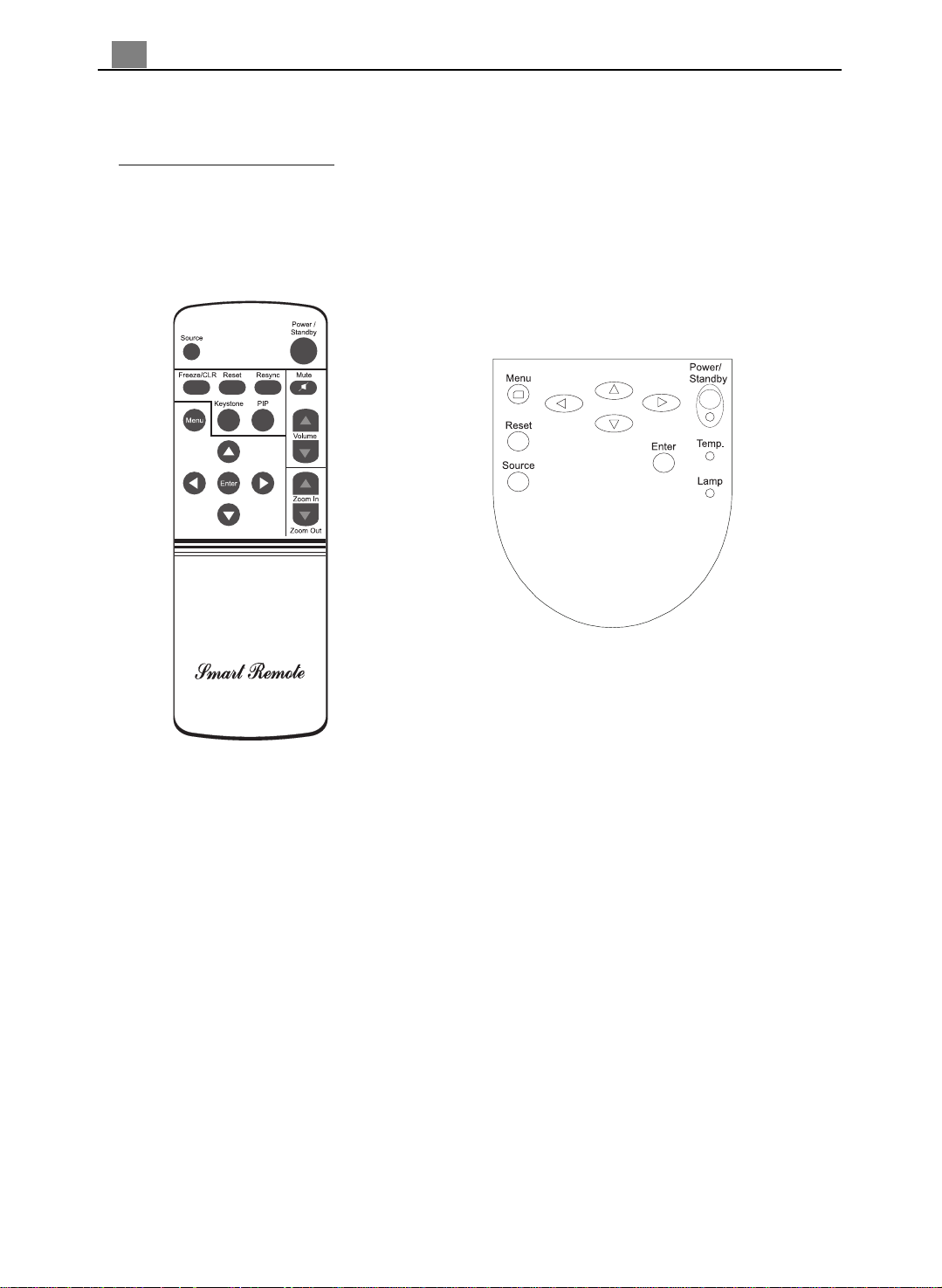

Remote Control
7
English
Source
Reset
Freeze/CLR
Menu
Keystone Correction
Four Directional
Select Keys
Enter
Power / Standby
Resync
Mute
Picture in Picture
Volume ( + / - )
Zoom In / Zoom Out
8
English
Installation
Connecting the Projector to Desktop Computer
1. Make sure the projector and your computer are turned off.
2. Connect one end of the projector signal cable to the projector; connect the other
end to the VGA connector on the computer and tignten the screws.
3. Connect one end of the power cord into the back of projector; connect the other
end to an electrical outlet.
Computer Output
VGA Cable
Power Cord
v To ensure the projection display works well with your computer, please configure
the display mode of your graphic card to make it less than or equal to 1024 X 768
resolution. Make sure timimg of the display mode is compatible with the projection
display. Refer to the“Compatibility Modes”section on page 26.
Connecting the Projector to Portable Computer
1. Make sure the projector and your notebook are turned off.
2. Connect one end of the projector signal cable to the projector; connect the other
end to the VGA connector on the notebook and tignten the screws.
3. Connect one end of the power cord into the back of projector; connect the other
end to an electrical outlet.
9
English
Power Cord
Notebook Output
VGA Cable
