groov EPIC PROCESSOR
Features
High-resolution LCD display with touch capability for edge
>
configuration and groov® View HMI
Web-based commissioning, troubleshooting, and HMI, with
>
built-in security and authentication
Pre-loaded software includes groov Manage, groov View,
>
Node-RED, Ignition Edge®, and CODESYS® Runtime Engine
Dual independent Gigabit Ethernet network interfaces
>
Dual USB ports for serial communications, touchscreen
>
monitors, keyboards, or a mouse
HDMI port for external monitors or touchscreen
>
OptoSupport Remote Support Service for remote diagnosis
>
and troubleshooting
Program with flowcharts and scripting, or IEC 61131-3
>
compliant languages like ladder diagram, function block
diagram, sequential function chart, and structured text
UL Hazardous Locations approved and ATEX compliant
>
DESCRIPTION
The Edge Programmable Industrial Controller is an embedded Linux®,
real-time controller with gateway functions.
The modern design of the groov EPIC processor offers a compact,
industrial computer that features a resistive-touch, high-resolution
LCD display. The LCD display lifts to provide easy access to the power
button, power supply connectors, network interfaces, ports, and
status LEDs.
Dual, independent Gigabit Ethernet network interfaces securely
segment trusted networks (like your control network) from
untrusted networks (like the Internet).
Dual USB ports for serial interfaces, WiFi adapters, and keyboard,
mouse, and touchscreen controls.
HDMI port connects to an external monitor for displaying
configuration and groov View HMI on an external large screen,
which is also useful for OEM applications where the EPIC system is
built into a machine.
The processor can operate through a wide range of operating
temperatures (-20 to 70 °C) and with its industrial design, it can be
used in a large variety of applications and operating environments.
The CPU is an industrial, quad-core ARM® processor running opensource Linux with real-time extensions.
Form 2245-200424
GRV-EPIC-PR1 processor
DATA SHEET
Software tools include:
groov Manage for browser-based management of your groov EPIC
system, from the integrated front touchscreen display or any
browser-based device
groov View for building and viewing custom operator interfaces
for local, mobile, and browser-based devices
PAC Project™ Basic Software Suite (installed and running on your
Microsoft® Windows® computer) for developing control programs
and a Windows-based HMI
Access to the Linux operating system through a secure shell to
run custom applications (requires the free SSH License,
GROOV-LIC-SHELL)
Node-RED for creating data flows to connect cloud services,
databases, and APIs through pre-built nodes
Ignition Edge from Inductive Automation® for connecting to
Allen-Bradley®, Siemens®, and Modbus®/TCP devices via OPC UA,
and for efficient IIoT communications using MQTT with Sparkplug
payload (requires the purchase of GROOV-LIC-EDGE)
Part Numbers
Part Description
GRV-EPIC-PR1
GROOV-LIC-EDGE Activation key for Ignition Edge software.
GROOV-LIC-CRE
GROOV-LIC-SHELL
On-the-rack controller for the groov EPIC
system.
Activation key for CODESYS Runtime
Engine software.
Activation key for Secure Shell access to
Linux operating system.
PAGE 1
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
Form 2245-200424
DATA SHEET
PAGE 2
CODESYS Runtime Engine for running IEC 61131-3 compliant
programs created with the CODESYS Development Environment.
All IEC 61131-3 languages are supported, including Function
Block Diagram (FBD), Structured Text (ST), Sequential Function
Charts (SFC), and Ladder Diagram (LD). (Requires the free
CODESYS Runtime Engine License, GROOV-LIC-CRE.)
You can run complex control programs on the groov EPIC processor
developed with:
PAC Control, a flowchart-based programming language
CODESYS Development System V3, an IEC 61131-3- compliant
programming language
Python, C/C++, JavaScript, and other popular software
development tools (requires free SSH License, GROOV-LIC-SHELL)
The groov Manage app gives you central command-like access to your
groov EPIC system, helping you configure, troubleshoot, and
commission your system. The consistency in interface design
between the groov Manage app running on the groov EPIC processor
and the groov Manage app running on your computer, smartphone,
or tablet ensures a seamless experience between devices. You don’t
have to remember to do something different for each device to
achieve the same result.
groov View offers easy browser-based, mobile-ready development of
a custom HMI with trending, events, and user notification.
Communication is secured with user authentication and TLS
encryption. And, because the HMI is web server-based, what you
build can be viewed on any authorized device with a web browser.
OptoSupport Remote Support Service (RSS)
Support has never been closer! With OptoSupport RSS, you can create
a secure, encrypted connection between your groov EPIC controller
and Opto 22's support team so they can remotely help diagnose and
troubleshoot any issues. The remote connection can only be started
by you, and only after you and an Opto 22 support team member
have determined that the best way to help you is through a remote
connection.
programs, or custom developed applications with popular
software development tools.
Connectivity and Data handling. Acquire, move, and share
data from industrial systems, legacy equipment, business and IT
systems, and the cloud through a variety of connecting
technologies like Node-RED, REST API, Ignition SCADA,
OptoDataLink, and OptoOPCServer.
Visualization. Securely monitor, control, and use data as you
need it—locally, on premises, or from anywhere using groov View.
Authorized users can view your operator interface on the groov
EPIC processor, a mobile device, a computer, or anything with a
web browser.
The groov EPIC system builds on decades of field-proven design and
modern open standards to give you reliable industrial automation
plus a full internet of things (IoT) suite of tools and technologies,
built in.
The system includes processor, software, I/O modules, chassis, and
power supply.
The chassis holds the power supply, processor, and selected, modular
I/O modules you need for your application. For more information, see
the groov EPIC Chassis Data Sheet (form 2247).
Power supplies are available for AC power, DC conversion, and passthrough connections from a DC power supply you already own. For
more information, see the groov EPIC Power Supplies Data Sheet
(form 2246).
The groov I/O modules connect a variety of field devices to your
groov EPIC system. The table on the following page lists the available
I/O modules and the form numbers to learn more about them.

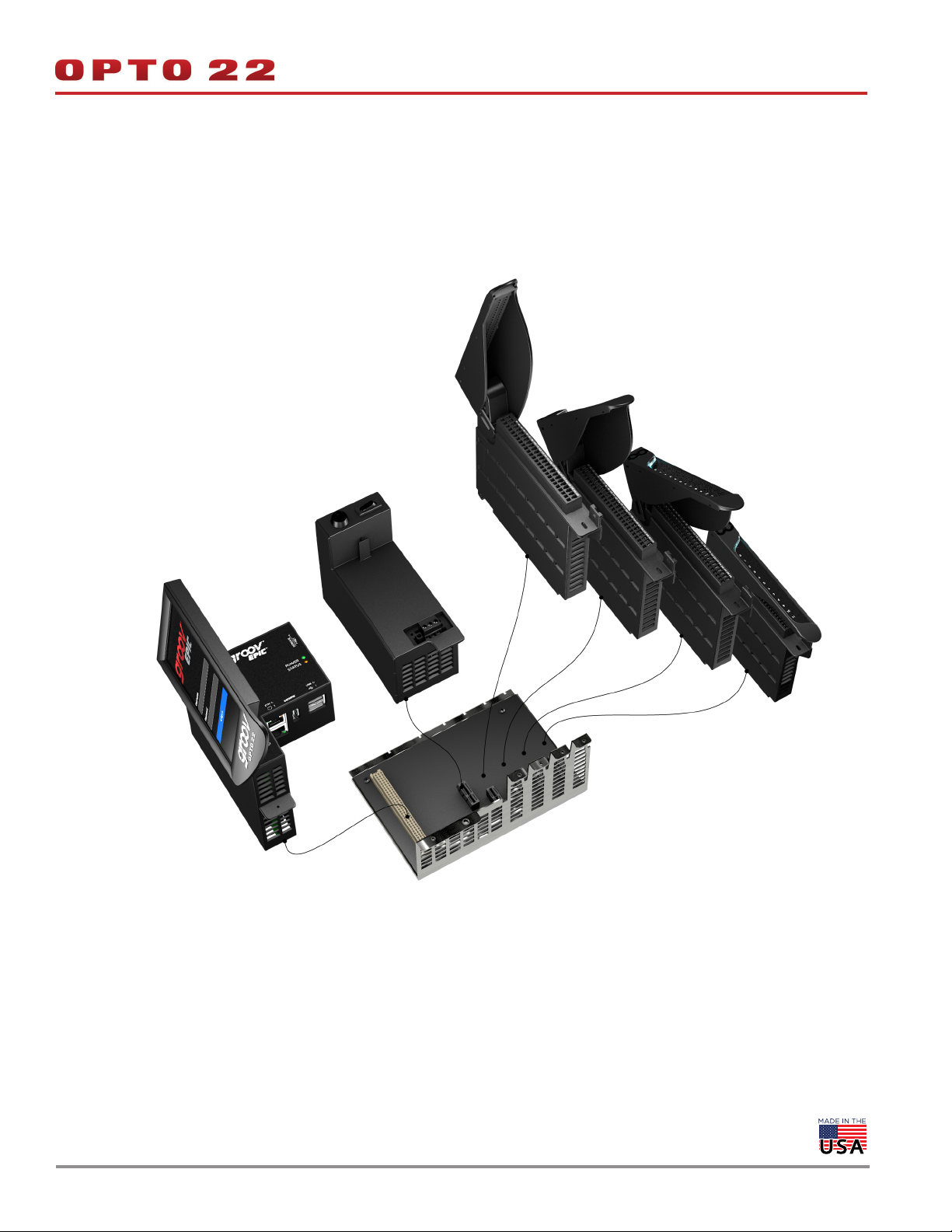

The groov EPIC system
The GRV-EPIC-PR1 is part of the groov EPIC system, which provides a
complete control and communications system at the network’s edge,
including:
I/O. Connect to field devices and translate their electrical signals
into the ones and zeros that computer systems understand. The
groov EPIC system offers analog, digital, and serial functions,
including thermocouple linearization, local PID loop control,
watchdog, totalizing, and much more.
Control. Automate equipment and systems at the network’s
edge. Create flowchart-based strategies, IEC 61131-3 compliant
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
Form 2245-200424
DATA SHEET
groov I/O MODULES
Module description Part numbers Form number
groov 115 VAC Input Modules
groov 180–280 VAC Input Modules
groov DC Input Modules
groov 2–16 VAC VDC Input Modules
groov 12–250 VAC Output Modules
groov 5–60 VDC Output Modules
groov DC Output Sourcing Module
groov Mechanical Relay Output Module
groov ICTD Temperature Input Module
groov Thermistor/Resistor Input Module GRV-IRTD-8, GRV-ITR-12 2301
groov Analog Current Input Module
groov Analog Thermocouple/Millivolt Input Module
groov Analog Voltage Input Module
groov Analog Voltage and Current Output Module
groov Serial Module
GRV-IAC-24, GRV-IACS-24, GRV-IACI-12, GRV-IACIS-12
GRV-IACHV-24, GRV-IACHVS-24, GRV-IACIHV-12, GRV-IACIHVS-12
GRV-IDC-24, GRV-IDCS-24, GRV-IDCI-12, GRV-IDCIS-12,
GRV-IDCIFQ-12, GRV-IDCSW-12
GRV-IACDCTTL-24, GRV-IACDCTTLS-24
GRV-OAC-12, GRV-OACI-12, GRV-OACS-12, GRV-OACIS-12
GRV-ODCI-12, GRV-ODCIS-12
GRV-ODCSRC-24
GRV-OMRIS-8
GRV-IICTD-12
GRV-IMA-24, GRV-IMAI-8
GRV-ITM-12, GRV-ITMI-8
GRV-IV-24, GRV-IVI-12, GRV-IVIRMS-10
GRV-OVMALC-8, GRV-OVMAILP-8
GRV-CCANI-2, GRV-CSERI-4
2226
2222
2236
2237
2231
2238
2242
2243
2300
2239
2240
2241
2244
2296
PAGE 3
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
SPECIFICATIONS
Specification GRV-EPIC-PR1
Power requirements 7.1 W typical, 9.1 W max.
2 GB RAM
Memory
Backup battery for real-time clock BR2032
Screen size and resolution 5 inches diagonal; 480 x 800 pixels
Ethernet Communication (wired)
USB
HDMI
Minimum PAC Project Version 10.000
Maximum Number of PAC Control Engine Charts 64
Torque, bottom hold-down screw 3.5 in-lb (0.4 N-m)
Torque, top hold-down screw 1.5 in-lb (0.17 N-m)
Operating temperature -20 °C to +70 °C
Storage temperature -40 °C to +85 °C
Humidity 5–95% RH
Agency approvals and certifications UL/cUL (Class 1 Div. 2), CE, ATEX (Category 3, Zone 2), RoHS, DFARS
Warranty 30 months
2 MB battery-backed RAM
6 GB user space
Two independent 10/100/1000 Mbps RJ-45 connectors, each with a
separate IP address (separate subnets)
USB 2.0 (two ports; can be used to connect serial devices via a USB-toserial converter with an FTDI chipset)
Connector Type: A
HDMI Specification: Version 1.4a
Max. Resolution: 1920 x 1080 pixels at 60 Hz
Form 2245-200424
DATA SHEET
PAGE 4
Device Compatibility
The following USB devices have been tested to be compatible with the groov EPIC processor for the function listed.
Serial communication
The following USB-to-serial adapters have been tested and proven to
be compatible with the groov EPIC system.
Device
Manufacturer
B&B Electronics
Gearmo
USOPTL4 (isolated RS-485)
USPTL4 (non-isolated RS-485)
USO9ML2 (isolated RS-232)
GM-482422 (non-isolated RS-485/RS-422)
GM-FTD1-A12 (non-isolated RS-232)
SERIAL-B (non-isolated RS-232)
Model
Wireless communication
The following WiFi USB adapters have been tested and proven to be
compatible with the groov EPIC system:
Device Manufacturer Model
Netis®
WF2180
WF2190
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.

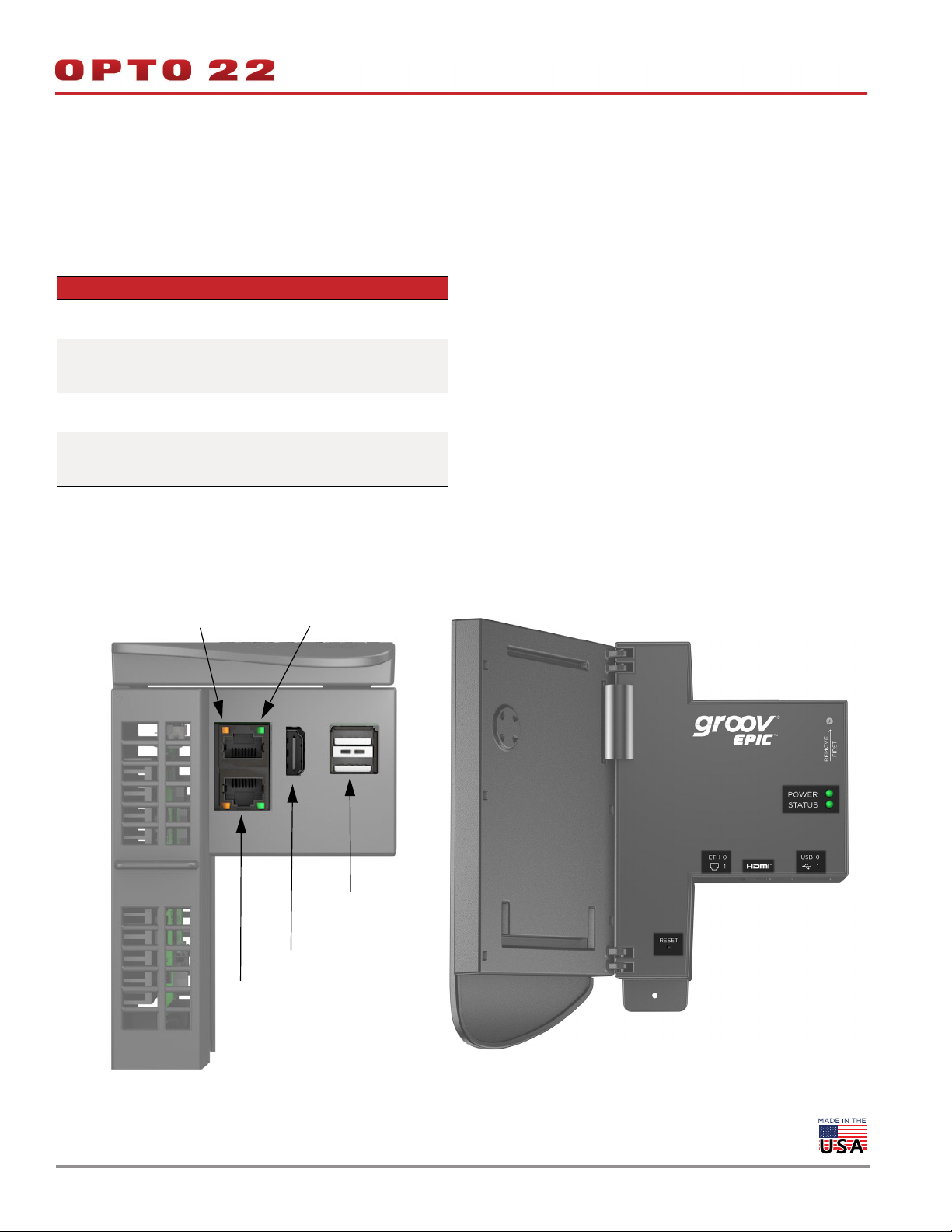

INSTALLING AND REMOVING THE PROCESSOR
Installing the processor
1. Make sure you installed the power supply according to the directions in
the groov EPIC Power Supplies, Converters, and Adapters Data Sheet
(form 2246).
2. Review “Processor orientation” on page 6 to understand which side of the
processor is the top, underside, back, and face.
3. Lift open the LCD display so you can see the notch on the processor.
4. Hold the processor by the left side, and make sure that the notch on the
processor aligns with the guide tab on the power supply.
5. Guide the processor straight onto the chassis, flush against the side of the
power supply, pushing until you feel the processor slide firmly into the
chassis and the processor resists further pressure.
You can push on the processor to ensure that it is firmly inserted.
Form 2245-200424
DATA SHEET
PAGE 5
IMPORTANT: D
o not push on the LCD display.
6. Tighten the retention screws that attach the processor to the power
supply and the chassis to the recommended torque listed in
“Specifications” on page 4.
7. Close the LCD display.
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
Removing the processor
1. Lift the LCD display so that you can access the retention screws
and power switch.
2. Turn off the unit.
IMPORTANT: Do not attempt to remove the processor and power
supply as a single unit.
Form 2245-200424
DATA SHEET
PAGE 6
PROCESSOR ORIENTATION
The following diagram identifies which side of the processor is the
bottom or underside, the face, the top and the back. This helps orient
you when you are reading the installation and removal instructions.
3. Remove the retention screws that attach the processor to the
power supply and the chassis.
4. Hold the processor with both hands, one hand on the left side
and the other hand at the top.
IMPORTANT: Do not attempt to remove the processor by grasping
the screen.
Fac e
Top (not visible in this
diagram)
Bottom or underside
Back (not visible in this diagram)
5. Pull the processor straight out. Do not wiggle the processor.
IMPORTANT: Handle and carry the processor only by the plastic
case. Do not touch any of the exposed circuitry.
6. Close the LCD display.
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
LCD DISPLAY
Form 2245-200424
DATA SHEET
PAGE 7
The LCD display features resistive-touch capability, which means you
can manipulate the display with gloved fingers or a stylus (not
included).
The LCD display is your window to both your control system and HMI.
With groov Manage, you can:
Configure and troubleshoot the groov I/O modules mounted on
the chassis.
Configure the Ethernet network interfaces and the firewall, and
create rules to control access to the ports.
groov Manage
View the current state of input channels and set the state of
output channels.
Access a library of information about all of the groov I/O modules
available through Opto 22, including specifications and wiring
diagrams.
Review logs for troubleshooting.
The LCD displays your groov View HMI, which you can build and
configure within your web browser on your PC.
groov View HMI
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
Form 2245-200424
DATA SHEET
PAGE 8
LEDs, NETWORK INTERFACES, AND PORTS
The diagram below describes the LEDs, network interfaces, and ports on the groov EPIC processor. All of these interfaces and indicators are easily
accessed by lifting the hinged LCD display. When the LCD display is closed, it does not interfere with cables connecting the processor to external
devices such as an external monitor. For more information about LEDs, network interfaces, and ports, see groov EPIC User’s Guide (form 2267).
LEDs
LED Indicates
SPEED LED
LINK ACT LED
POWER
STATUS
Indicates link speed (Off = 10 Mbps,
Green = 100 Mbps, Orange = 1000 Mbps)
Indicates link status or activity
(on/solid = link present, blinking = link present and local activity)
Indicates status of power (Green = on;
Red = on, resetting)
Indicates whether the unit is running with full
functionality. (Green = all normal; blink green
and red = starting a restore to defaults)
Independent Ethernet network interfaces
The Ethernet network interfaces are independent, which means they
are not connected internally. Each requires its own IP address, and the
two interfaces must be on different subnets.
SPEED LED
LINK ACT LED
Ports
The HDMI port offers a connection to an external monitor, such as an
HDMI-ready touch-screen monitor, so that you can display groov
Manage or your groov View HMI on a separate screen.
The two USB ports offer several ways to extend the capabilities of the
processor. You can connect:
Serial devices via a USB-to-serial converter
A mouse, keyboard, or both to make it easier to type in data and
navigate through the screens
WiFi adapters to add wireless connectivity
For device compatibility information, see “Device Compatibility” on
page 4.
USB ports (2)
The labels on the face of
the processor identify the
locations of the interfaces
HDMI port
Ethernet network interfaces (2)
and ports, which are on
the underside of the
processor, as shown on
the image to the left.
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
DIMENSIONS: GRV-EPIC-PR1
The processor features an LCD display that swings open and
closed. The diagram to the right shows the LCD display open to its
fullest extent. The diagram below shows the LCD display closed.
Form 2245-200424
DATA SHEET
PAGE 9
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
HARDWARE ARCHITECTURE
groov EPIC Power Supply
Available in three models:
AC power supply
DC power converter
Pass-through power adapter
Form 2245-200424
DATA SHEET
PAGE 10
groov I/O Modules
Removable cage-clamp field wiring connector
with single, captive hold-down screw
Pivoting, two-position cover
Touch-sensitive pad
Hot swappable
LEDs indicate module health and channel status
UL Hazardous Locations approved and ATEX
compliant
groov EPIC Chassis
Available in these models:
0-module
4-module (shown)
groov EPIC Processor
Web-based commissioning, troubleshooting, and groov View HMI
Compatible with PAC Project Basic (installs on Windows computer)
Pre-installed software: groov Manage, groov View, Node-RED,
Ignition Edge, and CODESYS Runtime Engine
LCD touch display
Dual USB ports for serial communications or touchscreen monitors
HDMI port for external monitors, touchscreens, and WiFi adapters
Dual independent Gigabit Ethernet network interfaces
Supports up to 16 groov I/O modules
© 2018-2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
8-module
16-module
More about Opto 22
PRODUCTS
Opto 22 develops and manufactures reliable, easy-to-use, open
standards-based hardware and software products. Industrial
automation, process control, building automation, industrial
refrigeration, remote monitoring, data acquisition, and industrial
internet of things (IIoT) applications worldwide all rely on Opto 22.
groov EPIC® System
Opto 22’s groov Edge Programmable
Industrial Controller (EPIC) system gives
you an industrially hardened system with
guaranteed-for-life I/O, a flexible Linux®based processor with gateway functions,
and software for your automation and IIoT
applications.
groov EPIC I/O
groov I/O connects locally to sensors and
equipment with up to 24 channels on each I/O module. Modules
have a spring-clamp terminal strip, integrated wireway, swing-away
cover, and LEDs indicating module health and discrete channel status.
groov I/O is hot swappable, UL Hazardous Locations approved, and
ATEX compliant.
groov EPIC Processor
The heart of the system is the groov EPIC processor. It handles a wide
range of digital, analog, and serial functions for data collection,
remote monitoring, process control, and discrete and hybrid
manufacturing.
In addition, the EPIC provides secure data communications among
physical assets, control systems, software applications, and online
services, both on premises and in the cloud.
Configuring and troubleshooting I/O and networking is easier with
the EPIC’s integrated high-resolution color touchscreen. Authorized
users can manage the system locally on the touchscreen or on a
monitor connected via the HDMI or USB ports.
groov RIO
groov RIO revolutionizes remote I/O by offering a single, compact,
PoE-powered industrial package with web-based configuration,
commissioning, and flow logic software built in, plus support for
multiple OT and IT protocols.
Standing alone, it meets the needs of small, variable I/O count
applications, especially those that require
data logging or data communications,
commonly found in IIoT applications.
groov RIO can also be used with a
Modbus/TCP master or as remote I/O for
a groov EPIC system.
Older products
From solid state relays (our first products)
to world-famous G4 and SNAP I/O, to
SNAP PAC controllers, older Opto 22
products are still supported and still
doing the job at thousands of installations worldwide. You can count
on us to give you the reliability and service you expect, now and in the
future.
QUALITY
Founded in 1974, Opto 22 has established a worldwide reputation for
high-quality products. All are made in the U.S.A. at our manufacturing
facility in Temecula, California.
Because we test each product twice before it leaves our factory rather
than testing a sample of each batch, we can afford to guarantee most
solid-state relays and optically isolated I/O modules for life.
groov EPIC Software
Software included in the groov EPIC processor:
PAC Control engine to run PAC Control and PAC Display
CODESYS Runtime engine to run IEC61131-3 compliant programs
built with CODESYS Development System
Optional access to the Linux operating system through a secure
shell (SSH) to download and run custom applications
groov View for building your own device-independent HMI,
viewable on the touchscreen, PCs, and mobile devices
Node-RED for creating simple logic flows from pre-built nodes
Ignition Edge® from Inductive Automation®, with OPC-UA drivers
to Allen-Bradley®, Siemens®, and other control systems, and MQTT
communications with Sparkplug for efficient IIoT data transfer
© 2001–2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
Form 1335-200129
Loading...
