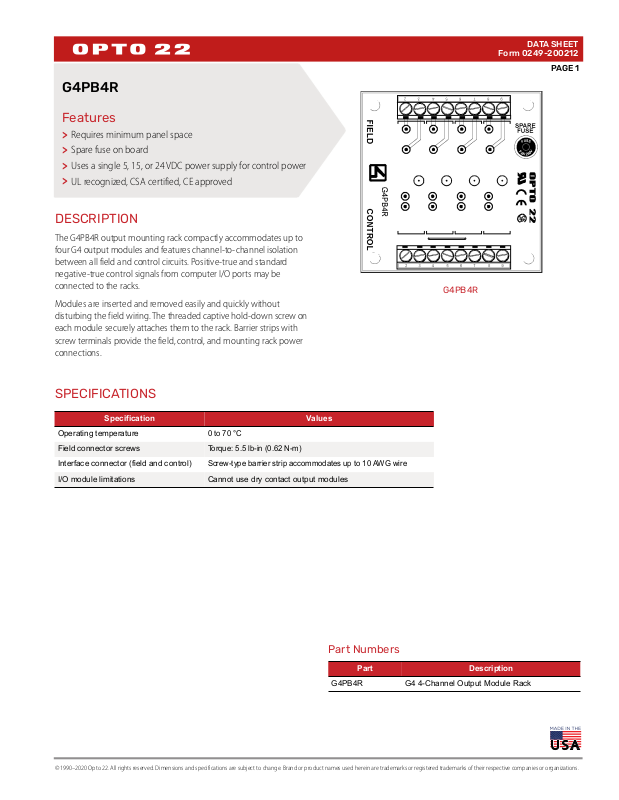

Opto 22 G4PB4R Data Sheet

G4PB4R

Features

Requires minimum panel space

>

Spare fuse on board

>

Uses a single 5, 15, or 24 VDC power supply for control power

>

UL recognized, CSA certified, CE approved

>

DESCRIPTION

The G4PB4R output mounting rack compactly accommodates up to
four G4 output modules and features channel-to-channel isolation
between all field and control circuits. Positive-true and standard
negative-true control signals from computer I/O ports may be
connected to the racks.

Modules are inserted and removed easily and quickly without
disturbing the field wiring. The threaded captive hold-down screw on
each module securely attaches them to the rack. Barrier strips with
screw terminals provide the field, control, and mounting rack power
connections.

DATA SHEET

Form 0249-200212

PAGE 1

G4PB4R

SPECIFICATIONS

Specification Values

Operating temperature

Field connector screws

Interface connector (field and control)

I/O module limitations Cannot use dry contact output modules

0 to 70 °C

Torque: 5.5 lb-in (0.62 N-m)

Screw-type barrier strip accommodates up to 10 AWG wire

Part Numbers

G4PB4R G4 4-Channel Output Module Rack

Part Description

© 1990–2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.

DIMENSIONS—G4PB4R

DATA SHEET

Form 0249-200212

PAGE 2

CONNECTIONS
