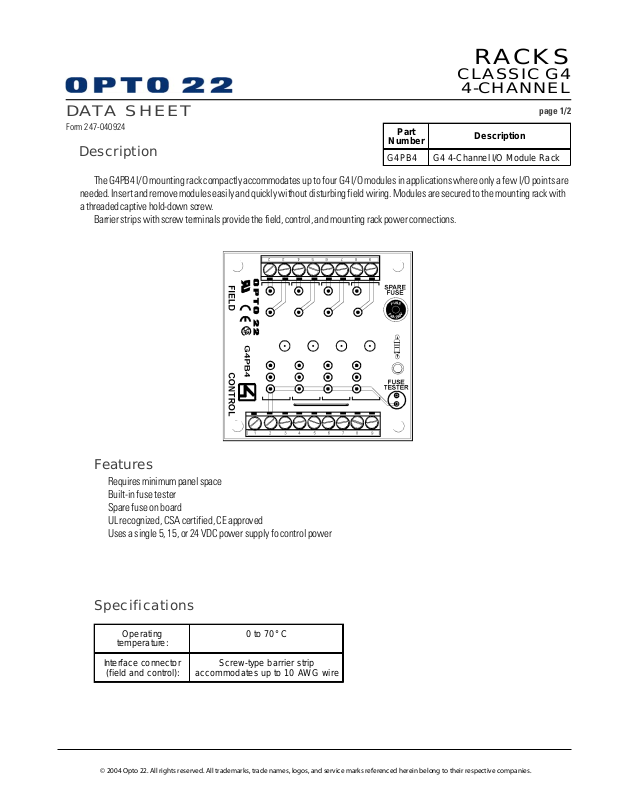

Opto 22 G4PB4 Data Sheet

RACKS

CLASSIC G4

4-CHANNEL

DAT A SHEET

Form 247-040924

Description

The G4PB4 I/O mounting rack compactly accommodates up to four G4 I/O modules in applications where only a few I/O points are
needed. Insert and remove modules easily and quickly without disturbing field wiring. Modules are secured to the mounting rack with
a threaded captive hold-down screw.

Barrier strips with screw terminals provide the field, control, and mounting rack power connections.

Part

Number

G4PB4 G4 4-Channel I/O Module Rack

Description

page 1/2

Features

Requires minimum panel space
Built-in fuse tester
Spare fuse on board
UL recognized, CSA certified, CE approved
Uses a single 5, 15, or 24 VDC power supply fo control power

Specifications

Operating

temperature:

Interface connector

(field and control):

© 2004 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.

accommodates up to 10 AWG wire

0 to 70° C

Screw-type ba rrier strip

RACKS

CLASSIC G4

4-CHANNEL

DAT A SHEET

Form 247-040924

Dimensions

page 2/2

Connections
