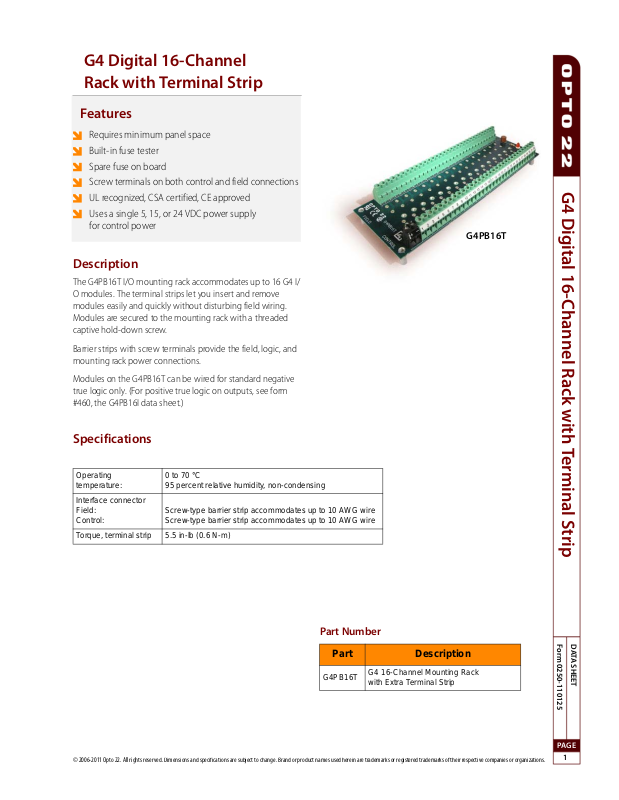

G4 Digital 16-Channel
Rack with Terminal Strip
Features
Requires minimum panel space
Built-in fuse tester
Spare fuse on board
Screw terminals on both control and field connections
UL recognized, CSA certified, CE approved
Uses a single 5, 15, or 24 VDC power supply
for control power
Description
The G4PB16T I/O mounting rack accommodates up to 16 G4 I/
O modules. The terminal strips let you insert and remove
modules easily and quickly without disturbing field wiring.
Modules are secured to the mounting rack with a threaded
captive hold-down screw.
Barrier strips with screw terminals provide the field, logic, and
mounting rack power connections.
G4 Digital 16-Channel Rack with Terminal Strip
G4PB16T
Modules on the G4PB16T can be wired for standard negative
true logic only. (For positive true logic on outputs, see form
#460, the G4PB16I data sheet.)
Specifications
Operating
temperature:
Interface connector
Field:
Control:
Torque, terminal strip 5.5 in-lb (0.6 N-m)
0 to 70 °C
95 percent relative humidity, non-condensing
Screw-type barrier strip accommodates up to 10 AWG wire
Screw-type barrier strip accommodates up to 10 AWG wire
Part Number
Part Description
G4PB16T
G4 16-Channel Mounting Rack
with Extra Terminal Strip
DATA SHEET
Form 0250-110125
© 2006-2011 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used here in are trademarks or registered trademarks of their respective companies o r organizations.
PAG E
1
Dimensions
G4 Digital 16-Channel Rack with Terminal Strip
DATA SHEET
PAG E
2
G4 Digital 16-Channel Rack with Terminal Strip
Form 0250-110125
© 2006-2011 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
G4 Digital 16-Channel Rack with Terminal Strip
Connections
G4 Digital 16-Channel Rack with Terminal Strip
Module
Poaition
10 21 and 22 21 and 22
11 23 and 24 23 and 24
12 25 and 26 25 and 26
13 27 and 28 27 and 28
14 29 and 30 29 and 30
15 31 and 32 31 and 32
Control
(Terminal
Strip)
0 1 and 2 1 and 2
1 3 and 4 3 and 4
2 5 and 6 5 and 6
3 7 and 8 7 and 8
4 9 and 10 9 and 10
5 11 and 12 11 and 12
6 13 and 14 13 and 14
7 15 and 16 15 and 16
8 17 and 18 17 and 18
9 19 and 20 19 and 20
(Terminal
Field
Strip)
Form 0250-110125
DATA SHEET
© 2006-2011 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used here in are trademarks or registered trademarks of their respective companies o r organizations.
PAG E
3
