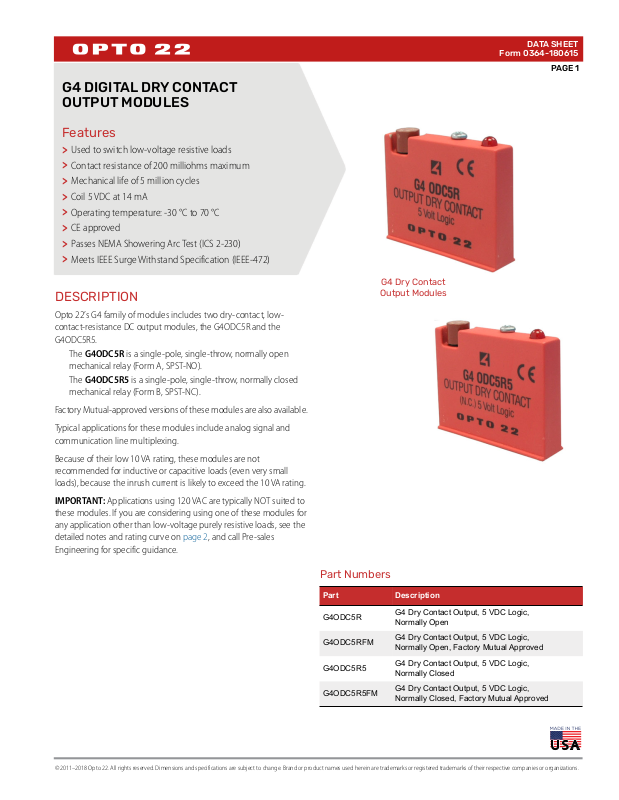

Opto 22 G4ODC5R, G4ODC5R5 Data Sheet
G4 DIGITAL DRY CONTACT
OUTPUT MODULES
Features
Used to switch low-voltage resistive loads
>
Contact resistance of 200 milliohms maximum
>
Mechanical life of 5 million cycles
>
Coil 5 VDC at 14 mA
>
Operating temperature: -30 °C to 70 °C
>
CE approved
>
Passes NEMA Showering Arc Test (ICS 2-230)
>
Meets IEEE Surge Withstand Specification (IEEE-472)
>
DESCRIPTION
Opto 22’s G4 family of modules includes two dry-contact, lowcontact-resistance DC output modules, the G4ODC5R and the
G4ODC5R5.
The G4ODC5R is a single-pole, single-throw, normally open
mechanical relay (Form A, SPST-NO).
The G4ODC5R5 is a single-pole, single-throw, normally closed
mechanical relay (Form B, SPST-NC).
DATA SHEET
Form 0364-180615
PAGE 1
G4 Dry Contact
Output Modules
Factory Mutual-approved versions of these modules are also available.
Typical applications for these modules include analog signal and
communication line multiplexing.
Because of their low 10 VA rating, these modules are not
recommended for inductive or capacitive loads (even very small
loads), because the inrush current is likely to exceed the 10 VA rating.
IMPORTANT: Applications using 120 VAC are typically NOT suited to
these modules. If you are considering using one of these modules for
any application other than low-voltage purely resistive loads, see the
detailed notes and rating curve on page 2, and call Pre-sales
Engineering for specific guidance.
Part Numbers
Part Description
G4ODC5R
G4ODC5RFM
G4ODC5R5
G4ODC5R5FM
G4 Dry Contact Output, 5 VDC Logic,
Normally Open
G4 Dry Contact Output, 5 VDC Logic,
Normally Open, Factory Mutual Approved
G4 Dry Contact Output, 5 VDC Logic,
Normally Closed
G4 Dry Contact Output, 5 VDC Logic,
Normally Closed, Factory Mutual Approved
© 2011–2018 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
SPECIFICATIONS
DATA SHEET
Form 0364-180615
PAGE 2
Contact form
Units
G4ODC5R
G4ODC5RFM*
Form A SPST
mechanical relay
G4ODC5R5
G4ODC5R5FM*
Form B SPST
mechanical relay
Normal position Open Closed
Contact rating VA 10 10
Maximum switching voltage
(see NOTE)
VDC 100 100
VAC 130 130
Maximum switching current A 0.5 (see NOTE) 0.5 (see NOTE)
Contact resistance Milliohms 200 200
Turn-on time microseconds 500 500
Turn-off time microseconds 500 500
Contact bounce microseconds 250 250
Mechanical life cycles 5 million 5 million
Logic voltage range VDC 4.8–6 4.8–6
Logic OFF voltage range VDC 0.0–0.8 0.0–0.8
Logic ON voltage range VDC 3.8–6 3.8–6
Indeterminate range VDC 0.8–3.8 0.8–3.8
Logic input current at
nominal logic voltage
Isolation voltage (transient)
input-to-output
milliamps 14 14
VDC 1,500 1,500
Ambient temperature:
Operating
Storage
°C
°C
0 to 70
-60 to +105
0 to 70
-60 to +105
*Part numbers ending in FM are Factory Mutual approved.
NOTE: The application of the dry contact
module must not exceed 10 VA under steadystate or momentary in-rush conditions.
For voltages at or below 20 volts, the current
limit is 0.5 amps.
For voltages above 20 volts, the maximum
allowable current is determined by the following equation:
Maximum Current = 10 VA / Voltage
10 VA Rating for Reed Relay (Dry Contact) Modules
Current Limit at
Key Voltages
VmA
5 500
12 500
24 416
1
100
120 83
2
130
1
Maximum DC voltage is 100 VDC.
2
Maximum AC voltage is 130 VAC.
© 2011–2018 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
100
76
