Opto 22 G4OAC5, G4OAC5A, G4OAC5A5, G4OAC5MA, G4OAC5AMA Data Sheet
G4 DIGITAL AC OUTPUT MODULES
Features
4000 volts optical isolation (transient)
>
Built-in LED status indicator
>
Logic levels of 5, 15, and 24 VDC
>
Removable fuse
>
Current rating: 3 amps at 45° C
>
UL Motor Load rating: 1.5 amps
>
Ability to withstand one-cycle surge of 80 amps
>
Operating temperature: -30 °C to 70 °C
>
DESCRIPTION
Opto 22’s G4 AC output modules are used to control or switch AC
loads. Each module provides up to 4000 volts of optical isolation
(transient) between field outputs and the control side of the circuit,
and each features zero voltage turn-on and zero current turn-off.
DATA SHEET
Form 0252-200212
PAGE 1

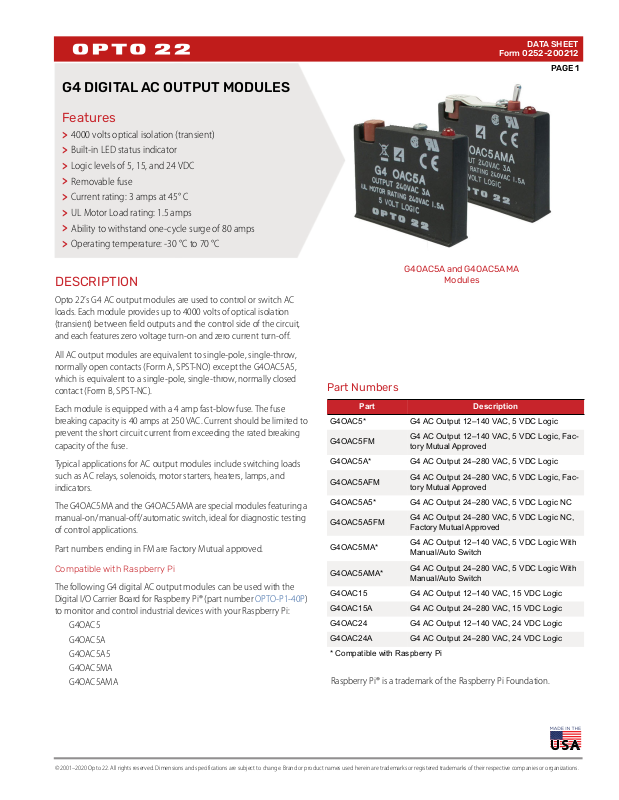

G4OAC5A and G4OAC5AMA
Modules
All AC output modules are equivalent to single-pole, single-throw,
normally open contacts (Form A, SPST-NO) except the G4OAC5A5,
which is equivalent to a single-pole, single-throw, normally closed
contact (Form B, SPST-NC).
Each module is equipped with a 4 amp fast-blow fuse. The fuse
breaking capacity is 40 amps at 250 VAC. Current should be limited to
prevent the short circuit current from exceeding the rated breaking
capacity of the fuse.
Typical applications for AC output modules include switching loads
such as AC relays, solenoids, motor starters, heaters, lamps, and
indicators.
The G4OAC5MA and the G4OAC5AMA are special modules featuring a
manual-on/manual-off/automatic switch, ideal for diagnostic testing
of control applications.
Part numbers ending in FM are Factory Mutual approved.
Compatible with Raspberry Pi
The following G4 digital AC output modules can be used with the
Digital I/O Carrier Board for Raspberry Pi® (part number OPTO-P1-40P)
to monitor and control industrial devices with your Raspberry Pi:
G4OAC5
G4OAC5A
G4OAC5A5
G4OAC5MA
G4OAC5AMA
Part Numbers
Part Description
G4OAC5* G4 AC Output 12–140 VAC, 5 VDC Logic
G4OAC5FM
G4OAC5A* G4 AC Output 24–280 VAC, 5 VDC Logic
G4OAC5AFM
G4OAC5A5* G4 AC Output 24–280 VAC, 5 VDC Logic NC
G4OAC5A5FM
G4OAC5MA*
G4OAC5AMA*
G4OAC15 G4 AC Output 12–140 VAC, 15 VDC Logic
G4OAC15A G4 AC Output 24–280 VAC, 15 VDC Logic
G4OAC24 G4 AC Output 12–140 VAC, 24 VDC Logic
G4OAC24A G4 AC Output 24–280 VAC, 24 VDC Logic
* Compatible with Raspberry Pi
Raspberry Pi® is a trademark of the Raspberry Pi Foundation.
G4 AC Output 12–140 VAC, 5 VDC Logic, Factory Mutual Approved
G4 AC Output 24–280 VAC, 5 VDC Logic, Factory Mutual Approved
G4 AC Output 24–280 VAC, 5 VDC Logic NC,
Factory Mutual Approved
G4 AC Output 12–140 VAC, 5 VDC Logic With
Manual/Auto Switch
G4 AC Output 24–280 VAC, 5 VDC Logic With
Manual/Auto Switch
© 2001–2020 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.
SPECIFICATIONS
DATA SHEET
Form 0252-200212
PAGE 2
Units
Nominal line voltage VAC 120 120/240 120/240 120 120/240
Output voltage range VAC 12–140 24–280 24–280 12–140 24–280
Key feature — — — Normally closed
Current rating:
At 45 °C ambient
At 70 °C ambient
UL Motor Load Rating A 1.5 1.5 1.5 1.5 1.5
Isolation input-tooutput (transient):
1 ms
1 minute
Off-state leakage at
nominal voltage (60 Hz)
Nominal logic voltage VDC 5 5 5 5 5
Logic voltage range VDC 4–8 4–8 4–8 4–8 4–8
Logic pickup voltage VDC 4 4 4 4 4
Logic dropout voltage VDC 1 1 1 1 1
Logic input current at
nominal logic voltage
Control resistance
(Rc in schematic)
One-cycle surge A peak 80 80 80 80 80
Turn-on time @ 60 Hz milliseconds 8.3*** 8.3*** 8.3*** 8.3*** 8.3***
Turn-off time @ 60 Hz milliseconds 8.3**** 8.3**** 8.3**** 8.3**** 8.3****
Peak repetitive voltage VAC 500 500 500 500 500
Minimum load current mA 20 20 20 20 20
Output voltage drop
maximum peak
Operating frequency Hz 25–65 25–65 25–65 25–65 25–65
dV/dT-off-state
dV/dT-commutating --
Temperature
Operating:
Storage:
* Compatible with Raspberry Pi
** Part numbers ending in FM are Factory Mutual approved.
*** One-half cycle maximum. Module turns on at the zero volt crossing of the AC sine wave.
**** One-half cycle maximum. Module turns off at the zero current crossing of the AC sine wave.
A
A
volts
mA
RMS
mA 12 12 12 12 12
ohms 220 220 220 220 220
V 1.6 1.6 1.6 1.6 1.6
V/micro-sec
onds
°C
°C
G4OAC5*
G4OAC5FM**
3
2
4000
1500
5 1.25/2.5 1.25/2.5 5 1.25/2.5
200 200 200 200 200
snubbed for
0.5 power
factor load
-30 to +70
-30 to +85
G4OAC5A*
G4OAC5AFM**
3
2
4000
1500
snubbed for
0.5 power
factor load
-30 to +70
-30 to +85
G4OAC5A5*
G4OAC5A5FM**
3
2
4000
1500
snubbed for
0.5 power
factor load
-30 to +70
-30 to +85
G4OAC5MA* G4OAC5AMA*
Diagnostic
switch
3
2
4000
1500
snubbed for
0.5 power
factor load
-30 to +70
-30 to +85
Diagnostic
switch
3
2
4000
1500
snubbed for
0.5 power
factor load
-30 to +70
-30 to +85
