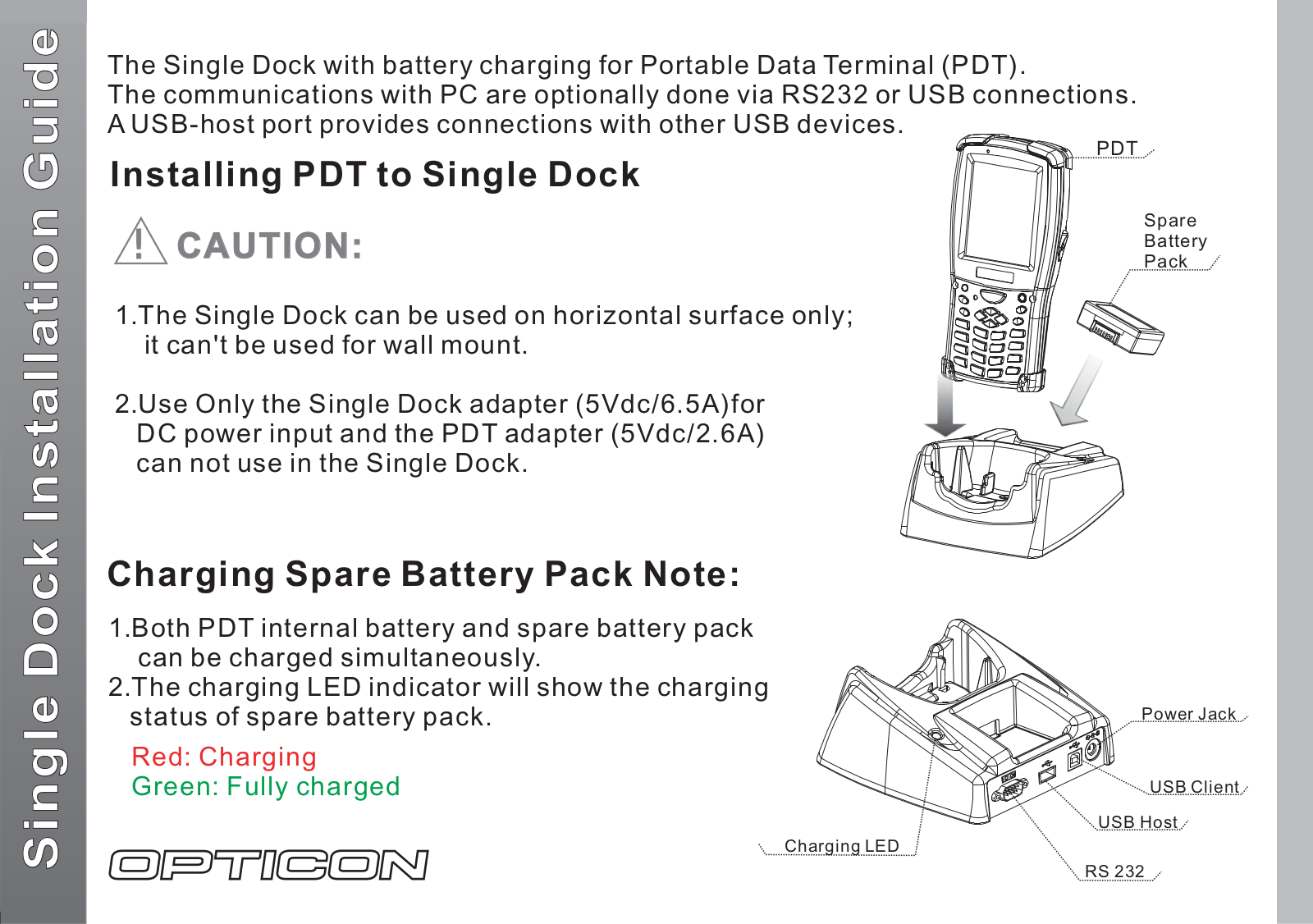

Opticon PHL 7000 Installation Guide

The Single Dock with battery charging for Portable Data Terminal (PDT).
The communications with PC are optionally done via RS232 or USB connections.
A USB-host port provides connections with other USB devices.

PDT

Installing PDT to Single Dock

CAUTION:

!

1.The Single Dock can be used on horizontal surface only;
it can't be used for wall mount.

2.Use Only the Single Dock adapter (5Vdc/6.5A)for
DC power input and the PDT adapter (5Vdc/2.6A)
can not use in the Single Dock.

Charging Spare Battery Pack Note:

1.Both PDT internal battery and spare battery pack
can be charged simultaneously.

2.The charging LED indicator will show the charging
status of spare battery pack.

Spare
Battery
Pack

Power Jack

Red: Charging

Green: Fully charged

Single Dock Installation Guide

USB Client

USB Host

Charging LED

RS 232
