1. Abstract
This manual provides specifications for the OPR 3001 handheld laser barcode scanner.
2. Overview
The OPR 3001 is a rugged handheld laser barcode scanner with protection against dust and
splashing water to ensure reliable operation in harsh environments. The OPR 3001 is enclosed
in a rugged housing sealed to IP-54 standards that withstands repeated drops of up to two
meters onto concrete.
Short-wavelength red laser beams enhance the visibility of scanning lines for easier aiming
under adverse lighting conditions. The OPR 3001 is available in USB, RS-232C, and Wedge
interfaces.
Supported symbologies:
• JAN/UPC/EAN/all add-on
Opticon
OPR 3001
• Codabar/NW-7, including ABC and CX
• Chinese Post Matrix 2 of 5
• Code 39: Normal Code 39 / Full ASCII Code 39 / Italian Pharmaceutical
• Code 11
• Code 93
• Code 128: EAN-128
• IATA
• Industrial 2of5
• Interleaved 2of5
• ISBN-ISMN-ISSN
• Korean Postal Authority code
• Matrix 2of5
• MSI/Plessey-UK/Plessey
• RSS: RSS-14 (incl. CC-A/B) RSS-Limited (incl. CC-A/B)/ RSS-Expanded (incl. CC-
A/B)
• Composite Codes: UCC/EAN-128 (incl. CC-A/B/C)
• S-Code
• Telepen
• Tri-Optic
• PDF417
• MicroPDF417
6
3. Physical Features
3.1. Dimensions
W 68 X D 150 X H 155 mm (except protruding portion)
3.2. Weight
230ｇ max (excluding cable).
4. Environmental Specifications
4.1. Operating Temperature and Humidity
Temperature: -10 to +60° C
Humidity: 5 to 90% RH
4.2. Storage Temperature and Humidity
Temperature: -30 to +70° C
Opticon
OPR 3001
Specifications Manual
Humidity: 5 to 90% RH
4.3. Ambient Light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode
surface is between zero and the following values:
Incandescent light to 4,000 lx
Fluorescent light to 4,000 lx
Sunlight to 80,000 lx
Figure 1: Ambient light immunity
7
Opticon
OPR 3001
Specifications Manual
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS: 0.9
Resolution: 0.25 mm
Symbology: 9-digit Code-39
Quiet Zone: 10 mm
N/W Ratio: 1:2.5
Distance: 100 mm from the edge of scanner
Angle: α = 0° β = 15° γ = 0°
Curvature: R = ∞
Power supply voltage: 6.0 V
Direct light or specular reflection light from a source should be prevented from entering
the acceptance area.
5. Electrical Specifications
5.1. Electrical Characteristics
Parameter Symbol Min Typ Max Unit Remarks
Power supply voltage
Operating current
Rush current
Stand-by current
Conditions:
• Connect 1Ω resistance to a power supply line in series and measure the
current by the voltage between both ends of resistance.
• Power supply voltage is measured at a connector terminal area.
• The current value depends on the host computer to which the device is
connected.
I
I
PEEK
I
PRE
OP
5.4 6.0 6.6 V RS-232C
4.5 5.0 5.5 V USB and Wedge
- 96 130 mA RS-232C when emitting
- 90 125 mA USB and Wedge when emitting laser
- 400 600 mA RS-232C
- 300 500 mA USB and Wedge
- 35 60 mA RS-232C
- 30 55 mA USB and Wedge
8
6. Optical Specifications
6.1. Laser Scanning Specification
Parameter Specification Unit
Light-emitting Element Red laser diode -
Emission Wavelength 650 ±10 (25° C) nm
Light Output 1.0 or less mW
Scanning Method Bi-directional scanning -
Scanning Speed 100 ±20 scans/s
6.2. Laser Scanning Standard
Opticon
OPR 3001
Specifications Manual
Scan angle: 54 ±5 ° Scan Angle
Effective scan angle: 44 (Min) °
6.2.1. Laser Scanning Tilt
Laser scanning tilt is the vertical difference between both ends of a laser scan
line. Measure it in the middle of the laser scan line.
• Up to 1.2 degrees angle in vertical direction from the scan origin (mirror
motor).
• Up to 3.1 mm at 150 mm from the scan origin.
6.2.2.
Scanning Curvature
The maximum difference between the laser scan line and the line between both
ends of the laser scan line. Measure it in the middle of the laser scan line.
• Up to 1.27 degrees angle in vertical direction from the scan origin (mirror
motor).
• Up to 3.3 mm at 150 mm from the scan origin.
Figure 2: Laser scanning tilt and curvature
9
Specifications Manual
7. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each
section.
Conditions
Ambient Temperature and Humidity 21º C/70º F, 60% RH
Ambient Light 500 to 900 lx
Background Barcode = black
Space = white
Margin = white
Background of label = black
Power Supply Voltage 6.0 V (RS-232C) / 5.0 V (USB and Wedge)
Decoding Test Approve the performance when decoding is successful in all ten
tests.
(Decoding is deemed successful when completed in 0.5 second or
less.)
Opticon
OPR 3001
7.1. Print Contrast Signal (PCS)
0.45 or higher (over 70% of reflectivity of space and quiet zone).
10
Specifications Manual
7.2. Scan Area and Resolution
The depth of field is measured from the edge of the scanner. The scanning range is
within the circular arc centered on the scan origin.
Opticon
OPR 3001
Figure 3: Scan area and resolution (in mm)
Resolution Symbology PCS Quiet Zone Digit Decode
depth (mm)
1.0 mm CODE-39 0.9 25 mm 1 30 - 590
0.5 mm CODE-39 0.9 18 mm 3 10 - 360
0.25 mm CODE-39 0.9 10 mm 8 10 - 200
0.15 mm CODE-39 0.9 7 mm 10 10 - 90
0.127 mm CODE-39 0.9 5 mm 4 20 - 60
Conditions:
Barcode Sample: OPTOELECTRONICS Test Sample
N/W Ratio: 1:2.5
Angle: α = 0°, β = 15°, γ = 0°
Curvature:
Ｒ = ∞
11
7.3. Pitch, Skew, and Tilt
7.3.1. Pitch Angle
α = ±35°
°
5
3
3
＝
α
Opticon
OPR 3001
Specifications Manual
＝
α
°
5
Figure 4: Pitch
12
7.3.2. Skew Angle and Dead Zone
Skew angle: β = ±50° (Excluding dead zone)
Dead zone: β = ±8° (There are some areas in which decoding fails due to
specular reflection)
Opticon
OPR 3001
Specifications Manual
Figure 5: Skew angle and dead zone
13
7.3.3. Tilt Angle
γ = ±20°
°
0
2
＝
γ
°
0
2
＝
γ
Conditions
Opticon
OPR 3001
Specifications Manual
Figure 6: Tilt angle
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 60 mm from the edge of the scanner
Label:
Angle:
Curvature: R = ∞
Pitch Angle, Skew Angle, Dead Zone
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet Zone = 10 mm
N/W Ratio = 1:2.5
Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Pitch Angle: Skew Angle β = +15°, Tilt Angle γ = 0°
Tilt Angle: Pitch Angle α = 0°, Skew Angle β = +15°
Skew Angle, Dead Zone: Pitch Angle α = 0°, Tilt Angle γ = 0°
14
Specifications Manual
7.4. Curvature
With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15
mm.
With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20
mm.
Figure 7: Curvature
Opticon
OPR 3001
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm
Distance: 60 mm from the edge of the scanner
Angle: Skew Angle β = +15°
15
8. Interface Specifications
8.1. RS-232C Interface Specification
8.1.1. Settings and Communication
Reading menu barcodes [ZZ] + [U2] + [ZZ] can set the RS-232C interface default.
Item [U2] setting
Baud rate 9600 BPS
Start/stop bits 1 bit
Data bits 8 bits
Parity bits No parity
Handshaking No handshake
Flow Control Time Out Indefinitely
Opticon
OPR 3001
Specifications Manual
8.1.2.
• You can change the communication condition using the menu barcode.
Signal Level
Signal Name I/O RS-232C Level (V)
Mark/OFF Space/ON
TxD OUT -5 to -15 +5 to +15
RxD IN -3 to -15 +3 to +15
RTS OUT -5 to -15 +5 to +15
CTS IN -3 to -15 +3 to +15
16
8.1.3. Interface Circuit
Opticon
OPR 3001
Specifications Manual
8.1.4. Character Format
Figure 9:Character format (same for both sending and receiving)
Figure 8: Interface circuit
17
8.1.5. Communication Format
Figure 10: Communication format
8.1.6. Handshaking
Select handshaking options using the menu or command listed below.
Handshaking Menu/Command
No handshake P0
BUSY/READY P1
MODEM P2
ACK/NAK P3
ACK/NAK NO RESPONSE P4
Opticon
OPR 3001
Specifications Manual
a) No Handshaking
The scanner attempts the communication regardless of the state of the host
computer.
Figure 11: No handshaking
b) BUSY/READY
The scanner and the host computer notify each other of their state and
whether they can receive data with BUSY/READY through an RTS line. They
can communicate state to each other through a CTS line when connected as
in the following figure.
Figure 12: Busy/Ready communication
18
Opticon
OPR 3001
Specifications Manual
The scanner stays ON (is able to receive data) except during certain parts of
the process, such as receiving data (buzzer command execution), transmitting
data, and menu processing. The scanner checks the CTS line before
transmitting data. When it is ON, the scanner transmits data. When it is OFF,
the scanner waits for it to turn ON within a set time. The scanner will abort
transmission with an error indication (buzzer) when the CTS line is not ON
within a specified period. The Flow Control time-outs are as follows, and the
default setting is “indefinitely“ (I0).
Flow Control Time Out Menu/Command
Indefinitely I0
100 ms I1
200 ms I2
400 ms I3
Figure 13: Cannot receive command
CTS, TxD signal timing
When the CTS line is turned OFF while sending a TxD signal, the scanner transmits one character and waits.
When the RTS signal is turned ON while transmitting a character, the character will be transmitted.
Figure 14: Signal timing
Note: When using loopback (wire connection) for CTS, RTS line of the scanner in this setting,
No handshake is not enabled.
19
Specifications Manual
c) MODEM
The scanner turns CS line ON before transmitting data. Other processes are
the same as BUSY/READY.
Opticon
OPR 3001
Figure 15: Modem transmit data
20
OPR 3001
Specifications Manual
d) ACK/NAK
After data has been transmitted, the scanner expects to receive one of the
following responses from the host:
• ACK response—Action: The scanner completes transmission with the
good-read buzzer and returns to the initial state.
• NAC response—Action: The scanner sends the data again and waits for
the response from the host.
• DC1 response—Action: The scanner returns to waiting for the trigger, if it
has a trigger (the initial state).
• None response—Action: The scanner sounds the error buzzer and returns
to the initial state.
ACK/NAK timeout can be set as follows using the menu or commands.
ACK/NAK timeout Menu / Command
Opticon
Indefinitely (default)
100 ms
500 ms
1000 ms
XI4
XI5
XI6
XI7

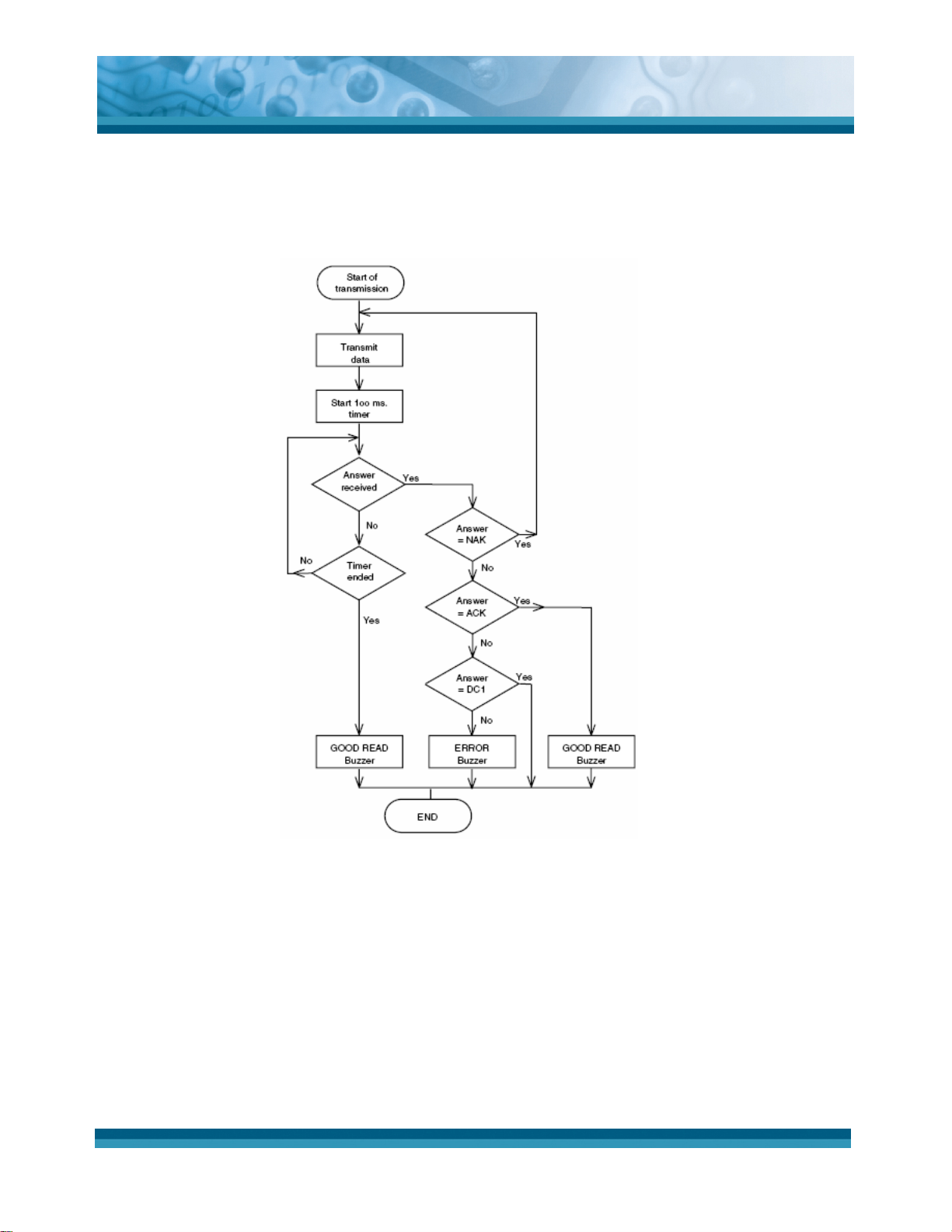

Figure 16: ACK/NAK
21
OPR 3001
Specifications Manual
e) ACK/NAK NO RESPONSE
When no response from the host is received within the setting time, the
scanner assumes an ACK response, and returns to the initial state without the
error buzzer. The other actions are the same as ACK/NAK.
Opticon
Figure 17: ACK/NAK—No response
22
8.2. USB Interface Specification
8.2.1. Settings and Communication
Reading menu barcodes [ZZ] + [SU] + [ZZ] can set the USB interface default.
The OPR 3001 USB model uses a full-speed USB interface.
Opticon
OPR 3001
Specifications Manual
8.2.2.
Interface Circuit
Figure 18: USB interface circuit
Do not operate the keyboard while the scanner is transmitting the data to the host;
it may cause data transactions to fail.
8.3. Wedge Interface Specification
8.3.1. Settings and Communication
a) With desktop PC (using external keyboard)
Reading menu barcodes [ZZ] + [UB] + [KM] + [ZZ] can set the DOS/V Wedge
interface default.
b) With notebook PC (not using external keyboard)
Reading menu barcodes [ZZ] + [UB] + [KL] + [ZZ] can set the DOS/V Wedge
interface default.
Do not operate the keyboard while the scanner is transmitting the data to the host;
it may cause data transactions to fail.
23
9. Cable and Connector
9.1. Cable Specifications
9.1.1. RS-232C Cable
(Standard specification)
Type: Straight
Diameter: Φ4.8 ±0.5 mm
Length: 1500 ±50 , -0 mm
Cores: 8 insulated wires, 1 conductive wire
Weight: Approximately 80 g
Opticon
OPR 3001
Specifications Manual
Figure 19: RS-232C cable
a) Pin Assignment
Pin No Signal Name Notes
1 NC Open (not assigned)
2 TXD
3 RXD
4 --- Pin no. 6 and jumper
5 GND
6 --- Pin no. 4 and jumper
7 CTS
8 RTS
9 NC Open (not assigned)
Connector: A connector with a plug for external power supply (D-sub, 9-pin,
female)
Power Supply: φ4.0 (inside diameter: φ1.7)
Exterior electrode of the plug is GND and interior electrode is +.
24
Opticon
OPR 3001
Specifications Manual
9.1.2. USB Cable
(Standard specification)
Type: Straight
Diameter: Φ4.8 ±0.5 mm
Length: 1500 ±50, -0 mm
Cores: 4 insulated wires, 1 conductive wire
Weight: Approximately 60 g

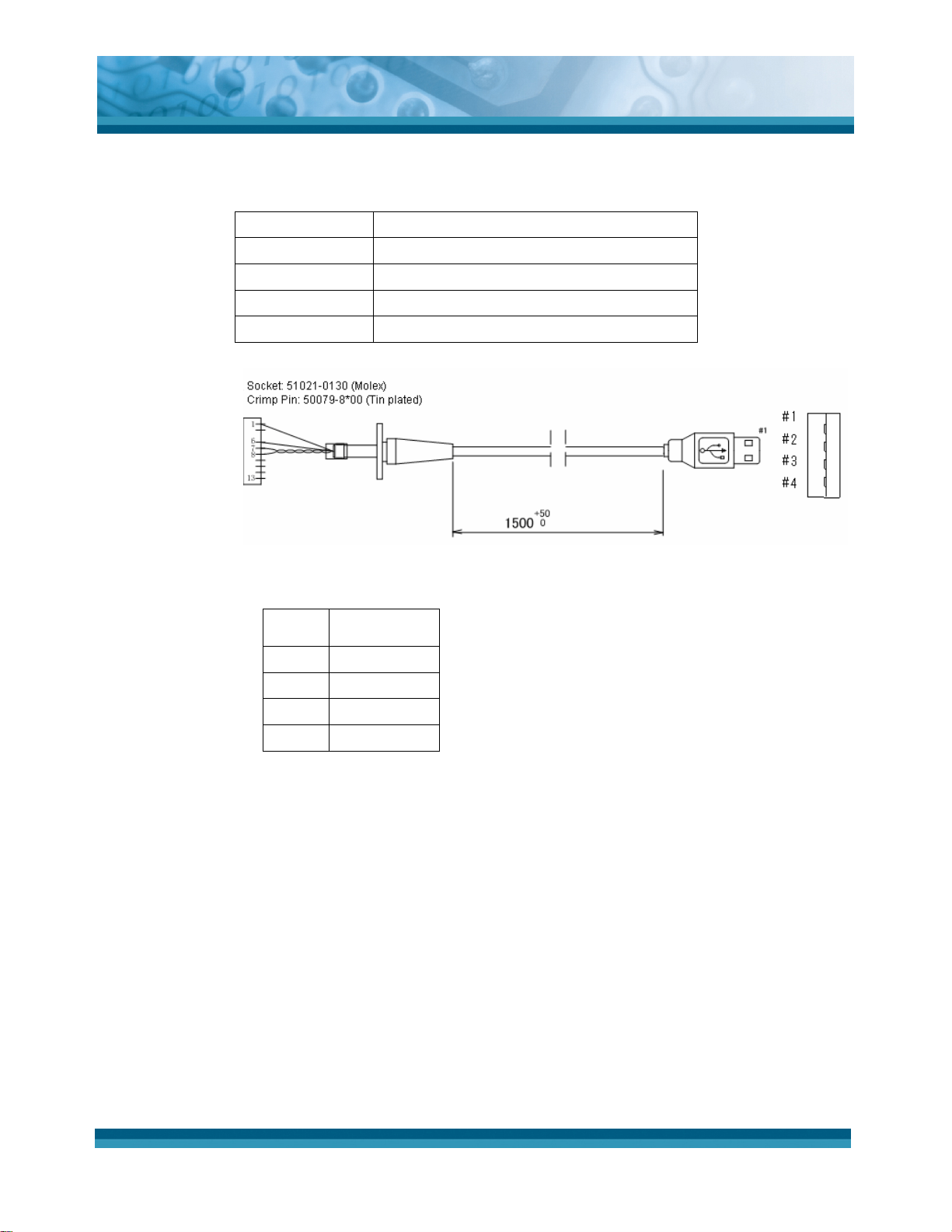

Figure 20: USB cable
a) Pin Assignment
Pin No Signal Name
1 VCC
2 -DATA
3 +DATA
4 GND
25
Opticon
OPR 3001
Specifications Manual
9.1.3. Wedge Cable
(Standard specification)
Type: Y cable
Diameter: Φ4.8 ±0.5 mm
Length: 1500 ±50 , -0 mm
Cores: 8 insulated wires, 1 conductive wire
Weight: Approximately 80 g
a) Pin Assignment
DOS/V Host Side DOS/V Keyboard Side
Pin No Signal Name Pin No Signal Name
1 CPU_DATA 1 KEY_DATA
2 --- 2 ---
3 GND 3 GND
4 VCC 4 VCC
5 CPU_CLK 5 KEY_CLK
6 --- 6 ---
Figure 21: Wedge cable
26
9.2. Scanner Connector Specification
CN801 (13-pin)
Signal Name
Pin Number
RS-232C USB Wedge
1 NC VCC VCC
2 R×D NC NC
3 T×D NC NC
4 NC NC CPU_CLK
5 NC NC CPU_DATA
6 GND GND GND
7 NC USB+ NC
8 NC USB- NC
9 NC NC KB_DATA
10 NC NC KB_CLK
11 CTS NC NC
12 RTS NC NC
13 VCC NC NC
Opticon
OPR 3001
Specifications Manual
10. Readable Barcodes
10.1. Menu Barcodes: Default Settings
Default menu barcodes set the scanner to factory defaults.
RS-232C Default
Functions Menu labels Menu codes
SET
RS-232C
Single tone
buzzer: 3 kHz*
Buzzer duration:
50 ms*
Read mode
options: Single
read*
END
_ZZ_
_U2_
_W1_
_W7_
_S0_
_ZZ_
ZZ
U2
W1
W7
S0
ZZ
27
Opticon
OPR 3001
Specifications Manual
* If you are using software version TS01Y04 or later, it is not necessary to configure the
foregoing settings.
USB-HID Default
Functions Menu labels Menu codes
SET
USB default
END
Wedge Default (with external keyboard)
Functions Menu labels Menu codes
SET
AT Wedge
default
Keyboard layout:
with keyboard
END
Wedge Default (without external keyboard)
Functions Menu labels Menu codes
_ZZ_
_SU_
_ZZ_
_ZZ_
_UB_
_KM_
_ZZ_
ZZ
SU
ZZ
ZZ
UB
KM
ZZ
SET
AT Wedge
default
Keyboard layout:
without keyboard
END
_ZZ_
_UB_
_KL_
_ZZ_
ZZ
UB
KL
ZZ
28
10.2. Default Settings 1: Readable Codes
Opticon
OPR 3001
Specifications Manual
Code type Reading Transmit
Length
UPC-A
UPC-A Add-on
UPC-E
UPC-E Add-on
EAN-13
EAN-13 Add-on
EAN-8
EAN-8 Add-on
Code-39
Code-39 Trioptic
NW-7 (CODABAR)
Industrial2of5
Interleaved2of5
Code-93
Code-128
EAN-128
S-Code
MSI/Plessey
UK/Plessey
Telepen
Matrix2of5
Chinese Post
Matrix 2of5
IATA
RSS-14
RSS-limited
RSS-expanded
PDF417
MicroPDF417
Code 11
X X
X X
X X
X X
X X
X X
X X
X X
X X
X X
X X - X X - X X X
Transmit
Code
X
X
X
X
X
X
X
X
X
X
X
X
X CD1 CD1
X
X X
X
CD
Calculate
CD
X
X
X
X
X
X
X
X
X
Prefix Suffix Transmit
Other
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR Not transmit
ST/SP
- CR Not transmit
ST/SP
- CR Not transmit
ST/SP
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
- CR
29
Notes:
• In the “Reading” column, “” means “Enable reading” and “X” means “Disable
reading.”
• In the “Transmit code length” column, “” means “Transmit code length” and
“X” means “Do not transmit code length.”
• In the “Transmit CD” column, “” means “Transmit check digit” and “X” means
“Do not transmit check digit.”
• In the “Calculate CD” column, “” means “Calculate check digit” and “X”
means “Do not calculate check digit”.
10.3. Default Settings 2: Read Options, Trigger, Buzzer
Item Default Setting
Setting the number of characters Fixed length OFF all codes
Read mode Multiple read
Multiple read reset time 500 ms
Add-on wait mode 500 ms
Multiple read Disable multiple read
Multiple columns read Disable multiple columns read
Redundancy Read 1 times, redundancy = 0
Trigger switch Enable trigger
Trigger repeat Disable trigger repeat
Auto trigger Disable auto trigger
Read time 2 seconds
Margin check Margin check normal
Buzzer duration 50 ms
Buzzer tone 3 kHz (single tone)
Buzzer loudness Maximum
Buzzer timing Buzzer before transmission
Startup buzzer Enable startup buzzer
Indicator duration 200 ms
Opticon
OPR 3001
Specifications Manual
30
11. Serial Number
The serial number as shown below is affixed to the scanner.
Opticon
OPR 3001
Specifications Manual

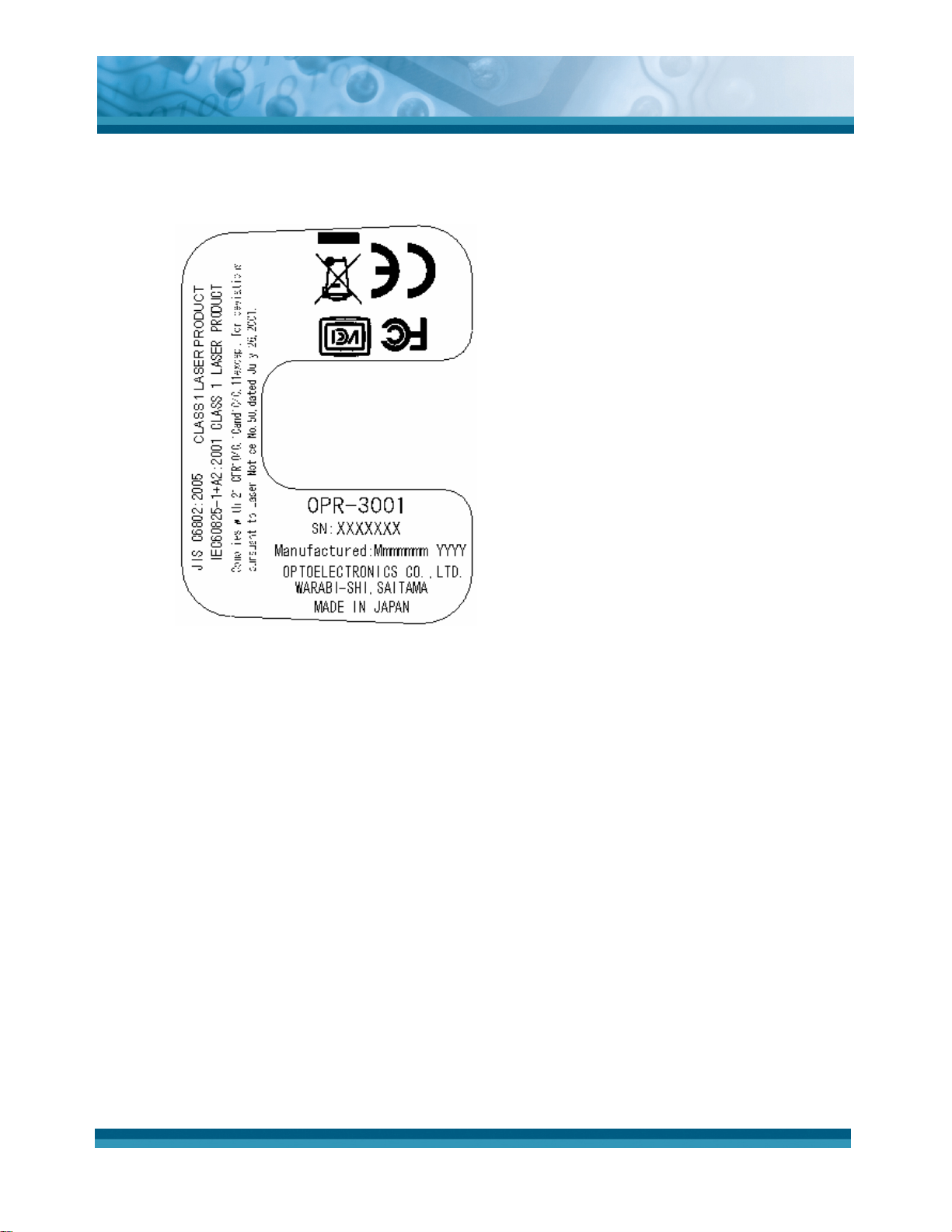

Figure 22: Serial number diagram
31
12. Packaging Specifications
12.1. Individual Packaging Specification
Put the scanner in a protective foam bag and place it in a single packing box.
The scanner shown is an RS-232C unit. Descriptions on an individual packaging box
label differ, depending on the interface type. The “RO” mark may be indicated on the
upper side of the individual packaging box label.
Opticon
OPR 3001
Specifications Manual
Figure 23: Individual packaging
32
Specifications Manual
12.2. Collective Packaging Specification
The scanner shown is an RS-232C unit. Descriptions on a collective packaging box label
differ, depending on the interface type. The “RO” mark may be indicated on the upper
side of the individual packaging box label.
Opticon
OPR 3001
Figure 24: Collective packing
Note: The “RO” mark labeled on the package tray or package box guarantees that the
applicable product has passed our test of RoHS restrictions compliance (the restriction of
the use of certain hazardous substances in electrical and electronic equipment, 2002/95
EC). However, this document does not have any legal weight in the European Union.
33
13. Durability
13.1. Electrical Noise
No malfunction should occur when sinusoidal electrical noise (10Hz -100kHz, < 0.1Vpp)
is added to a power supply line.
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS: 0.9
Resolution: 0.25 mm
Symbology: 9-digit Code-39
Quiet Zone: 10 mm
N/W Ratio: 1:2.5
Distance: 100 mm from the edge of scanner
Angle: α = 0° β = 15° γ = 0°
Curvature: R = ∞
Power Supply Voltage: 6.0 V (RS-232C) / 5.0 V (USB and Wedge)
Opticon
OPR 3001
Specifications Manual
13.2. Static Electricity
Air discharge: 8 kV max (No malfunction)
Contact discharge: 6 kV
Measurement environment: Use electrostatic testing device compliant with IEC 61000-4-2
Discharge resistance: 330 Ω
Capacitor charging: 150 pF
15 kV max (No destruction)
Contact discharge at the hook and the screw
34
13.3. Shock
13.3.1. Product Drop Test
No malfunction should occur after the following drop test.
As shown below, drop the scanner from 200 centimeters above the concrete floor
(three times from each of 6 angles).
Opticon
OPR 3001
Specifications Manual
Figure 25: Product drop test
13.3.2. Shock: Individual Package Drop Test
No malfunction should occur after the following drop test.
Drop the individual package box from 150 centimeters above the concrete floor
(ten times from random angles: on its top, bottom, front, back, left, right, top-left,
top-right, bottom-left, bottom-right).
13.4. Vibration Strength
13.4.1. Vibration (without packaging)
Swept with 10 Hz to 100 Hz, acceleration 19.6 m/s2 (2.0G). Added a vibration to
each X, Y and X direction for 30 minutes (1 cycle = 60 minutes) under nonoperational conditions. Observed no abnormality in either appearance or
performance.
13.4.2.
Vibration (individual packaging)
Swept with 10 Hz to 100 Hz, acceleration 19.6 m/s2 (2.0G). Added a vibration to
each X, Y and X direction for 30 minutes (1 cycle = 60 minutes) with individual
packaging. Observed no abnormality in either appearance or performance.
13.5. Dust and Water Proof
IEC IP54
35
13.6. Cable Strength
13.6.1. Cable Pull Strength
Affixed the scanner to an immovable object and pulled it using a force of 49N (5.0
kgf) for 1 minute. Observed no abnormality in either structure or performance.
Opticon
OPR 3001
Specifications Manual
13.6.2.
Cable Bend Strength
As shown below, added a load of 4.9N (500 g) to a cable then bent it at an angle
of 90 degrees to both right and left. Count 1 time by bending to either side;
repeated this 3 million times on RS-232C and Wedge cables and repeated 1
million times on USB cable. Observed no abnormality in either structure or
performance. Note: Cable bending resistance is not warrantable.
Figure 26: Cable bend strength
14. Reliability
MTBF (mean time between failures) of this product except for the laser diode and the mirror
motor scan unit is 30,000 hours.
Life cycle of the laser diode is 10,000 hours and that of the mirror motor scan unit is also
10,000 hours.
The estimate of MTBF and product life cycle is based on standard operation of the product
within the recommended temperature range and without extreme electronic or mechanical
shock.
36
Specifications Manual
15. Auto Trigger (Option)
The OPR 3001 has an optional auto trigger setting, which starts barcode reading automatically
by using sensor detection. When auto trigger is enabled, a laser beam is emitted and points to
the auto trigger area. The scanner starts barcode reading after detecting reflection from the
surface when the auto trigger is used.
Auto trigger distance: 40 mm from the edge of the scanner.
Conditions
Moving Speed: 100 ±10 mm/s
Angle: Skew angle, excluding pitch angle and dead zone
Environmental Temperature and
Humidity:
Environmental luminance: 500 to 900 lx
Conditions for the auto trigger: 1. Barcode sheet: OPTOELECTRONICS Test Sheet (white)
Room temperature and humidity
Background: OPTOELECTRONICS Test Sheet (black)
2. Barcode sheet: OPTOELECTRONICS Test Sheet (black)
Background: OPTOELECTRONICS Test Sheet (white)
Opticon
OPR 3001

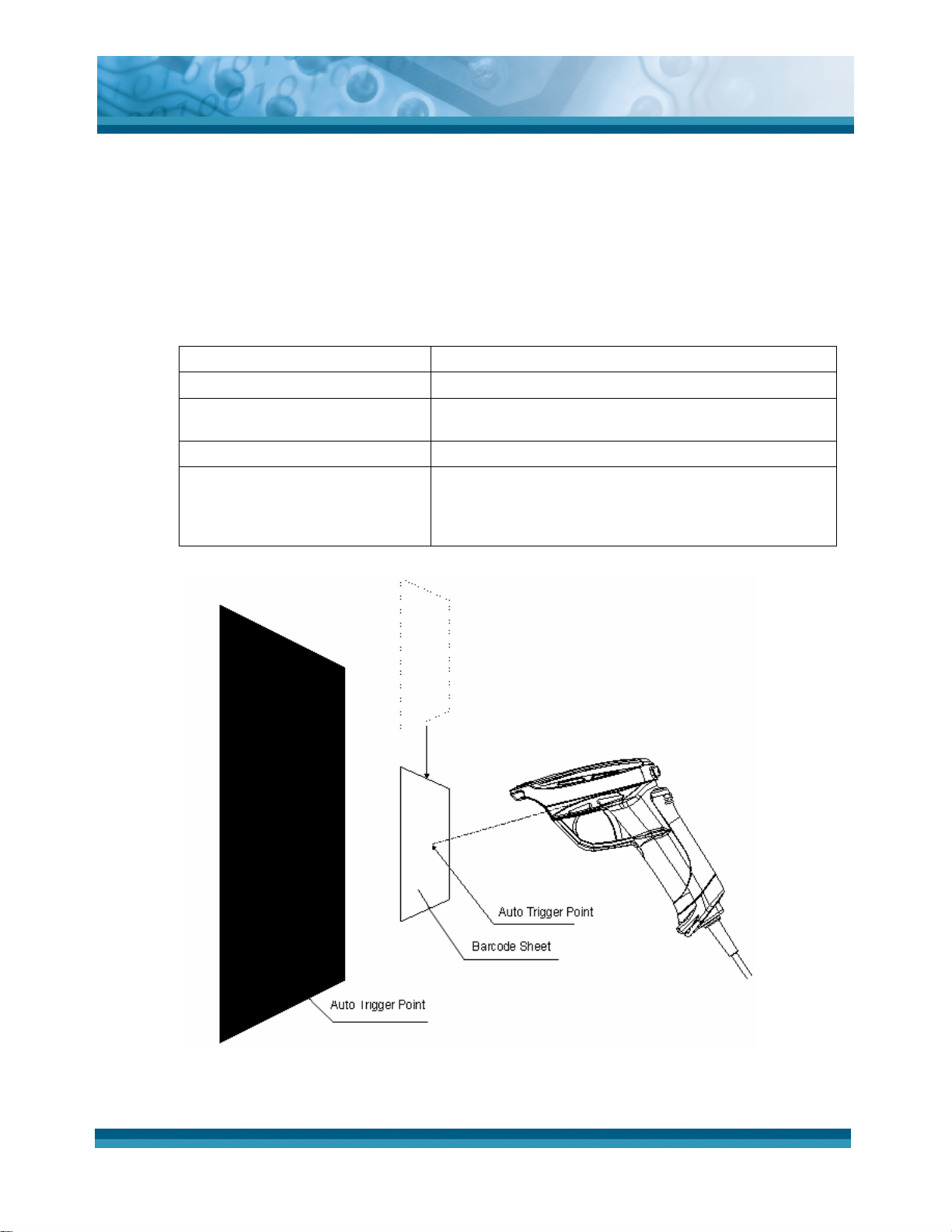

Figure 27: Auto trigger
37
15.1.1. Auto Trigger Settings
Functions Menu labels Menu codes
Opticon
OPR 3001
Specifications Manual
SET
Disable auto trigger
Enable auto trigger
END
16. Regulatory Compliance
16.1. Laser Safety
The scanner emits laser beams.
• JIS C6802: 2005: Laser class 1
• IEC 825-1/EN 60825-1: Laser class 1
• FDA CDRH Laser class I. Complies with 21 CFR 1040.10 and 1040.11 except
for deviations pursuant to laser notice No. 50 dated July 26, 2001
Class 1 laser devices are not considered to be hazardous when used for their intended
purpose. Avoid staring into the laser beam.
16.2. Product Safety
EN60950-1: 2001
_ZZ_
_+F_
_+I_
_ZZ_
ZZ
+F
+I
ZZ
IEC60950-1: 2001
16.3. EMC
EN55022
EN55024
FCC Part15 Subpart B Class B: This device complies with part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
VCCI Class B: This is a Class B product, to be used in a domestic environment, based on
the Technical Requirement of the Voluntary Control Council for Interference from
Information Technology Equipment (VCCI). If this is used near a radio or television
receiver in a domestic environment, it may cause radio interference.
16.4. RoHS
The restriction of the use of certain hazardous substances in electrical and electronic
equipment, 2002/95 EC
38
17. Safety
17.1. Shock
• Do not throw or drop the scanner.
• Do not place heavy objects on the cables.
17.2. Temperature Conditions
• Do not use the scanner at temperatures outside the specified range.
• Do not pour boiling water on the scanner.
• Do not throw the scanner into the fire.
• Do not forcibly bend the cables at low temperatures.
17.3. Foreign Materials
• Do not immerse the scanner in liquids.
• Do not subject the scanner to chemicals.
Opticon
OPR 3001
Specifications Manual
17.4. Other
• Do not plug/unplug the connectors before disconnecting the power.
• Do not disassemble this product.
• Do not use the scanner near a radio or a TV receiver. It may cause reception
problems.
• The scanner may be damaged by voltage drops.
• The scanner may not perform properly in environments when placed near a flickering
light, such as a computer monitor, television, etc.
39
18. Mechanical Drawing
Dimensions: 3 W 68 X D 150 X H 155 (mm) (except protruding portion)
Opticon
OPR 3001
Specifications Manual
Figure 28: Mechanical drawing
40
Loading...
